Application Lifecycle Management for Industrial IoT Devices in Smart

Grid Use Cases

Stephan Cejka

, Florian Kintzler

, Lisa M

ullner

, Felix Knorr

, Marco Mittelsdorf

and J

orn Schumann

Siemens AG

Osterreich, Vienna, Austria

Fraunhofer Institute for Solar Energy Systems ISE, Freiburg, Germany

{marco.mittelsdorf, joern.schumann}@ise.fraunhofer.de

Keywords:

Software Management, Software Rollout, Cyber-physical System, Application Lifecycle Management,

Dependability.

Abstract:

Complex cyber-physical systems like the Smart Grid, in which Industrial Internet of Things (IIoT) technology

is used, require advanced software maintenance mechanisms to remain dependable and secure. In this paper,

requirements and tasks for an application lifecycle management for IIoT use cases, with special focus on the

domains of Smart Grid and Smart Buildings, are deﬁned and state-of-the-art software deployment processes

from IoT use cases are evaluated for usage in those domains. As there is no suitable framework, an approach

for the deployment of OSGi components is described. On top of such software deployment tools, a knowledge-

based software management framework that utilizes domain speciﬁc knowledge to create and execute software

rollout plans will be presented. Thus, dependencies can be managed on device, system and domain level.

1 INTRODUCTION

Cyber-physical systems (CPS) require careful main-

tenance of all parts of the system to achieve a prede-

ﬁned level of dependability and security. This main-

tenance includes rollout, update, and decommission-

ing of software on ﬁeld devices. The usage of Inter-

net of Things technology in industrial cyber-physical

systems (Industrial Internet of Things – IIoT) signif-

icantly emphasizes this requirement since the num-

ber of small and medium sized devices that may be

affected by security issues or bugs preventing cor-

rect operation increases signiﬁcantly (Razzaq et al.,

2017). One of these systems is the Smart Grid (Yu

and Xue, 2016), in which ﬁeld devices monitor and

control hardware to generate, transmit, store, provide,

and consume energy. The transition from the tradi-

tional grid to the Smart Grid includes equipping sec-

ondary substations, located on the borders between

the medium and the low voltage grid, with mecha-

nisms to allow software modules to be installed on

demand and maintained centrally from a remote op-

erator (Faschang et al., 2017).

In this paper, processes for the large scale rollout

of software applications, especially in use cases of

energy and grid management are investigated. They

involve a high number of intelligent Secondary Sub-

stations (iSSNs) and an even higher number of Build-

ing Energy Management Systems (BEMSs) using a

central control center for the supervision and man-

agement of software components’ operation on the

devices in the ﬁeld (Kintzler et al., 2018). Stable

and resilient system operation is required in this set-

ting where communication systems are used for Smart

Grid runtime operation (such as monitoring), con-

trols and Information and Communication Technol-

ogy (ICT) maintenance (such as application deploy-

ment, patching, and remote conﬁguration). In con-

trast to Internet of Things use cases, the installation

of a module does not only affect one device. Indus-

trial IoT applications interact with external systems

(e.g., the power grid) which may become a hidden

communication channel (Kintzler et al., 2018). It is

thus important to ensure that the running apps work

together correctly. Therefore, the deployment process

must be resilient to faults and attacks in both the ICT

and the power grid system.

This paper deﬁnes requirements and tasks for an

application lifecycle management for IIoT use cases,

especially with focus on the domain of Smart Grid

and Smart Buildings. An overview on software de-

ployment processes in the Smart Grid and the cus-

Cejka, S., Kintzler, F., Müllner, L., Knorr, F., Mittelsdorf, M. and Schumann, J.

Application Lifecycle Management for Industrial IoT Devices in Smart Grid Use Cases.

DOI: 10.5220/0009389602570266

In Proceedings of the 5th International Conference on Inter net of Things, Big Data and Security (IoTBDS 2020), pages 257-266

ISBN: 978-989-758-426-8

257

tomer domain is given (Section 2). As no tailored pro-

cess for those domains exists yet, state-of-the-art soft-

ware deployment processes from IoT use cases are

evaluated (Section 3). Afterwards, an approach for an

OSGi-based deployment is presented (Section 4). Fi-

nally, an approach to include domain-speciﬁc knowl-

edge to plan and execute software rollouts is intro-

duced (Section 5).

2 APPLICATION LIFECYCLE

MANAGEMENT

Several deﬁnitions of the terms software distribution,

software deployment, and its processes exist (Dearle,

2007; Arcangeli et al., 2015). For example, Arcan-

geli et al. deﬁne software states (deployable, inactive,

active) and activities that change the state. Not only

does that include the activity of distribution, but also

the continuous maintenance of the software and its de-

commissioning. Furthermore, they consider changes

on the physical infrastructure which require redistri-

bution of software. The OSGi lifecycle (OSGi Al-

liance, 2018) provides a similar concept and intro-

duces further states (installed, resolved, starting, ac-

tive, stopping, uninstalled). In the following sections,

requirements for an IIoT application lifecycle man-

agement as well as typical software maintenance tasks

a system needs to fulﬁll in a resilient and secure man-

ner are deﬁned.

2.1 Requirements

Main requirements for a provisioning mechanism are:

R1 Scalable Device Management. A central control

center shall supervise and manage the operation

of software components on a high number of ﬁeld

devices, posing the requirement of a scalable so-

lution. The devices’ state, including running soft-

ware components and their conﬁguration, needs

to be communicated to the backend system.

R2 Automatic Deployment. Software components

and their conﬁgurations need to be deployed to

the ﬁeld devices while reducing maintenance ef-

fort and cost. Thus, it should be avoided to require

staff on-site for the majority of such tasks.

R3 Modular System. Devices in the ﬁeld may have

only a limited bandwidth. Modular software com-

ponents, both small in their duties and size, allow

for a bandwidth efﬁcient transmission. Further-

more, this simpliﬁes to compose required features

of a device on demand.

R4 Dependency Management. Possible dependen-

cies between applications shall be resolved auto-

matically during the installation process.

R5 Automatic Updates, Automatic Conﬁguration.

Deployed software components may be stopped at

a later time, they may be updated to a newer ver-

sion or its conﬁguration may be changed. Unnec-

essary transmission of unaffected software com-

ponents can be avoided best in a modular system

(R3); thus, only the affected components need to

be substituted while all others continue to run.

R6 Automatic Rollback. Automatic rollback proce-

dures shall be provided in case of a failure of the

installation process to restore the previously veri-

ﬁed working state of the system.

R7 Resilience and Security. The rollout process

shall be resilient against faults of and attacks

against the ICT network and the power grid. Com-

munication needs to be secured as well as bad

network connections need to be taken care of.

The software repository shall only be accessible

for authenticated targets and all resources shall be

signed to ensure integrity and authenticity.

2.2 Application Lifecycle Management

Tasks

In the described setting, applications shall be in-

stalled/updated/etc. from a remote backend system to

enhance or modify the functionality of the target sys-

tem. Following application lifecycle management and

provisioning tasks can be identiﬁed (Faschang et al.,

2017):

1. Installation of a software module

2. Start of this software module

3. Stop of this software module

4. Uninstallation of this software module

5. Update of this (possibly running) software mod-

ule

6. Conﬁguration of this (possibly running) software

module

7. Information about the current state of the software

modules (e.g., by utilizing a periodically running

health check)

There are different approaches of managing the

lifecycle of applications, most of which are designed

for a speciﬁc programming language or a speciﬁc

runtime environment. They share lifecycle states

like stopped, started/running, paused, and failure and

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

258

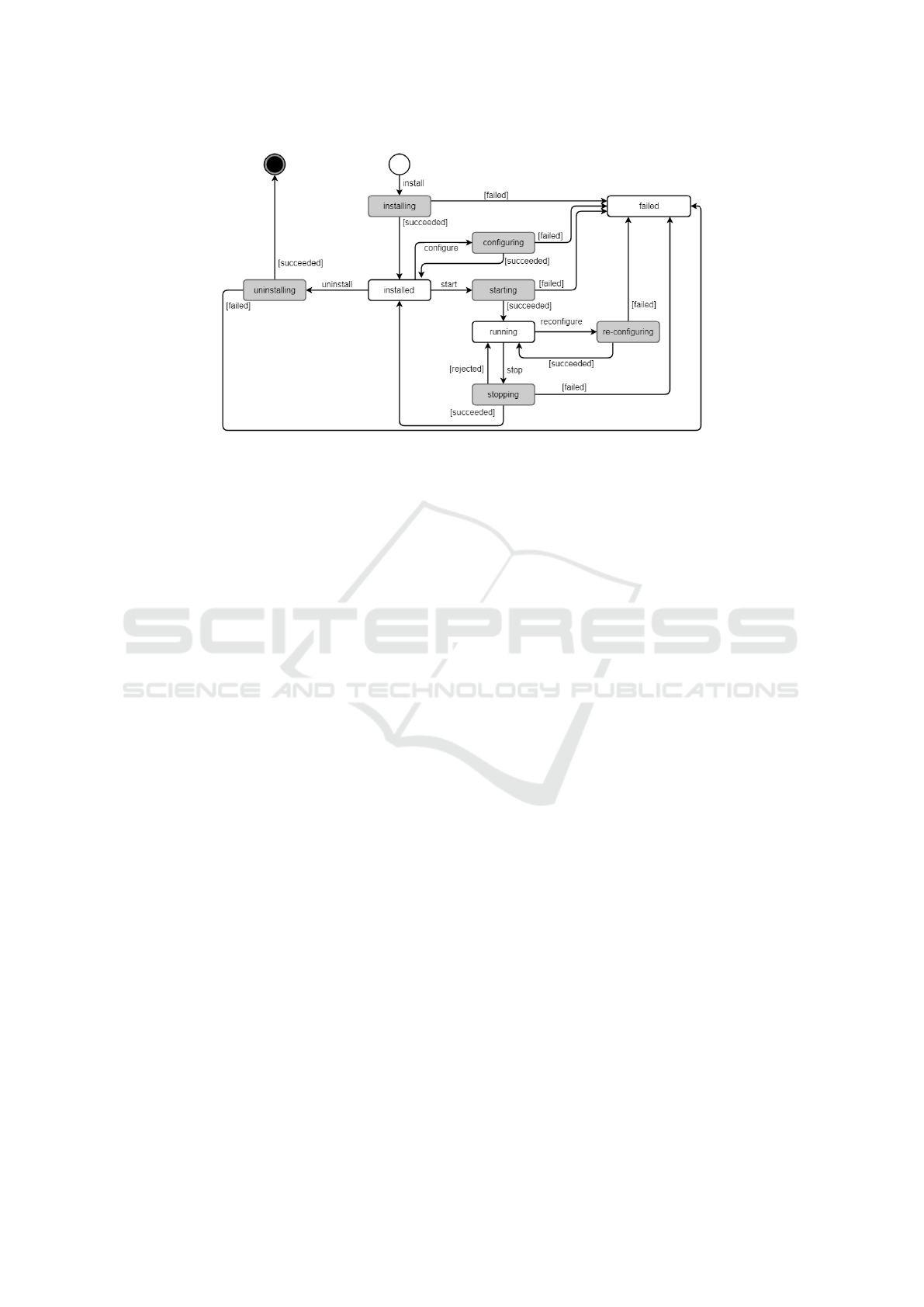

Figure 1: A sample application lifecycle graph.

transitions between these states like installing, start-

ing, stopping, conﬁguring etc., but they slightly dif-

fer in the details. Based on the work of Arcan-

geli et al. (Arcangeli et al., 2015), the OSGi lifecy-

cle (OSGi Alliance, 2018), and the Docker lifecycle,

a combined application lifecycle graph was developed

considering the introduced tasks (Figure 1). Within

additional intermediate states (shown in grey) the re-

ceived task is executed; each of these states could ei-

ther be successful resulting in a persistent state, or

could fail resulting in the failed state, which requires

further action, possibly including manual intervention

by the operator.

In the most usual case, a software update task

refers to a sequence of stopping the old module if

it was currently running, persisting its current state

and uninstalling the module afterward; the new mod-

ule is installed, conﬁgured according to its persisted

state and started if the old module was running be-

fore. Thus, the module continues to work accordingly

and its down-time can be minimized. In contrast, a

software conﬁguration task, by design, should be less

intrusive than a software update task; i.e., it should

not be required to restart the running module.

2.3 Implementation and

Communication Approaches

The deﬁned tasks shall be triggered by a backend op-

erator, for example, by using a web dashboard. The

application itself stays uninterpreted on the backend

side; it may be an executable, an archive or other data

– for the backend it is just a Binary Large Object

(BLOB) not requiring a deﬁned format. Conﬁgura-

tion shall preferably be in a platform-independent for-

mat (e.g., JSON); the device system is responsible for

the proper handling of the BLOB and the conﬁgura-

tion once the ﬁles have been transferred to the device.

For the transfer of applications and conﬁgurations two

possible approaches exist:

Push Approach: The backend initiates the transmis-

sion, commands or information requests are sent

immediately to the device.

Pull Approach: The device initiates the transmis-

sion. It periodically requests the backend to trans-

mit pending changes; in this setting, however, the

backend may not always be aware of the device’s

current state (cf. devices shadows).

Especially in the Smart Grid and Smart Building

context, it is not always possible or desired to keep

a permanent connection between the operator back-

end and the devices. Thus, a pull approach is usually

preferred.

3 STATE OF THE ART

The architecture of a system generally consists of a

central backend and control system in the operator’s

sphere, responsible for the management of software

components on the ﬁeld devices. Many target devices

in the ﬁeld are controlled by one backend system;

they are connected with the backend by one of var-

ious possible communication channels, where mes-

sages and artifacts are exchanged. Target systems al-

low for modular applications (R3), thus the number of

concurrently executed applications may be high. De-

pending on the use case and the used hardware com-

ponents, the implementation of applications can dif-

fer (e.g., OSGi modules or Docker containers). These

systems have to include mechanisms for automated

Application Lifecycle Management for Industrial IoT Devices in Smart Grid Use Cases

259

application provisioning, remote and automatic con-

ﬁguration and update of services to minimize engi-

neering effort (Plug & Automate). The enumerated

tasks (T1–T7) can either be initiated manually by a

human user or automatically via some (scheduled)

scripts. On the target system side, a device appli-

cation management is responsible for executing re-

ceived commands and replying the status to the ini-

tiator. For an installation task, for example, it down-

loads the application from the backend repository; for

example, for OSGi-based deployments from an OSGi

Bundle Repository (OBR) implementation.

Next, existing IoT solutions are evaluated whether

they are suitable for the listed software management

requirements in the ﬁeld of IIoT. While the list is not

exhaustive, it provides a good overview on the spec-

trum of currently available solutions and their fea-

tures. Those tools can be divided into software dis-

tribution tools (Section 3.1), and modular application

servers in which applications can be installed/updated

(Section 3.2). Furthermore, approaches for such use

cases by the cloud providers AWS, and Microsoft are

discussed (Section 3.3).

3.1 Software Distribution Tools

3.1.1 Eclipse hawkBit

Eclipse hawkBit

is an open source project aiming to

be a domain-independent open platform for provid-

ing software updates in IoT systems. It can either be

used separately or included into existing systems by

providing a RESTful management interface for de-

vice integration. Furthermore, a web dashboard can

be used as user interface. hawkBit does not provide

any dependency management; it completely focuses

on update distribution, while not requring knowledge

on the artifacts’ structure (hence providing domain in-

dependence). However, main provisioning features

are not well supported: While installing/updating a

software is the main function, neither a later uninstal-

lation/removal of an installed application nor an ex-

plicit start or stop is possible. In result, main require-

ments of application lifecycle management can not be

fulﬁlled.

3.1.2 balena

balena

is a container-based platform for the deploy-

ment of IoT applications. The device needs to be

set up with balenaOS, an operating system, optimized

for running Docker containers on embedded devices.

https://www.eclipse.org/hawkbit/

https://www.balena.io/

Code is pushed to balena’s build servers, results are

stored as Docker containers in a centralized Docker

registry and delivered to the devices in that form; its

application lifecycle is thus linked to the Docker con-

tainer lifecycle. While some states are named differ-

ently, they are nevertheless representable by the sug-

gested lifecycle shown in Figure 1. Devices are man-

aged and monitored by centralized web-based dash-

board, the ﬂeet manager. On the device side, a su-

pervisor container serves as agent, responsible for

managing application updates and reporting the de-

vice’s status. balena supports diff-based container

updates, i.e., when updating, a device does not need

to download the entire new container, but only the

changed parts – useful especially for devices con-

strained by connectivity or bandwidth. Furthermore,

balena provides four update strategies: download-

then-kill, kill-then-download, delete-then-download,

hand-over; they shall be utilized depending on the de-

vice’s available memory, storage, and processor, as

well as on the acceptable down-time during an appli-

cation’s update. Once a new version of an applica-

tion container is available in the registry, the supervi-

sor automatically downloads it and replaces the run-

ning container employing the deﬁned update strategy.

Unfortunately, the restriction to Docker containers as

well as the binding to a speciﬁc operating system on

the devices limits the applicability of this approach.

3.1.3 SWUpdate

SWUpdate

is an open source software to update the

ﬁrmware of embedded systems. A Linux update agent

supports local and remote updates by using multi-

ple update strategies. For a customization of the up-

date process, SWUpdate supports pre- and post-install

scripts. Furthermore, SWUpdate uses a stand-alone

software application for the installation of software

onto the desired storage. Before the application in-

stalls the software, it determines whether the software

is installable and suitable for the device’s hardware.

SWUpdate also supports the update of single ﬁles in

a ﬁlesystem, mostly for updating the conﬁguration of

an application. In general, SWUpdate is tailored to

ﬁrmware applications and does not provide any appli-

cation lifecycle management functionality.

3.1.4 Gridlink Application Framework

Provisioning

Apart from the seven application lifecycle manage-

ment tasks that were enumerated earlier in this pa-

per, Faschang et al. introduced a provisioning system

https://github.com/sbabic/swupdate/

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

260

for Gridlink, a framework for modular Java applica-

tions (Faschang et al., 2017). Tasks are initiated by

the remote operator dashboard and communicated to

the device via the eXtensible Messaging and Presence

Protocol (XMPP). Additional features include the de-

tection of dependencies and the conﬁguration of mod-

ules to be installed. Though all of the mentioned tasks

were implemented, their provisioning system is very

tightly connected with the Gridlink system, thus man-

ageable applications are restricted to Gridlink mod-

ules, incompatible with OSGi.

3.1.5 iSSN Application Lifecycle Management

Gawron-Deutsch et al. introduced a generic im-

plementation for application lifecycle management

in IIoT use cases including an optional App Store

(Gawron-Deutsch et al., 2018). Purchased applica-

tions are downloaded by the Application Lifecycle

Management Service to the local application reposi-

tory, situated within the operator’s backend. The op-

erator manages several ﬁeld devices using an user in-

terface on the backend side; enumerated application

lifecycle tasks are issued there and communicated to

the Application Lifecycle Management Agent running

on the device. There, speciﬁc shell scripts based on

ﬁle type and task (e.g., docker-install.sh for an

installation task of a Docker container) are called.

Hence, a generic approach for high numbers and types

of applications is provided. However, while it is not

restricted to a certain programming language or plat-

form, it is not suited for modular systems like OSGi

deployments.

3.2 Application Servers

3.2.1 Apache Karaf

Apache Karaf

extends the OSGi platform by addi-

tional features like hot-deployment, provisioning and

management. It can be used as a container for a wide

range of Java applications like OSGi, Spring and Web

Application Archive (WAR). Each Karaf installation

has a hot-deployment-folder; resources placed at this

location are automatically installed to the container.

Local management tools, such as the Karaf Decanter,

are based on the Java Management Extensions (JMX)

and provide monitoring capabilities of local deploy-

ments. Currently, the ecosystem does not provide a

central management of multiple installations. Fur-

thermore, Karaf does not support strategies for error

handling, such that in case of a failed deployment, the

administrator needs to solve the issue.

https://karaf.apache.org/

3.2.2 Eclipse Virgo

Eclipse Virgo

is a module-based Java application

server to develop, deploy, and service enterprise Java

and Spring applications. It uses a pipeline with sev-

eral stages for deploying artifacts. Various other types

of artifacts are supported (e.g., OSGi bundles, WAR

ﬁles), and user-deﬁned artifact types can be added. Its

lifecycle includes an additional “resolved” step and

is apart from that consistent with Figure 1. Further-

more, Virgo includes dependency management and

hot deployment abilities; however, as it only allows to

deploy and undeploy applications, the required tasks

cannot be completely fulﬁlled.

3.3 Cloud-provider Solutions

In cloud-edge architecture settings, ﬁeld devices con-

nect to a backend or management software on the

edge and not directly to the cloud. Thus, ﬁeld de-

vices do not necessarily maintain a permanent con-

nection to the cloud or to the Internet at all. The trend

of moving computation tasks from the cloud to the

edge for reduced end-to-end latency, continuous ser-

vice without permanent connection to the cloud, opti-

mized usage of network bandwidth, and reduction of

costs (Noghabi et al., 2018) has also been addressed

by the leading cloud providers Amazon Web Services

(AWS) and Microsoft Azure. Thus, they have intro-

duced their own tool set for integration and manage-

ment of edge infrastructures.

3.3.1 AWS IoT Greengrass

AWS IoT Greengrass

is Amazon Web Services’ tool

for the edge extending the AWS IoT SDK. Two types

of devices can be distinguished: (i) a Greengrass

Core (GGC) Device, and (ii) many IoT (ﬁeld) devices

that together form a Greengrass Group. The GGC

contains a local MQTT (Message Queue Telemetry

Transport) broker providing local communication as

well as communication with the AWS cloud such that

not every device requires a direct or permanent in-

ternet connection. Using Greengrass, local Lambda

functions can be deployed to the edge; however, as the

GGC is the only device that can be reached, only on

this device a Lambda function can be executed. Thus,

software cannot be rolled out to any other device in

the group. Furthermore, Greengrass supports instal-

lation and uninstallation only; application execution

and lifecycle management are thus only restricted.

https://www.eclipse.org/virgo/

https://aws.amazon.com/greengrass/

Application Lifecycle Management for Industrial IoT Devices in Smart Grid Use Cases

261

Table 1: Main features of the evaluated deployment tools.

Deployable Components Key features Availability

Software Distribution Tools

Eclipse hawkBit not restricted (using Software

Structure Deﬁnition)

interfaces for easy extensibility; no dependency management,

insufﬁcient support for lifecycle tasks

open source

balena Docker containers programming language agnostic, designed speciﬁcally for em-

bedded devices, requires balenaOS as host operating system

partially open

source

SWUpdate especially ﬁrmware images update of embedded systems’ ﬁrmware with built-in double-

copy strategy

open source

Gridlink Provisioning Gridlink modules as JAR ﬁle, JSON

conﬁguration

uses XMPP to deploy software artifacts, monitoring dashboard,

dependency management

closed source

iSSN Application Life-

cycle Management

not restricted (using shell scripts) deploys arbitrary software artifacts by speciﬁc shell scripts,

monitoring dashboard

closed source

Application Servers

Apache Karaf Karaf features (e.g., OSGi bundles,

Spring, Web Application Archives)

extends basic OSGi platform by additional features and addi-

tional tools

open source

Eclipse Virgo OSGi bundles, conﬁguration ﬁles,

arbitrary artifacts, groups of arti-

facts

module-based Java application server supporting various types

of artifacts

open source

Cloud-provider solutions

AWS IoT Greengrass local Lambda functions deployment is possible to a speciﬁc device only closed source

Azure IoT Edge local Azure functions deployment to an IoT edge device running Azure IoT edge run-

time

closed source

The AWS Serverless Application Repository

is com-

parable to an App Store for serverless applications

(i.e., Lambda functions). Although actually designed

as a repository for ”normal” AWS Lambda functions,

local Lambdas for the GGC device could also be re-

trieved there. As furthermore each device has its own

shadow in the cloud (and also on the GGC), its conﬁg-

uration (which in principle is a JSON ﬁle) can be up-

dated and distributed to the device, regardless whether

it is currently connected to the cloud or not – the de-

vice will be synchronized with its shadow on the next

connection.

3.3.2 Azure IoT Edge

Azure IoT Edge

is the comparable tool to AWS

Greengrass in Microsoft Azure IoT providing server-

less execution on the edge. Modules in form of con-

tainers can be deployed to the edge. Furthermore, a

function comparable to AWS’ local Lambda functions

is in public preview.

https://aws.amazon.com/serverless/serverlessrepo/

https://azure.microsoft.com/services/iot-edge/

4 OSGi DEPLOYMENT PROCESS

The BEMS plays an important role regarding grid sta-

bility and integration of renewable energies. It act as

communication center within the building and is able

to perform load management tasks. Such tasks can

be motivated by local optimization goals (e.g., maxi-

mization of its own PV consumption) or triggered by

remote actors like the distribution system operator or

the iSSN to stabilize the grid. Thus, the BEMS needs

to support various communication protocols to inter-

act with devices from building and remote systems,

and it needs to be extensible for customized applica-

tions.

In the previous section, several state-of-the-art

tools in the area of software deployment on both the

control (e.g., Eclipse Hawkbit) and the controlled side

(e.g., Apache Karaf) of the system have been de-

scribed. However, not all requirements and tasks can

be fulﬁlled by the frameworks in evaluation: Most

of the frameworks show only limited support for the

expected lifecycle tasks: issuing an installation task

usually already includes the start of the module, and

modules cannot be stopped once running. Further-

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

262

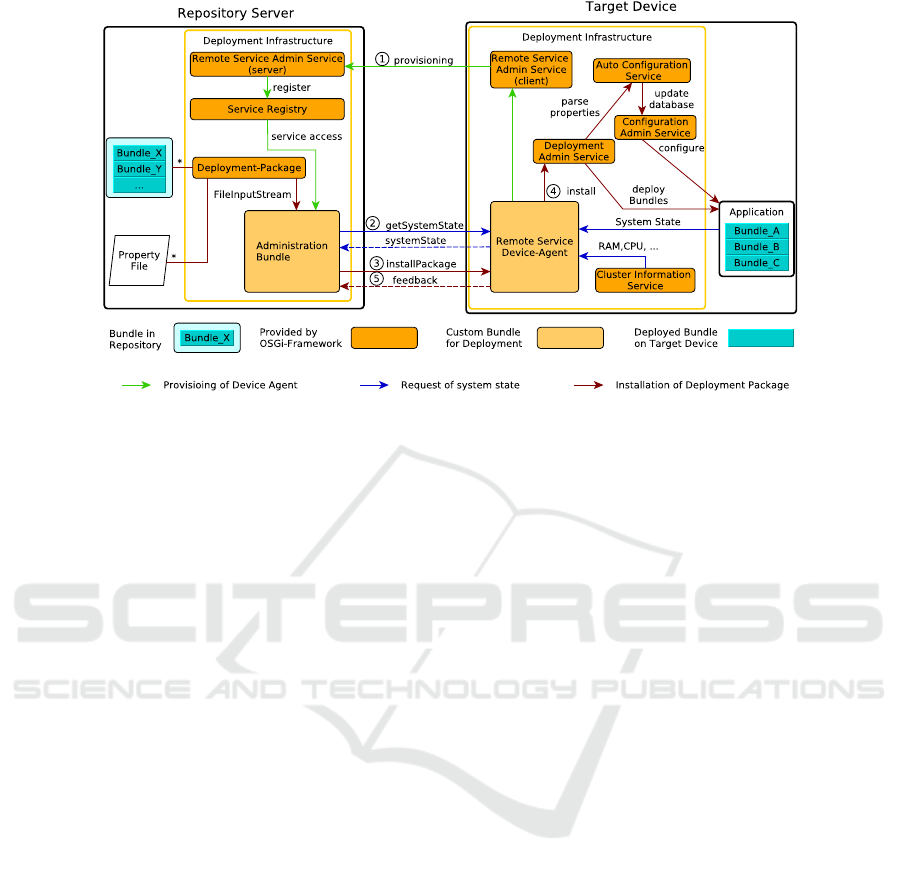

Figure 2: OSGi infrastructure - repository server and target.

more, most frameworks have only limited support of

different deployable component types or they do not

allow a central management of multiple devices.

Due to the popularity of OSGi in the customer do-

main and the lack of a satisfying solution, we propose

an OSGi-based deployment process which considers

the aforementioned requirements R1-R7. The OSGi

Service Platform is a module system for the Java

programming language which allows a dynamic inte-

gration and remote management of software compo-

nents. The OSGi speciﬁcation is driven by the OSGi

Alliance whose mission is to create open speciﬁca-

tions for network delivery of managed services to lo-

cal networks and devices. OSGi has been adopted for

solutions in IoT, Machine-to-Machine (M2M), Smart

Home, Energy Management, Smart Meters, Health-

care, Automotive and various other domains.

4.1 Architecture

The proposed architecture is depicted in Figure 2. It

consists of a server and a client part with different

orchestrations of standardized OSGi services deﬁned

in the OSGi Compendium Release 7 (OSGi Alliance,

2018). The server part represents the repository server

with released OSGi bundles and project-speciﬁc prop-

erty ﬁles. A target device is a connected node with its

own OSGi framework running.

The Deployment Package represents the standard-

ized deploy unit of the OSGi framework and contains

multiple OSGi bundles together with their project-

speciﬁc property ﬁles. A bundle is a Java Archive

(JAR) extended by OSGi-related meta data that may

contain Java classes, embedded JAR ﬁles, native code

and other resources. To keep the deployment pro-

cess as modular as possible, only cohesive compo-

nents should be put together in the same deployment

package.

The Device Agent provides a service interface

which handles all interactions between the target de-

vice and the repository server. This interface deﬁnes

methods for monitoring the system state with addi-

tional device information and for installing deploy-

ment packages. The device agent runs on the target

device and implements this interface to export its im-

plementation into the runtime system for remote ac-

cess.

The Administration Bundle allows the manual ex-

ecution of deployment tasks over the command line.

Every connected device can be accessed dynamically

through this bundle by importing the implementation

of the Device Agent, after the device connected with

the Repository Server. All imported implementations

are collected in a list and every deployment step will

be executed for all entries.

4.2 Deployment

The interactions between the Repository Server and

Target Device are shown in Figure 2 with different

types of arrows.

4.2.1 Provisioning of the Device Agent

The provisioning activity is marked with (1) in Fig-

ure 2 and done by using the Remote Service Admin

Service. The same bundle is located on both sides,

but started one time as server and the other times as

Application Lifecycle Management for Industrial IoT Devices in Smart Grid Use Cases

263

UI / Controlling & Monitoring

Resiliency

Analysis

Knowledge

Service

Assisted Planning

Execution

Monitoring Services Action Services

Plan

Evaluation

Simulation /

Digital Twin

Software Management System A Device A.1 Device A.2

Device B.1 Device B.2 Device B.3

...

Physical System

(e.g. transformer,

power lines etc.)

Monitoring Actions

Software Management System B

Monitoring Actions

M AM

Monitoring Actions

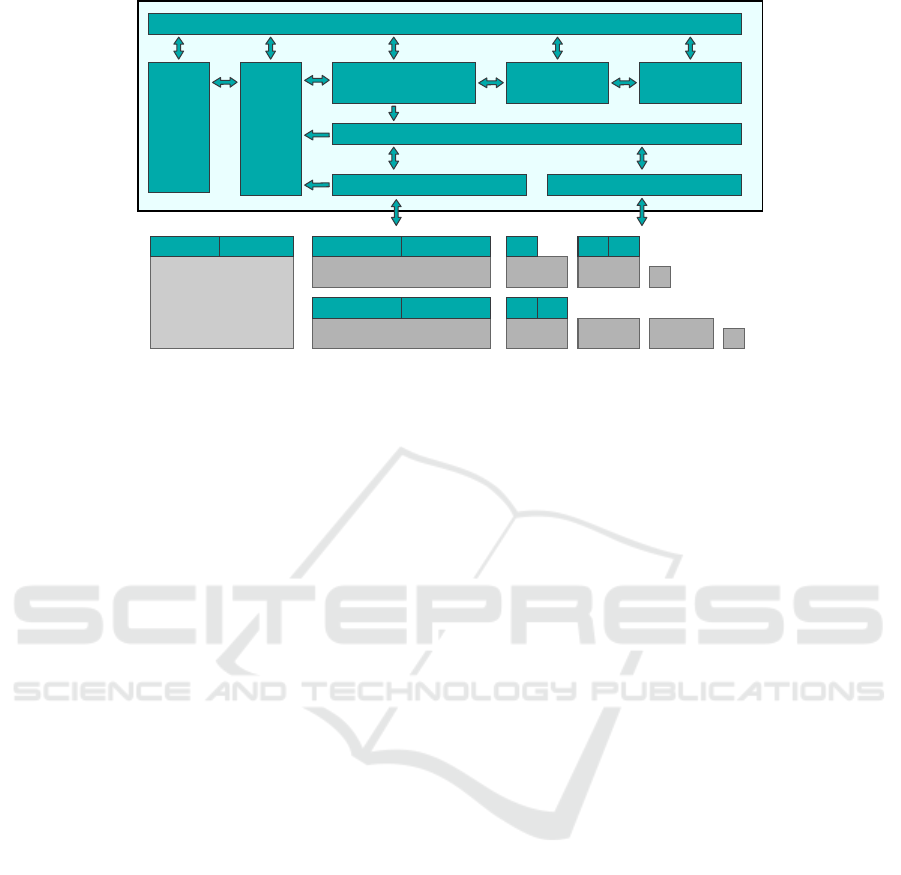

Figure 3: KBSM Framework.

client on every device. This service registers the im-

plementation of the individual Device Agent over the

network in the local Service Registry of the Reposi-

tory Server. This way, the administration bundle gets

access to every device agent.

4.2.2 Monitoring the System State

For requesting device information as well as the

system state of the connected devices the interface

method marked with (2) is used. This information is

needed to evaluate a stable state for installing a bun-

dle on the device. The system state is derived from

the current state of the installed bundles. Information

like available RAM or CPU workload is delivered by

the Cluster Information Service.

4.2.3 Installation of a Deployment Package

If the device is in a stable state for installing a De-

ployment Package, another interface method (3) can

be used to transfer the package over the network to the

Device Agent. The Device Agent will then call the lo-

cal Deployment Admin Service (4) to install it. The

bundles from the package will be directly installed

in the framework, while the delivered property ﬁles

are parsed with the Auto Conﬁguration Service. This

service updates the property database of the Conﬁg-

uration Admin Service with the new entries. After-

wards, the Conﬁguration Admin Service conﬁgures

every bundle, which subscribed the updated proper-

ties. At the end of the procedure an installation feed-

back (5) is given to the Repository Server. This can

be used for visual representation and to initiate a soft-

ware rollback at the target in case of an error.

5 KNOWLEDGE-BASED

SOFTWARE MANAGEMENT

The analyzed management systems to rollout soft-

ware to one or more devices cover different levels

and areas of dependency management. However, for

complex CPSs there are additional dependencies be-

yond of state-of-the-art software rollout systems’ sup-

port. These software dependencies with respect to in-

terfaces and functionality range from the device level

(dependencies to the applications’ runtime environ-

ment like drivers, conﬁgured sensors etc.) via the

system level (protocols, services etc.) up to the do-

main level (functional dependencies with respect to

the controlled physical system; for example, two con-

troller applications on separate devices should not try

to control the same physical parameters). To ensure

a given level of dependability of the CPS, during and

after the software rollout, it is important to cover de-

pendencies on all of these levels, rather than focusing

on one of the levels alone.

If a diverse set of devices is used in CPSs, it is

likely that there will also be the need of a diverse

set of software deployment systems, since there are

differing requirements for devices’ types with diver-

gent hardware. For example, resource-restricted IoT

devices, sending sensor measurements via a wire-

less protocol, do not provide the resources to run

containerized applications and can thus not be man-

aged by a Kubernetes backend. However, managing a

state-of-the-art edge device using a ﬁrmware manage-

ment tool that ﬂashes the whole device every time one

of the software components needs an update, leads to

an unnecessary outage of functionality that is not af-

fected by the software change. In addition, none of

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

264

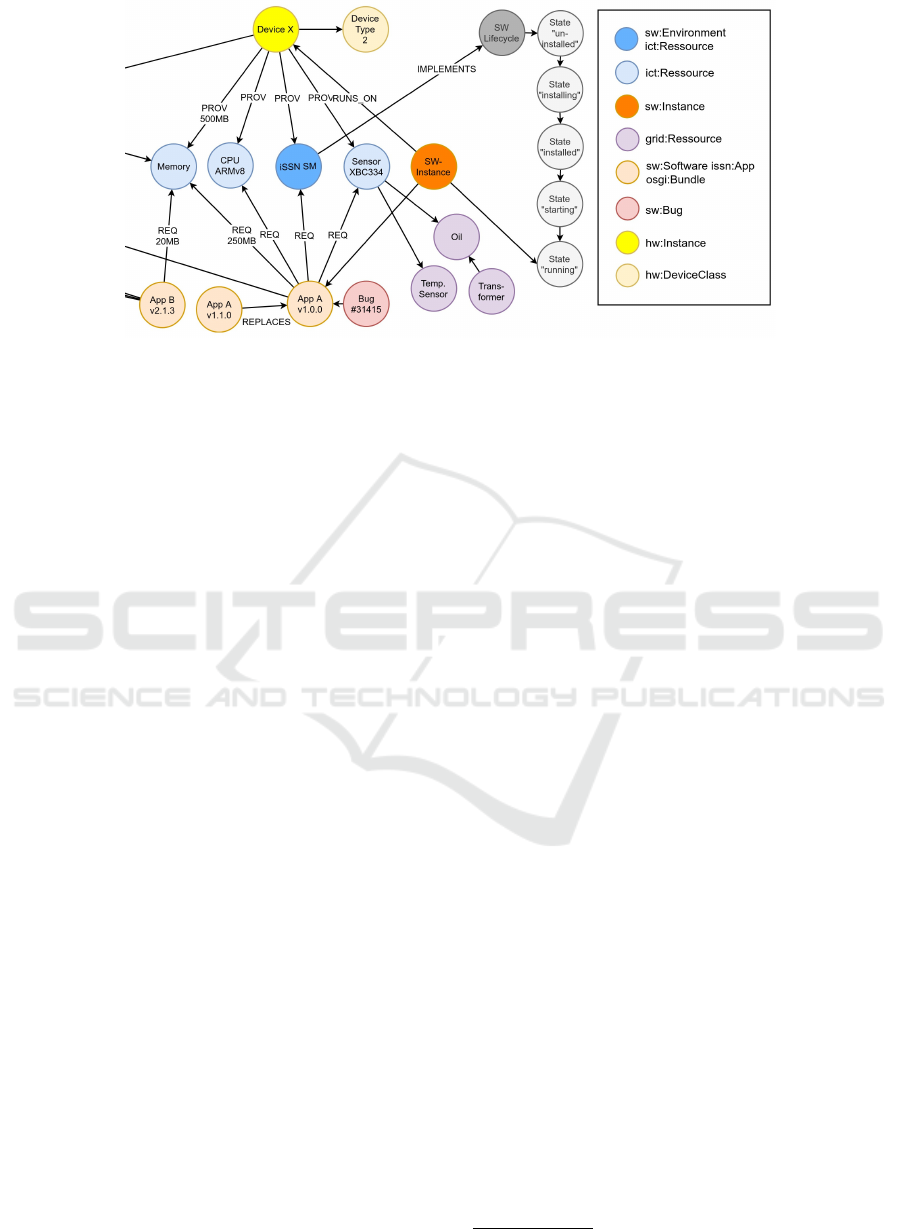

Figure 4: Subset of a knowledge graph stored in the Knowledge-Based Software Management backend.

the analyzed systems are able to include knowledge

about the physical environment and the functions of

the software into the software rollout planning and

execution. Examples for these properties are: band-

width and availability of communication connections,

connection of two different controllers to the same

physical system (possible interference of control ac-

tions), or constraints that could prevent updates of a

software component in a given system state.

To resolve the described limitations, an additional

layer of software management is proposed which gen-

erates and executes software rollout plans using exist-

ing software management systems. The knowledge-

based software management (KBSM) layer as shown

in Figure 3 utilizes knowledge about the setup of the

CPS and its components for the planning process,

which includes knowledge about the underlying soft-

ware deployment processes themselves.

Ontologies are used to describe the system’s com-

ponents and their relations in the Knowledge Service.

This covers properties of software components (size,

memory usage etc.), of computation devices (avail-

able memory, software environment), the controlled

physical system (tapped transformers, power lines,

power switches etc.), the acting roles and the pro-

cesses executed in the system etc. The knowledge

thus consists of static knowledge (e.g., about software

state machines) and dynamic knowledge (e.g., mem-

ory usage, running applications). Figure 4 shows a

subset of a knowledge graph as stored in the Knowl-

edge Service.

Resiliency Analysis uses the stored knowledge

about the interactions, rolls and processes to derive

new knowledge about mis-use cases; i.e., it derives

what can go wrong in a system and who might act

malicious. This knowledge is stored in the Knowledge

Service to be used for planning and for monitoring the

plan execution.

Assisted Planning uses the stored knowledge to

derive a plan of sub-states the system should transi-

tion through to create a new system state that is de-

ﬁned by a human operator (e.g., “applications affected

by bug #31415 shall be replaced by newer version”).

Execution executes the state plan by transforming

the planned sub-state transitions into concrete actions

and by controlling the execution of these actions in

the CPS. In case of a failure, the Execution tries to

bring the system (back) into a safe system state as de-

ﬁned in the plan.

The KBSM framework is currently being imple-

mented and tested in a Mosaik

based co-simulation

setup (Schloegl et al., 2015; Steinbrink et al., 2019) as

well as in a hardware-in-the-loop lab test setup. The

described OSGi deployment process and the iSSN

application lifecycle management are used to rollout

software in Smart Grid use cases. Results will be pre-

sented in future publications. It is expected that by

including extended descriptions of the used hardware,

its properties, its connections, as well as the depen-

dencies between software and hardware, the KBSM

can be extended to cover hardware dependencies on a

detailed level as well.

However, a system to cover all dependencies on

all levels from physical to logical level in detail

is not only challenging but might be too complex

and require a depth of knowledge about the sys-

tem that is too complex to be manageable. In addi-

tion, the knowledge-based approach is currently con-

strained with respect to the system’s dynamic proper-

ties. However, in combination with other modelling

approaches and the usage of a digital twin to test the

software rollout plan against predeﬁned scenarios, it

is expected that the presented approach covers a level

https://mosaik.ofﬁs.de/

Application Lifecycle Management for Industrial IoT Devices in Smart Grid Use Cases

265

that increases the dependability of the system during

and after the software rollout in comparison to the

current state-of-the-art.

6 CONCLUSION

We evaluated a set of existing customer-grade IoT

tools that seemed to be promising for application

lifecycle management in IIoT use cases, but unfor-

tunately not all of the desired functions can be im-

plemented using these tools. We thus proposed an

OSGi deployment process fulﬁlling the deﬁned re-

quirements and implementing the deﬁned tasks. It

has been successfully tested in a small lab setup and

further tests in a real world large scale co-simulation

testbed are currently undertaken. Nonetheless, fur-

ther development must be carried out to enable an

automated deployment. This involves guidelines for

application development using this approach, signing

of bundles, software versioning and the overall inte-

gration into a CI/CD pipeline. On the target side,

the rollback mechanism is currently limited to fail-

ures thrown by the OSGi framework which occur dur-

ing the installation phase of a new update. Rollbacks

on errors or wrong application behaviour during run-

time caused by a faulty update (or even by an attack)

are not supported yet. However, this is a crucial fea-

ture since the BEMS controls large devices like heat

pumps and charging stations. On large scale, wrong

application behaviour could cause serious problems

in the low voltage grid. Therefore, further work is

necessary to enhance the rollback mechanism.

Dependency management implemented by state-

of-the-art software deployment tools is limited to

the software domain. To be able to include knowl-

edge about the setup of the CPS, its physical prop-

erties, overall state etc. the KBSM framework was

presented. This additional management layer uses

knowledge represented in graphs to derive and exe-

cute software deployment schedules. By using this

backend, dependencies on all layers from device level

(software requires sensor, software requires service

on same device, etc.) via the system level (soft-

ware needs service on other device, software us-

age excludes usage of speciﬁc other software, etc.)

up to the domain level (software on device is the

only entity that controls setpoint, etc.) can be re-

solved. The KBSM framework is currently still in

active development and is currently being tested us-

ing the iSSN Application Lifecycle Management and

the OSGi deployment process as underlying deploy-

ment tools in a Smart Grid scenario using a large scale

co-simulation/emulation approach.

ACKNOWLEDGMENTS

The presented work is conducted in the LarGo!

project, funded by the joint programming initiative

ERA-Net Smart Grids Plus with support from the Eu-

ropean Union’s Horizon 2020 research and innovation

programme. On national level, the work was funded

and supported by the Austrian Climate and Energy

Fund (KLIEN, ref. 857570), and by German BMWi

(FKZ 0350012A).

REFERENCES

Arcangeli, J., Boujbel, R., and Leriche, S. (2015). Au-

tomatic deployment of distributed software systems:

Deﬁnitions and state of the art. Journal of Systems

and Software, 103:198 – 218.

Dearle, A. (2007). Software deployment, past, present and

future. In Future of Software Engineering, pages 269–

284.

Faschang, M., Cejka, S., Stefan, M., Frischenschlager, A.,

Einfalt, A., Diwold, K., Pr

ostl Andr

en, F., Strasser,

T., and Kupzog, F. (2017). Provisioning, deployment,

and operation of smart grid applications on substation

level. Computer Science - Research and Development,

32(1):117–130.

Gawron-Deutsch, T., Diwold, K., Cejka, S., Matschnig, M.,

and Einfalt, A. (2018). Industrial IoT f

ur Smart Grid-

Anwendungen im Feld. e & i Elektrotechnik und In-

formationstechnik, 135(3):256–263.

Kintzler, F., Gawron-Deutsch, T., Cejka, S., Schulte, J., Us-

lar, M., Veith, E., Piatkowska, E., Smith, P., Kupzog,

F., Sandberg, H., Chong, M., Umsonst, D., and Mit-

telsdorf, M. (2018). Large scale rollout of smart grid

services. In 2018 Global Internet of Things Summit.

Noghabi, S., Kolb, J., Bodik, P., and Cuervo, E. (2018).

Steel: Simpliﬁed development and deployment of

edge-cloud applications. In 10th USENIX Workshop

on Hot Topics in Cloud Computing.

OSGi Alliance (2018). OSGi Release 7. OSGi Alliance.

Razzaq, M. A., Gill, S. H., Qureshi, M. A., and Ullah, S.

(2017). Security Issues in the Internet of Things (IoT):

A Comprehensive Study. International Journal of Ad-

vanced Computer Science and Applications, 8(6).

Schloegl, F., Rohjans, S., Lehnhoff, S., Velasquez, J., Stein-

brink, C., and Palensky, P. (2015). Towards a classiﬁ-

cation scheme for co-simulation approaches in energy

systems. In 2015 International Symposium on Smart

Electric Distribution Systems and Technologies, pages

516–521.

Steinbrink, C., Blank-Babazadeh, M., El-Ama, A., Holly,

S., L

uers, B., Nebel-Wenner, M., Ramirez Acosta,

R. P., Raub, T., Schwarz, J. S., Stark, S., Nieße, A.,

and Lehnhoff, S. (2019). CPES Testing with mosaik:

Co-Simulation Planning, Execution and Analysis. Ap-

plied Sciences, 9(5).

Yu, X. and Xue, Y. (2016). Smart Grids: A Cyber-

Physical Systems Perspective. Proceedings of the

IEEE, 104(5):1058–1070.

IoTBDS 2020 - 5th International Conference on Internet of Things, Big Data and Security

266
