A Set of Empirically Validated Development Guidelines for Improving

Node-RED Flows Comprehension

Diego Clerissi

, Maurizio Leotta

1 a

and Filippo Ricca

Dipartimento di Informatica, Bioingegneria, Robotica e Ingegneria dei Sistemi (DIBRIS), Università di Genova, Italy

Dipartimento di Informatica, Sistemistica e Comunicazione (DISCO), Università di Milano, Bicocca, Italy

Keywords:

Node-RED, Guidelines, Comprehension, IoT Web Based Systems, Visual Development.

Abstract:

Internet of Things (IoT) systems are rapidly gaining importance in the human society, providing a variety of

services to improve the quality of our lives, involving complex and safety-critical tasks; therefore, assuring

their quality is of paramount importance.

Node-RED is a Web-based visual tool inspired by the ﬂow-based programming paradigm, built on Node.js,

and recently emerged to support the users in developing IoT systems in a simple manner. The community

behind Node-RED is quite active and encourages artefacts sharing. Thus, the Node-RED ﬂows developed

and submitted to public usages should be easy to comprehend and integrate within already existing systems,

also in preparation of future maintenance and testing activities. Unfortunately, no consolidated approaches or

guidelines to develop comprehensible Node-RED ﬂows currently exist.

In this paper, we propose a set of guidelines to help the Node-RED developers in producing ﬂows that are easy

to comprehend and use. We have designed and conducted an experiment to evaluate the effect of the guidelines

in Node-RED ﬂows comprehension. Results show that the adoption of the guidelines signiﬁcantly reduces

the number of errors (p-value = 0.00903) and the time required to comprehend Node-RED ﬂows (p-value =

0.04883).

1 INTRODUCTION

In the context of the Internet of Things (IoT), Node-

RED has become a practical solution to easily develop

and share IoT systems.

Node-RED is a Web-based tool inspired by the

ﬂow-based programming paradigm (Morrison, 2010)

and built on top of the Node.js framework. In Node-

RED, a node represents part of a service logics and is

largely conﬁgurable, while a ﬂow describes the way

the nodes collaborate and communicate.

Daily, nodes and ﬂows are developed and uploaded

to the Node-RED library by the developers partici-

pating in the community (over 2000 nodes in 2019

as solutions to general or speciﬁc problems, and any-

one may download part of this content to integrate it

within existing systems. Nodes can execute a variety

of tasks, like reading values from a database, running a

JavaScript function, receiving the feeds from a Twitter

https://orcid.org/0000-0001-5267-0602

https://ﬂows.nodered.org/

account, establishing a communication between two

devices using the MQTT protocol, and more.

As the ﬂow-based programming paradigm pre-

scribes (Morrison, 2010), nodes are black-box com-

ponents that hide all the implementation details (i.e.,

basically, JavaScript functions and graphical features).

The developer can select the nodes she desires and

wire them together in order to implement the system

she wants, without having the complete knowledge of

the nodes implementation she is using.

As any other programming tool and language,

Node-RED lets the developer to choose her own pro-

gramming style while implementing new nodes and

ﬂows. Since Node-RED is a visual tool, along with

the programming style, there is also the

comprehensi-

bility factor

related to the graphical style adopted for

wiring the nodes together to compose the Node-RED

ﬂows, as well as for carefully choosing meaningful

names for the nodes; in general, this is a problem more

frequently found at design stage. The lack of a disci-

plined approach as a guidance for developing Node-

RED ﬂows could result in messy “spaghetti” artefacts,

very hard to comprehend and use, which may produce

108

Clerissi, D., Leotta, M. and Ricca, F.

A Set of Empirically Validated Development Guidelines for Improving Node-RED Flows Comprehension.

DOI: 10.5220/0009391101080119

In Proceedings of the 15th Inter national Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 108-119

ISBN: 978-989-758-421-3

unexpected outcomes when they are integrated into

further complicated systems, without mentioning the

pain of maintaining and testing them.

Up to now, no consolidated approaches support-

ing Node-RED developers in producing reusable and

comprehensible ﬂows exist, and only few basic and

unofﬁcial attempts proposing best practices and design

patterns have been made so far

In this paper, we propose a preliminary set of guide-

lines to produce Node-RED ﬂows that are easy to

comprehend by construction, and more suitable to

reuse, maintenance and test. We have investigated

the beneﬁts of adopting our guidelines by means of

an experiment involving ten master students, where

two selected Node-RED systems, each one developed

with and without our guidelines, are compared in a

comprehension scenario.

In Section 2 the guidelines are described, while

some Node-RED comprehensibility issues pertaining

the two selected Node-RED systems are introduced in

Section 3, showing how the guidelines can be applied

on them. The experiment and the results are discussed

in Sections 4 and 5, respectively. Finally, related work

are presented in Section 6, and the conclusions are

discussed in Section 7.

2 PROPOSED GUIDELINES

The guidelines we propose in this paper address some

common Node-RED comprehensibility issues, which

may emerge while developing ﬂows or trying to un-

derstand and integrate ﬂows provided by an external

source (e.g., the Node-RED community library). Is-

sues may concern confusing nodes names, hidden

loops and loss of messages, lack of conditional state-

ments, unexpected inactive nodes, and more. More

details about issues are provided in Section 3.3. The

guidelines aim at supporting Node-RED developers in

producing ﬂows that are easy to comprehend by con-

struction, and suitable for future reuse, maintenance

and testing activities.

The guidelines have been inspired by several de-

sign works addressing systems quality using UML and

BPMN (Ambler, 2005; Mendling et al., 2010; Un-

helkar, 2005; Reggio et al., 2011; Reggio et al., 2012),

and by our experience in IoT systems design and Node-

RED ﬂows development (Clerissi et al., 2018; Leotta

et al., 2018). UML is one of the most used nota-

tional languages (Reggio et al., 2014), and differs to

Node-RED in many aspects: while UML works at

https://medium.com/node-red/node-red-design-

patterns-893331422f42

design level and describes the static and dynamic de-

tails of a system, Node-RED is an executable visual

language used to implement, execute and deploy a

working system. The constructs they use are quite

different, as well as their syntax and semantics. Nev-

ertheless, we have experimented in practice that some

design and technology-independent principles can be

inherited from UML even to solve speciﬁc Node-RED

issues (Clerissi et al., 2018; Leotta et al., 2018).

To better comprehend the Node-RED terminology

and the issues that our guidelines try to address, in

Table1 we recap a short list of terms and deﬁnitions,

extracted and elaborated from the Node-RED ofﬁcial

documentation

The guidelines we propose can be classiﬁed into

four types, based on the comprehensibility issues they

address:

Naming

Missing Data

Content

, and

Lay-

out.

2.1 Naming

Node Name Behaviour (NNB).

Each Node-RED

node should have a unique (unless a duplicate of an-

other existing node) and meaningful name, suggesting

its high-level behaviour (Lange et al., 2006). The

name of a node should make explicit the action(s) per-

formed by the node and the object(s) receiving such

action(s). An object may refer to a message property

or a global/ﬂow variable, written in upper-case to be

more visible within the ﬂow (Reggio et al., 2012).

Flow Name Behaviour (FNB).

Each Node-RED ﬂow

should have a unique and meaningful name, sum-

marizing in a very concise way its high level be-

haviour (Lange et al., 2006).

2.2 Missing Data

Node Effective Contribution (NEC).

By adapting to

Node-RED the terms used by Ambler (Ambler, 2005),

there should neither exist black hole nodes nor miracle

nodes. A black hole node is a node with no leaving

wires but output pins

> 0

, which means that the node

output might be lost or unused by the ﬂow, while a

miracle node is a node with no entering wires but

input pins

> 0

, which means that the node cannot be

explicitly activated or is missing some data.

Conditions Consistency and Completeness (CCC).

The conditions of every switch node (i.e., a core Node-

RED node basically implementing the switch/if con-

structs of every programming language, and used to

route the messages by evaluating a set of conditional

https://nodered.org/docs/

A Set of Empirically Validated Development Guidelines for Improving Node-RED Flows Comprehension

109

Table 1: Node-RED Essential Terms and Deﬁnitions.

Term Deﬁnition

Node

The basic Node RED component, representing (part of) the logics of a service/functionality.

Each node has a type describing its general behaviour and a set of custom properties.

Flow The logical way the nodes are wired, expressing how they collaborate by exchanging messages.

Sub-Flow Each self-contained logical portion of a ﬂow, contributing to its completion.

Wire The edge used to graphically connect two nodes in a ﬂow.

Pin The input/output port of a node where a wire enters/leaves.

Message A data object exchanged by some nodes, characterized by a sequence of conﬁgurable properties.

Global/Flow Variable A variable deﬁned in a node and visible by all the ﬂows or by just the one containing that node.

statements over global/ﬂow variables or message prop-

erties

) should not overlap and be complete (i.e., their

disjunction returns true) (Ambler, 2005; Reggio et al.,

2012), in order to handle separately all the possible

scenarios.

2.3 Content

Sub-Flows Relatedness (SFR).

The sub-ﬂows com-

posing a ﬂow should be logically related among each

others (Lange et al., 2006), following the design princi-

ple of high cohesion and low coupling (Martin, 2003).

Two sub-ﬂows F1 and F2 are logically related if, e.g.:

• F1

and

describe (part of) the behaviour of the

same device;

• F1

and

contribute to the same service/function-

ality;

• F1 and F2 share some variables or other data;

• F1 is activated by F2 or vice versa;

Flow Content (FC).

If a ﬂow is overpopulated, its

content should be simpliﬁed (Mendling et al., 2010;

Unhelkar, 2005; Ambler, 2005), by identifying some

of its sub-ﬂows, and either: (a) physically split and

connect them together through link nodes (i.e., a core

Node-RED node used to add a virtual wire between

two sub-ﬂows

), or, (b) collapse them into correspond-

ing sub-ﬂow nodes (i.e., a core Node-RED node used

to collect sub-ﬂows to favour reuse and reduce layout

complexity

). Since Node-RED ﬂows design and de-

velopment phases are strongly related due to the visual

nature of the tool, as in the case of more general de-

sign activities, there is a positive correlation between

ﬂows size and complexity. A ﬂow is then classiﬁed

as overpopulated if the number of nodes it contains is

equal or above 50 (Mendling et al., 2010).

https://nodered.org/docs/user-guide/nodes#switch

https://nodered.org/blog/2016/06/14/version-0-14-

released

https://nodered.org/docs/user-

guide/editor/workspace/subﬂows

2.4 Layout

Wiring Style Consistency (WSC).

The wires con-

necting the nodes should follow a consistent wiring

style, to differentiate main/correct scenarios from ex-

ceptional/wrong ones (Reggio et al., 2011; Reggio

et al., 2012; Ambler, 2005; Unhelkar, 2005). Since

Node-RED ﬂows may handle several scenarios, as

it happens for classic programming languages con-

cerning conditional statements, different wiring styles

may be adopted within the same ﬂow. For example,

a “straight, from left to right, top-down” style to wire

all the nodes participating in a correct scenario, and a

“cascade” style to wire all the nodes participating in a

wrong scenario.

Wiring Style Tidiness (WST).

The wires connect-

ing the nodes should be long enough to clearly show

the starting/ending nodes and avoid any overlapping,

whether possible (Ambler, 2005). Wires should be

drawn in the order they enter/leave a node. The node

joining multiple wires should be placed at the level of

the node where such wires originated.

3 SELECTED NODE-RED

SYSTEMS

To conduct the experiment, later discussed in Section 4,

we selected two existing Node-RED systems that were

developed by former students of the master course

Data Science and Engineering (Genova, Italy), as part

of the last year project.

The systems, named

DiaMH

and

WikiDataQue-

rying

, present some common Node-RED comprehen-

sibility issues derived from an undisciplined and basic

Node-RED usage (i.e., the teacher of that course was

not involved in our research and thus students devel-

oped the systems without following any guideline).

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

110

(a)

(b)

(c)

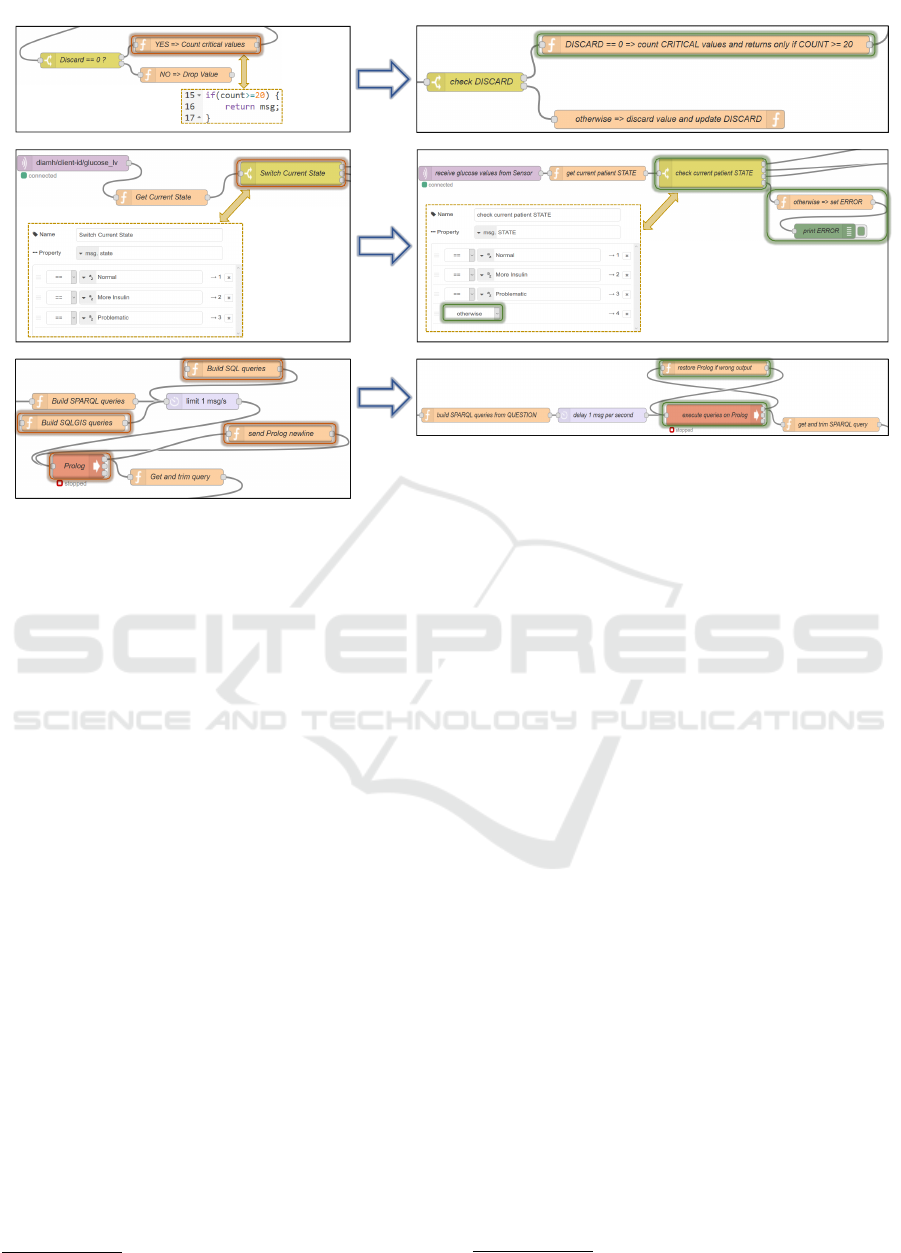

Figure 1: Issues in Node-RED Systems and Guidelines Application.

3.1 DiaMH System

DiaMH is a simulated Diabetes Mobile Health IoT

system which monitors a diabetic patient by collecting

glucose values using a wearable sensor, sends notiﬁca-

tions to the patient’s smartphone about the monitored

data, and, based on some logical computations involv-

ing a cloud-based healthcare system and realistic data

patterns, determines the patient’s health state (i.e., Nor-

mal, More Insulin required, or Problematic) and, when

needed, orders insulin injections to a wearable insulin

pump. It consists of 71 nodes and 63 wires.

3.2 WikiDataQuerying System

WikiDataQuerying is a web query service used to se-

lect textual geospatial questions from a predeﬁned list

shown in an HTML page, and query WikiData

knowl-

edge base, by ﬁrst restructuring the selected questions

into SPARQL query language and formatting them

using a Prolog grammar. The results of the queries

can be triples adhering to the Resource Description

Framework (RDF) language or boolean answers. It

consists of 25 nodes and 27 wires.

https://www.wikidata.org

3.3 Applying Guidelines to Node-RED

Systems

For the selected Node-RED systems, only some of the

aforementioned guidelines have to be applied. How-

ever, even such simple systems can hide several com-

prehensibility issues. Despite their simplicity, involv-

ing mainly core Node-RED nodes, DiaMH works in

the thorny context of the healthcare and WikiDataQue-

rying must provide prompted feedback to the user’s

requests. Therefore, producing Node-RED ﬂows that

adhere to our proposed guidelines may improve the

comprehensibility level during ﬂows inspection and

development, and facilitate the subsequent engineering

stages, such as maintainability and testing.

Just few of the issues we found from a high-level

ﬂows analysis of the systems are shown in Figure 1

and discussed in the following.

Most of the nodes names do not clarify their be-

haviours, forcing the developer to inspect the nodes

contents and settings in order to comprehend them.

Therefore,

NNB

can be applied to clarify the nodes

purposes, by making explicit in their names the per-

formed actions and the used variables in uppercase

(see nodes names in Figure 1, changed from left to

right).

Sub-ﬂow

(a, left)

of Figure 1 presents the func-

tion node (i.e., a core Node-RED node used to im-

plement customized JavaScript functions

) named Yes

https://nodered.org/docs/user-guide/nodes#function

A Set of Empirically Validated Development Guidelines for Improving Node-RED Flows Comprehension

111

=> Count critical values, which performs several ac-

tions and then sends a message to subsequent nodes

(not shown in Figure 1) only when a certain condi-

tion holds (i.e.,

if count >= 20

, see lines 15-17 in

Figure 1 left associated with the node); from an un-

aware Node-RED developer perspective, this may un-

expectedly block the execution of the sub-ﬂow until

the condition is satisﬁed, even if the nodes are graphi-

cally connected by means of wires. This comprehen-

sibility issue emerged in several topics posted on the

main Node-RED forum

and can be solved by apply-

ing

NNB

, as previously mentioned, by renaming the

function node as, e.g., DISCARD

count

CRITICAL values and returns only if COUNT

20,

in order to make explicit the condition it satisﬁes from

the preceding switch node (i.e., DISCARD == 0), the

core behaviour (i.e., count CRITICAL values), and the

hidden condition for the message to return (i.e., re-

turns only if COUNT

20). Sub-ﬂow

(a, right)

Figure 1 is the result.

In sub-ﬂow

(b, left)

of Figure 1, the switch node

Switch Current State hides a severe issue: it considers

only three possible values for the

msg.state

variable,

but the check will fail and idle the sub-ﬂow execution

if any unexpected event sets the variable to a differ-

ent value before the switch node. This problem was

solved in the dawn era of Node-RED

by introduc-

ing an “otherwise” entry to handle all the alternative

conditions, but the average Node-RED developer may

still miss to use it in favour of a more explicit, but

incomplete set of conditions

. By applying

CCC

, the

“otherwise” condition is added to the switch node (see

the change in the conﬁguration panel from left to right

in Figure 1), while the application of

WSC

displays in

a cascaded wiring style the newly introduced excep-

tional scenario. Sub-ﬂow

(b, right)

of Figure 1 is the

result.

Sub-ﬂow

(c, left)

of Figure 1 presents several is-

sues. First, the wires do not follow any consistent

wiring style (e.g., build the ﬂow by wiring nodes from

top to bottom or from left to right, avoiding crossing

wires), which reduces the overall comprehensibility

Second, a loop is generated between Prolog and send

Prolog newline nodes; although in this scenario ﬁnding

the loop is rather simple, it may be harder to detect and

produce a weird outcome or overheat the CPU, when

https://discourse.nodered.org/t/function-node-

stopping/

7017

https://github.com/node-red/node-red/issues/88

https://discourse.nodered.org/t/switch-node-not-consis

tent/11908

https://discourse.nodered.org/t/help-simplifying-ﬂow/

8765

more wires are involved

. Third, the sub-ﬂow shows

three function nodes connected through output pins to

limit 1 msg/s node, but only Build SPARQL queries

actually contributes to the ﬂow, since the other two

nodes have no entering wires, making them inactive;

this case in particular is easy to detect, but could be

hard to understand for a novel Node-RED developer,

in case she forgets to trace a wire between two nodes

to specify the input source or the output destination of

a node, without receiving any explicit warning from

the Node-RED environment. This issue often arises

when there is a need for debugging a ﬂow and some

nodes have to be temporary disconnected from it

. By

applying

WSC

and

WST

, a more consistent and tidier

wiring style is generated, to highlight the loop and

avoid further entangles, while

NEC

is used to remove

the miracle nodes originally named Build SQL queries

and Build SQLGIS queries (i.e., those having input

pins but no entering wires, in fact inactive). Sub-ﬂow

(c, right) of Figure 1 is the result.

4 EXPERIMENTAL EVALUATION

Based on the Goal Question Metric (GQM) tem-

plate (Van Solingen et al., 2002), the main goal of

our experiment can be deﬁned as follows: “Evalu-

ate the effect of the guidelines in Node-RED ﬂows

comprehension”, with the purpose of understanding

if the guidelines are able to improve the comprehen-

sion level of Node-RED ﬂows and the time required

to complete tasks pertaining such ﬂows; therefore,

consequently, the overall efﬁciency is computed as:

comprehension level ÷ time.

The perspective is of: a) Node-RED developers,

using it for their own purpose and/or sharing artefacts

with the community, who may be interested to con-

sider a disciplined technique to develop Node-RED

ﬂows using our guidelines; b) teachers and instructors

interested to offer courses and tutorials on Node-RED

and c), researchers interested in focusing their research

activities and study improvements or constraints to the

Node-RED language.

Thus, our research questions are:

RQ1.

Does the comprehension level of Node-RED

ﬂows vary when our guidelines are applied?

RQ2.

Does the comprehension time of Node-RED

ﬂows vary when our guidelines are applied?

https://discourse.nodered.org/t/cpu-hogging-to-100/

2944

https://discourse.nodered.org/t/how-to-comment-out-a-

node/1106

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

112

RQ3.

Does the efﬁciency of completing tasks

pertaining Node-RED ﬂows vary when our guidelines

are applied?

To quantitatively investigate the research questions,

we used ad-hoc questionnaires containing 16 compre-

hension questions for each experimental object. We

measured the comprehension level of Node-RED ﬂows

as the number of correct answers on the total, the time

required to provide such answers, and the efﬁciency

as the ratio between the comprehension level and the

time required to provide such answers (i.e., the number

of correct answers divided by the time is a proxy for

measuring the efﬁciency construct).

Table 2 summarizes the main elements of the

experiment, following the guidelines by Wohlin et

al. (Wohlin et al., 2012).

Table 2: Overview of the Experiment.

Goal

Evaluate the effect of the guidelines in

Node-RED ﬂows comprehension

Quality

focus

Pertaining Node-RED tasks, we evaluate:

(i) Comprehension

(ii) Time

(iii) Efﬁciency

Context

Objects

: DiaMH and WikiDataQuerying

Node-RED systems

Participants:

10 Computer Science mas-

ter students

Null

Hypotheses

(i) No effect on comprehension

(ii) No effect on time

(iii) No effect on efﬁciency

Treatments

Non-compliant (

–

) and Compliant (

)

Node-RED ﬂows

Dependent

variables

(i) TotalComprehension to complete

Node-RED tasks

(ii) TotalTime to complete Node-RED

tasks

(iii) TotalEfﬁciency to complete Node-

RED tasks

In the following, we describe in detail: treatments,

objects, participants, experiment design, hypotheses,

variables, procedure, and other aspects of the experi-

ment.

4.1 Treatments

Our experiment has one independent variable (main

factor) and two treatments: Non-compliant and Com-

pliant Node-RED ﬂows. Non-compliant Node-RED

ﬂows (in the following, characterized by symbol

–

)

are those produced without following our guidelines,

while compliant Node-RED ﬂows (in the following,

characterized by symbol

) are those produced follow-

ing our guidelines.

4.2 Objects

The objects of the study are DiaMH and WikiData-

Querying systems, presented in Section 3. Both were

developed by former students of another course. We

limited each object to just a comparable (in size and

complexity) ﬂow of the original behaviour, consisting

of 20 nodes and 23 wires for DiaMH and 21 nodes and

21 wires for WikiDataQuerying, employing mostly

Node-RED core nodes.

We carefully inspected and tested both the ﬂows

of the systems; these two ﬂows correspond to the non-

compliant treatment (

–

), since our guidelines were not

adopted during their implementations. Then, an au-

thor of the paper applied the guidelines discussed in

Section 2 to the initial ﬂows, producing two equiv-

alent compliant versions (

), while another author

double checked the newly produced ﬂows. In total,

we used four Node-RED ﬂows for executing the ex-

periment: DiaMH

–

, DiaMH

, WikiDataQuerying

–

WikiDataQuerying

4.3 Participants

We involved ten Computer Science master students

of the University of Genova (Italy), that were attend-

ing a course on advanced software engineering. The

total number of students enrolled in the course was

15, which is basically the average number of students

enrolled in any Computer Science Master Course in

Genova.

They had average knowledge of Software Engi-

neering, UML and JavaScript (the Node-RED core

programming language), and few experience in Node-

RED and ﬂow-based programming, that was provided

in another course related to Node-RED development.

4.4 Experiment Design

Before the experiment, all the participants were in-

volved in a 4-hours lecture split in two days about

Node-RED theory and practice using the tool. Partici-

pants were provided with material to understand the

main Node-RED core nodes, samples of ﬂows and sub-

ﬂows to reproduce/change, and questions to answers

about comprehensibility issues of the ﬂows similar to

those we asked for the later experiment. Participants

were not informed about the guidelines, and therefore,

about the treatments.

Due to the limited number of participants (only

ten), we adopted a counterbalanced experiment design

ensuring each participant to work in two tasks on the

two different objects, receiving each time a different

treatment. Since participants had the same experience

A Set of Empirically Validated Development Guidelines for Improving Node-RED Flows Comprehension

113

in Node-RED, acquired by attending another course,

we randomly split them into four groups (see Table 3),

balancing the representatives for each group. Each

participant had to work ﬁrst on

Task 1

on an object

with a treatment, then in

Task 2

on the other object

with the other treatment.

4.5 Dependent Variables and

Hypotheses Formulation

Our experiment had three dependent variables, on

which the treatments were compared measuring three

different constructs to answer our three research ques-

tions: (a) Comprehension of the Node-RED ﬂows

(measured by variable TotalComprehension), (b) Time

required to answer the questions pertaining the Node-

RED ﬂows (measured by variable TotalTime), (c) Ef-

ﬁciency in completing the tasks pertaining the Node-

RED ﬂows (measured by variable TotalEfﬁciency).

For each treatment:

•

TotalComprehension was computed by summing

up the number of correct answers of each partici-

pants;

•

TotalTime was computed as the difference between

the stop time of the last question and the start time

of the ﬁrst question, where timing was tracked

down in the time sheet by each participant;

•

TotalEfﬁciency was derived by the two previously

computed variables, as:

TotalEfﬁciency =

TotalComprehension

TotalTime

Since we could not ﬁnd any previous empirical evi-

dence pointing out a clear advantage of one treatment

versus the other, we formulated the following three

null hypotheses as non-directional, with the objective

to reject them in favour of alternative ones:

– H

: TotalComprehension

–

= TotalComprehension

– H

: TotalTime

–

= TotalTime

– H

: TotalEfﬁciency

–

= TotalEfﬁciency

4.6 Material, Procedure and Execution

To estimate the comprehensibility of the tasks to pro-

vide to the participants and the time required to com-

plete them, we conducted a pilot experiment with three

participants: two master students in Computer Science

not involved in the experiment and one of the authors

of this paper. On average, the time required to com-

plete both tasks was about 105 minutes, with 5 errors.

Given such results, we tried to remove any ambiguity

from the questions.

Then, we uploaded the material on the Moodle

module of the course from which the participants were

selected, consisting, for each group of Table 3, of:

two Node-RED ﬂows (one per system/treatment), two

questionnaires containing 16 questions each, and a

post-questionnaire to ﬁll after the completion of the

two questionnaires containing seven further questions.

Each questionnaire presented exactly 7 open ques-

tions and 9 multiple choices questions, in order to keep

the perceived complexity of both tasks as equivalent as

possible. Questions ranged from comprehending the

general behaviour of the provided Node-RED ﬂows,

like identifying the names and the number of nodes

involved in certain activities, detecting the presence of

loops and missing conditions in switch nodes, count-

ing the number of intersections among wires, to listing

some simple maintenance tasks to do on the ﬂows.

Concerning multiple choices questions, only one an-

swer among the proposed was correct and counted 1

point each, while for open questions we gave 1 point

to totally correct answers and 0 otherwise. For each

object (i.e., DiaMH and WikiDataQuerying), the ques-

tions asked to the participants were exactly the same,

independently from the treatment that had occurred

(i.e., non-compliant or compliant).

The participants had to complete each task in the

order deﬁned by the group they were assigned to, and

to stop each task only when completed. For each task,

participants had to import the corresponding Node-

RED ﬂow into Node-RED and, for each question, track

start time, answer the question, and track stop time.

Finally, the participants were asked to complete

the post-experiment questionnaire, to collect insights

about their skills and motivations for the obtained re-

sults. Questions were about the perceived complexity

of the two tasks, the exercise usefulness, the feelings

and the preferences between the styles of the two ﬂows,

and the competencies required to complete the tasks.

Answers were provided on a Likert scale ranging from

one (Strongly Agree) to ﬁve (Strongly Disagree).

4.7 Analysis

Because of the sample size and mostly non-normality

of the data (measured with the Shapiro–Wilk

test (Shapiro and Wilk, 1965)), we adopted non-

parametric test to check the three null hypotheses.

Since participants answered to the questions on the

two different objects (DiaMH and WikiDataQuerying)

with the two possible treatments (non-compliant and

compliant), we used a paired Wilcoxon test to compare

the effects of the two treatments on each participant.

To measure the magnitude of the effects of the two

treatments, we used the non-parametric Cliff’s delta

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

114

Table 3: Experimental Design (

for Compliant treatment,

–

for Non-Compliant treatment).

Group A Group B Group C Group D

Task 1 DiaMH

DiaMH

–

WikiDataQuerying

–

Task 2 WikiDataQuerying

–

WikiDataQuerying

DiaMH

–

DiaMH

(

) effect size (Grissom and Kim, 2005), which is

considered small (S) for

0.148 ≤ |d| < 0.33

, medium

(M) for

0.33 ≤ |d| < 0.474

, and large (L) for

|d| ≥

0.474.

We decided to accept the customary probability of

5% of committing Type-I-error (Wohlin et al., 2012),

i.e., rejecting the null hypothesis when it is actually

true.

5 RESULTS

In this section, the effect of the main factor on the

dependent variables (TotalComprehension, TotalTime,

and TotalEfﬁciency), as resulted from the experiment,

and the post-experiment questionnaires are discussed.

Table 4 summarizes the essential Comprehension,

Time, and Efﬁciency descriptive statistics (i.e., median,

mean, and standard deviation) per treatment, and the

results of the paired Wilcoxon analysis conducted on

the data from the experiment with respect to the three

dependent variables.

5.1 H

: Comprehension (RQ1)

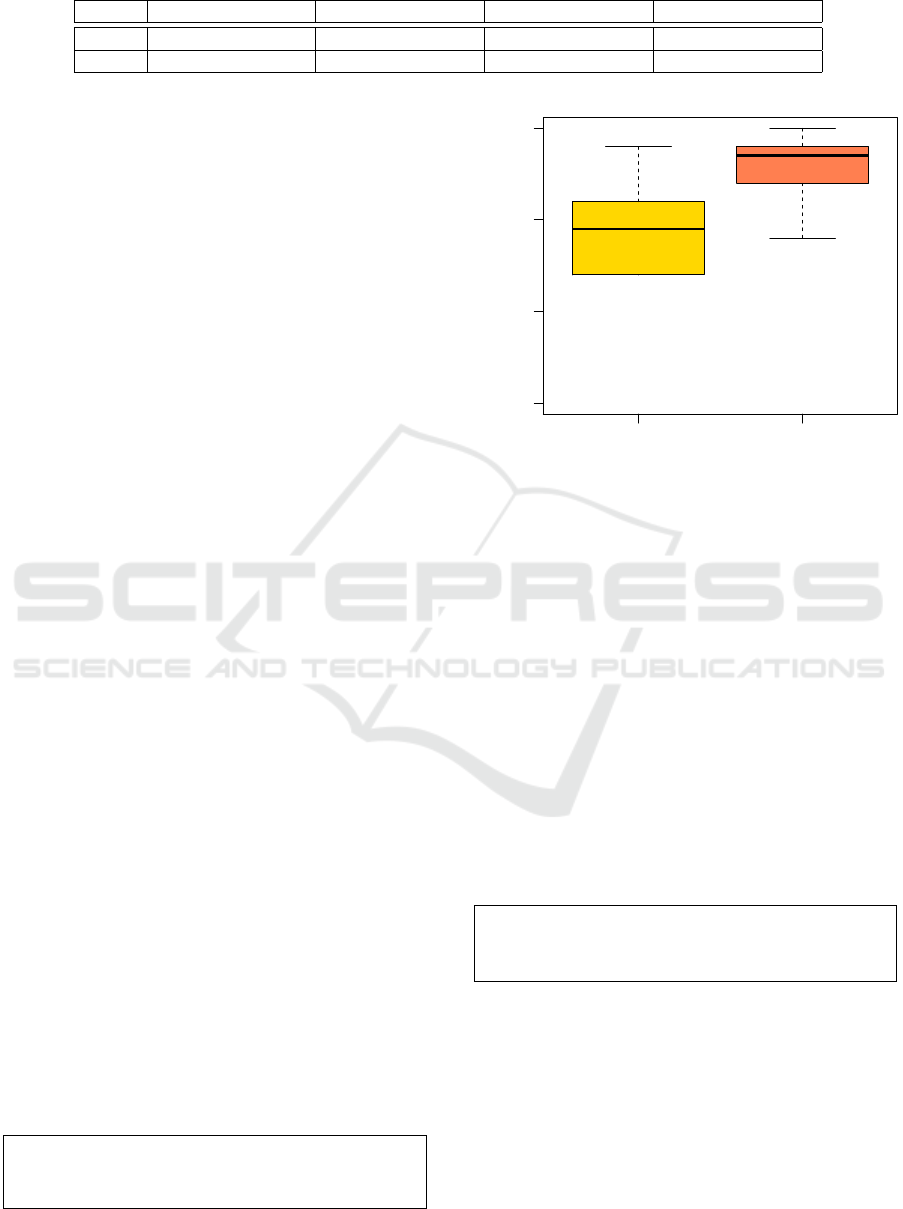

Fig. 2 summarizes the distribution of TotalComprehen-

sion by means of boxplots. Observations are grouped

by treatment (non-compliant or compliant). The y-

axis represents the average comprehension measured

as number of correct answers on the 16 questions for

each treatment, where score = 16 represents the maxi-

mum value of comprehension and corresponds to pro-

vide correct answers to all the 16 questions.

The boxplots show that the participants achieved

a better comprehension level when working on the

compliant Node-RED ﬂows (median 13.5) with respect

to those working on non-compliant ﬂows (median 9.5).

By applying a Wilcoxon test (paired analysis), we

found that the difference in terms of comprehension is

statistically signiﬁcant, as testiﬁed by p-value = 0.00903.

Therefore, we can reject the null hypothesis H

. The

effect size is large (d = – 0.69).

To Answer RQ1

: The adoption of the guidelines

signiﬁcantly improves the level of comprehension

of the Node-RED ﬂows.

Non−Compliant Compliant

0 5 10 15

Total Comprehension

Correct

●

●●

●

Figure 2: Boxplots of Comprehension.

5.2 H

: Time (RQ2)

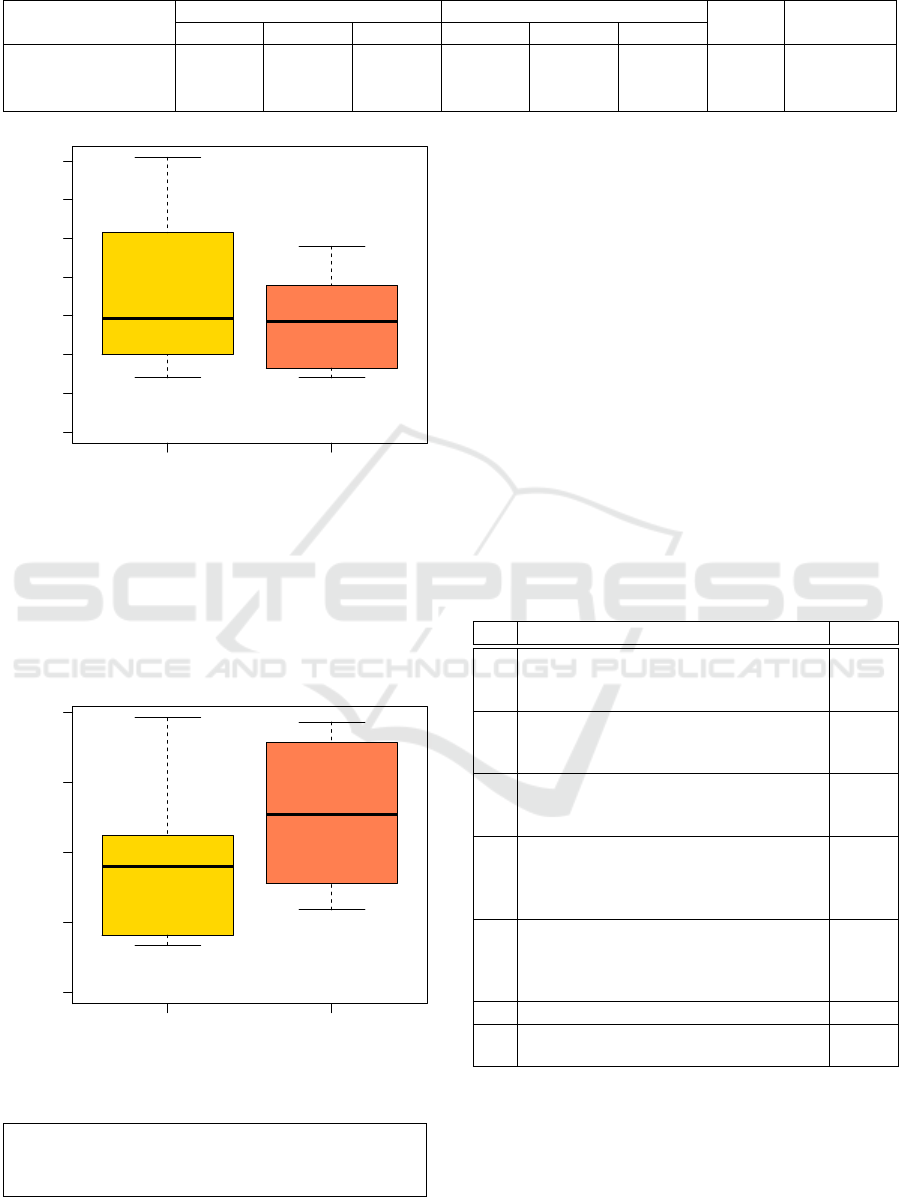

Fig. 3 summarizes the distribution of TotalTime by

means of boxplots, where the y-axis represents the

total time to answer the 16 questions for each treat-

ment. The boxplots show that the participants needed

slightly more time to answer the questions pertain-

ing the objects with the non-compliant treatment w.r.t.

those answering the questions pertaining the objects

with the compliant treatment (58.5 versus 57.0 minutes

respectively in the median case).

By applying a Wilcoxon test (paired analysis), we

found that the overall difference is marginally signiﬁ-

cant (p-value = 0.04883). Therefore, we can reject the

null hypothesis H

. The effect size is small (d= 0.17).

To Answer RQ2

: The adoption of the guidelines

marginally reduces the time required to answers the

questions pertaining the Node-RED ﬂows.

5.3 H

: Efﬁciency (RQ3)

Fig. 4 summarizes the distribution of TotalEfﬁciency

by means of boxplots.

The boxplots show that participants working on the

objects with the compliant treatment outperformed in

terms of efﬁciency those working with the objects with

the non-compliant treatment (medians 0.254 versus

0.180, respectively).

A Set of Empirically Validated Development Guidelines for Improving Node-RED Flows Comprehension

115

Table 4: Descriptive statistics per treatment and results of paired Wilcoxon test.

Dependent Variable

Non-Compliant Treatment (

–

) Compliant Treatment (

)

p-value Cliff’s Delta

Median Mean St. Dev. Median Mean St. Dev.

TotalComprehension 9.500 9.600 2.319 13.500 12.800 2.044 0.00903 – 0.69 (L)

TotalTime 58.500 71.100 38.484 57.000 59.100 25.291 0.04883 0.17 (S)

TotalEfﬁciency 0.180 0.179 0.109 0.254 0.253 0.100 0.00586 – 0.36 (M)

Non−Compliant Compliant

0 20 40 60 80 100 120 140

Total Time

minutes

●

Figure 3: Boxplots of Time.

By applying a Wilcoxon test (paired analysis), we

found that the overall difference is statistically sig-

niﬁcant, as shown by the p-value (p-value = 0.00586).

Therefore, we can reject the null hypothesis

. The

effect size is medium (d = – 0.36).

Non−Compliant Compliant

0.0 0.1 0.2 0.3 0.4

Total Efficiency

●

Figure 4: Boxplots of Efﬁciency.

To Answer RQ3

: The adoption of the guidelines

increases the overall efﬁciency in the comprehen-

sion of the Node-RED ﬂows.

5.4 Post Experiment

When participants had to ﬁll the post-experiment ques-

tionnaire, they were unaware of the guidelines and,

therefore, of the two treatments. For this reason, the

actual questions were formulated as a comparison be-

tween the ﬂows they had worked on in the two tasks,

keeping track of which treatment occurred on them,

according to the group the participants were assigned

to. Thus, for instance, question

PQ1

was originally

formulated as Comprehending the Node-RED ﬂow in

Task 1 was harder than the Node-RED ﬂow in Task 2.

In Table 5 the post-experiment questionnaire has been

adjusted in order to clarify the purpose of our experi-

ment. Table 5 reports also the medians of the answers

given by the participants. The possible choices for

each answer, on a 5-point Likert scale, were: Strongly

Agree, Agree, Unsure, Disagree, Strongly Disagree.

Table 5: Adjusted post-experiment questionnaire.

ID Question Median

PQ1

Comprehending the non-compliant Node-

RED ﬂow was harder than the compliant

one

Unsure

PQ2

In your opinion, developing the non-

compliant Node-RED ﬂow is harder than

the compliant one

Agree

PQ3

In your opinion, maintaining the non-

compliant Node-RED ﬂow is harder than

the compliant one

Agree

PQ4

The names of the nodes and the variables

in the non-compliant Node-RED ﬂow were

less useful for the comprehension than in

the compliant one

Unsure

PQ5

The wiring style to connect nodes in the

non-compliant Node-RED ﬂow was less

useful for the comprehension than in the

compliant one

Agree

PQ6 I found the exercise useful Agree

PQ7

I had enough knowledge to answer the

questions

Agree

As the Table 5 shows, participants did not perceive

any difference in the complexity while trying to com-

prehend the Node-RED ﬂows using each treatment

(

PQ1

), but believed that developing and maintaining

such ﬂows may result more complex with the non-

compliant treatment (

PQ2-3

). The names of the nodes

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

116

and of the used variables in the two treatments had no

signiﬁcant impact in the overall comprehension (

PQ4

whereas the wiring style was better perceived in the

case of the compliant treatment (

PQ5

). In general,

participants found the exercise useful (

PQ6

) to the

course of their studies, and ﬁtting their knowledge in

Node-RED (

PQ7

), in part acquired by attending the

4-hours lecture preceding the experiment.

5.5 Discussion

Given the results of the experiment, all null hypotheses

can be rejected. The guidelines are generally beneﬁ-

cial to the comprehension level and reduce the time

required to complete Node-RED tasks. Consequently,

the overall efﬁciency is also positively affected.

One of the main reasons of success of the guide-

lines was producing ﬂows that follow a consistent and

tidy wiring style, by means of

WSC

and

WST

, which

improved the capability of detecting loops and reduced

entangles among wires. This is corroborated by

PQ5

of Table 5. In fact, the questions pertaining compre-

hensibility issues about wires and loops presented gen-

erally better outcomes for the ﬂows compliant with our

guidelines. For example, a question in both question-

naires requires identifying the number of intersections

between wires. While we had only 1 error for the ﬂows

compliant with our guidelines, for the non-compliant

ﬂows the errors amounted to 8.

On the other hand, by the feeling of the partici-

pants (

PQ4

), giving proper names to nodes was not so

relevant for the comprehension. This is contradicted

by the results of the experiment, since the importance

of names, given by

NNB

guideline, resulted to be help-

ful in indirectly answering several questions on both

systems. For instance, we had two open questions

speciﬁcally asking the names of the nodes responsi-

ble for a certain behaviour (e.g., Which node (provide

name) displays on a web page the WikiData answer to

the user’s question?), which resulted in a total of 4 er-

rors for the ﬂows compliant with our guidelines against

10 for the non-compliant ones. We had also two ques-

tions in both questionnaires asking about which data

was changed/returned after the completion of a cer-

tain activity (e.g., Which data are saved just after the

HTTP request to URL?): while we had just 1 error in

the ﬂows compliant with our guidelines, 5 errors were

counted for the non-compliant cases. One question

asked about the effective contributions of the nodes in

a selected portion of the ﬂows (i.e., if they were able

to transform the message they had received); by using

NEC

guideline, the inactive nodes (e.g., those added

for debugging purposes) were removed from the ﬂows

compliant with the guidelines, but not from the non-

compliant ﬂows. In this case, while participants easily

identiﬁed the contributions of the remaining nodes,

they failed (4 errors) in identifying the inactive ones in

the non-compliant ﬂows. Finally, there was a question

asking to list all the ﬁles in the ﬁle system used by the

ﬂows, which resulted in 1 error for the ﬂows compliant

with our guidelines against 4 for the non-compliant

ones. Indeed, by following our guidelines, the nodes

names were formulated to make their behaviours more

explicit, as well as the main used variables, hence

reducing the overall errors in the comprehension, as

summarized by the statistics data of Table 4.

From

PQ1

, participants did not have a clear opin-

ion on which treatment was easier to comprehend,

while they agreed that ﬂows produced without fol-

lowing our guidelines would be harder to develop

and maintain (

PQ2-3

). Concerning comprehensibility

complexity, we speculate that the uncertainty of the

participants is due to the domain of the two systems:

while DiaMH presents the MQTT node (i.e., a core

Node-RED node used to establish a communication

from/to entities and ﬂows using the MQTT protocol

)

as the most complex node, WikiDataQuerying refers

to WikiData repository and to Prolog and SPARQL

languages, which could deviate from their average

academic background. Finally, the participants rec-

ognized that the tasks they completed did not require

excessive knowledge of Node-RED and were helpful

for their current/next academic studies (PQ6-7).

To conclude, the proposed guidelines resulted use-

ful in terms of comprehension level, time, and overall

efﬁciency. This may suggest Node-RED developers

to apply them to reduce the comprehensibility issues

of the ﬂows they will produce, deploy and share. At

the same time, the guidelines may turn useful to the

designers of the Node-RED language, who may want

to ﬁx some of the issues exposed in the paper, by

introducing additional features in future Node-RED

releases. Just to mention few possible additions: (i)

nodes resizing in height and width, to highlight the

most important nodes and make long names more read-

able, (ii) general warnings, to notify the presence of

unused variables, incomplete conditions within switch

nodes, and loops, and (iii) jumps between wires, to

graphically handle colliding wires.

5.6 Threats to Validity

The threats to validity that could affect our experimen-

tation are: internal, construct, conclusion and exter-

nal (Wohlin et al., 2012).

Internal validity threats: these threats concern fac-

tors which may affect the dependent variables. The

https://cookbook.nodered.org/mqtt/

A Set of Empirically Validated Development Guidelines for Improving Node-RED Flows Comprehension

117

participants had to complete two tasks; therefore, a

fatigue/learning effect may have intervened. How-

ever, since they had a break between the two tasks

and they previously completed some exercises about

Node-RED comprehensibility issues, we expect this

effect to be limited. Another threat is the subjectivity

in the objects selection. The objects were ﬂows cho-

sen from a list of systems developed by former master

students of another course related to Node-RED, and

were comparable in size and complexity and composed

of mostly Node-RED core nodes.

Construct validity threats: these threats concern

how comprehension and time were measured. The

correctness of the answers was checked by one of the

authors, who also measured the execution time, based

on the time sheets ﬁlled by the participants. The statis-

tics data (i.e., median, mean, and standard deviation)

and the results of the paired Wilcoxon analysis were

computed using Excel and R

Conclusion validity threats: these threats concern

the limited sample size of the experiment (ten master

students), which may have affected the statistical tests.

Unfortunately, this is the average number of students

of any Computer Science Master Course in Genova, so

it is difﬁcult for us to conduct experiments with more

participants.

External validity threats: these threats can limit the

generalization of the results and, in our case, concern

the use of students as experimental participants. Our

participants had few knowledge of Node-RED, there-

fore more expert Node-RED developers may produce

a different outcome. We intend to replicate our exper-

iment with more complex systems and more expert

developers.

6 RELATED WORK

As already mentioned in Section 2, our guidelines

have been inspired by several works on UML and

BPMN concerning the quality of the produced models,

while none speciﬁcally treat guidelines for developing

comprehensible Node-RED ﬂows.

The guidance provided to Node-RED developers

in implementing nodes is limited to a simple set of

principles

, like nodes should be “simple to use” and

“consistent” in their behaviour, and few unofﬁcial de-

sign patterns

to make ﬂows easier to understand and

reuse.

https://www.r-project.org/

https://nodered.org/docs/creating-nodes

https://medium.com/node-red/node-red-design-

patterns-893331422f42

In a recent industrial work (Bröring et al., 2019),

Bröring et al. propose an approach to automatically

collect metadata from Node-RED ﬂows and nodes,

and feed a knowledge base for future analyses, such

as nodes quality ratings, downloads data, and nodes

dependencies. Although that work considers several

quality aspects of Node-RED, like selecting the most

suitable solutions to integrate within a system, it does

not provide to users any development guideline.

Prehofer and Chiarabini (Prehofer and Chiarabini,

2015) identify the differences between mash-up tools

for IoT systems, like Node-RED, and model-based

approaches for the IoT, and propose an approach to

exploit both their beneﬁts: the simplicity of mash-up

tools in systems development and the strengths of mod-

els to formalize a behaviour and have it checked by

a model checker. However, in that paper, the quality

checks of IoT systems are not oriented to the com-

prehensibility issues that may emerge during ﬂows

development using mash-up tools.

Mendling et al. (Mendling et al., 2010) provide 7

guidelines, built on empirical insights, as a response

to the lack of practical solutions to improve the quality

of business process models. Some of these guidelines

have been adapted for our work. For example, “Use

verb-object activity label” (G6), to reduce the ambi-

guity of the constructs in a model, particularly useful

for the large number of nodes collaborating within

Node-RED ﬂows, as well as “Use as few elements in

the model as possible” (G1) and “Decompose a model

with more than 50 elements” (G7), to reduce ﬂows

complexity.

Unhelkar, in his book (Unhelkar, 2005), focuses

on syntax, semantics and aesthetic checks of UML

2.0 diagrams. Although UML is quite different from

Node-RED in many aspects, since it operates at a de-

sign stage and involves constructs that are hardly com-

parable to Node-RED nodes and wires, in the book

there are some aesthetic checks concerning activity

diagrams that we have embodied in our work. In par-

ticular, it is important to adopt a consistent style to

differentiate regular from exceptional scenarios and to

balance overpopulated diagrams by redistributing the

included constructs.

Reggio et al. (Reggio et al., 2012; Reggio et al.,

2011) face the problem of quality in business process

modelling. They propose an empirical method for

helping the modeller in choosing among ﬁve business

process modelling styles, that differ in terms of abstrac-

tion and precision. For instance, a more precise style

requires each construct to declare all the participants,

the objects and the used data in capital letters, like we

did in our work, to make explicit the data used by each

node.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

118

Ambler proposes (Ambler, 2005) several guide-

lines addressing both general and UML-speciﬁc mod-

elling issues, with the aim of improving the effective-

ness of the produced models. Some of these guidelines

can be applied even in Node-RED, since they use very

general terms and descriptions. For what concerns

UML, we focused on activity diagrams since they rep-

resent sequences of actions similarly to Node-RED

ﬂows. The guidelines suggest, for instance, to avoid

black-hole and miracle nodes (i.e., nodes without a

leaving/entering line), that may indicate a missing in-

teraction, and to check that the guards within decision

points are always complete.

7 CONCLUSION AND FUTURE

WORK

In this paper, we have proposed a preliminary set of

guidelines, addressing some common Node-RED com-

prehensibility issues, which may help the Node-RED

developers in producing ﬂows that are easier to com-

prehend and suitable for future maintenance and test-

ing activities. To evaluate the guidelines, we have con-

ducted an experiment involving ten master students.

The results have shown that the adoption of the

guidelines increased the overall efﬁciency in Node-

RED ﬂows comprehension, by reducing the number

of errors and the time required to complete compre-

hension tasks over some provided Node-RED ﬂows.

In addition to supporting the Node-RED developers in

ﬂows development, the proposed guidelines pinpoint

some Node-RED comprehensibility issues that might

be solved in future releases of the tool, by adding fea-

tures like: (i) nodes resizing in height and width, to

highlight the most important nodes and make long

names more readable, (ii) general warnings, to no-

tify e.g., the presence of unused variables, incomplete

conditions within switch nodes, and loops, and (iii)

graphical jumps between wires, to handle colliding

wires.

The proposed guidelines are just a preliminary set

of those that we are planning to address further Node-

RED comprehensibility issues that did not emerge

from the Node-RED systems we chose; for instance,

how to avoid loops by transforming graph-based ﬂows

into tree-based ones. As future work, we intend to

involve a larger participants pool in the experimen-

tal evaluation of the guidelines, including Node-RED

designers, and to implement a checker tool to auto-

matically detect the comprehensibility issues from the

Node-RED ﬂows failing our guidelines, and ﬁx them

accordingly.

REFERENCES

Ambler, S. W. (2005). The elements of UML (TM) 2.0 style.

Cambridge University Press.

Bröring, A., Charpenay, V., Anicic, D., and Püech, S. (2019).

Nova: A knowledge base for the Node-RED IoT

ecosystem. In Proceedings of ESWC 2019, pages 257–

261. Springer.

Clerissi, D., Leotta, M., Reggio, G., and Ricca, F. (2018).

Towards an approach for developing and testing

node-red iot systems. In Proceedings of EnSEm-

ble@ESEC/SIGSOFT 2018, pages 1–8.

Grissom, R. J. and Kim, J. J. (2005). Effect sizes for research:

A broad practical approach. Lawrence Erlbaum Asso-

ciates Publishers.

Lange, C. F., DuBois, B., Chaudron, M. R., and Demeyer, S.

(2006). An experimental investigation of UML mod-

eling conventions. In Proceedings of MODELS 2006,

pages 27–41. Springer.

Leotta, M., Clerissi, D., Olianas, D., Ricca, F., Ancona,

D., Delzanno, G., Franceschini, L., and Ribaudo, M.

(2018). An acceptance testing approach for internet of

things systems. IET Software, 12(5):430–436.

Martin, R. C. (2003). Agile Software Development: Princi-

ples, Patterns, and Practices. Prentice Hall PTR.

Mendling, J., Reijers, H. A., and van der Aalst, W. M. (2010).

Seven process modeling guidelines (7PMG). Informa-

tion and Software Technology, 52(2):127–136.

Morrison, J. P. (2010). Flow-Based Programming: A new

approach to application development. CreateSpace.

Prehofer, C. and Chiarabini, L. (2015). From Internet of

Things mashups to model-based development. In Pro-

ceedings of COMPSAC 2015, volume 3, pages 499–

504. IEEE.

Reggio, G., Leotta, M., and Ricca, F. (2011). "Precise is

better than light" A document analysis study about

quality of business process models. In Proceedings of

EmpiRE 2011, pages 61–68. IEEE.

Reggio, G., Leotta, M., and Ricca, F. (2014). Who

knows/uses what of the UML: A personal opinion sur-

vey. In Proceedings of MODELS 2014, volume 8767

of LNCS, pages 149–165. Springer.

Reggio, G., Leotta, M., Ricca, F., and Astesiano, E. (2012).

Business process modelling: Five styles and a method

to choose the most suitable one. In Proceedings of

EESSMod@MoDELS 2012, pages 8:1–8:6. ACM.

Shapiro, S. S. and Wilk, M. B. (1965). An analysis of vari-

ance test for normality (complete samples). Biometrika,

52(3/4):591–611.

Unhelkar, B. (2005). Veriﬁcation and Validation for Quality

of UML 2.0 Models, volume 42. John Wiley & Sons.

Van Solingen, R., Basili, V., Caldiera, G., and Rombach,

H. D. (2002). Goal Question Metric (GQM) approach.

Encyclopedia of software engineering.

Wohlin, C., Runeson, P., Höst, M., Ohlsson, M. C., Reg-

nell, B., and Wesslén, A. (2012). Experimentation in

software engineering. Springer Science & Business

Media.

A Set of Empirically Validated Development Guidelines for Improving Node-RED Flows Comprehension

119
