Predicting Crime by Exploiting Supervised Learning on Heterogeneous

Data

Ursula R. M. Castro

, Marcos W. Rodrigues

and Wladmir C. Brand

Pontiﬁcal Catholic University of Minas Gerais (PUC Minas), Belo Horizonte, Brazil

Keywords:

Crime Analysis, Crime Prediction, Machine Learning, Supervised Learning, Supervised Classiﬁcation.

Abstract:

Crime analysis supports law-enforcing agencies in preventing and resolving crimes faster and efﬁciently by

providing methods and techniques to understand criminal behavior patterns. Strategies for crime reduction rely

on preventive actions, e.g., where perform street lighting and police patrol. The evaluation of these actions

is paramount to establish new security strategies and to ensure its effectiveness. In this article, we propose a

supervised learning approach that exploits heterogeneous criminal data sources, aiming to understand crim-

inal behavior patterns and predicting crimes. Thus, we extract crime features from these data to predict the

tendency of increase or decrease, and the number of occurrences of crimes types by geographic regions. To

predict crimes, we exploit four learning techniques, as k-NN, SVM, Random Forest, and XGBoost. Exper-

imental results show that the proposed approach achieves up to 89% of accuracy and 98% of precision for

crime tendency, and up to 70% of accuracy and 79% of precision for crime occurrence. The results show that

Random Forest and XGBoost usually perform better when trained with a short time window, while k-NN and

SVM perform better with a longer time window. Moreover, the use of heterogeneous sources of data can be

effectively used by supervised techniques to improve forecast performance.

1 INTRODUCTION

Crime is a violation of law and order that unbalances

life in society and contributes to insecurity, promot-

ing the increase of the sense of chaos and anarchy.

According to the Universal Declaration of Human

Rights, security is a guarantee, a fundamental right

of citizens, allowing for the dignity of the human be-

ing (United Nations, 2015).

In contemporary society, public safety is one

of the most critical problems, since recently the

insecurity feeling has been increasing around the

world (Oberwittler et al., 2010). Besides, crime con-

trol and prevention is not a trivial activity, demanding

effective use of law-enforcing agencies resources. For

example, the Brazilian Federal Constitution (Consti-

tution, 1988) guarantees the security right for all citi-

zens and assigns public safety as a duty of the State,

and a right and responsibility of all. There is a gen-

eral feeling that the government is unable to address

the population’s demand for public safety, especially

https://orcid.org/0000-0002-0024-9362

https://orcid.org/0000-0002-5329-3367

https://orcid.org/0000-0002-1523-1616

in larger cities, both that violence is among the top

major concerns of the Brazilians.

Misinformation on crimes is a problem that im-

pairs the efforts against violence. Ofﬁcial statistics

on violence in Brazil are far from reality, e.g., ac-

cording to the National Secretary of Public Security

(SENASP ), only 30% of victims report crimes. The

main reasons are the lack of trust in the police, the

idea that the law-enforcing agencies do not take effec-

tive actions to solve crimes and punish the criminals,

and the sense that they reporting have no positive im-

pact on society. Thus, the actual number of crimes

is higher than the ofﬁcially reported ones. Neverthe-

less, some Web platforms, such as WikiCrimes and

Onde Fui Roubado,

have been used to capture data

on criminal actions. Also, social networks, such as

Facebook and Twitter, can help to ﬁll this information

gap, since it is typical behavior among the victims to

report crime incidents on their proﬁle.

Thus, we propose a criminal prediction approach

that exploits four different supervised learning tech-

niques. We use k-NN (k-Nearest Neighbor), SVM

(Support Vector Machine), RF (Random Forest), and

http://www.ondefuiroubado.com.br

524

Castro, Ú., Rodrigues, M. and Brandão, W.

Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data.

DOI: 10.5220/0009392005240531

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 524-531

ISBN: 978-989-758-423-7

XGBoost (eXtreme Gradient Boosting) to predict the

tendency of increase or decrease and the number of

occurrences of types of crimes by geographic regions.

Further, we evaluate the effectiveness of the super-

vised techniques by contrasting their performance in

three different crime datasets. The datasets are built

from the OFF (Ofﬁcial Records) provided by Brazil-

ian government, and UOF (Unofﬁcial Records) from

Onde Fui Roubado website. The third dataset, the

CRIME, is a combination of OFF and UOF records.

Experiments attest to the effectiveness of our

crime prediction approach, as well as of the features

extracted from the heterogeneous data sources for

prediction. Experimental results show that our ap-

proach achieves up to 84% of precision for crime ten-

dency prediction in the UOF dataset, and 98% in the

OFF dataset. Our approach achieves up to 79% of

precision for a more difﬁcult task of crime occurrence

prediction in the UOF dataset, and 67% in the OFF

dataset. Moreover, in the third dataset, some tech-

niques such as XGBoost signiﬁcantly improve their

performance compared to the performance in the sin-

gle datasets. Our main contributions are: a) We build

a crime dataset (UOF) with public crime records ex-

tracted from the Onde Fui Roubado website; b) We

characterize the OFF and UOF datasets, identify-

ing relevant features about crime occurrences. Par-

ticularly, we exploit the gender and temporal aspects

of crimes for crime prediction; c) We evaluate four

different machine learning techniques for predicting

trends and the crime’s occurrence.

This article is organized as follows: In Section 2,

we review the related literature on supervised learn-

ing, as k-NN, SVM, RF and XGBoost. In Section 3,

we present related works on crime prediction. In

Section 4, we present our crime prediction approach.

In Section 5, we introduce the heterogeneous data

sources used in our methodology. In Sections 6 and 7,

we present the experimental setup and the results of

the evaluation of our crimes prediction in heteroge-

neous datasets. Finally, in Section 8 we conclude this

article by showing the strengths and weaknesses of

our approach, laying directions for future research.

2 BACKGROUND

There are several techniques reported in the scien-

tiﬁc literature that can be used to predict and classify

events. In this article, we focus on four well-known

supervised techniques that usually provide effective

results when used for classiﬁcation tasks.

The k-Nearest Neighbor (k-NN) is a versatile and

robust classiﬁer often used as a reference for more

complex classiﬁers, such as neural networks. In par-

ticular, it is a non-parametric supervised learning ap-

proach that classiﬁes instances based on the similarity

between them. Predictions are made for a new in-

stance by searching the entire training set, to get the

k most similar cases (neighbors) (Duda et al., 2001).

The k-NN has a single hyper-parameter, the number

of nearest neighbors (k) of an instance that one needs

to classify. Some authors suggest k =

√

N/2, where N

represents the number of samples in the training set.

However, an improved solution is to estimate the k

value through k-fold cross-validation, minimizing the

validation error (Celisse and Mary-Huard, 2018)

The Support Vector Machines (SVM) is a su-

pervised classiﬁer that uses a hyperplane to split

the class representation, maximizing the distance be-

tween the instances of different classes (Hsu et al.,

2008). SVM is efﬁcient for many classiﬁcation

tasks, but presents a high computational cost for high-

dimensional datasets. SVM classiﬁers have some

hyper-parameters, such as the kernel function, the

regularization parameter (C) to avoid misclassiﬁca-

tion, and the Gamma parameter. The kernel func-

tion maps the original data to ﬁnd the best separation

of the mapped space (hyperplane), and the Gamma

parameter manage the inﬂuence of the training in-

stances, i.e., low Gamma considers distant instances

of the hyperplane, while a high value only ﬁnds the

close instances of the hyperplane (Syarif et al., 2016).

For high C, one selects a small margin for the hyper-

plane, and for low C, one selects a large margin for

the hyperplane. Commonly, the Gamma parameter is

estimated as γ = 1/p, where p is the number of at-

tributes (data dimensions).

Random Forest (RF) is another robust supervised

bagging approach commonly used for classiﬁcation

tasks (Breiman, 2001). Notably, a random forest is

composed of a set of decision trees (weak predictors),

where each tree depends on the values of a random

vector sampled and with equal distribution among

the trees. The output of each tree in the set con-

verges to a single result that matches with the most

trees (Ho, 1995). RF approaches have two hyper-

parameters that impact in the behavior of the classi-

ﬁcation model, the number of trees (ntree), and the

number of attributes (mtry) used in each division (Ko-

havi and John, 1997). For classiﬁcation tasks, the lit-

erature suggests mtry =

√

p, where p is the number

of attributes in N samples.

The eXtreme Gradient Boosting (XGBoost) is a

highly robust supervised classiﬁer that has recently

been dominating applied in machine learning (Chen

and Guestrin, 2016). The popularity of XGBoost

comes from its scalability in all scenarios, and the

Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data

525

ability to solve many data science problems in a fast

and accurate way. XGBoost is an implementation of

gradient-boosted decision trees (GBDT) designed for

speed and performance. The basic idea of boosting

is to combine hundreds of simple trees with low ac-

curacy to build a more accurate model. Every itera-

tion generates a new tree for the model. The Gradi-

ent Boosting machine utilizes the gradient descent to

generate the new tree based on all previous trees, driv-

ing the objective function towards the minimum di-

rection (Friedman, 2001). The XGBoost classiﬁer has

some hyper-parameters, such as the tree size (stree),

the learning rate (lr) and Gamma. The choice of lr

is not crucial but should be signiﬁcantly small (lr =

0.1) (B

uhlmann and Yu, 2010), while the Gamma

parameter speciﬁes the minimum loss reduction re-

quired to make a node split.

3 RELATED WORK

Different approaches to predict crimes using machine

learning have been reported in the literature. In (Bo-

gomolov et al., 2014), the authors propose an ap-

proach that uses human behavioral data from mobile

network activity combined with demographic infor-

mation to predict crimes. In especial, they evalu-

ate Logistic Regression, SVM, Neural Networks, De-

cision Trees, and different implementations of en-

sembles of tree classiﬁers on three different datasets.

They conclude that the RF outperforms the others,

achieving 70% of accuracy. One of the datasets used

has the geographic division of the London, the other is

the Criminal cases dataset, including the geo-location

of the reported crimes without temporal data, and the

last is an ofﬁcial dataset with metrics about the popu-

lation of each geographic area.

In the same line, another prediction approach ex-

ploits ﬁve classiﬁcation algorithms to predict crime

locations in Manila (Baculo et al., 2017). The au-

thors use ofﬁcial crime records from 2012 to 2016,

with nine attributes to evaluate the effectiveness of

the BayesNet, Naive Bayes, J48, Decision Stump, and

Random Forest algorithms. Their experimental re-

sults show that the RF classiﬁer outperforms the other

algorithms in precision when trained with crime in-

stances composed by the following attributes: type of

crime, day of the week, year, location and location

category, latitude, longitude, isholiday, and raining.

Recently, (Pradhan et al., 2019) proposes a predic-

tion model to identify the type of crime that can oc-

cur in the city.They use an ofﬁcial crime dataset from

2003 to 2018 of San Francisco and propose a data pre-

processing method to improve the prediction for the

highly imbalanced dataset. To deal with this problem,

the authors used three techniques: oversampling the

minority classes, undersampling the majority class,

and adjusting weights on the classiﬁers. Despite that,

none of them showed a signiﬁcant improvement in

the recall or precision scores with k-NN, Multi-class

Logistic Regression, Decision Tree, RF, and Naive

Bayes algorithms.

The recent studies use time and space attributes

for crime prediction, but the use of geographic fea-

tures is under-exploited (Lin et al., 2018). The au-

thors incorporated eighty-four types of geographic in-

formation related to vehicle theft in Taiwan. They use

in their experiments a dataset from 2015 to 2018, and

compare the performance of ﬁve approaches for crime

prediction: k-NN, SVM, Random Forest, Deep Neu-

ral Networks. The results show that the Deep Neural

Networks, with geographic features, outperforms the

other approaches to predict vehicle theft occurrences.

In order to improve the crime prediction, (Belesi-

otis et al., 2018) studie how data from multiple het-

erogeneous sources can be used to make predictions

about the spatial distribution of crime in large urban

regions. The authors use six different datasets to learn

models for predicting crime rates of fourteen types of

crime. They exploit three techniques to investigate

the impact of regression algorithms on their approach:

Ridge regression, RF, and Support Vector Regression.

Experiments show that Ridge and RF present a ten-

dency to overestimate predictions, while SVM made

balanced predictions. They argue that all datasets and

types of data can potentially contribute to better pre-

diction accuracy when appropriately combined.

DeepCrime (Huang et al., 2018) is a crime pre-

diction framework that uncovers under-exploited dy-

namic crime patterns by using the evolving inter-

dependencies between crimes with other present data

in urban space. This framework enables to predict

the crime occurrences of different types in each re-

gion of a city. The authors evaluate the framework us-

ing a dataset collected from New York in 2014, com-

paring the results against SVM, Auto-Regressive In-

tegrated Moving Average, Logistic Regression, Mul-

tilayer Perceptron, Tensor Decomposition, Wide and

Deep Learning, and Gated Recurrent Unit. Experi-

mental results show that the DeepCrime framework

outperforms the other baseline approaches.

Different from the previous related work reported

in the literature, we exploit unofﬁcial crime records

collected from Web and an ofﬁcial crime record as a

joint source of features about criminal patterns, test-

ing and evaluating supervised learning techniques to

predict the tendency and occurrence of different types

of crimes in geographic locations. In the next sec-

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

526

tion, we present the architecture and components of

our prediction approach.

4 CRIME PREDICTION

We present our approach to predict the tendency and

occurrence of crimes which the workﬂow is illus-

trated in Figure 1. From Figure 1, we observe that,

in the ﬁrst step, the Web Crawling component col-

lect unofﬁcial crime records from the UOF website,

storing them into the UOF dataset. Additionally, the

OFF records are also collected and stored in the OFF

dataset. In particular, the ofﬁcial crime reports come

from the Brazilian government, which we obtained

with the Department of State of Minas Gerais of De-

fense, and these reports build the OFF corpus.

In the second step, the Feature Extraction com-

ponent ﬁlters crime records previously crawled, ex-

tracting from them crime-related features useful in

prediction tasks. In particular, it discards incomplete

records, e.g., records with no time or space infor-

mation, as well as records outside a geographic re-

gion of interest. Additionally, a preprocessing proce-

dure removes errors, including duplicated and noisy

data, and performs text and encoding transformations.

This procedure is paramount to improve the train-

ing and prediction effectiveness of the learning tech-

niques used in the next step.

In the third step, the Feature Transformation phase

performs transformations in the extracted features,

deriving from the new features, such as the day of the

week and the month in which the crime occurred, and

whether the day is a holiday in the city. Moreover,

it derives the neighborhood from the address, the pe-

riod of the day from time, e.g., morning, afternoon,

night, dawn, and it categorizes the city neighborhood

in geographic regions. The goal of the new features is

to characterize crime records better. Crimes that oc-

cur during the week may have different characteris-

tics from crimes that occur on weekends, just as each

month of the year and public holidays in the city have

different frequencies and particulars related to the oc-

currence of crimes. We used the feature month to sep-

arate the training and test sets to make the predictions.

About the period of the day, we believe that the crimes

which happened in the same interval of time have a

similar pattern. The idea of using the region as a fea-

ture is aiming to cluster the neighborhoods with the

same characterizes and behavior patterns.

In the fourth step, our approach analyzes the fea-

tures characterizing the OFF and UOF datasets by

performing a complementarity analysis. Notably, it

checks if both datasets are complementary, i.e., if the

Table 1: Attributes used as prediction features.

Attribute Description

Crime’s type Crime category, e.g., robbery and theft

Gender Gender of the victim

Is Holiday (1) if crime occurs in a holiday; (0) otherwise

Weekday (1) if crime occurs in the weekend; (0) otherwise

Period Period of the day the crime occurred

Region Geographic location where the crime occurred

Figure 1: The workﬂow of our crime prediction.

datasets are almost entirely different. In the end, our

approach builds the CRIME dataset composed of the

merging of the other two datasets. The attributes used

as prediction features are presented in Table 1.

In the ﬁfth step, the prediction features are used

to train supervised classiﬁers. The Crime Modeling

component provides a classiﬁcation model used to

predict the tendency and occurrence of crimes by type

of crime and geographic location. To tackle crime

prediction as a classiﬁcation problem, we follow the

general framework of discriminative learning (Liu,

2009). Crimes reported in cities can vary signiﬁ-

cantly from month to month, and it is common for

law-enforcing agencies to conduct crime analysis and

comparison for months, and an interval of months.

So, in particular, our goal is to learn an optimal hy-

pothesis h : X →Y , mapping the input space X to the

output space Y . To this end, a plethora of learning

algorithms could be deployed. In this work, we used

k-NN, SVM, RF, and XGBoost. Finally, in the sixth

step, the Crime Prediction Evaluation phase evaluates

the effectiveness of the prediction models.

5 CRIME DATA SOURCES

We present the crime datasets for the criminal predic-

tion, cover a complementarity analysis, and prepro-

cessing procedures for effective supervised training.

5.1 The OFF Dataset

The OFF dataset has 520,378 records regarding Jan-

uary 2012 to November 2017, which is presented in

Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data

527

Figure 2 by over time and type of crime.

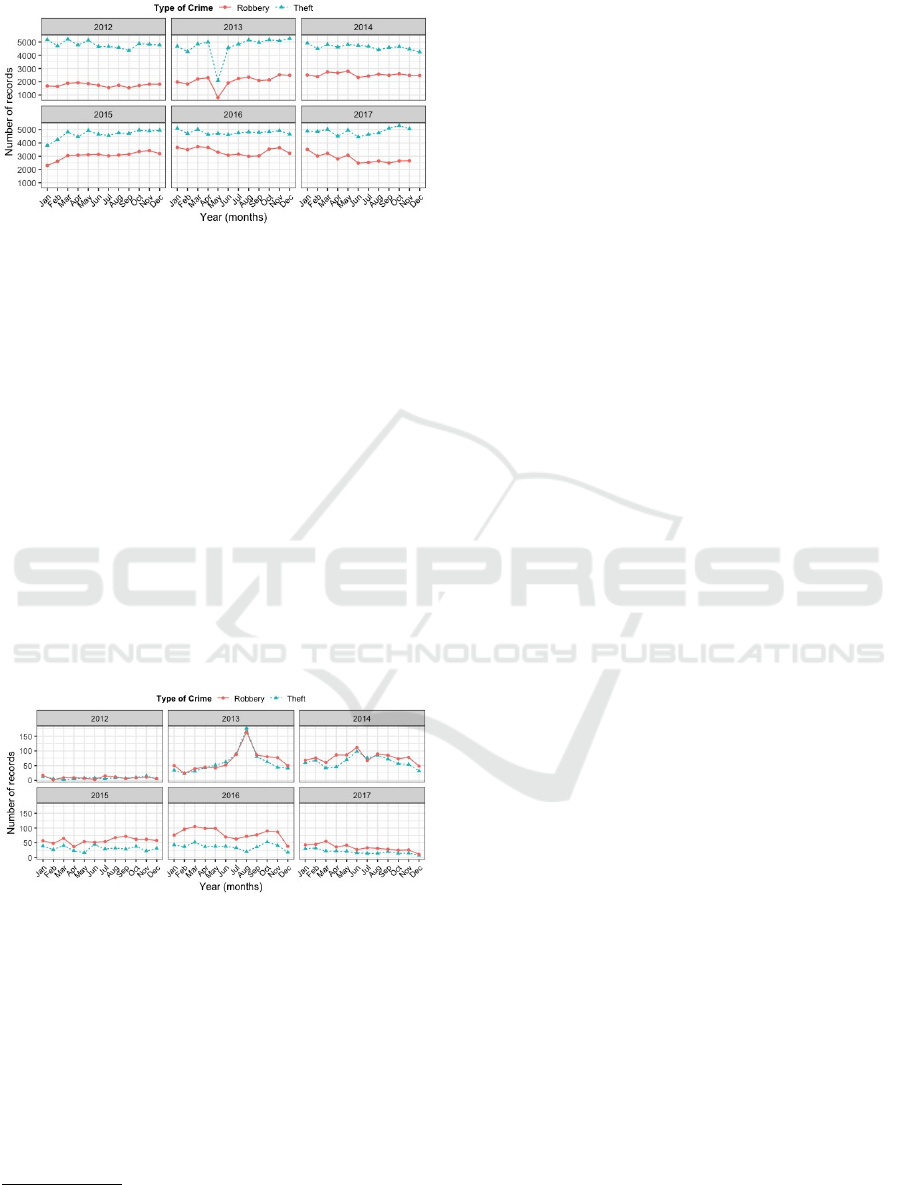

Figure 2: The composition of the OFF dataset.

From Figure 2, we can observe that theft records are

the majority, accounting for more than 64% of the

total number of records, and robbery has been in-

creasing over the years, while thefts remain almost

stable. In 2017, the robbery records dropped signif-

icantly. Additionally, more than 57% of victims are

men, the crimes occur mostly on Mondays, their oc-

currences increase on holidays, one geographic region

concentrates the most signiﬁcant number of criminal

records, and the criminals usually act in the afternoon

and night.

5.2 UOF Dataset

The UOF dataset

has 6,529 regarding January 2012

to December 2017, which is presented in Figure 3 by

over time and type of crime.

Figure 3: The composition of the OFF dataset.

The 2014 year concentrates the highest number of

records, while the lowest number was in 2012. From

Figure 3, we observe that similarly to the OFF

dataset, robbery records are the majority, accounting

for more than 59% of the total number of records,

and robbery has been increasing over the years, while

thefts remain almost stable, except for two peaks in

August 2013 and June 2014. Also, more than 61% of

victims are men, the crimes occur mostly on Wednes-

days, their occurrences increase on holidays, one geo-

Available at http://dx.doi.org/10.5281/zenodo.3673834.

graphic region concentrates the most signiﬁcant num-

ber of criminal records, and the criminals were usu-

ally acting at night.

5.3 Complementarity Analysis

We provide a complementarity analysis of the crime

datasets. In particular, we check how the datasets

complement each other by checking if there is an

intersection between their records. To perform this

analysis, we use the following record attributes: lati-

tude, longitude, date, and the period of the day, which

of the crime occurred, victim’s sex and, crime type.

The address entered in different systems, and the

way the systems handle each address may result in

the same criminal record with different latitudes and

longitudes. To determine the existence of records ref-

erencing the same crime in the two datasets, we use

the latitude and longitude of the criminal record with

the precision of one geographical block.

We performed the complementarity analysis using

the following attributes: date, the period of the day,

victim’s gender, type of crime, and latitude and lon-

gitude with the precision of one geographical block.

The result of this analysis shows that the UOF and

OFF datasets have only thirty-six common records,

meaning they are signiﬁcantly complementary to each

other. Therefore, from the combination of the records

of the two datasets, we obtained a combined dataset

that we call the CRIME dataset. By combination, we

mean merging the two datasets from the union of their

records by removing the duplicate records.

5.4 Preprocessing Procedures

Supervised learning techniques often require input

data transformation for effective training. To train

each one of the learning techniques used in our crime

prediction approach we perform the following data

transformations in the three datasets: i) encode the

day of the week attribute in one of the weekdays

(Monday, Tuesday, Wednesday, Thursday and Friday)

or weekend days (Saturday and Sunday); ii) encode

the regions attribute according to the density of each

geographic region provided by IBGE (Census 2010);

iii) converts the attributes period, day of the week,

type of crime and region into numerical data.

6 EXPERIMENTAL SETUP

To evaluate our approach, we run experiments aiming

to answer the research questions: i) how effective are

the supervised learning techniques to predict crime

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

528

occurrences, i.e., the number of occurrences of differ-

ent types of crimes by geographic region? ii) how ef-

fective are the supervised learning techniques to pre-

dict crime tendency, i.e., a particular type of crime

tends to increase or decrease by geographic region?

We use four different techniques to generate pre-

diction models: k-NN, SVM, RF, and XGBoost. Be-

sides, we report effectiveness in terms of precision

and accuracy, i.e., the percentage of true positives for

all positive predictions, and the hit rate or the num-

ber of instances correctly classiﬁed, respectively. To

realize the experiments, we ﬁlter the crime dataset to

get the year with records in all geographic regions,

i.e., 2016 for the UOF dataset and 2017 for the OFF

dataset. Furthermore, we use seven conﬁgurations for

training and test sets for each dataset. In the case

of the CRIME dataset, we replicate the settings of

UOF and OFF datasets due to the difference of the

year chosen in the others datasets. Besides, we set

the hyper-parameters of each machine learning tech-

nique in each training and test conﬁguration schema

presented in Table 2.

For k-NN, we set the Manhattan distance. Also,

we performed 10-fold cross-validation (Jain, 1991)

to set the k-NN and RF hyper-parameters. The k-

fold cross-validation divides the training set (resam-

pling) into k subsets. From these subsets, the hold-out

method is repeated k times, so that each time, one of

the k subsets is used for the test, while the remainder

(k-1) is used for model training. The hold-out method

stores the accuracy metric at each iteration, return-

ing the best parameters with the best accuracy. For

XGBoost, we set the learning rate as lr = 0.1, and

use grid-search method (Hsu et al., 2008) to set stree

and Gamma hyper-parameters. Also, we use the grid-

search method to set the C and Gamma parameters

for SVM, and the ntree and mtry parameters for RF.

The grid-search method obtains the best parameters

set by combining a given range of parameters for each

model. It stores the accuracy metric of each iteration,

returning the best parameters with the best accuracy.

7 EXPERIMENTAL RESULTS

As we mentioned in Section 6, for each dataset, we

evaluate different conﬁguration schemes of training

and test, reporting the accuracy and precision metrics,

which the results are in Table 3. The outperforming

results for each conﬁguration are highlighted.

From Table 3, we observe that all learning tech-

niques perform well to predict occurrence and the ten-

dency in all datasets. Referring to the occurrence pre-

diction, the k-NN and RF achieve up to 70% of accu-

racy in the UOF dataset, and the k-NN and XGBoost

achieve up to 69% of accuracy in the OFF dataset.

In the CRIME dataset, all techniques achieve up to

68% of accuracy in 2017, and the k-NN and the XG-

Boost perform better in 2016, achieving up to 64%

of accuracy. Likewise, concerning the precision, the

k-NN and SVM achieve up to 79% of precision in

the UOF dataset, and the k-NN and XGBoost achieve

up to 67% of precision in the OFF dataset. In the

CRIME dataset, the XGBoost achieve up to 65% of

precision in 2016 and, together with k-NN and SVM,

up to 67% of precision in 2017.

About the tendency prediction, they achieve up

to 84% of precision in the UOF dataset and up to

98% in the OFF dataset. In the CRIME dataset, they

achieve up to 98% of precision (2017), and the k-NN

technique achieves up to 92% of precision (2016).

Likewise, concerning the accuracy, they achieve up

to 78% in the UOF dataset and up to 89% in the OFF

dataset. In the CRIME dataset, the k-NN, RF and

XGBoost achieve up to 78% and 89% of tendency’s

accuracy in 2016 and 2017, respectively, outperform-

ing the SVM approach in up to 23.61%.

In summary, for crime occurrence prediction, the

k-NN usually performs better than the other three

techniques in accuracy and precision, except for XG-

Boost precision in the CRIME dataset. Additionally,

for crime tendency prediction, the k-NN sometimes

outperforms the other three techniques in precision

in UOF and OFF datasets, and in CRIME dataset,

the k-NN and the RF mostly outperform the other

two techniques. Moreover, the performance of all the

techniques in the CRIME dataset was many times

better and at least closer to the performance in the

separate datasets, attesting that the use of heteroge-

neous sources of data can help to improve prediction

performance. Recalling our research questions pre-

sented in Section 6, the previously observations attest

the effectiveness of our prediction approach to predict

crime occurrence and tendency.

The experimental results show that the four pre-

dictive techniques usually perform better in the OFF

dataset, which is almost 80 times bigger than the

UOF dataset. The same behavior is observed for

the year 2017 of the CRIME dataset compared to

the year 2016 of the same dataset. Thus, with more

records for training, the supervised learning tech-

niques can better adjust the learning bias, providing

better predictions. Furthermore, we observe that the

performance of the predictive approaches decreases

as the ratio of the amount of training and test data

decreases, showing some temporal and density rela-

tionship of training data with performance.

According to the results, our prediction approach

Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data

529

Table 2: Estimated hyper-parameters for our predictive models of crime.

Conﬁguration Schema k-NN SVM RF XGBoost

Training Test k C Gamma ntree mtry Gamma stree

UOF

Nov/2016 Dec/2016 6 1.00 0.07 2 100 0.50 3

Sep - Nov/2016 Dec/2016 8 0.10 0.0005 2 7 0.30 4

Jun - Nov/2016 Dec/2016 11 0.07 0.0005 17 8 0.50 2

Jan - Nov/2016 Dec/2016 13 0.07 0.0005 2 50 0.50 2

Jan - Sep/2016 Oct - Dec/2016 8 2.50 0.09 2 115 0.30 2

Jan - Jun/2016 Jul - Dec/2016 29 1.00 0.0007 25 5 0.50 4

Jan - Mar/2016 Apr - Dec/2016 16 2.50 0.10 15 25 0.30 3

OFF

Oct/2017 Nov/2017 146 9.30 0.01 2 5 0.50 2

Aug - Oct/2017 Nov/2017 119 3.30 0.01 2 5 0.50 2

May - Oct/2017 Nov/2017 70 0.30 0.30 2 40 0.50 4

Jan - Oct/2017 Nov/2017 134 0.30 0.30 9 96 0.30 3

Jan - Sep/2017 Oct - Nov/2017 12 35.00 0.005 2 7 0.50 3

Jan - Jun/2017 Jul - Nov/2017 2 1.50 0.03 2 5 0.50 4

Jan - Mar/2017 Apr - Nov/2017 2 4.30 0.03 13 73 0.30 2

CRIME

Nov/2016 Dec/2016 215 0.50 0.09 11 5 0.30 2

Sep - Nov/2016 Dec/2016 118 0.10 0.0001 2 5 0.40 3

Jun - Nov/2016 Dec/2016 6 0.10 0.20 55 9 0.50 3

Jan - Nov/2016 Dec/2016 11 6.90 0.10 2 2 0.40 2

Jan - Sep/2016 Oct - Dec/2016 383 6.20 0.10 11 5 0.50 2

Jan - Jun/2016 Jul - Dec/2016 114 90.00 0.05 25 3 0.50 2

Jan - Mar/2016 Apr - Dec/2016 50 50.00 0.03 2 5 0.30 2

Oct/2017 Nov/2017 144 6.30 0.10 11 80 0.50 2

Aug - Oct/2017 Nov/2017 110 4.70 0.07 2 98 0.30 2

May - Oct/2017 Nov/2017 185 20.00 0.005 3 95 0.50 3

Jan - Oct/2017 Nov/2017 193 17.00 0.05 70 5 0.30 2

Jan - Sep/2017 Oct - Nov/2017 4 8.40 0.03 2 55 0.50 4

Jan - Jun/2017 Jul - Nov/2017 453 68.00 0.01 23 4 0.50 4

Jan - Mar/2017 Apr - Nov/2017 383 0.30 0.0007 15 30 0.30 3

Table 3: The effectiveness of the predictive approaches.

Conﬁguration Schema Prediction’s Accuracy Prediction’s Precision Tendency’s Accuracy Tendency’s Precision

Training Test k-NN SVM RF XGB k-NN SVM RF XGB k-NN SVM RF XGB k-NN SVM RF XGB

UOF

Nov/2016 Dec/2016 0.66 0.68 0.70 0.66 0.57 0.46 0.69 0.61 0.78 0.78 0.78 0.78 0.84 0.84 0.84 0.84

Sep - Nov/2016 Dec/2016 0.68 0.68 0.68 0.66 0.63 0.46 0.46 0.59 0.78 0.78 0.78 0.72 0.84 0.84 0.84 0.72

Jun - Nov/2016 Dec/2016 0.68 0.68 0.68 0.68 0.63 0.46 0.46 0.46 0.78 0.78 0.78 0.78 0.84 0.84 0.84 0.84

Jan - Nov/2016 Dec/2016 0.70 0.68 0.68 0.68 0.79 0.46 0.46 0.46 0.78 0.78 0.78 0.78 0.84 0.84 0.84 0.84

Jan - Sep/2016 Oct - Dec/2016 0.67 0.67 0.64 0.64 0.65 0.68 0.57 0.58 0.48 0.44 0.46 0.45 0.34 0.44 0.49 0.49

Jan - Jun/2016 Jul - Dec/2016 0.69 0.68 0.68 0.67 0.69 0.46 0.60 0.62 0.54 0.50 0.49 0.57 0.61 0.50 0.51 0.61

Jan - Mar/2016 Apr - Dec/2016 0.70 0.69 0.69 0.67 0.66 0.79 0.47 0.59 0.60 0.53 0.52 0.56 0.71 0.57 0.54 0.65

OFF

Oct/2017 Nov/2017 0.69 0.68 0.68 0.68 0.67 0.66 0.66 0.66 0.89 0.78 0.78 0.89 0.97 0.96 0.96 0.97

Aug - Oct/2017 Nov/2017 0.68 0.68 0.68 0.69 0.67 0.66 0.66 0.67 0.89 0.89 0.89 0.89 0.97 0.97 0.97 0.97

May - Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.66 0.66 0.66 0.67 0.78 0.83 0.83 0.83 0.98 0.98 0.98 0.98

Jan - Oct/2017 Nov/2017 0.69 0.68 0.68 0.69 0.67 0.66 0.66 0.67 0.83 0.83 0.83 0.83 0.98 0.98 0.98 0.98

Jan - Sep/2017 Oct - Nov/2017 0.66 0.66 0.66 0.66 0.63 0.65 0.43 0.43 0.64 0.61 0.61 0.78 0.96 0.95 0.95 0.51

Jan - Jun/2017 Jul - Nov/2017 0.65 0.67 0.66 0.66 0.60 0.63 0.61 0.44 0.69 0.56 0.56 0.48 0.82 0.84 0.84 0.48

Jan - Mar/2017 Apr - Nov/2017 0.66 0.66 0.66 0.66 0.60 0.63 0.44 0.44 0.69 0.61 0.61 0.58 0.78 0.78 0.78 0.52

CRIME

Nov/2016 Dec/2016 0.62 0.62 0.62 0.61 0.62 0.62 0.62 0.60 0.72 0.72 0.78 0.78 0.81 0.81 0.83 0.78

Sep - Nov/2016 Dec/2016 0.59 0.60 0.59 0.59 0.56 0.59 0.60 0.56 0.72 0.67 0.72 0.67 0.92 0.82 0.77 0.82

Jun - Nov/2016 Dec/2016 0.63 0.64 0.63 0.64 0.63 0.65 0.64 0.65 0.78 0.72 0.72 0.72 0.84 0.81 0.81 0.81

Jan - Nov/2016 Dec/2016 0.59 0.59 0.59 0.59 0.59 0.59 0.59 0.58 0.78 0.67 0.56 0.67 0.84 0.81 0.70 0.81

Jan - Sep/2016 Oct - Dec/2016 0.61 0.62 0.61 0.61 0.60 0.62 0.61 0.61 0.37 0.50 0.56 0.43 0.47 0.61 0.64 0.51

Jan - Jun/2016 Jul - Dec/2016 0.62 0.62 0.62 0.62 0.61 0.62 0.62 0.61 0.48 0.56 0.63 0.56 0.61 0.59 0.66 0.65

Jan - Mar/2016 Apr - Dec/2016 0.63 0.63 0.61 0.61 0.63 0.63 0.61 0.61 0.56 0.58 0.57 0.54 0.72 0.70 0.57 0.65

Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.66 0.66 0.66 0.66 0.89 0.84 0.89 0.89 0.97 0.96 0.97 0.97

Aug - Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.66 0.66 0.66 0.67 0.83 0.72 0.83 0.83 0.98 0.98 0.98 0.98

May - Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.66 0.66 0.67 0.67 0.83 0.67 0.83 0.83 0.86 0.85 0.86 0.86

Jan - Oct/2017 Nov/2017 0.68 0.68 0.68 0.68 0.67 0.66 0.65 0.66 0.78 0.72 0.78 0.78 0.86 0.85 0.86 0.86

Jan - Sep/2017 Oct - Nov/2017 0.65 0.65 0.66 0.65 0.62 0.62 0.63 0.62 0.89 0.72 0.81 0.75 0.94 0.97 0.98 0.98

Jan - Jun/2017 Jul - Nov/2017 0.63 0.64 0.64 0.59 0.60 0.59 0.61 0.65 0.50 0.48 0.65 0.51 0.67 0.63 0.69 0.71

Jan - Mar/2017 Apr - Nov/2017 0.59 0.59 0.54 0.48 0.59 0.59 0.60 0.55 0.47 0.47 0.70 0.65 0.67 0.67 0.76 0.76

can exploit supervised learning techniques and a set of

spatial and temporal features extracted from hetero-

geneous sources of crime records to provide effective

models for crime occurrence and tendency prediction.

8 CONCLUSIONS

We exploited supervised learning on heterogeneous

data extracted form ofﬁcial and unofﬁcial crime re-

ports for crime prediction. Notably, we proposed a

predictive approach that collects crime reports from

the Web and used them as a source of features use-

ful to predict the tendency of increase or decrease and

the number of occurrences of types of crimes by ge-

ographic regions. Additionally, we thoroughly eval-

uated the techniques used by our approach, and the

results of this evaluation showed that all methods per-

form well, with a slight advantage to k-NN and XG-

Boost in some cases. They provide an accuracy of up

to 89% and a precision of up to 98% for crime ten-

dency prediction and, for occurrences prediction, the

accuracy of up to 70% and a precision of up to 79%.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

530

Experimental results showed that there are quantita-

tive, temporal, and density relationship between train-

ing data and performance, i.e., with more records for

training, the supervised learning techniques can better

adjust the learning bias, providing better predictions.

As strengths of this article, we highlight: i) we

used heterogeneous data sources, ofﬁcial and unofﬁ-

cial crime records, to predict crimes; ii) we provided

a complementarity analysis showing the feasibility of

using different data sources by combining them into

a single and bigger dataset; iii) we proposed a predic-

tive approach capable of predicting the tendency and

occurrence of different types of crimes in different ge-

ographic regions; iv) we evaluated four different ma-

chine learning techniques used by our crime predic-

tion approach; v) the authorities can use our approach

to plan crime preventive actions, such deciding where

to perform street lighting and police patrol.

Contrasting the predictive techniques presented

in this article and other recent crime prediction ap-

proaches reported in the literature, we observed that

there is still room for further improvements. There-

fore, for future work we plan to evaluate other learn-

ing techniques, such as latent factor models and neu-

ral networks for crime prediction. Also, we want to

exploit different geographic properties of crimes as

features within our predictive approach, and extend

the datasets to cover more types of crimes. Finally,

we also intent to use more sources of heterogeneous

data, specially crime records with judgment data.

ACKNOWLEDGEMENTS

The present work was carried out with the support

of the Coordenac¸

ao de Aperfeic¸oamento de Pessoal

de N

ııvel Superior - Brazil (CAPES) - Financing

Code 001. The authors thank CNPq, FAPEMIG,

PUC Minas and SESP-MG (Secretaria de Estado de

Seguranc¸a P

ublica de Minas Gerais) for the partial

support in the execution of this work.

REFERENCES

Baculo, M. J. C., Marzan, C. S., de Dios Bulos, R., and

Ruiz, C. (2017). Geospatial-temporal analysis and

classiﬁcation of criminal data in manila. In Interna-

tional Conference on Computational Intelligence and

Applications, ICCIA’17, pages 6–11. IEEE.

Belesiotis, A., Papadakis, G., and Skoutas, D. (2018). An-

alyzing and predicting spatial crime distribution using

crowdsourced and open data. ACM Transactions on

Spatial Algorithms and Systems, 3(4):12:1–12:31.

Bogomolov, A., Lepri, B., Staiano, J., Oliver, N., Pianesi,

F., and Pentland, A. (2014). Once upon a crime: To-

wards crime prediction from demographics and mo-

bile data. In International Conference on Multimodal

Interaction, ICMI’14, pages 427–434. ACM.

Breiman, L. (2001). Random forests. Machine Learning,

45(1):5–32.

uhlmann, P. and Yu, B. (2010). Boosting. Wiley Interdis-

cipl. Reviews: Computational Statistics, 2(1):69–74.

Celisse, A. and Mary-Huard, T. (2018). Theoretical analy-

sis of cross-validation for estimating the risk of the k-

nearest neighbor classiﬁer. Journal of Machine Learn-

ing Research, 18:1–54.

Chen, T. and Guestrin, C. (2016). Xgboost: A scalable

tree boosting system. In ACM SIGKDD International

Conference on Knowledge Discovery and Data Min-

ing, KDD’16, pages 785–794. ACM.

Constitution, B. (1988). Constitution of the Federative Re-

public of Brazil.

Duda, R. O., Hart, P. E., and Stork, D. G. (2001). Pattern

Classiﬁcation. Wiley-Interscience, 2ed edition.

Friedman, J. H. (2001). Greedy function approximation: A

gradient boosting machine. The Annals of Statistics,

29(5):1189–1232.

Ho, T. K. (1995). Random decision forests. In International

Conference on Document Analysis and Recognition,

ICDAR’95, pages 278–282. IEEE.

Hsu, C.-W., Chang, C.-C., and Lin, C.-J. (2008). A practical

guide to support vector classication. Technical report,

National Taiwan University, Taipei, Taiwan.

Huang, C., Zhang, J., Zheng, Y., and Chawla, N. V. (2018).

Deepcrime: Attentive hierarchical recurrent networks

for crime prediction. In ACM International Confer-

ence on Information and Knowledge Management,

CIKM’18, pages 1423–1432. ACM.

Jain, R. (1991). The art of computer systems performance

analysis. Wiley-Interscience.

Kohavi, R. and John, G. H. (1997). Wrappers for feature

subset selection. Artiﬁcial Intelligence, 97(1):273–

324.

Lin, Y.-L., Yen, M.-F., and Yu, L.-C. (2018). Grid-based

crime prediction using geographical features. Inter-

national Journal of Geo-Information, 7(8).

Liu, T.-Y. (2009). Learning to rank for information re-

trieval. Foundations and Trends in Information Re-

trieval, 3(3):225–331.

Oberwittler, D., Hummelsheim, D., Hirtenlehner, H., and

Jackson, J. (2010). Social insecurities and fear of

crime: A cross-national study on the impact of wel-

fare state policies on crime-related anxieties. Euro-

pean Sociological Review, 27(3):327–345.

Pradhan, I., Potika, K., Eirinaki, M., and Potikas, P. (2019).

Exploratory data analysis and crime prediction for

smart cities. In International Database Applications

& Engineering Symposium, IDEAS’19, pages 4:1–

4:9. ACM.

Syarif, I., Prugel-Bennett, A., and Wills, G. (2016). Svm

parameter optimization using grid search and ge-

netic algorithm to improve classiﬁcation performance.

Telecommunication Computing Electronics and Con-

trol, 14:1502–1509.

United Nations (2015). Universal declaration of human

rights.

Predicting Crime by Exploiting Supervised Learning on Heterogeneous Data

531
