Mixing Heterogeneous Authentication and Authorization Infrastructures

through Proxies

Angelo Furfaro

1 a

and Giuseppe de Marco

2 b

DIMES, University of Calabria, P. Bucci 42C, Rende (CS), Italy

ICT Centre, University of Calabria, P. Bucci 22B, Rende (CS), Italy

Keywords:

AAI, Single Sign-on, SAML2, OIDC, OAuth2, Digital Identity, Proxy.

Abstract:

The ever increasing diffusion of digital services offered by institutional organizations and the need of interop-

erability among them have made crucial the role of Authentication and Authorization Infrastructures (AAIs).

Numerous formats and technologies for data exchange have been developed in recent years and some of them

have become very popular. This paper discusses the main challenges an organization has to face in making its

services seamlessly available to end-users and client systems across multiple AAIs. An effective solution, re-

lying on Authentication and Authorization Proxies, like SATOSA, which allows the interoperability of hybrid

types of service providers and consumers, is described. In particular, a scenario is considered which envisages

the support of heterogeneous (public) digital identity technologies for access to digital services on a university

campus.

1 INTRODUCTION

During the last few years, many digital services, of-

fered by both private and public organizations, got

linked through Authentication and Authorization In-

frastructures (AAIs) in order to support interactions

across organization boundaries. Functionalities of-

fered by AAIs are achieved thanks to the adoption of

open protocols and standard data interchange formats,

e.g. SAML2 (Cantor et al., 2005) based XML and

OIDC (OpenID Foundation, 2014), or its underlying

protocol called OAuth2 (IETF, 2012), based on JSON

Web Token (JWT).

In the context of a SAML2 based AAI, we can

distinguish these main roles: i) the Service Provider

(SP), which is a system offering a digital service to

its clients, in terms of functions and/or resources, ii)

the Identity Provider (IdP) or Authorization and Au-

thentication endpoint, which is in charge of transfer-

ring to the relevant SP suitable information to de-

termine the identity and also the authorization pro-

ﬁle of the requesting entity if available, and iii) the

Attribute Authority which release attributes. A SP

may exploit a Discovery service (IETF, 2014b) al-

lowing the user to choose the IdP though which to

https://orcid.org/0000-0003-2537-8918

https://orcid.org/0000-0002-3108-592X

authenticate. Analogous roles are present in other

AAIs with some little differences in their responsibil-

ities. For example, in OIDC contexts SPs are called

Relying-Parties (RPs) and IdPs are known as OpenID

Providers (OPs). In OAuth2 they are referred to as

Clients and Authorization Servers (ASs), respectively.

Moreover, in OIDC/OAuth2 contexts the authoriza-

tion decision is taken by the OP/AS while in SAML2

this is done by the SP on the basis of what received by

the IdP. Functionalities of SAML2 Attribute Author-

ities can be implemented in OAuth2 by resorting to

Resource Servers which implements a more general

and distributed approach to resource management.

These settings allow users to register and authenti-

cate once, across several different trusted authentica-

tion endpoints hosted by different organizations, and

then access various resources made available by dig-

ital services through such AAIs (Lenz and Zwatten-

dorfer, 2016; Jensen, 2012).

Because of these obvious beneﬁts induced by the

evolution of identity management technologies and

by the possibility of outsourcing such role to trusted

actors, e.g. governments, AAIs have experienced a

rapid rise and a wide adoption (TechVision, 2018).

The European Union has recently introduced eI-

DAS (electronic IDentiﬁcation, Authentication and

trust Services) (Bender, 2015) which is a regulation

on a set of standards for electronic identiﬁcation and

124

Furfaro, A. and de Marco, G.

Mixing Heterogeneous Authentication and Authorization Infrastructures through Proxies.

DOI: 10.5220/0009392401240131

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 124-131

ISBN: 978-989-758-423-7

trust services for electronic transactions. The mem-

ber States developed their own Identity Provider sys-

tem accordingly, an example of which is the Ital-

ian Public System for Digital Identity called SPID

(AgID - Agenzia per l’Italia Digitale, 2017). The Na-

tional Institute of Standards and Technology (NIST)

also introduced its own digital identity model in June

2017 (Grassi et al., 2017). Some recent studies eval-

uate the use of AAIs in conjunction with blockchain

technologies to develop an infrastructure supporting

service accountability across organizations (Furfaro

et al., 2019). An approach to retrieve and transport

new attributes through the eIDAS infrastructure in the

context of academic services has been described in

(Berbecaru et al., 2019).

In addition to the aforementioned public systems

for digital identities and Research and Scholarship

Institutions, the global scenario includes also other

AAIs under the control of free-market players like

Google, Facebook, Microsoft, Amazon and several

others. Each AAI operates by relying on its own

and homogeneous federation mechanisms with uni-

ﬁed data processing and privacy policies in strict com-

pliance with national and corporative regulations.

Nowadays, the consequent emergence of differ-

ent protocols and data interchange formats and also

the implementation of these in autonomous federative

contexts make developers of digital services to face a

new kind of boundaries due to the diversity of tech-

nologies adopted by different federations. This has

made necessary to devise solutions that can enable

the fruition of services, traditionally conﬁned into the

protocol borders of a speciﬁc organization, in the con-

text of more AAIs despite the existence of different

protocols. This has led to the development of AAI

Gateways and Proxies that mediate the interactions

between heterogeneous AAI actors, e.g. SAML2 SPs

and IdPs needing to cooperate with OIDC/OAuth2

entities, handling protocol and data exchange format

differences and thus enabling interoperability.

This paper describes a technologically sustainable

solution aimed at integrating different formats and

data exchange protocols through the adoption of the

SATOSA proxy. It presents some examples and case

studies that involve the adoption of AAI proxies, and

ﬁnally a real use case developed within a European

University Campus. Section 2 describes some of the

leading technologies in Federated Identity Manage-

ment contexts. An overview of the usage of proxy

systems in computer networks and of their adoption

in AAI contexts is given in Section 3. Section 4 de-

scribes the solution, based on SATOSA, adopted at

University of Calabria. Finally, Section 5 concludes

the paper.

2 COMMON SCENARIO

The typical form of identity federation involving

higher education institutions is the so called multilat-

eral federation, which relies upon a trusted 3rd party

in charge of securely register and reliably publish all

entities metadata (Trust Registry) in order to enable

trusted interoperation between all IdPs and a SPs. Ex-

ample of such federations, in the ﬁeld Research and

Education community, are InCommon (https://www.

incommon.org/) and EduGAIN (https://edugain.org/).

Federation management processes require the use

of a set of tools for the validation of the entities

requesting to participate. Such processes and tools

highly depend on the speciﬁc technology adopted in

the relevant federation.

For example, in the case of SAML2-based feder-

ations, entities’ metadata are collected and validated

by a federation operator ofﬁce and then they get ag-

gregated into a single ﬁle which is digitally signed.

Each entity needs to periodically download an up-

dated copy of this metadata ﬁle, whose size conse-

quently increases with the growth of the federation,

in order to ensure synchronization within the fed-

eration so as to allow all the entities to recognize

each other. To overcome the issues due to the han-

dling of this type of registers, the Metadata Query

Protocol (MDP) (Young, 2019a; Young, 2019b) has

been recently introduced for enabling the dynamic

and trusted retrieval of metadata about named entities.

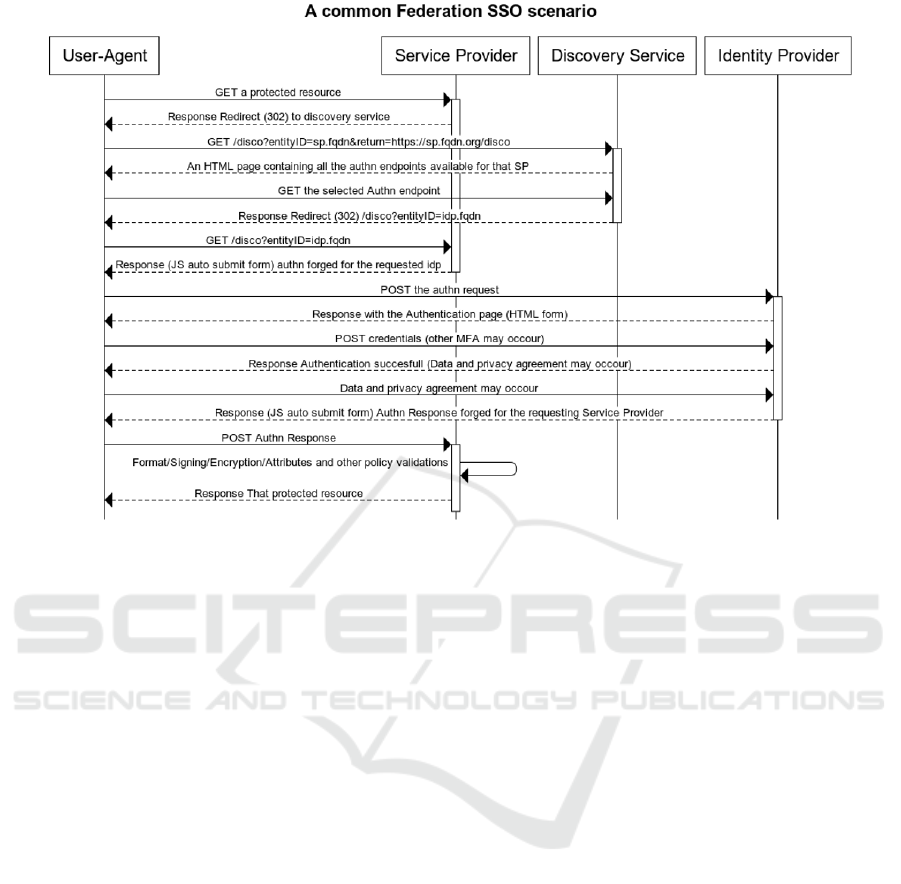

Figure 1 shows a common SAML2 authentica-

tion session: i) a user-agent connects to a SP; ii) the

SP redirects the user to a Discovery Service which

allows to choose the relevant IdP; iii) the Discov-

ery Service redirects the user-agent back to the SP

which gets a reference (entityID) to the chosen IdP;

iv) the SP issues a authentication request to the IdP

and redirects the user-agent to it; v) the user-agent

submits the user’s credentials to the IdP; vi) the IdP

produces a SAML response, regarding the outcome

of authentication request; vii) the user-agent transfers

the achieved SAML response to the SP.

OAuth2 federations have a similar approach re-

garding the management of internal trust registry and

tools, but they offer additional features enabling var-

ious federation strategies. This way, alternative fed-

erative mechanisms adopted on top of WebFinger

and Discovery Metadata Registry (OAuth Working

Group, 2016; IETF, 2018), Dynamic Client Regis-

tration resources (IETF, 2015) and other kind of re-

sources (called endpoints), allows federation opera-

tors to implement additional features, security checks

and introspections functionalities, that handle client

authentication requests and token validations on top

Mixing Heterogeneous Authentication and Authorization Infrastructures through Proxies

125

Figure 1: Sequence Diagram of a SAML2 Authentication in a Federative Context with HTTP Redirect or POST Bindings.

of more articulated methods. In OIDC federations,

where some of the OAuth2 core endpoints are in-

volved, it would be nowadays possible to apply a fur-

ther federation API that improves the federation ar-

chitecture and strategies in a very signiﬁcant manner

(Roland Hedberg, 2019). It is also important to con-

sider that to date there is no federative standards in the

ﬁeld of SAML2, the birth of the federations based on

this protocol are based on good practices developed

over time, otherwise in OIDC context the determina-

tion of OIDC Federation 1.0 (Roland Hedberg, 2019)

is introducing an innovative approach to AAI federa-

tions.

Despite what technological innovations may be

introduced, the federative mechanisms would only

adopt the rigid approach to guarantee the bonds of

trust towards and from every members, data privacy

and integrity through the exchange channels. Once a

federation adopts a technology and a shareable regu-

lation, all of its members must in turn adhere to them

in order to be able to join. Authorization and Au-

thentication federation can be conﬁned into a single

organization (local federation), between two organi-

zations (bilateral-federation), or can be a wider and

more complex infrastructure built on top of the rela-

tionship between many organizations. More federa-

tions can join together by sharing the compliance to

a same set of technological and administrative proto-

cols (multi-lateral federation). In these latter cases,

thousands of entities are involved in a federation of

daily use. If we were to think about introducing a

new federative mechanism or any other adjustment

based on a different federative technology, in a legacy

context, we should think about how to introduce this

changes for all the involved services paying atten-

tion to the continuity of all them and also taking

care of the cost-effectiveness of these actions. Let us

consider the following scenarios requiring an adapta-

tion/hybridization of the involved entities:

• An organization, whose digital services rely on a

legacy infrastructure which is part of a SAML2

federation, need to add the support to OIDC to its

SPs and IdP;

• An organization which has a solid infrastructure,

built over the years above OAuth2, which needs to

join also another federation using only SAML2;

• An organization which has to include for instance

Microsoft ADFS IdPs in eduGAIN/InCommon

federations. Many federations have problems

with enforcing common policies, like releasing at-

tributes dependent on entity category. There is the

need to augment the set of attributes released by

a non-compliant IdP with attributes from another

source (AA or any other data store).

• An organization that would like to introduce the

Identities Level of Assurance (Refeds, 2018) of-

fered by the National Digital Identity Federation

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

126

(AgID - Agenzia per l’Italia Digitale, 2017) in its

Credentials Provisioning systems in order to ver-

ify remotely the identity linked to the accounts.

This would require a hybridization of the Cre-

dential Provisioning with another authentication

layer to let the users to choice whether to authenti-

cate with the legacy IdP or with a National Digital

Identity Provider.

All the above scenarios fairly give the idea of the in-

volved technological constraints and the perception

that a systematic adaptation of an entire infrastructure

can determine costs in time and resources. As dis-

cussed by the following sections AAI proxies are an

effective solution allowing to overcome such issues.

3 ACHIEVING

INTEROPERABILITY

THROUGH PROXIES

In the ﬁeld of computer networks, a proxy is a server

application acting as an intermediary between two

network endpoints, e.g. between an HTTP user-agent

and a web server. A proxy behaves like a server,

gathering the incoming requests from the clients, and

plays the client role with respect to the actual target

servers handling the entire session with correspond-

ing requests and responses in between the two end-

points. A proxy can work in a transparent operat-

ing mode, i.e. it does not modify or masquerade in

any way requests or responses (IETF, 2014a), or can

be setup in other operational modes which enforce

some kind of translation or data processing and ma-

nipulation. For example, proxies can be employed to

add structure and encapsulation to systems or to carry

out data security checks. The adoption of proxies

would also allow to prevent security issues (Kobata

and Gagne, 2006), protecting destination endpoints or

translating a data transmission protocol from one to

another, or to enable partitioning and load balancing

of HTTP services across multiple machines.

In AAI contexts, proxies are used to aggregate

many entities behind a single one. Some common use

cases are the following:

• A proxy can be exploited to hide the presence of

more digital services, all of which are under the

control of a given organization, allowing them to

appear like a single SP with respect to an IdP. All

the SPs are federated to the the proxy, which acts

as an IdP for them, through a registration process

which is internal to the organization. The proxy

masquerades all the authentication and authoriza-

tion requests from many SP in a way that it would

act as a single SP with respect the destination IdP.

This implies that only the proxy must be regis-

tered as a SP in the target federation context.

• A proxy can be used as a gateway (or reverse

proxy) which retrieves resources on behalf of a

client from one or more servers. Gateways are

often used to encapsulate legacy or untrusted in-

formation services. In AAI context, a gateway can

be used to expose transparently more SPs behind

it.

In order to understand how the adoption of proxies

in AAI contexts allows to overcome the boundaries,

due protocols and data exchange formats, to inter-

connect endpoints belonging to different federations,

some potential scenarios are described in the follow-

ing.

Let us consider a made-up organization

TheCampus, e.g. a University, that has its own

authentication infrastructure based on SAML2.

Suppose that TheCampus wants to adopt a free

market e-mail service provider, ThatMail.com,

which supports only OAuth2. To handle this issue,

a Proxy can be properly conﬁgured to behave as

an OAuth2 Authorization Service endpoint with

respect to ThatMail.com service and, at the same

time, as a SAML2 SP federated to the TheCampus

IdP. A user belonging to TheCampus, which wants

to access ThatMail.com service (OAuth2 client),

gets ﬁrst redirected to the Proxy which, in turn

redirects her/him to the TheCampus IdP. After the

user is correctly authenticated, her/his attributes are

transferred to the Proxy. Then, the Proxy builds from

these attributes the proper OAuth2 Authorization

which is sent to the ThatMail.com service.

Suppose that TheCampus joined, through its IdP, a

Research and Scholarship Federation for allowing its

users to access bibliographic resources provided by

a third-party by means of a SAML2 SP. In addition,

TheCampus would like to enable the users to authen-

ticate also via a public OIDC Provider (IdP). Usually,

such type of SAML2 SP is conﬁgured to exploit a Dis-

covery Service or a where are you from (WAYF) web

resource to let users to choice the relevant IdP. To sup-

port this scenario, TheCampus conﬁgures the Proxy

to assume the role of the ofﬁcial SAML2 IdP in the

Research and Scholarship Federation and to behave

like a Relying-Party (SP) with respect to the OIDC

provider. This way, TheCampus users accessing the

bibliographic SP are ﬁrst routed to the Proxy by the

SP which then redirects them again to the TheCampus

Discovery Service through which they can choose be-

tween the public OIDC provider or the local SAML2

IdP. In this case, the Proxy should be conﬁgured to

handle an internal routing to manage which conﬁgu-

Mixing Heterogeneous Authentication and Authorization Infrastructures through Proxies

127

ration to be used regarding the actual authentication

endpoint. Even more, two different Authentication

endpoints could have different conﬁgurations, even if

both are based on SAML2, meaning that the Proxy

should adopt different conﬁgurations depending by

the target entity to deal with. In addition, the Proxy

can work also as an account linking service, if it has to

link the identity of the authenticated user to the cor-

responding TheCampus account, on the basis of the

matching of the attributes returned by OIDC Provider

(claims) with those received by Attribute Authorities

or any other data sources.

SAML2 OIDC

oAuth2

SP 2

RP 2 CLIENT 2

SP 1 CLIENT 1RP 1

SAML2 oAuth2

AAI PROXY

DISCOVERY

SERVICE

Saml2 R&S

federation

IdPs

Saml2 eGov

federation

IdPs

oAuth2

free market

Identity

Providers

SAML2

local

federation

IdP

OIDC

PROXY FRONTENDS

PROXY BACKENDS

oAuth2

free market

Service

Providers

Figure 2: SAML2 Service Providers, OIDC Relying-Parties

and OAuth2 Clients behind the Proxy Backends Reach the

Entities Masqueraded by the Proxy Frontends.

A Proxy can translate different data exchange for-

mats, add or modify attributes and rewrite all data

managed along the transaction. It can recover the at-

tributes needed in a Research and Scholarship Service

Provider (e.g. the schacPersonalUniqueID) from

what returned by the National public provider (e.g.

the Taxpayer Identiﬁcation Number) applying rules of

text manipulation, even more it can fetch additional

attributes from other sources, e.g. LDAP, RDBMS or

even a custom API or Attribute Authorities, owned by

the TheCampus.

Figure 2, illustrates a more general scenario

where the AAI Proxy enables the interoperation

among the following assets used by TheCampus:

• a number of SAML2 SPs belonging to the

TheCampus;

• some OAuth2 SPs (Clients) external to the

TheCampus corresponding to external services

owned by third parties;

• some OIDC SPs (Relying-Party) belonging to

TheCampus;

• a public IdP working with SAML2 but having

custom rules;

• the above public IdP working with a growing

brand new OIDC infrastructure;

• a European IdP (eIDAS) based on SAML2 but

with custom rules;

• a free market OAuth2 IdP that can guarantees at

least the minimal Level of Assurance on the ac-

counts managed by it;

The Proxy is the central entity handling all the re-

quests and responses. It relies on SAML2, OAuth2

and OIDC backend and frontend modules to enable

interoperability among all the previous entities and it

is properly conﬁgured with custom backend/frontend

routing and attribute translation rules. Figure 2 in-

cludes also a Discovery Service as an independent en-

tity which can be exploited by the backend modules.

4 SATOSA USE CASE

SATOSA (Identity Python, 2019) is an open source

proxy for translating between different authentica-

tion protocols such as SAML2, OpenID Connect and

OAuth2. Its development began on 2015 at the Ume

University and since 2017 it is maintained and de-

veloped by the IdentityPython Organization (Identity

Python, 2017).

SATOSA supports some well known use cases to

link different kind of endpoints or simply can deal

with legacy conﬁgurations that needs to be dynam-

ically translated. For example SATOSA can enable

SAML2 SPs to work with multiple SAML2 IdPs hav-

ing different conﬁgurations. SATOSA allows to con-

nect a SAML2 SP to multiple social media IdPs that

works only with OAuth2 or OIDC. It also makes pos-

sible to mirror an IdP by generating SAML2 metadata

corresponding that provider and create dynamic end-

points which are connected to a single IdP. SATOSA

supports all the scenarios exempliﬁed in Section 3.

Here, we describe the adoption of the SATOSA

Proxy in a real setting at University of Calabria

(Unical), an Italian university campus with a popu-

lation of circa 20000-25000 daily users.

The digital Identity Management infrastructure of

Unical stores users’ attributes on top of a common

Research and Scholarship model, in one or more

LDAP server accordingly to eduPerson (REFEDS,

2019) and SCHAC schemas (REFEDS, 2015).

Legacy RDBMS data sources have also been adapted

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

128

Figure 3: The Discovery Service Developed in Campus for

the User Selection of an Authentication Endpoint (IdP).

to work as LDAP backends, through the adoption of

slapd-sql and slapd-sock backends. Its attribute

release policy also provides the code of conduct re-

lated to type of organization in relation to the informa-

tion provided to service providers (Internet2, 2017).

The Identity management infrastructure also handles

the provisioning, upgrade and de-provisioning of the

users’ accounts, their personal data and authorization

attributes. Each digital identity must guarantee a min-

imum Level of Assurance (LoA) to be in compliance

with the law and regulations in force. The Unical

identity infrastructure is equipped with a SAML2 IdP

to which more SPs are linked to. Some of these SPs

are internally operated, others are run by third-party

free market providers (i.e. the bibliographic services)

and some other belong to third-party organizations

and made accessible through the EduGAIN federa-

tion.

In this setting, a SATOSA Proxy has been put in

operation to work as a SAML2 SP federated both

with the Unical IdP and with all the SPID compli-

ant Italian IdPs. This required two SAML2 backends

having with different conﬁguration and made it nec-

essary to develop a dedicated SPID compliant back-

end and a routing system based on the target endpoint.

In addition to the Unical IdP, the internally operated

SPs have been also federated to the SATOSA proxy

as alternative IdP. This way, users can choose to au-

thenticate either with their SPID identity or with their

Unical identity through a custom Discovery Service

(Fig. 3) which has been developed in strict compli-

ance with the SPID regulation and in adherence with

the Unical visual identity. The sequence diagram of

Figure 4 illustrates a typical authentication ﬂow in-

volving the discovery service and the intermediation

of the SATOSA proxy.

In order to make the SATOSA Proxy to work in a

real SPID compliant production environment, we de-

Table 1: Contributions to pySAML2 and SATOSA Projects.

Project Pull req id Description

pySAML2 597 Added conﬁgurable signing and digest al-

gorithm to SP and IDP

pySAML2 602 xsd type - Added date type

pySAML2 625 Register common namespace preﬁxes

pySAML2 632 [Documentation] name id format,

allow create and metadata folder

pySAML2 634 xmlsec temporary ﬁles deletions

SATOSA 214 Added support for selectable SIGN and

DIGEST algs in saml2 backend

SATOSA 216 signature and digest algorithm policy

conﬁguration

SATOSA 220 Micro Service, Decide backend by target

entity ID

SATOSA 226 Encrypt assertions in frontend authnre-

sponse

SATOSA 240 MicroService Ldap attribute store, more

connection parameters in conﬁguration

veloped a purposely designed SAML2 backend and

a custom microservice for managing the routing of

the incoming authentication requests to the correct

SAML2 backend.

The newly introduced SAML2 backend was de-

veloped as a common SPID SP within SATOSA.

Making it compliant to the AgID technical speciﬁca-

tions required some modiﬁcations to both pySAML2

and SATOSA source code. Table 1 summarizes the

contributions we made to the ofﬁcial projects.

To asses the suitability to operate in a production

environment, the backend undergone a set of security

checks: some of which are required by the AgID ac-

creditation procedure and others are part of the stan-

dard production proﬁle for the Unical digital ser-

vices.

The choice of adopting SATOSA as the proxy so-

lution for Unical was mainly due to its adherence to

speciﬁcs standards in force in Research & Scholarship

contexts. As alternative solutions we also have pre-

liminary evaluated the following two options: i) Shib-

boleth IdP 3.4.x conﬁgured with an ”External Au-

thentication” (https://wiki.shibboleth.net/conﬂuence/

display/IDP30/ExternalAuthnConﬁguration) and an

additional Shibboleth SP coupled with it and ii) Key-

cloak (https://www.keycloak.org).

The ﬁrst option would have required a more com-

plex and expensive integration procedure and would

have addressed only SAML2 cases. The second op-

tion has not been taken because Keycloak is a mono-

lithic Identity Manager. The use of SATOSA , al-

though introduced signiﬁcant development costs, rep-

resented the most ﬂexible and maintainable solution

over time for its modular design and its ability to

evolve towards the inclusion of new technologies.

Mixing Heterogeneous Authentication and Authorization Infrastructures through Proxies

129

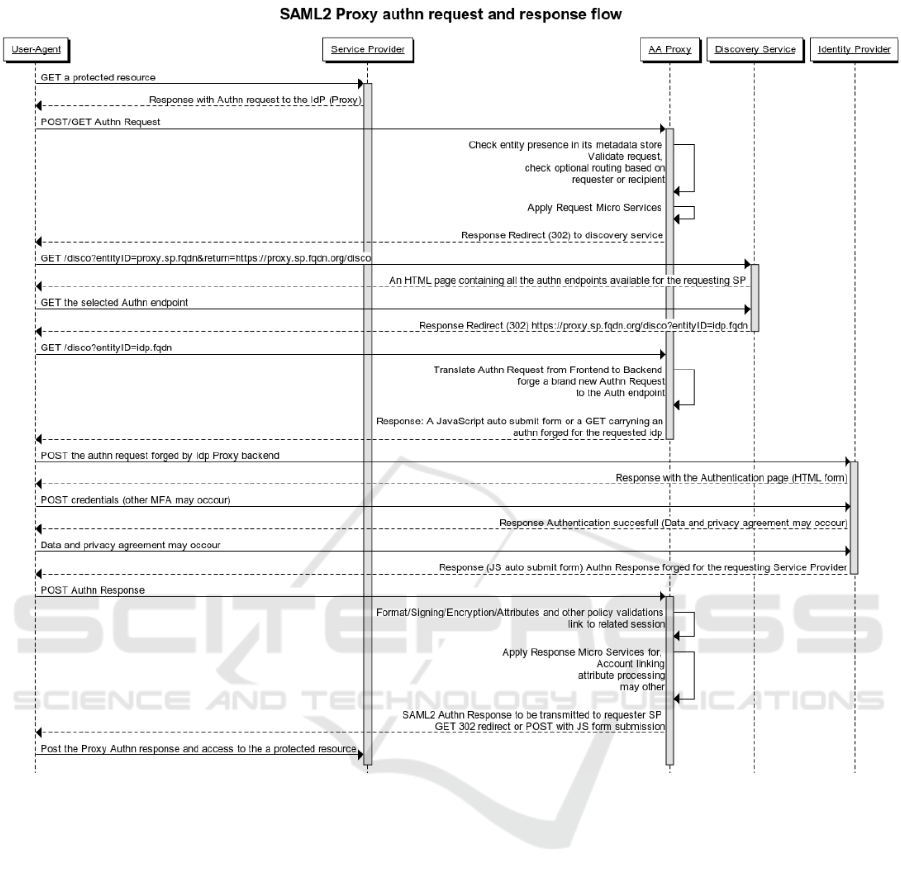

Figure 4: A SAML2 Authn Flow with HTTP-Redirect or POST Bindings in Acts Using the AA Proxy. The Discovery Service

Is Conﬁgured in the Proxy Backend.

5 CONCLUSIONS

The adoption of SATOSA within the Unical iden-

tity management infrastructure introduced the need to

customize the SATOSA source code to improve its

behaviour and to cope with the local requirements. In

particular, customizations and adjustments were made

on error management, on the routing system based on

the endpoint entity ID, on some speciﬁcations for the

signature and encryption algorithms employed.

The use of the SATOSA proxy allowed to up-

date the Unical process for credential provisioning

such that each citizen, owing a SPID identity, could

easily ask for a Campus’ digital account by exploit-

ing her/his public identity. This allowed to inherit

the SPID’s LoA for the accounts generated in this

way. Because SPID IdPs are considered authorita-

tive sources of identity attributes, there is no longer

need to accomplish a face-to-face interview in the cre-

dential release and activation phase. The provision-

ing system is also strengthened by the support of an

Attribute Authority based on OAuth2, that the SPs

can use to recover the user’s authorization proﬁle by

querying speciﬁc attributes starting from the received

SPID attributes. The adoption of the SATOSA pro-

duced a signiﬁcant simpliﬁcation in the workﬂow for

the accreditation of a Unical SP to the SPID federa-

tion. The SATOSA proxy is the only Unical service

which is directly federated with the SPID system and

it acts as an aggregator service for the other Unical

SPs which only need to federate with it. Without the

SATOSA proxy, each Unical SPs, wanting to allow

SPID based authentications, would had to repeat the

SPID registration procedures increasing costs in time

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

130

and bureaucracy for both sides, Unical and AgID of-

ﬁce. Thanks to the use of the proxy the registration

process remains locally conﬁned.

Finally, the imminent renewal of some critical ser-

vices, e.g. the IT document ﬂow management appli-

cations, have raised the need to comply with OAuth2.

Through SATOSA it has been possible to guarantee

this integration by keeping the legacy authentication

endpoint, i.e. the SAML2 IdP, without any change.

It was just necessary to add and conﬁgure the proper

OAuth2 AS frontend in the SATOSA Proxy, so as to

connect all the OAuth2 clients that need it.

ACKNOWLEDGEMENTS

We would like to thank: the SPID project staff

(Michele D’Amico, Walter Arrighetti, Antonio Flo-

rio, Paolo Smiraglia and Antonio Giovanni Schi-

avone); Roland Hedberg as OpenID Connect Feder-

ation 1.0 Editor, pySAML2 and SATOSA architect;

the Identity Python Community and in particular John

Paraskevopoulos.

This work has been partially supported by the

project P.O.R. “SPID Advanced Security - SPI-

DASEC” (CUP J88C17000340006).

REFERENCES

AgID - Agenzia per l’Italia Digitale (2017). Spid -

regole tecniche. https://media.readthedocs.org/pdf/

spid-regole-tecniche/latest/spid-regole-tecniche.pdf.

Bender, J. (2015). eIDAS Regulation: EID - opportunities

and risks.

Berbecaru, D., Lioy, A., and Cameroni, C. (2019). Elec-

tronic identiﬁcation for universities: Building cross-

border services based on the eIDAS infrastructure. In-

formation, 10(6):210.

Cantor, S., Kemp, J., Maler, E., and Philpott, R. (2005). As-

sertions and protocols for the OASIS Security Asser-

tion Markup Language (SAML) v2.02. Oasis standard

speciﬁcation.

Furfaro, A., Argento, L., Sacca, D., Angiulli, F., and Fas-

setti, F. (2019). An infrastructure for service account-

ability based on digital identity and blockchain 3.0. In

2nd Workshop on Cryptocurrencies and Blockchains

for Distributed Systems (CryBlock 2019). IEEE.

Grassi, P. A., Garcia, M. E., and Fenton, J. L. (2017). Digi-

tal identity guidelines: revision 3. NIST Special Pub-

lication 800-63-3.

Identity Python (2017). Your identity stack in python. https:

//idpy.org/.

Identity Python (2019). SATOSA. https://github.com/

IdentityPython/SATOSA.

IETF (2012). The oauth 2.0 authorization framework. https:

//tools.ietf.org/html/rfc6749.

IETF (2014a). Hypertext transfer protocol (http/1.1): Mes-

sage syntax and routing. https://tools.ietf.org/html/

rfc7230.

IETF (2014b). Web services dynamic discovery (ws-

discovery) version 1.1. http://docs.oasis-open.org/

ws-dd/discovery/1.1/wsdd-discovery-1.1-spec.html.

IETF (2015). Oauth 2.0 dynamic client registration proto-

col. https://tools.ietf.org/html/rfc7591.

IETF (2018). Oauth 2.0 authorization server metadata.

https://tools.ietf.org/html/rfc8414.

Internet2 (2017). Research and scholarship for idps.

https://spaces.at.internet2.edu/display/InCFederation/

Research+and+Scholarship+for+IdPs.

Jensen, J. (2012). Federated identity management chal-

lenges. In 2012 Seventh International Conference on

Availability, Reliability and Security. IEEE.

Kobata, H. and Gagne, R. (2006). Securing computer net-

work communication using a proxy server. US Patent

App. 10/766,871.

Lenz, T. and Zwattendorfer, B. (2016). Towards cross-

border authorization in european eID federations. In

2016 IEEE Trustcom/BigDataSE/ISPA. IEEE.

OAuth Working Group (2016). Oauth 2.0 bound

conﬁguration lookup. https://tools.ietf.org/id/

draft-hunt-oauth-bound-conﬁg-00.html.

OpenID Foundation (2014). Welcome to OpenID Connect.

https://openid.net/connect/.

REFEDS (2012, 2019). Standard and specs - eduperson.

https://wiki.refeds.org/display/STAN/eduPerson.

REFEDS (2015). Standard and specs - schac. https://wiki.

refeds.org/display/STAN/SCHAC.

Refeds (2018). Refeds assurance framework ver 1.0. https:

//refeds.org/assurance.

Roland Hedberg (2019). Openid connect fed-

eration 1.0. https://openid.net/specs/

openid-connect-federation-1 0.html.

TechVision (2018). The future of identity management

(2018-2023).

Young, I. (2019a). Metadata Query Protocol.

Internet-Draft draft-young-md-query-11, IETF

Secretariat. http://www.ietf.org/internet-drafts/

draft-young-md-query-11.txt.

Young, I. (2019b). SAML Proﬁle for the Metadata

Query Protocol. Internet-Draft draft-young-md-

query-saml-11, IETF Secretariat. http://www.ietf.org/

internet-drafts/draft-young-md-query-saml-11.txt.

Mixing Heterogeneous Authentication and Authorization Infrastructures through Proxies

131
