Longitudinal Evaluation of Open-source Software Maintainability

Arthur-Jozsef Molnar and Simona Motogna

Faculty of Mathematics and Computer Science, Babes¸ - Bolyai University, Cluj - Napoca, Romania

Keywords:

Software Quality, Software Metrics, Software Maintainability, Maintainability Index, Technical Debt,

Technical Debt Ratio.

Abstract:

We present a longitudinal study on the long-term evolution of maintainability in open-source software. Quality

assessment remains at the forefront of both software research and practice, with many models and assessment

methodologies proposed and used over time. Some of them helped create and shape standards such as ISO

9126 and 25010, which are well established today. Both describe software quality in terms of characteristics

such as reliability, security or maintainability. An important body of research exists linking these characteris-

tics with software metrics, and proposing ways to automate quality assessment by aggregating software metric

values into higher-level quality models. We employ the Maintainability Index, technical debt ratio and a main-

tainability model based on the ARiSA Compendium. Our study covers the entire 18 year development history

and all released versions for three complex, open-source applications. We determine the maintainability for

each version using the proposed models, we compare obtained results and use manual source code examina-

tion to put them into context. We examine the common development patterns of the target applications and

study the relation between refactoring and maintainability. Finally, we study the strengths and weaknesses of

each maintainability model using manual source code examination as the baseline.

1 INTRODUCTION

Maintainability represents the ”degree of effective-

ness and efﬁciency with which a product or system

can be modiﬁed to improve it, correct it or adapt

it to changes in environment, and in requirements”

(ISO/IEC 25010, 2011).

We can identify many cases of large, complex

software systems developed over a long period of

time, during which they were subjected to a large

number of modiﬁcations or extensions, many of

which were not planned from project onset. These

cases easily lead to increases in maintenance costs

related with unchecked software complexity, leading

to difﬁculties in localizing errors or the requirements

for carrying out source code modiﬁcations. In many

cases this is compounded by having different teams

for development and maintenance, increasing pro-

gram comprehension difﬁculty. This leads to main-

tenance being one of the key factors for continued in-

crease of costs during the software lifecycle.

One important cause is that maintenance is usually

considered during the late stages of software develop-

ment, which is usually focused on delivery. Provid-

ing the development team with adequate tool-backed

methodologies facilitates foresight of difﬁcult situa-

tions and can help avoid some of the technical prob-

lems that otherwise build up in what is now known as

technical debt. Additional useful information is repre-

sented by discovering maintenance hotspots, namely

those parts of the source code that are most difﬁcult

to maintain. Even more, agile practices such as con-

tinuous delivery have reinforced the importance of in-

tegrating maintenance activities tightly within the de-

velopment process.

Our goal is to study the long term evolution of

software maintainability in large open-source appli-

cations. We assess target application maintainabil-

ity using relevant software quality models. Our fo-

cus on open-source software allows us to validate tar-

get application source code, check that all functional-

ities are present and apply proposed quality models.

Several studies have investigated the relation between

maintainability and software metrics (Chidamber and

Kemerer, 1994; Heitlager et al., 2007; Marinescu,

2002; Li and Henry, 1993), while others have investi-

gated maintainability as a software quality factor (R.

Lincke, W. Lowe, 2019; ISO/IEC 25010, 2011; Hyn-

ninen et al., 2018). Previous work proves that a rela-

tion exists between software maintainability and met-

rics. However, further investigation is required to pro-

vide practitioners with actionable results that can be

120

Molnar, A. and Motogna, S.

Longitudinal Evaluation of Open-source Software Maintainability.

DOI: 10.5220/0009393501200131

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 120-131

ISBN: 978-989-758-421-3

integrated into software development workﬂows.

The novelty of our approach consists in (i) study-

ing the evolution of software maintainability over the

long-term, by evaluating all released versions of the

target applications using several quality models; (ii)

identifying long-term trends in application maintain-

ability that are common across the studied applica-

tions and (iii) studying the quality models themselves

in order to analyze their strengths and weaknesses

through the lens of complex software systems.

The following section is dedicated to detailing the

maintainability models used in our study, while Sec-

tion 3 details our case study, carried out according to

best practices (Runeson and H

ost, 2009). Relevant re-

lated work is presented in Section 4, while Section 5

is reserved for conclusions.

2 PRELIMINARIES

As DeMarco underlines: ”you cannot control what

you cannot measure” (DeMarco, 1982), software

metrics have become essential indicators for control-

ling software. Starting with the earliest employed

metrics, that measured the number of lines of code,

functions, modules, or classes in a program, and con-

tinuing with metrics associated with complexity, they

have proven their usefulness in measuring and con-

trolling software development. This is especially true

in the case of large-scale software. Object oriented

metrics (Chidamber and Kemerer, 1994) provided an

important boost to the domain, by using metrics to

detect code smells, improve maintainability and other

software quality characteristics.

The importance of maintainability is illustrated by

its inclusion as a quality factor in all proposed soft-

ware quality models. The most recent standardized

model is ISO 25010 (ISO/IEC 25010, 2011), in which

maintainability is comprised of sub-characteristics

Modularity, Reusability, Analyzability, Modiﬁability

and Testability. This provides an early indication re-

garding the aspects that are important to easily main-

tain code. Unfortunately it does not offer a method-

ology to improve this factor, nor a formalized way of

assigning it a numerical value. To fulﬁll this need,

several ways to model and measure maintainability

have been proposed. We selected three such models

for inclusion in our case study, and we describe them

in the following sections.

2.1 Maintainability Index

The Maintainability Index (MI) was introduced in

1992 (Oman and Hagemeister, 1992) and is perhaps

the most well established metric for software main-

tainability. The index can be applied at function, mod-

ule or program level. While several variants of it ex-

ist, we employ a version that is detailed within several

modern-day software tools (Virtual Machinery, 2019;

Microsoft VS Docs, 2020):

MI = 171 − 5.2 ∗ ln(aveV ) − 0.23 ∗ aveG − 16.2 ∗

ln(aveSTAT ), where:

• aveV - average Halstead volume. It reﬂects the

computational load of the code in terms of opera-

tors and operands used.

• aveG - average cyclomatic complexity. It reﬂects

the number of possible execution paths.

• aveSTAT - average number of source code state-

ments. Variants exist using the number of lines of

code, however the consideration is (Virtual Ma-

chinery, 2019) that the number of statements pro-

vides a better reﬂection of source code size.

In this form, MI values range from 171 down to neg-

ative numbers. However, negative MI values reﬂect

very poor maintainability. As such, the following nor-

malized value was introduced (Microsoft VS Docs,

2020): MI

normalized

= max(0,

100

171

∗ MI). Normalized

values range between 0 and 100, with values below 20

illustrating poor maintainability (Microsoft VS Docs,

2020). Several code inspection and development tools

can compute the MI, including JHawk (Virtual Ma-

chinery, 2019), SonarQube (SonarSource, 2019), the

Metrics .NET library (Metrics library, 2019) and Mi-

crosoft Visual Studio (Microsoft VS Docs, 2020).

However, studies exist criticizing this metric

(Heitlager et al., 2007; Welker, 2001; van Deursen,

2014). They illustrate different inconsistencies that

occur when used in the context of current program-

ming languages. In addition to various tools imple-

menting different versions of the MI, such as adding

an additional parameter for comments, we ﬁnd dis-

agreement regarding threshold values for poor main-

tainability (Virtual Machinery, 2019; Naboulsi, 2011;

Microsoft VS Docs, 2020). As the MI was proposed

in the ’90s, it does not consider object orientation,

which emphasized new relations, such as inheritance,

coupling and cohesion to the forefront. These were

proven to have signiﬁcant impact on maintainability

(Chidamber and Kemerer, 1994; Li and Henry, 1993;

Marinescu, 2002; Molnar and Motogna, 2017).

2.2 Technical Debt Ratio

Technical debt provides a numerical representation

of the required maintenance effort, tailored towards

large applications. Technical debt is used increas-

ingly often, especially in the context of agile devel-

Longitudinal Evaluation of Open-source Software Maintainability

121

opment methodologies. Originally introduced as a

metaphor borrowed from the ﬁnancial sector (Cun-

ningham, 1992), technical debt suggests that the debt

accumulated during development is transformed in

a ﬁnancial debt to be paid in the context of release

versions. Technical debt is considered a fair mea-

sure of the deﬁciencies in internal quality of software

(Fowler, 2019). The concept gained popularity after

it was detailed in the Software Quality Assessment

Based on Lifecycle Expectations (SQALE) method-

ology introduced by J.L. Letouzey (Letouzey, 2012).

SonarQube is perhaps the most well known tool

that calculates technical debt. It employs a conﬁg-

urable model where each issue discovered using static

analysis is associated with an estimation of the time

required to ﬁx it. The technical debt represents the to-

tal time required to ﬁx all discovered issues. The tech-

nical debt ratio puts the debt into context, by dividing

the amount of time required to ﬁx all issues by the es-

timated time to create the software system

. As such,

technical debt ratio values range between 0 and 1. By

default, the SonarQube model (SonarSource, 2019)

assigns the best maintainability rating of A to code

with technical debt ratio smaller than 0.05, where ﬁx-

ing all issues requires less than 5% of the total de-

velopment time. The worst rating of E is assigned to

code having debt ratio over 0.5.

2.3 ARiSA Model for Maintainability

Another approach for metric-driven measurement

of software maintainability is based on the Com-

pendium of Software Quality Standards and Metrics

(R. Lincke, W. Lowe, 2019), currently maintained by

ARiSA

, together with researchers at Linnaeus Uni-

versity

. The ARiSA Compendium explores the re-

lation between software quality, as expressed by the

ISO 9126 standard, and software metrics. The ISO

9126 quality model is comprised of six characteristics

and 27 sub-characteristics. One of the six character-

istics is Maintainability, with sub-characteristics An-

alyzability, Changeability, Stability, Testability and

Compliance. For each sub-characteristic, with the

exception of Compliance, the Compendium provides

a set of related metrics, as well as the strength and

direction of each metric’s inﬂuence. This informa-

tion is synthesized in Table 1. As shown, the inﬂu-

ence can be direct (plus sign, showing a direct re-

lation between the metric value and corresponding

sub-characteristic) or inverse (minus sign), as well as

By default, SonarQube estimates 0.06 days to develop

one line of code.

http://www.arisa.se/index.php?lang=en

We refer to this work as the ARiSA Compendium.

Table 1: Metric inﬂuences on maintainability according to

the ARiSA model.

Maintainability

Category

Metric

Analyzability

Changeability

Stability

Testability

Complexity

LOC −− −− - −−

NAM −− −− - −−

NOM −− −− - −−

WMC −− −− - −−

RFC −− −− - −−

Structure

DIT −− −− - −−

NOC - −− - -

CBO −− −− −− −−

DAC −− −− −− −−

LD ++ ++ ++ ++

MPC −− −− −− −−

LCOM −− −− −− −−

ILCOM −− −− −− −−

TCC ++ ++ ++ ++

Design

LOD −− −− - −−

LEN −− −− −− −−

CYC −− −− −− −−

strong (doubled sign). For example, increased LOC

has a strong and negative inﬂuence on Analyzability.

Metric values can be extracted using the

VizzMaintenance (ARISA Compendium, VizzMain-

tenance, 2019) Eclipse plugin, which can extract val-

ues for the following class-level metrics: lines of code

(LOC), number of attributes and methods (NAM),

number of methods (NOM), weighted method count

(WMC), response for class (RFC), depth of inher-

itance tree (DIT), number of children (NOC), cou-

pling between objects (CBO), data abstraction cou-

pling (DAC), locality of data (LD), message pass cou-

pling (MPC), lack of cohesion in methods (LCOM)

and its improved variant (ILCOM), tight class cohe-

sion (TCC), lack of documentation (LOD), length of

names (LEN) and number of classes in cycle (CYC).

The aim is to provide a comprehensive view of object-

oriented systems, capture their size, complexity, ar-

chitecture and structure. Formal deﬁnitions for these

metrics are available in the Compendium (R. Lincke,

W. Lowe, 2019) as well as detailed in existing re-

search (Barkmann et al., 2009; Molnar. et al., 2019).

The ARiSA model for maintainability is based

on metric values aggregated according to the weights

shown in Table 1. For each class, the percentage of

extreme metric values is computed. A value is con-

sidered extreme when it is within the top or bottom

15% of the metric’s value range for all system classes.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

122

Once calculated for each metric, these are aggregated

for each criteria in accordance with the weight and di-

rection illustrated in Table 1. This results in a value

between 0 (no extreme values) and 1 (all metric val-

ues are extremes) for each of the four criteria, which

is then averaged to obtain the maintainability score of

the class. For example, let us assume a class having

a single extreme value, that of LOC. According to the

information in Table 1, its Analyzability score is

The numerator is given by the weight LOC has in An-

alyzability, represented by the two minus signs. The

sum of the weights for the Analyzability criteria is 33.

It follows then that Changeability is

, Stability is

and Testability is

. The maintainability score of the

class will be

≈ 0.0546, or 5.46%.

The ARiSA model was developed according to

ISO 9126. While superseded by the newer ISO

25010, their differences regarding maintainability are

small, so we believe models built on the older stan-

dard remain valid. When compared to the MI, the

ARiSA model appears more comprehensive by tak-

ing into consideration object-oriented metrics that ex-

press cohesion, coupling and inheritance. In order to

scale the model from class to system level, we take

a similar approach to the MI. We calculate the main-

tainability score for each system class and calculate

the geometric mean across system classes.

3 CASE STUDY

3.1 Research Objective

Our case study is organized according to the structure

proposed by (Runeson and H

ost, 2009). The present

section details case study design, while target appli-

cations and the procedure for data collection are dis-

cussed in Section 3.2. We report the results of our

analysis in Section 3.3, and address the threats to va-

lidity in Section 3.4, using the structured approach

proposed by (Runeson and H

ost, 2009).

The main objective of our work can be stated

using the goal question metric approach (Caldiera

and Rombach, 1994) as follows: ”study the long-

term evolution of maintainability in open-source soft-

ware through the lens of metric-based software qual-

ity models”. We distill the main objective into ﬁve

research questions that will guide the design and anal-

ysis phases of the case study:

: Is maintainability correlated with software

size? The purpose of RQ

is twofold. First, we check

that the proposed quality models do not actually mea-

sure software size. Second, we aim to study the in-

ﬂuence of software size on reported maintainability.

For instance, as LOC is one of the components of the

MI, we expect it to be more readily inﬂuenced than

the technical debt ratio. We also aim to address the

ıve expectation that increased application size leads

to lowered maintainability.

: How does the maintainability of open-

source software change from one version to another?

We use the quality models detailed within the pre-

vious section, coupled with manual examination of

the source code to identify both short and long-term

trends during application development. This enables

data triangulation as suggested by (Runeson and H

ost,

2009), lowering the risk of maintainability changes

not being detected by the proposed models, and en-

ables comparing results. We study the relation be-

tween software functionalities, software size and re-

ported maintainability. We are also interested to iden-

tify and determine the impact that major changes to

software, such as the addition of important features or

refactoring, have on maintainability.

: Do differences exist between the maintain-

ability scores reported for the same software version?

Existing research (Molnar and Motogna, 2017) has

shown this as an important possibility. Given that

each quality model uses its own scale, we identify

those versions where differences exist in the main-

tainability change between the last and current studied

version.

: What causes the differences observed within

? We expect that answering RQ

will improve

the understanding of the strengths and limitations the

proposed models have when applied to complex soft-

ware. In addition, we aim to study any versions where

changes to maintainability were not discovered by any

of the proposed quality models.

: Which of the proposed models is the most

accurate at reﬂecting changes in software maintain-

ability? Answers to the previous research questions,

especially RQ

will highlight the strengths and weak-

nesses of each proposed model. The purpose of RQ

is not to determine which model provides the best ap-

proximation of software maintainability, but to deter-

mine which model is most suitable at reﬂecting the

changes that occur during the development of soft-

ware. In addition, we aim to identify the proper con-

text where each model provides valuable insight.

3.2 Target Applications

We deﬁned a number of selection criteria for target

applications. The goal was to ensure that our case

study captures the development history for several ap-

plications, that results can be compared across the in-

Longitudinal Evaluation of Open-source Software Maintainability

123

cluded systems and that results can be extrapolated to

an important class of software systems.

First, we were interested in mature applications

having an important user base, for which we had

access to the entire development history. Second,

we limited our selection to GUI-driven Java applica-

tions. This ensures the same code metrics and mea-

surements can be used and compared across applica-

tions. Restricting the study to one popular applica-

tion category allows producing a more representative

picture. This is especially important when consider-

ing open-source software, as existing research (Bark-

mann et al., 2009) shows that in many cases, develop-

ment effort is not consistent and repositories include

incomplete source code, that does not run or cannot

be compiled. Finally, we steered towards applications

having few dependencies to external libraries or other

components, databases or the Internet. This facili-

tated setting up each application version and ensured

that the source code for application functionality was

self-contained.

We selected three open-source Java applications

having long development histories, a well-established

user base and a development repository that includes

source code, release version history and associated

change logs. The three applications are the Free-

Mind

mind mapper, the jEdit

text editor and the

TuxGuitar

tablature editor.

FreeMind: is a functionally-rich application for

creating and editing mind maps that was previously

used in empirical software engineering research (Arlt

et al., 2012). It has a consistent user base, with over

744k application downloads over the last 12 months,

and over 24 million over its lifetime

. Among the

applications in our case study, FreeMind’s develop-

ment history can be traced closest to the project’s

start. The ﬁrst released version was 0.0.3

, and con-

sisted of 3.700 lines of code (LOC) and 60 classes.

Early versions do not have many functionalities, with

frequent changes to source code structure and appli-

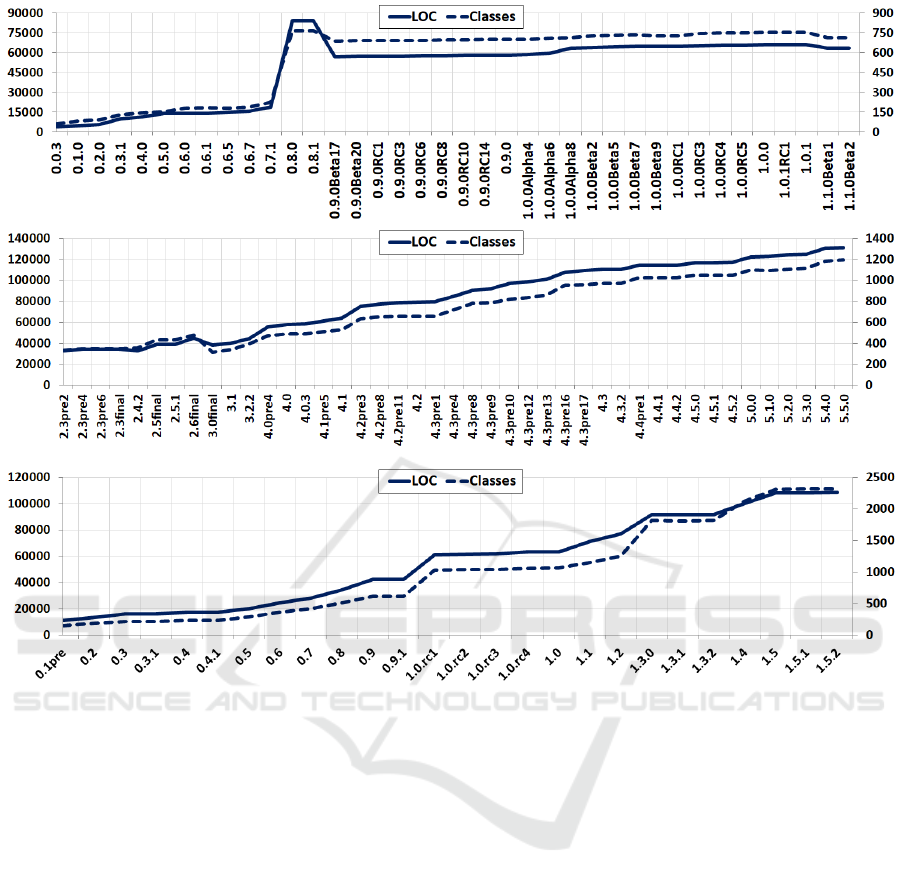

cation architecture. Figure 1 illustrates the evolution

of LOC and class counts for each of the released ver-

sions. Early versions become more complex as more

functionalities are integrated. An important jump is

recorded in version 0.8.0, reﬂected both in the appli-

cation’s look and available functionalities as well as

recorded metrics. Application code is refactored in

http://freemind.sourceforge.net/wiki/index.php/Main Page

http://jedit.org

http://www.tuxguitar.com.ar

All data points from https://sourceforge.net/, recorded

December 12

, 2019.

We employ the version numbers provided by the devel-

opers.

version 0.9.0Beta17, resulting in reduced numbers for

LOC and classes, without impacting application func-

tionalities. Values for these metrics stabilize after this

version, showing a slow increase until the most recent

release.

jEdit: is a popular text-editor with plugin support

and a large user base. The application recorded 99k

downloads during the last year, and over 9 million

over its development history. The ﬁrst version was re-

leased in January 2000. Compared to other early ap-

plication versions in our study, early versions of jEdit

are the most stable and fully featured. The application

was also used in empirical software research target-

ing the generation of GUI test cases (Arlt et al., 2012;

Yuan and Memon, 2010), software metrics (Molnar.

et al., 2019) and maintainability (Molnar and Mo-

togna, 2017). Figure 1 shows a steady increase in

the application code base throughout its development

history. The single notable exception is version 3.0ﬁ-

nal, where refactoring caused a decrease in applica-

tion size. Like FreeMind, plugin source code was not

included in our evaluation.

TuxGuitar: is a multi-track guitar tablature ed-

itor. It employs an SWT-driven GUI across all

recorded versions, while FreeMind and jEdit use

AWT/Swing components. One of the application’s

key functionalities regards support for importing and

exporting data in multiple formats. This is imple-

mented in the form of plugins that ship with the de-

fault application installation and was included in our

evaluation.

Just like FreeMind and jEdit, TuxGuitar is also

a popular application with an established user base,

having over 218k downloads in the last year and 6.7

million during its lifetime. Figure 1 illustrates the sys-

tem’s evolution in size, which we ﬁnd to be similar to

jEdit. The most signiﬁcant difference is that we could

not ﬁnd instances of decreasing application complex-

ity. However, it is possible that such changes were

carried out between releases and compensated by new

code.

Our study includes the 38 released versions of

FreeMind, 43 in the case of jEdit and 26 TuxGui-

tar releases. As shows in previous research, we can-

not make assumptions on source code in open-source

repositories. In their study, (Barkmann et al., 2009)

found that one third of the applications considered

in their case study required manual ﬁxes before they

could be started. As such, we imported each version

into an IDE. The source code for each version was

manually examined. For the older application ver-

sions, small changes had to be made to ensure they

could be compiled and run under the Java 8 platform.

An example of such changes regards variables named

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

124

Figure 1: The size of FreeMind (top), jEdit (middle) and TuxGuitar (bottom) versions measured as lines of code (LOC) and

number of classes.

enum in older source code. As Java 1.5 introduced

the enum keyword, these variables had to be renamed

in order to ensure successful compilation. In sev-

eral cases, open-source library code was found bun-

dled together with application code. We separated

this code into library ﬁles in the application classpath,

to make sure it did not skew recorded metric values.

We started each application version and checked ev-

ery functionality to make sure the compiled source

code was complete.

3.3 Analysis

In this section we present our analysis of the collected

data and provide answers to the research questions.

To answer RQ

, we consider the number of a system’s

classes as a suitable proxy for its size. While this does

not account for differences in software architecture,

concurrency or distributed software, we believe it

to be suitable when limited to the selected category

of applications. We calculate the Spearman rank

correlation between the maintainability reported for

each application version and its number of classes.

Improved maintainability is represented by higher

values of the MI, and lower values in the ARiSA

model and technical debt ratio. Table 2 does not

reveal strong correlation between any of the applica-

tions and quality models.

FreeMind and jEdit results are similar. Both

ARiSA and MI measurements are inversely-

correlated with application size, but for different

reasons. For the ARiSA model, classes added to later

system versions serve to keep the mean value close

to constant, even when application size increases. In

the case of the MI, we observe that increased system

size generally drives joint increases in Halstead

volume, statement count and cyclomatic complexity.

This illustrates the na

ıve expectation that lower

maintainability is reported for larger applications.

However, technical debt ratio remains independent of

both application’s sizes.

TuxGuitar results are determined by a conscien-

Longitudinal Evaluation of Open-source Software Maintainability

125

Figure 2: FreeMind maintainability according to the quality models. Technical debt ratio uses the scale on the right side.

Table 2: Spearman rank correlation between software size

and maintainability measured using the ARiSA model,

technical debt ratio (TDR) and the Maintainability Index

(MI).

Application ARiSA TDR MI

FreeMind -0.49 0.09 -0.67

jEdit -0.50 0.04 -0.32

TuxGuitar 0.67 -0.71 0.64

tious effort to keep technical debt in check within the

project’s latter versions. Figure 1 shows important in-

creases in system size for several versions, including

1.0rc1, 1.3 and 1.5. However, Figure 4 shows very

low levels of technical debt ratio. This is illustrated

through the correlation values in Table 2, as well as

in Figure 4, which shows improved MI values after

version 1.2 and a very low level of technical debt in

all versions following 0.9.1.

We answer RQ

using the maintainability data

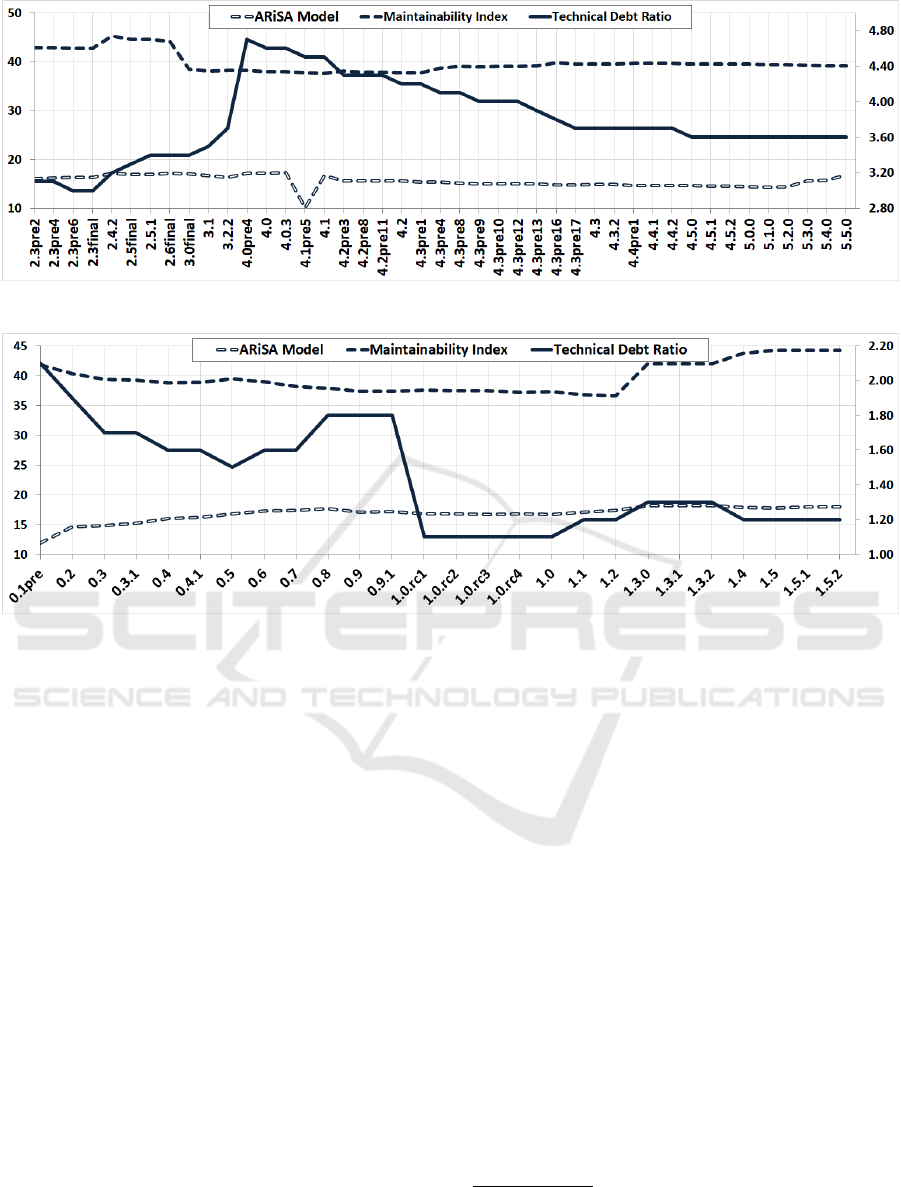

points in Figures 2, 3 and 4. Data points were col-

lected after normalizing values to the [0, 100] range

Improved maintainability is illustrated using higher

values of the MI, and lower values using the ARiSA

model and technical debt ratio.

Our ﬁrst observation continues the idea behind

. FreeMind versions newer than 0.9.0Beta17

have almost constant maintainability across all qual-

ity models, even with new features that increase class

count and LOC by 20%. For jEdit, the ARiSA-based

model and MI see small changes between versions

4.2pre3 and 5.2.0, even with the increased application

size shown in Figure 1. After version 4.0pre4, tech-

nical debt ratio remains on a downward slope, due to

newly added code introducing few code smells and

little technical debt. The same holds for TuxGuitar.

Versions after 0.9.1 show improved maintainability,

We used the MI

normalized

formula, while the numerical

values from the ARiSA model and technical debt ratio rep-

resent percentages.

even if later application versions more than double

LOC and class count, as shown in Figure 1.

The second observation regards early application

versions. The smallest application versions in our

case study are the early version of FreeMind, for

which we record frequent changes to maintainability.

The same can be observed for jEdit and TuxGuitar,

and manual examination of the code shows that appli-

cation structure remains ﬂuid, with each release com-

bining new features with refactoring. As expected,

latter versions have a well deﬁned architecture that

does not change as much, with new features imple-

mented over the existing system of plugins or event-

handling systems.

In several cases, sequences with little variance

in maintainability are bounded by versions where

recorded values change abruptly. The most repre-

sentative examples are FreeMind versions 0.8.0 and

0.9.0Beta17. All three models reﬂect the change in

maintainability. Versions 0.8.* are the only ones to

receive a B maintainability rating according to their

technical debt ratio, all the rest being A’s. The root

cause is a large push in development resulting in a

sharp increase in LOC and class count. 0.8.0 is the

ﬁrst version to use external libraries for XML process-

ing and input forms. During use, it is clear that ver-

sion 0.8.0 is more complex and fully-featured, with

many visible changes at the user interface level, in-

cluding more complex application preferences and

features for mind map and node management. The

scope of changes remains apparent at source ﬁle level,

with only 21 out of the 92 source ﬁles remaining un-

changed from version 0.7.1. The number of source

ﬁles also increases greatly, from 92 to 469. Much of

the observed discrepancy between numbers of source

ﬁles, classes and LOC between the versions can be

explained by the newer application including 272

classes that were generated by the JAXB libraries

encoding most of the actions that can be performed

within the application. These classes contributed with

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

126

49.434 lines to the witnessed inﬂation of LOC. These

classes are removed in version 0.9.0Beta17, which

consists of only 127 source ﬁles. However, much of

the maintainability variance is not a result of changes

to system size. Version 0.9.0Beta17 has similar main-

tainability to 0.7.1, but tripled the class count and

LOC.

In the case of jEdit 4.0pre4, our examination re-

veals a disproportionate increase of the technical debt

when compared to LOC. This is caused by adding

high cyclomatic complexity code for text area man-

agement, text buffer events and the application doc-

ument model. Across most jEdit versions, these

functionalities include the application’s most complex

code.

TuxGuitar is characterized by a very good ratio

of technical debt. Version 1.0rc1 sees technical debt

ratio drop further, and keep the best values recorded

in our case study. This is due to extensive refactor-

ing that eliminated many code smells and lowered to-

tal technical debt from 326 hours to 290 hours. This,

coupled with increased size caused by adding support

for the song collection browser and new plugins leads

to the observed result. The MI also records an im-

provement in version 1.3.0. Manual examination re-

veals it to be only apparent, as it is caused by the ad-

dition of over 930 classes describing custom applica-

tion actions. They have few statements and low cyclo-

matic complexity which skews the MI by decreasing

mean values.

In order to address RQ

we identify software ver-

sions where the proposed quality models are in dis-

agreement. We take into consideration that each qual-

ity model uses its own scale, which does not allow us

a direct comparison of the results. We feel that a good

example are FreeMind versions 0.8.*, where a sharp

increase in technical debt ratio appears together with

a decrease of the MI. However, even these version are

rated B on SonarQube’s maintainability scale, which

ranges from A (best) to E (worst). As such, these ver-

sions do not fall under the purview of RQ

. Analyzing

the maintainability data reveals quality models are in

disagreement for jEdit version 4.0pre4, 4.1pre5 and

TuxGuitar versions 1.0rc1 and 1.3.0.

We examine these versions in detail in order to

provide an answer for RQ

. Version 4.0pre4 is an

important update, where all source ﬁles are modi-

ﬁed, 80 new classes are added and LOC increases

by 25%. However, the complexity of added code

does not differ from that of the previous version’s

code base, it is averaged out from the MI and the

ARiSA model. However, SonarQube metrics report

over 2700 new code smells, which raise technical

debt by 50%, leading to decreased maintainability.

jEdit version 4.1pre5 highlights one limitation of the

ARiSA model, which examines class-level maintain-

ability in the context of the entire system. In this

case, the observed improvement is the result of the

way maintainability is calculated. For instance, the

ARiSA model reports different maintainability levels

for some of the most complex system classes, even

when their code was not changed.

TuxGuitar 1.0rc1 is an important update, during

which all but 3 source ﬁles were modiﬁed. Both LOC

and class count increased by 50%. New functional-

ities, such as the song collection browser and data

management plugins were added. Like in the previous

case, newly introduced code shows similar metrics to

the existing code base, so changes do not inﬂuence

the MI or ARiSA model. However, as detailed in the

paragraph, technical debt is decreased, both in

absolute (fewer code smells and less technical debt)

and relative size.

In the case of version 1.3.0, we again ﬁnd im-

proved MI to be the result of adding a large number of

small, low-complexity classes that skew mean values,

and not the result of a real improvement to software

quality. Added code also causes a small increase in

technical debt ratio.

In order to provide an answer for RQ

, we exam-

ined all consecutive application version pairs manu-

ally. We started by examining each version’s package

structure, followed by a perusal of the source code

in new packages. For packages found in several ver-

sions, we examined the code changes at class-level in

order to localise architecture details and application

features. Our analysis conﬁrmed the ﬁndings reported

for RQ

and RQ

. As such, it is our belief that from

a software development point of view, the technical

debt ratio is the most accurate of the examined main-

tainability models. We also found it to be suitable for

discovering maintainability changes across versions,

as evidenced when examining jEdit 4.0pre4 and Tux-

Guitar 1.3.0.

In contrast, we believe the MI is useful when de-

ployed for smaller code units. At method or class-

level, the skewing effect of data averaging is not

present, so the MI provides useful indication regard-

ing code complexity and readability. The scale pro-

posed in (Microsoft VS Docs, 2020) can be used dur-

ing development and code review to prevent issues

from accumulating. We found this to be important

especially during an application’s early versions. As

these versions already contain some of the most com-

plex code, preventing them from being part of the

technical debt package can be a worthwhile goal in

the long term.

The ARiSA model is best used to discover main-

Longitudinal Evaluation of Open-source Software Maintainability

127

Figure 3: jEdit maintainability according to the quality models. Technical debt ratio uses the scale on the right side.

Figure 4: TuxGuitar maintainability according to the quality models. Technical debt ratio uses the scale on the right side.

tainability hot spots within the code base. Unlike the

MI, it employs a wide range of metrics, making it sen-

sitive to object-oriented code. However, using lower-

level code metrics makes it less amenable to provid-

ing a general assessment of an application. Finally,

we also observe that both MI and the ARiSA models

can be readily adapted or implemented for new lan-

guages or platforms, while doing so for the technical

debt ratio requires signiﬁcant more work.

3.4 Threats to Validity

The case study was guided by (Runeson and H

ost,

2009), and consisted of the following steps: identify-

ing and preparing target applications, manual source

code examination, data collection and analysis. We

documented all steps to ensure the study can be repli-

cated.

Target application selection targeted complex,

popular applications for which we could analyze both

early as well as mature versions. We restricted candi-

date applications to a narrow, but nevertheless popular

type to allow data triangulation and comparison. To

the best of our knowledge, target applications were

developed by independent teams. The study’s authors

had no involvement with the development of the target

applications, or of the metric extraction tools. Given

that each extraction tool uses its own metric deﬁni-

tions, this can impact obtained results (Lincke et al.,

2008; Sham et al., 2012). We employed several tools

to extract metrics values

and cross-checked the ac-

curacy of collected data, which is available on our

website

The quality models employed were selected ac-

cording to their presence in existing literature, varying

level of implementation complexity and the possibil-

ity of obtaining a numerical value to represent main-

tainability for each software version.

We calculated both line and statement count ver-

sions of the Maintainability Index. As we found they

correlated almost perfectly (coefﬁcient over 0.99), we

used the statement-based version. For the ARiSA

model, we aggregated values using the geometric

mean. While a different aggregation strategy might

improve the accuracy of the model, researching this

remained beyond the scope of the present paper. Be-

fore the research questions were addressed, we calcu-

MetricsReloaded IntelliJ plugin and the VizzMain-

tainance Eclipse plugin.

https://bitbucket.org/guiresearch/tools

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

128

lated the correlation between the reported values, and

made sure there was no risk of collinearity.

Threats to internal validity were addressed by car-

rying out the manual source code examination be-

fore data analysis. This was done to prevent biases

that could be introduced by the availability of main-

tainability data. Code examination was assisted by

scripts that allowed us to easily compare the source

code across different versions and summarize the size

and scope of changes.

External validity was addressed through the target

application selection process. Our analysis facilitated

ﬁnding trends that were common across the applica-

tions. Added value for cementing these results is pos-

sible through a replication study with a larger scope.

However, the requirements for testing that each ver-

sion is complete and sanitizing it, as described in Sec-

tion 3.2 make this a laborious process.

4 RELATED WORK

Existing studies regarding maintainability can be clas-

siﬁed in two categories. The ﬁrst is where maintain-

ability is computed using software metrics and the

second is where maintainability is primarily consid-

ered a software quality factor.

The relation between maintainability and software

metrics has been thoroughly investigated (Heitlager

et al., 2007; Li and Henry, 1993; Marinescu, 2002;

Molnar and Motogna, 2017). This is especially true

after the introduction of the Chidamber & Kemerer

metrics suite (Chidamber and Kemerer, 1994), as

research highlighted that predicting software main-

tenance effort was possible (Li and Henry, 1993).

Research also showed that evaluating maintainabil-

ity should take cohesion and coupling, as viewed

within the lens of object-oriented systems into ac-

count (Darcy and Kemerer, 2005). During our litera-

ture review we identiﬁed two important drawbacks of

existing approaches. First, most of the studies prove

the inﬂuence of several factors over maintainability,

but lack a computational or methodological approach

that can be used in practice. Second, where they exist,

numerical threshold values for maintainability, such

as presented in Section 2.1 remain debatable.

The most comprehensive survey of the relation be-

tween metrics and software quality attributes, includ-

ing maintainability, can be found in (R. Lincke, W.

Lowe, 2019). The survey is built on the ISO 9126

quality model. The approach is based on decompos-

ing quality characteristics in sub-characteristics and

computing the inﬂuence of several software metrics

on them, proposing a descriptive method. This repre-

sents the structured foundation for the ARiSA model

detailed in Section 2.3.

An approach to evaluate maintainability based on

the most recent ISO 25010 standard is proposed in

(T Hynninen, 2018). The study offers an interesting

perspective, but it is still in early stages, and other

direct or indirect measures should be included. The

SIG Maintainability model offers a similar proposal

ohmen et al., 2016; Heitlager et al., 2007), by asso-

ciating source code properties to maintainability sub-

factors, and validating this hypothesis on a large num-

ber of industrial applications. The result is repre-

sented using a scale of ﬁve levels of inﬂuence between

sub-factors and code properties. The most important

drawback of studying maintainability as a software

quality factor is the fact that it is descriptive, estab-

lishing relations or inﬂuences, but lacks a computa-

tional perspective. This precludes such models from

being included as automated steps of software devel-

opment pipelines, and represents an important imped-

iment to their adoption by practitioners.

5 CONCLUSIONS

We carried out a longitudinal exploratory case study

where three software quality models and manual

source code examination were used to study software

maintainability over the long-term. We report the re-

sults of our analysis that covered over 18 years of de-

velopment history for three complex, popular appli-

cations.

Our ﬁrst conclusion, that we observed for all three

target applications is that maintainability can remain

independent of application size. While class count

and LOC generally increased throughout application

development, we noticed consistent refactoring ef-

forts that improved reported maintainability. Further-

more, we observed source code that was newly added

to latter versions to have very good maintainability,

helping to keep overall software quality high. Deter-

mining the reason for this is beyond the scope of our

research. However, we believe a well established ap-

plication architecture, or having experienced develop-

ers contribute to complex application versions might

contribute to this effect.

We also highlight the common development trend

of these open-source applications. Early versions are

susceptible to ﬂuctuations in source code quality, as

well as metric values (Molnar. et al., 2019). Once

application architecture, in the form of package struc-

ture, used libraries and event handling mechanisms

are established, we ﬁnd smaller ﬂuctuations in subse-

quent versions. An important exception to this is rep-

Longitudinal Evaluation of Open-source Software Maintainability

129

resented by the existence of milestone versions, which

have a large variance in quality. These are character-

ized by the addition of many new features, which is

also apparent while using the application. In the case

of jEdit 4.0pre4 and TuxGuitar 1.0rc1, these are also

evident from version numbers. However, the opposite

is not true.

Regarding the quality models employed in our

case study, we believe each of the methods can be

useful in discovering maintainability changes. While

beyond the scope of our present paper, all three mod-

els can be used with ﬁner granularity, at package and

class levels. Each model contributed insight regarding

the quality of the target applications, and we believe

that comprehensive analysis using several models is

useful in order to improve the characterization of soft-

ware quality.

We intend to expand our study to cover addi-

tional system types prevalent today, such as frame-

works, distributed applications or those targeting mo-

bile devices. We aim to further study system size

and complexity beyond line of code and class counts

in order to improve our understanding of its relation

with maintainability. In addition, we believe a cross-

sectional approach is also valuable, as it can improve

our baseline by facilitating the study of a larger num-

ber of target applications.

REFERENCES

ARISA Compendium, VizzMaintenance (2019). Technical

documentation of the VizzMaintenance metric extrac-

tion tool.

Arlt, S., Banerjee, I., Bertolini, C., Memon, A. M., and

Schaf, M. (2012). Grey-box gui testing: Efﬁcient gen-

eration of event sequences. CoRR, abs/1205.4928.

Barkmann, H., Lincke, R., and L

owe, W. (2009). Quanti-

tative evaluation of software quality metrics in open-

source projects. In 2009 International Conference on

Advanced Information Networking and Applications

Workshops, pages 1067–1072.

Caldiera, V. R. B. G. and Rombach, H. D. (1994). The Goal

Question Metric approach. Encyclopedia of software

engineering, pages 528–532.

Chidamber, S. and Kemerer, C. (1994). A Metric Suite for

Object- Oriented Design. IEEE Transactions on Soft-

ware Engineering, 20(6):476–493.

Cunningham, W. (1992). The wycash portfolio manage-

ment system. SIGPLAN OOPS Mess., 4(2):29–30.

Darcy, D. P. and Kemerer, C. F. (2005). Oo metrics in prac-

tice. IEEE Softw., 22(6):17–19.

DeMarco, T. (1982). Controlling Software Projects; Man-

agement, Measurement and Estimation. Yourdan

Press, New Jersey.

ohmen, T., Bruntink, M., Ceolin, D., and Visser, J. (2016).

Towards a benchmark for the maintainability evolu-

tion of industrial software systems. 2016 Joint Con-

ference of the International Workshop on Software

Measurement and the International Conference on

Software Process and Product Measurement (IWSM-

MENSURA), pages 11–21.

Fowler, M. (2019). Technical debt. https://martinfowler.

com/bliki/TechnicalDebt.html.

Heitlager, I., Kuipers, T., and Visser, J. (2007). A practi-

cal model for measuring maintainability. In Quality of

Information and Communications Technology, 6th In-

ternational Conference on the Quality of Information

and Communications Technology, QUATIC 2007, Lis-

bon, Portugal, September 12-14, 2007, Proceedings,

pages 30–39.

Hynninen, T., Kasurinen, J., and Taipale, O. (2018). Frame-

work for observing the maintenance needs, runtime

metrics and the overall quality-in-use. Journal of Soft-

ware Engineering and Applications, 11:139–152.

ISO/IEC 25010 (2011). Software quality standards. http:

//www.iso.org.

Letouzey, J.-L. (2012). The sqale method for evaluating

technical debt. In Proceedings of the Third Interna-

tional Workshop on Managing Technical Debt, MTD

’12, pages 31–36. IEEE Press.

Li, W. and Henry, S. (1993). Maintenance metrics for the

object oriented paradigm. IEEE Proc. First Interna-

tional Software Metrics Symp, pages 52–60.

Lincke, R., Lundberg, J., and L

owe, W. (2008). Comparing

software metrics tools. In Proceedings of the 2008 in-

ternational symposium on Software testing and anal-

ysis - ISSTA ’08.

Marinescu, R. (2002). Measurement and Quality in Object

Oriented Design. PhD thesis, Faculty of Automatics

and Computer Science, University of Timisoara.

Metrics library, N. (2019). https://github.com/etishor/

Metrics.NET.

Microsoft VS Docs (2020). https://docs.microsoft.com/

en-us/visualstudio/code-quality/code-metrics-values.

Molnar, A. and Motogna, S. (2017). Discovering maintain-

ability changes in large software systems. In Proceed-

ings of the 27th International Workshop on Software

Measurement and 12th International Conference on

Software Process and Product Measurement, IWSM

Mensura ’17, pages 88–93, New York, NY, USA.

ACM.

Molnar., A., Neamt¸u., A., and Motogna., S. (2019). Lon-

gitudinal evaluation of software quality metrics in

open-source applications. In Proceedings of the

14th International Conference on Evaluation of Novel

Approaches to Software Engineering - Volume 1:

ENASE,, pages 80–91. INSTICC, SciTePress.

Naboulsi, Z. (2011). Maintainability Index in

Microsoft Visual Studio. https://blogs.

msdn.microsoft.com/zainnab/2011/05/26/

code-metrics-maintainability-index/.

Oman, P. and Hagemeister, J. (1992). Metrics for as-

sessing a software system’s maintainability. In Pro-

ceedings Conference on Software Maintenance 1992,

pages 337–344.

R. Lincke, W. Lowe (2019). Compendium of Software

Quality Standards and Metrics.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

130

Runeson, P. and H

ost, M. (2009). Guidelines for conduct-

ing and reporting case study research in software en-

gineering. Empirical Software Engineering.

Sham, N., Bakar, A. A., and Boughton, C. V. (2012). Vali-

dation of Measurement Tools to Extract Metrics from

Open Source Projects.

SonarSource (2019). Sonarqube. https://www.sonarqube.

org.

T Hynninen, J Kasurinen, O. T. (2018). Framework for ob-

serving the maintenance needs, runtime metrics and

the overall quality-in-use. Journal of Software Engi-

neering and Applications, 11 (04):139–152.

van Deursen, A. (2014). Think twice

before using the maintainability in-

dex. https://avandeursen.com/2014/08/29/

think-twice-before-using-the-maintainability-index/.

Virtual Machinery (2019). Discussion on measuring the

maintanability index. http://www.virtualmachinery.

com/sidebar4.htm.

Welker, K. (2001). Software maintainability index revisited.

Journal of Defense Software Engineering, none.

Yuan, X. and Memon, A. M. (2010). Generating event

sequence-based test cases using GUI run-time state

feedback. IEEE Transactions on Software Engineer-

ing, 36(1).

Longitudinal Evaluation of Open-source Software Maintainability

131
