Learner Performance Prediction Indicators based on Machine

Learning

Karim Sehaba

Université de Lyon, CNRS. Université Lyon 2, LIRIS, UMR5205, F-69676, France

Keywords: Learning Indicator, Performance Predictions, Interaction Traces, Learning Analytics.

Abstract: This work is interested in the analysis of learners’ performances in order to define indicators to predict their

results based on their interactions with a learning environment. These indicators should alert learners at risk,

or their teachers, by highlighting their difficulties in order to help them get around them before it is too late.

For this, we have defined a trace analysis approach based on the use of machine learning methods. This

approach consists of preparing the plotted data automatically and manually, by selecting the attributes relevant

to learning, then automatically extracting indicators explaining the learner’s results. Our work was applied to

a data set resulting from a real training comprising 32593 learners producing 10 655 280 events. The accuracy

of our predictions has reached around 80%. Rules extraction methods were also applied in order to explain

the rules which govern the prediction indicator.

1 INTRODUCTION

Human learning via dedicated digital environments,

such as Learning Management System (LMS), has

become increasingly popular in recent years with

many benefits. This type of environment allows

teachers to share educational contents with their

learners and to follow their educational activities. It

also makes it possible to promote communication

(synchronous and asynchronous) and collaboration

between the learners and the latter and their teachers

without constraint of place and time. Among the

educational uses of this type of environment is

informal learning, or lifelong learning, in the

framework of Massive Open Online Course (Mooc)

in particular.

Despite the fact that Mooc have become very

popular, they face a fairly high dropout and failure

rate when compared to formal training. As noted in

(Nikhil Indrashekhar Jha et al 2019), the dropout rate

in a Mooc is generally 20% higher for students

enrolled online. It can even reach very high values

like 78% for Open University UK or 40% for Open

University de Chine (Tan e& Shao, 2015).

This work aims to develop indicators for

predicting learner performance based on its traces of

interaction. In general, a learning indicator is a piece

https://orcid.org/0000-0002-6541-1877

of information constructed from the data available in

the learning environment making it possible to

identify significant behaviors of the learner. The

indicator can be intended for the learner himself or for

his tutor. By trace, we mean the history of user actions

on a Learning Management System. More precisely,

our objective is therefore to predict the direction,

good or not, that the learner is taking based on his first

traces. The interest of such indicators is to alert the

learner at risk (or his tutor), in a timely manner before

it is too late, by highlighting his/her difficulties in

order to help him/her bypass them at the right time.

Learning indicators have been the subject of

several research studies (Yun et al 2019) (You 2016)

(Carrillo et al. 2017). They are generally designed by

learning experts in the form of mathematical formulas

indicating, for example, the level of attendance of the

learner, his/her level of : mastery of a given course,

collaborations with other learners, engagement in

learning activities, etc. In the context of open and

massive learning environments, it becomes more and

more difficult for a human expert to model reliable

learning indicators, more particularly predictors of

learner performance, which cover the different

learner situations and profiles. In addition, these

environments make it possible to collect a large

amount of data tracing the learners activities. Our

Sehaba, K.

Learner Performance Prediction Indicators based on Machine Learning.

DOI: 10.5220/0009396100470057

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 1, pages 47-57

ISBN: 978-989-758-417-6

approach thus aims to use machine learning methods

to predict the performance of the learner by analyzing

the data collected from the learning environment. In

this context, the research questions we face to achieve

this objective are:

1. How to identify, among the set of events

collected via the learning platform and

represented in the traces, those which have a

significant impact on the learner’s result?

2. How to calculate the learner performance

prediction indicator based on its important

events?

3. How to facilitate the interpretation and

understanding of its indicators by users

(learner or trainer)?

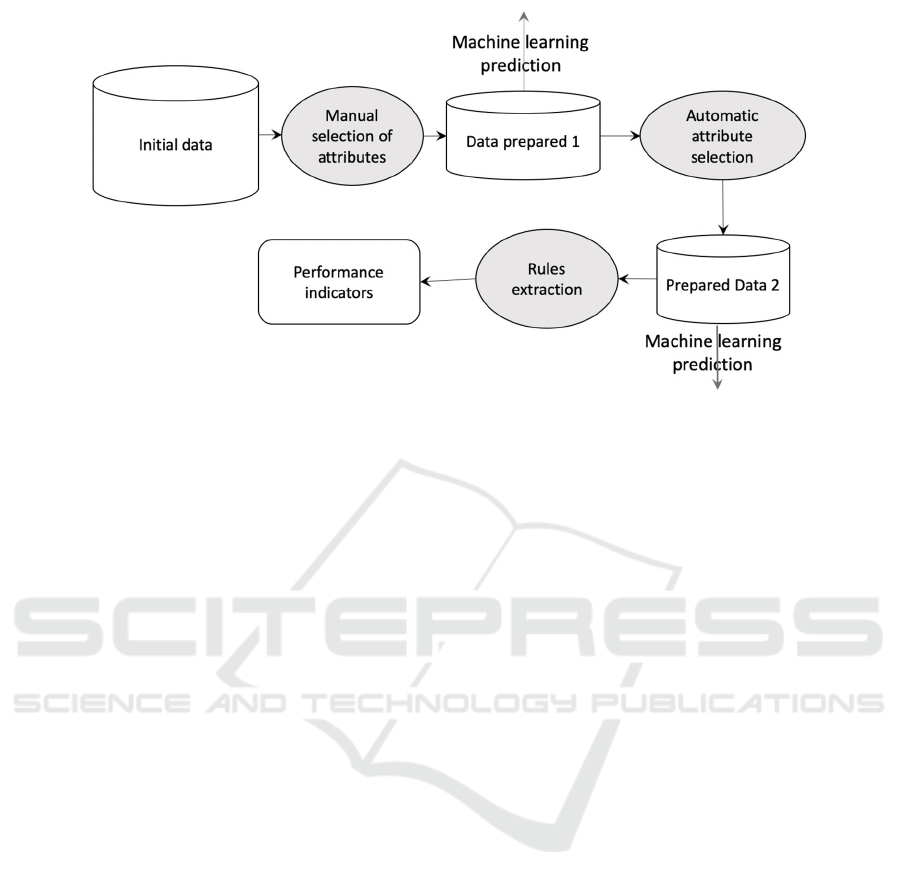

To answer these questions, we propose a trace

analysis approach to select the important events,

which constitute the attributes/characteristics which

will then be used by supervised learning algorithms

to predict the learner’s outcome. In order to explain

the rules that govern the learner’s outcome, we use

rule extraction algorithms.

The rest of the article is organized as follows. The

following section presents a state of the art on

learning indicators and predicting learner

performance. Section 3 presents the principle of our

approach. Section 4 describes the dataset used to

apply our approach. The latter is detailed in section 5.

The last section is devoted to discussion, conclusions

and some perspectives.

2 STATE OF THE ART

Although the concept of indicator is frequently used

in Technology Enhanced Learning research, there is

no unanimous definition. In general, the indicator is a

tool (device, instrument, quantity) for evaluation or

information which should serve as an aid to decision-

making. Note that the definition of a size indicator is

constrained by both the availability of data that will

allow it to be calculated and by the requirements and

expectations of the people who will have to use it.

According to (Dimitracopoulou, 2004), an

indicator is a variable in the mathematical sense to

which a series of characteristics is attributed. It can be

in digital, alphanumeric or even graphic form. Its

value has a status which can be raw (without defining

unit), calibrated or interpreted. The calibration of the

indicator values is highly dependent on the context

and the conditions of use. The indicators are generally

calculated from user activities (administrator,

learners, teacher, etc.) on the various teaching

resources or their communications via the learning

platform (messaging, chat, forums, etc.). The data for

these activities can be retrieved from the platform’s

log files. The choice of data to select depends on the

inputs of the analytical method that specifies the

indicator.

From the collected data, several types of

indicators can be calculated, including behavioral,

cognitive or social indicators (Diagne, 2009). A

behavioral indicator shows the achievement of a skill

in an observable way. A cognitive indicator reflects

the level of knowledge, the knowledge that is easier /

more difficult to acquire, the number of solutions

proposed by each learner, the learning objectives, etc.

A social indicator indicates the level of collaboration,

coordination or social organization in a group of

learners.

The formalization of these indicators is generally

increase of digital resources for human learning and

their online uses via dedicated platforms, it becomes

more and more difficult for a human expert to model

reliable learning indicators, which cover the different

learner situations and user profiles. To fix this

problem, the user of Machine Learning techniques for

the analysis of learning data is very widespread today

(Pena, 2014).

In this context of Machine Learning approaches,

in (Estela Sousa Vieira et al 2018) the authors were

interested in predicting learners’ results (failure or

success) in a social environment dedicated to

learning. This is the SocialWire platform. The latter

is able to collect learners’ actions and record them as

an event in an activity log in the form: subject verb

object. From all the data collected, the authors

selected 9 characteristics (attributes), estimated to

have an influence on the final performance of the

learners, such as the consultation of a given course,

the type of assessment chosen by the student

(continuous assessment or final exam), etc.

In order to identify the most influential

characteristics on the student’s results, the authors

carried out a statistical correlation study based on two

tests: 1/ The sample correlation ῥ were computed and

the linear regression for measure the correlations

between the 9 features and the final grades obtained

in the subject. 2/ The Smirnov’s statistical test was

used to study the correlation between the features

under study on the students who pass or fail the

subject. For the prediction of student results (success

or prediction), the algorithms were used are logistic

regression (LR), linear discriminant analysis (LDA)

and support vector machines (SVM) with the use of

k-fold cross validation (with 5 folds).

CSEDU 2020 - 12th International Conference on Computer Supported Education

(Nikhil Indrashekhar Jha et al 2019) have used the

OULAD dataset to predict whether or not a student

will drop out of the course, and if she/he doesn’t give

up does he/she succeed or fail. The following

machine learning algorithms were used: Distributed

Random Forest (DRF), Gradient Boosting Machine

(GBM), Deep Learning (DL) with cross validation

with 10 folds. The learning was carried out through

four categories of data:

 Demographic information that achieved

between 0,61 and 0,64 AUC (Area under the

Receiver Operating Characteristics Curve) on

the validation set.

 Assessment scores over 0,82 AUC, and high as

0,84 for GBM

 The model based on VLE interaction features

achieved around 0,88 AUC for GLM, and 0,90

for DL, GBM and DRF on the validation data.

 The model based on all attributes

(Demographic information, Assessment scores

and VLE interactions) only achieved about

0.01 higher AUC than the models based on the

VLE interactions only.

(Jabeen Sultana et al 2019) focuses on the

discovery of student performance using data mining

techniques, specifically the algorithms of Deep

Neural, Bayes Net, SVM, Random Forest, Decision

tree and Multi-class Classifiers. For this, the authors

used Weka and Rapid Miner software. The dataset

includes 1,100 student records. 11 characteristics

were used by the data mining algorithms, notably the

resources visited, discussion, number of absences,

etc. The techniques that have given optimal results are

MLP, decision trees and random forest with

maximum precision of 99.45%, 99.81% and 100%.

The paper (Livieris, 2012) uses a neural network

to predict learners’ performance. This analysis is

useful for both the learner and their teachers.

However, this model requires a large amount of data

to give reliable results. In (Yukselturku, 2014), the K-

Nearest Neighbor and decision tree methods were

used to identify learners who drop out. In (Rokach,

2014), the decision tree was used to predict success

or failure of classes.

In summary, the use of machine learning

algorithms to predict learners’ performance yields

interesting results as shown by numerous research

studies. These works make it possible to predict

dropout or success/failure of learner. However, we

note that these works lack a methodology specifying

on what basis one can choose the characteristics

(attributes or features) which must intervene in the

prediction or the machine learning algorithms to be

used for the prediction.

Another limitation is that the prediction model is

usually a black box, which predicts a learner’s

performance from a number of inputs. Indeed, so that

the learner (and/or teacher) can better understand the

reasons for his/her performance, we should provide

him/her with indicators specifying the models / rules

that govern these results (positive as a success,

negative as a dropout or a failure).

From this analysis, we target, in this paper, the

development of a methodology for predicting

learners’ performance using machine learning. This

methodology should answer the three research

questions posed in the introduction, namely: how to

identify the data (characteristics or features in

Machine Learning) that impact the learner’s

performance? How to use them to predict these

performances? How to facilitate the interpretation

and understanding of the models that govern this

performance.

The principle of our approach is described in the

next section.

3 PRINCIPLE OF OUR

APPROACH

In our work, we are interested in the use of machine

learning methods to predict the learner outcome by

analyzing the interaction traces. For this, we use

supervised learning algorithms whose attributes (or

predictive variables) are the data collected from the

interactions between the learners and the learning

environment (such as the number of connections, the

number of resources consulted , or homework

completed...) and the target variable (or label) is the

student’s result (for example, failed, successful or

excellent).

Data for predictors and target variables are

usually scattered across multiple tables / locations of

the plotted data. A data preparation phase is therefore

necessary in order to group the data into a single file,

containing predictive and target variables, so that

learning algorithms can be applied to it.

As Figure 1 shows, our proposal is thus based on

three phases.

In the first phase, it involves manually selecting

the attributes involved in the supervised learning

process. Indeed, the traces collected via the platform

can contain a significant number of events which do

not are not all important for the learner’s outcome

(success, failure, withdrawals, etc.). In this phase, any

event that does not seem to impact the student’s result

excluded. Then it is a matter of applying learning

Learner Performance Prediction Indicators based on Machine Learning

Figure 1: Trace analysis steps for predicting learner results.

algorithms to the selected data in order to predict the

student’s outcome.

In addition to the events provided directly from

the LMS platform, high-level information, obtained

by aggregating low-level events, can be considered

among the predictive attributes of machine learning,

such as for example the number of sites visited

calculated at from all the sites consulted by the

learner.

During this step, the choice of classification

algorithms is made. Indeed, in the literature, there is

a plethora of methods, each with its advantages and

disadvantages. Some are dedicated for data whose

target variable is binary (failure or success) such as

logistic regression, others for target variables taking

several values (withdrawal, failure, success,

excellence, etc.). Some require only a small amount

of learning data like Naive Bayes, while others

require a large amount of data like neural networks.

Some may be unstable (small variations in the data

can lead to very different results) like decision trees,

others are rather robust to noisy data like the nearest

K neighbor. In short, the choice of algorithms to apply

requires a certain expertise in machine learning in

order to determine the most appropriate method. It is

also possible to test several algorithms by comparing

their performance.

The performance of supervised classification

methods is based on dividing the data into two parts:

training data and test data. This indicates how the

model will behave in cases it has never encountered

before. This easy-to-implement method could bias the

performance result if we accidentally use a really

difficult or really easy test set. To work around this

limitation, the cross-validation has been proposed.

This consists of using the entire data set for training

and validation by cutting them into k folds. In turn,

each of the k parts is used as a test set and the rest is

used as a data set. The overall performance is thus

obtained by averaging the performance obtained on

the K folds.

For both types of methods (training-test division

or cross validation), quality measures are proposed,

such as the precision which indicates the proportion

of well classified elements of a given class, the recall

which indicates the proportion of elements well

classified in relation to the number of elements of the

class to be predicted, and / or the f-score which

compromises between them. The ROC curve can also

be used to measure the performance of a binary

classifier.

In the second phase, the selection of the important

attributes, from among all the attributes selected

during the first phase, is done automatically using

dedicated feature selection algorithms. Like the first

phase, supervised learning algorithms are also applied

to the data of important attributes.

Attribute selection is a process of selecting a

subset of relevant attributes to use in building a

predictive model. This selection can promote the

establishment of an accurate prediction by removing

unnecessary, irrelevant or redundant attributes that

can reduce the accuracy of the model. It also makes it

possible to produce models that are simple to interpret

and understand. A distinction is made between the

Filter, Wrapper and Embedded selection methods.

The first is to assign a score to each attribute, then

classify all the attributes according to their scores.

Then delete the attributes with a low score. The

second is to find the set of relevant attributes by

CSEDU 2020 - 12th International Conference on Computer Supported Education

preparing, evaluating and comparing different

combinations of attributes. The third determines the

attributes that contribute most to the accuracy of the

model.

During the first two phases, we managed to

identify the direction, good or bad, that the learner

takes by analyzing his traces but without explaining

the reasons for this or that result. Thus, the purpose of

the third phase is to explain the predictions using rule

extraction algorithms (the rules that govern the

learner’s outcome). It’s about identifying the recipes

that allow a learner to succeed and alerting them to

behaviors that are doomed to failure. To do this, the

decision tree extraction algorithms are generally used.

A decision tree can be described as a data flow

diagram where each node describes a test on a

learning variable, each branch represents a result of a

test and each leaf contains the value of the target

variable. The tree constructed to explain the

prediction model, which constitutes an explicit

indicator for the user.

The next Section presents a dataset we used to

apply our approach.

4 DATASET OULAD

Several datasets from LMS platforms have been made

available to researchers and used in various research

studies in learning analytics in particular. Harvard

University, through its edX platform (Cobos, Wilde,

& Zaluska, 2017) (Liang, Li, & Zheng, 2016), Khan

Academey (Piech et al., 2015), or Coursera ( Chaplot,

Rhim, & Kim, 2015), which host several online

courses and provide researchers with free data.

In order to implement our approach, we used a

dataset from real training using a virtual training

environment (VLE). This is Open University

Learning Analytics Dataset rated OULAD

(downloadable here:

https://analyse.kmi.open.ac.uk/open_dataset)

OULAD is a tabular data collection of students

from the years 2013 and 2014. It contains various data

on courses, students demographic information,

assessment dates and scores, and their interactions

with a virtual training environment of the open

university for seven selected modules.

Like the class diagram in Figure 2, the dataset

contains seven tables, each of which contains

different information, which can be linked together

using identifier columns. The dataset is student

oriented, the focal point in this dataset.

Student data includes information on their

demographics and enrollment in modules, assessment

results and journals of their interactions with the

virtual training environment represented by daily

summaries of student clicks (10,655,280 entries).

The dataset contains 22 module presentations

with 32,593 students.

The course table is characterized by the module

code (code_module) identifying the course, the code

name

of the presentation (code_presentation) which

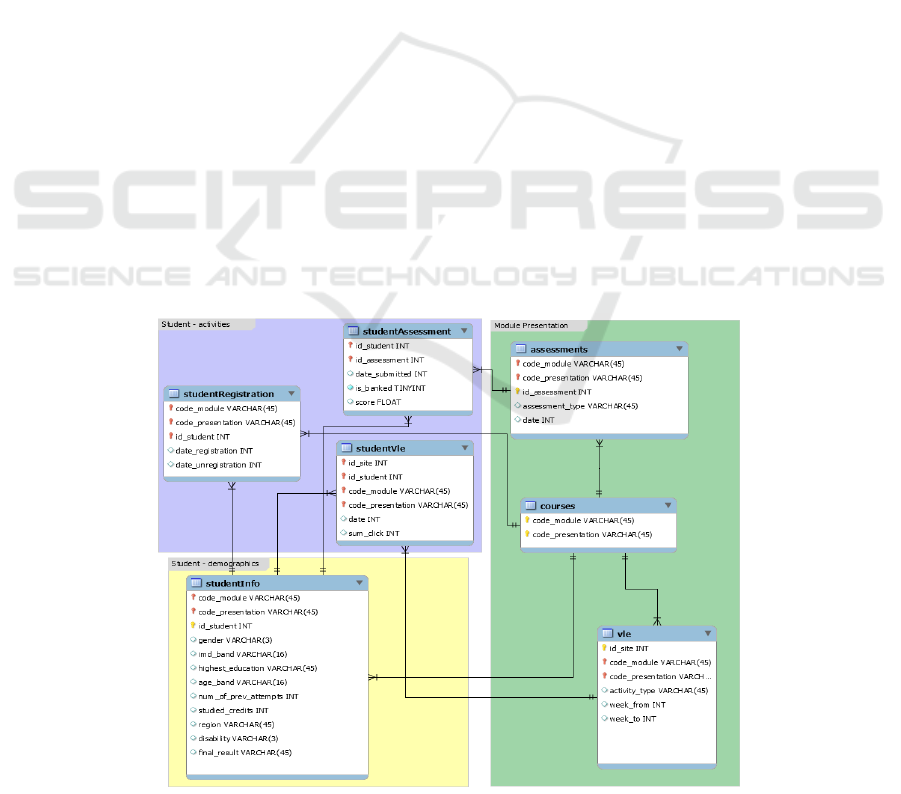

Figure 2: Data structure of the OULAD dataset.

Learner Performance Prediction Indicators based on Machine Learning

consists of the year and the letter B for the

presentation starting in February and the letter J for

the presentation starting in October. Each module has

a presentation duration in days (module_

presentation_length).

The assessment table contains information on

assessments, module presentations. Usually each

presentation has a number of evaluations followed by

the final exam. There are three types of assessment,

namely the one marked by the tutor (TMA), the one

recorded on a computer (CMA) and the final exam

(Examination).

The vle table contains information about the

resources available in the Virtual Training

Environment (VLE). These are usually html pages,

PDF files, etc. Students have access to these

documents online and their interactions are recorded,

such as, for example, id-site: the number of visits to a

given site, or type_activity: the role associated with

the module’s resource (URL, quiz, etc.)

The studentInfo table contains demographic

information of students such as gender, region,

highest level of study, number of credits for the

module followed as well as the student’s final result

which can be: withdrawn, fail, pass or excellent.

The studentRegistration table contains

information on the student’s registration date

(dte_registration) for the presentation of the module.

For students who have unsubscribed, the unsubscribe

date (dte_unregistration) is also recorded.

dte_registration gives the number of days since the

start of the module and dte_unregistration expresses

the number of days since the start of the presentation

of the module.

The studentAssessment table contains the results

of student assessments. If the student does not submit

the assessment, no results are recorded. Final exam

submissions are missing if the assessment results are

not stored in the system. The date_submitted

expresses the date of submission of the student

measured in number of days since the start of the

presentation of the module. This table also contains

the student’s score in this assessment. The score is

between 0 and 100. The score below 40 is interpreted

as a failure.

The studentVle table contains information on each

learner’s interactions with VLE resources. date is the

date of the student’s interaction with the resource,

measured in number of days since the start of the

module presentation. sum_click gives the number of

interactions between a learner and the resource during

the day.

The data in this dataset has been prepared, using

joins between the different tables, so that it can be

used by the learning algorithms. It is thus a question

of presenting all the data of the dataset in the form of

a single table made up of columns representing the

attributes of the various tables previously presented

with as last column the result of the student whose

values can be: withdrawn, faile, pass or excellent.

This preparation phase, like that of indicator

calculation, was implemented using the Python

language and its Scikit-Learn libraries.

5 CALCULATION OF

PREDICTION INDICATORS

In this section, we present the progress and the results

of the three phases on the OULAD data.

5.1 Manual Selection

As mentioned in Section 3, in Oulad’s seven tables,

there are 25 attributes (columns). Among these

attributes, we have selected 16 to do the learning and

the prediction of the final result of each learner

starting from the data relating to these attributes. In

fact, attributes that are not significant for learning

have been eliminated, such as: module_

presentation_length and type_activity, etc.

The selected attributes are:

 id_student: a unique identification number for

the student.

 module_code: the identification code of a

module on which the student is registered.

 code_presentation: the identification code of

the presentation during which the student is

registered on the module.

 gender: the gender of the student.

 region: identifies the geographic region where

the student lived while taking the presentation

module.

 highest_education: the highest level of

education of the student at the entrance of the

module presentation.

 num_of_prev_attempts: the number of times

the student has tried this module.

 studied_credits: the total number of credits for

the modules the student is currently studying.

 disability: indicates whether the student has

declared a disability.

 dte_registration: the date of registration of the

student for the presentation of the module. This

is the number of days measured compared to

the start of the presentation of the module (for

example, the negative value -30 means that the

CSEDU 2020 - 12th International Conference on Computer Supported Education

student has registered for the presentation of

the module 30 days before its start).

 dte_unregistration: the student’s unsubscribe

date from the presentation of the module, this

is the number of days measured compared to

the start of the presentation of the module.

Students who have completed the course have

the value T_c (Completed course).

 final_result: the student’s final result in the

presentation of the module.

In addition to these attributes, we have added four

attributes calculated from the original data:

 nb_site: the total number of sites visited by the

student calculated from the id-site visited by

each student.

 sum_click: the sum of the student’s clicks on

the different training sites.

 avg_date: the average of the dates of

submission (date_submitted) of the

assessments of each student.

 avg_score: the average of the scores of the

assessment calculated from the scores (score)

of the assessments of each student.

Once the data had been prepared, the question

arose of the algorithm to be used for learning. There

are a plethora of supervised classification algorithms.

We tested 4 using Python Scikit-Learn:

 Algo 1 - DecisionTree Classifier : This method

automatically selects discriminating predictors

from data to extract logical rules that will be

used to classify the data. This method requires

little data preparation and can process

numerical and categorical data but create

complex trees.

 Algo 2 - GaussianNB : Naïve Bayes algorithm

based on the Bayes theorem with the

assumption of independence between each pair

of characteristics. This algorithm requires a

small amount of training data to estimate the

necessary parameters. Naïve Bayes classifiers

are extremely fast compared to more

sophisticated methods. However, its prediction

rate is relatively low.

 Algo 3 - KNeighbors Classifier : It is a lazy

type of learning that does not attempt to build a

general internal model, but simply stores the

examples of the training data. The

classification is carried out using a simple

majority vote of the K closest to each point.

This algorithm is simple to implement, robust

to noisy learning data, and effective if learning

data is important. But the cost of the calculation

is high because it is necessary to calculate the

distance from each instance to all the training

samples.

 Algo 4 - LinearSVC : Support vector machine

algorithms represent training data as a set of

points in a space and aim to divide that data

with clear spaces and as wide a margin as

possible. The new data (for example test) is

then mapped into this same space in order to

identify the categories in which they belong

based on the side of the gap on which they fall.

This algorithm is effective in processing large

data.

Table 1 shows the details of these 4 algorithms

using Cross-Validation with 5 Folds. Cross validation

with k folds consists of cutting the data set into k

approximately equal parts. Each of the k parts is used

in turn as a test game. The rest (in other words, the

union of k-1 other parts) is used for training.

Table 1: Teaching accuracy on manually selected data.

Algos P1 P2 P3 P4 P5 M SD

1 0.9230 0.9670 0.9444 0.9444 0.9545

0.9467 0.0161

2 0.7362 0.8021 0.9 0.8888 0.8636

0.8381 0.0684

3 0.7692 0.7692 0.8111 0.8222 0.8409

0.8025 0.0322

4 0.3076 0.2967 0.8444 0.2555 0.8522

0.5113 0.3082

In Table 1, P1, P2… mean the precision in each

fold. The last two columns of the table present the

average and the Standard-Deviation of the different

precisions of each algorithm using cross-validation.

In order to determine the algorithms best suited to

our data and thus those that give the best predictions,

we selected those whose mean is bigger and the

standard deviation is smaller, which led us to select

algorithms 1 (DecisionTreeClassifier ) and 2

(GaussianNB).

This first contribution allowed us to appropriate

data selection using Python basic functions and then

identify the algorithms best suited for our context to

predict the outcome of a given student analyzing his

footsteps. The next question is about the relevance of

the 16 attributes that we have identified as important

for learning and prediction. Are they all important?

To answer this question, we conducted another study

that is to automatically identify important attributes

and apply these learning algorithms to construct

reliable indicators. This work is presented in the next

section.

5.2 Automatic Selection

The selection of attributes is a technique in which we

select the entities that have the strongest relationship

Learner Performance Prediction Indicators based on Machine Learning

with the target variable, in this case the result of the

student in this case (withdrawn, fail, pass, excellent).

Table 2: Automatic attribute selections.

Algo 1

Ranking

Algo 2

Ranking

Algo 3

Ranking

date_unregistr

ation

0.282

date_unregist

ration

35,915 id_student 1134,40

avg_date 0.169 avg_score 12,661 sum_click 258,171

avg_score 0.147 avg_date 8,767

date_unregistr

ation

34,382

nb_site 0.074

code_present

atio

3,756 nb_site 23,595

sum_click 0.071 nb_site 3,657 avg_date 20,382

region 0.054 sum_click 2,983 avg_score 15,329

id_student 0.051

studied_credi

2,840

studied_credit

13,466

date_registrati

0.049 region 2,807

date_

registration

8,594

studied_credit 0.025 gender 1,735

Code_

presentation

5,791

highest_

education

0.024 disability 1,574 region 5,776

code_

presentation

0.022 date_registra 1,421 disability 4,527

gender 0.021

highest_educ

ation

1,036

highest_

education

3,061

disability 0.004 id_student 0,974 gender 2,135

num_of_prev_

attempts

0.001

num_of_prev

_attempts

0,688

num_of_prev_

attempts

2,067

code_module 0 code_module 0 code_module 0

We applied three attribute selection algorithms to

the data in the table prepared in the first phase. These

are the algorithms:

 Algo 1 : Extra_trees_cl assifier,

 Algo 2 : SelectKBest(f_classif), and

 Algo 3 : SelectKBest(ch i2).

Table 2 shows the results of these algorithms.

In order to select the most important attributes, we

used the following steps:

1. Calculate the classification of attributes in

the three algorithms.

2. For each attribute, calculate the sum of its

rankings in the three algorithms.

3. Sort the attributes from lowest sum to largest

sum.

The result of this classification is presented in the

following table:

Table 3: Classification of attributes by the three algorithms.

Attributes 1 2 3 Sum Case 1 Case 2

date_unregistration 1 1 3 5

avg_date 2 3 5 10 x x

avg_score 3 2 6 11

nb_site 4 5 4 13 x x

sum_click 5 6 2 13 x x

id_student 7 13 1 21

date_registration 6 11 8 25

studied_credits 10 7 7 24

code_presentation 11 4 9 24

region 8 8 10 26

highest_education 9 12 12 33

gender 12 9 13 34

disability 13 10 11 34

num_of_prev_attempts 14 14 14 42

code_module 15 15 15 45

The attributes date_unregistration, avg_score,

id_student, code_presentation have been eliminated

since they do not allow us the expected prediction.

Indeed, id_student is only used for SQL queries, the

code_presentation does not matter since we are

interested in the analysis of traces during all the

semesters, avg_score and date_unregistration

correspond to the classes that we want to predict and

not have as input data. Indeed, the student is success

if its avg_score is greater than or equal to 60 and

failure if less. The date_unregistration also indicates

whether the student has dropped out or not. If this date

is lower than the course end date, this means that the

student has abandoned. The module_code which has

only one value, so does not affect learning, has also

been eliminated.

We have chosen to select two sets of attributes

corresponding to the following two cases:

 Case 1: sum-click, nb_site, avg_date.

 Case 2 : sum-click, nb_site, date_registration,

region, studied credit, avg_date.

The following tables present the details of the two

algorithms (These algorithms were chosen since they

gave better results in the first phase) on the two cases:

 Algo 1 : DecisionTree Classifier

 Algo 2 : GaussianNB

Table 4: Precision of the two algorithms in case 1.

Algos P1 P2 P3 P4 P5 M SD

0.780 0.7690.8 0.8 0.818

0.793 0.019

0.747 0.7140.788 0.855 0.819

0.784 0.055

CSEDU 2020 - 12th International Conference on Computer Supported Education

Table 5: Precision of the three algorithms in case 2.

Algos P1 P2 P3 P4 P5 Moy SD

0.802 0.758 0.766 0.822 0.806

0.792 0.027

0.747 0.736 0.822 0.877 0.806

0.798 0.057

In order to verify our predictions qualitatively, we

designed ten profiles containing only the values of the

attributes of the first case, containing only three

attributes. As shown in the table 4 and 5, for each

profile, the last column (Result) indicates the student

result. These profiles were defined using data from

OULAD.

Table 6: Verification of predictions on 10 typical profiles.

Profil nb_site sum_click avg_date Prediction Resultat

1 55 934 112

Pass Pass

2 50 499 121

Pass Pass

3 37 487 20

Withdrawn Withdrawn

4 61 2042 115

Pass Distinction

5 79 2590 93

Withdrawn Withdrawn

6 23 303 18

Fail Fail

7 79 2219 111

Distinction Distinction

8 26 240 43

Pass Fail

9 59 1980 88

Withdrawn Withdrawn

10 105 15716 113

Distinction Distinction

As shown in the figure below, the accuracy rate

of our prediction is 8/10 which corresponds to 80%

success, which corresponds to the results in Table 4.

5.3 Rules Extraction

Rule extraction was done using Weka

(https://www.cs.waikato.ac.nz/ml/weka/). The data

containing that the values of the attributes of the first

case were used for the extraction of rules. Indeed, as

the two tables show (4 and 5), we both get very close

details, nevertheless the first case is more interesting

since it only uses three attributes, so this case

generates a more simple as a tree based on the six

attributes.

Once this data has been loaded into Weka, the

Classifier Tree Visualization algorithm. REPTree is

used. The tree above shows that the student who has

an avg_date greater than 93.5 has a high chance that

he will get the Past result. Otherwise if an avg_date

<93.5, we consult the value of the sum_click attribute.

If the latter greater than or equal to 1463.5 the result

is generally Withdrawn otherwise we consult the

value avg_date again. If it is less than 66.5 we go to

sum_click if it is less than 314.5 so the result is failure

... As the tree shows, the Distinction class does not

appear, this may be due to the fact that the data has a

small number of instances of this class.

The generated decision tree corroborates with 7

profiles out of 10 (Profiles 1,2,3,5,6,8 and 9) and does

not corroborate with 3 profiles (4, 7 and 10)

The rules of this tree can be used as indicators to

identify, within the framework of Oulad’s training,

the orientation of the learner based on his number of

clicks, his dates of assessment reviews.

Figure 3: Generated rules tree.

Learner Performance Prediction Indicators based on Machine Learning

6 DISCUSSION AND

CONCLUSION

As shown in Section 2 State of the art , predicting

learner outcomes is an important topic that has been

the subject of much research. Approaches based on

machine learning algorithms generate prediction

models whose results are interesting overall.

However, in most cases these models remain

unexplained, such as a black box indicating the

outgoing class from a certain number of entries.

Compared to existing approaches for predicting

learners’ performance using machine learning

methods, our work offers a methodology based on

three stages, which allows us to define the process of

selecting attributes which is involved in machine

learning and on the other hand to explain the learning

model which governs the learner’s result. This model

is represented by rules which relate to a small number

of attributes which have a greater impact on the

learner’s result. Our methodology is a structuring

framework which nevertheless requires its

application in the context of experiments with

teachers in order to measure its degree of

intelligibility.

Our work focuses then on indicators of direction

predictions, good or bad, that learners take based on

their first tracks. In this context, we are interested in

three questions :

1. How to identify events that have a significant

impact on the learner’s outcome?

2. How to calculate the learner performance

prediction indicator based on its important

events?

3. How to facilitate the interpretation and

understanding of its indicators by users

(learner or trainer)?

To answer these two questions, after the data

preparation phase, we conducted a process consisting

of 3 phases: manual selection of attributes, automatic

selection of attributes, then extraction of rules. The

Oulad Dataset was used for the design, application

and validation of our approach. For the identification

of indicators from traces, we applied supervised

learning algorithms. The one that gives the best

precision is the Decision trees classifier.

As perspectives, we want further to formalize our

methodology and to develop the aspect of extracting

rules from traces to better explain the prediction

indicators of learning algorithms.

REFERENCES

Carrillo, R., Renaud, C., Prie, Y and Lavoue, E. Dashboard

for Monitoring Student Engagement in Mind Mapping

Activities. Proceedings - IEEE 17th International

Conference on Advanced Learning Technologies,

ICALT 2017, pp. 433-437, 2017.

Chaplot, D. S., Rhim, E., and Kim, J. (2015). Predicting

Student Attrition in MOOCs using Sentiment Analysis

and Neural Networks. In Proceedings of the Workshops

at the 17th International Conference on Artificial

Intelligence in Education AIED 2015; Volume 3:

Fourth Workshop on Intelligent Support for Learning in

Groups (ISLG) (pp. 7–12).

Cobos, R., Wilde, A., and Zaluska, E. (2017). Predicting

attrition from massive open online courses in

FutureLearn and edX. In Joint MOOCs workshops

from the Learning Analytics and Knowledge (LAK)

Conference 2017 (pp. 74–93). Simon Fraser University,

Vancouver, BC, Canada.

Diagne, F. (2009). Instrumentation de la supervision par la

réutilisation d’indicateurs : Modèle et

architecture.Thèse de doctorat. Université Joseph-

Fourier - Grenoble I.

Dimitracopoulou A., State of the art on Interaction and

Collaboration Analysis (D26.1.1). EU Sixth

Framework programme priority 2, Information society

technology, Network of Excellence Kaleidoscope,

(contract NoE IST-507838), project ICALTS:

Interaction and Collaboration Analysis, 2004.

Estela Sousa Vieira M., José C. López-Ardao, Manuel

Fernández-Veiga, Orlando Ferreira-Pires, Miguel

Rodríguez-Pérez: Prediction of Learning Success Via

Rate of Events in Social Networks for Education.

CSEDU (1) 2018: 374-382

Jabeen Sultana, M. Usha Rani, M.A.H. Farquad. Student’s

Performance Prediction using Deep Learning and Data

Mining Methods. International Journal of Recent

Technology and Engineering (IJRTE) ISSN: 2277-

3878, Volume-8, Issue-1S4, p 1018- 1021. June 2019.

Liang, J., Li, C., and Zheng, L. (2016). Machine learning

application in MOOCs: Dropout prediction. In 2016

11th International Conference on Computer Science

Education (ICCSE) (pp. 52–57). Nagoya, Japan.

Livieris, et al. Predicting students performance using

artificial neural networks, 8th PanHellenic conference

with International participation Information and

communication technologies, pp.321-328, 2012.

Liu, T., and Li, X. (2017). Finding out Reasons for Low

Completion in MOOC Environment: An Explicable

Approach Using Hybrid Data Mining Methods. In 2017

International Conference on Modern Education and

Information Technology (MEIT 2017) (pp. 376–384).

Chongqing.

Nikhil Indrashekhar Jha, Ioana Ghergulescu, Arghir-

Nicolae Moldovan: OULAD MOOC Dropout and

Result Prediction using Ensemble, Deep Learning and

Regression Techniques. CSEDU (2) 2019: 154-164

CSEDU 2020 - 12th International Conference on Computer Supported Education

Pena A. Educational data mining: A survey and a data

mining- based analysis of recent works. Expert systems

with applications,vol.41 (4), 1432–1462, 2014.

Piech, C., Bassen, J., Huang, J., Ganguli, S., Sahami, M.,

Guibas, L. J., and Sohl-Dickstein, J. (2015). Deep

Knowledge Tracing. In C. Cortes, N. D. Lawrence, D.

D. Lee, M. Sugiyama, and R. Garnett (Eds.), Advances

in Neural Information Processing Systems 28 (pp. 505–

513).

Rokach, L., Maimon, O., Data mining with decision trees:

theory and applications. World scientific. 2014.

Tan, M., and Shao, P. (2015). Prediction of student dropout

in e-learning program through the use of machine

learning method. International Journal of Emerging

Technologies in Learning (IJET), 10(1), 11–17.

You, J.W., Identifying Significant Indicators Using LMS

Data to Predict Course Achievement in Online

Learning, Internet and Higher Education, vol. 29, pp.

23–30,2016

Yukselturk, E., Ozekes, S., & Turel, Y. K., Predicting

Dropout Student: An Application of Data Mining

Methods in an Online Education Program. European

Journal of Open, Distance and E-Learning, Vol. 17, No.

1, pp. 118–133, 2014.

Yun, H.; Fortenbacher, A.; Helbig, R. and Pinkwart, N.

(2019). In Search of Learning Indicators: A Study on

Sensor Data and IAPS Emotional Pictures. In

Proceedings of the 11th International Conference on

Computer Supported Education - Volume 2: CSEDU,

ISBN 978-989-758-367-4, pages 111-121. DOI:

10.5220/0007734301110121

Learner Performance Prediction Indicators based on Machine Learning
