Decentralized Electronic Health Records (DEHR): A Privacy-preserving

Consortium Blockchain Model for Managing Electronic Health Records

Mahdi Ghadamyari

and Saeed Samet

Department of Computer Science, University of Windsor, Windsor, Canada

Keywords:

Blockchain, Healthcare, Smart Contract, Hyperledger Fabric, Electronic Health Records.

Abstract:

Blockchain applications have proven the potential of this disruptive technology to achieve a disintermediated

model for improving efﬁciency and reducing the additional costs. The de facto healthcare applications suffer

from lack of interoperability, which is a result of using traditional centralized platforms that create private data

silos with poor interoperability and a high maintenance cost. In this paper, we introduce a blockchain-based

Decentralized Electronic Health Records (DEHR) model that enables healthcare providers to control their

electronic health records and share them among other organizations involved in the system in a secure and

consortium manner.

1 INTRODUCTION

Lack of interoperability in healthcare systems not

only costs patients and health providers millions but

also costs lives. A survey by Deloitte in 2018

(”Stephanie Newkirchen, 2018) from 624 US pri-

mary care and specialty physicians shows that inter-

operability has remained the top demand from physi-

cians as 62 percent of physicians say that interoper-

ability needs improvement just as they said before in

a 2016 survey. Another survey by Deloitte in 2018

(sur, 2018), reported that 74 percent of the more than

1,000 executives worldwide believe that their orga-

nizations see a ”compelling business case” for the

use of blockchain. These surveys demonstrate how

blockchain is changing the industry and the impor-

tance of having a compatible and interoperable health

care platform. However, healthcare is far behind from

modern technologies, especially when it comes to

leveraging new technologies such as blockchain.

Blockchain technology can be used to connect

health providers and facilitate data sharing within or-

ganizations. It adds transparency and immutability to

the data and enables the peer-to-peer transfer of digi-

tal assets such as Electronic Health Records (EHRs).

In this work, we introduce a model for managing

EHRs based on a consortium blockchain network. In

our model, organizations such as health providers can

https://orcid.org/0000-0003-2105-9901

trol access to the health records. Professionals can

request for limited or unlimited access to a patient’s

data. Also, other organizations can transfer a pa-

tient to their organization and take control of the pa-

tient’s health records. To make our model in compli-

ance with privacy acts, we utilize access control lists

(ACLs) and deﬁne policies to manage access to the re-

sources. We implemented and evaluated this model,

using several performance testing measures.

The rest of the paper is organized as follows: I) An

overview of similar works, II) Deﬁnitions, III) struc-

ture of our model, IV) Implementation and experi-

mental results V) Discussions VI) Conclusions.

2 RELATED WORK

Following, we brieﬂy review some of the research

works related to blockchain adoption in health record

management systems.

The authors in (Azaria et al., 2016) proposed

a blockchain-based and decentralized health records

management system called MedRec. They used

a public blockchain that incentives researchers to

mine new blocks in exchange for getting access to

anonymized medical data. The authors claimed that

their proposed system increases the transparency of

medical records, the stability of the network, and

the conﬁdentiality of data. The mining process is

necessary for having a secure network in public

blockchains; however, it is a time-consuming pro-

Ghadamyari, M. and Samet, S.

Decentralized Electronic Health Records (DEHR): A Privacy-preserving Consortium Blockchain Model for Managing Electronic Health Records.

DOI: 10.5220/0009398101990204

In Proceedings of the 6th International Conference on Information and Communication Technologies for Ageing Well and e-Health (ICT4AWE 2020), pages 199-204

ISBN: 978-989-758-420-6

199

cess and requires a high computation power. Besides,

transaction processing time mainly depends on the

number of available miners willing to mine the pend-

ing transactions, which currently can take up to 5 min-

utes.

The MedRec (Azaria et al., 2016) work was later

continued by the authors in (Nchinda et al., 2019).

The authors replaced miners with a network of trusted

providers that participate in a proof of authority con-

sensus mechanism. They used blockchain to store

permission contracts. In their work, providers can

join the network and grant patients, and other entities

access to their databases using their credentials.

The authors in (Mikula and Jacobsen, 2018) used

a federated and private blockchain to explore an

auditable identity and access management frame-

work for EHR systems. Evaluation of their system

showed a size of 3.8 MB for the initialization of the

blockchain with 2-3 seconds of mining time for new

transactions.

The authors in (Chen et al., 2019) presented an in-

tegration of a cloud and blockchain storage scheme to

manage PHR data. They used off-chain cloud stor-

age for storing a large amount of medical data and the

blockchain for indexing and securing them. In their

work, patients are in control of their data. However,

the interoperability of their system is not examined.

In (Abouzahra, 2019), the authors proposed an in-

teractive model for a blockchain-based PHR system.

In the proposed system, smart contracts are utilized to

collect patients’ health records, and blockchain tech-

nology is used to make transactions immutable and

traceable. The authors claimed that their approach

encourages physicians to have more engagement with

their patients outside clinics resulting in better care

delivery.

3 DEFINITIONS

There are two types of blockchains: permissionless

(public) and permissioned (private/consortium) (Al-

hadhrami et al., 2017). Depending on the need, each

blockchain type has its advantages and disadvantages.

In public blockchains, anyone can join the net-

work, invoke transactions, write new blocks, and con-

tribute to the maintenance of the network. On the one

hand, this feature adds transparency to the data and

makes the data extremely secure and immutable. On

the other hand, redundancy in the network makes the

network slower and increases the maintenance cost,

signiﬁcantly. Public blockchains are most suitable for

public digital assets such as cryptocurrencies, where

everyone needs access to read the ledger. However,

this level of transparency might endanger the pri-

vacy of users. Bitcoin(Nakamoto et al., 2008) and

Ethereum (Wood et al., 2014) are two well-known ex-

amples of public blockchains.

On the contrary, permissioned blockchains only

allow the pre-authorized participants to maintain the

ledgers and give access or add users to the network.

Permissioned blockchains can easily scale and have

signiﬁcantly faster transaction processing time in ex-

change for the anonymity of the users. Further, since

the ledger is not open to the public, users in the net-

work have a higher level of privacy. Permissioned

blockchains can be categorized into two types: pri-

vate and consortium. In private blockchains, only one

participant has the right to add blocks to the chain or

allow others to read the transactions. In consortium

blockchains, a set of organizations control the consen-

sus process. Also, blocks can be added to the chain

only if the predeﬁned nodes reach a consensus. For

an EHR system, a consortium blockchain is more ap-

pealing mainly because of the faster transaction pro-

cessing time and the higher level of privacy that it of-

fers to the participants in the system.

There are two major frameworks for deploying

a consortium blockchain network: 1) Quorum(quo,

2019), which is an enterprise-focused version of

Ethereum, and 2) Hyperledger Fabric(Androulaki

et al., 2018), a product by Linux Foundation which

is supported by enterprise companies like IBM, In-

tel, and SAP. In our work, we use Hyperledger Fabric

for model implementation because of its bigger com-

munity of developers, support from large enterprise

companies, and a wide variety of APIs.

There are ﬁve main concepts in a Hyperledger

Fabric model: assets, participants, transactions,

chaincodes, and access control lists (ACLs). Partic-

ipants are the users involved in the model, such as

patients and practitioners. Assets are tangible or in-

tangible properties that participants can own, such as

health records.

Transactions are abstract actions and trigger a

chaincode to modify the ledger. Chaincodes (or smart

contracts) are a set of procedures deﬁned by the

blockchain network designer to process inputs and al-

ter the resources. Examples of transactions are trans-

ferring a patient to another organization or granting

permissions. Access control lists are a set of rules

that can be deﬁned to control access to different oper-

ations on resources.

All permission managements are handled through

chaincodes and access control lists and are enforced

by all participating nodes in the network.

ICT4AWE 2020 - 6th International Conference on Information and Communication Technologies for Ageing Well and e-Health

200

4 SYSTEM DESIGN

Our model is consists of three participant types, two

asset types, and three transactions. The three types

of participants are organizations, professionals, and

patients. The two types of assets are health records

and permission requests. The three transactions are

1) Patient transfer transaction: for transferring a pa-

tient to another organization, 2) Permission request

transaction: for requesting access to health records,

and 3) Change permission request status transaction:

To grant or deny a permission request.

Organizations can create records for their patients

or transfer an already existing patient in the system by

sending a transfer transaction. In the following sec-

tions, we will describe each part in detail.

4.1 Health Record Asset

Health records are consisting of ﬁve parameters:

health record ID, record type, details, and links to the

patient and the organization.

Health record ID is the default identiﬁer of the

record. Record type determines the type of the record

and is naturally an enumerated type. Examples of

record types are identity, prescriptions, lab results,

vaccinates, etc. Detailed information related to the

record, such as medicine and dosage, will be stored

in the ”Details” parameter. Listing 1 shows a sample

health record.

Listing 1: A Sample Health Record.

{

" $class ": " org . DEHR . H ealth R e cord " ,

" h e a lthRe c o rdId ": "577" ,

" re c o r dType ": " IDEN T I T Y " ,

" details ": "{ SIN : 1 11111111 , F a t h e r : ’

Bob ’}" ,

" patient ": " r e s ource : or g . DEHR . P atient

#1" ,

" or g a nizat i o n ": " resour c e : org . D EHR .

Org a n izati o n #2"

}

Permissions for CRUD (Create, Read, Update,

Delete) operations on health records will be con-

trolled by Hyperledger Access Control Lists (ACLs).

Upon submitting an operation, an ACL script will be

executed to verify that the participant has the permis-

sion to run that operation. Figure 1 shows the ﬂow for

CRUD operations on health records.

4.2 Permission Request Transaction

To access health records, professionals must have re-

quired permissions. Permissions can be granted by

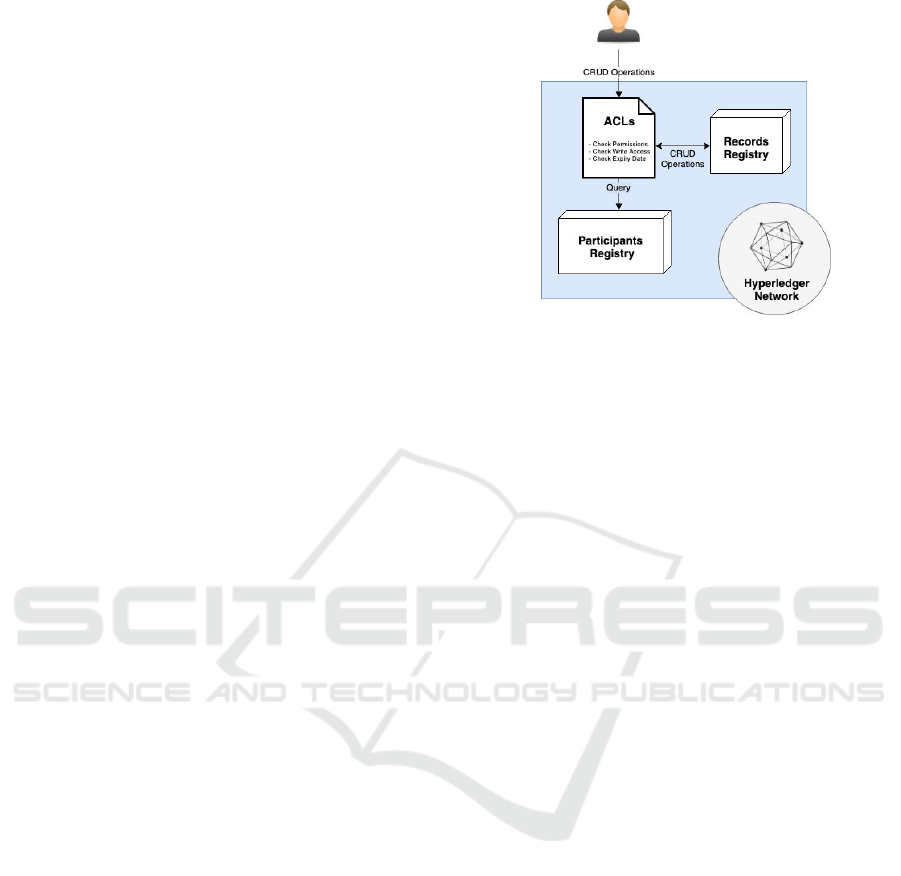

Figure 1: CRUD Operation Flow for a Health Record.

the organization that the patient is associated with.

There are ﬁve parameters that need to be determined

prior to send a permission request:

1. Record Types: Various types of health records can

be created for a patient. It is essential to grant

permissions based on their types to preserve pri-

vacy. As part of a permission request, profession-

als may determine what record types they need to

have access to using this parameter. A null value

for this parameter grants the professional access

to all types of records belong to that patient.

2. Write Access: This parameter determines whether

the professional should have access to add a new

record or modify an already existing record for the

patient in question. This parameter, along with the

record types parameter, will be used by the access

control rules to determine the write access for a

professional.

3. Status: Permissions can be denied, granted, or

revoked. This parameter determines the current

state of permission, which by default is set to

”Pending”.

4. Expiry Date: A permanent access to a health

record might not always be desired. This param-

eter can be deﬁned to determine an expiry date

for the associated permission. Expirations will be

enforced by access control rules embedded in the

blockchain, automatically.

5. Patient: The patient that owns the health record

will be linked in this parameter. Chaincodes and

access control rules use this parameter to access

the patient.

By calling the ”RequestPermission” transaction

with the above parameters, a new ”Permission Re-

quest” asset will be instantiated and assigned to the

professional participant (Listing 2). By using the Hy-

perledger events feature, organizations and patients

Decentralized Electronic Health Records (DEHR): A Privacy-preserving Consortium Blockchain Model for Managing Electronic Health

Records

201

can be automatically notiﬁed about the new permis-

sion request.

Listing 2: A sample permission request transaction.

{

" $class ": " org . dehr . R equ e s tPer m i ssio n

" ,

" pe r m i ssion ": {

" $class ": " org . dehr . P ermissi o n " ,

" re c o r dType ": [" M E D ICATIO N "] ,

" wr i t eAcces s ": true ,

" patient ": " r e s ource : or g . dehr .

Patient #10"

} ,

" pr o f essio n a l ": " resour c e : org . d ehr .

Pro f e ssion a l #1"

}

After submitting a permission request, the orga-

nization that controls the health record(s) can either

accept or deny the request by calling the ”ChangePer-

missionStatus” transaction. (Listing 3).

Listing 3: A sample respond to a permission request.

{

" $class ": " org . dehr .

Ch a n geP e rmis s ionS t atus " ,

" p e r miss i o nRe q u est ": " res o u r c e : org .

dehr . Pe r m issi o n Req u e st #1" ,

" status ": " GRANTED "

}

This transaction triggers a set of chaincodes to up-

date the status of the related permission request asset

and also add or remove the permission from the pro-

fessional participant’s record.

4.3 Transfer Patient Transaction

To transfer a patient, organizations can invoke the

”TransferPatient” transaction. Listing 4 shows a sam-

ple ”TransferPatient” transaction that transfers the pa-

tient to another organization.

Listing 4: A sample transfer request transaction.

{

" $class ": " org . dehr . T rans f e rPat i e nt " ,

" patient ": " r e s ource : or g . dehr . P atient

#2" ,

" or g a nizat i o n ": " resour c e : org . d ehr .

Org a n izati o n #4"

}

4.4 Access Control Lists

Access Control Lists (ACLs) can be used to manage

access to different operations (Read, Write, Update,

and Delete) on resources. We use ACLs to enforce

permissions declared by chaincodes and stored in par-

ticipants and assets records. Listing 5 shows a sample

ACL function that permits authorized professionals

reading access to health records. The function vali-

dates the record type, patient, and expiry date of the

permission and returns a boolean, which determines

the ﬁnal decision.

Listing 5: ACL for granting authorized professionals read

access to health records.

funct i o n h e a lthR e c ords A C L (

professional , r e c o r d ) {

return p r ofess i o n al .

gr a n ted P e rmis s i ons . some (

funct i o n ( gr a n tedP e r mis s i on ) {

const pe r m i ssion =

gr a n tedP e r mis s i on . pe r m i ssion ;

return (

per m i s sion . r e c o r dType . i n d e x O f (

record . re c o r dType ) >= 0 &&

per m i s sion . patie n t .

ge t I d enti f i e r () === r e c o r d .

patient . g e tIde n t i fier () &&

(! p e r missio n . e x piryDa t e ||

new D ate () < new Date (

per m i s sion . e x p i r yDate .

getTime () ))

) ;

}) ;

}

5 EXPERIMENTAL RESULTS

We implemented the model using Hyperledger Com-

poser and Hyperledger Fabric framework. The model

includes chaincodes for the three transactions that

were discussed in the previous section, access rules,

and the business model. We performed several per-

formance testings to evaluate the scalability and re-

sponse time of different features of our platform. We

used an OS X machine with a 3.5 GHz Intel Core i7

CPU and 16 GB 2133 MHz LPDDR3 memory during

our experiments.

We created a blockchain database with an entry

of 10,000 patients. In this database, a single query

from the patients’ registry took 252 ms, and calling

the patient transfer transaction took 2399ms to pro-

cess. We extended the experiment and simulated up

to 100 concurrent users and computed the median re-

sponse times of the network [Figure 2]. The experi-

ment shows a faster growth in transaction processing

time with an increase in the number of active users.

This behavior shows that the mining process takes

more time with an increase in the number of pending

transactions.

ICT4AWE 2020 - 6th International Conference on Information and Communication Technologies for Ageing Well and e-Health

202

Table 1: Performance Results Based on the Number of Entries (N).

Action Mean ± Standard Deviation (s)

N < 6k N ∈ [6k, 10k] N ∈ [10k, 14k]

Add patient 2.512 ± 0.072 2.521 ± 0.041 2.523 ± 0.038

Delete patient 2.508 ± 0.054 2.522 ± 0.053 2.508 ± 0.051

Transfer patient 2.380 ± 0.037 2.381 ± 0.039 2.379 ± 0.035

Request permission 2.477 ± 0.074 2.435 ± 0.0435 2.426 ± 0.047

Grant permission 2.470 ± 0.924 2.455 ± 0.126 2.373 ± 0.353

Query patient 0.154 ± 0.021 0.156 ± 0.018 0.157 ± 0.019

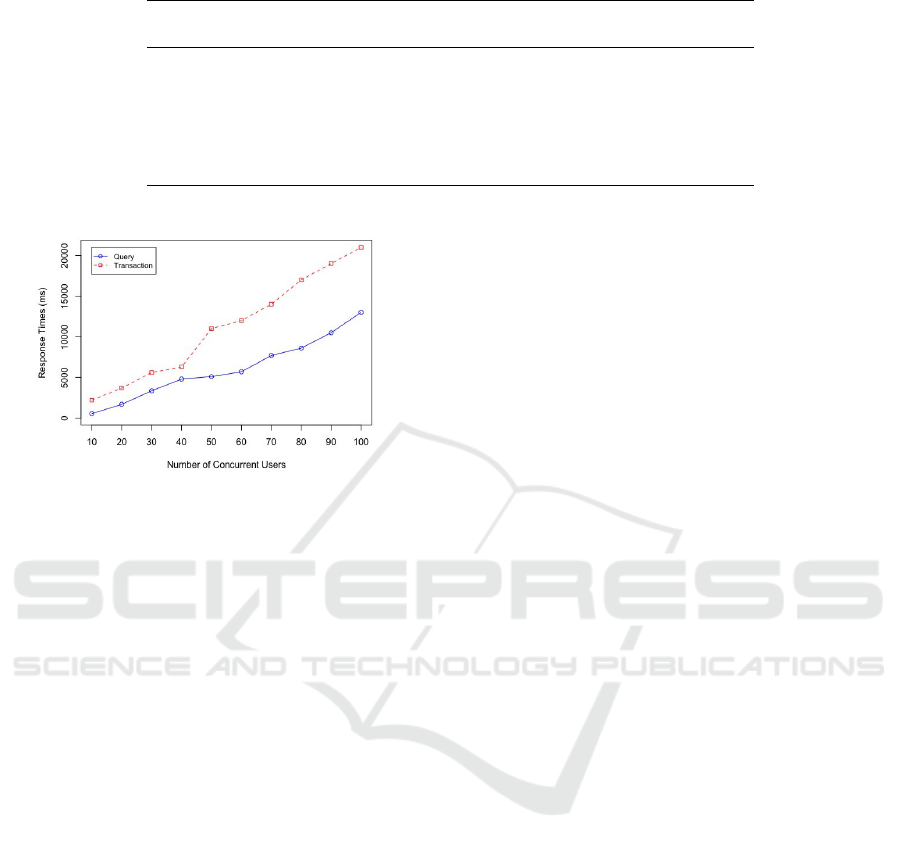

Figure 2: Query and Transaction Processing Time per Ac-

tive User for the Proposed EHR Model.

In the next experiment, we gradually added

14,000 of various resources in the network and com-

puted the average response time of sending queries

and invoking transactions.

The result [Table 1] shows a relatively consistent

response time, which indicates that the number of

stored records does not remarkably affect the process-

ing time of mining a new block.

6 DISCUSSION

The immutability of data can be considered as one of

the most important features of blockchains. Blocks

are chained and secured with hashes to immune the

ledger against any manipulations. However, this may

not always be an acceptable feature. Many privacy

acts grant patients the right to correct their data or

to instruct health information custodians not to share

their personal health information with others. In pub-

lic blockchains that ledgers are shared and open to the

public, one approach to comply with privacy acts is to

store identiﬁable data in a separate secure database

and only store anonymized data in blockchains and

linking them using a unique identiﬁer. This approach

is used in MedRec (Azaria et al., 2016). In private

blockchains, access to health records can be precisely

controlled and granted only with the consent of pa-

tients. Besides, while the history of a ledger cannot be

modiﬁed, access to the history of changes can be man-

aged and restricted to the patient. Another approach

is to use the private data feature offered in the Hy-

perledger Fabric platform. Hyperledger fabric stores

a hash of the private data on the public ledger as a

shred of evidence for the existence of the data. Later,

private data can be destroyed by the authorized au-

thorities and become inaccessible permanently from

the blockchain.

7 CONCLUSIONS

In this work, we proposed a Privacy-Preserving De-

centralized EHR platform based on a permissioned

blockchain framework. In our model, different orga-

nizations involved in the health care industry can join

the network; they can add their staff and patients in

the network and manage the electronic health records.

We have introduced chaincodes for transferring a pa-

tient, controlling access to health records based on

record types, and access controls for automatically re-

voking permissions after their expiry date. In future

works, we will further examine the scalability of our

model, try to improve the efﬁciency and investigate

solutions for integration of legacy systems with the

proposed model.

REFERENCES

(2018). Deloitte survey: For blockchain-savvy executives,

movement expected over next year and ’pragmatism’

the new mindset. https://www.prnewswire.com/news-

releases/deloitte-survey-for-blockchain-savvy-

executives-movement-expected-over-next-year-and-

pragmatism-the-new-mindset-300648480.html.

(2019). Quorum. www.jpmorgan.com/global/Quorum.

Abouzahra, M. (2019). Using blockchain technology to en-

hance the use of personal health records.

Alhadhrami, Z., Alghfeli, S., Alghfeli, M., Abedlla, J. A.,

and Shuaib, K. (2017). Introducing blockchains for

Decentralized Electronic Health Records (DEHR): A Privacy-preserving Consortium Blockchain Model for Managing Electronic Health

Records

203

healthcare. In 2017 International Conference on Elec-

trical and Computing Technologies and Applications

(ICECTA), pages 1–4. IEEE.

Androulaki, E., Barger, A., Bortnikov, V., Cachin, C.,

Christidis, K., De Caro, A., Enyeart, D., Ferris, C.,

Laventman, G., Manevich, Y., et al. (2018). Hyper-

ledger fabric: a distributed operating system for per-

missioned blockchains. In Proceedings of the Thir-

teenth EuroSys Conference, page 30. ACM.

Azaria, A., Ekblaw, A., Vieira, T., and Lippman, A. (2016).

Medrec: Using blockchain for medical data access

and permission management. In 2016 2nd Inter-

national Conference on Open and Big Data (OBD),

pages 25–30. IEEE.

Chen, Y., Ding, S., Xu, Z., Zheng, H., and Yang, S. (2019).

Blockchain-based medical records secure storage and

medical service framework. Journal of medical sys-

tems, 43(1):5.

Mikula, T. and Jacobsen, R. H. (2018). Identity and access

management with blockchain in electronic healthcare

records. In 2018 21st Euromicro Conference on Digi-

tal System Design (DSD), pages 699–706. IEEE.

Nakamoto, S. et al. (2008). Bitcoin: A peer-to-peer elec-

tronic cash system.

Nchinda, N., Cameron, A., Retzepi, K., and Lippman,

A. (2019). Medrec: A network for personal infor-

mation distribution. In 2019 International Confer-

ence on Computing, Networking and Communications

(ICNC), pages 637–641. IEEE.

”Stephanie Newkirchen, N. E. (2018). Electronic health

records: Can the pain shift to value for physicians?

https://www2.deloitte.com/us/en/insights/industry/

health-care/ehr-physicians-and-electronic-health-

records-survey.html.

Wood, G. et al. (2014). Ethereum: A secure decentralised

generalised transaction ledger. Ethereum project yel-

low paper, 151(2014):1–32.

ICT4AWE 2020 - 6th International Conference on Information and Communication Technologies for Ageing Well and e-Health

204
