Enabling the Management and Orchestration of Virtual Networking

Functions on the Edge

Vincent Melval Richards

1 a

, Rodrigo Moreira

1,2 b

and Fl

avio de Oliveira Silva

1 c

Faculty of Computing (FACOM), Federal University of Uberl

andia (UFU), Uberl

andia/MG, Brazil

Institute of Exact and Technological Sciences, Federal University of Vic¸osa (UFV), Rio Parana

ıba/MG, Brazil

Keywords:

Cloud Computing, Edge Computing, NFV, Virtualization, IoT.

Abstract:

Tthe Internet of Things (IoT) is the pillar of the next generation of applications that will create a fusion between

the real and digital worlds. Several use cases rely on Edge computing capabilities, and the virtualization

capacity on Edge is a crucial requirement. The management and orchestration of computing, storage, and

networking resources in the Edge cloud pose several challenges. In this work, we propose a Management

and Orchestration (MANO) of Virtual Networking Functions (VNFs) on the Edge using standard solutions

such as Open Source MANO (OSM) and OpenStack. To showcase our approach, we handled an experimental

evaluation using an RPi3 infrastructure. OpenStack manages this infrastructure, and OSM provides the VNF

MANO capabilities offering a signiﬁcant improvement to support cloud computing on Edge. The evaluation

showed the feasibility of using low-cost devices such as RPi with standard management solutions used in the

core cloud.

1 INTRODUCTION

The growth and popularity of IoT pull along with its

related areas such as cloud computing, machine learn-

ing, and big data. The noted long term challenge of

how to load the vast amount of data generated by

long-term accumulation of streaming data or video

data (such as Augmented Reality (AR), Virtual Re-

ality (VR), and Mixed Reality (MR)) with IoT hard-

ware devices (Kristiani et al., 2019) could be address

by the sharing of larger platform with IoT platform as

one form of solution.

Cloud Computing is of vital importance to busi-

nesses and individuals and is serving its purpose well

(Zhang and Ravishankar, 2019). However, the cloud

data centers are far away, and the distance that data

need to traverse the Internet to end-users is also fairly

long, here arises the problem of latency (Zhang et al.,

2018). Numerous proposals have been established,

such as (Gouareb et al., 2018), that aim to mitigate

the effect of structural latency, through optimization

techniques, that the conventional service implemen-

tation model imposes.

https://orcid.org/0000-0003-2850-9602

https://orcid.org/0000-0002-9328-8618

https://orcid.org/0000-0001-7051-7396

Latency is acceptable for some applications that

can tolerate delays; however, an application such

as Virtual Reality, Real-time Processing, and Aug-

mented Reality will function poorly or even fail when

faced with latency issues (Shi et al., 2016).

Furthermore, the advent of the 5G network

presents another pressing need to address the latency

challenges that Cloud Computing faces. Therefore

Edge Computing is presented as a solution to re-

solving the latency challenges. Edge computing can

achieve this by bring processing closer to end-users

at the Edge of the network and also allow the con-

tinuation of processing if the internet connection is

disrupted (Hu et al., 2015).

Cloudlet was put forward as a means to imple-

ment MEC with OpenStack++, which is a lighter ver-

sion of OpenStack, but according to the researchers

(van Kempen et al., 2017) OpenStack++ platform was

meant to execute on powerful server machines, which

would make it challenging to deploy in the realistic

geo-distributed setting. However, in our work, we

were able to install OpenStack++ on RPi on Ubuntu

16.04 armhf in a KVM virtual machine. Our new

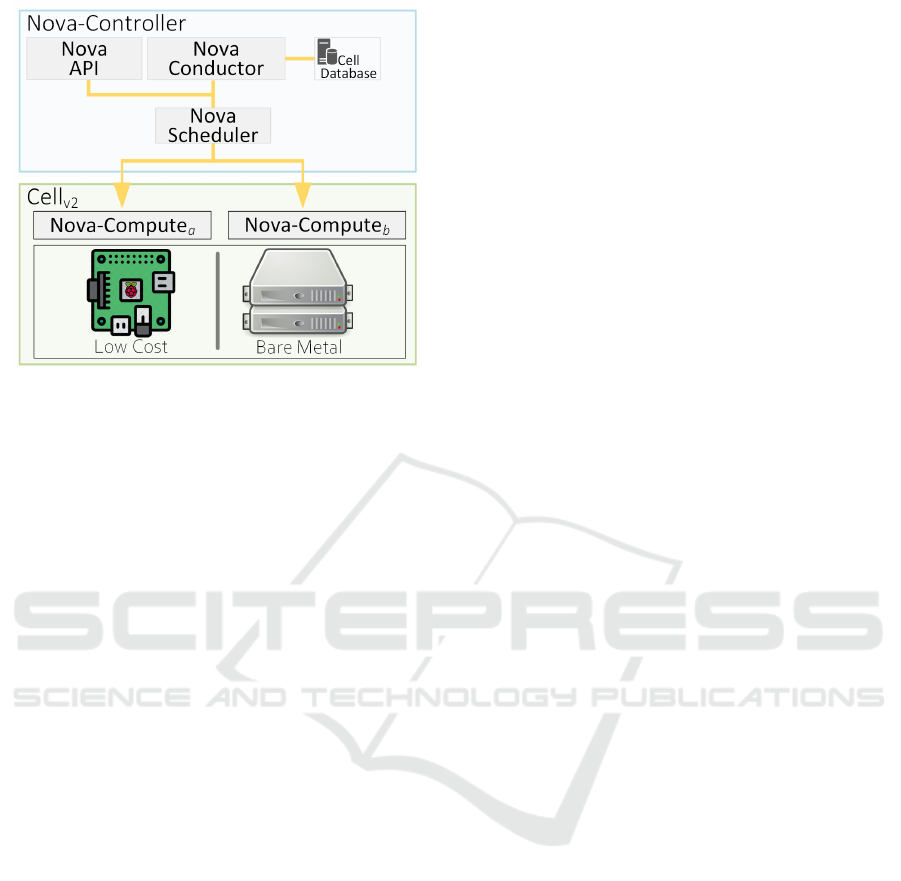

approach was to install OpenStack nova-compute on

Ubuntu 16.04 server installed on the RPi3, and the re-

sults prove to be more satisfying.

Our contribution to the process of enabling virtu-

338

Richards, V., Moreira, R. and Silva, F.

Enabling the Management and Orchestration of Virtual Networking Functions on the Edge.

DOI: 10.5220/0009398203380346

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 338-346

ISBN: 978-989-758-424-4

alization at the edge of the network for future service

provision includes the following:

1. Provide another alternative to the available op-

tions currently being used at the edge of the net-

work on resource constraint devices such as the

raspberry pi.

2. Demonstrate the feasibility and possibility of uti-

lizing RPi at the edge as a low-cost and low en-

ergy consumption device. Therefore aid in hasten-

ing the development of Mobile Edge Computing

(MEC) and implementation of 5G network. Our

work, along with related research, could serve as

a motivation for other researchers and investors to

get involved in the development process of Edge

Computing, which is a facilitator for the imple-

mentation of MEC and 5G computing.

3. Introduce an ETSI-compliant infrastructure for

service deployment at the edge.

The remaining of the paper is organized as fol-

lows: In Section 2, we place our work in the context

of related work concerning management and orches-

tration of Virtual Networking Functions (VNF) on the

Edge. In Section 3, we describe our solution and its

features to cope with state-of-the-art challenges. Sec-

tion 4 describes a proof-of-concept scenario and the

evaluation methodology to asses our solution feasi-

bility. Section 5 presents the measurements and a dis-

cussion about them. Finally, in Section 6, we sum-

marize our ﬁndings, and we point out some research

directions.

2 RELATED WORK

Edge computing research and development have

reached a high point of interest. It will be the facil-

itator of 5G and Mobile Edge Computing as it seeks

to bring processing closer to the user at the Edge of

the network and, in so doing, help to resolve the la-

tency problem. However, there still exist hurdles to

get over, and the literature describes several works re-

lated to this aim.

The authors of MEC-ConPaaS (van Kempen et al.,

2017) project stated that deploying a realistic mo-

bile Edge cloud remains a challenge because mobile

operators have not yet implemented MEC technolo-

gies in production, and this makes it impossible for

researchers to use their techniques in actual mobile

phone networks.

They also noted that there exist very few open-

source platforms that may support experimentation

that emulate a mobile Edge cloud, and they recognize

the most mature one to be OpenStack++ (van Kempen

et al., 2017).

However, MEC-ConPaas researchers claimed that

the general OpenStack implementation relies on clas-

sical server machines for its deployment. Their pro-

posal is to deploy a experimental MEC testbed that re-

lies on single-board computers such as Raspberry Pis

(RPis) and similar devices. Their work relies on Con-

PaaS (Pierre and Stratan, 2012), which is an open-

source run-time management system for elastic ap-

plications in public and private cloud environments.

They utilized RPi with Linux Containers (LXC) en-

abled and OpenStack orchestrating the containers.

Therefore they proposed a more natural way of de-

ploying an experimental MEC testbed that relies on

single-board computers such as Raspberry Pis (RPis)

and similar devices. Their work relies on ConPaaS

(Pierre and Stratan, 2012), which is an open-source

run-time management system for elastic applications

in public and private cloud environments.

MEC-ConPaaS presented an interesting founda-

tion and proof of the concept of using the raspberry

pi at the edge, which was further highlighted by (Pahl

et al., 2016) who did similar research with ConPaas

and the implementation of LXC with three hundred

RPis in a cluster.

Also, they explored the various forms of a

Platform-as-a-Service (PaaS) for edge computing.

However, these relevant foundation researches may

be impacted because of the shift from the use of LXC

to newer technologies such as Kubernetes and LXD,

along with security concerns that it presents. There-

fore a newer container technology called LXD based

on LXC was presented by (Ahmad et al., 2017) who

proposed the use of RPi2 Model B and LXD Linux

containers.

(Kristiani et al., 2019) implements Edge Com-

puting Using OpenStack and Kubernetes. Their im-

plementation uses three layers, such as the Cloud

side, Edge side, and Device side. The cloud side

mainly deals with more complicated operations and

data backup. Its main function is to deploy the Ku-

bernetes cluster on an OpenStack platform. Also, the

cloud side contains the Virtual Machine (VM) and

Kubernetes master side, and it also deals with data

backup, complex operations, data visualization, and

other applications that do not need quick responses.

A more sophisticated form of edge implementa-

tion from the previously mention containers was in-

troduced by (Chang et al., 2014), which applied a

computational model called the Edge Cloud. The ap-

plication here brings the cloud to the edge and uses

it as a means of enabling a new type of hybrid appli-

cation called Edge Apps, which runs over Openstack

Enabling the Management and Orchestration of Virtual Networking Functions on the Edge

339

(Chang et al., 2014).

Another edge app implementation was presented

by (Schiller et al., 2018), who creates mobile edge

apps that are managed as virtual network functions.

Their platform also includes an SDN controller to

manage trafﬁc by using the control plane to derive

states for trafﬁc management. They research Vehicu-

lar Fog Computing for Video Crowd Sourcing, where

they analyze the availability of vehicular fog nodes

based on a real-world trafﬁc dataset. Then explore

the serviceability of vehicular fog nodes by evaluat-

ing the networking performance of fog-enabled video

crowdsourcing over two mainstream access technolo-

gies, DSRC and LTE (Zhu et al., 2018).

(Bellavista et al., 2018) implement a solution that

uses powerful and low-cost middleboxes deployed at

the edges of the network. It serves as enablers for

their Human-driven Edge Computing (HEC) as a new

model to ease the provisioning and to extend the cov-

erage of traditional MEC solutions. Their approach

uses different devices from the RPi but is also rele-

vant as middleboxes allow specialized services to be

used at the edge of the network. However, some of

these services can be enabled on the RPi to reduce

cost of implementation.

(Tong et al., 2016) apply hierarchical architecture

for the edge cloud to enable aggregation of the peak

loads across different tiers of cloud servers. They use

this as a means of maximizing the number of mobile

workloads being served. The need for load balanc-

ing is essential and can also be implemented on the

RPi which have multipurpose capabilities which are

similar in some aspect to the PC.

Another load balancing technique is proposed by

(Puthal et al., 2018) whose technique is used to au-

thenticate the EDCs and to discover less loaded Edge

Data Centers (EDC) for task allocation. They state

that it is more efﬁcient than other existing approaches

in ﬁnding less loaded EDC for task allocation and that

it strengthens security by authenticating the destina-

tion EDCs.

In the work (Lei et al., 2018), the authors’ so-

lution allows mobile Edge applications to be pro-

vided by chaining the service functions with the as-

sistance of Edge computing techniques and virtual-

ized resources. They also build a testbed to evaluate

their Edge caching architecture for proof of concept

and tested it with typical caching scenarios. The re-

search is not base on the RPi; however, the chaining

of function can be tested on the RPi.

In conclusion of the review of related work, the

use of the RPi with other devices is assessed in

(Akrivopoulos et al., 2018) who uses RPIs and Zo-

tac and also an off-the-shelf Intel-based edge-based

server box. The software that they deployed on the de-

vices is bundled using a collection of Docker contain-

ers. They use these to create an IoT-based platform

for real-time monitoring and management of educa-

tional buildings on a national scale. They design the

system to process sensor data on the Edge devices of

the network.

3 MULTI-LAYERED EDGE-CORE

VIRTUALIZATION APPROACH

This section presents the rationale behind the multi-

Layered Edge-Core virtualization approach and the

main building blocks of the architecture designed.

3.1 Solution Rationale

To address the challenge of uniform infrastructure

and application life-cycle management, we propose

a jointly Edge-Core infrastructure management ap-

proach. According to Figure 1, the proposed so-

lution deals with two compute infrastructure tech-

nologies. First, the bare-metal witch comprises the

traditional data centers that offer public and private

cloud services on top of commodity hardware. Sec-

ond, it concerns low-cost computing where infrastruc-

ture resources could be in strategic locations, prefer-

ably close to the user. These facilities could place

in malls, sports stadiums, homes, airports, and parks.

The state-of-the-art proposals do not address the hy-

brid aspect of service deployment and management.

Although, they do not handle uniformly, heavy vir-

tualization on top of the low-cost and high-capacity

hardware simultaneously.

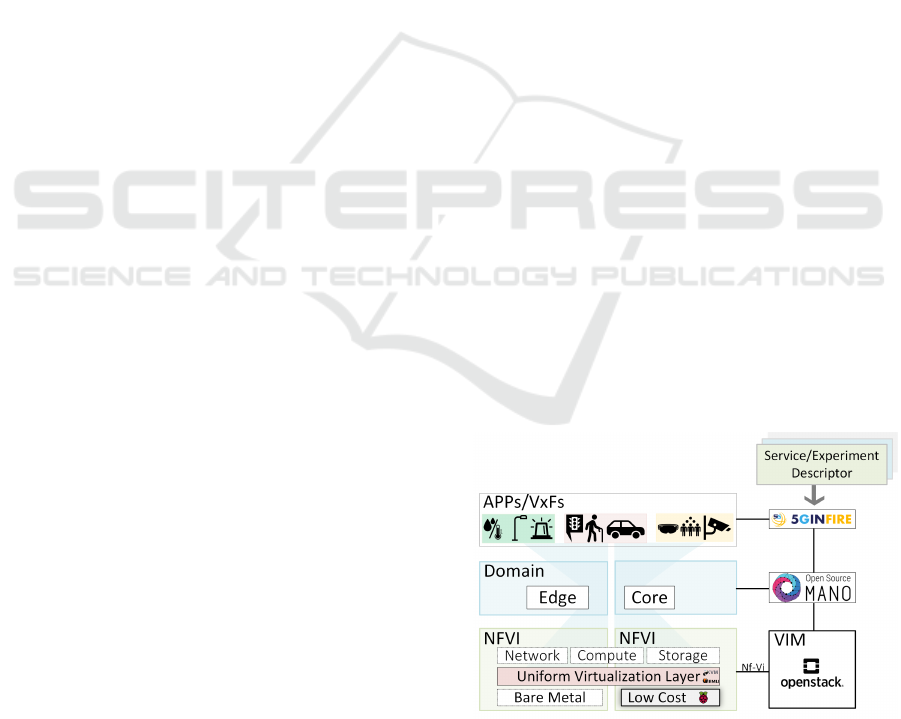

Figure 1: Conceptual Architecture.

Our solution is layered and maintains features

close to the European Telecommunications Standards

Institute (ETSI) NFV framework. Considering a

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

340

bottom-up approach, we describe the Network Func-

tions Virtualization Infrastructure (NVFI), the hard-

ware management entity, as a biform infrastructure

layer, so the virtualization engine is alike for low-cost,

high-performance servers. Thus, it becomes possible

to offer Infrastructure as a Service (IaaS) in which the

service is uniformly deployed over both hardware us-

ing the same manifest ﬁle (descriptor). Thereby, we

make the ability to deploy services across multiple do-

mains hybrid. Also, next to the NFVI layer comprises

the Virtual Infrastructure Manager (VIM), the layer

that controls and manages the infrastructure entities.

On top of the bottom layer, we propose an inter-

mediate tier that comprises the service deployment

domains. It contains the Core and Edge blocks, which

are respectively infrastructures that host services tra-

ditionally on high-performance hardware and low-

cost infrastructures that can be deployed and enabling

verticals of services such as IoT, Smart farms, and

others. MANO compliant solutions could be placed

here to handle the service management and orchestra-

tion of the middle tier. State-of-the-art solutions deal

with these deployment domains separately.

The topmost layer that makes up the framework of

the proposed solution comprises the multi-form ap-

plications that we refer to as Virtualized Everything

Functions (VxFs), according to (Silva et al., 2019).

Our proposal as a uniform virtualization layer for both

bare-metal and low-cost devices democratizes the de-

ployment domain, so the plethora of applications are

broader than state-of-the-art solutions. Also, testbeds

of applications like (Silva et al., 2019), (Sallent et al.,

2012), and (Silva et al., 2018) can add to their facili-

ties our infrastructure model that can add functional-

ity as service descriptor manifest ﬁles.

Virtualization is essential for Edge computing pro-

visioning and enables in most use-cases for new kinds

of applications (Paolino et al., 2015). Therefore, any

device that will be used on the Edge must be able

to accommodate virtualization even if it is operating

system level, such as Linux Containers (LXC) or any

other container technology.

However, the use of a virtual machine is needed

for some applications in cases where better security,

isolation, and network performance (d. S. Marques

et al., 2018) are preferred, but on most small, low-cost

devices enabling or using virtualization is more difﬁ-

cult, especially if one wants to use virtual machines

(Barik et al., 2016). The use of virtual machines on

the RPi is relatively new and is only enabled through

the use of particular operating systems such as Open-

Suse, Ubuntu, and Gentoo.

In order to build an Edge-Core virtualization plat-

form to host VxFs spanning in different use-case do-

mains, we have separated the architecture into two

verticals to make it loosely coupled. The state-of-

the-art solutions deal with VxF deployment speciﬁ-

cally for each domain, and each virtualization tech-

nology: low-cost and high-performance virtualization

requires speciﬁc managers (Li et al., 2017). For in-

stance, OpenNebula (Edge release) (Miloji

c et al.,

2011) deploy services on low-cost hardware; how-

ever, uniformity on it does not prevail. That is, ser-

vices as conceived as LXC on low-cost device ser-

vices, and for bare-metal follows standard virtualiza-

tion.

Unlike other Edge virtualization proposals,

our solution enables VNF life-cycle management

smoothly. VIM does not need to handle low-cost

compute infrastructure or bare-metal separately.

Somewhat we adapted a uniform virtualization

layer for both types of hardware. Thus, the service

deployment on top of the low-cost computing does

not necessarily have to be container-based once those

solutions have network connectivity drawbacks.

3.2 Architectural Design

To handle these drawbacks we bring a uniform solu-

tion as described in Figure 2. Our proposal enables

x86 64 virtualization compatibility on top of low-cost

compute resources as it is straightforward on bare-

metal compute resources. The boot process, which

starts on Nova-API (release 13.1.4), receives the re-

quests to a new VxF creation. Afterward, the mes-

sages go through the RabbitMQ mechanism to the

Nova-Scheduler, which decides which compute-node

contained in the cluster (Cellv2) will handle the re-

quest. Ultimately, the remaining build-block compo-

nents are Keystone 9.3.0, Glance 12.0.0, and Neutron

8.4.0.

The ﬁlter (ComputeCapabilitiesFilter) in Nova-

Scheduler checks if the deployment request ﬁts ad-

equately on the low-cost compute-node, according to

VxF ﬂavor, being possible the nova-boot process will

create and instantiate the VxF. If a low-cost compute-

node is unable to handle the deployment request, the

VxF will be launched on top of bare-metal compute

resources.

Commonly RPi has only one physical network

interface, and the basic OpenStack deployment re-

quires two interfaces, we proposed an approach based

on Open vSwitch (OvS). Therefore, we created two

virtual interfaces vnet0 and vnet1, which we assign

different addressing plane. Both interfaces were as-

sociated with a OvS, which had as trunk port the

only physical interface of RPi. The RPi physical in-

terface connects directly to a physical switch where

Enabling the Management and Orchestration of Virtual Networking Functions on the Edge

341

Figure 2: Proposed Solution Build-Blocks.

the controller-node and the network gateway are also

connected. Thus, one virtual interface served as a

provider interface for the Neutron plugin, working as

L2 Agent, and the other allowed the compute-node to

exchange messages with the controller-node services

such as AMQP and databases.

Our solution for enabling Edge computing in-

volves the use of the small and low-cost RPi running

Ubuntu 16 armhf -capable. However, its limited mem-

ory, in comparison to the bare-metal poses restrictions

on the programs that can be installed and executed on

it. Therefore, since we are installing OpenStack on

the RPi, only the Nova-Compute can be installed on

it and not the Nova-API or Nova-Cert as these freezes

the RPi as soon as they start running. However, we

build it with Nova-Compute and Neutron for the net-

work. Therefore, the RPi memory capacity was able

to allow these to run smoothly.

As long as OpenStack requires virtualization, we

enable such technology for the Edge with this ap-

proach. To this end, we implement OpenStack Nova-

Compute to utilize virtual machine by connecting a

localized OpenStack controller to our RPi OpenStack

compute-node. The RPi conﬁguration enables the

booting, stopping, accessing, and deleting virtual ma-

chines from the RPi.

Therefore our solution can place all these added

functionalities at the Edge of the network closer to

the user. The use of low-cost devices will also beneﬁt

the users and businesses, along with the beneﬁt of low

latency will be achieved when the services and func-

tionality are placed at the Edge of the network closer

to the user.

Our proposal investigates use of standard virtual

machines on low-cost hardware. The goal is to use

the same virtual machine that usually runs on high-

performance hardware in order to verify the suitabil-

ity and compatibility of the use of a single MANO en-

tity, in our case OSM. Container-based solutions are

known (von Leon. et al., 2018) on these scenarios;

however, the suitability of a uniform proposal for de-

ploying VxFs according to the ETSI framework was

not discussed in previous studies.

4 EXPERIMENTAL SETUP

To evaluate our solution, we propose an experimental

scenario in a real testbed environment. This section

presents the testbed that realizes the proposed solu-

tion, the experiment and the method used for its eval-

uation.

4.1 Testbed Description

The architecture of our experiment includes a RPi3

(Nova-Compute

) and a bare-metal desktop computer

((Nova-Compute

) which are together in the network

edge. The bare-metal desktop can run services de-

ployed in edge cloud while the RPi3 is the edge com-

puting near the user. Besides that, there is an Open-

Stack Controller, as presented in Figure 2.

The RPi3 is a Model B+ with a Broadcom

BCM2837B0 system on a chip (SoC) with a Cortex-

A53 (ARMv8) 64-bit 1.4 GHz processor and 1 gi-

gabyte of LPDDR2 SDRAM. The bare-metal com-

puter and Controller are Core I7 (i7-8550U) proces-

sors with 8 gigabytes of RAM. The RPi3 has Ubuntu

16.04 armhf server, customized to ARM processors,

and publicly available. The software that was in-

stalled and conﬁgured on the RPi include neutron and

nova-compute.

The bare-metal desktop computer uses a Ubuntu

16.04 64-bit (AMD64) server image. It also has the

neutron and nova-compute OpenStack components

(Mitaka release).

The controller computer uses a Ubuntu 14.04 64-

bit (AMD64) server image and several OpenStack

components such as Keystone, Glance, Nova, Place-

ment, Neutron network, and Manila.

All the hardware was interconnected using a lo-

cal physical network. A bridge network conﬁguration

supported the connection of the virtual machines cre-

ated inside the RPi3, the local network.

The overall setup of the experiment is presented

in Figure 3. A user uploads a Network Service De-

scriptor (NSD) to OSM. This service descriptor has

an indication to create Virtual Machines (VMs) on

the RPi3 located in the Edge. OSM interacts with the

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

342

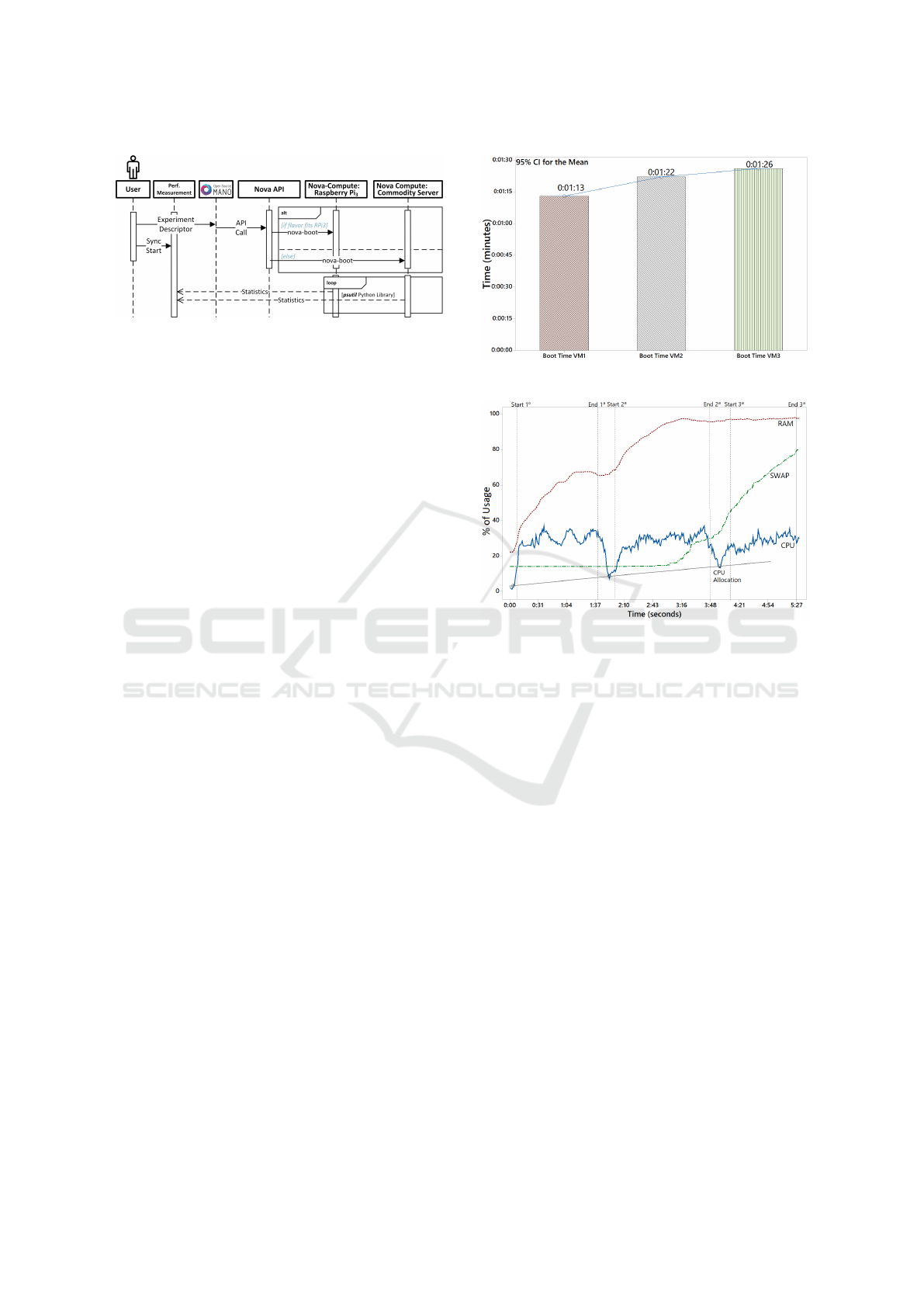

Figure 3: Experimental Scenario Sequence Diagram.

Virtual Infrastructure Manager (VIM), which is rep-

resented by the controller computer described above

and creates the VMs during the experiment using the

nova-compute service running in the RPi3. The setup

also enables the creation of VMs in the commodity

server represented by the bare-metal desktop com-

puter with is the edge cloud compute server.

4.2 Evaluation Methodology

To ﬁnd out the capability of the RPi3 to support tra-

ditional VMs, our experiments look standard system

resources usage parameters such as CPU, RAM, and

disk swap usage. Also, we investigate the processor

temperature.

The percentage of CPU performance is one such

metric that was collected for analysis. Memory re-

sponse was also necessary as it provides relevant in-

formation regarding the amount and types of pro-

grams that the system will be able to accommodate.

The use of swap was also necessary to buffer RAM

after all the system memory has been allocated.

The temperature, which is also related and rele-

vant to the CPU performance, was also recorded for

analyzed. Finally, the virtual machines boot times

were collected to compare the boot time when only

one virtual machine is running as opposed to progres-

sively running multiple virtual machines simultane-

ously.

During the experiments, we used the psutil tool

(Rodola, 2016) to collect the data about resource us-

age on the RPis. We executed each test 20 times to

avoid statistical bias and calculated average values.

5 RESULTS AND DISCUSSION

Using the experimental setup and following the evalu-

ation methodology presented in Section 4 the solution

presented in this work was evaluated.

The following charts present the results of our ex-

periments. We repeated the experiments to collect the

boot times, ﬁfteen rounds.

Figure 4: Instances Total Boot Times.

Figure 5: Resource Allocation over Time.

Figure 4 displays the boot times in minutes. The

time present is the average time. In each round, we

created three VMs since the RPi3 did not support

more than this number of instances.

Figure 5 presents the % of the usage of CPU, disk

swap, and RAM combined in one chart to give an

overall view of the system performance. This view

makes it possible to compare and assess these re-

lated system performance metrics quickly. The graph

shows the evolution of each of the above parameters

during the experiment. The system resource usage

starts the measurement at the beginning of the exper-

iment. It continues getting this information while the

three different VM instances are created. The values

presented in the charts is the average of the ﬁfteen

rounds of the experiment.

After analyzing the virtual machines booting

times, it can be seen from Figure 4 that the booting

times of each new virtual machine continue to in-

crease for each new virtual machine that is booted.

Therefore after the ﬁrst virtual machine is booted on

the RPi3, the boot time for each subsequent virtual

machine will increase; however, it will only increase

by less than one minute.

The analysis of the CPU performance during the

virtual machines booting process per rounds shows

Enabling the Management and Orchestration of Virtual Networking Functions on the Edge

343

that at the start of the booting process of a virtual ma-

chine, the base value of the CPU is low then rises

sharply and remains high while ﬂuctuating. Then

again at the start of the second virtual machine on the

RPi, the CPU value falls sharply ﬁrst then rises again

sharply however the base of the low CPU value now

shows an increase. This falling and rising behavior

during the virtual machine booting process continues

with the booting of the third virtual machine along

with the low base value rising again signiﬁcantly.

Also, we depict in Figure 6 the temperature rise

per experiment round. As we can see, it is possible to

notice the increase as the instances are launched. The

average temperature, considering the 95% conﬁdence

interval, is ≈ 55.29

◦

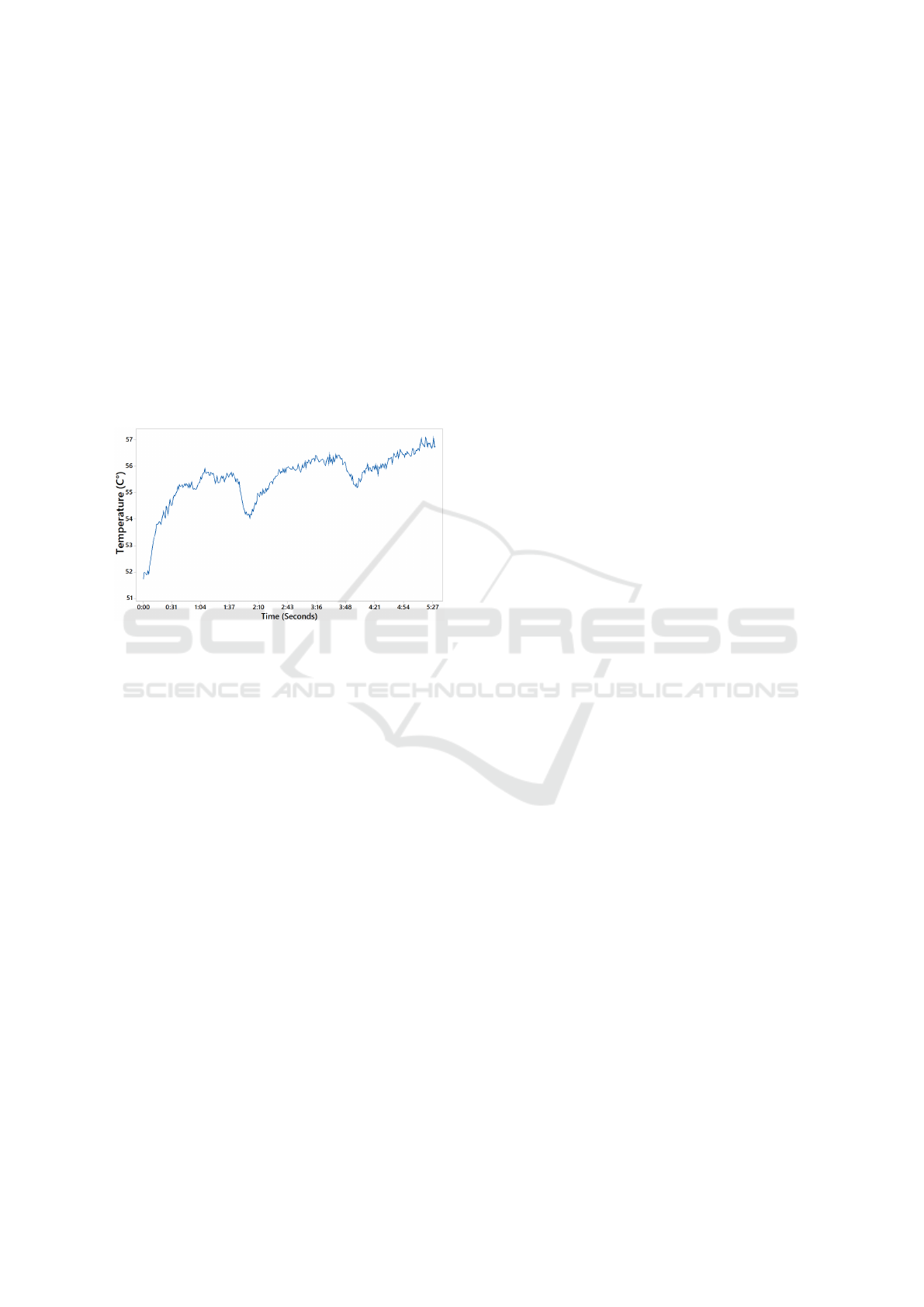

Figure 6: Temperature Measurement.

Also, the analysis of the temperature provided by

Figure 6 shows that it rises during the process of boot-

ing each new virtual machine. However, after the

booting process of each virtual machine, it falls sig-

niﬁcantly but not very low. Then risings steadily but

sharply.

After the creation of a new virtual machine, the

RAM allocation, and consumption increases. The

memory capacity is the major restricting element in

the number of virtual machines that the RPi3 can sup-

port. The RPi3 used in the experiment has one giga-

byte of RAM. Considering that Ubuntu 16.04 armhf

image requires 256 RAM per virtual machine, the cur-

rent limit is three virtual machines.

However, when RAM consumption is near its

limit, the swap memory is used as a buffer for pro-

cessing to prevent the system from crashing. In Figure

5 swap can be observed to be steady before and after

one virtual machine is created. Then starts to increase

with the creation of the second virtual machine until

it peaks with the creation of the third virtual machine.

It can be be seen that the CPU, RAM, swap, and

temperature are connected to an extent, and all are

inﬂuenced by the creating of the virtual machines, es-

pecially the last two. All the parameters show an in-

crease during the last two boots, especially with the

booting of the third virtual machine.

The MEC-ConPaaS project (van Kempen et al.,

2017) states that they use LXC on the nova-compute,

which is an RPi also, they state that their ﬁrst LXC

launch image test took 10 minutes to launch them

with many conﬁgurations they were able to get it to

90 seconds. The boot time of an instance on our Edge

infrastructure average less than 2 minutes, which is

relatively close to the 90 seconds booting of instances

in LXC, which are not as secure as virtual machines.

Finally, we were able to launch images from a

MANO miles away. Here we connect the controller

to OSM, and this allows us to also start virtual ma-

chines on the Edge with virtual network functions as

needed or requested. Using this approach then makes

it possible to monitor and manage virtual machines on

the Edge much more straightforward, using standard

platforms common used.

6 CONCLUDING REMARKS

Within this work, we showcased a unique approach

to manage and orchestrate resources on servers on the

core and low-cost hardware on edge using the same

MANO entity, in this case, represented by OSM. We

also could explore the constraints associated with the

use of the RPi on edge regarding standard parameters

associated execution of virtual machines on these de-

vices.

Previous approaches to deal with state-of-the-art

OpenStack implementation on the edge such as Open-

Stack++ (Ha and Satyanarayanan, 2015), and MEC-

ConPaaS (van Kempen et al., 2017) were initiated to

encourage faster Edge computing development with

cloudlets. However, OpenStack++ was meant for

powerful servers and was not made with consider-

ation of low-cost devices that are prerequisites for

widespread adaptation of edge computing.

The reason for this is that the RPi is a low-cost and

low power consumption device (Bekaroo and San-

tokhee, 2016). Therefore this article shows that the

RPi can be used for virtualization on the Edge, and

more importantly, it demonstrates that virtualization

can be enabled with OpenStack using traditional in-

stances on RPi. Furthermore, it has another advan-

tage where the controller resources can be shared with

the RPi when a virtual machine is booting from the

RPi. This allows the launching of more signiﬁcant in-

stances and more memory-hungry virtual machines to

meet the needs of applications that need more mem-

ory than the RPi limited memory will allow.

According to performance tests, memory is the

resource that most degraded as low-cost hardware

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

344

served virtual machines. This paves the way for new

memory allocation formats on low-cost devices.

Our infrastructure proposal based on the ETSI

framework made it possible to launch virtual ma-

chines uniformly. Namely, MANO does not need

to deal with different virtualization technologies

for each hardware (high-performance and low-cost).

Also, the limitation of our proposal opens the ways

for advances in the virtualization spectrum on low-

cost hardware.

For future work, we will investigate which of ap-

plications we execute the infrastructure showcase in

this work and measure their performance. This work

will bring a better understanding of the supported use

cases and will provide information about the limita-

tions associated with such scenarios, thus bringing

knowledge about the weaknesses and strengths of the

use of low-cost hardware on edge.

ACKNOWLEDGEMENTS

This work is inside UFU-CAPES.Print Program. This

study was ﬁnanced in part by the Coordenac¸

ao de

Aperfeic¸oamento de Pessoal de N

ıvel Superior –

Brasil (CAPES) – Finance Code 001. This research

also received the support from PROPP/UFU.

REFERENCES

Ahmad, M., Alowibdi, J. S., and Ilyas, M. U. (2017).

viot: A ﬁrst step towards a shared, multi-tenant

iot infrastructure architecture. In 2017 IEEE Inter-

national Conference on Communications Workshops

(ICC Workshops), pages 308–313.

Akrivopoulos, O., Zhu, N., Amaxilatis, D., Tselios, C.,

Anagnostopoulos, A., and Chatzigiannakis, I. (2018).

A Fog Computing-Oriented, Highly Scalable IoT

Framework for Monitoring Public Educational Build-

ings. In 2018 IEEE International Conference on Com-

munications (ICC), pages 1–6.

Barik, R. K., Lenka, R. K., Rao, K. R., and Ghose, D.

(2016). Performance analysis of virtual machines and

containers in cloud computing. In 2016 International

Conference on Computing, Communication and Au-

tomation (ICCCA), pages 1204–1210.

Bekaroo, G. and Santokhee, A. (2016). Power consumption

of the raspberry pi: A comparative analysis. In 2016

IEEE International Conference on Emerging Tech-

nologies and Innovative Business Practices for the

Transformation of Societies (EmergiTech), pages 361–

366.

Bellavista, P., Chessa, S., Foschini, L., Gioia, L., and Giro-

lami, M. (2018). Human-Enabled Edge Computing:

Exploiting the Crowd as a Dynamic Extension of Mo-

bile Edge Computing. IEEE Communications Maga-

zine, 56(1):145–155.

Chang, H., Hari, A., Mukherjee, S., and Lakshman, T. V.

(2014). Bringing the cloud to the edge. In 2014 IEEE

Conference on Computer Communications Workshops

(INFOCOM WKSHPS), pages 346–351.

d. S. Marques, W., d. Souza, P. S. S., Rossi, F. D., d. C. Ro-

drigues, G., Calheiros, R. N., d. S. Conterato, M., and

Ferreto, T. C. (2018). Evaluating container-based vir-

tualization overhead on the general-purpose iot plat-

form. In 2018 IEEE Symposium on Computers and

Communications (ISCC), pages 00008–00013.

Gouareb, R., Friderikos, V., and Aghvami, A. (2018). Vir-

tual network functions routing and placement for edge

cloud latency minimization. IEEE Journal on Selected

Areas in Communications, 36(10):2346–2357.

Ha, K. and Satyanarayanan, M. (2015). Openstack++ for

cloudlet deployment. School of Computer Science

Carnegie Mellon University Pittsburgh.

Hu, Y. C., Patel, M., Sabella, D., Sprecher, N., and Young,

V. (2015). Mobile edge computing—a key technology

towards 5g. ETSI white paper, 11(11):1–16.

Kristiani, E., Yang, C.-T., Wang, Y. T., and Huang, C.-Y.

(2019). Implementation of an edge computing archi-

tecture using openstack and kubernetes. In Kim, K. J.

and Baek, N., editors, Information Science and Ap-

plications 2018, pages 675–685, Singapore. Springer

Singapore.

Lei, L., Xiong, X., Hou, L., and Zheng, K. (2018). Collabo-

rative Edge Caching through Service Function Chain-

ing: Architecture and Challenges. IEEE Wireless

Communications, 25(3):94–102.

Li, Z., Kihl, M., Lu, Q., and Andersson, J. A. (2017).

Performance overhead comparison between hypervi-

sor and container based virtualization. In 2017 IEEE

31st International Conference on Advanced Informa-

tion Networking and Applications (AINA), pages 955–

962.

Miloji

c, D., Llorente, I. M., and Montero, R. S. (2011).

Opennebula: A cloud management tool. IEEE Inter-

net Computing, 15(2):11–14.

Pahl, C., Helmer, S., Miori, L., Sanin, J., and Lee, B.

(2016). A container-based edge cloud paas architec-

ture based on raspberry pi clusters. In 2016 IEEE 4th

International Conference on Future Internet of Things

and Cloud Workshops (FiCloudW), pages 117–124.

Paolino, M., Rigo, A., Spyridakis, A., Fangude, J., Lalov,

P., and Raho, D. (2015). T-kvm: A trusted architec-

ture for kvm arm v7 and v8 virtual machines securing

virtual machines by means of kvm, trustzone, tee and

selinux. In In Proc. of the Sixth International Confer-

ence on Cloud Computing, GRIDs, and Virtualization.

Pierre, G. and Stratan, C. (2012). Conpaas: A platform

for hosting elastic cloud applications. IEEE Internet

Computing, 16(5):88–92.

Puthal, D., Obaidat, M. S., Nanda, P., Prasad, M., Mo-

hanty, S. P., and Zomaya, A. Y. (2018). Secure and

Sustainable Load Balancing of Edge Data Centers in

Enabling the Management and Orchestration of Virtual Networking Functions on the Edge

345

Fog Computing. IEEE Communications Magazine,

56(5):60–65.

Rodola, G. (2016). Psutil package: a cross-platform library

for retrieving information on running processes and

system utilization.

Sallent, S., Abel

em, A., Machado, I., Bergesio, L., Fdida,

S., Rezende, J., Azodolmolky, S., Salvador, M.,

Ciuffo, L., and Tassiulas, L. (2012). Fibre project:

Brazil and europe unite forces and testbeds for the in-

ternet of the future. In Korakis, T., Zink, M., and Ott,

M., editors, Testbeds and Research Infrastructure. De-

velopment of Networks and Communities, pages 372–

372, Berlin, Heidelberg. Springer Berlin Heidelberg.

Schiller, E., Nikaein, N., Kalogeiton, E., Gasparyan, M.,

and Braun, T. (2018). CDS-MEC: NFV/SDN-based

Application Management for MEC in 5g Systems.

Computer Networks, 135:96 – 107.

Shi, W., Cao, J., Zhang, Q., Li, Y., and Xu, L. (2016). Edge

computing: Vision and challenges. IEEE Internet of

Things Journal, 3(5):637–646.

Silva, A. P., Tranoris, C., Denazis, S., Sargento, S., Pereira,

J., Lu

ıs, M., Moreira, R., Silva, F., Vidal, I., Nogales,

B., Nejabati, R., and Simeonidou, D. (2019). 5gin-

ﬁre: An end-to-end open5g vertical network function

ecosystem. Ad Hoc Networks, 93:101895.

Silva, F. S. D., Lemos, M. O. O., Medeiros, A., Neto, A. V.,

Pasquini, R., Moura, D., Rothenberg, C., Mamatas,

L., Correa, S. L., Cardoso, K. V., Marcondes, C.,

ABelem, A., Nascimento, M., Galis, A., Contreras, L.,

Serrat, J., and Papadimitriou, P. (2018). Necos project:

Towards lightweight slicing of cloud federated infras-

tructures. In 2018 4th IEEE Conference on Network

Softwarization and Workshops (NetSoft), pages 406–

414.

Tong, L., Li, Y., and Gao, W. (2016). A hierarchical edge

cloud architecture for mobile computing. In IEEE IN-

FOCOM 2016 - The 35th Annual IEEE International

Conference on Computer Communications, pages 1–

van Kempen, A., Crivat, T., Trubert, B., Roy, D., and Pierre,

G. (2017). Mec-conpaas: An experimental single-

board based mobile edge cloud. In 2017 5th IEEE

International Conference on Mobile Cloud Comput-

ing, Services, and Engineering (MobileCloud), pages

17–24.

von Leon., D., Miori., L., Sanin., J., Ioini., N. E., Helmer.,

S., and Pahl., C. (2018). A performance exploration

of architectural options for a middleware for decen-

tralised lightweight edge cloud architectures. In Pro-

ceedings of the 3rd International Conference on In-

ternet of Things, Big Data and Security - Volume 1:

IoTBDS,, pages 73–84. INSTICC, SciTePress.

Zhang, G. and Ravishankar, M. (2019). Exploring vendor

capabilities in the cloud environment: A case study

of alibaba cloud computing. Information & Manage-

ment, 56(3):343 – 355.

Zhang, J., Hu, X., Ning, Z., Ngai, E. C. ., Zhou, L., Wei, J.,

Cheng, J., and Hu, B. (2018). Energy-latency trade-

off for energy-aware ofﬂoading in mobile edge com-

puting networks. IEEE Internet of Things Journal,

5(4):2633–2645.

Zhu, C., Pastor, G., Xiao, Y., and Ylajaaski, A. (2018).

Vehicular Fog Computing for Video Crowdsourcing:

Applications, Feasibility, and Challenges. IEEE Com-

munications Magazine, 56(10):58–63.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

346
