Cloud Services Discovery and Selection Assistant

Hamdi Gabsi, Rim Drira and Henda Hajjami Ben Ghezala

RIADI Laboratory, National School of Computer Sciences, University of Manouba, La Manouba, Tunisia

Keywords:

Cloud Services Discovery, Cloud Services Selection, Cloud-based Software Development, Cloud Data-set,

Natural Language Processing, Cloud Services Clustering.

Abstract:

The surging popularity of cloud services has led to the emergence of numerous cloud providers who offer

various services. The great variety and the exponential proliferation of cloud services over the Web intro-

duce several functionally similar offers with heterogeneous descriptions and contrasting APIs (Application

Programming Interfaces). Due to this heterogeneity, efﬁcient and accurate service discovery and selection,

based on developers-speciﬁc requirements and terminology, have become a signiﬁcant challenge that requires

a high level of expertise and a steep documentation curve. In order to assist developers in handling these

issues, ﬁrst, we propose a Cloud Services Discovery and Selection Assistant (DESCA) based on a developer’s

query expressed in natural language. Second, we offer to the developers a cloud data-set, named ULID (Uni-

ﬁed cLoud servIces Data-set), where services offered by different cloud providers are collected, uniﬁed and

classiﬁed based on their functional features. The effectiveness of our contributions and their valuable insights

to improve cloud services discovery and selection are demonstrated through evaluation experimentation.

1 INTRODUCTION

Cloud services are becoming crucial building blocks

for developing scalable applications, given their im-

portant impact to reduce the management cost and the

time to market. The increasing interest in cloud ser-

vices has led to an expeditious diversity of services to

cover all developers’ requirements. Nonetheless, this

diversity brings several challenges, essentially, dur-

ing the discovery and selection process. The discov-

ery process is deﬁned as the process of detecting au-

tomatically or semi-automatically services respond-

ing to functional requirements. The selection process

consists of retrieving the suitable service among dis-

covered services given a speciﬁc required Quality of

Service (QoS) (Sun et al., 2014) .

Cloud services discovery and selection is consid-

ered as a challenging task for different reasons. First,

cloud providers often publish their services descrip-

tions, pricing policies, and Service Level Agreement

(SLA) rules on their portals in various and heteroge-

neous formats. Therefore, most of the available cloud

services come with non-standard format (e.g., HTML

documentation and textual descriptions). To deal with

this heterogeneity, a steep documentation curve is re-

quired to clearly identify relevant services’ functional

features and compare several offers. Second, cloud

services are continuously evolving (the update of ex-

isting services and the emergence of new services),

handling this evolution during the discovery process

is known to be a challenging task for cloud applica-

tions’ developers.

Several studies have been carried out to address

these challenges using different approaches such as

semantic-based approaches (Martino et al., 2018),

syntactic-based approaches (Lizarralde et al., 2018),

and registry-based approaches (Abdul Quadir Md and

Mandal, 2019). Even though these approaches are

scientiﬁcally interesting, their main limitation is the

discovery scope, which is often limited to some ser-

vices that are published in a speciﬁc description stan-

dard. In fact, these approaches are based on either

semantic description standard such as OWL-S (Mar-

tino et al., 2018) or Web Services Description Lan-

guage (WSDL) (Lizarralde et al., 2018), (Bey et al.,

2017). This limitation is impractical since it expects

available cloud services to have semantic tagged de-

scriptions or WSDL describing ﬁles, which is not the

case in a real-world scenario.

In order to address the cited limitations, we pro-

pose a cloud services discovery and selection ap-

proach that does not make any assumptions about

the standard description languages of the provided

cloud services. Indeed, we assume, in our approach,

158

Gabsi, H., Drira, R. and Ben Ghezala, H.

Cloud Services Discovery and Selection Assistant.

DOI: 10.5220/0009403801580169

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 158-169

ISBN: 978-989-758-421-3

that services descriptions are provided in natural lan-

guage and developer’s requirement are expressed in

keyword-based queries to offer a simple syntax in

terms of open vocabularies wherein the developers

can use their own terminology to express their needs.

In that respect, we deﬁne an automatic process for

services’ functional features extraction from natural

language descriptions, which deals with the hetero-

geneous nature of cloud service. Furthermore, we

propose a publicly available cloud data-set where ser-

vices are uniﬁed based on their functional features

and regularly updated. Thus, we manage the diversity

and the dynamic evolution characteristics of cloud

services that practically complicate the discovery pro-

cess. The proposed data-set contains more than 500

services including IaaS, PaaS and SaaS services and

provided by Amazon, Google, and IBM. It was re-

viewed and accepted by Elsevier Mendeley Data (El-

sevier Mendeley Data , 2019) and available on (ULID

, 2019).

We detail, in this paper, our proposed discovery

and selection process. We go in-depth demonstrating

how cloud services capabilities are collected, stored,

matched with developer request and ﬁnally ranked.

The main contributions of this paper are as the fol-

lowing:

• Proposing a Uniﬁed cLoud servIces data-set

(ULID) which can automatically manage the het-

erogeneity and the evolving nature of cloud ser-

vices.

• Putting forward a uniﬁcation strategy of scattered

cloud services based on functional clustering us-

ing a modiﬁed K-means algorithm.

• Proposing a Cloud Services Discovery and Se-

lection Assistant (DESCA) based on natural lan-

guage query aiming to meet developers’ func-

tional requirements.

• Demonstrating the effectiveness of DESCA

through experimental evaluation.

The remainder of this paper is organized as follows:

Section 2 presents a motivating scenario. In Section

3, we discuss the related work. Section 4 details our

discovery and selection assistant DESCA. Section 5

illustrates the evaluation of DESCA. Section 6 con-

cludes the paper and outlines our ongoing works.

2 MOTIVATING SCENARIO

Let consider a scenario where a company decides

to develop its e-commerce web site using cloud ser-

vices. After analyzing the speciﬁcation, the develop-

ment team decides to use cloud services as much as

possible and looks for the following services: rela-

tional database, a load balancer, data analysis service,

a high performance computing resource and a PHP

web development tool. To ﬁnd candidate services for

each requirement, the ﬁrst solution to think about is

to review manually several cloud provider web por-

tals or to use a search engine (such as Google). For

sure, the search result enables to ﬁnd various services

of different providers. However, from one side, the

obtained results always contain irrelevant informa-

tion that must be manually discarded. From another

side, the content of each provider web portal needs

to be perused manually to identify services features

because their services descriptions are often scattered

in HTML pages. Then, comparing services manually

and selecting the most appropriate ones with regard to

the development team’s needs (i.e functional, budget

and QoS requirements) is a tedious and time consum-

ing task.

Actually, there are several commercial cross-

platforms’ services search, however most of them are

paying. Furthermore, the main important issue of

these platforms remains the neutrality and detachment

regarding commercial cloud providers.

This simple scenario sheds the light on the im-

portance of assisting developers in performing seam-

less cloud services discovery process. To do so, we

need to reference scattered cloud services regardless

of their providers and their heterogeneous descrip-

tions in uniﬁed data-set.

3 RELATED WORK

Many research efforts have been made in order to as-

sist the cloud services discovery and selection pro-

cess. They can be presented in two different points

of view, namely: architecture view and matchmaking

view (Martino et al., 2018).

From one side, the architecture view is divided

into centralized and decentralized. The centralized ar-

chitecture depends on one central node that provides

a complete view of all cloud services being offered

in the market. This architecture can be achieved by

proposing a cloud services registry or using cloud bro-

ker platforms.

Actually, several cloud broker platforms have

been proposed. (Jrad et al., 2015) developed a cloud

broker system to select cloud services based on the

user QoS requirements and SLA attributes. The au-

thors developed a utility-based algorithm for match-

ing user functional and non-functional requirements

to SLA attributes of cloud providers. (Rajganesh Na-

garajan and Selvamuthukumaran, 2018) proposed a

Cloud Services Discovery and Selection Assistant

159

broker based cloud computing framework for en-

abling the users to specify their services requirements

in terms of numerical representation. With respect

to the user speciﬁcation, the proposed broker con-

structs the cloud ontology to represent the available

services from the service repository. The appropri-

ate services are represented using semantic network

which enables the user to know about the available

services as per their posted requirements.

It is worth pointing that, even though cloud broker

platforms can provide assistance in the discovery pro-

cess, most of them are based on an additional layer

between the provider and the ﬁnal cloud user which

can complicate the service’s delivery chain and cer-

tainly increase the services’ cost. In our work, we

aim to propose an assistance framework which allow

developers to fulﬁll seamless discovery process with-

out any intermediaries, so that, they can better assume

their decisions, and control their budgets.

The centralized architecture can be achieved using

public registries such as (Asma Musabah Alkalbani

and Kim, 2019) who provided a centralized cloud

service repository. The authors propose a harvesting

module to extract data from the web and make it avail-

able to different ﬁle format. The harvesting module

uses an algorithm for learning the HTML structure

of a web page. This work requires the user to de-

termine speciﬁc control parameters such as targeted

web page URL and the required information from in

the targeted web page. Moreover, the collected data

sets lack main service information such as services’

description and operations.

From another side, the matchmaking view is di-

vided into syntactic-based and semantic-based. The

semantic-based matchmaking approaches are based

on semantic description to automate the discovery and

selection process. (Martino et al., 2018) proposed

a cloud services ontology with automated reasoning

to support services discovery and selection. How-

ever, the discovery scope, in this work, is depending

on the pre-existence of providers speciﬁc ontologies

(OWL-S services description ﬁles) that require map-

ping techniques to coordinate the difference between

agnostic (abstract) and vendor dependent concepts to

support interoperability. Even though many seman-

tic approaches are scientiﬁcally interesting (Martino

et al., 2018), they require that the developers have

intimate knowledge of semantic services and related

description and implementation details which makes

their usage difﬁcult. Moreover, from the service re-

questor’s perspective, the requestor may not be aware

of all the knowledge that constitutes the domain on-

tology. Speciﬁcally, the service requestor may not be

aware of all the terms related to the service request.

As a result of which many services relevant to the re-

quest may not be considered in the service discovery

process.

The syntactic-based approaches are, generally,

based on WSDL description of cloud services. (Bey

et al., 2017) proposed a clustering algorithm based

on similarity between users query concepts and func-

tional description parameters of cloud services ex-

pressed in a WSDL document. Despite the high pre-

cision values found in this work, generally assuming

that the candidate cloud services are described using

WSDL ﬁles, is considered as impractical limitation.

The analysis of several research studies illustrates

the main motivations of our proposal which are:

• First, the need for an efﬁcient syntactic-matching

approach which does not make any assumptions,

such as particular standard or speciﬁc semantic

representation, about the description language of

available cloud services.

• Second, the relevance of a centralized architecture

that references scattered cloud services regard-

less of their providers and their heterogeneous de-

scriptions in uniﬁed data-set. This fact can prac-

tically assist the developers in a seamless search

for relevant cloud services.

4 DESCA: CLOUD SERVICES

DISCOVERY AND SELECTION

ASSISTANT

In order to practically assist developers in the discov-

ery and selection process, we need to efﬁciently deal

with several cloud services proprieties.

First, we manage the heterogeneous nature of

cloud service by properly extracting relevant services

capabilities from ambiguous services’ descriptions.

To do so, we propose an automated process for ser-

vices ’capability extraction in order to identify ser-

vices’ functional features. Based on these features,

we deﬁne a services’ functional clustering to unify

functionally similar services. Thus, we can reduce the

search scope and we improve the response time of the

discovery process.

Second, we deal with the huge diversity of scat-

tered cloud services by proposing a structured main

source that provides to the developer relevant services

meta-data and avoids laborious documentation task in

several providers web portals. In that respect, we in-

troduce ULID which presents a centralized cloud ser-

vice data-set to which the developer has access to.

Last but not least, we manage the dynamic evo-

lution of cloud services by regularly updating our

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

160

data-set. Based on each commitment presented pre-

viously, we propose our discovery and selection as-

sistant (DESCA). Indeed, DESCA is mainly com-

posed of two components: ULID Construction Com-

ponent (UCC) and Discovery & Selection Compo-

nent (DSC). The input of our approach is keyword-

based queries presenting developers functional re-

quirements. The output of DESCA is a set of cloud

services meeting developers needs. Ranking services

according to QoS and budget is addressed in later

steps outside the scope of this paper. Figure 1 presents

the architecture of DESCA.

Figure 1: DESCA overview.

4.1 ULID Construction Component

(UCC)

Our data-set is based on three main steps which are:

Meta-data Extraction & Uniﬁcation, Merging & Clus-

tering and Update detection. We give further details

about these steps in the next sections.

4.1.1 Meta-data Extraction & Uniﬁcation

This step aims to collect cloud services meta-

data which are scattered in HTML pages of cloud

providers web portals. To do so, we use a HTML

parser to harvest relevant cloud services meta-data

from these portals. The collected meta-data is stored

in conformance with a uniﬁed meta-model of services

description given in ﬁgure. 2. Our meta-model de-

ﬁnes relevant services meta-data that can facilitate

services discovery and assist selection decisions.

The class ”Service” provides the name, the de-

scription, the endpoint and the available regions of

the service. Each cloud service has a category and

offers multiple products, a service product is deﬁned

as a business operation characterized by a price per

unit (for example 0.01$ per GB for a storage service),

a product family (such as data request), a begin range

and an end range for payment. The class ”Provider”

presents information related to the service’s provider.

The class ”QoS” presents the QoS which are; the re-

sponse time, availability and reliability.

Identifying services functional features is consid-

ered as an important pillar in cloud services discovery.

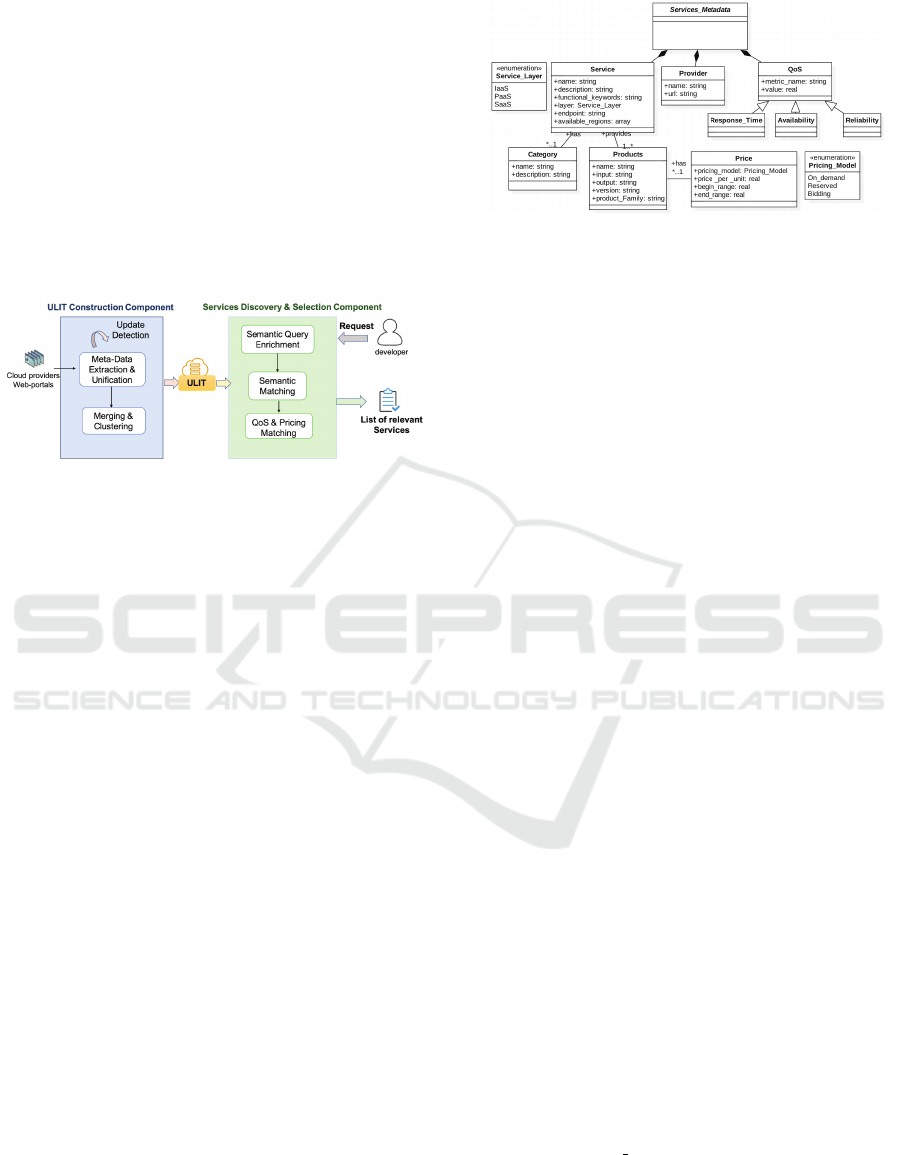

Figure 2: Meta-Model of cloud services meta-data.

In order to automatically extract relevant keywords

presenting the functional features of cloud services,

we use a natural language processing tool named

Stanford Parser (Marneffe and Manning, 2015). The

Stanford Parser can identify the grammatical structure

of each sentence of service descriptions by creating

grammatical relations or type dependencies among el-

ements in the sentence. These dependencies are called

Stanford Dependencies SDs (Marneffe and Manning,

2015). In our work, we model keywords as a set of

binary relations < action,ob ject >, where action de-

notes the functional feature of the service. Object de-

notes the entities affected by the action. Then, we use

the SD sets to properly identify the grammatical re-

lations between < action,ob ject >. In fact, each SD

is a binary relation between a governor (also known

as a regent or a head) and a dependent (Marneffe and

Manning, 2015).

To illustrate, let’s suppose this sentence ” This ser-

vice offers compute capacity in order to deploy work-

loads in a public cloud.”. We use the following SD:

• Relation direct object: dobj(governor, dependent)

generally appears in the active voice, in which the

governor is a verb, and the dependent is a noun

or noun phrase as the direct object of governor.

In our case, we obtain dobj(offers, capacity ) and

dobj(deploy, workloads) .

• Relation adverbial clause modiﬁer: ad-

vcl(governor, dependent), an adverbial clause

modiﬁer of a verb phrase or sentence is a clause

modifying the verb (consequence, conditional

clause, purpose clause, etc.). For instance,

advcl(offers, deploy).

• Relation prepositional modiﬁer: prep(governor,

dependent), is any prepositional phrase that serves

to modify the meaning of the verb, adjective,

noun, or even another preposition. In our case,

we obtain prep in(deploy, cloud).

The basic keywords extracted above may not present

relevant functional features semantics. For exam-

ple, the pair {offers, capacity}, we expect that it

is {offers, compute capacity}. Likewise, the pair

Cloud Services Discovery and Selection Assistant

161

Figure 3: Functional keywords extraction.

{deploy, cloud} was expected to be {deploy, public

cloud}. Therefore, the semantic extension of the ba-

sic extracted keywords is necessary. The semantic ex-

tension mainly refers to the noun part of the service

functional feature. In fact, the semantic extension of

nouns mainly includes qualiﬁers, adjectives, nouns,

gerunds, and adverbs. Through the analysis of the text

description of cloud services, we note that qualiﬁers,

adverbs do not provide the semantic information, we

need only a few adjectives to contain useful business

semantic information. Therefore, we consider nouns

and gerunds as modiﬁers for semantically extending

the keywords. In the Stanford Parser, we mainly con-

sider the noun compound modiﬁer; nn(governor, de-

pendent) relationship, which indicates that both the

governor and dependent are nouns, and dependent is

treated as a modiﬁer to modify the governor.

Finally, we created a stop-word list to remove the

meaningless functional features which contain verbs

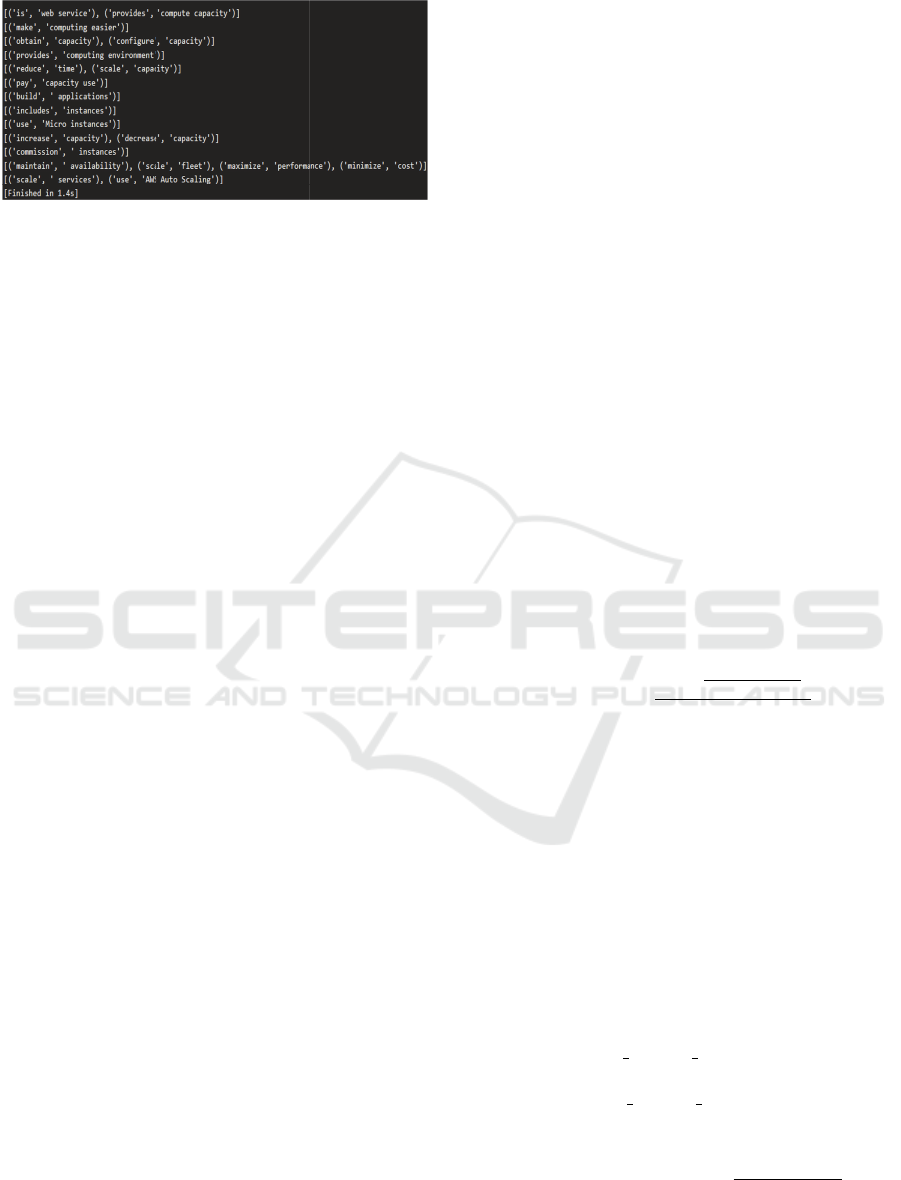

such as ”allow, get, can, helps, etc.”. Figure 3 illus-

trates a real example tested on a text description of a

compute service offered by AWS (Amazon compute

service description, 2019).

4.1.2 Merging & Clustering

We classify services referenced in our data-set in uni-

ﬁed categories. Our main purpose, in this step, is to

provide to the developers uniﬁed services categories

regardless of cloud providers. Several cloud providers

organize their offered services in different categories.

We take advantage of the disposed categories in our

uniﬁcation process. indeed, common categories over

different providers can be easily uniﬁed, while oth-

ers are merged using a clustering algorithm based

on the textual description of services categories. To

do so, ﬁrst of all, we extract appropriate keywords

expressing the functional features of services cate-

gories as explained previously for services descrip-

tion. Second, we calculate the semantic similarity

between each pair of categories based on extracted

keywords. Finally, we gather categories into clusters

using a modiﬁed K-means clustering algorithm. We

detail each step as the following:

Classes Similarity Computation. We base our clus-

tering approach on the following heuristic: Services’

categories over different providers tend to respond to

the same business requirements if they share the same

or similar keywords describing their functional fea-

tures.

After identifying categories’ functional features

which are the set of pairs < action,ob ject >, we cal-

culate the similarity SC

)

between services cat-

egories over different providers. We denote C

, p

,..., p

} a category’s functional features,

where p

is the pair < action,ob ject > and |C

| the

cardinality of C

, (the number of pairs p

The similarity SC

)

is inspired from (Lin,

1998). Indeed, the authors prove the relevance of

the proposed similarity formula in the context of

words pairs similarity. The main asset of this work

is deﬁning similarity in information theoretic terms

which ensure the universality of the similarity mea-

sure. The main issue of many similarity measures

is that each of them is tied to a particular applica-

tion or assumes a particular domain model. Dealing

with this issue, the proposed similarity measure has

signiﬁcantly improved words’ pairs similarity. The

similarity formula SC

)

presents the sum of the

similarities between each pair p

of C

, and the pairs

, p

,..., p

} of C

, normalized by the cardi-

nality of C

. Formally, we obtain;

)

∑

i=1

(

∑

j=1

S(p

2 j

)

(1)

where S(p

, p

2 j

) is the pairs similarity.

We deﬁne the pairs similarity as follows:

• Let A

and A

respectively denote the actions in

the pair p

and p

• O

and O

respectively denote objects in the pair

and p

• w

, w

denote the weight of the action part and

the object part. We suppose that some predeﬁned

action has a higher weight such as; offer, provide,

deliver, etc. These weights are deﬁned by the de-

velopers.

• m is the minimum number of objects of the pair

and p

(min number ob jects(p

, p

)) whereas

n is the maximum number of objects of the pair

and p

(max number ob jects(p

, p

)).

The pair similarity is calculated as:

)

= w

)

+ w

∑

i=1

)

(2)

where S

)

is words similarity. We use Jacard

Similarity Coefﬁcient to calculate the word similarity.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

162

In fact, the Jaccard coefﬁcient measures similarity be-

tween ﬁnite sample sets, and is deﬁned as the size of

the union divided by the size of the intersection of the

sample sets.

J(E,F) =

E ∪ F

E ∩ F

(3)

where E and F are two given sets of words. We cre-

ate a feature set F(w) for each word ’w’ (i.e for each

object which is presented by a word in our context)

containing the synonym set, generic word and inter-

pretation of the word w. F(w) is created using Babel-

Net (Pamungkas et al., 2017). Based on (Lin, 1998),

we deﬁne the similarity between the two words as fol-

lows:

)

2 × I(F(w

) ∩ F(w

))

I(F(w

)) + I(F(w

))

(4)

where I(S) represents the amount of information con-

tained in a set of features S. I(S ) is calculated as:

I(S ) = −

∑

f ∈S

logP( f ) (5)

The probability P( f ) can be estimated by the percent-

age of words that have the feature f among the set of

words that have the same part of speech in the entire

BabelNet library database. When two words have the

same feature set, then the maximum similarity is 1.

The minimum similarity is 0 when the intersection of

two words’ features is empty.

Modiﬁed K-means Clustering Algorithm. The K-

means algorithm is an algorithm widely used in the

ﬁeld of data mining. It aims to partition n elements

(observations) into k clusters presented by k data cen-

troids. Usually, k-means uses the Euclidean distance

or Manhattan distance to assign each observation to

the nearest cluster. We propose a modiﬁed K-means

algorithm in order to have meaningful clusters and en-

hance the basic K-means algorithm results.

To do so, ﬁrst, we left frequent and rare words

unclustered. This fact is approved by the (Informa-

tion Retrieval) IR community in order to have the best

performance in automatic query expansion and avoids

over-ﬁtting.

Second, we enhance the cohesion and correlation

conditions deﬁned in the basic K-means algorithm by

quantifying the cohesion and correlation of clusters

based on our semantic functional similarity instead of

Euclidean distances used in the basic K-means algo-

rithm. The Euclidean distance is not consistent in our

context because it does not provide meaningful infor-

mation related to semantic similarity.

Third, to ensure that we obtain clusters with high

cohesion, we only add an item (in our case a services’

category) to a cluster if it satisﬁes a stricter condition,

called cohesion condition. Given a cluster C, an item

’i’ is called a kernel item if it is closely similar to at

least half of the remaining items in C. Our cohesion

condition requires that all the items in the cluster be

kernel items. Formally;

i ∈ C ⇒ ||∀ j ∈ C,i 6= j , Sim(i, j) ≥

||C|| − 1

(6)

We illustrate the major steps of the modiﬁed K-means

algorithm as follows.

Modified K-means Algorithm

Input: classes scopes set (S = s1, ..., sn )

k the number of clusters

Output: k clusters

Let sim(s1, s2) be the similarity function

C = {c1, c2,... , ck }

(set of cluster centroids)

L = {L(s_i)|i = 1, 2, ..., n}

(set of cluster labels)

for all c_i in C do

ci <-- sj {Initialize Centroid (ci) }

end for

for all s_i in S do

l(s_i) <-- index_max_Sim(s_i,c_j)

end for

Centroid_Change <--False

cohesion_condition() <--True

repeat

for all c_i in C do UpdateCentroid(c_i)

end for

for all s_i in S do

M <-- index_max_Sim(s_i,c_j)

if M /= l(s_i) then

l(s_i) <-- M

Centroid_Change <-- True

end if

Verify(cohesion_condition(s_i, s_l))

l in (1, 2, ..., n) l /= i

end for

until (Centroid_Change == False and

Verify(cohesion_condition()))

To keep our data-set up-to-date and manage the dy-

namic evolution of cloud services, we verify, ﬁrst, if

a cloud provider offers a services update’s detection

API. In this case, we take advantage of this API by

using an agent-based system able to execute exist-

ing update’s APIs. Otherwise we revisit providers’

web portal periodically using the web scraper to de-

tect new cloud services or those frequently updated.

After updating ULID, we apply the clustering algo-

rithm in order to assign each new service to the suit-

able cluster.

4.2 Discovery & Selection Component

(DSC)

The DSC is responsible for discovering and select-

ing cloud services that meet the developer’s require-

Cloud Services Discovery and Selection Assistant

163

ments. It is composed of three modules: 1) the seman-

tic query enrichment module, 2) the semantic match-

ing module, and 3) the QoS & pricing matching mod-

ule.

4.2.1 Semantic Query Enrichment

The Semantic Query Enrichment (SQE) aims to se-

mantically enrich the keywords introduced by the de-

veloper using BabelNet (Pamungkas et al., 2017).

Indeed, as a dictionary, BabelNet covers some spe-

ciﬁc terms from every word related to their terms.

It maps all the stemmed words into their lexical

categories. BabelNet groups nouns, verbs, adjec-

tives, and adverbs into sets of synonyms called

synsets. The synsets are organized into senses, giving,

thus, the synonyms of each word, and also into hy-

ponym/hypernym (i.e. Is-A), and meronym/holonym

(i.e. Part-Of) relationships, providing a hierarchical

tree-like structure for each word. In order to have

meaningful enrichment, we ﬁlter BabelNet response

by choosing the synsets which are part of the concept

”Cloud Computing” having the id ” bn:01225375n”.

4.2.2 Semantic Matching

The semantic matching module is responsible for

identifying cloud services that best match the ex-

tended developer’s keywords. In fact, after specify-

ing the cluster of cloud services meeting developer’s

requirements, we use the ranking function ”Okapi

BM25” (BM stands for Best Matching) (Whissel and

Clarke, 2011) which is basically a TF-IDF enhanced

function. BM25 is a bag-of-words retrieval function

that ranks a set of documents based on the query terms

appearing in each document. A document, in our

case, is deﬁned by the service’s name and its descrip-

tion, the search query is the introduced keywords by

the developer. One of the most prominent instantia-

tions of the function is as follows;

Given a query Q, containing keywords q

,...,q

the BM25 score of a document ”D” is:

Score(D,Q) =

∑

i=1

IDF(q

)

f (q

,D)(K

+ 1)

f (q

,D) + K

(1 − b + b

|D|

Avgdl

)

(7)

• f (q

,D): is q

’s term frequency in D

• |D|: is the length of the document D in words

• Avgdl: is the average document length in ULID

• k

and b are free parameters, usually chosen,

in absence of an advanced optimization, as

∈ [1.2, 2.0] and b = 0.75

• IDF(q

): is the Inverse Document Frequency

weight of the query term q

. It is usually com-

puted as:

IDF(q

) = log

N − n(q

) + 0.5

n(q

) + 0.5

(8)

• N is the total number of documents in ULID

• n(q

) : is the number of documents containing q

In order to enhance ”Okapi BM25 ” results, we take

into account the location of the keywords in the ser-

vice description text. Indeed, if keywords are located

at the beginning or in the middle of the service de-

scription text, probably, the main service’s purpose

is responding to the functional requirements designed

by these keywords. Consequently, this service is more

important than others where keywords are located in

the end. To do so, we propose a multiplicative factor:

= 1 +

N − i

(9)

where N is number of sentences in the service descrip-

tion text and i is the position of the sentence contain-

ing the keyword in the description text ( i.e i = 1 for

the ﬁrst sentence, etc.), we multiply the rating given

by ”Okapi BM25 by M

. We demonstrate the effec-

tiveness of our proposition in the experimental evalu-

ation.

4.2.3 QoS & Pricing Matching

After discovering the cloud services meeting the de-

velopers’ functional requirements, the QoS & Pricing

Matching module is responsible of identifying ser-

vices which respond to the developers’ budget and

QoS constraints. We proposed in our previous works

(Gabsi et al., 2018), (Gabsi et al., 2019) a person-

alized Simple Additive Weighting (SAW) algorithm

aiming to identify suitable IaaS services meeting de-

velopers non-functional requirements. The elabora-

tion of the QoS & Pricing Matching module to take

into consideration other cloud services models speci-

ﬁcities (PaaS & SaaS services) is the subject of our

ongoing work.

5 RESULTS AND ANALYSIS

In order to illustrate DESCA, we set up, ﬁrstly, by

evaluating each step of the UCC as well as the modi-

ﬁed K-means clustering algorithm. Then, we proceed

by evaluating the overall performance of the DSC.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

164

5.1 ULID Construction Component

Evaluation

To ensure a proper evaluation of the UCC, essentially,

the merging & clustering step, we proceed by an ex-

ternal evaluation, namely, the clustering results are

evaluated based on data that was not used for the

clustering, such as known class labels and external

benchmarks. These types of evaluation methods mea-

sure how close the clustering is to the predetermined

benchmark classes (Rendan et al., 2011). To do so,

we test the UCC on a real data-set presenting Azure

Microsoft cloud services. The test-set is composed of

205 cloud services offered by Azure Microsoft (Mi-

crosoft Azure Services, 2019). It is created by parsing

Azure Microsoft web portal (Microsoft Azure Ser-

vices, 2019) and collecting services meta-data.

5.1.1 Services Functional Keywords Extraction

By analyzing the description of 205 services using the

Stanford Parser, it is worth pointing that the functional

keywords extraction highly depends on the terms used

by the service providers in describing their services.

In some cases, we obtain non-meaningful pairs <

action,ob ject > due to the abundant use of adjectives

for commercial purpose. In our case, we obtained 14

non-meaningful pairs. In order to verify the effective-

ness of our method of extracting functional keywords

(pairs < action, ob ject >), we randomly selected 50

services as experimental data. We ask ﬁve developers

to manually extract the sets of functional keywords

pairs for each service, and compare them to the sets

of functional keywords pairs automatically extracted.

We evaluate the experimental results by calculating

the precision and recall rate. The formula of the pre-

cision and recall rates are deﬁned as follows:

Precision =

∩ S

Recall =

∩ S

(10)

2 × Precision × Recall

Precision + Recall

(11)

Where S

represents the set of functional keywords

pairs that is extracted manually, S

denotes the set

of functional keywords pairs that is automatically ex-

tracted. The Table 1 shows the experimental results

(for reason of space restraint, we display a sample of

ﬁve sets). For the extraction result, we have 0,7 as

precision average, 0,98 as recall average and 0.817 as

F- Measure average.

From Table 1, it can be concluded that the results

of the functional keywords extracted by developers

are different. The reason is that each developer has

a different understanding of services description. The

recall rate of the extracted results is almost close to

1.0. This shows that the automatically extracted sets

of functional keywords pairs can cover all the key-

words sets of each service. The precision average

of the extraction results is 0,7, lower than the recall

rate. The F-measure average is 0.817. This means that

the automatically extracted functional keywords pairs

provides acceptable results, but it leaves scope for en-

hancements due to the non- standardized description

used by services providers.

5.1.2 Modiﬁed K-means Clustering Algorithm

While presenting our approach, we mention that we

take advantage of the proposed services categories al-

ready offered by services providers. Thus, we ap-

plied our clustering algorithm on services’ categories

to unify them over different providers. Our approach

remains accurate if we apply it directly on cloud ser-

vices, namely we cluster services instead of services’

categories. In that respect, we test our clustering al-

gorithm on the test-set composed of 205 services of-

fered by Azure Microsoft (Microsoft Azure Services,

2019). These services are functionally clustered, by

the provider, in 18 categories (Machine learning, An-

alytics, Compute, Management services, etc) which

present the predetermined benchmark classes.

We use the Purity of the Cluster as a metric to an-

alyze the effectiveness of the modiﬁed K-means al-

gorithm (Rendan et al., 2011). The following is the

deﬁnition of cluster purity: suppose that D is the set

of services to be clustered and C is the result of a clus-

tering on D. C

∈ C denotes a cluster in C, whereas S

denotes the standard classiﬁcation result on D, s ∈ S

denotes a class s in S, p

denotes the largest number of

services in the cluster C

which are in common with s.

The cluster purity CP (C

) is deﬁned as:

CP(C

) =

max(p

) (12)

The clustering purity of the whole set of service to be

clustered is deﬁned as:

CP(C) =

∑

i=1

|D|

CP(C

) (13)

We set up our modiﬁed K-means algorithm on k=18.

Figure 4 presents the clusters returned by the algo-

rithm. To correctly interpret our results, we compare

the purity values given by our algorithm to those given

by he basic K-means algorithm. Table 2 shows the

clustering results.

Using the modiﬁed K-means algorithm, the num-

ber of services in each cluster is slightly different

Cloud Services Discovery and Selection Assistant

165

Table 1: Extracted functional keywords results.

Automatically extracted set of func-

tional keywords pairs

Manually Extracted set of func-

tional keywords pairs

Precision Recall F- Mea-

sure

: {< Create,Virtual machine >} S

: {< Create,Virtual machine >} 1 1 1

: {<

Create,Mobile application >

,< Build,Mobile application >

,< Deploy, Mobile application >}

: {<

Create,Mobile application >, <

Deploy,Mobile application >}

0,67 1 0,8

: {< Detect, Human f aces >

,< Identi f y,People >

,< Organize,images >

,< Compare,Image >

,< Veri f y,Features >,<

Provide,Face algor ithm >}

: {< Detect, Human f aces >

,< Identi f y,People >

,< Compare,Image >

,< Veri f y,Features >,<

Provide,Face algor ithm >}

0,83 1 0,9

: {< Create,Data pipelines >

,< Monitor,Data pipelines >,<

Orchestrate,work f lows >}

: {< Create,Data pipelines >

,< Monitor,Data pipelines >,<

Accelerate,Data integration >,<

Orchestrate,work f lows >}

0,75 1 0,86

: {< Protect, Data >,<

Provide,Backup >}

: {< Protect, Data >,<

Provide,Backup >}

1 1 1

Table 2: Cluster purity results.

Cluster Results

Central Service

of Cluster

Number

of Services

Purity

values

Basic

K-means

purity

Cluster 1: Analytics

Azure Analysis

Services

15 0,87 0,67

Cluster 2: Compute Virtual Machines 13 0,85 0,62

Cluster 3: Containers Container Registry 7 1 0,57

Cluster 4: Databases Azure Database 11 0,91 0,72

Cluster 5: AI + Machine Learning

Machine Learning

Services

31 0,90 0,65

Cluster 6: Developer Tools Azure Lab Services 9 1 0,67

Cluster 7: DevOps Azure DevOps Projects 8 0,88 0,63

Cluster 8: Identity Azure Active Directory 6 0,67 0,50

Cluster 9: Integration Event Grid 5 0,60 0,40

Cluster 10: Web Web Apps 7 0,86 0,57

Cluster 11: Storage Storage 13 0,92 0,69

Cluster 12: Security Security Center 11 0,55 0,42

Cluster 13: Networking Virtual Network 13 0,85 0,62

Cluster 14: Mobile Mobile Apps 8 0,88 0,50

Cluster 15: Migration Azure Migrate 5 1 0,60

Cluster 16: Media Media Services 8 1 0,75

Cluster 17: Management Tools

Azure Managed

Application

21 0,67 0,48

Cluster 18 : Internet of Things IoT Central 14 0,92 0,64

Clustering Purity 0,78 0,60

from that obtained according to the pre-classiﬁed ser-

vices. This difference is due to some confusing de-

scriptions basically for services in the integration and

management tools clusters as well for the security and

identity clusters. This explains the reason why the CP

value is not very high for these clusters.

In light of the clustering results, we have 0,78 as

purity value. It is worth mentioning that the proposed

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

166

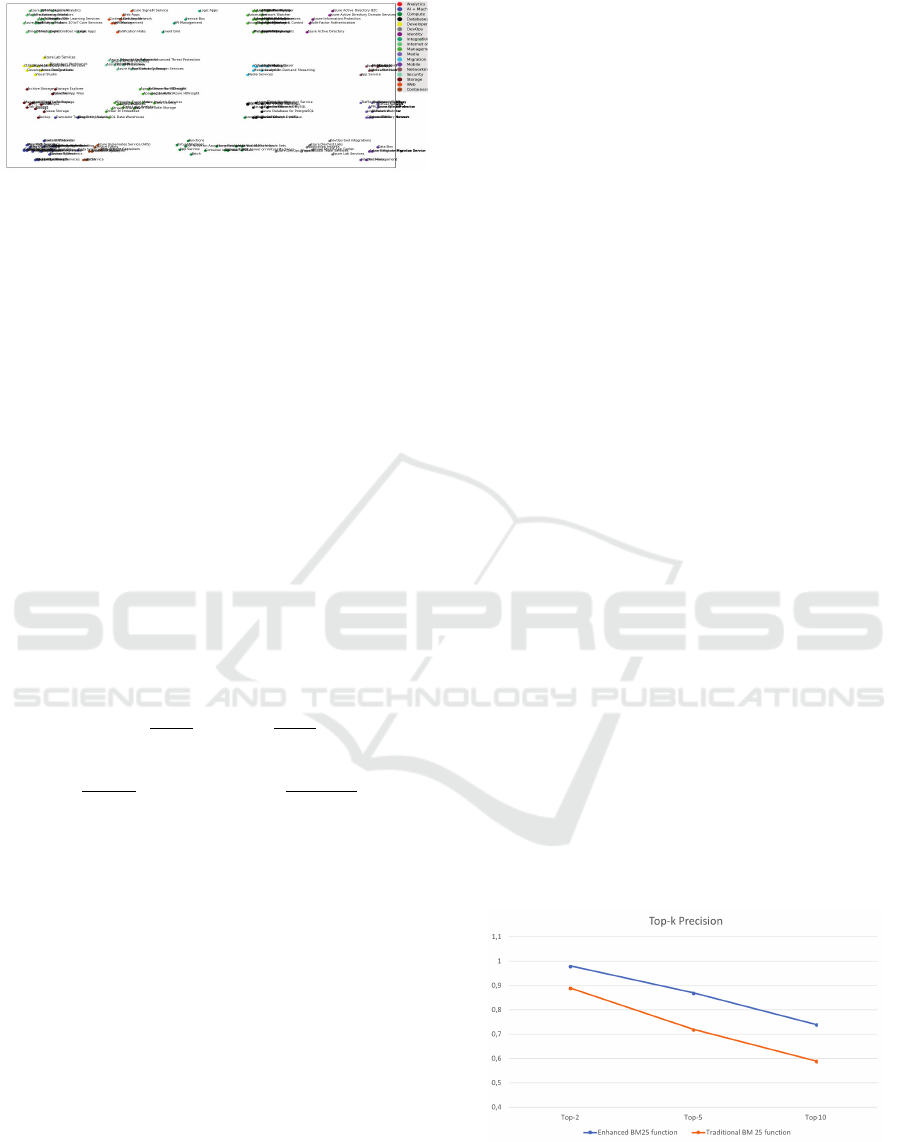

Figure 4: Services clustering results.

modiﬁcations (the cohesion condition, the weak cor-

relation and the semantic similarity function) made on

the basic K-means algorithm have contributed to bet-

ter purity values (0,78 instead of 0,60).

5.2 Discovery & Selection Component

Evaluation

We evaluate the DSC using the recall (R), the pre-

cision (P), the Top-k precision (P

) and the R- pre-

cision (P

) metrics. In this context, the precision

evaluates the capability of the system to retrieve top-

ranked services that are most relevant to the develop-

ers need, and it is deﬁned to be the percentage of the

retrieved services that are truly relevant to the devel-

opers’ query. The recall evaluates the capability of the

system to get all the relevant services in the data-set.

It is deﬁned as the percentage of the services that are

relevant to the developer need.

Formally, we have;

P =

Rel

Ret

R =

Rel

|Rel|

(14)

Rel,k

= P

|Rel|

Rel,|Rel

|Rel|

(15)

where Rel denotes the set of relevant services, S

Ret

is the set of returned services, S

Rel

is the set of re-

turned relevant services and S

Rel,k

is the set of rele-

vant services in the top k returned services. Among

the above metrics, P

is considered to most precisely

capture the precision and ranking quality of the sys-

tem. We also plotted the recall/precision curve (R-

P curve). An ideal discovery and selection assistant

has a horizontal curve with a high precision value; an

inappropriate assistant has a horizontal curve with a

low precision value. The R-P curve is considered by

the (Information Retrieval) IR community as the most

informative graph showing the effectiveness of a dis-

covery system (Davis and Goadrich, 2011).

In order to evaluate DSC, we present in Table 3 the

results of some queries (for reason of space restraint,

we display the top-4 retrieved services). The region

”Ireland” is chosen by default for all the queries. We

evaluated the precision of the retrieved services for

different queries, and report the average top-2, top-

5, and top-10 precision. To ensure the top-10 preci-

sion is meaningful, we selected queries which return

more than 15 relevant services. DSC returns a total of

20 services per query. Figure 6 illustrates the results.

The top-2, top-5, and top-10 precisions of DESCA us-

ing the enhanced BM25 function are 98%, 87%, 74%

respectively, while the basic BM 25 results are 89%,

72%, 59% respectively. This demonstrates that tak-

ing into account the location of the keywords in the

services text description (the enhanced BM25 func-

tion) can effectively improve the precision of the sys-

tem. We plot the average R-P curves to illustrate the

overall performance of DESCA. As mentioned pre-

viously, an ideal discovery assistant has a horizontal

curve with a high precision value. Typically, preci-

sion and recall are inversely related, ie. as precision

increases, recall falls and vice-versa. A balance be-

tween these two needs to be achieved by a discovery

assistant. As illustrated by ﬁgure 5 and ﬁgure 6, for

a recall average equals to 0,65 we have 0,87 as preci-

sion value. In fact, as an example, for the query con-

taining {Virtual Machine, Compute Capacity, Server}

as keywords, we have 30 services considered as rel-

evant in ULID i.e |Rel| = 30, DESCA returns a total

of 20 services per query i.e |S

Ret

| = 20, among them

18 services are considered relevant i.e |S

Rel

| = 18. We

obtain a precision value P = 18/20 = 0,9 and a recall

value R = 18/30 = 0,6.

It is worth pointing out that in some cases, de-

pending on particular requirements, high precision at

the cost of a recall or high recall with lower precision

can be chosen. Thus evaluating a discovery and se-

lection assistant must be related to the purpose of the

discovery and the search process. In our case a com-

promise between the recall and the precision values is

necessary. Therefore, we can announce that DESCA

provides accurate results for cloud services discovery

and selection.

Figure 5: Top-k precision for retrieved services.

We present in ﬁgure 7 an extract of the returned re-

sult for our motivating scenario presented in Section

2. We suppose that the e-commerce website devel-

Cloud Services Discovery and Selection Assistant

167

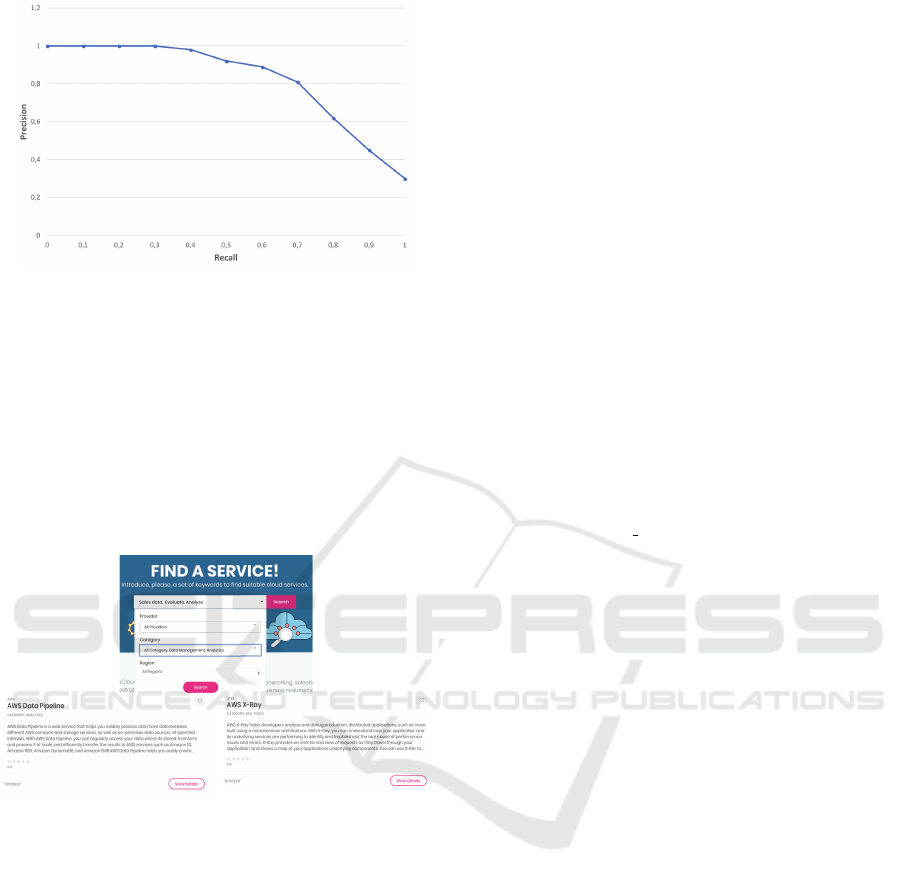

Figure 6: R-P curves of DESCA.

oper look for a data analysis service to evaluate the

sales data. He/She may introduce the followings set

of keywords: ” Sales data, Evaluate, Analyze”. The

result is presented by DESCA as a set of services (and

their short descriptions). The developer can access to

all the details about each service. Moreover, we pro-

pose for each service a link of the related cloud pat-

terns (Cloud Patterns, 2019) to explain and illustrate

its relevant development use cases.

Figure 7: Services discovery results.

6 CONCLUSIONS

Cloud computing offers several services that change

the way applications are developed. The key pillar in

cloud applications development is an efﬁcient and ac-

curate cloud service discovery and selection meeting

developers requirements. After conducting a compre-

hensive investigation of cloud services discovery ap-

proaches, we concluded that proposing a discovery

and selection assistant based on a developer’s query

expressed in natural language can greatly simplify

and expedite the discovery and selection process. Our

discovery assistant DESCA is based on a public cloud

service data-set named ULID which is available on

(ULID , 2019). ULID services are classiﬁed accord-

ing to their functional features using our clustering

algorithm. Indeed, we enhance the basic K-means al-

gorithm to ensure a better cohesion of clusters and a

meaningful semantic similarity between them. Our

enhancements have contributed to better clusters pu-

rity values.

Our ongoing research includes further investiga-

tions on supporting more QoS metrics. The crucial

challenge is to take into consideration the ﬂuctua-

tion of some QoS metrics between runtime and de-

sign time such as throughput and bandwidth. In ad-

dition, we plan to extend DESCA to support more

cloud providers and propose relevant recommenda-

tions based on developers previous searches.

REFERENCES

Abdul Quadir Md, V. V. and Mandal, K. (2019). Efﬁcient

algorithm for identiﬁcation and cache based discovery

of cloud services. In Journal of Mobile Networks and

Applications, pages 1181–1197.

Amazon compute service description (2019). Amazon com-

pute service description. URL: https://aws.amazon.

com/ec2/?nc1=h ls [accessed: 05-01-2020].

Asma Musabah Alkalbani, W. H. and Kim, J. Y. (2019).

A centralised cloud services repository (ccsr) frame-

work for optimal cloud service advertisement discov-

ery from heterogenous web portals. In IEEE Access,

volume 7, pages 128213 – 128223.

Bey, K. B., Nacer, H., Boudaren, M. E. Y., and Ben-

hammadi, F. (2017). A novel clustering-based ap-

proach for saas services discovery in cloud environ-

ment. In Proceedings of the 19th International Con-

ference on Enterprise Information Systems, volume 1,

pages 546–553. SciTePress.

Cloud Patterns (2019). Cloud Patterns. URL: http://www.

cloudpatterns.org/ [accessed: 05-01-2020].

Davis, J. and Goadrich, M. (2011). The relationship be-

tween precision-recall and roc curves. In Information

Retrieval, pages 233–240.

Elsevier Mendeley Data (2019). Elsevier Mende-

ley Data . URL: https://www.elsevier.

com/authors/author-services/research-data/

mendeley-data-for-journals [accessed: 05-01-2020].

Gabsi, H., Drira, R., and Ghezala, H. H. B. (2018). Person-

alized iaas services selection based on multi-criteria

decision making approach and recommender systems.

In International Conference on Internet and Web Ap-

plications and Services, pages 5–12.

Gabsi, H., Drira, R., and Ghezala, H. H. B. (2019). A hybrid

approach for personalized and optimized iaas services

selection. In International Journal on Advances in In-

telligent Systems.

Jrad, F., Tao, J., Streit, A., Knapper, R., and Flath, C.

(2015). A utility based approach for customised cloud

service selection. In International Journal of Compu-

tational Science and Engineering, volume 10, pages

32–44.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

168

Lin, D. (1998). An information-theoretic deﬁnition of simi-

larity. In International Conference on Machine Learn-

ing, volume 1, pages 296–304.

Lizarralde, I., Mateos, C., Rodriguez, J. M., and Zunino,

A. (2018). Exploiting named entity recognition for

improving syntactic-based web service discovery. In

Journal of Information Science, volume 45, pages 9

–12.

Marneffe, M.-C. and Manning, C. D. (2015). The stan-

ford typed dependencies representation. In Proceed-

ings of the workshop on Cross-Framework and Cross-

Domain Parser Evaluation, pages 1–8.

Martino, B. D., Pascarella, J., Nacchia, S., Maisto, S. A.,

Iannucci, P., and Cerr, F. (2018). Cloud services cate-

gories identiﬁcation from requirements speciﬁcations.

In International Conference on Advanced Information

Networking and Applications Workshop, volume 1,

pages 436–441.

Microsoft Azure Services (2019). Microsoft Azure

Services. URL: https://azure.microsoft.com/en-us/

services/ [accessed: 05-01-2020].

Pamungkas, E. W., Sarno, R., and Munif, A. (2017). B-

babelnet: Business-speciﬁc lexical database for im-

proving semantic analysis of business process models.

In Proceedings of the workshop on Cross-Framework

and Cross-Domain Parser Evaluation, volume 15,

pages 407–414.

Rajganesh Nagarajan, R. T. and Selvamuthukumaran

(2018). A cloud broker framework for infrastructure

service discovery using semantic network. In Interna-

tional Journal of Intelligent Engineering and Systems,

volume 11, pages 11–19.

Rendan, E., Abundez, I., Arizmendi, A., and Quiroz, E. M.

(2011). Internal versus external cluster validation in-

dexes. In International Journal on Advances in Intel-

ligent Systems, volume 1.

Sun, L., Dong, H., Khadeer, F., Hussain, Hussain, O. K.,

and Chang, E. (2014). Cloud service selection: State-

of-the-art and future research directions. In Journal

of Network and Computer Applications, volume 45,

pages 134–150.

ULID (2019). ULID . URL: http://dx.doi.org/10.17632/

7cy9zb9wtp.2 [accessed: 05-01-2020].

Whissel, J. S. and Clarke, C. L. A. (2011). Improving doc-

ument clustering using okapi bm25 feature weighting.

In Information Retrieval, volume 14, pages 466–487.

Table 3: Top-4 retrieved services.

Developer queries

Top-4 retrieved services (enhanced BM25)

Top-4 retrieved services (basic BM25)

Services Prince per Unit

Storage capacity

Backup

Object storage

Data security

Google Cloud Storage $0,02 per GB Oracle Storage IBM EVault

IBM Object Storage $0,02 per GB Google Cloud Storage

Oracle Storage $0.025 per GB AWS EBS

AWS S3 $0,04 per GB IBM EVault

Face recognition

Face API

Compare images

Amazon Rekognition $0.10 per 1 Minute 1000 face Oracle Face Detection

IBM Watson Visual Recognition $0.002 per General Tagging Google Api Cloud vision

Google Api Cloud vision $1,50 per 1000 units Amazon Lex

Oracle Face Detection - IBM Watson Tone Analyzer

Video on-demand streaming

Live dynamic streaming

Video encoding

Amazon Kinesis $0.00944 per GB data ingested Google Cloud CDN

IBM Live Event Streaming $99 per Month Oracle Digital Convergence

Google Video Intelligence $0,10 per Minute AWS Elemental

Oracle Event Hub $0.2723 per Minute IBM Multiscreen streaming

Security identiﬁcation

Authentiﬁcation

Data encryption

Access control

Amazon Cognito $0.00550 per Monthly active users IBM Activity Tracker

IBM App ID $0.004 USD/Authentication event Amazon Cloud Directory

Google Cloud IAM Free Google Cloud platform security

Amazon GuardDuty $1.00 per GB Oracle Identity

Cloud Services Discovery and Selection Assistant

169
