Enterprise Security Architecture: Mythology or Methodology?

Michelle McClintock

, Katrina Falkner

, Claudia Szabo

and Yuval Yarom

School of Computer Science, University of Adelaide, North Terrace, Adelaide, Australia

Keywords: Information Systems Security Policy, Enterprise Architecture, Design Science Research, Grounded Method,

Business Process Modelling.

Abstract: Security has never been more important. However, without a holistic security structure that secures all assets

of an organisation (physical, digital or cognitive), an organisation is at a critical risk. Enterprise architecture

(EA) applies engineering design principles and provides a complete structure to design and build an

organisation using classification schema and descriptive representations. The grouping of security with EA,

through a framework with corresponding security classifications and representations, promises a complete

security solution. We evaluate security frameworks and find that grouping security with EA is not new,

however current solutions indicate a lack of research process in development, a disjoint focus in either

technical or policy / department or project. Thus, there is a need for a holistic solution. We use a Design

Science Research methodology to design, develop, and demonstrate a security EA framework that provides

an organisation with a complete security solution regardless of industry, budgetary constraints, or size, and

survey professionals to critically analyse the framework. The results indicate the need for a complete security

structure including benefits in governance, resourcing, functional responsibilities, risk management and

compliance.

1 INTRODUCTION

In less than one year, between April 2018 and March

2019, there were 964 data breach notifications made

under the Australian Notifiable Data Breaches

scheme by businesses, 60% of which were malicious

or criminal attacks. This is a 712% increase in

business notifications compared with the previous 12

months, which demonstrates the size of the security

challenge.

These startling statistics highlight that

effective security has never been more important to

the Australian society (Patterson, 2003), however

very few companies have adopted a cohesive security

strategy that encompasses the protection of all assets

whether they be physical, digital or cognitive

(Roeleven & Broer, 2010). Basic online security

behaviours are not being practiced by Australians and

https://orcid.org/0000-0001-5658-6483

https://orcid.org/0000-0003-0309-4332

https://orcid.org/0000-0003-2501-1155

https://orcid.org/0000-0003-0401-4197

Office of the Australian Information Commissioner, Notifiable Data Breaches Scheme 12-month Insights Report, https://

www.oaic.gov.au/assets/privacy/notifiable-data-breaches-scheme/statistics/ndb-scheme-12month-insights-report.pdf

Last Pass 2017, The Psychology of Passwords: Neglect is Helping Hackers Win, available at: https://blog.lastpass.com/

2018/05/psychology-of-passwords-neglect-is-helping-hackers-win.html/

small to medium business. While 73% use security

software, 44% admitted to sharing passwords

work. Most information security programs manage

each security instance departmentally, e.g. the finance

department is responsible for risk, the human

resources department is responsible for security

checks such as clearances, the ICT department is

responsible for computer security, and the facilities

department is responsible for physical security. This

approach is complicated and uses many different

security models leading to duplication of resources,

responsibility confusion and parts of the organisation

being overlooked entirely (Roberti, 2001; Shariati,

Bahmani, & Shams, 2011). An organisational

security framework that includes all aspects of

security – information, physical, technical process,

people, cycles and risk – and has the flexibility of

McClintock, M., Falkner, K., Szabo, C. and Yarom, Y.

Enterprise Security Architecture: Mythology or Methodology?.

DOI: 10.5220/0009404406790689

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 679-689

ISBN: 978-989-758-423-7

679

implementation to work with an organisation’s

budget, size and security mechanisms, could be used

to mitigate these risks (Angelo, 2001).

We conduct an extensive review of existing

security frameworks, 25 in total, and the results

indicate a comprehensive solution, with all aspects of

security equally considered, does not exist. The

analysis indicates a lack of research process in the

development of existing security frameworks, a

disjoint focus in either technical or policy, and a

department or project focus for their implementation.

Of those frameworks with a holistic approach, the

most common framework methodology referenced

was Enterprise Architecture (EA).

EA is a holistic method to guide the enterprise’s

people, information, processes and technologies, to

achieve the most effective execution of the corporate

vision and strategy (Gorazo, 2014). An EA structure

can reduce unnecessary costs, ad hoc projects,

unintentional reinvention, and provide corporate

direction and relevance (Bente, Bombosch, &

Langade, 2012). The use of EA has a number of

significant benefits, which include a reduction of IT

expenditure, improved process innovation,

standardised business processes, increase in risk

management effectiveness, better strategic planning

and improved business / IT alignment (Kreizman &

Robertson, 2006). EA provides a methodology that

reaches all parts of an organisation. If we are to test

the theory of a complete holistic security model

effecting every aspect of business, EA provides such

a mechanism. The EA benefits also directly address

the concerns of a lack of strategic security and could

be harnessed when employing EA for the design of a

security framework.

An organisational security framework poses

significant challenges and there is a lot of research

that points to the importance and benefits of a holistic

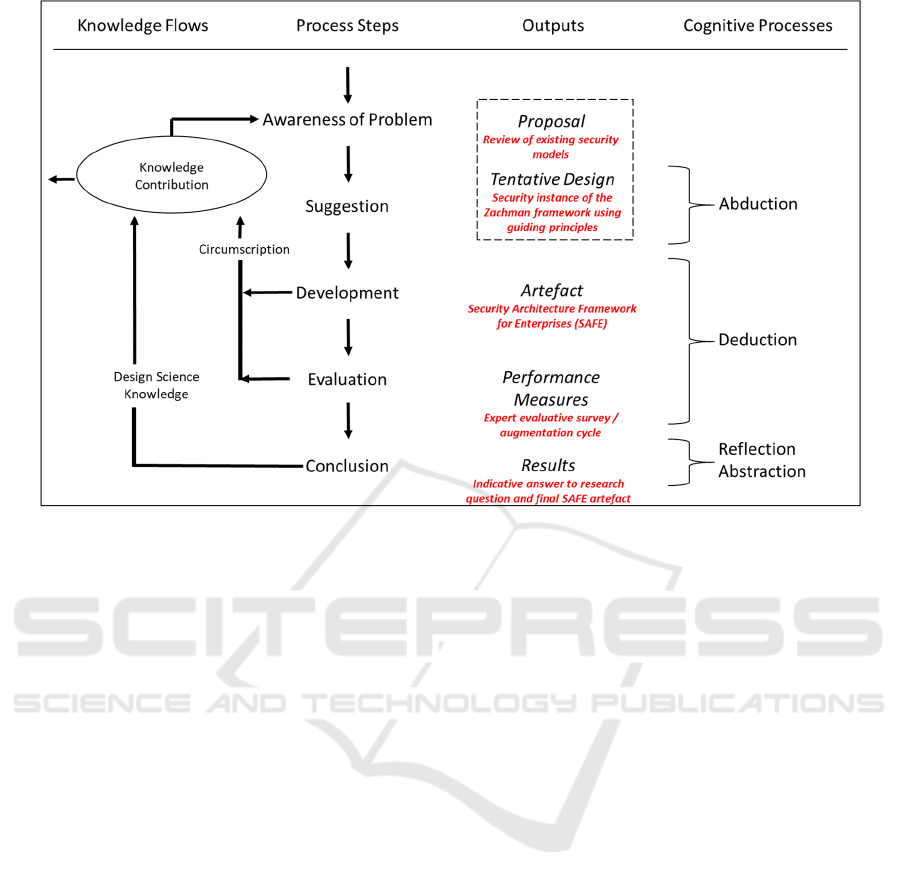

approach (R. Anderson, 2008). To test this, we use a

Design Science Research study methodology to

develop and evaluate a novel, fully researched

enterprise security architecture (ESA) framework for

organisations which is addressing the problem

statement: “will a holistic security model using EA

provide security benefits to an organisation more

effectively than a piecemeal approach”. The

framework is analysed by industry professionals to

determine if a holistic security model can address the

much needed solution to the identified organisational

security gaps and provide security benefits. The

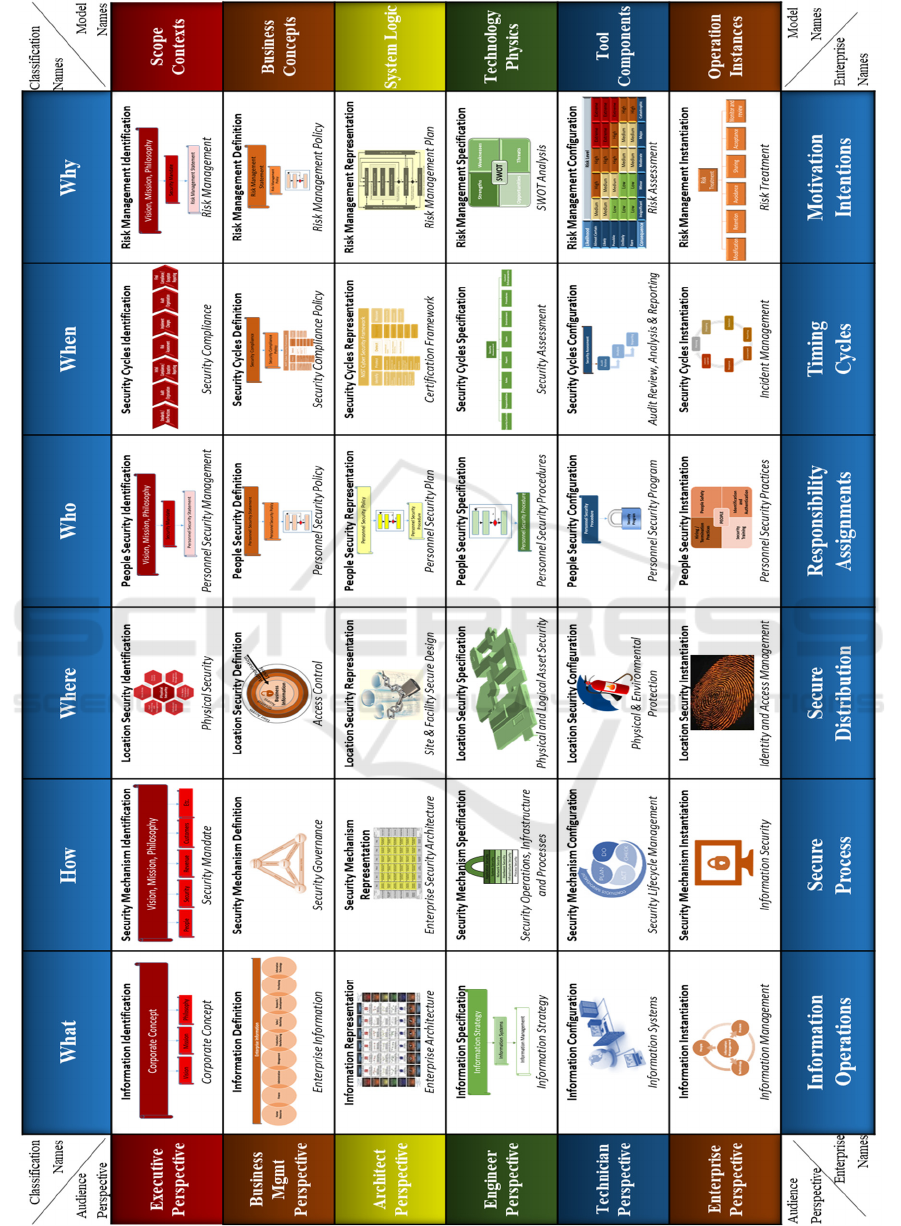

framework, the Security Architecture Framework for

Enterprises (SAFE), is a comprehensive security

solution based on the enterprise architecture

methodology. Our analysis, backed by feedback from

industry professionals, supports our hypothesis that a

holistic security design using EA will provide

security benefits to an organisation more effectively

than a piecemeal approach.

2 LITERATURE REVIEW

We conduct a review of existing security frameworks

to determine the effectiveness and we discover that

coverage is not holistic, it is ineffective, and the only

organisational model that is addressing whole-of-

organisation approach is EA, however it is not applied

effectively. As an example the most well-known and

comprehensive ESA frameworks are the SABSA

(Sherwood, Clark, & Lynas, 1995) and the TOGAF

(Haren, 2011) however while the stated intent of the

frameworks is holistic, the implementation is not. The

SABSA model references the strategic mechanisms

of EA, however it does not include EA in its elements

and does not apply its framework to non-technical

security. The focus in the implementation of security

is low level technical system assets. The TOGAF is

an EA framework that has created a security

architecture as an optional tool. The principle of the

TOGAF is to identify and implement security to only

those parts of the organisation that need it rather than

requiring security throughout an organisation. The

implementations of the TOGAF are similar to the

SABSA, both are effective technical frameworks.

To find existing security frameworks, we search

Google Scholar and the ACM Digital Library

database and we follow citations for articles about

enterprise security architecture. Google search terms

include those associated with enterprise

(‘organisation’, ‘management’, ‘information’,

‘business’, ‘information systems’, ‘information

technology’) AND security AND architecture

(‘information landscape’, ‘structure’, ‘process’,

‘governance’) AND framework (‘model’, ‘plan’).

Relevant works matching our inclusion/exclusion

criteria are entered into EndNote X7.3.1 with the PDF

as an attachment. The results are used for

classification and analysis. The inclusion and

exclusion criteria are determined based on the

simplest version of an ESA framework. An ESA

should have security, architecture and business as its

focus. If the work is not a framework or security is

not the focus, it is excluded. This is done to provide

the broadest definition and therefore capture all

relevant ESA frameworks developed since 1995.

From the analysis and review of all included 25

security models, we establish recommendations for

guiding principles of an enterprise security

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

680

architecture. The review is guided by the following

research question:

Will a holistic security model, using Enterprise

Architecture, provide security benefits to an

organisation more effectively than a piecemeal

approach?

Through research of existing principles for the

development of organisational security models, the

four most referenced principles are drawn out. Our

analysis shows the majority of the 25 frameworks

satisfy a subset of these four identified principles and

are discussed below:

1. The purpose of an effective framework should

be to support the organisation’s vision. Specifically,

a security mechanism for all organisational assets is

satisfied by six frameworks (Eloff & Eloff, 2005;

Killmeyer, 2006; Organisation, 2013; Saleh &

Alfantookh, 2011; Scholtz, 2006; Sherwood et al.,

1995).

2. An internationally recognized standard should

be used to provide a security assurance to the

framework developed. From the framework reviews,

the choices are ISO/IEC 27000 and NIST. 15

frameworks satisfy compliance to international

security standards (J. A. Anderson & Rachamadugu,

2008; Atoum, Otoom, & Abu Ali, 2014; Bernroider,

Margiol, & Taudes, 2016; Eloff & Eloff, 2005;

Jeganathan, 2016; Korhonen, Yildiz, & Mykkanen,

2009; NIST;, OMB;, & FCIO, 2010; Rees,

Bandyopadhyay, & Spafford, 2003; Reza Bazi,

Hasanzadeh, & Moeini, 2017; Saleh & Alfantookh,

2011; Shen, Lin, & Rohm, 2009; Sun & Chen, 2008;

Trcek, 2003; Wahe, 2011; Webb, Ahmad, Maynard,

& Shanks, 2014).

3. The framework development should be based

on EA. Use of an EA reference is indicated by eight

frameworks (J. A. Anderson & Rachamadugu, 2008;

Ertaul & Sudarsanam, 2005; Ho, 2002; Jeganathan,

2016; NIST; et al., 2010; Scholtz, 2006; Shen et al.,

2009; Sherwood et al., 1995).

4. The development of an ESA framework

should be a focus for the whole of the organisation,

not just singular departments or assets. A holistic

framework is demonstrated by 14 frameworks (J. A.

Anderson & Rachamadugu, 2008; Atoum et al., 2014;

Eloff & Eloff, 2005; Ho, 2002; Jeganathan, 2016;

Killmeyer, 2006; Korhonen et al., 2009;

Organisation, 2013; Posthumus & Von Solms, 2004;

Scholtz, 2006; Shen et al., 2009; Sherwood et al.,

1995; Wahe, 2011; Webb et al., 2014).

An important and critical issue that remains

unaddressed is the development and critical review of

an ESA that relies on all thoroughly researched

principles. The principles we identify above provide

a foundation to develop the ESA framework and

evaluate the design which is addressing the problem

statement “will a holistic security model using EA

provide security benefits to an organisation more

effectively than a piecemeal approach”. Table 1 is the

list of frameworks we review and analyse.

Table 1: Existing security frameworks review.

Year Author Framework Name Notable Features

(1995) Sherwood, Clark,

Lynas

Sherwood Applied Business

Security Architecture

Project-based implementation

(2000) Sandhu The Objective and Model -

Architecture Mechanism

Framework

Based on a Network Protocol Stack with a many to

many relationships between each layer

(2002) Ho Security Management

Framework

Theoretical

(2003) Trcek Information Systems Security

Management Framework

Nine Planes (Technology, Organisation, Legislation,

Human Interactions, Human-Machine Interactions,

Crypto Protocols, Crypto Primitives, Assets, Physical

Security)

(2003) Rees,

Bandyopadhyay,

Spafford

Policy Framework for

Interpreting Risk in E-Business

Security

Four Phases (Assess, Plan, Deliver, Operate)

(2004) Posthumus, Von

Solms

Information Security

Governance Framework

Four Aspects (Legal, Business, Infrastructure,

Standards)

(2005) Ertaul,

Sudarsanam

Enterprise Security Plan Column 6 of Zachman (Why) replaced with "External

Requirements and Constraints"

Enterprise Security Architecture: Mythology or Methodology?

681

Table 1: Existing security frameworks review (cont.).

Year Author Framework Name Notable Features

(2005) Eloff, Eloff Information Security

Architecture

Five Requirements (Holistic, Controls,

Comprehensive, Life-cycle, Measurable)

(2006) Killmeyer Information Security

Architecture

A "How-To" book for implementing an Information

Security Architecture

(2006) Scholtz Gartner Enterprise Information

Security Architecture

Three-Layered Pyramid (Conceptual, Logical,

Implementation)

(2008) Anderson,

Rachamadugu

Roadmap for Information

Security Across the Enterprise

Three tiers (Profile, Plan, Protect)

(2008) Sun, Chen Intelligent Enterprise

Information Security

Architecture

Based on the seven layers of the Open Systems

Interconnection (OSI) Reference Model

(2009) Korhonen, Yildiz,

Mykkanen

Service Orientated Architecture

Security Governance Model

Four layers (Strategic, Tactical, Operational, Real-

Time)

(2009) Shen, Lin, Rohm Enterprise Security Architecture

Framework

Three noted dimensions - Framework, Policy and

Technical

(2010) NIST, OMB,

FCIO

US Federal Enterprise

Architecture Security and

Three Stage Methodology - Identification, Analysis,

Selection

(2011) Saleh, Alfantookh Information Security Risk

Management Framework

Five domains (Strategy, Technology, Organization,

People, Environment)

(2011) TOGAF Open Enterprise Security

Architecture

Four dimensions (Program Management,

Governance, Enterprise Architecture, Operations)

(2013) ISO/IEC 27000 International Standard for

Information Technology -

Security

Fourteen Security Control Clauses (Policy,

Organisation, Human Resources, Asset Management,

Access Control, Cryptography, Physical and

Environmental, Operations, Communications, System

Acquisition Development and Maintenance, Supplier

Relationships, Incident Management, Business

Continuity, Compliance)

(2014) Atoum, Otoom,

Ali

Holistic Cyber Security

Implementation Framework

A framework / strategy to determine current security

level and gap analysis for new security level

(2014) Webb, Ahmad,

Maynard, Shanks

Situation Aware - Information

Security Risk Management

Model

Collection, analysis and reporting of organisational

risk information to improve information security risk

assessment

(2015) Luhach & Luhach Logical Security Framework Framework based on Service Orientated Architecture

to reduce security attacks

(2015) DiMase, Collier,

Heffner, Linkov

Cyber Physical Systems

Security Framework

Cyber physical system security framework using

systems engineering principles

(2016) Jeganathan Enterprise Security Architecture

Framework

An enterprise security architecture framework using

people, processes and technologies

(2016) Bernroider,

Margiol, Taudes

Information Security

Management Assessment

Framework

Design Science Research to create a security critical

infrastructure framework - four dimensions - security

ambition, security process, resilience, business value

(2017) Bazi,

Hassanzadeh,

Moeini

Cloud migration framework A secure cloud computing framework using meta-

synthesis - uses a seven stage maturity model

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

682

Figure 1: SAFE outputs in Design Science Research Cycle (Vaishnavi & Kuechler, 2004).

3 METHOD

A Design Science Research (DSR) study suited the

research due to the emphasis on the design and

creation of an artefact to test a research question

(Venable, Pries-Heje, & Baskerville, 2016). The

philosophy is constructivist, the approach is inductive

and the choice of data analysis is qualitative using the

grounded theory methodology to analyse a qualitative

questionnaire.

Vaishnavi & Kuechler (2004) describe the body

of DSR knowledge as man-made objects – artefacts –

that are designed to meet specific goals. It creates

novel contributions through the design of new

artefacts including the analysis of their operation

using evaluation and abstraction. DSR uses design as

a research method that maps functional requirements

on to a fulfilling artefact. The design action is

justified using a kernel theory – an established theory

that when the new design action is complete, may

improve or broaden the purpose of the initial kernel

theory. For the purposes of this research, the kernel

theory is Enterprise Architecture and the

improvement of the theory is the security dimension

design created strictly based on the foundational

principles of Enterprise Architecture.

As indicated in Figure 1 there are five steps. We

overlay our research (coloured red) onto the Outputs

column to demonstrate our use of this methodology.

The artefact discussed above is termed the security

architecture framework for enterprises (or the

framework) for the remainder of the paper.

4 ARTEFACT DESCRIPTION

Using the four principles identified in Section 2, the

framework is developed from the Zachman

framework 2013 Version 3.0 (Zachman, 1996)

because it is the most complete, most referenced in

our frameworks review, and historically the

methodology that is chosen by others to base their

frameworks on. We methodically develop all 36 cells

of the security instantiation by research and analysis

of the 36 Zachman cells. The outcome is the ESA

framework which is an exact matching overlay of the

Zachman framework as a security instantiation. The

following discussion provides an explanation of the

rows and columns of the security framework.

4.1 Audience Perspectives / Stages of

Reification (The Rows)

The perspectives in the Zachman framework

constitute a complete way to build and view an

organisation from the initial concept to the final

Enterprise Security Architecture: Mythology or Methodology?

683

instantiation. Our security framework retains the rows

of the Zachman framework with no changes.

Executive Perspective / Identification – The

executive perspective is defined at the inception of a

company, is the identification of the concept for the

business and is externally focused.

Business Management Perspective / Definition –

The business management perspective is internally

focused in that it defines the executive, external

concept for the enterprise, into a business model of

enterprise design and operational reality.

Architect Perspective / Representation – The

architect perspective represents the business model as

the required pieces or building blocks of the

enterprise and indicates how they will interact with

each other.

Engineer Perspective / Specification – The

requirements and specifications of the systems

(detailed designs) of the organisation are designed at

the engineering perspective.

Technician Perspective / Configuration – The

technician perspective is the business component

level implemented using specific tooling

configurations.

Enterprise Perspective / Instantiation – The

enterprise perspective is the instantiation of the

reification process from Row 1 to 5, outworked and

demonstrated in the functioning organisation. At this

stage of the framework, the artefacts are the actual

organisation not the architectural abstractions like the

previous five rows.

4.2 Classification Names

(The Columns)

The columns of the framework are the English

interrogatives and provide the detail of each row or

organisational view. Where the differentiation for our

security framework comes is the answer to the

interrogative questions. All columns of the security

framework are addressed by each having a related

security question asked of the interrogative rather

than the Zachman question. By doing so, the integrity

of the Zachman is retained but the security instance is

created. Table 2 shows the original Zachman

framework interrogative definitions alongside the

security framework definition.

4.3 Framework Development

Once the high-level categories are defined for each

cell, the detail needs to be developed to explain what

each cell actually means so the framework can be

given to potential users for evaluation purposes.

Figure 2 is an example of the instances of the cell

definitions, we develop for all 36 cells. For all cells,

a detailed research process is conducted to understand

the original Zachman intent and develop authentic

instances which results in four factors being defined.

Those were:

1. Detailed explanation – what is the definition and

purpose of the cell.

2. Pictorial model – a pictorial description for ease

of understanding to users.

3. Framework example – shows the use of the cell

using a real-world example.

4. Compliance mapping to ISO 27000 and NIST.

In summary, our notional framework is completed

and three layers of abstraction developed. The row /

column categories, the detailed security definitions

and the more detailed definitions (pictorial model,

framework example and compliance mapping) for

use by organisation for understanding. The final

framework is compliant with the four guiding

recommendations including compliant to NIST and

ISO 27000 international security standards. Figure 3

is the completed Security Architecture Framework

for Enterprises (SAFE).

5 EVALUATION

To test our design and evolve the conceptual

framework, we share the framework and supporting

documentation for critique with four categories of

professionals – manager, security professional, IT

professional, and researcher. The participants are

asked to review the framework and supporting

documentation in the context of their own

organisations and their expertise, carefully

considering the utility of the design and its

application in a working environment and compared

to their current security situation. To test the utility,

the participants work through each cell and determine

if their organisation has a suitable security instance of

the requirements indicated for that cell, using the

provided explanatory notes.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

684

Table 2: Column definitions – English Interrogatives.

Interrogative Zachman Definition Security Framework Definition

What – Things

The inventory sets, people or information, that

are tracked and managed for the organisation to

function.

The organisation’s most important asset is

information and this is what is being secured.

How – Process

The processing of the organisation through

various process types which provide the

transformation models of the assets.

How the organisation secures the information.

Conceptual level security mechanisms are processes

down to final level which are security technologies.

Where – Location

Distribution networks depicted using network

models. Includes business, system, technology or

tool locations.

Where the organisation’s security is conducted. Can

be a physical or logical location.

Who – People

The responsibility assignments are allocated to

the organisational stakeholders and can be

internal or external.

Securing all organisational stakeholders, internal and

external, through security responsibility assignment

from Executive Management to Operational staff.

When – Events

Timing cycles, the intervals and moments of the

organisation and how those are identified as

types, defined, represented, specified and

configured within the architecture and the

organisation.

When the organisation has determined will be the

most effective security timing cycles to provide a

secure organisation. Examples include compliance,

policy, assessment, audit and reviews.

Why – Ends

The objectives and strategies explain why the

organisation is in business, how those

motivations and intentions are outworked

through ends and means.

The essential motivation why security is the risk of

an event occurring which would damage an

organisational asset. The management of that risk is

outworked as security.

Figure 2: Cell E6 Risk Management Configuration (Risk Assessment).

Just as an EA framework can build an

organisation from its inception, so the security

dimension we have created should functionally be

able to build security into all aspects of the

organisation. Theoretically a form of an

organisational security ontology.

To gather the participant’s inputs we design a

questionnaire using an Oppenheim (2000) approach

made up of five demographic questions – including

security industry experience, job category, years of

expertise; and 14 questions aimed at drawing out

Enterprise Security Architecture: Mythology or Methodology?

685

Figure 3: The Security Architecture Framework for Enterprise (SAFE).

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

686

selected aspects of the initial research question.

Examples of the questions include:

 Do you believe a holistic approach to security is

likely to provide a more secure organisation?

 What are the problems or challenges of the

framework for an organisation using it?

 Does it help to have the categories broken down

into organisational levels (rows)?

We use the inductive grounded theory method to

analyse the results from our questionnaire about our

framework. Grounded theory is a methodology by

which qualitative analysis is iterative – the data

(meaningful concepts from the text) are collected and

separated from the conversation and each data unit is

assigned codes. The codes are inspected for patterns

and then reintegrated to form dominant thematic

subjects and connections. (Starks & Brown Trinidad,

2007; Strauss & Corbin, 1994). Through the cyclical

nature of the grounded theory methodology, each

coding phase provides richer thematic results which

are discussed below.

6 DISCUSSION

6.1 Demographic Results

We received 12 returned questionnaires, of which

75% of participants are employed by a large company

(200+ employees), 17% are from a small (1–19

employees) and 8% from a medium (20–199

employees). 42% have security industry experience

and 75% have been in their current role for more than

ten years and consider themselves experts in the field.

The participants come from Industry (58%),

Government (33%) or the Military (8%) in roles such

as management, security professionals, information

technology professionals and researchers.

6.2 Framework Results

The questionnaire responses provide overall thematic

characterisations of the framework and therefore

indicative answers to the research question. The

following discussion describes the overarching

themes indicated though the qualitative analysis

process and direct quotes from participants.

The most common theme in the responses is the

importance and utility of the holistic nature of the

framework – demonstrating the interconnected and

broad nature of security in a single nomenclature. Of

note was the ability of the framework to reduce the

risk of security gaps, the categorisation of the

complete security function, the uses including

security governance, security program, best practice

and a security nomenclature. Both the compliance to

international standards and the holistic nature provide

an assurance for company security certification.

Comments by the participants include “compliance to

NIST and ISO validates the framework in terms of

academic rigour”, “ensures all aspects of security are

covered and assessed”, “organises the complete

security function” and “focuses organisations to

include security elements not traditionally

addressed”.

From a financial decision making perspective, the

framework is said to provide a combination of a risk-

based approach and ensures the highest security risks

will get the highest priority spend. Comments by the

participants include “provides a bases for future

security cost prediction and planning” and “could

provide profit and existential benefits”.

Improved organisational communication in

security is a theme that is cited as a significant benefit

of the framework. Other benefits include defining

who is accountable for security functions and the

roles and skills of the security team defined which

will provide better communication between all levels

of the organisation, ensuring all aspects of security

are covered and assessed. It is acknowledged several

times that setting up this kind of model in an

organisation will require significant resourcing,

including a project team, but once up and functioning

it can be maintained. Comments by the participants

include “provides better communication about

security between all levels of the organisation”,

“provide an understanding of the gaps in security, the

risks and remediation” and “provides good

governance for security”.

An educational theme for the framework is

highlighted, that it will provide a security education

for organisations. Security is a complex and difficult

subject and the risks involved are high therefore using

the framework can show the full extent of issues

involved in security, something not easily known

without a tool. The framework is identified as a very

strong educational tool based on the provided

definitions, frameworks, models and references.

Comments by the participants include “helps build

trust because the right information is comprehensive

and usable to the right audience”, “security policies

and practices can be used to for a cohesive framework

and security program” and “the structural

configuration shows that security is a whole of

organisation responsibility not just IT”.

Enterprise Security Architecture: Mythology or Methodology?

687

A challenge of the framework is complexity. This

is raised more than five times and through deeper

analysis it is noted that the participants most

challenged by the complexity of security do not have

security experience. Comments from participants

include “quite complex”, “the large number of boxes

diminishes the simplicity of the approach”, “it is

complex but is intuitive, logical and easy to use” and

“scalable and adaptable to any organisation”.

Other comments that although were not thematic

are worthy of noting for the future evolution of the

framework include the need for a practical

implementation toolset such as a gap assessment

workbook / a user manual, and testing the framework

within an organisation. Overall the feedback is

supportive and comments from the participants

include “definitions, artefacts, models and references

are a very strong tool”, “could easily continue on and

become a commercial product” and “fantastic

concept that provides a single awareness view for all

security”.

7 CONCLUSIONS

In security, the whole is clearly greater than the sum

of its parts and security has never been more

important. The development of the concept of a

holistic enterprise security architecture, highlights

that security is not just technical but requires a

focusing on all the organisational assets of people,

technology and processes, which will provide

enterprise security management guidance to

contemporary digitalised organisations of the 21st

Century. The benefits of a holistic approach require

all aspects of security to be considered and

implemented based on the budget, size and

mechanisms of the organisation, and provides a

reduction in responsibility confusion and appropriate

resourcing. We conducted a review of 25 security

frameworks to determine if a fully researched and

holistic security methodology would better provide

security benefits to organisations than a piecemeal

approach. The review indicated that there were very

few frameworks that met the holistic test and

therefore the research question could not be answered

without a new framework being created. From the

review, we took recommendations to guide the

framework development – inclusion of all security

mechanisms, compliant to international security

standards, using EA as the foundation and

organisationally holistic in its implementation.

We develop the Security Architecture Framework

for Enterprises (SAFE) using the Design Science

Research method. The framework is based on the

John Zachman 2013 Version 3.0 and its layers of

abstraction were developed with supporting

documentation. The completed framework (Figure 3)

is a 6 x 6 framework and each cell was defined using

1) a detailed explanation, 2) pictorial model, 3)

framework example in the real world and 4)

compliance mapping to ISO 27000 and NIST.

To determine the effectiveness of our framework

in meeting security concerns, we shared the

framework and supporting documentation with

industry professionals using a questionnaire to

evaluate. Our analysis of the questionnaire responses

identified that the evaluation of the security

framework indicates a positive correlation for the

improvement of organisational security if a holistic

design approach was applied.

To mature and evolve the design concept further

there would be benefit from future work such as a

larger design study, a user manual, a case study in a

company or an organisational implementation study.

REFERENCES

Anderson, J. A., & Rachamadugu, V. (2008). Managing

security and privacy integration across enterprise

business process and infrastructure. Paper presented at

the IEEE SCC.

Anderson, R. (2008). Security engineering: John Wiley &

Sons.

Angelo, S. (2001). Security Architecture Model

Component Overview. Sans Security Essentials.

Atoum, I., Otoom, A., & Abu Ali, A. (2014). A holistic

cyber security implementation framework. Information

Management & Computer Security, 22(3), 251-264.

Bente, S., Bombosch, U., & Langade, S. (2012).

Collaborative enterprise architecture: enriching EA

with lean, agile, and enterprise 2.0 practices: Newnes.

Bernroider, E. W., Margiol, S., & Taudes, A. (2016).

Towards a General Information Security Management

Assessment Framework to Compare Cyber-Security of

Critical Infrastructure Organizations. Paper presented

at the Research and Practical Issues of Enterprise

Information Systems: 10th IFIP WG 8.9 Working

Conference, CONFENIS 2016, Vienna, Austria,

December 13–14, 2016, Proceedings 10.

DiMase, D., Collier, Z. A., Heffner, K., & Linkov, I. (2015).

Systems engineering framework for cyber physical

security and resilience. Environment Systems and

Decisions, 35(2), 291-300.

Eloff, J., & Eloff, M. (2005). Information security

architecture. Computer Fraud & Security, 2005(11),

10-16.

Ertaul, L., & Sudarsanam, R. (2005). Security planning

using Zachman framework for enterprises Paper

presented at the EURO mGOV 2005

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

688

Gorazo. (2014). Enterprise Architecture Literature Review.

Haren, V. (2011). TOGAF Version 9.1: Van Haren

Publishing.

Ho, L. (2002). Security Management Framework: A New

Approach based on John Zachman's Framework for

Enterprise Architecture.

Jeganathan, S. (2016). Enterprise Security Architecure.

Killmeyer, J. (2006). Information security architecture: an

integrated approach to security in the organization:

CRC Press.

Korhonen, J. J., Yildiz, M., & Mykkanen, J. (2009).

Governance of information security elements in

service-oriented enterprise architecture. Paper

presented at the ISPAN 2009.

Kreizman, G., & Robertson, B. (2006). Integrating Security

Into the Enterprise Architecture Framework. In:

Stamford CT: Gartner Inc.(G00137069).

Luhach, A. K., & Luhach, R. (2015). Research and

implementation of security framework for small and

medium sized e-commerce based on SOA. Journal of

Theoretical and Applied Information Technology,

82(3), 395.

NIST, OMB, & FCIO. (2010). Federal Enterprise

Architecture Security and Privacy Profile V3.

Oppenheim, A. N. (2000). Questionnaire design,

interviewing and attitude measurement: Bloomsbury

Publishing.

International Standards Organisation, (2013). I.S.O./I.E.C.

27000, 27001 and 27002 for information security

management.

Patterson, T. (2003). Holistic Security: Why Doing More

Can Cost You Less and Lower Your Risk. Computer

Fraud & Security(6), 13-15.

Posthumus, S., & Von Solms, R. (2004). A framework for

the governance of information security. Computers &

Security, 23(8), 638-646.

Rees, J., Bandyopadhyay, S., & Spafford, E. H. (2003).

PFIRES: a policy framework for information security.

Communications of the ACM, 46(7), 101-106.

Reza Bazi, H., Hasanzadeh, A., & Moeini, A. (2017). A

comprehensive framework for cloud computing

migration using Meta-synthesis approach. Journal of

Systems and Software.

Roberti, M. (2001). Building an Enterprise security

architecture. Retrieved September, 10.

Roeleven, S., & Broer, J. (2010). Why Two Thirds of

Enterprise Architecture Projects Fail. ARIS Expert

Paper.

Saleh, M. S., & Alfantookh, A. (2011). A new

comprehensive framework for enterprise information

security risk management. Applied computing and

informatics, 9(2), 107-118.

Sandhu, R. (2000). Engineering authority and trust in

cyberspace: The OM-AM and RBAC way. Paper

presented at the ACM RBAC 2000.

Scholtz, T. (2006). Structure and Content of an Enterprise

Information Security Architecture. Gartner Inc.

Shariati, M., Bahmani, F., & Shams, F. (2011). Enterprise

information security, a review of architectures and

frameworks from interoperability perspective.

Procedia Computer Science, 3, 537-543.

Shen, Y. T., Lin, F., & Rohm, T. (2009). A Framework for

Enterprise Security Architecture and Its Application in

Information Security Incident Management.

Communications of the IIMA, 9(4), 8-20.

Sherwood, J., Clark, A., & Lynas, D. (1995). Enterprise

security architecture. SABSA White Paper2009.

Starks, H., & Brown Trinidad, S. (2007). Choose your

method: A comparison of phenomenology, discourse

analysis, and grounded theory. Qualitative health

research, 17(10), 1372-1380.

Strauss, A., & Corbin, J. (1994). Grounded theory

methodology. Handbook of qualitative research, 17,

273-285.

Sun, J., & Chen, Y. (2008). Intelligent Enterprise

Information Security Architecture Based on Service

Oriented Architecture. Paper presented at the FITME

2008.

Trcek, D. (2003). An integral framework for information

systems security management. Computers & Security,

22(4), 337-360.

Vaishnavi, V., & Kuechler, W. (2004). Design research in

information systems.

Venable, J., Pries-Heje, J., & Baskerville, R. (2016). FEDS:

a framework for evaluation in design science research.

European Journal of Information Systems, 25(1), 77-

89.

Wahe, S. (2011). Open Enterprise Security Architecture - A

Framework and Template for Policy-Driven Security.

Webb, J., Ahmad, A., Maynard, S. B., & Shanks, G. (2014).

A situation awareness model for information security

risk management. Computers & Security, 44, 1-15.

Zachman, J. A. (1996). The framework for enterprise

architecture: background, description and utility.

Zachman International.

Enterprise Security Architecture: Mythology or Methodology?

689
