SLang: A Domain-specific Language for Survey Questionnaires

Luciane C. Araújo

, Marco A. Casanova

, Luiz André P. P. Leme

and Antonio L. Furtado

Brazilian Institute of Geography and Statistics, Rio de Janeiro, Brazil

Dept. Informatics, PUC-Rio, Rua Marquês de São Vicente, 225, Rio de Janeiro, Brazil

Institute of Computing, Federal Fluminense University, Niterói, Brazil

Keywords: Survey Questionnaires, Domain-specific Languages, Statistical Surveys.

Abstract: The use of surveys permeates the economy, ranging from customer satisfaction measurement to tracking

global economic trends. At the core of the survey process lies the codification of questionnaires, which vary

from simple lists of questions to complex forms that include validations, computation of derived data, use of

triggers to guarantee consistency, and dynamic creation of objects of interest. Questionnaire specification is

part of what is called survey metadata and is a key factor for the quality of the data collected and of the survey

itself. In this context, the paper first introduces a comprehensive complex questionnaire model. Then, based

on the model, it proposes a prototype domain-specific language (DSL) for modeling complex questionnaires,

called SLang. The paper also describes a prototype implementation of SLang and an evaluation of the

usefulness of the language in practical scenarios.

1 INTRODUCTION

A survey is a systematic method for collecting data

about (a sample of) entities to construct quantitative

descriptors of the attributes of a larger population of

which the entities are members. The usage of a

questionnaire is by far the most common data

collection strategy (Saris and Galhofer, 2014).

A superficial look at what is a survey

questionnaire might lead to the conclusion that this is

a simple problem. However, underestimating

questionnaire design complexity is a common flaw

that can have a direct impact on survey quality (Saris

and Galhofer, 2014).For instance, large surveys, such

as the Brazilian Agricultural Census (IBGE, 2017),

have questionnaires that involve hundreds of

quantitative measures, with intricate rules that define

which questions should be part of the questionnaire,

in which order those questions should be presented,

as well as complex validations to be performed as

each answer is registered.

This paper addresses the complex questionnaire

design problem, that is, the problem of designing

questionnaires that involve the computation of

derived data, the use of rules and triggers to guarantee

https://orcid.org/0000-0003-0765-9636

https://orcid.org/0000-0001-0014-7256

consistency, and the dynamic creation of objects of

interest. A solution to this problem should reduce the

gap between survey domain experts and software

developers, improve reuse, eliminate redundancy,

and minimize rework.

To solve this problem, the paper first introduces a

comprehensive complex questionnaire model. The

model defines the questionnaire structure, as well as

structures for defining consistency and integrity rules

that will be applied during data collection. The model

also covers the behavioral aspects of the

questionnaire, that is, how to navigate through the

questions.

Next, based on the model, it proposes a prototype

domain-specific language (DSL) for modeling

complex questionnaires, called SLang. SLang is a

textual DSL, developed using the MPS projectional

language workbench, that addresses questionnaire

metadata modeling. SLang does not contemplate the

questionnaire presentation and the user interface, as

well as general aspects related to data collection

systems, such as security and data analysis. The paper

also describes a prototype implementation of a data

collection application that is compatible with Slang,

Araújo, L., Casanova, M., Leme, L. and Furtado, A.

SLang: A Domain-speciﬁc Language for Survey Questionnaires.

DOI: 10.5220/0009407401330144

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 133-144

ISBN: 978-989-758-423-7

133

and an evaluation of the usefulness of Slang in

practical scenarios.

The abstract syntax of SLang reflects the

questionnaire model. The concrete syntax defines

how SLang will appear to the users and was

influenced by interviews with domain experts. In this

paper, to facilitate reading, the concrete syntax is

presented with the help of examples.

Experiments with two real-world questionnaires

were also conducted to evaluate the usefulness of

SLang. The questionnaire specifications were

encoded in SLang, using a prototype implementation

of the language. This part of the experiments

evaluated the expressiveness of SLang. Then, mock-

up surveys were run, using the encoded

questionnaires, on top of a survey environment, called

SInterviewer. This second part of the experiments

validated the behavioral aspects of SLang. The full

details can be found in (Araújo, 2019).

The rest of this paper is structured as follows.

Section 2 discusses related work. Section 3 introduces

the questionnaire model. Section 4 covers the design

of SLang. Section 5 describes the implementation

details and experiments with SLang. Section 6

presents conclusions and suggestions for future work.

2 RELATED WORK

Survey Models. Survey models have been proposed,

some of which are part of standards, developed and

maintained by entities related to the statistical survey

community. Among standards we have: the Generic

Statistical Information Model (GSIM), the Data

Documentation Initiative (DDI), and the Statistical

Data and Metadata eXchange (SDMX) initiative.

GSIM is the first internationally endorsed

reference framework of information objects, which

enables generic descriptions of the definition,

management, and use of data and metadata

throughout the statistical production process (GSIM,

2019). DDI is an international standard for describing

survey metadata, including questionnaires, statistical

data files, and social sciences study-level information

(Data Documentation Initiative Alliance, 2019).

SDMX aims at standardizing the mechanisms and

processes for the exchange of statistical data and

metadata among international organizations and their

member countries (Statistical Data and Metadata

Exchange, 2019).

Since the goal of this paper is to provide a DSL-

based approach for questionnaire design, GISM and

DDI are relevant inputs for the domain analysis.

Borodin and Zavyalova (2016) described an ontology

for survey questionnaires. The proposed ontology

models questionnaires with simple navigation rules,

but it lacks support for grouping questions by theme,

validating answers and creating objects of interest,

among other requirements for complex

questionnaires. Still, the ontology is a useful

reference for modeling questionnaires.

Questionnaire Design Tools. Questionnaire design

and data collection tools can be divided into Web-

based survey tools and frameworks. Web-based

survey tools work by allowing the user to create a

questionnaire that will be distributed and answered

through the Web. Google Forms (GOOGLE, 2020),

SurveyMonkey (SURVEYMONKEY, 2019), Zoho

(ZOHO, 2019), and Qualtrics (QUALTRICS, 2019)

are examples of Web-based survey tools. CSPro

(UNITED STATED CENSUS BUREAU, 2019),

developed by the US Census Bureau, Blaise

(STATISTICS NETHERLANDS, 2019), developed

by Netherlands Statistics and Open Data Kit (OPEN

DATA KIT, 2019) are examples of frameworks. They

usually include at least a questionnaire design tool

and a data collection tool.

Domain-Specific Languages (DSLs). Mernik et al.

(2005) define DSLs as languages tailored to a specific

application domain that offer substantial gains in

expressiveness and ease of use in their domain of

application when compared with general-purpose

programming languages.

DSLs have been applied to many domains ranging

from bioinformatics through robotics, including Web

applications, embedded systems, low-level software,

control systems, parallel computing, simulation, data-

intensive apps, real-time systems, security, education,

and networks (NASCIMENTO et al., 2012).

The use of DSLs for questionnaire design is not

new. Kim et al. (2015) developed the Survey Design

Language (SDL) and its supporting tool, SDLTool.

SDL consists of a set of domain-specific visual

languages. Each language in the set is designed to

model a specific aspect of statistical surveys,

providing high-level and low-level modeling

facilities capable of matching expert cognitive

models for statistical surveys. The SDLTool was the

environment that tied together with the different

DSLs aspects through visual modeling of survey

resources, the design of statistical survey elements,

running modelled surveys on target population

datasets, and providing visualization support features.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

134

The 2013 Language Workbench Challenge

(LWC) assignment consisted of developing a DSL for

questionnaires, which had to be rendered in an

interactive GUI that reacted to user input and had to

store the answers of each question. The questionnaire

definition was expected to be validated, detecting

errors such as unresolved names and type errors. In

addition to basic editor support, participants were

expected to modularly develop a styling DSL that

could be used to configure the rendering of a

questionnaire. The proposed languages offered basic

questionnaire functionality but lacked primordial

features, such as the possibility of specifying

questionnaire navigation, complex validation rules

and triggers, among others (ERDWEG et al., 2015).

Zhou, Goto and Cheng (2014) presented QSL, a

language to specify questionnaire systems that

includes some aspects of questionnaire design. Still,

it is not clear whether QSL supports a questionnaire

complex logic for navigation flow and question

presentation. Also, the dynamic creation of objects of

interest is not mentioned. Finally, QSL presents a

tight coupling between questionnaire presentation

and modeling.

None of the aforementioned DSLs were designed

having questionnaire specification as its primary goal.

As such, each of them has its shortcomings. SDL

completely avoids questionnaire specification having

its focus on survey methodology and data analysis.

2013 LWC languages were focused on demonstrating

language workbenches potential and provided limited

support for questionnaire specification. Finaly, QSL

had its focus on e-questionnaire systems with limited

support for questionnaire specification.

3 QUESTIONNAIRE MODEL

This section presents the questionnaire model

adopted for the DSL design. The model was created

after analyzing information about six large scale

survey projects. The information included

questionnaire specifications, source codes, survey

data dictionaries, expert interviews, and survey

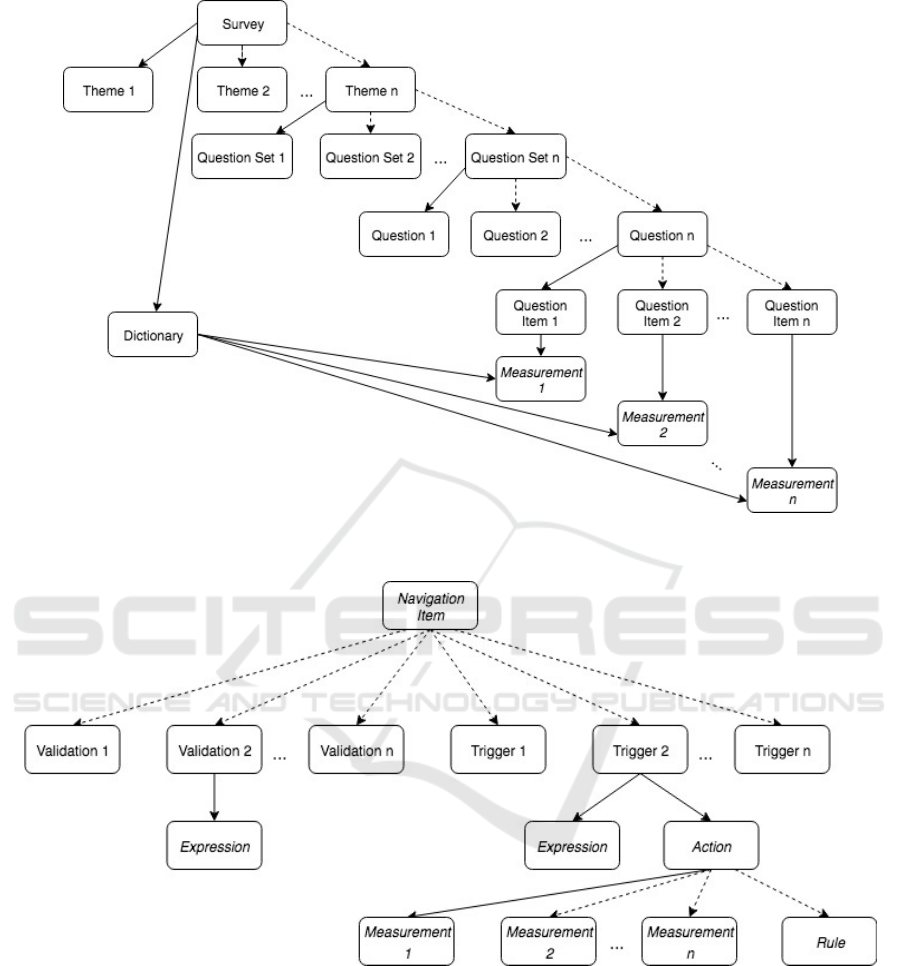

standards. The resulting questionnaire model is

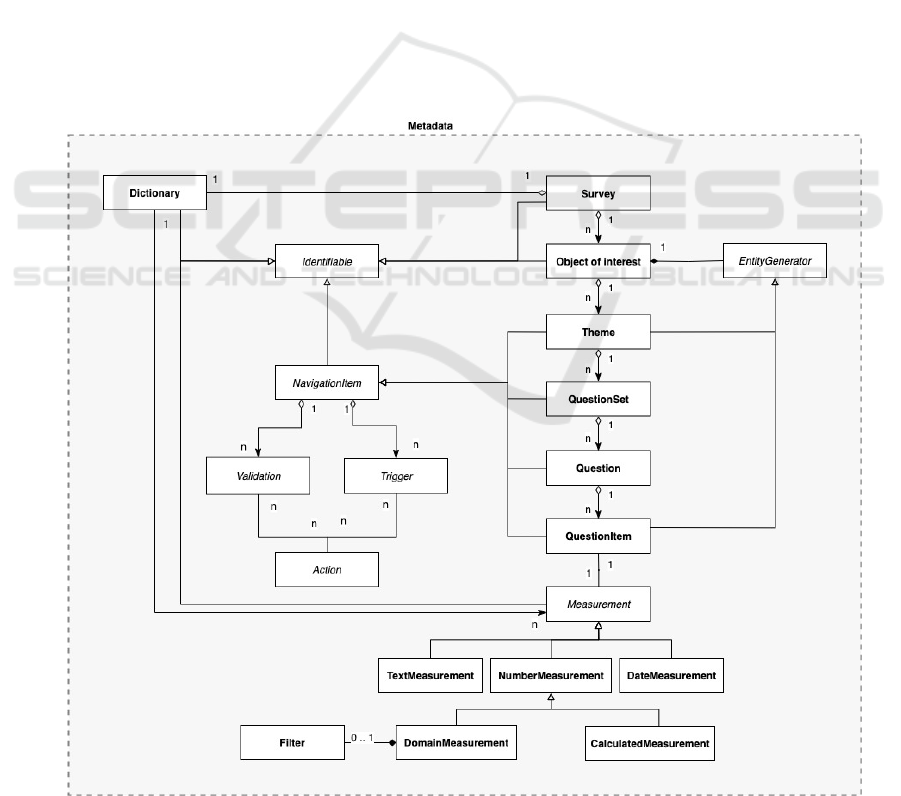

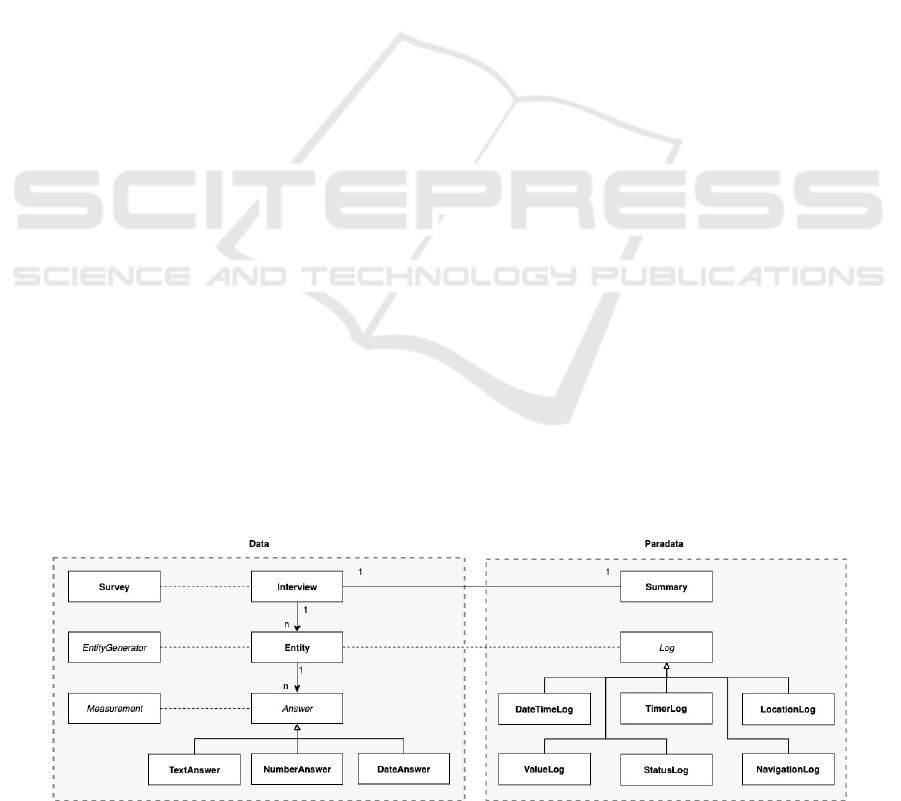

organized into three categories: metadata (data about

the collected data), data (actual collected data), and

paradata (data about the data collection process). The

notation used was adapted from UML class diagrams.

A dotted line represents an additional type of

relationship that exists only by convention. That

means that there is no formal relationship between the

two concepts, and different applications use specific

conventions when expressing those relationships. The

name of a concept (or class) will be denoted in italics,

starting with an upper-case letter, and an instance of

a class in lower-case letters, in italics, when it appears

for the first time, and in regular font style, otherwise.

3.1 Metadata Structural Model

Metadata concepts define the survey structure, as well

as the consistency and integrity rules that will be

applied during data collection. Figure 1 presents the

metadata structural model.

Survey and Dictionary are the root concepts that

tie together the metadata concepts structure.

When creating a survey, one first defines one or

more objects of interest, which are the sets of entities

that the survey will collect data. For example,

demographic censuses usually have at least two

objects of interest: houses and people. In most cases,

people are further divided into house inhabitants,

deceased, and emigrated. Objects of interest are

closely related to entity generators.

A theme helps to organize questions in terms of

knowledge clusters. For example, the 2015 PeNSE

Survey (PeNSE, 2015) had questions organized in

themes such as student socio-economical aspects,

family context, eating habits, physical exercising.

A question set adds another layer of organization

by grouping questions inside a theme. The reason to

create a new question set might be, for example, to

create a validation rule that involves multiple

measurements, or to hold interview instructions that

are pertinent to a theme subset.

Questions are linked to a question set and are the

core of the survey questionnaire. Each question has a

group of question items.

A measurement is linked in a one-to-one

relationship with a question item, allowing to create

questions with multiple answers and to create derived

measurements, which are not related to a question

(Saris and Galhofer, 2014). For example, consider a

question about telephones in households. In step one,

the person answers if the household has a telephone

line. In step two, the person answers the number of

telephones (if the answer in step one was positive).

Measurements are part of a generalization

hierarchy. The first level of this hierarchy consists of

three possible data types for measurements: text

(TextMeasurement), numbers (NumberMeasurement)

and dates (DataMeasurement). Numbers can be

further specialized to support domain and calculated

measurements. DomainMeasurement extends

NumberMeasurement by allowing the user to

associate a domain list, which is a map, where an

integer is the key, and a string is the value. A

SLang: A Domain-speciﬁc Language for Survey Questionnaires

135

calculated measurement has a rule that specifies what

the value of the measurement should be, based on

questionnaire parameters and other measurement

values.

Filters allow controlling domain measurements

through the use of expressions to define if a domain

item should be available to be selected as a

measurement value.

A dictionary provides a unified view of survey

measurements.

Three other concepts pertain to the domain

structure through generalizations: Identifiable,

EntityGenerator, and NavigationItem.

Navigation items are responsible for specifying

the sequence that should be followed when presenting

questionnaire questions to the respondent. It is closely

related to the questionnaire questions hierarchy.

Navigation items also allow specifying when to skip

a question through the visibility attribute. From a

structural point of view, they also allow associating

questions to validations and triggers, which are used

to guarantee measurement consistency.

Validations allow the questionnaire designer to

define when an answer is acceptable by specifying

expressions. Expressions are evaluated to a Boolean

value and used when defining navigation or as survey

measurement values, constants, and literals. The

types of validations are informational validations,

alert validations, and error validations.

Triggers allow the execution of specific actions

according to the result of a Boolean expression. One

example of action is resetting previous answers.

An entity generator is responsible for creating

objects of interest. There are two modes for the

creation of an object of interest: theme-based creation

and question-item-based creation. An example of the

first case is registering household members in a

demographic survey. The theme questions work as

the specification of the attributes that the generated

entity must have, providing the basis for the creation

of entity management (creating, updating, and

deleting) in a questionnaire. An example of the

second case is creating one object of interest for each

permanent culture an agricultural establishment

keeps. In this example, the question asks the

Figure 1: Metadata structural model.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

136

respondent to select from a list of crops (for example,

apples, avocados, grapes, oranges, peaches, and

pears) that are grown in his establishment. If the

respondent selects apples and peaches, two

permanent objects of interest will be created: one for

apples and another one for peaches. Entity generators

are designed using different approaches for distinct

survey solutions. The most common is the use of

generalization, which is the strategy adopted by the

questionnaire structural model presented here. This

modeling strategy implies multiple inheritance for

Theme and QuestionItem concepts.

Finally, each survey metadata object is an

identifiable, which means that the object can be

uniquely identified in a survey metadata environment.

Each identifiable holds a code and a parent code and

might be uniquely identified by the combination of its

code with its parent code.

3.2 Data and Paradata Structural

Model

The questionnaire data follows a very simple

structural model, presented on the left side of Figure

2. Interview is the root concept and is a container for

entities. It also keeps operational information about

the questionnaire, such as the last viewed item and

how far the respondent has navigated through the

questionnaire. An Entity is synonymous with an

object of interest and holds a set of answers.

An Answer holds the value from a specific

measurement. The relationship between an answer

and a measurement is, in general, made by

convention. Hence, the option was to connect those

two concepts through a dotted line. Answer is

specialized into TextAnswer, NumberAnswer, and

DateAnswer.

Questionnaire paradata, as shown on the right

side of Figure 2, holds two independent concepts:

Summary and Log. A summary contains a map of

aggregates that can be specified by the user, such as

the average of a group of variables. Aggregates are

specified using rules.

Logs are specialized into six classes. A datetime

log holds specific information about dates, for

example, the date on which an interview was

initiated; a time log keeps track of time spans, such as

the time a respondent spent answering a question; a

location log registers latitude and longitude values; a

status log keeps track of status changes as respondent

is answering the questionnaire; a value log registers

changes in answers; and a navigation log information

about the sequence themes, question sets and

questions that are presented to the respondent.

3.3 Domain Model Transversal

Concepts

Two concepts are transversal in the sense that they are

related to many concepts: Expression and Rule.

Expressions support Boolean, arithmetic, and

comparison operators, as well as set and aggregation

operators. Valid operands are Boolean values, strings,

numbers, measurements, and survey constants.

Rules can be used to generate computed values or

in a rule-based actions. Computation rules always

evaluate to a number and use only arithmetic and

aggregation operators. Operands might be numbers,

measurements and survey constants.

3.4 Behavioral Aspects

The behavioral aspects of the questionnaire model are

closely related to questionnaire navigation and to

states of navigation items, which are controlled by

validations, triggers, and expressions.

Figure 3 indicates the specialization hierarchy of

the behavioral aspects. A question item has two

expression attributes: mandatory and visibility.

Visibility controls if a navigation item should be

presented to the user. Mandatory is used during the

validation cycle and is a shortcut to an actual

Figure 2: Data and paradata structural model.

SLang: A Domain-speciﬁc Language for Survey Questionnaires

137

validation. The evaluation of the expression

associated with the mandatory attribute defines

whether the question item should be answered.

Navigation behavior is responsible for the

evolution of question and questionnaire states. During

an interview, navigation can be vertical or horizontal,

from a starting point. Horizontal navigation goes

through all nested navigation items, one by one

(Figure 4). Vertical navigation starts when horizontal

navigation reached its end. Accordingly, there are two

types of events: horizontal navigation events and

vertical navigation events.

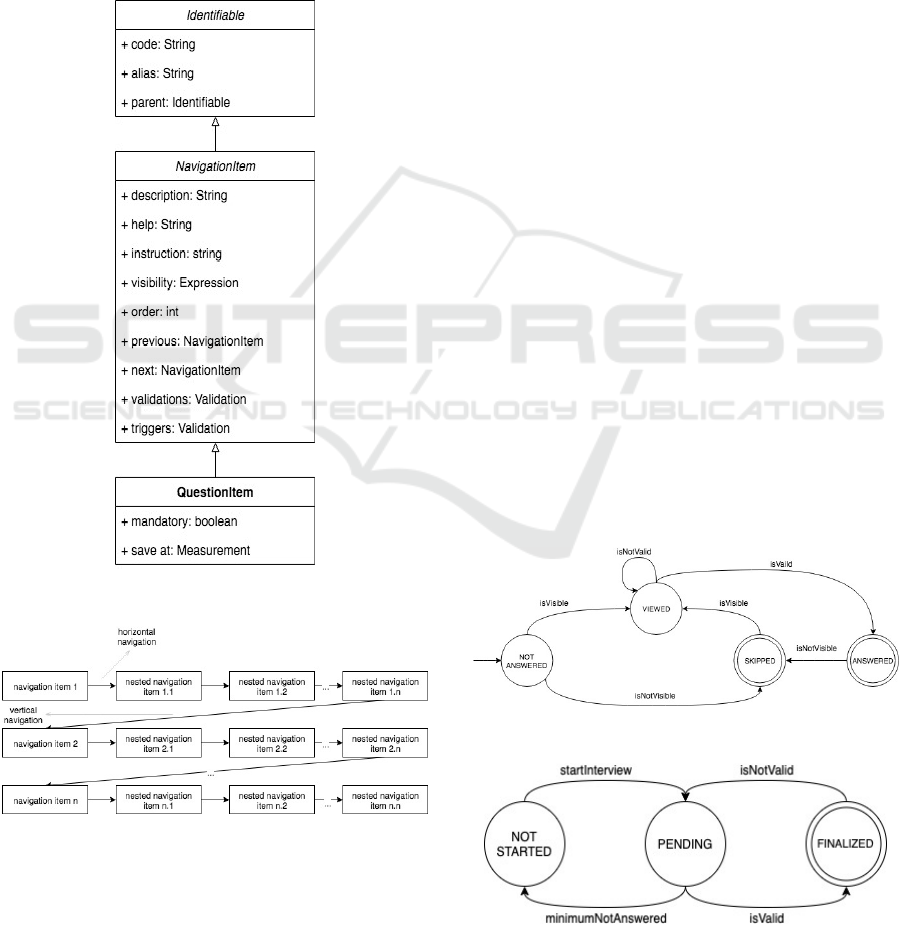

Figure 3: Navigation item generalization.

Figure 4: Navigation sequence through navigations items

hierarchy.

As presented in Figure 5, a navigation item can be

in four states: NOT ANSWERED, VIEWED,

SKIPPED, and ANSWERED. The initial state is

always NOT ANSWERED. A not-answered

navigation item can either move to the state VIEWED

any time it is the next navigation item and its visibility

evaluates to true. A not-answered navigation item can

also move to the state SKIPPED when it is not visible,

and it becomes the next navigation item. A viewed

item stays on the VIEWED state until it is valid, when

it changes to the ANSWERED state. An answered

navigation item can, during navigation, become not

visible. In that case, it moves to the SKIPPED state.

A skipped navigation item, according to

questionnaire navigation logic, become visible and

change to the VIEWED state.

Transitions are a consequence of the actions that

are executed when a navigation event occurs. When

there is a navigation event, the first action to be

executed is to run navigation item validations. If the

item is not valid, the navigation is aborted. If it is

valid, triggers are run, the item is marked as

ANSWERED, and the next navigation item is

retrieved. If the next navigation item is not visible, it

is marked as SKIPPED and the next navigation item

is retrieved. When the next navigation item is visible,

a check is made to verify if it is answered. If it is, the

navigation is completed. If it is not, it is marked as

VIEWED, and the navigation is completed.

The state of an interview indicates how far a

questionnaire has been answered (see Figure 6). The

state can be: NOT STARTED, PENDING, and

FINALIZED. Interview states are computed based on

the states of the navigation item. An interview is

marked as NOT ANSWERED, when all its

navigation items are marked as NOT ANSWERED,

as FINALIZED, when all its navigation items are

marked either as SKIPPED or ANSWERED, and

PENDING, otherwise.

Figure 5: Navigation item state diagram.

Figure 6: Interview state diagram.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

138

Figure 7: A simplification the Survey Abstract Syntax Tree.

Figure 8: Navigation Item Abstract Syntax Tree.

4 SLANG DESIGN

This section describes the process of transforming the

model created in Section 3 into a DSL for survey

questionnaire specification, called SLang. It covers

the abstract and the concrete syntaxes of SLang, and

the model transformations that SLang offers.

4.1 Abstract Syntax

An abstract syntax tree (AST) is a data structure that

represents the abstract syntax used by compilers to

represent and manipulate programs. In the diagrams

that follow, rectangles represent nodes or concepts,

arrows link parent and child concepts, forming the

SLang: A Domain-speciﬁc Language for Survey Questionnaires

139

AST branches, and dotted arrows specify non-

mandatory parent/child relationships.

The SLang abstract syntax reflects the

questionnaire model introduced in Section 3, as

shown in Figure 7. The root concept is Survey.

Dictionary and Survey are related in a one-to-one

composition, which is slightly different from the

questionnaire model. Initially, SLang was designed to

have Dictionary as a second root concept. The

decision to model it as a child of Survey was taken

after interviewing domain experts, who pointed out

that dictionaries are survey-specific.

Figure 8 represents the navigation item ASTs.

NavigationItem replicates the questionnaire model by

providing the generic type that Theme, QuestionSet,

Question, and QuestionItem specialize, which

parallels the specialization hierarchy in Figure 3.

Each navigation item can have multiple

validations and triggers, which form branches of the

AST. Validation has one child concept, which is an

Expression. Trigger has two children concepts: one

Expression and one Action. Action has one child Rule

and can have multiple children measurements.

Actions are part of a generalization structure similar

to domain model actions design. Rule is a

specialization of Expression.

SLang supports three primitive types: number,

Boolean, and text. Primitive types serve as wrappers

for measurements, constants, and literals, which are

the concepts that can be part of expressions.

Operators wrap arithmetical, logic and comparison

operators. Function specializes Expression and

allows the implementation of set and aggregation

operators. Expressions, Operators, and Primitives are

used to check if expressions are valid by matching

types.

4.2 Concrete Syntax

The concrete syntax of a language defines the

notation with which users can express programs. To

facilitate reading, the concrete syntax of SLang will

be presented with the help of examples.

When starting the design of SLang concrete

syntax, the first question asked was what users would

expect. From interviews with domain experts, it

became clear how hard that question is. The way

questionnaires are expressed varies considerably,

depending on the user background in terms of IT

tools. Some use spreadsheets, while others adopt text

documents. As a result, it becomes difficult to decide

what would be the most adequate. Still, while

designing the concrete syntax, an effort was made to

define it as close as possible to the textual writing of

Listing 1: Survey coding example.

Listing 2: SLang dictionary code.

a questionnaire by using sensible defaults, consistent

choice of style (colors, bold, italic, font), indentation

and conventions. The principal concrete syntax

concepts include Survey, ObjectOfInterest, Themes,

QuestionSet, Question, Item, Trigger, and Validation.

A survey can also have multiple objects of interest,

each of which has an alias and a description as

mandatory properties. In a survey with multiple

objects of interest, one of them must be marked as

default by setting the default attribute as True.

Listing 1 presents a survey definition, including

survey constants and multiple objects of interest (the

orange color indicates the constant types). Each

survey has an associated dictionary.

Listing 2 presents the Dictionary concrete syntax.

A dictionary is a list of measurements. Measurement

attributes vary according to their type and the only

non-mandatory attribute is alias. Measurements

Survey: A demographic survey (S0001)

description: A demonstration survey

version: 1 !! allows controlling changes in the

survey specification

constants:

min_wage: number 7.0

reference_date: string 08/01/2019

Objects of interest:

alias: resident

description: a person living in a household

alias: household

description: a building inhabited by people in a

known location

default: true

Dictionary for: A demographic survey (D0001)

Measurements:

household_proprietor

code: V0003

type: text

size: 100

resident_income

code:V0060

type: number

precision: 11

scale: 2

household_income

code: V0060t

type: number

precision: 14

scale: 2

rule: sum(resident_income)

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

140

replicate the exact hierarchy from the domain model,

including number, text, date, domain, and computed

measurements.

Surveys have four concepts that specialize

NavigationItem: Theme, QuestionSet, Question, and

QuestionItem. For each of these concepts, attributes

with sensible default values are kept hidden. The

language designer changes those on demand

according to the expected questionnaire behavior.

Survey children concepts are hierarchically

organized in the following order: Theme is the parent

of QuestionSet, which is the parent of Question. This

hierarchy is created inside a survey through

indentation, as shown in Listing 3. Attribute visibility

is not shown for any of the navigation items because

it is set to its default value, which is the Boolean

literal “true”.

QuestionItems are children of Question and

specify measurement consistency criteria through the

definition of validations and triggers. Listing 4 shows

question items with different configurations of

triggers and validations. The Expression typed

attribute visibility is used to control which question

items will be presented to the questionnaire

respondent. Once visible, the mandatory attribute

Expression makes sure that all these items will be

answered.

The concrete syntax contemplates two action

types: clear and input. The Trigger property

expression defines when the trigger should run (the

trigger expression default value is True), and the

measurements property specifies to which

measurements the trigger action should be applied.

Listing 3: SLang theme, question set and question

hierarchy.

Listing 4: Question Items with Triggers and Validations.

4.3 Slang Model Transformations

The design of SLang includes two models to text

(M2T) transformations: questionnaire to SQL schema

and questionnaire to data collection software

metadata (using Json notation).

The questionnaire to SQL schema transformation

aims at creating a relational scheme to store collected

data. Here the focus is on collected data structure and

not on metadata or paradata structure and content.

Survey and object of interest mappings are

straightforwardly mapped. Table columns are created

for each measurement associated with an object of

interest, with the appropriate type, according to the

measurement type attribute. Validations and triggers

present a challenge because of the nature of

expressions. They are respectively mapped to

CHECK and CREATE TRIGGER attributes.

The questionnaire to data collection software

metadata transformation generates questionnaire

specification in Json format, which can be submitted

to SInterviewer (see Section 5.2).

Theme: Inhabitants information - T01

object of interest: household

instructions: Here go instructions for a potential

interviewer

help: Here goes an explanation of this theme

Question Set:

Question: 1.1.1 - How many people lived in this

household on {reference date}?

Item:

save at: number qtd_people_household

Question: 1.1.2 - How many children with ages

between zero and nine (including newborns) lived in

this household on {reference date}?

Item:

save at: number qtd_children_household

Question: 8.1.1 - How many sons and daughters born

alive until {reference date}?

visibility: sex == 2 && age >= 10

mandatory: false

Item:

save at: domain had_children_born_alive

1: Had Children

2: Didn't have children

Triggers:

action: clear

measurements: V0802, V0803

expression: had_children_born_alive == 2

Item: How many man?

visibility: V0801 == 1

save at: number V0802

Triggers:

action: input(V0802 + V0803)

measurements: qtd_children_born_alive

Validations:

type: ERROR

expression: qtd_children_born_alive > 1 &&

qtd_children_born_alive 30

message: "The number of children born alive is

invalid.”

Item: How many women?

visibility: V0801 == 1

save at: number V0803

Triggers:

action: input(V0802 + V0803)

measurements: qtd_children_born_alive

SLang: A Domain-speciﬁc Language for Survey Questionnaires

141

5 SLang IMPLEMENTATION

Experiments with real-world questionnaires were

conducted to validate SLang. First, two real-world

questionnaire specifications were encoded in SLang,

using a prototype implementation. This part of the

experiments validated the expressiveness of SLang.

Then, mock-up surveys were run, using the encoded

questionnaires, on top of a survey environment, called

SInterviewer. This second part of the experiments

validated the behavioral aspects of SLang. This

section very briefly covers all these aspects.

5.1 SLang Implementation Highlights

SLang was constructed using the JetBrains Meta

Programming System (MPS). Five workbenches

were first considered for the implementation of

SLang: Spoofax, XText, Rascal, MetaEdit+, and

MPS. The decision to adopt MPS was influenced by

the fact that only MPS had a projectional editor, that

is, an editor that makes it possible to create, edit and

interact with one or more ASTs, avoiding the need to

use parser tools (CAMPAGNE, 2016).

The concepts of the questionnaire model were

first mapped into MPS concepts, defining the basic

rules for AST creation. Then, the concrete syntax was

created using the MPS editors. Finally, behavior and

static semantics were reinforced using the MPS

behavior, constraint and type system.

Language structural behavior was constructed on

top of MPS Behavior Aspects. Behavior aspects made

possible, for example, to attribute default values to

questionnaire model properties, as well as to create

and manipulate child nodes and references using MPS

concept constructors and MPS concept methods.

Static semantics was established through MPS

Constraint Aspects and Type System Aspects.

Constraint aspects provided control of where

concepts are allowed, validation for properties values,

answer options control, among others. Type system

aspects were used for semantic aspects that could not

be modeled using MPS base concepts, behavior

aspects, and constraint aspects. For example,

preventing nodes with the same name to exist in a

specific scope could not be done using concept

structure or constraint aspects. Constraint and type

systems aspects provided hooks used by MPS to

implement context assistance and error reporting, in

the final language IDE generated using MPS.

The two model transformations described in

Section 4.3 were implemented using MPS TextGen

aspect. MPS TextGen allowed the conversion of a

SLang questionnaire model into a SQL script for

schema creation and into questionnaire Json metadata

files used by SInterviewer to enable interviews.

Finally, SLang IDE was generated, using the MPS

build language feature.

5.2 SInterviewer Highlights

SInterviewer is a data-intensive mobile application,

built on top of the Android platform, to collect

questionnaire data and paradata. Its architecture is an

evolution of the data collection software developed

for five surveys conducted by the Brazilian Institute

of Geography and Statistics, including the 2017

Agricultural Census and the 2020 Demographic

Census.

The SInterviewer functionalities are organized in

a four layers architecture, built on top of the Android

SDK, following the MVC architectural pattern (see

Figure 9). The top layer is responsible for

presentation and governs all UI aspects. The

controller layer uses the services layer to provide

business rules, to access the deserialization services,

to parse expressions, and to persist data.

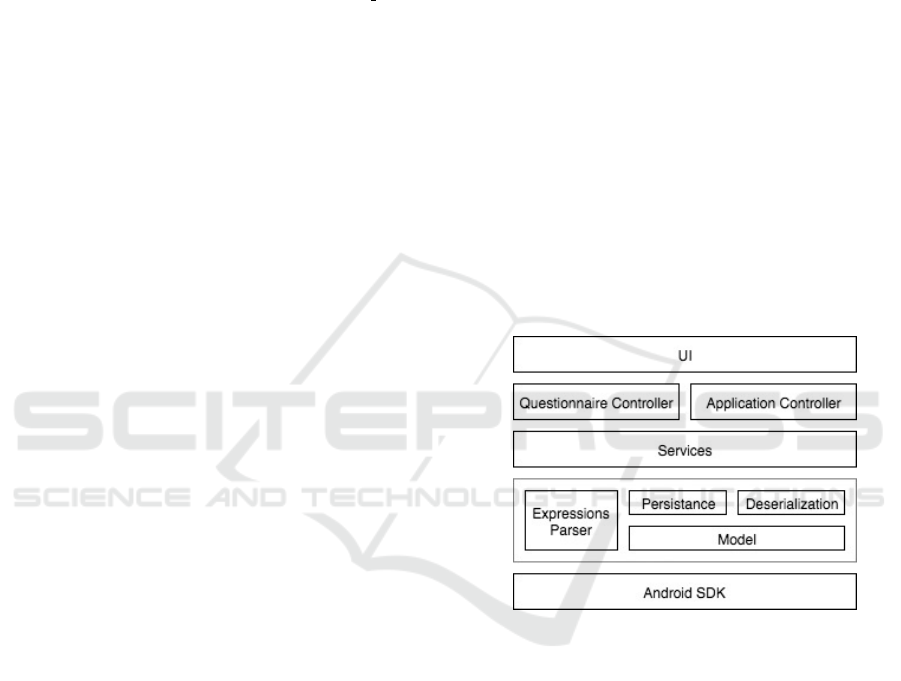

Figure 9: SInterviewer architecture.

SInterviewer accepts questionnaires specified in

Json format. The deserialization of a questionnaire is

triggered once, when the application is started, and is

used through the services layer to control

questionnaire navigation and persistence of the

answers, as well as general application functionality,

such as closing questionnaires and registering

interview observations.

The status of a question is updated after the

validations are executed. The validation of a question

is executed on the navigation flow and also when the

user closes the questionnaire. Questionnaire status

control is derived from the question statuses and is

updated when the questionnaire is closed.

Finally, SInterviewer supports two ways to export

data: CSV files and Json format. These formats can

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

142

be used to import interviews (collected data from the

questionnaire) to databases or data analysis tools.

The integration between SInterviewer and Slang

is made through json files generated through the M2T

transformation mentioned in Section 4.3.

Presentation aspects are not customizable through

Slang syntax; currently, this is done through sensible

defaults, which can be manually adjusted after the

questionnaire Json specification is generated. As

future work, the development of a questionnaire

presentation DSL seems to be the ideal approach to

tackle that limitation.

5.3 SLang in Use

SLang was evaluated by specifying the

questionnaires of two surveys and running mock

interviews with the specified questionnaires on

SInterviewer. Survey 1 was about K-12 students

health aspects and included themes such as student’s

socio-economical aspects, family context, eating

habits, physical activity, among others (students’

questionnaire for PeNSE 2015). Survey 2 was a

preliminary version of the 2017 Brazilian

Agricultural Census.

Both survey questionnaires were completely

encoded in SLang and successfully ran on

SInterviewer. Table 1 summarizes the characteristics

of the tested survey questionnaires.

Table 1: Characteristics of the Test Survey Questionnaires.

Characteristic Survey 1 Survey 2

#Objects of Interest 1 8

#Themes 18 41

#Question Sets 18 41

#Questions 102 185

#Question Items 102 893

#Measurements 107 957

#Validations 34 134

#Triggers 28 102

The number of Themes and Question Sets were

the same for the surveys since both had no distinct

question organization level inside a specific Theme.

Survey 1 was composed of Single choice multiple

answer questions, which implies one QuestionItem

per Question. Each QuestionItem was connected to a

domain Measurement that defined the answer

domain.

The use of SLang to specify questionnaires has

several benefits in the context of data collection

applications. SInterviewer is based on data collection

applications developed at the Brazilian Institute of

Geography and Statistics, which supports the ad hoc

definition of questionnaires in Json notation. What

was noticed is that for each new survey, software

developers adopted different conventions on

questionnaire metadata. This lack of uniformity made

reusing questionnaire specifications and data

collection software difficult. This called for the

definition of a questionnaire editor, which is, to some

extent, what SLang provides.

Other potential productivity gains would be

achieved by the model transformations SLang offers.

Model transformations simplify tracking changes to a

questionnaire and thereby facilitate verifying the

compatibility between the version of the

questionnaire used during data collection and the

version of the questionnaire as originally specified.

They also help achieve systems integration since they

allow generating both Json and relational schemas for

data collection storage systems from a given SLang

questionnaire.

6 CONCLUSIONS

This paper presented a practical case of DSL

development in the domain of questionnaire-based

surveys. Although creating a DSLs is not a novel idea,

the survey domain is still just starting to realize the

power of DSLs as tools to tame questionnaire

complexity.

Experiments with two real-world questionnaires

were conducted to validate SLang. The encoding of

the questionnaire specifications in SLang validated

the expressiveness of the language, and the execution

of mock-up surveys, using the encoded

questionnaires, validated the behavioral aspects of

SLang. The practical examples in which SLang was

used showed the potential for using DSLs to solve

practical problems, including the communication

between domain experts and software developers.

SLang targets complex questionnaire design.

However, it became clear that SLang might not be the

best tool for simple questionnaires that involve only

one type of entity as object of interest with

straightforward questions, without much logic in the

question navigation. Still, it would be important to

conduct additional studies on language usability, as

well as a comparison with tools, such as Google

Forms, Zoho, Qualtrics, Survey Monkey, CSPro,

Blaise, and Open Data Kit to better assess SLang’s

strengths and where it can be improved.

Further investigation on this research topic should

include a formal user evaluation of SLang, the

definition of a language evolution plan that can help

deal with variabilities in questionnaire specification

SLang: A Domain-speciﬁc Language for Survey Questionnaires

143

practices, and the development of a DSL for

questionnaire presentation.

Also, the problem of questionnaire evolution

from one survey to the next should be addressed. A

possible approach would be to create a mapping

language that would allow users to express how

questionnaires map to each-other, much in the same

way that ontology or schema mapping has been

addressed in the conceptual design field.

ACKNOWLEDGMENTS

This work was partly funded by grants

CAPES/88881.134081/2016-01, CNPq/302303/

2017-0, and FAPERJ/E-26-202.818/2017. The first

author gratefully acknowledges the support of the

Brazilian Institute of Geography and Statistics during

the research reported here.

REFERENCES

Araújo, L. C., 2019 Model-driven Questionnaires based on

a Domain Specific Language. Master Dissertation

presented to the Graduate Program in Informatics,

Pontifical Catholic University of Rio de Janeiro.

Borodin, A. V.; Zavyalova, Y. V., 2016. Ontology-Based

Semantic Design of Survey Questionnaires. Proceeding

of the 19th conference of open innovations association

(FRUCT). Jyvaskyla: IEEE. 2016. p. 10-15.

Campagne, F. The MPS Language Workbench. Third

Edition. ed. [S.l.]: [s.n.].

Cotton, F.; Gillman, D. W., 2015. Modeling the Statistical

Process with Linked Metadata. Proceedings of the 3rd

International Workshop in Semantic Statistics. [S.l.]:

[s.n.].

Couper, M. P., 1998. Measuring survey quality in a CASIC

environment. Proceedings of the Survey Research

Methods Section: American Statistical Association. p.

41-49.

Data Documentation Initiative Alliance, 2019. DDI

Alliance Homepage. DDI Alliance. Available at:

<https://www.ddialliance.org>

Erdweg, S. et al., 2015. Evaluating and comparing language

workbenches: Existing results and benchmarks for the

future. Computer Languages, Systems & Structures, v.

44, n. A, p. 24-47.

Google Forms. Google Forms Home Page. Google, 2020.

Available at: <https://www.google.com/forms/about/>

Groves, R. M. et al., 2009. Survey Methodology. 2nd. Ed.

New Jersey: John Wiley & Sons.

GSIM. GSIM and standards. UNECE Statiswiki, 2019.

Available at: <https://statswiki.unece .org/display/

gsim/GSIM+and+standards>.

IBGE. Census of Agriculture. Brazilian Institute of

Geography and Statistics, 2017. Available at:

<https://www.ibge.gov.br/en/statistics/economic/agric

ulture-forestry-and-fishing/21929-2017-2017-censo-

agropecuario-en.html?=&t=o-que-e>

IBGE. National Students Health Survey. Brazilian Institute

of Geography and Statistics, 2019. Available at:

<https://www.ibge.gov.br/estatisticas/sociais/educacao

/9134-pesquisa-nacional-de-saude-do-escolar.html?=&

t=o-que-e>

Karsai, G. et al., 2009. Design guidelines for domain

specific languages. Proceedings of the 9th OOPSLA

workshop on domain-specific modeling. Florida: [s.n.].

Kim, C. H.; Grundy, J.; Hosking, J., 2015. A suite of visual

languages for model-driven development of statistical

surveys and services. Journal of Visual Languages and

Computing, Orlando, 26, n. 99.

Mernik, M.; Heering, J.; Sloane, A. M., 2005. When and

how to develop domain-specific languages. ACM

Computing Surveys, New York, v. 37, n. 4, p. 316-344.

Nascimento, L. M. D. et al., 2012. A systematic mapping

study on domain specific languages. Proceedings of the

Seventh International Conference on Software

Engineering Advances (ICSEA 2012). Lisboa: IARIA

XPS Press, p. 179-187.

Open Data Kit, 2019. Open Data Kit Home Page. Open

Data Kit. Available at: <https://opendatakit.org>.

PeNSE, 2015. National Survey of School Health (PeNSE)

survey. Available at: <https://www.ibge.gov.br/en/

statistics/social/justice-and-security/16837-national-

survey-of-school-health-editions.html?=&t=o-que-e>

Qualtrics, 2019. Qualtrics Home Page. Qualtrics. Available

at: <https://www.qualtrics.com>

Saris, W. E.; Galhofer, I. N., 2014. Design, Evaluation, and

Analysis of Questionnaires for Survey Research. 2nd

Ed. Hoboken: John Wiley and Sons, Inc.

Statistical Data and Metadata Exchange, 2019. SDMX.

SMDX Community. Available at: <https://sdmx.org/>

Statistics Netherlands, 2019. Blaise Home Page. Blaise.

Available at: <https://www.blaise.com>

SurveyMonkey, 2019. SurveyMonkey Home Page.

SurveyMonkey. Available at: <https://pt.survey

monkey.com/>

Thibault, S. A.; Marlet, R.; Consel, C., 1999. Domain-

specific languages: from design to implementation

application to video device drivers generation.

Transactions on software engineering, v. 25, n. 3, p.

363-377, May/June.

United States Census Bureau, 2019. Survey Processing

System. US Census Bureau Website. Available at:

<https://www.census.gov/data/software/cspro.html>

Zoho. ZoHo Home Page. ZoHo, 2019. Available at:

https://www.zoho.com/survey/

Zhou, Y.; Goto, Y.; Cheng, J., 2014. QSL: A specification

language for e-questionnaire systems. IEEE 5

International Conference on Software Engineering and

Service Science.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

144
