Enabling Container Cluster Interoperability using a TOSCA

Orchestration Framework

Domenico Calcaterra, Giuseppe Di Modica, Pietro Mazzaglia and Orazio Tomarchio

Department of Electrical, Electronic and Computer Engineering, University of Catania, Catania, Italy

Keywords:

Containerised Applications, Deployment Orchestration, Cloud Provisioning, TOSCA, BPMN.

Abstract:

Cloud orchestration frameworks are recognised as a useful tool to tackle the complexity of managing the

life-cycle of Cloud resources. In scenarios where resources happen to be supplied by multiple providers,

such complexity is further exacerbated by portability and interoperability issues due to incompatibility of

providers’ proprietary interfaces. Container-based technologies do provide a solution to improve portability in

the Cloud deployment landscape. Though the majority of Cloud orchestration tools support containerisation,

they usually provide integration with a limited set of container-based cluster technologies without focusing on

standard-based approaches for the description of containerised applications. In this work we discuss how we

managed to embed the containerisation feature into a TOSCA-based Cloud orchestrator in a way that enables

it to theoretically interoperate with any container run-time software. Tests were run on a software prototype to

prove the approach viability.

1 INTRODUCTION

Cloud Computing is a distributed system paradigm

which enables the sharing of resource pools, on an on-

demand basis model. For the IT industry, this leads to

several beneﬁts in terms of availability, scalability and

costs, lowering the barriers to innovation (Marston

et al., 2011). Moreover, Cloud technologies encour-

age a larger distribution of services across the internet

(Dikaiakos et al., 2009). The resources, while being

allocated in remote data centers, may be accessible

from different parts of the world thanks to third-party

providers offering extensive network infrastructures.

Since Cloud has emerged as a dominating

paradigm for application distribution, providers have

implemented several new features in order to offer

services which are not restricted to infrastructure pro-

visioning. This trend is depicted as “Everything as a

Service”, namely XaaS (Duan et al., 2015). Despite

the wide choice of Cloud providers and services, there

still exists an intrinsic complexity in the deployment

and management of Cloud applications, which makes

the process draining and time-consuming.

In this respect, orchestration tools have increased

their popularity in recent years, becoming a main

topic for Cloud research (Weerasiri et al., 2017). The

development of high-level speciﬁcation languages to

describe the topology of Cloud services facilitates the

orchestration process and aims to portability and in-

teroperability across different providers (Petcu and

Vasilakos, 2014). With regard to standard initiatives,

OASIS TOSCA (Topology and Orchestration Speciﬁ-

cation for Cloud Applications) (OASIS, 2013) stands

out for the large number of works which are based

upon it (Bellendorf and Mann, 2018).

In recent years, container-based applications pro-

vided a solution in order to improve portability in the

Cloud deployment landscape (Pahl, 2015). Contain-

ers offer packaged software units which run on a vir-

tualised environment. Their decoupling from the run-

ning environment eases their deployment process and

the management of their dependencies. These qual-

ities, abetted by the lightweight nature of contain-

ers, their high reusability and their near-native perfor-

mances (Ruan et al., 2016) raised signiﬁcant interest

in the business-oriented context.

Containers can be either run as standalone ser-

vices or organised in swarm services. Swarm services

increase the ﬂexibility of containers, allowing them to

run on clusters of resources. This approach combines

well with the Cloud Computing paradigm, providing

faster management operations while granting all the

advantages of Cloud services.

In this paper, we describe a framework for the

deployment and orchestration of containerised appli-

cations. Based on the work presented in (Calcaterra

Calcaterra, D., Di Modica, G., Mazzaglia, P. and Tomarchio, O.

Enabling Container Cluster Interoperability using a TOSCA Orchestration Framework.

DOI: 10.5220/0009410701270137

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 127-137

ISBN: 978-989-758-424-4

127

et al., 2017) and (Calcaterra et al., 2018), the frame-

work provides several desirable features, such as the

possibility to describe the application using standard

languages, a fault-aware orchestration system built

on business-process models, compatibility with the

main Cloud providers, and integration with different

container-based cluster technologies.

The rest of the paper is structured as follows. In

Section 2, we arrange a background of the technolo-

gies exploited for this work. In Section 3, we present

relevant works concerning container orchestration.

Section 4 debates cluster orchestrators and their in-

teroperability. In Section 5, the approach adopted for

our framework is discussed. Section 6 discusses about

a prototype implementation and an experiment run on

a real-world application scenario. Finally, Section 7

concludes the work.

2 BACKGROUND

This work aims to provide synergy between con-

tainerisation technologies and the most famous topol-

ogy speciﬁcation language, namely OASIS TOSCA.

In this section, we provide a more in-depth back-

ground for these topics.

2.1 Containerisation Technologies

In the container landscape, Docker

represents the

leading technology for container runtimes (Sysdig,

2019). It provides a set of technologies for build-

ing and running containerised applications. Further-

more, DockerHub

offers a catalogue of Docker im-

ages ready to deploy, which allows users to share their

work. Among competitors, containerd

, CRI-O

, and

Containerizer

are worth mentioning.

In recent times, container-based cluster solutions

have gained increasing popularity for deploying con-

tainers. Some of these solutions further support

the orchestration of containers, providing greater

scalability, improved reliability, and a sophisticated

management interface. Kubernetes

currently rep-

resents the most widespread ecosystem for manag-

ing containerised workloads. With its wide ecosys-

tem, it facilitates both declarative conﬁguration and

https://www.docker.com/

https://hub.docker.com/

https://containerd.io/

https://cri-o.io/

http://mesos.apache.org/documentation/latest/mesos-

containerizer/

https://kubernetes.io/

automation of container clusters. Docker Swarm

offers a native solution for cluster management to

be integrated into Docker. Mesos

is an open-

source project to manage computer clusters backed

by Apache Software Foundation. It natively supports

Docker containers and may be used in conjunction

with Marathon

, a platform for container orchestra-

tion.

Some of the most renowned cloud providers,

such as Amazon AWS, Microsoft Azure, and Google

Cloud have built-in services to operate containers and

clusters. In most cases, these built-in services are just

ad-hoc implementations of the aforementioned tech-

nologies. OpenStack

represents an open-source al-

ternative to control large pools of resources. In order

to support container orchestration, it uses the Heat

and Magnum

components. The ﬁrst is a service

to orchestrate composite Cloud applications, which

is required for Magnum to work properly. The lat-

ter allows clustered container platforms (Kubernetes,

Mesos, Swarm) to interoperate with other OpenStack

components through differentiated APIs.

The wide choice of technologies and providers

gives developers many options in terms of ﬂexibility,

reliability, and costs. However, all these services are

neither interchangeable nor interoperable. Switching

from a service (or a platform) to another requires sev-

eral manual operations to be performed, and the learn-

ing curve owing to the new tools functioning might be

non-trivial. These shortcomings have led to the devel-

opment of systems to automate deployment and man-

agement operations, able to manage the interface with

multiple container technologies, clusters and Cloud

providers.

2.2 The TOSCA Speciﬁcation

Research community has focused on approaches us-

ing standardised languages to specify the topology

and the management plans for Cloud applications. In

this regard, TOSCA represents a notable contribution

to the development of Cloud standards, since it allows

to describe multi-tier applications and their life-cycle

management in a modular and portable fashion (Bel-

lendorf and Mann, 2018).

TOSCA is a standard designed by OASIS to en-

able the portability of Cloud applications and the re-

lated IT services (OASIS, 2013). This speciﬁcation

https://docs.docker.com/engine/swarm/

http://mesos.apache.org/

https://mesosphere.github.io/marathon/

https://www.openstack.org/

https://wiki.openstack.org/wiki/Heat

https://wiki.openstack.org/wiki/Magnum

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

128

permits to describe the structure of a Cloud applica-

tion as a service template, which is composed of a

topology template and the types needed to build such

a template.

The topology template is a typed directed graph,

whose nodes (called node templates) model the ap-

plication components, and edges (called relationship

templates) model the relations occurring among such

components. Each node of a topology can also con-

tain several information such as the corresponding

component’s requirements, the operations to manage

it (interfaces), the attributes and the properties it fea-

tures, the capabilities it provides, and the software ar-

tifacts it uses.

TOSCA supports the deployment and manage-

ment of applications in two different ﬂavours: imper-

ative processing and declarative processing. The im-

perative processing requires that all needed manage-

ment logic is contained in the Cloud Service Archive

(CSAR). Management plans are typically imple-

mented using workﬂow languages, such as BPMN

or BPEL

. The declarative processing shifts man-

agement logic from plans to runtime. TOSCA run-

time engines automatically infer the corresponding

logic by interpreting the application topology tem-

plate. The set of provided management functionalities

depends on the corresponding runtime and is not stan-

dardised by the TOSCA speciﬁcation. OpenTOSCA

(Binz et al., 2014) is a famous open-source TOSCA

runtime environment.

TOSCA Simple Proﬁle is an isomorphic ren-

dering of a subset of the TOSCA speciﬁcation in

the YAML language (OASIS, 2019). It deﬁnes a

few normative workﬂows that are used to operate

a topology and speciﬁes how they are declaratively

generated: deploy, undeploy, scaling-workﬂows and

auto-healing workﬂows. Imperative workﬂows can

still be used for complex use-cases that cannot be

solved in declarative workﬂows. However, they pro-

vide less reusability as they are deﬁned for a spe-

ciﬁc topology rather than being dynamically gener-

ated based on the topology content. The work de-

scribed in this paper heavily grounds on the TOSCA

standard and, speciﬁcally, on TOSCA Simple Proﬁle.

This provides convenient deﬁnitions for container

nodes. The tosca.nodes.Container.Runtime type rep-

resents the virtualised environment where containers

run. The tosca.nodes.Container.Application type rep-

resents an application that uses container-level virtu-

alisation.

Besides container types, the TOSCA Simple

Proﬁle speciﬁcation provides other useful tools

http://www.bpmn.org/

https://www.oasis-open.org/committees/wsbpel/

for the description of containerised applications,

such as the Repository Deﬁnition, which can be

exploited to deﬁne internal or external repositories

for pulling container images, the non-normative

tosca.artifacts.Deployment.Image.Container.Docker

type for Docker images, and the Conﬁgure step in

Standard interface node life-cycle, which allows to

deﬁne post-deployment conﬁguration operations or

scripts to execute.

3 RELATED WORK

Several research and business-oriented projects have

exploited the TOSCA standard for container orches-

tration.

Cloudify

delivers container orchestration inte-

grating multiple technologies and providers. While

it offers graphical tools for sketching and modelling

an application, its data format is based on the TOSCA

standard. Alien4Cloud

is an open-source platform

which provides a TOSCA nearly-normative set of

types for Docker support. Kubernetes and Mesos or-

chestrators are available through additional plugins.

Both the above-mentioned works implement the in-

teroperability different clusters and providers deﬁning

complex sets of nodes, which are speciﬁc to the tech-

nologies used. Moreover, their TOSCA implementa-

tions reckon on Domain-Speciﬁc Languages (DSLs)

which, despite sharing the TOSCA template struc-

ture, do not use the node type hierarchy deﬁned in the

standard. With respect to Cloudify, the approach dis-

cussed in this paper focuses on TOSCA-compliant ap-

plication descriptions, making no prior assumptions

regarding the technology stack to be established.

In (Kiss et al., 2019) the authors present Mi-

CADO, an orchestration framework which guaran-

tees out-of-the-box reliable orchestration, by work-

ing closely with Swarm and Kubernetes. Unlike the

precedent approaches, MiCADO does not overturn

the TOSCA standard nodes, but the cluster orchestra-

tor is still hardcoded in the Interface section of each

node of the topology.

TosKer (Brogi et al., 2018) presents an approach

which leverages on the TOSCA standard for the de-

ployment of Docker-based applications. This work

claims to be able to generalise its strategy to cluster

systems, but neither a proof nor an explanation of how

to deal with the differences between clustered and

non-clustered scenarios is given. TosKer approach

is very different from the one proposed in this paper,

http://cloudify.co/

https://alien4cloud.github.io/

Enabling Container Cluster Interoperability using a TOSCA Orchestration Framework

129

since it does not provide any automatic provisioning

of the deployment plan and it is based on the redeﬁni-

tion of several nodes of the TOSCA standard.

In (Kehrer and Blochinger, 2018) the authors pro-

pose a two-phase deployment method based on the

TOSCA standard. They provide a good integration

with Mesos and Marathon, but they do not either sup-

port other containerised clusters or furnish automa-

tion for the deployment of the cluster.

In summary, all the current works achieve con-

tainer cluster interoperability, or partial interoperabil-

ity, either associating platform-speciﬁc information to

the nodes of the topology template or redeﬁning the

TOSCA hierarchy of nodes. Thus, in order to work

with the above mentioned frameworks, it is necessary

to know in advance both the technological stack and

the framework-speciﬁc nodes to use.

The work we propose differentiates from all ex-

isting works in its goals, which are: enabling high

interoperability between different technologies and

providers; providing a standard-compliant approach,

with no overturning of the standard-deﬁned types and

no prior assumptions about the technology stack to be

established; and adopting the principle of separation

of concerns between the topology of the application

and its orchestration.

4 ACHIEVING CLUSTER

INTEROPERABILITY

In this section, we ﬁrst analyse existing swarm ser-

vices to provide interoperability between multiple

container cluster technologies. Then, the strategy

adopted to describe the topology of containerised ap-

plications operating on top of multiple cluster plat-

forms is presented.

4.1 Analysis of Cluster Orchestrators

To operate on top of different cluster platforms, a

common speciﬁcation model, compatible across di-

verse technologies, is required. To develop such a

model, we analysed three of the most popular cluster

orchestrators: Docker Swarm, Kubernetes and Mesos

+ Marathon. Our analysis focused on highlighting

similarities and points of contrast within the aspects

that affect the deployment of containers. We found

that all the three platforms implement the main fea-

tures for container orchestration in similar ways. For

example, some entities and services represent identi-

cal concepts, even though they are named differently.

The results of the comparison are available in Table 1.

Application Speciﬁcation indicates the method to

describe the scenario to deploy, i.e., speciﬁcation for-

mats and languages. Deployment Unit refers to the

atomic deployable entity, which is managed by the

cluster in terms of scalability and availability. Con-

tainer and Cluster indicate the names used for con-

tainer entities and for clusters of physical machines.

Volume Management describes the strategies to man-

age the attachment of storage entities and Network-

ing Management illustrates how to establish internal

and external connections. Conﬁguration Operations

present methods to execute post-deployment conﬁgu-

ration operations on containers.

Firstly, we identiﬁed the most important features

for deploying and initialising containerised applica-

tions. Then, for each of these features, we found

strategies leading to similar results in all the analysed

orchestrators. This information can be found in the

Table 1: A comparison of how features are implemented in Docker Swarm, Kubernetes and Mesos + Marathon.

Docker Swarm Kubernetes Mesos + Marathon

Application Speciﬁcation Docker Compose YAML YAML format JSON format

Deployment Unit Service Pod Pod

Container Container Container Task

Cluster Swarm Cluster Cluster

Volume Management

Volumes can be attached

to Services or be auto-

matically created accord-

ing to the volume speciﬁ-

cation on the service.

PersistentVolumes can be

directly attached to Pods

or may be automatically

provisioned.

The appropriate amount of

disk space is implicitly re-

served, according to speci-

ﬁcation.

Networking Management

Overlay networks manage

communications among

the Docker daemons

participating in the swarm.

Services provide network-

ing, granting a way to ac-

cess Pods.

Containers of each pod in-

stance can share a network

namespace, and communi-

cate over a VLAN or pri-

vate network.

Conﬁguration Operations

It is possible to execute

commands directly on the

service. (eg docker exec)

It is possible to execute

commands directly on the

container (eg kubectl exec)

It is possible to execute

commands directly on the

task. (eg dcos task exec)

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

130

rows of the Table.

From this analysis, many similarities emerged be-

tween the three platforms. All of them allow to spec-

ify the desired application using a tree-like data model

within portable formats, such as JSON and YAML.

Furthermore, all the orchestrators map resources in

similar ways for deployment units, containers, and

clusters, where the main difference is given by the

naming conventions.

With regard to volume and networking manage-

ment, different platforms implement different strate-

gies. However, all the volume management ap-

proaches share the possibility to delegate the provi-

sioning of volumes to the platform, taking for granted

that volume properties are indicated in the application

speciﬁcation. As for networking, each of the software

grants accessibility to deployment units and contain-

ers, both within and outside the cluster, although they

manage it in different ways. Finally, all the platforms

allow to execute conﬁguration commands on the de-

ployed instances, by accessing them directly.

The analysis of container cluster interoperability

laid the groundwork for a uniﬁed approach. This is

further explored in the next section, where the com-

mon speciﬁcation format and the interfaces to the dif-

ferent cluster orchestrators are discussed.

4.2 Application Description

One of the key aspects of this work is the development

of a standard-based approach for the topology de-

scription of containerised applications, which lever-

ages the TOSCA standard.

As discussed in Section 2.2, TOSCA Simple Pro-

ﬁle includes several node types for container-based

application topologies. According to the analysis in

Table 1, we mapped TOSCA Container Runtime to

Deployment Unit entities and TOSCA Container Ap-

plication to containers. This allows to easily describe

containerised applications within a cluster in terms

of nodes. However, we found that using the plain

TOSCA Container Application would ﬂatten the node

hierarchy present in the Simple Proﬁle speciﬁcation,

removing the possibility to assign meaningful roles

to each node in the topology (e.g. Database, Web-

Server).

t o s c a . nod e s . C o n t a i n e r . A p p l i c a t i o n :

d e r i v e d f r o m : t o s c a . nod e s . R oot

r e q u i r e m e n t s :

- h o s t :

c a p a b i l i t y : t o s c a . c a p a b i l i t i e s . Compute

nod e : t o s c a . n ode s . C o n t a i n e r . Ru n t i me

r e l a t i o n s h i p : t o s c a . r e l a t i o n s h i p s . H ost edOn

- s t o r a g e :

c a p a b i l i t y : t o s c a . c a p a b i l i t i e s . S t o r a g e

- n e tw o rk :

c a p a b i l i t y : t o s c a . c a p a b i l i t i e s . E n d p o i n t

Listing 1: TOSCA Container Application node.

For the sake of clarity, Listing 1 shows the

TOSCA Container Application node which represents

a generic container-based application. Other than

hosting, storage and network requirements, no prop-

erties are deﬁned. Besides, it directly derives from the

root node as all other TOSCA base node types do. If,

on the one hand, this allows to have consistent def-

initions for basic requirements, capabilities and life-

cycle interfaces, on the other one, customisation is

only possible by type extension.

t o s c a . nod e s . D a t a b a se :

d e r i v e d f r o m : t o s c a . nod e s . R oot

p r o p e r t i e s :

name:

t y p e : s t r i n g

d e s c r i p t i o n : t h e l o g i c a l name o f t h e d a t a b a s e

p o r t :

t y p e : i n t e g e r

d e s c r i p t i o n : >

t h e p o r t t h e u n d e r l y i n g d a t a b a s e s e r v i c e

w i l l l i s t e n t o f o r d a t a

u s e r :

t y p e : s t r i n g

d e s c r i p t i o n : >

t h e u s e r a c c o u n t name f o r DB a d m i n i s t r a t i o n

r e q u i r e d : f a l s e

p a s sw o r d:

t y p e : s t r i n g

d e s c r i p t i o n : >

t h e p a ssw o rd f o r t h e DB u s e r a c c o u n t

r e q u i r e d : f a l s e

r e q u i r e m e n t s :

- h o s t :

c a p a b i l i t y : t o s c a . c a p a b i l i t i e s . Compute

nod e : t o s c a . n od e s .DBMS

r e l a t i o n s h i p : t o s c a . r e l a t i o n s h i p s . H ost edOn

c a p a b i l i t i e s :

d a t a b a s e e n d p o i n t :

t y p e : t o s c a . c a p a b i l i t i e s . E n d p o in t . D a t a b a s e

Listing 2: TOSCA Database node.

t o s c a . nod e s . C o n t a i n e r . D a t a b a s e :

d e r i v e d f r o m : t o s c a . nod e s . C o n t a i n e r . A p p l i c a t i o n

d e s c r i p t i o n : >

TOSCA C o n t a i n e r f o r D a t a b a s e s whi c h e mp l oy s

t h e same c a p a b i l i t i e s a nd p r o p e r t i e s o f t h e

t o s c a . nod e s . D a t a b a se b u t w h ich e x t e n d s f r om

t h e C o n t a i n e r . A p p l i c a t i o n n o d e t y p e

p r o p e r t i e s :

u s e r :

r e q u i r e d : f a l s e

t y p e : s t r i n g

d e s c r i p t i o n : >

User a c c o u n t name f o r DB a d m i n i s t r a t i o n

p o r t :

r e q u i r e d : f a l s e

t y p e : i n t e g e r

d e s c r i p t i o n : >

The p o r t t h e d a t a b a s e s e r v i c e w i l l u s e

t o l i s t e n f o r in c omi n g d a t a a n d r e q u e s t s .

name:

r e q u i r e d : f a l s e

t y p e : s t r i n g

d e s c r i p t i o n : >

The name o f t h e d a t a b a s e .

p a s sw o r d:

r e q u i r e d : f a l s e

t y p e : s t r i n g

d e s c r i p t i o n : >

The p a ss w o rd f o r t h e DB u s e r a c c o u n t

c a p a b i l i t i e s :

d a t a b a s e e n d p o i n t :

t y p e : t o s c a . c a p a b i l i t i e s . E n d p o in t . D a t a b a s e

Listing 3: TOSCA Container Database node.

As a result, we extended the TOSCA Simple Pro-

ﬁle hierarchy for containers, by deriving from the

Enabling Container Cluster Interoperability using a TOSCA Orchestration Framework

131

TOSCA Container Application type and deﬁning the

same properties and capabilities that are present in

each of the corresponding TOSCA node in the stan-

dard. Listing 2 and Listing 3 further explain our

methodology, describing, by way of example, the

TOSCA Database node and the TOSCA Container

Database node respectively.

While using the plain TOSCA Container Applica-

tion type would still allow to deploy a scenario in our

framework, we believe that preserving a node typing

system would make the speciﬁcation more descrip-

tive. Moreover, this choice enables the use of the

standard-deﬁned typed relationships (i.e. Connect-

sTo, DependsOn, HostedOn, ...) between different

types of container nodes.

Another resource mapping was required for man-

aging Volumes. TOSCA Simple Proﬁle provides use-

ful Storage node types for representing storage re-

sources, such as tosca.nodes.Storage.BlockStorage.

We mapped TOSCA Block Storage to volumes.

Each volume should be connected to the respec-

tive container using the standard-deﬁned relationship

tosca.relationships.AttachesTo. TOSCA AttachesTo

already deﬁnes the location property which is of pri-

mary importance for containers, since it allows to de-

ﬁne the mount path of a volume.

Networking management did not need any ad-

ditional speciﬁcation. Cluster networks may be

arranged using the port property of a node and

analysing its relationships with the other nodes in the

topology.

5 SYSTEM DESIGN

The aim of this work is to design a TOSCA Orchestra-

tor for the deployment of containerised applications

on clusters. The Orchestrator should also be able to

interface with several Cloud providers and a variety

of container technologies. The main features of the

framework are described in the following subsections.

5.1 Framework Architecture

Starting from the Cloud application description, the

framework is capable of devising and orchestrating

the workﬂow of the provisioning operations to ex-

ecute. Along with the application description, sev-

eral application properties may be provided using the

dashboard tool. This is the main endpoint in order to

interact with the framework since it allows to conﬁg-

ure and start the deployment process.

Firstly, the dashboard allows users to either sketch

the topology of their desired applications, using

graphical modelling tools, or upload and validate pre-

viously worked application descriptions. Then, it is

possible to deploy the uploaded applications, provid-

ing many conﬁguration parameters, such as the target

Cloud provider or the cluster technology to use for

containers. At a later stage, the dashboard can also

be used to display information about the deployment

status and debug information.

We have designed and implemented a TOSCA Or-

chestrator which transforms the YAML model into an

equivalent BPMN model, which is fed to a BPMN en-

gine that instantiates and coordinates the related pro-

cess. The process puts in force all the provisioning ac-

tivities needed to build up the application stack. The

overall provisioning scenario is depicted in Figure 1.

For each framework service, multiple implemen-

tations can be provided for the different supported

Cloud providers. All the services are offered within

the framework through an Enterprise Service Bus

(ESB). The original work provides two categories of

provisioning services that need to be integrated in the

ESB: Cloud Resource Services and Packet-based Ser-

vices. This work requires an additional category, Con-

tainer Cluster Services, which includes functionali-

ties to deploy applications on cluster platforms. In or-

der to integrate all the mentioned services in the ESB,

we deploy a layer of Service Connectors which are

responsible for connecting requests coming from the

Provisioning Tasks with the Provisioning Services.

Service Connectors allow to achieve service location

transparency and loose coupling between Provision-

ing BPMN plans (orchestrated by the Process Engine)

and Provisioning Services.

The Service Registry is responsible for the regis-

tration and discovery of Connectors. The Service Bro-

ker is in charge of taking care of the requests coming

from the Tasks. Cloud Service Connectors implement

interactions with Cloud Providers for the allocation

of Cloud resources. For each service type, a speciﬁc

Connector needs to be implemented. For instance,

Instantiate Cluster represents the generic Connec-

tor interface to the instantiation of Cloud resources

of “Container Cluster” type. All concrete Connec-

tors to real Cloud services (AWS, OpenStack, Azure,

etc.) must implement the Instantiate Cluster interface.

Likewise, Instantiate VM is the generic Connector in-

terface to “Virtual Machine” services, which concrete

Connectors to real services in the Cloud must imple-

ment.

Packet-based Service Connectors are meant to im-

plement interactions with all service providers that

provide packet-based applications. When the YAML-

to-BPMN conversion takes place, three types of

BPMN service tasks might be generated: “Create”,

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

132

Application

properties

TOSCA

YAML

to BPMN

BPMN

Engine

BPMN

Service

Broker

Service

Registry

Service BUS

Create VM

Service

Create Cluster

Service

Create Storage

Service

Deploy DB

Service

Deploy

Deployment Unit

Service

Deploy/Create

...

Service

Orchestration Layer

Dashboard

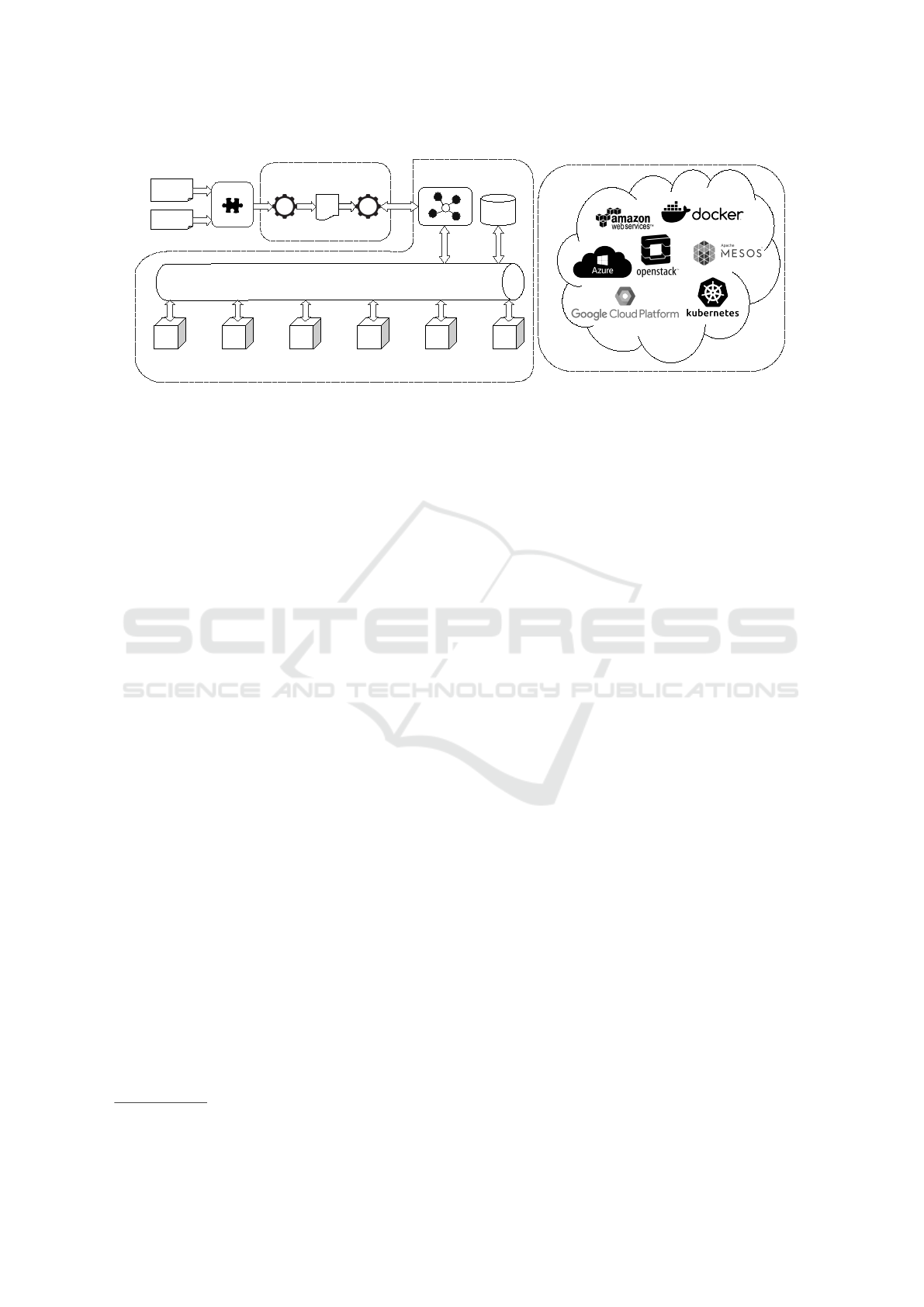

Figure 1: Overview of the Provisioning Scenario, Showing the Different Layers of the Framework.

“Conﬁgure” and “Start”. To each of these tasks corre-

sponds a generic connector interface (Create, Conﬁg-

ure and Start). These interfaces are then extended in

order to manage several types of applications (DBMS,

Web Servers, etc.). The latter are the ones that con-

crete Connectors must implement in order to interact

with real packet-based application providers.

In this work we focus on container-based ap-

plications which use container cluster technologies.

The TOSCA operations for container orchestration

are different from resource and package operations,

and cluster technologies frequently perform manage-

ment operations that are relieved from the framework.

Thus, the orchestration process for Deployment Units

will be discussed later in this paper.

5.2 YAML Parsing

In our framework, the ﬁrst step towards the deploy-

ment orchestration is the YAML processing. The

Parser software component is widely based on the

OpenStack parser

for TOSCA Simple Proﬁle in

YAML, a Python project licensed under Apache 2.0.

The Parser builds an in-memory graph which keeps

track of all nodes and dependency relationships be-

tween them in the TOSCA template.

We extended the Parser features to adapt it for

containerised applications. The new module devel-

oped for the Parser is able to identify, analyse and

output Deployment Units speciﬁcation in a suitable

format for the BPMN plans. A bottom-up approach

has been used. Starting from a Container Runtime, it

identiﬁes the Deployment Unit and recursively ﬁnd all

the containers stacked upon it and their dependencies,

making a clear distinction between volume dependen-

cies, which bind a storage volume to a container, and

external dependencies, which bind a container to an-

https://wiki.openstack.org/wiki/TOSCA-Parser

other container hosted either on the same Deployment

Unit or on a different one.

Each volume must be linked to its corresponding

container using the “AttachesTo” relationship. It is

important to specify the location parameter, which

would serve as the mount path for the volume. This

allows the Parser to correctly associate each volume

to its container. External dependencies are identiﬁed

and output by the Parser, since they would be used to

setup Networking for each Deployment Unit.

Finally, the Parser produces BPMN data objects

which are provided as data inputs for the BPMN

plans.

5.3 BPMN Plans

The BPMN plans in our platform rework the strategy

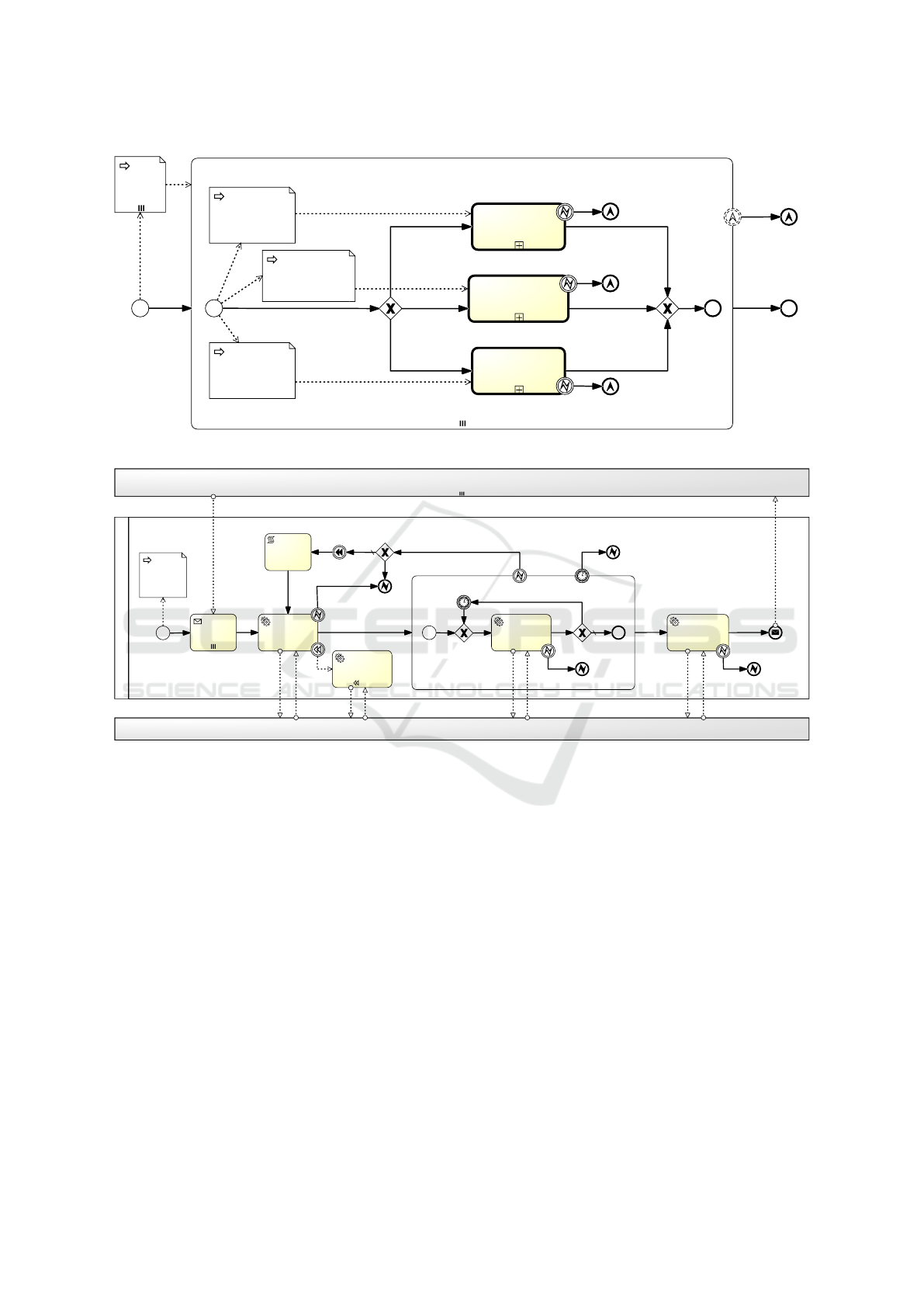

adopted in (Calcaterra et al., 2018). In Figure 2 the

overall service provision workﬂow is depicted. The

diagram is composed of a parallel multi-instance sub-

process, i.e., a set of sub-processes (called “Instanti-

ate Node”) each processing a TOSCA node in a par-

allel fashion. Originally, a TOSCA node was either

a cloud resource or a software package. In this work

we expanded the BPMN Plans for our purpose, mod-

elling a workﬂow path for deployment unit nodes.

In Figure 3 the detailed workﬂow for a deploy-

ment unit node is depicted. The top pool called “Node

Instance” represents the pool of all instances of either

the “create cloud resource” sub-process or the “create

deployment unit” sub-process, which are running in

parallel to the “create deployment unit” sub-process

being analysed. The bottom pool called “Container

Cluster Service Connectors” represents the pool of the

software connectors deployed in the ESB. In the mid-

dle pool, the sequence of tasks carried out to create

and instantiate a deployment unit are depicted. Inter-

actions of the middle pool with the “Node Instance”

pool represent points of synchronization between the

Enabling Container Cluster Interoperability using a TOSCA Orchestration Framework

133

begin

error

escalation

node

Instantiate Node

deploy

create

node

[cloud resource]

node

[package]

cloud resource

error

package

error

any error

node

[deployment unit]

create

any error

deployment unit

error

complete

any error

escalation

deployment unit

package

cloud resource

Figure 2: Instantiate Node Overall Workﬂow.

create <deployment unit>

decrement

retry counter

retry?

create error

dispose

create start

create

error

dispose

await create

notiﬁcations

wait until created

check period

check

create status

create

error

create

error

create

timeout

create timeout

ready

conﬁgure

error

conﬁguration

error

node

[deployment unit]

Container Cluster Service Connectors

Node Instance

wip

Figure 3: Node Deployment Unit Workﬂow.

multiple installation instances, that may be involved

in a provision process.

The creation of a deployment unit starts with a

task that awaits notiﬁcations coming from the preced-

ing sub-processes, which may consist of the “create

cloud resource” sub-process for the creation of the

cluster, in case this was not instantiated before, or

other “create deployment unit” sub-processes. A ser-

vice task will then trigger the actual instantiation by

invoking the appropriate Connector on the ESB. Here,

if a fault occurs, it is immediately caught and the

whole sub-process is cancelled. Following the path

up to the parent process, an escalation is engaged. If

the creation step is successful, a “wait-until-created”

sub-process is activated.

Checks on the status are iterated until the cluster

platform returns an “healthy status” for the deployed

instance. The “check deployment unit create status”

service task is committed to invoke the Connector on

the ESB to check the status on the selected swarm

service. The deployment unit’s status is strongly de-

pendent on the hosted containers’ status. However,

container cluster platforms automatically manage the

life-cycle of containers, then the check is executed to

detect errors which are strictly related to deployment

units’ resources.

Checking periods are conﬁgurable, so is the time-

out put on the boundary of the sub-process. An er-

ror event is thrown either when the timeout has ex-

pired or when an explicit error has been signalled in

response to a status check call. In the former case,

the escalation is immediately triggered; in the latter

case, an external loop will lead the system to au-

tonomously re-run the whole deployment unit cre-

ation sub-process a conﬁgurable number of times, be-

fore yielding and eventually triggering an escalation

event. Moreover, a compensation mechanism (“dis-

pose deployment unit” task) allows to dispose of the

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

134

deployment unit, whenever a fault has occurred.

Then the “conﬁgure deployment unit” task may be

invoked to execute potential conﬁguration operations

on the deployed containers. When the workﬂow suc-

cessfully reaches the end, a notiﬁcation is sent. Oth-

erwise, the occurred faults are caught and handled via

escalation.

5.4 Service Connectors

Different kinds of Service Connectors serve the cause

of container orchestration in our framework. The ﬁrst

category contains the services related to the different

Cloud providers, such as AWS, Azure, Google Cloud,

and OpenStack. In particular, the cluster for deploy-

ing the scenario should be provisioned and the param-

eters for authenticating on the cluster should be pro-

vided to the ESB for future operations.

The second category of services is related to the

container cluster platforms, namely Docker Swarm,

Kubernetes and Mesos. After creating the cluster, the

ESB should be able to authenticate and communicate

with the cluster for starting the operations which re-

alise the deployment of the scenario. These connec-

tors also perform a translation from the parsed topol-

ogy to the speciﬁc format of the container cluster plat-

form.

6 PROTOTYPE

IMPLEMENTATION AND

TESTS

In this section, we discuss the implementation of the

framework in more detail and corroborate the working

behaviour of our software with a test on a simple real-

world scenario. This would be a containerised version

of a WordPress (WP) scenario including two Deploy-

ment Units, MySQL and WordPress, which are both

stacked with a Volume and a Container. The scenario

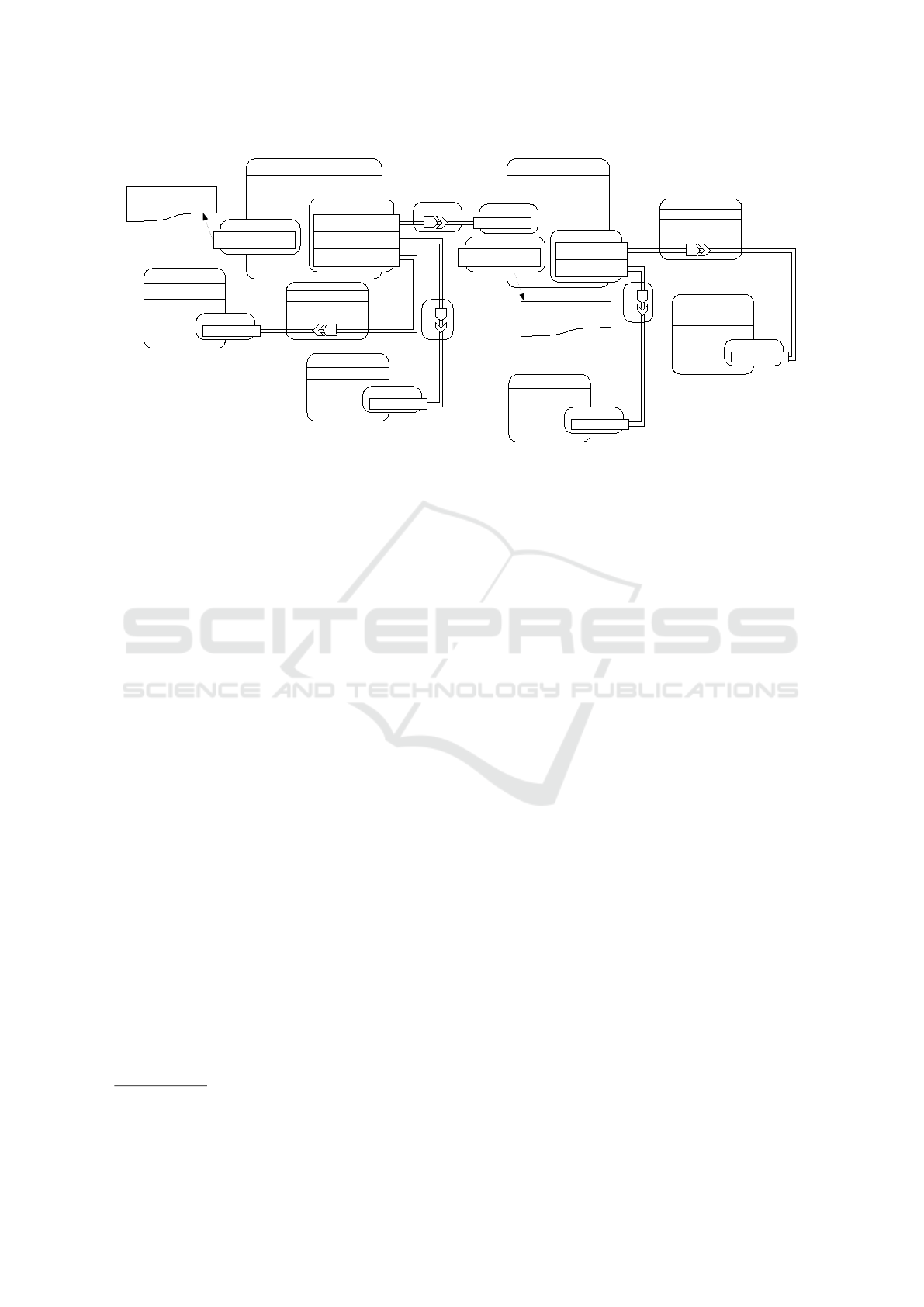

is depicted in Figure 4, by using TOSCA standard no-

tation.

In the WP scenario, container images are Docker

images which need to be pulled from the DockerHub

repository, as speciﬁed in the template. The TOSCA

Artifact image ﬁlls the implementation parameter for

the Create step in the container life-cycle. Any en-

vironment variable for the Docker image should be

given as an input of the implementation in the Cre-

ate section of the containers. For being correctly

parsed, the environment variables should have the

same names that are indicated in the DockerHub in-

structions for the image. Another parameter that can

be speciﬁed in the Create inputs is the port. Other-

wise, a port would be automatically chosen for the

service by the container orchestrator.

In Listing 4, the TOSCA Simple Proﬁle descrip-

tion of the types and the templates used for the

MySQL deployment unit is provided as an example.

The description was drafted according to the princi-

ples deﬁned in Section 4.2.

With regard to the BPMN plans execution, the

deployment unit workﬂow has to be processed two

times. The ﬁrst time the instance to be created is the

MySQL deployment, while the second unit to be pro-

cessed corresponds to the WordPress deployment. We

used Flowable

, which is a Java based open-source

business process engine, for the implementation of

the BPMN workﬂow processing.

n o d e t y p e s :

t o s c a . nod e s . C o n t a i n e r . D a t a b a s e .MySQL:

d e s c r i p t i o n : >

MySQL c o n t a i n e r f r o m t h e Do c k e r Hub r e p o s i t o r y

d e r i v e d f r o m : t o s c a . nod e s . C o n t a i n e r . D a t a b a s e

r e q u i r e m e n t s :

- v olum e:

c a p a b i l i t y : t o s c a . c a p a b i l i t i e s . A t t a ch m en t

r e l a t i o n s h i p : t o s c a . r e l a t i o n s h i p s . A t t a c h e s T o

r e l a t i o n s h i p t e m p l a t e s :

t o s c a . r e l a t i o n s h i p s . MySQLAttachesToVolume:

t y p e : t o s c a . r e l a t i o n s h i p s . A t t ac he s T o

p r o p e r t i e s :

l o c a t i o n : { g e t i n p u t : m y s q l l o c a t i o n }

n o d e t e m p l a t e s :

m y s q l c o n t a i n e r :

t y p e : t o s c a . no d e s . C o n t a i n e r . Da t a b a s e .MySQL

r e q u i r e m e n t s :

- h o s t : m y s q l d e p l o y m e n t u n i t

- v olum e:

nod e : mys q l v olum e

r e l a t i o n s h i p : t o s c a . r e l a t i o n s h i p s .

MySQLAttachesToVolume

a r t i f a c t s :

my s ql i m ag e :

f i l e : my s q l: 5 . 7

t y p e : t o s c a . a r t i f a c t s . Deployment . Imag e . C o n t a i n e r .

Dock e r

r e p o s i t o r y : d o c k e r h u b

p r o p e r t i e s :

p o r t : { g e t i n p u t : m y s q l p o r t }

p a s sw o r d: { g e t i n p u t : m y s q l r o o t p w d }

i n t e r f a c e s :

S t a n d a r d :

c r e a t e :

i m p l e m e n t a t i o n : m ys q l i m a ge

i n p u t s :

p o r t : { g e t p r o p e r t y : [ SELF , p o r t ] }

m y s q l r o o t p a s s w o r d : { g e t p r o p e r t y : [ SELF ,

p a s sw o r d ]}

my s q l vo l u m e:

t y p e : t o s c a . no d e s . B l o c k S t o r a g e

p r o p e r t i e s :

s i z e : { g e t i n p u t : m y s q l v o l u m e s i z e }

m y s q l d e p l o y m e n t u n i t :

t y p e : t o s c a . no d e s . C o n t a i n e r . Runtime

Listing 4: MySQL deployment unit speciﬁcation.

We tested the WP scenario with an OpenStack

Cloud provider, using Kubernetes as the container

cluster platform. A local cluster consisting of two

identical off-the-shelf PCs was considered in order

https://www.ﬂowable.org/

Enabling Container Cluster Interoperability using a TOSCA Orchestration Framework

135

mysql_container

Container.Database.MySQL

Properties

●

password

●

port

Capabilities

Endpoint.DB

Requirements

Container

host: mysql_du

Lifecycle.Standard

create: mysql_image

Artifacts:

repository: docker_hub

file: mysql:5.7

get_artifact()

mysql_volume

BlockStorage

Properties

●

size

Capabilities

Attachment

volume: mysql_volume

wordpress_container

Container.WebApplication.Wordpress

Requirements

Container

host: wordpress_du

Lifecycle.Standard

create: wp_image

get_artifact()

wordpress_du

Container.Runtime

Capabilities

Container

Attachment

volume: wordpress_volume

AttachesTo

Properties

●

location

Endpoint

db_host: mysql_container

ConnectsTo

Artifacts:

repository: docker_hub

file: wordpress

AttachesTo

Properties

●

location

wordpress_volume

BlockStorage

Properties

●

size

Capabilities

Attachment

mysql_du

Container.Runtime

Capabilities

Container

Figure 4: The WordPress Application Topology, Described Using TOSCA Speciﬁcation.

to create a minimal OpenStack set-up, i.e., Controller

node and Compute node. The former also runs Heat

and Magnum services. Both nodes run Ubuntu Server

x86-64 Linux distributions. The Service Connectors

for OpenStack and Kubernetes were implemented

complementing Eclipse Vert.x

, a Java toolkit for

event-driven applications, with OpenStack4J

, for

the creation of the cluster, and the ofﬁcial Kuber-

netes Java client, for the deployment of the Deploy-

ment Units. Overall, the scenario was correctly pro-

visioned, returning a working WP application.

7 CONCLUSIONS

The automated provisioning of complex Cloud ap-

plications has become a key factor for the competi-

tiveness of Cloud providers. The ever-increasing us-

age of Cloud container technologies shows the impor-

tance of their management and orchestration also in

this context. Organisations do indeed package appli-

cations in containers and need to orchestrate multiple

containers across multiple Cloud providers.

In this work, starting from a previously designed

Cloud orchestration and provisioning framework, we

extended it in order to allow the deployment and or-

chestration of containerised applications. The main

effort has been devoted to provide interoperability be-

tween multiple container cluster technologies: a strat-

egy to describe the topology of containerised appli-

cations operating on top of multiple cluster platforms

has been also presented. The developed prototype and

https://vertx.io/

http://www.openstack4j.com/

the simple test presented showed the viability of the

approach.

Future work will include the development and

testing on top of different container-based cluster plat-

forms using more complex scenarios, which feature

multiple layers of resources, in order to further vali-

date our system.

REFERENCES

Bellendorf, J. and Mann, Z.

A. (2018). Cloud Topology and

Orchestration Using TOSCA: A Systematic Literature

Review. In Kritikos, K., Plebani, P., and de Paoli,

F., editors, Service-Oriented and Cloud Computing,

pages 207–215. Springer International Publishing.

Binz, T., Breitenb

ucher, U., Kopp, O., and Leymann, F.

(2014). TOSCA: Portable Automated Deployment

and Management of Cloud Applications. Advanced

Web Services, pages 527–549.

Brogi, A., Rinaldi, L., and Soldani, J. (2018). Tosker: A

synergy between tosca and docker for orchestrating

multicomponent applications. Software: Practice and

Experience, 48(11):2061–2079.

Calcaterra, D., Cartelli, V., Di Modica, G., and Tomarchio,

O. (2017). Combining TOSCA and BPMN to En-

able Automated Cloud Service Provisioning. In Pro-

ceedings of the 7th International Conference on Cloud

Computing and Services Science (CLOSER 2017),

pages 159–168, Porto (Portugal).

Calcaterra, D., Cartelli, V., Di Modica, G., and Tomarchio,

O. (2018). Exploiting BPMN features to design a

fault-aware TOSCA orchestrator. In Proceedings of

the 8th International Conference on Cloud Comput-

ing and Services Science (CLOSER 2018), pages 533–

540, Funchal-Madeira (Portugal).

Dikaiakos, M. D., Katsaros, D., Mehra, P., Pallis, G., and

Vakali, A. (2009). Cloud Computing: Distributed

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

136

Internet Computing for IT and Scientiﬁc Research.

IEEE Internet Computing, 13(5):10–13.

Duan, Y., Fu, G., Zhou, N., Sun, X., Narendra, N. C., and

Hu, B. (2015). Everything as a Service (XaaS) on the

Cloud: Origins, Current and Future Trends. In 8th

International Conference on Cloud Computing, pages

621–628.

Kehrer, S. and Blochinger, W. (2018). TOSCA-based con-

tainer orchestration on Mesos. Computer Science -

Research and Development, 33(3):305–316.

Kiss, T., Kacsuk, P., Kovacs, J., Rakoczi, B., Hajnal, A.,

Farkas, A., Gesmier, G., and Terstyanszky, G. (2019).

MiCADO—Microservice-based Cloud Application-

level Dynamic Orchestrator. Future Generation Com-

puter Systems, 94:937 – 946.

Marston, S., Li, Z., Bandyopadhyay, S., Zhang, J., and

Ghalsasi, A. (2011). Cloud computing — the business

perspective. Decision Support Systems, 51(1):176 –

189.

OASIS (2013). Topology and Orchestration Speciﬁcation

for Cloud Applications Version 1.0. http://docs.oasis-

open.org/tosca/TOSCA/v1.0/os/TOSCA-v1.0-

os.html. Last accessed: 2019-12-23.

OASIS (2019). TOSCA Simple Proﬁle in YAML Version

1.2. https://docs.oasis-open.org/tosca/TOSCA-

Simple-Proﬁle-YAML/v1.2/TOSCA-Simple-Proﬁle-

YAML-v1.2.html. Last accessed: 2019-12-23.

Pahl, C. (2015). Containerization and the PaaS Cloud. IEEE

Cloud Computing, 2(3):24–31.

Petcu, D. and Vasilakos, A. (2014). Portability in Clouds:

Approaches and Research Opportunities. Scalable

Computing: Practice and Experience, 15(3):251–270.

Ruan, B., Huang, H., Wu, S., and Jin, H. (2016). A Per-

formance Study of Containers in Cloud Environment.

In Wang, G., Han, Y., and Mart

ınez P

erez, G., ed-

itors, Advances in Services Computing, pages 343–

356, Cham. Springer International Publishing.

Sysdig (2019). Sysdig 2019 container usage re-

port. https://sysdig.com/blog/sysdig-2019-container-

usage-report/. Last accessed: 2019-12-23.

Weerasiri, D., Barukh, M. C., Benatallah, B., Sheng, Q. Z.,

and Ranjan, R. (2017). A Taxonomy and Survey

of Cloud Resource Orchestration Techniques. ACM

Comput. Surv., 50(2):26:1–26:41.

Enabling Container Cluster Interoperability using a TOSCA Orchestration Framework

137
