Impact of Combining Syntactic and Semantic Similarities on Patch

Prioritization

Moumita Asad, Kishan Kumar Ganguly and Kazi Sakib

Institute of Information Technology, University of Dhaka, Dhaka, Bangladesh

Keywords:

Patch Prioritization, Semantic Similarity, Syntactic Similarity, Automated Program Repair.

Abstract:

Patch prioritization means sorting candidate patches based on the probability of correctness. It helps to mini-

mize the bug ﬁxing time and maximize the precision of an automated program repair technique by ranking the

correct solution before incorrect one. Recent program repair approaches have used either syntactic or semantic

similarity between faulty code and ﬁxing ingredient to prioritize patches. However, the impact of combined

approach on patch prioritization has not been analyzed yet. For this purpose, two patch prioritization methods

are proposed in this paper. Genealogical and variable similarity are used to measure semantic similarity since

these are good at differentiating between correct and incorrect patches. Two popular metrics namely normal-

ized longest common subsequence and token similarity are considered individually for capturing syntactic

similarity. To observe the combined impact of similarities, the proposed approaches are compared with patch

prioritization techniques that use either semantic or syntactic similarity. For comparison, 246 replacement

mutation bugs from historical bug ﬁxes dataset are used. Both methods outperform semantic and syntactic

similarity based approaches, in terms of median rank of the correct patch and search space reduction. In

11.79% and 10.16% cases, the combined approaches rank the correct solution at ﬁrst position.

1 INTRODUCTION

Patch is the modiﬁcations applied to a program for

ﬁxing a bug. Automated program repair ﬁnds the cor-

rect patch based on a speciﬁcation, e.g., test cases

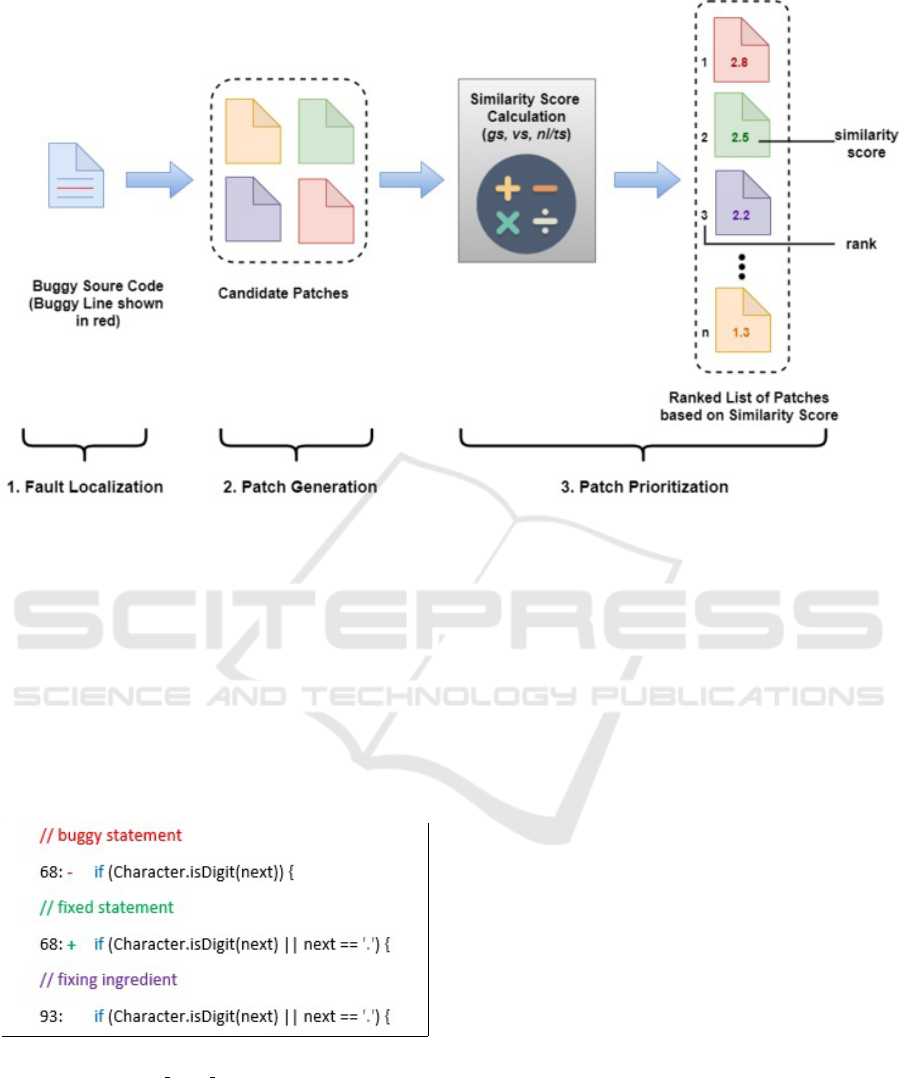

(Monperrus, 2018). It works in three steps namely

fault localization, patch generation and patch vali-

dation (Tan and Roychoudhury, 2015), (Liu et al.,

2019a). Fault localization identiﬁes the faulty code

where the bug resides. Patch generation modiﬁes the

faulty code to ﬁx the bug. Finally, patch validation ex-

amines whether the bug has been ﬁxed or not. Since

the solution space is inﬁnite, numerous patches can

be generated (Jiang et al., 2018). In addition, a plau-

sible solution - patch that passes all the test cases, can

be incorrect. It is known as overﬁtting problem (Wen

et al., 2018). To limit the search space, most of the

program repair techniques such as (Le Goues et al.,

2012), (Kim et al., 2013), (Qi et al., 2014), rely on re-

dundancy assumption (Chen and Monperrus, 2018).

According to the redundancy assumption, the so-

lution of a bug can be found elsewhere in the applica-

tion or other projects (Chen and Monperrus, 2018),

(White et al., 2019). This assumption has already

been validated by existing studies such as (Martinez

et al., 2014), (Barr et al., 2014). Martinez et al.

found that 3-17% of the commits are redundant at the

line level, whereas it is 29-52% at token level (Mar-

tinez et al., 2014). Another study on 15,723 com-

mits reported that approximately 30% ﬁxing ingredi-

ents (code used to ﬁx the bug) exist in the same buggy

ﬁle (Barr et al., 2014). Although the redundancy as-

sumption limits the search space, in practice it is too

large for exploring exhaustively (Chen and Monper-

rus, 2018). For example, if a technique collects line

wise ﬁxing ingredients at application level, the num-

ber of patches generated will be total LOC of the ap-

plication. Therefore, potentially correct patches need

to be validated earlier.

Sorting candidate patches, based on its probabil-

ity of correctness, is called patch prioritization (Xiong

et al., 2018). It can help to minimize the bug ﬁxing

time and maximize the precision of a repair technique.

To prioritize patches, some information need to be

considered such as similarity between faulty code and

ﬁxing ingredient or patterns derived from existing

patches (Jiang et al., 2018). The information should

be able to minimize overﬁtting problem by ranking

the correct patch higher. Furthermore, it should vali-

date the correct solution earlier since patch validation

170

Asad, M., Ganguly, K. and Sakib, K.

Impact of Combining Syntactic and Semantic Similarities on Patch Prioritization.

DOI: 10.5220/0009411301700180

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 170-180

ISBN: 978-989-758-421-3

is a time-consuming task (Saha et al., 2017), (Chen

and Monperrus, 2018).

To the best of the knowledge, existing approaches

use either syntactic or semantic similarity between

faulty code and ﬁxing ingredient for patch prioritiza-

tion (Saha et al., 2017), (Xin and Reiss, 2017b), (Jiang

et al., 2018), (Wen et al., 2018). Elixir uses contex-

tual and bug report similarities for capturing syntactic

similarity (Saha et al., 2017). To calculate syntax-

similarity score, ssFix uses TF-IDF model (Xin and

Reiss, 2017b). For ﬁnding top ﬁxing ingredients,

syntactically similar to the faulty code, SimFix uses

three metrics - structure, variable name and method

name similarity (Jiang et al., 2018). CapGen uses

three models based on genealogical structures (e.g.,

ancestors of an Abstract Syntax Tree (AST) node), ac-

cessed variables and semantic dependencies to mea-

sure semantic similarity (Wen et al., 2018). However,

none of these approaches analyze the impact of inte-

grating the strengths of both similarities to prioritize

patches.

This paper presents an empirical study on patch

prioritization to analyze the impact of combining syn-

tactic and semantic similarities. It extends the au-

thor’s initial work (Asad et al., 2019). Similar to

(Asad et al., 2019), it uses genealogical and vari-

able similarity between faulty node and ﬁxing ingre-

dient for measuring semantic similarity. However, it

is found that syntactic similarity metric named nor-

malized longest common subsequence does not per-

form well when the character level difference between

faulty code and ﬁxing ingredient is high (Asad et al.,

2019). Therefore, to calculate syntactic similarity,

normalized longest common subsequence as well as

a new metric named token similarity are considered

separately. Thus, two patch prioritization approaches

namely Com-L and Com-T are proposed respectively.

Genealogical similarity checks whether faulty node

and ﬁxing ingredient are frequently used with same

type of code elements (e.g., inside if statement) (Wen

et al., 2018). Variable similarity inspects the name

and type of variables accessed by the faulty node and

ﬁxing ingredient. Normalized longest common sub-

sequence calculates maximum similarity at character

level. Token similarity measures to what extent same

tokens (e.g., identiﬁers) exist in faulty node and ﬁxing

ingredient, regardless of its position.

For analysis, 246 out of 3302 bugs from histori-

cal bug ﬁxes dataset are selected through preprocess-

ing (e.g., removing duplicate bugs) (Le et al., 2016).

These bugs are collected from over 700 large, open-

source, popular Java projects such as Apache Com-

mons Math, Eclipse JDT Core. Each bug is associated

with a buggy and a ﬁxed version ﬁle, corresponding

commit hashes and project url. From the difference

between the buggy and ﬁxed version ﬁles, the faulty

line is identiﬁed. Next, AST nodes of type Expression

are extracted from that line. This work focuses on

expression level since it increases the probability of

including the correct patch in the search space (Wen

et al., 2018). To generate patches, the faulty nodes

are replaced with ﬁxing ingredients. Following other

repair techniques (Le Goues et al., 2012), (Wen et al.,

2018), the ﬁxing ingredients are collected from the

source ﬁle where the bug resides. Lastly, patches are

prioritized based on the proposed techniques. Similar

to (Chen and Monperrus, 2018), ASTs of each patch

and the correct solution are matched to assess its cor-

rectness. The correct patches of the bugs are provided

with the dataset.

For evaluation, the combined methods are com-

pared to techniques using only syntactic or semantic

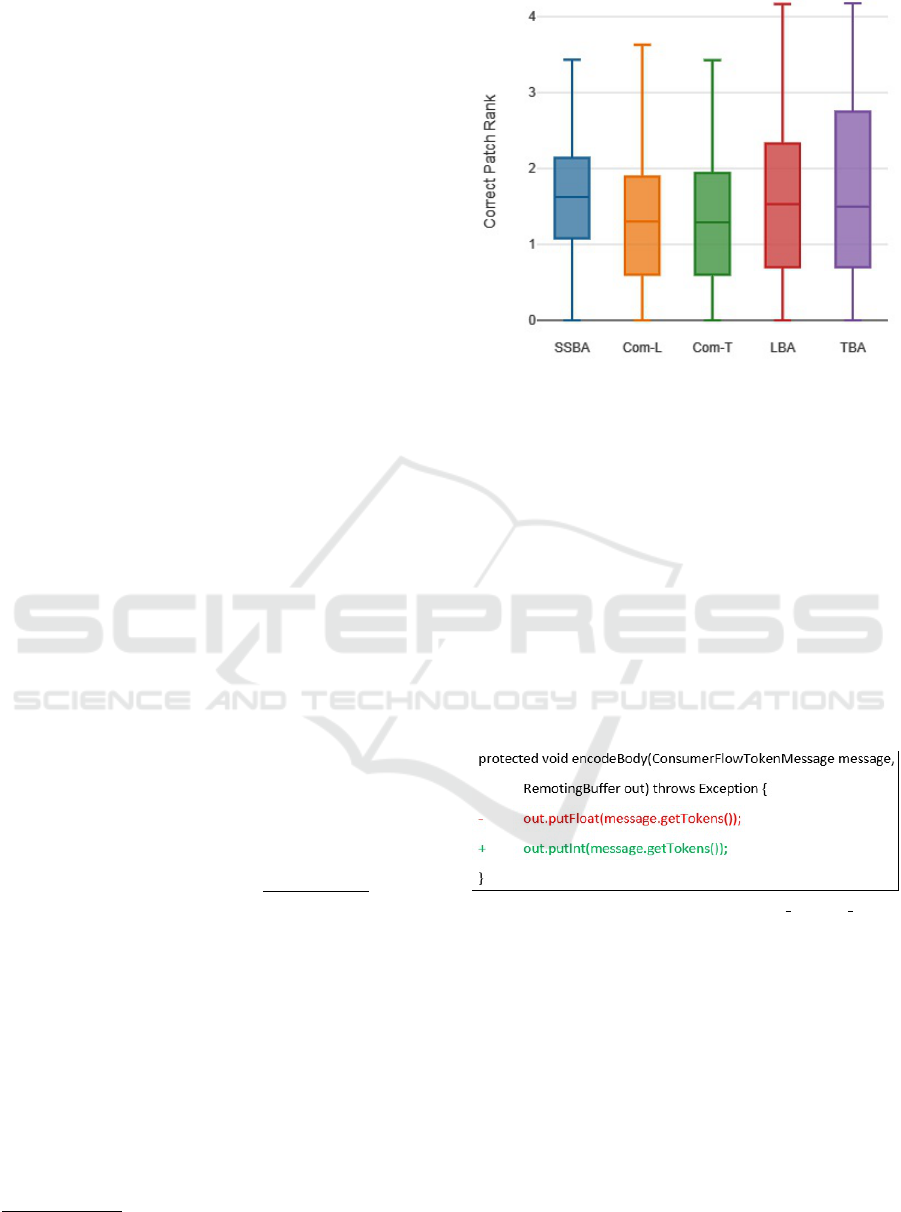

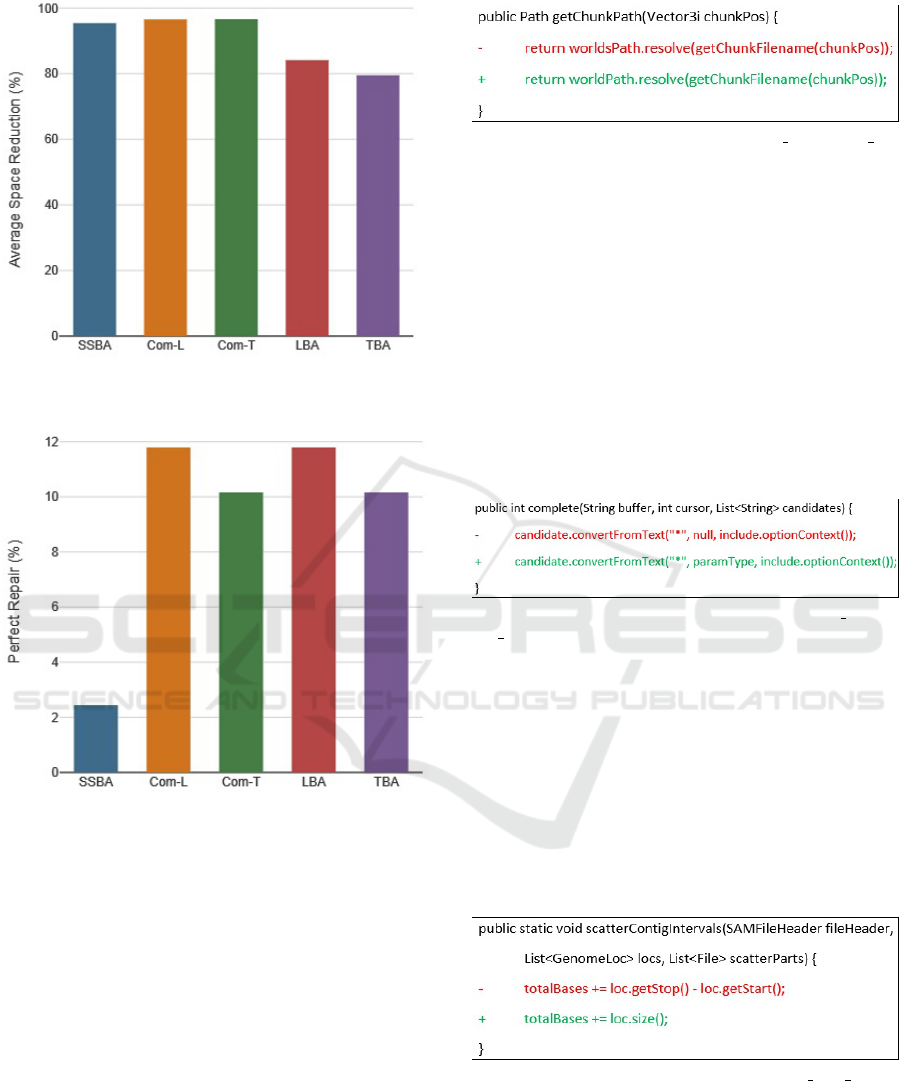

similarity. For comparison, three metrics namely me-

dian rank of the correct patch, average search space

reduction and perfect repair (the percentage of bug

ﬁxes for which the correct solution is ranked at ﬁrst

position) are inspected as well as Wilcoxon Signed-

Rank test is conducted. Results show that the pro-

posed approaches outperform syntactic or semantic

similarity based techniques in terms of median rank of

the correct patch and average search space reduction.

Using Com-L and Com-T, 96.52% and 96.62% of the

total search space can be avoided to ﬁnd the correct

patch. These methods can rank the correct patch sig-

niﬁcantly higher than semantic or syntactic similarity

based approaches. The mean rank of the correct patch

is signiﬁcantly better in Com-T than Com-L. Further-

more, Com-L and Com-T rank the correct patch at ﬁrst

position in 11.79% and 10.16% cases respectively. It

indicates that these methods are capable of ranking

correct patch prior to incorrect plausible ones.

2 RELATED WORK

Recently, automated program repair has drawn the at-

tention of researchers due to its potentiality of mini-

mizing debugging effort (Gazzola et al., 2017). Most

of the earlier approaches (Le Goues et al., 2011),

(Le Goues et al., 2012), (Kim et al., 2013), (Qi et al.,

2014) rely on redundancy assumption to limit the

number of generated patches. GenProg (Le Goues

et al., 2012) and PAR (Kim et al., 2013) use ge-

netic programming to ﬁnd the correct patch. Gen-

Prog randomly modiﬁes the faulty code using three

mutation operators (insert, replace, delete) (Le Goues

et al., 2012). On the other hand, PAR uses ten pre-

deﬁned templates (e.g., null pointer checker) to gen-

Impact of Combining Syntactic and Semantic Similarities on Patch Prioritization

171

erate patches (Kim et al., 2013). These templates are

extracted from manually inspecting 62,656 human-

written patches. Another approach RSRepair ran-

domly searches among the candidate patches to ﬁnd

the correct one (Qi et al., 2014).

Although the redundancy assumption has limited

the number of generated patches, in practice it is too

large for exploring exhaustively (Chen and Monper-

rus, 2018). All the patches need to be compiled

and validated by executing test cases, which is time

consuming (Saha et al., 2017), (Chen and Monper-

rus, 2018). Therefore, new techniques are prioritizing

patches to validate potentially correct patches earlier

(Le et al., 2016), (Saha et al., 2017), (Xin and Reiss,

2017b), (Jiang et al., 2018), (Wen et al., 2018).

Approaches using patch prioritization can be

broadly divided into two categories based on the in-

formation used. The ﬁrst category uses historical

bug-ﬁx patterns such as HDRepair (Le et al., 2016).

HDRepair uses patterns obtained from 3000 bugs

ﬁxes over 700 large, popular GitHub projects. To gen-

erate patches, it uses 12 mutation operators such as

replace statement, boolean negation. If a patch passes

all the test cases, it is added to a set of possible solu-

tions. Lastly, a predeﬁned number of patches, ranked

by their frequency in the historical bug-ﬁxes, are pre-

sented to the developer. Although HDRepair solves

more bugs than prior techniques GenProg (Le Goues

et al., 2012), PAR (Kim et al., 2013), it obtains low

precision (56.50%). It indicates that considering only

historical bug ﬁx patterns is not sufﬁcient for elimi-

nating incorrect plausible patches (Wen et al., 2018).

The second category uses similarity between

faulty code and ﬁxing ingredient to prioritize patches.

This category can further be classiﬁed into two groups

based on the type of similarity used (syntactic or se-

mantic similarity). ELIXIR (Saha et al., 2017), ssFix

(Xin and Reiss, 2017b), SimFix (Jiang et al., 2018)

use syntactic similarity between faulty code and ﬁx-

ing ingredient. Syntactic similarity focuses on textual

alikeness such as similarity in variable names. On the

other hand, CapGen (Wen et al., 2018) uses semantic

similarity between faulty code and ﬁxing ingredient.

It focuses on code meaning such as data type of vari-

ables (Nguyen et al., 2013).

Elixir, one of the ﬁrst such approaches, introduces

8 templates for generating patches, e.g., changing Ex-

pression in return statement (Saha et al., 2017). It

uses four features including contextual and bug report

similarities to prioritize patches. Contextual similar-

ity measures the syntactic similarity between ﬁxing

ingredient and surrounding code of the faulty loca-

tion. Bug report similarity calculates the syntactic

similarity between ﬁxing ingredient and bug report.

For assigning different weights to these similarities,

logistic regression model is used. The approach val-

idates only the top 50 patches generated from each

template. It can repair more bugs compared to con-

temporary techniques (Xin and Reiss, 2017b), (Xiong

et al., 2017). However, it yields low precision partic-

ularly 63.41%.

ssFix is the ﬁrst approach to perform syntactic

code search from a codebase containing the faulty

program and other projects (Xin and Reiss, 2017b).

At ﬁrst, ssFix extracts the faulty code along with

its context (code surronding the faulty location) us-

ing a LOC based algorithm. It is called target

chunk (tchunk). A similar process is followed to

retrieve ﬁxing ingredients and their contexts from

the codebase. These are called candidate chunks

(cchunks). The tchunk and cchunks are tokenized

after masking project-speciﬁc code (e.g., variable

names). Next, cchunks are prioritized based on its

syntax-relatedness to the tchunk, calculated using TF-

IDF. Currently, ssFix uses maximum 100 top cchunks

for generating patches. This approach obtains 33.33%

precision, which indicates it is not good at differenti-

ating between correct and incorrect patches.

SimFix uses three metrics - structure, variable

name and method name similarity to capture syntac-

tic similarity between faulty code and ﬁxing ingredi-

ent (Jiang et al., 2018). Structure similarity extracts

a list of features related to AST nodes (e.g., number

of if statements). Variable name similarity tokenizes

variable names (e.g., splitting studentID into student

and ID) and calculates similarity using Dice coefﬁ-

cient (Thada and Jaglan, 2013). Method name simi-

larity follows the same process as variable name sim-

ilarity. To generate patches, SimFix selects top 100

ﬁxing ingredients based on the similarity score. To

further limit the search space, only ﬁxing ingredients

found frequently in existing human-written patches

are considered. Similar to Elixir and ssFix, this ap-

proach yields low precision which is 60.70%.

To generate patches, CapGen deﬁnes 30 mutation

operators such as insert Expression statement under

if statement (Wen et al., 2018). It uses three models

based on genealogical structures, accessed variables

and semantic dependencies to capture context simi-

larities at AST node level. These models mainly fo-

cus on semantic similarities between faulty code and

ﬁxing element to prioritize patches. The precision of

this approach is higher (84.00%), however, it relies on

program dependency graph to calculate semantic de-

pendency which does not scale to even moderate-size

programs (Gabel et al., 2008).

The above discussion indicates that various ap-

proaches have used either syntactic or semantic sim-

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

172

ilarity as a part of the repairing process. However,

techniques using syntactic similarity such as Elixir,

ssFix, yields low precision. On the other hand, some

semantic similarity metrics such as semantic depen-

dency, suffer from scalability problem. Although both

of these similarities have limitations, these are effec-

tive in program repair. Nevertheless, the impact of

combining the strengths of both similarities to priori-

tize patches has not been explored yet.

3 METHODOLOGY

This study considers ﬁnding the correct patch in auto-

mated program repair as a ranking problem. It takes

source code and faulty line as input and outputs a

ranked list of patches. For generating the ranked list,

patches are sorted using a combination of syntactic

and semantic similarity.

3.1 Dataset Preprocessing

In this paper, historical bug ﬁxes dataset is used which

comprises more than 3000 real bug ﬁxes from over

700 large, popular, open-source Java projects such as

Apache Commons Lang, Eclipse JDT Core etc (Le

et al., 2016). This dataset has been adopted by pre-

vious studies as well (Le et al., 2017), (Wen et al.,

2018). Each bug in this dataset is associated with a

buggy and a ﬁxed version ﬁle, corresponding commit

hashes and project url.

This study analyzes how combining syntactic and

semantic similarity impacts patch prioritization. Sim-

ilar to state of the art approaches (Le Goues et al.,

2012), (Kim et al., 2013), (Le et al., 2016), (Wen

et al., 2018), it focuses on redundancy based program

repair. It particularly studies replacement mutaion

bugs, as followed in (Chen and Monperrus, 2018).

For this purpose, bugs that fulﬁll following criteria,

are selected from the dataset.

• Unique: Duplicate bugs will bias the result.

Two bugs are considered as duplicate if their

corresponding buggy and ﬁxed version ﬁles are

same. The dataset contains some duplicate bugs

(e.g., bug Lollipop platform frameworks base 18

and AICP frameworks base 24), which are ﬁl-

tered out.

• Satisfy Redundancy Assumption at File Level:

Similar to (Le Goues et al., 2012), (Wen et al.,

2018), (Liu et al., 2019b), this study focuses on

ﬁle level redundancy assumption (patches of bugs

are found in the corresponding buggy ﬁles). Only

bugs satisfying this requirement are chosen.

• Fixed by Applying Replacement Mutation:

The faulty code is more likely to be syntacti-

cally and semantically similar to the ﬁxing ingre-

dient for replacement mutation bugs (Chen and

Monperrus, 2018). Hence, only bugs that can be

solved by applying replacement mutation are se-

lected.

• Require Fixing at Expression Level: Existing

study found that redundancy is higher at ﬁner

granularity and therefore, increases the probabil-

ity of including the correct patch in the search

space (Wen et al., 2018). Only bugs that require

ﬁx at expression level are selected.

• Having Available Project and Dependency

Files: To measure similarity, variables within a

ﬁle need to be identiﬁed. For this purpose, the

corresponding project and dependency ﬁles of a

bug are needed. However, some project urls (e.g.,

apache james project) do not exist anymore. Ad-

ditionally, some bugs have missing dependency

ﬁles (e.g., bug baasbox baasbox 6), which are re-

moved.

After ﬁltering, it results in 246 replacement mutation

bugs.

3.2 Approach

This paper analyzes the impact of combining syntac-

tic and semantic similarities on patch prioritization.

Figure 1 shows overview of the technique. It works

in three steps namely fault localization, patch gen-

eration and patch prioritization. For a given buggy

line, fault localization extracts corresponding Expres-

sion nodes. Patch generation produces patches by re-

placing the faulty node by ﬁxing ingredients. For each

patch, a score is calculated using syntactic and seman-

tic similarity between faulty code and ﬁxing ingredi-

ent. Based on this score, patches are prioritized. The

details of these steps are given below:

1. Fault Localization: It identiﬁes the faulty AST

node of type Expression. Similar to (Chen and

Monperrus, 2018), this study assumes that fault

localization outputs the correct faulty line since

the main focus is on patch prioritization. For each

bug, the faulty line is identiﬁed from the differ-

ence between the buggy and ﬁxed version ﬁles.

Next, Expression type nodes (both buggy and

non-buggy) residing in that line are extracted from

AST. Figure 2 shows a sample bug fasseg

exp4j 4

from project exp4j. Here, line 68 is faulty. All

the expressions from this line such as Character,

Character.isDigit(next), next etc, are extracted.

Impact of Combining Syntactic and Semantic Similarities on Patch Prioritization

173

Figure 1: Overview of the Technique.

2. Patch Generation: This step modiﬁes the source

code to generate patches. After identifying the

faulty nodes, ﬁxing ingredients are collected. This

study uses nodes from the buggy source ﬁle that

have a category of Expression as ﬁxing ingredi-

ents, as followed in (Wen et al., 2018). Next,

faulty nodes are replaced with ﬁxing ingredients

for patch generation. In Figure 2, a sample patch

is replacing Character.isDigit(next) with Charac-

ter.isDigit(next) k next == '.' from line 93.

Figure 2: Buggy Statement, Fixed Statement and Fixing In-

gredient of Bug fasseg exp4j 4.

3. Patch Prioritization: The patch generation step

produces numerous patches due to having large

solution space. To ﬁnd potentially correct patches

earlier, the generated patches are prioritized. Both

syntactic and semantic similarities between faulty

code and ﬁxing ingredient are used to prioritize

patches (shown in Figure 1). To measure seman-

tic similarity, genealogical and variable similarity

are used since these are effective in differentiating

between correct and incorrect patches (Wen et al.,

2018). For capturing syntactic similarity, two

widely-used metrics namely normalized Longest

Common Subsequence (LCS) and token simi-

larity are considered individually (Ragkhitwet-

sagul et al., 2018). Thus, two patch prioritiza-

tion approaches namely Com-L and Com-T are

proposed. Com-L combines genealogical and

variable similarity with normalized LCS to rank

patches. Com-T uses combination of genealogi-

cal, variable and token similarity for patch priori-

tization.

• Genealogical Similarity: Genealogical struc-

ture indicates the types of code elements, with

which a node is often used collaboratively (Wen

et al., 2018). For example, node Charac-

ter.isDigit(next) is used inside if statement. To

extract the genealogy contexts of a node resid-

ing in a method body, it’s ancestor, as well as,

sibling nodes are inspected. The ancestors of a

node are traversed until a method declaration

is found. For sibling nodes, nodes having a

type Expressions or Statements within the same

block of the speciﬁed node are extracted. Next,

the type of each node is checked and the fre-

quency of different types of nodes (e.g., num-

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

174

ber of for statements) are stored. Nodes of type

Block are not considered since these provide

insigniﬁcant context information (Wen et al.,

2018). On the other hand, for nodes appearing

outside method body, only its respective type

is stored. The same process is repeated for the

faulty node ( f n) and the ﬁxing ingredient ( f i).

Lastly, the genealogical similarity (gs) is mea-

sured using (1).

gs( f n, f i) =

∑

t∈K

min(φ

f n

(t), φ

f i

(t))

∑

t∈K

f n

(t)

(1)

where, φ

f n

and φ

f i

denote the frequencies of

different node types for faulty node and ﬁxing

ingredient respectively. K represents a set of all

distinct AST node types captured by φ

f n

• Variable Similarity: Variables (local vari-

ables, method parameters and class attributes)

accessed by a node provide useful information

as these are the primary components of a code

element (Wen et al., 2018). In Figure 2, both

the faulty node Character.isDigit(next) and the

ﬁxing ingredient Character.isDigit(next) k next

== '.' access the same variable next. To mea-

sure variable similarity, two lists containing

names and types of variables used by the faulty

node (θ

f n

) and the ﬁxing ingredient (θ

f i

) are

generated. Next, variable similarity (vs) is cal-

culated using (2).

vs( f n, f i) =

|θ

f n

∩ θ

f i

|θ

f n

∪ θ

f i

(2)

Two variables are considered same if their

names and types are exact match. To measure

variable similarity of nodes that do not contain

any variable, e.g., Boolean Literal type nodes,

only their respective data types are matched

(Wen et al., 2018).

• Normalized LCS: LCS ﬁnds the common sub-

sequence of maximum length by working at

character-level (Chen and Monperrus, 2018).

This study computes normalized LCS (nl) be-

tween faulty code ( f n) and ﬁxing ingredient

( f i) at AST node level using (3).

nl( f n, f i) =

LCS( f n, f i)

max(| f n|, | f i|)

(3)

where, max(| f n|, | f i|) represents the maximum

length between f n and f i.

• Token Similarity: Unlike normalized LCS, to-

ken similarity ignores the order of text (Chen

and Monperrus, 2018). It only checks whether

a token (e.g., identiﬁers) exists regardless of its

position. For example, both faulty node Char-

acter.isDigit(next) and ﬁxing ingredient Char-

acter.isDigit(next) k next == '.' have isDigit to-

ken in common. To calculate token similarity,

at ﬁrst, the faulty node and ﬁxing ingredient are

tokenized. Similar to (Saha et al., 2017), camel

case identiﬁers are further split and converted

into lower-case format. For example, isDigit is

converted into is and digit. Next, token similar-

ity (ts) is computed using (4).

ts( f n, f i) =

|θ

f n

∩ θ

f i

|θ

f n

∪ θ

f i

(4)

where, θ

f n

and θ

f i

represent the token list of

faulty node and ﬁxing ingredient respectively.

Each of the above mentioned metrics outputs a

score between 0 and 1. The ﬁnal similarity score

is calculated by adding these scores (sum of gs, vs

and nl or ts), as followed in (Jiang et al., 2018).

For example, if gs, vs and ts are 0.92, 0.66 and

0.57 respectively, the ﬁnal score will be 2.15.

Next, all the patches are sorted in descending or-

der based on this ﬁnal score (shown in Figure 1).

4 EXPERIMENT AND RESULT

ANALYSIS

This section presents the implementation details,

evaluation criteria and result analysis of the study. At

ﬁrst, the language and tools used for implementing

the proposed approaches are discussed. Next, eval-

uation metrics are described. Finally, results of the

proposed approaches based on the evaluation metrics

are reported.

4.1 Implementation

This study proposes two approaches to examine the

impact of combining syntactic and semantic similar-

ities on patch prioritization. The devised approaches

are implemented in Java since it is one of the most

popular programming languages (Saha et al., 2018).

It uses Eclipse JDT parser

for manipulating AST.

It uses javalang tool

for tokenizing code. Javalang

takes Java source code as input and provides a list of

tokens as output.

To understand combined impact of similarities,

the proposed approaches need to be compared with

https://github.com/eclipse/eclipse.jdt.core/blob/

master/org.eclipse.jdt.core/dom/org/eclipse/jdt/core/dom/

ASTParser.java

https://github.com/c2nes/javalang

Impact of Combining Syntactic and Semantic Similarities on Patch Prioritization

175

patch prioritization techniques that use semantic and

syntantic similarity individually. Therefore, this study

further implements semantic or syntantic similarity

based patch prioritization approaches using metrics

discussed in Section 3.2 (genealogical similarity, vari-

able similarity, normalized LCS and token similarity).

The techniques are described below:

1. Semantic Similarity based Approach (SSBA):

It uses only semantic similarity metrics namely

genealogical and variable similarity to prioritize

patches.

2. LCS based Approach (LBA): It is a syntactic

similarity based approach that prioritizes patches

using only normalized LCS score.

3. Token based Approach (TBA): It is another syn-

tactic similarity based approach that uses only to-

ken similarity to prioritize patches.

All of these three patch prioritization approaches

follow the same repairing process as the combined

ones. It ensures that the observed effects occurred

due to varied similarities used in patch prioritization.

The implementations of these approaches are publicly

available at GitHub

4.2 Evaluation

In this study, following evaluation metrics are in-

spected:

1. Median Rank of the Correct Patch: The lower

the median rank, the better the approach is (Le

et al., 2016).

2. Average Space Reduction: It indicates how

much search space can be avoided for ﬁnding the

correct patch (Chen and Monperrus, 2018). It is

calculated using (5).

avg space reduction = (1 −

mean correct

mean total

) ∗ 100

(5)

where, mean correct and mean total denote mean

of the correct patch rank and total patches gener-

ated respectively.

3. Perfect Repair: It denotes the percentage of bug

ﬁxes for which the correct solution is ranked at

ﬁrst position (Chen and Monperrus, 2018).

Similar to (Chen and Monperrus, 2018), this study

considers a patch identical to human patch as correct,

which is provided with the dataset.

Figure 3 shows the rank distributions of correct

patches for SSBA, Com-L, Com-T, LBA and TBA.

https://github.com/mou23/Impact-of-Combining-

Sytactic-and-Semantic-Similarity-on-Patch-Prioritization

Figure 3: Comparison of Correct Patch Rank among SSBA,

Com-L, Com-T, LBA and TBA.

Since the data range is high (1-15005), log transfor-

mation is used in this ﬁgure. It can be seen that Com-L

and Com-T outperform SSBA, LBA and TBA in terms

of median rank of the correct patch. The ranks are 20,

19.5, 42, 34 and 31.5 respectively. The reason is Com-

L and Com-T incorporate information from multiple

domains (both textual similarity and code meaning).

A sample patch is shown in Figure 4. Here, the lines

of code started with “+” and “-” indicate the added

and deleted lines respectively. For this bug, SSBA,

LBA and TBA rank the correct solution at 3, 4 and

9 respectively. On the other hand, both Com-L and

Com-T rank the correct solution at 1.

Figure 4: Sample Patch for Bug hornetq hornetq 70.

Figure 5 demonstrates that Com-L and Com-T are

effective in reducing the search space compared to

SSBA, LBA and TBA. When random search is used, on

average 50% of the search space needs to be covered

before ﬁnding the correct solution (Chen and Mon-

perrus, 2018). Using Com-L and Com-T, 96.52% and

96.62% of the total search space can be ignored to

ﬁnd the correct patch, whereas it is 95.38%, 84.07%

and 79.49% for SSBA, LBA and TBA correspondingly.

By using Com-L or Com-T, future automated program

repair tools can consider a larger search space to ﬁx

more bugs (Wen et al., 2018).

In terms of perfect repair, Com-L and Com-T out-

perform SSBA, as shown in Figure 6. The values are

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

176

Figure 5: Comparison of Average Space Reduction among

SSBA, Com-L, Com-T, LBA and TBA.

Figure 6: Comparison of Perfect Repair among SSBA, Com-

L, Com-T, LBA and TBA.

11.79%, 10.16% and 2.44% respectively. Regarding

syntactic similarity based approach, Com-L performs

better than TBA and as good as LBA. However, Com-T

obtains lower result than Com-L and LBA. For exam-

ple, for the bug in Figure 7, Com-T ranks the correct

solution at 8. On the other hand, both Com-L and

LBA rank the correct patch at 1 due to high charac-

ter level similarity. Nevertheless, the values obtained

by Com-L and Com-T indicate that these approaches

contribute to solving the overﬁtting problem. Since

the ﬁrst patch is the correct one in 11.79% and 10.16%

cases, there is no chance of generating plausible patch

before the correct one.

Table I reports the statistical signiﬁcance of

the obtained result using signiﬁcance level = 0.05.

Wilcoxon Signed-Rank test is used for this purpose

Figure 7: Sample Patch for Bug Cervator Terasology 2.

since no assumption regarding the distribution of

samples has been made (Walpole et al., 1993). Re-

sults show that the mean rank of Com-L and Com-T

are signiﬁcantly better than SSBA, LBA and TBA. The

p-value is 0.00 in all of these cases. Although the

mean rank of SSBA is signiﬁcantly better than TBA,

it is not signiﬁcantly different from LBA. For some

bugs such as Figure 8, the ﬁxing ingredients are very

different from the faulty code. To ﬁx the bug, null is

replaced with paramType. In this case, syntactic simi-

larity based approaches LBA and TBA cannot rank the

correct patch higher since there is no textual similarity

between faulty code and ﬁxing ingredient.

Figure 8: Sample Patch for Bug spring-projects spring-

roo 10.

Results further reveal that the mean rank of Com-T

is signiﬁcantly better than Com-L (p-value = 0.00).

The reason is when the character level difference be-

tween faulty code and ﬁxing ingredient is high, Com-

L can not perform well (Asad et al., 2019). How-

ever, Com-T has no such drawback. An example is

shown in Figure 9. Here, a larger expression is re-

placed with a smaller one that has low character level

similarity. Therefore, Com-L ranks the correct patch

at 256, whereas Com-T ranks it at 87.

Figure 9: Sample Patch for Bug broadgsa gatk 2.

5 THREATS TO VALIDITY

This section presents potential aspects which may

threat the validity of the study:

Impact of Combining Syntactic and Semantic Similarities on Patch Prioritization

177

Table 1: Difference between Mean Ranking of Correct Patch.

Compared Groups Mean P-value Decision

Com-L and SSBA

Com-L SSBA

0.00 Signiﬁcant

125.98 166.99

Com-T and SSBA

Com-T SSBA

0.00 Signiﬁcant

122.31 166.99

Com-L and LBA

Com-L LBA

0.00 Signiﬁcant

125.98 576.46

Com-T and LBA

Com-T LBA

0.00 Signiﬁcant

122.31 576.46

Com-L and TBA

Com-L TBA

0.00 Signiﬁcant

125.98 742.17

Com-T and TBA

Com-T TBA

0.00 Signiﬁcant

122.31 742.17

Com-L and Com-T

Com-L Com-T

0.00 Signiﬁcant

125.98 122.31

SSBA and LBA

SSBA LBA

0.13 Insigniﬁcant

166.99 576.46

SSBA and TBA

SSBA TBA

0.00 Signiﬁcant

166.99 742.17

LBA and TBA

LBA TBA

0.29 Insigniﬁcant

576.46 742.17

• Threats to External Validity: External threat

deals with the generalizability of the obtained re-

sult (Le et al., 2016). The analysis is conducted

on 246 out of 3302 bugs from historical bug

ﬁx dataset (Le et al., 2016), which are selected

through preprocessing (details are mentioned in

Section 3.1). To mitigate the threat of generaliz-

ability, bugs belonging to popular, large and di-

verse projects are used. This dataset has been

adopted by existing approaches (Le et al., 2017),

(Wen et al., 2018) as well.

• Threats to Internal Validity: Threats to inter-

nal validity include errors in the implementation

and experimentation (Le et al., 2016). This study

assumes that fault localization outputs the correct

faulty line, as followed in (Chen and Monperrus,

2018). This assumption may not be always true

(Liu et al., 2019a). However, the focus of this

work is patch prioritization and thereby studying

fault localization is out of the scope. Similarly,

analyzing the patch correctness is itself a research,

which is explored by (Xin and Reiss, 2017a), (Yu

et al., 2019). Following the research presented in

(Chen and Monperrus, 2018), this study considers

a patch identical to the patch developed by human

as correct.

To generate patches, ﬁxing ingredients are col-

lected from the corresponding buggy ﬁle. This

process is widely followed by existing approaches

(Le Goues et al., 2012), (Wen et al., 2018), (Liu

et al., 2019b). For manipulating AST and to-

kenizing code, this study relies on Eclipse JDT

parser and javalang tool respectively. These tools

are widely used in automated program repair (Le

et al., 2016), (Chen et al., 2017), (Chen and Mon-

perrus, 2018), (Jiang et al., 2018).

6 CONCLUSION AND FUTURE

WORK

This paper proposes two patch prioritization algo-

rithms combining syntactic and semantic similarity

metrics. Genealogical and variable similarity are used

to measure semantic similarity. For capturing syn-

tactic similarity, normalized longest common subse-

quence and token similarity are used individually.

The approaches take source code and faulty line as

input and outputs a sorted list of patches. The patches

are sorted using similarity score, obtained by integrat-

ing genealogical, variable similarity with normalized

longest common subsequence or token similarity.

To understand the combined impact of similari-

ties, proposed approaches are compared with tech-

niques that use either semantic or syntactic similar-

ity. For comparison, 246 replacement mutation bugs

out of 3302 bugs from historical bug ﬁxes dataset are

used (Le et al., 2016). The median ranks of the correct

patch are 20 and 19.5 for these approaches, which out-

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

178

perform both semantic or syntactic similarity based

techniques. Using combined methods, 96.52% and

96.62% of the total search space can be eliminated

to ﬁnd the correct patch. Results further show that

these approaches are signiﬁcantly better in ranking

the correct patch earlier than semantic or syntactic

based approaches. Moreover, these two techniques

rank the correct solution at the top in 11.79% and

10.16% cases. It indicates that combined approaches

have the potential to rank correct patch before incor-

rect plausible ones.

The combined methods obtain promising result in

terms of median rank of the correct patch, average

space reduction and perfect repair. Therefore, these

approaches can be further explored using other bench-

mark datasets such as Defects4J (Just et al., 2014),

QuixBugs (Lin et al., 2017). In addition, existing ap-

proaches such as (Le Goues et al., 2012), (Qi et al.,

2014), (Le et al., 2016) can be modiﬁed to incorporate

the combination of syntactic and semantic similarities

for complementing their techniques.

ACKNOWLEDGEMENTS

This research is supported by the fellowship

from ICT Division, a department of Ministry of

Posts, Telecommunications and Information Technol-

ogy, Bangladesh. No-56.00.0000.028.33.093.19-427;

Dated 20.11.2019. The virtual machine facilities used

in this research is provided by the Bangladesh Re-

search and Education Network (BdREN).

REFERENCES

Asad, M., Ganguly, K. K., and Sakib, K. (2019). Im-

pact analysis of syntactic and semantic similarities

on patch prioritization in automated program repair.

In Proceedings of the 2019 IEEE International Con-

ference on Software Maintenance and Evolution (IC-

SME), pages 328–332. IEEE.

Barr, E. T., Brun, Y., Devanbu, P., Harman, M., and Sarro,

F. (2014). The plastic surgery hypothesis. In Proceed-

ings of the 22nd ACM SIGSOFT International Sympo-

sium on Foundations of Software Engineering (FSE),

pages 306–317. ACM.

Chen, L., Pei, Y., and Furia, C. A. (2017). Contract-based

program repair without the contracts. In Proceedings

of the 32nd IEEE/ACM International Conference on

Automated Software Engineering (ASE), pages 637–

647. IEEE.

Chen, Z. and Monperrus, M. (2018). The remarkable role of

similarity in redundancy-based program repair. Com-

puting Research Repository (CoRR), abs/1811.05703.

Gabel, M., Jiang, L., and Su, Z. (2008). Scalable detection

of semantic clones. In Proceedings of the 30th Inter-

national Conference on Software Engineering (ICSE),

pages 321–330. ACM.

Gazzola, L., Micucci, D., and Mariani, L. (2017). Auto-

matic software repair: A survey. IEEE Transactions

on Software Engineering.

Jiang, J., Xiong, Y., Zhang, H., Gao, Q., and Chen, X.

(2018). Shaping program repair space with existing

patches and similar code. In Proceedings of the 27th

ACM SIGSOFT International Symposium on Software

Testing and Analysis (ISSTA), pages 298–309. ACM.

Just, R., Jalali, D., and Ernst, M. D. (2014). Defects4j: A

database of existing faults to enable controlled test-

ing studies for java programs. In Proceedings of the

2014 International Symposium on Software Testing

and Analysis (ISSTA), pages 437–440. ACM.

Kim, D., Nam, J., Song, J., and Kim, S. (2013). Auto-

matic patch generation learned from human-written

patches. In Proceedings of the 2013 International

Conference on Software Engineering (ICSE), pages

802–811. IEEE Press.

Le, X.-B. D., Chu, D.-H., Lo, D., Le Goues, C., and Visser,

W. (2017). S3: syntax-and semantic-guided repair

synthesis via programming by examples. In Proceed-

ings of the 2017 11th Joint Meeting on Foundations of

Software Engineering (FSE), pages 593–604. ACM.

Le, X. B. D., Lo, D., and Le Goues, C. (2016). History

driven program repair. In Proceedings of the 2016

IEEE 23rd International Conference on Software

Analysis, Evolution, and Reengineering (SANER),

volume 1, pages 213–224. IEEE.

Le Goues, C., Dewey-Vogt, M., Forrest, S., and Weimer,

W. (2012). A systematic study of automated program

repair: Fixing 55 out of 105 bugs for $8 each. In Pro-

ceedings of the 34th International Conference on Soft-

ware Engineering (ICSE), pages 3–13. IEEE.

Le Goues, C., Nguyen, T., Forrest, S., and Weimer, W.

(2011). Genprog: A generic method for automatic

software repair. IEEE Transactions on Software Engi-

neering, 38(1):54–72.

Lin, D., Koppel, J., Chen, A., and Solar-Lezama, A. (2017).

Quixbugs: a multi-lingual program repair benchmark

set based on the quixey challenge. In Proceedings

Companion of the 2017 ACM SIGPLAN International

Conference on Systems, Programming, Languages,

and Applications: Software for Humanity (SPLASH),

pages 55–56. ACM.

Liu, K., Koyuncu, A., Bissyand

e, T. F., Kim, D., Klein, J.,

and Le Traon, Y. (2019a). You cannot ﬁx what you

cannot ﬁnd! an investigation of fault localization bias

in benchmarking automated program repair systems.

In Proceedings of the 2019 12th IEEE Conference on

Software Testing, Validation and Veriﬁcation (ICST),

pages 102–113. IEEE.

Liu, K., Koyuncu, A., Kim, D., and Bissyand

e, T. F.

(2019b). Tbar: revisiting template-based automated

program repair. In Proceedings of the 28th ACM SIG-

SOFT International Symposium on Software Testing

and Analysis (ISSTA), pages 31–42. ACM.

Martinez, M., Weimer, W., and Monperrus, M. (2014). Do

the ﬁx ingredients already exist? an empirical in-

Impact of Combining Syntactic and Semantic Similarities on Patch Prioritization

179

quiry into the redundancy assumptions of program re-

pair approaches. In Companion Proceedings of the

36th International Conference on Software Engineer-

ing (ICSE), pages 492–495. ACM.

Monperrus, M. (2018). Automatic software repair: a bibli-

ography. ACM Computing Surveys (CSUR), 51(1):17.

Nguyen, T. T., Nguyen, A. T., Nguyen, H. A., and Nguyen,

T. N. (2013). A statistical semantic language model

for source code. In Proceedings of the 2013 9th

Joint Meeting on Foundations of Software Engineer-

ing (FSE), pages 532–542. ACM.

Qi, Y., Mao, X., Lei, Y., Dai, Z., and Wang, C. (2014). The

strength of random search on automated program re-

pair. In Proceedings of the 36th International Confer-

ence on Software Engineering (ICSE), pages 254–265.

ACM.

Ragkhitwetsagul, C., Krinke, J., and Clark, D. (2018). A

comparison of code similarity analysers. Empirical

Software Engineering, 23(4):2464–2519.

Saha, R., Lyu, Y., Lam, W., Yoshida, H., and Prasad, M.

(2018). Bugs. jar: A large-scale, diverse dataset of

real-world java bugs. In Proceedings of the 2018

IEEE/ACM 15th International Conference on Mining

Software Repositories (MSR), pages 10–13. IEEE.

Saha, R. K., Lyu, Y., Yoshida, H., and Prasad, M. R.

(2017). Elixir: Effective object-oriented program re-

pair. In Proceedings of the 32nd IEEE/ACM Interna-

tional Conference on Automated Software Engineer-

ing (ASE), pages 648–659. IEEE.

Tan, S. H. and Roychoudhury, A. (2015). reliﬁx: Au-

tomated repair of software regressions. In Proceed-

ings of the 37th International Conference on Software

Engineering (ICSE)-Volume 1, pages 471–482. IEEE

Press.

Thada, V. and Jaglan, V. (2013). Comparison of jaccard,

dice, cosine similarity coefﬁcient to ﬁnd best ﬁtness

value for web retrieved documents using genetic algo-

rithm. International Journal of Innovations in Engi-

neering and Technology, 2(4):202–205.

Walpole, R. E., Myers, R. H., Myers, S. L., and Ye, K.

(1993). Probability and statistics for engineers and

scientists, volume 5. Macmillan New York.

Wen, M., Chen, J., Wu, R., Hao, D., and Cheung, S.-

C. (2018). Context-aware patch generation for bet-

ter automated program repair. In Proceedings of the

40th International Conference on Software Engineer-

ing (ICSE), pages 1–11. ACM.

White, M., Tufano, M., Martinez, M., Monperrus, M., and

Poshyvanyk, D. (2019). Sorting and transforming pro-

gram repair ingredients via deep learning code simi-

larities. In Proceedings of the 2019 IEEE 26th Inter-

national Conference on Software Analysis, Evolution

and Reengineering (SANER), pages 479–490. IEEE.

Xin, Q. and Reiss, S. P. (2017a). Identifying test-suite-

overﬁtted patches through test case generation. In

Proceedings of the 26th ACM SIGSOFT International

Symposium on Software Testing and Analysis (ISSTA),

pages 226–236. ACM.

Xin, Q. and Reiss, S. P. (2017b). Leveraging syntax-related

code for automated program repair. In Proceedings

of the 32nd IEEE/ACM International Conference on

Automated Software Engineering (ASE), pages 660–

670. IEEE.

Xiong, Y., Liu, X., Zeng, M., Zhang, L., and Huang, G.

(2018). Identifying patch correctness in test-based

program repair. In Proceedings of the 40th Interna-

tional Conference on Software Engineering (ICSE),

pages 789–799. ACM.

Xiong, Y., Wang, J., Yan, R., Zhang, J., Han, S., Huang,

G., and Zhang, L. (2017). Precise condition synthesis

for program repair. In Proceedings of the 39th Inter-

national Conference on Software Engineering (ICSE),

pages 416–426. IEEE.

Yu, Z., Martinez, M., Danglot, B., Durieux, T., and Mon-

perrus, M. (2019). Alleviating patch overﬁtting with

automatic test generation: a study of feasibility and

effectiveness for the nopol repair system. Empirical

Software Engineering, 24(1):33–67.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

180
