State Validation in Automated Planning

Caio Gustavo Rodrigues da Cruz

1 a

, Mauricio Goncalves Vieira Ferreira

1 b

and Rodrigo Rocha Silva

2,3 c

Space Engineering and Technology, National Institute for Space Researches (INPE), S

ao Jos

e dos Campos, Brazil

Centre for Informatics and Systems, University of Coimbra (CISUC), Coimbra, Portugal

FATEC Mogi das Cruzes, S

ao Paulo Technological College, Mogi das Cruzes, Brazil

Keywords:

Planning Preference, Invalid States, PDDL.

Abstract:

The crescent number of automated systems in satellites raises several security and reliability concerns, that are

worsened with the time. Plan validation techniques were created to validate ﬂight operation plans generated

automatically. The execution of automatically generated plans on satellite ﬂight operations can result in de-

graded or invalid states. Verifying the possibility of removing these states of a plan through a state validation

technique is the objective of this paper. Analyzing the action that generated and, in planning time, remove the

invalid states from the plan steps enables the planner to ﬁnd the ﬁnal state without any invalid state. Therefore,

implementing a state validator in the automated planner prevents the plan from containing any invalid state.

1 INTRODUCTION

The concept of plan quality in automated planning is

a very important issue. In several real-world plan-

ning domains, we must address problems with a large

set of solutions, or with a set of goals that cannot be

completely achieved. Besides, in the expected solu-

tions there may be constraints during the trajectory, in

intermediary states of ﬁnal state. In these cases, the

mode how the goal is reached can be more important

than the goal itself. For this reason, it is important to

generate plans of better quality achieving all problem

goals, when possible, or some subset of them (Baier

et al., 2008).

Automated planning is an AI area focused on solv-

ing problems. A planning domain is comprised of a

ﬁnite set of possible states S = {s

, s

...s

}, and a ﬁ-

nite set of actions A = {a

, a

...a

}, applicable to the

domain states (Ghallab et al., 2004). A planning prob-

lem is originated when the need to transform an initial

state s

in a set of ﬁnal states S

. The action sequence

< a

, a

, ...a

>, when applied in the results of the

order in the end state is called plan. A description of

the state transition system used in automated planning

follows.

https://orcid.org/0000-0001-6143-3908

https://orcid.org/0000-0002-6229-9453

https://orcid.org/0000-0002-5741-6897

= γ(s

, a

), s

= γ(s

, a

), ..., s

= γ(s

k−1

, a

)

and s

∈ S

The function γ(s, a) applies an action to a state,

resulting in a state transition system. For each gen-

erated state, an action is applied until the generated

state is corresponds to the ﬁnal state. A problem can

be solved in countless ways i.e., inﬁnite step sets can

transform the initial state in the ﬁnal state (Ghallab

et al., 2004).

Automated planning is achieved using a planner

software that ﬁnds the step sequence that transforms

the initial state in the goal state (McDermott et al.,

1998). The planner uses two ﬁles as input in order

to solve a problem: The domain ﬁle, that deﬁnes the

applicable actions, and the problem ﬁle, that deﬁnes

the initial and ﬁnal states.

STRIPS (Stanford Research Institute Problem

Solver) is a technique used to ﬁnd solutions from

a domain and a problem (Fikes and Nilsson, 1971).

STRIPS goes through all the possible states after ap-

plying the domain actions until it ﬁnds the ﬁnal state

(Fikes and Nilsson, 1971). The most common lan-

guage in automated planning is PDDL (Planning Do-

main Deﬁnition Language) introduced in 1998 by

Drew McDermott (McDermott et al., 1998).

The theme of planning is applied to many real-

world domains and issues. In the space area ﬂight

plan generation for the control of artiﬁcial satellites

is an example of the planning application. In most

396

Rodrigues da Cruz, C., Ferreira, M. and Silva, R.

State Validation in Automated Planning.

DOI: 10.5220/0009411903960406

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 396-406

ISBN: 978-989-758-423-7

cases, INPE’s Satellite Tracking and Control Center

(STCC) performs its satellite control operations man-

ually. Finding solutions to ﬂight operation automati-

zation is a challenge that can be solved with planning

(Tominaga et al., 2011).

Concern over the generation of higher quality

satellite control plans in research such as Souza’s,

suggests the creation of a diagnostic generator to val-

idate whether the automatically generated s match the

situation of the satellites in operation. The approach

considers a rejected plan if a state classiﬁed as un-

safe for the mission compose the plan of the state se-

quence, so a new plan should be generated using dif-

ferent steps to reach the goal state. The rejection of a

plan implies the generation of a new plan, with differ-

ent steps but still reaching the end state (Souza et al.,

2012). In this context, preventing some steps of be-

ing generated in the plan is a challenge to the satellite

ﬂight operation planning domain.

The ﬂight operation planning for satellites is com-

plex to be solved with classical planning techniques

alone, because they are not considered to be con-

straints on the transition states of a plan. This de-

ﬁciency open ways for many surveys’ themes in AI

planning, for example, the planning with constraints,

with user preferences, of complex problems and about

uncertainty. These themes are found in literature in

works that create new planning languages, techniques

or implement planners to meet speciﬁc constraints of

the planning problem.

How seen if the use of the classical planning

based in STRIPS been used to solve these prob-

lems, the generate of plans without consider con-

straints in satellite domain, can create invalid plans.

An approach that eliminate speciﬁc states of solution

planned of automatic form is the motivation this work

for solve the problem in question.

The goal is to propose a solution based on clas-

sical planning that incorporates and considers at the

time of planning states that are degraded and should

not be part of the plan state sequence. In this paper,

it is proposed to create a new method in a STRIPS-

based scheduler that validates the states at planning

time. The proposal creates a ﬁlter of states that can-

not compose the solution. Thus, contributing to valid

plans can be automatically generated using a planner.

The strategy in this paper is how to ﬁnd a valid plan

in classic planning.

Our intention to show that the automatic plan-

ning of satellite plans should be concerned speciﬁ-

cally with the states that make up a plan. And that

classical planning can be used to solve this kind of

problem if you know the states that the plan should

avoid. Our approach envisions mapping these states

and incorporating them into the planner.

In works found in the literature, the creation of

new languages is common to solve more complex

planning problems. Most of these works are related

to planning with preferences, which is an area that

has been extensively studied in recent years. In the re-

lated works session, we present the works with differ-

ent techniques and planning methods that were pro-

posed in different areas, to create increasingly better

solutions in different domains.

About the solution: In this article we will demon-

strate a way to generate step constrained plans using

as an example a didactic planning problem to validate

the implementation of a validator method in a planner.

In the ﬁrst step prove that at planning time it is

possible to disregard the degraded states by creating a

new input in the planning domain. The new entry will

be read and used in the planner to build a solution

that meets the constraints required by the domain. In

future research a model will be created to represent

the states and convert them to a planner entry.

The rest of this paper is structured as follows:

Section 2 describes the methodology used; Section 3

presents the results of the tests solving the automated

planning for the blocks world problem; Finally, sec-

tion 4 presents the conclusions and some future work.

2 RELATED WORK

We found different works on AI planning that address

issues such as quality plan generation, complex plan-

ning problems, uncertainty planning and user prefer-

ences in planning. Among these approaches a com-

monly used term is preferences, an interdisciplinary

topic found not only in AI, but in studies with differ-

ent perspectives and areas (Domshlak et al., 2011).

The works found on planning that address the

theme of preferences are (Boutilier et al., 1999)

(Gerevini and Long, 2006) (Tu et al., 2007) (Baier

et al., 2008) (Sohrabi et al., 2009). Among these

works are several approaches such as planner devel-

opment, language creation, implementation of tech-

niques in existing planners, extension of planning lan-

guages and combination of techniques are used to

meet preferences in the planning context.

PBP preference-based planning aims to ﬁnd more

preferred plans in a planning instance. Criteria are

provided to determine when one plan is more pre-

ferred than another. Preferences are modeled accord-

ing to language type and can be either quantitative or

qualitative. In order to compare when a plan is pre-

ferred in the quantitative approach a numerical func-

tion is used to an ever-induced overall relationship.

State Validation in Automated Planning

397

In qualitative language the comparison is in terms of

property without number assignment. There are also

approaches with the combination of qualitative and

quantitative languages (Jorge and Sheila, 2008).

The search for the construction of ideal or near op-

timal plans is a theme addressed in Boutilier’s work.

Decision-Theoretic planning uses the Markov Deci-

sion Process (MDP) to explore policy making and

idea plans. MDP associates a reward function with

each state transition, thereby deﬁning user prefer-

ences. All possible states are classiﬁed quantitatively,

and an action is returned depending on the execution

history (Boutilier et al., 1999).

The approach used in Partial Satisfaction Planning

offers resources to partially solve problems, reaching

a subset of objectives. To partially solve the plan-

ning problems, techniques based on heuristics were

developed. The techniques used are concerned with

the quality of the plan, contributing to generate plans

with low cost and compatible with the quality of plans

from other approaches (Briel et al., 2004).

In the work of Baier et al (2008) a method was

created to compile a planning instance and a control

procedure into a classic planning instance represented

in PDDL. The compilation allows to represent in the

planning domain the procedure as a ﬁnite state au-

tomaton. The representation is made from an addi-

tional predicate that modiﬁes the effects and precon-

ditions of the actions, allowing the procedure to be

respected (Baier et al., 2008). For planning with pref-

erences Baier et al (2008) proposes to use the rela-

tionship between linear temporal logic and automata.

The temporal LPP language is used to express pref-

erences through temporal properties of states and ac-

tions by qualitatively classifying expressions (Baier

et al., 2008).

2.1 The PDDL Language

Based on Lisp syntax, the PDDL LANGUAGE uses

a structure based on the widely used variants of strips

notations. Establishing a common standard language

has had a similar impact on planning research as the

introduction of standards in other areas of research: it

opens the route to stronger collaboration, exchange

of tools, techniques and problems and provides a

platform for comparative evaluation of approaches.

The language has been, since the beginning, strongly

linked to the competition series, with developments

in the language being drivers for the direction of the

competition challenges.

PDDL has been extended in several stages in or-

der to capture more expressive variants. There have

been several explorations of the expressive power of

the different variants of PDDL. Recent results include

a demonstration that temporal features can be com-

piled away in polynomial work, subject to certain

constraints on the forms of concurrency that can ap-

pear in the problem (Rintanen, 2007), while others

have examined the compilability of conditional ef-

fects, timed initial literals and domain axioms (Nebel,

2000), (Fox et al., 2004), (Thi

ebaux et al., 2005).

In reference (Gerevini and Long, 2005) and

(Gerevini and Long, 2006) extended the PDDL lan-

guage to a PBP language. PDDL3 uses Hierarchical

Task Network (HTN) to include up to three types of

preferences, increasing the expressive power over the

plan’s quality speciﬁcation. The ﬁrst is the ability to

express goals that apply not only to the ﬁnal state of

the trajectory of states visited by a plan, but also to

the intermediate states. These goals take the form of

trajectory constraints, familiar from work on temporal

logics.

Both extensions to the language are motivated by

the desire to see planning bridge the gap between

research and application. Many real problems re-

quire the speciﬁcation of goals that are more com-

plex than be easily expressed in earlier versions of

PDDL. These include constraints on the states (or in-

valid state) that a plan visits as well as on the state in

which it ﬁnishes. It can also be important to specify

the relative beneﬁts of different, perhaps conﬂicting,

desirable conditions that a plan should satisfy, so that

a plan might be constructed to evaluate these beneﬁts

against the costs of achieving them.

Table 1: Comparative table of approaches with preferences.

Approuch Technique Preference

PDDL3

Hierarchical

Task Network

Violated prefer-

ences metric

MDP

Reward func-

tion

Classiﬁcation

based on the

history of actions

performed

PSP Heuristics

Planning with

subset of objec-

tives

Control

Procedure

Method

Temporal

Linear Logic

and Automata

Additional predi-

cate on the effects

of actions

Table 1 presents a comparison between planning ap-

proaches with preferences. It is considered the tech-

nique used and how the preferences are models. It is

understood that each approach includes preferences

in planning differently and to meet speciﬁc require-

ments.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

398

3 STRATEGY TO VALIDATE

INVALID STATES IN

PLANNING TIME

A hypothesis was created for automatic plan genera-

tion that are composed of steps that do not include any

invalid states to achieve an objective. The hypothesis

is that valid plans can be generated if invalid states are

validated in the planner in planning time. Therefore,

if the planner ﬁnds the end state using a step sequence

that transits only through valid states in the domain,

the strategy is valid.

The planner applies in the initial state the actions

deﬁned in the domain and creates a state tree while the

actions are applied. However, in planning time, when

an action is applied on the current state, the planner

knows what is going to be the state that will be added

to the state tree. The moment a domain action is ap-

plied to the current state, the new generated state can

be validated before composing the state list that the

planner uses to ﬁnd the ﬁnal state. The implementa-

tion of a state validator in the planner will enable the

identiﬁcation of generated invalid states in planning

time.

A planning problem can be understood from the

following representation: P = (Σ, s

, S

), where Σ is

the state transition system, s

is the initial state and S

is a set of the goal states. In the concept of classical

planning, a plan is not deterministic and there may be

different ways of ﬁnding the sequence of actions that

transform the initial state S

into the objective state

. Figure 1 represents a non-deterministic state tran-

sition system in which the objective state S

can be

achieved using different paths.

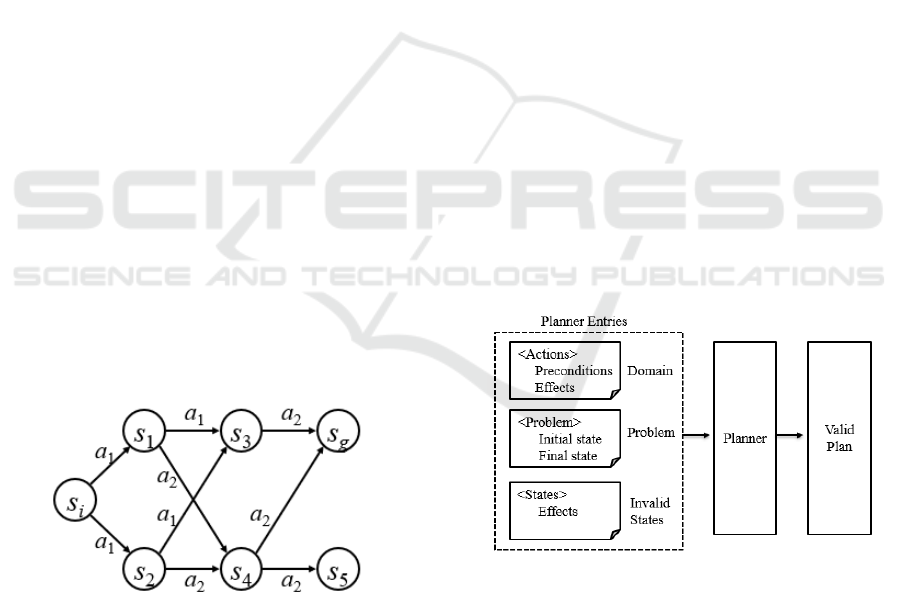

Figure 1: Non-deterministic state transition system.

The characteristic presented in the non-deterministic

state transition system allows a planning problem to

be solved using different paths. States can be easily

ignored and the objective state can still be reached.

Allowing thus to ignore states that should not be part

of the solution, the planner will ﬁnd paths without

passing through such states.

What can set a state to invalid for a domain? In

planning a state is composed of ﬁrst order atoms that

are represented as propositions. Objects that consti-

tute the state can be presented as constant, variable,

or function terms. However, in the planning domain it

may contain some rule that invalidates a state accord-

ing to the conﬁguration of atoms, be it the location or

actions that relate one or more atoms thus indicating

that the state is invalid. In the satellite control domain,

for example, the domain is constantly changing due to

external environmental conditions that degrade satel-

lite subsystems. When a degradation occurs a new

invalid state is added to the domain. The invalid state

is a prohibited, degraded or risky scenario for the do-

main’s operation.

The example used in the experiment in this article

restricts one of the cranes from unloading a speciﬁc

container, thus representing an invalid state, when

the ”unloading” actions are associated with these two

atoms.

For the generation of valid plans, a strategy was

created so that invalid states about the domain are

considered. The planner will have as its input the do-

main and problem ﬁles, as well as another ﬁle con-

taining the deﬁnitions of invalid states for the domain

in question as shown in the Figure 2. The invalid

states deﬁned as the new input will be used to validate

the generated states in planning time, consequently,

when a new state is generated, it will be compared

with the invalid state list and the planner will then ig-

nore the invalid state and won’t add it to the solution

tree.

Figure 2: Represent strategy.

To formalize the implementation of the proposed

strategy, we modiﬁed the concept of problem previ-

ously deﬁned as P = (Σ, s

, S

), to then use the func-

tion V (s

, I) responsible for validating and ﬁltering

the states in time, where s

represents the current state

and I represents the instance of invalid states previ-

ously conﬁgured as input to the planner. The mod-

iﬁcation transforms the standard function as follows

P = (Σ, s

, S

,V (s

, I)).

In order to validate our plan generation method,

State Validation in Automated Planning

399

we chose the automated planner AI Planning with

STRIPS (Becker, 2015). This planner is a demo

project for the STRIPS automated planner library

written in NodeJS (Becker, 2015).

Initially we chose a simple planning problem to

formulate an example of using the strategy to validate

states. The blocks world problem is a classic planning

problem, it consists in stacking blocks on top of tables

in some arbitrary order (Gupta and Nau, 1991). Some

actions of this domain are moving a block from one

table to another, stacking two blocks and unstacking

two blocks. After implementing the validator method,

another planning problem was chosen to validate a

scenario with a larger number of states.

The development of this work followed four

stages: choosing the planning problem, generating the

invalid state ﬁle in PDDL, modifying the planner to

load the invalid states and implementing a state vali-

dation function in the planner.

3.1 Strategy Application in an Invalid

State

The problem of the chosen block world consists of six

objects, three blocks and three tables. The initial state

has blocks a, b and c in this block c on block b, block

b on block a and block a stacked-on top of table t1

and other two tables, t2 and t3, empty. The goal state

is comprised of the blocks in the reverse order block a

on block b, block b on block c and block c over table

t3, as shown in the Figure 3.

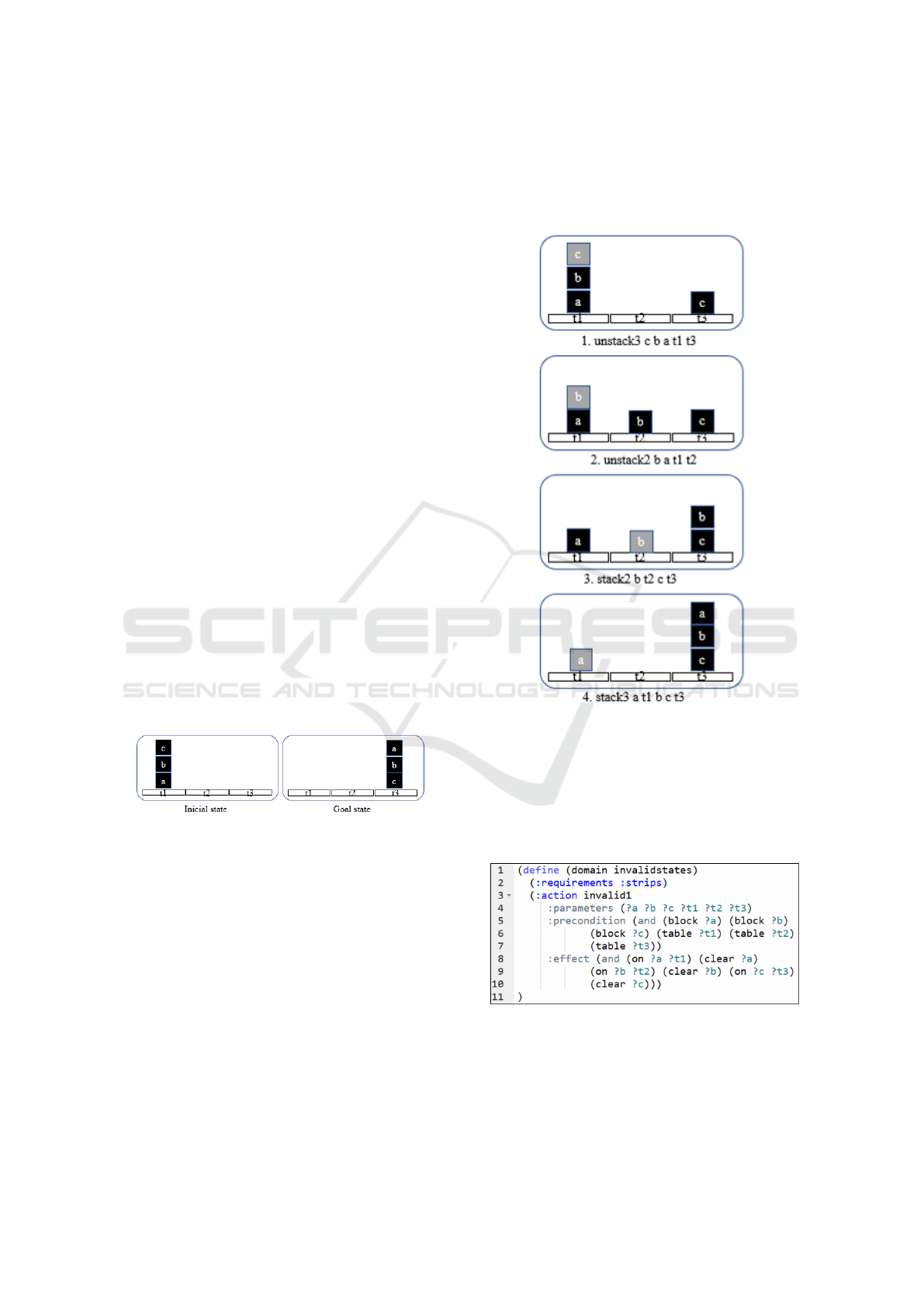

Figure 3: Planning problem.

The planner must ﬁnd an action sequence that is able

to transform the initial state in the goal state using

only the actions deﬁned in the problem domain, for

instance: move – moves a block from one table to

another; stack2 – stacks a block over another block

in another table; stack3 – stacks a block over another

two blocks over another table; unstack2 – unstacks

two blocks, putting the unstacked block over an-

other, empty, table; unstack3 – unstacks three blocks,

putting the unstacked block over another, empty, ta-

ble.

This problem was executed in the planner and a

plan was used. A state transition that the planner

encountered is shown in Figure 4. It can be viewed

as a sequence of domain actions that were applied to

states until the goal was reached. The ﬁrst action ap-

plied was unstack3, responsible for unstacking three

blocks, resulting in unstacking or block c from block

b to a table t3.

Figure 4: State transaction.

After representing the execution of the plan, we ran-

domly choose one of the traversed states to represent

an invalid state. The state chosen was that generated

by applying action 2. Unstack2. The chosen state was

set in a new ﬁle written in PDDL as shown in Figure

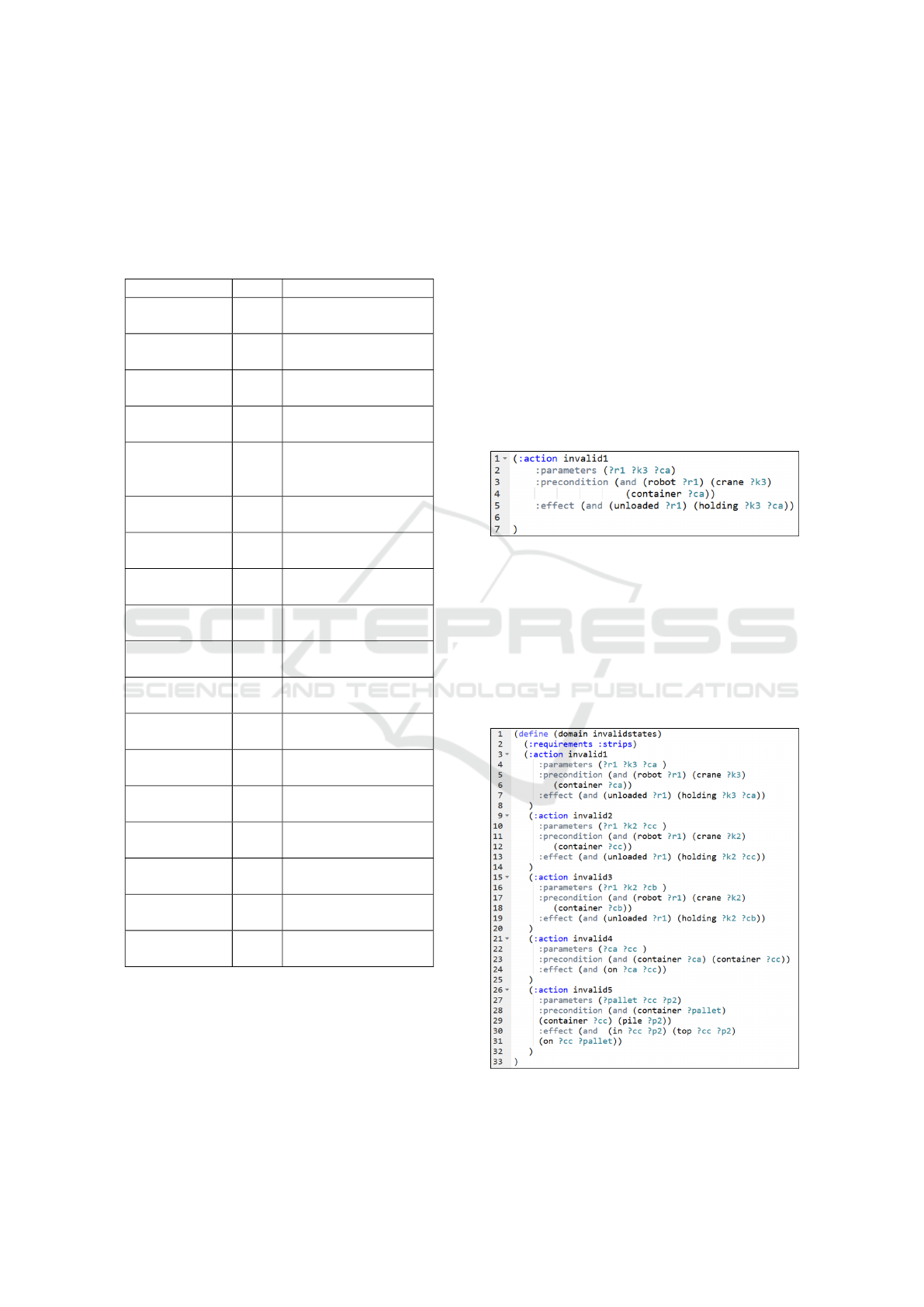

Figure 5: Invalid state ﬁle written in PDDL.

The state was conﬁgured as a common action, using

the same deﬁnitions of the domain ﬁle in PDDL. In

the invalid1 (Figure 5, line 3) conﬁguration we de-

ﬁned its parameters as its variables: three blocks and

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

400

three tables. Positioning and order are deﬁned in the

effects, as in block a over table t1 - (on ?a ?t1), block

a free (clear a), block b over table t2- (on ?b ?t2),

block b free (clear b), block c over table t3 - (on ?c

?t3) e block c free (clear c).

The planner has a PDDL ﬁle reading function, re-

ceiving as its parameter the ﬁle path and loading the

ﬁle in memory. We used the existing implementa-

tion to read the invalid state ﬁle. The StripsMan-

ager.loadDomain() (Figure 6, line 4) function was

reused to load the new invalid state ﬁle.

Figure 6 shows our modiﬁcations to the load func-

tion: we added the invalidStatePath parameter in

function.

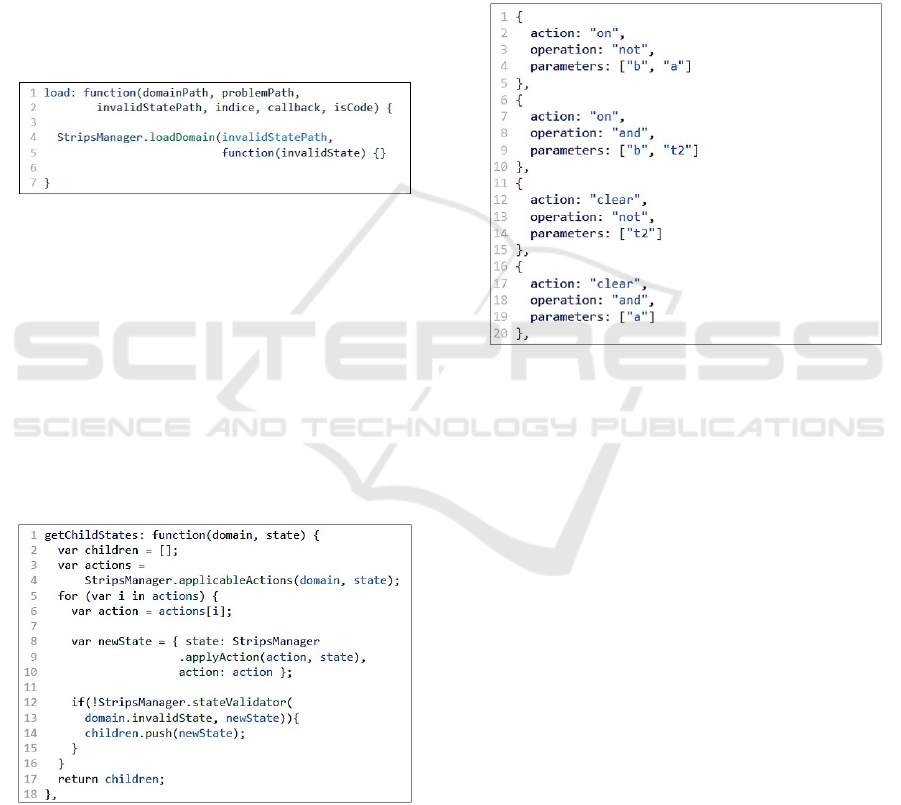

Figure 6: Invalid state ﬁle loading method.

After loading the invalid states, an object containing

all the invalid states deﬁnitions was added to a new in-

validState property in the domain object. The domain

object is the main parameter for the planner methods,

since it contains the actions used in the plan.

The code snipped where the planner applies the

actions, generating new states is shown in Figure 7

The getChildStates method (Figure 7, line 1) is re-

sponsible for applying the actions to the current plan

state. The method has as its parameters the domain

deﬁnition and the current plan state.

Figure 7: Generating method of new states.

How is an action applied to the current state The ap-

plicableActions method (Figure 7, line 4) iterates all

the actions in the domain passed as parameter, veri-

fying if their preconditions are met – i.e. the current

state corresponds to the precondition. The quantity of

applicable actions is the same as the number of gener-

ated states. For each action iterated a new state is gen-

erated by the applyAction (Figure 7, line 9) method.

The effects of the execution of an action on a state are

deﬁned by the action effects, deﬁned in the domain.

The method iterates the effect list and modiﬁes the

current state, adding and removing parts of the state

according to the operation, e.g. the action unstack2 is

applied to the state (on a t1) (on b a) (on c t3) (clear t2)

in the following manner: each part of the current state

is compared to the effect parts deﬁned in the unstack2

action.

Figure 8: Data structure representing an effect.

Figure 8 shows the structure of the unstack2 effect.

Therefore, the method veriﬁes each effect part and if

the operation property is “and”, that part is added to

the current state. If the operation is “not”, the part is

removed from the current state. The action results in

the state (on a t1) (on b t2) (on c t3) (clear a).

After generating a new state, the stateValidator

method was included in the implementation to check

if the generated state is a valid state. The stateVal-

idator method receives as parameter the invalidState

deﬁnition we included in the domain object and the

generated newState. The validator returns true if the

hew state is identical to any conﬁgured invalid state.

Only valid states can be added to the child state list.

3.2 Implementing the Invalid State

Validator

The planner invalid state validator function is shown

in Figure 9 compares the states conﬁgured in the in-

valid state ﬁle and the states created in planning time

to compose the plan.

The validator function is shown iterates over three

loops in order to validate the states. The ﬁrst loop

goes through the list of invalid states conﬁgured in the

State Validation in Automated Planning

401

Figure 9: State validator function.

ﬁle, since there can be more than one invalid state.

The second loop iterates each of the invalid state’s

parts, e.g. the state (on a t1) (on b t2) (on c t3) is

composed of three parts: in the ﬁrst iteration, the part

(on a t1) will be compared. The third loop iterates the

new state’s parts and compares them.

The data structure that abstracts a single part of

a state comprises three properties. The action prop-

erty (Figure 9, line 9) represents the association be-

tween the parameters deﬁned in the parameter’s prop-

erty (Figure 9, line 12) and the operation parameter

(Figure 9, line 8) indicates whether the relation exists

in that state. When operation is not, the relationship

doesn’t exist and there is no need to compare the cor-

responding part with the invalid state part.

The state comparison is comprised of three con-

ditions: if operation is not negative, if the action of

both parts is the same and if both parts’ parameters

are identical. The arraysIdentical function is present

in the planner implementation, responsible for com-

paring both states’ parameters, verifying if their size

and values are equal. Figure 9 shows a full implemen-

tation of the stateValidator function.

In the second loop (Figure 9, line 5), the equal-

State variable (Figure 9, line 6) is set as false, sug-

gesting that the part wasn’t found in the new state yet.

In case the third loop doesn’t ﬁnd an equal part and,

when it’s ﬁnished, the equalState variable is (Figure

9, line 18) still false, the break command (Figure 9,

line 19) is called, since there is no need to continue

comparing the parts of that invalid state.

When the condition is met, there is a part of the

invalid state in the new state. The equalState vari-

able (Figure 9, line 14) is set as true and the break

command (Figure 9, line 15) is called, exiting the in-

ner loop and iterating over the next invalid state. In

case there are no more parts in the loop and the equal-

State variable (Figure 9, line 21) is true, another break

command (Figure 9, line 22) is called since there is

no need to continue searching the invalid state list.

Finally, the algorithm returns the value of equalState

(Figure 9, line 24).

4 RESULTS

In this section we present the results obtained by test-

ing the implementation of the state validator method

in the planner. Planning was performed for several

plans, which included invalid states to be tested in the

planner.

Figure 10: Dock worker robot problem.

We chose the dock worker robot problem for testing

because it is a more complex problem than the block

world and uses more objects and actions in the plan-

ning domain. The problem is to move three contain-

ers between two different locations, using cranes and

a robot to transport them as shown in Figure 10.

The problem has two locations in the initial state

l1 and l2. At location l1 there are two pile p1 and q1,

a crane k1 and three containers ca, cb and cc stacked

over pile p1. At location l2 has a pile p2 and two

cranes k2 and k3. The initial state conﬁguration and

arrangement of problem objects has been arranged to

enable the inclusion of invalid states for the test.

The purpose of the problem is to move the con-

tainers to location l2. The domain ﬁle includes the

following functions: move - moves a robot between

two adjacent locations; load - loads an empty robot

with a container held by a nearby crane; unload - un-

loads a robot holding a container with a nearby crane;

takes - takes a container from a pile with a crane; put

- puts a container held by a crane on a nearby pile.

The problem was executed in the planner and a

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

402

seventeen-step plan was generated to solve the prob-

lem. Table 2 shows the transition from initial state Si

to objective status Sg, including the sequence of ac-

tions required to move containers from location l1 to

location l2 in the plan I.

Table 2: Representation of the plan I states.

Action State Representation

Init Si

Containers stacked

on site 1

1. take k1 l1

cc cb p1

Crane k1 grabbed the

cc container

2. load k1 l1

cc r1

Robot r1 was loaded

with cc container

3. move r1 l1

The robot has been

moved to location l2

4. unload k2

l2 cc r1

The crane also un-

loaded the cc con-

tainer

5. move r1 l2

Robot r1 has been

moved to location l1

6. take k1 l1

cb ca p1

Crane k1 took con-

tainer cb

7. load k1 l1

cb r1

Robot r1 was loaded

with container cb

8. move r1 l1

Robot r1 has been

moved to location 2

9. unload k3

l2 cb r1

Crane k3 unloaded

container cb

10. move r1

l2 l1

S10

The robot has been

moved to location l1

11. take k1 l1

ca pallet p1

S11

Crane k1 took con-

tainer ca

12. load k1 l1

ca r1

S12

Robot r1 was loaded

with container ca

13. move r1

l1 l2

S13

The robot has been

moved to location l2

14. put k3 l2

cb pallet p2

S14

Crane k3 placed con-

tainer cb on pallet

15. unload k3

l2 ca r1

S15

Crane k3 unloaded

container ca

16. put k3 l2

ca cb p2

S16

Crane k3 placed con-

tainer ca on cb

17. put k2 l2

cc ca p2

S17

Crane k3 placed con-

tainer cc on ca

The test consisted of choosing one of the states gen-

erated in plan I to represent an invalid state. We

note that during state transition the ca container is

unloaded by crane k3 at location l2. Suppose there

is a rule in the transport domain of these containers

that prevents crane k3 from loading the ca container

for some reason. So we determined that the ﬁrst in-

valid state of this domain is “Crane k3 unloading the

ca container”.

Looking at Table 2 state S15 is the state chosen

as invalid. This means that action 15 - unload k3 l2

ca r1 contains the effect responsible for generating

the invalid state. So, to create the invalid state ﬁle in

PDDL, you must use the unload action effect deﬁni-

tion deﬁned in the planning domain ﬁle. The effect

is represented as follows: effect (and (unloaded? R)

(holding? K? C)).

The effect deﬁnition will be used to map the in-

valid state. The effect parameters are changed to the

names used in the problem. So, deﬁne the effect as:

effect (and (unloaded? r1) (holding? k3? ca)), indi-

cating that k3 is holding the ca container as shown in

Figure 11.

Figure 11: Invalid state deﬁnition.

The problem was rerun in the scheduler using the in-

valid state validator method. Plan II was created with

different actions to ﬁnd the objective state, thus fulﬁll-

ing the restriction added to the states. Table 3 shows

the action it was generating, or the invalid state is no

longer present in plan II. Action 16. unload k2l2 ca

r1 detects that the container is now loaded by crane

k2.

Figure 12: Invalid state deﬁnition.

After proving that the planner generated another plan

State Validation in Automated Planning

403

Table 3: Representation of the plan states.

Action State Representation

Init Si

Containers stacked

on site 1

1. take k1 l1

cc cb p1

Crane k1 grabbed the

cc container

2. load k1 l1

cc r1

Robot r1 was loaded

with cc container

3. move r1 l1

The robot has been

moved to location l2

4. unload k3

l2 cc r1

The crane also un-

loaded the cc con-

tainer

5. move r1 l2

Robot r1 has been

moved to location l1

6. take k1 l1

cb ca p1

Crane k1 took con-

tainer cb

7. put k1 l1 cb

pallet q1

Crane k1 placed con-

tainer cb on pallet

8. take k1 l1

ca pallet p1

Crane k1 grabbed the

ca container

9. load k1 l1

ca r1

Robot r1 was loaded

with container ca

10. move r1

l1 l2

S10

The robot has been

moved to location l2

11. unload k2

l2 ca r1

S11

The crane also un-

loaded the ca con-

tainer

12. move r1

l2 l1

S12

The robot has been

moved to location l1

13. take k1 l1

cb pallet q1

S13

Crane k1 grabbed the

cb container

14. load k1 l1

cb r1

S14

Robot r1 was loaded

with cb container

15. move r1

l1 l2

S15

The robot has been

moved to location l2

16. put k2 l2

ca pallet p2

S16

Crane k2 placed con-

tainer ca on pallet

17. put k3 l2

cc ca p2

S17

Crane k3 placed con-

tainer cc on ca

18. unload k3

l2 cb r1

S18

The crane also un-

loaded the cb con-

tainer

19. put k3 l2

cb cc p2

S19

Crane k3 placed con-

tainer cb on cc

with different actions and found the objective state.

We have included other invalid states in the ﬁle to test

further restrictions. Figure 12 shows the conﬁguration

of the ﬁve invalid state conﬁgurators for this problem.

In the invalid state invalid1, invalid2 and invalid3

we add restrictions on the cranes in location l2. Where

invalid1 restricts crane k3 from unloading the ca con-

tainer, invalid2 restricts crane k2 from unloading the

cc container and invalid3 restricts crane k2 from un-

loading the container cb. The invalid state invalid4

adds a different condition, which restricts the ca con-

tainer to be over the cc container, and invalid5 re-

stricts the cc container to the top of the container

stack.

The relation between the plan actions and the gen-

erated state transitions is shown on Table 2. The re-

sults obtained with the state validator function were

successful, since the state mapped is not present in

the resulting plan.

The planner considered the invalid state in plan-

ning time when generating the new plan. A planning

problem can be solved in different manners, using dif-

ferent steps. E.g. the blocks world problem can be

solved in an almost inﬁnite stack permutation.

The planning problem was submitted to the plan-

ner 5 times. In all the tests, the state validator function

worked, always generating plans that do not include

any of the invalid states.

4.1 Contributions of this Work

Our state validation method proved it is possible to

generate plan solutions even when domain constraints

exist. Automated planning for space sciences can

beneﬁt from our ﬁnding.

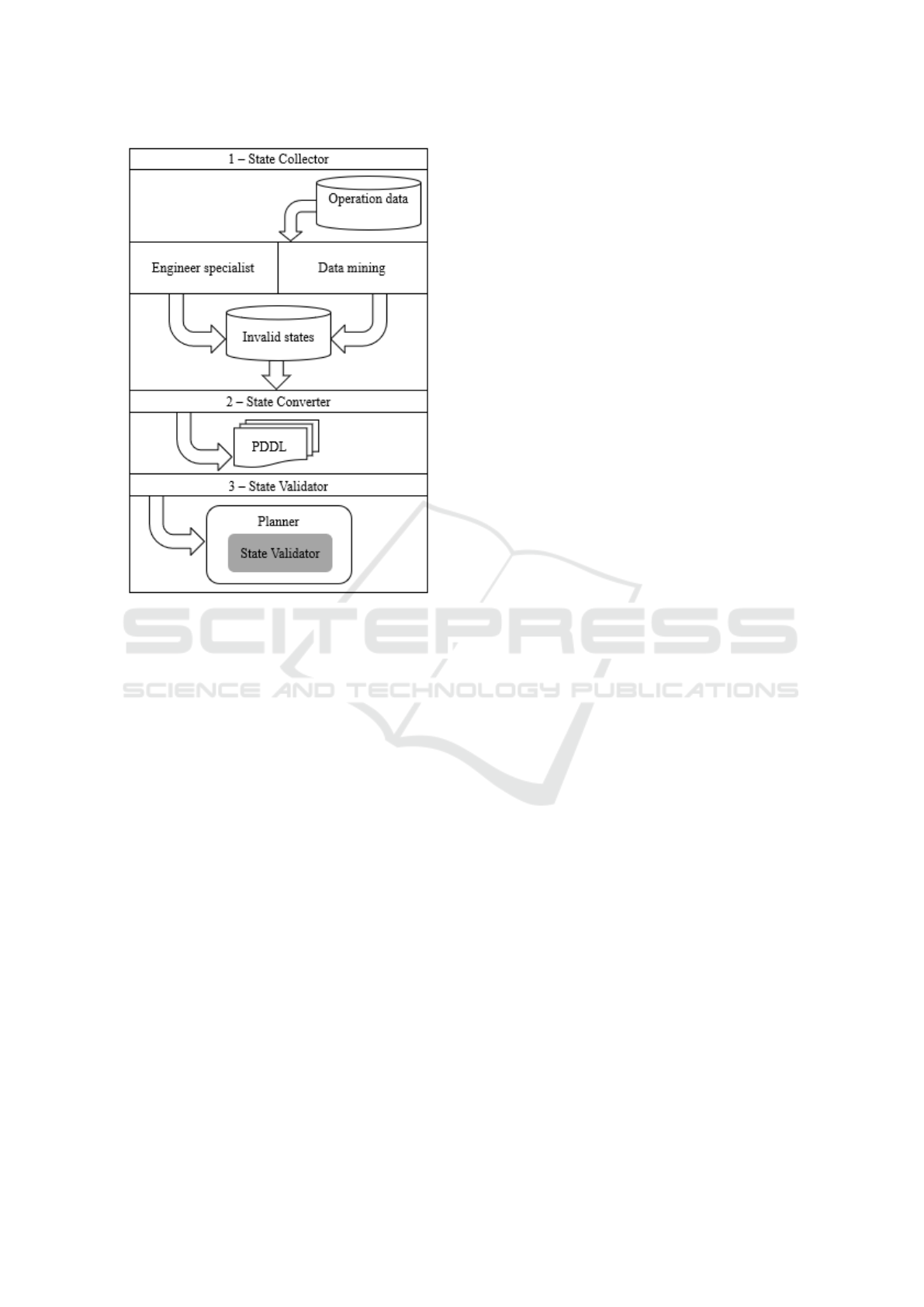

Figure 13 shows a possible approach for generat-

ing valid plans for satellite operation.

This approach for valid plan generation is com-

prised of three levels. In the ﬁrst (layer 1), the de-

graded states in the context of satellite operation are

inserted by specialists or by a data mining process in

a degraded state database. The second level (layer 2)

will convert the degraded states found in the previous

process to invalid states written in PDDL. The invalid

states are then used in the third level (layer 3) as input

to the planner software.

Thus, as new satellite states are being degraded

by time, plans are automatically being generated and

validated, containing no degraded states.

5 CONCLUSIONS AND FUTURE

WORK

The execution of automatically generated plans on

satellite ﬂight operations can result in degraded or in-

valid states. Avoiding these states is possible through

state validation, as described in this work and there-

fore, problems in generated plans can be avoided

completely.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

404

Figure 13: Approach to generating plans.

It is possible to generate plans that do not include cer-

tain states identiﬁed as invalid, as described in this

paper, by implementing a state validator. A list of in-

valid states can be read by the planner, identifying ac-

tions that will be ignored when generating the plans.

We concluded that the implementation of a val-

idation algorithm in the planner is needed at plan-

ning time to verify the actions included in the solution

stack. While the planner generates the solution to ﬁnd

the end state, the validator veriﬁes and compares the

possible resulting states of the actions. If an action

can generate an invalid state, it is discarded from the

solution stack.

In future work, we intend to develop a technique

able to convert invalid states to PDDL. A conversion

algorithm will allow the generation of planning do-

mains with preconﬁgured invalid states. The database

and the data structure used to persist the domain in-

valid states are also challenging.

ACKNOWLEDGEMENTS

This work was partially supported by MURALIS

TECNOLOGIA (www.muralis.com.br).

REFERENCES

Baier, J., Fritz, C., Bienvenu, M., and McIlraith, S. (2008).

Beyond classical planning: Procedural control knowl-

edge and preferences in state-of-the-art planners. In

AAAI.

Becker, K. (2015). Ai planning with strips copy-

right (c) koly becker. In Available in:

https://github.com/primaryobjects/strips.

Boutilier, C., Dean, T., and Hanks, S. (1999). Decision-

theoretic planning: Structural assumptions and com-

putational leverage. In Journal of Artiﬁcial Intelli-

gence Research, v. 11, p. 1-94.

Briel, M. V. D., S., R., Minh, M. D., and Kambhampati, S.

(2004). Effective approaches for partial satisfaction

(over-subscription) planning. In Proceedings of the

19th national conference on Artiﬁcal intelligence.

Domshlak, C., Hullermeier, E., Kaci, S., and Prade, H.

(2011). Preferences in ai: An overview.

Fikes, E. and Nilsson, J. (1971). Strips: A new approach to

the application of theorem proving to problem solv-

ing. In Stanford Research Institute, Menlo Park, Cali-

fornia.

Fox, M., Long, D., and Halsey, K. (2004). Complexity of

concurrent temporal planning. In Proc. of 17th Int.

Conf. on Automated Planning and Scheduling.

Gerevini, A. and Long, D. (2005). Plan constraints and pref-

erences in pddl3. In Technical Report RT-2005-08-47.

Dipartimento di Elettronica per l’Automazione, Uni-

versit

a di Brescia.

Gerevini, A. and Long, D. (2006). Preferences and soft

constraints in pddl3. In ICAPS workshop on planning

with preferences and soft constraints, p. 46-53.

Ghallab, M., Nau, D., and Traverso, P. (2004). Auto-

mated planning-theory and practice. In chapter 1. El-

sevier/Mogan Kaufmann. Elsevier.

Gupta, N. and Nau, D. (1991). Complexity results for

blocks-world planning. In AAAI-91.

Jorge, A. and Sheila, A. M. (2008). Planning with prefer-

ences. In AI Magazine.

McDermott, D., Ghallab, M., Howe, A., Knoblock, C.,

Ram, A., Veloso, M., and Wilkins, D. (1998). Pddl-

the planning domain deﬁnition language-version 1.2.

In Yale Center for Computational Vision and Control.

Nebel, B. (2000). On the compilability and the expres-

sive power of propositional planning formalisms. In

Journal of Artiﬁcial Intelligence Research 12 (2000)

271–315.

Rintanen, J. (2007). Complexity of concurrent temporal

planning. In Proc. of 17th Int. Conf. on Automated

Planning and Scheduling.

Sohrabi, S., Baier, J., and Mcilraith, S. (2009). Htn planning

with preferences. In Twenty-First International Joint

Conference on Artiﬁcial Intelligence.

Souza, P., Ferreira, M., and Silva, S. (2012). A mathemat-

ical model to predict operating states of satellites. In

ESPACEOPS.

Thi

ebaux, S., Hoffmann, J., and Nebel, B. (2005). In de-

fense of pddl axioms, artiﬁcial intelligence 168 (2005)

38–69.

State Validation in Automated Planning

405

Tominaga, J., Ferreira, M., and Silva, J. (2011). A rule-

based satellite simulator for use in ﬂight operations

planning. In Journal of Computational Interdisci-

plinary Sciences.

Tu, P., Son, T., and Pontelli, E. (2007). Cpp: A constraint

logic programming-based planner with preferences.

In International Conference on Logic Programming

and Nonmonotonic Reasoning, p. 290-296. Springer,

Berlin, Heidelberg.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

406
