Using a Domain Ontology to Bridge the Gap between User Intention and

Expression in Natural Language Queries

Alysson Gomes de Sousa

, Dalai Dos Santos Ribeiro

, R

omulo C

esar Costa de Sousa

Ariane Moraes Bueno Rodrigues

, Pedro Henrique Thompson Furtado

Simone Diniz Junqueira Barbosa

and H

elio Lopes

Department of Informatics, PUC-Rio, Brazil

CENPES - PETROBRAS, Brazil

Keywords:

Ontology, Knowledge Base, Data-driven Search, Progressive Disclosure, Question Answering.

Abstract:

Many systems try to convert a request in natural language into a structured query, but formulating a good

query can be cognitively challenging for users. We propose an ontology-based approach to answer questions

in natural language about facts stored in a knowledge base, and answer them through data visualizations. To

bridge the gap between the user intention and the expression of their query in natural language, our approach

enriches the set of answers by generating related questions, allowing the discovery of new information. We

apply our approach to the Movies and TV Series domain and with queries and answers in Portuguese. To

validate our natural language search engine, we have built a dataset of questions in Portuguese to measure

precision, recall, and f-score. To evaluate the method to enrich the answers we conducted a questionnaire-

based study to measure the users’ preferences about the recommended questions. Finally, we conducted an

experimental user study to evaluate the delivery mechanism of our proposal.

1 INTRODUCTION

Search has become ubiquitously associated with the

Web, to the point of becoming a default tool in any

modern browser and one of the most popular activities

online, already in 2008 (Fallows, 2008).

A major challenge for search systems is to con-

vert a query or request for information in natural lan-

guage into a structured query which, when executed,

generates the correct answer to the question/request.

This task is speciﬁcally more difﬁcult because there’s

not a set of predetermined answers, as in the classiﬁ-

cation tasks (tokenization, pos-tagging, named entity

recognition). This task also presents the following

challenge: how can we capture the user’s intention

expressed in a natural language question/request and

translate it into a computationally processable query?

And in this case, in the Portuguese language. Many

systems try to achieve this by allowing the user to

navigate through search results and reﬁne the search

query. However, formulating a good query can be

cognitively challenging for users (Belkin et al., 1982),

so queries are often approximations of a user’s un-

derlying need (Thompson, 2002). Although most of

the search systems are effective when the user has a

clear vision of their interests, those systems may not

be very suitable when the user is performing an ex-

ploratory search or cannot properly formulate their in-

formation need.

Instead of requiring users to manually adjust the

queries to amplify their search results, our hypoth-

esis is that a search system that continually of-

fers answers to related queries based on navigation

through an underlying domain ontology would im-

prove the user experience. We developed a system

to explore the Movies and TV Series domain, using

the IMDb Movie Ontology developed by (Calvanese

et al., 2017), an ontology to describe the movie do-

main semantically. Their ontology uses the Interna-

tional Movie Database data as its data source. In this

paper, we focus on searches whose results can be rep-

resented as data visualizations.

2 RELATED WORK

Exploratory Search. Information seeking is well

supported by search engines when the user has well-

deﬁned information needs. However, when the

de Sousa, A., Ribeiro, D., Costa de Sousa, R., Rodrigues, A., Furtado, P., Barbosa, S. and Lopes, H.

Using a Domain Ontology to Bridge the Gap between User Intention and Expression in Natural Language Queries.

DOI: 10.5220/0009412307510758

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 751-758

ISBN: 978-989-758-423-7

751

user lacks the knowledge or contextual awareness

to formulate queries or navigate complex informa-

tion spaces, the search system should support a com-

plex information seeking process, where the user can

browse and explore the results to fulﬁll their needs

(Wilson et al., 2010).

Exploratory Search research studies information-

seeking models that blend querying and browsing

with a focus on learning and investigating, instead of

information lookup (Marchionini, 2006). There are

three typical exploratory search situations: (i) The

user has partial or no knowledge of the search target;

(ii) The search moves from certainty to uncertainty as

the user is exposed to new information; and (iii) The

user is actively seeking useful information and deter-

mining its structure (White et al., 2005).

O’Day and Jeffries describe an incremental search

behavior as a process of exploration through a series

of related searches on a speciﬁc topic (O’Day and

Jeffries, 1993). They identify three distinct search

modes: (i) monitoring a well-known topic over time;

(ii) following a plan of information gathering; and

(iii) exploring a topic in an undirected fashion. This

shows that even exploratory information seeking has

structure and continuity, which could be supported by

the search system.

Semantic Web and Natural Language Processing.

The volume of digitally produced data keeps grow-

ing greatly, but mostly to be read and interpreted by

people. Their lack of structure and standardization

makes automatic processing highly expensive or inef-

fective. In 1994, the Semantic Web emerged as an ex-

tension to the traditional Web that aims to make Web

content processable by machines, mainly through two

technologies: domain ontologies and resource de-

scription framework (RDF). Domain ontologies are

a ﬂexible model for organizing the information and

rules needed to reason about data (Berners-Lee et al.,

2001). In the context of Computer Science, an ontol-

ogy is a formal description of knowledge of a particu-

lar domain (Gruber, 1993). RDF is a model that pro-

vides the foundation for metadata processing, mak-

ing web resources understandable to machines (Las-

sila et al., 1998).

Another area that aims to structure unstructured

data Natural Language Processing (NLP). Some NLP

tasks have become highly relevant to other areas of

knowledge, including the Semantic Web. Among

these tasks, we can highlight the Dependency Anal-

ysis. Dependency analysis seeks to capture the syn-

tactic structure of the text represented through depen-

dency relations organized in a structure called depen-

dency tree. One of the main advantages of using this

dependency framework is that the relationships ex-

tracted in the analysis provide an approximation to

semantic relationships. Therefore, these dependency

structures are useful for extracting structured seman-

tic relations from unstructured texts.

Query Interpretation. Several approaches for an-

swering natural-language questions use NLP tech-

niques and lexical features that relate words to their

synonyms, together with a reference ontology. Some

works integrate dependency trees into other methods

and resources (Yang et al., 2015; Paredes-Valverde

et al., 2015; Li and Xu, 2016). The ﬁrst uses vector

representations to capture lexical and semantic char-

acteristics, and the semantic relations captured in the

dependency trees -— these vectors used as canoni-

cal forms of properties that relate one or more men-

tioned concepts. The second proposes a system called

ONLI, which uses trees together with an ontology-

based question model and a question classiﬁcation

scheme proposed by the authors themselves. The

third proposes an approach that uses the identiﬁed

entities and navigates the dependency tree guided by

these entities.

Another challenging aspect of question answer-

ing is ambiguity. Ambiguity can manifest itself in a

variety of ways, either syntactically or semantically,

which strongly impacts the conversion of a question

or request to a SPARQL query, and may result in

wrong answers. To resolve this problem, many works

ask the user for the correct interpretation whenever

there is ambiguity (e.g., (Melo et al., 2016; Daml-

janovic et al., 2012; Yang et al., 2015)).

3 DEFINING AND ENRICHING

THE DOMAIN ONTOLOGY

Domain ontologies have been popularized as a ﬂex-

ible knowledge representation model for organizing

the information and rules needed to reason about

data (Berners-Lee et al., 2001). In an ontology, for-

mally declared real-world objects and relationships

between them form the universe of discourse, which

reﬂects the domain vocabulary and thus the knowl-

edge the system will have about that domain (Gru-

ber, 1993). The deﬁnition of domain ontology is an

important part of the process. The ontology should

contain the main classes and individuals of the do-

main, and well-deﬁned relationships with respective

domains and ranges. In this paper, we used a movie

ontology that describes the cinematography domain

developed at the Zurich University CS department

https://github.com/ontop/ontop/wiki/Example Movie

Ontology

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

752

When searching for information, a user may of-

ten not know how to express what they want. They

start from an initial set of terms and, from the search

results, they will reﬁne the search to improve results,

as pointed out by (Marchionini, 1997). Many mod-

els provide information related to the initial results,

to reduce the user’s cognitive effort to formulate new

terms that reﬁne or broaden the results of the search

(Sun et al., 2010; Setlur et al., 2016; Gao et al., 2015).

Our approach enriches the answer set using rela-

tionships identiﬁed in the user question and ranked

by the strengths of those relationships. The ontology

is enriched with annotations that deﬁne relationships

that the user ﬁnds interesting, given that certain enti-

ties were cited in the initial question. The terms de-

ﬁned in the annotation ontology were the following:

• hasRelationshipWithClass: a class has a rela-

tionship of interest with another class.

• hasRelationshipWithNamedIndividual: an in-

dividual deﬁned in the ontology has a relationship

of interest with another individual.

• hasRelationshipWithProperty: a property has a

relationship of interest with another property.

• isBaseCategoricalLevel: a class hierarchy that

can be used as related entities.

• hasNotRelationshipWith: an entity does not

have a relationship of interest with another entity.

• relationshipStrength: the strength of a relation-

ship of interest.

Other ontologies may reuse these annotation terms

similarly to other annotation properties deﬁned in the

OWL vocabulary. An exception is the relationship-

Strength annotation, which is deﬁned as a Datatype

Property, because it is a list composed of two related

entities with a numeric value representing the force of

relationship. We have also created a property called

isBasicLevelCategory, which identiﬁes that a class hi-

erarchy can be used as a set of relationships of inter-

est; that is, for any class present in the hierarchy men-

tioned, its child classes could be used as related terms.

4 OUR APPROACH

Our approach comprises question interpretation,

query expansion, and result delivery, described next.

4.1 Question Interpretation

We needed a mechanism capable of answering natural

language questions in Portuguese based on an ontol-

ogy and a knowledge base. It must be able to capture

the intention or desire expressed in a user question or

request and convert it into a SPARQL query.

The ﬁrst step in the interpretation process is entity

detection, which consists of identifying the classes,

properties, and individuals expressed in the reference

ontology and knowledge base mentioned in the ques-

tion or request for information. We assume that all

classes, properties, and individuals are annotated with

the label property, deﬁned in the standard RDF vo-

cabulary, preferably set to Portuguese (i.e., adding the

sufﬁx @pt-br after the label content). It is necessary

to deal with variations in terms (due to verbal inﬂec-

tions, gender, and number). For this, we extract the

radicals of the words; thus, the detection takes place

by extracting the radicals of the terms of the question,

and comparing the n-grams of these radicals with the

radicals of the terms of the ontology labels.

To improve entity detection, we use a lexical fea-

ture called Onto.PT, created by (Gonc¸alo Oliveira and

Gomes, 2014), a synonym ontology developed for

Portuguese. It adopts the concept of synsets, which

are sets of synonyms. With this feature, we will evalu-

ate whether the synonyms of the terms of the question

or request are contained in the ontology vocabulary if

the terms themselves are not present.

It is common for the same terms to designate dif-

ferent entities, so a disambiguation step is required.

This step checks which terms or sets of terms match

more than one entity, including classes or properties

of the ontology and individuals expressed in the on-

tology or knowledge base. After identifying these

ambiguous entities, we pass these terms to the user

with their respective interpretation options, for users

to determine the correct option.

We have included a step that is performed of-

ﬂine, which is ontology indexing. This step arose

from the need to manipulate the ontology more con-

veniently. Indexing an ontology means to create a

global graph that unites the hierarchy, individuals, and

relationships expressed in the properties. Structur-

ing the ontology this way was useful both in practical

terms, supporting for the search for relationships, and

in theoretical terms, since the concepts of graph the-

ory (such as shortest path and neighborhood) could

also be used.

Having all entities identiﬁed and the ontology ad-

equately indexed, the ﬁnal step is to extract the se-

mantic relationships between the entities that were

detected. The question guides this step or requests

the dependency tree received as input. To describe

the process, we will take the following sentence as

an example: “Quais atores participaram de ﬁlmes que

ganharam o Oscar?” (Which actors participated in

ﬁlms that won the Oscar?). The terms atores and

Using a Domain Ontology to Bridge the Gap between User Intention and Expression in Natural Language Queries

753

ﬁlmes coincide with reference ontology classes, and

the term oscar corresponds to a named individual.

After generating the dependency tree from the

question, we extract the relationships: we traverse the

tree, evaluating each of the nodes with their respec-

tive children and siblings. If we ﬁnd a node that cor-

responds to a class, we propagate this information to

the child and sibling nodes, so that the next evaluated

nodes that match classes are related to the previous

node. This relationship will be built from the path that

joins the two nodes in the indexed ontology, resulting

in query triplets, as illustrated in Figure 1.

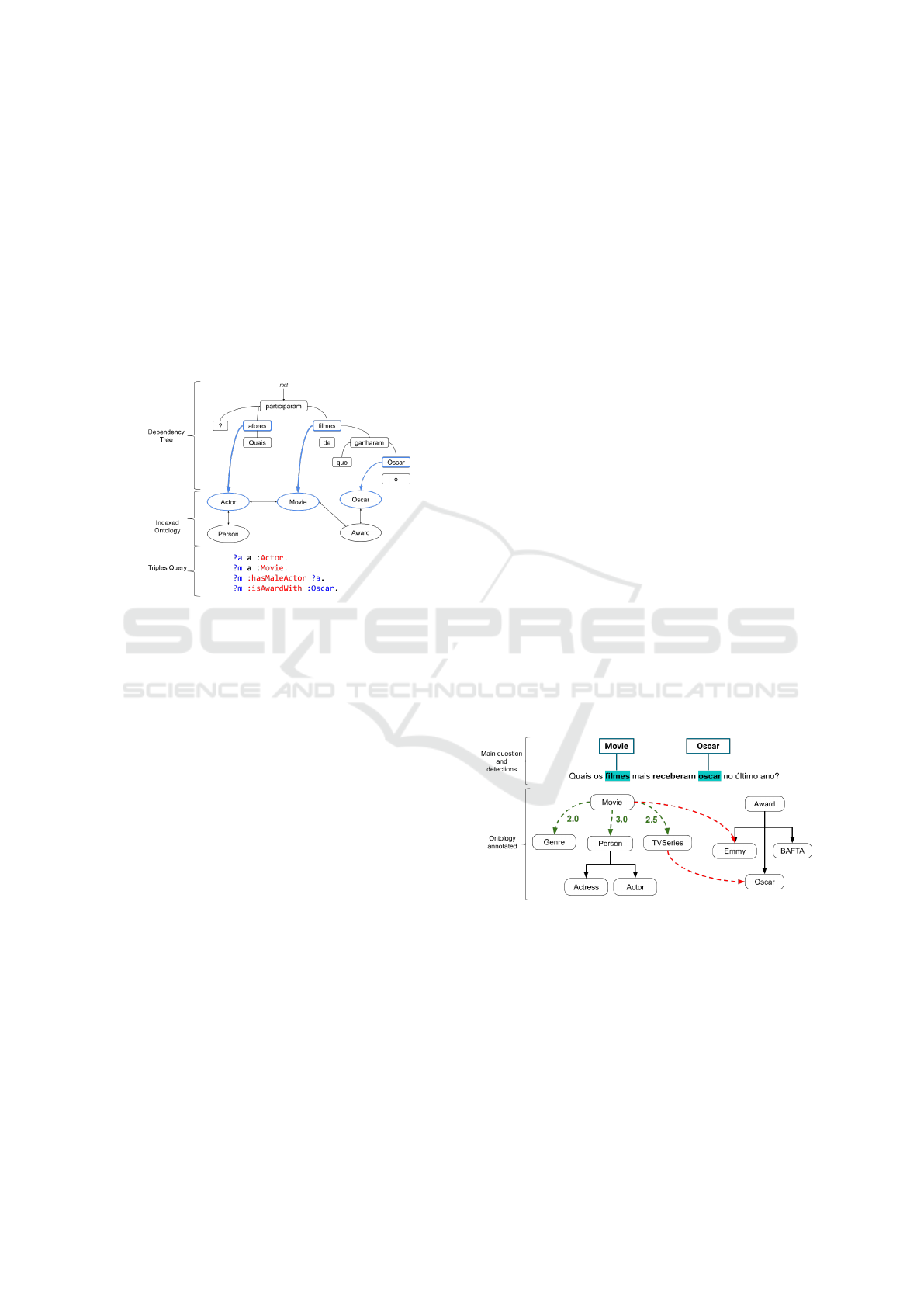

Figure 1: Relationship Extraction from Dependency Tree.

Finally, we evaluate the other terms that match the

keywords deﬁned in our method, processing them as

parameters whose values are in the neighborhood of

the term or its subtree.

Thus, we conclude the relationship extraction pro-

cess, considering everything we consider relevant to

create a query that corresponds to what the user ex-

pressed in their question or request.

4.2 Query Expansion

In order to enhance the answers generated by the in-

terpreter and to reduce the user’s cognitive effort to

formulate other related questions which may interest

them, our group developed a mechanism that recom-

mends answers to questions related to the initial user

question. This mechanism applies operations to the

ontology, taking into consideration the entities that

were detected in the initial question.

Let us take an example: the information needed by

the user is the movie genre that generated the highest

box ofﬁce in 2018, but when formulating their query

they typed: “Which movies had the highest gross rev-

enue in 2018?”. The interface sends, through an API,

the natural language query written by the user. The

API looks for the literal answer or answers to the

question and ranks the results. It then exhibits the n

highest ranked literal results for the query on the top-

most area of the interface, in a slightly shaded area

(Figure 3). Below that area, it progressively displays

results for related questions, which are gradually re-

ceived from the API. Those results are the outcomes

of a search mechanism that, given a domain ontology

(e.g., IMDb), navigates through the ontology look-

ing for useful relationships between the elements pre-

sented in the search query to expand the given ques-

tion into related ones.

JARVIS may offer, for example, results for

questions such as “Which studios had the high-

est gross revenue in 2018?” (through a movie–

produced by–studio relationship), “Which movies had

the highest gross revenue in 2018 per country?”

(through a movie–produced in–country relationship),

and “Which movie genre had the highest gross rev-

enue in 2018?” (through a movie–classiﬁed as–genre

relationship). These related questions may offer the

information needed by the user, as well as different

perspectives on the data related to the query, without

any manual interaction by the user.

Once we have the ontology appropriately anno-

tated, our strategy for generating related questions in-

volves using the entities identiﬁed in the interpreta-

tion mechanism and rephrasing the initial question by

replacing the entities mentioned with related entities

(deﬁned at the time of the annotation).

Figure 2 schematically shows a clipping of the

previous ontology with their respective relationships

of interest and an initial question with some identiﬁed

ontology entities.

Figure 2: Sample Question and Its Relationships of Interest.

Given the initial question, the strategy is to generate

valid combinations between relationships, that is, any

combination that is not marked with the hasNotRela-

tionshipWith annotation. So if we take the question

from Figure 2, we can generate the following related

questions:

• What actors received the most Oscars last year?

• What actresses received the most Oscars last year?

• Which ﬁlms received the most BAFTAs in the last

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

754

year?

As the set of generated questions can become too

large, because of the number of entities cited in the

initial question (Duarte. et al., 2016), the ranking pol-

icy may inﬂuence the exploratory search and, thus,

the knowledge discovery. Therefore, we deﬁne an or-

dering criterion that combines the strength of the rela-

tionship with the number of different entities in each

related question, deﬁned by Equation 1.

s =

∑

r∈C

|C|

∗ w[r]

|C|

, (1)

where C is set of relationships of interest and w is set

of weights associated to relationships. Thus, ranked

questions go from questions with few variations and

high relationship strength to questions with many

variations but low relationship strength.

4.3 Delivery Mechanism

Many systems, such as Datatone (Gao et al., 2015),

allow the user to navigate through related questions

by direct manipulation of the query or through man-

ual interactions with its ambiguity widgets. We hy-

pothesize that, instead of requiring users to manually

adjust the queries to amplify their search results, user

interfaces for searching data visualizations may con-

tinuously offer answers to related queries.

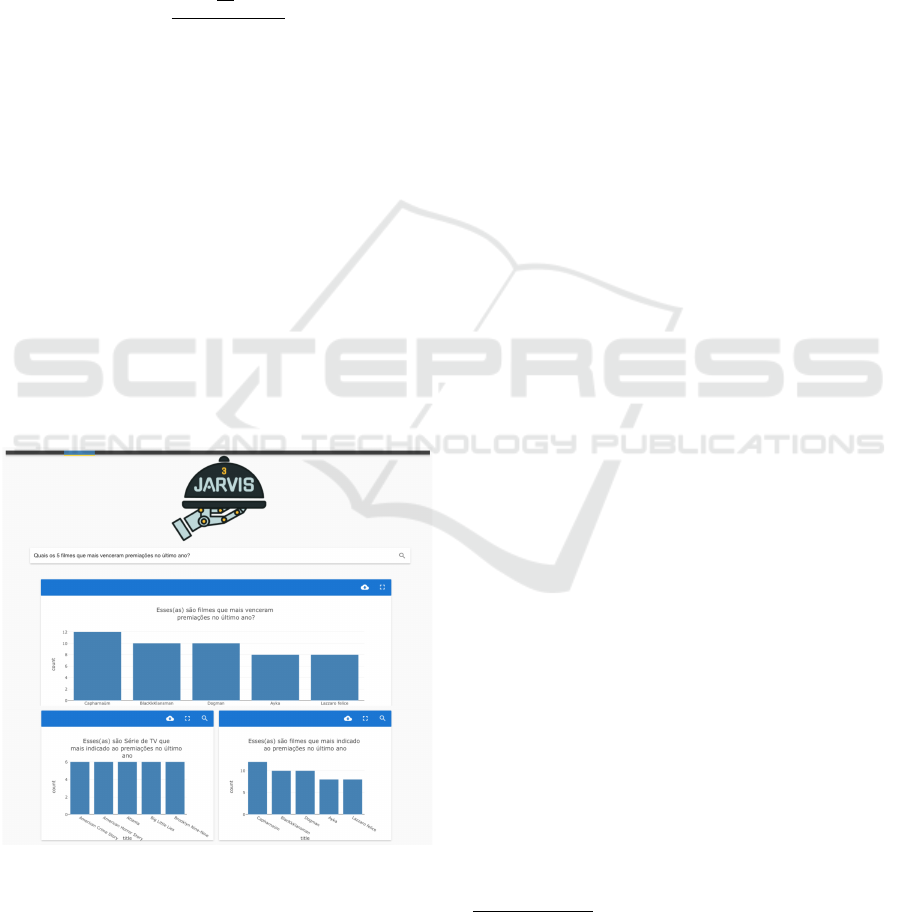

Figure 3: JARVIS Search User Interface (Model J3).

Our proposed search user interface (Figure 3), named

JARVIS - Journey towards Augmenting the Results

of Visualization Search, is based on the progressive

disclosure model used by Google Images, where the

interface continually appends search results to the

search results page. Rather than requiring users to

reﬁne their queries, JARVIS automatically ampliﬁes

the set of results with answers to related queries.

Suppose the user wants to know the movie genre

that generated the highest box ofﬁce in 2018, but

they formulate their query as: “Which movies had

the highest gross revenue in 2018?” JARVIS sends,

through an API, the natural language query written

by the user. The API looks for the literal answer(s) to

the question, ranks the results, and shows the n best

literal results for the query on the topmost area of the

interface, in a slightly shaded area. Below that area,

it progressively displays results from the related ques-

tions, which are gradually received from the API.

5 EVALUATION

5.1 Query Interpretation

To evaluate our approach, we created a knowledge

base from the the aforementioned IMDb ontology and

the IMDb database.

We built a question dataset

based on the Question Answering over Linked Data

(QALD

) competition question dataset, adapting the

structure and questions to the IMDb context. We ﬁrst

took the main question types in the QALD dataset,

such as questions that have the terms what, who,

when, where, then the main operations applied to

queries, such as count, sorting, grouping, and tem-

poral ﬁltering. Finally, we associated the classes and

individuals mentioned in the QALD questions with

the classes and individuals in the IMDb context.

Our dataset

comprises 150 questions in Por-

tuguese and English, with the SPARQL query of each

question. The dataset is distributed of the following

way: 94 questions of the type what, 25 of the type

who, 11 of the type count, 9 of the type when, 6 of

the type yes/no, and 5 of the type where. We ap-

plied our approach to each question and calculated the

usual metrics: Precision (mean = 0.58, var = 0.239),

Recall (mean = 0.63, var = 0.231), and F1-score

(mean = 0.57, var = 0.231). On average, Recall >

Precision, indicating that most of the relevant answers

were selected. However, part of what was selected is

not relevant, evidenced by low Precision values.

However, our approach tries to respond to spe-

ciﬁc questions and not only factual questions, as

other works focused on Portuguese do (Penousal and

https://www.imdb.com/interfaces/

https://github.com/ag-sc/QALD

https://github.com/alyssongomes/

dataset-questions-imdb

Using a Domain Ontology to Bridge the Gap between User Intention and Expression in Natural Language Queries

755

Machado, 2017; Teixeira, 2008; Cortes et al., 2012).

This difference is important because the queries gen-

erated to answer the factual questions are generally

built from a composition of keywords, sometimes am-

pliﬁed through synonyms, where the set of answers

are results of these queries. Therefore, too many an-

swers are part of the approximated set of results.

Speciﬁc questions require more structured

queries, and the fact of the vast majority of research

in NLP is conducted on the English language lead

to NLP tools more accurate as for Portuguese (Otter

et al., 2018), which makes the task more difﬁcult.

Table 1 shows the mean and variance of the F-score

results broken down by each question type in the

dataset. Here we can see that the best results came

from questions where a location (where) or a tem-

poral (when) attribute was requested. This occurs

because, in both cases, the search space is smaller

due to the reduced number of properties and classes

associated with geographic or temporal entities.

Table 1: F-Score Mean and Variance for Each Question

Type.

count what when where who yes/no

mean 0.45 0.53 0.77 1.00 0.76 0.00

variance 0.27 0.23 0.19 0.00 0.19 0.00

Questions of type what concentrated most of the er-

rors. This may have happened due to the wide vari-

ety of questions of that kind. This strongly impacts

the dependency tree generation, as its structure can

vary considerably depending on the way the question

is formulated. This variation affects the generation

of query search triples, and the selection of the en-

tities that will be used in grouping and sorting op-

erations, increasing the chances of generating wrong

queries, and consequently impacting also questions of

type count. Our approach has difﬁculty distinguishing

questions of the type yes/no, usually because they are

very similar to questions of type what, but require to

determine when to test only the existence of a partic-

ular set of triples and when it is necessary to return

its results. Moreover, these cases were not mapped in

our approach, and some of the data were missing from

the knowledge base, which explains these ﬁndings.

5.2 Query Expansion

To evaluate the query expansion engine, we took the

IMDb ontology and arbitrarily deﬁned a set of rela-

tionships of interest and the strengths of each relation-

ship in the IMDb ontology. For instance Actor-Movie

has strength 3, whereas Genre-Movie has strength 2.

The evaluation was performed from the perspective of

users who have some familiarity with search engines.

For this, the user evaluated related questions gener-

ated from the following set:

P1: What are the best rated TV shows on IMDb in

2018?

P2: Which 5 movies had the highest gross revenues?

P3: What are the 5 ﬁlms of the longest duration?

To evaluate these questions, the participant informed

how closely they considered the generated question

to be related to the initial question, in a 7-point scale

(1-Not related to 7-Strongly related). To evaluate the

order in which questions are shown, participants re-

ceived an online form with 2 question sets, P and A,

where P contained the related question groups P1, P2,

and P3 in the order proposed by our approach, and A

contained the same groups of question listed in ran-

dom order (A1, A2, and A3, respectively). To reduce

the learning effect, we formed two user groups, each

one receiving the question groups in a different order.

At the end of each question set, the participant eval-

uated the set of related questions as a whole and the

order in which the related questions were listed, and

chose their preferred group.

Most of the 42 participants were undergraduate

and graduate students in Computer Science, Chemi-

cal Engineering, or Electronics. In Figure 4, we show

the results for the questions sorted according to the

criteria proposed in this paper. We can notice a trend

in the evaluations: as expected, the number of scores

that indicate weak relationships grows as the question

has lower positions in the ranking.

Figure 4: Compiled Distribution of Group P Assessments.

Participants also assessed the adequacy of each set

(P1, P2, P3, A1, A2, and A3) and the order of ques-

tions within each set, considering how related its

questions were to the initial question in each group.

We found a signiﬁcant difference only between P3

and A3, revealing that the effect of the order was only

noticeable in the larger group, as P3 and A3 had 7 re-

lated questions, while the other groups had only 5. We

also analyzed the impact of ordering on the scores that

were given to the individual questions. A Kruskal-

Wallis test showed a signiﬁcant difference between

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

756

the questions of each ordered group P1, P2, and P3,

with the following p-values: 0.0000239, 0.0000554,

and 0.0002219, respectively. A Conover-Iman post-

hoc test revealed a signiﬁcant difference in 4 P1 ques-

tion pairs, 4 in P2, and 5 in P3.

Signiﬁcant differences occurred when more than

one entity was modiﬁed, so the question suffered a

ranking penalty. This means that questions with more

modiﬁed entities really should have lower priority.

The details about of interpretation method and the re-

sults of evaluations can be queried in (Sousa, 2019).

5.3 Delivery Mechanism

JARVIS progressively discloses results for related

queries. To evaluate the effectiveness and efﬁciency

of our solution, we have devised two other search

user interface (SUI) models for the same search task.

The ﬁrst uses the traditional search interaction method

described by (Wilson, 1999) (henceforth called Tra-

ditional SUI (J1)), and the second is built showing

the related questions as links to explore the results

(henceforth called Related-links SUI (J2)). Then we

conducted a comparison study of the three SUIs. We

invited graduate students from different areas to serve

as volunteer participants in the study.

In J1, the user types a search query and receives

the highest ranked result for their question. The only

way they can expand the search results is by manually

editing or typing a new query for the system. This

model represents a baseline for our work.In J2, the

user is now presented not only with the highest ranked

result, but also with a set of related questions on a

side pane. This allows the user to navigate through re-

lated questions more quickly, but still requires manual

interaction with the user interface. Model J2 is pre-

sented to the participants so we can attempt to under-

stand whether the mere introduction of related ques-

tions is enough to reduce the users’ cognitive overload

and to build a more effective search interface.

To evaluate the interface models, we conducted an

empirical comparative test of the three SUIs. To re-

duce the learning effects, we varied the order in which

each SUI was presented. Fifteen people participated

in the experiment to evaluate the delivery mechanism

of the related queries: three female and 12 male. They

were all graduate students at PUC-Rio (11 Master’s

and 4 PhD students). Apart from one Psychology

student, all the participants were Computer Science

students. All participants were familiarized with tra-

ditional search tools. Four participants had already

seen a search user interface similar to JARVIS (J3) in

another context, but had not used it. One participant

helped develop J3 for an R&D project. The other ten

participants had no knowledge of models J2 and J3.

For each SUI, the user received six search tasks,

each one representing a search query. In the Related-

links SUI (J2) and JARVIS (J3), participants would

need to type only two queries, and then they would

have quick access to the remaining related queries

through the links at the right-hand panel. In the Tradi-

tional SUI (J1), however, the user would need to type

in each of the six queries manually.

After interacting with each SUI, we asked the par-

ticipant to ﬁll out a questionnaire regarding the per-

ceived ease of use and utility of the SUI based on the

Technology Acceptance Model (TAM) (Davis, 1989)

and their subjective workload assessment based on

the NASA Task Load Index (Hart, 2006). At the end

of the session, we brieﬂy interviewed the users, ask-

ing them to choose their preferred SUI and explain

why. We also collected performance data in terms

of effectiveness (correctness of the result) and efﬁ-

ciency (time on task). In particular, we used the num-

ber of searches as a proxy for efﬁciency. The results

showed a signiﬁcant difference between J1 and the

exploratory behavior of models J2 and J3. The de-

tails about of delivery mechanism and the results of

evaluations can be queried in (Ribeiro, 2019).

6 CONCLUSIONS

We proposed an approach to answer questions in

natural language by converting them into SPARQL

queries, using a knowledge database and a domain

ontology. Our model ampliﬁes cognition for search

tasks by generating and presenting related queries to

expand the search space and progressively disclose

the corresponding results. We evaluated the perfor-

mance of the method and obtained 58% average pre-

cision, 62% average recall, and 57% average F-score.

We evaluated the proposed model of delivery (J3)

in comparison with two distinct search user interface

models for data visualization. Our results suggest that

the proposed methodology has potential as a novel de-

sign search systems that bridge the gap between the

user intentions and the queries they produce.

ACKNOWLEDGEMENTS

This study was ﬁnancially supported by CAPES,

CNPq, and PETROBRAS.

Using a Domain Ontology to Bridge the Gap between User Intention and Expression in Natural Language Queries

757

REFERENCES

Belkin, N., Oddy, R., and Brooks, H. (1982). Ask for in-

formation retrieval: Part i. background and theory. J.

Doc, 38(2):61–71.

Berners-Lee, T., Hendler, J., and Lassila, O. (2001). The se-

mantic web: A new form of web content that is mean-

ingful to computers will unleash a revolution of new

possibilities. Sci. Am., 284(5):34–43.

Calvanese, D., Cogrel, B., Komla-Ebri, S., Kontchakov, R.,

Lanti, D., Rezk, M., Rodriguez-Muro, M., and Xiao,

G. (2017). Ontop: Answering sparql queries over re-

lational databases. Semantic Web, 8(3):471–487.

Cortes, E. G., Woloszyn, V., and Barone, D. A. C. (2012).

When, Where, Who, What or Why? A Hybrid Model to

Question Answering Systems, volume 7243. Springer

International Publishing.

Damljanovic, D., Agatonovic, M., and Cunningham, H.

(2012). Freya: An interactive way of querying linked

data using natural language. In Lecture Notes in Com-

puter Science.

Davis, F. D. (1989). Perceived Usefulness, Perceived Ease

of Use, and User Acceptance of Information Technol-

ogy. MIS Quarterly, 13(3):319–340.

Duarte., E. F., Nanni., L. P., Geraldi., R. T., OliveiraJr.,

E., Feltrim., V. D., and Pereira., R. (2016). Order-

ing matters: An experimental study of ranking inﬂu-

ence on results selection behavior during exploratory

search. In Proceedings of the 18th International Con-

ference on Enterprise Information Systems - Volume

1: ICEIS,, pages 427–434. INSTICC, SciTePress.

Fallows, D. (2008). Search Engine Use | Pew Research

Center.

Gao, T., Dontcheva, M., Adar, E., Liu, Z., and Karahalios,

K. G. (2015). Datatone: Managing ambiguity in nat-

ural language interfaces for data visualization. In

Proceedings of the 28th Annual ACM Symposium on

User Interface Software & Technology, UIST ’15,

pages 489–500, New York, NY, USA. ACM Press.

Gonc¸alo Oliveira, H. and Gomes, P. (2014). ECO and

Onto.PT: A ﬂexible approach for creating a Por-

tuguese wordnet automatically. LANG RESOUR

EVAL, 48(2):373–393.

Gruber, T. R. (1993). A translation approach to portable

ontology speciﬁcations. Knowledge acquisition,

5(2):199–220.

Hart, S. G. (2006). Nasa-Task Load Index: 20 Years Later.

Proceedings of the Human Factors and Ergonomics

Society Annual Meeting, 50(9):904–908.

Lassila, O., Swick, R. R., Wide, W., and Consortium,

W. (1998). Resource description framework (RDF)

model and syntax speciﬁcation.

Li, H. and Xu, F. (2016). Question answering with dbpedia

based on the dependency parser and entity-centric in-

dex. In Computational Intelligence and Applications

(ICCIA), 2016 International Conference on, pages

41–45. IEEE.

Marchionini, G. (1997). Information Seeking in Elec-

tronic Environments. Cambridge Series on Human-

Computer Interaction. Cambridge University Press.

Marchionini, G. (2006). Exploratory search: From ﬁnding

to understanding. Commun. ACM, 49(4):41–46.

Melo, D., Rodrigues, I. P., and Nogueira, V. B. (2016).

Using a dialogue manager to improve semantic web

search. INT J SEMANT WEB INF (IJSWIS), 12(1):62–

78.

O’Day, V. L. and Jeffries, R. (1993). Orienteering in an

information landscape: How information seekers get

from here to there. In Proceedings of the INTERACT

’93 and CHI ’93 Conference on Human Factors in

Computing Systems, CHI ’93, pages 438–445, New

York, NY, USA. ACM.

Otter, D. W., Medina, J. R., and Kalita, J. K. (2018). A sur-

vey of the usages of deep learning in natural language

processing. arXiv preprint arXiv:1807.10854.

Paredes-Valverde, M. A., Rodr

ıguez-Garc

ıa, M.

A.,

Ruiz-Mart

ınez, A., Valencia-Garc

ıa, R., and Alor-

Hern

andez, G. (2015). Onli: an ontology-based

system for querying dbpedia using natural language

paradigm. EXPERT SYST APPL, 42(12):5163–5176.

Penousal, F. J. and Machado, M. (2017). RAPPORT:

A Fact-Based Question Answering System for Por-

tuguese. (June).

Ribeiro, D. d. S. (2019). Exploring ontology-based in-

formation through the progressive disclosure of vi-

sual answer to related queries. Master’s thesis, Pon-

tif

ıcia Universidade Cat

olica do Rio de Janeiro, Rio

de Janeiro.

Setlur, V., Battersby, S. E., Tory, M., Gossweiler, R., and

Chang, A. X. (2016). Eviza: A natural language inter-

face for visual analysis. In Proceedings of the 29th

Annual Symposium on User Interface Software and

Technology, pages 365–377. ACM.

Sousa, A. G. d. (2019). An approach to answering natural

language questions in portuguese from ontologies and

knowledge bases. Master’s thesis, Pontif

ıcia Univer-

sidade Cat

olica do Rio de Janeiro, Rio de Janeiro.

Sun, Y., Leigh, J., Johnson, A., and Lee, S. (2010). Artic-

ulate: A semi-automated model for translating natural

language queries into meaningful visualizations. In

International Symposium on Smart Graphics, pages

184–195. Springer.

Teixeira, J. (2008). Experiments with Query Expansion

in the RAPOSA (FOX) Question Answering System.

(September).

Thompson, P. (2002). Finding out about: A cognitive per-

spective on search engine technology and the www.

Information Retrieval, 5(2):269–271.

White, R. W., Kules, B., and Bederson, B. (2005). Ex-

ploratory search interfaces: Categorization, clustering

and beyond: Report on the xsi 2005 workshop at the

human-computer interaction laboratory, university of

maryland. SIGIR Forum, 39(2):52–56.

Wilson, M. L., Kules, B., Shneiderman, B., et al. (2010).

From keyword search to exploration: Designing fu-

ture search interfaces for the web. Foundations and

Trends

 in Web Science, 2(1):1–97.

Wilson, T. (1999). Models in information behaviour re-

search. J. Doc., 55(3):249–270.

Yang, M.-C., Lee, D.-G., Park, S.-Y., and Rim, H.-C.

(2015). Knowledge-based question answering using

the semantic embedding space. EXPERT SYST APPL,

42(23):9086–9104.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

758
