An Approach for Deriving, Analyzing, and Organizing Requirements

Metrics and Related Information in Systems Projects

Ibtehal Noorwali

, Nazim H. Madhavji

and Remo Ferrari

Computer Science Department, The University of Western Ontario, London, Ontario, Canada

Siemens Mobility, New York, NY, U.S.A.

Keywords:

Requirements Metrics, Requirements Management, Measurement Approach.

Abstract:

Large systems projects present unique challenges to the requirements measurement process: large sets of re-

quirements across many sub-projects, requirements existing in different categories (e.g., hardware, interface,

software, etc.), varying requirements meta-data items (e.g., ID, requirement type, priority, etc.), to name few.

Consequently, requirements metrics are often incomplete, metrics and measurement reports are often unor-

ganized, and meta-data items that are essential for applying the metrics are often incomplete or missing. To

our knowledge, there are no published approaches for measuring requirements in large systems projects. In

this paper, we propose a 7-step approach that combines the use of the goal-question-metric paradigm (GQM)

and the identiﬁcation and analysis of four main RE measurement elements: attributes, levels, metrics, and

meta-data items—that aids in the derivation, analysis, and organization of requirements metrics. We illustrate

the use of our approach by applying it to real-life data from the rail automation systems domain. We show how

the approach led to a more comprehensive set of requirements metrics, improved organization and reporting

of metrics, and improved consistency and completeness of requirements meta-data across projects.

1 INTRODUCTION

In large systems projects, deriving and organizing re-

quirements metrics and and related information (e.g.,

meta-data items, measures, and metric labels) can

be complicated and laborious due to such factors as:

large volume of requirements; inconsistent require-

ments meta-data across sub-projects; and complex-

ity in requirements baselines (that contain categories

such as interface, hardware, software, each of which

has its own set of metrics). In addition, the derived re-

quirements metrics are numerous, often unstructured

and unorganized, and can be difﬁcult to assess with

respect to completeness.

Existing measurement methods are aimed at either

selecting and specifying a set of metrics that address

certain project goals (e.g., GQM(Basili et al., 1994)

and V-GQM(Olsson and Runeson, 2001)) or docu-

menting metrics and measurement reports through

templates (Goethert and Siviy, 2004; Bonelli et al.,

2017). For example, GQM (Basili et al., 1994) aids in

documenting assessment or improvement goals and

in deriving the questions and metrics that address

these goals, all hierarchically represented. Mean-

while, measurement templates (Goethert and Siviy,

2004) help in recording data corresponding to the

metrics.

However, once the hierarchy of goals-questions-

metrics is identiﬁed and prior to gathering measures

in templates, we are left with at least the following

questions: What requirements meta-data items (e.g.,

release number, status, feature ID) do we need to ap-

ply the metrics? Are any metrics missing that may af-

fect the investigation? How do we organize and struc-

ture these metrics for reporting?

These questions are important because they im-

pact the time needed to deﬁne, apply, and organize

the measures for dissemination, quality of generated

reports, completeness and consistency of the met-

rics, and completeness and consistency of the meta-

data. In other words, these questions correspond to

the structure that helps in organising and operational-

izing the use of metrics in large, systems engineering

projects. To our knowledge, the scientiﬁc literature

does not contain such a structure that bridges the gap

between intention (e.g., the GQM-like hierarchy) and

use of metrics in actual projects.

In this paper, we show what the bridging struc-

ture is and how to use this structure through a 7-step

process to derive and organize requirements metrics

(Section 3). Speciﬁcally, in this process, GQM is ﬁrst

used to identify measurement goals, questions, and an

initial set of corresponding metric descriptions. Re-

quirements attributes (e.g., volatility, coverage, and

Noorwali, I., Madhavji, N. and Ferrari, R.

An Approach for Deriving, Analyzing, and Organizing Requirements Metrics and Related Information in Systems Projects.

DOI: 10.5220/0009424501930203

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 193-203

ISBN: 978-989-758-421-3

193

growth) and levels (e.g, feature, release, and safety)

are then identiﬁed for the initial set of metrics. We

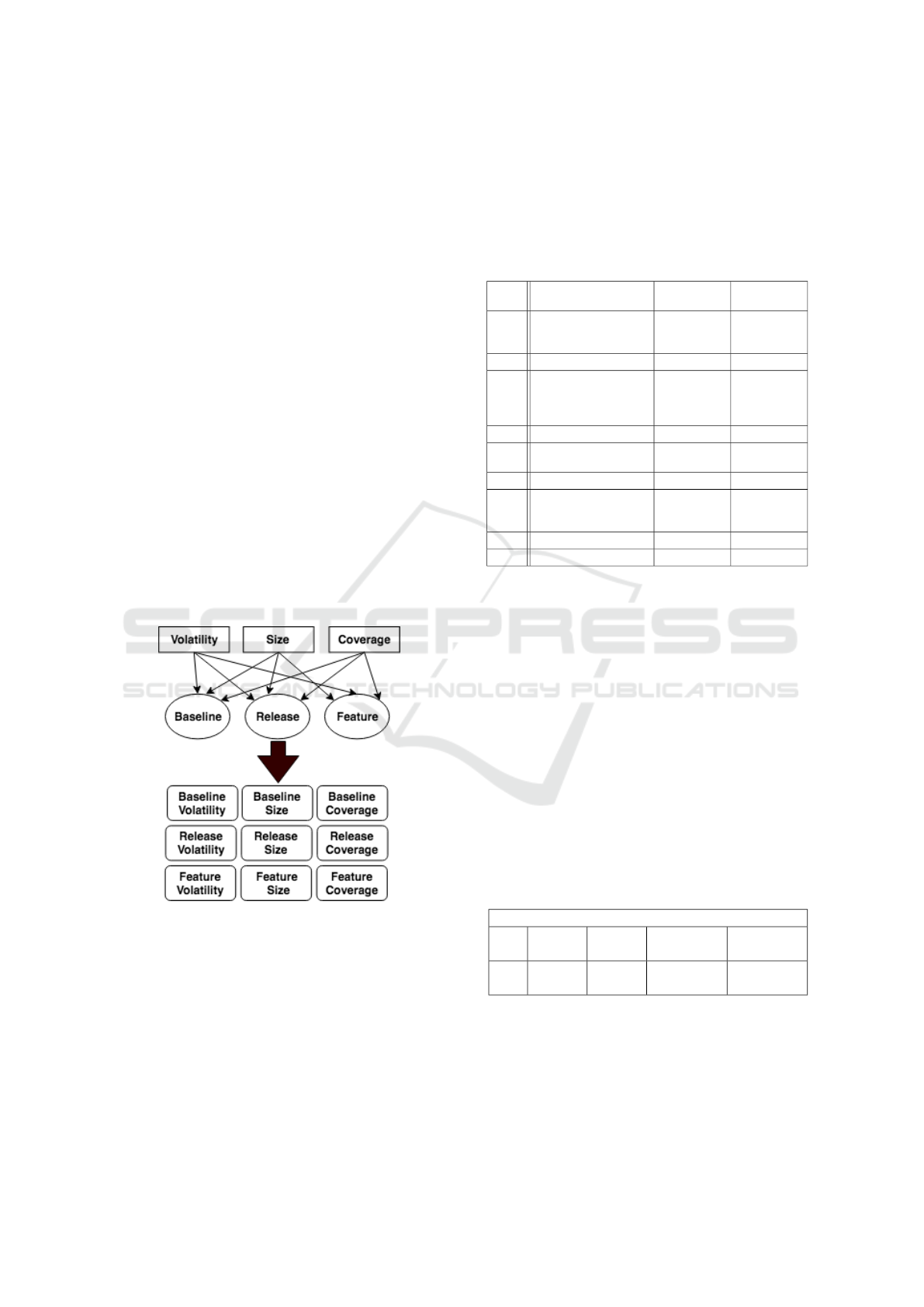

then identify all the possible attribute-level combi-

nations (e.g., feature growth, and release volatility)

and map the identiﬁed metrics onto the attribute-level

combinations. The metric gaps are then identiﬁed

and their missing metrics are derived. Finally, the

meta-data (e.g., release number, feature ID, safety rel-

evancy) for each metric is identiﬁed. By the end of

this process, we should have a complete set of require-

ments metrics at the identiﬁed attribute-level combi-

nations with the meta-data items required to apply

them.

By applying our approach on data from an

industrial-scale rail automation systems project, we

discuss the observed beneﬁts of its application (Sec-

tion 4). The beneﬁts included reduction of require-

ments measurement time, improved organization and

structure of data, improved breadth of metrics, and

improved completeness and consistency of meta-data

across projects. We then discuss the implications of

our work (Section 5.1) and its limitations (Section

5.2). Finally, we conclude the paper and discuss fu-

ture work (Section 6).

2 BACKGROUND AND RELATED

WORK

Table 1 gives examples of the foundational terms used

in this paper.

Table 1: Terminology and examples.

Term Examples

Requirement

attribute

Size, growth, volatility, quality, etc.

Requirement

level

Requirement organization cate-

gories such as features, baselines,

releases, etc.

Metrics # of additions, # of deletions, # of

modiﬁcations per baseline

Meta-data Data about requirements: ID, Type,

rationale, source, etc.

Section 2.1 describes the general measurement pro-

cess (IEEE, 2017) and how our approach ﬁts within

that process followed by a literature survey on mea-

surement frameworks and approaches. In Section 2.2,

we describe the research gap.

2.1 Measurement Frameworks,

Approaches, and Tools

A typical measurement process consists of establish,

prepare, perform, evaluate phases (IEEE, 2017; Ebert

and Dumke, 2007) where: establish involves plan-

ning and resource allocation; prepare involves deﬁn-

ing measurement strategy, information needs, detailed

procedures, services and technologies to be used; per-

form phase involves executing the procedures and re-

porting the results; and evaluate involves assessing

the products, the measurement process, and identify-

ing potential improvements. Our approach ﬁts within

the prepare phase.

In this subsection, we focus our discussion on

measurement frameworks and approaches that are

usually employed in the prepare phase of the mea-

surement process. Such frameworks and approaches

usually answer the ‘why’ and ‘what’ of measurement

and can be used on the organizational, project, or

process levels. There are several high-level, end-to-

end empirical paradigms of which we cover a sample.

For example, ’Measurement and Analysis’ is one of

the CMMI (Capability Maturity Model Integration)

(CMMI Product Team, 2006) process areas consist-

ing of practices and guidelines such as specifying

measurement objectives, specifying measures, anal-

ysis techniques, data collection and reporting tech-

niques, implementing analysis techniques and provid-

ing objective results.

The Model-Measure-Manage (M3p) paradigm

(Offen and Jeffery, 1997) consists of eight stages

from understanding the business strategy and goals,

to deﬁning development goals, questions, and iden-

tifying and deﬁning measures, to setting up the

measurement program, and regularly reviewing it.

‘Application of metrics in industry’ (AMI) (Rowe

and Whitty, 1993) consists of an ‘assess-analyze-

measure-improve’ cycle. Similarly, Six Sigma (Ten-

nant, 2001) incorporates a ‘deﬁne, measure, analyze,

improve and statistical control’ process.

These higher-level paradigms employ lower level

tools, templates, and approaches to operationalise the

approaches. An example is the GQM framework

(Basili et al., 1994), which deﬁnes a set of measure-

ment goals that are reﬁned into a set of quantiﬁable

questions. In turn, speciﬁc metrics are identiﬁed to

address each question. Recently, a strategic aspect

(S) has been incorporated to help in aligning goals to

organisational strategies (Basili et al., 2014). Anal-

ogously, templates (Goethert and Siviy, 2004) add

an intermediate step to GQM to assist in linking the

questions to measurement data that will be gathered.

Similarly, ASM.br (Bonelli et al., 2017) is a template

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

194

that allows specifying metrics in a form in which tex-

tual and graphical information is recorded, and the re-

lationships between metrics and goals are explicitly

presented.

2.2 Analysis and Research Gap

While the above surveyed approaches and templates

can be utilized for measurement in RE, they do not

address the speciﬁc challenges we discussed in the

introduction (i.e., unstructured and unorganized met-

rics, missing metrics, and missing meta-data). For ex-

ample, let us assume that we used GQM to derive the

set of metrics in Table 2, which is part of a larger set

being used in the requirements management process.

Upon derivation, the metrics lack a coherent structure

as to which metrics belong with each other. Moreover,

we have no method to assess whether there are miss-

ing metrics. The above surveyed approaches aid in

either deriving the initial set of metrics or document-

ing the metrics in templates. To our knowledge, an

approach that addresses the speciﬁc challenges of un-

structured and unorganized metrics, missing metrics,

and missing meta-data does not exist.

Table 2: Example requirements metrics derived using

GQM.

Metric

Metric Description

M1 No. of requirements per baseline

M2 No. of modiﬁed requirements per feature

baseline

M3 No. of safety critical requirements per

baseline

M4 No. of requirements per release per base-

line

M5 No. of deleted requirements per feature

baseline

In this respect, our approach would be considered

an intermediary step or middleware between metric

derivation approaches such as GQM (Basili et al.,

1994) and and using templates to document met-

rics (Goethert and Siviy, 2004; Bonelli et al., 2017).

Speciﬁcally, our approach aids in the selection of RE

metrics (through GQM) and the analysis and reason-

ing about the metrics with respect to completeness,

structure, and requirements meta-data collection (see

Section 3).

3 THE APPROACH

As mentioned earlier in Section 1, the purpose of

our approach is to facilitate the requirements mea-

surement process through: 1) deriving RE metrics,

2) analyzing the metrics for completeness, 3) struc-

turing and organizing the metrics, and 4) specifying

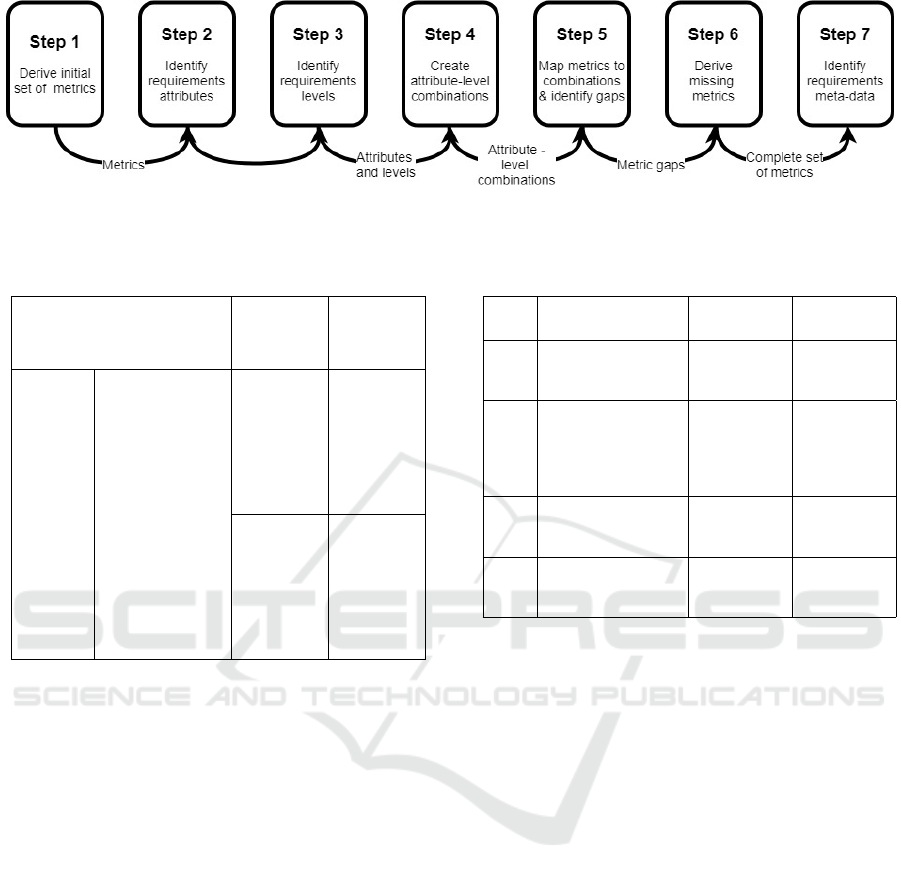

the meta-data needed for the metrics. The approach is

depicted in Figure 1.

The ﬁrst step is executed using GQM (Basili et al.,

1994) to derive an initial set of requirements metrics

that address the internal stakeholders’ goals and con-

cerns. The second step is performed to identify the

requirements attributes (e.g., size, volatility) that the

derived metrics are measuring while the third step

identiﬁes the requirements levels (e.g., baseline, re-

lease) at which the metrics exist. In the fourth step,

we create all possible combinations of attributes and

levels (e.g., baseline X size, release X volatility). In

the ﬁfth step, we map the derived metrics in Step 1 to

the attribute-level combinations and identify the com-

binations that do not have associated metrics. Step

6 is performed to derive the metrics for the empty

attribute-level combinations. Finally, in the seventh

and last step, the requirements meta-data items for the

complete set of metrics are identiﬁed. The approach

combines the seven steps to tackle the following prac-

tical questions:

1. What RE metrics will address the given internal

stakeholders’ concerns?

2. What RE attributes are the metrics measuring?

3. How do we categorize and organize the derived

metrics for archiving and reporting?

4. Are there any metrics missing that we are not

aware of?

5. What meta-data do we need to gather in order to

apply the metrics?

Step 1: Derive Initial Set of Metrics. The ﬁrst step

is to derive an initial set of metrics that address the

internal stakeholders’ concerns regarding the require-

ments. GQM is a suitable method to use for this step

that ensures that the derived metrics in fact address

internal stakeholder concerns and are not superﬂuous.

The GQM approach consists of identifying the goals

the internal stakeholders of a project would like to

achieve through the metrics. Following the goals, the

operational questions that address those goals are sub-

sequently identiﬁed and, ﬁnally, the metrics that an-

swer the respective questions are derived. Thus, the

output of the Step 1 is an initial set of requirements

metrics. Table 3 shows an example of a goal and its

respective questions and requirement metrics.

An Approach for Deriving, Analyzing, and Organizing Requirements Metrics and Related Information in Systems Projects

195

Figure 1: The proposed approach.

Table 3: An example of using GQM to derive requirements

metrics.

Goal Questions Metrics

Purpose: Monitor

Q1. What

is the over-

all state of

requirements-

design cover-

age?

M1. No.

of require-

ments that are

covered by

design objects

per baseline

Issue: the status of

Object:

requirements-design

links

Q2. What is

the state of

requirements-

design cov-

erage for

release X?

M2. No. of

requirements

in latest base-

line that are

covered by

design and

are assigned

to release X

Viewpoint:

from the system’s

manager’s viewpoint

Step 2: Identify Requirements Attributes. Depend-

ing on how the goals and questions are formulated, the

corresponding metrics can be derived without know-

ing the requirement attribute we are measuring. For

example, it is not clear what requirement attribute M1

and M2 in Table 3 are measuring. Is it requirements

status or requirements coverage? Thus, after the ini-

tial set of requirement metrics have been derived us-

ing GQM, we perform a ﬁrst round of analysis of the

metrics to answer the question: what requirement at-

tribute is each metric is measuring? This step aids

in acquiring a clear and unambiguous understanding

of the requirements attributes being measured, which

is essential for accurate measurements (Briand et al.,

1996) and for reasoning about the derived metrics.

For example, when applying Step 2 we realize that

all the derived metrics from Step 1 are measuring

requirements volatility, then we can begin reasoning

whether we need other metrics that measure other at-

tributes such as coverage, size, and creep, etc. Thus,

we begin addressing the issue of missing metrics. In

addition, this step begins giving the derived metrics a

structure.

The output of Step 2 is a list of requirements at-

Table 4: Example requirements metrics, attributes, and lev-

els.

Metric

Requirement Metric Requirement

Attribute

Requirement

Level

M1 No. of requirements

in latest baseline that

are covered by design

Coverage Baseline

M2 No. of requirements

in latest baseline that

are covered by design

and are assigned to re-

lease X

Coverage Release

M3 No. of requirements

per feature per base-

line

Size Feature

M4 No. of added, deleted

and modiﬁed require-

ments per baseline

Volatility Baseline

tributes. The ‘Requirement Metric’ and ‘Requirement

Attribute’ columns in Table 4 show a sample of re-

quirements metrics and their corresponding attributes.

Step 3: Identify Requirements Metric Levels.

Similar to the way requirements are organized,

whether implicitly or explicitly, according to differ-

ent categories or levels (e.g., functional and non-

functional, features and releases), the derived require-

ments metrics will also exist at different requirements

metric levels. Thus this step is concerned with an-

swering the question: what level of requirements is

the derived metric concerned with? The identiﬁcation

of requirements metric levels gives further structure

to the derived metrics and allows us to reason about

the breadth of metrics.

One way to identify the metric levels if they can-

not be readily identiﬁed from the requirements doc-

uments, is to phrase the metrics in the form of M3

and M4 in Table 4 where we use ‘per’ followed by on

object such as baseline and feature. Thus, the object

of the ﬁrst ‘per’ is a requirements level. In M3 and

M4, it is easy to identify the levels (feature and base-

line). However, due to the different wording of M1

and M2, it is not clear what the levels are. Thus, if

we rephrase M1 to the following form: number of re-

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

196

quirements that have in-links from design objects per

latest baseline, we know that the requirement level

is baseline. Similarly, M2 can be rephrased to the

following form: Number of requirements that have

in-links from design objects per release per baseline.

Thus, the requirement level is release. Similarly, if we

had a metric that measured number of words per re-

quirement as a measure of an individual requirement’s

size (Antinyan and Staron, 2017), then we can say that

this metric is at the individual requirement level.

Step 4: Create Attribute-level Combinations.

Once we identiﬁed the metrics’ attributes and levels

separately in steps 2 and 3, we create all possible

combinations of the attributes and levels. It is im-

portant that we create all possible attribute-level com-

binations regardless of whether they have associated

metrics. For example, we can create the following

four combinations from the attributes and levels in Ta-

ble 4 that have corresponding metrics: baseline cov-

erage, release coverage, feature size, baseline volatil-

ity. However, Figure 2 shows all the nine possible

attribute-level combinations that can be derived from

Table 4. This step sets the scene for the next step in

which we reason about missing metrics.

Figure 2: Example of attribute-level combinations.

Step 5: Map Metrics to Combinations and Iden-

tify Gaps. This step consists of mapping the metrics

derived in step 1 to the relevant attribute-level combi-

nations identiﬁed in step 4. This step is unnecessary

if the metrics, attributes and levels identiﬁed in steps

1, 2, and 3 have already been tabulated together since

the beginning of the process. However, if they are in

separate ﬁles, then this step dictates creating a matrix

consisting of all the attribute-level combinations and

mapping the metrics onto the combinations. The ma-

trix should also include the additional, empty combi-

nations identiﬁed in Step 4, which would yield a table

similar to Table 5. Thus, the new matrix highlights

the attribute-level combinations that do not have cor-

responding metrics (i.e., metric gaps).

Table 5: Metrics mapped onto attribute-level combinations.

Metric

Requirement Metric Requirement

Attribute

Requirement

Level

M1 No. of requirements in

latest baseline that are

covered by design

Coverage Baseline

Coverage Feature

M2 No. of requirements in

latest baseline that are

covered by design and

are assigned to release X

Coverage Release

Size Baseline

M3 No. of requirements per

feature per baseline

Size Feature

Size Release

M4 No. of added, deleted

and modiﬁed require-

ments per baseline

Volatility Baseline

Volatility Feature

Volatility Release

Step 6: Derive Missing Metrics. In this step, we

deﬁne the metrics for the empty attribute-level com-

binations. For example, for feature X volatility, we

can deﬁne M5: The total number of added, deleted

and modiﬁed requirements per feature per baseline.

Step 7: Identify Requirements Meta-data. Once

we have deﬁned the complete set of metrics, we iden-

tify the requirements meta-data items needed to apply

the metrics. For example, the meta-data items needed

for M2 are unique requirement ID, release number, in-

links from design, requirement baseline number. Ta-

ble 6 shows a an example of the meta-data that would

be maintained for each requirement in order to apply

the metrics identiﬁed in Step 6.

Table 6: Example requirements meta-data.

Baseline 3.1

Req.

Text

Release In-Links Feature

001 ******* 3 ****/****/

object12

External

Interface

An Approach for Deriving, Analyzing, and Organizing Requirements Metrics and Related Information in Systems Projects

197

4 APPLYING THE APPROACH IN

PRACTICE

The most common and successful validation method

for a software engineering approach or procedure

(Shaw, 2003) is validation through an example based

on a real-life scenario. Such validation can be accom-

plished in a variety of ways including case studies,

experiments, or action research (Easterbrook et al.,

2008). In this subsection, we report our experience in

applying our approach on data from a real-life indus-

trial setting. Particularly, a large-scale rail automation

systems project that consists of three sub-projects.

Initially, we conducted an action research (AR)

study to derive and evaluate a set of requirements met-

rics to be incorporated into the requirements manage-

ment and software development processes. However,

we faced the challenges discussed in Section 1 dur-

ing the study. Thus, the approach emerged as a by-

product of the AR study to address the challenges we

faced. We then applied the proposed approach within

the three sub-projects. We note that while the com-

plete results from the AR study (i.e., requirements

metrics) are not reported in this paper, we use a subset

of the derived metrics to demonstrate the application

of our approach.

In the following subsections, we brieﬂy describe

the project context and the AR study, our experience

with applying the approach, and then discuss the ob-

served beneﬁts.

4.1 The Projects and AR Study

The project in which we conducted the AR study is a

large-scale rail automation project in a multi-national

company in the United States. The overall project

(i.e., program) consisted of many sub-projects, each

sub-project consisted of a product that had its own set

of requirements, architecture design, test cases, and

engineering team. We were directly involved with

three of the sub-projects. Table 7 shows a breakdown

of project duration, number of requirements speciﬁca-

tion documents (baselines), number of requirements,

and number of safety requirements per project. The

organization used IBM Rational DOORS as their re-

quirements management tool. Thus, each project’s re-

quirements were stored in its own DOORS database

and identiﬁed with its own set of meta-data.

The goal of the AR study was to derive a set

of requirements metrics for each project. The AR

study followed an iterative process (Susman and Ev-

ered, 1978) in which the researcher, in collabora-

tion with the industrial partners, identiﬁed the inter-

nal stakeholder needs with regard to the requirement

Table 7: Descriptive statistics of projects.

Project Project

Duration

No. of

Requirement

Baselines

No. of

Requirements

No. of Safety

Requirements

P1 73 months 54 1790 N/A

P2 36 months 30 2285 N/A

P3 45 months 51 2389 923

metrics and the corresponding metric descriptions us-

ing GQM (Basili et al., 1994). We opted to use GQM

and not GQM+S because we were not concerned with

organizational or project strategy.

4.2 Applying the Approach

In the following paragraphs, we describe in detail the

application of our approach within Project 3 from Ta-

ble 7. We note, however, that the approach was simi-

larly applied to three other projects as well.

Table 8: The initial set of requirements metrics using GQM.

Goal Question Metrics

G1 Moni-

tor status of

requirements-

design

coverage,

requirements-

test cover-

age.

Q1. What is the status

of requirements-design cov-

erage?

M1, M2, M3, M4

Q2. What is the status of re-

quirements–test coverage?

M5, M6, M7, M8

G2 Monitor

growth and

volatility

of require-

ments.

Q3. What is the growth of

requirements over time?

M9, M10, M11

Q4. What is the volatility of

requirements over time?

M12, M13, M14,

M15, M16, M17,

M18, M19, M20,

M21, M22, M23,

M24, M25, M26,

M27

G3 Manage

release plan-

ning of re-

quirements.

Q5. What is the current

state of allocations of re-

quirements to releases?

M28, M29, M30,

M31, M32, M33

G4 Monitor

distribution

and growth

of safety re-

quirements

Q6. What is the current dis-

tribution of safety require-

ments in latest baseline?

M34, M35, M36,

M37, M38, M39,

M40, M41

Step 1: Derive Initial Set of Metrics. Using GQM

and in collaboration with the internal stakeholders, we

derived an initial set of 41 requirements metrics. Ta-

ble 8 consists of the goals, questions and titles of the

associated metrics that we initially derived. Due to

space restrictions, we do not list all the metric deﬁni-

tions. However, Table 9 shows the metric deﬁnitions

for a subset of the metrics in Table 8.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

198

Table 9: A subset of the derived requirements metrics for project 3.

Metric ID Requirement Metric Requirement

Attribute

Requirement

Level

M1 No. of requirements that have in-links from design objects per baseline Coverage Baseline

M5 No. of requirements in latest baseline that have in-links from test cases Coverage Baseline

M9 No. of requirements per baseline Size Baseline

M10 No. of requirements per feature per baseline Size Feature

M12 No. of added requirements per baseline Volatility Baseline

M13 No. of deleted requirements per baseline Volatility Baseline

M14 No. of modiﬁed requirements per baseline Volatility Baseline

M15 No. of added, deleted and modiﬁed requirements per baseline Volatility Baseline

M16 No. of added requirements per feature per baseline Volatility Feature

M17 No. of deleted requirements per feature baseline Volatility Feature

M18 No. of modiﬁed requirements per feature baseline Volatility Feature

M19 No. of added, deleted and modiﬁed requirements per feature per baseline Volatility Feature

M29 No. of requirements per release per baseline Size Release

M30 Percentage of requirements per release per baseline Size Release

M34 No. of safety critical requirements per baseline Size Safety

M42 Difference between requirements size for baselines X and Y Growth Baseline

M43 Difference between requirements size for feature Z in baselines X and Y Growth Feature

Step 2: Identify Requirements Attributes. To ex-

ecute this step, we identiﬁed the requirement attribute

each metric is measuring as shown in Table 9 in the

Requirement Attribute column. The subset of metrics

shown in Table 9 is representative of the the require-

ments attributes we initially identiﬁed: size, coverage,

and volatility. We note how the goals and questions

do not necessarily lead to correct identiﬁcation of at-

tributes. For example, Q3 in Table 8 is concerned with

the growth of requirements over time. However, the

derived metrics (M9, M10) are in fact measuring size,

but because when deriving the metrics, we envisioned

that the measures will be visualized in a way that de-

picts requirements growth over time, the amount of

growth in of itself is not being measured but the size

of requirements over time. This led to the identiﬁca-

tion of the correct metrics for growth (M42, M43) in

Table 9. Thus, at the end of this step we have added

two metrics and a requirement attribute (growth).

Step 3: Identify Requirements Levels. We iden-

tiﬁed each metric’s level according to the procedure

described in Section 3. At the end of this step, we had

four requirement metric levels: baseline, feature, re-

lease, and safety. Table 9 shows each metric’s level in

the Requirement Level column.

Step 4: Create Attribute-level Combinations.

From the identiﬁed attributes and levels in Table 9, we

created all the possible attribute-level combinations.

Because we have four attributes and four levels, we

had 16 unique attribute-level combinations as identi-

ﬁed in Table 10 in the Attribute and Level columns.

Table 10: All possible attribute-Level combinations and

mapping of metrics.

Attribute Level Metrics

Coverage Baseline M1, M2, M3, M5, M6, M7, M8

Coverage Feature

Coverage Release

Coverage Safety

Size Baseline M9

Size Feature M10, M11

Size Release M28, M29

Size Safety M34, M35, M36, M37, M38, M39, M40, M41

Volatility Baseline M12, M13, M14, M15, M16, M17, M18, M19

Volatility Feature M20, M21, M22, M23, M24, M25, M26, M27

Volatility Release

Volatility Safety

Growth Baseline M42

Growth Feature M43

Growth Release

Growth Safety

Step 5: Map Metrics to Combinations and Iden-

tify Gaps. We map the metrics listed in Table 8 to the

identiﬁed attribute-level combinations as depicted in

Table 10. We can now identify the following metric

gaps: coverage X feature, coverage X release, cover-

age X safety, volatility X release, volatility X safety,

growth X release, growth X safety. Moreover, it is

possible to detect missing metrics for the attribute-

level combinations that have metrics by comparing

the number of metrics for each combination. For ex-

ample, size metrics on the release level (M29, M30)

An Approach for Deriving, Analyzing, and Organizing Requirements Metrics and Related Information in Systems Projects

199

consist of an absolute and relative measure. However,

size metrics on the feature (M10) and safety (M34)

levels consist of absolute measures only.

Step 6: Derive Missing Metrics. The result of this

step was an identiﬁcation of 46 additional metrics that

were incorporated into the overall metric set. Due

to space restrictions, we do not include all the met-

rics that we derived upon identifying the metric gaps.

However, the metrics in red in Table 11 show the new

metrics and we give some examples here:

M52: No. of requirements with in-links from test

cases per feature per baseline.

M54: No. of requirements with in-links from test

cases per safety requirement category per baseline.

M56: Percentage of requirements per feature per

baseline.

M67: Difference between requirements size for

release Z in baselines X and Y

Table 11: Identiﬁcation of missing metrics from Step 6.

Attribute Level Metrics

Coverage Baseline M1, M2, M3, M4, M5, M6, M7, M8

Coverage Feature M44, M45, M46, M47,M49, M50, M51, M52

Coverage Release M53, M54, M55, M56,M57, M58, M59, M60

Coverage Safety M61, M62, M63, M64,M65, M66, M67, M68

Size Baseline M9

Size Feature M10, M11

Size Release M28, M29

Size Safety M34, M35, M36, M37, M38, M39, M40, M41

Volatility Baseline M12, M13, M14, M15, M16, M17, M18, M19

Volatility Feature M20, M21, M22, M23, M24, M25, M26, M27

Volatility Release M69, M70, M71, M72,M73, M74, M75, M76

Volatility Safety M77, M78, M79, M80,M81, M82, M83, M84

Growth Baseline M42, M85

Growth Feature M43, M86

Growth Release M87, M88

Growth Safety M89, M90

Note: We chose not merge Tables 10 and 11 in order to highlight the metrics

gaps in Table 10.

Step 7: Identify Requirements Meta-data. Based

on the ﬁnal set of metrics we identify the meta-data

needed to calculate each metric. The set of unique

requirements meta-data items we identiﬁed as a re-

sult of identifying the meta-data items for each of the

90 metrics were: Requirement ID, Requirement type,

Requirement feature ID, Requirement text, Require-

ment release number, Safety requirement type, Out-

links from requirements to external artifacts, In-Links

to requirements. As an example, M1 from Table 9

would require an out-links from requirements to ex-

ternal artifacts meta-data item which we call ReqOut-

links for illustration purposes. Thus, the formula for

M1 would be: count if ReqOutlinks 6= NULL

The meta-data items were necessary for ensur-

ing that all meta-data items were consistent across

projects and applying the metrics. This, in turn, fa-

cilitated the measurement procedure.

4.3 Observed Beneﬁts

After illustrating the application of the approach in

one of the rail automation projects, we discuss the

overall beneﬁts we observed from applying the ap-

proach to all the three projects listed in Table 7.

Metric Breadth. While GQM allows the iden-

tiﬁcation of an initial set of metrics according to a

project’s goals, which, in turn, address the stakehold-

ers’ information needs, our experience with large sys-

tems projects that involve many internal stakeholders

has shown further concerns with regard to the require-

ments metrics are identiﬁed upon having an initial set

of metrics, which prompts further metric derivation.

For example, as seen in Table 10, the initial set of met-

rics measured the design and test coverage of require-

ments for a requirements baseline. Upon implement-

ing the metrics, an architect requested measures of

requirements coverage per feature, for which we de-

rived further metrics. However, our approach allowed

us to derived the coverage metrics on the release and

safety levels as well (see Table 11), which were also

used by different internal stakeholders. Thus, our ap-

proach improves the breadth of the derived metrics

by identifying the metric gaps and, subsequently, de-

riving the associated metrics. Because the approach

identiﬁes the metric gaps by analyzing the attributes

and levels of the initial set of metrics that were de-

rived using GQM and which are based on the the

project’s information needs, the missing metrics will

likely also address measurement needs that the inter-

nal stakeholders were not cognizant of.

Organization of Data. Prior to using the approach

and upon deriving the initial set of metrics in the

AR study (see Section 4.1), the measures were doc-

umented in spreadsheets in an unorganized manner

where metrics lacked accurate labels and unrelated

metrics were grouped together. The identiﬁcation of

attributes and levels in our approach served as a tem-

plate, which allowed us to structure measures in an

organized and consistent format across projects. Fig-

ure 3 shows a snapshot from the requirements met-

ric report for Project P3 in Table 7 in which the

measures are organized according to requirements at-

tributes (size, growth, volatility, status, coverage) and

levels (baseline, feature, release).

Completeness and Consistency of Requirements

Meta-data. Initially, we adopted a tedious trial and

error approach in which we analyzed each project’s

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

200

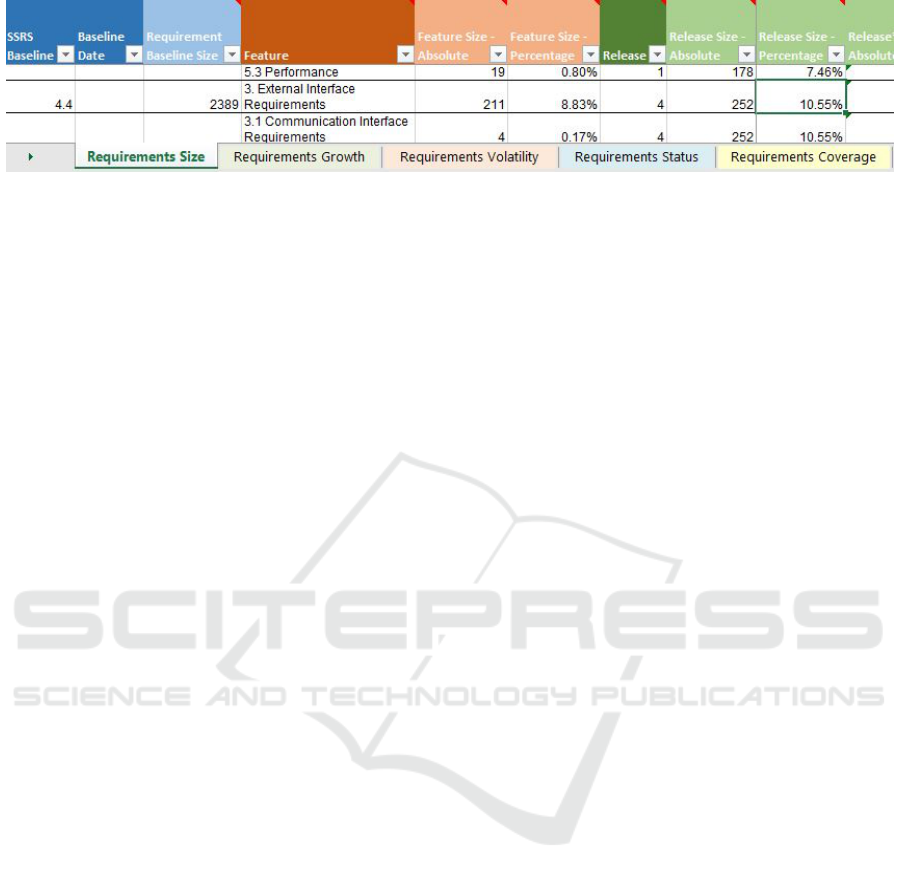

Figure 3: Requirements metric report organized according to attributes and levels.

requirement meta-data to check whether the derived

metrics can be applied to that particular project given

the available meta-data. The requirements meta-data

were incomplete (e.g., missing release meta-data) and

inconsistent (i.e., different meta-data labels used such

as in-links or design links) across projects. How-

ever, identifying the requirements meta-data upfront

aided in assessing the completeness and consistency

of the requirements meta-data in the databases across

projects early in the measurement process. Moreover,

the list of identiﬁed requirements meta-data items was

incorporated into the requirements management plan

to be enforced in future projects in order to facilitate

the requirements measurement process.

Measurement Time and Effort. The application

of the approach resulted in a reduction of the time

and effort expended on the requirements measure-

ment process, which was enabled in two ways. First,

our experience in deriving metrics in a large systems

project with numerous internal stakeholders showed

that missing metrics are identiﬁed slowly and incre-

mentally through feedback from the stakeholders as

they elucidate their needs. The use of our approach

reduces the time required for this process by identi-

fying the metrics gaps and deriving the missing met-

rics through the upfront analysis and reasoning about

the metrics. This enables the preemptive derivation of

metrics that may be requested later on and which, in

turn, reduces the time spent on measurement.

Second, the reuse of the identiﬁed attributes, lev-

els, metrics, and meta-data items aided in reducing

the time and effort needed to derive, analyze and or-

ganize a set of requirements metrics for each project.

Thus, when a fourth new project was added, we sim-

ply reused the results of our approach from the previ-

ous three projects (Table 7). However, this reuse does

not prevent reexamining the needs of a project and,

subsequently, reapplying the approach to derive fur-

ther metrics that address the newly identiﬁed needs.

5 DISCUSSION

In this section, we ﬁrst discuss the implications of our

approach for RE management and measurement, re-

quirements management tools, RE dashboards, and

studies on RE measurement and then its limitations.

5.1 Implications

Requirements Management and Measurement Pro-

cesses: The centrality of the four measurement ele-

ments (i.e., attributes, levels, metrics, and meta-data)

in our approach could encourage requirements per-

sonnel to consciously consider the deﬁnition of the el-

ements during the requirements management process.

For instance, given that deﬁning requirements meta-

data is already an integral part of the requirements

management process (Wiegers, 2006), requirements

engineers can now deﬁne the requirements meta-data

with requirements measurement in mind. For exam-

ple, if the project intends to measure requirements

volatility and coverage at the baseline and feature lev-

els, then the requirements engineer would deﬁne the

requirements meta-data that would facilitate the mea-

surement of these attributes and levels later in the re-

quirements engineering process. This, in turn, allows

for seamless and easier application of our approach

later in the requirements management process.

Existing Requirements Management Tools: While

existing requirements management tools (e.g., Ratio-

nal DOORS, Jama, ReqSuite) allow the identiﬁca-

tion of requirements meta-data and derivation of some

measures in relation to requirements (e.g., total no. of

requirements, no. of requirements in progress), they

do not support functionality for advanced requirement

metric derivation, reasoning about metric complete-

ness and consistency, and structuring metrics into re-

lated clusters. Thus, the requirements measurement

process is carried out as an external process, which

requires signiﬁcant added time and effort (Costello

and Liu, 1995). The delineation of key requirements

measurement elements and the steps to utilize them in

our approach open up possibilities for advanced RE

An Approach for Deriving, Analyzing, and Organizing Requirements Metrics and Related Information in Systems Projects

201

tool-features. For example, attribute-level combina-

tions (e.g., baseline X volatility, feature X coverage

—see Section 4.2 for examples) can be automatically

generated, thereby saving effort and ensuring quality.

Further, the meta-data items required for each metric

can be selected from the list of deﬁned meta-data in

the requirements database and, based on the selected

meta-data items, queries could be created to calculate

measures.

RE Dashboards: Dashboards that gather, analyze,

calculate, and present measures are commonly used in

SE. Such dashboards have always targeted the project

management (Kerzner, 2017) and development (John-

son, 2007) phases. However, different domains have

different needs with regard to dashboards (Pauwels

et al., 2009). Whether on top of existing requirements

management tools or as standalone dashboards, our

approach may have practical implications on require-

ments dashboards in at least two ways. First, our ap-

proach could provide guidance to designing and de-

veloping requirements dashboards. For example, the

concepts of attributes and levels can inform the pre-

sentation of the measures in the dashboard. Speciﬁ-

cally, pages can be organized according to attributes

(e.g., size, growth, and volatility, etc.) and each page

can organize the measures according to levels (e.g.,

baseline, feature,and release, etc.) In addition, the

dashboard can be designed to ensure that each met-

ric is associated with an attribute and level to avoid

‘stray metrics’. Second, the approach could be inte-

grated as one of the dashboard’s functionalities to en-

able the derivation, analysis and organization of met-

rics. For example, the dashboard could provide ‘intel-

ligent’ recommendations for metrics based on deﬁned

attributes and levels. Thus, the dashboard would be-

come more intelligent as more attributes, levels, and

metrics are deﬁned over time.

Further Studies on RE Measurement: Our ap-

proach addresses the measurement challenges that

have emerged in large systems projects. It could thus

be a model for creating subsequent RE measurement

methods applicable in other domains or be a basis for

generalizability studies.

5.2 Limitations

This investigation was conducted in a large systems

engineering company with well-established require-

ments management and documentation procedures

and numerous internal stakeholders. Thus, the use of

our approach can be said to be limited to such an en-

vironment. The applicability of our approach in other

development environments (e.g., agile or planned ag-

ile) in which requirement documentation is minimal

may be limited.

In addition, the approach assumes the existence of

a large set of requirements in which requirements are

organized according to different levels (e.g., features,

releases, and baselines) and, thus, metric levels can be

identiﬁed. However, in other process paradigms (e.g.,

agile and iterative, etc.), equivalent notions need to be

identiﬁed similar to those in our approach.

Finally, without tool support, the application of

our approach becomes tedious when the number of

attributes, levels, metrics, and meta-data are large.

Thus, incorporating the approach and its elements

into requirements management tools, as discussed in

Section 5.1, would facilitate its application in contexts

where the number of metrics, attributes, levels, and

meta-data become unmanageable manually.

6 CONCLUSIONS AND FUTURE

WORK

Requirements measurement in a systems engineering

context is a complex task due to the existence of mul-

tiple projects with large sets of requirements with var-

ious categories (e.g., baseline, features, and releases,

etc.), various internal stakeholders and their informa-

tion needs, and inconsistent requirements meta-data

across projects, to name a few. Thus, requirements

metrics end up being: large in number, replicated with

unintended variations, ill-structured and disorganized,

and incomplete. Existing measurement approaches

and methods do not address such requirements mea-

surement concerns (Section 2.1).

In this paper, we propose an approach that aims

to bridges the gap between the use of GQM to select

and specify metrics that satisfy the needs of the stake-

holders and the use of templates to document and re-

port the measures by providing a method to derive

RE metrics, analyze them for completeness, struc-

ture and organize the metrics, and specify the meta-

data needed for the metrics. The approach utilizes

the GQM approach and consists of seven steps that

rely on four measurement elements: requirements at-

tributes, levels, metrics, and meta-data (Section 3).

The approach aids in improving metric breadth, orga-

nizing measures, improving completeness and consis-

tency of requirements meta-data, and reducing mea-

surement time and effort (Section 4.3). We demon-

strate the application of the approach to a real-life sys-

tems project from the rail automation domain (Sec-

tion 4.2) and discuss its observed beneﬁts. The ap-

proach is anticipated to have implication for require-

ments management measurement processes, require-

ments management tools, RE dashboards, and studies

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

202

on RE measurement (Section 5.1).

Future work rests in applying the approach in dif-

ferent contexts to strengthen its validity and providing

tool support to improve its usability.

ACKNOWLEDGEMENTS

We extend our sincerest thanks to the collaborating

organization for providing data and feedback. This

work is supported by the Ministry of Higher Educa-

tion of Saudi Arabia and the Natural Sciences and En-

gineering Research Council of Canada (NSERC).

REFERENCES

Antinyan, V. and Staron, M. (2017). Rendex: A method for

automated reviews of textual requirements. Journal of

Systems and Software, 131:63–77.

Basili, V., Caldiera, G., and Rombach, H. (1994). Goal

Question Metric Approach. Encyclopedia of Software

Engineering, 1:98–102.

Basili, V., Trendowicz, A., Kowalczyk, M., Heidrich,

J., Seaman, C., M

unch, J., and Rombach, D.

(2014). Aligning Organizations Through Measure-

ment. Springer.

Bonelli, S., Santos, G., and Barcellos, M. P. (2017).

ASM.br: A Template for Specifying Indicators. In

Proceedings of the 21st International Conference on

Evaluation and Assessment in Software Engineering,

Karlskrona, Sweden.

Briand, L. C., Morasca, S., and Basili, V. R. (1996).

Property-based software engineering measure-

ment. IEEE Transactions on Software Engineering,

22(1):68–86.

CMMI Product Team (2006). CMMI for Development, Ver-

sion 1.2. Technical report, Carnegie Mellon Software

Engineering Institute, Pittsburgh, PA.

Costello, R. J. and Liu, D.-B. (1995). Metrics for Require-

ments Engineering. Systems Software, 29:39–63.

Easterbrook, S., Singer, J., Storey, M.-A., and Damian, D.

(2008). Selecting Empirical Methods for Software

Engineering Research. Guide to Advanced Empirical

Software Engineering, pages 285–311.

Ebert, C. and Dumke, R. (2007). Software Measurement:

Establish, Extract, Evaluate, Execute.

Goethert, W. and Siviy, J. (2004). Applications of the Indi-

cator Template for Measurement and Analysis. Tech-

nical report, Carnegie Mellon University.

IEEE (2017). ISO/IEC/IEEE 15939:2017(E) - Systems and

software engineering - Measurement Process. Techni-

cal report, ISO/IEC/IEEE.

Johnson, P. M. (2007). Requirement and design tradeoffs in

Hackystat: An inprocess software engineering mea-

surement and analysis system. In 1st International

Symposium on Empirical Software Engineering and

Measurement, pages 81–90, Madrid, Spain. IEEE.

Kerzner, H. (2017). Project Management Metrics, KPIs,

and Dashboard: A Guide to Measuring and Monitor-

ing Project Performance. John and Wiley & Sons, 3

edition.

Offen, R. J. and Jeffery, R. (1997). Establishing software

measurement programs. IEEE Software, 14(2):45–53.

Olsson, T. and Runeson, P. (2001). V-GQM: A feed-back

approach to validation of a GQM study. In Proceed-

ings of the 7th International Software Metrics Sympo-

sium, pages 236–245. IEEE.

Pauwels, K., Ambler, T., Clark, B. H., LaPointe, P., Reib-

stein, D., Skiera, B., Wierenga, B., and Wiesel, T.

(2009). Dashboards as a Service. Journal of Service

Research, 12(2):175–189.

Rowe, A. and Whitty, R. (1993). Ami: promoting a quan-

titative approach to software management. Software

Quality Journal, 2:291–296.

Shaw, M. (2003). Writing good software engineering re-

search papers. In 25th International Conference on

Software Engineering (ICSE 2003), pages 726–736,

Portland, Oregon. IEEE.

Susman, G. and Evered, R. D. (1978). An Assessment of the

Scientiﬁc Merits of Action Research. Administrative

Science Quarterly, 23(4):582–603.

Tennant, G. (2001). Six Sigma: SPC and TQM in Manufac-

turing and Services. Gower, Burlington, USA.

Wiegers, K. E. (2006). More about Software Requirements:

Thorny Issues and Practical Advice. Microsoft Press,

Washington.

An Approach for Deriving, Analyzing, and Organizing Requirements Metrics and Related Information in Systems Projects

203
