Aspect Weaving for Multiple Video Game Engines using Composition

Specifications

Ben J. Geisler

and Shane L. Kavage

Saint Norbert College, DePere, WI, U.S.A.

University of Wisconsin, LaCrosse, WI, U.S.A.

Keywords: Aspects, Aspect-oriented-Programming, Video Game Engine, Gaming, Meta-language, DSL, Testing.

Abstract: In the realm of video game development, unique Domain Specific Languages (DSL’s) are used in each of the

most popular game engines making code sharing and reuse extremely difficult. For this reason, common

software engineering practices such as design patterns and modularity have lagged. GAMESPECT is an

aspect-oriented DSL (DSAL) that seeks to generalize concerns of video game programming. This paper

explores the technology involved, namely composition specifications which enable the usage of XText and

TXL to weave aspect code into multiple game engines and multiple languages. We describe the four main

steps of the weaving process: reification, matching, ordering and mixing. Our results demonstrate the

technical accuracy of the DSAL as well as the efficiency across several samples in Unreal Game Engine

4(UE4) and Unity. The DSAL employed is a single-to-many source language featuring transformation and

aspect insertion (via weaving) to multiple languages in these engines including C++, Skookum Script, LUA,

and C#. The GAMESPECT technology has been employed beneficially in modern video game development

across active titles on the PC, Android and Nintendo Switch.

1 INTRODUCTION

Video Game Engines are complex pieces of software

capable of 3D rendering, high end physics processing,

particle effects, entity management, artificial

intelligence, UI, player control and interaction, terrain

transformations and internal game economies. The

preceding list is only a portion of what game engines

can do: modern engines have advanced fully capable

simulation software in 3D worlds. For example,

Unreal Engine 4 is routinely used for professional

drone work, and cinema work (Martin, 2012). The

other prominent game engine, Unity is used often for

independent development. Together these two

engines account for 80% of the game engine market,

more than 2,400 games a year are created with these

two pieces of software (Dillet, 2018) (Moby, 2019).

Figure 1: Game engine market share.

The two engines, as well as the other engines that

exist such as Lumberyard and Crytek, all differ in the

scripting language used. A scripting language is a

DSL capable of specifying gameplay features unique

to the game being developed (Anderson, 2001). Some

researchers have begun cataloguing types of

gameplay features, and with over 3,000 games

existing each year, they have a lot in common (Moby,

2019) (Schell, 2019). Unfortunately, not only are the

engines completely incompatible with each other, but

the games typically have widely different design

patterns (Boznjak & Orehovacki, 2019). This is

problematic for many reasons. For one, no code can

be shared between projects, even in the same

organization. For two, common design principles are

difficult to apply when the pattern might look widely

different in different programming paradigms. These

problems are only exacerbated when one realizes that

internally each engine has a choice of scripting

languages to use. It is intractable to suggest that code

should be shared across most games, despite the fact

that many games share common design patterns

(Wang & Nordmark, 2015).

Aspect oriented programming was developed to

help with cross-cutting concerns- the goal being that

if a type of work is being done over and over across a

codebase, the techniques used to solve this problem

Unity

UE4

Other

MAKETSHARE

454

Geisler, B. and Kavage, S.

Aspect Weaving for Multiple Video Game Engines using Composition Speciﬁcations.

DOI: 10.5220/0009444104540462

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 454-462

ISBN: 978-989-758-421-3

could be combined into “advice”. Advice is code

which can be called out at the time of each instance

of the pattern (Kiczales et al., 1997). As mentioned

above, many areas of code in a video game are shared

(at least conceptually) between games even if the

genres are vastly different (Holopainen & Bjork

2003). In particular, the three games we will focus our

attention on are widely different. These video games

are “shipped”, modern production quality games:

Noise Paradox, Rune 2 and Doctor Goose. Despite

their differences in style and genre, many

commonalities exist including spawning of enemies

and tuning of player attacks.

GAMESPECT was a language developed as part

of previous works, initially for Unreal Engine 4, by

the authors and is now being used on the above three

games (Geisler, 2019). This paper will explore one

facet concerning the further development of

GAMESPECT: the weaving process for a new

engine: Unity. We will also discuss our process for

evaluating effectiveness of our approach.

2 BACKGROUND

XAspects was one of the first meta-languages to

incorporate the idea of a domain specific aspect-

oriented language (Shonle, et al., 2003). The

XAspects system makes use of a plugin framework

which requires users to override a custom class called

AspectPlugin, which resides in AspectJ. This class is

ultimately the class which performs bytecode

generation as applicable to whatever the original

source languages were. Essentially, XAspects allows

for integration of multiple domain specific languages

into AspectJ. It does this by using AspectJ as a base

language, and the aspects are defined above it.

XAspects was created using trivial examples such as

CD collection and referencing. The main idea was to

use the aspect-oriented nature of AspectJ and have

multiple DSLs translated into AspectJ (Shonle, et. al

2003).

The compositions specifications designed during

the creation of the Awesome/SPECTACKLE meta-

language (Kojarski & Lorenz, 2005) (Kojarski &

Lorenz 2007) serve as inspiration for GAMESPECT.

A composition specification is a middle layer

between the source language and a set of plugin

languages (in the spirit of XAspects). Multiple

aspect-oriented languages can plug into one common

aspect language with this approach (Lorenz &

Mishali, 2012). All that needs to be done is

specification of the translations needed to perform the

code generation in AspectJ. Again, AspectJ is used as

the base target language. The biggest difference

between this approach and the approach of

GAMESPECT is that Awesome goes from many

languages to one language. Our approach goes from

one language to many languages.

LARA is a recent meta-language approach which

allows for one DSL type language to be translated to

multiple target languages (Pinto et.al., 2018). The

researchers of LARA have performed

implementations in MATLAB, C and Java, to good

results. Weaving is not automatic and is not based on

any predefined rules or composition specifications.

Instead, each language has a target translated:

MANET is used for actual weaving in the C language.

The methodology for which LARA has been

evaluated is solid and can easily be used for

comparisons; they have taken some examples of code

and demonstrated lines of code savings and

correctness (Pinto et.al., 2018).

GAMESPECT largely sits amongst the three

methodologies above, using the idea of composition

specifications from Lorenz et al, the idea of meta-

languages from XAspects and the idea of multiple

target languages from LARA (Kojarski & Lorenz,

2005) (Kojarski & Lorenz 2007) (Lorenz & Mishali

2012) (Shonle et.al, 2003). The biggest difference

with GAMESPECT is the complexity of the

composition specifications and the need for multiple

platform support, which will be supported by modern

language workbench tools. GAMESPECT is also an

example of a one-to-many solution. The rest of this

paper will describe the language, tools and

framework.

3 METHODOLOGY

3.1 Composition Specifications

3.1.1 TXL Introduction

TXL is a source to source transformation language

written by Dr. James Cordy (Cordy, 2006). TXL is a

hybrid functional and rule based language that allows

for pattern searching, unification and deep search via

structural rewriting rules. Grammars are specified in

.grm files, and the TXL processor implements these

grammars, allowing for the source transformations.

In our approach, a composition specification can

be thought of as a layer of abstraction sitting on top

of TXL. TXL is the back-end of the source to source

transformation system while the composition

specifications serve as the front-end. At the front-end,

we must provide a generic way for the transformation

Aspect Weaving for Multiple Video Game Engines using Composition Speciﬁcations

455

to occur. In other words, if we require certain join

points to occur (for example: decHealth), TXL must

know how to replace the function decrement health

with an aspect call to the appropriate advice.

Furthermore, it must know how to do this in any of

the available target languages.

Our approach to this problem is to templatize the

TXL code needed for aspect weaving via composition

specifications. To Lorenz et, al, a “composition

specification” is a listing of which aspect languages

to use, in which order and what parser to use (Lorenz

& Mishali 2012). We generalize the idea of a

composition specification such that it also includes

the low level details of structure and syntax.

GAMESPECT’s composition specifications must

include:

1) The explicit point cuts where advice should take

place.

2) Any parameter passing or other syntax unique to

these point cuts and this language.

3) A designator showing which language is being

described.

3.1.2 Composition Specification Example

To illustrate composition specifications, one could

consider the case of LUA scripting in UE4. LUA is

an optional scripting language used by many Unreal

Engine 4 developers for ease of syntax and

implementation (Vasudevamurt & Uskov, 2015). The

LUA language is implemented as calling hooks in a

few places throughout the engine.

The three most popular points of insertion range

from member functions to globals and static

functions. All these calling sites must call out to the

appropriate advice, which is why GAMESPECT

implements composition specifications to dictate

these sites. Providing that TXL supports the target

language with a grammar, all it needs are the calling

sites and the format of these sites. Grammars are

provided to TXL via text files which describe a

portion of the language grammar (Cordy, 2006).

GAMESPECT provides a light DSL which sits

between the user and TXL, generating TXL to be used

for weaving from the composition specifications.

GAMESPECT was originally written for Unreal

Engine 4 and it’s host of languages but as we’ll see in

this paper, adding the framework to Unity is as easy

as providing composition specifications and any

additional grammars needed by the language. Figure

three shows one such set of composition

specifications, in this case provided for LUA in

Unreal Engine 4.

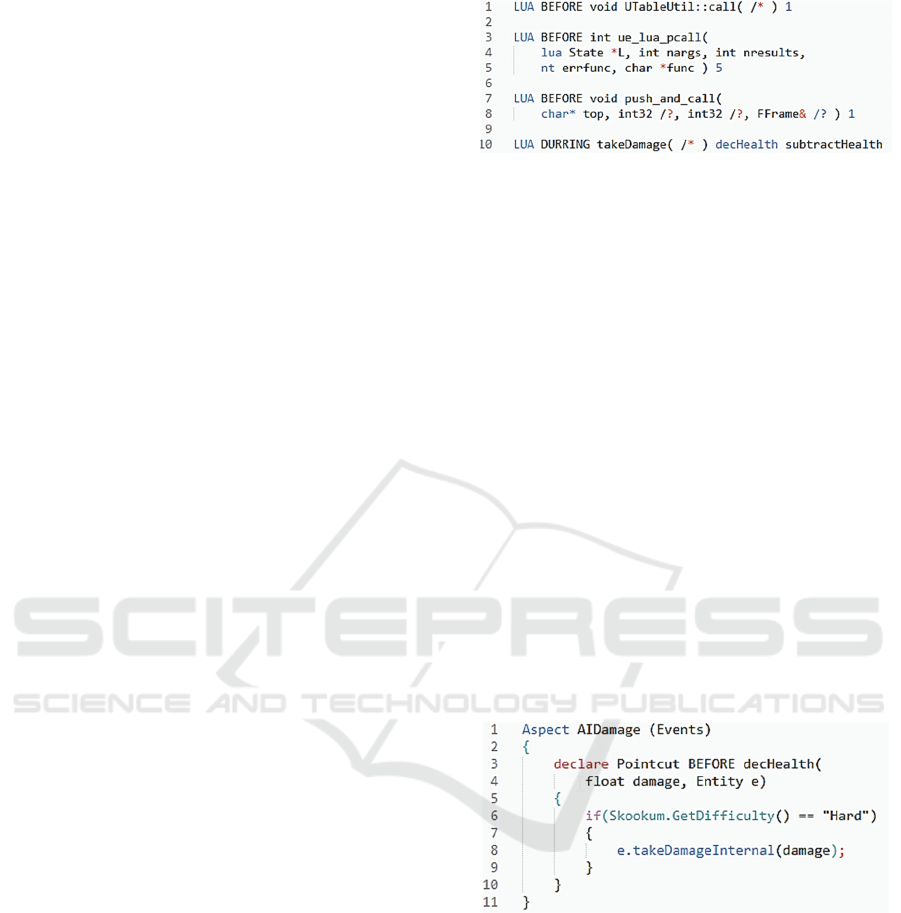

Figure 2: LUA Composition Specifications for UE4.

3.2 Weaving Process

3.2.1 Overview

In aspect-oriented programming, advice code is the

set of instructions which should be conditionally

executed given a set of join points (a point cut). The

join points determine when and where the code is

allowed to execute (Kiczales et.al, 1997). For

example, in the case of game engines- perhaps every

time a “decrement health” function is called, we

should multiply the incoming parameter by an

amount which reflects the difficulty level of the game.

Weaving is the process of inserting advice code at

certain join points inside the original code. The output

of the weaving process is a new set of source code or

binary code which performs the original code as

modified by the aspect code (Courbis et.al, 2005). For

example, consider figure four: the conditional code

which says “if difficulty level is hard, multiply

damage by two” is now inserted into the original code

and the game runs with this new set of instructions.

Figure 3: Aspect file for damage to an enemy.

GAMESPECT must provide for the means to find

join points in source code. Unfortunately, this not a

trivial task- the source language can change. Unreal

Engine supports four or more scripting languages and

Unity supports at least three.

Furthermore, each engine’s scripting languages

are custom and even if Unreal Engine 4 supported C#,

it would be a slightly different grammar than

supported by Unity. This means that composition

specifications (as described in section 3.1.2)

combined with TXL grammars must be used to find

the appropriate join points. Also, the matter of finding

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

456

join points is non-trivial. While TXL is very good at

source to source transformation, it is not a complete

grammar of a full language implementation. In some

cases, most the language has been captured by TXL,

but especially in the case of C++ this is not true.

Instead we turn to CPPAST which is a wrapper

around the popular Clang compiler (Duffy et.al,

2014). CPPAST allows us to traverse the AST of C++

to find the appropriate call sites during the weaving

process.

The second area in which GAMESPECT is useful

is the area of the actual advice code which is to be

woven. In the case of game engines, it may be

necessary to do more than simply adjust an integer

value. It might be necessary to detect boss names or

check for additional conditions based on values.

Essentially, an entire DSL is needed to describe the

changes to be made. The GAMESPECT framework

provides a scripting language which is then compiled

down to a given target language (in the case of UE4-

Skookum Script is used, in the case of Unity- C# is

used) (Geisler, 2019).

To fully understand the weaving process, first

let’s consider what the woven code will look like. The

woven code should incorporate conditional advice

code across the applicable functions. In other words:

if one of the functions from the composition

specification is called, then check function names

registered in the advice. If there is a match, insert the

advice code. Considering an example will make it

easier to describe the process by which they are

woven. As an example, let’s consider a decHealth

method which is being called: we’d like to adjust the

damage based on easy or hard difficulty modes.

Perhaps on hard mode, the damage is doubled.

First, we need to determine where decHealth is

being called from, theoretically it can be called from

anywhere in the codebase but in practice there are

only three possible call sites (shown in figure three)

in UE4. The three ways of making LUA function calls

in Unreal Engine 4 have slight differences. The first

is a class member, the second is C-style and the third

is static. In addition, the parameters are of different

types, names and numbers. The TXL rules generated

by GAMESPECT must be slightly different for each.

For example, in figure 4 we can see the TXL rules for

the class member version of the LUA call.

Once the TXL rule specifications are generated,

we will run the Clang tools with the function list from

the aspect file, and find the applicable files on which

to run the TXL files. Once these are found, TXL is

run and every call site refers to an instance of the

target language which has the advice code to run.

XText is used on the GAMESPEECT advice code

to generate runtime compatible Skookum Script code

(in the case of Unreal Engine 4) or C# code (in the

case of Unity). Figure four shows the code that in our

example would modify the damage by a multiple of

two, essentially calling TakeDamage one additional

time if the gameplay difficulty is set at “Hard”. XText

must be provided a full grammar for GAMESPECT,

this is the subject of other papers (Geisler, 2019) and

outside the scope of this discussion.

The code in figure four is transformed to skookum

script code by XText as part of the GAMESPECT

parser. XText is a modern DSL workbench (Eysholdt

& Berens, 2010). XText is provided a full set of code

generation rules. In doing so, the code which is

generated can be called “on the fly” by the calling site

code. In other words, if LUA calls decHealth, since it

was woven- it will call Skookum and the advice will

be performed.

3.2.2 Reification

GAMESPECT employs a similar version of weaving

to that which was researched by Kojarski and Lorenz

in their works (Kojarski & Lorenz, 2005) (Kojarski &

Lorenz 2007). The abstract weaving process is

composed of four sub processes: reify, match and

order/mix. In reification we take a calling

specification and construct a weaver representation of

that class. The specification generation should

include all computation “shadows” which occur

throughout the codebase. Intuitively, these shadows

are all the locations of the calls which should be

advised upon: reification lists all possible spots where

the join points can occur.

Reification in GAMESPECT either uses

CPPAST/Clang (for C++ based codebases) or TXL

(for non-C++ codebases). For Unity we will use the

C# grammar of TXL and run every file through TXL

with a rule that extracts function names.

The matter is a little more complicated when using

C++ engines since TXL does not include a full C++

grammar and many customizations exist to most C++

grammars, including Unreal Engine 4.

For this reason, GAMESPECT uses CPPAST and

Clang based tools. CPPAST was built upon Clang

which is an LLVM parser for C++ and can easily be

customized to support the UE4 codebase. There have

been a couple source to source transformation

languages built in recent years around Clang,

CPPAST is one of them (Antao et al., 2016) (Duffy et

al., 2014).

CPPAST allows for extrapolation of function

names

from headers. Internally the software uses

Aspect Weaving for Multiple Video Game Engines using Composition Speciﬁcations

457

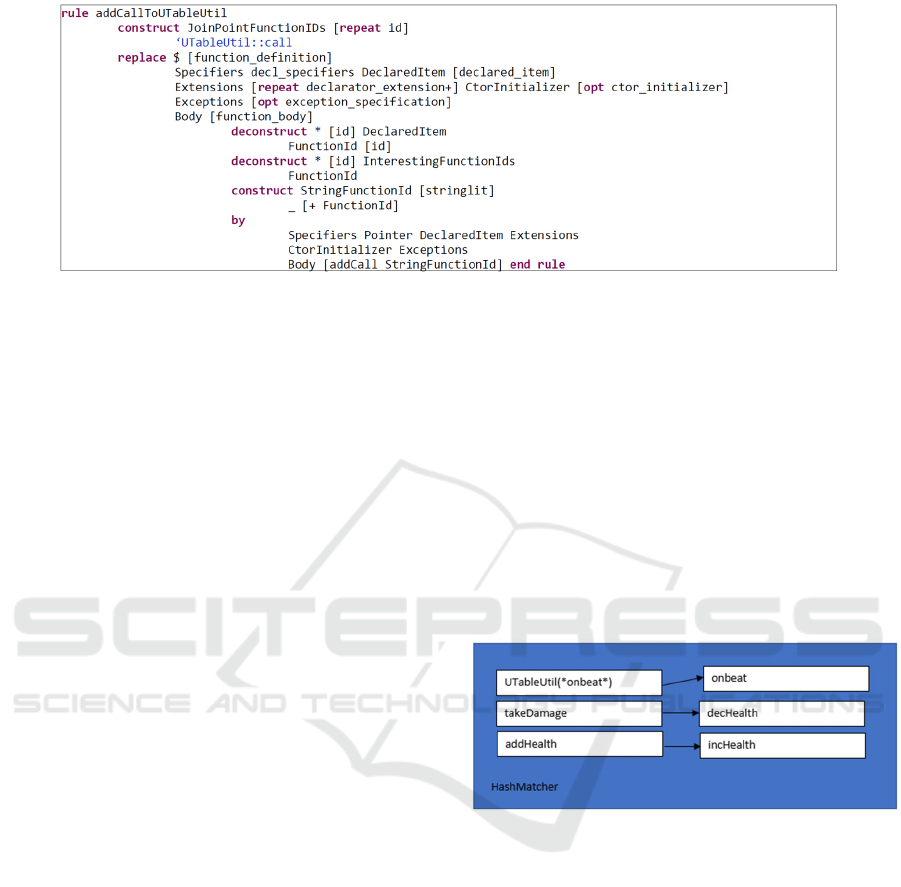

Figure 4: addCallToTableUtile for UTableUtil::call : LUA join point example for GAMESPECT.

libclang and provides an AST for C++ code. We then

write a simple traversal of the AST as part of the

GAMESPECT glue code (API).

3.2.3 Matching

Matching takes the results of reification and calls

TXL on each of the files which holds the named

functions. While the composition specification is

used for reification, the GAMESPECT aspect script

(figure 3) is used for exact function header matches

during this phase. Asterisks in the GAMESPECT

script signify one or more arguments of any type. The

non-presence of variable names implies that no

parameters were present on the function. Via rule

pattern matching, the exact matches for hits will be

conducted. For example, takeDamage is described as

follows in the aspect script:

declare Pointcut BEFORE

takeDamage(float damage, Entity

*e) decHealth subtractHEalth

In this case, takeDamage takes a float and Entity

pointer. Only the appropriately labeled functions in

the codebase will be modified since TXL allows for

these parameters. Since the composition specification

lists the names of the functions to be found, these

must correspond to named functions in the aspect

script (figure 3). In our work “matching” corresponds

only to the part of weaving which actually finds the

call sites.

For each of the call sites (e.g. decHealth from

figure 3), if that function is called during runtime, we

want the corresponding advice to be called.

Therefore, during load time of the game, matching

is called. GAMESPECT is initialized at this time and

both the composition specifications as well as all

available aspect files are interpreted. Upon finding a

valid composition specification, if there is a join point

named after the line definition, a key/value pair was

added to the hash matcher. Note that if there isn’t a

join point named after the line, it means it’s a generic

call and therefore anything which is the named

function is called with is a potential calling site. The

parameter used for lookup is numbered in the calling

specification and recorded in the Hash Matcher class,

such that when it is called with all its parameters, it

will use that ordering to call the skookum script

aspect which was generated earlier by GAMESPECT.

For example, in “push and call” of figure 2, the first

parameter is used to get the correct function name to

be called for pointcuts. If onbeat is to have a point cut,

then onbeat must be registered (figure 5).

Figure 5: Hash Matcher mapping diagram.

4 RESULTS

GAMESPECT has been used and tested on a few

recent video games: Noise Paradox, Rune 2, and

Doctor Goose. One of the games using

GAMESPECT is Noise Paradox: it is available for

beta testing on some android storefronts. This trio of

games demonstrates that GAMESPECT is genre-

agnostic, since each of the games is a different genre.

Also, one of the games is primarily Unity based and

the others are Unreal Engine 4. But yet, all of them

can use GAMESPECT. Likewise, there is a good

variety in scripting languages chosen: from LUA and

C++ to Skookum Script and C#, most languages are

represented.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

458

GAMESPECT was tested on Rune 2 and a custom

version of Noise Paradox which was programmed in

Unity and Unreal Engine 4, as separate versions.

Several segments of code were tested, all of which

represent example game balance tasks. LUA, C++,

Skookum Script and C# (Unity) were used. Also,

comparisons were drawn between the efficiency of

GAMESPECT in UE4 vs. the efficiency in Unity. For

the solution to be tractable to game developers, this

framework needed to run at a solid 30FPS with no

noticeable performance impacts. It should be noted

that Noise Paradox is a beat matching game similar to

Rock Band or Guitar Hero (Miller, 2009). This means

that many of the tasks are beat or music oriented

because the player needs to match gameplay actions

to the beat.

Ten tasks (functions) were monitored and

optimized by use of GAMESPECT (aspects) and

compared also to their non-aspect versions.

4.1 Preliminary Results

The general process for testing was to write the

gameplay functions in traditional object-oriented-

programming and then to use aspect-oriented-

programming via GAMESPECT. We used Visual

Studio Assist to find applicable join points, and pull

out aspects, putting them into the GAMESPECT

framework. There were two main concerns with using

GAMESPECT which we wanted to test: correctness

and efficiency. Correctness was demonstrated by

functionality not changing in the final product. For a

period of time, two separate versions of each game

were passed through quality assurance, with bugs

being reported. The end products reached “zero bug

regression” on both versions (OOP and AOP) which

is the typical gold standard for bug finding (Gu et al.,

2010). The deviation of aspect-oriented vs. object

oriented is almost non-existent, as figure 6 shows.

Pulling common code into aspects has the effect

of reducing the total code used at the join point,

assuming it is used more than once. We wanted to

know if there is indeed a lines of code savings for

pulling out aspects. In theory since multiple call sites

exist for each piece of advice, there should be a line

Figure 6: The plot of bugs starting with two weeks

remaining on the project

of code savings, which correlates to easier

maintenance (Polo et al., 2001). This can be verified

in tables one and two. The range of savings varied

from around 9% to 40%. It should be noted that any

line of code savings above 10% is considered

substantial for maintenance purposes (Polo et al.,

2001). It would be unfair to average together the

savings since some functions are called more often

than others at run time, so it’s hard to say in practice

how many lines of execution are saved. However,

according to Pinto et al, LARA had efficiencies

ranging from 10-20% (Pinto et al., 2018).

GAMESPECT is easily in that range, and sometimes

better, topping out at 68%.

Given the extra calls made at runtime it was also

necessary to gauge performance. Therefore, we also

ran a runtime analysis to ensure there was no

performance impact (figure 7). Similar to LARA,

GAMESPECT has virtually no performance impact.

Figure 7: Test Suite 2 CPP runtime efficiency.

Table 1: LOC Savings for Various Functions in Test Suite 2 (UE4).

1234567891011121314

AOPvsOOPversionBugCountvsDays

AOP OOP

Aspect Weaving for Multiple Video Game Engines using Composition Speciﬁcations

459

4.2 Unity Test Results

The creation of an entirely separate code project for

Noise Paradox involved extensive person-hours and

work. However, we believe that it’s the only way to

effectively ensure that GAMESPECT is truly generic

enough to run on multiple game engines. Creation of

the Unity version occurred over the later months of

2019 and is ongoing while the Unreal Engine 4

version is completed. Some files were ultimately

different than the others, but the design for the test

suite functions remained consistent across both UE4

and Unity. We would like to see very little difference

between the Unity version of Noise Paradox and the

C++/Skookum version. In fact total savings should be

similar (albeit negligible due to language

differences).

To understand if this claim is true, we tested all

the same test suite functions and files on a version of

Noise Paradox which runs Unity (C#). The data is

fairly consistent. We’d expect this since C# and C++

are not very different in terms of syntax. The

differences are largely due to coding style and

initialization differences. This is shown in figure 8.

Figure 8: Efficiency comparison for GAMESPECT.

5 CONCLUSIONS AND FUTURE

WORK

There are multiple impacts of this research for a few

different concerns including academic, professional

and gameplay theoretical.

The above tests, written in both traditional (OOP)

programming and aspect oriented GAMESPECT,

show a clear advantage to using Aspect Oriented

Programming. Also, from the academic perspective,

we have demonstrated that a one-to-many source to

source transformation DSL is possible provided

composition specifications. Furthermore, we have

demonstrated that the insertion of such a mechanism

is pluggable. Previous to this work, LARA

demonstrated that a one-to-one translation was

certainly possible (Kojarski & Lorenz, 2005),.

Likewise, Awesome and SPECTACKLE provided a

many-to-one solution (Kojarski & Lorenz, 2007),. As

far as we know this is the only contribution with a

one-to-many solution which uses an intermediate

composition specification scheme.

On the professional front, the benefits are

numerous. The primary author has been contacted by

several game studios to use GAMESPECT in their

commercial large-scale endeavors. The author has

also presented the GAMESPECT framework and

code at a couple game conferences with fantastic

feedback. The main reason studios are wanting to use

GAMESPECT is that their designers often code in

more than one language. Meanwhile their producers

can be left out of the loop in terms of tuning certain

parameters- especially when it comes to game

balance.

The final significance of our research is that game

balancing principles have finally become tangible

with GAMESPECT. For many years, researchers

have written about topics such as MDA (Mechanics,

Dynamics and Aesthetics) (Hunicke et al., 2004).

Other gameplay designers such as Schell would write

about rules for balancing games (Schell, 2019). But

very few researchers have provided a cohesive

framework- and when they did it was just for one

game/architecture (Dormans, 2012).

5.1 Future Work

The selection of an appropriate TXL template given a

certain calling specification is a process which

requires a language enumeration to be set. This means

one specification can only target one language.

However, in the case of languages with similar

features, this may be inefficient. In the future this

could be an automatic process which takes the calling

specification and determines the appropriate language

outputs for each target language. Matching the calling

specifications to applicable target languages would be

an interesting topic in and of itself and may feature

running TXL multiple times once against every

instance.

Table 2: C# Lines of Code Savings.

0.00%

50.00%

123456

LOCReductionsUnrealEngine4vs.Unity

Unity(C#) UnrealEngine4(C++andSk)

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

460

In the future, there is no need to continue writing

code generators for each engine used. While UE4

uses Skookum Script, this is not available in Unity

and hence a code generator for C# was needed. It

would be an enhancement to combine these two

initiatives in one and use a shared code generation

target. LUA would actually be a good choice for the

target language since it is supported by Unity as well

as Unreal Engine 4. Furthermore, it has a fairly small

footprint (Glasberg & Bresler, 2006) such that even if

a target game engine doesn’t support LUA, it could

easily be added.

The inclusion of generic function calls such as

“push and call” from figure 2 allows for LUA to work

in an aspect-oriented fashion on any created LUA

script as long as it’s registered in the .gs file. This is

an attractive and extensible solution since

theoretically one could add Blueprint support very

easily. The CPP composition specification would

only need to register the C++ call sites which are used

for Blueprints and this would work. Due to time

constraints, the current research has not included

Blueprints, however they are very popular in UE4

development (Wang & Nordmark, 2015). Adding

support for these would be critical to widespread

acceptance.

REFERENCES

Antao, S.G., et al. 2016 Offloading support for OpenMP in

Clang and LLVM. In: Proceedings of the Third

Workshop on LLVM Compiler Infrastructure in HPC.

IEEE Press.

Bosnjak, M. & Orehovacki T.. (2018, May). Measuring

quality of an indie game developed using unity

framework. In 2018 41st International Convention on

Information and Communication Technology,

Electronics and Microelectronics (MIPRO) (pp. 1574-

1579). IEEE.C. J. Kaufman, Rocky Mountain Research

Lab., Boulder, CO, private communication, May 1995.

Anderson, E.G., 2001. A Classification of Scripting

Systems for Entertainment and Serious Computer

Games. In 2011 Third International Conference on

Games and Virtual Worlds for Serious Applications

Cordy, J.R., 2006. Source transformation, analysis and

generation in TXL. In Proceedings of the 2006 ACM

SIGPLAN symposium on Partial evaluation and

semantics-based program manipulation (pp. 1-11).

ACM.

Courbis, C. Carine, &Finkelsteiin A., 2005 Towards aspect

weaving applications.In Proceedings of the 27th

international conference on Software engineering.

ACM

Dillet R., 2018. “Unity CEO Says Half of All Games Are

Made on Unity,” https://techcrunch.com/2018/09/05/

unity-ceo-says-half-of-all-games-are-built-on-unity/.

Dormans,J., 2012, Engineering emergence: applied theory

for game design. Universiteit van Amsterdam Press

Duffy, E.B., Malloy, B.A., Schaub, S., 2014. Exploiting the

Clang AST for analysis of C++ applications. In

Proceedings of the 52nd annual ACM southeast

conference.

M. Eysholdt, M., Behrens H., 2010. Xtext: implement your

language faster than the quick and dirty way. IN

Proceedings of the ACM international conference

companion on Object oriented programming systems

languages and applications companion. ACM,

Hunicke, R. LeBlanc, M., Zubek.R, 2004. MDA: A formal

approach to game design and game research. In

Proceedings of the AAAI Workshop on Challenges in

Game AI. Vol. 4. 2004.

Geisler B.J., 2019. GAMESPECT: A Composition

Framework and Meta-Level Domain Specific Aspect

Language for Unreal Engine 4.NSUWorks Nova

Southeastern

Glasberg M., & Bresler J., 2006. The Lua Architecture. In

Advanced Topics in Software Engineering.

Gu,Z., et al. 2010. Has the bug really been fixed?,In

ACM/IEEE 32nd International Conference on Software

Engineering IEEE.

Holopainen, J., & Björk S. (2003). Game design patterns.

In Lecture Notes for GDC.

Kiczales., G., et al. 1997. Aspect-oriented programming. In

European conference on object-oriented programming

(pp. 220-242). Springer, Berlin, Heidelberg.

Kojarski, & D.H. Lorenz, D. H. (2007). Awesome: an

aspect co-weaving system for composing multiple

aspect-oriented extensions. ACM Sigplan Notices,

42(10), 515-534.

Kojarski, S., & Lorenz, D. H. (2005). Pluggable AOP:

Designing aspect mechanisms for third-party

composition. ACM SIGPLAN

Lorenz, D. H., & Mishali, O. (2012, March).

SPECTACKLE: toward a specification-based DSAL

composition process. In Proceedings of the seventh

workshop on Domain-Specific Aspect Languages

Martin M. (2012). The Technology behind the Unreal

Engine 4 Elemental Demo. Part of “Advances in Real-

Time Rendering in 3D Graphics and Games,”

SIGGRAPH, 2012.

Miller, K. (2009). Schizophonic performance: Guitar hero,

rock band, and virtual virtuosity. Journal of the Society

for American Music, 3(4), 395-429.

Moby Games Stats,” n.d. https://www.mobygames.com/.

Pinto, P., Carvalho, T., Bispo, J., Ramalho, M. A., &

Cardoso, J. M. (2018). Aspect composition for multiple

target languages using LARA. Computer Languages,

Systems & Structures

Polo, M., Piattini, M., & Ruiz, F. (2001, November). Using

code metrics to predict maintenance of legacy

programs: A case study. In Proceedings IEEE

International Conference on Software Maintenance.

ICSM 2001 (pp. 202-208). IEEE.

Aspect Weaving for Multiple Video Game Engines using Composition Speciﬁcations

461

Schell, J. (2019). The Art of Game Design: A book of lenses.

AK Peters/CRC Press..

Shonle, M., Lieberherr, K., & Shah, A. (2003, October).

XAspects: an extensible system for domain-specific

aspect languages. In Companion of the 18th annual

ACM SIGPLAN conference on Object-oriented

programming, systems, languages, and applications.

Vasudevamurt, V. B., & Uskov, A. (2015, May). Serious

game engines: Analysis and applications. In 2015 IEEE

International Conference on Electro/Information

Technology (EIT)

Wang, A. I., & Nordmark, N. (2015, September). Software

architectures and the creative processes in game

development. In International Conference on

Entertainment Computing (pp. 272-285). Springer,

Cham

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

462
