Test Oracle using Semantic Analysis from Natural Language

Requirements

Maryam Imtiaz Malik, Muddassar Azam Sindhu

and Rabeeh Ayaz Abbasi

Department of Computer Science, Quaid-i-Azam University, Islamabad, 45320, Pakistan

Keywords:

Natural Language Requirements, Software Testing, Test Oracle, Semantic Analysis.

Abstract:

Automation of natural language based applications is a challenging task due to its semantics. This challenge

is also confronted in the software testing ﬁeld. In this paper, we provide a systematic literature review related

to the semantic analysis of natural language requirements in the software testing ﬁeld. The literature review

assisted us in the identiﬁcation of the substantial research gap related to the semantics-based natural language

test oracle. To the best of our knowledge, we have not found any technique in which the semantics of test oracle

from natural language requirements can be solved using Word Sense Disambiguation techniques. We have

discussed our proposed approach to generate semantics-based test oracle from natural language requirements.

Our proposed approach can be applied to any domain.

1 INTRODUCTION

Software testing is an important phase in the software

development life cycle (SDLC). The software testing

ﬁeld has many research areas including test case gen-

eration, test case prioritization, software bug localiza-

tion, test oracle, etc. In all areas, the requirements

are given as input for proceeding the respective ap-

proach. These requirements are expressed either for-

mally or informally. The informal software require-

ments are written in natural language by requirement

engineers. Although, the natural language require-

ments are easy to understand without requiring any

technical skills, but these requirements are ambiguous

and often incomplete. Moreover, natural language re-

quirements have another problem that is related to

its semantics. The level of semantics can be taken

broadly into two categories: word level and sentence

level. As the meaning of words varies from context to

context therefore the word and sentence level seman-

tics should deal within a particular context.

Many researchers proposed different approaches

regarding the semantics of natural language require-

ments. Therefore, in this position paper, we con-

ducted a study in which semantics of natural lan-

guage requirements in the software testing ﬁeld are

discussed. Further based on the research gap, we have

https://orcid.org/0000-0002-3411-9224

https://orcid.org/0000-0002-3787-7039

also discussed our proposed approach.

In the rest of the paper, Section 2 provides the state

of the art related to the semantics of natural language

requirements in the software testing ﬁeld. Section 3

discusses the motivation behind our research work.

Section 4 and 5 discuss the research problem and pro-

posed approach. And the last section 6 concludes the

position paper along with discussing future directions

of work.

2 STATE OF THE ART

In this section, we have discussed state of the art in

the ﬁeld of software testing related to the semantic

analysis of natural language requirements. We have

searched literature by the following set of keywords

on Google Scholar.

• Natural Language Requirement

• Semantic analysis

• Software testing

• Semantic based Test oracle / Test oracle

• Test case generation

• Test case execution

• Natural Language Processing (NLP)

We further restricted our search to publication year

since 2017, 2018, 2019, 2020 and any time. We also

Malik, M., Sindhu, M. and Abbasi, R.

Test Oracle using Semantic Analysis from Natural Language Requirements.

DOI: 10.5220/0009471903450352

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 345-352

ISBN: 978-989-758-423-7

345

checked the citation and references of most relevant

papers. In the later subsections, we discuss the stud-

ies related to systematic literature review. Further, we

discuss literature related to semantics of natural lan-

guage in the respective ﬁeld by categorizing them into

seven broad categories that are discussed in the sub-

sections.

2.1 Systematic Study

The authors of (Dadkhah et al., 2020) provide the lit-

erature review of software testing using semantic web.

(Garousi et al., 2018) discuss several papers re-

lated to natural language processing in the software

testing ﬁeld. (Garousi et al., 2018) also categorize

some papers based on semantic analysis.

(Mustafa et al., 2017) also discuss literature for

test case generation approaches from the models and

speciﬁcations.

(Ahsan et al., 2017) discuss literature related to

test case generation using natural language processing

techniques.

2.2 Testing Framework

The authors of (Ateﬁ and Alipour, 2019) have worked

on an approach for automated testing of the con-

versational agent. The approach highlighted the

test oracle for natural languages. The approach se-

mantically compared the utterances using word2vec,

Google's Universal Sentence Encoder and Facebook’s

InferSent sentence embeddings.

(Wang et al., 2018) proposed an approach for au-

tomatically generating Object Constraint Language

(OCL) constraints from the Use Case Modelling

for System Tests Generation (UMTG) and domain

model. The approach used semantic role labeling,

Wordnet, and Verbnet for the generation of OCL con-

straints. These automated OCL constraints are used

for system testing.

(Lin et al., 2017) proposed an approach in which

the topic of the input ﬁeld, GUI state, and clickable

document object model (DOM) element are identiﬁed

using latent semantic indexing. In the proposed ap-

proach the vectors are generated from DOM. These

vectors are used for feature extraction by applying

TF-IDF. The TF-IDF vector is used for singular value

decomposition. The approach has used cosine simi-

larity for assigning the topic to the DOM element.

(Masuda et al., 2015) proposed an approach for

logic retrieval from Japanese speciﬁcations. The mor-

phological and dependency parsing is used for logic

retrieval.

(Sunil Kamalakar, 2013) proposed a behavioral

driven development (BDD) approach for automatic

generation of glue code from the natural language re-

quirement. The approach takes application code/stub

and BDD speciﬁcation as an input. Reﬂection tech-

niques are applied to code for the extraction of infor-

mation related to class and methods. The probabilis-

tic matcher is used for matching the speciﬁcation with

the properties of code. The probabilistic matcher in-

cludes edit distance, cosine, and cosine WordNet sim-

ilarity, and Disco.

(Torres et al., 2006) proposed an approach for the

extraction of natural language description from test

cases in Communicating Sequential Processes. The

ontology and case frames are used for storing domain

classes and thematic roles respectively. Further, the

lexicon is used for storing nouns, verbs, and modi-

ﬁers.

2.3 Test Case Generation

(Mai et al., 2019) proposed an approach for the gen-

eration of security-based executable test cases. The

test cases are generated using misuse case speciﬁca-

tion and test driver API. The approach used NLP tech-

niques for security testing and also mapped the test

API into ontology. Further, semantic role labeling is

used for the generation of executable code.

(Wang et al., 2019), (Wang et al., 2015a), (Wang

et al., 2015b) proposed an approach to generate sys-

tem test cases from the use case speciﬁcation. The

authors have used the extended Restricted Use Case

Modeling (RUCM) template along with the domain

model as an input. The NLP techniques are applied

to identify the RUCM steps, domain entities, alter-

native ﬂows and references. Further, semantic role

labeling is used to generate OCL constraints. These

constraints are then used to generate a use case test

model. The scenarios and input are generated from

the use case test and domain model. These scenarios

and input along with the mapping table are used to

generate test cases.

(Moitra et al., 2019) proposed an approach to gen-

erate executable test cases from structured natural lan-

guage requirement and domain ontology. These test

cases are derived using formal analysis techniques.

In (Silva et al., 2019) the test cases are generated

from requirements through colored Petri nets (CPN).

The syntax tree and requirements frames are gener-

ated from controlled natural language requirements.

These frames are used to create Data-Flow Reactive

Systems (DFRS) and CPN models for test case gen-

eration.

(Mahalakshmi et al., 2018) proposed an approach

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

346

for the generation of test cases from use cases. (Ma-

halakshmi et al., 2018) extracted the named-entity list

from the use case by feeding features into the machine

learning algorithm. The features are extracted us-

ing n-gram, term frequency, WordNet reference, etc.

These named-entities are used to identify data ele-

ments in the decision table. Further, the scenario ma-

trix and data elements are used to generate test cases.

(Anjalika et al., 2018) proposed an approach to

generate test cases from user stories and ontology.

The user story along with its corresponding epic num-

ber is provided as an input. The triplets are generated

from user stories using natural language processing.

The triplet contains the actor, action, and object. Fur-

ther, human intervention is required to develop an on-

tology. The test cases are generated from these triplets

and ontology.

(Mai et al., 2018) proposed an approach for the

generation of executable test cases. The approach has

taken misuse case speciﬁcation, test driver API and

an initial ontology as an input. The test diver API is

mapped onto the provided ontology. They also used

semantic role labeling for test input identiﬁcation and

executable test case generation. Further, the concrete

test values are provided by the test engineers.

(Rane, 2017) proposed an approach to generate

test cases from natural language requirements. They

have used user story, test scenario description, dictio-

nary and acceptance criteria as an input for the gener-

ation of test cases. The NLP techniques are applied to

the input to generate frames. These frames are used

for the generation of an activity graph and test cases.

Although, the authors have claimed that the test cases

are generated directly from user stories or through an

activity diagram. But they have only discussed the

generation of test cases through an activity diagram

in detail.

(Carvalho et al., 2012) proposed an approach to

analyze the CNLParser tool syntactically and produce

a syntax tree as an output. In this approach, the

output of Controlled Natural Language (CNL) parser

is given as input to the Syntax Tree to Case Frame

(ST2CF) tool. This tool is used to analyze the syn-

tax tree semantically and generated the case frame.

The case frame represents the thematic role of each

element in a sentence based on the main verb. Fur-

ther, the test vectors are generated using the Software

Cost Reduction (SCR) tool. This approach is used

for test case generation in (Carvalho et al., 2013),

(Silva et al., 2016), (Carvalho et al., 2014b), (Car-

valho et al., 2015) and model-based testing (Carvalho

et al., 2014a).

(Santiago Junior and Vijaykumar, 2012), (de San-

tiago Junior, 2011) proposed an approach for the gen-

eration of abstract and executable test cases from nat-

ural language requirements. The approach modeled

state chart for the generation of test cases. The mod-

eled state chart is reﬁned using the domain and word

sense disambiguation (WSD). The WSD is used to re-

move the states containing self-transition. Besides,

the pair of verbs is semantically analyzed using graph

indegree and Jiang and Conrath similarity measures.

2.4 Test Case Prioritization

(Yang et al., 2017) provided an empirical performance

evaluation of three NLP based test case prioritiza-

tion techniques that are Risk, Div, and DivRisk. It

is calculated using the average percentage of detected

faults among the available test cases. In this study,

the test cases are written in the Chinese language.

These test cases are categorized into testing and train-

ing. The keywords from the training set are added

into the dictionary of the testing set. These keywords

are extracted using the Language Technology Plat-

form (LTP) platform. Further, the nouns and verbs

are selected and synonyms are manually identiﬁed.

The words whose frequency is greater than average

word frequency are added into the dictionary for per-

formance evaluation. The result shows that Risk strat-

egy has good performance as compared to others.

(Islam et al., 2012) proposed an approach to

automatically prioritize test cases using the multi-

objective function. (Islam et al., 2012) also prioritized

the test cases based on the cost, code and requirement

coverage. Moreover, the latent semantic indexing is

used for traceability.

2.5 Software Duplicate Bug Detection

and Localization

(Zhao and Harris, 2019) proposed an approach to gen-

erate assertions from the speciﬁcation document. The

sentences written in English language are semanti-

cally analyzed for the generation of formal assertions.

(Khatiwada et al., 2018) proposed an approach for

automatic bug localization. (Khatiwada et al., 2018)

semantically localize the software bug using normal-

ized google distance and pointwise mutual informa-

tion.

(Du et al., 2017) proposed an approach for classi-

ﬁcation of bug reports on the basis of fault types. The

word2vec is used for classiﬁcation.

(Lukins et al., 2010) proposed an approach for au-

tomatic bug localization. The approach has used the

latent Dirichlet allocation technique for the identiﬁ-

cation of the topic and the query formation. These

queries are created through the extraction of keywords

Test Oracle using Semantic Analysis from Natural Language Requirements

347

from the bug report, title, and addition of words like

synonyms.

(Runeson et al., 2007) proposed an approach

to detect duplicate reports using NLP techniques.

Among other NLP techniques and similarity mea-

sures, the synonyms are also used for duplicate de-

tection.

Similarly, there are multiple studies including

(Chen et al., 2018), (Yang et al., 2016), (Dit et al.,

2008), (Kang, 2017) in which bug reports are detected

using semantic similarity.

2.6 Test Oracle and Assertion

Generation

(Gofﬁ, 2018) also used their work (Blasi et al., 2017)

in a thesis for generation of test oracles from Java

comments present in source code. Further they have

also suggested generation of test oracles from un-

structured natural language as a future work.

The authors of (Blasi et al., 2017) extended their

approach proposed in (Gofﬁ et al., 2016). In this

approach, the Java elements are compared syntacti-

cally and semantically with comments for the genera-

tion of the assertion. For semantical analysis, the ap-

proach has used Word Mover’s Distance, Word2Vec

and GloVe model.

Several NLP techniques are applied to the soft-

ware artifact in (Ernst, 2017). The cosine similar-

ity and TF-IDF are used to display error messages

with the appropriate details. Further, edit distance or

WordNet are used for the identiﬁcation of the word

similarity. The oracle assertions are also automati-

cally generated from the Javadoc using parse trees,

pattern matching, and lexical similarity. In (Ernst,

2017) English speciﬁcations are also converted into

bashed commands through the translation process.

(Hu et al., 2011) proposed a semantic oracle using

ontology and rule-based speciﬁcation. The rules have

antecedents and consequent which provide the test in-

puts and expected output respectively. These outputs

are compared by oracle reasoner.

2.7 Functional Dependency and

Traceability

(Tahvili et al., 2019) proposed an approach to detect

and clustered the functionally dependent test cases.

The authors have used Doc2vec for generating fea-

ture vectors. These feature vectors are clustered using

the hierarchical density-based spatial clustering of ap-

plications with noise and fuzzy c-means clustering al-

gorithms.

(Csuvik et al., 2019) proposed an approach for

tracing the test with code using latent semantic index-

ing and word2vec.

3 MOTIVATION

The semantic analysis has extensive applicability in

different areas including text mining, information re-

trieval, knowledge extraction etc. The extensive re-

search in the literature revealed that semantic analysis

also plays a vital role in the software testing ﬁeld.

In the literature, the authors discussed a tool

named DrQA for question answering (King et al.,

2019) and (Makela, 2019). The tool used semantic

analysis techniques like word embedding. The au-

thors claim that the DrQA tool can be used to gen-

erate automated test oracle for testing AI systems.

They also recommended that the models can be cre-

ated from requirements and speciﬁcations to automate

the test oracle (Makela, 2019). DrQA tool and differ-

ent semantic analysis techniques within the software

testing ﬁeld motivated us to compare expected and ob-

served outputs semantically from natural language re-

quirements.

4 RESEARCH PROBLEM

In this position paper, we have provided an exten-

sive literature on the applicability of semantic analy-

sis in the software testing ﬁeld. From the literature,

it has been observed that there is an immense gap

in providing semantic test oracle for natural language

requirements-based test cases. We have retrieved only

one relevant paper from literature in which utterances

are semantically compared (Ateﬁ and Alipour, 2019).

In this paper, the testing framework is limited for

conversational agents only. And the context module

has used the design patterns. This approach relies on

the determination of appropriate data set for semantic

analysis.

In addition, many researchers proposed ap-

proaches for the generation of test cases from natu-

ral language requirements but these approaches do not

perform semantic analysis of test oracle from natural

language requirements.

There is no automated approach in which the test-

ing framework leads from natural language require-

ments to semantic-based test oracle. Therefore, we

are planning to generate automated semantic test ora-

cle for natural language requirements.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

348

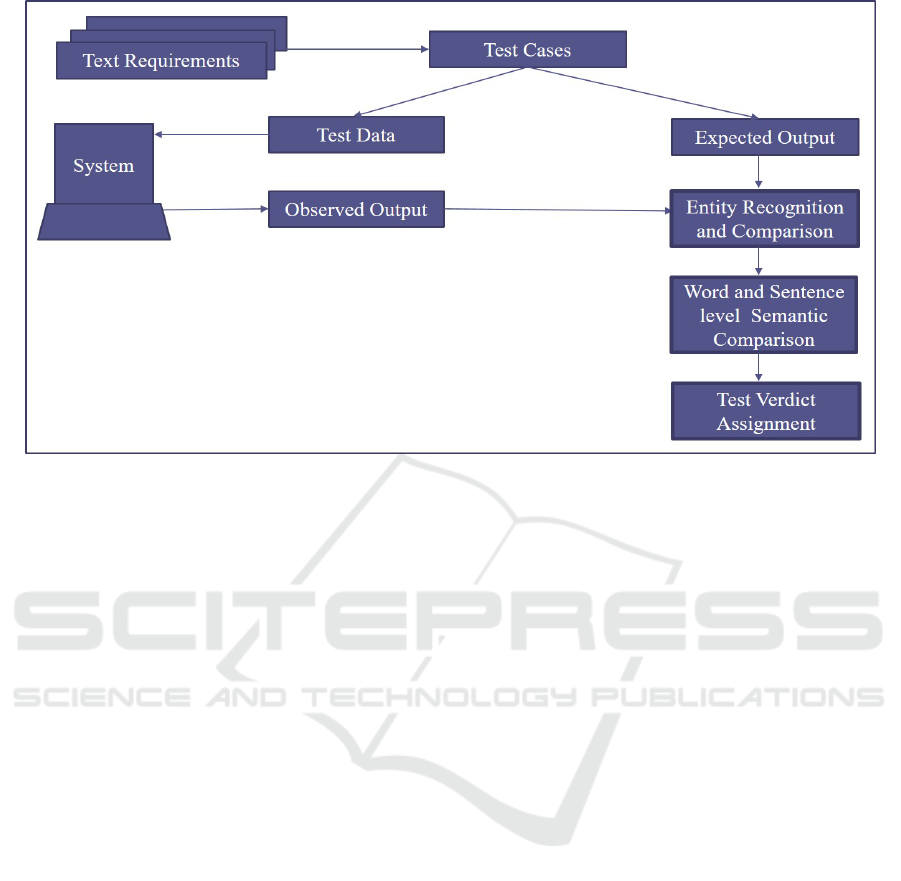

Figure 1: Proposed Approach.

5 PROPOSED APPROACH

Our proposed approach will generate test cases from

natural language requirements and then compare the

expected and observed outputs. Our proposed ap-

proach is not restricted to some particular domain.

And it does not require additional dataset for semantic

comparison. Figure 1 shows our proposed approach.

The proposed test oracle part is divided into mul-

tiple phases. The ﬁrst phase is responsible for the

identiﬁcation of entities from outputs that do not re-

quire semantic similarity comparison. These entities

may comprise a person’s name, place, digits, etc. The

named entity recognition or semantic role labeling

will be applied for the identiﬁcation of these enti-

ties. These entities are omitted or replaced by a con-

stant word for further processing. The test oracle then

compares these entities through some other proposed

methodology.

In the second phase, we will apply semantic simi-

larity both at word and sentence level. Our approach

establishes the context using requirements for seman-

tic similarity. Relying on requirements saves the extra

effort and time of testers.

We will use WSD techniques for semantic com-

parison. WSD deals with different senses of a word.

(Navigli, 2012) discussed three types of WSD: Su-

pervised WSD, Unsupervised WSD, and Knowledge-

based WSD. Supervised WSD approaches have ap-

plied machine learning techniques, knowledge-based

WSD has used knowledge resources, and Unsuper-

vised WSD has used unlabeled corpora for identify-

ing the word sense in a context.

In our proposed approach we will evaluate sev-

eral knowledge-based techniques and select the most

suitable technique. The intuition behind using the

knowledge-based technique is to not rely on the cor-

pus for semantic similarity. WSD is AI-complete

problem (Navigli, 2009). Consequently, to achieve

better accuracy, we may use knowledge-based tech-

niques along with other WSD techniques. As a super-

vised learning method requires human intervention

for labeling therefore, we are not using supervised

WSD. In the future, we will also use the word2vec

approach by training on requirement documents.

In the third phase, our proposed approach will as-

sign a test verdict based on the comparison of ex-

pected and observed outputs.

The proposed test oracle is illustrated using the

following expected and observed outputs:

Expected Output: John's data is deleted from the

system.

Observed Output: John's data is removed from the

system.

The ﬁrst phase of the proposed approach identiﬁes

John as an entity from expected and observed outputs.

These entities are compared and replaced with a con-

stant word. In the second phase, the expected and ob-

served outputs are semantically compared. The parser

identiﬁes ‘delete’and ‘remove’as semantically similar

words. Finally, a test pass verdict is assigned.

Test Oracle using Semantic Analysis from Natural Language Requirements

349

6 CONCLUSION

In this position paper, we raised an important problem

related to the semantics of natural language require-

ments. We have discussed literature related to the se-

mantics of natural language requirements in the soft-

ware testing ﬁeld. It is observed from the literature

that there is little research carried on the automation

of test oracle semantically. We plan to address these

research gaps as the research problem in the software

testing ﬁeld. To solve the mentioned research prob-

lems, we have proposed an approach to automate the

semantic test oracle from natural language require-

ments. The worthiness of our research work can be

clariﬁed from the research gap which originates after

an extensive literature review. Our proposed approach

is the ﬁrst step towards the use of WSD techniques

for solving a signiﬁcant problem. Our approach can

be applied to all applications dealing with natural lan-

guage requirements.

In the future, we will automate the proposed ap-

proach. We will also evaluate the proposed approach

from several case studies. We will also extend the lit-

erature review by covering some other search engines

with additional keywords.

REFERENCES

Ahsan, I., Butt, W. H., Ahmed, M. A., and Anwar, M. W.

(2017). A comprehensive investigation of natural lan-

guage processing techniques and tools to generate au-

tomated test cases. In Proceedings of the Second In-

ternational Conference on Internet of Things, Data

and Cloud Computing, ICC ’17, pages 132:1–132:10,

New York, NY, USA. ACM.

Anjalika, H. N., Salgado, M. T. Y., and Siriwardhana, P. I.

(2018). An ontology based test case generation frame-

work.

Ateﬁ, S. and Alipour, M. A. (2019). An automated testing

framework for conversational agents.

Blasi, A., Kuznetsov, K., Gofﬁ, A., Castellanos, S. D.,

Gorla, A., Ernst, M. D., and PEZZ, M. (2017).

Semantic-based analysis of javadoc comments.

Carvalho, G., Barros, F., Carvalho, A., Cavalcanti, A.,

Mota, A., and Sampaio, A. (2015). Nat2test tool:

From natural language requirements to test cases

based on csp. In Calinescu, R. and Rumpe, B., editors,

Software Engineering and Formal Methods, pages

283–290, Cham. Springer International Publishing.

Carvalho, G., Barros, F., Lapschies, F., Schulze, U., and

Peleska, J. (2014a). Model-based testing from con-

trolled natural language requirements. In Artho, C.

and

Olveczky, P. C., editors, Formal Techniques for

Safety-Critical Systems, pages 19–35, Cham. Springer

International Publishing.

Carvalho, G., Falc

ao, D., Barros, F., Sampaio, A., Mota,

A., Motta, L., and Blackburn, M. (2013). Test case

generation from natural language requirements based

on scr speciﬁcations. In Proceedings of the 28th An-

nual ACM Symposium on Applied Computing, SAC

’13, pages 1217–1222, New York, NY, USA. ACM.

Carvalho, G., Falc

ao, D., Barros, F., Sampaio, A., Mota,

A., and Motta, L. (2012). Nlreq2tvectors: A tool for

generating test vectors from natural language require-

ments. Technical report, Technical report, UFPE.

Carvalho, G., Falc

ao, D., Barros, F., Sampaio, A., Mota, A.,

Motta, L., and Blackburn, M. (2014b). Nat2testscr:

Test case generation from natural language require-

ments based on scr speciﬁcations. Science of Com-

puter Programming, 95:275 – 297. Special Section:

ACM SAC-SVT 2013 + Bytecode 2013.

Chen, M., Hu, D., Wang, T., Long, J., Yin, G., Yu,

Y., and Zhang, Y. (2018). Using document embed-

ding techniques for similar bug reports recommenda-

tion. In 2018 IEEE 9th International Conference on

Software Engineering and Service Science (ICSESS),

pages 811–814.

Csuvik, V., Kicsi, A., and Vid

acs, L. (2019). Source

code level word embeddings in aiding semantic test-

to-code traceability. In 2019 IEEE/ACM 10th Inter-

national Symposium on Software and Systems Trace-

ability (SST), pages 29–36.

Dadkhah, M., Araban, S., and Paydar, S. (2020). A sys-

tematic literature review on semantic web enabled

software testing. Journal of Systems and Software,

162:110485.

de Santiago Junior, V. A. (2011). SOLIMVA: A methodol-

ogy for generating model-based test cases from natu-

ral language requirements and detecting incomplete-

ness in software speciﬁcations. PhD thesis, PhD the-

sis, Instituto Nacional de Pesquisas Espaciais (INPE).

Dit, B., Poshyvanyk, D., and Marcus, A. (2008). Measuring

the semantic similarity of comments in bug reports.

Proc. of 1st STSM, 8:64.

Du, X., Zheng, Z., Xiao, G., and Yin, B. (2017). The au-

tomatic classiﬁcation of fault trigger based bug report.

In 2017 IEEE International Symposium on Software

Reliability Engineering Workshops (ISSREW), pages

259–265.

Ernst, M. D. (2017). Natural Language is a Programming

Language: Applying Natural Language Processing to

Software Development. In Lerner, B. S., Bod

ık, R.,

and Krishnamurthi, S., editors, 2nd Summit on Ad-

vances in Programming Languages (SNAPL 2017),

volume 71 of Leibniz International Proceedings in

Informatics (LIPIcs), pages 4:1–4:14, Dagstuhl, Ger-

many. Schloss Dagstuhl–Leibniz-Zentrum fuer Infor-

matik.

Garousi, V., Bauer, S., and Felderer, M. (2018). Nlp-

assisted software testing: a systematic review. arXiv

preprint arXiv:1806.00696.

Gofﬁ, A. (2018). Automating test oracles generation. PhD

thesis, Universita della Svizzera italiana.

Gofﬁ, A., Gorla, A., Ernst, M. D., and Pezz

e, M. (2016).

Automatic generation of oracles for exceptional be-

haviors. In Proceedings of the 25th International

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

350

Symposium on Software Testing and Analysis, ISSTA

2016, pages 213–224, New York, NY, USA. ACM.

Hu, L., Bai, X., Zhang, Y., Lu, H., Ye, H., and Hou,

K. (2011). Semantic-based test oracles. In 2011

IEEE 35th Annual Computer Software and Applica-

tions Conference(COMPSAC), volume 00, pages 640–

649.

Islam, M. M., Marchetto, A., Scanniello, G., and Susi, A.

(2012). A multi-objective technique to prioritize test

cases based on latent semantic indexing. In 2012 16th

European Conference on Software Maintenance and

Reengineering(CSMR), volume 00, pages 21–30.

Kang, L. (2017). Automated duplicate bug reports

detection-an experiment at axis communication ab.

Master’s thesis.

Khatiwada, S., Tushev, M., and Mahmoud, A. (2018). Just

enough semantics: An information theoretic approach

for ir-based software bug localization. Information

and Software Technology, 93:45 – 57.

King, T. M., Arbon, J., Santiago, D., Adamo, D., Chin, W.,

and Shanmugam, R. (2019). Ai for testing today and

tomorrow: Industry perspectives. In 2019 IEEE Inter-

national Conference On Artiﬁcial Intelligence Testing

(AITest), pages 81–88.

Lin, J., Wang, F., and Chu, P. (2017). Using seman-

tic similarity in crawling-based web application test-

ing. In 2017 IEEE International Conference on

Software Testing, Veriﬁcation and Validation (ICST),

pages 138–148.

Lukins, S. K., Kraft, N. A., and Etzkorn, L. H. (2010). Bug

localization using latent dirichlet allocation. Informa-

tion and Software Technology, 52(9):972 – 990.

Mahalakshmi, G., Vijayan, V., and Antony, B. (2018).

Named entity recognition for automated test case gen-

eration. INTERNATIONAL ARAB JOURNAL OF IN-

FORMATION TECHNOLOGY, 15(1):112–120.

Mai, P. X., Pastore, F., Goknil, A., and Briand, L. C.

(2018). A natural language programming approach

for requirements-based security testing. 29th IEEE

International Symposium on Software Reliability En-

gineering (ISSRE 2018).

Mai, P. X., Pastore, F., Goknil, A., and Briand, L. C.

(2019). Mcp: A security testing tool driven by require-

ments. In 2019 IEEE/ACM 41st International Confer-

ence on Software Engineering: Companion Proceed-

ings (ICSE-Companion), pages 55–58.

Makela, M. (2019). Utilizing artiﬁcial intelligence in soft-

ware testing. Master’s thesis.

Masuda, S., Iwama, F., Hosokawa, N., Matsuodani, T., and

Tsuda, K. (2015). Semantic analysis technique of

logics retrieval for software testing from speciﬁcation

documents. In 2015 IEEE Eighth International Con-

ference on Software Testing, Veriﬁcation and Valida-

tion Workshops (ICSTW), pages 1–6.

Moitra, A., Siu, K., Crapo, A. W., Durling, M., Li, M.,

Manolios, P., Meiners, M., and McMillan, C. (2019).

Automating requirements analysis and test case gen-

eration. Requirements Engineering, 24(3):341–364.

Mustafa, A., Wan-Kadir, W. M., and Ibrahim, N.

(2017). Comparative evaluation of the state-of-art

requirements-based test case generation approaches.

International Journal on Advanced Science, Engi-

neering and Information Technology, 7:1567–1573.

Navigli, R. (2009). Word sense disambiguation: A survey.

ACM Comput. Surv., 41(2).

Navigli, R. (2012). A quick tour of word sense disambigua-

tion, induction and related approaches. In Bielikov

M., Friedrich, G., Gottlob, G., Katzenbeisser, S., and

Tur

an, G., editors, SOFSEM 2012: Theory and Prac-

tice of Computer Science, pages 115–129, Berlin, Hei-

delberg. Springer Berlin Heidelberg.

Rane, P. (2017). Automatic generation of test cases for agile

using natural language processing. Master’s thesis,

Virginia Tech.

Runeson, P., Alexandersson, M., and Nyholm, O. (2007).

Detection of duplicate defect reports using natural lan-

guage processing. In 29th International Conference

on Software Engineering (ICSE’07), pages 499–510.

Santiago Junior, V. A. d. and Vijaykumar, N. L. (2012).

Generating model-based test cases from natural lan-

guage requirements for space application software.

Software Quality Journal, 20(1):77–143.

Silva, B. C. F., Carvalho, G., and Sampaio, A. (2016). Test

case generation from natural language requirements

using cpn simulation. In Corn

elio, M. and Roscoe,

B., editors, Formal Methods: Foundations and Appli-

cations, pages 178–193, Cham. Springer International

Publishing.

Silva, B. C. F., Carvalho, G., and Sampaio, A. (2019). Cpn

simulation-based test case generation from controlled

natural-language requirements. Science of Computer

Programming, 181:111 – 139.

Sunil Kamalakar, F. (2013). Automatically generating tests

from natural language descriptions of software behav-

ior. Master’s thesis, Virginia Tech.

Tahvili, S., Hatvani, L., Felderer, M., Afzal, W., and Bohlin,

M. (2019). Automated functional dependency detec-

tion between test cases using doc2vec and clustering.

In 2019 IEEE International Conference On Artiﬁcial

Intelligence Testing (AITest), pages 19–26.

Torres, D., Leitao, D., and Barros, F. (2006). Motorola

specnl: A hybrid system to generate nl descriptions

from test case speciﬁcations. In 2006 Sixth Inter-

national Conference on Hybrid Intelligent Systems

(HIS’06), pages 45–45.

Wang, C., Pastore, F., and Briand, L. (2018). Automated

generation of constraints from use case speciﬁcations

to support system testing. In 2018 IEEE 11th Inter-

national Conference on Software Testing, Veriﬁcation

and Validation (ICST), pages 23–33.

Wang, C., Pastore, F., Goknil, A., Briand, L., and Iqbal, Z.

(2015a). Automatic generation of system test cases

from use case speciﬁcations. In Proceedings of the

2015 International Symposium on Software Testing

and Analysis, ISSTA 2015, page 385–396, New York,

NY, USA. Association for Computing Machinery.

Wang, C., Pastore, F., Goknil, A., and Briand, L. C. (2019).

Automatic generation of system test cases from use

case speciﬁcations: an nlp-based approach.

Test Oracle using Semantic Analysis from Natural Language Requirements

351

Wang, C., Pastore, F., Goknil, A., Briand, L. C., and Iqbal,

Z. (2015b). Umtg: A toolset to automatically generate

system test cases from use case speciﬁcations. In Pro-

ceedings of the 2015 10th Joint Meeting on Founda-

tions of Software Engineering, ESEC/FSE 2015, page

942–945, New York, NY, USA. Association for Com-

puting Machinery.

Yang, X., Lo, D., Xia, X., Bao, L., and Sun, J. (2016). Com-

bining word embedding with information retrieval to

recommend similar bug reports. In 2016 IEEE 27th

International Symposium on Software Reliability En-

gineering (ISSRE), pages 127–137.

Yang, Y., Huang, X., Hao, X., Liu, Z., and Chen, Z. (2017).

An industrial study of natural language processing

based test case prioritization. In 2017 IEEE Inter-

national Conference on Software Testing, Veriﬁcation

and Validation (ICST), pages 548–549.

Zhao, J. and Harris, I. G. (2019). Automatic assertion gener-

ation from natural language speciﬁcations using sub-

tree analysis. In 2019 Design, Automation Test in Eu-

rope Conference Exhibition (DATE), pages 598–601.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

352
