SAS vs. NSAS: Analysis and Comparison of Self-Adaptive Systems and

Non-Self-Adaptive Systems based on Smells and Patterns

Claudia Raibulet

, Francesca Arcelli Fontana

and Simone Carettoni

DISCo-Dipartimento di Informatica, Sistemistica e Comunicazione, Universita’ Degli Studi di Milano - Bicocca,

Viale Sarca, 336, Ediﬁcio 14, Milan, Italy

Keywords:

Self-Adaptive Systems, Non-Self-Adaptive Systems, Software Quality, Architectural Smells, Code Smells,

Design Patterns.

Abstract:

Self-Adaptive Systems are usually built of a managed part, implementing their functionality, and a manag-

ing part, implementing their self-adaptation. The complexity of self-adaptive systems results also from the

existence of the managing part and the interaction between the managed and the managing parts. The non-

self-adaptive systems may be seen as the managed part of self-adaptive systems. The self-adaptive systems are

evaluated based on their performances resulted from the self-adaptation. However, self-adaptive systems are

software systems, hence, also their software quality is equally important. Our analysis compares the internal

quality of self-adaptive and non-self-adaptive systems by considering code smells, architectural smells, and

GoF’s design patterns. This comparison provides an insight to the health of the self-adaptive systems with

respect to the non-self-adaptive systems (the last being considered as a quality reference).

1 INTRODUCTION

Software systems able to manage changes and uncer-

tainties during their execution (1) based on knowledge

about their environment and about themselves, and

(2) using mechanisms to reason about this knowledge

and to use it properly, are considered as self-adaptive

(de Lemos et al., 2013; Weyns, 2018). Self-adaptive

systems (SAS) have usually bigger dimensions than

non-self-adaptive systems (NSAS), when two ver-

sions of the same system, one with and one without

self-adaptive mechanisms, are considered. Further,

SAS may have more complex structures than equiva-

lent NSAS (i.e., implementing similar functionalities

without being self-adaptive). Self-adaptation may be

performed at various abstraction levels and through

different mechanisms (de Lemos et al., 2013). There-

fore, its understanding and evaluation is an important

and challenging task (Kaddoum et al., 2010).

The quality of software systems may be evaluated

from various points of view and in various ways con-

sidering quality attributes, software metrics, design

patterns, and anti-patterns. Architectural smells (Ar-

celli Fontana et al., 2017; Martini et al., 2018) and

https://orcid.org/0000-0002-7194-3159

https://orcid.org/0000-0002-1195-530X

code smells (Fowler, 1999) are emerging as useful

indicators about the internal quality of software sys-

tems. These smells identify recurring design and ar-

chitectural problems which may lead to high main-

tenance and evolution costs if not addressed timely.

There are several works on smells detection (Chatzi-

georgiou and Manakos, 2010; Peters and Zaidman,

2012). Different works have also considered the im-

pact of design patterns on software quality, by consid-

ering metrics and code smells (Walter and Alkhaeir,

2016). Only few works analyzed architectural smells

for software quality aims (Martini et al., 2018).

For SAS evaluation there have been proposed var-

ious mechanisms including quality attributes, soft-

ware metrics, and design patterns (Raibulet and Ar-

celli Fontana, 2017). Some of them are applied for

NSAS evaluation concerning performance, depend-

ability, robustness, security, complexity. Many ap-

proaches introduce novel mechanisms focused on the

speciﬁcity of self-adaptivity, i.e., degree of autonomy,

time for adaptivity, adaptability of services, support

for detecting anomalous system behavior. Further,

one of the ﬁrst catalogs identifying 12 adaptation-

oriented design patterns which capture the adaptation

expertise is presented in (Ramirez and Cheng, 2010).

In this context, the contribution of this paper con-

cerns the (1) identiﬁcation of architectural and code

490

Raibulet, C., Fontana, F. and Carettoni, S.

SAS vs. NSAS: Analysis and Comparison of Self-Adaptive Systems and Non-Self-Adaptive Systems based on Smells and Patterns.

DOI: 10.5220/0009513504900497

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 490-497

ISBN: 978-989-758-421-3

smells, as well as the GoF’s design patterns in six SAS

and NSAS examples, and (2) analysis of SAS in front

of NSAS to observe possible variations (i.e., due to

the presence of the self-adaptive part) in the occur-

rences of the quality issues. All SAS and NSAS are

written in Java freely available and/or open source.

The rest of the paper is organized as follows. Sec-

tion 2 presents our study design. Results are shown in

Section 3. Section 4 addresses the threats to validity.

Section 5 presents the conclusions and future work.

2 STUDY DESIGN

2.1 Context

In this paper, we analyze SAS by identifying code

and architectural smells, and design patterns. We also

compare SAS with NSAS, which are considered here

as a quality reference. To achieve this objective, we

propose the following research questions (RQ):

RQ1: How can SAS be evaluated in terms of code

smells?

RQ2: How can SAS be evaluated in terms of ar-

chitectural smells?

RQ3: How can SAS be evaluated in terms of de-

sign patterns?

RQ4: Which is the difference in terms of code

smells and architectural smells occurrence/presence

in SAS and NSAS?

RQ5: Which is the difference in terms of design

patterns occurrence/presence in SAS and NSAS?

The answer to RQ1 and RQ2 may be exploited

by developers/maintainers to have an idea of the most

common code smells and architectural smells in SAS

and focus their attention on the refactoring of these

smells. The answer to RQ3 helps to understand some

of the design decisions (due to the intent of the design

patterns) and to further reuse or extend SAS.

The answer to RQ4 may indicate hints on the

prevalence of some smells with respect to other ac-

cording to SAS and NSAS. A developer can pay par-

ticular attentions to the most frequent ones. Some

smells may be generated by the intrinsic nature of a

category of systems, such as SAS; thus, such smells

may be considered as false positive. In this case, de-

velopers may consider to implement ﬁlters to remove

the false positive smells in the detection process.

The answer to RQ5 provides an overview of the

design patterns commonly used by SAS and NSAS.

This result may be used to address further design is-

sues in SAS already experienced in NSAS. In case of

differences, this result is a valuable indicator of the

speciﬁc features and design solutions for SAS.

2.2 Analyzed Systems

For the analysis of the quality of SAS in front of

NSAS we have chosen 6 examples from each cate-

gory. All examples are available on Web sites and

repositories which collect systems and make them

available for usage, empirical studies, results compar-

ison, or other research activities.

SAS considered in this paper are available at

the Exemplars web site (i.e., https://www.hpi.uni-

potsdam.de/giese/public/selfadapt/exemplars/):

• Adasim is a simulator for the Automated Trafﬁc

Routing Problem (ATRP). Adaptivity addresses

scalability and environmental changes.

• DeltaIoT enables the evaluation and compari-

son of self-adaptive mechanisms for Internet of

Things (IoT). It addresses performance and en-

ergy consumption issues.

• Intelligent Ensembles (IE) is a framework for

dynamic cooperation groups (e.g.,, smart cyber-

physical systems, smart mobility, smart cities).

• Lotus (Lotus@Runtime) uses models@runtime to

monitor the execution traces and to verify reacha-

bility properties of SAS at runtime.

• Rainbow supports the development of SAS

through architectural mechanisms, i.e., feedback

control loops based on the MAPE-K (monitor, an-

alyze, plan, execute, using knowledge) steps.

• Tele Assistance System (TAS) is a service-based

health-care application for distance assistance.

Self-adaptivity is used for uncertainties generated

by third-party services (e.g., service failure).

A summary of SAS considering the architectural

model used, the adaptive mechanisms, the application

domain, the year of their publication, and the number

of Java classes is shown in Table 1.

NSAS considered in this paper are available in the

QualitasCorpus

and in the MavenRepository

sites:

• Apache ANT is a Java library which provides a

series of automatisms that allow the programmers

to compile, test, and run Java applications.

• Apache PDFBOX is an open source library that

can be used to create, render, print, split, merge,

edit, and extract text and metadata from PDF ﬁles.

• Cobertura calculates the percentage of Java code

that can be covered by test implementation. It is

based on JScoverage.

http://qualitascorpus.com/

https://mvnrepository.com/

SAS vs. NSAS: Analysis and Comparison of Self-Adaptive Systems and Non-Self-Adaptive Systems based on Smells and Patterns

491

• JHotDraw is a Java GUI framework for graphic

design and object manipulation projects.

• ProGuard is a software that optimizes, reduces,

and obscures Java code.

• Sunﬂow is a rendering system for the synthesis of

photorealistic images through the implementation

of global illumination algorithms.

A summary of NSAS considering their type and main

objective, the number of their Java classes, and the

year of the last version is shown in Table 2.

2.3 Collected Data

We present the data we collected on the SAS and

NSAS described in Section 2.2. The data concerns

code smells, architectural smells, and design patterns.

2.3.1 Code Smells

Code smells are indicators of possible problems at the

code or design level (e.g., large classes or methods)

(Fowler, 1999). They provide hints on parts of code

which may be characterized by a poor quality, and

may lead to negative effects on the maintenance and

evolution of the software. The deﬁnition and details

of the code smells considered in our study are avail-

able on the plug-in

Web site for their detection. They

are brieﬂy introduced as follows:

• AntiSingleton (AS): a class that provides mutable

class variables, which consequently could be used

as global variables.

• BaseClassKnowsDerivedClass (BCKDC): a class

that invokes or has at least binary-class relation-

ship pointing to one of its subclasses.

• BaseClassShouldBeAbstract (BCSBA): a class

with many subclasses without being abstract.

• Blob (B): a large controller class that depends on

data stored in surrounding data classes. A large

class declares many ﬁelds and methods with a low

cohesion.

• ClassDataSouldBePrivate (CDSBP): a class that

exposes its ﬁelds, thus violating the principle of

encapsulation.

• ComplexClass (CC): a class that has (at least) one

large and complex method, in terms of cyclomatic

complexity and lines of code.

• FunctionalDecomposition (FD): a main class, i.e.,

a class with a procedural name, such as Compute

https://github.com/davidetaibi/sonarqube-anti-patterns

-code-smells

or Display, in which inheritance and polymor-

phism are scarcely used, that is associated with

small classes, which declare many private ﬁelds

and implement only few methods.

• LargeClass (LC): a class that has grown too large

in term of lines of code.

• LazyClass (LzzC): a class that has few ﬁelds and

methods.

• LongMethod (LM): a class that has (at least) a very

long method in terms of lines of code.

• LongParameterList (LPL): a class that has (at

least) one method with a too long list of param-

eters in comparison to the average number of pa-

rameters per methods in the system.

• ManyFieldAttributesButNotComplex (MFABNC):

a class that declares many attributes but which is

not complex and, hence, more likely to be a kind

of data class holding values without providing be-

haviour.

• MessageChains (MC): a class that uses a long

chain of method invocations to implement (at

least) one of its functionality.

• RefusedPatternBequest (RPB): a class that rede-

ﬁnes inherited methods using empty bodies, thus

breaking polymorphism.

• SpaghettiCode (SC): a class with no structure,

declaring long methods with no parameters, and

using global variables.

• SpeculativeGenerality (SG): a class that is deﬁned

as abstract having few children, which do not

make use of its methods.

• SwissArmyKnife (SAK): a complex class that of-

fers a high number of services, e.g., a complex

class implementing a high number of interfaces.

• TraditionBreaker (TB): a class that inherits from a

large parent class but that provides little behaviour

and without subclasses.

2.3.2 Architectural Smells

An architectural smell results from a common archi-

tectural decision, intentional or not, that negatively

impacts the internal software quality (Garcia et al.,

2009; Macia et al., 2012). The architectural smells

considered in our study are:

• Unstable Dependency (UD): describes a subsys-

tem (component) that depends on other subsys-

tems less stable than itself. UD is detected on

packages.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

492

Table 1: SAS Systems.

SAS Architectural Model Adaptive

Mechanisms

Application Domain Year No. of Classes

Adasim Agent-based Parameter-based Automated Trafﬁc Routing 2012 64

DeltaIoT IoT four tier Parameter-based Smart University Campus 2017 82

IE Cyber-Physical Architecture-based

Parameter-based

Smart Cities/Mobility 2017 825

Lotus Component-based Parameter-based Travel Planner 2017 51

Rainbow Component-and-connector Architecture-based News Web Site 2005 1707

TAS Service-based Service dynamic com-

position

Healthcare 2012 765

Table 2: NSAS Systems.

NSAS Type Objective Year No. of Classes

ANT Java library Build Java and non-Java applications (e.g.,

compile, test, run)

2018 962

PDFBOX Java library Create and manipulate PDF ﬁles 2018 388

Cobertura Java tool Calculate the percentage of code accessed by

tests

2018 172

JHotDraw Java GUI framework Create technical and structural graphics 2018 346

ProGuard Java tool Optimize, reduce, and obscure code 2005 707

Sunﬂow Photo rendering system Synthesize photo-realistic images through

global illumination algorithms

2017 209

• Hub-Like Dependency (HL): arises when an ab-

straction has (outgoing and ingoing) dependencies

with a large number of other abstractions (Surya-

narayana et al., 2015). HL is detected on classes.

• Cyclic Dependency (CD): refers to a subsystem

involved in a chain of relations that breaks the

acyclic nature of a subsystem dependency struc-

ture. CD is detected on classes.

We have considered these architectural smells since

they represent critical problems related to dependency

issues. Components highly coupled and with a high

number of dependencies cost more to maintain and

hence can be considered more critical.

2.3.3 Design Patterns

Design patterns may provide signiﬁcant hints on the

development and quality of a system by capturing

indications about the design decisions due to their

semantic. They provide enhanced and veriﬁed so-

lutions to common design problems (Gamma et al.,

1994). Their detection may be very useful for the

understanding, maintaining, and evolving a system

(Arcelli Fontana et al., 2011; Arcelli Fontana et al.,

2013). Here, we have considered the following 13

GoF’s design patterns (Gamma et al., 1994):

• Creational: Factory Method, Prototype, Single-

ton.

• Structural: Bridge, Composite, Decorator, Object

Adapter, Command, Proxy.

• Behavioral: Chain of Responsibility, Observer,

State-Strategy (they are considered together be-

cause of their identical structure; only their be-

havior is different), Template Method, Visitor.

State and Strategy have identical structures with dif-

ferent behaviors; in this study they are considered as

a single pattern.

2.4 Tools

To collect the data described above we employed

the following tools: (1) SonarQube

and an external

plug-in

to collect the code smells (Raibulet and Ar-

celli Fontana, 2018; Lenarduzzi et al., 2019), (2) Ar-

can

to collect architectural smells (Arcelli Fontana

et al., 2017), and (3) DPDT (Design Pattern Detec-

tion Tool)

to detect patterns (Tsantalis et al., 2006).

https://www.sonarqube.org

https://github.com/davidetaibi/sonarqube-anti-patterns

-code-smells

https://http://essere.disco.unimib.it/wiki/arcan

https://users.encs.concordia.ca/˜nikolaos/pattern

detection.html

SAS vs. NSAS: Analysis and Comparison of Self-Adaptive Systems and Non-Self-Adaptive Systems based on Smells and Patterns

493

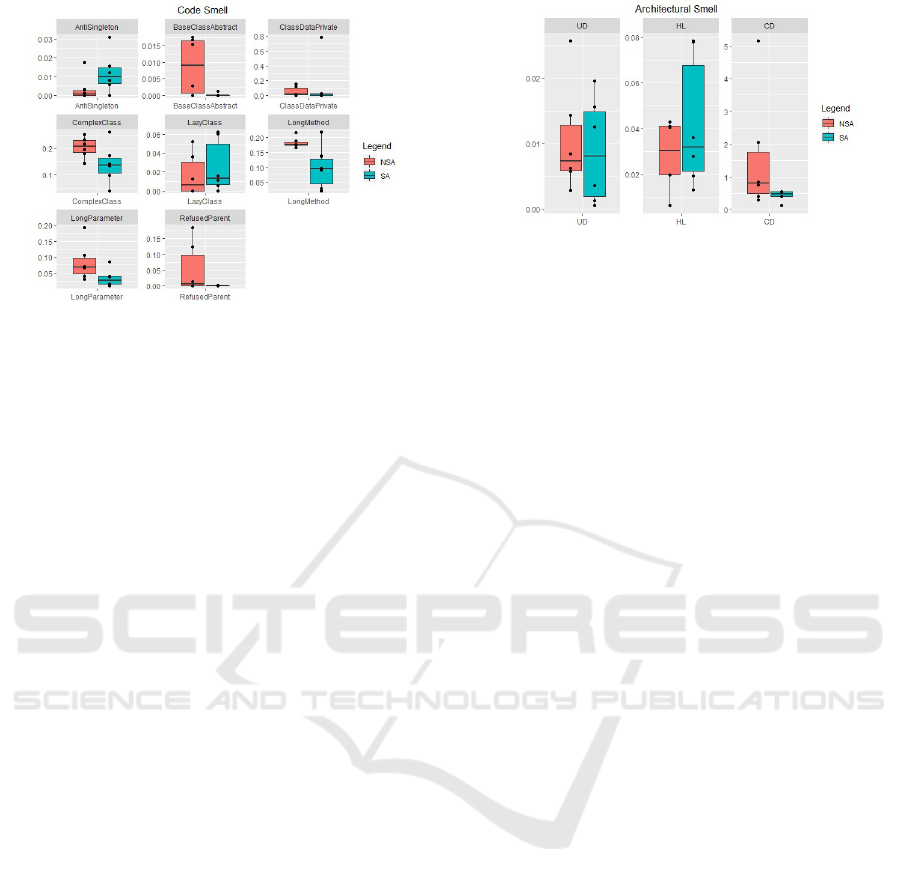

Figure 1: Box-Plot Results of Code Smells.

3 RESULTS

The results concerning the collected data about SAS

and NSAS shown in the tables in this section, have

been normalized based on the size, i.e., number of

classes or packages of each system so that the various

observations and comparisons can be made easily.

3.1 Results on Code Smell Detection

The code smells revealed in SAS and NSAS are sum-

marized in Table 3. 10 out of 18 code smells have not

been detected in SAS. The most detected code smells

in SAS are: ComplexClass, LongMethod, and Long-

ParameterList. Also AntiSingleton and LazyClass are

present in almost all SAS (except Lotus). The less

present code smells are: BaseClassShouldBeAbstract

and RefusedParentBequest (detected only in IE).

Looking at NSAS, there is one code smell present,

i.e., SwissArmyKnife in addition to the ones detected

in SAS. Also in NSAS, the most present code smells

are: ComplexClass, LongMethod, and LongParame-

terList. The less present code smells are: AntiSingle-

ton, LazyClass, and RefusedParentBequest.

Figure 1 shows the box-plots associated to the

values in Table 3. AntiSingleton, LazyClass,

and LongMethod occur more frequently in SAS

than in NSAS. BaseClassShouldBeAbstract, Class-

DataShouldBePrivate, and RefusedParentBequest oc-

cur seldom in SAS, while are frequent in NSAS.

3.2 Results on Architectural Smell

Detection

The architectural smells detected in SAS and NSAS

are summarized in Table 4. All are present in all SAS

and NSAS. From the results in Table 4 and Figure

Figure 2: Box-Plot Results of Architectural Smells.

2, the most interesting data concern the disparity be-

tween the number of CD present in SAS and NSAS.

The high number of CD is harmful: a single change

or bug in a package/class can have a strong effect on

many others parts of the project, due to the cyclic de-

pendencies.

UD and HL are more present in SAS than NSAS.

Their greater presence can be traced back to the intrin-

sic nature of SAS. UD, in fact, describes a subsystem

that depends on other subsystems that are less stable

than itself. The presence of instability is presumably

due to the fact that SAS must adapt and change their

behavior based on changing internal or external sys-

tem variables, this means that the various classes and

packages of the system have to be able to maintain the

highest possible degree of ﬂexibility. Also the number

of HD smells is a little higher because SAS operate in

dynamic environments and interact with other com-

ponents; they need to be able to analyze and adapt to

the changes in the surrounding environment simulta-

neously to ensure the quality of the provided services.

3.3 Results on Design Pattern Detection

The creational design patterns detected in the SAS

and NSAS are summarized in Table 5. There are three

SAS with no creational patterns: Adasim, DeltaIoT,

and Lotus. The most detected pattern is Singleton.

This may be mostly due to the implementation of the

MAPE-K managers. The less used pattern is Proto-

type. Looking at NSAS, most of them implement at

least a couple of creational patterns. Also in NSAS,

the most detected pattern is Singleton, while Proto-

type occurs only in JHotDraw.

The structural design patterns detected in the SAS

and NSAS are summarized in Table 6. The most de-

tected structural pattern in all SAS is Adapter. Com-

posite occurs in Lotus and Rainbow, while Proxy has

been detected in Rainbow. Looking at NSAS, the

most detected pattern is Adapter, while the less de-

tected are Composite and Proxy.

The behavioral design patterns detected in SAS

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

494

Table 3: Code Smells Detected in SAS and NSAS.

SAS NAME Adasim DeltaIoT IE Lotus Rainbow TAS

AntiSingleton 0.0310 0.0121 0.0157 0 0.0058 0.0078

BaseClassShouldBeAbstract 0 0 0.0012 0 0 0

ClassDataShouldBePrivate 0 0.0243 0.0787 0 0.0117 0.0156

ComplexClass 0.1718 0.1341 0.1393 0.0980 0.0386 0.0261

LazyClass 0.0625 0.0609 0.0157 0 0.0011 0.0052

LongMethod 0.2187 0.0975 0.0921 0.1372 0.0287 0.0209

LongParameterList 0.0156 0.0853 0.0387 0.0392 0.0093 0.0156

RefusedParentBequest 0 0 0.0012 0 0 0

NSAS NAME ANT PDFBOX Cobertura JHotDraw ProGuard Sunﬂow

AntiSingleton 0.0031 0 0.0174 0 0.0014 0

BaseClassShouldBeAbstract 0.0176 0.0154 0 0.0028 0.0169 0

ClassDataShouldBePrivate 0.0093 0 0.1511 0.0056 0.1244 0.0191

ComplexClass 0.1434 0.2164 0.2325 0.1797 0.2531 0.1961

LazyClass 0.0363 0.0128 0.0523 0 0 0

LongMethod 0.1663 0.2164 0.1744 0.1882 0.1753 0.1770

LongParamaterList 0.0301 0.1932 0.0406 0.0702 0.0664 0.1052

RefusedParentBequest 0.1850 0.0128 0 0 0.1244 0

SwissArmyKnife 0.0010 0 0 0 0.0990 0

Table 4: Architectural Smell Detected in SAS and NSAS.

SAS NAME Adasim DeltaIoT IE Lotus Rainbow TAS

UD 0.0156 0.0126 0.0036 0.0196 0.0005 0.0013

HL 0.0781 0.0366 0.0278 0.0784 0.0193 0.0130

CD 0.5312 0.4024 0.4048 0.5490 0.5530 0.1241

NSAS NAME ANT PDFBOX Cobertura JHotDraw ProGuard Sunﬂow

UD 0.0062 0.0257 0.0058 0.7556 0.4031 5.1483

HL 0.0062 0.0412 0.0406 0.0196 0.0198 0.0430

CD 0.8492 2.0644 0.2965 0.7556 0.4031 5.1483

and NSAS are summarized in Table 7. There are

three SAS (i.e., Adasim, DeltaIoT, and Lotus) im-

plementing only one behavioral pattern, i.e., State-

Strategy. The most detected behavioral pattern is

State-Strategy, while the less used are Chain of Re-

sponsibility and Visitor. Looking at NSAS, the most

detected behavioral patterns are State-Strategy and

Template Method, while the less detected ones are

Chain of Responsibility and Visitor.

Figure 3 shows the box-plots of the detection of

patterns grouped in categories. The use of creational

patterns is similar, while SAS implement less struc-

tural and behavioral patterns than NSAS.

4 THREATS TO VALIDITY

Different threats can be considered in this study. First,

we analyzed a small number of projects made avail-

able by the ICSE-SEAMS community. We work on

extending the number of analyzed SAS as new exem-

plars are added every year (Raibulet et al., 2020).

According to the results validity of the tools, we

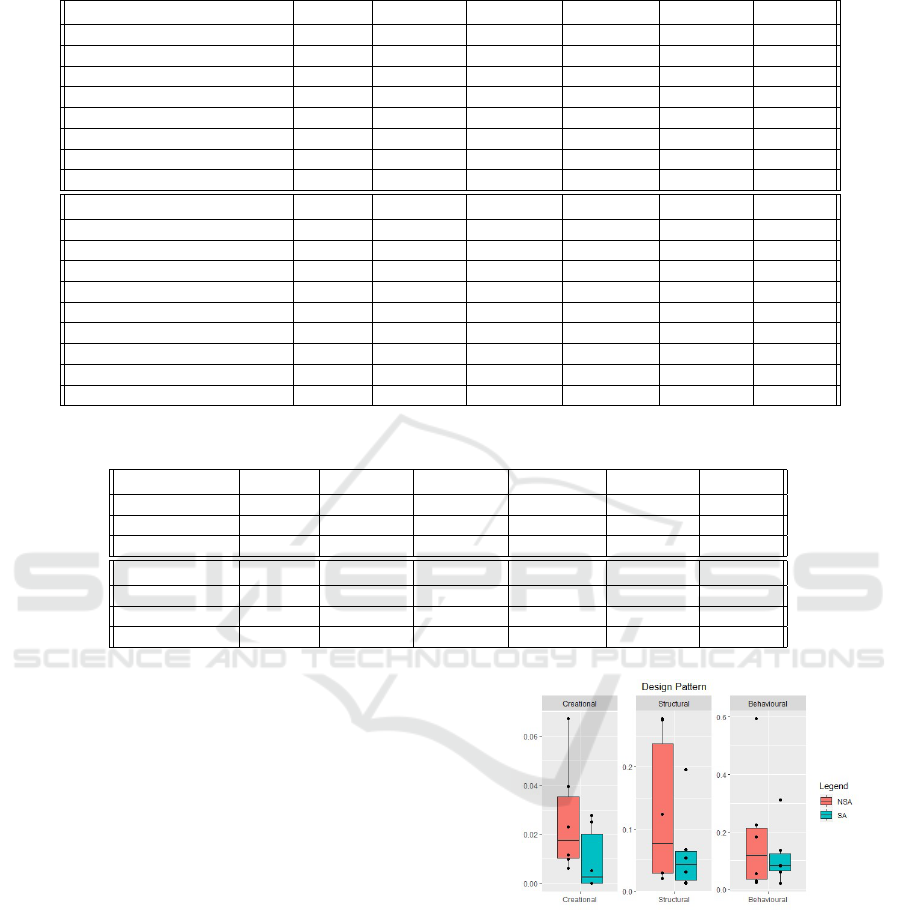

Figure 3: Box-Plot Results for Design Patterns.

used tools largely spread, e.g., SonarQube, or tools for

which papers on the validity of their results have been

published, e.g., DPDT (Tsantalis et al., 2006) and Ar-

can (Arcelli Fontana et al., 2017; Martini et al., 2018).

For the detection of the design patterns, we have used

DPDT, which detects 13 out of the 24 GoF’s patterns.

To detect all the GoF’s patterns we need various tools,

a single tool recognizes only a subset of patterns.

SAS vs. NSAS: Analysis and Comparison of Self-Adaptive Systems and Non-Self-Adaptive Systems based on Smells and Patterns

495

Table 5: Creational Design Patterns Detected in SAS and NSAS.

SAS NAME Adasim DeltaIoT IE Lotus Rainbow TAS

Factory Method 0 0 0.0060 0 0.0052 0.0013

Prototype 0 0 0 0 0.0005 0

Singleton 0 0 0.0218 0 0.0193 0.0039

NSAS NAME ANT PDFBOX Cobertura JHotDraw ProGuard Sunﬂow

Factory Method 0 0.0051 0 0.0084 0.0070 0.1913

Prototype 0 0 0 0.2528 0 0

Singleton 0.0062 0.0180 0.0116 0.0056 0.0028 0.0478

Table 6: Structural Design Pattern Detected in SAS and NSAS.

SAS NAME Adasim DeltaIoT IE Lotus Rainbow TAS

Object Adapter 0.0156 0.0121 0.0484 0.1764 0.0527 0.0052

Bridge 0.0156 0 0.0012 0 0.0046 0.0013

Composite 0 0 0 0.0196 0.0005 0

Decorator 0 0 0.0036 0 0.0076 0.0065

Proxy 0 0 0 0 0.0011 0

NSAS NAME ANT PDFBOX Cobertura JHotDraw ProGuard Sunﬂow

Object Adapter 0.0166 0.0154 0.0290 0.0730 0.1145 0.2344

Bridge 0.0010 0 0 0.0365 0.0014 0.0047

Composite 0 0 0 0.0056 0.0099 0

Decorator 0.0010 0 0 0.0117 0.1131 0.0239

Proxy 0 0.0051 0 0 0.0248 0.0143

5 CONCLUDING REMARKS

In this paper we analyzed which code and architec-

tural smells, and design patterns may be detected in

six SAS and outlined possible differences of the pres-

ence of these issues in SAS and NSAS. We provide

below the answers to the RQ deﬁned in Section 2.

RQ1: Less than half of the considered code smells

have been detected. In our opinion this is a positive

result. The most present code smells are: Complex-

Class, LongMethod, and LongParameterList. A pos-

sible explanation of this presence is that some classes

have management roles for the steps of the MAPE-

K loop and have more complex and long methods.

The less present code smells are BaseClassKnows-

DerivedClass and RefusedParentBequest.

RQ2: All the considered architectural smells have

been found in SAS, in particular UD and HD. Prob-

ably some of these smells are present for some spe-

ciﬁc features of SAS; thus, for the detection of these

smells in SAS, it may be useful to implement ﬁlters

to remove possible false positive instances.

RQ3: All the design patterns have been detected

in SAS and all SAS implement pattern. In partic-

ular, Object Adapter and State-Strategy patterns are

present in all the analyzed SAS. The two patterns suit

well with self-adaptivity because they enable struc-

tural and behavioral modiﬁcations at runtime.

RQ4: The detected code smells is similar in

SAS and NSAS. In NSAS, we detected also the

SwissArmyKnife smell. The presence of Complex-

Class, LongMethod, and LongParameterList should

be avoided in both SAS and NSAS. Further, architec-

tural smells are present both in SAS and NSAS: more

CD in NSAS, and more UD and HD in SAS. False

positive instances may be present in SAS, but they

may not represent real quality issues.

RQ5: The results on pattern detection are similar

in SAS and NSAS. The most used patterns are Single-

ton, Adapter, and State-Strategy; the less applied pat-

terns are Prototype, Composite, Proxy, Chain of Re-

sponsibility, and Visitor. However, the number of in-

stances of patterns detected in SAS and NSAS differs

(also because of the dimension of SAS): there are al-

most four times more structural, and three times more

beavioural instances in NSAS than in SAS.

In the future, we aim to extend our analysis to a

larger set of systems and to consider other software

quality metrics. We plan to analyze how the refac-

toring of the different kinds of smells may impact on

a set of software quality metrics. A future work will

concern the identiﬁcation of smells or anti-patterns, as

well as design patterns speciﬁc to SAS. The automate

detection of self-adaptive related issues is not yet sup-

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

496

Table 7: Behavioural Design Patterns Detected in SAS and NSAS.

SAS NAME Adasim DeltaIoT IE Lotus Rainbow TAS

Chain of Responsibility 0 0 0 0 0 0.0039

Observer 0 0 0.0763 0 0.0082 0

State-Strategy 0.0312 0.0609 0.0084 0.1372 0.0500 0.0013

Template Method 0 0 0 0 0.0222 0.0156

Visitor 0 0 0 0 0.0005 0

NSAS NAME ANT PDFBOX Cobertura JHotDraw ProGuard Sunﬂow

Chain of Responsibility 0 0 0 0 0.0028 0.0095

Observer 0.0031 0 0 0.0056 0.1032 0

State-Strategy 0.0155 0.0128 0.0232 0.1432 0.1060 0.1722

Template Method 0.0051 0.0154 0.0058 0.0337 0.0198 0.0813

Visitor 0 0.0257 0 0 0.0919 0.3301

ported by tools, as far as concerns our knowledge.

REFERENCES

Arcelli Fontana, F., Maggioni, S., and Raibulet, C. (2011).

Understanding the relevance of micro-structures for

design patterns detection. Journal of Systems and Soft-

ware, 84(12):2334–2347.

Arcelli Fontana, F., Maggioni, S., and Raibulet, C.

(2013). Design patterns: a survey on their micro-

structures. Journal of Software: Evolution and Pro-

cess, 25(1):27–52.

Arcelli Fontana, F., Pigazzini, I., Roveda, R., Tamburri,

D. A., Zanoni, M., and Nitto, E. D. (2017). Arcan: A

tool for architectural smells detection. In Intl Conf on

Software Architecture Workshops, Sweden, April 5-7,

2017, pages 282–285.

Chatzigeorgiou, A. and Manakos, A. (2010). Investigating

the Evolution of Bad Smells in Object-Oriented Code.

In 2010 Seventh Int’l Conf. the Quality of Information

and Communications Tech, pages 106–115. IEEE.

de Lemos, R., Giese, H., M

uller, H. A., and Shaw, M., ed-

itors (2013). Software Engineering for Self-Adaptive

Systems II - Intl Seminar, Dagstuhl Castle, Germany,

October 24-29, 2010 Revised Selected and Invited Pa-

pers, volume 7475 of LNCS. Springer.

Fowler, M. (1999). Refactoring: Improving the Design of

Existing Code. Addison-Wesley, Boston, MA, USA.

Gamma, E., Helm, R., Johnson, R. E., and Vlissides,

J. M. (1994). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley.

Garcia, J., Popescu, D., Edwards, G., and Medvidovic, N.

(2009). Identifying architectural bad smells. In Con-

ference on Software Maintenance and Reengineering,

pages 255–258, Germany. IEEE.

Kaddoum, E., Raibulet, C., Georg

e, J., Picard, G., and

Gleizes, M. P. (2010). Criteria for the evaluation of

self-* systems. In 2010 ICSE Workshop on Software

Engineering for Adaptive and Self-Managing Systems,

South Africa, May 3-4, 2010, pages 29–38.

Lenarduzzi, V., Lomio, F., Taibi, D., and Huttunen, H.

(2019). On the fault proneness of sonarqube techni-

cal debt violations: A comparison of eight machine

learning techniques. CoRR, abs/1907.00376.

Macia, I., Arcoverde, R., Cirilo, E., Garcia, A., and von

Staa, A. (2012). Supporting the identiﬁcation of

architecturally-relevant code anomalies. In Proc. 28th

IEEE Int’l Conf. Software Maintenance (ICSM 2012),

pages 662–665, Trento, Italy. IEEE.

Martini, A., Arcelli Fontana, F., Biaggi, A., and Roveda, R.

(2018). Identifying and prioritizing architectural debt

through architectural smells: a case study in a large

software company. In European Conf. on Software

Architecture, Spain, pages 320–335.

Peters, R. and Zaidman, A. (2012). Evaluating the Lifes-

pan of Code Smells using Software Repository Min-

ing. In 2012 16th European Conf. Softw. Maintenance

and ReEng., pages 411–416. IEEE.

Raibulet, C. and Arcelli Fontana, F. (2017). Evaluation

of self-adaptive systems: a women perspective. In

11th European Conf on Software Architecture, UK,

September 11-15, 2017, pages 23–30.

Raibulet, C. and Arcelli Fontana, F. (2018). Collaborative

and teamwork software development in an undergrad-

uate software engineering course. Journal of Systems

and Software, 144:409–422.

Raibulet, C., Arcelli Fontana, F., and Carettoni, S. (2020). A

preliminary analysis and comparison of self-adaptive

systems according to different issues. Software Qual-

ity Journal, In press.

Ramirez, A. J. and Cheng, B. H. C. (2010). Design patterns

for developing dynamically adaptive systems. In ICSE

Workshop on Software Engineering for Adaptive and

Self-Managing Systems, South Africa, pages 49–58.

Suryanarayana, G., Samarthyam, G., and Sharma, T.

(2015). Refactoring for Software Design Smells. Mor-

gan Kaufmann, 1 edition.

Tsantalis, N., Chatzigeorgiou, A., Stephanides, G., and

Halkidis, S. T. (2006). Design pattern detection us-

ing similarity scoring. IEEE Transaction on Software

Engineering, 32(11):896–909.

Walter, B. and Alkhaeir, T. (2016). The relationship

between design patterns and code smells: An ex-

ploratory study. Information and Software Technol-

ogy, 74:127 – 142.

Weyns, D. (2018). Software engineering of self-adaptive

systems: An organized tour and future challenges. El-

sevier, 19(1-–12):888–896.

SAS vs. NSAS: Analysis and Comparison of Self-Adaptive Systems and Non-Self-Adaptive Systems based on Smells and Patterns

497
