A Workﬂow for Automatically Generating Application-level Safety

Mechanisms from UML Stereotype Model Representations

Lars Huning, Padma Iyenghar and Elke Pulvermueller

Institute of Computer Science, University of Osnabrück, Wachsbleiche 27, 49090 Osnabrück, Germany

Keywords:

Code Generation, Embedded Software Engineering, Embedded Systems, Functional Safety, Model-Driven

Development, Voting.

Abstract:

Safety-critical systems operate in contexts where failure may lead to serious harm for humans or the environ-

ment. Safety standards, e.g., IEC 61508 or ISO 26262, provide development guidelines to improve the safety

of such systems. For this, they recommend a variety of safety mechanisms to mitigate possible safety hazards.

While these standards recommend certain safety mechanisms, they do not provide any concrete development

or implementation assistance for any of these techniques. This paper presents a detailed workﬂow, how such

safety mechanisms may be automatically generated from UML model representations in a model-driven de-

velopment process. We illustrate this approach by applying it to the modeling and automatic generation of

voting mechanisms, which are a wide-spread safety mechanism in safety-critical systems that employ some

form of redundancy for fault detection or fault masking. Finally, we study the scalability of the proposed code

generation via quantitative experiments.

1 INTRODUCTION

Safety-critical systems are a category of systems

whose failure may result in serious harm to human

life or the environment (Armoush, 2010). In recent

years, the size and complexity of the software used in

those systems has increased rapidly (Trindade et al.,

2014). In order to deal with the challenges arising

from this increased complexity, the use of Model-

driven development (MDD) has been proposed for

the development of safety-critical systems (Hatcliff

et al., 2014; Heimdahl, M. P. E., 2007). This pa-

per presents a model-driven approach for the develop-

ment of safety-critical systems by using Uniﬁed Mod-

eling Language (UML) stereotypes to specify safety

mechanisms within a UML application model. The

level of detail of these stereotypes is sufﬁcient to au-

tomatically generate productive source code for the

speciﬁed safety mechanisms via adequate model-to-

model transformations.

Modern MDD tools, such as IBM Rational Rhap-

sody (Rhapsody, 2020) or Enterprise Architect (En-

terprise Architect, 2020), already provide features

that enable the automatic code generation of basic

UML elements, such as classes and associations. As

source code may be generated automatically from

such application models, the model itself may be seen

as a form of implementation. Our approach builds

upon these features, by specifying one or more safety

mechanisms via UML stereotypes within this appli-

cation model. Then, our approach performs model-

to-model transformations by parsing these stereotypes

and adding UML elements related to the safety mech-

anism to an intermediate application model. The in-

termediate model consists of the original application

model manually designed by the developer, as well as

the safety-related UML elements added by the model-

to-model transformations. We use the term interme-

diate model, to emphasize that this model is just a

temporary and automatically generated artifact which

is used as the input for subsequent code generation.

The code generation itself may be achieved via the

code generation features of common MDD tools, as

the intermediate model already contains all elements

required for the code generation of the safety mech-

anisms. This paper introduces a detailed workﬂow

which explains the steps required to implement the

described approach for any safety mechanism. Ini-

tial, promising results regarding the application of

this workﬂow have already been reported in (Huning

et al., 2019, 2020). However, this is the ﬁrst time the

workﬂow itself is described in detail.

Besides introducing a workﬂow for the auto-

matic code generation of safety mechanisms via UML

216

Huning, L., Iyenghar, P. and Pulvermueller, E.

A Workﬂow for Automatically Generating Application-level Safety Mechanisms from UML Stereotype Model Representations.

DOI: 10.5220/0009517302160228

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 216-228

ISBN: 978-989-758-421-3

stereotypes, this paper provides an example usage of

this workﬂow. By providing a model representation

and automatic code generation for the widely-used

voting mechanisms, we not only illustrate the applica-

tion of our workﬂow, but also provide a second, novel

contribution in this paper.

In summary, this paper introduces the following,

novel contributions:

• A detailed workﬂow describing how a safety

mechanism may be modeled with UML stereo-

types and how this model representation may be

leveraged to automatically generate code for this

safety mechanism.

• A model representation and automatic code gen-

eration for a widely-used safety mechanism, i.e.,

voting mechanisms.

• Experimental evaluation for the scalability of our

approach.

The remainder of this paper is structured as follows:

Section 2 presents necessary background knowledge

on code generation via MDD, as well as basic safety

aspects. Based on this knowledge, section 3 intro-

duces an MDD workﬂow for the automatic gener-

ation of safety mechanisms from UML stereotypes.

Section 4 provides an exemplary usage of this work-

ﬂow by describing a MDD approach for the automatic

code generation of voting mechanisms. The scalabil-

ity of this approach is investigated in section 5. Sec-

tion 6 presents research related to our approach and

we provide a conclusion in section 7.

2 BACKGROUND

This section presents the current state of the art of

modern MDD tools and describes which of these fea-

tures are used in our approach. Additionally, we

give a short overview regarding the certiﬁcation re-

quirements for safety-critical software and the role of

safety standards in this process.

2.1 Automatic Code Generation from

Models

Current MDD tools, e.g, (Rhapsody, 2020; Enterprise

Architect, 2020), provide an integrated development

environment for modeling applications via UML and

automatically generating productive source code from

the application models. The extent of this code gen-

eration varies between tools, but they are generally

able to generate structural code from UML class dia-

grams. Classes, the signature of operations, as well as

attributes and associations in a class diagram are usu-

ally transformed to classes, method declarations and

member variables respectively in the target program-

ming language of the code generation. In this paper,

we provide examples with C++ as the target language

for code generation. We choose C++, as C or C++

are a common programming language for the imple-

mentation of safety-critical systems. However, our

approach only makes use of common object-oriented

programming concepts, such as classes. Thus it

may easily be transferred to other object-oriented lan-

guages.

The automatic code generation of current MDD

tools for dynamic behavior differs more widely be-

tween tools than the structural code generation de-

scribed above. Most tools support the feature of im-

plementing the body of operations textually in the tar-

get programming language. Some tools, e.g., (Rhap-

sody, 2020), also support automatic code generation

from behavioral UML diagrams, such as the state ma-

chine diagram or the activity diagram. However, the

code generated from these behavioral diagrams is of-

ten dependent upon a runtime execution framework

that is proprietary to the tool in which the diagram is

modeled. As we do not want to limit our solution to a

speciﬁc MDD tool, we only use the feature of speci-

fying the body of operations textually.

The MDD tools described above use UML as their

modeling language. Some authors argue that UML

is a sub-optimal modeling language to facilitate au-

tomatic code generation and propose their own alter-

natives, e.g., (Harrand et al., 2016). While they re-

port positive initial results based on feedback from

developers, these results are based on a handful of (in-

dustrial) case studies. It remains to be seen whether

their approaches gain a similar wide-spread accep-

tance among developers as UML does currently. The

workﬂow presented in section 3.2 remains compatible

with any modeling languages, as long as they contain

a mechanism for extending the modeling language

similar to UML stereotypes.

Stereotypes are an inbuilt feature of UML that

may be used to extend any metaclass in the UML

metamodel (OMG UML, 2017). Each stereotype may

contain a set of tagged values, that specify additional

attributes for the stereotype and allow for different

conﬁgurations of the same stereotype. A UML pro-

ﬁle may be used to group related stereotypes that are

deﬁned for speciﬁc purpose.

2.2 Safety

Due to its possible impact on human life and the

environment, the market for safety-critical systems

A Workﬂow for Automatically Generating Application-level Safety Mechanisms from UML Stereotype Model Representations

217

is partially regulated. Usually, products have to be

certiﬁed by a regulation body before they may en-

ter the market. A part of this certiﬁcation process

is the conformance to certain safety standards, e.g.,

ISO 26262 (ISO26262, 2018) in the automotive in-

dustry or IEC 62304 (IEC62304, 2011) in the med-

ical industry. If there does not exist a sector spe-

ciﬁc standard, IEC 61508 (IEC61508, 2010) often ap-

plies, which is a safety standard targeting the safety of

general electrical/electronic/programmable electronic

systems. IEC 61508 is also the basis for other safety

standards, such as ISO 26262. While some safety

standards, e.g., IEC 62304, mainly require that a cer-

tain development process is used to develop a safety-

critical product, many of the latest standards, e.g, ISO

26262 and IEC 61508, require speciﬁc documentation

of the possible safety hazards that may arise due to

the use of a speciﬁc safety-critical system and which

measures have been taken to mitigate these. This sen-

timent is also reﬂected by the safety research commu-

nity (Hatcliff et al., 2014).

Besides prescribing this sort of documentation,

some safety standards also recommend speciﬁc safety

mechanisms that have been proven in use for some

well known classes of hazards. For example, IEC

61508 recommends the use of error correcting codes

or other redundancy mechanisms to protect variable

memory ranges against transient soft errors. Such soft

errors, which manifest as bit-ﬂips within the memory,

may occur due to radiation effects triggered by cos-

mic rays or alpha particles emitted by the packaging

material of the device (Huning et al., 2019).

In this paper, we propose a workﬂow which il-

lustrates the modeling representation of these safety

mechanisms via UML stereotypes. Further, this

model representation may be used to automatically

generate productive source code for a given safety

mechanism. This complements other parts of the

safety standards, e.g., IEC 61508, which recommends

techniques for automatic code generation and the use

of computer-aided design tools, thereby greatly im-

proving the process of developing software for safety-

critical systems in accordance with the relevant stan-

dards.

3 WORKFLOW

This section describes a workﬂow to enable the auto-

matic code generation of safety mechanisms based on

UML stereotype model representations. It is divided

into two different perspectives. In order to provide

an overview of our approach, section 3.1 presents the

perspective of a developer D

implementing a spe-

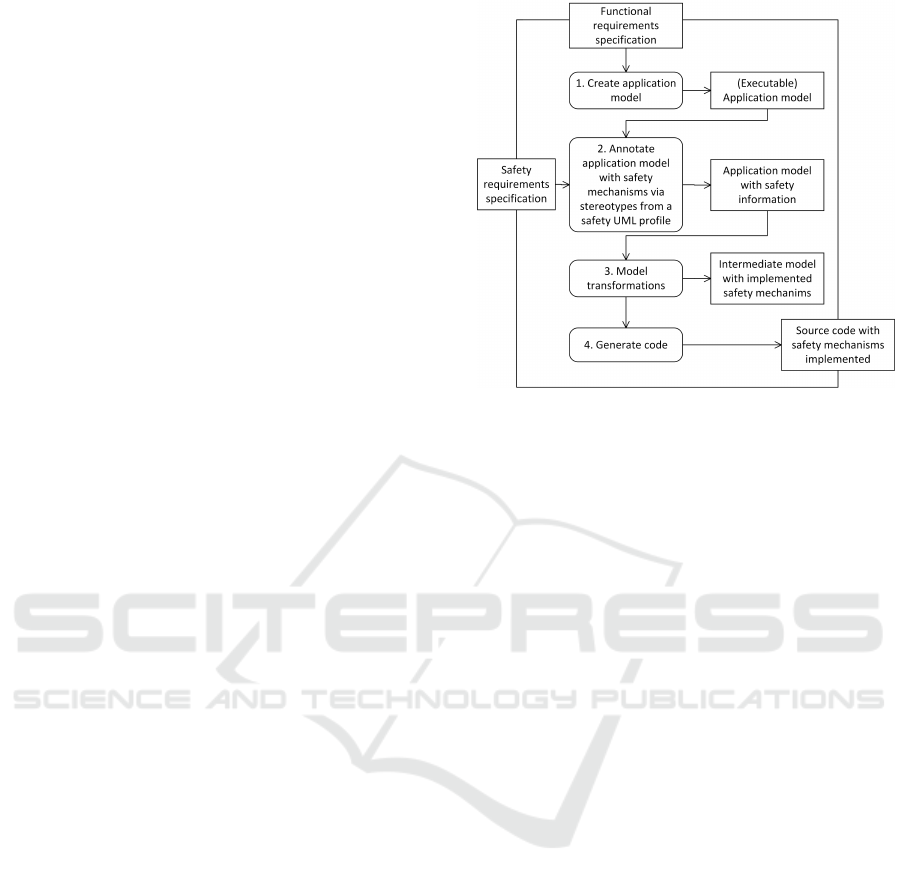

Figure 1: UML 2.5 activity diagram showing the workﬂow

of a developer who uses the results of the workﬂow pre-

sented in section 3.1.

ciﬁc safety-critical system. The developer uses UML

stereotypes to indicate safety mechanisms in the ap-

plication model and to generate code. Section 3.2

presents the perspective of a developer D

who aims

to provide a MDD-based framework that is responsi-

ble for the model representation and code generation

of the safety mechanisms used by developer D

3.1 Workﬂow for using Automatic Code

Generation for Safety Mechanisms

based on UML Stereotypes

Before we describe a workﬂow for providing auto-

matic code generation for safety mechanisms based

on UML steretoypes (cf. section 3.2), we ﬁrst de-

scribe how the results of that workﬂow may be used

by developers to include safety mechanisms within a

speciﬁc safety-critical application.

The workﬂow, from the perspective of the devel-

oper of a speciﬁc safety-critical application, is shown

in ﬁgure 1. While actions 1 and 2 of the workﬂow

have to be performed manually by the developer, ac-

tions 3 and 4 are automated in our approach. Each of

the actions is described in the following:

• At the start of the workﬂow (action 1), the devel-

oper creates a UML application model of the ap-

plication based on a functional requirements spec-

iﬁcation. Our approach assumes that this model

is created with a tool that provides at least basic

code generation for UML elements, e.g., (Rhap-

sody, 2020) or (Enterprise Architect, 2020).

• After the developer has created the application

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

218

model, he annotates the model with safety infor-

mation based on a safety requirements speciﬁca-

tion (action 2). In our approach, this safety infor-

mation is represented by applying UML stereo-

types to the relevant model elements. The avail-

able stereotypes originate from the workﬂow de-

scribed in section 3.2 and may be chosen from a

UML proﬁle in which the safety-related stereo-

types are grouped.

• The application model with safety information

serves as the input for a chain of model-to-

model transformations (action 3). In each step

of these transformations, the information of a

safety related stereotype is parsed and model-

to-model transformations are performed. These

model transformations realize the speciﬁed safety

mechanism in an intermediate application model.

This intermediate application model already ful-

ﬁlls each requirement of the safety requirement

speciﬁcation.

• The intermediate model may be used as the in-

put for model-to-text transformations (code gen-

eration, action 4). Depending on the extent of the

model transformations from action 3, this may ei-

ther be achieved via basic code generation from

common UML tools like Rhaposdy, or it may re-

quire additional, specialized model-to-text trans-

formations that have been speciﬁed as part of the

workﬂow described in section 3.2. The result of

this step is productive source code that may sub-

sequently be compiled and run on the target plat-

form.

3.2 Workﬂow for Providing Automatic

Code Generation for Safety

Mechanisms based on UML

Stereotypes

This section describes a workﬂow to enable the auto-

matic code generation of safety mechanisms based on

UML stereotype model representations. It is one of

the novel contributions of this paper and the basis for

performing the actions described in section 3.1.

The workﬂow is presented as a UML activity dia-

gram shown in ﬁgure 2. In the following, we describe

each action of this workﬂow.

Action 1: Identiﬁcation of a Safety Mechanism

As the ﬁrst action of the workﬂow, a safety mecha-

nism that is suitable for automatic code generation has

to be identiﬁed. As described in section 2.2, safety

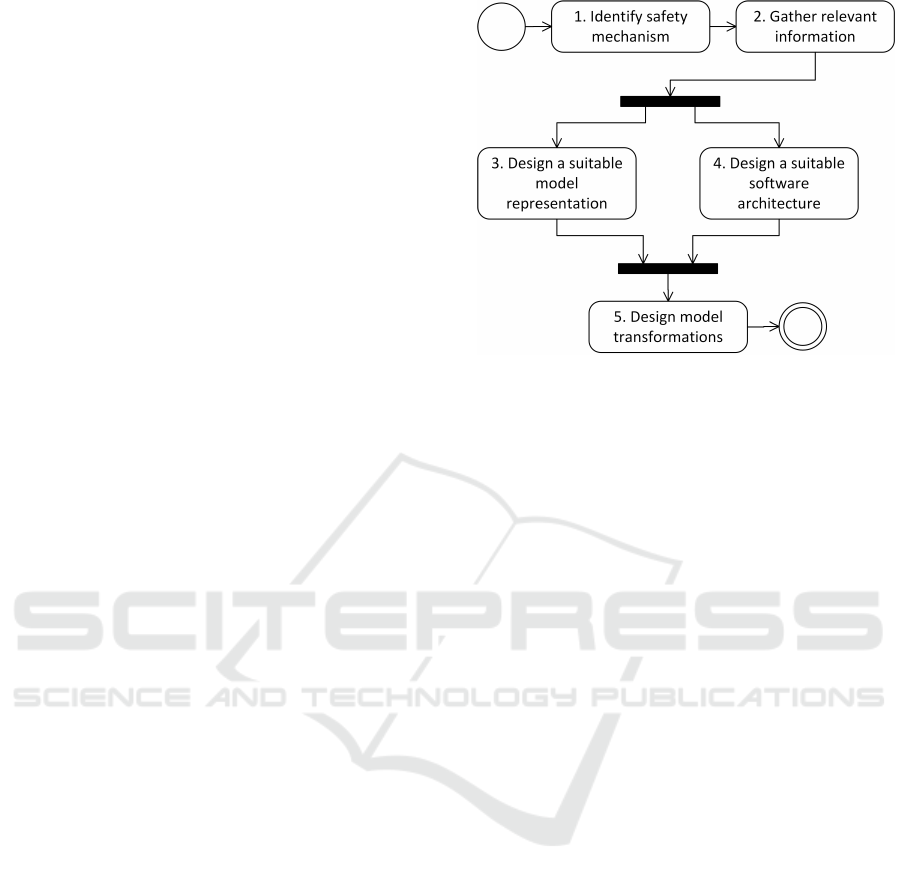

Figure 2: UML 2.5 activity diagram showing a workﬂow for

providing automatic code generation of safety mechanisms

based on UML stereotypes.

standards list a variety of safety mechanisms and pro-

vide information for the circumstances in which each

mechanism should be used. These safety mechanisms

have been included in the standards, as they have been

found useful for the development of many safety-

critical applications. Therefore, automatic code gen-

eration for a safety mechanism from a safety standard

is likely applicable to many safety-critical applica-

tions.

While the standards provide safety mechanisms

for a great variety of safety hazards, other hazards

may arise in individual safety-critical applications.

These hazards may require additional safety mech-

anisms that are not covered in a safety standard.

Such hazards and their mitigating safety mechanisms

may be identiﬁed through industrial collaboration or

searching relevant literature on safety-critical sys-

tems.

Besides simply identifying safety mechanisms, it

is also important that the mechanism is suitable for

automatic code generation. Conditions for this suit-

ability are further described in action 4 (code genera-

tion).

Action 2: Gathering Relevant Information

Once a safety mechanism has been identiﬁed, it is

necessary to gather relevant information about the

mechanism. In the following, we present some ex-

amples what such relevant information might entail:

• Identify Possible Conﬁguration Parameters of

the Safety Mechanism. Some safety mecha-

nisms have conﬁguration parameters that deter-

mine their level of effectiveness from a safety per-

spective. Often, this level of effectiveness is cor-

A Workﬂow for Automatically Generating Application-level Safety Mechanisms from UML Stereotype Model Representations

219

related to the runtime and/or memory overhead in-

curred by using the safety mechanisms. For exam-

ple, the M-out-of-N pattern, as described in (Ar-

moush, 2010), requires a parametrization regard-

ing how many instances (M) of a collection of re-

dundant copies (N), need to agree with each other

in order to assume that the system is operating in

a non-erroneous manner. Such parametrizations

have to be considered during the modeling (action

3) and code generation (action 4) actions of the

workﬂow.

• Identify Possible Variants of the Selected Safety

Mechanism. Some safety mechanisms may be

categorized as an abstract group of related mech-

anisms. Often, code generation for these related

mechanisms is similar and may therefore be de-

signed and implemented at the same time with

only little additional effort as opposed to design-

ing and implementing only a speciﬁc variant. An

example for this are the voting mechanisms de-

scribed in section 4 of this paper. The model rep-

resentation and code generation for different vot-

ing techniques (e.g., majority voting and plurality

voting) are very similar and may be implemented

with only little development and research over-

head.

• Identify Existing Model Representations. For

some safety mechanisms, model representations

may already exist. Depending on whether this

model representation already uses UML stereo-

types, this representation may either be adopted or

may serve as an inspiration for designing a model

representation based on UML stereotypes.

• Identify Existing Design Patterns and Software

Architectures. For some safety mechanisms, there

may already be design patterns or software archi-

tectures available that may be used as an inspi-

ration for the generated source code. For exam-

ple, existing design patterns for the safety mech-

anism graceful degradation have been used as the

basis for the code generation described in (Huning

et al., 2020).

Action 3: Designing a Suitable Model Representa-

tion

The information researched in action 2 may subse-

quently be used to design a model representation of

the selected safety mechanism based on UML stereo-

types. This encompasses two steps that depend upon

each other.

The ﬁrst step is to determine which information

may be represented as tagged values inside a UML

stereotype. Numeric data and simple strings that only

change a single parameter in the code generation are

suitable candidates for this. If there are variants of

the safety mechanism that (slightly) differ in context,

these variants may be modeled by introducing sev-

eral stereotypes that inherit from a top-level stereo-

type. Such an approach has been presented in (Hun-

ing et al., 2019) and is also used in section 4.

The second step is to determine which model ele-

ments are suitable for the application of these stereo-

types. A natural candidate for this is the model ele-

ment for which the code generation is going to be per-

formed, e.g., attributes in the case of error detection at

the level of individual variables (Huning et al., 2019)

or ports in the case of graceful degradation (Huning

et al., 2020). In some cases, it is necessary to intro-

duce more than one stereotype. For example, con-

sider a safety mechanism that covers a class y which

processes input data from several classes x

. Then,

the safety mechanism may contain parameters for the

class y, as well as the classes x

. Such input dependent

parameters may be modeled not only by applying a

stereotype to the class y, but also to the classes x

, or

the associations between y and x

. If multiple stereo-

types are employed, then the tagged values from step

1 of action 3 may have to be divided suitably between

all the stereotypes. An example for an actual safety

mechanism where this is the case is presented in sec-

tion 4.

Once these stereotypes have been designed, they

may be arranged in a UML proﬁle dedicated to the au-

tomatic code generation of the selected safety mecha-

nism (cf. section 4 for an example).

Action 4: Designing a Software Architecture Sui-

table for Automatic Code Generation

The information from action 2 may be used to de-

sign a software architecture for the safety mechanism

that is suitable for code generation. This architec-

ture should be easily extensible, because many safety

mechanisms come in variants that differ only in a spe-

ciﬁc aspect of the mechanism, e.g., the implementa-

tion of a speciﬁc function. The software architecture

should enable developers to add additional variants

with minimal overhead, e.g., by providing suitable in-

terfaces for extension.

As the generated code for the safety mechanism is

added to an existing application model, it is necessary

that the generated code integrates smoothly with this

application model. In our experience, this integration

is achieved best, when the code generation only adds

new model elements (e.g., classes, attributes) or mod-

iﬁes existing model elements within a very restricted

scope (e.g., modifying a private attribute within the

scope of a class). The scope is important for mod-

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

220

iﬁcations, as a wider scope may lead to an arbitrary

number of changes within the application model. For

example, changing the constructor of a class requires

changes at each location where the class is instanti-

ated.

Another relevant characteristic of the software

architecture arises from the safety-critical applica-

tion domain. In this domain, certain error-prone

programming constructs of some programming lan-

guages should not be used in order to improve safety.

An example for this is the MISRA

-C++ standard

which describes such rules for the C++ programming

language. Some of these rules may have profound in-

ﬂuence on the chosen software architecture and these

should be observed during the design of the architec-

ture. An example for this is rule 18-4-1 of MISRA-

C++, which forbids dynamic heap memory allocation.

Action 5: Designing and Implementing Model

Transformations

Once actions 3 and 4 are complete, model transforma-

tions may be implemented that parse the information

from the model representation that is the result of ac-

tion 3 and generate the source code for the software

architecture that is the result of action 4.

Similar to how the software architecture of the

generated code should be extensible (cf. action 4), the

implementation of the model transformations should

also allow for the implementation of additional vari-

ants of the safety mechanism. Parsing the information

from related variants of a safety mechanism is often

the same for each variant. Thus, extensibility may of-

ten be achieved by having a parsing process that is the

same for each variant and a transformation process

that differs between the different variants. An inter-

face that receives the parsed information may be used

to abstract the transformation process. A new variant

of a safety mechanism may then be implemented by

a realization of this interface, e.g., providing the spe-

ciﬁc source code for a method of the generated code

(cf. section 4 for an example).

The model transformations themselves may be

implemented as model-to-text (variant A) or model-

to-model (variant B) transformations. For the model-

to-model transformations, the result is an interme-

diate model which may then be the input of the

model-to-text (code generation) capabilities of com-

mon MDD tools, e.g., (Rhapsody, 2020; Enterprise

Architect, 2020). While both strategies are feasible,

we have found that variant A often includes many im-

Motor Industry Software Reliability Association.

MISRA C++2008. Guidelines for the use of C++ lan-

guage in critical systems.

plicit model-to-model transformations hidden in the

source code describing the model-to-text transforma-

tions. In order to make these implicit model-to-model

transformations directly visible to developers, we ad-

vocate variant B, which explicitly creates an interme-

diate model that may be viewed by developers if re-

quired.

4 GENERATING VOTING

MECHANISMS VIA MDD

This section applies the workﬂow described in sec-

tion 3.2 to voting mechanisms, which are a form of

safety mechanisms that are widely used in safety-

critical systems that rely on some form of redun-

dancy. By performing a voting process on the dif-

ferent redundant versions, faults may be detected or

even masked. Examples for such redundancy are the

use of multiple, redundant sensor inputs to mitigate

random errors and the use of N-version programming

to mitigate systematic errors.

On one hand this serves as an example usage of

the workﬂow presented in section 3.2. On the other

hand, automatic code generation for voting mecha-

nisms via MDD is itself a novel contribution of this

paper. The structure of this section mimics section 3.2

in order to show the steps and results of each action

of the workﬂow.

4.1 Identifying a Safety Mechanism for

Automatic Code Generation

In order to provide an example usage of the work-

ﬂow presented in section 3.2, we use the well-

established safety standard IEC 61508 as reference

material (IEC61508, 2010). It may be used as the ref-

erence safety standard for domains in which no spe-

ciﬁc safety standards exist and is also the basis for

many domain speciﬁc standards, e.g., for ISO 26262,

which targets safety in the automotive industry.

IEC-61508 describes safety mechanisms for the

mitigation of several safety hazards. Many of these

techniques rely on homogeneous or heterogeneous re-

dundancy in order to detect errors in the system. The

output of each of these sources of redundancy may

serve as input to a voting process. There exist differ-

ent types of voting processes. For an example, con-

sider majority voting (cf. section 4.2). In this type of

voting, all inputs to the voting process are compared

with each other. If a majority of the inputs agree with

each other, then the voting is considered successful.

In this case, the value upon which the majority of the

A Workﬂow for Automatically Generating Application-level Safety Mechanisms from UML Stereotype Model Representations

221

inputs agreed may be used for further calculations or

control ﬂow switches. If there is no majority between

the inputs, an application-speciﬁc error handling is

started.

Redundancy concepts and accompanying voting

processes are recommended several times in IEC

61508, e.g., for comparing outputs of processing

units or redundant memory storage. Further exam-

ples include voting over multiple, redundant sen-

sor inputs, comparing the output of different soft-

ware versions in N-version programming, and others.

As the use of voting mechanisms takes a prominent

role in IEC 61508 and is applicable to many safety-

related elements of the system (see previous exam-

ples), we choose to provide automatic code genera-

tion via MDD for voting mechanisms as an example

usage of the workﬂow presented in section 3.2.

4.2 Relevant Information on Voting

Mechanisms

In order to model voting mechanisms effectively, a

good understanding of the existing mechanisms is re-

quired. As a basis for this research, we used (Latif-

Shabgahi et al., 2004), which presents a taxonomy of

different voting mechanisms. Additionally, we also

consider (Armoush, 2010), which presents design pat-

terns for safety-critical systems. This includes voting

mechanisms. Additionally, we consider current ap-

proaches like (Rezaee et al., 2014; Linda and Manic,

2011) which often assign a different weight to each

voting input and dynamically update them based on

the results of the last voting process.

Based on these references, we identify two major

categories of voting mechanisms that are the focus of

our approach:

• Agreement voters, which compare the input of

each source of information and return a boolean

value depending on whether a predeﬁned amount

of voting inputs agree with each other. If enough

inputs agree with each other, then their results

may be used as input for subsequent processing

steps.

• Calculation voters, perform one or more calcula-

tions over the input sources and return a single

value that is the result of these calculations. An

example for this is the calculation of the arith-

metic mean over each input.

In order to demonstrate our approach, we select

several well established types of voting mechanisms

from both categories and present how code for these

mechanisms may be generated automatically. Fur-

ther voting mechanisms may be added easily to our

approach by employing the extensibility mechanisms

described in sections 4.3-4.5.

Agreement Voters

The agreement voters implemented as part of this pa-

per are:

• A majority voter, which compares all inputs with

each other. The voter returns true only if the ma-

jority of inputs agree with each other.

• A plurality voter, which compares all inputs with

each other, similar to the majority voter. How-

ever, the voter returns true if a predeﬁned number

m of inputs agree with each other. This number

m may be smaller than the strict majority of in-

puts. Often, this voter is used in a triple-modular-

redundancy fashion, where there are three voting

inputs of which at least two must agree with each

other (Armoush, 2010).

• A consensus voter, whose return value is the value

the most inputs agree upon. In contrast to the plu-

rality voter, no predeﬁned number of inputs has to

agree with each other.

Depending on the data type of the inputs of an agree-

ment voter, it may be sufﬁcient to simply compare

the values with each other (for example: boolean in-

puts). However, for other input spaces, like numeric

inputs, it may be necessary to additionally deﬁne a

range within which each input can agree. This is due

to rounding differences and the natural imprecision of

ﬂoating point numbers in programming.

Calculation Voters

The calculation voters implemented as part of this pa-

per are:

• A median voter, which calculates the median over

the inputs and returns this value as the result.

• An average voter, which calculates the arithmetic

mean of the inputs and returns this value as the

result.

• A weighted average voter, which calculates the

weighted arithmetic mean of the inputs and re-

turns this value as the result. This voter presents

an example for a voter that requires different

weights for each voting input, as is common

in many modern voting techniques like (Rezaee

et al., 2014).

Existing Modeling Approaches to Voting

There exist some approaches in the literature that

model voting mechanisms in UML. However, nei-

ther of these model representations are intended for

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

222

code generation and therefore may only be used as

an inspiration for our approach. These approaches

include (Zoughbi et al., 2011) and (Wu and Kelly,

2005), which apply a UML stereotype to the class that

performs the voting process. As both approaches have

a different focus, these stereotypes differ in their name

and tagged values. In (Wu et al., 2013), an industrial

case study of a safety-critical software architecture in

the avionics domain is presented. The presented ar-

chitecture employs a separate class that performs the

voting process. Each input for this voting class is pro-

vided by its own separate class. Consequently, the ac-

tuator that consumes the result of the voting process,

is also modeled as its own separate class. A similar

distribution of the voting process over several classes

is proposed in (Bernardi et al., 2012), although they

use deployment diagrams instead of class diagrams

like the other approaches.

Based on the model representations presented

above, we build upon the following key ideas in the

following sections:

• There exists a class in the software architecture

that is solely responsible for conducting the vot-

ing process. The inputs for this process are each

provided by separate classes or multiple objects

of the same class. Each consumer of the results of

the voting process is also modeled by a separate

class.

• A stereotype is used to indicate the class that

is solely responsible for conducting the voting

process. (As described in section 4.3, a second

stereotype is required to enable full code genera-

tion of voting mechanisms).

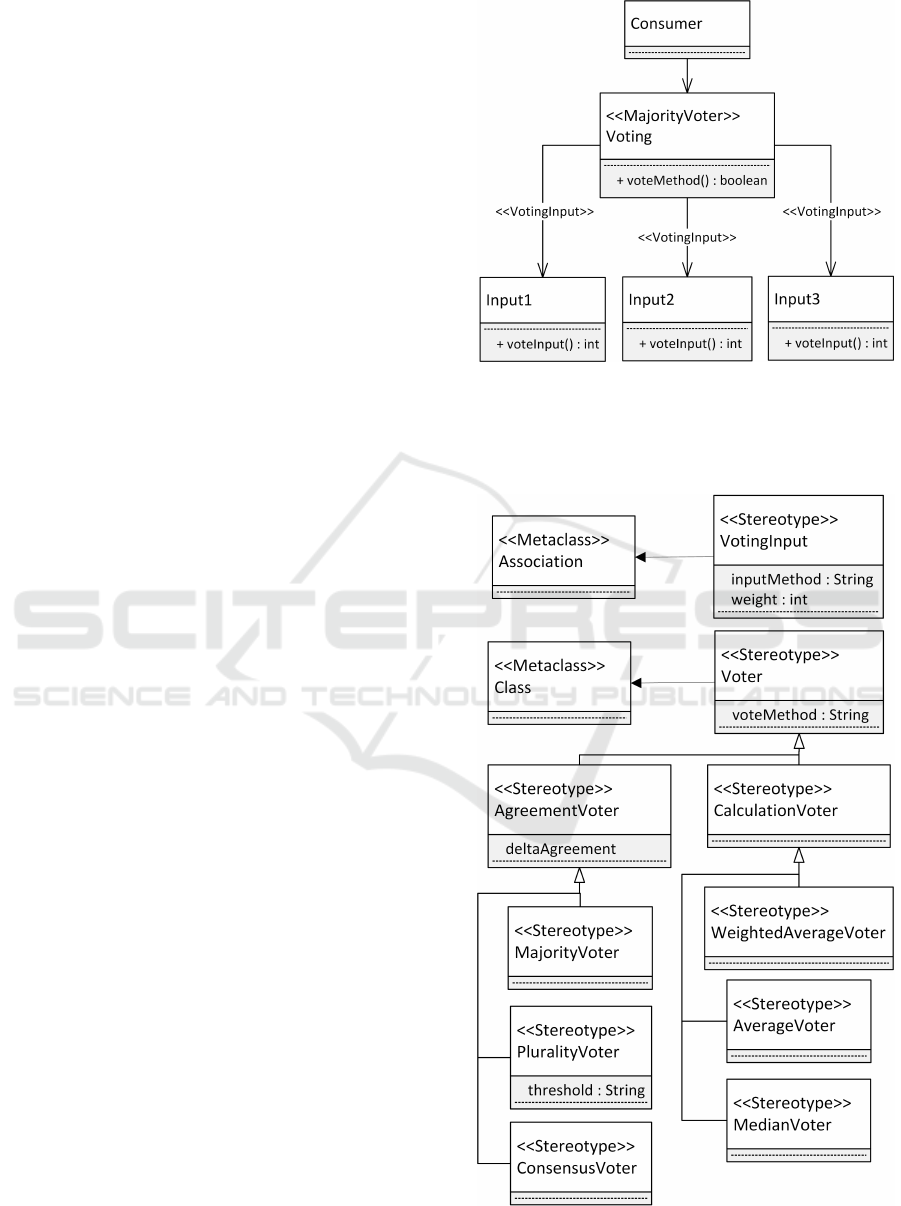

4.3 Modeling Voting Mechanisms via

UML Stereotypes

With the information gathered on voting mechanisms

in section 4.2, a model representation of these mech-

anisms may be designed based on UML stereotypes.

It is shown in ﬁgure 3.

The representation assumes that there is a class

dedicated to performing the voting process in the ap-

plication model (Voting in ﬁgure 3). Each source of

input for the voting process is also represented by its

own class (Input1, Input2 and Input3 in ﬁgure 3).

For brevity, we will refer to each of these input classes

as V

in the remainder of this section. There exists an

association between each class V

and Voting. This

allows Voting to access the public operations of each

. The output of the voting process is processed by

another class ( Consumer in ﬁgure 3).

Each of the aforementioned classes has to be

Figure 3: UML 2.5 class diagram illustrating the model

representation of voting mechanisms, as well as the soft-

ware architecture employed for automatic code generation.

Note that the return type int of the voteInput() methods

is only an example and may be of any data type.

Figure 4: UML 2.5 proﬁle for the automatic code genera-

tion of voting mechanisms.

A Workﬂow for Automatically Generating Application-level Safety Mechanisms from UML Stereotype Model Representations

223

added manually to the application model by the de-

veloper. Furthermore, each class V

and Consumer

also have to be implemented manually, as their im-

plementation is highly application-dependent. For ex-

ample we consider, two different safety critical appli-

cations. In a ﬁre detection system, the inputs to the

voting process may be obtained from relatively sim-

ple sensor hardware, e.g., a temperature-, humidity-

and CO

-sensor. However, in a complex autonomous

driving scenario, there may be sensor input from mul-

tiple cameras, radar, ultrasonic sensors, as well as

light detection and ranging (Lidar). In contrast to

the ﬁre detection system, each of these sensor values

require sophisticated pre-processing before they may

be used as an input for the voting process. For the

Consumer class there is a similar situation. In a ﬁre

detection system, the result of the voting process is a

boolean value, i.e., whether a ﬁre has been detected.

The consumer only has to sound an alarm in case this

boolean output of the voting process is true. For the

autonomous driving scenario, however, the output of

the voting process may be the distance to the car in

front. This information has an impact on many parts

of the vehicle, e.g., if the brakes of the vehicle need

to be activated and with how much force this braking

has to happen. If the distance to the car in front is too

small, it may even be necessary to activate the airbag

of the vehicle. The actual voting process, in contrast,

is largely application-independent. The process re-

ceives a set of inputs of the same data type and pro-

duces either a numeric or boolean output value. The

voting strategy, e.g., majority voting, does not require

any application-speciﬁc information. Due to this, our

approach is able to generate the entire code for the

class Voting

For this generation, the voting mechanism is mod-

eled by introducing several UML stereotypes. In ﬁg-

ure 3, the stereotype «MajorityVoter» has been ap-

plied to the class Voting in order to model that this

class performs a majority voting process. Here, «Ma-

jorityVoter» is only an example and one of many dif-

ferent variants of voting stereotypes. This is dis-

cussed further below. The associations between the

class Voting and the classes V

each contain their own

stereotype, «VotingInput». This stereotype is used

to indicate which of the classes that have an associ-

ation with Voting are actually used as a voting input.

This way, Voting may contain associations to other

classes that are independent of the voting process.

Each of the novel stereotypes contains a set of

tagged values further reﬁning the type of voting

mechanism that should be generated. They are dis-

played in a UML proﬁle in ﬁgure 4. The «Voting-

Input» stereotype may be applied to associations and

contains two tagged values. The tagged value weight

is used to indicate a relative weighting between the

voting input part of the stereotyped association and

the other voting inputs. The tagged value input-

Method is used to indicate which method in the

classes V

is accessible for Voting to obtain the in-

put data for the voting process. The order of these

events is further described in section 4.4.

Besides the «VotingInput» stereotype, the proﬁle

in ﬁgure 3 contains an inheritance hierarchy of stereo-

types all applicable to classes. This hierarchy is used

to differentiate which kind of voting process should

be used. At the top-level of this hierarchy is the

«Voter» stereotype, which does not specify a speciﬁc

voting process. The tagged value voteMethod enables

developers to deﬁne a custom name for the method

that should conduct the voting process. At the next

level of the inheritance hierarchy, the split between

agreement and calculation voters is modeled. The

«AgreementVoter» stereotype also introduces an op-

tional tagged value that may specify a delta value for

the comparison of numeric inputs. At the bottom level

of the inheritance hierarchy are the speciﬁc voting

stereotypes. These are the stereotypes that should be

applied by developers. New types of voting mecha-

nisms may be introduced by creating a stereotype at a

suitable level of the inheritance hierarchy. The tagged

values of this new stereotype may be used to specify

any kind of additional information that the new voting

process requires.

4.4 An Extensible Software

Architecture for Voting Mechanisms

This section further describes the software architec-

ture introduced as part of the model representation for

voting mechanisms in section 4.3. It is displayed in

ﬁgure 3, which is also located in section 4.3. A single

class, Voting in ﬁgure 3, is responsible for conduct-

ing the voting process. The results of that process are

consumed by another class (Consumer in ﬁgure 3) and

the inputs to Voting are each provided by a separate

class V

(Input1, Input2, Input3 in ﬁgure 3).

Figure 5 shows a sequence diagram that illustrates

how the actual voting process is performed. The vot-

ing process is started by the consumer of the voting re-

sults, which calls voteMethod() in the Voting class.

The code for the voteMethod() class is entirely gen-

erated by our approach, as described in section 4.5.

The return value of this method is a boolean that in-

dicates whether the vote was successful in the case of

agreement voting. For calculation voting, the return

value is always true. The consumer also requires ac-

cess to the result of the calculation voting or the value

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

224

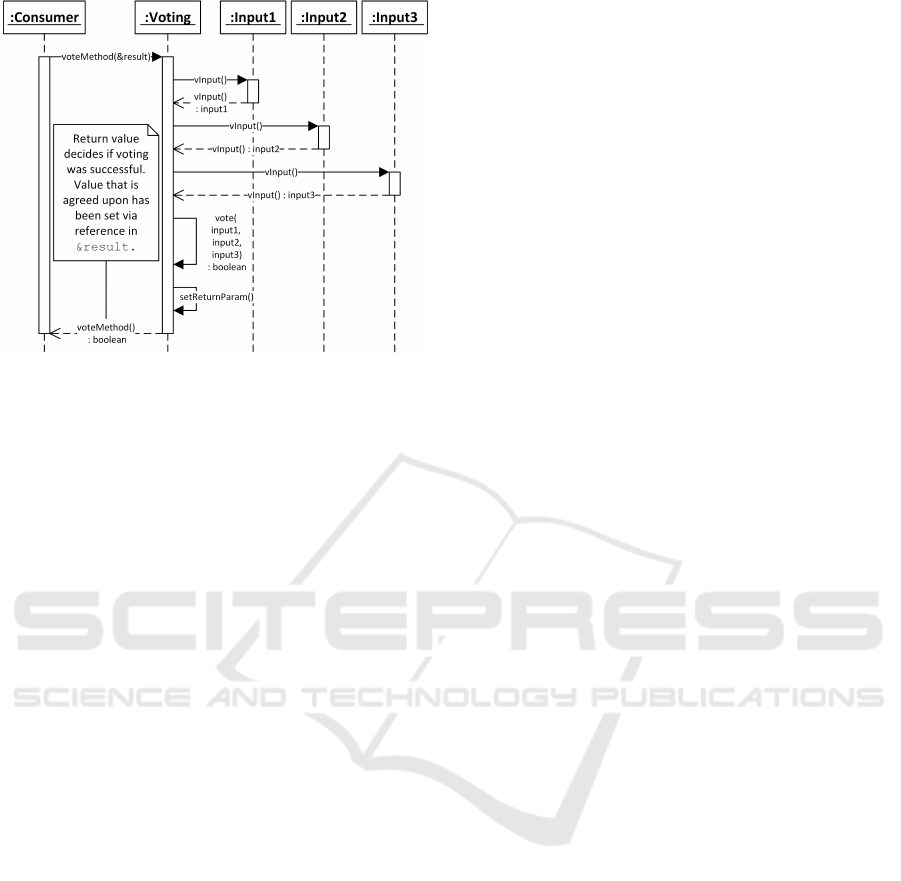

Figure 5: UML 2.5 sequence diagram showing the voting

process within the software architecture employed in this

paper.

upon which the inputs agree during agreement voting.

As this is a second return value, we use a reference

variable as a function parameter for voteMethod().

This is an output parameter and it will contain the

aforementioned second return value after the method

has completed. Once voteMethod() has been called,

Voting queries each of the input classes V

. This in-

put is used in a method vote() that is automatically

generated by the model transformations described in

section 4.5. Afterwards the output parameter is set

to its correct value and the voteMethod() returns a

boolean indicating the success of the voting process.

Different types of voting may be realized by

different implementations of the voteMethod(),

thereby providing a well-deﬁned extension point for

our software architecture. These different imple-

mentations are generated automatically by the model

transformations explained in section 4.5.

4.5 Model Transformations for

Automatic Code Generation of

Voting Mechanisms

Based on the model representation and software ar-

chitecture described in sections 4.3 and section 4.4,

this section describes how the software architecture

may be generated automatically from the model rep-

resentation. The implementation of these model

transformations may be achieved via general purpose

model transformation languages, e.g., ATL (Jouault

et al., 2006), or via tool-speciﬁc model transforma-

tion features, e.g., the Java API provided by the MDD

tool IBM Rational Rhapsody. The steps of the model

transformations are described in the following:

• In the ﬁrst step of the model transformation, all

classes of the model are checked for whether

they contain a stereotype that extends the «Voter»

stereotype from the UML proﬁle introduced in

section 4.3. For each class where this is the case,

the class A

is stored temporarily in a set A. The

tagged values of the stereotype for a speciﬁc A

are stored in a corresponding set TA

• In the second step, for each class in the set A, all

associations are checked for whether they contain

the stereotype «VotingInput». For each associ-

ation that does contain this stereotype, the class

that is not in the set A is stored in a set B

, which

contains all the input classes for a class A

. The

tagged values of that association are stored in a

corresponding set T B

. The information of the

input() methods in B

are also checked for their

return types. If the return types are not the same

for each input source, the model transformations

are aborted with a suitable error message.

• Next, each class A

in the set A is transformed.

If there exists no method in A

whose name cor-

responds to the tagged value voteMethod of the

corresponding stereotype, this method is added to

the class. If the method already exists and con-

tains any sort of code, the developer is warned

with a suitable error message, that this code will

be overwritten as part of the model transforma-

tions. Next, if the voter stereotype inherits from

the «AgreementVoter» stereotype, a member vari-

able that reﬂects the deltaAgreement tagged value

is declared in A

. If any of the «VotingInput» asso-

ciations for v

has a value set for the weight tagged

value, then this value is stored as a member vari-

able inside A

. If no value is set for weight, then a

weight of 1 is assumed.

• The method body of voteMethod() is generated.

This is the only step in which the model trans-

formations differ between different voters. The

software architecture that implements the model

transformations described in this section may be

made extensible, by introducing an interface x

with a method for generating the voteMethod()

body. The inputs of this method are the sets A

and B, as well as all corresponding TA

and T B

sets. Then, for any voter that should be gener-

ated, a class realizing the interface x may be im-

plemented. The name of this class should con-

tain the name of the corresponding stereotype,

which enables automatic location and instantia-

tion of this class via reﬂection mechanisms. Thus,

a new voter may be included in the model trans-

formations by simply realizing the interface x for

this voter.

A Workﬂow for Automatically Generating Application-level Safety Mechanisms from UML Stereotype Model Representations

225

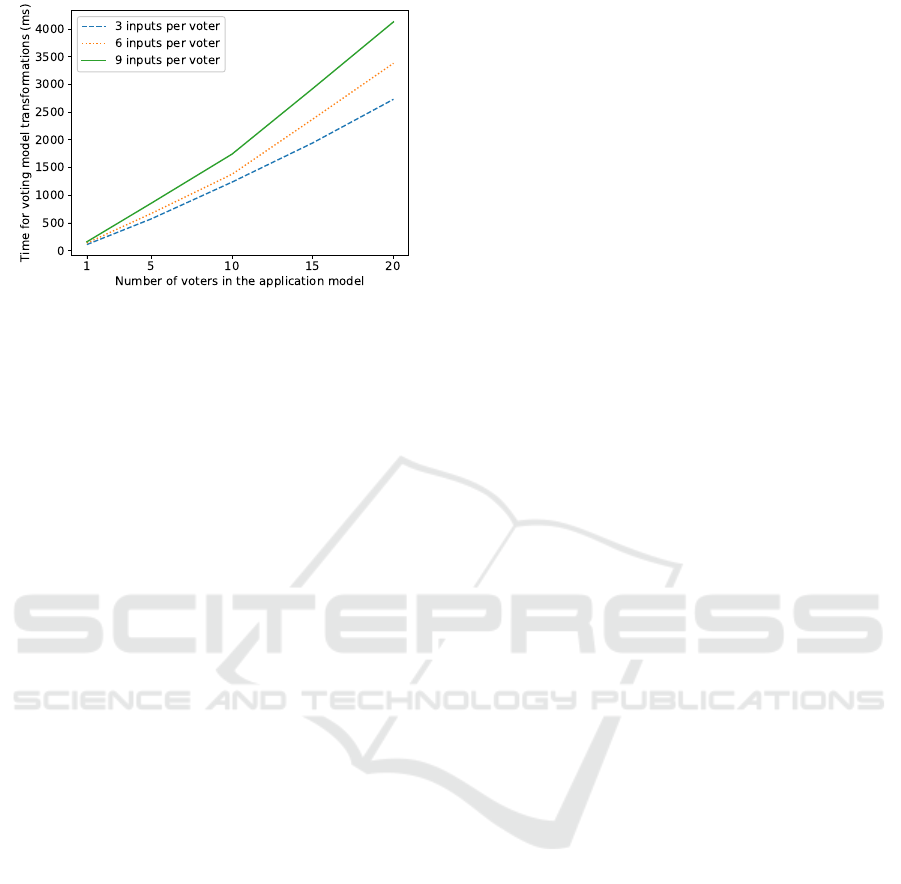

Figure 6: Runtime of model transformations that generate

the voting mechanisms.

5 SCALABILITY

In order to evaluate the scalability of our proposed ap-

proach for the automatic generation of voting mech-

anisms, we implemented the model transformations

described in section 4.5 for the MDD tool IBM Ra-

tional Rhapsody (Rhapsody, 2020), which is widely

used in the industry (Laplante and DeFranco, 2017).

For this, we employed Rhapsody’s Java API, which

provides features to create, delete and modify model

elements within a Rhapsody project.

In theory, the runtime of the model transforma-

tions should grow linearly with the number of classes

and associations that contain a stereotoype from the

proﬁle introduced in section 4.3. In order to con-

ﬁrm this, we implemented several example applica-

tions that contain various amounts of voters and vot-

ing inputs. For each application, we measured the

time of Rhapsody’s code generation from the appli-

cation model without our model transformations en-

abled (t

org

). Then, we measured the time for code

generation with our model transformations enabled

). The difference of these two measurements

di f f

= t

− t

org

) is plotted in ﬁgure 6 for each appli-

cation that is tested. The x-axis shows how many vot-

ers were employed in the example application, while

the y-axis shows t

di f f

for the application. For each

number of voters tested, we also tested three different

numbers (3, 6, 9) of voting inputs per voter. These

different numbers of inputs per voter cover most real-

istic scenarios, as these typically use between 3 to 5

inputs per voter (Latif-Shabgahi et al., 2004).

The experimental results conﬁrm a linear increase

in runtime of the model transformations correspond-

ing to the number of stereotypes from the proﬁle

introduced in section 4.3. This suggests that our

approach is suitable even for large safety-critical

projects.

6 RELATED WORK

This section presents research that is related to our

approach.

From a safety perspective, there exist several ap-

proaches that target other phases of the safety life cy-

cle than ours. While our approach targets the mod-

eling and actual implementation of the safety mech-

anisms, there are other approaches which focus on

earlier stages of the safety lifecycle, e.g., specify-

ing safety hazards, safety goals or performing fault

tree analysis (Tanzi et al., 2014; Beckers et al., 2014;

Yakymets et al., 2015). These approaches may be

used in conjunction with ours, as they help to deter-

mine which safety mechanisms should be used in the

application, while our approaches is concerned with

the actual realization of these mechanisms.

Related work on code generation from models

has already been partially discussed in 2.1. There

are MDD tools, e.g., (Rhapsody, 2020; Enterprise

Architect, 2020), that provide basic code generation

from UML models, upon which our approach builds.

Code generation from UML models is also an ac-

tive research topic among the academic community,

e.g. (Sunitha and Samuel, 2019). Code generation

from modeling languages other than UML is also dis-

cussed in the literature, e.g, in (Harrand et al., 2016).

There also exists research regarding code genera-

tion of selected safety-critical areas. The approaches

described in (Huning et al., 2019, 2020), which pro-

vide automatic code generation for memory protec-

tion and graceful degradation, are most closely related

to our approach, as they derive their solution by ap-

plying the workﬂow presented in this paper. In con-

trast to this paper, they do not describe this workﬂow

and they also do not consider the code generation of

voting mechanisms.

Our approach makes heavy use of UML stereo-

types and their corresponding UML proﬁles. The

UML MARTE proﬁle provides a set of stereotypes

related to the development of embedded systems, but

does not consider safety or code generation (OMG

MARTE, 2008). Dependability and rudimentary

safety aspects have been provided in the DAM pro-

ﬁle (Bernardi et al., 2011). Modeling safety and secu-

rity in combination has been proposed in (SAFURE,

2017). However, for each of these approaches the

level of detail of the presented stereotypes is too low

to be usable for code generation.

Related work on voting mechanisms includes the

taxonomy mentioned in section 4.2 (Latif-Shabgahi

et al., 2004), as well as modern voting approaches

like (Rezaee et al., 2014; Linda and Manic, 2011).

They describe novel voting mechanisms, while our

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

226

approach aims at modeling and automatically gener-

ating existing voting mechanisms. Therefore, their

work is orthogonal to ours and their approaches may

be implemented as part of our approach. The com-

bination of voting mechanisms, modeling and code

generation has also been studied in (Hu et al., 2017).

However, they design their own framework for this

purpose and do not build atop a wide-spread model-

ing language such as UML. There also exist modeling

approaches for voting mechanisms that do not con-

sider code generation. These include (Bernardi et al.,

2012; Wu and Kelly, 2005), which target dependabil-

ity modeling and analysis, as well as (Zoughbi et al.,

2011), which models voting mechanisms as part of a

larger UML safety proﬁle for the avionics domain.

Last but not least, MDD-based automatic gen-

eration approaches have been applied to other non-

functional properties, such as timing (Noyer et al.,

2016) and energy (Iyenghar and Pulvermueller,

2018).

7 CONCLUSION

This paper describes a detailed and novel MDD work-

ﬂow for the automatic code generation of safety

mechanisms based on UML stereotypes. Such safety

mechanisms are used in safety-critical systems. These

are a category of systems in which failure may lead to

serious harm of human life or the environment. Our

workﬂow builds upon the basic code generation fea-

tures of modern MDD tools. Initially, our approach

parses the model representation of the safety mecha-

nism by parsing the corresponding UML steretoype.

Afterwards, model-to-model transformations are em-

ployed to add new UML model elements speciﬁc to

the safety mechanism to the application model. The

resulting intermediate model may be used as input

to the inbuilt code generation of many of the cur-

rent MDD tools, thereby generating productive source

code that is capable of performing the safety mecha-

nisms at runtime.

We illustrate the application of the workﬂow by

providing abstract code generation for a widely-used

group of safety mechanism, i.e., voting mechanisms.

For this, we introduce a novel model representa-

tion and describe the software architecture and model

transformations required to automatically generate

code from the model representation. We perform

experimental evaluations that indicate a linear run-

time for the employed model transformations, thereby

demonstrating that the proposed approach is scalable.

Future work may provide model representations

and automatic code generation for other safety mech-

anisms. Additionally, the feasibility of our approach

in an industrial use case scenario may be demon-

strated. A new research direction may also lie in the

use of our proposed model representations for the pur-

pose of safety certiﬁcation.

ACKNOWLEDGMENTS

This work was partially funded by the German Fed-

eral Ministry of Economics and Technology (Bun-

desministeriums fuer Wirtschaft und Technologie-

BMWi) within the project “Holistic model-driven de-

velopment for embedded systems in consideration of

diverse hardware architectures” (HolMES).

REFERENCES

Armoush, A. (2010). Design Patterns for Safety-Critical

Embedded Systems. PhD thesis, RWTH Aachen Uni-

versity.

Beckers, K., Côté, I., Frese, T., Hatebur, D., and Heisel,

M. (2014). Systematic derivation of functional safety

requirements for automotive systems. In Bondavalli,

A. and Di Giandomenico, F., editors, Computer

Safety, Reliability, and Security, pages 65–80, Cham.

Springer International Publishing.

Bernardi, S., Merseguer, J., and Petriu, D. (2011). A de-

pendability proﬁle within MARTE. Software and Sys-

tem Modeling, 10:313–336.

Bernardi, S., Merseguer, J., and Petriu, D. C. (2012). De-

pendability Modeling and Assessment in UML-Based

Software Development. In TheScientiﬁcWorldJour-

nal.

Enterprise Architect (2020). Enterprise Architect.

https://sparxsystems.com/products/ea/index.html (ac-

cessed 1st February 2020).

Harrand, N., Fleurey, F., Morin, B., and Husa, K. E. (2016).

Thingml: A language and code generation frame-

work for heterogeneous targets. In Proceedings of the

ACM/IEEE 19th International Conference on Model

Driven Engineering Languages and Systems, MOD-

ELS ’16, page 125–135, New York, NY, USA. Asso-

ciation for Computing Machinery.

Hatcliff, J., Wassyng, A., Kelly, T., Comar, C., and Jones, P.

(2014). Certiﬁably safe software-dependent systems:

Challenges and directions. In Proceedings of the Con-

ference on The Future of Software Engineering, FOSE

2014, pages 182–200, New York, NY, USA. ACM.

Heimdahl, M. P. E. (2007). Safety and software intensive

systems: Challenges old and new. In 2007 Future

of Software Engineering, FOSE ’07, pages 137–152,

Washington, DC, USA. IEEE Computer Society.

Hu, T., Bertolott, I. C., and Navet, N. (2017). Towards

seamless integration of n-version programming in

model-based design. In 2017 22nd IEEE International

Conference on Emerging Technologies and Factory

Automation (ETFA), pages 1–8.

A Workﬂow for Automatically Generating Application-level Safety Mechanisms from UML Stereotype Model Representations

227

Huning, L., Iyenghar, P., and Pulvermueller, E. (2019).

UML speciﬁcation and transformation of safety fea-

tures for memory protection. In Proceedings of

the 14th International Conference on Evaluation of

Novel Approaches to Software Engineering, Herak-

lion, Crete, Greece. INSTICC, SciTePress.

Huning, L., Iyenghar, P., and Pulvermueller, E. (2020). A

UML proﬁle for automatic code generation of opti-

mistic graceful degradation features at the applica-

tion level. In Proceedings of the 8th International

Conference on Model-Driven Engineering and Soft-

ware Development, MODELSWARD, Valetta, Malta.

INSTICC, SciTePress.

IEC61508 (2010). IEC 61508 Edition 2.0. Functional

safety for electrical/electronic/programmable elec-

tronic safety-related systems.

IEC62304 (2011). Medical device software - Software life-

cycle processes: IEC 62304.

ISO26262 (2018). ISO 26262 Road vehicles – Functional

safety. Second Edition.

Iyenghar, P. and Pulvermueller, E. (2018). A model-

driven workﬂow for energy-aware scheduling analy-

sis of IoT-enabled use cases. IEEE Internet of Things

Journal.

Jouault, F., Allilaire, F., Bezivin, J., and Kurtev, I. (2006).

ATL: A model transformation tool. Science of Com-

puter Programming, 72(1-2).

Laplante, P. A. and DeFranco, J. F. (2017). Software

engineering of safety-critical systems: Themes from

practitioners. IEEE Transactions on Reliability,

66(3):825–836.

Latif-Shabgahi, G., Bass, J. M., and Bennett, S. (2004).

A taxonomy for software voting algorithms used in

safety-critical systems. IEEE Transactions on Relia-

bility, 53(3):319–328.

Linda, O. and Manic, M. (2011). Interval type-2 fuzzy

voter design for fault tolerant systems. Inf. Sci.,

181(14):2933–2950.

Noyer, A., Iyenghar, P., Engelhardt, J., Pulvermueller, E.,

and Bikker, G. (2016). A model-based framework en-

compassing a complete workﬂow from speciﬁcation

until validation of timing requirements in embedded

software systems. Software Quality Journal.

OMG MARTE (2008). A UML Proﬁle for MARTE: Mod-

eling and Analysis of Real-Time Embedded Systems.

Technical report, Object Management Group.

OMG UML (2017). OMG Uniﬁed Modeling Language

Version 2.5.1. Technical report, Object Management

Group.

Rezaee, M., Sedaghat, Y., and Khosravi-Farmad, M. (2014).

A conﬁdence-based software voter for safety-critical

systems. In 2014 IEEE 12th International Confer-

ence on Dependable, Autonomic and Secure Comput-

ing, pages 196–201.

Rhapsody (2020). IBM. Rational Rhapsody Developer.

https://www.ibm.com/us-en/marketplace/uml-tools

(accessed 2nd February 2020).

SAFURE (2017). Architecture models and pat-

terns for safety and security. Deliverable

D2.2 from EU-research project SAFURE.

https://safure.eu/publications-deliverables (accessed

3rd February 2020).

Sunitha, E. and Samuel, P. (2019). Automatic Code Gener-

ation From UML State Chart Diagrams. IEEE Access,

7:8591–8608.

Tanzi, T. J., Textoris, R., and Apvrille, L. (2014). Safety

properties modelling. In 2014 7th International Con-

ference on Human System Interactions (HSI), pages

198–202. IEEE Computer Society.

Trindade, R., Bulwahn, L., and Ainhauser, C. (2014).

Automatically generated safety mechanisms from

semi-formal software safety requirements. In Bon-

davalli, A. and Di Giandomenico, F., editors, Com-

puter Safety, Reliability, and Security, pages 278–293,

Cham. Springer International Publishing.

Wu, J., Yue, T., Ali, S., and Zhang, H. (2013). Ensuring

safety of avionics software at the architecture design

level: An industrial case study. In 2013 13th Interna-

tional Conference on Quality Software, pages 55–64.

Wu, W. and Kelly, T. (2005). Failure modelling in software

architecture design for safety. SIGSOFT Softw. Eng.

Notes, 30(4):1–7.

Yakymets, N., Perin, M., and Lanusse, A. (2015). Model-

driven multi-level safety analysis of critical systems.

In 9th Annual IEEE International Systems Confer-

ence, pages 570–577. IEEE Computer Society.

Zoughbi, G., Briand, L., and Labiche, Y. (2011). Modeling

safety and airworthiness (RTCA DO-178B) informa-

tion: Conceptual model and UML proﬁle. Software

and System Modeling, 10:337–367.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

228
