Adaptive Fog Service Placement for Real-time Topology Changes in

Kubernetes Clusters

Tom Goethals

, Bruno Volckaert

and Filip de Turck

Department of Information Technology, Ghent University - imec, IDLab, Technologiepark-Zwijnaarde 126,

9052 Gent, Belgium

Keywords:

Fog Computing, Fog Networks, Edge Networks, Service Mesh, Service Scheduling, Edge Computing.

Abstract:

Recent trends have caused a shift from services deployed solely in monolithic data centers in the cloud to

services deployed in the fog (e.g. roadside units for smart highways, support services for IoT devices). Si-

multaneously, the variety and number of IoT devices has grown rapidly, along with their reliance on cloud

services. Additionally, many of these devices are now themselves capable of running containers, allowing

them to execute some services previously deployed in the fog. The combination of IoT devices and fog

computing has many advantages in terms of efﬁciency and user experience, but the scale, volatile topology

and heterogeneous network conditions of the fog and the edge also present problems for service deployment

scheduling. Cloud service scheduling often takes a wide array of parameters into account to calculate optimal

solutions. However, the algorithms used are not generally capable of handling the scale and volatility of the

fog. This paper presents a scheduling algorithm, named “Swirly”, for large scale fog and edge networks,

which is capable of adapting to changes in network conditions and connected devices. The algorithm details

are presented and implemented as a service using the Kubernetes API. This implementation is validated and

benchmarked, showing that a single threaded Swirly service is easily capable of managing service meshes for

at least 300.000 devices in soft real-time.

1 INTRODUCTION

Recent years have seen the rise of technologies such

as containers, and more recently unikernels (Mad-

havapeddy et al., 2013), triggering a move from

purely cloud-centered service deployments to fog

computing and edge computing (Bonomi et al., 2012),

in which services are deployed close to their con-

sumers instead of in monolithic data centers.

Simultaneously, the number of devices in the edge

dependent on cloud services, sometimes capable of

running containers themselves, has grown rapidly.

Between several initiatives for smart cities (Latre

et al., 2016; Spicer et al., 2019) and an ever increas-

ing variety of IoT devices, this ensures a continuing

growth of cloud-connected devices. Fig. 1 shows the

relation of the edge to the fog and the cloud, and the

large amount and variety of devices within it.

The combination of IoT and fog computing pro-

vides a wide range of improvements, for example in

https://orcid.org/0000-0002-1332-2290

https://orcid.org/0000-0003-0575-5894

https://orcid.org/0000-0003-4824-1199

Figure 1: The conceptual difference between the cloud, the

fog and the edge. The cloud is centralized and consists of

few data centers, while the edge is everywhere, containing

a large amount and variety of devices.

efﬁciency and user experience. However, scheduling

services in the fog requires a different approach than

scheduling in the cloud.

The main difference is that instead of being lo-

cated in centralized data centers, the fog and edge

are spread homogeneously over a large physical area,

possibly containing hundreds of thousands of devices.

Network grade and quality can vary by orders of mag-

Goethals, T., Volckaert, B. and de Turck, F.

Adaptive Fog Service Placement for Real-time Topology Changes in Kubernetes Clusters.

DOI: 10.5220/0009517401610170

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 161-170

ISBN: 978-989-758-424-4

161

nitude over the entire fog, while latencies are much

higher than in the cloud itself.

These properties result in a larger variety of net-

work conditions and problems. Any scheduling so-

lution should be able to work around broken lines of

communication and changing network conditions.

Because of its decentralized nature, it is harder to

scale services in the fog than in the cloud. It is not

always possible or useful to scale services in place

when demand from edge devices spikes, and deploy-

ing services closer to end users is more complex be-

cause of the size of the fog. Additionally, the topology

of the fog and edge are constantly in ﬂux, requiring

real-time service migrations and scaling.

On the other hand, there are some challenges that

remain mostly unchanged from cloud deployments.

Node resource limitations need to be taken into ac-

count by the service scheduler, whether those are

hardware resources or calculated metrics. Further-

more, because underloaded nodes have a relatively

high resource overhead (e.g. operating system, idle

services), the solution should strive for a minimal

number of fog service deployments while placing

them in optimal locations. This approach will attempt

to minimize both total resource use, and access times

for consumers in the edge. Finally, thresholds can be

deﬁned on certain metrics in order to guarantee cer-

tain levels of responsiveness or free resources.

To summarize, a performant fog service scheduler

should:

• Req. 1 work on the scale of hundreds of thousands

of edge devices

• Req. 2 be able to handle changing network condi-

tions and topologies

• Req. 3 take fog node resource limits and distance

metrics between nodes into account

• Req. 4 minimize the number of instances required

for any fog service deployment

This article proposes Swirly, and its implementa-

tion for use with Kubernetes, to meet these require-

ments. Swirly is a scheduler that runs in the cloud or

fog, which plans fog service deployments with a min-

imal number of service instances. It does so while

optimizing the distance to edge consumers according

to a chosen measurable metric. Furthermore, it can

incorporate changes to the network and topology in

real-time.

Section 2 presents existing research related to op-

timizing service deployments. Section 3 explains how

the proposed algorithm works, while section 4 ex-

plains how it is implemented in Kubernetes. In sec-

tion 5, an evaluation setup and methodology are pre-

sented to verify the performance of Swirly. The re-

sults of the evaluations are presented and discussed in

section 6, with suggestions for future work in section

7. Finally, the conclusions are presented in section 8.

2 RELATED WORK

Shifting workloads between the cloud and edge hard-

ware has been extensively researched, with studies on

edge ofﬂoading (Mach and Becvar, 2017), cloud of-

ﬂoading (Kumar and Lu, 2010), and osmotic comput-

ing (Villari et al., 2016).

Many strategies exist for fog container deploy-

ment scheduling, ranging from simple but effective

resource requests and grants (Santoro et al., 2017), to

using deep learning for allocation and real-time ad-

justments (Morshed et al., 2017).

Initial research into fog computing and service

scheduling dates from before the concept of the fog,

for example Oppenheimer et al. (Oppenheimer et al.,

2005), who studied migrating services in federated

networks over large physical areas. This work takes

into account available resources, network conditions,

and the cost of migrating services between locations

in terms of resources and latency.

Zhang et al. (Zhang et al., 2012) present an

algorithm for service placement in geographically

distributed clouds. Rather than focusing on re-

sources as such, their algorithm makes placement de-

cisions based on changing resource pricing of cloud

providers.

Aazam et al. provide a solution for fog data cen-

ter resource allocation based on customer type, ser-

vice properties and pricing (Aazam and Huh, 2015a),

which is also extended to a complete framework for

fog resource management (Aazam and Huh, 2015b).

In more recent research, Santos et al. (Santos

et al., 2019) present a Kubernetes-oriented approach

for container deployments in the fog in the context

of Smart Cities. Their solution is implemented as an

extension to the Kubernetes scheduler and takes net-

work properties of the fog into account.

Artiﬁcial intelligence is also making headway into

fog scheduling research. For example, Canali et al.

(Canali and Lancellotti, 2019) tackle fog data prepro-

cessing with a solution based on genetic algorithms.

Their solution distributes data sources in the fog,

while minimizing communication latency and consid-

ering fog node resources.

Zaker et al. (Farzin Zaker and Shtern, 2019) pro-

pose a distributed look ahead mechanism for cloud

resource planning. Rather than provisioning more

resources to counter network load, they attempt to

optimize bandwidth use through the conﬁguration of

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

162

overlay networks. The predictive look ahead part is

implemented by using the IBK2 algorithm.

Finally, Bourhim et al. (El Houssine Bourhim and

Dieye, 2019) propose a method of fog deployment

planning that takes into account inter-container com-

munication. Their goal is to optimize communication

latencies between fog-deployed containers, which is

obtained through a genetic algorithm.

In summary, recent research focuses on artiﬁcial

intelligence to ﬁnd near-optimal solutions for a given

network topology, and an implementation of such

an algorithm in the Kubernetes scheduler has been

shown to work. However, genetic algorithms are unﬁt

to quickly react to constant changes in large network

topologies. Moreover, the Kubernetes implementa-

tion in this paper is designed so it can be run any-

where, not only on a Kubernetes master node.

3 ALGORITHM

This section explains the concepts on which Swirly is

built, and its operations. Swirly is designed around

the assumption that some fog services are used by

most, if not all, edge devices. This allows for a simple

and ﬂexible approach to building large service topolo-

gies. Examples of this can be found in IoT, where ev-

ery device (e.g. smart bulb, climate control) connects

to the same cloud service (e.g. device registration,

status information, control webhooks).

For the rest of this paper, a network with fog and

edge devices with frequent changes to its topology

will be referred to as a swirl. The algorithm, which

is designed to build optimal service topologies in a

swirl, is named Swirly after this concept. There are

two types of nodes widely used throughout the paper.

Edge nodes are devices at the network edge, which act

as consumers of fog services. Fog nodes, which are

located in the fog, provide services for edge nodes as

determined by Swirly. While a service topology refers

to the output of the algorithm, in which fog nodes are

assigned to provide services for each edge node, the

physical layout of the swirl is referred to as the node

topology.

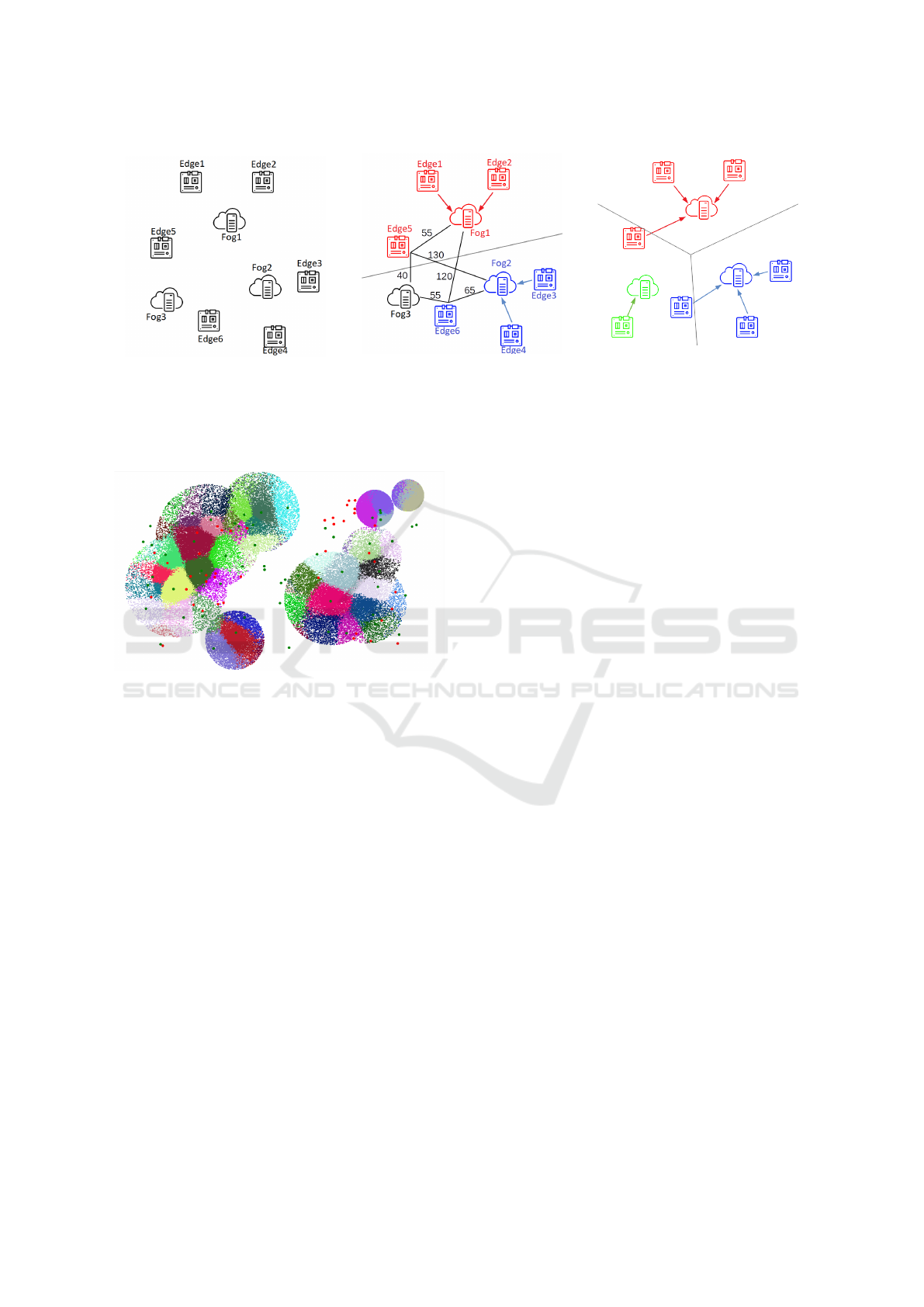

Fig. 2 illustrates how Swirly builds a service

topology from a small collection of edge nodes and

fog nodes. In the ﬁrst step (Fig. 2a), all fog nodes

are idle and six edge nodes are in need of service

providers. Assuming a maximum distance of 100

units between edge nodes and fog nodes, Fig. 2b

shows that the algorithm determines that two fog

nodes should be activated to accommodate all edge

nodes. Most of the edge nodes are serviced by the

fog node closest to them, but for the edge nodes clos-

est to the inactive fog node, the numbers show that

they can be sufﬁciently serviced by a non-optimal fog

node. However, these fog nodes do not have inﬁnite

capacity, and at some point the third fog node will be

activated as in Fig. 2c.

Fig. 3 shows the result of Swirly on a large scale.

Edge nodes have been colored according to the fog

node which acts as their service provider, while fog

nodes themselves are shown as red dots (inactive) or

green dots (active).

When Swirly is started, it has a collection of fog

nodes and their available resources. No further infor-

mation is needed, apart from an IP address or another

effective method of reaching them.

3.1 Adding Edge Nodes

When adding an edge node, the algorithm ﬁrst exam-

ines the closest active fog node to the edge node. If

that fog node has any spare capacity, it is assigned

as service provider for that edge node. However, if

there is no active fog node yet, or there is no fog node

with spare capacity, or all active fog nodes are be-

yond the maximum distance, then the fog node closest

to the edge node is activated and assigned as service

provider for the edge node. In the case that even the

closest fog node is more than the maximum distance

away from the edge node, it is still assigned as ser-

vice provider. Using this simple approach, Req. 3 and

Req. 4 are satisﬁed because new service instances are

deployed only if there is no other fog node acceptably

close or available.

3.2 Edge Node Updates

To fulﬁll Req. 2, Swirly must support changing

topologies, so edge nodes will have to periodically

report their metric distances to fog nodes to Swirly.

Some suggestions for distance metrics are discussed

in subsection 3.5. If Swirly receives an update from

an unknown edge node, it will add it as discussed in

the previous subsection. For other updates, update

and remove operations are required. For all opera-

tions, it is important to note that the distances reported

by edge nodes are pre-sorted by increasing distance,

so the closest fog node is found in constant time.

The remove operation starts by unassigning an

edge node from its fog node and removing it from the

swirl. It then checks if the fog node is underutilized.

If so, it attempts to evacuate all remaining edge nodes

serviced by that fog node to other nearby fog nodes.

This process will fail if any edge node is assigned to

a fog node beyond the maximum distance, in which

case the evacuation is reverted. If successful, the orig-

Adaptive Fog Service Placement for Real-time Topology Changes in Kubernetes Clusters

163

(a) Uninitialized service topology.

(b) All edge nodes assigned to service providing fog

nodes. Numbers represent ping times from speciﬁc

edge nodes to fog nodes.

resource limitations.

Figure 2: Different stages of building a service topology with Swirly, assuming a maximum distance of 100 to service

providers.

Figure 3: Visualization of a service topology generated by

Swirly. Big red dots are inactive fog nodes, big green dots

are active fog nodes servicing nearby edge nodes.

inal fog node is removed from the service topology.

While this process may increase overall distance be-

tween fog nodes and edge nodes, it is assumed that

any distance below the maximum distance is equally

acceptable.

The evacuation process ensures that remove oper-

ations produce the same service topologies as if the

exact subset of edge nodes that absolutely require

a speciﬁc fog node had never been in the topology,

keeping it consistent with the add operation. Because

the minimum and maximum resource limits are con-

ﬁgurable, this allows Swirly to optimize the number

of active fog nodes, and thus minimize total resources,

while keeping it from overloading any single node.

The update operation updates the fog node dis-

tances for a speciﬁc fog node. Should the distance

from an edge node to its current service provider sud-

denly increase beyond the maximum distance, the al-

gorithm will remove it from the service topology and

add it again in an attempt to assign a closer fog node.

Note that a good distance metric combined with

swirl updates not only enables Swirly to act on topo-

logical changes, but also to avoid or partially evacuate

fog nodes experiencing load spikes and network prob-

lems.

3.3 Fog Node Updates

Fog nodes should also send Swirly periodic updates

containing their free resources, but this only changes

their availability for further edge node assignments.

Reassigning edge nodes to another service provider

when resources on a fog node run out is not currently

implemented. While periodic resource updates enable

Swirly to detect new fog nodes in the swirl, fog node

dropout is not automatically detected and the remove

operation for fog nodes has to be explicitly called.

This could be further extended with a heartbeat mech-

anism or by having fog nodes themselves call the re-

move operation.

3.4 Request Redirection

Redirecting service requests from edge nodes to the

correct service providers is outside the scope of this

paper. However, because the entire service topology

is known to Swirly, it should not be overly difﬁcult to

propagate changes to a (distributed) DNS system, or

any other facility that handles request redirection.

3.5 Distance Metric

Swirly is not meant to directly tackle QoS and load

balancing issues. Instead, it relies on a generic metric

which indicates the ability of a fog node to support

service requests from a speciﬁc edge node. A good

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

164

metric can improve the efﬁciency of Swirly and its re-

sponsiveness to changes by incorporating various fac-

tors that indicate network and node performance, but

this must be balanced against computational and net-

working overhead. This section discusses some sim-

ple metrics that can be used to evaluate Swirly.

Calculating distances between nodes using geo-

metric coordinates is reliable, accurate and generally

requires little processing time. Additionally, geo-

graphical coordinates can track moving objects effec-

tively and the distances can be calculated by Swirly

itself, with a minimal network overhead for coordi-

nate updates. However, this metric does not allow for

any signiﬁcant changes based on node or network sta-

tus.

Using ping times has some notable advantages in

that they implicitly contain an indication of network

quality and physical distance. The value of this met-

ric can be measured by using the ping command, al-

though it is often blocked by routers and ﬁrewalls.

Additionally, the overhead associated with this metric

increases linearly with both the number edge nodes

and fog nodes.

Because ping is a useful metric, these issues can

be ﬁxed by using a very lightweight web service on

both edge nodes and fog nodes to determine the la-

tency between software service endpoints. The disad-

vantages of this approach are that the packet sizes are

larger than those of a simple ping, and that it requires

slightly more processing time. However, it is unlikely

to be blocked.

For the implementation in this paper, the last ap-

proach will be used. Every edge node will periodi-

cally determine its distance to each known fog node.

The rest of this subsection aims to show that this does

not result in an unacceptably high network overhead.

• The example assumes 200000 edge nodes, using

200 fog nodes as service providers

• Each edge node will attempt to determine its dis-

tance to fog nodes once every minute

• The size of a ping packet is 56 bytes on Unix

• wget shows that a suitable web service request is

159 bytes and a response is 202 bytes

Using these numbers, each fog node has to process

about 3333 requests per second for a total of 4Mbps

incoming and 5Mbps outgoing.

To avoid overloading nodes that are under heavy

load and frequent pinging of distant nodes, the fre-

quency can be reduced by an order of magnitude for

fog nodes more than two times the maximum distance

away. For large networks, this should reduce total

trafﬁc considerably. However, no concrete numbers

for this can be determined since they are fully depen-

dent on the network topology.

Using P as the measuring period in seconds and S

as the message size in bytes (15 for IP address + 4 for

an integer number), equation 1 gives an overhead of

98Mbps for the server hosting Swirly, which is signif-

icant but not insurmountable.

T = 8S ·

|E|·|F|

(1)

To reduce this overhead, a conﬁguration option

is included that keeps edge nodes from reporting fog

node distances unless they have changed signiﬁcantly

or cross the maximum distance. For geographically

widespread swirls, this measure is likely to reduce

trafﬁc by an order of magnitude, but concrete num-

bers can not be determined since they depend on the

speciﬁc node topology of the swirl. Section 7 dis-

cusses further options to reduce network overhead.

Finally, it can be argued that this approach is ac-

ceptably resilient. The main risk is that the webser-

vice for the ping mechanism stops working, but be-

cause of its simplicity this is very unlikely to hap-

pen unless the node it is running on goes down. As

mentioned before, the ping frequency can be reduced

for distant nodes to avoid ﬂooding the network. Sim-

ple timeouts can be used to detect unavailable nodes,

whether because they are ofﬂine, unreachable or over-

loaded.

3.6 Performance

Table 1 shows the computational complexity of the

operations discussed in this section. In the case of

the remove operation, most of its complexity comes

from its reliance on the add operation. Similarly, the

complexity of the update operation is a result of its use

of the remove and add operations. However, the most

common cases for all operations are O(1), as will be

shown in section 6.

The memory requirements of Swirly are easier to

model. Because it has a list of edge nodes, each of

which has a list of fog nodes sorted by distance, the

total memory required is O(EF).

4 KUBERNETES

IMPLEMENTATION

While section 3 described how Swirly works, this sec-

tion explains the speciﬁcs of implementing it in Ku-

bernetes. The solution consists of three services; one

in the cloud, one deployed on each fog node and one

Adaptive Fog Service Placement for Real-time Topology Changes in Kubernetes Clusters

165

deployed on each edge node. All services are conﬁg-

urable in terms of service locations, endpoint names,

thresholds and polling times.

4.1 Swirl Service

The Swirl service keeps track of the node topology

of the swirl and runs Swirly to determine a suitable

service topology at any given time. Generally, this

service will run in a pod in the cloud, but technically

it can be run on any node, including in the fog. This

service will not take any active steps to discover the

node topology of the swirl. Instead, fog and edge

nodes that call its service methods will be implic-

itly added to the swirl. To support removing nodes

from the swirl, it subscribes to the Kubernetes API

for node changes. This implementation does not as-

sume that each edge node always requires services in

the fog, because edge services could be deployed or

removed on a speciﬁc edge node at any time. To de-

termine which edge nodes require support services in

the fog, the Kubernetes API is monitored for deploy-

ments of a speciﬁc pod. Only edge nodes with such

a deployment are taken into account when generating

the service topology. Using this approach, managing

the node topology of the swirl is separated from sup-

port service monitoring and deployment. With minor

changes, this enables the implementation to generate

service topologies for multiple types of support ser-

vices while using a single node topology, thereby us-

ing a minimal amount of memory. However, for the

rest of this paper Swirly will be used to deploy a sin-

gle type of support service on fog nodes.

By using the Kubernetes API to track node

changes, the size of the swirl is subjected to the max-

imum limit of 5000 nodes (Kubernetes, 2019) in Ku-

bernetes. Using a different approach to track node

statuses and deployments would allow for swirls with

up to 5000 fog nodes and hundreds of thousands of

edge nodes. As in section 3.3, this could be achieved

by using heartbeat mechanisms and having nodes ex-

plicitly call add and remove methods.

This service exposes the following methods:

• getFogNodeIPs: called by edge nodes when they

are initialized, it returns the list of known fog node

IP addresses

• updateFogNodePings: periodically called by edge

nodes when they measure new or signiﬁcantly dif-

ferent distances to fog nodes

• updateFogNodeResources: periodically called by

fog nodes to update their free resources in the

Swirly algorithm

Table 1: Summary of algorithm operation complexity. Most

common cases are marked in bold.

Best Worst

Add O(1) O(1/(1 −|E|/|F|))

Remove O(1) O(|F|/(1 −|E|/|F|))

Update O(1) O(|F|/(1 −|E|/|F|))

4.2 FogNode Service

This service runs on each fog node and is deployed as

a daemonset in Kubernetes. It periodically measures

the free and total resources of its node and reports

them to the Swirl service. It also exposes the ping

method, which is used by the EdgeNode service to

determine the distance between edge and fog nodes.

4.3 EdgeNode Service

The EdgeNode service runs on each edge node, and

for the purposes in this paper is also deployed as a

daemonset in Kubernetes. On initialization, it fetches

the known list of fog nodes from the Swirl service.

It then periodically measures its distance to all fog

nodes in the list by calling their Ping method and

sends the results to the Swirl service if required. Fi-

nally, it exposes the setFogNodes method, which al-

lows the Swirl service to update the list of fog nodes

when changed.

5 METHODOLOGY

To verify that Swirly fulﬁlls Req. 1, its process-

ing speed and its memory requirements are evaluated.

Additionally, to show that it generates suitable service

topologies, the output service topology for a small

scale swirl is examined. In this chapter, the hardware

and setup for the evaluations are discussed.

5.1 Node Processing and Memory

For the node processing and memory requirements

evaluations, Swirly is isolated from the Kubernetes

API so its stand-alone performance can be measured.

It is run on a single server on the IDlab Virtual Wall

(imec, 2019), which has 48GiB RAM and a Xeon E5-

2650 CPU at 2.6GHz. In these evaluations, the algo-

rithm is run on swirls ranging from 50.000 to 400.000

edge nodes, in steps of 50.000, while the number of

fog nodes varies from 50 to 550 in steps of 50. In

some cases, the results will start at a higher number of

fog nodes due to resource constraints. For example,

resource limits are conﬁgured so that 300.000 edge

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

166

nodes require 400 fog nodes. For each combination

of edge nodes and fog nodes, 20 random swirls are

generated for Swirly to process. This ensures that a

good variety of swirls is generated so the entire per-

formance range of the algorithm can be evaluated.

To generate the large scale swirls required by the

evaluations, a topology generator is added to the so-

lution which generates edge nodes and fog nodes ran-

domly within an area of 1200 by 800 units. In order to

simulate populated areas, edge nodes are generated in

circles of various sizes which can overlap and whose

density is highest in their centers. Fog nodes, on the

other hand, are generated randomly over the entire

area. Fig. 3 shows a visualization of a topology gen-

erated by a .NET implementation of Swirly equivalent

to the Kubernetes implementation.

Latency is chosen as a distance metric, and it is de-

ﬁned so that one unit equals 1ms. However, to simu-

late the fuzziness of latency, it is randomized between

80% and 120% of its distance value. The maximum

distance between edge nodes and their service provid-

ing fog nodes is set at 100ms. Because it is possible

that edge nodes are generated which do not have a fog

node within maximum distance, the evaluation results

focus on average distance.

The implementation of Swirly and the evaluation

code are made available on Github

To measure how long it takes Swirly to add edge

nodes, the evaluations measures the time it takes to

build an entire service topology from scratch. This

number is then normalized to the time it would take to

add 10.000 edge nodes to a topology of that size. For

the delete operation, it is measured how long it takes

to delete 10.000 edge nodes from a ﬁnished service

topology. The performance of the update method is

not measured, because is entirely dependent on how

latencies ﬂuctuate in a given swirl, which are unlikely

to be simulated realistically.

Memory consumption is read from

/proc/<pid>/statm every time Swirly ﬁnishes

building a service topology from a swirl. It is then

printed to stdout, where it is collected by a batch

script for further processing.

5.2 Generated Service Topology

To show that the Kubernetes implementation of

Swirly generates appropriate service topologies, a

small-scale swirl is manually set up on the IDlab Vir-

tual Wall with a Kubernetes master, 3 fog nodes and

The code will be made available upon acceptance and

once an appropriate open source license model is selected.

For review purposes code can be requested from the main

contact author.

6 worker nodes as shown in Fig. 2a. The services de-

scribed in section 4 are deployed on these nodes and

Swirly builds a service topology from the information

reported by the fog and edge nodes. For the purposes

of the test, the code is slightly modiﬁed so that the fog

node ping method sleeps for a predetermined amount

of time depending on the edge node calling it, to sim-

ulate various hardcoded distances.

6 EVALUATION

6.1 Edge Node Processing

Fig. 4 shows the time required to add 10000 edge

nodes to service topologies of various sizes. As pre-

dicted, the time required to add edge nodes increases

as the number of edge nodes increases, only to fall

again as more fog nodes are made available. Even-

tually it levels off at a constant value for each series,

which increases sublinearly with the amount of edge

nodes in the service topology.

While these results mostly agree with the com-

putation complexity in table 1, the last effect merits

some explanation. The predicted performance does

not take into account some properties of the swirl such

as edge and fog node densities. The observed effect

can be explained through edge node density. Since the

physical size of the swirl stays the same, edge node

density increases along with edge node count, and

fog nodes will eventually run out of servicing capac-

ity. When that happens, they can not service all edge

nodes within their maximum distance, so some edge

nodes need to be assigned to suboptimal fog nodes.

In worst cases some edge nodes can not be serviced

at all, although this is avoided by the conditions of the

evaluation. On the other hand, this means that perfor-

mance would likely be constant if the physical size

of the swirl expands along with the number of nodes.

To avoid the effect in areas with dense populations of

edge devices, it sufﬁces to add more fog nodes and

lower the maximum distance slightly.

Finally, the whiskers indicate that depending on

the swirl, the time required to build a service topol-

ogy can vary from 50% to 300% of the average, but it

stabilises as the number of fog nodes increases.

The time required to remove 10.000 edge nodes

from a service topology is shown in Fig. 5. In

this case, performance is almost ideal, increasing

slowly with the number of edge nodes and decreas-

ing slightly with the number of fog nodes. The results

indicate that the worst case performance of the delete

operation is rarely triggered and does not overly affect

performance.

Adaptive Fog Service Placement for Real-time Topology Changes in Kubernetes Clusters

167

100

150

200

250

300

350

400

450 500 550

100

Fog nodes

10000 node add time (ms)

50k 100k 150k

200k 250k 300k

Figure 4: Time required to add 10000 edge nodes to service

topologies of varying sizes.

100

150

200

250

300

350

400

450 500 550

Fog nodes

10000 node remove time (ms)

50k 100k 200k 300k

Figure 5: Time required to remove 10000 edge nodes from

service topologies of varying sizes.

However, as with the add operation, the whiskers

show that performance varies signiﬁcantly, from 50%

to around 200% of the average.

6.2 Memory

The memory requirements of Swirly are shown in Fig.

6. An important observation is that memory use ap-

pears to jump in distinct increments, always doubling

at the same number of fog nodes independent of edge

nodes. However, this is speciﬁc to the Golang imple-

mentation. Because Swirly keeps a sorted list of fog

node pings for each edge node, these lists all double

in size at the exact same moment, causing the jumps

in the chart. Other than the observed jumps, memory

100

150

200

250

300

350

400

450 500 550

2,000

4,000

6,000

Fog nodes

Process memory size (MiB)

50k 100k 150k

200k 250k

300k

Figure 6: Memory required for swirls of varying sizes.

use correlates perfectly with the predicted O(EF) re-

quirement, unaffected by the randomness of the gen-

erated swirls.

6.3 Generated Service Topology

Table 2 shows the distances between fog nodes and

edge nodes for the small-scale evaluation topology

from Fig. 2a. Swirly has two choices for using only

two out of three fog nodes for this swirl; either Fog1

and Fog2, or Fog2 and Fog3, with the ﬁrst combi-

nation having slightly lower overall distances. Any

solution which activates all three fog nodes is unac-

ceptable for this node topology.

Fig. 2b shows the actual service topology gener-

ated by Swirly in Kubernetes, which is the most ef-

ﬁcient one where Fog1 and Fog2 are activated. The

numbers in this ﬁgure indicate distances between fog

and edge nodes. These distances indicate that rather

than activating Fog3, Swirly assigns the remaining

edge nodes to already active nearby fog nodes, bal-

ancing a slight advantage in average distance against

number of service instances as per Req. 3 and Req. 4.

It is unknown if random factors could activate Fog3

rather than Fog1, but repeated iterations seem to in-

dicate not. While generating the service topology,

Swirly deploys a fog service to the correct fog nodes

through the Kubernetes API, while Fog3 was left in-

active.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

168

Table 2: Distances between fog nodes and edge nodes for the small-scale evaluation topology.

Edge1 Edge2 Edge3 Edge4 Edge5 Edge6

Fog1 30 50 110 130 55 120

Fog2 140 120 20 60 130 65

Fog3 95 85 120 110 40 55

7 DISCUSSION AND FUTURE

WORK

As shown in the results, the algorithm scales very

well in terms of processing time, but its memory re-

quirements can quickly grow beyond a single server.

There is no easy solution to further reduce memory

use, other than partitioning fog and edge clouds over

several machines. Despite this, the trends in the re-

sults suggest that a single Swirly service should be

able to organize fog support services for up to 300.000

edge nodes and 550 fog nodes. For contemporary

servers with 64GiB RAM, the maximum number of

nodes can be extrapolated to about 1.000.000 edge

nodes and 1.500 fog nodes. Because the algorithm

is not multi-threaded, it may be useful to run several

instances on a single machine, each of which orga-

nizes a speciﬁc region in the fog and edge. Dividing

into n regions would also alleviate memory pressure

by a factor of n, since

nO(

) =

O(EF) (2)

where the left side represents memory pressure

with n regions, which is 1/n the original requirement.

This would allow a further increase in fog and edge

nodes by

√

n each.

In section 3.5, the bandwidth requirements are

calculated of the simple distance metric used in this

paper. Despite suggested mitigating actions, the re-

quired bandwidth could grow to unsustainable levels

for extremely large swirls with millions of devices.

As with memory use, there is no easy solution to this

other than to partition the swirl by region, which may

result in worse performance at partition borders.

The current implementation of Swirly deploys ser-

vices to the fog using Kubernetes, but in order to redi-

rect service requests to the correct fog nodes, it should

interact with distributed DNS plugins deployed on the

cluster, override them, or deploy a separate system.

Additionally, the implementation currently only sup-

ports one fog service, but could easily be modiﬁed

to support any number of services to monitor and de-

ploy.

While fog node updates are fully supported in

Swirly, their impact is minimal. Fog nodes can be

added at any time and their free resources can change,

these events do not directly inﬂuence the service

topology. Rather, Swirly only takes them into account

when processing the next edge node. Ideally, the al-

gorithm should examine if any edge nodes should be

reassigned if a fog node is changed.

In terms of memory use and bandwidth require-

ments, it is better to switch to a fully distributed ap-

proach, in which the cloud algorithm is eliminated

and each edge node becomes responsible for ﬁnding

its own optimal service provider.

8 CONCLUSIONS

The introduction presents four requirements for a use-

ful large-scale fog service scheduler. It should work

with fog networks containing hundreds of thousands

of devices, while being able to handle changing net-

work topologies. It should also take node resource

limits and distance metrics between nodes into ac-

count. Finally, it must minimize the number of fog

service deployments required to service a set of edge

nodes.

Swirly is proposed as a service deployment sched-

uler, and section 3 shows how it fulﬁlls the require-

ments by design. Several node distance metrics are

discussed, and a simple but reliable metric is chosen

for the Kubernetes implementation. To verify the Ku-

bernetes implementation of Swirly, it is evaluated in

terms of memory use and node processing speed, and

its output validated using a small, purpose-built topol-

ogy.

The results mostly adhere to the computational

complexity, but the algorithm slows down sublinearly

as the density of edge nodes increases. This leads to

the prediction that for service topologies that grow in

physical size rather than density, Swirly will require

constant processing time. When edge node density

increases, fog node density and algorithm parameters

will also need to change.

Solutions based on heuristics (e.g. genetic algo-

rithms) will likely generate better solutions, but they

are not suitable for real-time updates in large topolo-

gies, and they will require more time to generate ideal

solutions.

Adaptive Fog Service Placement for Real-time Topology Changes in Kubernetes Clusters

169

Finally, some topics for future work are discussed,

including DNS support, reducing network overhead,

better metrics and governing multiple types of ser-

vices simultaneously. However, a distributed ap-

proach is likely to solve the most important problems

concerning Swirly.

ACKNOWLEDGEMENTS

The research in this paper has been funded by Vlaio

by means of the FLEXNET research project.

REFERENCES

Aazam, M. and Huh, E.-N. (2015a). Dynamic resource

provisioning through fog micro datacenter. In 2015

IEEE International Conference on Pervasive Comput-

ing and Communication Workshops (PerCom Work-

shops). IEEE.

Aazam, M. and Huh, E.-N. (2015b). Fog computing mi-

cro datacenter based dynamic resource estimation and

pricing model for IoT. In 2015 IEEE 29th Interna-

tional Conference on Advanced Information Network-

ing and Applications. IEEE.

Bonomi, F., Milito, R., Zhu, J., and Addepalli, S. (2012).

Fog computing and its role in the internet of things. In

Proceedings of the ﬁrst edition of the MCC workshop

on Mobile cloud computing - MCC ’12. ACM Press.

Canali, C. and Lancellotti, R. (2019). A fog computing ser-

vice placement for smart cities based on genetic algo-

rithms. In Proceedings of the 9th International Con-

ference on Cloud Computing and Services Science.

SCITEPRESS - Science and Technology Publications.

El Houssine Bourhim, H. E. and Dieye, M. (2019). Inter-

container communication aware containerplacement

in fog computing. In 15th International Conference

on Network and Service Management, CNSM 2019,

IFIP Open Digital Library, IEEE Xplore, ISBN: 978-

3-903176-24-9.

Farzin Zaker, M. L. and Shtern, M. (2019). Look ahead

distributed planning for application management in

cloud. In 15th International Conference on Network

and Service Management, CNSM 2019, IFIP Open

Digital Library, IEEE Xplore, ISBN: 978-3-903176-

24-9.

imec (2019). imec virtual wall:

https://www.ugent.be/ea/idlab/en/research/research-

infrastructure/virtual-wall.htm.

Kubernetes (2019). Kubernetes - building large clusters:

https://kubernetes.io/docs/setup/cluster-large/.

Kumar, K. and Lu, Y.-H. (2010). Cloud computing for mo-

bile users: Can ofﬂoading computation save energy?

Computer, 43(4):51–56.

Latre, S., Leroux, P., Coenen, T., Braem, B., Ballon, P., and

Demeester, P. (2016). City of things: An integrated

and multi-technology testbed for IoT smart city ex-

periments. In 2016 IEEE International Smart Cities

Conference (ISC2). IEEE.

Mach, P. and Becvar, Z. (2017). Mobile edge comput-

ing: A survey on architecture and computation of-

ﬂoading. IEEE Communications Surveys & Tutorials,

19(3):1628–1656.

Madhavapeddy, A., Mortier, R., Rotsos, C., Scott, D.,

Singh, B., Gazagnaire, T., Smith, S., Hand, S., and

Crowcroft, J. (2013). Unikernels. ACM SIGPLAN

Notices, 48(4):461.

Morshed, A., Jayaraman, P. P., Sellis, T., Georgakopoulos,

D., Villari, M., and Ranjan, R. (2017). Deep osmosis:

Holistic distributed deep learning in osmotic comput-

ing. IEEE Cloud Computing, 4(6):22–32.

Oppenheimer, D., Chun, B., Patterson, D., Snoeren, A. C.,

and Vahdat, A. (2005). Service placement in shared

wide-area platforms. In Proceedings of the twenti-

eth ACM symposium on Operating systems principles

- SOSP ’05. ACM Press.

Santoro, D., Zozin, D., Pizzolli, D., Pellegrini, F. D., and

Cretti, S. (2017). Foggy: A platform for workload or-

chestration in a fog computing environment. In 2017

IEEE International Conference on Cloud Computing

Technology and Science (CloudCom). IEEE.

Santos, J., Wauters, T., Volckaert, B., and Turck, F. D.

(2019). Towards network-aware resource provisioning

in kubernetes for fog computing applications. In 2019

IEEE Conference on Network Softwarization (Net-

Soft). IEEE.

Spicer, Z., Goodman, N., and Olmstead, N. (2019). The

frontier of digital opportunity: Smart city imple-

mentation in small, rural and remote communities in

canada. Urban Studies, page 004209801986366.

Villari, M., Fazio, M., Dustdar, S., Rana, O., and Ran-

jan, R. (2016). Osmotic computing: A new paradigm

for edge/cloud integration. IEEE Cloud Computing,

3(6):76–83.

Zhang, Q., Zhu, Q., Zhani, M. F., and Boutaba, R. (2012).

Dynamic service placement in geographically dis-

tributed clouds. In 2012 IEEE 32nd International

Conference on Distributed Computing Systems. IEEE.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

170
