Considering Legal Regulations in an Extendable Context-based

Adaptive System Environment

Mandy Goram

and Dirk Veiel

Faculty of Mathematics and Computer Science, FernUniversität in Hagen, 58084 Hagen, Germany

Keywords: Context-based Adaptive Environment, Personalized Explanation, Compliance by Design, Copyright Law.

Abstract: Legal regulations demand that applications consider legal aspects of the application domain. Regulations

equally concern software designers, developers, legal experts, providers and users. Not only the application

must be legally compliant, the users must also comply with the law when using the application. Therefore, it

is important to explain the user the current situation and the related consequences to the usage of the system.

But it is a big challenge to support users with explanations of the law and the related actions and consequences

to the usage of the system. We address the aforementioned challenges by developing an extendable context-

based adaptive system environment, which considers legal policies and generate personalized explanations

for users. This paper presents an approach to integrate legal regulations into context-based systems and an

excerpt of our legal domain model. We describe a process on how legal experts can configure the adaptive

interaction with the domain-specific application and the generating of personalized explanations. For that, we

use a sample collaboration situation when Copyright Law and personalized explanations get relevant.

1 INTRODUCTION

The development and usage of legal compliant

software applications has become an important

aspect. To prove and check its legal conformity it is

important to know what an application is doing. That

must be explained to the involved people and

regulators. Legal regulation like the General Data

Protection Regulation (GDPR) demands the

explanation of data usage and the compliant

processing of personal information to the users.

Additionally, there is a right of the subjects to get an

overview of the processing and data usage of any

system that stores and processes user information

(https://gdpr-info.eu/art-15-gdpr/). Every application

which processes user data must consider the GDPR.

Therefore, a classification of user data is necessary.

To classify user data, (Kapitsaki et al., 2018) presents

a formal model to separate sensitive and non-sensitive

data for webservice requests of business applications.

But there must be more considered than the data

classification. The GDPR is a complex regulation

with relationship to other regulations, which must be

considered too. Therefore (Bartolini et al., 2015)

https://orcid.org/0000-0003-0264-841X

https://orcid.org/0000-0003-0228-103X

developed an ontology-based legal domain model

that represents the regulations from the regulatory

text in a formal model as ontology. An ontology is a

formal specification of a certain domain which

describes a set of concepts, relationships and formal

axioms that restrict the interpretation of concept

instances (Guarino, 1998). Legal knowledge

engineering tries to establish ontologies and

formalizes norms and legal subsumptions (Baumann

et al., 2010) to reuse them (Gangemi, 2007), what is

difficult because of the different scenarios.

The design and development of software which

considers legal requirements needs a tight

collaboration between software designers, developers

and legal experts (who check and confirm legal

compliance). Software providers must be assured that

the applications they use and serve to customers or

users runs compliant to the law. For that it is also

important to support users to act according to the law

through explanations of the situation like content

upload which concerns the Intellectual Property Law

(IP Law). This aspect is relevant to the provider,

because he or she is responsible for users’ legal

breaches. But legal regulations are interconnected,

Goram, M. and Veiel, D.

Considering Legal Regulations in an Extendable Context-based Adaptive System Environment.

DOI: 10.5220/0009565003670376

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 367-376

ISBN: 978-989-758-423-7

367

even if there is no clear connection at first sight. In

order to ensure legal conformity, it is therefore not

sufficient to simply include a specific legal

requirement in a system (Baumann et al., 2010),

(Casellas et al., 2010).

For illustration purposes, we will use a sample

scenario in this paper in which the user Alice wants

to upload the photo of a group trip in a community

application, as a supplement to a report. Since it is a

group photo, she must fulfill the legal requirements of

application. The legal requirements include, among

other things, a written consent of all persons depicted

in the photo. Alice is only allowed to make the photo

accessible to third parties within the agreed scope (the

legal situation is simplified) when these are available.

The consequences of any violation are regulated in

personal rights.

The well-defined domain model in (Delgado et

al., 2003) considers related legal regulation and add

to the IP Law also the subordinated Copyright Law

and the Exploitation Right to the ontology. The

regulatory model is used to develop applications that

deal with multimedia interchange. Other related law

like the personal rights or the data privacy is not

contained in the domain model of (Delgado et al.,

2003). More sophisticated applications may lead to

different situations, as illustrated in Alice scenario. In

that simplified case the system must be able to sense

and also know, e. g., that the action concerns the

personal right and the data privacy too.

To use an application according to the law, the

user needs an explanation about the current situation.

Therefore, users should be made aware of legal

aspects and be supported in complying with them that

relate to their actions, e. g. Alice scenario. Existing

approaches neither support users in specific situations

nor explain the processing, actions or data usage. To

support users in certain situations (e. g. Alice) the

system must be aware of the user’s situation and the

related socio-technical environment, i. e. the context.

According to (Dey, 2001), the context contains any

information that can be used to describe a situation

within a socio-technical system. We extend the

definition of (Dey, 2001) and also consider all related

law which is relevant in and for a specific situation.

Context-aware systems are used to support

personalization with regard to the current situation of

related users.

Explanations are important for intelligent

personalized systems to support user acceptance and

user trust. According to (Dey and Newberger, 2009),

the privacy control is strongly related to intelligible

explanations. Therefore, it is necessary to explain

system processes and data usage, to help users to

understand the current situation (Brezillon, 1994).

“The dynamic aspect of context implies that it is not

possible to plan in advance the whole explanatory

dialogue” (Brezillon, 1994, P. 123). Personalized

explanations shall “serve to clarify and make

something understandable” (Gregor and Benbasat,

1999, P. 498) to the user in a specific situation. If a

user’s action, e. g. affects the GDPR or the Copyright

Law, the consequences of the usage of the system

should be explained.

To provide this support a more sophisticated

system approach is necessary like a context-based

adaptive system environment which is used to

provide personalized support in the current situation.

To address the aforementioned aspects, we have to

answer two questions:

Q1: How to design a context-based adaptive software

application which considers the concerning law?

Q2: How to explain users what they must do to act in

compliance to legal regulations in the specific

situation?

We are implementing an intelligent extendable

context-based adaptive system environment

(eCBASE) to develop or integrate context-based

applications and integrate technical, content and legal

requirements in a common domain model. For that we

use the knowledge of domain experts (technical,

content, legal) to define sets of rules for the specific

application. In case of legal regulations, the context-

based adaptive environment must know when and

how it must do something. For that, a legal expert

must also predefine what needs to be considered and

what action should be executed by the resulting

context-based adaptive application. In this paper we

present an approach on how the knowledge and

explanations of a legal expert can be integrated into

eCBASE and a context-based adaptive application.

For that we describe two sample situations that

regards the GDPR and the Copyright Law. We

illustrate the integration of the legal regulation and

the generating of explanations to users.

The paper is structures as follows: in section 2 we

present related work. Section 3 explains our process

of integrating legal regulations into our four-layer

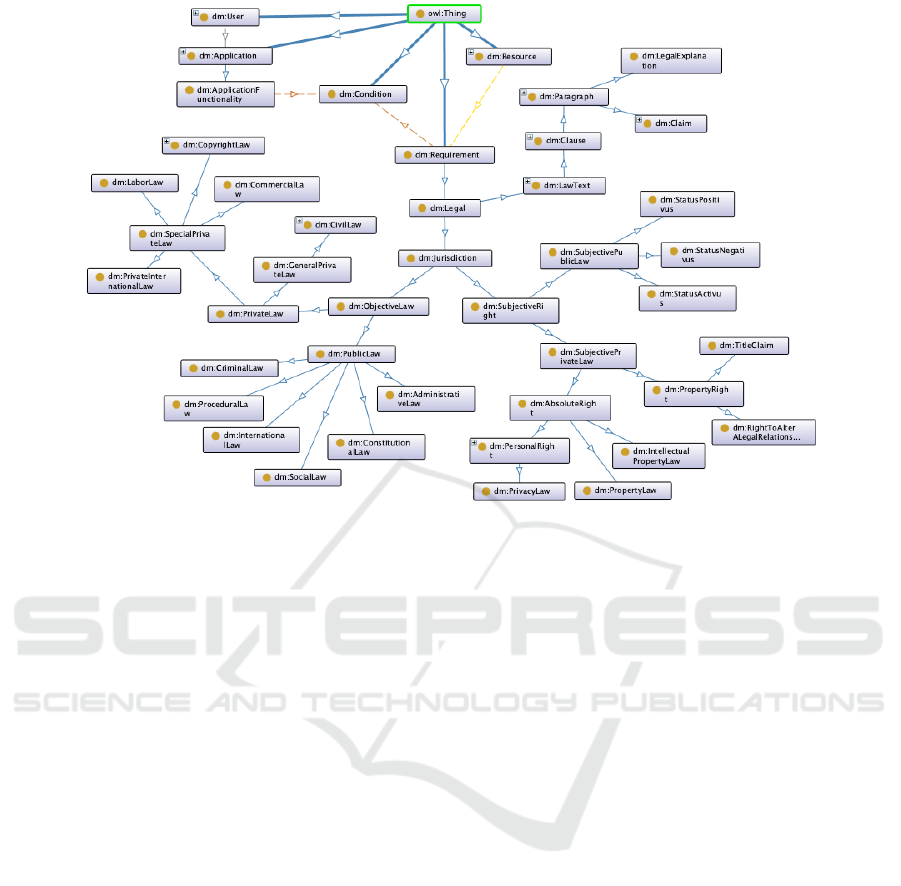

context model. In section 4 we describe our legal

domain model and a sample of integrating aspects of

the copyright law for a specific application.

Generating personalized explanations is described in

section 5. We discuss our results in section 6. Finally,

we present some conclusions and future work in

section 7.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

368

2 RELATED WORK

There are many approaches in the area of privacy

support for personalized systems. (Jiang and Landay,

2002) presents one that support privacy control in

context-aware systems. They use annotations on

source code level to classify personal and sensitive

information for so-called information spaces. Privacy

related information is marked with privacy tags which

are used to identify the privacy information during

processing. If anyone different than the owner access

an information space, a contextualized trigger asks

for permission of the space owner. The approach

support users to get back control on their data.

(Bartolini et al., 2015) shows a coarse ontology-

based legal domain model of the GDPR designed by

a legal expert. The legal domain model contains the

regulation with the aspects of the basic data

protection principals, the data processing rules, and

the data subject’s rights. They use the ontology to

assist data controllers during the development cycle

of software. For that, they integrated the ontology in

a Business Process and Model Notation (BPMN)

workflow to express the GDPR requirements within

the workflow. The GDPR is a relevant legal domain

in our approach. The data protection ontology of

(Bartolini et al., 2015) was designed by a legal expert.

The aspects of executable rules for an adaption and

the explanation of a situation and the data usage

during application runtime are not covered by

(Bartolini et al., 2015).

The work presented in (Kapitsaki, 2013)

considers user privacy preferences in context-aware

webservices using Simple Object Access Protocol

SOAP messages as adaptation mechanism. The paper

introduces the policy language Consumer Privacy

Language CPL. The CPL is used to specify the user’s

privacy preferences, who can insert their privacy

setting through a web application. The user’s

preferences are considered during the webservice

invocation. Through an adaptation mechanism the

privacy preferences are used to get access to context

information on a per case basis. The mechanism is

integrated into the presented webservice

infrastructure that applies the user’s privacy

preferences and manages the service execution. The

approach of (Kapitsaki, 2013) is tailored to support

the users by (Kapitsaki et al., 2018). They enhanced

and extended the approach with focus on the provider

side with aspects of the policy communication to any

business service. They extended the privacy module

of the Linked Unified Service Description Language

USDL. The privacy module is used to describe

privacy policies for the use of any webservice. By

using Linked Data they provide the opportunity to

link policies and place them in context. The extension

can use and include existing privacy policies to

answer questions about what personal data is

collected from users, how the service provider uses

the collected data and with whom it will be shared.

The approaches of (Kapitsaki, 2013) and (Kapitsaki

et al., 2018) focus on supporting privacy of users

while using webservices. An interesting aspect is the

separation of private and non-private data on the

conceptual layer. Neither (Kapitsaki et al., 2018) nor

(Kapitsaki, 2013) describe how to support a

community application.

While using community applications or systems,

also the Copyright Law or IP Law has got attracted

researches and technicians to develop compliant

architectures and approaches. A more sophisticated

approach using a regulatory ontology is presented by

(Delgado et al., 2003). They are using ontologies to

get a more flexible and modular system that allows to

extend and adapt the concepts and relationships

without losing the connection to the base system.

They describe the regulatory Intellectual Property

Rights ontology (IPROnto), allowing the

combination of results from different areas or

domains. The IPROnto contains a static and dynamic

view to separate the design of the intellectual property

regulation and its derived rights from the using of the

defined rules and interdependencies. The static view

describes legal concepts (defined by law), legal

entities (possessing capacity in law) and the IP Law

in detail. The dynamic view is used to create business

models for its use in e-commerce applications. It

contains events which represent the processes of the

intellectual property right. For that they describe a

content life cycle and sample events like the creation

of origin content and its related law and rights of the

legal entities. At least they describe how they can

develop and transfer their design on an ontology for

the GDPR based on their IPROnto framework.

The design and development of legal decision

support systems created a research area on the

formalization of the law. The main aspects are the

legal support of lawyers and advise seeking persons,

to get direction of the legal subsumption of a specific

case. Some legal support systems use an ontology-

based approach to represent and formalize the

knowledge about the legal regulation (Baumann et al,

2010), (Gangemi, 2007), (Casanovas et al, 2016),

(Gangemi et al., 2003). But most of them do not

consider intelligible explanations and actions in their

formal description. Therefore, it is not possible to

explain the user what happened and why something

happened in a specific situation.

Considering Legal Regulations in an Extendable Context-based Adaptive System Environment

369

To support privacy and privacy control it is

important to provide intelligible explanations.

Explanations are needed to help users to understand

why and how their data is used in the system and who

has access (Bellotti and Sellen, 1993).

Supporting intelligibility of complex context-

aware systems is the approach of (Lim and Dey,

2010). They point out that intelligibility must be

accompanied by a control function for the user. Their

work focus on an extension of the Context Toolkit.

“The Context Toolkit aims at facilitating the

development and deployment of context-aware

applications” (http://contexttoolkit.sourceforge.net).

The extension support developer and designer who

use the Context Toolkit to integrate intelligible

explanations and user control while building a

context-aware application. For that, they integrate

meaningful explanations in the application

“Situation” by exposing the internal processing of

context-aware applications. Enhancements to the

explanation component in the Context Toolkit are

presented in (Lim and Dey, 2011). They generate

explanations of the behaviour of more popular

machine learning techniques and enriched

explanations for user control (Lim and Dey, 2010),

(Lim and Dey, 2011). It is not known to us that the

Context Toolkit supports context-based adaptive

community applications as well as legal regulations.

(Haake et al, 2010) present a generic four-layer

framework for modelling context in a collaboration

environment, a generic adaptation process, and a

collaboration domain model for describing

collaboration environments and collaboration

situations. (Veiel et al., 2013) implement the

framework, using an extended domain model and the

related adaptation process. The resulting CONTact

platform is able to sense and formalize users’

interaction with the system at runtime, and to adapt

according to the user’s current collaboration situation.

Applying adaptations at runtime may confuse users.

In conclusion, most of the related work mentioned

above describe the integration and the scope of data

protection in a specific area but do not take other

regulations into account. The development of a

system transferable to other areas requires a common

formal language (Delgado et al., 2003). (Kapitsaki et

al., 2018) tries to put this approach on a broader basis

with CPL and an extended privacy module of the

USDL. The formal classification of the data

categories described in (Kapitsaki et al., 2018) is a

central information and basis for further processing.

They mentioned the application of the Webservice

Framework to copyright. But there is no information

available on how the copyright law is supported.

Although the approaches mentioned address legal

requirements, they do not or only marginally consider

the provision of explanations to the user. The focus

mostly is on the system architecture or on the creation

of a specific legal taxonomy and not on the users. To

support them, especially in the understanding of

automated procedures, the system has to be designed

to meet the users' needs. Therefore, we integrate legal

requirements and explanations to all relevant objects

of an application in a way to support users in specific

situations (e. g. collaboration situation) with suitable

explanations. In this paper, we explain how a context-

based system could be designed to do so.

3 PROCESS OF INTEGRATING

LEGAL REGULATION IN

CONTEXT-BASED

APPLICATIONS

From our point of view, only a legal expert of the

application domain can evaluate which legal

regulations are relevant for an application. Therefore,

we propose a process to integrate legal policies and

appropriate actions into the domain model of a

domain-specific context-based (collaboration)

application as shown in Fig. 1. The domain-specific

application based on the core system eCBASE. Good

and best practices can then be integrated and provided

through eCBASE. For that, eCBASE contains a legal

domain model (cf. 4) to represent the legal domain

and to define legal required actions and explanations.

Figure 1: Process illustration of legal policies integration.

A legal expert has the expertise to identify regulations

for the domain-specific application which has to be

provided. At the same time, he or she can define

policies for dealing with the application as well as the

legally compliant behaviour of a domain-specific

application in order to comply with the legal

regulations. The legal experts are involved in the

design of the application, i. e. the domain model

(compliance by design). Therefore, they get an

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

370

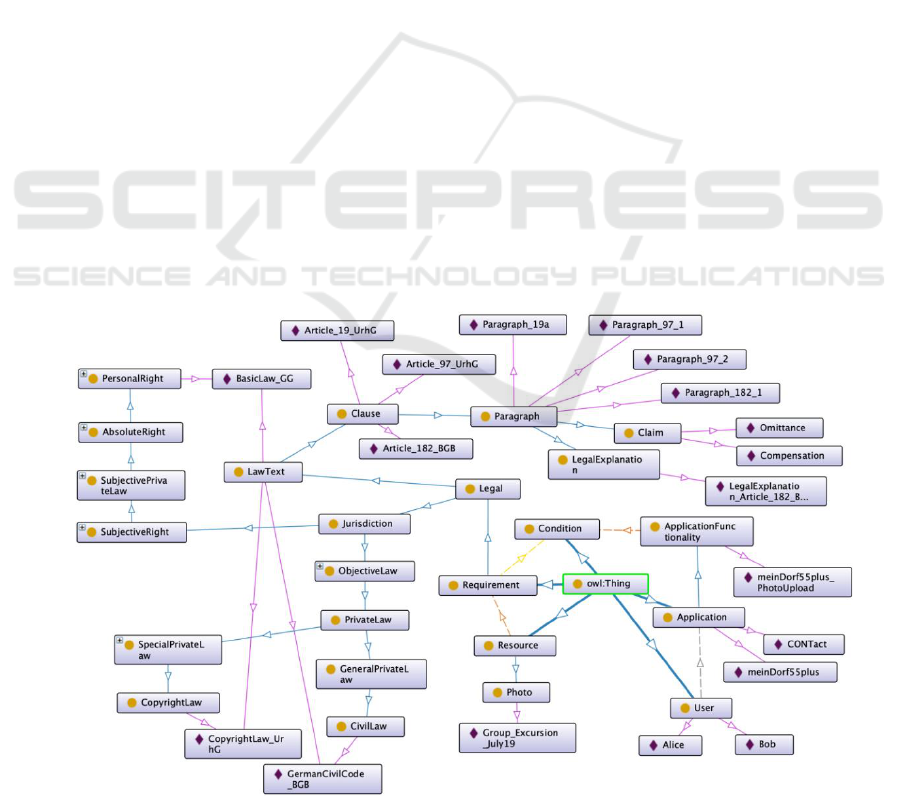

Figure 2: Core concepts of the legal domain model.

overview of the information in the domain model (cf.

1+2 in Fig. 1). They decide which legal conditions

apply to the information, e. g. data protection

(sensitive data). The defined requirements are used to

store the legal regulations, their references to other

areas of law and the consequences for data processing

in the system. The information is stored in the context

model. Corresponding rules and actions are derived

or linked to them (cf. 3 in Fig. 1). The legal experts

also define the templates which represent the legal

explanations. The templates are used to generate

personalized explanations for users (cf. 4+5 in Fig. 1).

4 CONSIDERING LEGAL

REGULATIONS

This section introduces the legal domain model of

eCBASE and explains its concepts and relationships.

We briefly introduce the overall approach before we

present the legal domain model. Due to space reasons,

we omit core concepts and relationships which

represent technical and non-legal concepts. We

presented the core model in (Goram and Veiel, 2019).

4.1 Context Modelling Approach

We use the CONTact platform (Veiel et al., 2013) to

implement a context-based adaptive application and

decouple the context from the content as much as

possible. That makes it possible to reuse our system

and to modify it according to required changes of the

context model.

For context modelling we use the Web Ontology

Language (OWL2) and the generic four-layer

framework for modelling context in a collaboration

environment and the related collaboration domain

model presented in (Haake et al, 2010). The generic

four-layer framework consists of the knowledge

layer, the state layer, the contextualized state layer,

the adaptation layer and related components to

implement a generic adaptation process (Haake et al,

2010). The knowledge layer describes a domain

model with abstract (e. g. classes, properties) and

concrete (e. g. individuals) predefined knowledge,

mapped to corresponding concepts and relations. The

sensing engine at the state layer uses sensing rules to

instantiate related concepts and relationships from the

domain model (cf. knowledge layer) to represent the

current collaboration environment of all users. The

contextualization engine at the contextualization

layer applies contextualization strategies to extract a

subset from the state (cf. state layer) and/or domain

model (cf. knowledge layer) which are relevant for

the current collaboration situation. This creates a

contextualized state (the context). The adaptation

engine at the adaptation layer evaluates the adaptation

rules and executes applicable adaptation rules. This

Considering Legal Regulations in an Extendable Context-based Adaptive System Environment

371

leads to the adapted state that is mapped to the

collaboration environment.

4.2 Concepts of German Jurisdiction

Domain Model

In order to support legal regulations in the context

model, we have to extend the domain model

presented in (Haake et al, 2010). The German

jurisdiction is complex and may be connects different

law areas for one case. Regulations, like the GDPR,

which concerns all software applications, should

become core concepts within the domain model.

Fig. 2 shows the legal domain model dm:Legal as

a subclass of dm:Requirement. Requirements

(dm:Requirement) are linked through conditions

(dm:Condition) to resources (dm:Resource),

applications (dm:Application) or application

functionality (dm:ApplicationFunctionality) which

may be used by users (dm:User). Requirements are

external policies (e. g. law) and must be checked and

taken into account during processing.

We model the structure of law texts in the domain

model which is represented by the concept

dm:LawText including its clauses (dm:Clause) and

paragraphs (dm:Paragraph). A paragraph can either

represent a claim (dm:Claim) or an explanation of the

right (dm:LegalExplanation). Fig. 2 shows a

taxonomy of German jurisdiction through the concept

dm:Jurisdiction. For readability reasons Fig. 2

contains only an excerpt of the main areas of legal

regulations. The specifics of the German law can be

separated into two major areas: objective law

(dm:ObjectiveLaw) and subjective right

(dm:SubjectiveRight).

The first branch of objective law is the private law

(dm:PrivateLaw), with the general private law (dm:

GeneralPrivateLaw) and its subclass dm:CivilLaw.

And the special private law (dm:SpecialPrivateLaw),

with its subclasses dm:CommercialLaw, dm:Copy-

rightLaw, dm:LaborLaw and dm:PrivateInter-

nationalLaw. The second branch is public law

(dm:PublicLaw) with the subclasses dm:Criminal-

Law, dm:ProceduralLaw, dm:InternationalLaw,

dm:SocialLaw, dm:ConstitutionalLaw and

dm:AdministrativeLaw.

The first branch of subjective right is the

subjective private law (dm:SubjectivePrivateLaw),

with the absolute right (dm:AbsoluteRight) and its

subclasses dm:PersonalRight including their

subclasses dm:PrivacyLaw, dm:PropertyLaw and

dm:IntellectualPropertyLaw on the one hand and the

property rights (dm:PropertyRight) with the

subclasses dm:TitleClaim and dm:RightToAlterA-

LegalRelationship on the other hand. The second

branch is subjective public law (dm:Subjective-

PublicLaw) with its subclasses dm:StatusPositivus

(freedom through the state–protection), dm:Status-

Negativus (freedom from the state–defense against

state intervention) and dm:StatusActivus (freedom in

and for the state–participation). Concepts of the class

dm:Jurisdiction provides attributes to store the

purpose and provision of the law and references to

special law or retrains. This will be defined during the

legal framework extension phase by a legal expert

who is in charge.

Figure 3: Excerpt of the configured legal domain model.

4.3 Representation of the Copyright

Law in the Legal Context Model for

a Collaboration Situation

Using our sample community application (cf. section

1) where Alice should be able to upload photos, we

illustrate how a legal expert is involved into the

development and extension of the context-based

adaptive application (cf. Fig. 1). The process starts

when the legal expert checks the domain model of the

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

372

application, e. g. using Protégé. First (cf. 1 in Fig. 1),

the current version of the domain model is read in.

The classes, properties and annotations are presented

to the legal expert within the user interface. The

context modelling with Protégé supports different

ways to define attributes. We use annotations to

define class attributes. Second (cf. 2 in Fig. 1), the

legal expert extends the context model by adding new

classes, relationships and annotations via the user

interface. Additionally, he or she has to choose which

information concern the data privacy law, which is a

core concept that splits class annotations respectively

attributes into sensitive (cf. Fig. 3, lines 5-9, 32-38)

and non-sensitive data.

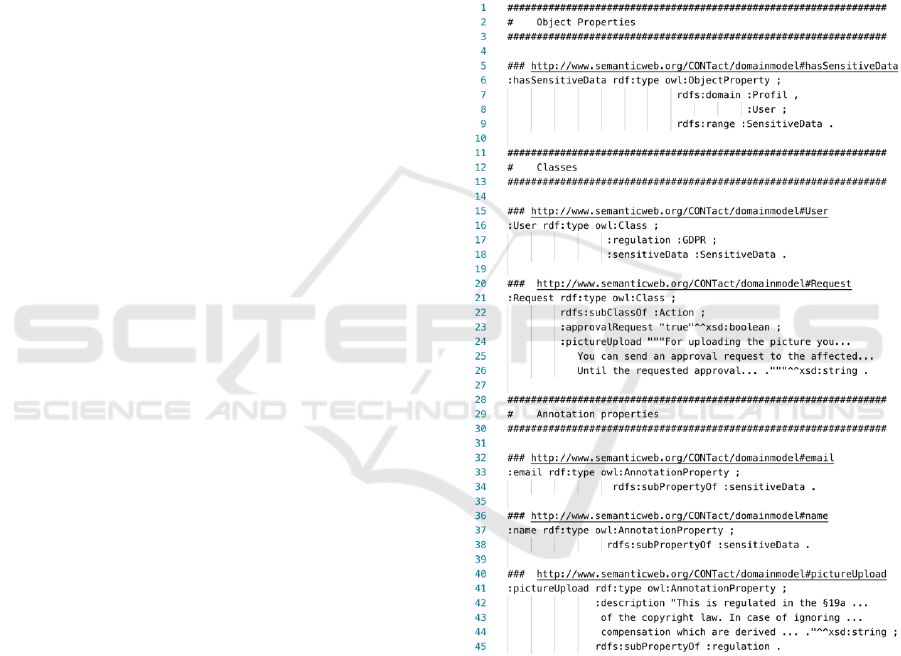

Figure 3 shows an excerpt of the legal domain model

in Turtle format. It contains classes (cf. Fig. 3, lines

11-26), relationships (subPropertyOf, subClassOf)

and annotations (cf. Fig. 3, lines 28-45) for aspects of

the GDPR and the Copyright Law (cf. Fig. 3, lines 20-

26, 40-45). After the legal expert finished the

configuration, the changes will be written back to the

context model (cf. 3 in Fig. 1). The extended version

becomes the common ground for the related context-

based applications (cf. 4 in Fig. 1). When a user

interacts with the context-based systems he or she get

information about the data usage and processing (cf.

5 in Fig. 1). The sensing and adaptation engine of the

context-based system can analyze the current

situation and react accordingly to the legal regulation

as soon as the user does something what was

regulated by the legal expert beforehand, e. g. a photo

upload.

The process of extending the context model was

implemented prototypically with Python and

OWLReady2 using a structured interface (JSON

format). The JSON structure uses the class names of

the domain model, e. g. dm:Application or dm:Action

(cf. Fig. 2), as a key and adds the information from

the configuring persons (i. e. the legal expert in our

scenario) as values, when necessary.

When writing back the changes, a Python module

first creates new Python classes or extends existing

ones which makes it possible to create and save new

domain model classes with OWLReady2 to the

domain model itself. The updated version of the

domain model can be used to create instances during

runtime. This currently works through a static

configuration and a Python Command Line Interface

(CLI). The program will be modified to a dynamic

runtime in further development, when the sensing and

adaptation engine are integrated. A user interface for

the configuration of the context model has not yet

been developed and is subject of future work.

Separate domain models are used to describe the

specific domain and its relationships. In case of legal

regulation, the domain model contains the structure

and core classes of the specific jurisdiction, i. e. the

German jurisdiction. But the core model does not

contain all specifications and paragraphs of the law,

because it would become too big and complex for

processing. Instead the legal regulation processing.

Figure 4: Contextualized state of Alice’ picture upload scenario.

Considering Legal Regulations in an Extendable Context-based Adaptive System Environment

373

Instead the legal regulation which are relevant for

a domain-specific application or application domain,

e. g. a community system like meinDorf55+, are

applied and instantiated for it and not in general.

Therefore, the responsible legal expert of an

application can decides what must be considered and

how to deal with certain situations. The separation of

applicable law from the core model makes it possible

to change the legal context, when the application e. g.

is used in another country with its own regulations

and policies.

After this modelling step is finished, the

application is available to the users using the context

model shown in Fig. 4. For readability reasons we

omitted concepts and instances in Fig. 4 to illustrate

the scenario when Alice, a user of the application

meinDorf55+, uploads a group photo which demands

an approval of all pictured persons, e. g. the user Bob.

According to the four-layer framework (Haake et al,

2010), Fig. 4 contains the state with concepts from

Fig. 2 and instances which are needed to analyze and

adapt according to the situation of Alice.

As Fig. 4 shows, Alice and Bob are instances of

the concept dm:User. CONTact and meinDorf55plus

are instances of the concept dm:Application.

meinDorf55plus_PhotoUpload is an instance of the

concept dm:ApplicationFunctionality and part of

meinDorf55plus. Alice photo Group_Excursion_

July19 is an instance of the concept dm:Photo which

is a subclass of dm:Resource.

The usage of resources like the Group_

Excursion_July19 demand the consideration of legal

requirements (dm:Legal). The requirements lead to a

set of rules with conditions (dm:Condition) which

must be fulfilled before the upload process is finished.

The photo upload affects the personal right

(dm:PersonalRight), that is regulated in the German

basic law and represented by the instance

BasicLaw_GG, the copyright with the instance

CopyrightLaw_UrhG (of class dm:CopyrightLaw)

and the German civil law with the instance

GermanCivilLaw_BGB (of class dm:CivilLaw). The

related clauses to the CopyrightLaw_UrhG are §19a

UrhG (Article_19_UrhG and Paragrapgh_19a)

which refers to §97 1,2 UrhG (instances Article_

97_UrhG, Paragraph_97_1 and Paragraph_97_1).

The dm:Claim instances Omittance and Compen-

sation are derived from §97 1, 2 UrhG. To fulfill the

legal requirements of the upload in the scenario, Alice

requires the consent of all person depicted. In case,

the picture shows Bob, Alice become aware of this by

an action (of the concept dm:Action), which creates a

view or dialog from the instance LegalExplanation_

Article_ 182_BGB (class of dm:LegalExplanation).

The explanation contains the descriptions of the

instances Article_182_BGB (§182 1 BGB the

approval) and the related paragraph

Parapgraph_182_1. Claims and legal explanations

serve to explain the need for an action and the

consequences when Alice disregards the legal rule.

An approval request to Bob will be created when

Alice continues the upload process. This time the

action (dm:Action) creates an ApprovalRequest

which can be accepted or declined by Bob (cf. Listing

1). If he accepts, the context (acceptance, related

photo, Alice request, etc.) will be stored in an

approval object for transparency and verifiability,

else the process will be aborted.

rule "Approval Request"

when

user: getUserInContext("dm:User")

app: getAppInContext(user,"dm:Application")

req: getReqInContext(app,"dm:Requirement")

appr: requestApproval(user, app, req)

then

createOrUpdateAcceptedApproval(appr)

notify(user, appr)

end

Listing 1: Rule “Approval Request”.

Listing 1 uses pseudocode to illustrate our

approach to implement “Approval Request”. The rule

consists of a condition part (when to then) and an

action block (then to end). getUserInContext retrieves

the user interacting with the application (in our

scenario Alice and Bob). The function

getAppInContext determines the application used by

the user which is of type dm:Application. The

function getReqInContext retrieves all instances and

relations connected to the domain concept

dm:Requirement of the given application. The

function requestApproval uses the context

information about the user, the application and the

requirement and ensures that the user has approved

the photo upload. When the user approved the action

beforehand, the return value of the function is empty.

When there is no or an inapplicable approval instance

present in the current context, the approval is

requested from the user.

5 GENERATE PERSONALIZED

EXPLANATIONS

To generate personalized explanations through a

domain-specific application, we use the templates and

explanatory texts of the experts. For that, the core

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

374

concepts dm:Requirement, dm:Condition and

dm:Declaration and their dependencies from

eCBASE will be used in the current situation of the

domain-specific application, i. e. meinDorf55+.

Through them, we support personalized adaptations,

user control and explanations for the users.

The purpose of these concepts is to explain ‘What

happened?’ (dm:Requirement), ‘Why does it

happened?’ (dm:Condition) and ‘What kind of

explanation should be provided?’ (dm:Declaration).

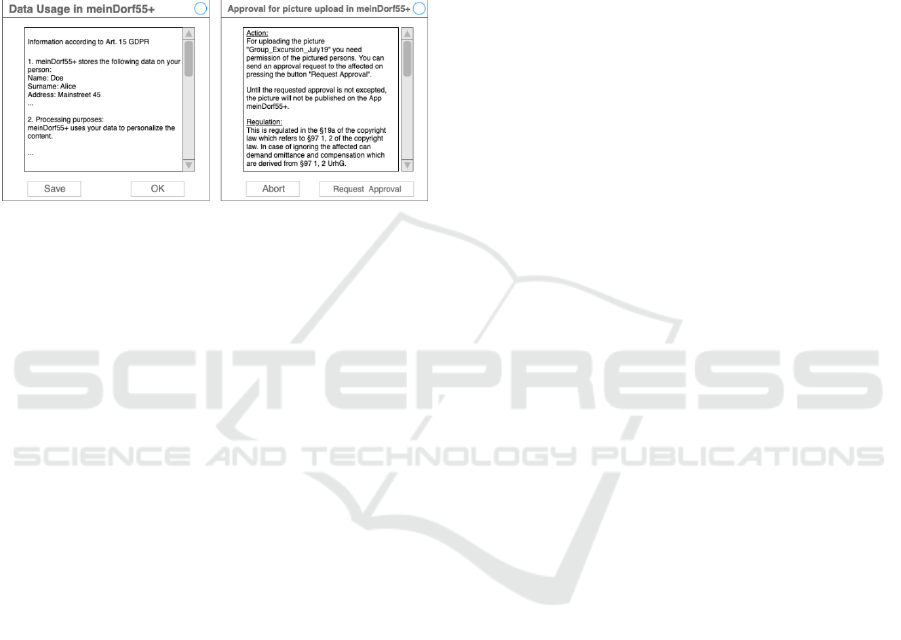

Figure 5: Sample dialogs for personalized explanations.

Figure 5 shows two examples of user interface

dialogs. They will be generated using the

requirements and explanations which are defined and

configured by the legal expert. The left dialog in

Fig. 5 shows an explanation of the data usage of Alice

concerning the usage of meinDorf55+. The dialog on

the right gets displayed when a user of meinDorf55+

tries to upload a photo. The dialog contains an

explanation what has happened and why the

interaction is needed. Additionally, it shows the

required action and the conditions (defined by the

legal expert) which must be fulfilled before the photo

becomes accessible to others. Fig. 5 illustrates how

the two explanations could be built.

6 DISCUSSION

We integrate and support legal experts in the

development of our eCBASE. For that, we presented

a process of our on-going work for integrating legal

regulations to support developers, legal experts and

providers to design and develop compliant context-

based applications. Our approach enables legal

experts to participate in the software development

process. They shall define the legal requirements, the

explanations of the law and the related consequences

which are transformed to adaptation rules. From this

eCBASE generates personalized explanations for the

users. We presented our legal domain model with its

basic concepts which is used to represent the

definitions. According to (Haake et al, 2010) we

described a contextualized perspective with a

situation and the rule “Approval Request” when the

The legal experts can have different expertises,

depending on the software application and domain. In

addition, not all legal requirements need to be defined

in eCBASE and the initial domain-specific

applications in advance. This enables us to achieve

more flexibility in the application of our context-

based adaptive system environment. We also consider

that users should make decisions about the data

processing (accept or decline) by themselves. For

that, we integrate the defined legal policies, which are

important for the situation (the context) and analyze

which of the policies must be applied in the specific

situation. Through our context-based adaptive

approach it is possible to observe activities in our

system which affects legal regulations and to explain

the required actions and consequences to the user.

This paper does not cover some outstanding

aspects: (I.) Due to the limitation of the paper we

could not explain in detail the connection of legal

requirements (defined by legal experts) with the

domain-specific application by the concept

dm:Condition. (II.) Our prototype currently has a

static setup for the situation of data usage explanation

and the picture upload. (III.) The explanation building

process that realizes the dialogs is not yet

implemented. The presented dialogs are still concepts

which must be realized in the next step. (IV.) For

readability or space reasons we presented an excerpt

of our developed domain model, i. e. we have omitted

other concepts and relationships for legal regulations.

7 CONCLUSION AND FUTURE

WORK

In this paper we presented an approach to consider

legal policies and personalized explanations in our

eCBASE. For that, we use the knowledge of a legal

expert who defines the relevant policies and

explanations using our presented underlying legal

domain model. The expert’s definitions will be stored

in and applied through our legal context model in

eCBASE (answer to Q1). Therefore, our approach

can support users to comply with the law when using

the application by generating personalized

explanations (answer to Q2). For that, we use the

specific context to explain the user the current

situation and the related consequences to the usage of

the system. We illustrated that in our sample scenario

when Alice uploads a group photo with Bob, what

Considering Legal Regulations in an Extendable Context-based Adaptive System Environment

375

concerns the Copyright Law and the GDPR. Alice’

action affects the defined policies for the system. That

triggers the generating of an explanation of further

steps to Alice as well as a request approval to Bob.

The next steps include the investigating of what

are intelligible explanations for users which are

related to the relevant legal regulation. In addition, a

user interface for depositing legal policies is in its

design phase, which the legal expert can use for

configuration. We will extend our legal domain

model with relevant regulations and try to integrate

the more specific models of (Bartolini et al, 2015) and

(Delgado et al., 2003) into our domain model to apply

it in our adaptation process. Additionally, we are

looking for further legal regulations which are

relevant in other application domains to investigate

and integrate them into eCBASE.

ACKNOWLEDGEMENTS

This work was funded by the Research Cluster

“Digitalization, Diversity and Lifelong Learning –

Consequences for Higher Education” (D²L²) of the

FernUniversität in Hagen, Germany.

REFERENCES

Bartolini, C., Muthuri, R., Santos, C., 2015. Using

ontologies to model data protection requirements in

workflows. In JSAI International Symposium on

Artificial Intelligence (pp. 233-248). Springer.

Baumann, C., Peitz, P., Raabe, O., & Wacker, R., 2010.

Compliance for Service based Systems through

Formalization of Law. In WEBIST (2) (pp. 367-371).

Bellotti, V., Sellen, A., 1993. Design for privacy in

ubiquitous computing environments. In: Proceedings of

the Third European Conference on Computer-

Supported Cooperative Work 13–17 September 1993,

Milan, Italy ECSCW’93, pp. 77-92. Springer.

Brezillon, P. J., 1994. Contextualized explanations. In:

Proceedings of International Conference on Expert

Systems for Development, pp. 119-124. IEEE.

Casanovas, P., Palmirani, M., Peroni, S., van Engers, T.,

Vitali, F., 2016. Semantic web for the legal domain: the

next step. Semantic web, 7(3), 213-227.

Casellas, N., Nieto, J. E., Meroño, A., Roig, A., Torralba,

S., Reyes, M., Casanovas, P., 2010. Ontological

semantics for data privacy compliance: The Neurona

project. In 2010 AAAI Spring Symposium Series.

Delgado, J., Gallego, I., Llorente, S., & García, R., 2003.

Regulatory Ontologies: An Intellectual Property Rights

approach. In OTM Confederated International

Conferences" On the Move to Meaningful Internet

Systems" (pp. 621-634). Springer.

Dey, A. K., 2001. Understanding and using context. In:

Personal and ubiquitous computing, vol. 5, no. 1, pp.

4-7.

Dey, A. K., Newberger, A., 2009. Support for context-

aware intelligibility and control. In: Proceedings of the

SIGCHI Conference on Human Factors in Computing

Systems, pp. 859-868. ACM.

Gangemi, A., 2007. Design Patterns for Legal Ontology

Constructions. LOAIT, 2007, 65-85.

Gangemi, A., Prisco, A., Sagri, M. T., Steve, G., Tiscornia,

D., 2003. Some ontological tools to support legal

regulatory compliance, with a case study. In OTM

Confederated International Conferences" On the Move

to Meaningful Internet Systems", pp. 607-620.

Springer.

Goram, M., Veiel, D., 2019. Supporting Privacy Control

and Personalized Data Usage Explanations in a

Context-Based Adaptive Collaboration Environment.

In G. Bella & P. Bouquet (Eds.), Modeling and Using

Context. Vol. 11939, pp. 84–97. Springer.

Gregor, S., Benbasat, I., 1999. Explanations from

intelligent systems: Theoretical foundations and

implications for practice. In: MIS quarterly, vol. 23, no.

4, pp. 497-530.

Guarino, N., 1998. Formal ontology in information

systems. In: Proceedings of the first international

conference (FOIS'98), June 6-8, Trento, Italy, vol. 46.

IOS press.

Haake, J. M., Hussein, T., Joop, B., Lukosch, S., Veiel, D.,

Ziegler, J., 2010. Modeling and exploiting context for

adaptive collaboration. International Journal of

Cooperative Information Systems, 19(01n02), pp. 71-

120.

Jiang, X., Landay, J. A., 2002. Modeling privacy control in

context-aware systems. In: IEEE Pervasive computing,

vol. 1, no 3, pp. 59-63.

Kapitsaki, G. M., 2013. Reflecting user privacy preferences

in context-aware web services. In: 2013 IEEE 20th

International Conference on Web Services, pp. 123-

130. IEEE.

Kapitsaki, G., Ioannou, J., Cardoso, J., Pedrinaci, C., 2018.

Linked USDL Privacy: Describing Privacy Policies for

Services. In: 2018 IEEE International Conference on

Web Services (ICWS), pp. 50-57. IEEE.

Lim, B. Y., Dey, A. K., 2010. Toolkit to support

intelligibility in context-aware applications. In:

Proceedings of the 12th ACM international conference

on Ubiquitous computing, pp. 13-22. ACM.

Lim, B. Y., Dey, A. K., 2011. Design of an intelligible

mobile context-aware application. In: Proceedings of

the 13th international conference on human computer

interaction with mobile devices and services, pp. 157-

166. ACM.

Veiel, D., Haake, J. M., Lukosch, S., Kolfschoten, G., 2013.

On the acceptance of automatic facilitation in a context-

adaptive group support system. In 2013 46th Hawaii

International Conference on System Sciences, pp. 509-

518. IEEE.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

376
