Teaching PLC Program Organisation: How to Transfer

PLC Best Practice Experience from Industry Experts

to University Students

Ottar L. Osen

Cyber-Physical Systems Laboratory, Department of ICT and Natural Sciences (IIR),

Norwegian University of Science and Technology, Postboks 1517, NO-6025, Aalesund, Norway

Keywords:

PLC, Programming, Real-time, Industry Experience.

Abstract:

The gap between professional industry practices and academia represents a huge challenge in bringing best

practices and silent knowledge from the industry to the students. Just as having a word-processor does not

make you an author, knowing programming syntax does not make you a good programmer. In this paper I dis-

cuss how to transfer expert knowledge about PLC and real-time programming from the industry practitioners

to the students. As a special case of interest, I investigate best practices for organising PLC programs.

1 INTRODUCTION

While teaching industrial control systems, specif-

ically PLC (Programmable Logic Controller) pro-

gramming, the author has tried to ﬁnd good teaching

resources on how PLCs are programmed in an efﬁ-

cient manner that is well suited for an industrial set-

ting. There seems to be an abundance of resources

on syntax and language speciﬁcs. However, it is very

hard to ﬁnd any resources that give ”best practice”

advice for PLC programming based on industrial ex-

perience.

Although syntax and language speciﬁcs are neces-

sary for a student to learn PLC programming, this is

far from sufﬁcient in order to make the student a pro-

grammer. This is analogous to knowing how to use a

word processor does not make you a good author.

Whilst there are some good general resources on

how to bring the practitioners experience into teach-

ing (Sch

on, 2017) and about best practices for general

programming (Shaw et al., 1996), they do not address

how to solve PLC and other real-time programming

challenges.

This calls for bringing practitioners experiences,

competence and knowledge to the university. How-

ever, this is a complex task and there seem to be a

lack of knowledge in the literature on how to achieve

this.

This paper attempts to address this issue by pre-

senting some advice and best practices based on the

author’s own industrial experience as a case and dis-

cusses how industrial experiences can be brought into

the students’ curriculum.

2 HOW TO PROGRAM PLCs

There are numerous sources on how PLCs work and

descriptions of syntax and programming languages.

This article focus on explaining how to utilise the

PLC in an optimum way by making sensible abstrac-

tion levels for the different actors involved in engi-

neering, construction, commissioning, maintenance

and day to day use of a PLC controlled ”machine”.

In this context ”machine” could be anything from a

simple start-stop logic for a motor that controls your

garage door to a complete control system for com-

plex systems such as a chemical plant or an offshore

oil platform. In between these extremes, you ﬁnd

smaller ”machines” such as elevators, cranes, robot

cells, CNC (Computer Numerical Control) machines,

vehicles and a wide range of standard and specially

made mechatronic equipment in the processing and

manufacturing industries.

Obviously, as systems grow more complex the im-

portance of good software development standards in-

creases. However, even for small projects adherence

to the principles outlined below will have signiﬁcant

cost-saving beneﬁts.

472

Osen, O.

Teaching PLC Program Organisation: How to Transfer PLC Best Practice Experience from Industry Experts to University Students.

DOI: 10.5220/0009566004720479

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 1, pages 472-479

ISBN: 978-989-758-417-6

2.1 Actors and Project Phases

In the discussion below the term ”project” is used to

describe the life-cycle of a machine/plant, from engi-

neering to decommissioning. Whether the owner ac-

tually organised it as a project or not doesn’t matter

for this discussion.

In Table 1 the different project phases are outlined.

For large projects one can deﬁne even more phases

and for smaller ones some of the phases can merge

together. The breakdown in Table 1 will sufﬁce in

order to describe the concept.

Table 1: Typical project phases.

Phase Typical activities

Concept study Idea development and feasi-

bility study

Pre-engineering Decide on important design

criteria

Engineering Detail design

Construction Building

Commissioning Testing and veriﬁcation of

sub-systems

Startup Verifying total system per-

formance and debugging

Operations Day to day normal opera-

tions.

Maintenance Scheduled repairs and modi-

ﬁcations, and ad-hoc repairs

Decommissioning Deconstruction at end of

life.

In a project, there are typically a signiﬁcant num-

ber of actors/roles. The number of actors and roles

depends on the size of the project. For a simple ma-

chine, there could be a single PLC with a simple panel

or GUI (Graphical User Interface), whilst on a chemi-

cal plant, there would be a large number of PLCs that

are interconnected with advanced Graphical User In-

terfaces (GUIs) and mimic panels. These larger sys-

tems are often called SCADA systems (Supervisory

Control And Data Acquisition )(Boyer, 2009). Table

2 lists some of the actors that in some way use or pro-

gram the PLC / SCADA system.

In Table 2 I have assumed that levels 1–5 are

personnel that the owner of the machine/plant has

in-house and that levels 6–9 are personnel that are

brought in to the project as needed from a PLC or

system vendor but this may also vary depending on

the size of the project, the company and its outsourc-

ing philosophies. The table is meant to be indicative

as to PLC programming competence and the essen-

tial part is to realise that there are different levels of

competence among the actors.

With reference to the project phases outlined in

Table 1 the skills and competence needed vary both

with respect to project phases and machine/plant com-

plexity/size.

In Table 3 typical PLC competence levels are out-

lined for different project phases and machine/plant

complexity/size. In this case, I have had a fairly big

project in mind and often this would be scaled down

and simpliﬁed for smaller projects.

2.2 Programmatic Consequences

In order to lower development and maintenance costs,

it is important to organise the code in such a manner

that as little PLC knowledge is needed in order to di-

agnose problems, verify signals, make small modiﬁ-

cations and extend an existing solution. Re-use of ex-

isting code is also cost-saving and requires adherence

to good coding standards.

In the following, the main idea is that experts

make thoroughly tested ”code templates” that less

skilled personnel can use and connect to the required

inputs and outputs. This often results in a graphical

program that connects blocks to inputs and outputs

and can be maintained without extensive PLC knowl-

edge. The internal contents of the blocks will often be

quite advanced code which must, if needed, be main-

tained by personnel with extensive PLC programming

knowledge.

3 PLC PROGRAMS VS. OTHER

PROGRAMS

In the industry and in academia there is an ongoing

discussion about whether to program using a PLC, or

traditional high-level languages on industrial PCs or

controllers. Although this is a long discussion with

many elements I will outline some of the most impor-

tant aspects below.

3.1 Differences

In some ways, programming of PLCs speciﬁcally,

and real-time systems generally, differ signiﬁcantly

from other types of program development. The most

prominent difference is the ”no-wait outer loop.”

A fundamental idea of real-time programs is that

Teaching PLC Program Organisation: How to Transfer PLC Best Practice Experience from Industry Experts to University Students

473

Table 2: Typical actors and knowledge.

Level Actor Knowledge

9 Vendor expert Expert PLC knowledge

8 Vendor senior engineer Very good PLC knowledge

7 Vendor system engineer Very good PLC knowledge

6 Vendor support engineer Good PLC knowledge

5 Senior system engineer Good PLC knowledge

4 System engineer Basic PLC knowledge

3 Electrical tech Electric terminations and hardware

2 Senior operator Advanced use of GUI

1 Operator Basic use of supplied GUI

Table 3: PLC competence matrix.

Phase Level

1 2 3 4 5 6 7 8 9

Concept study • ◦

Pre-engineering • •

Engineering ◦ • ◦ • ◦ • ◦ ◦

Construction ◦ • • • • ◦ ◦ • ◦

Commissioning • • • • • • • • •

Startup • • • • • • ◦

Operations • • • ◦

Maintenance • • • • ◦ ◦

Decommissioning ◦ • ◦

Figure 1: PLC execution loop.

the program should never wait in local loops for

events/inputs to occur. The program should run as fast

as possible (free-wheeling) or at a desired frequency

(cyclic), and only actions whose conditions are met

will be processed. Hence, the waiting time for the ac-

tions is spent on evaluating conditions and processing

actions whose conditions are met. This approach en-

sures that no actions are starved to death and that the

outer main loop is run at sufﬁcient frequency. In ad-

dition, many systems support event triggers/interrupts

and some support the use of threads.

A notable feature on most PLCs is special pro-

cessing of the IO. The IO pins consist of input ports

and output ports, which may be both analogue (vary-

ing from 0–10V, say) or digital (either 0 or 24V).

The IO is processed in such a way that inputs (input

ports) are scanned into memory (variables) at the start

of the main cycle and output variables are written to

the outputs (output ports) at the end of the main cy-

cle, see Figure 1. Hence, a PLC waiting for an input

to change its value in a local loop makes no sense

since the input will not be updated before the next

start of the outer loop. This concept is of course well

known among real-time programmers and PLC pro-

grammers, but for programmers of non-real-time sys-

tems and for those who have no experience with PLCs

this may be unfamiliar and cause fatal programming

errors.

CSEDU 2020 - 12th International Conference on Computer Supported Education

474

3.2 Why Choose PLC?

As I will discuss further in the following sections the

PLC with its richness in programming languages, in-

cluding graphical ones, and ease of use enables signif-

icantly reduced costs. This is because the PLC offers

the possibility for doing simple modiﬁcations, error

corrections and fault diagnosis. In a bigger project,

the PLC approach gives reduced man-hour costs since

people at different skill levels may be used for dif-

ferent tasks and in different stages of the project,

while for traditional programming staff will need to

be highly qualiﬁed to do even minor changes. This

will be discussed more thoroughly in the next sec-

tions.

As an example of the PLC’s ease of maintenance

and diagnostics the ability to see live logic levels as

coloured lines in a logic diagram is a powerful diag-

nostics tool (see Figure 7). A graphical representation

like this which is updated live is much easier, even

for experts, to debug than the tools normally avail-

able for high-level general languages. Since PLC pro-

gramming languages are specially designed for writ-

ing real-time programs they lack most of the general

functions that we are used to in other programming

languages such as formatting of text, graphics, user

input and so on. On the other side the PLC has built-

in support for task scheduling (timed, free-wheeling

and triggered), event prioritising, state machines, par-

allel and conditional execution and so on.

In addition, due to the standardised and somewhat

limited instruction sets the chances of making serious

design mistakes are reduced. This claim is backed by

the difference in safety requirements when applying

computer-controlled systems in a process/machine.

According to IEC 61508 (IEC, 2010), a project that

uses a PLC in a process plant will typically be al-

lowed to follow the IEC 61511 (IEC, 2020) due to

its ”limited variability languages,” whereas a project

that uses a PC or a controller programmed in a tra-

ditional low or high-level language (variability lan-

guages) will have to adhere to the stricter IEC 61508.

There are of course many other pros and cons for

both approaches but these are the most important ones

with respect to the focal points for this paper. For a

detailed presentation of object-oriented control design

see Young et al. Young et al. (2001)

4 OVERALL STRUCTURE OF

PLC PROGRAMS

In the literature, there is a lot of recommendations on

how to organise computer programs in general (Shaw

et al., 1996). Many of these are also valid for PLC

programming. One might ﬁnd that PLC program-

mers and programmers of high-level programming

languages tend to cluster in two groups with different

practices. Both groups could probably beneﬁt from

studying each other’s practices.

In the following, I will address some speciﬁc rec-

ommendations for PLC programming. These are

in addition to the recommendations for general pro-

gramming and not meant to replace these, although

one should note that some of these recommendations

may be in conﬂict with each other. In such cases,

one must inspect the reasoning behind the recommen-

dations and weigh the advantages and disadvantages

against each other.

4.1 PLC Languages

The IEC 61131-3 standard (IEC, 2013) deﬁnes 5 lan-

guages:

• IL - Instruction List

• LD - Ladder

• FBD - Function Block Diagram

• ST - Structured Text

• SFC - Sequential Function Chart

In addition, CoDeSys and other implementations

of the standard may have additional language support

such as CoDeSys’:

• CFC - Continuous Function Chart.

Different programming languages have different

advantages and limitations. Hence, it is not a good

idea to choose a favourite and stick to it. One should

use the language best suited for the purpose.

As an example, a 2 out of 3 (2oo3) voting scheme

is implemented (with identical functionality) in IL,

LD, FBD, CFC and ST for comparison as shown in

Figure 2.

Program units are called POUs (Program Organi-

sation Units), of which there are 3 main types:

• Programs

• Functions

• Function blocks

Programs are the main units, they are directly ex-

ecutable and are similar to programs in other lan-

guages. Functions are similar to functions in other

languages and they have no persistent memory. Func-

tion blocks are similar to classes in other languages,

they must be instantiated and they have persistent

memory.

Teaching PLC Program Organisation: How to Transfer PLC Best Practice Experience from Industry Experts to University Students

475

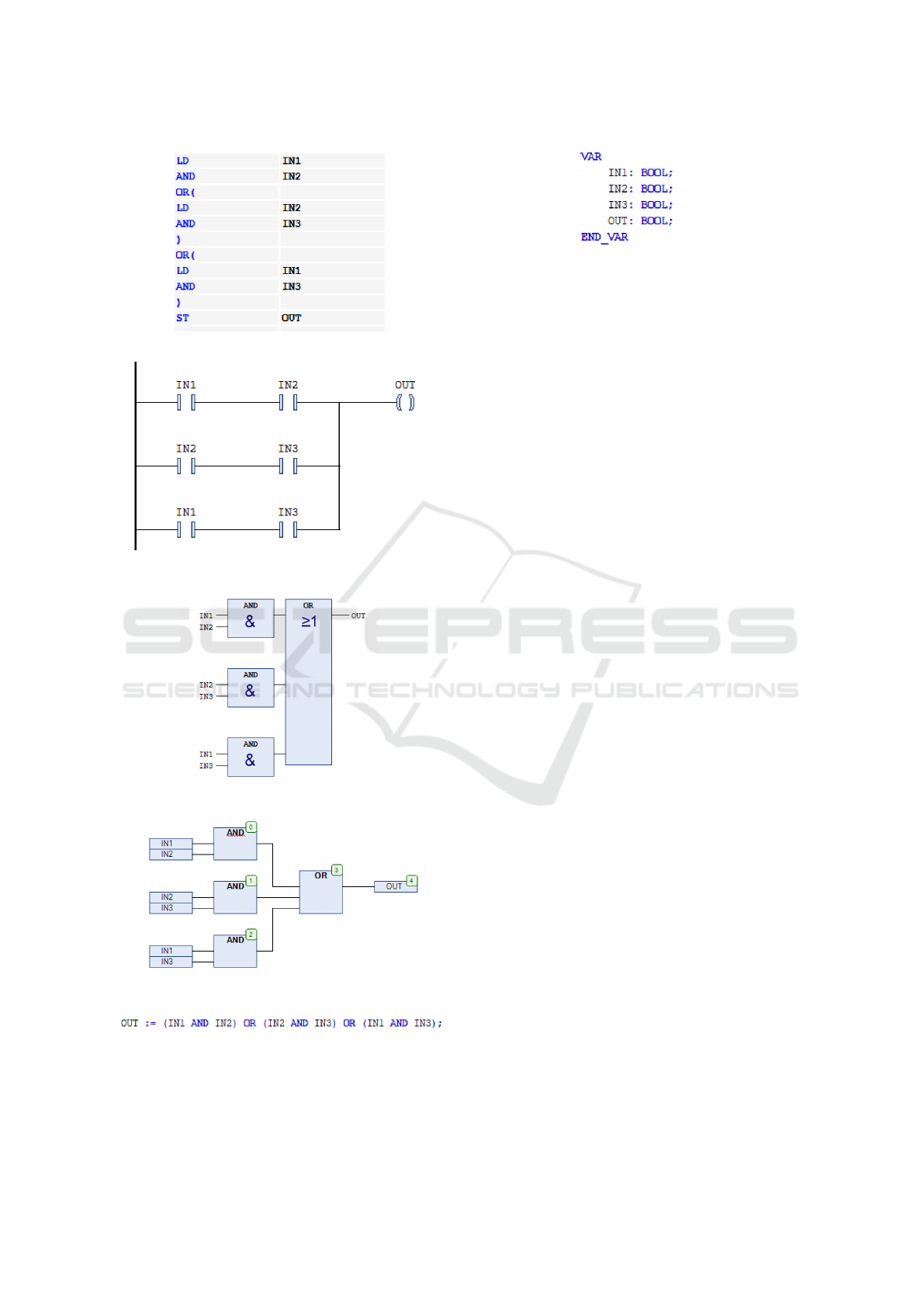

(a) Instruction List (IL).

(b) Ladder (LD).

(d) Continuous Flow Chart (CFC).

(e) Structured Text (ST).

Figure 2: 2oo3 voting implemented in different PLC lan-

guages.

Figure 3: Variable declaration for all programs in ﬁgure 2.

A typical application setup would be programs

that read inputs, connect these to functions and func-

tion blocks and connect the outputs from the function

blocks to the PLC outputs and/or show results on a

GUI.

The term instrument is used as a general term

for equipment such as sensors and actuators. For

example, an instrument could be a temperature sen-

sor, a pressure gauge, a proximity switch, a valve, or

a pump. Typically you would group similar instru-

ments into groups and make suitable function blocks

for each group. Thereafter you would instantiate

copies of the needed function blocks for each individ-

ual instrument. For instance, 40 analogue sensors, 15

pushbuttons, and 20 indicator lamps, say, would typi-

cally require 3 different function blocks (one for each

group of instruments), with 40, 15, and 20 instantiated

copies of each, respectively. Even if the 40 analogue

sensors consisted of a mix of pressure and tempera-

ture sensors and these again have different ranges, the

function block should be parametric in order to handle

different ranges, alarm limits, or other characteristics.

Finally, there are many cases where several instru-

ments work together in what is often called ”a loop.”

As an example, a valve is typically controlled by one

output to its actuator and 2 inputs, feedbacks, indi-

cating the valve position. For example, such a valve

could be part of a tank level control loop. A tank con-

troller would typically be connected to one level sen-

sor and one valve (see Figure 4). Hence, we actually

have one loop (the valve with feedbacks) inside an-

other loop (the level control loop). The PLC program

to control this inner and outer loop is shown in Fig-

ures 5 and 6.

4.2 Which Language to Use?

The main program(s) should be organised in a suit-

able number of subprograms according to the size of

the machine or plant. These programs should be in a

graphical language such as FBD, CFC, LD or SFC.

Since most machines or plants typically will need

some kind of state machine it is advisable to employ

a master Structural Flow Chart (SFC). Even a simple

machine would typically beneﬁt from some code run-

ning at startup in order to make sure the process is

CSEDU 2020 - 12th International Conference on Computer Supported Education

476

Figure 4: Tank level control example (Hughes, 2007).

Figure 5: Tank level control programmed in FBD.

ready for normal operation (calibration, making sure

mechanical parts are in the correct start position, etc.).

Furthermore, after the normal operation is complete

it is typically useful to bring the machine to a safe

condition and ready for another start (this could also

include cleaning and other operations). Hence, even

a very simple machine would have at least 3 states:

Startup, Operation, Shutdown. SFCs make debug-

ging simple since it will be possible for the service

engineer to see which state the machine is in. Inside

an SFC, in the state blocks, one may use any of the

languages and even an SFC itself.

Often, when looking for errors, the ﬁrst action is

to inspect the inputs and outputs of the PLC. Some-

times it is useful to measure the inputs and the outputs

physically on the PLC whit a VAR meter, but often

it is sufﬁcient to inspect the signals in the program.

All the graphical languages support indicating logi-

cal values with different colours etc. and variables

are readily available for inspection. Hence, debug-

Figure 6: Tank level control programmed in CFC.

ging and fault ﬁnding at the IO level becomes easy

even for non-programmers since you can graphically

see what is happening (see Figure 7).

Figure 7: Debugging using CFC.

FBD and CFC are quite similar, however CFC

gives more freedom when it comes to layout. Since

FBD and CFC resemble logic diagrams very well this

is a good way of representing logic and to show con-

nections for engineers who have some knowledge of

logic diagrams.

LD, on the other hand, resembles electrical wiring

diagrams and is well suited to show relay logic.

Hence, LD is suitable for electricians and made prob-

ably more sense historically when the PLC was seen

as a relay replacement.

ST is the best for complex tasks. However, in or-

der to keep the main program simple, it is good prac-

tice to move complex code into functions and function

blocks and keep the main program(s) in graphical lan-

guages.

Finally, IL is an assembly-like programming lan-

guage and is an unlikely candidate for anything unless

execution speed or memory limitations demand the

use of IL. In the case of automatically produced code

Est

evez et al. (2007) (from databases or similar), IL

would be a preferred language since its simple syntax

is easy to implement. All in all, IL is just for special

use and in the latest versions of CoDeSys the user has

to enable IL in the conﬁguration settings, by default it

is not available.

For functions, the choice of language depends on

the problem at hand. If the problem may be easily

described in logics then FBD, CFC or LD could be

good candidates, but otherwise usually ST is the best

choice.

For function blocks, since they normally are more

complex, the most common language will be ST.

However, since function blocks often will require a

state machine, it could be useful to put the ST code

inside SFC blocks.

Teaching PLC Program Organisation: How to Transfer PLC Best Practice Experience from Industry Experts to University Students

477

5 KNOWLEDGE TRANSFER

FROM INDUSTRY TO

ACADEMIA

The challenge of transferring best practices from the

industry to the students is at least two-fold: identify-

ing the best practices and ﬁnding a suitable vessel for

transport to the minds of students.

Sch

on (1987) has studied how practitioners learn.

This arises interesting questions such as how educa-

tors learn, what is the differences in information ver-

sus knowledge; education versus training; learning

versus teaching.

5.1 Identifying Best Practices

It is a common conception that industry and academia

is two worlds with (too) few connections. So how

can academics identify the best practices? Teachers

taking sabbaticals in companies would help teachers

to gain access to this ”hidden” knowledge. Since this

knowledge is hidden or implicit (Frappaolo, 2008) it

may not be easy to identify or to articulate. Some

skills are hard to put into words, such as riding a bike

or a swing. Berry (1987) states ”The fact that much

of an expert’s knowledge is implicit or tacit in nature

is a major problem for those working in the area of

knowledge elicitation.”

Another possibility is for the university to recruit

people with professional experience from the indus-

try, both in temporary and permanent positions. The

latter requires universities to change their job can-

didate evaluation procedure to include non-academic

achievements.

5.2 Vessel for Knowledge Transfer

In most subjects, the methods to achieve learning

goals vary depending on what the goals are. One pop-

ular system for this is constructive alignment (Biggs,

1996). Transferring best practice from industry to stu-

dents is not different in this respect. However, an

important keyword here is practice. Only hearing or

reading about best practices will probably be insuf-

ﬁcient and ineffective since a lot of this knowledge

often is hidden/implicit/tacit and of a more practi-

cal and non-theoretic nature. Sch

on (1987) states “I

have come to feel that [the] only learning which sig-

niﬁcantly inﬂuences behavior is self-discovered, self-

appropriated learning.”

Guest lectures, case studies and selected industrial

challenges are ways to achieve this kind of awareness

with the students. Likewise, a selection of carefully

crafted exercises, assignments and projects that are

closely linked to an industrial setting could help illu-

minate the importance of the best practices. However,

the scale of systems found in the industry will often be

signiﬁcantly bigger than what we are able to recreate

in university laboratories. Thus, it can be hard to ﬁnd

means to scale exercises in a way ﬁtting to the univer-

sity context and at the same time bringing forward the

challenges of large scale systems.

Compacting years of industrial experience into in-

formation that students can digest in a short time is

very challenging. In an industrial setting, a task can

be difﬁcult either because it is technically challenging

or because it has a huge volume (a lot of data, equip-

ment, tools, etc., or a lot of connections). In a teach-

ing setting the former can more easily be adapted to

the students’ competency levels through making the

industrial problems the basis for exercises with sufﬁ-

cient guidelines etc. The latter, big volume, is harder

to copy. How could we copy a big industrial setting to

the classroom and achieve anything in a short time?

Obviously, some scaling is needed. One idea could

be to carefully design a number of closely related as-

signments given to groups of students that together

formed a single large project.

Probably, in some cases we will have to accept

that there is no shortcut to gain experience, ”you have

to walk the walk”. However, in many cases, there are

ways to accelerate the process. One important tool

could be the use of hardware-in-the-loop (HIL) simu-

lation equipment (Schlager, 2008). HIL enables stu-

dents to gain experience from controlling equipment

that is normally not possible to operate on in a uni-

versity setting. The author has experimented with us-

ing HIL in PLC teaching by employing a HIL valve

simulator (Osen, 2019). A similar approach has been

used by De Farias et al. (2019) and Shiakolas and

Piyabongkarn (2003).

6 FURTHER WORK

In order to complete this study on program structure, I

am planning to write a follow-up article on how func-

tion blocks should be designed. Thereafter it could be

useful to describe good practices on how to divide a

large project plant into sections with a focus on pro-

gramming, communications, reliability and safety.

On a more general level, it would be interesting

to research in more detail different methods to trans-

fer knowledge from the industry to the students, both

from a PLC or real-time programming perspective

and a more general computer science perspective.

CSEDU 2020 - 12th International Conference on Computer Supported Education

478

7 CONCLUSIONS

There is a gap in the literature when it comes to best

practices in PLC and real-time programming. In this

paper, I have investigated the case of PLC program

organisation. This illustrates the kind of information

that is typically acquired at the workplace and often

after a signiﬁcant time. The challenge is how to relay

this information to the students. Below are some take-

home messages from this case.

In order to reduce development and maintenance

costs, it is important to be able to re-use code and that

troubleshooting and maintenance can be done without

the need of experts. This can be achieved by follow-

ing these guidelines:

• Divide the program into subprograms dependant

of the size of the project.

• Make the main programs simple and easy to main-

tain.

• Use a graphical program for the main program

where inputs and outputs are connected to func-

tion blocks.

• Make the main program well suited for trou-

bleshooting.

• Use a graphical program wherever possible (sim-

ple programs and logical problems.

• Respect the real-time properties and avoid internal

loops- Don’t use IL unless absolutely necessary.

• Don’t use LD unless the program needs to be

maintained by electricians without much knowl-

edge of logic diagrams.

• Make function blocks that have parameters to sup-

port different uses.

• Put complex code and hard to maintain code in

function blocks.

ACKNOWLEDGEMENTS

The CPS Lab is grateful for the ﬁnancial support pro-

vided by NTNU Excited SFU, a Norwegian Centre

for Excellent IT Education.

I also wish to thank my fellow colleague, Robin T.

Bye, for his contributions to this paper.

REFERENCES

Berry, D. C. (1987). The problem of implicit knowledge.

Expert systems, 4(3):144–151.

Biggs, J. (1996). Enhancing teaching through constructive

alignment. Higher Education, 32:347–364.

Boyer, S. A. (2009). SCADA: supervisory control and data

acquisition. International Society of Automation.

De Farias, A. B. C., Rodrigues, R. S., Murilo, A., Lopes,

R. V., and Avila, S. (2019). Low-cost hardware-in-the-

loop platform for embedded control strategies simula-

tion. IEEE Access, 7:111499–111512.

Est

evez, E., Marcos, M., and Orive, D. (2007). Au-

tomatic generation of plc automation projects from

component-based models. The International Jour-

nal of Advanced Manufacturing Technology, 35(5-

6):527–540.

Frappaolo, C. (2008). Implicit knowledge. Knowledge

Management Research & Practice, 6(1):23–25.

Hughes, T. A. (2007). Measurement and control basics.

IEC (2010). International Standard: IEC 61508:2010

Functional safety of electrical/electronic/

programmable electronic safety-related systems.

IEC—International Electrotechnical Commission,

IEC, Geneva, Switzerland.

IEC (2013). International Standard: IEC 61131-3:2013

Programmable controllers - Part 3: Programming

languages. IEC—International Electrotechnical Com-

mission, IEC, Geneva, Switzerland.

IEC (2020). International Standard: IEC 61511:2020

Functional safety - Safety instrumented systems for

the process industry sector. IEC—International Elec-

trotechnical Commission, IEC, Geneva, Switzerland.

Osen, O. L. (2019). On the use of hardware-in-

the-loop for teaching automation engineering. In

2019 IEEE Global Engineering Education Confer-

ence (EDUCON), pages 1308–1315. IEEE.

Schlager, M. (2008). Hardware-in-the-Loop Simulation.

VDM Verlag.

Sch

on, D. A. (1987). Educating the reﬂective practitioner.

Sch

on, D. A. (2017). The reﬂective practitioner: How pro-

fessionals think in action. Routledge.

Shaw, M., Garlan, D., et al. (1996). Software architecture,

volume 101. prentice Hall Englewood Cliffs.

Shiakolas, P. S. and Piyabongkarn, D. (2003). Development

of a real-time digital control system with a hardware-

in-the-loop magnetic levitation device for reinforce-

ment of controls education. IEEE Transactions on Ed-

ucation, 46(1):79–87.

Young, K., Piggin, R., and Rachitrangsan, P. (2001). An

object-oriented approach to an agile manufacturing

control system design. The International Journal

of Advanced Manufacturing Technology, 17(11):850–

859.

Teaching PLC Program Organisation: How to Transfer PLC Best Practice Experience from Industry Experts to University Students

479
