An Engineering Approach to Integrate Non-Functional Requirements

(NFR) to Achieve High Quality Software Process

Muhammad Awais Gondal

, Nauman A. Qureshi

, Hamid Mukhtar

and Hafiz Farooq Ahmed

National University of Modern Languages (NUML), Islamabad, 44000, Pakistan

CCSIT, King Faisal University, AlAhsa 31982, K.S.A.

National University of Sciences and Technology (NUST), Islamabad, 44000, Pakistan

Keywords: Requirements Engineering, Quality Assurance, Non-Functional Requirements, Software Quality.

Abstract: Software quality calls for an engineering approach to incorporate non-functional requirements as first-class

citizens into software specification and later operationalized at the development time. Recent research

argues to model high level goals capturing the intentions of the users as Non-functional requirements

(NFRs) at the early stage of the requirements engineering. However, intertwining relevant NFRs into the

specification at early stage increases the complexity to many folds. Therefore, a straightforward approach

for capturing NFRs is not possible as product specific NFRs are usually domain dependent. In this paper, we

propose a systematic approach to integrate NFRs into the specification and development artifacts to ensure

high quality of the software system under development. Considering existing seminal approaches in the

literature, we propose a textual template for specifying NFRs and provide systematic technique to integrate

relevant NFRs during the software requirements specification phase. We demonstrate our approach using a

healthcare-information-systems as a case study and report initial results.

1 INTRODUCTION

In Requirements Engineering (RE), the Software

Requirements Specification (SRS) document is the

key artefact specifying all requirements of the

software system (Davis et al., 1993). All the RE

phases contribute to engineer requirements which

are documented in the System Requirement

Specification (SRS) document making it the most

important artefact in the whole software

development process (Nuseibeh and Easterbook,

2000). Problematic and low-quality definitions of

requirements subsequently lead to a low-quality

software product (Berry, 1995) (Maiti and

Mitropoulos, 2017). Functional requirements (FRs)

of a software product must be fulfilled; and at the

same time satisfaction of non-functional

requirements (NFRs) can lead to success or failure

of the software (Ameller et al., 2012). NFRs have,

therefore, a direct link with the software quality.

NFRs are treated as constraints over functional or

domain requirements which require user’s input

from an early phase of the RE process. Moreover,

NFRs must also reflect quality attributes in general.

Most, if not all, quality attributes defined in quality

models of McCall et al. (1977), Boehm et al. (1978),

Dromey (1995), ISO 9126 (1991) and FURPS

(Grady, 1992), argue that explicit consideration of

NFRs shall be given by the software engineer to

incorporate relevant NFRs into the domain in which

the software will be put into practice.

1.1 A Brief History

Until recently, NFRs are not implemented in the

same way as Functional Requirements (Rosa et al.

2000). Mylopoulos et al. (1992) were among the

first ones to formalize a framework that would

incorporate NFRs into the development process

rather than evaluating them in the final product.

As identified by Rosa et al. (2000), some of the

reasons why it is too difficult to consider NFRs into

the software development process include:

1. NFRs are more complex to deal with as

compared to FRs

2. They are usually very abstract and stated only

informally

3. They are rarely supported by tools,

methodologies or languages

Gondal, M., Qureshi, N., Mukhtar, H. and Ahmed, H.

An Engineering Approach to Integrate Non-Functional Requirements (NFR) to Achieve High Quality Software Process.

DOI: 10.5220/0009568503770384

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 377-384

ISBN: 978-989-758-423-7

377

4. It is quite difficult to ensure if a specific NFR is

satisfied by the final product or not

5. Very often NFRs conflict with each other

6. Instead of being considered by application

programmers, they are taken as concerns of the

environment builders.

Glinz (2007) has divided the problems

associated with NFRs into three categories:

definition problems, classification problems, and

representation problems (see Figure 1). According to

Glinz (2007), the various definitions of NFRs have

discrepancies and they fail to provide one clear

picture. Secondly, available classifications tend to

give different idea of NFRs in different application

contexts. The problems with representation of NFRs

are also a challenge due to their fuzzy nature (Glinz,

2007). The kind of requirement (FR or NFR)

depends on the way how we define it; if we change

the way of its representation, an NFR may look like

a FR in an SRS document. Lastly, documenting

NFRs is also indicated as a representational

problem. It is not agreed that one should include

them in requirements definition section of SRS

document or not (Glinz, 2007). According to most of

the templates provided in IEEE Recommended

Practice for Software Requirements Specifications

(IEEE Computer Society, 1998), FRs and NFRs

should be stated separately in specification

documents. NFRs may also be attached to use cases

wherever possible (other than global NFRs)

(Jacobson et al. 1999).

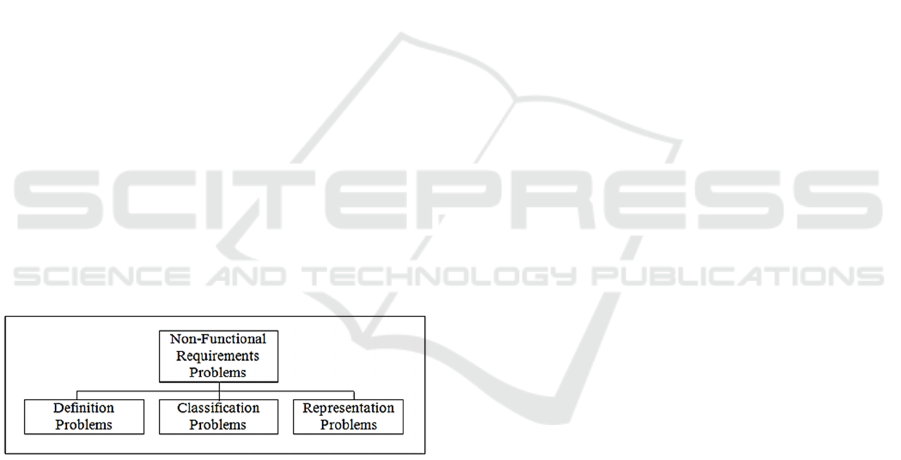

Figure 1: Non-functional Requirements Problems (Glinz,

2007).

NFRs can be represented in different ways

depending on the rationale of their use and stage of

the project. For instance, at early stage of the RE

process, goal-oriented approaches provide a well-

defined approach to model NFRs (Mylopoulos et al.,

1992) (Chung et al., 2012). Moreover, architectural

representation provides clear motivation to the

designers to link architectural components with the

NFR properties such that design can be justified.

Another very well-defined approach for

representing NFRs is textual representation. While

documenting requirements in SRS, we do require a

specific template to incorporate NFR descriptions

relevant to the FR and domain criterion. Natural

language-based textual representations are the most

widely used and easily adopted way of representing

requirements (Davis, 2013) (Luisa et al., 2004)

(Carvalho et al. 2015).

2 RELATED WORK

Various research works have been carried out that

aim to incorporate NFRs in software development

process. Some of these tend to be guidelines for this

incorporation (Ormeno et al., 2013) (Martin et al.,

2014) while others propose specific methodologies

for achieving the mentioned goal, which are

discussed in this section. As NFRs have their

relationship with multiple stages and artefacts of

software development process, the efforts in

literature are also spread over these domains.

The work of Rosa et al. (2000) presents an

approach for integrating NFRs in architecture

through a formal model, but as identified by the

authors, it is applicable only for dynamic software

architectures. Paul et al. (2001) have tried to bridge

the gap between architecture and NFRs by

presenting a simple and direct mapping of

requirements to architecture. The presented

approach suggests that each software requirement

explicitly or implicitly may contain information that

is required for software architecture.

Along with architectural integration, design

patterns focusing on NFRs can also be seen in

literature. Liu and Yu (2004) and Carvalhaes et al.

(2014) suggest that particular attributes of NFRs are

satisfied by specific design patterns and using them

in architecture design helps in achieving objectives

associated with NFRs. Although less used and

understood by software development community,

using goal graphs for representing NFRs is also very

common among research community (Bano et al.,

2018). Goals are those objectives that the system

must fulfil with cooperation of different associated

actors (Liu and Yu, 2004).

The focus of this research paper is textual

representations of NFRs that can be incorporated in

SRS documents. Therefore, this section principally

highlights such approaches that satisfy our focus.

Volere Requirements Specification Template

(Robertson and Robertson, 2006) is a widely used

method for recording requirements in a structured

way. Goals and requirements can be documented

through Volere template with respect to their

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

378

rationale, associated stakeholder, priority and

contextual details.

Different non-functional requirements like

security, usability, maintainability etc. have specific

templates presented in Volere documentation.

Several studies like (Carvalhaes et al., 2014) (Porter

et al., 2014) have used techniques inspired by Volere

template, for their proposals.

A series of requirements templates provided by

Duran et al. (1999) include non-functional

requirements description template as well. Although,

functional requirements templates provided in this

template series have very concrete fields to be filled

for describing functional requirements, it has been

admitted that for non-functional requirements, the

template is very general and does not have any

specific field.

A problem with the usage of such templates is

that they are useful only when a single person is

responsible for managing them. However, in a

project where many people are working

simultaneously, this can lead to inconsistent,

contradicting and omitted requirements, and a need

for a complex requirements management tool

(Nikula and Sajaniemi, 2002).

Moreira et al. (2002) have presented a model to

identify quality attributes crosscutting functional

requirements and to integrate them with functional

requirements at an early stage of software

development. The flow of our proposed approach is

moderately related to this research work. However,

unlike the authors, our approach is open and does

not rely on specific modelling language like UML.

A number of research works propose NFRs

templates that can be used for a specific NFR or

quality attribute. An approach presented by He and

Anton (2003) deals explicitly with privacy

requirements modelling, while another similar

approach based on use cases deals with efficiency

requirements only (Dorr et al., 2003). The work by

Chih-Wei, et al. (2006) proposes a model for dealing

with performance requirements in agile development

processes.

Apart from detailed tabular templates and

models, several research works provide boilerplates

(reusable sentences); a term first used by Hull and

Jackson (2005) in the meanings of limited

vocabulary sentences having specific placeholders

to be completed in order to obtain semi-formal

requirement sentences. Kopczyńska et al. (2014)

have presented an elicitation methodology by the

use of their Non-functional Requirements Templates

(NoRTs), which focuses on using generic statements

(having core and optional parts) that become defined

NFRs after adding required information.

EARS presented by Mavin et al. (2009) also

provides a simple boilerplate for requirement

templates that can be used for non-functional

requirements as well. Other such sentence templates

can be seen in natural language-based boilerplates

proposed by Ibrahim et al. (2014), and catalogues

presented by Chung and Nixon (1995) and

Cysneiros and Eric (2004).

Younas et al. (2019) use natural language

processing techniques for identification of NFRs

from requirements documents. The approach uses a

language model and popular keywords for

identification of NFRs. The empirical evidence

shows that the automated semi-supervised approach

reduces manual human effort in the identification of

NFRs. This work suffers from the limitation of the

lexicon or keywords as they are domain dependent.

Also, the authors mention other limitations including

the bias of the data labeller or the source of

vocabulary for training the model.

With the emergence of Agile software

development approaches, user stories (Cohn, 2004)

have become the most popular way of expressing

requirements focusing on the viewpoint of a role.

However, the details required to capture the

subtleties of NFR’s cannot be captured by user

stories by ordinary users.

The research works included in this section can

be summarized as below:

a) The models to integrate NFRs are too generic

to be practically adopted by software

development units. They do not provide an

implementation strategy for NFRs, thus

leaving it up to the developer to document

any such required strategy.

b) Most of the text-based tabular templates

represent NFRs as independent elements of

requirements process. The need of NFRs’

relationship with specific functional

requirements is not fulfilled by most of the

efforts.

c) Boilerplates/sentence-oriented templates, on

the other hand, lack the attribute of proper

traceability and formal inclusion in SRS

templates.

This paper specifically focuses on textual

representation of NFRs that can be included in

requirements documents with the aim of effective

traceability and practical incorporation throughout

the development process.

An Engineering Approach to Integrate Non-Functional Requirements (NFR) to Achieve High Quality Software Process

379

3 PROPOSED APPROACH

This section describes our proposed approach as

represented in Figure 2. Table 1 presents the tabular

text-based template used in our proposal. Following

subsections provide details of each activity.

3.1 Identifying Functional

Requirements

Software systems are based on a collection of

functional and non-functional requirements. Several

methods of elicitation of requirements are there that

can be used to specify all requirements of the system

under construction.

We start by specifying FRs and identifying

actors associated with them as per use case

approach. Some NFRs and quality attributes can be

added at this stage according to the expertise of the

developer and nature of the system under

construction (Pressman, 2005), however, they are

refined and identified in detail in the next step.

3.2 Identifying NFRs (Quality Factors)

As mentioned by Pressman (2005), specific implicit

characteristics are expected from specific domains

of software systems. Such common quality factors

are usability as general for most of the applications,

security for banking systems, and privacy for social

networking applications. However, other quality

factors must be analyzed that may impose

constraints on the system or on a specific FR. Each

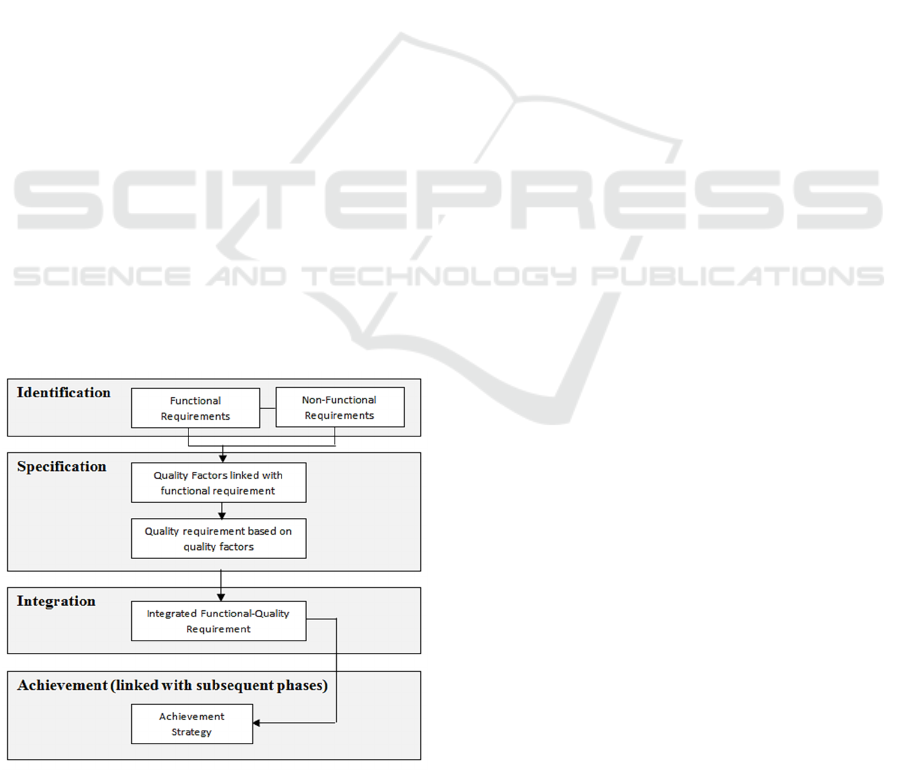

Figure 2: Proposed approach for integrating NFRs quality

attributes.

quality factor can be further divided into specific

quality attributes, for example, the usability factor

can be divided in to attributes of task time,

efficiency, and (user) error frequency.

We advocate creating a relationship of certain

quality factors with FRs as fulfilling the quality

factors at functional level will support NFRs at the

global level. At this stage, we define the required

quality factors for considered functional

requirement.

3.3 Specifying Quality Requirements

(with Respect to Quality Factors)

The specified quality factors and their attributes may

have specific constraints and obligations associated

with them. A quality requirement is defined at this

stage that specifies the constraints or obligations

linked with certain quality attributes. The quality

requirement can be written in simple textual

statements; however, we strongly support use of

quantitative statements that can be measured as well

at later stages. The specific quality attribute is

highlighted in our proposed approach with ‘< >’.

The specific constraint to the quality attribute is

described with ‘{ }’. This is to guide developers to

keep a record of quality factors and their

achievement criteria (constraints) at the development

stage.

3.4 Integrating Functional and Quality

Requirements

Functional requirements and quality requirements

should be integrated together in the form of

Integrated Functional-Quality requirements. The

basic functional requirement is enhanced to

accommodate the conditions suggested by the

quality requirement. The integrated requirements

must include all constraints mentioned in quality

requirement in relationship to the functional

requirement in consideration (Glinz, 2007). The

integrated functional-quality requirement is the final

requirement description that will be used in

subsequent phases of software development.

Inclusion of NFRs attributes in functional

description will oblige the developers to consider

them in all design decisions and phases. Since NFRs

attributes are now a part of functional description,

tracing them does not need a separate methodology;

rather they are traced with functional requirements

automatically.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

380

Moreover, creation of test cases for specific

functional requirements will also include NFRs

attributes inevitably.

3.5 Formulating Achievement Strategy

At this earlier phase of software development, a

specific strategy has to be specified for addressing

the constraints imposed on functional description

after integration of quality requirement.

A strategy can be specific design patterns,

implementation techniques or simply conditions to

be applied in code. At this stage, the strategy is for

consideration purposes, and it is supposed to be

explained in more detail during system design phase.

Table 1: Elements of Proposed NFRs Template.

NFR Template

Functional Requirement (description)

Quality Factors (description)

Quality Factors Requirement (description)

Integrated Functional-Quality

Requirement

(description)

Achievement Approach

Specification

(description)

4 CASE STUDY

For practical demonstration of the proposed

approach and NFRs template, we developed a case

study that consists of a simplified version of

requirements from a Healthcare system practically

deployed as mentioned in (Khan et al., 2017).

Account of features required for the system is

provided below.

“The Electronic Health Record (EHR) System

for Obstetrics Specialty should provide the features

of scheduling appointments for patients. Front desk

staff should be able to collect basic information of

the patients in order to register them. History of the

patients should be gathered through the system and

made available to the doctor where required.

Alternatively, the doctor should be able to open the

file (record) of a patient which is termed as

Chart/Patient Visit file. The doctor can view lab

reports/results of a specific patient. The system

should allow the doctor to electronically prescribe

medications. It should also allow the doctor to

suggest lab tests for a specific patient”.

A. Identifying Functional Requirements:

As the description is for an already developed

system, here it is only presented in the form of Use

Case diagram as shown in Figure 3. For presenting

the process of creating our proposed template, we

will utilize the use case of ‘Access History’.

Figure 3: Use case diagram for case study.

B. Identifying NFRs (Quality Factors):

As mentioned in the previous section, at this stage

we need to identify non-functional requirements

(NFRs) as global properties of the system that

provide certain constraints on functional

requirements. Each functional requirement may have

to fulfill particular constraints due to certain quality

factors associated with the functional requirement.

Here in this case the factor associated with the

functional requirement is usability and it can be

described in terms of its attributes that are task time

and reduction of errors.

C. Specifying Quality Requirements (with

Respect to Quality Factors):

In this stage certain constraints and obligations

linked to the specified quality attributes are

identified for a functional requirement. It provides a

quality requirement with respect to the selected

quality attributes. Table 2 shows identified quality

attributes for a FR and its related quality

requirement.

An Engineering Approach to Integrate Non-Functional Requirements (NFR) to Achieve High Quality Software Process

381

D. Integrating Functional and Quality

Requirements:

The quality factor requirement specified in the

previous stage can be integrated with the basic

functional requirement to obtain functional-quality

requirement. Table 3 provides the integration of both

these requirements into one concrete requirement.

Table 2: Specification of Quality Requirement.

Functional

Requirement

The system should present patient’s

history records to the user.

Quality Factors Task time, (Reduction of) Errors

Quality Factors

Requirement

<Average time> to interpret

patient’s history records should {be

less than 5 minutes}.

<Chances of error> while

interpreting patient’s history

records should be {minimum i.e. up

to 2 times}.

Table 3: Integration of Functional and Quality

Requirements.

Functional

Requirement

The system should present patient’s

history records to the user.

Quality Factors Task time, (Reduction of) Errors

Quality Factors

Requirement

<Average time> to interpret

patient’s history records should {be

less than 5 minutes}.

<Chances of error> while

interpreting patient’s history

records should be {minimum i.e. up

to 2 times}.

Integrated

Functional-

Quality

Requirement

The system should present patient’s

history records that should be

interpreted by the user within 5

minutes and with minimum error

i.e. up to 2 times.

E. Formulating Achievement Strategy:

Different strategies for achieving NFRs and

constraints can be followed depending on the nature

of Integrated Functional-Quality Requirement and

domain of the software project being constructed.

The strategy for fulfilling the previously specified

integrated functional-quality requirement has been

mentioned in Table 4.

Our proposed NFRs template is completed with

inclusion of achievement strategy.

Table 4: Achievement Approach Specification.

Functional

Requirement

The system should present

patient’s history records to the

user.

Quality Factors Task time, (Reduction of) Errors

Quality Factors

Requirement

<Average time> to interpret

patient’s history records should

{be less than 5 minutes}.

<Chances of error> while

interpreting patient’s history

records should be {minimum i.e.

up to 2 times}.

Integrated

Functional-

Quality

Requirement

The system should present

patient’s history records that

should be interpreted by the user

within 5 minutes and with

minimum error i.e. up to 2 times.

Achievement

Approach

Specification

Temporal layout and visuals

Use temporal history view to

reduce time.

Use red colour to indicate

alarming conditions in patient’s

history.

Use yellow colour to indicate

noteworthy situations in patient’s

history.

For clarification and a well-defined view, we are

providing our proposed template for another use

case i.e. ‘Register Patient’. This template is

presented in Tables 5.

Table 5: NFR Template for ‘Register Patient’.

Functional

Requirement

The system should present a form

for collecting basic information of

the user.

The user should be able to fill in

the required fields.

The system should save all filled

information.

Quality Factors Task time, Completeness

Quality Factors

Requirement

<Average time> to collect

information should be {within 5

minutes} and it must be

<Complete> with {no missing

required data fields}.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

382

Table 5: NFR Template for ‘Register Patient’ (cont.).

Integrated

Functional-

Quality

Requirement

The system should present a form

for collecting basic information.

<Average time> for the user to

fill in the required fields should

be {within 5 minutes}.

The system should only accept

<Complete> information and {no

missing required data fields}

should be there.

The system should save all filled

information.

Achievement

Approach

Specification

Auto-complete, Warning

messages

Use auto-complete and pre-

selected fields to reduce task time.

Divide the information entry

fields in categories of highly

required, required and optional.

Do not allow the user to leave any

‘highly required’ field blank.

Show a colour-based warning on

leaving ‘required’ fields blank.

5 CONCLUSIONS

In this paper, we presented an easy approach for

integrating NFRs in the SRS documents in an

intuitive way. We have provided details of the

process of integration and practically shown our

proposed template based on a case study.

The proposed approach is based on natural

language textual representation, which is one of the

most commonly used methods. It will ensure early

consideration of NFRs in the software development

process. Apart from NFR integration, we have also

extended our proposed template to achievement

methodology specification which will help in

finding practical solutions for fulfilling constraints

imposed by specific NFRs, at an early stage of

software development.

In future, we aim to explore the relationship of

multiple functional requirements in order to fulfil

one specific non-functional requirement or

constraint. For example, integrity requirements as

per McCall’s quality model are linked to authorized

access to features of the system. Let’s assume that in

a system, only admins can access certain features. In

such a scenario, these features might include

multiple functional requirements which together will

satisfy overall integrity requirements. Such an

approach might require creating separate tables for

collection of related functional requirements. Apart

from it, some NFR constraints can be related to data

and not to functional requirements.

REFERENCES

Ameller, D., Ayala, C., Cabot, J., & Franch, X. (2012).

Non-functional requirements in architectural decision

making. IEEE software, 30(2), 61-67.

Bano, J., Reddy, L. S. S., & Khammari, H. (2018). A

Significant Research Framework on Goal Oriented

Requirement Engineering. International Journal of

Applied Engineering Research, 13(11), 9558-9564.

Berry, D. M. (1995). The importance of ignorance in

requirements engineering. Journal of Systems and

Software.

Boehm, B. W., Brown, J. R., Kaspar, H., Lipow, M., &

MacLeod, G. (1978). Merritt.: Characteristics of

Software Quality.

Carvalhaes, M. F., da Rocha, A. F., Vieira, M. F., &

Barbosa, T. M. D. A. (2014). Affective embedded

systems: a requirement engineering aproach.

International Journal of Computer Trends and

Technology (IJCTT), 8, 70-75.

Carvalho, Gustavo, et al. "NAT2TEST tool: From natural

language requirements to test cases based on CSP."

Software Engineering and Formal Methods. Springer,

Cham, 2015. 283-290.

Chung, L., & Nixon, B. A. (1995, April). Dealing with non-

functional requirements: three experimental studies of a

process-oriented approach. In 1995 17th International

Conference on Software Engineering (pp. 25-25). IEEE.

Chung, L., Nixon, B. A., Yu, E., & Mylopoulos, J.

(2012). Non-functional requirements in software

engineering (Vol. 5). Springer Science & Business

Media.

Cohn, M. (2004). User stories applied: For agile software

development. Addison-Wesley Professional.

Cysneiros, L. M., & Yu, E. (2004). Non-functional

requirements elicitation. In Perspectives on software

requirements (pp. 115-138). Springer, Boston, MA.

Davis, A., Overmyer, S., Jordan, K., Caruso, J., Dandashi,

F., Dinh, A., & Ta, A. (1993, May). Identifying and

measuring quality in a software requirements

specification. In [1993] Proceedings First International

Software Metrics Symposium (pp. 141-152). IEEE.

Davis, A. (2013). Just enough requirements management:

where software development meets marketing. Addison-

Wesley.

Dörr, J., Kerkow, D., Von Knethen, A., & Paech, B. (2003,

June). Eliciting efficiency requirements with use cases.

In Ninth international workshop on requirements

engineering: foundation for software quality. In

conjunction with CAiSE (Vol. 3).

Dromey, R. G. (1995). A model for software product

quality. IEEE Transactions on software engineering,

21(2), 146-162.

An Engineering Approach to Integrate Non-Functional Requirements (NFR) to Achieve High Quality Software Process

383

Durán Toro, A., Bernárdez Jiménez, B., Ruiz Cortés, A., &

Toro Bonilla, M. (1999). A requirements elicitation

approach based in templates and patterns.

Glinz, M. (2007, October). On non-functional requirements.

In 15th IEEE International Requirements Engineering

Conference (RE 2007) (pp. 21-26). IEEE.

Grady, R. B. (1992). Practical software metrics for project

management and process improvement. Prentice-Hall,

Inc.

Grunbacher, P., Egyed, A., & Medvidovic, N. (2001,

August). Reconciling software requirements and

architectures: The cbsp approach. In Proceedings Fifth

IEEE International Symposium on Requirements

Engineering (pp. 202-211). IEEE.

He, Q., & Antón, A. I. (2003, June). A framework for

modeling privacy requirements in role engineering.

In Proc. of REFSQ (Vol. 3, pp. 137-146).

Ho, C. W., Johnson, M. J., Williams, L., & Maximilien, E.

M. (2006, July). On agile performance requirements

specification and testing. In AGILE 2006

(AGILE'06) (pp. 6-pp). IEEE.

Hull, E., Jackson, K., & Dick, J. (2005). Advanced

traceability. Requirements Engineering, 131-151.

Ibrahim, N., Kadir, W. M. W., & Deris, S. (2014,

September). Documenting requirements specifications

using natural language requirements boilerplates.

In 2014 8th. Malaysian Software Engineering

Conference (MySEC) (pp. 19-24). IEEE.

IEEE Computer Society. Software Engineering Standards

Committee, & IEEE-SA Standards Board. (1998). IEEE

Recommended Practice for Software Requirements

Specifications. Institute of Electrical and Electronics

Engineers.

ISO, I. (1991). Information technology-software product

evaluation-quality characteristics and guidelines for

their use. ISO/IEC IS, 9126.

Jacobson, Ivar et al. (1999). The unified software

development process. Vol. 1. Reading: Addison-

Wesley.

Khan, A., Mukhtar, H., Ahmad, H. F., Gondal, M. A., &

Ilyas, Q. M. (2017, March). Improving Usability

through Enhanced Visualization in Healthcare.

In 2017 IEEE 13th International Symposium on

Autonomous Decentralized System (ISADS) (pp. 39-

44). IEEE.

Kopczyńska, S., & Nawrocki, J. (2014, August). Using

non-functional requirements templates for elicitation:

A case study. In 2014 IEEE 4th International

Workshop on Requirements Patterns (RePa) (pp. 47-

54). IEEE.

Liu, L., & Yu, E. (2004). Designing information systems

in social context: a goal and scenario modelling

approach. Information systems, 29(2), 187-203.

Luisa, M., Mariangela, F., & Pierluigi, N. I. (2004).

Market research for requirements analysis using

linguistic tools. Requirements Engineering, 9(1), 40-

56.

Maiti, R. R., & Mitropoulos, F. J. (2017, March).

Capturing, eliciting, and prioritizing (CEP) NFRs in

agile software engineering. In SoutheastCon 2017 (pp.

1-7). IEEE.

Martín, Y. S., Del Alamo, J. M., & Yelmo, J. C. (2014,

August). Engineering privacy requirements valuable

lessons from another realm. In

2014 IEEE 1st

International Workshop on Evolving Security and

Privacy Requirements Engineering (ESPRE) (pp. 19-

24). IEEE.

Mavin, A., Wilkinson, P., Harwood, A., & Novak, M.

(2009, August). Easy approach to requirements syntax

(EARS). In 2009 17th IEEE International

Requirements Engineering Conference (pp. 317-322).

IEEE.

McCall, J. A., Richards, P. K., & Walters, G. F.

(1977). Factors in software quality. volume i. concepts

and definitions of software quality. General Electric

Co Sunnyvale, CA.

Moreira, A., Araújo, J., & Brito, I. (2002, July).

Crosscutting quality attributes for requirements

engineering. In Proceedings of the 14th international

conference on Software engineering and knowledge

engineering (pp. 167-174).

Mylopoulos, J., Chung, L., & Nixon, B. (1992).

Representing and using nonfunctional requirements: A

process-oriented approach. IEEE Transactions on

software engineering, (6), 483-497.

Nikula, U., & Sajaniemi, J. (2002, September). Basyre: A

lightweight combination of proven RE techniques.

In Proceedings of the International Workshop on Time

Constrained Requirements Engineering.

Nuseibeh, B., & Easterbrook, S. (2000, May).

Requirements engineering: a roadmap. In Proceedings

of the Conference on the Future of Software

Engineering (pp. 35-46).

Ormeño, Y. I., Panach, J. I., Condori-Fern, N., & Pastor,

Ó. (2013, May). Towards a proposal to capture

usability requirements through guidelines. In IEEE 7th

International Conference on Research Challenges in

Information Science (RCIS) (pp. 1-12). IEEE.

Porter, C., Letier, E., & Sasse, M. A. (2014, August).

Building a National E-Service using Sentire

experience report on the use of Sentire: A volere-based

requirements framework driven by calibrated personas

and simulated user feedback. In 2014 IEEE 22nd

International Requirements Engineering Conference

(RE) (pp. 374-383). IEEE.

Pressman, R. S. (2005). Software engineering: a

practitioner's approach. Palgrave macmillan.

Robertson, J., & Robertson, S. (2006). Volere:

Requirements specification template (2006). The

Atlantic Systems Guild, 47.

Rosa, N. S., Justo, G. R., & Cunha, P. R. (2000, May).

Incorporating non-functional requirements into

software architectures. In International Parallel and

Distributed Processing Symposium (pp. 1009-1018).

Springer, Berlin, Heidelberg.

Younas, M., Wakil, K., Jawawi, D. N., Shah, M. A., &

Mustafa, A (2019). An Automated Approach for

Identification of Non-Functional Requirements using

Word2Vec Model.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

384
