A Concept & Compliance Study of Security Maturity Models with
ISO 21827
Rabii Anass
1
, Assoul Saliha
2
and Roudi
`
es Ounsa
1
1
Mohammed V University in Rabat, EMI, Siweb Team, Morocco
2
Mohammed V University in Rabat, ENSMR, Siweb Team, Morocco
Keywords:
Information Security, Cyber Security, Information Systems, Maturity Model, ISO 21827, SSECMM,
CCSMM, MMISS-SME.
Abstract:
Ever since the success of maturity models in software engineering, the creation of security maturity models
began enlarging the choice pool for organizations. Yet their implementation rate has been low and their impact
difficult to perceive. This security maturity model choice grew even larger in the last decade regardless of the
existence of the standard security maturity model ISO 21827. Amongst governmental approaches, CCSMM is
the US national security maturity model supported by a presidential policy for national preparedness. MMISS-
SME is one of the only validated security maturity model created by academia between 2007 and 2018. Our
research aims to study the added value and compliance of CCSMM and MMISS-SME with the ISO 21827
standard and their shared core concepts. We presented each security maturity model’s main lines and modeled
their core concepts. Our study shows that the standard encompasses all security engineering concepts yet
leaving room for characterization and customization to the organizations. However, CCSMM and MMISS-
SME provide nuances in both functions and concepts seeing that they were created for specific contexts such
as SMEs or the US local government and their vital organisms.
1 INTRODUCTION
The term ”maturity” describes the capacity to pro-
gressively improve a specific ability until it reaches
a desired goal or a normally occurring culmination
(Mettler, 2011). Maturity manifests in all aspects ca-
pable of change and improvement. Maturity mod-
els serve as a means to evaluate how organizations
manage that specific aspect and how they could im-
prove their current state. In our context, we address
security maturity models (SMM). The main func-
tions of a security maturity model usually are to as-
sess the state of security and to provide a road-map
for improvement (Le and Hoang, 2016). Therefore,
a maturity model defines multiple milestones an or-
ganization must reach to be at a certain ”Maturity
Level” by meeting a set of requirements. SMMs
rose to prominence after the success of the Capability
Maturity (CMM) Model used in software engineer-
ing (Humphrey, 1988). They stood out from the al-
ready used security standards ISO 27001/27002 (ISO,
2019b) or NIST framework (Barrett, 2020) for their
progressive improvement aspect. They provide bet-
ter insight for organizations in terms of security pri-
orities and targeted sets of actions (Mckinsey, 2017).
Security maturity models have become more abun-
dant with the creation of 20 newer SMM between
2007 and 2018 (Kassou and Kjiri, 2012) (Rigon et al.,
2014) (Barclay, 2014). Governments have also ac-
knowledged their utility by adopting existing secu-
rity maturity models or creating their own (ANSSI,
2009). Each of these security maturity models eval-
uates maturity differently by using different metrics
and therefore having different prerequisites to reach a
maturity level. The ISO initiative culminates with the
release of the ISO 21827 (ISO, 2019a) standard pro-
duced in 2002 and recently confirmed in 2014. This
diversity joined to the domain dynamicity leads to
indecisiveness amongst organizations as well as the
academic community (ReaGuaman, 2017) (Le and
Hoang, 2016). Therefore, we think there is a need
to conduct an in-depth analysis of emerging SMMs in
relation to ISO 21827.
Our study focuses on 2 representative security ma-
turity models: The Community Cyber Security Ma-
turity Model (CCSMM) and the Maturity Model for
Information System Security in Small and Medium
Enterprises (MMISS-SME). We chose CCSMM for
our study because it is one of the most prominent
available governmental security maturity models in
Anass, R., Saliha, A. and Ounsa, R.
A Concept Compliance Study of Security Maturity Models with ISO 21827.
DOI: 10.5220/0009569703850392
In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 385-392
ISBN: 978-989-758-423-7
Copyright
c
2020 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
385
use (White, 2007). In fact, in 2011, it was chosen
as the USAs governmental security maturity model
through the Presidential Policy Directive PPD-8: Na-
tional Preparedness (Department of Homeland Secu-
rity, 2018). On the other hand, according to recent
systematic literature review, most studies presenting
a security maturity model produced by academia be-
tween 2007 and 2018 haven’t evaluated the impact of
their models on the implementing organization (Ra-
bii A., 2020). This is presumably due to the difficulty
of implementing a security maturity model or the sen-
sitivity of this task. We have chosen MMISS-SME
amongst SMMs made by academia for having been
tested in 11 organizations providing an automated
tool for its implementation and guidance (S
´
anchez,
2007) (Sanchez et al., 2008). Our study seeks to an-
swer the following research questions:
Given the existence of the ISO 21827 standard,
what is CCSMM’s and MMISS-SME’s specific
added value?
What is the common core of concepts for these
security maturity models?
Are CCSMM and MMISS-SME compliant with
ISO 21827?
To that end, we first describe each SMM’s genesis
highlighting their objective. Then we present their
architecture by the means of our package diagrams
highlighting their different facets. Then, we detail
their core concepts. Afterwards, we verify concept
similarities and differences with ISO 21827 and what
they entail for the model’s main functions. We finally
discuss their compliance with the standard.
2 OVERVIEW OF ISO 21827,
CCSMM AND MMISS-SME
In this section we present ISO 21827, CCSMM and
MMISS-SME. We will discuss the context of their
genesis,outline their main functions through their ar-
chitectural model. Finally we analyze the concepts
they set forth.
2.1 ISO 21827
2.1.1 Genesis
ISO 21827 or SSECMM was created by the “Informa-
tion security, cyber security and privacy protection”
committee (ISO/IEC JTC 1/SC 27) to support organi-
zations in improving their security engineering prac-
tices for all security systems. Similarly to any ISO
standard, it went through many verification phases
and finally approved by the Common Criteria and the
Alternative Assurance Working Groups. It was first
published in 2002, revisited in 2008, validated in 2014
and is currently under review.
2.1.2 Main Lines & Architecture
ISO 21827 is used by organizations as a tool to eval-
uate their security engineering actions and provide an
improvement plan. As is shown in the domain model
in Fig 1, it is structured into 2 dimensions: Capabil-
ity dimension and Domain dimension. The capability
dimension contains the 6 maturity levels: Not Per-
formed, Performed Informally, Planned & Tracked,
Well Defined, Qualitatively Controlled, and Contin-
uously Improving. Each maturity level is described
by a set of “Common Features” that encompass in-
stitutionalization of processes reflecting how secu-
rity is managed within the organization. For exam-
ple, “Defining a standard process”, “Performing the
standard process” and “Coordinate practices” are the
”Common Features” for level 3. Each common fea-
ture is described by a set of “Generic Practices” (GP).

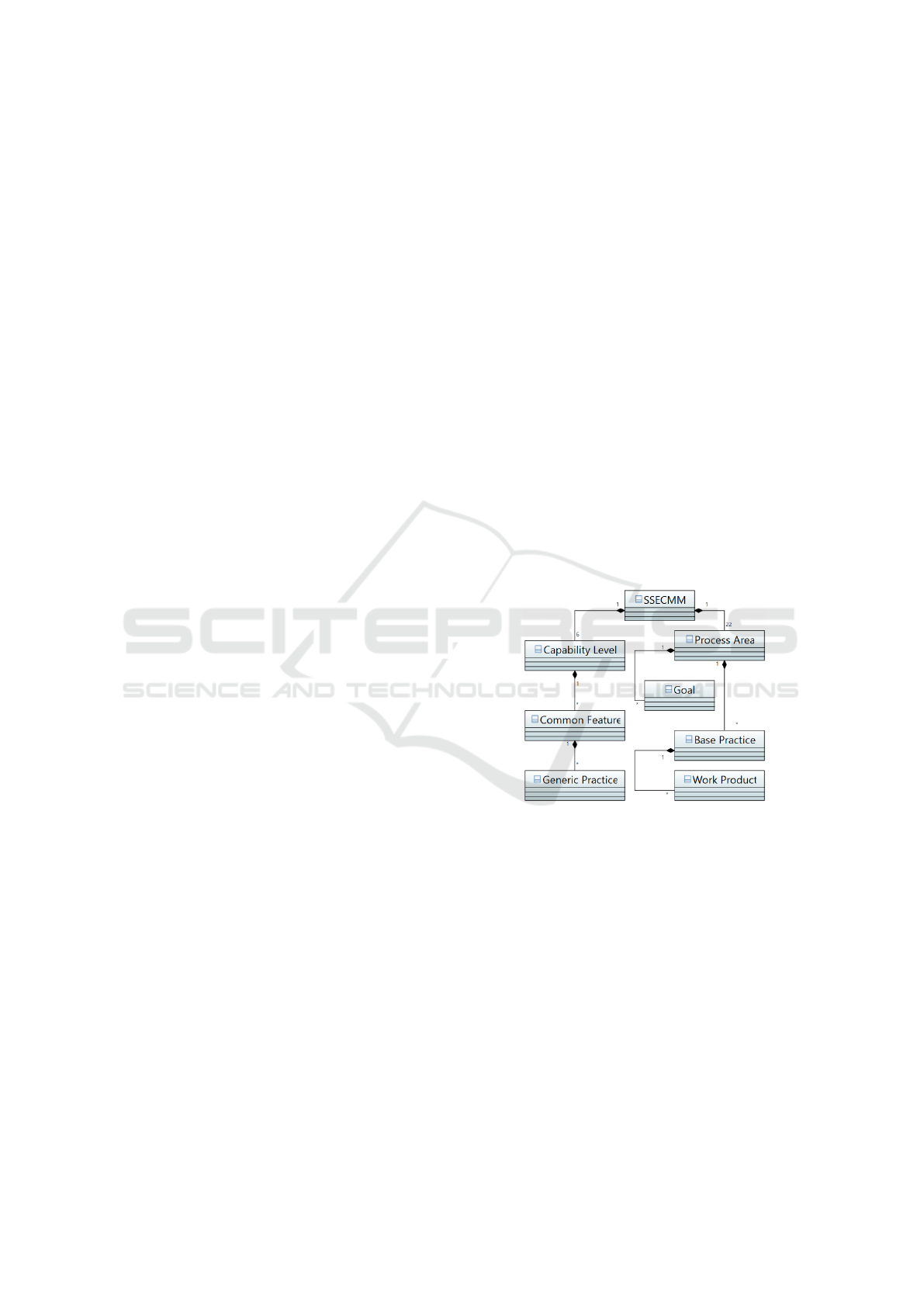

Figure 1: ISO 21827 Domain Model.
In the domain dimension, ISO 21827 defines 11
security engineering “Process Areas” (PA) and 11
project and organization PAs covering all aspects of
security engineering. Each process area has a set of
goals that represent the expected state of an orga-
nization that is successfully performing the process
area. Each PA includes all ”Base Practices” (BP) that
are required to meet its goals. The security maturity
evaluation grid is constituted of the pairing of all the
“Base Practices” of a PA with the GPs of all common
features.
2.1.3 Core Concepts
The concepts SSECMM details in its BPs and GPs
aim to thoroughly encompass all aspects of security
ICEIS 2020 - 22nd International Conference on Enterprise Information Systems
386

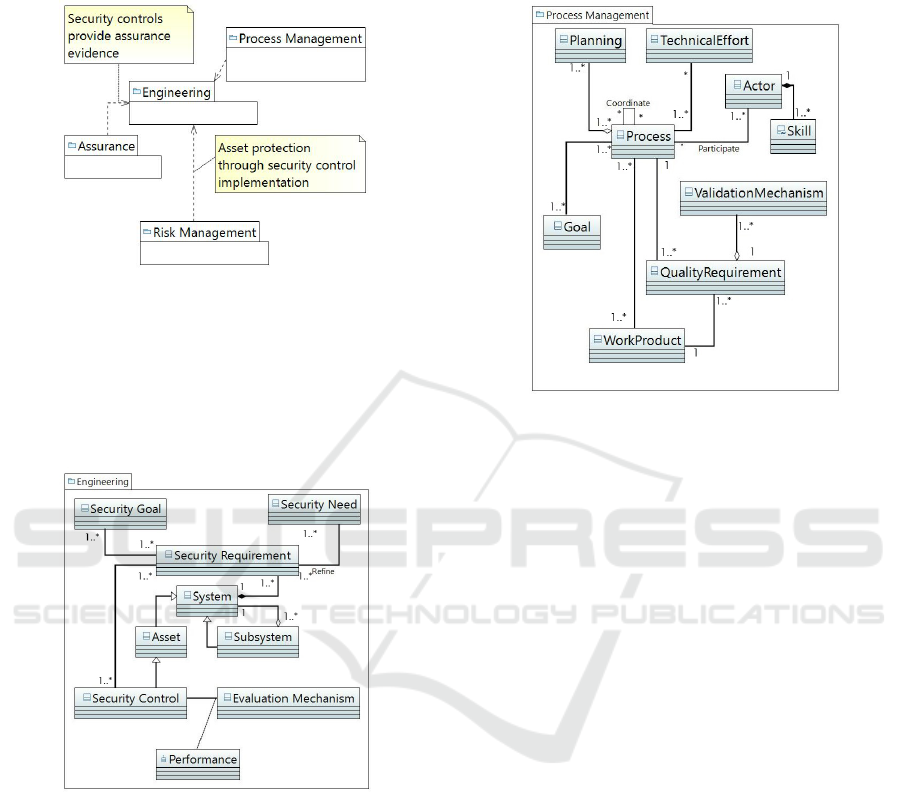

engineering as the SMM defines it. We propose the
package diagram in Fig 2 modeling these different as-
pects and which concepts they interact through.
Figure 2: ISO 21827 Domain Class Diagram.

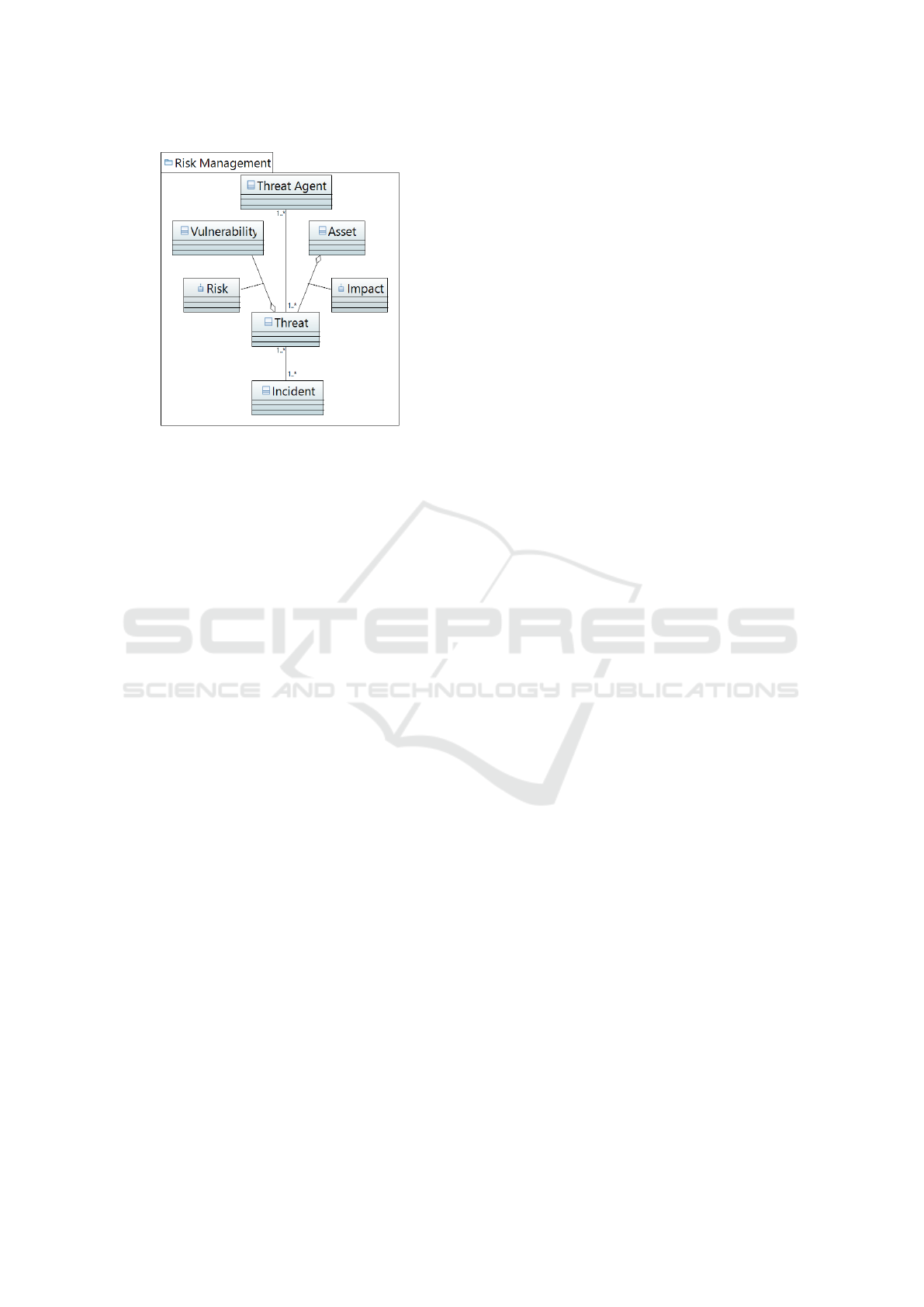

First, the “Risk Management” aspect includes the
concepts involved in risk reduction. In fact, all As-
sets have Vulnerabilities and thus are under Threats.
This package also contains, the ensuing Risks, their
calculated Impact, the responsible Threat agent and
the probable Incident.
Figure 3: ISO 21827 Engineering Class Diagram.
In the “Engineering” package shown in Fig 3 ,we
modeled the Security Requirements that the System
has. Every requirement is either derived from in-
ternally expressed Security Goals or externally en-
forced Security Needs. The organization then imple-
ments a Security Control to fulfill these requirements.
A control is defined as any asset designed to reduce
the level of an unaccepted risks by addressing one or
multiple security requirement. Finally, these controls
are periodically evaluated to see if they fulfill their
task or are in need of change, improvement or de-
commissioning.
The Assurance” Package models the assurance
the system procures through each control’s Assurance
Evidence. The evidences ensure that every Assurance
Objective is met providing a guarantee that all Secu-
rity Needs and Security Goals are met.
Figure 4: ISO 21827 Process Management Class Diagram.
Lastly, the “Process Management” package mod-
eled in Fig 4 contains a set of Processes designed to
reach specific Goals while meeting a set of Quality
Requirements. Each process has Actors with differ-
ent Skills involved, follows a Planning and produces
Work products. Processes can also coordinate with
one another if needed.
2.2 CCSMM
2.2.1 Genesis
In 2006, The Center of Infrastructure Assurance and
Security (CIAS) at the University of Texas at San An-
tonio conducted multiple security exercises for the lo-
cal community determining that vital organisms re-
quired better security policies. The CCSMM was then
created to improve cyber readiness as a scaling model
aiming to reach nationwide use. It emphasizes the im-
portance of collaboration between entities, spreading
relevant and useful information for a better security
posture. The CCSMM distinguishes between differ-
ent scales of entities: organization, community, state,
and nation. The model remains unchanged from its
2006 version.
2.2.2 Main Lines & Architecture
The CCSMM offers a framework for security ma-
turity evaluation and model-based improvement, yet
does not precise the means. It urges for the implemen-
tation of the most adequate standards or approaches
A Concept Compliance Study of Security Maturity Models with ISO 21827
387
depending on the organization’s context such as the
recommended NIST’s “Framework for Improving
Critical Infrastructure Cyber Security”. This lets or-
ganizations choose which approach to implement de-
pending on internal context, changes in the field or
policies.
The CCSMM aims to evaluate 4 areas of security
called “Dimensions”: Awareness, Information Shar-
ing, Policies and Planning. The human aspect being
the most important and the weakest link in security,
it is important to make sure that communities within
or outside the organization understand the importance
of cyber-threats, their own actions and their prepared-
ness. Information sharing sheds light on the impor-
tance of collaboration in order to improve the cur-
rent state of security or defend against an escalating
breach. Policies include all day to day activities de-
tailing the recommended course of action. Finally,
Planning deals with recovery and continuity plans.
Each of these dimensions has its own capability
level: Initial, Established, Self-Assessed, Integrated
and Vanguard. The capability level evaluation is done
through a set of predefined exercises designed for
each dimension, capability level and scale. In order
to reach a certain maturity level, an organization must
work on:
Metrics to watch for in assessments and how to
conduct them,
Technologies that should be implemented,
Training to achieve the necessary skill set for
stakeholders to have,
Documented processes to follow.
2.2.3 Core Concepts
Since the CCSMM does not specify security require-
ments, the concepts it uses are either related to ”Risk
Management” or ”Capability Evaluation”.
The ”Capability Evaluation” package in Fig 5
models the evaluation of the Entitys components us-
ing Exercises. An entity contains, a set of Actors, Ac-
tivities and Technologies. Every actor possesses Skills
and has had or must undergo Training. The entities
also have Communication Mechanisms for coopera-
tion. The CCSMM dictates that actors, technologies,
activities and communication mechanisms have to be
evaluated using specific Evaluation Metrics and Eval-
uation Mechanisms.
On the other hand, the ”Risk Management” pack-
age contains the base concepts such as Threat, the tar-
geted Entity, the exploited Vulnerability. However,
the CCSMM provides a typology of threats depend-
ing on Resources allocated and the Threat Agent’s

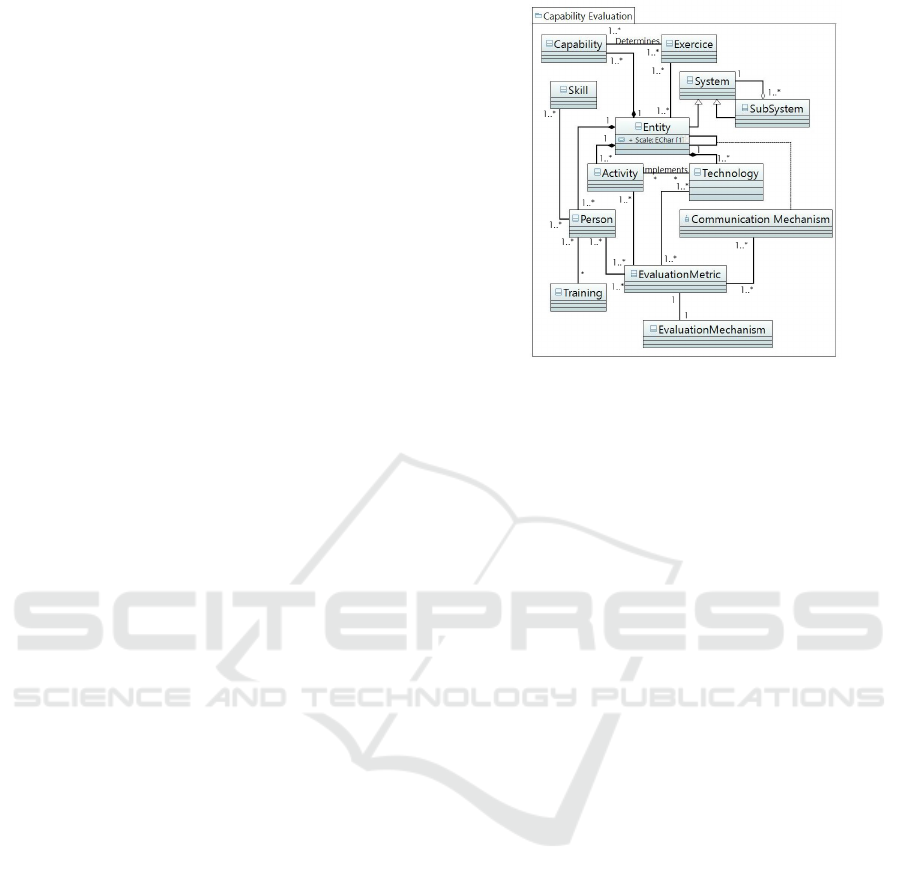

Figure 5: CCSMM Capability Evaluation.
Skill and Motives: Unstructured Threats, Structured
Threats and Highly Structured Threats.
2.3 MMISS-SME
2.3.1 Genesis
MMISS-SME was created through the joint efforts
of SICAMAN Nuevas Tecnolog
´
ıas and the ALAR-
COS Research Group as a security maturity model
specifically oriented towards Small and Medium En-
terprises (SME). This SMM was created to support
SMEs in creating their Information Security Manage-
ment System at a low implementation and mainte-
nance cost. Through their research, they sought to
adapt an existing security maturity model to the SME
context choosing ISO 27002 as the appropriate ap-
proach. This SMM was later validated through test
cases in 11 different organizations from different sec-
tors. Further plans were made aiming to facilitate the
creation of the improvement plan and keep updating
the tool to keep up with changes.
2.3.2 Main Lines & Architecture
MMISS-SME’s main contribution is helping SMEs
build a simple, cheap, rapid, automated, progressive
and maintainable security management system. The
model has only 3 maturity levels and reaching each
level provides the organization with a certificate ma-
terializing their progress. First, it sets to determine
which maturity level the organization should strive for
depending on several weighted factors such as num-
ber of employees, annual turnover and dependency on
the information system. Once the desired maturity
level is known, a security audit is conducted in or-
der to determine the current maturity level using the
ICEIS 2020 - 22nd International Conference on Enterprise Information Systems
388
Figure 6: MMISS-SME Risk Management Class Diagram.
controls from a detailed checklist. This checklist con-
sists of 735 sub-controls organized in dominions and
distributed over the maturity levels. To reach the fol-
lowing level, the SME must fulfill at least 75% of the
previous level’s controls; this accounts for normally
occurring time degradation. Next, in the risk analy-
sis phase, MMISS-SME uses association matrices to
minimize this phase’s cost and yield the best results
with minimum effort. Finally, the automated tool
provides adequate course of actions for improvement
highlighting which controls should be implemented
and defining a priority order for efficiency.
2.3.3 Core Concepts
The MMISS-SME is centered around 2 packages: the
”Risk Management” package and the ”Information
Security Management System” (ISMS) package.
The MMISS-SME is centered on the “Risk Man-
agement” facet as it uses several matrices in order
to generate a risk model. The ISO 27002 standard
is used to supplement controls and common risks to
the association matrices. The matrices incorporate
and associate emphVulnerability, Threat, and Asset as
well as Security Controls subjected to an unaccepted
Risk. The level of fulfillment of these controls influ-
ences the ISMS generation algorithm. Fig 6 models
the concepts intervening in this phase of this risk anal-
ysis phase.
In the third and final ”ISMS Generation Phase”,
the ”ISMS” package incorporates all the results from
the previous phase to determine what Procedures,
Technical Instructions, Registers, etc must activate for
the organization. In this pha se, the tool relies on asso-
ciation matrices to define which objects of the ISMS
library to implement. These matrices use the rela-
tionship between existing Regulations, Documenta-
tion, and the Security Controls recommended by ISO
27002. The output of this phase is a set of regulations
and procedures that must be satisfied in order to im-
prove the organization’s security level. The tool also
provides priority levels for each requirement as well
as Metrics to measure security progression.
3 RESULTS
Research Question 1: Given the existence of
the ISO 21827 standard, what is CCSMM’s and
MMISS-SME’s specific added value?
First of all, CCSMM and MMISS-SME share gen-
erally the same main function as ISO 21827: secu-
rity maturity evaluation. However, each of them was
designed for a different scope and purpose therefore
yielding different realizations. ISO 21827 is a stan-
dard designed to be used by all organizations of all
types and sizes. It encompasses the entire engineer-
ing life cycle, the whole organization as well as in-
teractions with other facets and other organizations.
MMISS-SME on the other hand acknowledges the
challenge small and medium organizations face and
therefore its added value is providing a model less
complex, less demanding and also providing an au-
tomated tool for its usage. Upon reaching a maturity
level, MMISS-SME also provides a certification fur-
ther rewarding SMEs with tangible advantages. CC-
SMM on the other hand was made to bring together
different US entities and assist them to scale towards a
cyber-ready nation. The CCSMM also provides more
flexibility so that organizations implement more suit-
able approaches to their contexts. CCSMM also pro-
vides a framework evaluating the maturity and effi-
ciency of the implemented approaches.
Research Question 2: What is the common core
of concepts for these security maturity models?
Secondly, we created the Venn Diagram in Fig 7 to
showcase the common core of concepts as well as the
differences. Evidently, we find the evaluated organi-
zation and the capability or maturity model it seeks
to ascertain. We see that the risk management as-
pect uses the same concepts in all 3 security maturity
models such as risk, vulnerability, threat and impact.
We also see that all 3 models are aimed towards com-
plex systems as we see systems composed of differ-
ent objects such as processes or technology as well as
actors and their skills for CCSMM and ISO 21827.
These components are called assets in MMISS-SME
and ISO 21827. Since the evaluation mechanism is
automated in MMISS-SME, we only explicitly see it
in CCSMM and ISO 21827.
A Concept Compliance Study of Security Maturity Models with ISO 21827
389

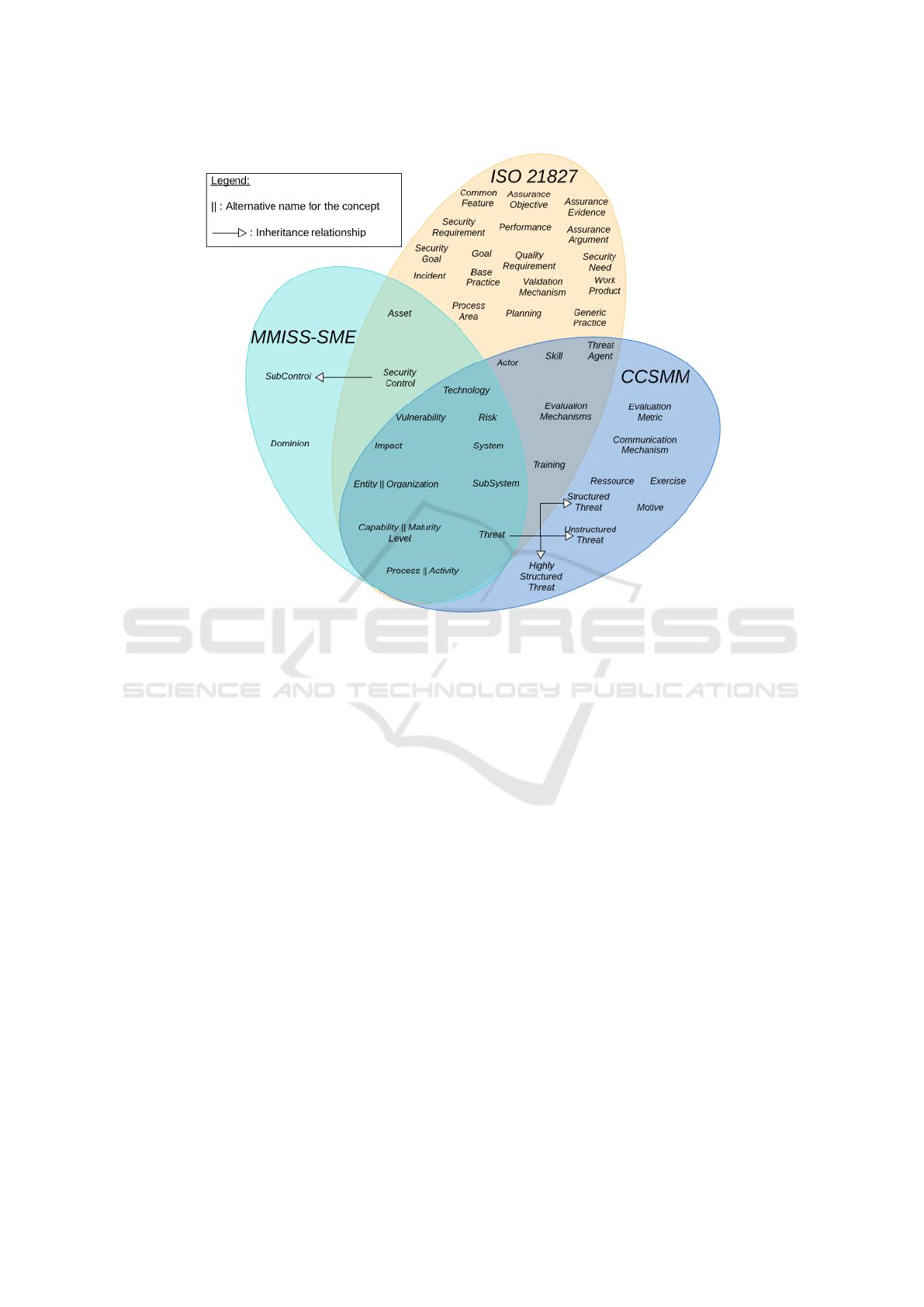

Figure 7: Security Maturity Model Concept Venn Diagram.
As for the differences, The CCSMM includes the
resources available to the threat agent as well as their
motive. This separation results in a typology of the
scale of the threat in order to treat them differently.
Unstructured threats are the most common and are
dealt with on the daily. structured and highly struc-
tured threats are a higher level of priority as their have
bigger impacts and might need the involvement of
multiple entities. Since each model is structured dif-
ferently, each introduces completely distinct concepts
such as base practices, common features or process
area for ISO 21827 or dominion for MMISS-SME,
CCSMM even measures maturity through exercises.
Finally, the major difference between MMISS-SME,
CCSMM and ISO 21827 is handling the process man-
agement and assurance aspects. We find the concept
of a process and its goal, planning, quality require-
ment and performance. ISO 21827 also requires an
assurance argument containing evidence that all as-
surance objectives are met.
Research Question 3: Are CCSMM and MMISS-
SME compliant with ISO 21827?
Lastly, In terms of compliance of MMISS-SME and
CCSMM with the standard ISO 21827, we will dis-
cuss their requirements and the concepts they in-
volve. First off, the CCSMM does not specify which
processes to implement or what their characteristics
might be. This makes the CCSMM compatible with
most existent approaches including ISO 21827. We
also see a major compatibility in concepts as the dif-
ferences are mostly due to the structure and organiza-
tion of each security maturity model. We have the as-
surance and process management that can be incorpo-
rated in the CCSMM through concepts such as evalu-
ation metric and mechanisms. The rest of the differ-
ences are the different natures of threats. We can de-
duce that CCSMM is compliant with ISO 21827. As
for MMISS-SME, it was created to be a customized
security maturity model with less requirements for
SMEs. It also provides fewer maturity levels based
on controls extracted from ISO 27002. These con-
trols were created to supplement the ISO 27001 stan-
dard that provides requirements for the creation and
maintenance of an ISMS. The requirements of the
ISO 21827 and 27001 differ in their purpose as the
former provides a progressive scale of improvement
while the latter a baseline of requirements for ISMS
management. A study evaluating MMISS-SME and
ISO 21827’s requirements and mapping their levels
could evaluate their compliance.
ICEIS 2020 - 22nd International Conference on Enterprise Information Systems
390
4 DISCUSSION
Each of the models that we studied has a different
context thus having different purposes. CCSMM was
made for a segregated context explaining why it fo-
cuses on collaboration and flexibility. It understands
the changing nature of security where approaches,
frameworks and methods are constantly changing pin-
ning the responsibility of choosing the adequate ap-
proach on the entities themselves. MMISS-SME has
a different added value as it aims to be easy to imple-
ment and maintain for SMEs. The ISO 21827 stan-
dard on the other hand is meant to be an all-inclusive
approach that handles all aspects of security engineer-
ing. It also has the most rigorous update mechanism
while CCSMM does not require one and MMISS-
SME has to keep up with the changes to, inter alia,
ISO 2700.
This difference in intent and context echoes
through the common core of concepts as well. We
see that, ISO 21827 provides more concepts covering
the assurance and process management aspects that
are not addressed in MMISS-SME and CCSMM. We
also see that the concepts that make up the risk man-
agement aspect are almost identical. We can also see
that the missing concepts can be derived from the ex-
isting ones in ISO 21827. We can use this large base
of concepts to model the requirements of any secu-
rity maturity model. Regardless from the differences
in structure, both MMISS-SME and ISO 21827 use
the concept security control while CCSMM does not
provide any at all allowing the adoption of external
ones.
Lastly, we saw that CCSMM supports the imple-
mentation of any approach the entity deems adequate
for their context, thus organizations can implement
the ISO 21827 practices. However, since they have
different evaluation methods and different thresholds
for their maturity levels, they will yield different lev-
els. On the other hand, MMISS-SME consists of re-
quirements that are within the reach of SMEs while
also providing an implementation tool. Further stud-
ies are required to prove the correspondence between
each security maturity model’s levels.
5 CONCLUSION
In this study, we set out to study 2 security matu-
rity models from different contexts and compare their
concepts as well as study their added value and com-
pliance with the ISO 21827 standard. The ISO 21827
or SSECMM standard provides a thorough model en-
compassing all aspects of security engineering. It
thoroughly encompasses all security engineering as-
pects and is compatible with other disciplines. We
have chosen to study the CCSMM a security matu-
rity model adopted by the U.S. government aiding
communities in their quest to be cyber-ready through
collaboration. MMISS-SME, a vetted approach, de-
signed to assist small and medium enterprises to reach
higher maturity level through the use of a tool while
also providing a certification per level. We found
that ISO 21827 provides most of the core concepts
needed to model the other 2 security maturity mod-
els.The standards’ concepts could be also extended
to fit specific contexts or customization through spe-
cialization. That is the case with both CCSMM and
MMISS-SME, their additional concepts are used to
support the nuance in main functions or scope.We saw
that both CCSMM and MMISS-SME were made for
the USA governmental and vital organism structure
and SMEs respectively. Finally, while CCSMM is
compliant with the standard, the correspondence be-
tween MMISS-SME and ISO 21827.
6 FUTURE WORK
Future studies could focus on different security matu-
rity models studying how their requirements can be
expressed and modeled. These studies can rely on
the base concepts provided by ISO 21827 and study
if specialised concepts are needed depending on the
context. This can enable compliance or validation
studies of novel security maturity models with the ex-
isting standard. Modeling security maturity models’
requirements can also help create generic SMM im-
plementation tools. Finally, seeing that security con-
stantly evolves, studies can also concern the security
engineering ontology.
REFERENCES
ANSSI (2009). Publication : Guide relatif
`
a la maturit
´
e ssi.
Barclay, C. (2014). Sustainable security advantage in a
changing environment: The cybersecurity capability
maturity model (cm2). Proceedings of the 2014 ITU
kaleidoscope academic conference: Living in a con-
verged world - Impossible without standards?
Barrett, M. P. (2020). Framework for improving critical
infrastructure cybersecurity version 1.1.
Department of Homeland Security (2018). Presidential pol-
icy directive 8: National preparedness.
Humphrey, W. (1988). Characterizing the software process:
a maturity framework. IEEE Software, 5(2):73–79.
ISO (2019a). Iso 21827 : Systems security engineering —
capability maturity model.
A Concept Compliance Study of Security Maturity Models with ISO 21827
391
ISO (2019b). Iso/iec 27001 information security manage-
ment.
Kassou, M. and Kjiri, L. (2012). Soasmm: A novel service
oriented architecture security maturity model. 2012
International Conference on Multimedia Computing
and Systems.
Le, N. T. and Hoang, D. B. (2016). Can maturity mod-
els support cyber security? 2016 IEEE 35th Interna-
tional Performance Computing and Communications
Conference (IPCCC).
Mckinsey (2017). Deployment models: How mature are
your operational practices?
Mettler, T. (2011). Maturity assessment models: a design
science research approach. International Journal of
Society Systems Science, 3(1/2):81.
Rabii A., Assoul S., R. O. (2020). Information & cyber
security maturity models: A systematic literature re-
view.
ReaGuaman, San Feliu, C.-M. S.-G. (2017). Compara-
tive study of cybersecurity capability maturity mod-
els. Communications In Computer And Information
Science, pages 100–113.
Rigon, E. A., Westphall, C. M., Santos, D. R. D., and West-
phall, C. B. (2014). A cyclical evaluation model of
information security maturity. Information Manage-
ment & Computer Security, 22(3):265–278.
Sanchez, L. E., Piattini, M., and Medina, E. F. (2008). Prac-
tical application of a security management maturity
model for smes based on predefined schemas. Pro-
ceedings of the International Conference on Security
and Cryptography.
S
´
anchez, Piattini, M. (2007). Mmiss-sme practical develop-
ment: Maturity model for information systems secu-
rity management in smes. Proceedings of the 5th In-
ternational Workshop on Security in Information Sys-
tems.
White, G. (2007). The community cyber security maturity
model. 2007 40th Annual Hawaii International Con-
ference on System Sciences (HICSS07).
ICEIS 2020 - 22nd International Conference on Enterprise Information Systems
392
