MVCLang: A Software Modeling Language for the

Model-View-Controller Design Pattern

Mert Ozkaya

and Irem Fidandan

Department of Computer Engineering, Yeditepe University, Istanbul, Turkey

Eryaz Software, Istanbul, Turkey

Keywords:

Model-View-Controller (MVC), Software Modeling Language, Model Analysis, Code Generation, ASP.NET.

Abstract:

The Model-View-Controller (MVC) software design pattern promotes separating software systems into the

model, view, and controller elements. The views represent the user-interfaces, the models represent the system

data, and the controllers handle the requests sent by the views and coordinate the interactions between views

and models. While many software frameworks are available for the MVC-based software developments, no

any attempt have been made on increasing the level of abstraction for the MVC developments and provide a

model-based approach. Indeed, none of the high-level software modeling languages support the MVC design

pattern. So, we propose in this paper a visual, MVC-based modeling language called MVCLang, which

enables to model MVC-based software architectures that can be easily analysed and implemented. MVCLang

is supported with an Eclipse-based prototype toolset for specifying the visual MVC architectures and analysing

them for a number of wellformedness rules. MVCLang’s toolset can further produce ASP.NET MVC code

that reﬂects the architectural design decisions. We evaluated MVCLang on a software company that offers

e-commerce solutions. Therein, 5 developers used MVCLang for their e-commerce project developments and

provided feedback for a set of pre-determined questions.

1 INTRODUCTION

Model-View-Controller (MVC) has been proposed by

Trygve Reenskaug in the late seventies as a software

design pattern, which aims at modularising the soft-

ware systems into the model, view, and controller el-

ements and maximising their understandability and

analysability (Reenskaug, 2003). Models represent

the system data, views represent the pictorial forms

on which the users see the model data, and controllers

represent the interactions between the views and mod-

els (i.e., how the models need to be used and manipu-

lated upon any user requests via the views). Separat-

ing the software development into different concerns

maximises the cohesion and minimises the coupling,

which is one of the main principals of quality cod-

ing and aids in reducing the development and mainte-

nance cost. Also, separating the views from the busi-

ness logic and data enables multiple users (e.g., web

designers and developers) to work in parallel, which

reduces the development time.

MVC has ﬁrst been applied in the Smalltalk 80

language in the late eighties, where the model, view,

and controller concepts are represented as abstract

entities that can be used for creating understandable

software systems (Burbeck, 1987). Later on, MVC

has gained huge popularity in the area of web applica-

tions development, and many web technologies (e.g.,

.NET, JavaScript, and Php) nowadays offer their own

frameworks for the MVC-based web developments.

Moreover, as discussed in Section 6, many researches

have been conducted on extending MVC for various

domain problems (e.g., secure systems, multi-agent

systems, and service-oriented systems).

However, the current MVC frameworks force

practitioners to work on the software implementation

and deal with the coding of the view, model, and

controller units. While the MVC frameworks pro-

vide many re-usabilities, developers are still expected

to deal with low-level programming issues that may

require expertise on particular software languages

and technologies. Therefore, the effort required for

developing and testing the model, view, and con-

troller elements separately may be unexpectedly high.

Besides, other (probably non-technical) stakeholders

(e.g., customers) may not be involved in the develop-

ment and testing process, which may negatively af-

fect the quality of software systems. To avoid these,

Ozkaya, M. and Fidandan, I.

MVCLang: A Software Modeling Language for the Model-View-Controller Design Pattern.

DOI: 10.5220/0009571400750083

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 75-83

ISBN: 978-989-758-443-5

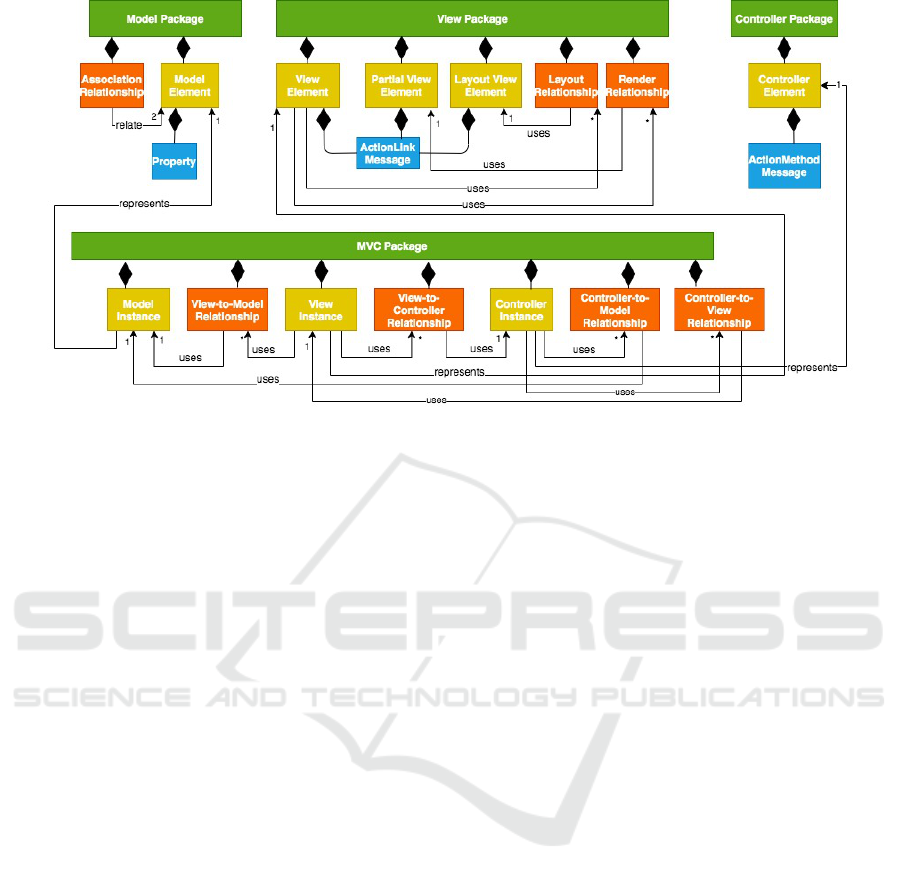

Figure 1: The meta-model of the MVCLang language.

one could enhance the level of abstraction by apply-

ing software modeling, which promotes specifying

high-level software models that consist of abstract,

explanatory statements without any platform-speciﬁc

implementation details(Seidewitz, 2003). The high-

level models are potentially useful for the commu-

nication of the design decisions with different stake-

holders who can also contribute to the application de-

velopment and testing despite having very little (or

no) experience in programming. The models can be

useful for the early detection of the design errors that

may otherwise go undetected until the system deploy-

ment and cause huge maintenance cost. The models

that are analysed to be correct can be used for gener-

ating quality code that reﬂect the modeled design de-

cisions. However, as discussed in Section 6, software

modeling has not yet been systematically employed

for the development of MVC-based software appli-

cations. While many approaches have extended the

MVC design pattern for different needs, no any mod-

eling platform consisting of a modeling language (i.e.,

the notation set) and its toolset has been proposed so

far for the MVC-based modeling, analysis, and im-

plementation of software systems.

The goal of this paper is to propose a software

modeling language called MVCLang for the MVC-

based architecture modeling of software systems.

MVCLang offers a visual notation set for the speciﬁ-

cations of the model, view, and controller elements of

software systems and their relationships. MVCLang

is supported with an Eclipse-based prototype toolset.

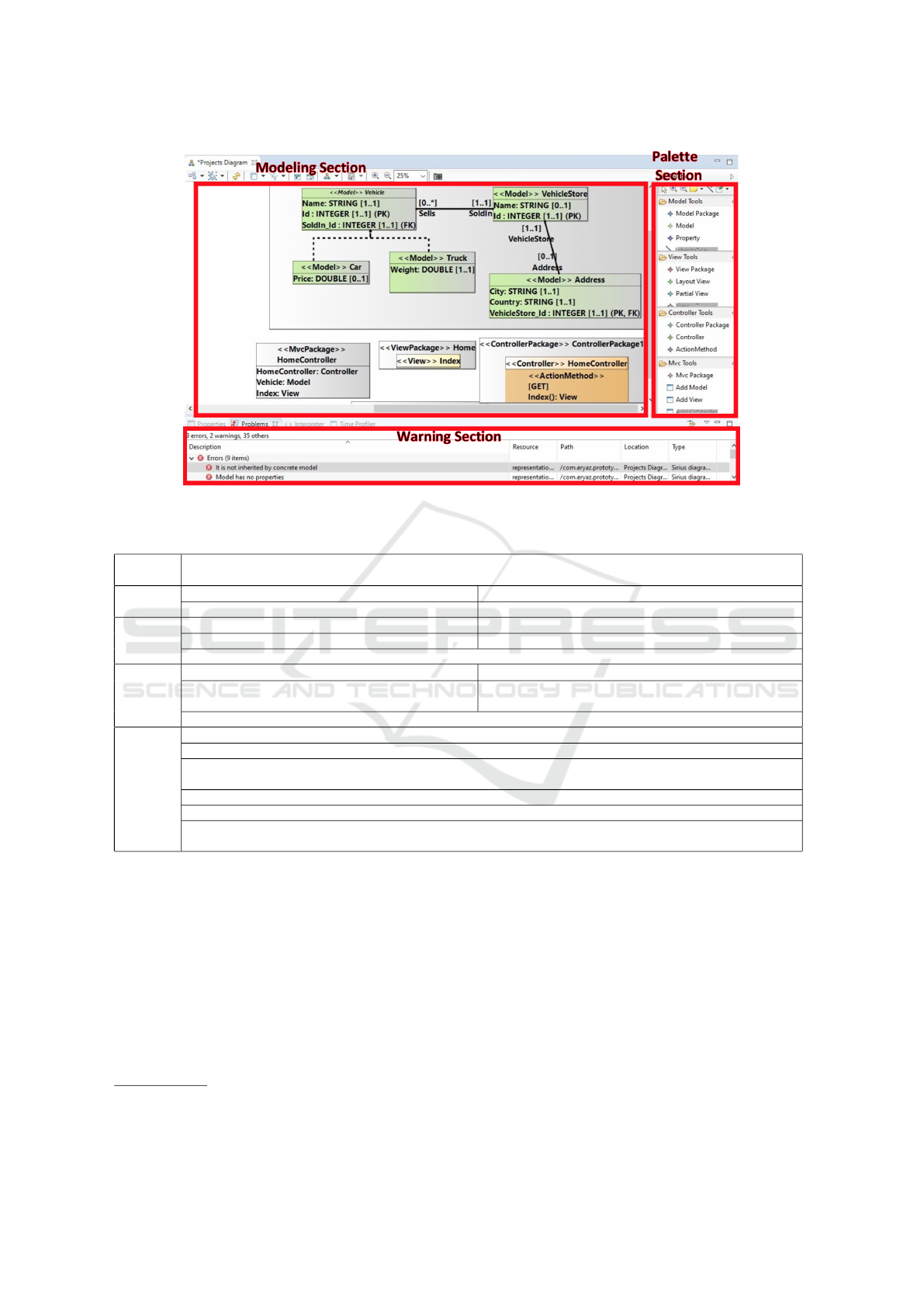

The toolset’s modeling editor enables to create the vi-

sual MVC architectures and check correctness for a

set of wellformedness rules. The toolset’s code gener-

ator translates MVC models into software code using

the ASP.NET MVC framework.

In the rest of this paper, we initially introduce the

MVCLang language (i.e., syntax and semantics) and

then introduce MVCLang’s prototype toolset (i.e., the

model editor, analyser, and code generator). Next, we

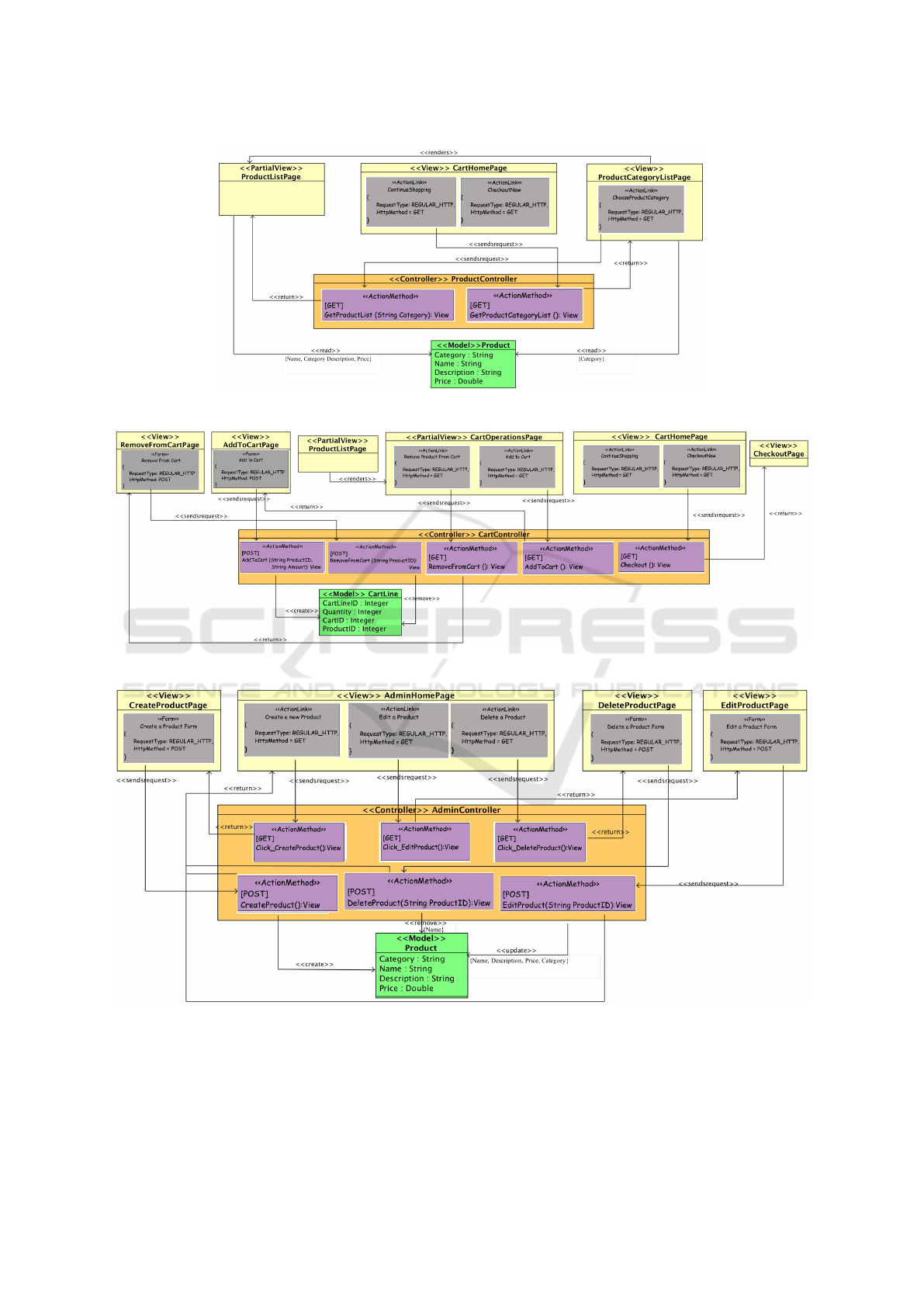

illustrate MVCLang via the sports store case-study

and evaluate the language in industry. Lastly, we pro-

vide the discussions of the related works.

2 OVERVIEW OF MVCLang

MVCLang offers a visual notation set for the model-

ing of MVC-based software architectures, which are

separated into four packages: model, view, controller,

and MVC. While the model, view, and controller

packages are created for modeling the model, view,

and controller elements of the MVC architectures, the

MVC package is created for establishing the relation-

ships between model, view, and controller elements

that are modeled in their own packages. Figure 1

shows MVCLang’s meta-model, which describes the

modeling concepts composing each package and their

relationships. The visual symbols that are associated

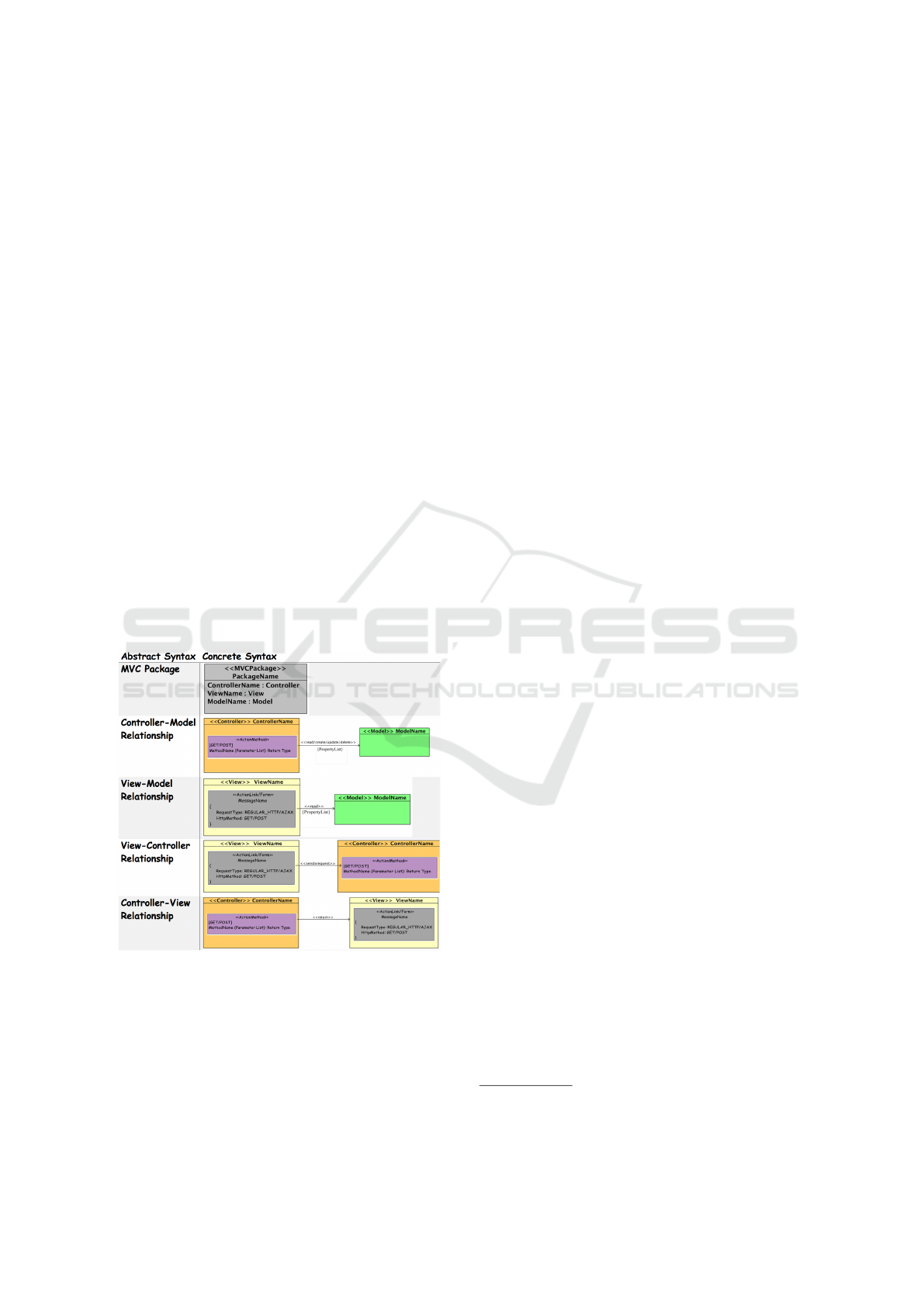

with the modeling concepts are depicted in Figure 2,

Figure 3, Figure 4, and Figure 5, which are for the

model, view, controller, and MVC packages respec-

tively. In the rest of this section, we discuss for each

modeling package the syntax and semantics of the

language elements informally. That is, we describe

the visual symbols for the language concepts and their

relationships, the constituting parts of the language

concepts and relationships, and how those concepts

ICSOFT 2020 - 15th International Conference on Software Technologies

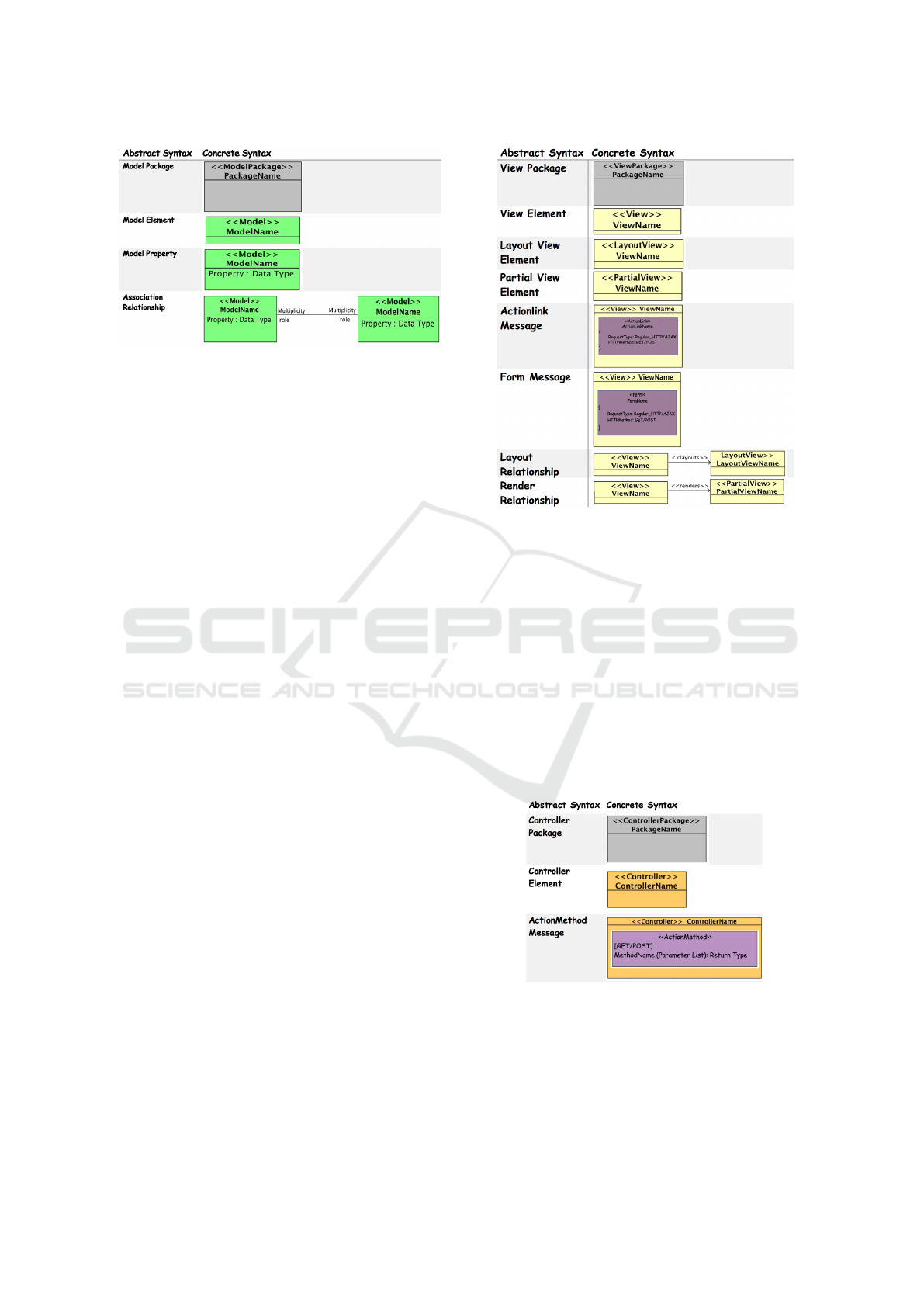

Figure 2: The abstract and concrete syntax for MVCLang’s

model package.

and relationships can be used and composed together

to create meaningful speciﬁcations for each package.

2.1 Model Package

As depicted in Figure 1, a model package is speciﬁed

with a set of model elements that have association re-

lationships between each other. Models represent a

dataset to be stored and manipulated by the software

system, which may be implemented as database ta-

bles. Figure 2 displays the concrete symbols that cor-

respond to the abstract concepts given in Figure 1. So,

each model consists of a set of properties that repre-

sent the model data and are speciﬁed with the data

type and its name. The data type can be either inte-

ger, boolean, string, or double. The association rela-

tionship is used to relate the data of different model

datasets that are dependent on each other (e.g., the

company and employee datasets). The association

relationship is speciﬁed with the multiplicities and

roles, where multiplicities can be one-to-one, one-to-

many, many-to-one, and many-to-many and role de-

scribes the how each dataset acts in the relationship.

2.2 View Package

Figure 3 shows the symbols for the view package.

The partial view represents any re-usable view con-

tent(s) that can be used (or rendered) as part of

other view(s). The layout view represents the com-

mon user-interface parts (e.g., the footer and header),

which are shared among different views for offering

a consistent layout appearenace. As in Figure 1, each

view may have zero or more layout or render rela-

tionships, and each relationship enables the view to

render/use exactly one partial/layout view. A view of

any type is speciﬁed with action-link or form mes-

sages that are triggered by the users who interact

with the view and cause the view to send requests

to the controllers. An action-link message represents

Figure 3: The abstract and concrete syntax for MVCLang’s

view package.

a link displayed on the view’s user interface, which

can be clicked by the user. An action-link is spec-

iﬁed with the (i) name, (ii) request type, and (iii)

http method.The request type can be an HTTP request

that prompts the controller to return with a view or

an AJAX request that do not prompt for a new view.

The http method can be GET or POST. A form mes-

sage represents the action that results from a form dis-

played on the view and transmits the data ﬁlled in the

form to the controller. The form messages are speci-

ﬁed with the (i) form name, (ii) request type, and (iii)

http method.

Figure 4: The abstract and concrete syntax for MVCLang’s

controller package.

2.3 Controller Package

As depicted in Figure 1, a controller package is speci-

ﬁed with controller elements that each coordinates the

MVCLang: A Software Modeling Language for the Model-View-Controller Design Pattern

interactions between the view and model elements.

A controller includes a set of action methods, which

are triggered by the view request (i.e., action-link or

form) messages and perform the necessary operations

(e.g., adding/removing data, displaying a new web-

page, performing some computations, etc.) followed

by an output to be returned. Figure 4 shows the sym-

bols for specifying controllers and their action meth-

ods. An action-method is speciﬁed with (i) an http

method, (ii) its name, (iii) its parameter list, and (iv)

a return type. The http method can be GET or POST.

The method name can be any identiﬁers. The param-

eter list has zero or more parameters that each de-

scribes the data to be passed from the view whose

action link (or form) message is connected with the

action-method. A parameter is speciﬁed as a pair of

data type (i.e., integer, string, double) and identiﬁer.

The return type is for specifying what output the con-

troller method will return after its computation. The

return type can be either (i) view, (ii) partial view,

(iii) redirect to action, or (iv) content. The view re-

turn type is speciﬁed when the action-method returns

a view to the user, while the partial view return type is

when a partial view is returned. The redirect-to-action

herein creates a call for another action-method of the

controller. The content option is speciﬁed when a data

of any supported type is returned.

Figure 5: The abstract and concrete syntax for MVCLang’s

MVC package.

2.4 MVC Package

As Figure 1 shows, an MVC package is speciﬁed with

(i) the instances of the model, view, and controller el-

ements that are speciﬁed in the model, view, and con-

troller packages and (ii) their relationships. Figure 5

shows the symbols for the MVC package elements

and their relationships. Concerning the relationships,

each receives a request from one type of element and

directs the request to another type of element as spec-

iﬁed in Figure 1. The relationship between a view and

controller is for connecting the action-link (or form)

message of a view with the action-method of a con-

troller so as to enable the view to send requests to the

controller. The link arrow herein is by-default spec-

iﬁed with the sendrequests stereotype. Each action

link (or form) message of a view may be linked with

exactly one controller method. The relationship be-

tween the view and model is for connecting the view

with any model whose data are to be displayed on the

view. The link’s stereotype is read, and users can at-

tach the list of properties to be displayed. A view may

be connected with zero or more models. The relation-

ship between controller and model is for connecting

controller’s action-method with the model element so

as to perform read/create/update/delete operations on

the model data. Users may attach the proper stereo-

type to the link that indicates the operation and the

list of model properties on which the operation is per-

formed. The stereotype can be either read, create, up-

date, or remove. The operation read is for reading the

model data speciﬁed in the property list, create is for

creating a new model data, and update is for updating

the model data given in the property list. The prop-

erty list may be left empty for creating a model data.

Each controller method may be connected with zero

or more models. Lastly, the relationship between con-

troller and view is for connecting the action-method

with a view element to indicate what view the method

returns after its computation. An action-method of a

controller may return zero or one view elements.

3 MVCLang’s TOOL SUPPORT

We developed a prototype tool for MVCLang using

the Sirius meta-modeling tool (Viyovi

c et al., 2014)

Sirius is essentially an Eclipse project that uses and

extends the Eclipse Modeling Framework (EMF) for

the meta-modeling activities. With Sirius, we cre-

ated Ecore meta-models to deﬁne our language syn-

tax and semantics in EMF and automatically obtained

a modeling editor that can be used in the Eclipse plat-

form. Also, we used Eclipse’s Acceleo code genera-

tion technology

, which enabled us to integrate a code

generator to the modeling editor that we obtained

in Sirius. Our Eclipse-based prototype toolset (i.e.,

Sirius: www.eclipse.org/sirius/

Eclipse Acceleo: www.eclipse.org/acceleo/

ICSOFT 2020 - 15th International Conference on Software Technologies

Figure 6: The snapshot of the modeling editor for MVCLang.

Table 1: The well-formedness rules for MVCLang.

Modeling

Packages

Wellformedness Rules

Model

Model element name must be unique in a model package Model property name must be unique in a model element

Each model element must have at least one property Model association relationships must be acyclic

View

View element name must be unique in a view package Each layout/partial view must be used by at least one view element

A message http method must be either GET or POST A message request type must be either HTTP or Ajax

Each view message (i.e., either action-link or form) must be speciﬁed with a name, request type, and http method

Controller

Controller element name must be unique in a controller package

Each controller element must have at least one action-method message

Each controller message must be speciﬁed with a name,

http method, and return type

A message http method must be either GET or POST

A message return type must be either View, Partial-View, Redirect-to-Action, or Content

MVC

Each view/model/controller element must be used in at least one MVC package

Each action-link/form message of each view element must send a request to exactly one action-method of any controller element

Each action-method message of each controller element must receive a request from at least one action-link/form message

of any view element

If the request type of a view message is HTTP, the controller which receives the request needs to return a view page

Any controller element connected with a model element must specify at least one model property that it needs to access

The http method of any controller’s action method must be the same as that of the view message from which the action

method receives a request

modeling editor and code generator) can be down-

loaded via the project web-site

. As depicted in Fig-

ure 6, the modeling editor consists of three sections:

modeling section, palette section and warning section.

The warning section displays any warning messages

due to the violation of the language’s wellformedness

rules that are presented in Table 1. Whenever an ar-

chitecture model violates any of those rules, the editor

warns the user with an appropriate message.

Our code generator produces ASP.NET MVC

framework code

from the MVC models speciﬁed

MVCLang: sites.google.com/view/mvclang

Asp.net:dotnet.microsoft.com/apps/aspnet/mvc

in MVCLang via our Eclipse modeling editor. In

our code generator development, we ﬁrstly deﬁned

the translation algorithms for producing the ASP.NET

MVC code informally and tested their correctness via

some simple case-studies. Note that due to the space

limitation, we are not able to discuss the translation

algorithms here. Then, we used Acceleo to develop

the generator that generates ASP.NET MVC code in

accordance with the translation algorithms. The gen-

erated ASP.NET MVC code essentially consists of

three folders, i.e., view, controller, and model. The

view folder includes an .cshtml ﬁle for each view el-

ement. The controller folder includes a C# ﬁle for

MVCLang: A Software Modeling Language for the Model-View-Controller Design Pattern

each controller element, where a C# class is gener-

ated that includes a distinct method for each action

method of the controller. The method body herein

includes the relevant algorithm implementation for,

e.g., manipulating the model data and displaying data

on a view’s web user-interface, which are generated

from the MVC relationships between the controller

and model, view elements. The model folder includes

a program ﬁle in C# for each model element, which

is responsible for connecting to a database in an MS

SQL Server and creating the necessary table that in-

cludes a distinct column for each model property. The

resulting code folders can be imported in any Visual

Studio .NET environment so as to use the generated

ASP.NET MVC framework code.

4 SPORTS STORE CASE STUDY

To illustrate MVCLang, we considered the sports

store application (Freeman, 2013). The sport store of-

fers a product catalog for the customers to browse by

category and add/remove any product to their shop-

ping cart. Customers can checkout after entering their

shipping details. The administrators may also monitor

sports store application and change the product cata-

logue by adding/removing/editing products.

In the rest of the section, we present the MVC

package models for the sports store application. Note

that due to the space limit, we give here the partial

speciﬁcation that does not include the view, model,

and controller package speciﬁcations. The whole

speciﬁcations are available via the project website

The product MVC package is depicted in Fig-

ure 7. Whenever the CartHomePage view sends

a request to the ProductController via its Continue

Shopping action-link message (i.e., the user clicks

to continue shopping), the controller receives the re-

quest with its GetProductCategoryList action-method

and returns the ProductCategoryListPage view. The

ProductCategoryListPage view reads the product cat-

egory data from the Product model and displays

them. Also, ProductCategoryListPage view includes

the ProductListPage view as a partial view. So, when

the user selects a product category via the Product-

CategoryListPage view, the view’s ChooseProduct-

Category action-link message sends the selected cat-

egory to ProductController’s GetProductList action-

method and that returns the ProductListPage view

which reads and displays the Product model dataset

that matches with the chosen product category.

The MVC package for the shopping cart is de-

picted in Figure 8. The CartOperationsPage view that

is the partial view for the ProductListPage receives

add and remove requests from the user and direct

them to the controller via its Add to Cart and Remove

Product from Cart action-link messages respectively.

Whenever, CartController’s action-methods receive a

request, the action-methods return the corresponding

views that include the form for performing the ad-

d/remove operations. That is, the addToCart action-

method returns the AddtoCartPage while the Remove-

FromCart action-method returns RemoveFromCart-

Page. When the users ﬁll in the forms on the corre-

sponding views, the views send form requests to the

CartController’s action-methods with the appropriate

parameter arguments. The arguments herein are the

product ID and amount of products added/removed.

CartController’s action methods modify the CartLine

model accordingly. Note also that the action-links

and action-methods for the form requests are speci-

ﬁed with the POST http method.

The administrator MVC model is depicted in Fig-

ure 9. Whenever the user clicks to add, edit, or

delete products, the AdminHomePage view’s Create

a new Product, Edit a Product, and Delete a Prod-

uct action-link messages are triggered respectively.

Then, the action link messages forward the requests

to the connected action methods of AdminController.

The AdminController responds with the appropriate

form views (e.g., if delete request is received, the

DeleteProductPage form view is returned). When

the user submits the form, the corresponding view’s

form message is sent to AdminController’s connected

action-method and the action method accesses the

Product model data so as to make the necessary

changes. Note that the action-link and action-method

messages for handling the form requests are speciﬁed

with the POST http method.

We used our modeling editor for analysing Sport

store’s MVC architectures for the wellformedness

rules given in Table 1. Given all the rules being

satisﬁed, we used the code generator to produce the

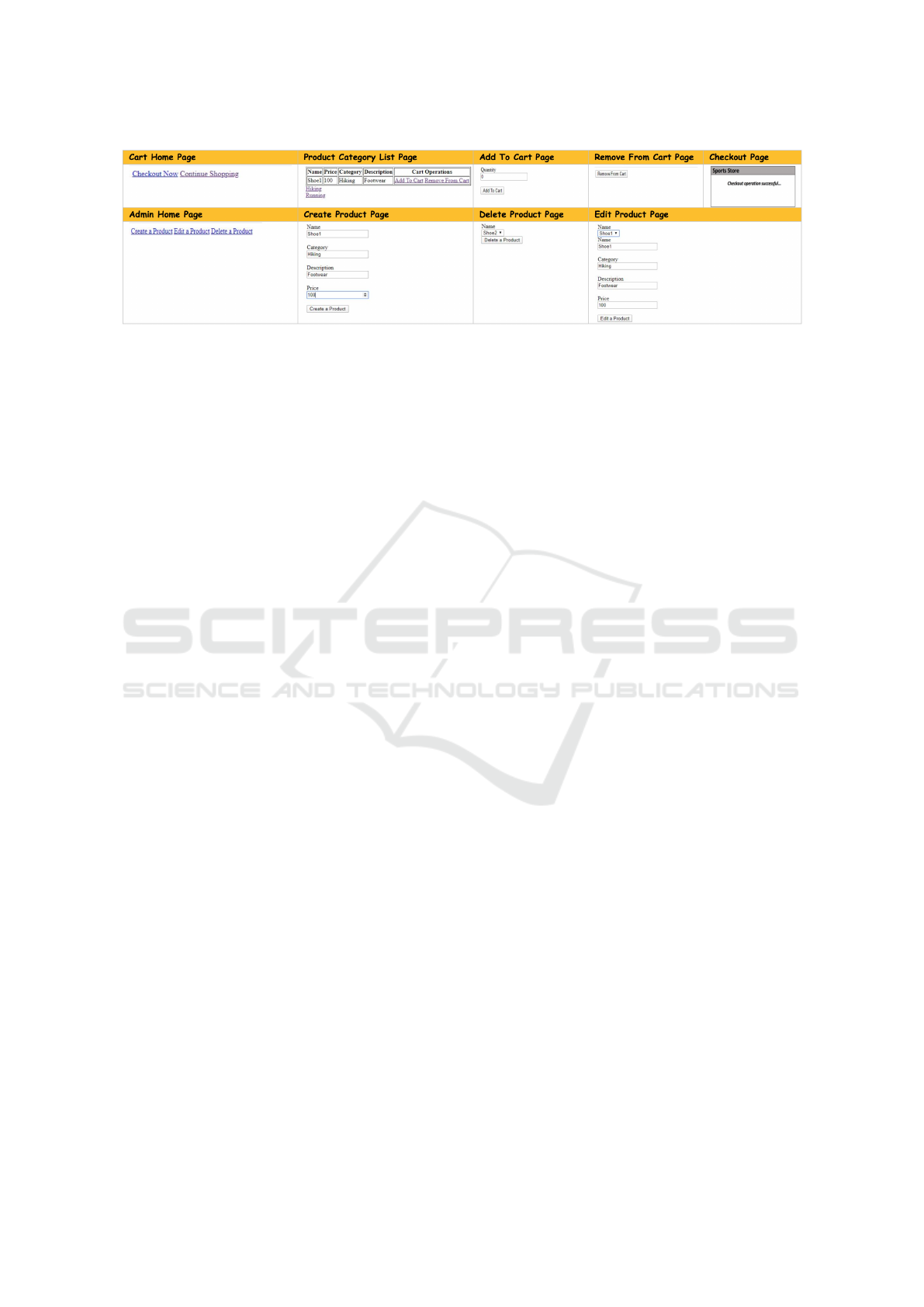

ASP.NET MVC framework code. Figure 10 shows

the user-interfaces that have been generated from the

sport store’s view speciﬁcations. The full generated

code can be accessible via the project web-site

5 EVALUATION

We evaluated MVCLang and its toolset in a software

company called Eryaz Software

, which have offered

MVC-based e-commerce systems to hundreds of dif-

ferent customers since the nineties. In Eryaz, we

asked 5 experienced developers to use MVCLang for

Eryaz Software: www.eryazsoftware.com.tr/en

ICSOFT 2020 - 15th International Conference on Software Technologies

Figure 7: The MVC package model for the product controller in sports store.

Figure 8: The MVC package model for the shopping cart controller in sports store.

Figure 9: The MVC package model for the admin controller in sports store.

any project that they develop and share their feedback

with us. We separated a 2-hour slot for each devel-

oper. During each session, we observed the devel-

oper’s modeling activities and answer the questions

that the developer asked. After completing the ses-

sion, we requested each developer to answer the fol-

lowing questions:

1. Do you ﬁnd the notation set for the MVCLang ad-

MVCLang: A Software Modeling Language for the Model-View-Controller Design Pattern

Figure 10: The web-pages generated from the sports-store’s architectural models in MVCLang.

equate for MVC-based architecture modeling?

2. Is MVCLang easy to learn and use?

3. Does MVCLang shorten the development time for

the MVC-based web applications?

4. Is the generated code from MVC architectures

useful?

So, we observed interesting ﬁndings. Concerning

the ﬁrst question, the developers are satisﬁed with

the language’s notation set. However, one developer

asked if we could enable modeling the views in terms

of user-interface elements such as labels, text-boxes,

and buttons and their layout. Also, two developers

requested a user-manual that describes the language

syntax. Another developer asked if we plan to make

MVCLang extensible to enable users to introduce

domain-speciﬁc notations for the MVC-based model-

ing. Concerning the second question, the developers

found MVCLang easy to learn and use as MVCLang

resembles the simple boxes-and-lines and UML that

many practitioners are familiar with. The developers

were however concerned about MVCLang’s support

for large and complex MVC architectures, as MV-

CLang does not currently support any techniques for

managing large models (e.g., sub-diagramming and

composite architectures). Concerning the third ques-

tion, some developers agreed that using MVCLang

for the automated generation of ASP.NET code from

the MVCLang speciﬁcations aids in shortening the

development time and maximising the software qual-

ity as the code is expected to meet the design de-

cisions. However, some code-oriented developers

pointed out the time needed for generating correct ar-

chitectural models that may sometimes outweigh the

time needed for just-coding. Lastly, the developers

are quite happy with the generated code that can be

used with some little changes to reach an executable

web application. One of the developers asked whether

we plan to provide a reverse-engineering support so

as to get back to an MVCLang speciﬁcation after the

generated code is changed.

6 RELATED WORK

Many software modeling languages, including UML

(Rumbaugh et al., 2004) and its derivatives, architec-

tural languages, and domain-speciﬁc modeling lan-

guages, are available for creating software models

from different perspectives at different levels of ab-

stractions and performing useful operations such as

model analysis, formal veriﬁcation, and code gener-

ation. However, our recent analyses on the existing

languages (Ozkaya, 2018a; Ozkaya, 2018b) let us ob-

serve that none of those languages provide a mod-

eling notation set for the MVC-based modeling and

rather focus on particular domains (e.g., embedded

systems, multi-agent systems, and distributed sys-

tems) or provide general-purpose notation sets. The

only exception here is UWE, which extends UML for

the web-applications modeling. UWE (Kraus et al.,

2007) does not directly adopt the MVC pattern and

rather supports the separation of concerns in terms

of the content, navigation, presentation, and process

viewpoints. While the presentation viewpoint corre-

sponds to the view element in MVC, the model and

controller elements of MVC are not explicitly con-

sidered in UWE. Also, it is not so easy to model

the relationships between different viewpoint models

that are each speciﬁed as a separate UML diagram.

Unlike our toolset that generates code in ASP.NET,

UWE’s toolset generates code in JSF (Java Server

Faces) framework.

The literature also includes some works that at-

tempt at extending the MVC pattern for different

needs. In (Taraghi and Ebner, 2010), Taraghi et al.

extended MVC for designing and developing web-

based widgets that are to be used for the personal

learning environment implementation at TU Graz.

In (Delessy-Gassant and Fernandez, 2012), Delessy-

Gassant et al. considered extending MVC with the

modeling of some security requirements such as au-

thentication, role-based access control, secure log-

ging, and secure data trafﬁc. In (Sauter et al., 2005),

ICSOFT 2020 - 15th International Conference on Software Technologies

Sauter et al. proposed another extension on MVC for

the development of pervasive multi-device web appli-

cations. In (Barrett and Delany, 2004), Barrett et al.

extended MVC with a 5-tier architecture. The ﬁrst

tier is the client, the second tier is the view, the third

tier is the business logic, the fourth tier is the data ab-

straction, and the ﬁfth tier is the persistent data in the

database. In (Mahmoud and Maamar, 2006), Mah-

moud et al. proposed an approach for applying MVC

for the modeling of multi-agent systems. In (Cortez

and Vazhenin, 2015), Cortez et al. extended MVC for

the design and development of service-oriented archi-

tectures. While MVC have been extended many times

for different problem domains, none of those works

actually offer a modeling notation set for the MVC-

based modeling and a supporting toolset for the mod-

eling, analysis, and code generation.

7 CONCLUSION

In this paper, we proposed a software modeling lan-

guage called MVCLang for the MVC-based modeling

of software architectures. MVCLang provides a vi-

sual notation set for specifying the model, view, and

controller elements, and their relationships. We also

developed a modeling editor using the Eclipse Sir-

ius technology, through which practitioners can cre-

ate their MVC-based software models and check their

models for a number of wellformedness rules that we

deﬁned. Furthermore, we also developed a code gen-

erator that can be used together with a modeling editor

for producing ASP.NET MVC framework code from

the MVCLang models. To illustrate the use of MV-

CLang, we considered in the paper the sports store

case-study, which we speciﬁed, analysed, and imple-

mented using MVCLang and its toolset. To evaluate

MVCLang, we considered a software company called

Eryaz, which builds MVC-based e-commerce solu-

tions for their customers. We prompted 5 develop-

ers from Eryaz to use the MVCLang language and its

toolset for their projects and share their feedback with

us. We also asked the developers a pre-determined set

of questions to learn their thoughts.

We are currently in the process of modifying the

language deﬁnition and the prototype toolset in accor-

dance with the feedback received from the developers

and releasing a newer version of the language. We

also plan to design some case-studies from diverse in-

dustries for evaluating MVCLang so as to determine

whether (i) the language deﬁnition (i.e., syntax and

semantics) is adequate for modeling diverse problems

and (ii) the toolset detects the design errors and pro-

duces the expected ASP.NET code correctly or not.

REFERENCES

Barrett, R. and Delany, S. J. (2004). openmvc: A

non-proprietary component-based framework for web

applications. In PROC. 13 TH INTERNATIONAL

WORLD WIDE WEB CONFERENCE, pages 464–

465.

Burbeck, S. (1987). Applications programming in

smalltalk-80(tm): How to use model-view-controller

(mvc).

Cortez, R. and Vazhenin, A. (2015). Virtual model-view-

controller design pattern: Extended mvc for service-

oriented architecture. IEEJ Transactions on Electrical

and Electronic Engineering, 10(4):411–422.

Delessy-Gassant, N. and Fernandez, E. B. (2012). The se-

cure mvc pattern. In 1st LACCEI International Sym-

posium on Software Architecture and Patterns, pages

1–6.

Freeman, A. (2013). Pro ASP.NET MVC 5. Apress, USA,

5th edition.

Kraus, A., Knapp, A., and Koch, N. (2007). Model-driven

generation of web applications in UWE. In Koch, N.,

Vallecillo, A., and Houben, G., editors, Proceedings

of the 3rd International Workshop on Model-Driven

Web Engineering MDWE 2007, Como, Italy, July 17,

2007, volume 261 of CEUR Workshop Proceedings.

CEUR-WS.org.

Mahmoud, Q. H. and Maamar, Z. (2006). Applying the mvc

design pattern to multi-agent systems. In 2006 Cana-

dian Conference on Electrical and Computer Engi-

neering, pages 2420–2423.

Ozkaya, M. (2018a). Analysing uml-based software mod-

elling languages. Journal of Aeronautics and Space

Technologies, 11(2):119–134.

Ozkaya, M. (2018b). The analysis of architectural lan-

guages for the needs of practitioners. Softw., Pract.

Exper., 48(5):985–1018.

Reenskaug, T. (2003). The model-view-controller (mvc) its

past and present.

Rumbaugh, J., Jacobson, I., and Booch, G. (2004). Uni-

ﬁed Modeling Language Reference Manual, The (2Nd

Edition). Pearson Higher Education.

Sauter, P., V

ogler, G., Specht, G., and Flor, T. (2005). A

model-view-controller extension for pervasive multi-

client user interfaces. Personal Ubiquitous Comput.,

9(2):100?107.

Seidewitz, E. (2003). What models mean. IEEE Software,

20(5):26–32.

Taraghi, B. and Ebner, M. (2010). A simple mvc frame-

work for widget development. In Proceedings of the

3rd Workshop on Mashup Personal Learning Environ-

ments (MUPPLE10), pages 1–8. . ISSN 1613-0073.

Viyovi

c, V., Maksimovi

c, M., and Perisi

c, B. (2014). Sir-

ius: A rapid development of dsm graphical editor. In

IEEE 18th International Conference on Intelligent En-

gineering Systems INES 2014, pages 233–238.

MVCLang: A Software Modeling Language for the Model-View-Controller Design Pattern
