An Experience in Collecting Requirements for Mobile, Energy Efﬁcient

Applications from End Customers in the Bank Sector

Vladimir Ivanov

, Pavel Kolychev

, Sergey Masyagin

, Giancarlo Succi

, Rafael Valeev

and Vasilii Zorin

Innopolis University, Russia

Ak Bars Digital Technologies, Russia

Schaffhausen Institute of Technology, Switzerland

Keywords:

Empirical Methods, Software Experimentation.

Abstract:

Several development processes recommend strongly user participation and involvement in requirement acqui-

sition. However, there are very few studies detailing the empirical results of direct user involvement in large

industrial software development products. In this paper we report the outcomes of a novel approach taken

by the Software House of one of major Russian banks (Ak Bars Bank) on how to improve the development

process by directly involving end customers in the requirement elicitation phase of mobile, energy efﬁcient ap-

plications. We observe that such involvement in a form of a workshop has led to improvement of requirements

collection and higher levels of user satisfaction.

1 INTRODUCTION

One of the tenets of agile methods is to directly in-

volve the users in the development of the product and,

in converse, one of the alleged difﬁculties in agile

methods is to involve customers in the development

of products.

User participation and involvement (UPI) is a

well-known and widely studied concept in software

engineering. Despite the presence of several studies

that claim the beneﬁts of UPI, it is a challenge to un-

derstand quantitatively the proﬁts arising from user

involvement into development. The speciﬁcity of the

domain, the software development process, and other

covariates may affect the results dramatically.

In the present paper we report results of applica-

tion of an original tools and methods applied in mo-

bile banking domain and discuss the lessons learned.

Moreover, we use a formal methods to measure the re-

sults and show the signiﬁcance of the effects of UPI.

In this paper we discuss a novel approach taken

by the Software House of a Russian Bank, Ak Bars

Digital Technologies (ABDT), to increase its product

quality and the associated preliminary results. ABDT

holds at every sprint requirement focused elicitation

workshops with end users that have been recruited

using social media tools. The application domain is

mobile banking with speciﬁc attention for energy ef-

ﬁciency a primary concern for its users.

Ak Bars Digital Technologies employees about

300 people, organized in 40 agile teams managing

about 300 interconnected IT systems. The approach

is centered in an adaptation of Scrum to take into ac-

count the multiplicity of the desires of the end cus-

tomers, which are in high number.

In the discussion we provide (links to) the con-

crete tools and methods used during the experiment.

Moreover, we supply also the screenshots of the ads

used to recruit end users and of the various alterna-

tive product design – they are in Russian and the most

essential features are translated in the caption, but we

hope in this way to supply the reader the most realistic

description of work, to facilitate is replica in other set-

tings, and, if needed, its generalization in other con-

texts.

The results of the application of the approach have

been quite positive, since it has been evidenced that

such workshops appear to predict reliably the desires

of the end users, that results in products with higher

ratings in the app store, and, somehow, make the de-

velopment teams more effective in managing and ex-

ecuting tasks.

The think that the value of this work lies on the

relevance of the subject by itself and of its application

domain, of the size of the experimentation and on the

quality of the analysis of the data, on the results that

522

Ivanov, V., Kolychev, P., Masyagin, S., Succi, G., Valeev, R. and Zorin, V.

An Experience in Collecting Requirements for Mobile, Energy Efﬁcient Applications from End Customers in the Bank Sector.

DOI: 10.5220/0009574805220530

In Proceedings of the 15th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2020), pages 522-530

ISBN: 978-989-758-421-3

have been achieved, and on the plenitudes of details

that have been provided that should facilitate replicas

and extensions.

This paper is organized as follows. Section 2 pro-

vides a background to the problem. Section 3 details

the overall experimental setting of the study. Section

4 describes the results that have been obtained and

Section 5 analyses them. Finally, Section 6 draws

some conclusions and outlines the direction of the fu-

ture research.

2 BACKGROUND ON THE

PROBLEM

2.1 Collecting Requirements from Users

Development of information system usually involves

user to for improve system quality and to ensure suc-

cessful system implementation. The importance of

user-centered design was recognized in 1980s with

works of E. Mumford (Mumford, 1983) where he

distinguishes direct and indirect user participation;

and D. Norman’s seminal book (Norman and Draper,

1986) in which he urged designers to take users’

needs and interests into account. It is obvious that

user involvement in system development and design

is one of the easiest ways to achieve product use-

fulness and usability. First empirical studies related

to the topic in software engineering appeared around

that years. In (Baroudi et al., 1986) a survey of 200

production managers was performed. Their results

demonstrate that user involvement in the development

of information systems may enhance both system us-

age and the user’s satisfaction with the system. Also,

the study has provided an evidence that high sys-

tem usage is the result of user’s satisfaction with the

system. In (Damodaran, 1996), L. Darmodan has

explored the types of user involvement in the sys-

tems design processes as well as the roles of users

in such processes. She claimed that knowledge and

experience of end users are required at different steps

throughout the software development process. In later

works (Simonsen and Robertson, 2012; Kanstrup and

Bertelsen, 2011) the research focus has moved from

user-centered design to the concept of so-called user

driven innovation.

Nowadays, involvement of users in software engi-

neering becomes a common practice intended to in-

crease the usage of software systems. It is true, es-

pecially, in those applications domains where users

of software are main consumers of the correspond-

ing services provided by business or government.

It is typical in health-care domain (Marcilly et al.,

2016; Kushniruk and Nøhr, 2016), where there is

a lack of user satisfaction with health-care informa-

tion systems became a serious issue. In (Kushniruk

and Nøhr, 2016) discussed several methods to include

users in development and evaluation of software prod-

ucts. They describe challenges in IT evaluation dur-

ing participatory using several case studies. Thus, in

modern software engineering, there is no doubt that

user should be involved in development processes,

however questions “How?” and “When?” are emerg-

ing and demand a scientiﬁc exploration. This drives

the need of additional case studies in speciﬁc domains

related to services such as heath-care, ﬁnancial do-

main and e-government.

2.2 Requirements for Development of

Energy-efﬁcient Mobile

Applications

In this section we review approaches to formulation

of requirements for energy-efﬁcient mobile applica-

tions. Development of energy-efﬁcient applications

needs measuring of energy consumption related to an

application. Therefore, a prerequisite for any energy-

efﬁcient approach to development is establishing a

way to measure the overall power consumption of

a mobile device: using either some external instru-

ments or by means of self-metering. The collected

data form parts of the input for training power con-

sumption models and hence can be used for energy-

efﬁcient development (Hoque et al., 2016).

The ﬁrst category includes external instruments,

external power monitors and provides the ground

truth for mobile device power analysis due to their

high precision and accuracy. However, their usage is

limited by a laboratory; it is not feasible for large-

scale testing and development.

The second category, self-metering, assumes that

a device has its own capabilities to measure the

system-level power consumption without the help of

external instruments. This category of measurement

methods can be divided into three types: (i) Battery

models, voltage, and state of charge; (ii) State of

charge estimation (Hoque and Tarkoma, 2016); (iii)

Fuel gauge and battery APIs

. From the point of view

of an energy proﬁling application, the self-metered

data is provided through the device’s battery API. The

API exposes to OS information about the battery sta-

tus (e.g. the Android’s BatteryManager). So, the data

For instance, Andriod’s Battery His-

torian: https://developer.android.com/

about/versions/android-5.0.html. Android Power Pro-

ﬁles: https://source.android.com/ devices/tech/power.html

An Experience in Collecting Requirements for Mobile, Energy Efﬁcient Applications from End Customers in the Bank Sector

523

can be used during application development. The API

updates status periodically and whenever there is a

change in the charge and/or the temperature of a bat-

tery or not (typical frequency of the updates ranges

between 0.25Hz to 4Hz (Zhang et al., 2010)).

Hence, the measurement type and the data coming

via API about energy consumption require from mo-

bile application developers to follow one of the fol-

lowing three major approaches: utilization-based en-

ergy requirements (Zhang et al., 2010), event-based

energy requirements (Pathak et al., 2011), and the

ones based on code analysis. The ﬁrst and the sec-

ond approaches to requirement speciﬁcation needs a

real device to run an application. Thus, for our study

the third approach is more relevant. This approach

relies on the analysis of the program code to be exe-

cuted. The approach is exempliﬁed, for instance, as

an instruction-level model, which works by relating

the power consumption of a piece of code with each

instruction executed. This requires the evaluation of

power consumption for each of the instructions of the

software considered. Clearly, this can be applied at a

level of functions, procedures, or subroutines.

Selecting a proper energy proﬁler forms another

requirement for mobile development. The models and

approaches described above have been implemented

in the on-device proﬁlers such as Sesame(Dong and

Zhong, 2011), PowerBooter(Zhang et al., 2010), V-

Edge(Xu et al., 2013) etc. The choice of a proﬁler

for a typical developer is not straightforward. Along

with their accuracy, other requirements are important,

including availability, hardware support, ease of use

and installation, and expertise of the developer.

Additionally, there are requirements related to the

privacy issues. As it is discussed in (Diamond et al.,

2018) collecting data about energy consumption (ei-

ther of the device as a whole or in an application)

can clearly cause privacy concerns. Thus, a devel-

oper of the mobile energy-efﬁcient application should

consider such requirements as transparency, appropri-

ation and security in the usage of the energy consump-

tion data.

3 DESCRIPTION OF THE

EXPERIMENTAL SETTING

3.1 Situation That Induced the Change

During several years traditional Banking sector in

Russia has been suffering from aggressive com-

petition with FinTech companies providing game-

changing easy-to-use ﬁnancial products to customers.

Ak Bars Digital Technologies (ABDT) was founded

in October 2016 in response to this process.

First product teams were created as soon as the

company was established. The development process

in the teams was based on Scrum framework de-

scribed in Scrum Guide

. All teams in the company

incorporates all mandatory events and artifacts pre-

scribed by Scrum.

There were several reasons to use Scrum as a pro-

cess framework. Firstly, developing digital product is

a complex task due to high level of uncertainty and

a lot of dependencies between systems and compo-

nents (20 main systems and 2 mission-critical devel-

oped in parallel by different teams inside and out-

side the organization). Secondly, there are no stable

requirements: they constantly change in response to

new requests from customers, implementation of new

features by competitors and claims of government in-

stitutions. Finally, the product should be developed in

a competitive environment, thus fast delivery of new

versions of a product and adaptability are extremely

important. Taking into account these issues choosing

Scrum is looking quite reasonable: Scrum is based on

the empirical process, which allows to identify and

tackle emerging problems in a rapid pace. It creates

framework, inside which teams could establish their

own process that satisﬁes their needs.

In this article we analyze the process in one prod-

uct group that develops Ak Bars Online system which

provides banking and ﬁnancial services for customers

among various digital platforms. The whole product

group consists of 8 cross-functional agile teams and

Product management team. Two of these agile teams

includes vendor developers who works by out-stafﬁng

agreement. Agile teams use Scrum framework and in-

clude from 5 to 10 developers. By “developers” we

mean all people who analyze, design, implement and

test the system. In total the product team includes 65

people, among them: 11 back-end developers, 5 iOS

developers, 5 Android developers, 3 web developers,

12 QA-engineers, 4 user interface designers, 2 sys-

tem analysts, 2 site reliability engineers, a system ar-

chitect, a data scientist, an UX expert, an application

security expert, 5 outstafﬁng specialists and product

management. The product management includes a ﬁ-

nancial expert, a web analyst, marketing and content

experts. Also we have 5 Product Owners and three

Scrum Masters. Due to lack of Some Scrum Masters

and Product Owners work with several agile teams

due to lack of the competences on the market.

The product group develops Android, iOS, web

applications and back-end using SOA (service-

https://www.scrumguides.org/docs/scrumguide/v2017/

2017-Scrum-Guide-US.pdf

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

524

oriented architecture), adapters and interfaces to com-

municate with other bank’s middleware and adjacent

systems. All front-end applications are deployed on

production environment and available for end-users.

Android and iOS applications are published at Play-

Market and AppleStore accordingly. For iOS devel-

opment the team used Objective C and Swift. To de-

velop Android application the team used Java, Kotlin,

RxJava2. Ak Bars Online platform is developed by

using C#, .Net Framework, and .Net Core. The team

also includes 4 outstafﬁng developers who makes nec-

essary implementation on CRM that based on Ora-

cle Siebel by using eScript programming language.

One developer implements procedures and scripts in

processing system. Autotests are developed by using

Python. While the detailed breakdown is conﬁdential,

we can say that overall the codebase for the project

spanned several hundreds of thousands of lines of

code.

As it has been stated before, all teams use Scrum

framework as it is described in Scrum Guide. The

core idea of the framework is to constantly inspect and

adapt. It incorporates several feedback loops, and the

most important one is a review of product increment

at the end of every iteration. Sprint review is a multi-

component event, where development team, product

owner and stakeholders observe implemented prod-

uct increment, the market, product aims and discuss

which features should be done next.

For the ﬁrst year of working, teams invited to

the event in-house stakeholders and did not take into

consideration direct feedback from users. However,

at some time, during one of Sprint Retrospectives,

teams understood that except in-house stakeholders it

is necessary to ask other type of stakeholders, end-

customers. Yes, product owner could represent users

being a voice of customers, but this usually leads to a

longer distance between product teams and real cus-

tomers and raises several issues including:

• people describe the world based on their own per-

suasions and views, thus this business analysts

or product owner always (unconsciously) trans-

form real requirements into somehow other re-

quirements,

• developers often do not see how end-customers

work with the products and do not understand

their real pains.

However, the competition is very stiff and the key

stakeholders have been putting always higher goals

for the ABDT, so a radical change has been imple-

mented to attempt to target such issues.

Figure 1: Customers trying the products and team members

observing without speaking.

3.2 Implemented Change

Substantially, the change was to involve directly end

customers in requirement elicitation; if not enough

customers were available, direct proxies, were used:

the business employees of the bank that operate on a

daily basis with customers using such products.

Speciﬁcally, volunteers users were recruited via

the social network channels of the bank:

• on Vkontakte at https://vk.com/akbars ru

• on Facebook: https://www.facebook.com/

akbarsbank/

The product owner also tried to deﬁne properly the

target group of customers invited at each session at-

tempting to balance among ages, gender, background.

1. From 1 to 10 estimate, how easily was for

you to completed the task. Comment on what

was the most confusing part.

2. From 1 to 10 estimate how much time it took

you to complete the task. In particular, com-

ment on which actions took the most time

3. Which functionality did you miss in the app?

4. Do you understand all instructions and com-

ments? If not, please comment the ones that

are not clear for you

5. Are all the developed functionality really

needed? What could be removed?

Figure 2: Structured questionnaire administered to the cus-

tomers during the second phase of the workshop.

Each interaction with the customers was orga-

nized in the format of a workshop lasting approxi-

mately one hour and it occurred at every sprint, that

An Experience in Collecting Requirements for Mobile, Energy Efﬁcient Applications from End Customers in the Bank Sector

525

is, every two weeks. Such workshop was organized in

two phases:

• in the ﬁrst phase, the customers were presented

the applications and asked to perform some use

cases with them. The members of the develop-

ment team did not speak, comment, or communi-

cate in any way with the customers: they just ob-

served the interaction process, as shown in Figure

• in the second phase, the team members sat with

the customers and asked them questions about

their experience with the applications; after the

ﬁrst informal and unstructured comments from

the customers, a very simple structured question-

naire was employed (Figure 2). All the discussion

was recorded in written format.

The simple structured questionnaire was devel-

oped by the product group and structured as follows.

Please note that while this questionnaire is quite prim-

itive and could be improved according to the best

practices in the ﬁeld, the teams have always resisted

any such suggestion and kept it as is because they are

accustomed to it, know it by heart, so it is very simple

for them to administer it. Anyway, it is not the pur-

pose of this study to determine how to do better the

questionnaire, but to describe in details the approach

and its effects.

All the comments coming from the customers

were then elaborated by the teams and user stories

were created based on such feedback. Such user sto-

ries were clustered in three classes:

• “quick win:” simple modiﬁcations or bug ﬁxes

that required an effort that could be condensed in

a sprint;

• “major rework:” major required changes in the

apps spanning multiple iterations;

• “to ignore:” comments not required at the current

stage.

The comments were then passed to the prod-

uct owner, with the understanding that quick wins

should be executed as early as possible, major re-

works should be planned within a timeframe of 6

months, and items to ignore were simply removed,

rather than kept in the backlog, with the idea that

they would have never be targeted anyway, and if

the represented some important feature that got miss-

classiﬁed, they would have emerged again in a fol-

lowing customer workshop.

4 EMPIRICAL RESULTS

Overall, we are considering 21 “frequent” releases of

the software to the customer, which spanned from the

beginning of March 2018 to the end of March 2019.

In total there were 22 releases, 8 with the “traditional”

approach of AkBars (named T1 . . . T8 in the follow-

ing) and 14 following the new approach (named N1

. . . N14 in the following).

4.1 Evaluation of the Effects of the

Changes

To evaluate the results of the new approach we have

selected the following criteria:

• Ability of user sessions to predict preferences of

end users

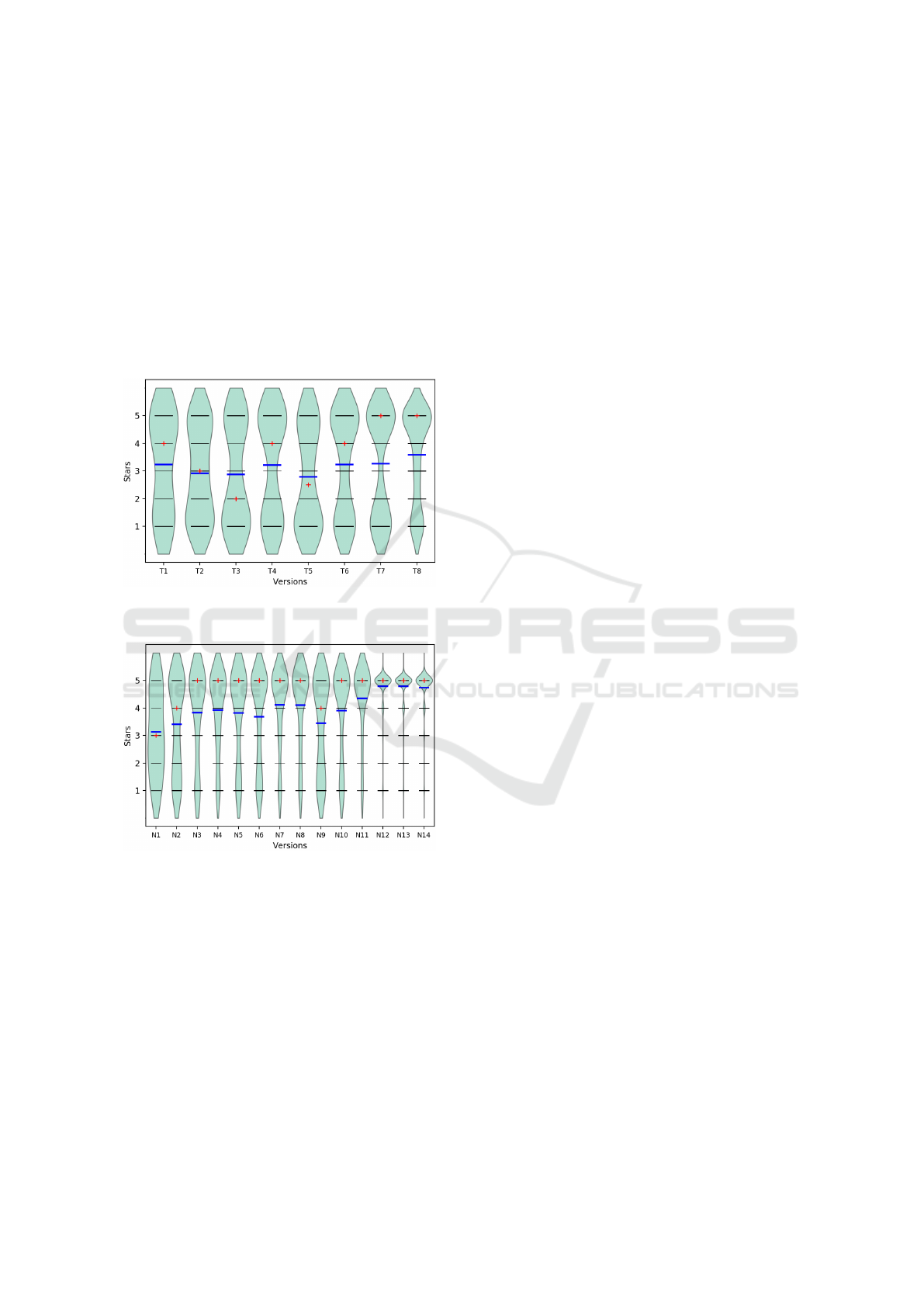

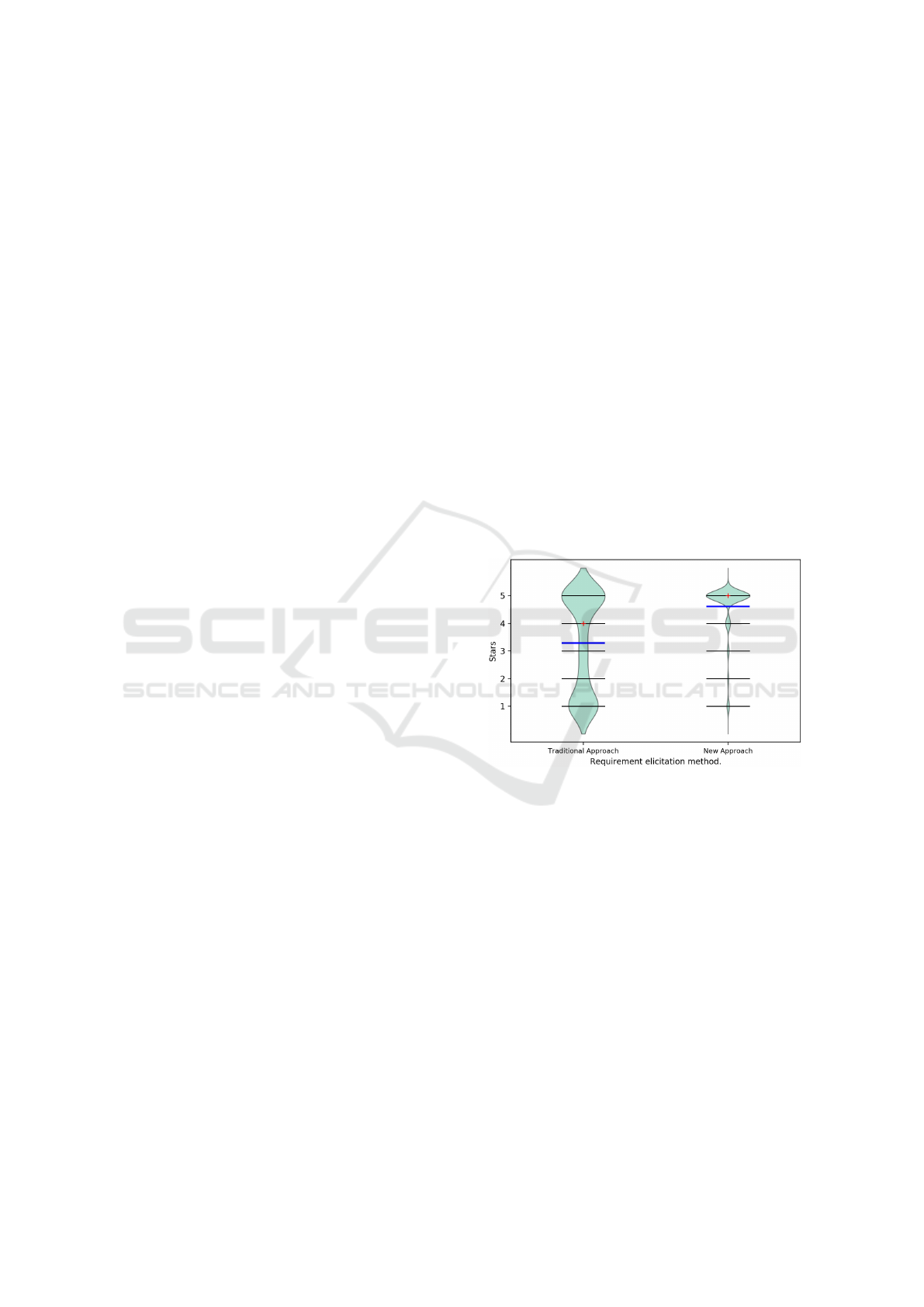

• Customer satisfaction measured in ratings in the

appstore

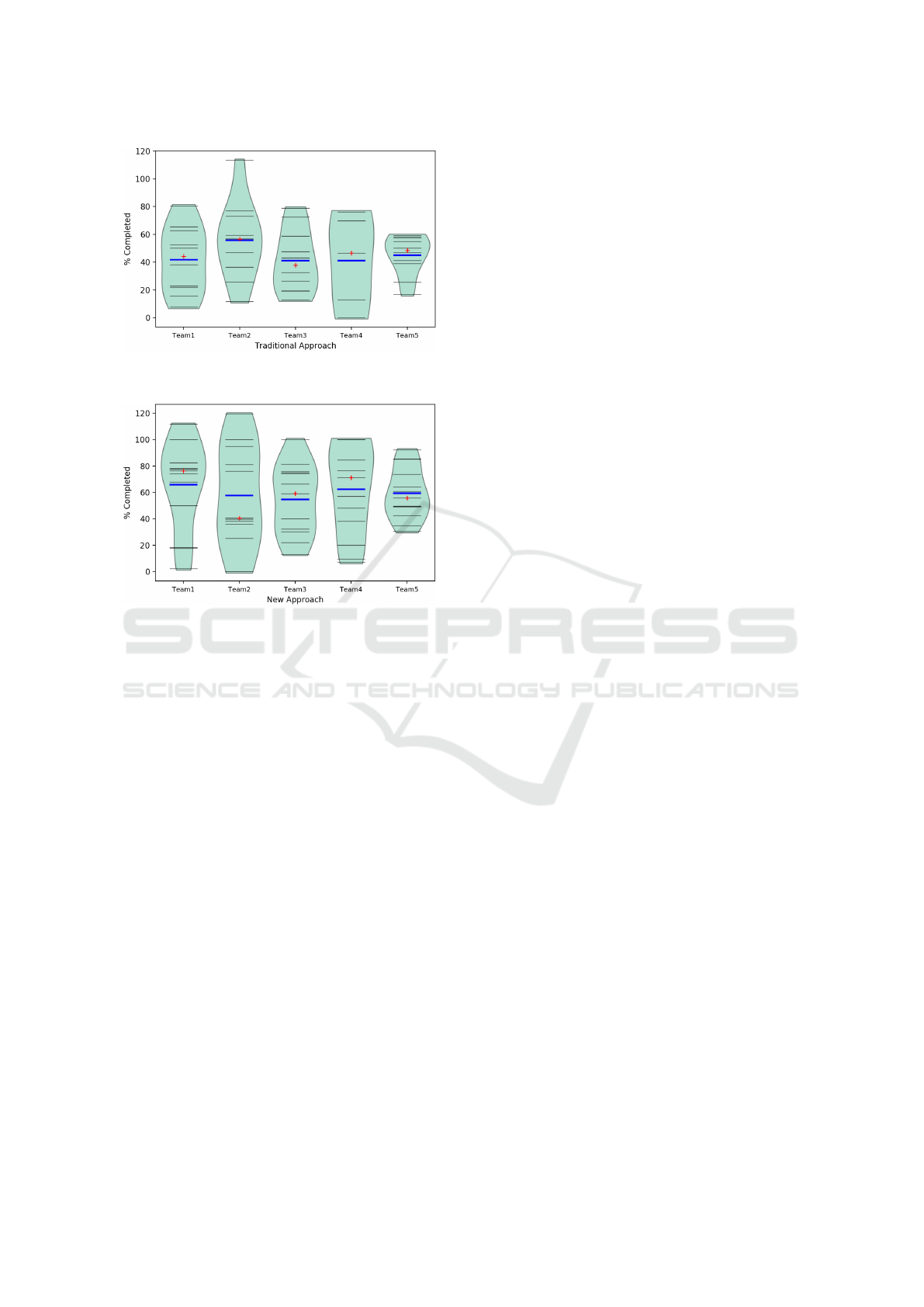

• Ability to predict the amount of work to complete

The ﬁrst criteria relates to the practical usefulness of

the data collected by customers selected as per the

process, and on how representative such customers

are with respect to the overall populations of cus-

tomers of the bank. The second criteria is a quite ob-

vious choice, since it measures the satisfaction of the

customers as a whole. The third criteria that we used

were the ability of the team to predict the amount of

work to complete, measured as a percentage between

the planned and the accomplished tasks, and it is con-

nected to the cohesiveness of the work done, which

should reﬂect in more effective work.

Needless to say, the reader may imagine several

other metrics and criteria that could have been col-

lected during the development process or on the ﬁnal

product and then used in our analysis. Being this a

study on a real company with real datasets, we are

indeed constrained with the information that is con-

cretely available to us. Nonetheless, we think that the

size of the experiment in terms of both time duration

and people involved, the metrics collected, and the

importance for Ak Bars of the product being devel-

oped make this study a very valuable, original, and

unique contribution to the research in this area.

4.2 Prediction of Preferences of the End

Users

At the beginning of the application of the methodol-

ogy the company has performed a preliminary assess-

ment on the effectiveness of the sessions with cus-

tomers to predict the preferences of the end users. To

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

526

this end a formal experiment was run using a post-test

only control group design with randomisation (Camp-

bell and Stanley, 1963).

To this end, two experiments were conducted. In

the ﬁrst, a problematic feature was identiﬁed in the

app related to the discussion with customers and a

variation of such feature was discussed during the ses-

sions with customers. Speciﬁcally, the desire of the

bank was to have users interact one another via the

app. Originally such feature was called “friends” and

after the discussion was called “chat”.

After the discussion, two concurrent versions of

the app were deployed, one with the old label (about

50.4% of the all deployments) and one with the new

(about 49.6% of the all deployments) – the concrete

numbers are of the order of the tens of thousands,

but are omitted for conﬁdentiality. About 3.8% of the

users of the app with the old label used the feature vs.

about 4.5% of the users of the app with the new label

(an increase of about 18.6%). To determine the signif-

icance of the variation we have used the chi-squared

test, which provides an excellent approximation of

the real value, given the large sample size, since the

size of such sample makes impossible to adoption

of the Fisher’s exact test (Fisher, 1922; Wasserman,

2006). The result identiﬁes a statistically signiﬁcant

improvement with α = 0.05 (p is 5.8 × 10

−5

, giving

a very high conﬁdence in the robustness of the im-

provement against possible statistical ﬂuctuations).

The second experiment aimed at determining the

best way to promote new products of the bank to the

users of the app. The original version was not result-

ing in users exploring such opportunities, a proposal

was made in the focus group.

In this case, three concurrent versions of the app

were deployed, one with the old label (about 33.2% of

the all deployments), one with the large button (about

33.5% of the all deployments), one with the opportu-

nity added to the list of features (about 33.3% of the

all deployments) – the concrete numbers are of the

order of the hundred of thousands, but are omitted for

conﬁdentiality. About 16.6% of the users of the orig-

inal app explored the new products of the bank vs.

about 27.1% of the users of the ﬁrst alternative design

(an increase of 63.1%) and 24.1% of the users with

the alternative design (an increase of 44.6%).

Also in this case, to determine the signiﬁcance of

the variation we have used the chi-squared test (again

the size of such sample has not allowed the use of

the Fisher’s exact test). The result identiﬁes a statis-

tically signiﬁcant improvement with α = 0.05 (p is

5.9 × 10

−94

, giving a very high conﬁdence in the ro-

bustness of the improvement against possible statisti-

cal ﬂuctuations).

The two experiments have been conducted using

a quite standard experimental design of treatment, us-

ing a post-test only control group design with ran-

domisation (Campbell and Stanley, 1963). In both

cases we have achieve a statistically signiﬁcant effect,

which, in the second case, is also quite remarkable in

terms of size. Altogether, It appears that the new ap-

proach appears quite effective in predicting the pref-

erences of the end users. Indeed, in all these situa-

tions there could be several confounding factors, even

if in this case we follow a such a solid experimen-

tal design and we obtain very comfortable statistical

evaluations.

4.3 Ratings of Users in the Appstore

As mentioned, we consider the ratings in the Appstore

one of the criteria that we use to evaluate the results of

the introduction of the new approach to elicit require-

ments. We concentrate our attention to the Google

Play Store, because we did not have easy access to

the ratings in the Apple App Store.

Figure 3: Overall results of the application of the new ap-

proach.

4.3.1 Overall Analysis

The ﬁrst analysis we have made concerns whether

the introduction of the new approach has resulted in

higher ratings. To gather an overall intuitive under-

standing of the situation we have constructed cumu-

lative beanplots of the ratings before and after such

introduction (Kampstra, 2008) (Figure 3). The thin

(black) bars represent the discrete values of the stars,

the thicker (blue) bar the mean, and the (red) plus sign

the median. It is clear that the introduction of the

new approach has signiﬁcantly improved the ratings

by the end users. The mean rating has moved from

3,29 to 4.60 – statistically signiﬁcant at α = 0.05 as

evaluated using the non parametric Mann-Whitney U

test (Mann and Whitney, 1947). The median has been

bumped from 4 to 5 – statistically signiﬁcant at α =

An Experience in Collecting Requirements for Mobile, Energy Efﬁcient Applications from End Customers in the Bank Sector

527

0.05 as evaluated using the non parametric Kruskal-

Wallis test (Kruskal and Wallis, 1952). We have

then analysed the data with the Kolmogorov-Smirnov

statistics (Kolmogorov, 1933), which assumes a value

of 0.37 (rounded to the second decimal), statistically

signiﬁcant at the 0.05 level (actually, with a p value

less than 10

). It is important to mention that the

Mann-Whitney U test, the Kruskal-Wallis test, and

Kolmogorov-Smirnov statistics are a very conserva-

tive non parametric tests, which make no assumption

on the data, simply considering them on an ordinal

scale (Wasserman, 2006; Wasserman, 2010).

Figure 4: Situation before the application of the new ap-

proach.

Figure 5: Evolution of the improvement after the applica-

tion of the new approach.

4.3.2 Detailed Analysis of the Evolution of the

Versions

To gather a further understanding of the introduction

of the new approach in terms of customer complaints

we have ﬁrst analysed version by version the situation

before and after the introduction of the new approach

in terms of analysis of beanplots (Figure 4 represents

the versions before the introduction of the new ap-

proach and Figure 5 after).

It is evident that before the introduction of the new

approach the situation was quite stable, with no real

variation of the means or the medians of the customer

evaluations (Figure 4); to gather an understanding of

the trend, we have run a non parametric correlation on

the values of the means (the Spearman’s rank corre-

lation), obtaining a positive correlation (0.60) that is

not statistically signiﬁcant at the 0.05 level (p=0.12),

meaning that such positive variation may just come

from some random ﬂuctuation.

4.3.3 Discussion of the Results of the Customer

Evaluations

Considering the data that we have analyse we can hy-

pothesize that the introduction of the new approach to

collect requirements has resulted in:

• a statistically signiﬁcantly higher level of cus-

tomer ratings overall after the introduction of the

new approach than with the traditional approach

• a statistically signiﬁcantly improvement pattern in

customer ratings after the introduction of the new

approach, while before the situation was stagnant.

We can therefore hypothesize that the new ap-

proach has improved the quality of the requirement

collection process as measured by customer ratings

and that such approach is still in its learning phase,

so we could expect further improvements. We would

like to mention that this also includes fully the en-

ergy concerns. However, we need to mention that the

sensitivity of this metrics to further improvement is

limited, since we are approaching the end of the scale

in the customer ratings, so further increases could re-

main below the level of statistical signiﬁcance.

We would like to emphasize again that we have

obtained all these results using very robust non para-

metric techniques, which do not make any assump-

tion on the structure of data - the Mann-Whitney U

test (Mann and Whitney, 1947), the Kruskal-Wallis

test (Kruskal and Wallis, 1952), the Kolmogorov-

Smirnov test (Kolmogorov, 1933) and the Spearman’s

rank correlation coefﬁcient (Myers et al., 2010). This

makes us conﬁdent that the effects that we have no-

tices are not simple random perturbation of data due

to noise.

4.4 Percentage of Tasks Completed in

Each Iteration

We have then turned our attention to the tasks that

have been completed in each iteration as per plan by

each team. We have considered 5 out of the 8 teams

working on the project and a total of 23 iterations, 10

performed with the traditional approach and 13 with

the new approach. 3 teams could not be inserted in

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

528

Figure 6: Completion rate of tasks during sprints using the

traditional approach.

Figure 7: Completion rate of tasks during sprints using the

new approach.

this analysis, since their data was considered conﬁ-

dential at all levels.

While the speciﬁc number of tasks is obviously

conﬁdential, the beanplots of percentage of comple-

tion are presented in Figure 6 (before the introduction

of the new approach) and in Figure 7 (after).

We have ﬁnally analysed the results as a whole

taking a meta analytical approach (Cook, 1994) and

performing a paired value sign test on the direction

of the variation of the means. In this case we have

obtained a result that is statistically signiﬁcant, as we

could expect given that in 5 cases out of 5 the mean

percentage of accomplished tasks have improved.

5 DISCUSSION

In this work we have evidenced three major outcomes

of the proposed approach to involve customers in mo-

bile, energy efﬁcient applications using directly end

customer workshops:

• such workshops predict fairly well the desires of

the overall population of end users, an evidence

that thus it also targets the energy concerns

• the resulting app appears to have signiﬁcantly

higher customer ratings, evidencing that also the

energy concerns have been resolved

• the overall process appears somehow better man-

aged, even if such improvement is not easily no-

ticeable.

We think that such ﬁndings are generalizable to

larger settings, since:

• the size of the study is quite large and represents a

problem that is quite typical in the banking sector,

• the structure of the development process and of

the teams is quite typical for the Russian industry

and also for the banking industry worldwide,

• the number of evaluations that we have collected

for customer ratings is large, the effect size is re-

markable, and the p-value is very low.

As already mentioned, additional studies are

needed to conﬁrm and extend these results. To this

end, a plenitude of information has been provided to

facilitate such followups.

6 CONCLUSIONS

In this paper we evaluate a novel approach taken by

the IT department of a Russian Bank, Ak Bars Digi-

tal Technologies. The approach is centered on tech-

niques and tools for taking into account effectively

the multiplicity of the desires of the end customers.

The results have been a higher predictability of the

desires of the customers, signiﬁcantly higher ratings

of the app in the appstore, and somehow better man-

aged product.

The contribution of the work is concrete results of

application of an original tools and methods applied

in mobile development for banking domain.

Indeed, replicas of this study are advocated, and,

to this end, the work has been discussed quite in de-

tails. Moreover, future works will be connected to ap-

plication of the proposed approach in other software

products for the bank sector.

ACKNOWLEDGMENTS

The work presented in this paper was supported by the

grant of Russian Science Foundation # 19-19-00623.

REFERENCES

Baroudi, J. J., Olson, M. H., and Ives, B. (1986). An empiri-

cal study of the impact of user involvement on system

An Experience in Collecting Requirements for Mobile, Energy Efﬁcient Applications from End Customers in the Bank Sector

529

usage and information satisfaction. Commun. ACM,

29(3):232–238.

Campbell, D. T. and Stanley, J. C. (1963). Experimental and

quasi-experimental designs for research. Houghton,

Mifﬂin and Company.

Cook, T. (1994). Meta-analysis for explanation : a case-

book. Russell Sage Foundation, New York.

Damodaran, L. (1996). User involvement in the systems

design process-a practical guide for users. Behaviour

& information technology, 15(6):363–377.

Diamond, L., Schrammel, J., Fr

ohlich, P., Regal, G., and

Tscheligi, M. (2018). Privacy in the smart grid: end-

user concerns and requirements. In Proceedings of the

20th International Conference on Human-Computer

Interaction with Mobile Devices and Services Adjunct,

pages 189–196. ACM.

Dong, M. and Zhong, L. (2011). Self-constructive high-rate

system energy modeling for battery-powered mobile

systems. In Proceedings of the 9th international con-

ference on Mobile systems, applications, and services,

pages 335–348. ACM.

Fisher, R. A. (1922). On the interpretation of χ 2 from con-

tingency tables, and the calculation of p. Journal of

the Royal Statistical Society, 85(1):87.

Hoque, M. A., Siekkinen, M., Khan, K. N., Xiao, Y., and

Tarkoma, S. (2016). Modeling, proﬁling, and debug-

ging the energy consumption of mobile devices. ACM

Computing Surveys (CSUR), 48(3):39.

Hoque, M. A. and Tarkoma, S. (2016). Sudden drop in

the battery level?: understanding smartphone state of

charge anomaly. ACM SIGOPS Operating Systems

Review, 49(2):70–74.

Kampstra, P. (2008). Beanplot: A boxplot alternative for vi-

sual comparison of distributions. Journal of Statistical

Software, Code Snippets, 28(1):1–9.

Kanstrup, A. M. and Bertelsen, P. (2011). User innovation

management: A handbook. Aalborg Universitetsfor-

lag.

Kolmogorov, A. N. (1933). Sulla determinazione empirica

di una legge di distribuzione. Giornale dell’Istituto

Italiano degli Attuari, 4:83–91.

Kruskal, W. H. and Wallis, W. A. (1952). Use of ranks in

one-criterion variance analysis. Journal of the Ameri-

can Statistical Association, 47(260):583–621.

Kushniruk, A. and Nøhr, C. (2016). Participatory design,

user involvement and health it evaluation. Stud Health

Technol Inform, 222:139–151.

Mann, H. B. and Whitney, D. R. (1947). On a test of

whether one of two random variables is stochastically

larger than the other. The Annals of Mathematical

Statistics, 18(1):50–60.

Marcilly, R., Peute, L., and Beuscart-Zephir, M.-C. (2016).

From usability engineering to evidence-based usabil-

ity in health it. Stud Health Technol Inform, 222:126–

38.

Mumford, E. (1983). Designing human systems for new

technology: the ETHICS method. Manchester Busi-

ness School.

Myers, J., Well, A., and Lorch, R. (2010). Research Design

and Statistical Analysis. Research Design and Statis-

tical Analysis. Routledge.

Norman, D. A. and Draper, S. W. (1986). User centered

system design: New perspectives on human-computer

interaction. CRC Press.

Pathak, A., Hu, Y. C., and Zhang, M. (2011). Bootstrap-

ping energy debugging on smartphones: a ﬁrst look

at energy bugs in mobile devices. In Proceedings of

the 10th ACM Workshop on Hot Topics in Networks,

page 5. ACM.

Simonsen, J. and Robertson, T. (2012). Routledge interna-

tional handbook of participatory design. Routledge.

Wasserman, L. (2006). All of Nonparametric Statistics

(Springer Texts in Statistics). Springer-Verlag, Berlin,

Heidelberg.

Wasserman, L. (2010). All of Statistics: A Concise Course

in Statistical Inference. Springer Publishing Com-

pany, Incorporated.

Xu, F., Liu, Y., Li, Q., and Zhang, Y. (2013). V-edge:

Fast self-constructive power modeling of smartphones

based on battery voltage dynamics. In Presented

as part of the 10th {USENIX} Symposium on Net-

worked Systems Design and Implementation ({NSDI}

13), pages 43–55.

Zhang, L., Tiwana, B., Qian, Z., Wang, Z., Dick, R. P., Mao,

Z. M., and Yang, L. (2010). Accurate online power es-

timation and automatic battery behavior based power

model generation for smartphones. In Proceedings of

the eighth IEEE/ACM/IFIP international conference

on Hardware/software codesign and system synthesis,

pages 105–114. ACM.

ENASE 2020 - 15th International Conference on Evaluation of Novel Approaches to Software Engineering

530
