Early Dyslexia Evidences using Speech Features

Fernanda M. Ribeiro

1 a

, Alvaro R. Pereira Jr.

1 b

, D

ebora M. Barroso Paiva

2 c

Luciana M. Alves

3 d

and Andrea G. Campos Bianchi

1 e

Computing Department, Federal University of Ouro Preto, Ouro Preto, Brazil

School of Computing, Federal University of Mato do Grosso do Sul, Campo Grande, Brazil

Fonoaudiology Department, Federal University of Minas Gerais, Belo Horizonte, Brazil

Keywords:

Signal Processing, Features, Mel Cepstral Frequencies, Supervised Learning, Decision Making System.

Abstract:

The pathologies of the language are alterations in the reading of a text caused by traumatisms. Many people

go untreated due to the lack of speciﬁc tools and the high cost of using proprietary software, however, new

audio signal processing technologies can aid in the process of identifying genetic pathologies. In the past, a

methodology was developed by medical specialists, which extracts characteristics from the reading of a text

aloud and returns evidence of dyslexia. In this work, a new computational approach is described in order to

automate serving as a tool for dyslexia indication efﬁciently. The analysis is done in recordings of the reading

of pre-deﬁned texts with school-age children, being extracted characteristics using speciﬁc methodologies.

The indication of the probability of dyslexia is performed using a machine learning algorithm. The tests

were performed comparing with the classiﬁcation performed by the specialist, obtaining high accuracy on the

evidence of dyslexia. The difference between the values of the automatically collected characteristics and the

manually assigned was below 20% for most of the characteristics. Finally, the results show a very promising

area for audio signal processing with respect to the aid to specialists in the decision making related to language

pathologies.

1 INTRODUCTION

One of the pathologies of the language rarely ad-

dressed in underdeveloped countries by professionals

is dyslexia, mainly due to the high time required for

its evaluation. It requires a lot of research involving

several professionals and, mostly, because the diagno-

sis is only a probability analysis, as described in the

approach developed by Alves (Alves, 2007).

Dyslexia is a disease caused by malformation or

interruption of the brain connectors that connect the

anterior and posterior areas of the brain (Deuschle and

Cechella, 2009; Leon et al., 2012). In dyslexia, the

person feels learning and reading difﬁculties, which

is quite evident in the oral reading of a text, i.e., the

person feels difﬁculty in understanding and emitting

the various sounds of a word (Shaywitz, 2006) (but

https://orcid.org/0000-0002-7524-2835

https://orcid.org/0000-0003-3371-9997

https://orcid.org/0000-0002-1152-6062

https://orcid.org/0000-0002-6403-4117

https://orcid.org/0000-0001-7949-1188

has no physical anomaly), inﬂuencing strongly in the

learning process of a child in training.

During the identiﬁcation of the pathology, it is

necessary to interact not only with the speech ther-

apist but also with the psychology and the neurologist

professionals. Each specialist has its analysis method-

ology, but the diagnosis is only concluded after con-

ﬁrmation by all specialists.

The rapid identiﬁcation of this pathology provides

the child with a better quality of school life and, pos-

sibly, improvement in his evolution as a whole. Thus,

many specialists are looking for methods that accel-

erate and/or facilitate the identiﬁcation of this pathol-

ogy.

There are several studies on the processing of au-

dio signals for different applications but mainly for

the indication of physical pathologies (Drigas and

Politi-Georgousi, 2019; Marinus et al., 2009; Santos,

2013; Zavaleta et al., 2012). Regarding digital signal

processing, most methods use methodologies related

to signal winding and the extraction of characteristics

in the domain of time and frequency, for example, the

Hidden Markov Models (HMM) (Leon et al., 2012)

640

Ribeiro, F., Pereira Jr., A., Paiva, D., Alves, L. and Bianchi, A.

Early Dyslexia Evidences using Speech Features.

DOI: 10.5220/0009574906400647

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 1, pages 640-647

ISBN: 978-989-758-423-7

and the Virtebi algorithm (Cano et al., 1999).

Although audio processing is applied in several ar-

eas, there are few works in detecting pathologies of

language and voice. Marinus et al. (Marinus et al.,

2009) use methods of analysis of voice pathologies

based on the Mel frequency cepstral coefﬁcients to

represent the signals of voice audios and Multilayer

Neural Networks for the classiﬁcation between nor-

mal voice, voice affected by edema and voice affected

by other pathologies.

Considering the articulatory disorder, we can cite

the research developed by Santos (Santos, 2013),

which proposed a mobile application that analyzes the

patient with Dyslalia and presents its evolution over

time, helping the professional and offering measures

of the pathology level.

On the other hand, linguistic pathologies affect the

reading and writing of a text and cause difﬁculties in

interpreting and representing the syntactic and mor-

phological part of a readable text. About dyslexia, we

can cite the work of Zavaleta et al. (Zavaleta et al.,

2012) that proposes a technological tool to support the

diagnosis of dyslexia. The authors collect response

data on a speciﬁc questionnaire, related to factors in-

dicative of the pathology, with questions about how

are the reading, diseases, and pathological problems

that exist in the family. In the audio responses, a neu-

ral network is applied and, through decision-making

metrics, a classiﬁcation is performed considering two

groups, with or without dyslexia. The results were

not completely accurate because four patients with

dyslexia were diagnosed without dyslexia.

There are also numerous computational propos-

als for early detection of dyslexia (Drigas and Politi-

Georgousi, 2019; Al-Barhamtoshy and Motaweh,

2017; Prabha and Bhargavi, 2019), including games

(Van den Audenaeren et al., 2013) and mobile apps

(Abu Zarim, 2016; Geurts et al., 2015); and there

are also systems that support the treatment and evo-

lution of the disease (Alghabban et al., 2017; Sidhu

and Manzura, 2011; Rahman et al., 2018).

This article proposes the use of audio signal digi-

tal processing and machine learning techniques to de-

limit and model characteristics present in the reading

audio of dyslexic individuals, proposing a solution to

automate the identiﬁcation and indication of dyslexia

based on audios of readings aloud. The measures ob-

tained from the audio processing make it possible to

indicate this pathology so that the proposal aims to

support and make the preliminary evidence of patients

with dyslexia more reliable. Then, the patient can go

to other professionals and be appropriately treated.

Although Zavaleta et al. (Zavaleta et al., 2012) per-

form the identiﬁcation of dyslexia using measures re-

lated to audio, our proposal is more generic and inde-

pendent of questionnaires.

This paper is organized as follows: in Section 2

we present the background; in Section 3 we present

our computational methodology; in Section 4 we de-

scribe the experiments; in Section 5 we discuss the

experimental results and in Section 6 we present the

ﬁnal remarks.

2 MEDICAL APPROACH TO

DYSLEXIA IDENTIFICATION

The voice is deﬁned as the sound signal emitted by the

vocal folds and the movement of the larynx (Behlau,

2001). Speech, in turn, is the articulatory sound pro-

duced by several vocal muscles. Language is the pro-

duction of sound emitted based on the understanding

of what was read, seeking to represent a thought or

an idea, as stated by Prates and Martins (Prates and

Martins, 2011).

When there is a dysfunction in the emission of

voice, language and/or speech, the patient has some

pathology, which may have physical causes (Gusso

and Lopes, 2012) or neurological causes such as

dyslexia and stuttering. Linguistic pathologies affect

the reading and writing of a text, leading to difﬁcul-

ties in interpreting and representing the syntactic and

morphological part of a reading text.

Alves (Alves, 2007) believes the previous discov-

ery of dyslexia through phonetic characteristics ex-

tracted from reading aloud. In his work, a collec-

tion of audios of readings aloud of a speciﬁc text is

made with children from the clinical (with dyslexia)

and non-clinical (without dyslexia) group, and such

phonetic measures allowed the creation of a model for

identifying the evidence for dyslexia. The methodol-

ogy used is based on manual analysis of characteris-

tics extracted from the audio, to classify individuals

with or without the pathology.

It was also noticed that the group of young peo-

ple who had speech therapy treatment presented better

temporal and prosodic characteristics than the group

without treatment, but still out of expectations when

compared to the subjects in the control group (without

language and learning changes). The prosodic char-

acteristics refer to the intonation, the formants, and

the frequencies of the audio signal, while the tem-

poral characteristics refer to the audio reproduction

time, such as the total audio duration and the articu-

lated audio time directly without pauses. The acoustic

characteristics extracted manually from the audio are

the number of syllables (QS), the number of pauses

(QP), and the total time of pauses (T T P).

Early Dyslexia Evidences using Speech Features

641

After these measures, it was calculated the speech

(T T E) and articulation (T TA) times, and the speech

(T E) and articulation (TA) rates. The speaking time

(T T E) is the total time spent (in seconds) by the

reader to read the text aloud. The articulation time

(T TA) is the total time of the spoken audio signal

without pauses, also in seconds. The speech rates

(T E) and articulation (TA) are related to the num-

ber of syllables emitted per second, according to the

speech and articulation times, respectively.

According to Alves (Alves, 2007) and Brezntiz

and Leikin (Breznitz and Leikin, 2001) these mea-

sures indicate the level of difﬁculty of prosodic in-

terpretation in reading a text, and patients with a high

probability of dyslexia, in general present higher val-

ues (QP, QS, T T E, T TA, T T P) or lower (TA, T E,

Tess) than is expected according to the read text, ob-

served from the non-clinical group. For example,

in their work, the clinical group (with dyslexia) pre-

sented QP and T T P with high values, which demon-

strate a longer time for interpretation and textual se-

quence. The higher value of QS is due to the tendency

to keep repeating the previous syllable while trying to

read the next syllable, demonstrating the difﬁculty of

visualization and interpretation as a whole.

Alves (Alves, 2007) analyzes all the data and stan-

dardizes the values through the veriﬁcation carried

out concerning a control group, without a systematic

methodology of the ﬁnal analysis. It was checked

which data is above or below the expected value,

seeking to characterize the dyslexia pathology on an

aspect not yet described in the literature.

3 COMPUTATIONAL

METHODOLOGY

Section 2 presented a proposal for the identiﬁcation

of patients with dyslexia based on the audio analy-

sis of texts read aloud. However, the most signiﬁ-

cant difﬁculty was the time to analyze each patient

and the researcher’s tiredness to collect and measure

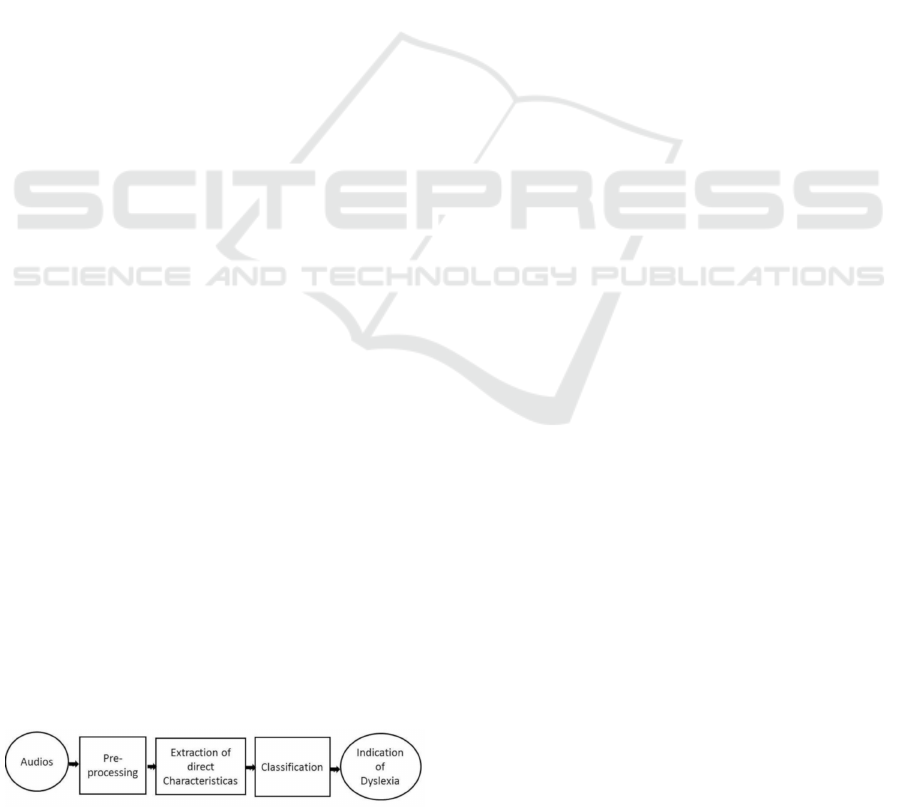

the characteristics, which were done manually. Figure

1 shows the ﬂowchart of the automatic methodology

proposed in this article for solving the problem using

signal analysis for the extraction of characteristics and

machine learning for the classiﬁcation of evidence of

dyslexia.

Figure 1: Audio signal processing methodology.

The audio of texts read aloud for each child is used

as the input signal. We perform a pre-processing,

and from this result, the characteristics (QP, QS,

T T E, T TA, T T P, TA, T E) are extracted, obtained

directly from the audio signal. These characteristics

are grouped using a classiﬁcation method and an indi-

cation of the evidence of dyslexia. The analyses used

in each of the stages of the proposed methodology are

described in detail in the next sub-sections.

3.1 Pre-processing of Audio Files

For the audios in the database, noise ﬁltering is nec-

essary due to the environment in which they were

recorded. Two types of ﬁlters on the database were

applied, high pass and low pass. The input signal is

transformed into the frequency space using the FFT

(Fast Fourier Transform). After this calculation, low-

pass and high-pass ﬁlters are applied, ﬁlters that elim-

inate high and low-frequency noise.

The Inverse Fourier Transform (IFFT) is applied

to this result, which returns the ﬁltered signal to the

time domain.

3.2 Feature Extraction

Once the audio signal has pre-processing to eliminate

noise, the next step is to extract the characteristics of

the signal by identifying and segmenting pauses and

syllables, i.e., identifying voice and non-voice along

with the audio.

3.2.1 Pause Segmentation

Firstly, it was established to measure in the audio the

number of pauses (QP) and the total time of these

pauses (T T P), without considering the pause at the

beginning and end of the audio signal. Figure 2

presents a ﬂowchart of the algorithm used, which is

based on the work of Barbedo et al. (Barbedo and

Lopes, 2007).

Once the audio signal was pre-processed, the sig-

nal winding is made using Hamming windowing of

size w

. Two characteristics are extracted from each

window: Power Spectrum E and Spectral Centroid C,

both measured from the frequency domain, which is

obtained using the Discrete Fourier Transform (DFT)

of the signal. The Spectral Centroid is a central av-

erage about the frequencies of the audio signal in

each Hamming window, performing the location of

the maximum and minimum frequencies peaks. The

power spectrum of the signal is an average of the sig-

nal amplitude.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

642

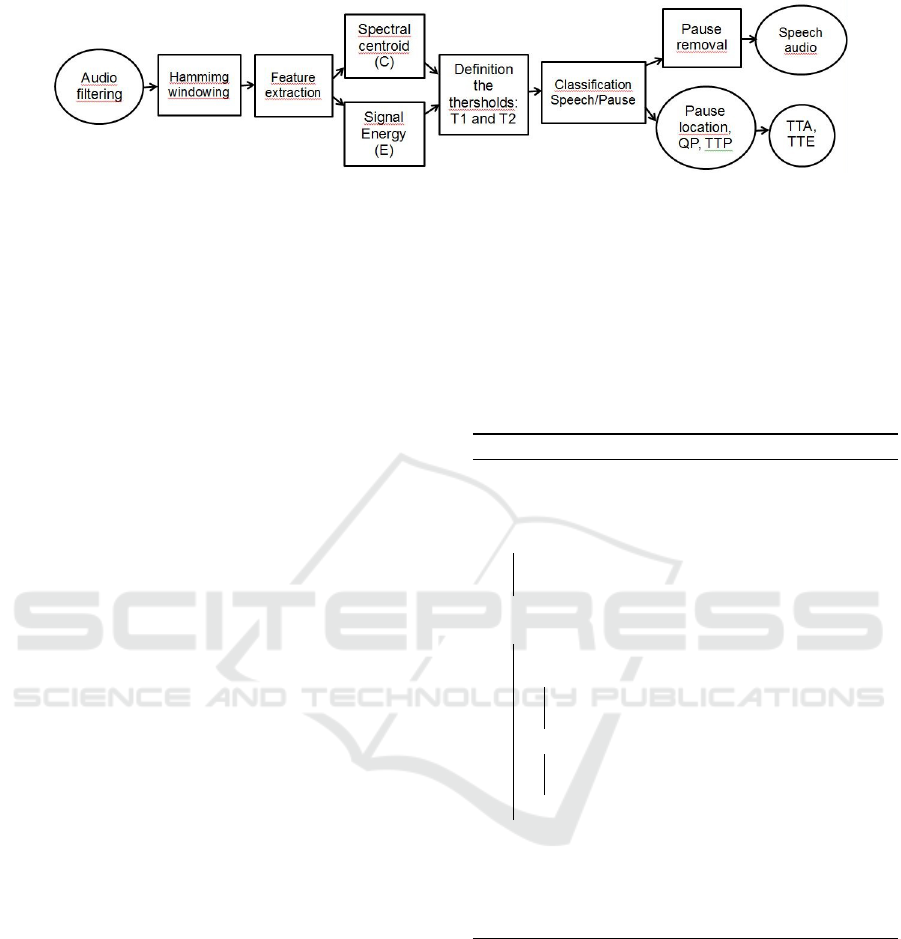

Figure 2: Flowchart of the extraction process of direct characteristics.

From the data obtained in each window, a his-

togram is generated for the two characteristics, En-

ergy and Spectral centroid, extracting respectively

their local maximum (T p1 and T p2) to be used as

thresholds in the Hamming window. The cut-off

thresholds for pause and voice are deﬁned from these

values, respectively.

After deﬁning the thresholds considering the en-

tire audio, an analysis is performed on signal seg-

ments to identify the pauses. From a ﬁxed size win-

dow (w

) with jumps (sp) the audio signal is traversed,

and the characteristics mentioned above are extracted.

Each value found per window is compared with the

values of deﬁned thresholds T p1 and T p2, signs with

speech reach values above the cut threshold T p2, be-

ing classiﬁed as 1 and pauses the values below the cut

threshold T p1, classiﬁed as 0.

The result of the pauses identiﬁcation allows to

return the number of pauses (QP) by counting the ze-

ros obtained, the total time of the pauses (T T P) by

the sum of the duration of each identiﬁed pause, the

total articulation time (T TA) and the total speaking

time (T T E). These values will be used later as input

into the syllabic separation methodology. More de-

tails can be obtained at Barbedo et al. (Barbedo and

Lopes, 2007).

3.2.2 Syllabic Segmentation

Once the uninterrupted audio signal was obtained in

Section 3.2.1, segmentation into syllables is repre-

sented not only by grammatical separation but also by

the emission of phonemes. Based on existing works

(Silva and Oliveira, 2012) we can measure the num-

ber of syllables (QS). The original methodology was

adapted so that it was possible to obtain a syntac-

tic separator and the measure of (QS) on a text and

not just on words, as suggested by Silva and Oliveira

(Silva and Oliveira, 2012).

The audio without pauses is transformed through

the half wave signal rectiﬁcation function, which con-

verts the audio signal into a positive signal, as ex-

empliﬁed in Silva and Oliveira (Silva and Oliveira,

2012), making the audio continuous and based on the

positive frequencies of the signal.

In Algorithm 1 we present the main structure of

the code, where the audio signal is segmented into N

windows of Hamming with size (w

). In each window,

it is extracted the Mel frequency cepstral coefﬁcient

(MFCC) - frequency and amplitude (Brognaux and

Drugman, 2016), and for each segment, the cut-off

threshold is obtained by the average of the variation

of the characteristics extracted from each window.

Algorithm 1: Syllabic Segmentation.

Input: audio, TTE, TTA

← SignalFrames(hamming);

n ← 0;

for i ← 1 to w do

ENV

← Features w

(MFCC)

T s

← AverageVariation(ENV

)

end

while n <= N do

n ← n + 1;

if T s

> Env

then

Syllable;

V B(N) ← 1;

else

Not syllable

V B(N) ← 0;

end

QS ← CalculateQS(V B)

T E ← T T E/QS

TA ← T TA/QS

return QS,T E, TA

In Algorithm 1, we can see the ﬁnal classiﬁcation

within the condition “while”, where the audio signal

is traversed, comparing each window value (ENV )

that represents the characteristics by segment. If any

value is found below the cut-off threshold, it is clas-

siﬁed as one and zero, otherwise, forming a binary

vector of data, 1 symbolizing syllables and 0 not syl-

lables. Then the ﬁnal count of the syllable is carried

out through a grouping on values equal to 1, which

symbolize a part of a syllable, where every 0 is con-

sidered the end of a syllable unit. From this grouping,

a vector is returned with its position and the number

Early Dyslexia Evidences using Speech Features

643

of samples, which contains each syllable, thus count-

ing the number of syllables (QS).

Considering these data, the metrics of TA and T E

are calculated. The values of these variables are used

to deﬁne the probability of dyslexia. These rates sug-

gest domain over language and general diction, so

minimal small values indicate a higher likelihood of

dyslexia.

4 COMPUTATIONAL

EXPERIMENTS

The database used is the same as Alves (Alves et al.,

2009) obtained through the base text O Tatu Encab-

ulado, in Portuguese. The experiments were assem-

bled from recordings of the reading audio aloud of

school children. Of the total of 40 records, 10 (ten) are

from children diagnosed with dyslexia, called clin-

ical group (CG) and 30 (thirty) without dyslexia or

language changes, called non-clinical group (NCG),

varying between school grades, 3rd to 6th year, be-

tween 9 and 14 years old, male and female.

As the pause and syllable algorithm depends on

some parameters, validation was performed using

four audio signals, so that the database was divided

between training and testing (90%) and validation

(10%), ensuring GC and NCG in all samples. Thus,

the values of the parameters should maximize the

agreement between the results obtained automatically

for the proposed methodology, and those derived from

the manual annotation in the validation base, done by

specialists.

The validation step consists of a set of experi-

ments to obtain the optimal values of the T p1, T p2,

and w

parameters. They are varied, and the proposed

methodology is used to calculate values for QP, T T P,

and QS variables. The parameters are chosen when

the variables are closest to the specialist results.

After validation, the testing phase uses the param-

eters to obtain results of QP, T T P, QS, T T E, T TA,

TA, and T E using testing audios. The results were

compared with the manual annotation made by spe-

cialists. The comparison metric is the absolute differ-

ence between the automatic value found by the pro-

posed methodology and the manual annotation — the

smaller the difference, the better the similarity be-

tween the data.

Since the data are similar, the automatic values

will be used as features for classiﬁcation algorithms

based on supervised learning. The classiﬁcation al-

lows identifying which category the data belongs

based on a training set. There are a large number of al-

gorithms for classiﬁcation, and the one that returned

higher predicted class was Support Vector Machine

using a Gaussian kernel.

The entire methodology was developed using

Matlab

, a mathematical analysis and programming

tool, using predeﬁned signal processing functions of

audio.

5 RESULTS

One of the essential steps related to the results is the

adjustment of the parameters, T p1, and T p2 for pause

segmentation and w

for syllable segmentation, called

validation. As mentioned before, it was made empir-

ically with the variation of the parameter values and

the calculation of T T P, QP, and QS variables. For

each one, the absolute difference between the values

automatically calculated with the one provided man-

ually by the specialist is calculated and used for com-

parison.

It is important to notice that we have a problem of

minimizing multiple variables, which is challenging

to solve and which solutions allow different heuris-

tics. The proposed solution is to vary the set of pa-

rameters and ﬁnd the values that minimize the differ-

ence between real and automatic values for the vari-

ables QP, T T P, and QS. Differences closer to zero

represent more similar results.

5.1 Parameter Estimation

As mentioned, the identiﬁcation of pauses is based

on the Hamming window, which was ﬁxed w

equal

to 0.13ms and jump size sp of 0.04ms. These values

were obtained after a sequence of tests that resulted in

less loss of information about each fragment. Table 1

presents the results of the absolute difference between

the automatic values of T T P found by the proposed

methodology and the manual annotation for variation

of parameters T p1 and T p2. The best results for T p1

are between 0.11 and 0.15ms, and for T p2 between

0.02 and 0.1ms. The results were separated into clin-

ical (CG) and non-clinical groups (NCG).

Table 2 presents the results of the absolute differ-

ence between the automatic values of QP found by

the proposed methodology and the manual annotation

for variation of parameters T p1 and T p2.

After delimiting the parameters of the segmenta-

tion of pauses, we continue to determine QP through

the segmentation of syllables. Considering the vari-

ation of parameters delimited above, we used the 1

algorithm and obtained the values of QS for different

http://www.mathworks.com/products/matlab/

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

644

Table 1: Absolute difference for manual and automatic T T P values.

T p1(ms) 0.11 0.12 0.13 0.14 0.15

T p2(ms) GC NCG GC NCG GC NCG GC NCG GC NCG

0.02 12.7 2.2 4.2 2.3 13.2 2.5 9.9 2.4 19.0 1.5

0.03 20.6 5.0 8.6 9.6 29.8 12.1 9.8 9.1 21.2 11.4

0.04 17.0 2.0 13.1 2.3 14.2 1.8 11.8 2.0 14.0 3.1

0.05 11.7 1.5 12.7 1.4 13.7 1.7 14.0 1.9 13.8 3.3

0.06 12.3 2.3 13.3 1.6 12.2 1.8 14.1 3.7 13.7 3.8

0.07 13.3 1.8 13.8 1.5 17.1 2.8 16.4 2.3 14.0 2.3

0.08 12.9 1.2 13.5 1.6 15.3 2.1 12.0 2.9 10.6 4.8

0.09 9.5 3.3 9.5 3.3 9.5 3.3 26.9 2.0 26.9 2.0

0.1 15.3 2.5 15.3 2.5 15.3 2.5 4.2 2.3 4.2 2.3

Table 2: Absolute difference for manual and automatic QP values.

T p1(ms) 0.11 0.12 0.13 0.14 0.15

T p2(ms) GC NCG GC NCG GC NCG GC NCG GC NCG

0.02 36.0 8.5 33.5 9.5 21.5 1.5 37.0 7.0 46.0 34.5

0.03 96.5 12.0 74.5 15.0 97.0 15.0 76.5 14.5 98.5 15.0

0.04 10.0 0.5 10.0 1.5 9.0 1.5 5.5 1.5 7.0 2.5

0.05 2.0 2.0 3.0 2.0 1.0 3.0 3.0 3.0 3.0 3.5

0.06 1.0 5.0 3.0 4.0 4.5 4.0 5.5 7.5 5.5 7.5

0.07 7.5 5.5 6.0 5.0 6.5 5.0 8.5 5.0 6.0 6.0

0.08 11.0 5.5 10.0 6.0 12.0 7.0 11.0 9.0 11.0 9,0

0.09 19.0 10.0 19.0 10.0 19.0 10.0 38.0 8.5 38.0 8.5

0.1 32.0 10.0 32.0 10.0 32.0 10.0 33.5 9.5 33.5 9.5

values of w

. In this experiment the size of the w

win-

dow was varied from 16 ms to 30 ms. Table 3 presents

the results of the absolute difference between the val-

ues of QS manual and automatic for the variation of

the parameter T s.

Table 3: Absolute difference for manual and automatic QS

values.

Parameter Mean value

(ms) GC NCG

16 24.0 26.5

17 25.0 24.0

18 25.0 24.0

19 28.5 22.0

20 29.5 20.5

21 30.5 17.5

22 31.0 15.5

23 34.5 14.5

24 33.5 15.0

25 35.5 15.0

26 39.0 12.0

27 39.0 11.5

28 42.0 11.5

29 45.0 11.5

30 46.0 12.0

From the parameter variations, optimal values

were chosen for T p1 = 0.13, T p2 = 0.04 and w

20ms. Tables 4 show the results obtained for QP,

QS, T T P, T T E, T TA, TA and T E, on the audios that

were used in the validation process. Table presents

the manual value obtained by the specialist cite

Alves2007 and the result of the automatic proposed

methodology.

Table 4: Comparison for manual and automatic values of

features.

Values by manual annotation for (Alves et al., 2009)

Audio QP TTP QS TTE TTA TE TA

1 28 13.2 145 53.6 40.5 2.7 3.6

2 40 17.9 173 73.6 55.8 2.3 3.1

Values obtained using automatic proposed methodology

Audio QP TTP QS TTE TTA TE TA

1 27 15.6 169 52.3 36.7 3.2 4.6

2 39 19.5 165 72.8 53.3 2.3 3.1

5.2 Testing Phase

After setting parameters, tests were performed with

the rest of the audios. Figures 3 and 4 present a graph

with the mean values and standard deviation of the

absolute differences over all variables. The variables

results variables showed to be close to the values ob-

tained in the research of (Alves, 2007). However, the

results of QP and QS, Figure 4, have higher mean

Early Dyslexia Evidences using Speech Features

645

values of absolute difference, indicating that the pro-

posed methodology can still be improved.

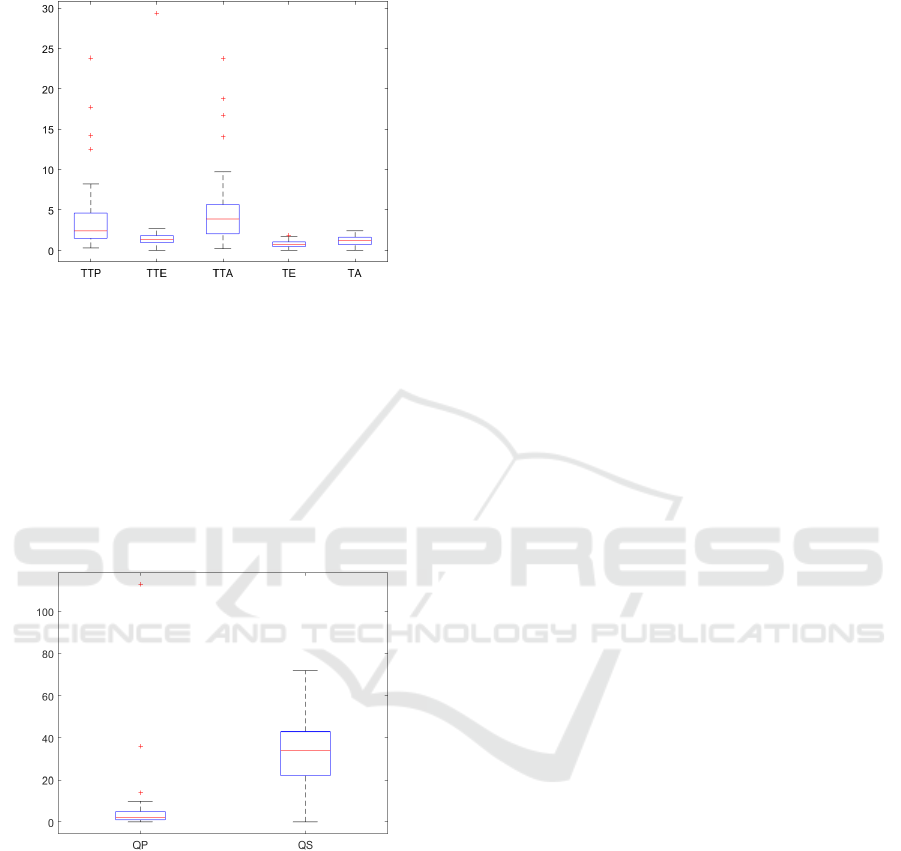

Figure 3: Mean and standard deviation for difference be-

tween manual and automatic values of variables using all

database.

The features generated automatically from the au-

dio signals were used as parameters for a clustering

proposal regarding the probability of dyslexia. Each

individual being leveled in the high probability or low

probability of being dyslexic, a two-class problem.

Supervised classiﬁcation methods were used to build

a model of how the characteristics can be used to iden-

tify a patient with a probability of dyslexia.

Figure 4: Mean and standard deviation for difference be-

tween manual and automatic values of variables using all

database.

Among the classiﬁcation methods tested, the Sup-

port Vector Machine (SVM) using a Gaussian kernel

obtained the best result, the experiments took place

with k-fold cross-validation using the 36 audios, re-

sulting 94.4% of accuracy, 80% of precision, 100%

of recall and F1-score equal 0.88. Precision is related

to the number of patients incorrectly classiﬁed as non-

dyslexic, while the high recall value means high sen-

sitivity; all dyslexic patients were correctly identiﬁed.

From these data, there is a good agreement for the

probability of dyslexia, raising promising results, for

other improvements, including methodologies from

different areas and expansion of research for other

pathologies.

6 CONCLUSION

Although there are some computational audio signal

processing tools to identify pathologies, they do not

meet all the needs of specialists. Thus the analysis of

the pathology and classiﬁcation is still done manually.

This work proposed an automatic methodology

for the extraction of audio characteristics from read-

ing aloud and its use as variables in an intelligent

model for the identiﬁcation of young people with

dyslexia. Among the main contributions can be high-

lighted the automation of the process of extracting

features from the audio signal and its modeling using

machine learning techniques.

The automatic TT P and TT P characteristics

reached very close values when compared to manual

measurements, while the number of QS syllables had

a higher difference in the comparison. Even though

the set of features contributed to the implementation

of a classiﬁcation model between indicative or not of

dyslexia with an accuracy around 94%.

Although the results presented are satisfactory, it

is believed that the methodology can be improved if

we carry out audio alignment training, signal seg-

ments are aligned before the feature extraction. A

database with a more signiﬁcant number of recording

samples and a diversity of audience also may result in

better training and testing of machine learning algo-

rithms.

Finally, even though the results presented in the

article relate to a text read in Portuguese, the proposed

methodology also allows its use in other languages

since the leading hypothesis for detecting dyslexia is

related to the speed and the way words are spoken and

not about the content itself.

During the development of this research, ideas re-

lated to applications emerged, such as the construc-

tion of learning games for people with dyslexia. The

proposal focuses on exercises that allow beneﬁts in

development and help to identify factors in which the

patient has less control, related to improvements in

quality of life.

ACKNOWLEDGEMENTS

This study was ﬁnanced by Fundac¸

ao de Amparo

Pesquisa do Estado de Minas Gerais (FAPEMIG) and

Universidade Federal de Ouro Preto (UFOP).

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

646

REFERENCES

Abu Zarim, N. A. (2016). Android Based Dyslexia Early

Screening Test. PhD thesis, UTeM.

Al-Barhamtoshy, H. M. and Motaweh, D. M. (2017). Di-

agnosis of dyslexia using computation analysis. In

2017 International Conference on Informatics, Health

& Technology (ICIHT), pages 1–7. IEEE.

Alghabban, W. G., Salama, R. M., and Altalhi, A. H.

(2017). Mobile cloud computing: An effective multi-

modal interface tool for students with dyslexia. Com-

puters in Human Behavior, 75:160–166.

Alves, L. M. (2007). A pros

odia na leitura da crianc¸a

disl

exica. phdthesis, Universidade Federal de Minas

Gerais - Faculdade de Letras, Belo Horizonte.

Alves, L. M., da Conceic¸

ao Reis, C. A.,

Angela Maria

Vieira Pinheiro, and Capellini, S. A. (2009). Aspec-

tos pros

odicos temporais da leitura de escolares com

dislexia do desenvolvimento. Revista da Sociedade

Brasileira de Fonoaudiologia, 14(2):197–204.

Barbedo, J. G. A. and Lopes, A. (2007). Discrimi-

nador voz/m

usica baseado na estimac¸

ao de m

ultiplas

frequ

encias fundamentais. IEEE LATIN AMERICA

TRANSACTIONS, 5(5):294–300.

Behlau, M. P. (2001). Voz: o livro do especialista, volume 1.

Revinter.

Breznitz, Z. and Leikin, M. (2001). Effects of accelerated

reading rate on processing words’ syntactic functions

by normal and dyslexic readers: Event related poten-

tials evidence. The Journal of genetic psychology,

162:276–96.

Brognaux, S. and Drugman, T. (2016). Hmm-based speech

segmentation: Improvements of fully automatic ap-

proaches. IEEE/ACM Transactions on Audio, Speech,

and Language Processing, 24(1):5–15.

Cano, P., Loscos, A., and Bonada, J. (1999). Score perfor-

mance matching using hmms. In Proceedings of the

International Computer Music Conference, pages 441

– 444, San Francisco.

Deuschle, V. P. and Cechella, C. (2009). O d

eﬁcit em con-

sci

encia fonol

ogica e sua relac¸

ao com a dislexia: di-

agn

ostico e intervenc¸

ao. Rev CEFAC, 11(Supl 2):194

– 200.

Drigas, A. S. and Politi-Georgousi, S. (2019). Icts as a

distinct detection approach for dyslexia screening: A

contemporary view. International Journal of Online

and Biomedical Engineering (iJOE), 15(13):46–60.

Geurts, L., Vanden Abeele, V., Celis, V., Husson, J.,

Van den Audenaeren, L., Loyez, L., Goeleven, A.,

Wouters, J., and Ghesqui

ere, P. (2015). DIESEL-

X: A Game-Based Tool for Early Risk Detection of

Dyslexia in Preschoolers, pages 93–114. Springer In-

ternational Publishing, Cham.

Gusso, G. and Lopes, J. M. C. (2012). Tratado de Medicina

de Fam

ılia e Comunidade: Princ

ıpios, Formac¸

ao e

atica, volume 2. Artmed.

Leon, P., Pucher, M., Yamagishi, J., Hernaez, I., and Saratx-

aga, I. (2012). Evaluation of speaker veriﬁcation se-

curity and detection of hmm-based synthetic speech.

IEEE Transactions on Audio, Speech, and Language

Processing, 20(8):2280–2290.

Marinus, J. V. M. L., Ara

ujo, J. M. F. R., Gomes, H. M.,

and Costa, S. C. (2009). On the use of cepstral co-

efﬁcients and multilayer perceptron networks for vo-

cal fold edema diagnosis. Information Technology and

Applications in Biomedicine, 2009. ITAB 2009. 9th In-

ternational Conference on, pages 1 – 4.

Prabha, A. J. and Bhargavi, R. (2019). Prediction of

dyslexia using machine learning—a research travel-

ogue. In Proceedings of the Third International Con-

ference on Microelectronics, Computing and Commu-

nication Systems, pages 23–34. Springer.

Prates, L. P. C. S. and Martins, V. O. (2011). Dist

urbios da

fala e da linguagem na inf

ancia. Revista de Medicina

de Minas Gerais, 21(4):54 – 60.

Rahman, M. A., Hassanain, E., Rashid, M. M., Barnes, S. J.,

and Hossain, M. S. (2018). Spatial blockchain-based

secure mass screening framework for children with

dyslexia. IEEE Access, 6:61876–61885.

Santos, M. C. S. (2013). Disvoice: Aplicativo de apoio

a fonoaudiologia para dispositivos m

oveis. mathe-

sis, Fundac¸

ao de Ensino Eur

ıpides Soares da Rocha

- UNIVEM.

Shaywitz, S. (2006). Entendendo a dislexia : um novo e

completo programa para todos os n

ıveis de problemas

de leitura. Artmed, Porto Alegre, 1 edition. Trad. sob

a direc¸

ao de Vinicius Figueira.

Sidhu, M. S. and Manzura, E. (2011). An effective con-

ceptual multisensory multimedia model to support

dyslexic children in learning. International Journal

of Information and Communication Technology Edu-

cation (IJICTE), 7(3):34–50.

Silva, E. L. F. and Oliveira, H. M. (2012). Implementac¸

de um algoritmo de divis

ao sil

abica autom

atica para

arquivos de fala na l

ıngua portuguesa. Anais do

XIX Congresso Brasileiro de Autom

atica, CBA 2012.,

pages 4161 – 4166.

Van den Audenaeren, L., Celis, V., Vanden Abeele, V.,

Geurts, L., Husson, J., Ghesqui

ere, P., Wouters, J.,

Loyez, L., and Goeleven, A. (2013). Dysl-x: De-

sign of a tablet game for early risk detection of

dyslexia in preschoolers. In Schouten, B., Fedtke,

S., Bekker, T., Schijven, M., and Gekker, A., edi-

tors, Games for Health, pages 257–266, Wiesbaden.

Springer Fachmedien Wiesbaden.

Zavaleta, J., Costa, R. J. M., da Cruz, S. M. S.,

Manh

aes, M., Alfredo, L., and Mousinho, R.

(2012). Dysdtool: Uma ferramenta inteligente para

a avaliac¸

ao e intervenc¸

ao no apoio ao diagn

ostico da

dislexia. CSBC (2012) XXXII Congresso da Sociedade

Brasileira de Computacao: XII WorKshop de Infor-

matica Medica (WIM 2012).

Early Dyslexia Evidences using Speech Features

647
