Patterns for Serverless Functions (Function-as-a-Service):

A Multivocal Literature Review

Davide Taibi

1 a

, Nabil El Ioini

2 b

, Claus Pahl

2 c

and Jan Raphael Schmid Niederkoﬂer

Tampere University, Tampere, Finland

Free Univeristy of Bozen-Bolzano, Bozen-Bolzano, Italy

Keywords:

Serverless, Function as a Service, Serverless Functions, Cloud.

Abstract:

[Context] Serverless is a recent technology that enables companies to reduce the overhead for provisioning,

scaling and in general managing the infrastructure. Companies are increasingly adopting Serverless, by mi-

grating existing applications to this new paradigm. Different practitioners proposed patterns for composing

and managing serverless functions. However, some of these patterns offer different solutions to solve the same

problem, which makes it hard to select the most suitable solution for each problem. [Goal] In this work, we aim

at supporting practitioners in understanding the different patterns, by classifying them and reporting possible

beneﬁts and issues. [Method] We adopted a multivocal literature review process, surveying peer-reviewed and

grey literature and classifying patterns (common solutions to solve common problems), together with beneﬁts

and issues. [Results] Among 24 selected works, we identiﬁed 32 patterns that we classiﬁed as orchestration,

aggregation, event-management, availability, communication, and authorization. [Conclusion] Practitioners

proposed a list of fairly consistent patterns, even if a small number of patterns proposed different solutions to

similar problems. Some patterns emerged to circumvent some serverless limitations, while others for some

classical technical problems (e.g. publisher/subscriber).

1 INTRODUCTION

Serverless computing is a new paradigm that allows

companies to efﬁciently develop and deploy applica-

tions without having to manage any underlying in-

frastructure (Lloyd et al., 2018). Different serverless

computing platforms such as AWS Lambda, Azure

Functions, and Google Cloud Functions have been

proposed to the market. Such platforms enable de-

velopers to focus only on the business logic, leaving

all the overhead of monitoring, provisioning, scaling

and managing the infrastructure to the cloud service

providers [S1].

The most prominent implementation of server-

less computing is Function-as-a-Service (FaaS) (also

called ”serverless functions”). When using FaaS, de-

velopers only need to deploy the source code of short-

running functions, and deﬁne triggers for executing

them. The FaaS provider then, on-demand, executes

and bills functions as isolated instances and scales

https://orcid.org/0000-0002-3210-3990

https://orcid.org/0000-0002-1288-1082

https://orcid.org/0000-0002-9049-212X

their execution. In the remainder of this work, we

refer to FaaS with the term ”Serverless Functions”.

One of the main issues with serverless functions is

the lack of patterns for composing different functions

in order to create a complete application or part of

it. Previous works also highlight the lack of patterns

in serverless functions (Leitner et al., 2019)[S1], and

practitioners are commonly pointing out this problem

in technical talks, often proposing patterns that are

discordant.

Therefore, in order to help practitioners and re-

searchers to map the current state of the art on server-

less patterns, in this work, we propose a review and a

classiﬁcation of patterns proposed both by practition-

ers and by researchers.

We adopted a Multivocal Literature Review pro-

cess (Garousi et al., 2019), to capture both the state of

the art and the state of practice in the ﬁeld, including

both white literature (i.e., peer-reviewed papers) and

grey literature (i.e., blog posts, industrial whitepapers,

books and practitioner’s talks). We selected 24 stud-

ies, published from 2017 to the end of January 2019.

Then, we proposed a taxonomy of architectural pat-

terns aimed at solving a set of common problems, to-

Taibi, D., El Ioini, N., Pahl, C. and Niederkoﬂer, J.

Patterns for Serverless Functions (Function-as-a-Service): A Multivocal Literature Review.

DOI: 10.5220/0009578501810192

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 181-192

ISBN: 978-989-758-424-4

181

gether with their beneﬁts and issues.

The contributions of this work, mainly targeted to

practitioners and researchers, are two-folded:

• 32 serverless patterns, classiﬁed into ﬁve cate-

gories, that practitioners can adopt in their work.

• Beneﬁts and issues of the patterns reported in the

literature and by practitioners.

• Identiﬁcation of trends and open issues on server-

less patterns.

The remainder of this paper is structured as fol-

lows. In Section 2 we compare our work with the ex-

isting literature reviews and we present related works.

In Section 3 we describe the study process we adopted

while in Section 4 we report the results. Section 5

discusses the results and threats to validity. Finally,

Section 6 draws conclusions.

2 RELATED WORK

Despite the very recent introduction of the serverless

technology, the research in this ﬁeld is very active.

As reported by the Serverless Literature Dataset

(Al-

Ameen and Spillner, 2018), almost 200 papers have

been published between 2017 and 2019.

In this Section, we present the literature reviews

already conducted on this ﬁeld, and we introduce the

related work that investigated serverless patterns.

2.1 Literature Reviews on Serverless

Five different works already surveyed the literature on

Serverless.

• Lynn et al. (Lynn et al., 2017) compared the

features of seven serverless computing platforms

identifying beneﬁts and issues of each of them.

• Alqaryouti and Siyamba (Alqaryouti et al., 2018)

conducted a holistic literature review classifying

the various proposals related to scheduling tasks

in clouds. They identiﬁed approaches to minimize

execution time. Differently from our work, they

highlighted issues in scheduling but not investi-

gated patterns.

• Kuhlenkamp and Werner (Kuhlenkamp and

Werner, 2018) conducted a systematic literature

review to map the empirical evidence on server-

less functions. They identiﬁed nine studies that

The Serverless Literature Dataset

http://serverless.research-output.org/

conducted a total of 26 experiments on ﬁve qual-

ities such as performance, scalability, and avail-

ability. Also in this case, their goal was not tar-

geted to the identiﬁcation of architectural patterns.

• Sadaqat et al. (Sadaqat et al., 2018) proposed

a non-peer reviewed multivocal literature review

to identify the core technological components of

serverless computing, the key beneﬁts and the

challenges. Also in this case, they did not focus

on patterns.

• Leitner et al. [S10] performed a mixed-method

study, which brings value to this new ﬁeld by

looking at both peer-reviewed and gray literature

on serverless patterns. Their goal was to iden-

tify the type of applications that mostly beneﬁt

from serverless technology, and the patterns that

have been used to implement them. As a result, 5

patterns have been identiﬁed when implementing

serverless-based services. The authors also dis-

cuss the drawbacks in terms of development over-

head, conﬁguration and performance that each of

the pattern can cause. Differently than in our

work, they elicited the patterns from a survey,

while we aim at understanding the patterns re-

ported in the literature. While an empirical eval-

uation of the patterns can be of very high value,

we especially aim at classifying the patterns pro-

posed by the practitioner’s talks, that might highly

inﬂuence other practitioners in the adoption of the

patterns they will use in their applications.

2.2 Serverless Patterns

Six peer-reviewed works already investigated server-

less patterns while one work investigated anti-

patterns (Nupponen and Taibi, 2020).

In [S7], the authors have focused on serverless-

based design patterns to improve the security of

cloud-based services. They have presented six de-

sign patterns that can be combined in order to build

a threat intelligent services such as intrusion detec-

tion and virus scanning. Rabbah et al. [S24] pub-

lished a patent where they proposed patterns dealing

with composing serverless functions to build new ap-

plications. Bernstein et al. [S6] present an example of

a possible pattern that can be built relying on server-

less services. The goal is to process event-streams

using single-threaded virtual actors, which increases

performance and parallel execution of tasks. Gade-

palli et al. [S15] outlined an architectural pattern deal-

ing with the possible applications of serverless tech-

nology in combination with Edge Computing (Pahl

et al., 2019). Nupponen and Taibi (Nupponen and

Taibi, 2020) presented an industrial survey where they

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

182

distilled a set of anti-patterns from common prob-

lems experienced by practitioners while developing

serverless-based applications.

As for non-peer reviewed literature, a recently

published book [S8] provides a more in-depth expla-

nation of serverless computing and the different de-

sign patterns to consider when architecting an appli-

cation. In particular, the book discusses four major

pattern classes, namely web application patterns, ex-

tract transform load (ETL) patterns, big data patterns,

and automation and deployment patterns. In [S13] the

author presented guidelines to help companies em-

brace serverless technology by showing concrete use

cases, architectural designs, and patterns. The book

details ﬁve speciﬁc patterns and how they can be im-

plemented. We note that all the ﬁve patterns are not

unique to serverless technology, however, implement-

ing them using serverless components and services

can be considered a good contribution.

Our work differs from the existing literature not

only by focusing on patterns from a speciﬁc domain

(e.g., security) or to solve a particular problem (e.g.,

streaming data), rather, we applied a systematic ap-

proach identifying all existing patterns in the state of

the art including both peer-reviewed and non-peer re-

viewed works.

3 STUDY DESIGN

Architectural patterns exist for several architectural

styles. There are patterns for object-oriented mono-

lithic systems (Gamma et al., 1994), patterns for

service-oriented architectures (Erl, 2008), patterns

for microservices (Taibi et al., 2018)(Taibi et al.,

2019a)(Taibi et al., 2019b) and patterns for sev-

eral other architectural styles. Practitioners recently

started to discuss patterns in serverless functions.

In order to elicit the existing patterns for server-

less functions, we conducted a Multivocal Literature

Review (Garousi et al., 2019). In particular, we focus

on answering the following questions:

RQ1. What are the different serverless-based archi-

tectural patterns?

RQ2. What beneﬁts and issues have been highlighted

for these patterns?

The ﬁrst question revolves around deﬁning the

concept of Serverless technology and how researchers

and practitioners were able to deﬁne speciﬁc patterns

to build Serverless based services. RQ2 explores the

pros and cons of each of the patterns taking in consid-

eration two main points of views, namely researchers

who have been exploiting the new technology and

practitioners who have used it in real settings.

3.1 Multivocal Literature Review

Multivocal Literature Review (MLR) is a type of lit-

erature review that considers not only academic and

peer-reviewed literature, rather, it includes also practi-

tioners’ opinions and literature produced by industrial

professionals. MLR is a double-sided blade in that,

differently from the classical systematic literature re-

view (SLR), it does not rely solely on peer-reviewed

studies. This could bring high value to answer ques-

tions from an industrial and practical point of view.

However, it could also lead to biased conclusions if

taking into account non-founded claims and views.

MLR relies on what is called gray literature (GL),

which could take many forms including industrial,

government and organizational reports, as well as

publicly available resources such as blogs and online

articles. When new ﬁelds are still not well estab-

lished, it is more common to ﬁnd more GL on the

topic that its peer-reviewed counterpart, this is mainly

due to the fact that academic studies rely on a more

systematic process that requires longer time (e.g.,

conference or journal submissions, notiﬁcations, and

publication). In our context, given the fact that server-

less technology is still relatively new, only a few stud-

ies have touched on the topic of serverless patterns.

Therefore, including GL in our study enables us to

combine academic studies with the state of the prac-

tice given by the GL.

In order to minimize the bias in the section

process, we follow the MLR protocol proposed by

Garousi et al. (Garousi et al., 2019).

3.2 The Search Process

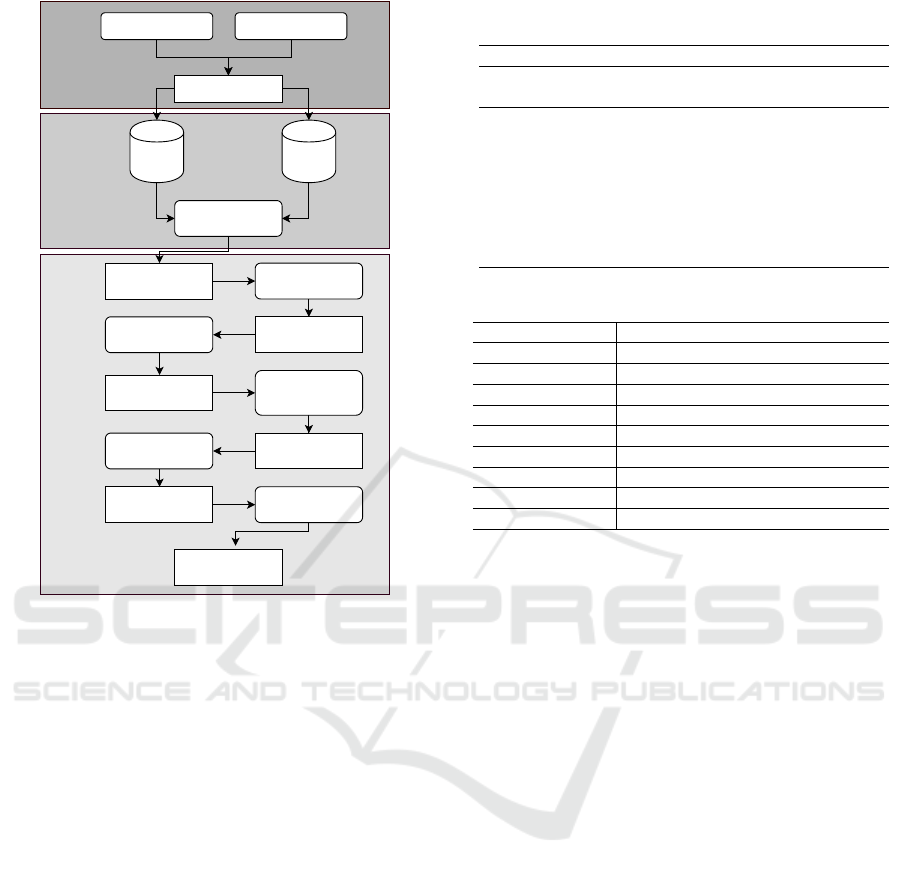

The MLR protocol is divided into three main steps i)

deﬁne the search process, ii) source selection, and iii)

literature assessment, as illustrated in Figure 1.

Based on our RQs, the following search string was

generated

(”serverless” OR ”function as a service” OR

”function-as-a-service” OR ”IaaS” OR ”Lambda” OR

”Function”) AND (”pattern” OR ”architecture” OR ”best

practice” OR ”smell” OR ”issue” OR ”problem” OR

compos* OR ”anti-pattern” OR ”anti pattern”)

The search string was used both in google search

engine as well as a set of digital libraries. Google

search was used to track grey literature, while digital

libraries targeted peer-reviewed studies. The digital

libraries we considered were IEEExplore, Springer-

Link, Google Scholar, ACM, Science Direct and Sco-

pus. The search process yielded 127 results. Due to

Patterns for Serverless Functions (Function-as-a-Service): A Multivocal Literature Review

183

Google

Engine

Digital

Libraries

Initial Search

RQMLR goal

Search Keywords

Intial pool

(N = 120)

Remove duplicates

Pool for voting

(N = 88)

Application of

inclusion/exclusion

criteria

Final pool

(N = 24)

Data extraction

Data analysis

MLR results

Raw data

Snowballing

unique sources

(N = 76)

Step I

Deﬁne the

search process

Step II

Source selection

Step III

literature assessmen

Figure 1: MLR search process.

the signiﬁcant number of unrelated results in google

search, we limited the results to the ﬁrst 10 pages. Af-

terward, we ﬁltered the results to remove any dupli-

cates. This process resulted in 76 unique sources. 65

practitioners blogs, 7 peer-reviewed studies, 2 videos,

1 patent, and 1 Powerpoint presentation. From the ap-

plication of the snowballing process on the references

and links contained in the initial set of results, we in-

cluded 12 more blogs obtaining a total of 88 sources.

To select the relevant sources for our process, we

developed a set of inclusion and exclusion criteria. To

test the applicability of the criteria, the authors ap-

plied the criteria independently to the full content of

10 GLs randomly selected from the result pool. Based

on some disagreements and discussions regarding the

inclusion of three GLs, the criteria has been reformu-

lated to be more precise. Using these inclusion and

exclusion criteria, we were able to capture most of

the sources that represent the state of the art in the

area of serverless patterns. The ﬁnal list of inclusion

and exclusion criteria is listed in Table 1.

All the authors have evaluated the sources inde-

pendently by indicating whether each source i) sat-

isﬁes, or ii) does not satisfy the criteria. In case of

conﬂicts, all the authors were involved in clarifying

any doubts about the sources in question.

Table 1: inclusion and exclusion criteria. (All of the follow-

ing criteria must be satisﬁed by the selected sources).

Inclusion Criteria

GLs on serverless functions describing at least one pattern

Exclusion Criteria

GLs NOT in English

GLs using the term ’FaaS’ or ”serverless” for other purposes (e.g. in

the food service industry)

GLs mentioning a pattern but not describing it

Duplicated GLs

GLs only summarizing other GLs

GLs selling a third party product

GLs reporting only anti-patterns, as they are out of scope of this work

Table 2: MLR extraction Form.

Attribute Description

Source The publication source

Publication date when the source was published

Authors The author or list of authors

Title The source title

Pattern Name The given name of the pattern

Pattern Description A description of the pattern

Problem it solves The speciﬁc problem the pattern solves

Advantages Advantages of implementing this pattern

Limitations Limitations (e.g. platform dependent)

Finally, we applied the quality assessment adopt-

ing the criteria proposed by Garousi et al. (Garousi

et al., 2019). All the sources passed the quality cri-

teria and, as a result, we obtained 24 unique sources

from which we extracted the patterns. The attributes

of interest have been extracted based on the extraction

form deﬁned in Table 2.

From the extracted data, we grouped the patterns

based on problems they are aimed to solve. In case the

selected sources adopted different names for the same

pattern, we opt for the most common name, while in

case of equal number of sources reporting the same

pattern, but with different names, we discussed and

selected the name that was more clear to understand.

4 THE PATTERNS PROPOSED BY

PRACTITIONERS

From the selected GLs we identiﬁed 32 patterns that

we classiﬁed into ﬁve categories, namely 1) orchestra-

tion and aggregation, 2) event management, 3) avail-

ability, 4) communication, and 5) authorization.

In order to ease the reading, especially from the

practitioners’ point of view, we answer our RQs for

each pattern independently. For each pattern, we ﬁrst

describe the problem it is aimed to solve (RQ1), and

then beneﬁts and issues, when reported by the GLs

(RQ2). All the patterns are listed in Table 3 together

with the alternative names adopted in the GLs.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

184

4.1 Orchestration and Aggregation

These patterns can be used to compose serverless

functions or to orchestrate their execution creating

more complex functions or microservices.

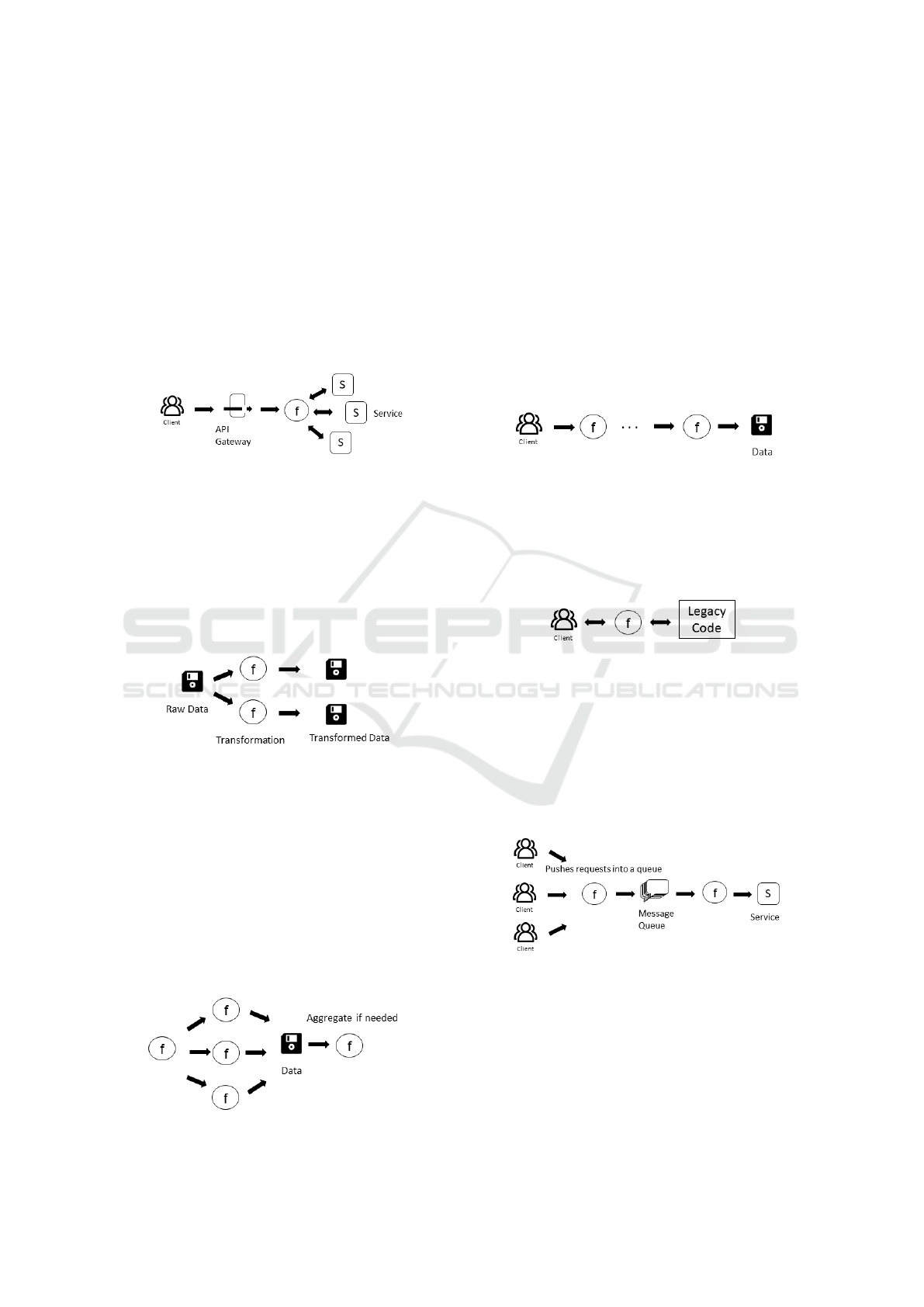

Aggregator [S12][S2][S1] (also known as “Durable

functions” [S3]):

Problem: Exposing a single endpoint for several

APIs.

Solution: A function calls APIs separately, then ag-

gregates the results and exposes them as a singular

endpoint.

Data Lake [S4] [S5]: Problem: Keeping up with

evolving requirements of data transformation and pro-

cessing can be a hassle.

Solution: The data lake is a physical storage for raw

data where data is processed and deleted the least pos-

sible. Organizing it with sensible metadata naming as

times is a must for keeping order.

Beneﬁts: The data remains always the same indepen-

dently from the needs of the moment. It can be trans-

formed just in time as necessary.

Fan-In/Fan-Out [S12][S8](McGrath et al.,

2016)[S2][S4] (also known as “Virtual Actors” [S6],

“Data transformation” [S7], “Processor” [S9], “Fire

triggers and transformations” [S3]):

Problem: Enable the execution of long tasks that ex-

ceed the maximum execution time (similar to Func-

tion Chain).

Solution: Split the work parallel tasks and aggregate

the results in the end. The parallel execution leads to

faster completion.

Issues: Strong coupling between the chained func-

tions. As for function chain, splitting the tasks be-

tween functions can be complex [S10].

Function Chain [S10][S3]:

Problem: Enable to execute long tasks that exceed the

maximum execution time (e.g., longer than 15 min-

utes in Lambda). Solution: Combine functions in a

chain. An initial function starts the computation while

keeping track of the remaining execution time. Be-

fore reaching the maximum execution time, the func-

tion invokes another function asynchronously, pass-

ing each parameter needed to continue the computa-

tion. The initial function can then terminated with-

out affecting the next function in the chain. Issues:

Strong coupling between the chained functions, in-

creased number of functions. Splitting the tasks be-

tween functions can be complex [S10].

Proxy [S11] (also known as “Command pat-

tern” [S13], “Anti-Corruption Layer” [S3]): Problem:

Integration of functions with a legacy system. Solu-

tion: Create a function that acts as a proxy for an-

other service, handling any necessary protocol or data

format translation. Beneﬁt: Clean and easy-to-access

API for clients.

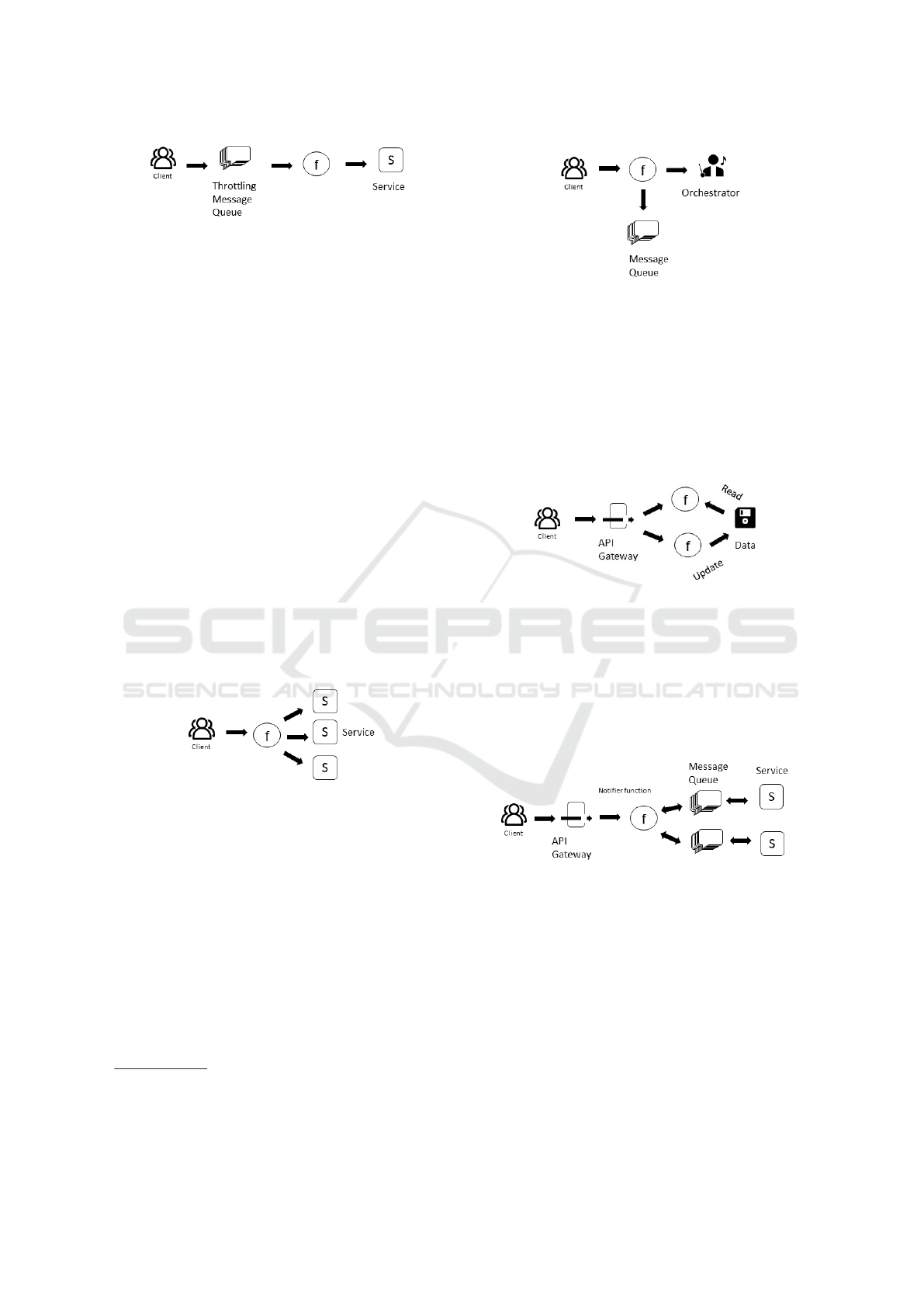

Queue-based Load Leveling [S8][S2][S3] (also

known as “The Scalable Webhook) [S12], “The

Throttler” [S1]): Problem Building scalable web-

hooks with non-scalable back-ends. Webhooks en-

able to augment or alter the behavior of a web page,

or web application, with custom callbacks. Solution:

Similar to the frugal consumer, queue service to trig-

ger a function can be used, which allows queueing the

requests under heavy load.

The Frugal Consumer [S12]: Problem: Increase

scalability of non-scalable backends. Solution: A

function that processes the requests of multiple ser-

vices (or functions) that post messages directly to a

message queue.

Patterns for Serverless Functions (Function-as-a-Service): A Multivocal Literature Review

185

The Internal API [S12]: Problem: Accessing mi-

croservices that are only accessed within the cloud

infrastructure. Solution: Leave the API Gateway and

call the functions HTTP directly using a Invocation

Type. Beneﬁts: Increased security as services are not

accessible from outside.

The Robust API [S2][S12] (also known as “The

Gateway” [S3]): Problem: Sometimes clients know

which services in the back-end they want to use. So-

lution: Use an API Gateway to grant access for clients

to selected services. Beneﬁts: Allows handling more

individually clients. Issues: Increases complexity.

The Router [S12] (also known as “Routing Func-

tion” [S13], “Decoupled Messaging” [S2], “Data

probing” [S9]): Problem: distribute the execution

based on payload, without paying the extra cost of

orchestration systems adopted in the state machine

pattern. Solution: Create a function that acts as a

router, receiving the requests and invokes the related

functions based on payload. Beneﬁt: Easy imple-

mentation. Issues: the routing function needs to be

maintained. Moreover, it can introduce performance

bottlenecks and be a single point of failure. Double

billing, since the routing function needs to wait until

the target function terminates the execution.

Thick Client [S13]: Problem: Any intermediary

layer between client and service increases costs and

latency. Solution: Allow clients to directly access ser-

vices and orchestrate workﬂows. Beneﬁts: Increased

performances, reduced cost at server-side, increased

separation of concerns (Roberts, 2016).

The State Machine [S7] [S2] [S12]: Problem: Or-

chestration and coordination of functions. Solution:

Adoption of serverless orchestration system such as

AWS Step Functions

, Azure Durable Functions

, or

IBM Composer

to orchestrate complex tasks. Issue:

The complexity of the system increases, as well we

the development effort.

AWS Step Functions https://tinyurl.com/ycu84so5

Azure Durable Functions https://tinyurl.com/uscla27

IBM Composer https://tinyurl.com/s6b6rbl

4.2 Event-management

These patterns help to solve communication prob-

lems.

Responsibility Segregation [S3]: Problem: When

the same functions are used for queries and data up-

dates, it increases the risk of becoming inﬂexible. So-

lution: Segregate functions that update and read from

data sources. Use ”Commands and Queries” for the

appropriate function to avoid this congestion.

Distributed Trigger [S12] (also known as ”Event

Broadcast” [S13]): Problem: Coupling a message

queue topic only with its own service. Solution: Cou-

ple multiple services into a single notiﬁcation func-

tion, possible via message queues. This setup works

well if the topics have only a single purpose and don’t

need any data outside of it’s micro-service. Issues:

The subscriptions to the queue topic remains the re-

sponsibility of the individual services.

FIFO [S12], [S13]: Problem: Create a FIFO Queue

for serverless functions. Several messages do not

work with a FIFO approach (ﬁrst in, ﬁrst out). Solu-

tion: Use a crontab such as AWS Cloudwatch that pe-

riodically invokes the function asynchronously. Then,

set the function’s concurrency to 1 so that there are

no attempts to run competing requests in parallel.

The function polls the queue for (up to 10) ordered

messages and does whatever processing it needs to

do. Once the processing is complete, the function re-

moves the messages from the queue and then invokes

itself again (asynchronously). This process will re-

peat until all the items have been removed from the

queue. Beneﬁts: Simple sequentialization. Issues:

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

186

Cascading effect [S12]: if the function is busy pro-

cessing other messages, the cronjob will fail because

of the concurrency setting. If the self-invocation is

blocked, the retry will continue the cascade.

The Internal Hand-off [S12]: Problem: Use invo-

cation Type (Event) for an asynchronous event. So-

lution: Function stops automatically when the execu-

tion is ﬁnished and automatically retries when it needs

to. Using a message queue to attach a Dead Letter

Queue enables to capture failures.

Periodic Invoker [S7]: Problem: Execute tasks pe-

riodically. Solution: Subscribe the function to a

scheduler, such as AWS Cloud Watch, Google Cloud

Scheduler, or Azure Scheduler. Beneﬁts: Run func-

tions periodically without the need to keep them per-

manently alive.

Polling Event Processor [S11] (also known as

“Polling consumer” [S22]): Problem: React to

changes of states of external systems that do not pub-

lish events Solution: Use the Periodic Invoker pattern

to check the state of the service Beneﬁts: Run func-

tions periodically without the need to keep a function

permanently alive as a listener.

4.3 Availability Patterns

This group of patterns helps to solve availability prob-

lems, reducing the warm-up time, and possible fail-

ures.

Bulkhead [S20], [S3]: Problem: When a crucial,

maybe load heavy, function fails, the complete sys-

tem risks being compromised. Solution: Partition-

ing workloads into different pools. These pools can

be created on the base of consumer load or availabil-

ity. Beneﬁts: This process isolates failure and reduces

risks of a chain reaction of failures.

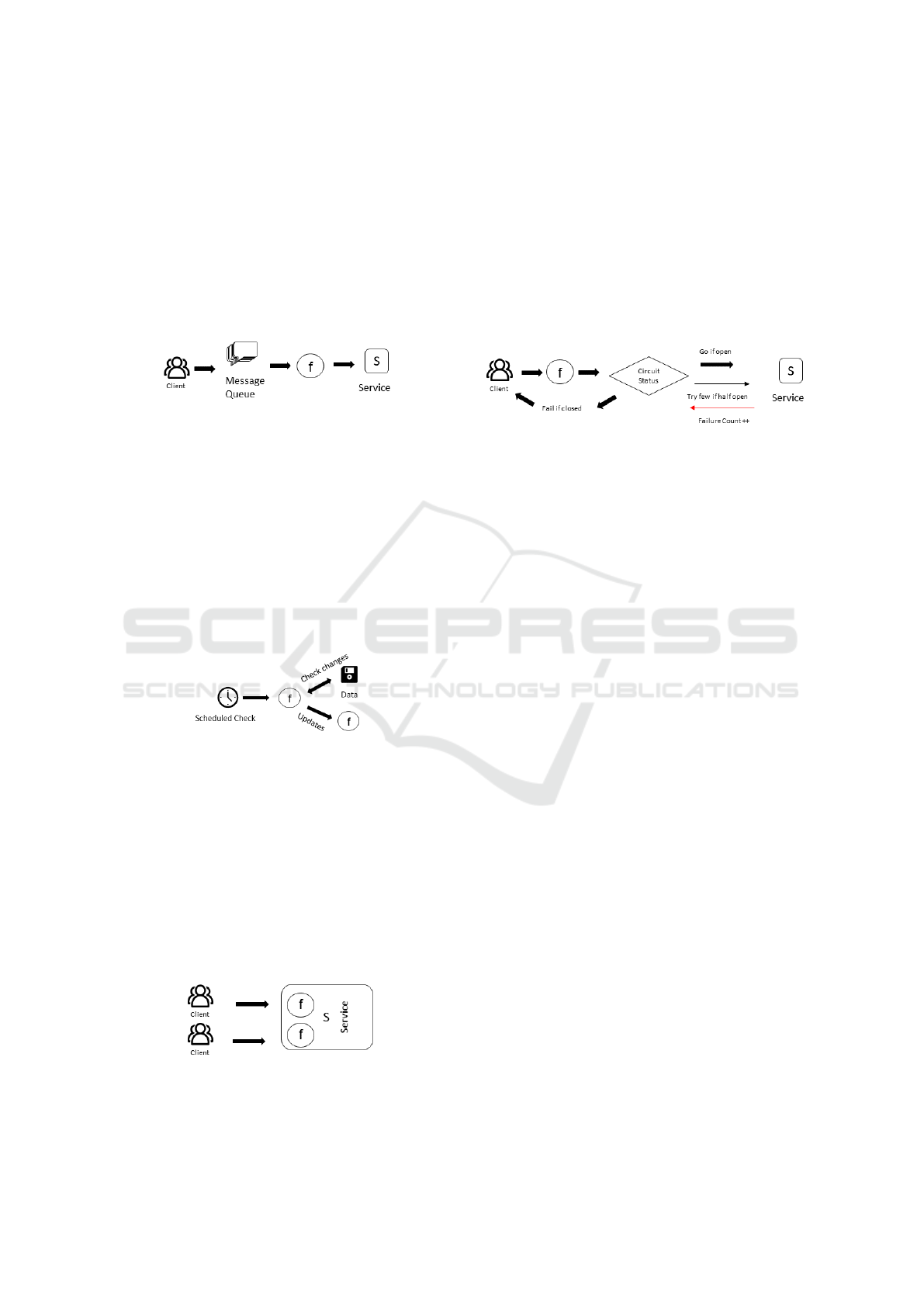

Circuit Breaker [S12][S14]: Problem: Keeps track

of failed or slow API calls. Solution: When the num-

ber of failures reaches a certain threshold, ”open” the

circuit sends errors back to the calling client immedi-

ately without even trying to call the API. After a short

timeout, the system “half open” the circuit, sending

just a few requests through to see if the API is ﬁ-

nally responding correctly. All other requests receive

an error. If the sample requests are successful, the

system “close” the circuit and start letting all trafﬁc

through. However, if some or all of those requests

fail, the circuit is opened again.Beneﬁts: Cost saving

for synchronous requests.

Compiled Functions [S15]: Problem: Serverless

cloud computing would be a perfect ﬁt for IoT es-

pecially at Edge would it not be so heavy-weight in

memory footprint and invocation time. Solution: A

high level specialized ahead of time compiled Server-

less language can reduce the memory footprint and

invocation time. This might make Edge technology

in the cloud viable.

Function warmer[S12][S16][S23] (also known as

”Function Pinging” [S10], “Warmer service” [S9],

“Cold Start” [S21], “Keeping Functions Warm” [S8],

“keep-alive” [S3]): Problem: Reduction of cold start

time, the delay between the execution of a function

after someone invokes it. Serverless functions are

executed in containers that encapsulate and execute

them. When they are invoked, the container keeps on

running only for a certain time period after the exe-

cution of the function (warm) and if another request

comes in before the shutdown, the request is served

instantaneously. Cold start takes between 1 and 3 sec-

onds [S2][S23]. For example, AWS (Shilkov, 19 b)

and Azure (Shilkov., 19 a) recycle idle function in-

stances after a ﬁxed period of 10 and 20 minutes re-

spectively. Solution: Ping the function periodically to

keep it warm. Beneﬁt: Reduction of response times

from 3 seconds to 200 milliseconds. Issues: In-

creased cost, even if limited to only one call every

10-15 minutes.

Oversized Function [S10]: Problem: In Serverless it

is not possible to choose on which CPU runs. Solu-

tion: Asking for bigger memory grants a faster virtual

machine too, even if no more memory is required.

Read-heavy Report Engine [S12][S2]: Problem:

Overcome the limits of downstream limits of read-

intensive applications. Solution: Usage of data caches

and the creation of specialized views of the data most

frequently queried Beneﬁts Increased performances.

Patterns for Serverless Functions (Function-as-a-Service): A Multivocal Literature Review

187

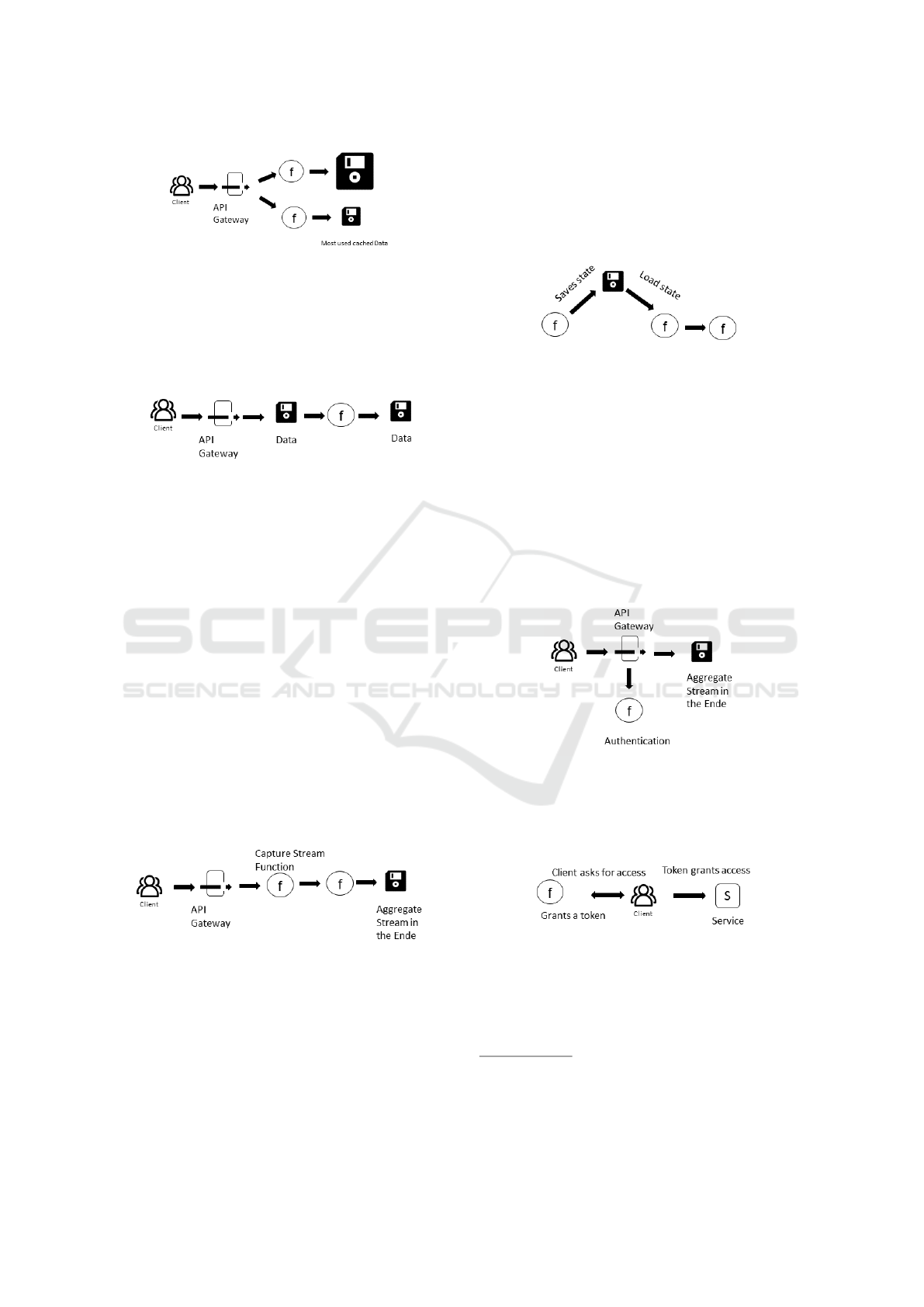

The Eventually Consistent [S12]: Problem: Repli-

cate data between services to keep them consis-

tent. Solution: Use database stream services (e.g.

DynamoDB stream) to trigger events made on the

database from previous functions and use the data

again for whatever needed.

Timeout [S17]: Problem: The timeout time for API

Gateway is 29 seconds. Which is a long time for

a user and makes for a bad experience with the ser-

vice. Solution: Reduce the timeout to a shorter span,

preferably around 3-6 seconds.

4.4 Communication Patterns

Here, we describe patterns to communicate between

functions.

Data Streaming (also known as ”Stream and

pipeline” [S2], ”I am a streamer” [S12] and

”Event Processor” [S13][S22], “Streaming Data In-

gestion” [S4], “Stream processing” [S3]): Problem:

Manage continuous stream of data. Solution: Server-

less platforms offer possibilities like Kinesis(AWS) to

handle and distribute large streams of data to services.

Issues:Data streams can be expensive in Serverless.

Working outside the platforms eco system can be dif-

ﬁcult too.

Externalized State [S10] [S3] (also known as “Share

State” [S21]). Problem: In some cases, it is needed

to share the state between functions. Solution: Share

the state saving it into an external database. Issues:

High coupling between the functions, latency over-

head [S10], additional programming effort. Solution:

”Apply a continuous stream processor that captures

large volumes of events or data, and distributes them

to different services or data stores as fast as they

come.” [S2] Romero [S2] and Dali [S12] propose an

AWS speciﬁc example, using the AWS API Gateway

as a Kinesis proxy

. In this way, it is possible to

use any number of services to pipe data to a Kine-

sis stream. Finally, Kinesis can be used to aggregate

the results.

Publish/Subscribe [S2][S3][S18] (also known as

“The Notiﬁer”[S12]): Problem: Forward data for in-

ternal services (or APIs). Solution: Use a standalone

topic in the message queue to distribute internal noti-

ﬁcations for internal services.

4.5 Authorization Patterns

These deal with user authorization problems.

The Gatekeeper [S3][S12]: Problem: Authorize

Functions. Solution: Use a Gateway to create an

authorizer function that processes the authorization

header and returns the authorization policy.

Valet Key [S19]: Problem: Authorization without

routing all the trafﬁc through a gatekeeper process.

Solution: By requesting ﬁrst access from a special au-

thorizer serverless function it is granted a token which

is valid for a certain period of time and access rights.

5 DISCUSSION

The results of this work highlight that serverless pat-

terns are still not clear. Different practitioners propose

Create a REST API as an Amazon Kinesis Proxy in

API Gateway https://docs.aws.amazon.com/apigateway/

latest/developerguide/integrating-api-with-aws-services-

kinesis.html

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

188

Table 3: The patterns identiﬁed.

Pattern Peer Reviewed studies Gray Literature

Orchestration and Aggregation

Aggregator [S1], [S2]. Also named: Durable functions [S3]

Data Lake [S4] [S5]

Fan in/Fan out Also named: Virtual Actors [S6],

Data transformation [S7]

[S2] [S4][S8]. Also named: Processor [S9], Fire triggers and transformations [S3]

Function chain [S10] [S3]

Proxy [S11]. Also named: Command pattern [S13][S24]

Queue-Based Load Leveling [S2][S3]

The Frugal consumer [S12]

The Internal API [S12]

The Robust API [S2][S12]

The Router Also named: Routing Func-

tion [S10]

[S12]. Also named: Decoupled Messaging [S2], Data probing [S9], Routing

function [S13][S11]

The State machine [S12]

Thick Client [S13]

Event Management

Responsibility Segregation [S3]

Distributed Trigger [S12]

FIFO [S12][S3]

Internal Handoff [S12]

Periodic Invoker [S7]

Polling Event Processor [S11]. Also named: Polling consumer [S22]

Availability

Bulkhead [S20][S3]

Circuit Breaker [S12], [S14]

Compiled Functions [S15]

Function Warmer Also named: Function ping-

ing [S10][S16]

[S12] [S23]. Also named: Warmer service [S9], Cold Start [S21], Keeping Func-

tions Warm [S8], keep-alive [S3]

Oversized Function [S10]

Read-heavy report engine [S12] [S2]

The eventually consistent [S12]

Timeout [S17]

Communication

Data streaming They Say I am A Streamer [S12], Streams and Pipelines [S2] Streaming Data

Ingestion [S4], Stream processing [S3]

Externalized state [S10] Share State [S21][S3]

Pub/Sub [S2] [S18][S3]

Also named: Notiﬁer [S12]

Authorization

The Gatekeeper [S12], [S3]

The Gateway [S12][S3]

Valet key [S19]

similar and often discordant patterns, to solve similar

problems.

Some patterns are mentioned only by one source

while others are mentioned by different sources, con-

ﬁrming the importance given by the practitioners.

While the continuous evolution of serverless plat-

forms, such as the introduction of new tools, can be

beneﬁcial for practitioners, it probably confuses prac-

titioners to understand which solution is more beneﬁ-

cial to adopt. As an example, AWS lambda adapted

their queue service (SQS) to enable FIFO messages

and therefore it is no longer necessary to manage your

re-drive policies (Frugal Consumer pattern). How-

ever, up to now, FIFO messages still need to be man-

ually managed in Azure. Other tools have been in-

troduced in the last years, and will probably continue

to be introduced in the future, increasing the decision

complexity when deciding which pattern to adopt.

It is interesting to notice that several patterns have

been created to work around serverless limitations.

As an example, the function warmer has been created

to circumvent the long startup problem of functions.

Other patterns are inherited from other cloud-domains

or monolithic systems. As an example, the gatekeeper

and valet key are also used in microservices.

Thanks to this work, practitioners will be able to

Patterns for Serverless Functions (Function-as-a-Service): A Multivocal Literature Review

189

access the description of all patterns in one report, to-

gether with an analysis of the perceived usefulness of

each pattern, and possible problems that can raise us-

ing them. Researchers can further validate the pat-

terns, considering their usefulness or extending them.

5.1 Threats to Validity

The results of a MLR may be subject to validity

threats, mainly concerning the correctness and com-

pleteness of the survey, and the subjectivity of in-

terpretations. Moreover, the fast-evolving domain

of serverless, might also inﬂuence the results of this

work.

• Evolution Pace: Because of the fast evolution

of the serverless topic, the list of patterns might

become outdated very quickly. Some patterns

might be implemented directly by tools provided

the cloud providers, while other patterns might be

proposed in the future.

• Correctness and Completeness A ﬁrst issue is a

possible bias in the selection of GL’s. To limit

this bias, we followed the guidelines for Mul-

tivocal Literature Reviews proposed by Garousi

et al. (Garousi et al., 2019). A ﬁrst measure to

limit the bias in the selection of GL’s regarded the

search for relevant sources. To this end,

– We perform the search for grey literature in

Google and for scientiﬁc literature with auto-

matic searches in multiple digital libraries.

– We applied a broad search string, which re-

sulted in a large set of results. The fact that

ﬁnally less than one-tenth of the retrieved GLs

were selected for the survey demonstrates that

the search string allowed for quite a broad

search.

– We applied the snowballing process to identify

GLs that may have not detected by the auto-

matic search.

To increase the conﬁdence that all relevant

sources were identiﬁed, we did not rely exclu-

sively on titles and abstracts to determine whether

the article reported serverless patterns. Instead,

three authors carefully read the full text indepen-

dently. In case of disagreements, the GLs were

reviewed collaboratively.

• Subjectivity In general, assessing the relevance of

GL’s in a review is partly subjective. In our case,

the main subjectivity issue concerns the identiﬁca-

tion of the patterns. As already mentioned, differ-

ent GL’s address different patterns or investigate

how to solve different problems. Therefore, we

faced the problem of deciding what GL’s could be

considered as solving the same problem at some

level of abstraction.

• Pattern Classiﬁcation is based on our experience

with cloud-native systems. A different classiﬁca-

tion might have resulted in a different number of

patterns. However, due to similarity in tools and

techniques between serverless and cloud-native,

some transferability can be assumed.

5.2 Trends and Open Issues

Serverless moves us towards continuous development

and delivery. An important observation is that, dif-

ferently than in Microservices, serverless-based ap-

plications do not require to develop a full application

stack. That means that their infrastructure resources

like data stores and networks don’t need to be man-

aged, as they are under the responsibility of the cloud

provider. Resulting from our study, but also discus-

sions in Leitner et al. [S10], we can identify the fol-

lowing emerging issues:

• Comparison between microservices and server-

less functions. A microservice can be composed

of one or more serverless functions. However,

how to combine functions into a complete appli-

cation or into a microservice is still not clear. Re-

searchers might support practitioners by propos-

ing the adoption of previously developed tech-

niques for aggregating distributed systems or ba-

sic software engineering techniques.

• Lack of stable tools. The actual state of tools for

supporting serverless development is still limited.

Different tools are continuously proposed on the

market increasing the complexity of decisions for

long-term development.

• Reuse of Functions. What happens once a grow-

ing system has thousands or millions of functions

is still not clear. Will it be possible to have a

good system understandability with such a com-

plex system? Grouping functions into isolated mi-

croservices might help, but at the moment it is still

not clear how to proceed.

• Negative Results. In which contexts do serverless,

and in particular some speciﬁc patterns turn out

to be counterproductive? Are there anti-patterns?

All the aforementioned points require more expe-

rience reports and empirical investigations.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

190

6 CONCLUSION

As the number of companies developing and deploy-

ing serverless applications continues to rise, a natu-

ral question that everyone joining this direction asks

is what are the best practices or the design patterns

to follow to make the best of this novel technology.

So far, most companies have been exploring the new

territory by applying known methods and patterns

coming from well-established technologies (e.g., mi-

croservices, web services). However, as serverless

technology is becoming mainstream, two classes of

patterns start to emerge. The ﬁrst class represents

existing patterns that have been adapted from exist-

ing technologies to ﬁt the serverless paradigm, others

instead have been developed speciﬁcally to address

serverless implementation needs.

Practitioners proposed several patterns, and the

community is already aware of several of them. We

can observe here a community in an early adoption

stage. However, existing reports highlight the value

of these patterns, although complexities introduced

by serverless are only slowly emerging. In any way,

the pattern catalog that we extracted from the litera-

ture and has been conﬁrmed by the survey provides a

valuable basis for practitioners and researchers alike.

In this fast-evolving technology context, more

tools will be developed, that might require either new

patterns or turn those that are work-around for lim-

itations obsolete. Here, a continuous update of any

pattern catalog is necessary.

Future work includes the validation of the actual

usefulness of these patterns in more concrete appli-

cation contexts as well as the identiﬁcation of anti-

patterns.

ACKNOWLEDGEMENTS

This research was partially supported by the grant

”SHAPIT” awarded by the Ulla Tuominen Founda-

tion (Finland)

REFERENCES

Al-Ameen, M. and Spillner, J. (2018). Systematic and open

exploration of faas and serverless computing research.

In European Symposium on Serverless Computing and

Applications.

Alqaryouti, O., Siyam, N., et al. (2018). Serverless com-

puting and scheduling tasks on cloud: A review.

American Scientiﬁc Research Journal for Engineer-

ing, Technology, and Sciences (ASRJETS), 40(1):235–

247.

Erl, T. (2008). SOA Design Patterns (paperback). Pearson

Education.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. M.

(1994). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley Profes-

sional, 1 edition.

Garousi, V., Felderer, M., and M

antyl

a, M. V. (2019).

Guidelines for including grey literature and conduct-

ing multivocal literature reviews in software engineer-

ing. Inf. and Software Technology, 106:101 – 121.

Kuhlenkamp, J. and Werner, S. (2018). Benchmarking faas

platforms: Call for community participation. In Int.

Conf. on Utility and Cloud Computing.

Leitner, P., Wittern, E., Spillner, J., and Hummer, W. (2019).

A mixed-method empirical study of function-as-a-

service software development in industrial practice.

Journal of Systems and Software, 149:340 – 359.

Lloyd, W., Ramesh, S., Chinthalapati, S., Ly, L., and Pal-

lickara, S. (2018). Serverless computing: An in-

vestigation of factors inﬂuencing microservice perfor-

mance. In Int. Conf. on Cloud Engineering (IC2E),

pages 159–169.

Lynn, T., Rosati, P., Lejeune, A., and Emeakaroha, V.

(2017). A preliminary review of enterprise serverless

cloud computing (function-as-a-service) platforms. In

Int. Conf. on Cloud Computing Technology and Sci-

ence (CloudCom), pages 162–169.

McGrath, Garrett, M., Short, J., Ennis, S., Judson, B.,

and Brenner, P. (2016). Cloud event programming

paradigms: Applications and analysis. IEEE Com-

puter Society.

Nupponen, J. and Taibi, D. (2020). Serverless: What it

is,what to do and what not to do. In International Con-

ference on Software Architecture (ICSA 2020).

Pahl, C., El Ioini, N., et al. (2019). Blockchain based service

continuity in mobile edge computing. In 2019 Sixth

Int. Conf. on Internet of Things: Systems, Manage-

ment and Security (IOTSMS), pages 136–141. IEEE.

Roberts, M. (2016). Serverless architectures. https://

martinfowler.com/articles/serverless.html.

Sadaqat, M., Colomo-Palacios, R., and Knudsen, L. E. S.

(2018). Serverless computing: a multivocal literature

review. Nokobit.

Shilkov., M. (2019 a). When does cold start happen on azure

functions? https://mikhail.io/serverless/coldstarts/

azure/intervals/.

Shilkov, M. (2019 b). When does cold start happen on aws

lambda? https://mikhail.io/serverless/coldstarts/aws/

intervals/.

Taibi, D., Lenarduzzi, V., and Pahl, C. (2018). Architec-

tural patterns for microservices: a systematic mapping

study. Int. Conf. on Cloud Computing and Services

Science (CLOSER2018).

Taibi, D., Lenarduzzi, V., and Pahl, C. (2019a). Microser-

vices anti-patterns: A taxonomy. Microservices - Sci-

ence and Engineering. Springer. 2019.

Taibi, D., Lenarduzzi, V., and Pahl, C. (2019b). Microser-

vices architectural, code and organizational anti-

patterns. Communications in Computer and Informa-

tion Science, pages 126–151.

Patterns for Serverless Functions (Function-as-a-Service): A Multivocal Literature Review

191

Appendix

The Selected Papers

[S1] Baldini, I., Castro, P., Chang, K., Cheng, P., Fink, S.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R., Slominski, A., and Suter, P. (2017). Serverless

Computing: Current Trends and Open Problems.

[S2] Romero, E. (2019). Server-

less microservice patterns for aws.

https://medium:com/@eduardoromero/serverless-

architectural-patterns-261d8743020/.

[S3] Likness, J. (2018). Serverless apps: Architecture,

patterns, and Azure implementation. Microsoft De-

veloper Division, .NET, and Visual Studio product

teams.

[S4] Serverless architectural patterns and best prac-

tices (arc305-r2) - aws re:invent 2018. https://

www.slideshare.net/AmazonWebServices/serverless-

architectural-patterns-and-best-practices-arc305r2-

aws-reinvent-2018.

[S5] Benghiat, G. (2017). The data lake is a design pat-

tern. https://medium.com/data-ops/the-data-lake-is-

a-design-pattern-888323323c66/.

[S6] Bernstein, P. A., Porter, T., Potharaju, R., Tomsic, A.

Z., Venkataraman, S., and Wu, W. (2019). Server-

less event-stream processing over virtual actors. In

CIDR.

[S7] Hong, S., Srivastava, A., Shambrook, W., and Du-

mitras, T.(2018). Go serverless: securing cloud via

serverless design patterns. In 10th USENIX Work-

shop on Hot Topics in Cloud Computing (HotCloud

18).

[S8] Zambrano, B. (2018). Serverless Design Patterns

and Best Practices: Build, secure, and deploy enter-

prise ready serverless applications with AWS to im-

prove developer productivity. Packt Publishing Ltd.

[S9] Shaﬁei, H., Khonsari, A., and Mousavi, P. (2020).

Serverless computing: A survey of opportunities,

challenges and applications.

[S10] Leitner, P., Wittern, E., Spillner, J., and Hummer,

W. (2019). A mixed-method empirical study of

function-as-a-service software development in in-

dustrial practice. Journal of Systems and Software,

149:340 – 359.

[S11] Pekkala, A. (2019). Migrating a web application to

serverless architecture. Master’s Thesis in Informa-

tion Technology, University of Jyv

askyl

[S12] Daly, J. (2019). Serverless microservice patterns

for aws. https://www.jeremydaly.com/serverless-

microservice-patterns-for-aws.

[S13] Sbarski, P. (2017). Serverless Architectures on AWS

. Manning.

[S14] Nygard, M. T. (2007). Release It!: Design and

Deploy Production-Ready Software (Pragmatic Pro-

grammers). 1 edition.

[S15] Gadepalli, P. K., Peach, G., Cherkasova, L., Aitken,

R., and Parmer, G. Challenges and opportunities for

efﬁcient serverless computing at the edge.

[S16] Bardsley, D., Ryan, L. M., and Howard, J. (2018).

Serverless performance and optimization strategies.

2018 IEEE International Conference on Smart Cloud

(SmartCloud).

[S17] Lumigo (2019). Aws lambda timeout best prac-

tices. https://lumigo:io/blog/aws-lambdatimeout-

best-practices/.

[S18] Pirtle, J. (2019). 10 things

serverless architects should know.

https://aws:amazon:com/blogs/architecture/ten-

things-serverlessarchitects-should-know/.

[S19] Adzic, G. and Chatley, R. (2017). Serverless com-

puting: Economic and architectural impact. In Joint

Meeting on Foundations of Software Engineering ,

ESEC/FSE 2017, page 884–889.

[S20] AWS, A. (2018). Serverless ap-

plication lens aws. https://

d1.awsstatic.com/whitepapers/architecture/AWS-

Serverless-Applications-Lens.pdf.

[S21] Group, I. S. (2019). Aws lambda

serverless coding best practices.

https://www:intentsg:com/awslambda-serverless-

coding-best-practices/.

[S22] Gregor, H. and Woolf, B. (2004). Enterprise inte-

gration patterns: Designing, building, and deploying

messaging solutions. 1 edition.

[S23] Bhojwani, R. (2019). Aws lambda timeout best prac-

tices. https://lumigo:io/blog/aws-lambdatimeout-

best-practices/.

[S24] Rabbah, R., Mitchell, N. M., Fink, S., and Tardieu,

O. L.(2019). Serverless composition of functions

into ap-plications. US Patent App. 15/725,756

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

192
