Effective Piecewise CNN with Attention Mechanism for Distant

Supervision on Relation Extraction Task

Yuming Li

, Pin Ni

, Gangmin Li

and Victor Chang

University of Liverpool, U.K.

Xi’an Jiaotong-Liverpool University, China

Teesside University, U.K.

Keywords:

Relation Extraction, Distant Supervision, Piecewise Convolutional Neural Networks, Attention,

Convolutional Neural Networks.

Abstract:

Relation Extraction is an important sub-task in the ﬁeld of information extraction. Its goal is to identify entities

from text and extract semantic relationships between entities. However, the current Relationship Extraction

task based on deep learning methods generally have practical problems such as insufﬁcient amount of manually

labeled data, so training under weak supervision has become a big challenge. Distant Supervision is a novel

idea that can automatically annotate a large number of unlabeled data based on a small amount of labeled data.

Based on this idea, this paper proposes a method combining the Piecewise Convolutional Neural Networks

and Attention mechanism for automatically annotating the data of Relation Extraction task. The experiments

proved that the proposed method achieved the highest precision is 76.24% on NYT-FB (New York Times -

Freebase) dataset (top 100 relation categories). The results show that the proposed method performed better

than CNN-based models in most cases.

1 INTRODUCTION

1.1 Background

Relation extraction aims to extract the relation be-

tween entity pairs based on text contents, such as

the employment relation between people and orga-

nizations, afﬁliation between organizations and insti-

tutions, the geographical relation between a building

and its location, etc.

Neural networks-based relation extraction re-

quires a large amount of training data, but manually

annotating these training data is too time-consuming

and expensive. Most of the existing methods use

public data sets, such as nyt10, semeval-2010 task-

8, ACE2005, etc. Although the training data are an-

notated by professionals, they are still based on a

ﬁxed number of established data, which is not ﬂex-

ible enough, easily making the model oversaturated

and unable to guarantee that the model can achieve

the same good effect in real cases. Therefore, aiming

at the above problems, distant supervision method is

introduced.

In our proposed model, we use Piecewise Con-

volutional Neural Networks (PCNN) with Attention

mechanism and get the precision of 76.24% on NYT-

FB (New York Times - Freebase) dataset (top 100 re-

lation categories), which is higher than conventional

Convolutional Neural Networks with 3.96% improve-

ment. And other results also show that the proposed

method performed better than CNN-based models in

most cases.

1.2 Contribution

Our speciﬁc contribution is: we propose a hybrid Dis-

tant Supervision model based on the PCNN and At-

tention mechanism, which only needs a small number

of labeled samples as the basis to realize automatic

annotation of the remaining large amounts of unla-

beled data. The experiments proved that compared

with the conventional methods, our model has a cer-

tain improvement in precision. This provides more

trainable resources for deep learning-based relation

extraction.

Li, Y., Ni, P., Li, G. and Chang, V.

Effective Piecewise CNN with Attention Mechanism for Distant Supervision on Relation Extraction Task.

DOI: 10.5220/0009582700530060

In Proceedings of the 5th International Conference on Complexity, Future Information Systems and Risk (COMPLEXIS 2020), pages 53-60

ISBN: 978-989-758-427-5

 2020 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

2 RELATED WORK

Faced with a large number of data without labels, su-

pervised relation extraction consumes a large amount

of manpower and appears to be inadequate. There-

fore, distant supervision entity relation extraction

emerges. Mintz et al. (Mintz et al., 2009) ﬁrst pro-

posed to apply distant supervision to relation extrac-

tion tasks in 2009, which solved the problem of auto-

matic annotation of a large number of unlabeled data

in the open domain by automatically aligning knowl-

edge base with data. There are two main problems

in distant supervision and marking of data: noise and

feature extraction error propagation. The noise prob-

lem is due to the strong hypothesis condition of dis-

tant supervision, which causes the relation of a large

number of data to be wrongly marked so that there is

a large amount of noise in the training data. The prob-

lem of error propagation in feature extraction is that

the conventional feature extraction mainly uses the

general NLP tool to extract the features of the data set,

so a large number of propagation errors will be intro-

duced. As for the problem of false label, the Attention

mechanism proposed by Surdeanu et al. (Surdeanu

et al., 2012) in 2010 and Lin et al. (Lin et al., 2016)

has effectively weakened the inﬂuence of distant su-

pervision of false label on extraction performance.

Since the rise of deep learning and its irreplace-

able results, it has become a trend to replace con-

ventional feature engineering with the idea of fea-

ture extraction through deep learning. For example,

the extended CNN model, PCNN+MIL (Zeng et al.,

2015) and LSTM (He et al., 2017) gets the orienta-

tion information of the entity; COTYPE (Ren et al.,

2017) joint extraction of entity and relation informa-

tion; The deep residual network (Huang and Wang,

2017) prevents layer-by-layer accumulation of misla-

beled noise. At present, the research points of distant

supervised entity relation extraction based on deep

learning mainly focus on the noise problem of distant

supervision and error propagation of feature extrac-

tion.

3 METHODOLOGY

Distant Supervision is a common practice in relation

extraction at present, which was ﬁrst proposed by

Mintz et al. (Mintz et al., 2009) in ACL2009. It is

neither a simple supervision method in the conven-

tional sense nor an unsupervised method, but a tag-

ging method that aligns plain text with Knowledge

Base to reduce the dependence of the model on man-

ual marking data and enhance the model’s adaptabil-

ity across ﬁelds. The proposed distant supervision is

based on the following assumptions: If there is a rela-

tion between two entities in the Knowledge Base, the

unstructured sentence containing the two entities can

represent such a relation, and the unstructured sen-

tence can be used as a training positive instance to

train the model.

The speciﬁc implementation steps of remote su-

pervision method can be summarized as the following

two points:

1. Extract the relation entity pairs from the knowl-

edge base.

2. Extract sentences containing entity pairs from the

unstructured text as training examples.

However, such methods still have some shortcom-

ings, ﬁrstly, some sentences containing speciﬁc enti-

ties cannot reﬂect any relation and are invalid data for

the training set, which inevitably introduces a lot of

noise.

For example, as shown in Figure 1, ‘Charlie Chap-

lin’ and ‘Vevey’ are two related entities with the re-

lation ‘place of death’ in Freebase (Bollacker et al.,

2008). The sentences listed below are training cor-

pus generated through distant supervision, but only

the second sentence describes the expected relation

‘place of death’, the upper sentence is invalid training

corpus, which can be deﬁned as ‘wrong label prob-

lem’.

Secondly, the process of data construction de-

pends on NLP tasks like Named Entity Recognition

(NER), and errors in the intermediate process will

cause error propagation problems. McDonald and

Nivre (McDonald and Nivre, 2007) proposed that the

accuracy of syntactic analysis decreased with the in-

crease of sentence length, while long sentences ac-

counted for a large proportion in the corpus, so the er-

ror accumulation and transmission would greatly re-

duce the task accuracy.

To solve these problems, there are four main meth-

ods :

1. Introduce prior knowledge as the limit in the pro-

cess of constructing data sets;

2. Use the relation between reference and reference

to score data samples with graph model to ﬁlter

out sentences with low conﬁdence;

3. Label the test package with multi-example learn-

ing method;

4. The attention mechanism is used to assign differ-

ent weights to sentences with different degrees of

conﬁdence.

In this work, we use Piecewise Convolutional

Neural Networks with the Attention mechanism as the

COMPLEXIS 2020 - 5th International Conference on Complexity, Future Information Systems and Risk

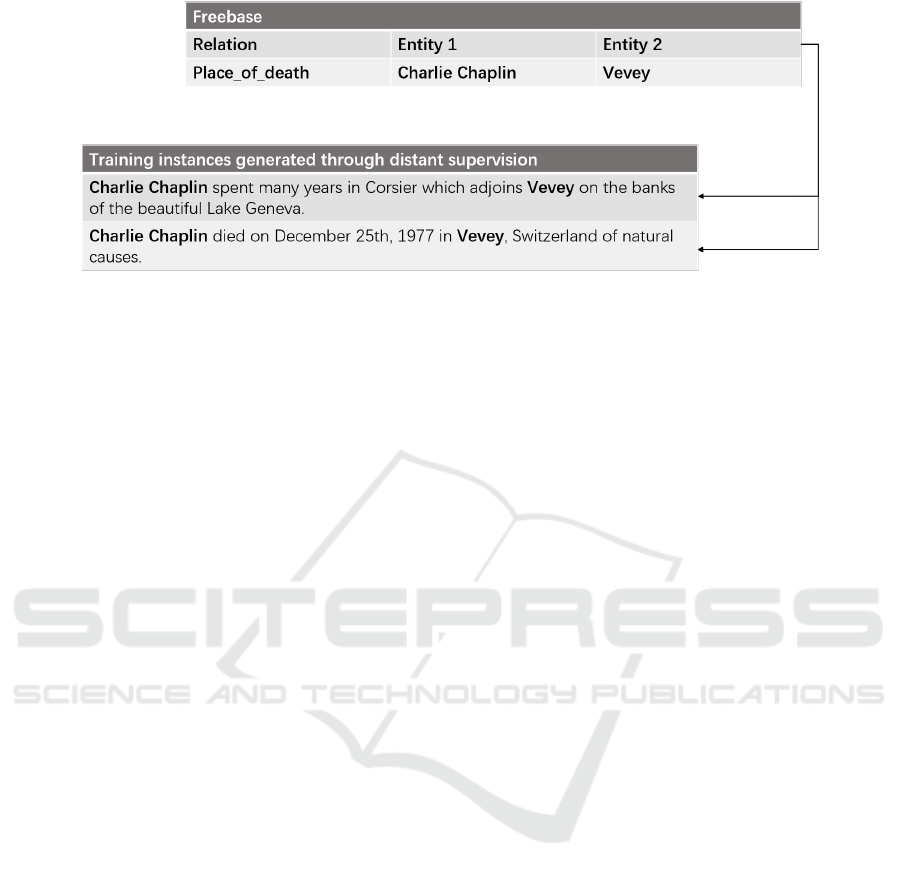

Figure 1: A Sample of Distant Supervision. Upper sentence: incorrect instance; lower sentence: correct instance.

model of Distant Supervision for Relation Extraction.

The use of the NLP tool in extracting features in the

classic entity relation extraction task will lead to error

propagation layer by layer and affect the ﬁnal effect

of relation extraction. PCNN method in deep learn-

ing effectively minimizes the inﬂuence of feature ex-

traction error propagation. The method regards the

relation extraction problem as a multi-instance prob-

lem. The training set is composed of multiple pack-

ages, and each package contains multiple instances.

The sample with the highest conﬁdence in each bag

is selected as the positive sample for training, so as

to effectively remove useless samples and reduce data

noise. The details of the PCNN model can be dis-

cussed as follow.

3.1 Conventional Convolutional Neural

Networks

PCNN is a variant of Convolutional Neural Networks

(CNN), so we describe the core of CNN ﬁrst. CNN

is a type of feed-forward artiﬁcial neural networks

which was ﬁrst developed in the 1980s. Layers of

the networks are formed by a convolution operation

followed by a pooling operation (LeCun et al., 1998;

Kalchbrenner et al., 2014). Since there is a surge of

interest in deep learning recently, CNNs are applied

effectively in various NLP tasks, including relation

extraction.

Due to an input sentence that could not predict

labels for each word in relation extraction, it is es-

sential to utilize all local features and perform this

prediction. The convolution operation is a natural

method of merging all these features when using a

neural network (Collobert et al., 2011). In this step,

the matrix x representing the input relation is fed into

the convolutional layer to extract higher-level fea-

tures. A ﬁlter whose window size is w can be rep-

resented as a weight matrix f = [ f

, f

,..., f

]. The

purpose of this layer is to produce a score sequence

s = [s

,...,s

n−w+1

] by obtaining from two matrices

x and f :

= g(

w−1

∑

j=0

j+1

j+i

+ b) (1)

where g is some non-linear function and b is a bias

term. It could as well replicate this process to increase

the n-gram coverage of the model for various ﬁlters

with different window sizes.

After the convolution operation, pooling operation

is applied to combine convolution layers being inde-

pendent of the sentence length such that these lay-

ers can be used in subsequent layers (Collobert et al.,

2011; Zeng et al., 2014). Max pooling operation is

widely applied as it can identify the most important or

relevant features from the score sequence. More for-

mally, for each ﬁlter f , its score sequence s is passed

through the max function to obtain a single number:

= maxs = maxs

,..., s

n−w+1

which can be seen

as estimating the possible some augmented n-gram of

the hidden class of f appears in the context.

PCNN added segment operation on the basis of

CNN, which is more suitable for Natural Language

Processing tasks. The details of PCNN are shown as

follow sections.

3.2 Piecewise Convolutional Neural

Networks

3.2.1 Data Pre-processing and Sentence

Segmentation

Firstly, the data is encoded by position, according to

the distance from the entity of each word in the sen-

tence. For example, in sentence:

‘In just a decade and a half Jack Ma, a man from

modest beginnings founded and built Alibaba into

one of the world’s largest companies.’

Effective Piecewise CNN with Attention Mechanism for Distant Supervision on Relation Extraction Task

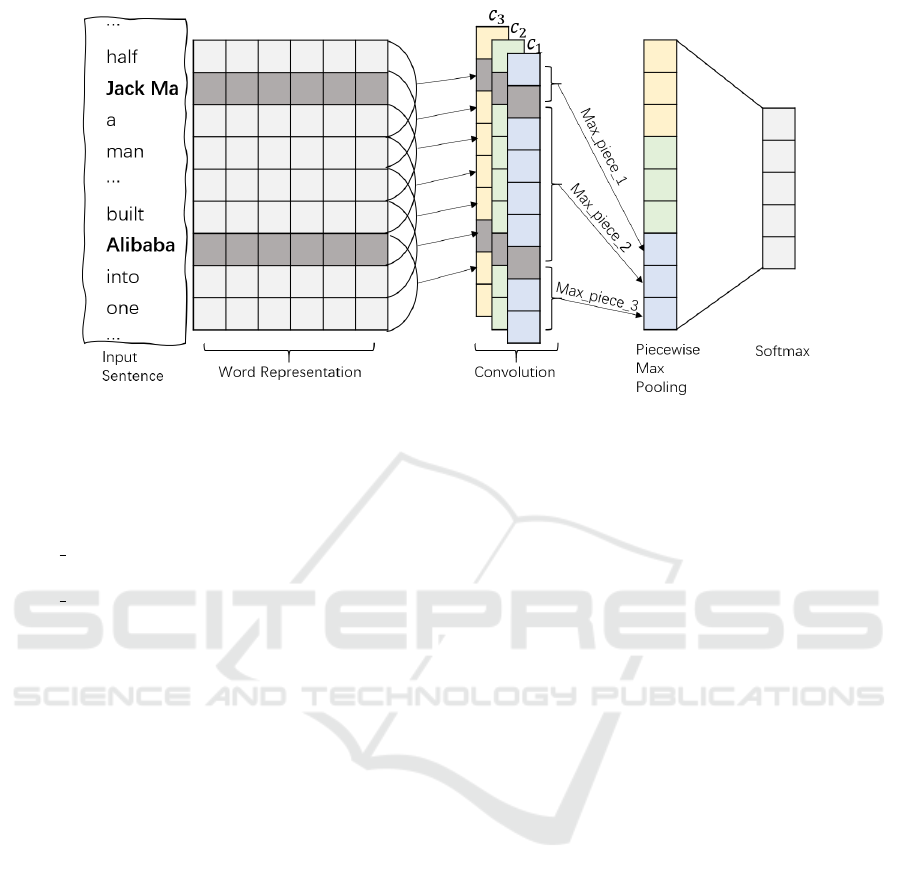

Figure 2: Architecture of Piecewise Convolutional Neural Networks with input sentence ‘In just a decade and half Jack Ma,

a man from modest beginnings founded and built Alibaba into one of the world’s largest companies’.

Since there are two entities in the sentence, the

sentence produces two encodings of the same length

as the sentence:

pos 1:[−6, −5,−4, −3,−2, −1,0, 1,2, 3...],

where 0 is the location of the ﬁrst entity ‘Jack Ma’;

pos 2:[−15, −14,−13, ...,0, 1,2, 3...], where 0 is

the location of the second entity ‘Alibaba’;

The model then cuts the text data into three seg-

ments at each entity location (position 0), the above

sentences will be divided into:

1. In just a decade and a half Jack Ma.

2. Jack Ma, a man from modest beginnings founded

and built Alibaba.

3. Alibaba into one of the world’s largest compa-

nies.

3.2.2 Convolution

In order to clearly describe the convolution operation,

we ﬁrst deﬁne two matrix convolution operations of

the same dimension. For A,B ∈ R

×m

, the convolu-

tion operation between A and B is

A ⊗ B =

∑

i=1

∑

j=1

i j

(2)

We assume the length of the ﬁlter for the convo-

lution is w, and the width of the ﬁlter is d, which is

equal to the dimension of the word vector, due to the

smallest unit of the convolution operation is the word.

Then the ﬁlter of the model is a two-dimensional ma-

trix W ∈ R

w×d

. We deﬁne the input sentence S as

S =



,· ·· ,s

|s|



, in which |s| represent the num-

ber of words in S, s

is the vector representation of the

word. Then deﬁne S

i, j

= [s

: s

i+1

: ...s

as a matrix

spliced horizontally from s

to s

, thus the convolu-

tion operation between the sentence S and the ﬁlter

produces a vector c ∈ R

|s|−w+1

= W ⊗ S

j: j+w−1

(3)

In which 1 6 j 6 |S| − w + 1.

However, in order to capture more abundant text

features, n(n > 1) ﬁlters will be used in the real

world experiment, so the convolution parameter is

an n-dimensional tensor composed by n matrices, the

whole convolution operation can be expressed as:

i, j

= W

⊗ S

j: j+w−1

(4)

In which 1 6 i 6 n, 1 6 j 6 |S| − w + 1. The ﬁnal

convolution vector is

{

i,1

i,2

,· ·· ,c

,|s| − w + 1

}

(1 6 i 6 n) (5)

Figure 2 shows an example of using three different

ﬁlters.

3.2.3 Piecewise Max Pooling

Conventional max-pooling divides the text to be pro-

cessed into several small parts of the same size with-

out overlapping. In each small part, only the largest

number of the region is taken, and then the original

structure is retained to output after discarding other

nodes. At ﬁrst, CNN was widely used in the ﬁeld

of Computer Vision, however, different from images,

text has different main features under different situa-

tions and tasks. Therefore, the disadvantage of con-

ventional max pooling is that it is difﬁcult to iden-

tify the important information needed in the text, and

dropout might cause the loss of key information.

COMPLEXIS 2020 - 5th International Conference on Complexity, Future Information Systems and Risk

In the piecewise max-pooling, we segment the

sentence from the position of entities that needs to

extract the relation, then take the maximum value

max piece n (n is the number of segments) in each

segment, and perform the same operation for all con-

volution vectors. Then the extracted maxima are

spliced into a new vector, and a nonlinear operation

is performed on the vector. Finally, the vector ob-

tained is represented as the feature of the current text

sentence.

3.2.4 Dropout and Softmax Classiﬁer

The conventional neural networks connection mode

is full connection, the connection method of Dropout

algorithm is to randomly set the original input data

(in this paper, the result vector of segmented pooling)

to 0 according to a certain proportion, and only other

elements without 0 are involved in the calculation and

connection.

We assume that only one sample is taken for each

parameter update. The process can be described as

follows: Firstly, set some elements of the input vector

to 0 according to the proportion ρ, and the elements

without 0 are involved in the operation and optimiza-

tion of the classiﬁer; Then the input vector for the sec-

ond sample is accepted, and the training elements are

selected in the same way as random 0 setting until

all samples have learned once. Since only one sam-

ple is entered at a time, the 0 setting is random, so

the network weight parameters are different for each

update. In the process of ﬁnal prediction, the param-

eters of the whole network are multiplied by 1 − ρ,

and the ﬁnal classiﬁer network parameters can be ob-

tained. The ﬁnal network parameters of the Dropout

algorithm are composed of the parameters of multiple

modules, which is a process to extract the important

information and remove the useless information, so it

has better generalization ability.

Assume the vector generated by piecewise max-

pooling is c

, the way the drop-out algorithm sets its

element to 0 can be represented by Bernoulli distri-

bution, which ﬁrst used to generate a binary vector

(elements only have 0 or 1) r with dimensions equal

to c

r ∼ Bernoulli(ρ) (6)

The vector entered into the softmax classiﬁer is de-

noted as:

= c

· r (7)

The network parameters of the softmax classiﬁer are

deﬁned as W

and the bias vector is b

, then the output

of the network is:

o = f



+ b



(8)

Where f is sigmoid function or tanh function, then

the probability that the current sentence belongs to the

category is:

p(i|S) = e

∑

j=1

(9)

Where o

represents the i

element of vector o, and N

represents the number of categories.

3.2.5 Objective Function

The parameters to be optimized include two parts:

word vector and network parameters.The word vec-

tor is deﬁned as E, the parameter of convolution op-

eration is

W , and the parameter of classiﬁer is W

set θ =



W ,W



. For samples of training set

Ω =



), (S

), ··· ,



|Ω|



, in which S

represents the i

h sentence and y

represents its cate-

gory label. |Ω| represents the number of training set

samples, p(y

,θ) represents the probability of clas-

sifying a sentence S

into the relation category y

when

the parameter theta is given. Then the objective func-

tion of optimization is:

L =

|Ω|

∑

i=1

log p(y

,θ) + λθ

(10)

Where λ is the parameter to the regular term.

Although PCNN has made great progress in dis-

tant supervision relation extraction, it still has the fol-

lowing deﬁciencies:

First, if there is a relation between two entities,

at least one sentence will express it. According to

this assumption, PCNN only selects the most likely

sentence of each entity pair in the training and pre-

diction, ignoring other meanings of the entity pair in

other sentences, which is difﬁcult to apply in the real-

istic context of polysemy.

Secondly, PCNN regards remote supervision as

a single label task, only selecting the most possible

relation for each entity pair, but in reality, there are

many cases of multiple relations between an entity

pair, e.g.: ‘As Alice’s best friend and husband, Bob

and she lived happily after marriage for more than 50

years’, in the above sentence, entity Alice and entity

Bob have two relations: ‘spouse’ and ‘friend’. There-

fore, Multi-instance and Multi-labeled Relation Ex-

traction can be seen as our future work.

4 EXPERIMENT

We use several models based on Piecewise Convolu-

tional Neural Networks for distant supervision. Since

Effective Piecewise CNN with Attention Mechanism for Distant Supervision on Relation Extraction Task

PCNN is the improved method of conventional Con-

volutional Neural Networks (CNN), we compared

this 2 methods together to verify the advantages of

PCNN, and use 3 different selectors: Attention, Aver-

age, Maximum respectively to evaluate the precision

value in top 100 categories, top 200 categories and top

300 categories (P@100, P@200, and P@300).

In which the essence of the Attention mechanism

is the process of assigning attention weight to fea-

tures. The function of the Attention mechanism is that

it can learn the hidden states that need to be used and

how the weight of hidden states be allocated. Atten-

tion selectors are suitable for tasks that require grasp-

ing key points or contain keywords. Average refers

to taking the mean as the ﬁnal value, which is suit-

able for cases where all sentences of information need

to be considered comprehensively. Maximum means

that the maximum value is taken as the ﬁnal value,

which is applicable to the case with large noise.

For the relation extraction task through this study,

we use the NYT-FB dataset, which is an open dataset

obtained by the Freebase (Bollacker et al., 2008)

repository aligned with the text of the New York

Times. The training data were gotten from the New

York Times in 2005 and 2006, and the test library data

were the Times text in 2007. NYT-FB data set with a

total of 53 kinds of relations, a total of 695,059 data

(the training set contains 522,611 statement, nearly

80% of the sentences in the training data labels for

N/A, test statements set contains 172,448), by com-

bining FreeBase with NYT corpus for entity linking,

relation alignment and other operations for annota-

tion, a widely used relation extraction data set is ﬁ-

nally obtained.

5 RESULT

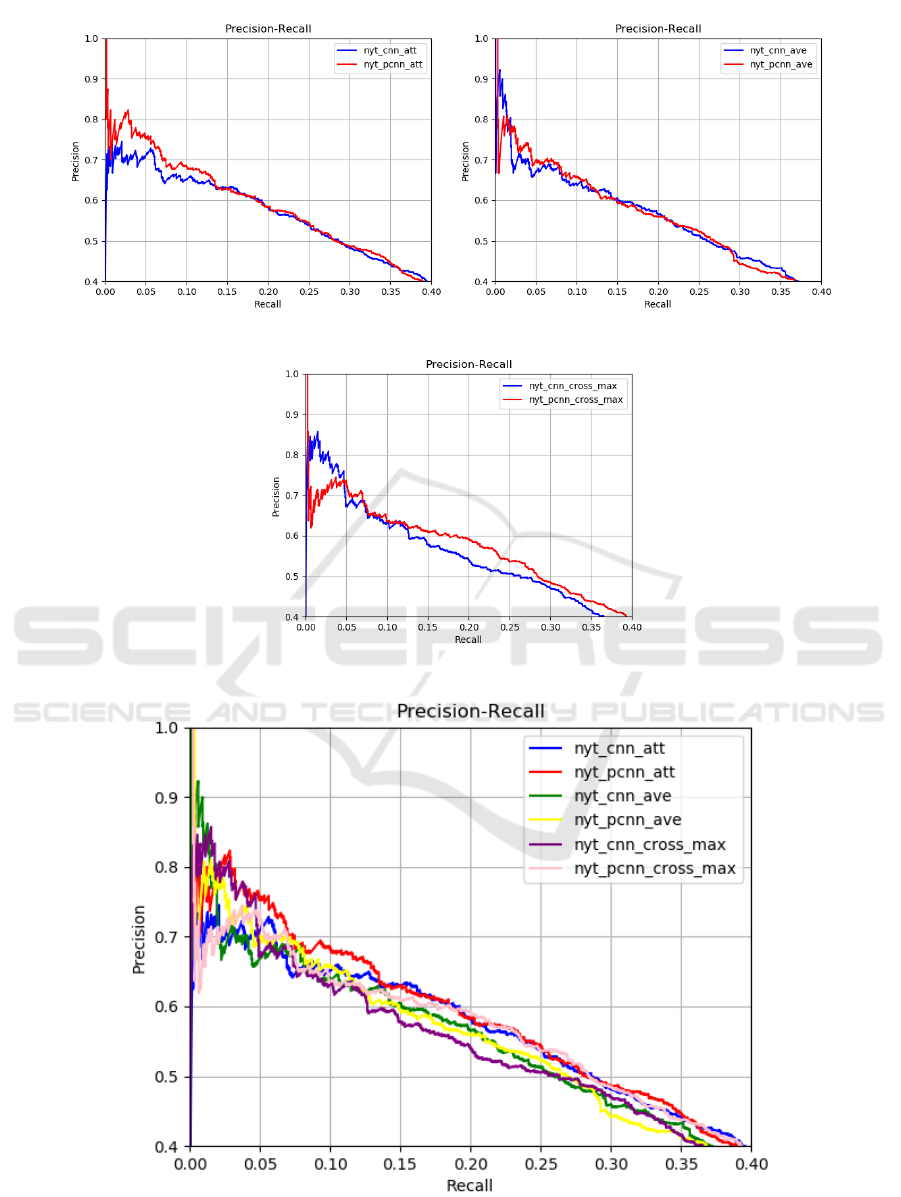

Table 1, Figure 3 and Figure 4 show the result and

its Precision-Recall curve of Distant Supervision for

Relation Extraction task. From Table 1, we can ﬁnd

that Piecewise Convolutional Neural Networks with

Attention Mechanism shows the best result with the

precision of 76.24% in the top 100 relation categories

in the NYT dataset and achieves the 71.39% precision

on average. Compare with conventional CNN, PCNN

gets a 3.2% improvement with the Attention mech-

anism, a 2.87% improvement with the Average se-

lector, but a 1.15% decrease with maximum selector.

The slightly decrease mainly due to the Piece-wise

operation cut the whole text into 3 pieces, and Max-

imum selector chooses the max value in each piece,

and get the average in the ﬁnal calculation. The key

information is weakened according to the piece-wise

Table 1: Results of Distant Supervision for Relation Extrac-

tion task.

Model Range Attention Average Maximum

CNN

P@100 0.7228 0.6931 0.7723

P@200 0.6716 0.6766 0.6866

P@300 0.6512 0.6412 0.6312

Mean 0.6819 0.6703 0.6967

PCNN

P@100 0.7624 0.7426 0.7327

P@200 0.7015 0.6965 0.6816

P@300 0.6777 0.6578 0.6412

Mean 0.7139 0.6990 0.6852

process, and ﬁnally get the worse result than conven-

tional CNN. In addition, as the range of test categories

increased from 100 to 300, the accuracy of all models

decreased. This reason is obvious, as the range in-

creased, the uncertainty increased, and eventually, the

accuracy decreased according to the indeterminacy.

Figure 3 compares each selector in CNN and

PCNN, which is intended to compare the differences

between the conventional CNN and the improved

PCNN in the same model, the ﬁrst ﬁgure (CNN and

PCNN with attention mechanism) has the most obvi-

ous effect. PCNN represented by the red line is signif-

icantly higher than CNN represented by the blue line

at ﬁrst, however, due to the increasing recall rate, the

gap gradually becomes smaller. The comparison of

the middle ﬁgure is not as obvious as the ﬁrst ﬁgure,

mainly due to the average selector has the function of

weakening the emphasis, which can narrow the effect

gap caused by the essence of the model to some ex-

tent. Although the third ﬁgure shows a contradictive

result, the reason has been discussed in the last para-

graph. However, from a global perspective, the Piece-

wise Convolutional Neural Networks with Attention

mechanism works best in Distant Supervision for Re-

lation Extraction task.

Figure 4 collects the Precision-Recall curves of

all models on one ﬁgure, which intends to make the

comparison between each model more intuitive and

obvious. We can learn from the line chart, the red

line represents the PCNN-Attention model accuracy

is better than other models, at the same time CNN-

Maximum model is showed relatively poor results, in

which the precision of the PCNN-Maximum model

improved signiﬁcantly with the increase of recall.

In our proposed model, we use PCNN with the At-

tention mechanism and get the precision of 76.24%,

which is higher than Convolutional Neural Networks

with 3.96% precision improvement.

COMPLEXIS 2020 - 5th International Conference on Complexity, Future Information Systems and Risk

Figure 3: Comparison of CNN and PCNN model in different selectors.

Figure 4: Precision-Recall of All Tested Models.

Effective Piecewise CNN with Attention Mechanism for Distant Supervision on Relation Extraction Task

6 CONCLUSION

Relation extraction often faces the problem of lacking

a sufﬁcient amount of training data, so effective label

learning under weak supervision becomes extremely

challenging. The Distant Supervision as a novel idea

that can solve the problem of training data annota-

tion missing in the existing relation extraction task to

a certain extent.

In this paper, we proposed a Distant Supervi-

sion method based on Piecewise Convolutional Neu-

ral Networks with Attentional mechanism for auto-

matically annotating unlabeled data on Relation Ex-

traction task, and achieved the highest precision is

76.24% on NYT-FB (New York Times - Freebase)

dataset (top 100 relation categories). The results

proved that our method performed better than CNN-

based models in most cases. This helps with a more

precise deep learning-based Relationship Extraction

task.

ACKNOWLEDGMENT

We are grateful to VC Research (Funding No. VCR

0000040) to support this work.

REFERENCES

Bollacker, K., Evans, C., Paritosh, P., Sturge, T., and Tay-

lor, J. (2008). Freebase: a collaboratively created

graph database for structuring human knowledge. In

Proceedings of the 2008 ACM SIGMOD international

conference on Management of data, pages 1247–

1250. AcM.

Collobert, R., Weston, J., Bottou, L., Karlen, M.,

Kavukcuoglu, K., and Kuksa, P. (2011). Natural lan-

guage processing (almost) from scratch. Journal of

machine learning research, 12(Aug):2493–2537.

He, D., Zhang, H., Hao, W., Zhang, R., Chen, G., Jin,

D., and Cheng, K. (2017). Distant supervised rela-

tion extraction via long short term memory networks

with sentence embedding. Intelligent Data Analysis,

21(5):1213–1231.

Huang, Y. Y. and Wang, W. Y. (2017). Deep residual learn-

ing for weakly-supervised relation extraction. arXiv

preprint arXiv:1707.08866.

Kalchbrenner, N., Grefenstette, E., and Blunsom, P. (2014).

A convolutional neural network for modelling sen-

tences. arXiv preprint arXiv:1404.2188.

LeCun, Y., Bottou, L., Bengio, Y., Haffner, P., et al. (1998).

Gradient-based learning applied to document recogni-

tion. Proceedings of the IEEE, 86(11):2278–2324.

Lin, Y., Shen, S., Liu, Z., Luan, H., and Sun, M. (2016).

Neural relation extraction with selective attention over

instances. In Proceedings of the 54th Annual Meeting

of the Association for Computational Linguistics (Vol-

ume 1: Long Papers), pages 2124–2133.

McDonald, R. and Nivre, J. (2007). Characterizing the er-

rors of data-driven dependency parsing models. In

Proceedings of the 2007 Joint Conference on Empir-

ical Methods in Natural Language Processing and

Computational Natural Language Learning (EMNLP-

CoNLL).

Mintz, M., Bills, S., Snow, R., and Jurafsky, D. (2009).

Distant supervision for relation extraction without la-

beled data. In Proceedings of the Joint Conference

of the 47th Annual Meeting of the ACL and the 4th

International Joint Conference on Natural Language

Processing of the AFNLP: Volume 2-Volume 2, pages

1003–1011. Association for Computational Linguis-

tics.

Ren, X., Wu, Z., He, W., Qu, M., Voss, C. R., Ji, H., Ab-

delzaher, T. F., and Han, J. (2017). Cotype: Joint ex-

traction of typed entities and relations with knowledge

bases. In Proceedings of the 26th International Con-

ference on World Wide Web, pages 1015–1024. Inter-

national World Wide Web Conferences Steering Com-

mittee.

Surdeanu, M., Tibshirani, J., Nallapati, R., and Man-

ning, C. D. (2012). Multi-instance multi-label learn-

ing for relation extraction. In Proceedings of the

2012 joint conference on empirical methods in natural

language processing and computational natural lan-

guage learning, pages 455–465. Association for Com-

putational Linguistics.

Zeng, D., Liu, K., Chen, Y., and Zhao, J. (2015). Dis-

tant supervision for relation extraction via piecewise

convolutional neural networks. In Proceedings of the

2015 Conference on Empirical Methods in Natural

Language Processing, pages 1753–1762.

Zeng, D., Liu, K., Lai, S., Zhou, G., and Zhao, J. (2014).

Relation classiﬁcation via convolutional deep neural

network. In Proceedings of COLING 2014, the 25th

International Conference on Computational Linguis-

tics: Technical Papers, pages 2335–2344.

COMPLEXIS 2020 - 5th International Conference on Complexity, Future Information Systems and Risk
