Develop or Dissipate Fogs? Evaluating an IoT Application

in Fog and Cloud Simulations

Andras Markus, Peter Gacsi and Attila Kertesz

Department of Software Engineering, University of Szeged, Szeged, Hungary

Keywords:

Fog Computing, Cloud Computing, Internet of Things, Simulation.

Abstract:

The recent advances in Information and Communication Technology had a signiﬁcant impact on distributed

systems by giving birth to novel paradigms like Cloud Computing, Fog Computing and the Internet of Things

(IoT). Clouds and fogs have promising properties to serve IoT needs, which require enormous data to be

stored, processed and analysed generated by their sensors and devices. Since such IoT-Fog-Cloud systems

can be very complex, it is inevitable to use simulators to investigate them. Cloud simulation is highly studied

by now, and solutions offering fog modelling capabilities have also started to appear. In this paper we brieﬂy

compare fog modelling approaches of simulators, and present detailed evaluations in two of them to show the

effects of utilizing fog resources over cloud ones to execute IoT applications. We also share our experiences

in working with these simulators to help researchers and practitioners, who aim to perform future research in

this ﬁeld.

1 INTRODUCTION

The rapid evolution of parallel and distributed com-

puting gave birth to cloud technologies in 2010 by en-

abling virtualized service provisions. The appearance

of small computational devices connected to the Inter-

net has led to the Internet of Things (IoT) paradigm,

which resulted in a vast amount of data generations

requiring the assistance of cloud services for storage,

processing and analysis. Soon coupled IoT-Cloud

systems (Botta et al., 2016) were realized to execute

IoT applications often referred as smart systems. One

of their latest optimization processes addressed data

locality meaning that data management operations are

better placed close to their origins to reduce service

latency. Finally, this approach has led to the paradigm

called Fog Computing (Dastjerdi and Buyya, 2016),

which immediately took its place to create IoT-Fog-

Cloud systems having the highest complexity.

Such IoT-Fog-Cloud systems require signiﬁcant

investments in terms of design, development and op-

eration, therefore the use of simulators for their in-

vestigation is inevitable. There are a large number

of simulators addressing the analysis of parts of these

systems, and we can ﬁnd survey papers of cloud, IoT

and fog simulators summarizing their basic capabili-

ties and comparing them according to certain metrics,

e.g. by (Puliaﬁto et al., 2019).

These surveys concluded that modelling Fog

Computing in simulators is still in its infancy and

needs further research. Nevertheless, some of these

simulators are already capable of examining IoT-Fog-

Cloud system behavior to some extent. Our research

was also motivated by Mann (Mann, 2018), who pre-

sented a comparison of two cloud simulators based

on integration possibilities of virtual machine (VM)

placement algorithms. In this paper we follow a sim-

ilar approach to compare the extended versions of

these simulators, namely iFogSim and DISSECT-CF-

Fog, which are able to model fogs, and found reliable

and widespread enough by former surveys.

The main contributions of this paper are: (i)

the comparison of the fog modelling approaches of

iFogSim and DISSECT-CF-Fog through an IoT sce-

nario, and (ii) a detailed evaluation of the effects of

utilizing various fog and cloud resources in IoT-Fog-

Cloud systems at different scales.

The remainder of this paper is as follows: Sec-

tion 2 brieﬂy introduces related works in terms of

available fog simulators. Section 3 we compare fog

modelling capabilities of two simulators, then in Sec-

tion 4 we present an evaluation of an IoT application

with different scenarios. In Section 5 we further anal-

yse DISSECT-CF-Fog at higher scales. Finally, Sec-

tion 6 concludes our work.

Markus, A., Gacsi, P. and Kertesz, A.

Develop or Dissipate Fogs? Evaluating an IoT Application in Fog and Cloud Simulations.

DOI: 10.5220/0009590401930203

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 193-203

ISBN: 978-989-758-424-4

193

2 RELATED WORK

We can ﬁnd several survey papers in the ﬁeld of Cloud

Computing and Fog Computing of tools supporting

modelling and simulation. Concerning the proper-

ties and modelling of Fog Computing, Puliaﬁto et al.

(Puliaﬁto et al., 2019) presented a survey highlight-

ing and categorizing the properties of Fog Comput-

ing, and investigated the beneﬁts of applying fogs to

support the needs of IoT applications. They intro-

duced six IoT application groups exploiting fog capa-

bilities, and gathered fog hardware and software plat-

forms supporting the needs of these IoT applications.

Markus et al. (Markus and Kertesz, 2019) focused

on available cloud, IoT and fog simulators, and com-

pared them according to several metrics such as soft-

ware metrics and general characteristics. Concerning

fog simulation, they introduced and classiﬁed 18 sim-

ulators. We selected ﬁve recent fog simulators, and

brieﬂy compared them in Table 1. We noted their

base simulator, publication date and type for their cat-

egorization. The network type simulators usually fo-

cus on low-level network interaction between entities

such as routers, switches and nodes, but less suitable

for the higher level of abstraction (e.g. virtual ma-

chines), whilst event-driven type simulators are more

general and usually lack implemented the network op-

erations or only support minimal network trafﬁc sim-

ulation, but they are easier to be used for accurate rep-

resentation of higher level system components. We

also summarized the number of literature search re-

sults (i.e. hits) performed in Google Scholar

, and we

summed the number of citations of the top ﬁve rele-

vant hits.

DISSECT-CF-Fog is based on DISSECT-CF, and

a direct extension of the DISSECT-CF-IoT simulator

(Markus et al., 2017), also developed by the authors.

The base simulator is able to model cloud environ-

ments and supports energy measurements of physical

resources. The extended version supports the mod-

elling of IoT systems and its communications. The

whole software is fully conﬁgurable, and follows a

hierarchical structure.

EdgeCloudSim (Sonmez et al., 2017) is a

CloudSim extension with the main capabilities of net-

work modelling, including extensions for WLAN,

WAN and device mobility. The developers of this tool

aimed to respond to the disadvantage of the simple

network model of iFogSim by introducing network

load management and content mobility to this sim-

ulator.

The FogNetSim++ (Qayyum et al., 2018) is built

Google Scholar is available at: https://scholar.google.com

Accessed in September, 2019.

on the OMNeT++ discrete event simulator, which fo-

cuses on network simulation. This extension pro-

vides conﬁguration options for fog network manage-

ment including node scheduling and selection. It is

also able to model different communication protocols,

such as MQTT or CoAP, and different mobility mod-

els.

One of the most applied and referred fog simula-

tors is iFogSim (Gupta et al., 2016), which is based

on CloudSim. iFogSim can be used to simulate cloud

and fog systems using the sensing, processing and ac-

tuating model. It is able to model cloud and fog de-

vices with certain resource parameters. Sensors and

actuators can also be managed represented by a Tu-

ple. There are dedicated modules for processing and

data-ﬂows.

DockerSim (Nikdel et al., 2017) aims to support

the analysis of container-based SaaS systems in sim-

ulated environments. It is based on the iCanCloud

network simulator, this extension can model container

behaviour, network, protocol and OS process schedul-

ing behaviour.

Though all of these simulators would be interest-

ing to be further analysed, after performing a quick

pre-evaluation we found that iFogSim and DISSECT-

CF-Fog are the most mature and documented solu-

tions, and we also took into account a literature search

result and number of citations for our decision. We

also considered numerous iFogSim extensions, which

have appeared in the last few years, and the sup-

port for novel functions or properties of Fog Comput-

ing (as proposed by a recent survey in (Markus and

Kertesz, 2019)). Unfortunately, only a few of those

extensions were published with available source code,

thus our goal was to make a comparison with the orig-

inal version of iFogSim. A former simulator compar-

ison by Mann (Mann, 2018) also had an effect on our

decision, which addressed the core of these simulators

(namely CloudSim and DISSECT-CF).

3 FOG MODELLING IN iFogSim

AND DISSECT-CF-Fog

The CloudSim-based extensions (e.g. iFogSim

or EdgeCloudSim) are often used for investigating

Cloud and Fog Computing approaches, and in general

they are the most referred works in the literature. On

the other hand, the DISSECT-CF simulator is proven

to be much faster, scalable and reliable then CloudSim

(see (Mann, 2018)). This former research showed that

the simulation time of DISSECT-CF is 2800 times

faster than the CloudSim simulator for similar cloud

use cases, therefore we have chosen to analyse their

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

194

Table 1: Comparison of fog simulators.

Simulator Based on

Published

Type Hits Citations

DISSECT-CF-Fog DISSECT-CF 2019 event-driven 68 75

EdgeCloudSim CloudSim 2019 event-driven 108 88

FogNetSim++ OMNET++ 2018 network 1 11

iFogSim CloudSim 2017 event-driven 679 452

DockerSim iCanCloud 2017 network 8 3

latest extensions to compare fog modelling. Next, we

brieﬂy introduce these simulators, and compare their

fog modelling capabilities.

iFogSim is a Java-based simulator, its main physi-

cal components are the following: (i) fog devices (in-

cluding cloud resources, fog resources, smart devices)

with possibility to conﬁgure CPU, RAM, MIPS,

uplink- and downlink bandwidth, busy and idle power

values; (ii) actuators with geographic location and ref-

erence to the gateway connection; (iii) sensors, which

generate data in the form of a Tuple representing

information. The main logical components aim to

model a distributed application are: the AppModule,

which is a processing element of iFogSim, and the

AppEdge that realises the logical data-ﬂow between

the VMs. The main management components are:

the Module Mapping that searches for a fog device to

serve a VM – if no such device is found, the request is

sent to an upper tier object; and the Controller is used

to execute the application on a fog device. For simu-

lating fog systems, ﬁrst we have to deﬁne the physi-

cal components, then the logical components, ﬁnally

the controller entity. Although numerous articles and

online source codes are available for the usage of this

simulator, there is a lack of source code comments for

many methods, classes and variables. As a result, ap-

plication modelling with this tool requires a relatively

long learning curve, and its operations take valuable

time to understand.

DISSECT-CF-Fog is an discrete event simulator

for modelling Cloud, IoT and Fog environments, writ-

ten in Java programming language. The main advan-

tage of this tool is the detailed conﬁguration possi-

bilities across its low-level components: timer mod-

ules manage the simulation time and the events. The

network layer can be used for simulating bandwidth

and latency, and it models data transfers as well. The

physical components are responsible for the creation

of a physical infrastructure of any graph hierarchy

with storage support for resource and ﬁle modelling.

The sensor and smart device layer is responsible for

modelling data generation with a certain frequency,

measurement delays, geographical position and net-

work connections, and sensor conﬁgurations. The

application layer handles the physical topology, the

task mapping for VMs, and the data-ﬂow between

the physical components. Finally, the support layer

is capable of applying pricing models of real cloud

providers to calculate resource usage costs for the ex-

periments. These parameters could be easily edited

through XML conﬁguration ﬁles, thus large scale

simulation experiments can be executed even without

Java programming knowledge (for the predeﬁned sce-

narios).

iFogSim and DISSECT-CF-Fog are quite evolved

and complex simulators, and follow different logic

to model Fog Computing, as the previous paragraphs

highlighted. This means that though they have similar

components, we cannot match them easily. Based on

(Gupta et al., 2016), iFogSim was created to model re-

source management techniques in Fog environments,

for what the DISSECT-CF-Fog can also be applica-

ble (Kecskemeti, 2015). To facilitate their compari-

son, we gathered and compared their properties and

components closest to each other and showed them

in Table 2. Its ﬁrst column names a generic simu-

lation property or entity, the second column shows

how they are represented in DISSECT-CF-Fog, and

the third summarizes their representation in iFogSim.

As we can see, the biggest difference between them

is the chosen unit for simulation time measurement.

iFogSim measures time passing in the simulated en-

vironment in milliseconds, while DISSECT-CF-Fog

has a speciﬁc naming for the smallest unit for simu-

lation time called tick, which is related to the simula-

tion events. The researcher using the simulator can set

up the parameters and properties of a concrete simu-

lation to associate a certain time interval (e.g. mil-

lisecond) for a tick. The measurement of processing

power in the simulators can also be done with differ-

ent approaches. iFogSim associates MIPS for every

node, which represents the computational power and

does not take into account the number of CPU cores.

The number of CPU cores affects only the creation of

virtual machines. In DISSECT-CF-Fog both physi-

cal machines (PM) and virtual machines (VM) have

to be conﬁgured with CPU core processing values,

which deﬁne how many instructions should be pro-

cessed during one tick.

A physical component is represented by one ded-

Develop or Dissipate Fogs? Evaluating an IoT Application in Fog and Cloud Simulations

195

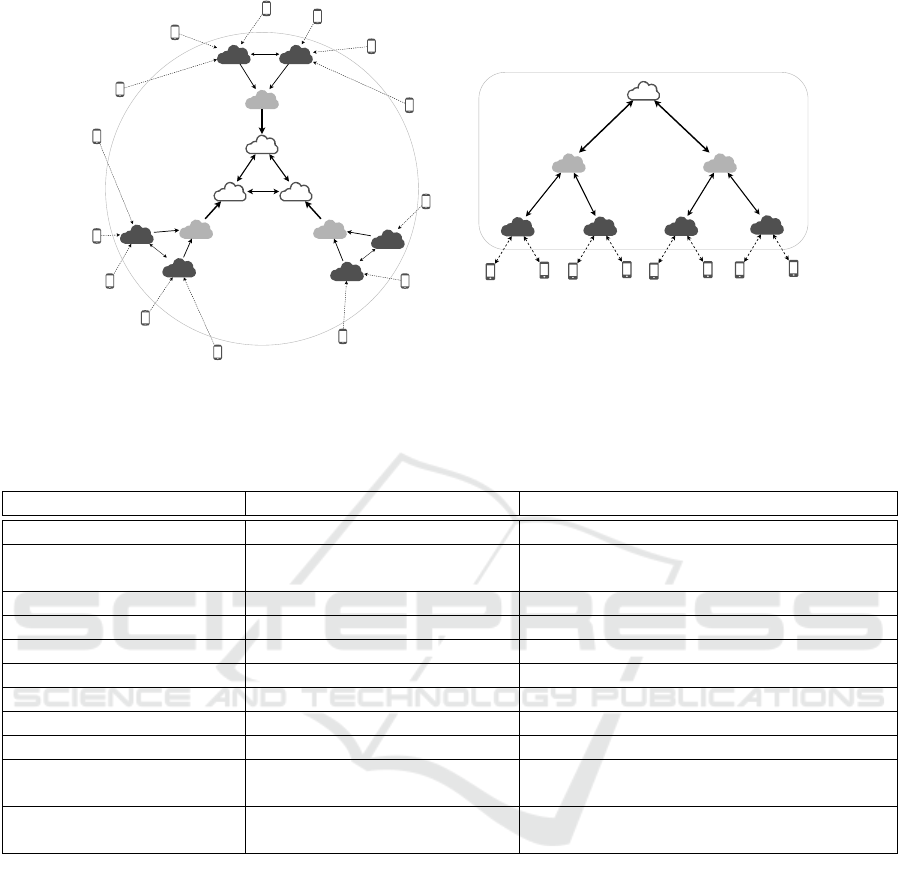

Cloud nodes

Fog nodes

IoT devices

Graph topology of DISSECT-F-Fog Tree topology of iFogSim

Cloud node

Fog nodes

IoT devices

Figure 1: Topology of the DISSECT-CF-Fog and the iFogSim.

Table 2: Comparison of DISSECT-CF-Fog and iFogSim.

Property DISSECT-CF-Fog iFogSim

Unit of the simulation time tick millisecond

Unit of the processing

CPU core

processing power

MIPS

Physical component ComputingAppliance FogNode

IoT model Device and Sensor Sensor

Logical component Application Application with AppModule and AppEdge

Task ComputeTask on VM Tuple

Architecture Graph Tree

Communication direction Horizontal and vertical Vertical

Data-ﬂow implicit in physical connection separately in the AppEdge

Sensor

processing depends on the

size of the data generated

predeﬁned MIPS value

Pricing

Dynamic cost for

cloud and IoT side

Static cost for RAM, storage,

bandwidth and CPU

icated class (see 3rd row of Table 2) in both simu-

lators. To represent IoT components, iFogSim uses

the Sensor class, while DISSECT-CF-Fog differen-

tiate general IoT devices with computing and stor-

age capacities and smaller sensors managed Device

and Sensor classes. The logical components to de-

ﬁne concrete applications are implemented with three

classes deﬁning processing elements and logical data-

ﬂow in iFogSim (Application, AppEdge, AppMod-

ule), which are not straighforward to conﬁgure. Be-

sides, the ModuleMapping class is an important com-

ponent, which is responsible for the mapping of the

logical and physical entities based on a given strategy

(e.g. cloud-aware, edge-aware). On the other hand, in

DISSECT-CF-Fog the physical topology already de-

ﬁnes data routes, so researchers can focus on setting

up the required processing units (of the components

placed in the topology). The representation of compu-

tational tasks is also different. In DISSECT-CF-Fog,

researchers should deﬁne a ComputeTask with a cer-

tain number of instructions, also stating the number of

instructions to be executed within a tick. In iFogSim,

researchers should deﬁne a so-called Tuple for each

task and state the number of MIPS required for its

execution. In DISSECT-CF-Fog tasks can be dynam-

ically created to process a certain amount of sensor-

generated data, therefore the number of instructions

will be proportional (to the available data) in the cre-

ated tasks. In iFogSim a static MIPS value should

be deﬁned in the Tuple, hence it cannot respond to

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

196

the actually generated data of a scenario. Concerning

the communication among components, iFogSim or-

ders components in a hierarchical way and supports

only vertical communication among elements of its

layers (by default), while DISSECT-CF-Fog supports

communication to any direction among any compo-

nents in the topology. Figure 1 also depicts the dif-

ferent representation of IoT-Fog-Cloud systems in the

considered simulators, highlighting their architectural

and communication possibilities. To support cost cal-

culations and pricing, in iFogSim static cost can be

deﬁned for CPU, bandwidth, storage and memory

usage. DISSECT-CF-Fog has a more mature cost

model, and it supports XML-based conﬁguration for

cloud and IoT side costs based on real provider pric-

ing schemes.

4 EVALUATION OF AN IoT

APPLICATION IN FOG

SIMULATORS

4.1 Scenarios and Key Metrics for the

Comparison

As we mentioned in the previous section, these simu-

lators are heterogeneous, thus we have to apply some

restrictions to present a fair and realistic comparison.

We limit the conﬁguration of DISSECT-CF-Fog by

allowing only single core CPUs for the simulated re-

sources. In case of DISSECT-CF-Fog, the speed of

the task execution depends on the number of CPU

cores and processing power of those, whilst in the

iFogSim only the MIPS value of the task deﬁnes the

time of task processing, as we mentioned before. The

common parameters that can be set up in both simula-

tors with similar values are the followings: simulation

time, data generation frequency, processing power

and conﬁguration of the physical resources, count

of instructions for the tasks, and ﬁnally the physical

topology. Nevertheless, we cannot avoid introducing

some different setups. In iFogsim, the devices have

direct connections to the physical resources, while

in DISSECT-CF-Fog, connection properties also in-

clude actual coordinates and distances to the corre-

sponding physical resources.

We also have to deal with the issue that iFogSim

does not take into account the size of the gener-

ated data in task creation, because the Sensors in

iFogSim always create Tuples with the same MIPS

value, hence the ﬁle size does not have an inﬂuence on

that value. As a result, dynamically received sensor

data on a fog device cannot be modelled, only static,

predeﬁned tasks have to be used. To allow fair com-

parison, we conﬁgured the scenarios in DISSECT-

CF-Fog to always generate task with the same size.

Concerning task forwarding, in iFogSim a fog de-

vice uses a method to forward a received (or gener-

ated) task to a higher-level device, if it cannot han-

dle (i.e. process) it. In case of DISSECT-CF-Fog,

every application module has a threshold value to

handle task overloading, which deﬁnes the number

of allowed waiting tasks. If this number exceeds

the threshold (so more tasks arrive than it could be

processed), the unhandled tasks will be forwarded

to other available nodes (according to some selec-

tion algorithm). To match the default behavior of

iFogSim, the topology deﬁned in DISSECT-CF-Fog

allowed only vertical forwarding among the available

fog nodes (i.e. tasks are forwarded to upper nodes

only).

After applying these restrictions to make the two

simulators comparable, we had to ﬁnd an IoT appli-

cation as a case study for our measurements. Since

we thoroughly analyzed meteorological applications

in our previous works (see (Markus et al., 2017)),

we decided to use this analogy in this paper as well.

So in our scenario sensors attached to IoT devices

(i.e. weather stations) monitor weather conditions,

and send the sensed data to fog or cloud resources for

processing (i.e. for weather forecasting and analysis).

To perform the comparison, we deﬁned four lay-

ers for the topology: (i) a cloud layer, (ii) an upper

Fog device layer with stronger resources, (iii) a lower

Fog device layer with weaker resources, and (iv) an

IoT (smart) device layer. For the concrete resource

parameters we deﬁned one scenario with three differ-

ent test cases:

• In the ﬁrst test case we set up 20 IoT devices to

generate data to be processed;

• in the second test case we initiated 40 IoT devices;

• while in the third test case we initiated 80 IoT de-

vices for data generation (where each device had

a single sensor).

• Concerning data processing we used the following

resource parameters for the test cases: one Cloud

with 45 CPU cores and 45 GB RAM, 4 (stronger)

Fog nodes with 3 CPU cores and 3 GB RAM each,

20 (weaker) Fog nodes with 1 CPU core and 1 GB

RAM.

We did not use preset workloads during the experi-

ments, only the started sensors generated data inde-

pendently, thus in both simulators we executed so-

called bag-of-tasks applications in fogs and clouds.

In some cases the use of traditional hypervisors is not

possible on fog nodes, there we may use container

Develop or Dissipate Fogs? Evaluating an IoT Application in Fog and Cloud Simulations

197

technologies. In our paper we refrain from distin-

guishing containers and traditional virtual machines,

hence both considered simulators model virtual ma-

chines to serve application execution. To be as close

to iFogSim as possible, we only used one type of

Virtual Machine in DISSECT-CF-Fog, having 1 CPU

core and 1 GB RAM. In case of iFogSim, the power

of virtual machines was 1000 MIPS. The tasks to be

executed in VMs were statically set to 2500 MIPS in

both simulators. The simulation time was set to 10

000 seconds, and sensor readings were done every 5.1

seconds (i.e. the data generation frequency of the sen-

sors). Each sensor generated 500 bytes of data during

one iteration. The latency and bandwidth values were

set equally in both simulators.

All the experiments were run on a PC with Intel

Core i5-7300HQ 2.5GHz, 8GB RAM and a 64-bit

Windows 10 operating system. The results of exe-

cuting the test cases with both simulators can be seen

in Table 3. We executed the same test cases ﬁve times

with both simulators and counted their medium val-

ues to be stored in the table. To compare the use of the

simulators, we only took into account the default out-

puts of the simulators and their execution time (e.g.

cost calculations were neglected, hence they follow

different logic in the simulators, and also do not re-

ally relevant for the performance comparisons).

According to these measurements, we can observe

that the time needed for executing the simulation of

the ﬁrst test case was about ten times more with

iFogSim, than with DISSECT-CF-Fog. In the sec-

ond test case we doubled the number of IoT devices,

and the runtime values increased with about 25% in

case of DISSECT-CF-Fog and about 71% in case of

iFogSim. Comparing their runtime, DISSECT-CF-

Fog is better suited for high-scale simulations, while

iFogSim simulations become intolerably time con-

suming by modelling higher than a certain number of

entities. In the third test case we could not even wait

the measurements to ﬁnish (cancelled them after 1.5

hours).

The application delay is the time within the simu-

lation needed to process all remaining data in the sys-

tem, after we stopped data generation by the IoT de-

vices. The results in Table 3 show that this delay was

longer in case of iFogSim, though the generated data

sizes were equal for the same test cases in both sim-

ulators (hence the output results concerning the pro-

cessed data were also equal). This is due to the dif-

ferent methods of task creation, scheduling and pro-

cessing in the simulators (we could not eliminate all

differences with the restrictions).

Finally, we used a simple source code metric to

compare the implemented scenarios in the simulators.

The so-called lines of code (LOC) is a common metric

for analysing software quality. It is interesting to see

that the same scenario could have been written three

times shorter in case of DISSECT-CF-Fog, than in

iFogSim. Of course, we tried to implement the code

in both simulators with the least number of methods

and constructs (in Java language). We also have to

state that some conﬁguration parameters had to be

set at different parts of the software (this adds some

lines in case of iFogSim, and around 20 lines of XML

generation and conﬁguration in case of DISSECT-

CF-Fog). The considered iFogSim scenario is avail-

able online

, while the DISSECT-CF-Fog scenarios

are available here

We can draw some conclusions from the exper-

iments performed so far. We managed to model

an IoT-Fog-Cloud environment with both simulators,

and investigated a meteorological IoT application ex-

ecution on top of it with different sensor and fog and

cloud resource numbers. While DISSECT-CF-Fog

dealt these simulations with ease, iFogSim struggled

to simulate more than 65 entities of this complex sys-

tem. Nevertheless, it is obvious that there are only a

small number of real-world IoT applications that re-

quire only hundreds of sensors and fog or cloud re-

sources; we need to be able to examine systems and

applications composed of hundred thousands of these

components. We continue our investigations in this

direction, and in the next section we further raise the

scale and analyse the behavior of DISSECT-CF-Fog.

5 DETAILED EVALUATION OF

DISSECT-CF-Fog

Our goal in this section is to extend our investigation

for larger IoT systems and applications, which means

we increase the number of fog nodes to hundreds

and smart devices to hundreds of thousands. Hence

DISSECT-CF-Fog was more reliable for modelling

fog environments in our previous evaluation, we con-

tinue its investigation with ﬁve additional test cases,

in which we compare a cloud-centred solution to a

fog-centred architecture, where additional fog nodes

appear beside cloud resources.

As we mentioned before, DISSECT-CF-Fog uses

an XML document structure to conﬁgure system pa-

rameters. To deﬁne the additional scenarios, we need

iFogSim simulator is available at: https://github.com/

petergacsi/iFogSim/. Accessed in September, 2019.

DISSECT-CF-Fog simulator is available at: https://github

.com/andrasmarkus/dissect-cf/tree/fog-extension/.

Accessed in September, 2019.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

198

Table 3: Comparison of the two simulators.

Property DISSECT-CF-Fog iFogSim

Test case I. II. III. I. II. III.

Runtime (ms) 248.75 312.5 392.58 2260.33 3873.66 5400000*

Application delay (min) 3.41 4.33 4.33 14.89 17.52 N.A.

Generated data (byte) 19600000 39200000 78400000 19600000 39200000 N.A.

Lines of code

50 lines + XML ﬁles

for detailed conﬁguration

159 lines + some

inline constants

Table 4: Maximum number of created entities during the simulations in iFogSim and DISSECT-CF-Fog.

Scenario

iFogSim DISSECT-CF-Fog

Cloud/Fog nodes IoT devices Sensors Cloud/Fog nodes IoT devices Sensors

I/a 25 20 20 25 20 20

I/b 25 40 40 25 40 40

I/c 25 80 80 25 80 80

II/a

N.A.

3 100 000 500 000

II/b 98 100 000 500 000

II/c 113 100 000 500 000

II/d 153 100 000 500 000

II/e 208 100 000 500 000

<?xml version="1.0"?>

<parentApp>cloud2-app</parentApp>

<instance>a1.xlarge</instance>

</application>

</applications>

</device>

</neighbourAppliances>

</appliance>

</appliances>

Figure 2: Sample XML description for the application

model in DISSECT-CF-Fog.

to know this structure. An example of such descrip-

tion can be seen in Figure 2, which contains only one

physical fog infrastructure (called appliance), but its

tag can be used multiple times in the document. The

name tag is the unique identiﬁer of a fog device, and

the xcoord,ycoord describes the exact location of this

physical resource. In this case this XML describes a

child fog node, since the parentApp refers to its parent

node, which is a cloud apparently. The ﬁle tag con-

tains the absolute path of another XML ﬁle, which

present the conﬁguration of physical machines this

fog node should have. The application tag is also re-

peatable, it tells what kind of application this physical

resource has (should execute). The tasksize attribute

tells us how much data (in bytes) should be gathered

to create a task (250 kB in this example). appName is

the unique identiﬁer of this application module. The

application has a task creation frequency (called freq),

which deﬁnes periodical intervals for task generation

and data forwarding (in this case its value is 300000

ms, i.e. ﬁve minutes). The instance tag refers to a VM

type this application should use. Finally, one can de-

ﬁne possibly multiple neighbouring devices (by stat-

ing a formerly deﬁned unique identiﬁer of an infras-

tructure in the device tag), to which data or tasks may

be forwarded. Possible advantages using XML ﬁles

are to create simulation that researchers do not have

to understand the tasks of low-level simulator compo-

nents, XML schemas can secure more readable for-

mat to conﬁgure the system than a JAVA code.

In the current evaluation phase we introduced dif-

ferent VM types of ﬂavors, to show some of the ad-

ditional capabilities DISSECT-CF-Fog has. We used

Develop or Dissipate Fogs? Evaluating an IoT Application in Fog and Cloud Simulations

199

three real VM pricing and conﬁguration types based

on Amazon Web Services’ offerings

: (i) a1.large

VM (2 CPU cores, 4 GBs RAM with $0.051 hourly

cost), (ii) a1.xlarge VM (2 CPU cores, 4 GBs RAM

with $0.102 hourly cost) and the last one is (iii)

a1.2xlarge VM (8 CPU cores, 16 GBs RAM with

$0.204 hourly cost).

In this phase we enabled the dynamic task cre-

ation method that takes into account the size of the

generated data. Our default conﬁguration (for clouds)

required every task to contain maximum 2 500 000

bytes of data (to be processed).

We deﬁned IoT-Fog-Cloud systems using the

same four layers as we used before: (i) a cloud layer,

(ii) a stronger Fog layer (called Fog Type 1 – T1), (iii)

a weaker Fog layer (called Fog Type 2 – T2), and (iv)

an IoT device layer. In each layer we could deﬁne

different number of cloud or fog infrastructures with

different resources. We used the following conﬁgura-

tion values for the computational infrastructures:

• a cloud contains 200 CPU cores and 400 GBs

RAM, and all of its VMs are of type a1.2xlarge.

• a T1 fog contains 48 CPU cores and 112 GBs

RAM, offering a1.xlarge VM type. It also rede-

ﬁnes the default task size (to be executed in this

node) to 1 250 000 bytes.

• a T2 fog contains 12 CPU cores and 24 GBs

RAM, offering a1.large VM type. The task size

in this infrastructure is set to 625 000 bytes.

We also changed the conﬁguration of IoT devices

(weather stations in the analogy) in this phase. In-

stead of containing a single sensor, we deﬁned ﬁve

sensors to be attached to an IoT device (so a weather

station has ﬁve sensors to monitor temperature, hu-

midity, pressure, rain, wind speed), all of them gen-

erating 100 bytes of data every minute (which is the

data generation frequency).

In DISSECT-CF-Fog one can set the maximum

number of tasks to be handled by a computational

node. In this evaluation phase we set it to three,

so if more data arrived to a node than what three

tasks could process, the remaining data is forwarded

(neighbouring) fog or cloud node to be processed. In

case there is no available VM to execute a newly cre-

ated task on a node, the VM managed tries to deploy

a new one.

We used ﬁve different topologies for this second

scenario: (a) three clouds, (b) three cloud with 15 Fog

T1 and 80 Fog T2, (c) three cloud with 30 Fog T1 and

80 Fog T2 (d) three cloud with 30 Fog T1 and 120

AWS EC2 Instance Pricing is available at:

https://aws.amazon.com/ec2/pricing/on-demand/, 2019.

Fog T2 and the last (e) three cloud with 45 Fog T1

and 160 Fog T2.

To reach hundreds of thousands of simulated com-

ponents we created eight test cases for each topology

deﬁned earlier. We investigated how the system be-

haves under serving an increased number of IoT de-

vices. We deﬁned 5 000 smart devices (weather sta-

tions) at the beginning, and we scaled them up to

reach 10 000, 20 000, 30 000, 40 000, 50 000, 75

000, and ﬁnally in the last test case the total number

of IoT devices were 100 000 (each of them run with

ﬁve sensors, thus our simulator managed 500 000 en-

tities). Table 4 summarizes the number of simulated

components (entities) in each of the performed exper-

iments.

Number of IoT devices

Number of VMs

250

500

750

1000

5000 10000 20000 30000 40000 50000 75000 100000

3 Cloud 3 Cloud + 15 Fog T1 + 80 Fog T2

3 Cloud + 30 Fog T1 + 80 Fog T2 3 Cloud + 30 Fog T1 + 120 Fog T2

3 Cloud + 45 Fog T1 + 160 Fog T2

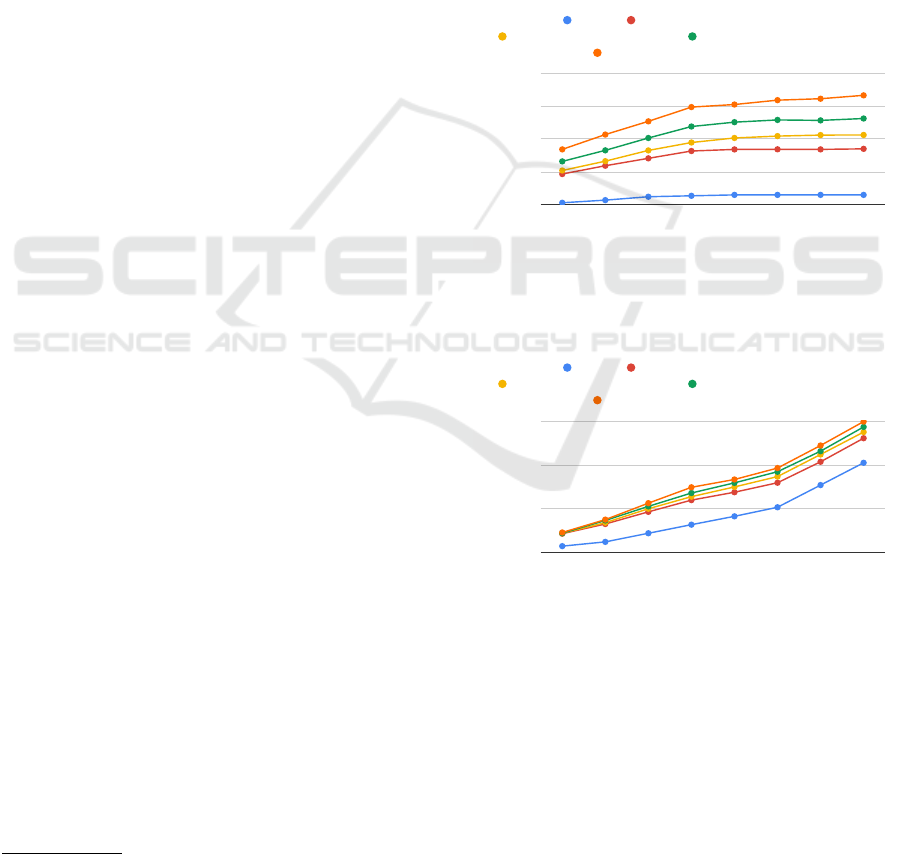

Figure 3: Correlation of the number of VMs needed to pro-

cess data and the number of IoT devices that generated the

data in DISSECT-CF-Fog simulations.

Number of IoT devices

Cost in Euro

500

1000

1500

5000 10000 20000 30000 40000 50000 75000 100000

3 Cloud 3 Cloud + 15 Fog T1 + 80 Fog T2

3 Cloud + 30 Fog T1 + 80 Fog T2 3 Cloud + 30 Fog T1 + 120 Fog T2

3 Cloud + 45 Fog T1 + 160 Fog T2

Figure 4: Correlation of total operating costs of applications

and the number of managed IoT devices in DISSECT-CF-

Fog simulations.

5.1 Results and Discussion

Finally, we also scaled up the simulation time to 24

hours of weather forecasting, while we run the sim-

ulated data generation and processing for around 2.7

hours in the former, ﬁrst three scenarios.

We present the evaluation results by comparing

each scenario with the following metrics: the number

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

200

Number of IoT devices

Time in minutes (log. scale)

100

500

1000

5000

5000 10000 20000 30000 40000 50000 75000 100000

3 Cloud 3 Cloud + 15 Fog T1 + 80 Fog T2

3 Cloud + 30 Fog T1 + 80 Fog T2 3 Cloud + 30 Fog T1 + 120 Fog T2

3 Cloud + 45 Fog T1 + 160 Fog T2

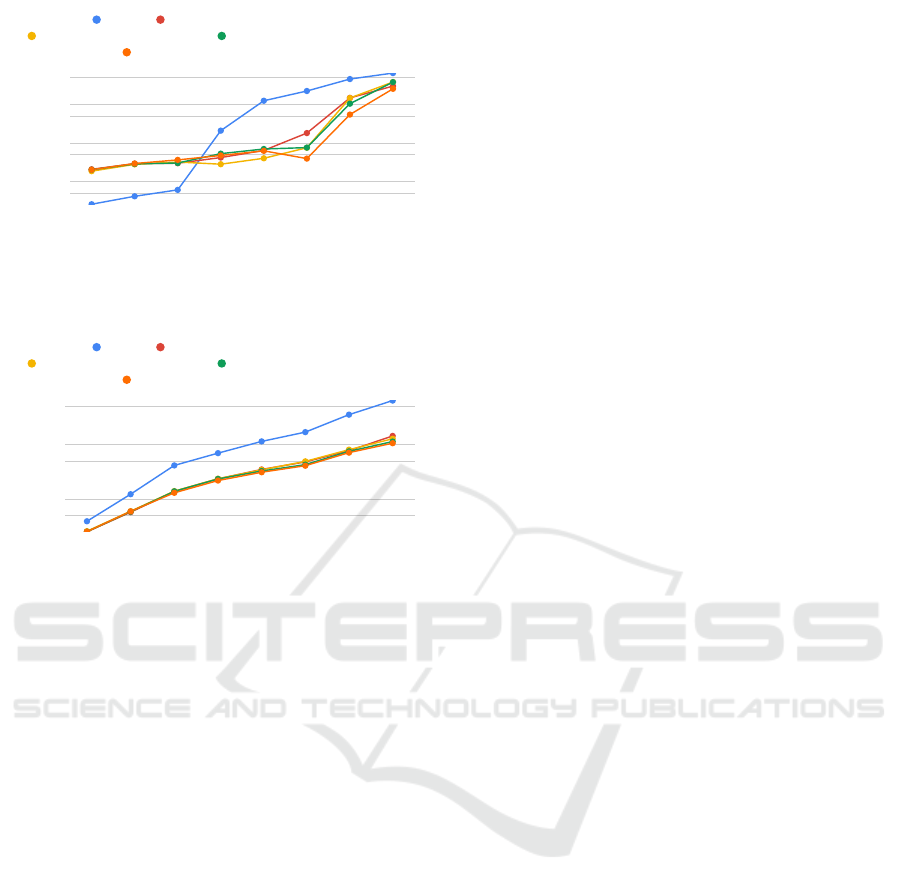

Figure 5: Correlation of application delay and the number

of managed IoT devices in DISSECT-CF-Fog simulations.

Number of IoT devices

Time in minutes (log. scale)

0,5

5000 10000 20000 30000 40000 50000 75000 100000

3 Cloud 3 Cloud + 15 Fog T1 + 80 Fog T2

3 Cloud + 30 Fog T1 + 80 Fog T2 3 Cloud + 30 Fog T1 + 120 Fog T2

3 Cloud + 45 Fog T1 + 160 Fog T2

Figure 6: Correlation of runtime of simulations and the

number of managed IoT devices in DISSECT-CF-Fog.

of IoT devices managed in the simulations (we recall

that each device had ﬁve sensors that generated data),

the number of VMs needed to process the generated

data, the total costs of operating the IoT devices and

utilizing the VMs both in fogs and clouds, the appli-

cation delay (or timeout) values that denoted the time

passed after stopping the sensors (i.e. its data gen-

eration) till the end of the simulation, and ﬁnally the

runtime (execution time) of the actual simulation. De-

tailed evaluation results are depicted in Figures 3, 4,

5 6 and 7.

Figure 3 shows an important characteristic of our

simulated system. The conﬁguration of larger task

sizes in clouds led to the creation of a relatively small

number of strong VMs (75 in the largest test case) to

process these tasks. In case of fogs we had a much

higher number of nodes executing a large number of

weaker VMs (834 in the largest test case) to process

the larger number of tasks (created to process less data

than in clouds). We can also notice that after the ﬁfth

case (managing 40 000 IoT devices) the number of

cloud VMs does not grow any more: we reached the

maximum capacity of the available clouds (all phys-

ical resources are fully utilized). This means that in

the purely cloud cases the infrastructure was heav-

ily overloaded during managing more than 40 000

devices (weather stations). This issue was also ap-

proved by the results shown in Figure 4, where we

can observe the costs to be paid for hiring the man-

agement infrastructure. The purely clouds scenarios

were the cheapest, where a small number of expensive

VMs were utilized (and overloaded most of the time).

In general, with the conﬁguration we used (based on

Amazon pricing), hiring additional fog nodes resulted

in higher costs, even if fog resources were cheaper

(considering the total costs and the number of VMs

utilized in the scenarios, a fog VM costs 1.79 Eu-

ros, while a cloud VM costs 13.62 Euros in average).

Figure 7 further details the shares of fog and cloud

utilization costs. Here we can see that the more fog

nodes we introduce, the more they are preferred by

the application.

Figure 5 reveals additional interesting behavior. It

shows that in the purely cloud scenario overloading

started even after utilizing more than 20 000 IoT de-

vices. So managing around 25 000 IoT devices (i.e.

125 000 sensors) we can see a trend break point: it

is faster and cheaper to manage less number of de-

vices with only clouds, while for a higher number of

devices utilizing fogs can help to reduce the applica-

tion delay (with higher costs). For the test case hav-

ing the highest scale, 6 591 minutes were needed for

the application to terminate (after data generation of

the sensors was stopped) in the purely cloud scenario,

while utilizing the largest fog infrastructure needed

only 2 574 minutes. By correlating this with their

costs, we can conclude that we have to pay 46% more

for 156% faster data processing.

Our last ﬁgure reveals how the simulator coped

with the test cases of the scenarios. Figure 6 shows the

elapsed real time (wall-clock time, or simply runtime)

taken to execute the simulations of the test cases. It is

also interesting to see that simulating a higher num-

ber of fog and cloud nodes and VMs took less time

than a smaller number of cloud nodes and VMs. We

can observe that runtime is in correlation with the ap-

plication delay, so this is one of the reasons for this

issue. The other explanation is that in the fog cases

the higher number of smaller tasks (and their data)

were better treated (processed) by the higher number

of fog VMs, while in the purely cloud cases many

bigger tasks (with larger amount of data) had to be

waiting in queues for the overloaded VMs.

To summarize our evaluation, we can conclude

that DISSECT-CF-Fog has a more detailed and ﬁne-

grained fog model than iFogSim. It can also scale up

to simulate hundreds of thousands of IoT-Fog-Cloud

system components simultaneously with acceptable

runtime. Our experiments also revealed that utilizing

fogs beside clouds can be beneﬁcial in terms of reduc-

Develop or Dissipate Fogs? Evaluating an IoT Application in Fog and Cloud Simulations

201

Test cases for 10 000, 20 000 and 30 000 IoT devices

Cost In Euro

200

400

600

800

3 C 3 C +

15 T1 +

80 T2

3 C +

30 T1 +

80 T2

3 C +

30 T1 +

120 T2

3 C +

45 T1 +

160 T2

3 C 3 C +

15 T1 +

80 T2

3 C +

30 T1 +

80 T2

3 C +

30 T1 +

120 T2

3 C +

45 T1 +

160 T2

3 C 3 C +

15 T1 +

80 T2

3 C +

30 T1 +

80 T2

3 C +

30 T1 +

120 T2

3 C +

45 T1 +

160 T2

Fog Type 2 Fog Type 1 Cloud

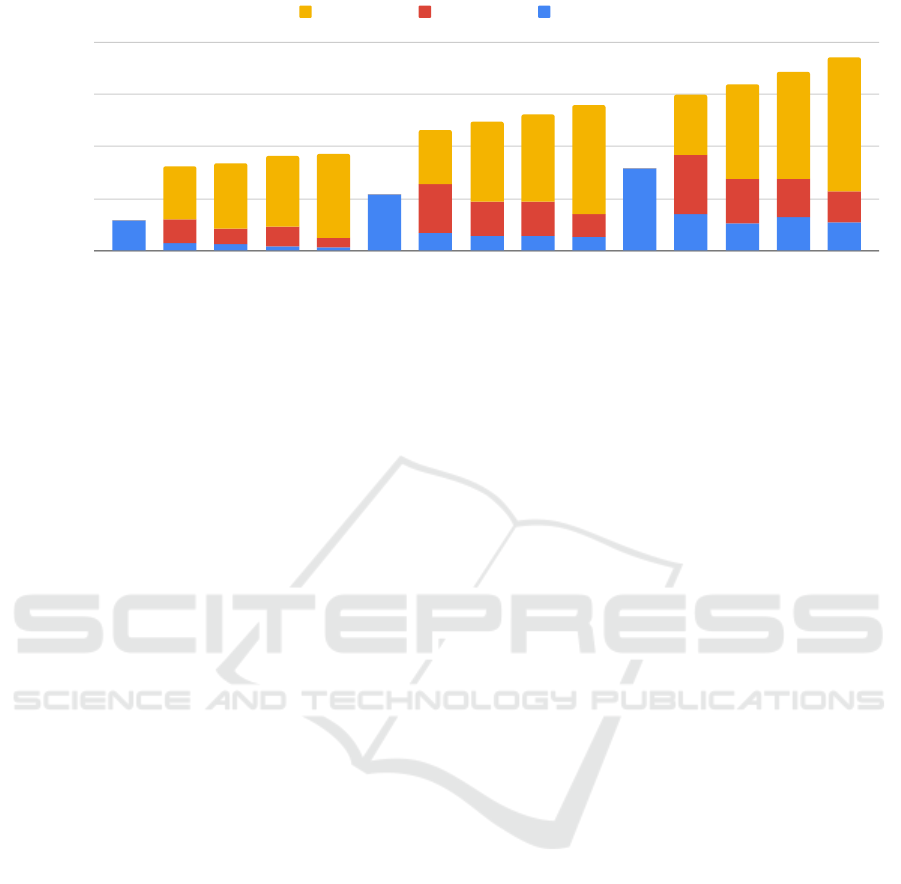

Figure 7: Detailed cost values during DISSECT-CF-Fog simulations of 10 000 to 30 000 IoT devices.

ing the application execution time (and delay in our

notion), though we had to pay more for them. Never-

theless, different pricing schemes for fogs (other than

clouds) may also result in cost savings (e.g. own or

a neighbor’s fog device may be free to use in smart

home applications).

6 CONCLUSIONS

We have seen how the recent technological advances

transformed distributed systems and enabled the cre-

ation of complex networking environments called

IoT-Fog-Cloud systems, where IoT devices generate

data to be stored, processed and analysed in clouds

and/or fogs. Hence designing, developing and operat-

ing these systems need simulation to be cost and time

efﬁcient, specialized simulators should provide means

to investigate these processes.

In this paper we compared two fog modelling ap-

proaches and presented detailed evaluations of two

simulators capable of analysing IoT-Fog-Cloud sys-

tems. We discussed how to create and execute sim-

ulated IoT scenarios using fog and cloud resources

with these tools, and compared their ease of uti-

lization and simulation efﬁciency under similar con-

ditions. We can conclude that DISSECT-CF-Fog

can provide faster and more reliable simulations for

higher scales, but the beneﬁts of utilizing fog or cloud

resources are highly dependant on the actual IoT sce-

nario. Moreover DISSECT-CF-Fog secures an easier

way to conﬁgure IoT applications on a fog architec-

ture, because the creation of the data ﬂow on the logi-

cal components (applications) happens automatically

with the deﬁnition of physical components (nodes),

whilst the iFogSim follows more complicated logic

for the mapping of these two types of components.

Moreover, DISSECT-CF-Fog is also applicable

and programmable for resource and energy manage-

ment investigation of fog architectures considering

IoT speciﬁc characteristics and it secures alternative

solutions compared to other simulation solutions.

Our future work will investigate a more detailed

representation and use of mobility features of IoT

and fog devices. We also plan to provide predeﬁned

resource selection strategies using sophisticated ap-

proaches.

ACKNOWLEDGEMENTS

This research was supported by the Hungarian Sci-

entiﬁc Research Fund under the grant number OTKA

FK 131793, and by the grant TUDFO/47138-1/2019-

ITM of the Ministry for Innovation and Technology,

Hungary.

REFERENCES

Botta, A., de Donato, W., Persico, V., and Pescap

e, A.

(2016). Integration of cloud computing and internet

of things: A survey. Future Generation Comp. Syst.,

56:684–700.

Dastjerdi, A. V. and Buyya, R. (2016). Fog computing:

Helping the internet of things realize its potential.

Computer, 49(8):112–116.

Gupta, H., Dastjerdi, A. V., Ghosh, S. K., and Buyya, R.

(2016). ifogsim: A toolkit for modeling and simula-

tion of resource management techniques in the inter-

net of things, edge and fog computing environments.

Softw., Pract. Exper., 47:1275–1296.

Kecskemeti, G. (2015). Dissect-cf: A simulator to fos-

ter energy-aware scheduling in infrastructure clouds.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

202

Simulation Modelling Practice and Theory, 58:188–

218.

Mann, Z.

A. (2018). Cloud simulators in the implementa-

tion and evaluation of virtual machine placement al-

gorithms. Softw., Pract. Exper., 48:1368–1389.

Markus, A. and Kertesz, A. (2019). A survey and taxonomy

of simulation environments modelling fog computing.

Simulation Modelling Practice and Theory.

Markus, A., Kert

esz, A., and Kecskemeti, G. (2017). Cost-

aware iot extension of dissect-cf. Future Internet,

9:47.

Nikdel, Z., Gao, B., and Neville, S. W. (2017). Dockersim:

Full-stack simulation of container-based software-as-

a-service (saas) cloud deployments and environments.

In 2017 IEEE Paciﬁc Rim Conference on Communi-

cations, Computers and Signal Processing (PACRIM),

pages 1–6.

Puliaﬁto, C., Mingozzi, E., Longo, F., Puliaﬁto, A., and

Rana, O. (2019). Fog computing for the internet

of things: A survey. ACM Trans. Internet Technol.,

19(2).

Qayyum, T., Malik, A. W., Khattak, M. A. K., Khalid, O.,

and Khan, S. U. (2018). Fognetsim++: A toolkit for

modeling and simulation of distributed fog environ-

ment. IEEE Access, 6:63570–63583.

Sonmez, C., Ozgovde, A., and Ersoy, C. (2017). Edge-

cloudsim: An environment for performance evalua-

tion of edge computing systems. 2017 Second Inter-

national Conference on Fog and Mobile Edge Com-

puting (FMEC), pages 39–44.

Develop or Dissipate Fogs? Evaluating an IoT Application in Fog and Cloud Simulations

203
