Evaluation of Change Point Detection Algorithms for Application in Big

Data Mini-term 4.0

E. Garcia

1 a

, N. Montes

2 b

, J. Llopis

1 c

and A. Lacasa

1 d

Ford Spain, Poligono industrial Ford S/N, CP 46440, Almussafes, Valencia, Spain

Department of Mathematics, Physics and Technological Sciences, University CEU Cardenal Herrera,

C/ San Bartolome 55, Alfara del Patriarca, Valencia, Spain

Keywords:

Mini-term, Big Data, Mini-term 4.0, Prognostics, Change Point, Breakdown.

Abstract:

The present study analyses in depth the algorithms of change point detection in time series for the prediction

of failures through the monitoring of mini-terms in real time. The mini-term is a new concept in the area

of failure prediction that is based on the measurement of the time it takes for a component to perform its

task. The simplicity of the technique has made it feasible to build industrial Big Data for the prediction of

failures based on this concept. There are currently more than 11,000 sensorized mini-terms at Ford factory

in Almussafes (Valencia). For the present study, 10 representative real cases of the different change points

that have been detected up to the present were selected and, these cases were analysed by using the change

point algorithms, which are representative of the great majority of algorithms described in the literature in

their different versions. As a result, their accuracy was measured when detecting the change point and its

computational cost. A discussion of the results is shown at the end of the paper.

1 INTRODUCTION

The manufacturing industry is experiencing a rapid

evolution (or revolution) towards what some have

called Industry 4.0. In this new paradigm the factories

are highly automated and computerized, all their pro-

cesses are connected and interact with each other and

with external processes. With instrumentation sys-

tems, PLCs (Programmable Logic Controllers), large

amounts of data can be generated, which must be

manipulated to convert them into useful information

at each of the various levels of the manufacturing

system: machine, manufacturing cell, assembly line,

technical ofﬁce, production management, etc.

Currently there are consolidated technologies in

the industry such as PLCs, technologies that have

been coexisting with the industry for a long time, but

today, they are not adapted to the changes demanded.

The new paradigms emerging in the industry such as

Agile Manufacturing are introducing concepts such

as the dynamic reconﬁguration of manufacturing sys-

tems, and in particular from software. Although the

https://orcid.org/0000-0002-4210-9835

https://orcid.org/0000-0002-0661-3479

https://orcid.org/0000-0001-5543-2255

https://orcid.org/0000-0003-4379-0682

most important concept is focused on connectivity in

Industry 4.0. In this regard, new applicable technolo-

gies such as Big Data,Cloud Manufacturing and the

Internet of Things (IoT) have emerged and introduced

new standards in the production process.

1.1 Big Data

When we talk about Big Data, we mean the data sets

or combinations of data sets whose size (volume),

complexity (variability) and speed of growth (speed)

make it difﬁcult to capture, manage, process or anal-

yse using conventional technologies and tools, such

as relational databases and conventional statistics or

visualization packages, within the time necessary for

them to be useful.

The complex nature of Big Data is mainly due to

the unstructured nature of much of the data generated

by modern technologies, such as web logs, radio fre-

quency identiﬁcation (RFID), built-in sensors in de-

vices, machinery, vehicles, Internet searches, social

networks such as Facebook, laptops, smart phones

and other mobile phones, GPS devices and call center

records.

In most cases, in order to effectively use Big Data,

it must be combined with structured data (usually

Garcia, E., Montes, N., Llopis, J. and Lacasa, A.

Evaluation of Change Point Detection Algorithms for Application in Big Data Mini-term 4.0.

DOI: 10.5220/0009594001170124

In Proceedings of the 17th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2020), pages 117-124

ISBN: 978-989-758-442-8

117

from a relational database) of a more conventional

commercial application, such as an ERP (Enterprise

Resource Planning) or a CRM (Customer Relation-

ship Management).

1.2 Big Data for Predictive

Maintenance. Making a Proﬁt

Comes First

In general, maintenance can be classiﬁed as two main

groups: Corrective (CM) Preventive (PM) and Predic-

tive (PdM) Maintenance. CM is carried out when the

machine fails or some of the elements of the equip-

ment are damaged and must be replaced or repaired,

this element and/or part will be responsible for a fail-

ure in the entire line if the action is not executed. PM

is carried out to prevent fail, as a rutinary mainte-

nance task. However, the PM is carried out before

the equipment fails. The purpose of a PM order is to

promote continuous production of the system and/or

minimize the loss of performance. Usually, in the

industry the indicator of deterioration is constructed

through the monitoring of variables such as vibration,

temperature and noise of the machine. However, if

we want to avoid line shutdowns, it would be nec-

essary to build Big Data and place these sensors on

all machines and this would lead to exorbitant costs,

(A.K.S.Jardine et al., 2006).Therefore, there is cur-

rently no system that performs this task in real time

and for all machines, and this causes that, currently,

only speciﬁc machines are sensorized and/or that one

or more operators take measurements of the machines

“manually”, that is, they transfer the sensors from one

machine to another.

2 PREVIOUS WORKS

2.1 From the Micro-term to the

Long-term

The literature classiﬁes the data used in the analysis

of the manufacturing process into two types, the long-

term data (long-terms) and the short-term data (short-

terms). Long-term data are used mainly for pro-

cess planning while short-term data are used mainly

for process control. There is abundant literature

that works with the analysis of long-term times, in

comparison with the literature that studies short-term

times. Following the deﬁnition of (L.Li et al., 2009),

the short-term data refer to a time not long enough

for the failure period of the machine and where the

cycle time of the machine is considered short-term

time. In (E.Garcia, 2016) the short term is redeﬁned

in two new terms, the mini-term and the micro-term.

A mini-term can be deﬁned as the time that a part of

the machine needs to perform its own task. This mini-

term subdivision can be selected based on a policy of

preventive maintenance or in a breakdown, in which

it could be replaced in an easier and faster way than

another sub-divided part of the machine. Also a mini-

term could be deﬁned as a sub-division that allows us

to understand and study the machine behaviour. In

the same way, a micro-term is deﬁned as the time in

which each part of the mini-term could be divided it-

self. This model has been published in (E.Garcia and

N.Montes, 2017).

2.2 Mini-term Degradation Path. A

Change Point

Prediction and analysis of degradation paths are im-

portant to condition-based maintenance (CBM). It is

well known that the degradation paths are non-linear.

It means that in the degradation path, a sudden change

point appears when the RUL (Remaining Useful Life)

is near the end, see (X.Zhao, 2018), (X.Zhao, 2014).

Before the change point, the component works in op-

timal conditions and after the change point the com-

ponent works in bad conditions alerting that the fail-

ure will happen soon.

The change point in the physical part of the ma-

chine components produces a similar effect in the sub-

cycle time, that is, a change point in the mini-term,

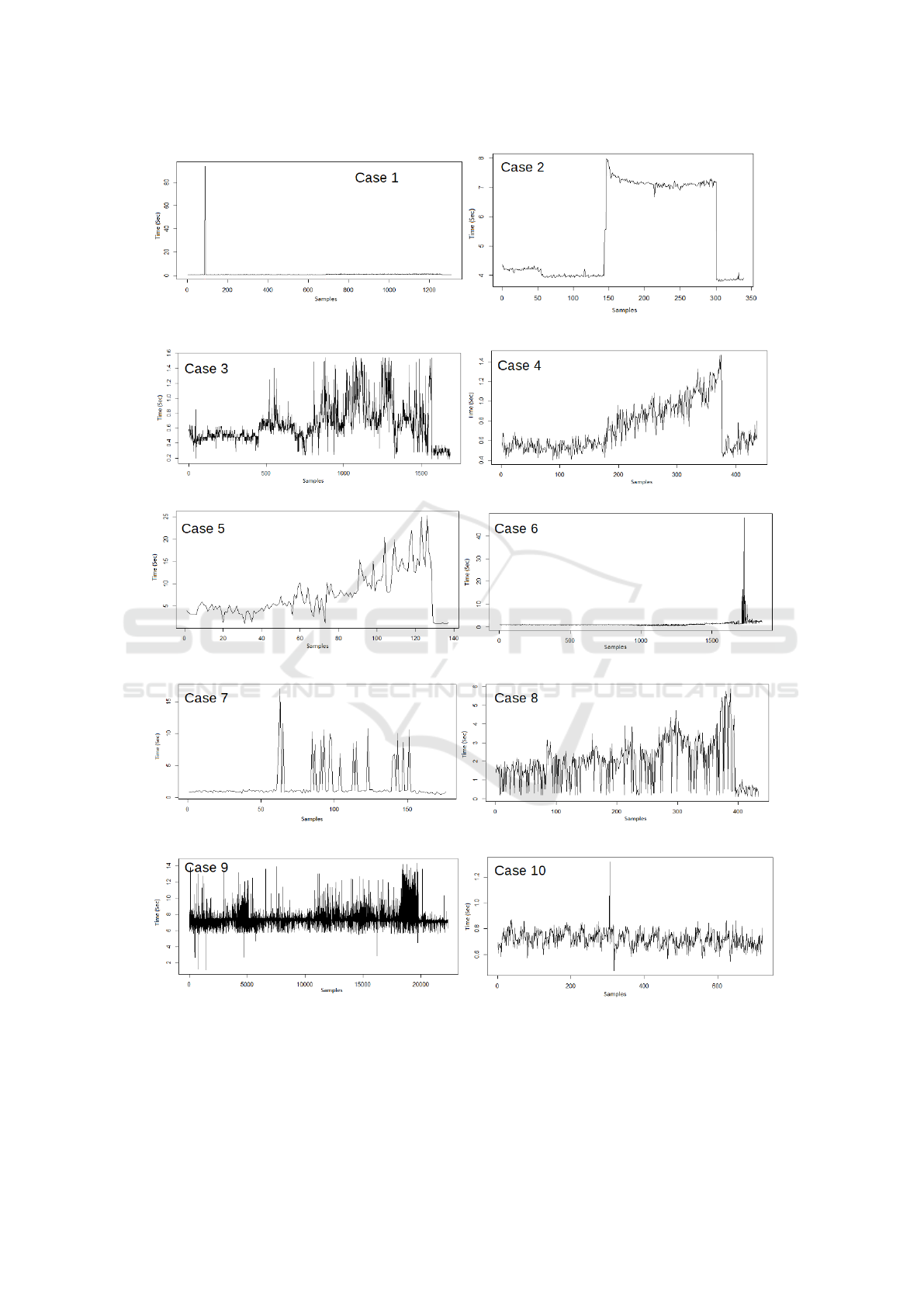

Figure 2 shows cases measured at Ford factory in Al-

mussafes. When a change point is dectected in the

mini-term, an alarm must be activated for the mainte-

nance workers to replace it, as soon as possible.

3 TOWARDS BIG DATA BASED

ON MINITERMS FOR

PREDICTIVE MAINTENANCE

The results presented in (E.Garcia et al., 2018) gener-

ated a great expectation at Ford Motor Company, be-

cause the mini-term provides a great advantage over

other sensors, it is easier and cheaper to install. It is

cheap because no additional hardware installation is

required to measure the sub-cycle time, just the use

of the PLC and sensors installed for the automated

production process, and it is easy because we only

need to code extra timers into the PLC. Therefore, the

Ford Motor Company began the implementation of

mini-terms in its Almussafes plant and for this pur-

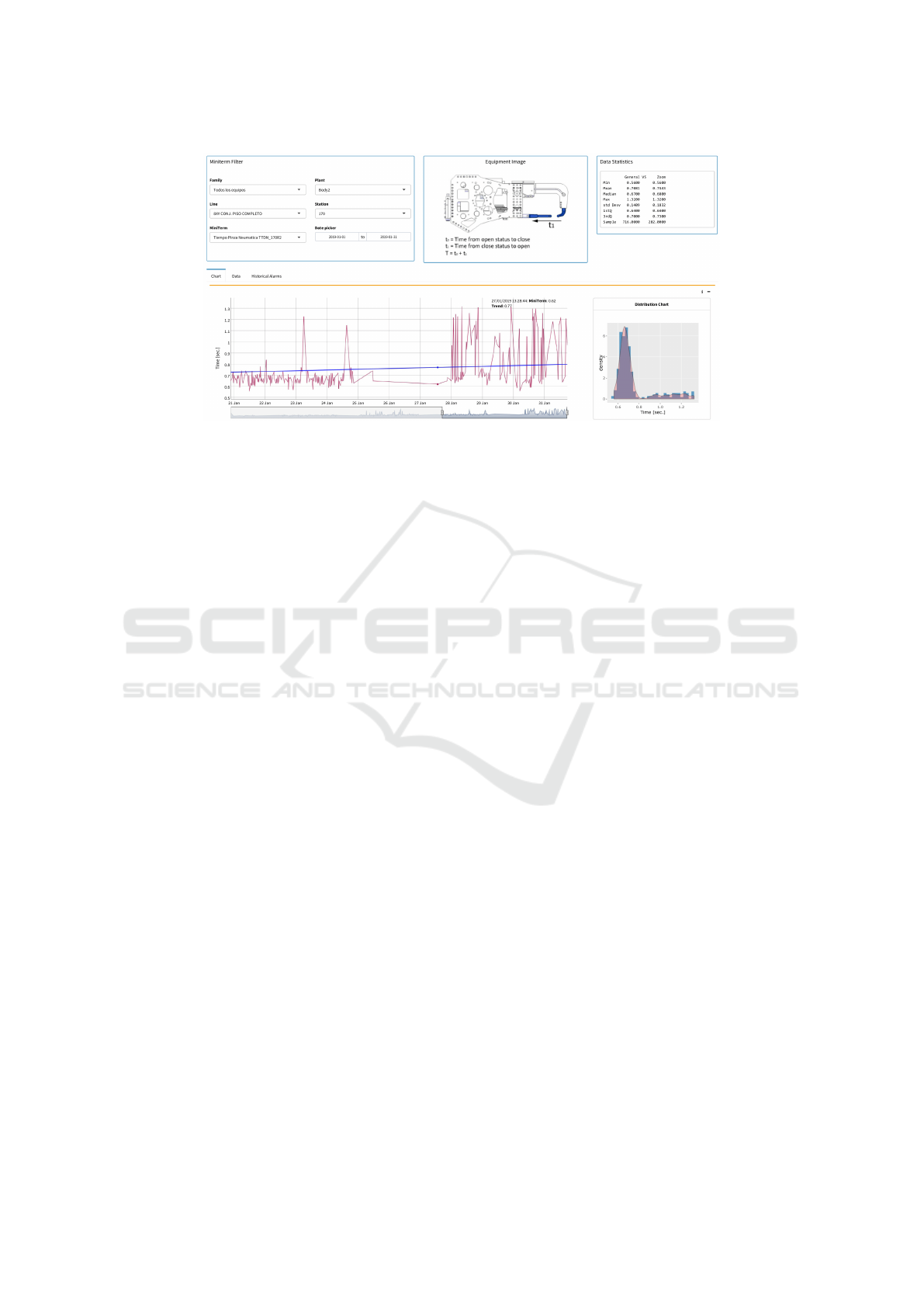

pose the application shown in Figure 1 was devel-

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

118

oped, where the k-means algorithm is used to detect

any change produced in the time series based in mini-

terms, (E.Garcia and N.Montes, 2019).There are cur-

rently more than 11,000 mini-terms installed in the

different plants at Ford in Valencia, which allowed us

to move towards a big data of miniterms to analyze

in depth the capabilities of the mini-term for failure

prognostics.

4 GOAL OF THE PAPER

The process to collect and analyse mini-terms started

at the end of 2018 at Almussafes factory. At present,

three plants, Body 1, 2 and 3 have thousands of

mini-terms collected in the Mini-term 4.0. The com-

ponents analysed are: the welding guns (pneumatic

and electrical), elevators, screwdriver, scissor tables,

doors, etc. In these components, we can see different

pathologies showing in the time series of the mini-

term, from slow deteriorations to abrupt changes, os-

cillations, noise, positive and negative peaks, etc.

Therefore, we need to identify the algorithm or com-

bination of change point algorithms capable of detect-

ing them effectively, minimizing the number of false

positives. This paper intends to make a comparison of

the most used change point algorithms in the literature

by applying them to 10 selected cases in the appli-

cation, Mini-term 4.0, which are representative of all

the change point variants detected up to the present.

Section 5 shows the 10 cases selected for the study.

In section 6 the selected change point algorithms are

shown and in section 7 the results obtained are shown.

In section 8 there is a discussion of the results. Con-

clusions and future work are shown in section 9.

5 SELECTED EXAMPLES

The Mini-term 4.0 system monitors in real time all

the mini-terms of the installed components and sends

an e-mail to the maintenance operators when a be-

haviour change is detected using k-means, (E.Garcia

and N.Montes, 2019). The maintenance operator

checks the component and performs the necessary

process if a pathology is really detected. In any case,

the operator reports the false positive or the pathol-

ogy detected to the Mini-term 4.0 system. Of the

cases detected, 10 representative cases of the change

point variability were selected, see Figure 2, these are:

• Case 1. Damaged ﬂange in pneumatic clamp: The

ﬁrst type case is a damaged ﬂange in one of the

pneumatic clamps that needs to be changed.

• Case 2. Worn or split screw in pneumatic clamp:

in this case we ﬁnd a worn or split screw in one of

the pneumatic clamps that needs to be changed or

adjusted.

• Case 33. Metal chip adhered in pneumatic clamp:

in this type case we ﬁnd a metal chip adhered

to one of the pneumatic clamps that needs to be

cleaned and lubricated.

• Case 4. Lack of lubrication in the pneumatic

clamp cylinder: in this case there is a lack of lu-

brication in the cylinder of one of the pneumatic

clamps that needs to be lubricated.

• Case 5. Lack of lubrication in the pneumatic

clamp valves: in this case there is a lack of lu-

brication in the valves of one of the pneumatic

clamps that need to be lubricated.

• Case 6. Flange damaged in pneumatic clamp:

in this case, as in the ﬁrst case, we ﬁnd a dam-

aged ﬂange in one of the pneumatic clamps, which

needs to be changed.

• Case 7. Pneumatic clamp cylinder failure: in this

type case we ﬁnd a cylinder failure of one of the

pneumatic clamps that needs to be replaced.

• Case 8. Air leak in the valves of a pneumatic

clamp: in this case we can see an air leak in

the valves of one of the pneumatic clamps whose

joints need to be replaced.

• Case 9. Lack of lubrication in a screwdriver: in

this case there is a lack of lubrication in one of the

screwdrivers whose axes need to be lubricated.

• Case 10. Sudden failure of a pneumatic clamp:

in this case we ﬁnd a sudden failure of one of the

pneumatic clamps that needs to be fully replaced.

In this case the reason for the failure could not be

found.

6 SELECTED CHANGE POINT

ALGORITHMS

There is a wide variety of algorithms in the literature

that are capable of detecting one or more points of

change, showing their advantages and disadvantages,

as well as their applications. In this paper we use the

general algorithms that comprise the vast majority of

algorithms present in the literature, see (Truong et al.,

2019), (Truong et al., 2020).These algorithms can be

classiﬁed as follows:

• 1. Optimization-based techniques (Opt): The de-

tection of the change point, when the number of

Evaluation of Change Point Detection Algorithms for Application in Big Data Mini-term 4.0

119

Figure 1: Interface to analyze the Mini-terms. A welding clamp motion Mini-term case.

change points is known, a discrete optimization

problem can be cosidered for a ﬁnite number of

examples.

• 2. Window sliding (Win): This technique is an

approximation of the Opt techniques but using a

much shorter computing time. It involves select-

ing a small number of examples, known as a win-

dow, and going through all the examples.

• 3. Binary segmentation (BinSeg): This technique

is an approximation of the Opt techniques but

using a shorter computing time. The technique

involves, when the number of change points is

known, segmenting the information in as many

groups as there are change points. Due to its

conceptual simplicity and ease of implementation,

BinSeg is one of the most widely used techniques

in the context of change point algorithms, (Truong

et al., 2019), (Truong et al., 2020).

• 4. Search methods with penalty (Pelt): This tech-

nique is usually used when the number of change

points is unknown. The intuitive (naive) way to

solve it would be to use Opt algorithms with a

high number of change points and then minimize

the penalty rate. In this way, the computing time

would be very high. Fortunately there are very ef-

ﬁcient techniques to solve it, see (Truong et al.,

2019), (Truong et al., 2020).

6.1 Selected Change Point Algorithms

The literature offers repositories of the algorithms

programmed in the most common languages for de-

tecting the change points described above, (Truong

et al., 2019) offers the repositories programmed in R

while (Truong et al., 2020) offers them programmed

in Phyton. In this paper we work with the R reposi-

tory, (Truong et al., 2019).

Since our problem is to ﬁnd a single point of

change, for the present work we have avoided algo-

rithms that look for multiple points of change. Thus,

the algorithms used in the study of this work are the

following:

• 1. Trend repository. (Opt techniques)

– 1. Pettitt’s test

– 2. Buishand Range Test.

– 3. Buishand U Test.

– 4. Standard normal Homogeneity test

• 2. strucchange repository (Opt techniques)

– 1. Fstats

– 2. efp OLS-CUSUM

– 3. efp Rec-CUSUM

– 4. efp Rec-MOSUM

• 3. cpm repository (Win and BinSeg techniques)

– 1. Student (Win, BinSeg)

– 2. Bartlett (Win, BinSeg)

– 3. GLR (Win, BinSeg)

– 4. Mann-Whitney (Win, BinSeg)

– 5. Exponential (Win, BinSeg)

– 6. Mood (Win, BinSeg)

– 7. Lepage (Win, BinSeg)

– 8. Kolmogorov-Smirnov (Win, BinSeg)

– 9. Cramer-von-Mises (Win, BinSeg)

• 3. Changepoint repository (Pelt techniques)

– 1. Change of mean with ”Normal” statistics

– 2. Change of mean with ”CUSUM” statistics

– 3. Change of variance with “Normal” statistics

– 4. Change of variance with “CSS” statistics

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

120

Figure 2: Selected cases at Almussafes factory by means of miniterm 4.0.

Evaluation of Change Point Detection Algorithms for Application in Big Data Mini-term 4.0

121

– 5. Change of mean and variance with “Normal”

statistics

– 6. Change of mean and variance with “expo-

nential” statistics

7 RESULTS AND DISCUSSION

In this section, the selected change point methods will

be evaluated through their application to each of the

selected cases. To evaluate the goodness of each one

of them and to be able to make a comparison, two of

the most used measures will be taken into account to

evaluate this type of methods: the Hausdorff metric

and the computation time.

7.1 Hausdorff Metric

This metric evaluates the strength of the detection

method for change points, measuring the distance be-

tween the actual position of the change point and the

prediction of the technique. There are two ways of

measuring distance, by measuring the number of ex-

amples or the time between the two points. In this

study the Hausdorff metric will be deﬁned as follows:

∑

c=1

∗

−

| (1)

where H

is the Housdorff metric for the algorithm

a, P

∗

is the real point of change in case c y

P is the

point of change estimated by algorithm a for case c.

The table shows 1 the location of the change point for

each case corresponding to ﬁgure 3. The change point

marked with

∗

is considered the real point of change.

It is important to consider that there are cases, such

as case 8 or 9, in which it is not trivial determining

which the real point of change is. For this reason, in

table 1 we can ﬁnd more than one point marked as

optimal.

7.2 Computational Costs

The computation time of the change point algorithms

is another of the most used metrics and is one of

the most important criterias of the change point algo-

rithms. In the case of mini-terms, it is especially criti-

cal due to the large number of mini-terms that must be

sensorized, which could be millions in a factory such

as Ford’s. In the present study, the computation time

will be considered as follows:

∑

c=1

∗

(2)

where t

is the total time to compute the 10 cases by

using the algorithm a on a PC Intel Core i5 8600k, 6

cores, 3.6 Ghz, 16 MB RAM, 256GB SSD.

It is important to note that algorithms, which are

not capable of providing a point of change in some

cases, are discarded from the calculation of the Haus-

dorff metric and from computational time.

7.3 Discussion

As shown in table 1, the most precise change point

detection algorithm is that of Bartlett, succeeding in

all the proposed cases, followed by the mean and nor-

mal variance algorithm, giving error in only one of

the cases. From the computational point of view, the

mean and normal variance algorithm is the most efﬁ-

cient, being able to compute the 10 cases in 0.18 sec.

Bartlett’s algorithm uses 4.02 sec. in its version (Bin-

Seg) while it uses 2.38 sec. in its version (Win). It

is important to highlight the computation time of case

9, whose time series has 24,000 data. In this case, the

Bartlett (BinSeg) uses 0.51 sec. while the (Win) ver-

sion uses 0.39 sec, in both cases Bartlett’s algorithm

offers the same results.

8 CONCLUSIONS AND FUTURE

WORKS

In the present study we have done a comparison of

the most used algorithms in the literature for the de-

tection of the change point, applied to its use in the

mini-terms. The great variability of machines and

components, together with the development of Big

data make the choice of the optimal algorithm im-

portant, both from the point of view of precision and

its processing time. The present study concludes that

the most effective detection algorithms are Bartlett’s

together with the Mean and Normal Variance algo-

rithms, being Bartlett’s algorithm the one that is right

in all cases. At computational level, both are efﬁcient

algorithms. However, the Mean and Variance algo-

rithm is much faster. Our future work will be focused

on testing these two algorithms in Big Data miniterm

4.0 and assessing their overall effectiveness.

ACKNOWLEDGEMENTS

The authors wish to thank Ford Espa

na S.L. and in

particular the Factory at Almussafes for the support

in the present research.The authors also wish to thank

Joan Camps Soria for his support in the present work.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

122

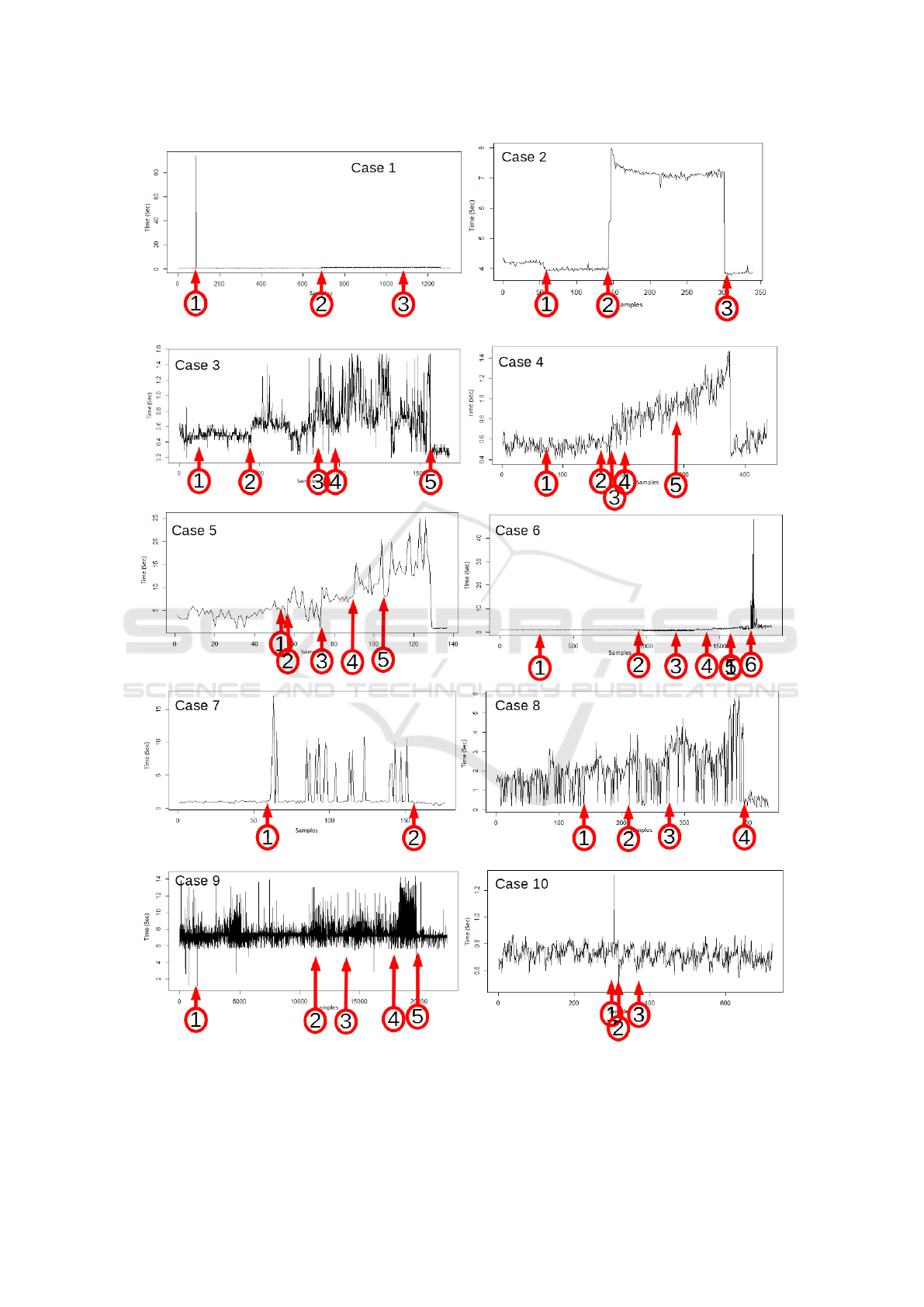

Figure 3: Change point detection for each algorithm.

Evaluation of Change Point Detection Algorithms for Application in Big Data Mini-term 4.0

123

Table 1: Numerical results for each change point method VS Case VS metric. Change point marked with an

∗

indicates that

concides with the optimal one.

Algorithm C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 H t

Pettitt 2 2

∗

3 3 3 3

∗

2 1

∗

5 3 2222 1.15

Buishand R 2 2

∗

4 4 3 4

∗

Null 2

∗

Null Null

Buishand U 2 2

∗

4 4 3 4

∗

Null 2

∗

Null Null

SNHT 1

∗

4 4 4 6 1

∗

4 Null 2

∗

Null Null

Fstats 2 2

∗

4 4 4 5 1

∗

1292 111.2

Student (Win) Null 2

∗

4 4 4 6 Null 4 5 2

∗

Null Null

Bartlett (Win) 1

∗

0 2.38

GLR (Win) 1

∗

3 2

∗

4 4

∗

247 2.48

Exponential (Win) 1

∗

5 3 3 5

∗

4 Null Null Null Null

Mann-Whitney (Win) 2 3 2

∗

3 3 3

∗

2 4 5 3 2149 3.26

Mood (Win) 3 3 5 5 5 2 2 3

∗

Null Null Null

Lepage (Win) 2 2

∗

5 3 4 4

∗

2 3

∗

5 3 2895 4.05

Kol.-Smirnov (Win) 1

∗

1 1 1 1 1 2 1

∗

1 3 12762 4.62

Cram.-von-Mises (Win) 2 2

∗

3 3 3

∗

2 4 5 3 1962 4.66

Student (BinSeg) Null 2

∗

4 4 4 6 Null 4 5 2

∗

Null Null

Bartlett (BinSeg) 1

∗

0 4.02

GLR (BinSeg) 1

∗

3 2

∗

4 4

∗

247 4.15

Exponential (BinSeg) 1

∗

5 3 3 5

∗

4 Null Null Null Null

Mann-Whitney (BinSeg) 2 3 2

∗

3 3 3

∗

2 4 5 3 1962 4.98

Mood (BinSeg) 3 Null 5 5 5 2 2 3

∗

Null Null Null

Lepage (BinSeg) 2 3 5 3 4 4

∗

2 3

∗

5 3 2049 5.65

Kol.-Smirnov (BinSeg) 1

∗

1 1 1 1 1 2 1

∗

1 3 12762 6.25

Cram.-von-Mises (BinSeg) 2 2

∗

3 3 3

∗

2 4 3 3 1962 6,19

Normal Mean 1

∗

Null Null 4 6 1

∗

4 5 Null Null Null

CUSUM Mean 2 2

∗

4 4 3 4

∗

2 2

∗

6047 0.18

Normal Variance 1

∗

4 5 5 6 1

∗

Null Null Null

Variance CSS 1

∗

4 4 4 6 1

∗

3 2

∗

3892 0.18

Normal Mean and Variance 1

∗

3 2

∗

4 4

∗

247 0.13

Exp. Mean and Variance 1

∗

5 3 3 5

∗

4 Null Null Null Null

REFERENCES

A.K.S.Jardine, D.Lin, and D.Banjevic (2006). A review on

machinery diagnostics and prognostics implementing

condition-based maintenance. Mechanical Systems

and Signals processing, 20(7):1483–1510.

E.Garcia (2016). An

alisis de los sub-tiempos de ciclo

ecnico para la mejora del rendimiento de las l

ıneas

de fabricaci

on. PhD.

E.Garcia and N.Montes (2017). A tensor model for au-

tomated production lines based on probabilistic sub-

cycle times. Nova Science Publishers, 18(1):221–234.

E.Garcia and N.Montes (2019). Mini-term, a novel

paradigm for fault detection. 9th IFAC Conference on

Manufacturing Modelling, Management and Control,

52-13:165–170.

E.Garcia, N.Montes, and M.Alacreu (2018). Towards

a knowledge-driven maintenance support system for

manufacturing lines. International COnefrence on In-

formatics in Control, Automation and Robotics, pages

499–511.

L.Li, Q.Chang, and J.Ni. (2009). Real time production im-

provement through bottleneck control. International

Journal of production research, 47(21):6145–6158.

Truong, C., L.Oudre, and N.Vayatis. (2019). A review of

change point detection methods. Archiv. org. Cornell

University.

Truong, C., L.Oudre, and N.Vayatis. (2020). Mini-term, a

novel paradigm for fault detection. Signal Processing,

167:107–299.

X.Zhao (2014). Localized structural damage detection: A

change point analysis. Computer-Aided Civil and In-

frastructure Engineering, 29:416–432.

X.Zhao (2018). Optimal replacement policies for a shock

model with a change point. Computers & Industrial

Engineering, 118:383–393.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

124
