Architectures for Combining Discrete-event Simulation

and Machine Learning

Andrew Greasley

Operations and Information Management Department, Aston University, Aston Triangle, Birmingham, U.K.

Keywords: Discrete-Event Simulation, Software Architectures, Machine Learning, Reinforcement Learning.

Abstract: A significant barrier to the combined use of simulation and machine learning (ML) is that practitioners in

each area have differing backgrounds and use different tools. From a review of the literature this study

presents five options for software architectures that combine simulation and machine learning. These

architectures employ configurations of both simulation software and machine learning software and thus

require skillsets in both areas. In order to further facilitate the combined use of these approaches this article

presents a sixth option for a software architecture that uses a commercial off-the-shelf (COTS) DES software

to implement both the simulation and machine learning algorithms. A study is presented of this approach that

incorporates the use of a type of ML termed reinforcement learning (RL) which in this example determines

an approximate best route for a robot in a factory moving from one physical location to another whilst

avoiding fixed barriers. The study shows that the use of an object approach to modelling of the COTS DES

Simio enables an ML capability to be embedded within the DES without the use of a programming language

or specialist ML software.

1 INTRODUCTION

This article considers the combined use of simulation

and machine learning (ML) which can be considered

as two general approaches to computationally

predicting the behaviour of complex systems (Deist

et al., 2019). A widely used simulation technique is

discrete-event simulation (DES) (Law, 2015).

Robinson (2014) describes three options for

developing DES of spreadsheets, programming

languages and specialist simulation software

otherwise known as commercial off-the-shelf

software (COTS). Hlupic (2000) reported that the

majority (55.5%) of industrial users employ

simulators (COTS). However the number of

examples of the combined use of COTS DES and ML

is low and one reason for this may be due to the

challenge of coding ML algorithms for DES

practitioners who may have little coding experience

due to the common adoption of drag and drop

interfaces in COTS DES tools (Greasley and

Edwards, 2019). Another challenge to the combined

use of DES and ML put forward by Creighton and

Nahavandi (2002) is the need to provide an interface

between the ML agent and the (COTS) DES software.

https://orcid.org/0000-0001-6413-3978

To address these challenges this article

investigates current options for combined DES and

ML architectures and explores what these options can

provide. In addition in order to remove the need for

an interface with external ML software and to further

remove the need to code ML algorithms this article

presents a case study that demonstrates a software

architecture of a DES that embeds an ML capability

implemented entirely within the COTS DES software

Simio v11 (Smith et al., 2018) using the software’s

standard process logic facilities.

The article is organized as follows. The literature

review covers the combined use of COTS DES and

machine learning software and categorises them into

six options for software architecture

implementations. A further software architecture that

implements an ML algorithm within COTS DES is

presented. The study then outlines a use-case of this

architecture with the integration of ML algorithms

within the COTS DES software Simio. The ML

algorithms direct the movement of a robot, in the

form of an automated guided vehicle (AGV), in a

factory setting. The discussion section then evaluates

the current and presented architectures for combining

COTS DES and ML applications.

Greasley, A.

Architectures for Combining Discrete-event Simulation and Machine Learning.

DOI: 10.5220/0009767600470058

In Proceedings of the 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2020), pages 47-58

ISBN: 978-989-758-444-2

2 LITERATURE REVIEW

ML techniques can be classified into supervised

learning techniques that learn from a training set of

labelled examples provided by a knowledgeable

external supervisor and unsupervised learning which

is typically about finding structure hidden in

collections of unlabelled data. The main machine

learning techniques are defined by Dasgupta (2018)

as association rules mining (ARM) which uses a

rules-based approach to finding relationships

between variables in a dataset, decision trees (DT)

generate rules that derive the likelihood of a certain

outcome based on the likelihood of the preceding

outcome. In general, decision trees are typically

constructed similarly to a flowchart and belong to a

class of algorithms that are often known as CART

(Classification and Regression Trees). Support vector

machines (SVM) are used to classify data into one or

another category using a concept called hyperplanes,

artificial neural networks (ANN) are a network of

connected layers of (artificial) neurons which mimic

neurons in the human brain that “fire” (produce an

output) when their stimulus (input) reaches a certain

threshold and naïve Bayes classifier (NBC) employs

a training set for classification. Reinforcement

learning (RL) can be classified as a third paradigm of

machine learning, not within the supervised and

unsupervised learning categories, but as a technique

that looks to maximise a reward signal instead of

trying to find hidden structure (Sutton and Barto,

2018).

A literature review was undertaken to identify

implementations of big data analytics applications

such as ML in conjunction with COTS DES based on

the criteria stated in Greasley and Edwards (2019).

This review is specific to COTS DES software and

machine learning applications. Machine learning

applications are distinguished from data mining

examples in that machine learning uses algorithms

that can learn from data and therefore can build

decision models that try to emulate regularities from

training data in order to make predictions (Bishop,

2006). The scope of the review means that a number

of articles that cover the combined use of simulation

and ML are not included in this review. These articles

either cover different types of simulation such as

System Dynamics (Elbattah et. al, 2018) or non-

COTS DES implementations such as DEVSimPy

(Capocchi et al., 2018), C (Chiu and Yih, 1995),

SimPy (Fairley et al., 2019), Psighos (Java) (Aguilar-

Chinea et al., 2019) and DESMO-J (Java) (Murphy et

al., 2019). Articles from the review that meet the

criteria of using a COTS DES are now categorised

into 6 software architectures for employing COTS

DES and ML with a further category to be presented

in this article (Table 1).

Table 1: Architectures for combining COTS DES and ML software.

SOFTWAREARCHITECTUREFOR

COMBININGDESANDML

DESCOTS 

SOFTWARE

MACHINE

LEARNING

SOFTWARE

INTERFACE REFERENCE

1. DES‐>ML(OFFLINE) TECNOMATIX R DATAFILE Gyulaietal.(2014)

ANYLOGIC

ARENA

KNIME

SPSS

DATAFILE

DATAFILE

Jainetal.(2017)

Acqlanetal.(2017)

2. ML‐>DES(OFFLINE) SIMPROCESS SPSS DATAFILE Glowackaetal.(2009)



3. DES‐>ML‐>DES

(OFFLINE)

TECNOMATIX MATLAB DATAFILE Bergmannetal.(2017)

ANYLOGIC

WITNESS

SCIKIT‐LEARN

RAPIDMINER

DATAFILE

DATAFILE

Cavalcanteetal.(2019)

Prioreetal.(2018)

 

4. DES‐>ML(ONLINE)



5. ML‐>DES(ONLINE)

TECNOMATIX



ARENA

MATLAB WRAPPER



SERVER

Bergmannetal.(2015)



Celiketal.(2010)

 

6. DES‐>ML‐>DES

(ONLINE)

TECNOMATIX

TECNOMATIX

MATLAB

MATLAB

WRAPPER

WRAPPER

Bergmannetal.(2014)

Bergmannetal.(2017)

QUEST



MATLAB



SERVER Creightonetal.(2002)

7. INTEGRATED

DES‐>ML

ML‐>DES

DES‐>ML‐>DES

SIMIO NONE NONE 

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

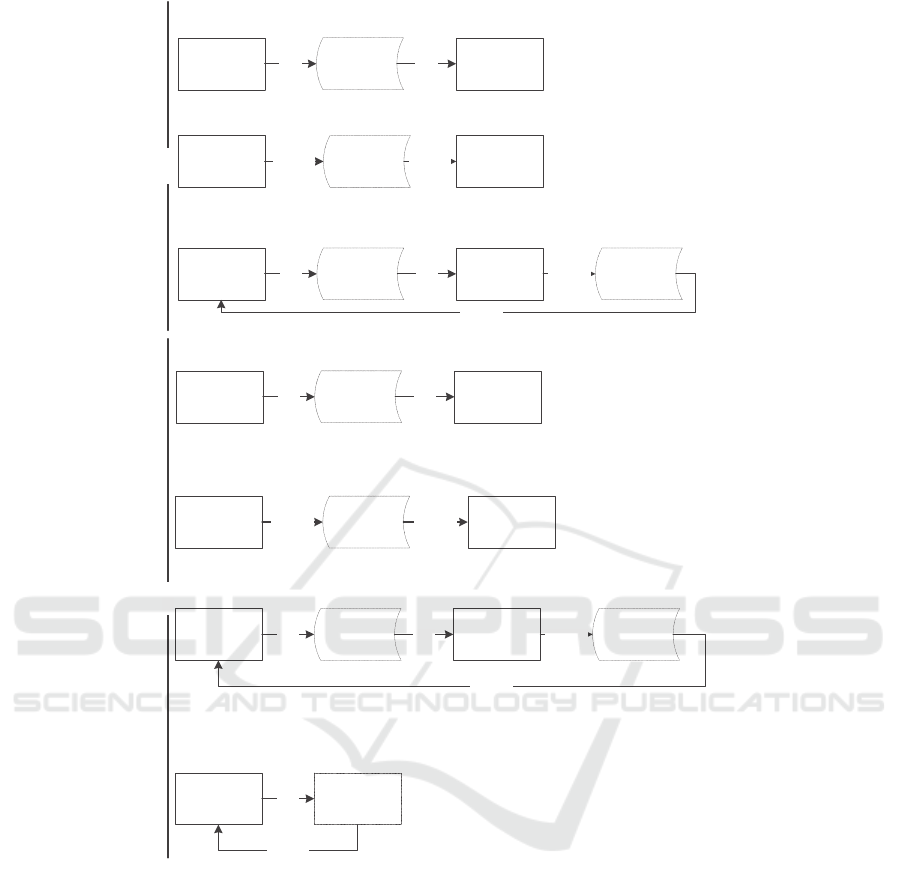

Figure 1 shows how the architectures are

employed to enable synthetic data generated by a

simulation to be used by an ML algorithm and the use

of an ML algorithm to provide decisions for a

simulation. These two roles are combined in

architectures 3, 6 and 7 where simulation data is used

by an ML algorithm which is subsequently used to

generate decisions for a simulation model. Each of the

7 architectures will now be described in more detail.

Architecture 1 uses synthetic data generated by a

simulation and held in a data file that is then used by

ML algorithms. These algorithms are used stand-

alone and are not employed in the simulation model.

Gyulai et al. (2014) use the Tecnomatix Plant DES

software in conjunction with the random forest tree-

based machine learning technique using the R ML

software. Jain et al. (2017) train ANN using the

Knime ML software from simulation output saved in

CSV files. Aqlan et al. (2017) use a traditional

simulation methodology to develop a model of a

high-end server fabrication process. The model

reports on a number of performance measures

including cycle time and defective work. The defect

parameters obtained from the simulation, such as

product number and root cause for the defect, are

written to an Excel spreadsheet. The spreadsheet then

serves as an input data file for a neural network

(ANN) model which predicts the defect solution

(such as scrap, repair or return to supplier) and the

corresponding confidence value of the prediction.

The case study uses an Arena COTS DES model and

the ANN model is implemented using the IBM SPSS

modeller.

Architecture 2 enables the use of ML as an

alternative to the traditional DES input modelling

method of sampling data for theoretical distributions

and deriving decision rules from domain knowledge

(documents, interviews etc.). An example is provided

by Glowacka et al. (2009) who use association rule

mining (ARM) to generate decision rules for patient

no-shows in a healthcare service. The ARM method

generates a number of rules and a subset of these were

embedded as conditional and probability statements

in the DES model. The authors state that when

establishing the nature of the association between

variables, the use of a rule-based approach such as

ARM has advantages over a linear regression

approach in that the variables (model factors) do not

need to be traded off against each other and the rule-

based model is easy to explain to practising managers.

The ARM method is undertaken in SPPS Clementine

10 which generates rules that were embedded as

conditional and probability statements in the

SimProcess COTS DES model.

Architecture 3 uses simulation to generate

synthetic data that is used by ML algorithms which

are subsequently employed in the simulation. If this

option is chosen then a data file may be used for

offline analysis such as in Bergmann et al. (2017)

who outline the identification of job dispatching rules

built using a decision tree using the CART algorithm

implemented in the MatLab toolbox. The decision

tree is converted into decision rules which can then be

codified in the simulation software, in this case the

Tecnomatix Plant scripting language Sim Talk.

Cavalcante et al. (2019) use an Anylogic DES model

to generate a database file which is subsequently used

by the SciKit-Learn Python ML module. The results

of the ML analysis are then saved as a file which

serves as an input file for a simulation experiment.

Priore et al. (2018) use simulation to generate training

and test sets which are used for a variety of machine

learning techniques in scheduling a flexible

manufacturing system (FMS). The simulation is used

to randomly generate 1100 combinations of 7 control

attributes (such as work-in-progress and mean

utilisation of the FMS). The simulation is then used

to compare the scheduling performance of the trained

machine learning based algorithms and further

traditional scheduling rules such as SPT (shortest

process time). The study uses the Witness COTS DES

software and the RapidMiner ML software.

Architecture 4 enables an online version of

architecture 1. Here Bergmann et al. (2015)

investigate the suitability of various data mining and

supervised machine learning methods for emulating

job scheduling decisions. Training data is generated

using a Tecnomatix DES simulation and the machine

learning software is implemented in Matlab.

Architecture 5 enables an online version of

architecture 2 in which ML algorithms generate

decisions for a simulation model. Celik et al. (2010)

identifies an example where sensors installed in

machines obtain data from the real system and

process this using four algorithms. The first algorithm

deals with abnormal behaviour of machinery detected

from sensors, the second and third algorithms deals

with determining data needs and resource

requirements to operate successfully in real-time

model and the fourth algorithm provides a prediction

of the future mean time between failures of machines.

This information is transmitted to an Arena DES

model which provides a preventative maintenance

schedule.

Architectures for Combining Discrete-event Simulation and Machine Learning

DESSOFTWARE

MACHINE

LE ARNING

SOFTWARE

DESSOFTWARE

MACHINE

LEARNING

SOFTWARE

DESSOFTWARE

MACHINE

LE ARNING

ALGORITHM

DATA

DECISIONS

3.DES‐>ML‐>DES

DESSOFTWARE

1.DES‐>ML(OFFLINE)

DATA

DECISIONS

MACHINE

LE ARNING

SOFTWARE

DATADATA

MACHINE

LEARNING

SOFTWARE

DESSOFTWAREDECISIONS

2.ML‐>DES(OFFLINE)

DECISIONS

OFF‐LINE

ON‐LINE

6.DES‐>ML‐>DES(ONLINE)

7.INTEGRATED

DES‐>ML

ML‐>DES

DES‐>ML‐>DES

DESSOFTWAREDECISIONS

5.ML‐>DES(ONLINE)

MACHINE

LEARNING

SOFTWARE

DECISIONS

DATAFILE

DATAFILE DATAFILE

DATAINTERFACE

DATAINTERFACE DATAINTERFACE

DESSOFTWARE

4.DES‐>ML(ONLINE)

MACHINE

LEARNING

SOFTWARE

DATADATA DATAINTERFACE

Figure 1: Architectures for combining COTS DES and ML software.

Architecture 6 provides an online real-time

interaction between simulation software which

generates data for ML software which in turn

communicates decisions back to the simulation

software as it executes over simulated time.

Creighton and Nahavandi (2002) implement RL in

MatLab with communication over a Visual Basic

server to the Quest DES software. Bergmann et al.

(2014; 2017) show the example of how the C

interface of the Tecnomatix Plant Simulation can be

used to access the functions of MatLab. This is

achieved through the use of a wrapper library that

encodes and decodes the different data formats used

by the Plant Simulation and Matlab. Bergmann et al.

(2014) shows the use of neural networks to

implement simulation decision rules during runtime

and Bergmann et al. (2017) shows the use of neural

networks and a number of supervised machine

learning algorithms to implement simulation decision

rules during runtime.

Architecture 7 is implemented by codifying

the ML algorithms directly in the COTS DES

software using the software’s standard process logic

facilities and is the option presented in this study.

This option provides an online capability without the

need for a data interface between the DES and ML

software.

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

3 THE SIMULATION STUDY

A traditional approach to controlling the movement

of robots in a DES would be to repeatedly assess the

Euclidean distance between the current and target

location as the robot progresses towards its location.

However the use of RL offers the potential to provide

a more efficient path between locations by

considering a strategy for traversing the entire path

rather than moving in the general direction of the

target to only be obstructed by barriers within the

factory. The aim of the simulation study is to

implement a RL algorithm to guide the path of an

autonomous robot moving around a factory. Previous

studies that use RL to inform the movement of

autonomous robots are Khare et al. (2018) who

present the use of reinforcement learning to move a

robot to a destination avoiding both static and moving

obstacles, Chewu and Kumar (2018) show how a

modified Q-learning algorithm allowed a mobile

robot to avoid dynamic obstacles by re-planning the

path to find another optimal path different from the

previously set global optimal path and Troung and

Ngo (2017) show how reinforcement learning can

incorporate a Proactive Social Motion Model that

considers not only human states relative to the robot

but also social interactive information about humans.

The study is structured around the four main tasks of

a simulation study outlined by Pidd (2004) of

conceptual model building, computer

implementation, validation and experimentation.

3.1 Conceptual Model Building

Conceptual modelling involves abstracting a model

from the real world (Robinson, 2014). Figure 2 shows

the train and move robot processes which take place

in the observation space. The train robot process

updates the transition matrix using the reward

structure implemented by the RL algorithm. The

reward structure is repeatedly updated for the number

of learning passes defined. The move robot process

moves the robot to the next grid location within the

action space and defined by the transition matrix. The

move robot process repeats until the destination

station is reached.

The elements that implement the RL algorithm are

now outlined in greater detail in terms of the

observation space, action space and reward structure

of the factory and the agents (robots) that move within

it (Sartoretti et al., 2019).

3.1.1 Observation Space

The approach involves placing a agent on a grid made

up of cells termed a grid-world which covers a full

map of the environment within which the agent will

travel. An alternative configuration is to have a

partially-observable gridworld were agents can only

observe the state of the world in a limited field of

vision (FOV) centred around themselves. This might

be utilised when reducing the input dimension to a

neural network algorithm for example, but still

requires the agent to acquire information on the

direction (unit vector) and Euclidean distance to its

goal at all times (Sartoretti, 2019). In this study the

observation space is based on a layout for an AGV

system presented in Seifert et al. (1998) which

incorporates 10 pick and delivery stations, numbered

1 to 10. Static obstacles, or no-go areas are also

defined. In the original configuration in Seifert et al.

(1998) the AGV routing is confined to nodes at each

station connected by direct path arcs. In this

implementation the grid system permits more flexible

movement of the autonomous agent. The observation

space represents a relatively challenging operating

area for the agents as there is only a narrow opening

between two areas of the factory. This makes it

difficult for a simple step-by-step algorithm to direct

efficient movement around the factory but this

problem can be avoided by pre-computing complete

paths (Klass et al., 2011) which is the approach taken

here. The model does not currently incorporate

TRA INROBOT

UPDATE

TRANSITION

MATRIXUSING

REWARD

STRUCTURE

MO VE ROBOT

MOVETONE XT

GRIDCELLWITHIN

ACTIONSPACE

LE ARNING

PASSES

COMPLETE?

REACHED

DESTINATION

STATION?

START YES

ENDYES

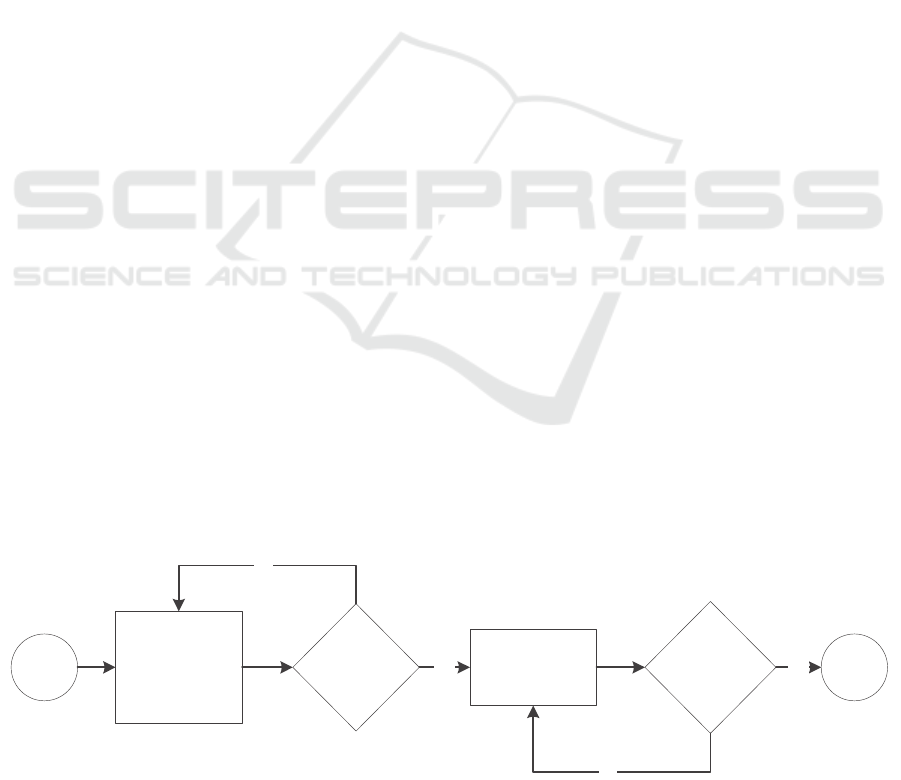

Figure 2: Conceptual Model of Train and Move Robot Processes.

Architectures for Combining Discrete-event Simulation and Machine Learning

collision detection with dynamic (moving objects) as

although the method of pre-computing paths avoids

the problem of incremental planning in a complex

layout there is still a requirement for checking at each

agent move for other moving objects such as other

agents or people. There are a number of ways of

achieving this, for example Klass et al. (2011) put

forward three rules to prevent collision between 2

AGVs when they get into proximity. An alternate

strategy is to re-activate the RL algorithm to find a

new path when a blockage occurs (Chewu and

Kumar, 2018).

3.1.2 Action Space

Agents in the gridworld can move one cell at a time

in any of 8 directions representing a Moore

neighbourhood. This is used rather than the 4

direction von Neumann neighbourhood to represent

the autonomous and free moving capabilities of the

agents and provides a greater level of locally

available information (North and Macal, 2007).

Agents are prevented from moving into cells

occupied by predefined static objects and will only

move when a feasible cell is found. The action space

of the factory layout is represented by a 10x10

gridworld with each agent occupying a single grid

cell at any one time. The gridworld is implemented in

the simulation by a 10x10 2-dimensional array which

is populated with a ‘0’ value for cells that are

available to travel and a ‘1’ value for cells which

contain a static object and thus must be avoided. The

action space is easily increased in size in the model

by increasing the size of the array holding the cell

values. In this example a cell in the gridworld

represents 1m

of factory floorspace and a agent

(robot) travels at a constant speed of 0.6m/s between

cells.

3.1.3 Reward Structure

Marsland (2015) describes a RL algorithm as one that

gets told when the answer is wrong but does not get

told how to correct it. It has to explore and try out

different possibilities until it works out how to get the

answer right. Thus RL algorithms in general face a

dilemma in that they seek to learn action values

conditional on subsequent optimal behaviour, but

they need to behave non-optimally in order to explore

all actions (to find the optimal actions). In terms of

action selection a number of options are available,

including for free-space movement (Jiang and Xin,

2019) but the most recognised ones are:

Greedy Pick the action with the highest value to

always exploit current knowledge.

ϵ - greedy Same as greedy but with a small probability

ϵ to pick some other action at random thus permitting

more exploration potentially finding better solutions.

Soft-max A refinement of the ϵ - greedy option in

which the other action is chosen in proportion to their

estimated reward, which is updated whenever they

are used.

The reinforcement learner is trying to decide on

what action to take in order to maximise the expected

reward into the future where the expected reward is

known as the value. An algorithm that uses the

difference between the current and previous estimates

is termed a temporal difference (TD) method

(Marsland, 2015). In this case we implement a type of

reinforcement learning using the TD method of Q-

learning (Watkins and Dayan, 1992) which

repeatedly moves the agent to an adjacent random cell

position and provides a reward if that moves the agent

closer to our intended destination cell. A large reward

is allocated when the agent finds the target cell. Each

cell is allocated a Q value as the agent moves to it

which is calculated by the Bellman equation:

Q(s,a) = r + ƴ(max(Q(s’,a’)) )

The equation expresses a relationship between the

value of a state and the values of its successor states.

Thus the equation calculates the discounted value of

the expected next state plus the reward expected

along the way. This means the Q value for the state

‘s’ taking the action ‘a’ is the sum of the instant

reward ‘r’ and the discounted future reward. The

discount factor ‘ƴ’ determines how much importance

you give to future rewards and is set to a default value

of 0.8 in this study. The Q values are held in a 2-

dimensional array (termed the Q-matrix or transition

matrix) that matches the size of the action space array

and holds a Q value for each available cell in the

factory layout. The following Q-learning algorithm

implements the RL method using the greedy action

selection:

1. Initialise the Q-matrix to zeros. Set the start

position and target position for the agent.

2. Move the agent to the start position.

3. The agent makes a random move to an

adjacent cell (which is available and not an

obstacle).

4. The reward ‘r’ is calculated based on the

straight line distance between the new cell

position and the target cell position.

5. The maximum future reward max(Q(s’,a’)) is

calculated by computing the reward for each

of the 8 possible moves from the new cell

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

position (which are available and not an

obstacle). The future reward value is

discounted by the discount factor ‘ƴ’.

6. The Q value for the new cell position is

calculated using the Bellman equation by

summing the reward and discounted future

reward values.

7. If the target cell has been reached end.

Otherwise repeat from step 3.

When the target cell is reached this is termed a

learning pass. The agent is then placed back at the

starting cell and the process is repeated from step 2.

After a number of learning passes the Q values in each

grid cell should be stabilised and so the training phase

can be halted. The agent can now follow the

(approximate) shortest path by choosing adjacent

cells with the highest Q values in turn as it travels to

the destination. The number of learning passes

required will be dependent on the size and complexity

(number of obstacles and position of obstacles) of the

gridworld. When the agent is required to move from

its new position it re-enters training mode to

determine a movement path to the next station and the

algorithm is implemented from step 1.

3.2 Computer Implementation

A simulation was built using the Simio v11 discrete-

event simulation software using an object oriented

approach to modelling. Simio allows the use of object

constructs in the following way. An object definition

defines how an object behaves and interacts with

other objects and is defined by constructs such as

properties, states and events. An object instance is an

instantiation of an object definition that is used in a

particular model. These objects can be specified by

setting their properties in Simio. An object runspace

is an object that is created during a simulation run

based on the object instance definition. In this case an

instance of the Simio entity object definition is

defined in the facility window as ModelEntity1 which

is associated with a robot animation symbol. A source

node is used to create a robot arrival stream and each

robot then enters a BasicNode and is then transferred

into what is termed ‘FreeSpace’ in Simio. Here no

entity route pathways are defined but entities move in

either 2D or 3D space using x,y,z coordinates at a

defined heading, speed and acceleration. This allows

flexible routing to be specified without the need for a

predefined routing layout.

Entities can have their own behaviour and make

decisions and these capabilities are achieved with the

use of an entity token approach. Here a token is

created as a delegate of the entity to execute a process.

Processes can be triggered by events such as the

movement of entities into and out of objects or by

other processes. In this case, what Simio terms ‘Add-

on Processes’, are incorporated into the ModelEntity1

(Robot) object definition allowing data and processes

to be encapsulated within each entity definition

within the simulation. This means each entity (robot)

runspace object simulated in the model will have its

own process execution and data values associated

with it. The process logic (algorithms) for the

simulation contained in the add-on processes train

and move each robot through a number of predefined

pick and deliver locations. Most DES software

packages allow data to be associated with an entity

(through what are usually termed entity attribute

values) but do not provide the ability to embed

process definitions within the entity. However the use

of ‘dummy’ entities in DES software such as Arena

can be used to implement some of the features of the

token entity approach (Greasley and Owen, 2015).

3.3 Verification and Validation

The main method used for verification of the RL

algorithms in Simio was to project the Q value

transition matrix for a robot on to the Simio animation

display of the factory. The user can then observe the

Q-values updating on each learning pass and confirm

the path derived from the RL algorithm and to ensure

that the robot moves along this path (figure 3).

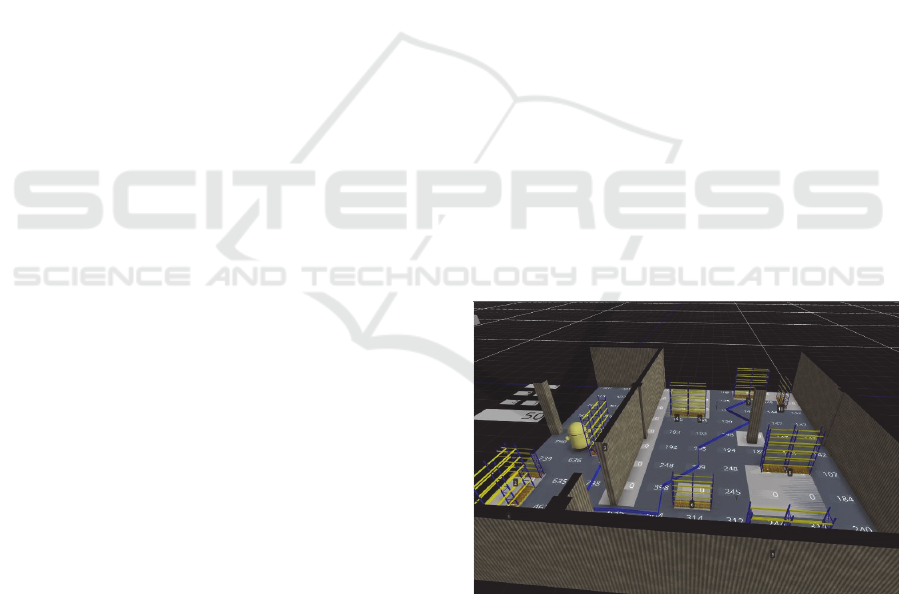

Figure 3: Simio display of grid Q-values and route taken by

robot generated from RL algorithm.

When using RL one decision to be made is to specify

the number of learning passes or attempts that the

robots will make to find an efficient path between 2

stations. Here a maximum learning pass figure of 50

was chosen although it was found that the number of

steps to move between 2 stations quickly converges

within 15 learning passes.

Architectures for Combining Discrete-event Simulation and Machine Learning

3.4 Experimentation

With verification and validation complete the model

can be run with the training mode operating in the

background and the animation showing the

movement of the trained robots between pick and

deliver stations. Figure 4 shows the model running

with 2 autonomous robots with each robot moving in

response to its individual schedule of pick and deliver

stations and transition matrix of Q values. In terms of

performance, currently when running the simulation

for each robot when a movement has been completed,

the RL algorithm is executed in training mode to find

the ‘best’ path to the next destination. In the current

layout configuration a processing delay of around 1

second was apparent when running the simulation in

animation mode on a Lenovo ThinkPad with an Intel

Core i7-6500U CPU @ 2.50 GHZ with 8.00GB

RAM. This delay time could increase with a larger

grid size, more complex layout design or increased

learning passes. This issue however only affects the

smoothness of the animation display as simulation

time is not progressed during the training phase. Also

when the simulation is run in fast-forward mode

(without animation) for the compilation of results

then the delay has only a small effect on runtime

speed.

The model provides a testbed to explore a number

of scenarios, in terms of the RL algorithm possible

experiments include:

• An investigation of the operation of the RL

algorithm by adjusting the discount factor and

number of learning passes and observing the

effect on the generation of an approximate best

route strategy.

• An investigation of the use of different action

selection rules such as softmax.

• An investigation of the use of the Sarsa On-

Policy algorithm (Sutton and Barto, 2018).

Further experimentation is also possible in term of

the simulation model:

• An investigation on the effect of robot travel

speed (which could vary according to loading)

and the incorporation of acceleration and

deceleration of the robot on performance.

• An investigation of the performance of the

model for applications that require a larger

gridworld

• An investigation of the performance of the

model for applications that require a greater

number of robots.

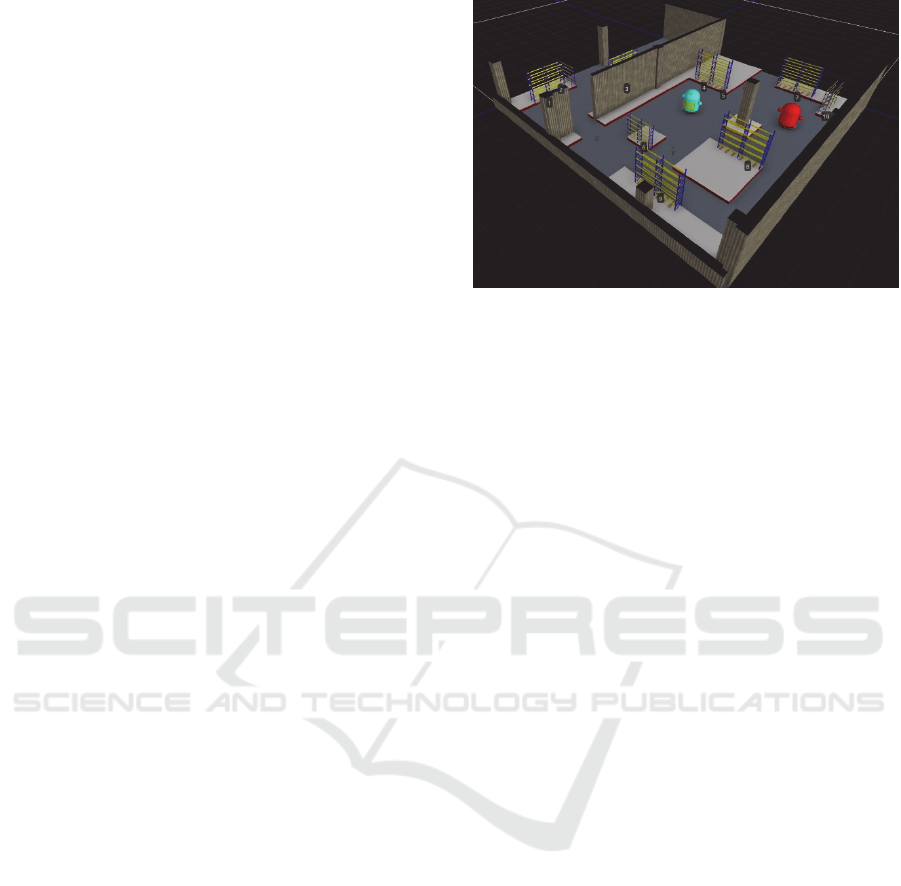

Figure 4: Simio display of 2 robots with movement directed

by RL algorithm.

4 DISCUSSION

When used simulation and ML are used for

prediction, simulation is the preferred method if the

dynamics of the system being studied are known in

sufficient detail that one can simulate its behaviour

with high fidelity and map the system behaviour to

the output being predicted. ML is valuable when the

system defies accurate simulation but enough data

exist to train a general black-box machine learner

(Deist et al., 2019). This section will discuss the

combined use of the capabilities of simulation and

ML facilitated by the 7 architectures presented in

figure 1.

Architecture 1, 2 and 3 use an off-line approach

in which ML software produces a data file which can

be subsequently employed by the simulation. Vieira

et al (2011) found that 80% of industrial users

employed manual data sources in text or spreadsheet

files and so this option is feasible for many users.

However the off-line architecture is not suitable for

techniques that require continuous online learning

such as RL and for real-time applications such as

Digital Twins. These architectures also cover the

generation of synthetic data by a simulation which is

used to train a machine learning algorithm. The

synthetic data provided by simulation for ML is safe,

available and clean as there can be uncertainty/noise

in real data values making testing of ML algorithms

difficult, although real-world experience cannot be

replaced by learning in simulations alone and at some

stage the algorithms must be tested in the real world

to ensure validity (Kober et al., 2013). This approach

offers a useful supplement to traditional simulation

input modelling methods with Cavalcante (2019)

stating that with the advent of Big Data, abstractions

can be replaced by a ML model. Examples in this

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

category also includes using data file output in the

form of decision tree structures which are then

manually translated into decision logic (if..then

statements) for subsequent use in a simulation model

(Bergmann, 2017). A different approach is taken by

Acqlan et al. (2017) who use a ML algorithm to

analyse data generated by a simulation to predict a

defect solution. In effect the ML algorithm is being

used as an experiment and analysis tool for the

simulation output data.

Architecture 4, 5 and 6 use an online approach. In

architecture 5, Celik et al. (2010) shows how a

simulation can provide data in terms of a preventative

maintenance schedule. An online architecture for the

use of simulation and ML is often termed a Digital

Twin where the architecture provides for the

interaction between the physical and simulated

system which is considered under the term Symbiotic

Simulation System (SSS) (Onggo et al., 2018). In

addition there is a need to enable fast simulation

execution speed when enabling a Digital Twin.

Examples of cloud platforms that can facilitate rapid

simulation execution include COTS DES packages

such as Simio (https://www.simio.com/software/

simio-portal.php) which uses the Microsoft Azure

platform and Anylogic (https://www.anylogic.com/

features/cloud/) which uses the Amazon Web

Services platform. Taylor et al. (2009) discuss

interoperability between models using identical

COTS simulation packages and between models

using different COTS simulation packages. A further

requirement for a Digital Twin is the ability for real-

time model adaption, in effect enabling a model

building capability. The implementation of adaptable

data-driven models can be achieved through the use

of a data-driven simulation approach (Goodall et al,

2019). This is primarily achieved using COTS

software such as Simio by the definition of generic

model objects with key data passed into the

simulation from external files (Smith et al., 2018).

Using Architecture 6, Bergmann et al. (2017)

conduct input modelling by implementing the online

approach using a wrapper interface (software coding

to ensure compatibility between interfaces) between

the simulation and the Matlab Neural-Network

Toolbox and Creighton and Nahavandi (2002) use a

server. Vieira et al. (2011) outlines the use of

databases, data interchange standards such as CMSD

and integration technologies such as MES to enable

this approach. One option is to employ the Library-

based application programming interfaces (APIs)

provided in COTS DES packages which offers

programming language extensions to permit interface

with external software including databases and

machine learning programs. For example the Simio

software offers Visual C# user extensions in areas

such as user defined model selection rules and

AnyLogic offers Java user extensions that can make

use of Java-based libraries such as Deeplearning4j

(https://deeplearning4j.org/). Arena offers a VBA

extension. The main advantage of this method is that

the machine learning method employed is separated

from the simulation implementation allowing a

number of ML software options to be employed for

the chosen ML approach (e.g. clustering, ANN, ARM

Bayes etc.). Another benefit is that the ML software

can deal with complex ML algorithms that would

require complex coding logic and data structures to

be embedded in the simulation software (Bergmann

et al. 2017). A potential problem with the approach is

the effect on runtime performance when

communicating between the simulation and ML

software in runtime, although Bergmann et al. (2017)

report that they were not able to detect major negative

implications on runtime performance in their test

scenario.

The integrated architecture 7 presented in this

study provides real-time training of the ML

algorithms directly in the simulation language which

negates the need for the use of external ML software.

A reason to employ this option is to ensure that the

large industrial user base of COTS DES software

(such as Arena, Simio and Witness) are able to

implement this capability without recourse to

programming code such as Java or requiring an

interface with external ML software. This requires an

on-line capability to train the ML algorithms during

simulation execution and the ability to embed the ML

algorithm within each entity object, in this case each

robot. The DES software make this approach feasible

with its ability to animate entities by x,y,z coordinate

in 2D or 3D space and thus eliminate the need to

predefine every possible route taken by the entity in

advance. The software also implements an object-

oriented approach and allows encapsulation of both

the data and process logic definitions within the entity

object. Encapsulation of data allows each robot to

generate its own Q value matrix and if required each

robot’s own static obstacle or ‘no-go’ locations can

be defined. Encapsulation of process logic through

the use of add-on processes allows multiple entities

(robots) to each follow their individual training and

move cycles.

Figure 5 summarises the role of simulation and

machine learning and relates these approaches to both

the simulation study stage and the architecture

employed. In general DES can be used by a ML

algorithm as a source of data. This can be simply for

Architectures for Combining Discrete-event Simulation and Machine Learning

training and testing of the ML algorithm which can be

achieved using architectures 1 (offline), 4 (online)

and 7 (integrated) or when the simulation output data

can be analysed by the ML algorithm. If the ML

algorithm is subsequently employed by the

simulation model for modelling input data or building

the model then this can be achieved using

architectures 3 (offline), 6 (online) or 7 (integrated).

If the simulation is not used by a ML algorithm as a

source of data there remain applications in which a

previously trained ML algorithm can be used by the

simulation. Here the ML algorithm can be employed

by the simulation for modelling input data and

building the model using architectures 2 (offline), 5

(online) and 7 (integrated).

Figure 5: The role of DES and ML in DES methodology.

Thus the article has identified offline and online

architectures for the combined use of COTS DES and

ML, identified an integrated architecture which is

demonstrated by a use-case and related the use of

simulation with ML and the architectures employed

to simulation study stages. This has demonstrated that

whatever architectures are employed there is the

potential for ML to improve the capability of

simulation in the areas of modelling input data, model

building and experimentation and simulation study

methodologies should incorporate ML techniques

into these stages. Furthermore to overcome barriers to

use in terms of coding and interfacing with ML

software, architecture 7 can be employed. In addition

simulation software providers should consider

integrated ML capabilities within their software

packages which do not require the use of computer

programming coding in languages such as Java.

5 CONCLUSIONS

In this article six architectures for the combined use

of COTS DES and ML have been identified. Off-line

approaches involve using intermediate data files to

pass data between the DES and ML software. This is

found to be suitable for applications such as the

training and testing of ML algorithms with the use of

synthetic data generated by the simulation. It is then

possible to either codify the ML algorithms within the

simulation or to provide an interface between the

simulation and trained algorithm. However the off-

line architecture is not suitable for techniques that

require continuous online learning such as RL or for

real-time applications such as digital twins.

Architectures that use an online approach may be

facilitated by a wrapper interface or the use of a server

but this option requires technical knowledge to

implement. Recent developments in COTS DES

provide them with an online interface through the use

of APIs but require knowledge in programming

languages such as C# and Java. In addition all of the

above offline and online options requires the ability

to use ML software such as MatLab and R. This

article proposes an additional architecture that uses

the facilities of a COTS DES package to integrate an

ML capability using an object modelling approach to

embed process logic. The advantages of this approach

is that it requires coding in the DES process logic with

which the DES practitioner is familiar and does not

require the use of an intermediate interface or

knowledge of external ML software. Thus the article

aims to contribute to the methodology of simulation

practitioners who wish to implement ML techniques.

The work should also be of interest to analysts

involved in ML applications as simulation can

provide an environment in which training and testing

can take place with synthetic data safely and far

quicker than in a real system. In terms of further work

the feasibility of providing this capability in

alternative COTS DES such as Arena needs to be

investigated. There also needs to be an investigation

of the integrated approach and the use of simulation

process logic to implement alternative ML algorithms

such as Neural Networks.

REFERENCES

Aguilar-Chinea, R.M., Rodriguez, I.C., Exposito, C.,

Melian-Batista, B., Moreno-Vega, J.M. 2019. Using a

decision tree algorithm to predict the robustness of a

transhipment schedule, Procedia Computer Science,

149, 529-536.

Aqlan, F., Ramakrishnan, S., & Shamsan, A., 2017.

Integrating data analytics and simulation for defect

management in manufacturing environments,

Proceedings of the 2017 Winter Simulation Conference

(3940-3951). IEEE.

MODELLINGINPUTDATA

BUILDINGTHEMODEL

3,6,7

MODELLINGINPUTDATA

BUILDINGTHEMODEL

2,5,7

EXPERIMENTATIONAND

ANALYSIS

(TRAININGANDTESTING

ALGORITHMS)

1,4,7

USED NOTUSED

USED

NOTUSED

DES‐>ML

ML‐>DES

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

Bergmann, S., Feldkamp, N., & Strassburger, S., 2015.

Approximation of dispatching rules for manufacturing

simulation using data mining methods. In L. Yilmaz,

W. K. V. Chan, I. Moon, T. M. K. Roeder, C. Macal, &

M. D. Rossetti (Eds.) Proceedings of the 2015 Winter

Simulation Conference (2329-2340). IEEE.

Bergmann, S., Feldkamp, N., & Strassburger, S., 2017.

Emulation of control strategies through machine

learning in manufacturing simulations, Journal of

Simulation, 11(1), 38-50.

Bergmann, S., Stelzer, S., & Strassburger, S., 2014. On the

use of artificial neural networks in simulation-based

manufacturing control, Journal of Simulation, 8(1), 76-

90.

Bishop, C.M. (ed) (2006) Pattern Recognition and Machine

Learning: Information Science and Statistics. New

York: Springer.

Capocchi, L., Santuuci, J-F, Zeigler, B.P., 2018. Discrete

Event Modelng and Simulation Aspects to Improve

Machine Learning Systems, 4

International

Conference on Universal Village, IEEE.

Cavalcante, I.M., Frazzon, E.M., Fernando, A., Ivanov, D.,

2019. A supervised machine learning approach to data-

driven simulation of resilient supplier selection in

digital manufacturing, International Journal of

Information Management, 49, 86-97.

Celik, N., Lee, S., Vasudevan, K., & Son, Y-J., 2010.

DDDAS-based multi-fidelity simulation framework for

supply chain systems, IIE Transactions, 42(5), 325-341.

Chewu, C.C.E. and Kumar V.M., 2018. Autonomous

navigation of a mobile robot in dynamic in-door

environments using SLAM and reinforcement learning,

IOP Conf. Series: Materials Science and Engineering,

402, 012022.

Chiu, C. and Yih, Y., 1995. A learning-based methodology

for dynamic scheduling in distributed manufacturing

systems, Int. J. Prod. Res., 33(11), 3217-3232.

Creighton, D.C. and Nahavandi, S., 2002. Optimising

discrete event simulation models using a reinforcement

learning agent, Proceedings of the 2002 Winter

Simulation Conference, 1945-1950.

Dasgupta, N. (2018) Practical Big Data Analytics, Packt

Publishing, Birmingham.

Deist, T.M., Patti, A., Wang, Z., Krane, D., Sorenson, T.,

Craft, D., 2019. Simulation-assisted machine learning,

Bioinformatics, 35(20), 4072-4080.

Elbattah, M., Molloy, O., Zeigler, B.P., 2018. Designing

care pathways using simulation modelling and machine

learning, Proceedings of the 2018 Winter Simulation

Conference, IEEE, 1452-1463.

Fairley, M., Scheinker, D., Brandeau, M.L., 2019.

Improving the efficiency of the operating room

environment with an optimization and machine

learning model, Health Care Management Science, 22,

756-767.

Glowacka, K.J., Henry, R.M., & May J.H., 2009. A hybrid

data mining/simulation approach for modelling

outpatient no-shows in clinic scheduling, Journal of the

Operational Research Society, 60(8), 1056-1068.

Goodall, P., Sharpe, R., West, A., 2019. A data-driven

simulation to support remanufacturing operations,

Computers in Industry, 105, 48-60.

Greasley, A. and Edwards, J.S., 2019. Enhancing discrete-

event simulation with big data analytics: A review,

Journal of the Operational Research Society,

DOI:10.1080/01605682.2019.1678406

Greasley, A. and Owen, C., 2015. Implementing an Agent-

based Model with a Spatial Visual Display in Discrete-

Event Simulation Software, Proceedings of the 5th

International Conference on Simulation and Modeling

Methodologies, Technologies and Applications

(SIMULTECH 2015), 125-129. July 21-23, Colmar,

France.

Gyulai, D., Kádár, B., & Monostori, L., 2014. Capacity

planning and resource allocation in assembly systems

consisting of dedicated and reconfigurable lines,

Procedia CIRP, 25, 185-191.

Hlupic, V., 2000. Simulation Software: An Operational

Research Society Survey of Academic and Industrial

Users, Proceedings of the 2000 Winter Simulation

Conference (1676-1683). IEEE.

Jain, S., Shao, G., Shin, S-J., 2017. Manufacturing data

analytics using a virtual factory representation,

International Journal of Production Research, 55(18),

5450-5464.

Jiang, J. and Xin, J., 2019. Path planning of a mobile robot

in a free-space environment using Q-learning, Progress

in Artificial Intelligence, 8, 133-142.

Khare, A., Motwani, R., Akash, S., Patil, J, Kala, R., 2018.

Learning the goal seeking behaviour for mobile robots,

3rd Asia-Pacific Conference on Intelligent Robot

Systems, IEEE, 56-60.

Klass, A., Laroque, C., Fischer, M., Dangelmaier, W.,

2011. Simulation aided, knowledge based routing for

AGVs in a distribution warehouse, Proceedings of the

2011 Winter Simulation Conference, IEEE, 1668-1679.

Kober, J., Bagnell, J.A., Peters, J., 2013. Reinforcement

Learning in Robotics: A Survey, The International

Journal of Robotics Research 32(11), 1238-1274

Law, A.M. (2015) Simulation Modeling and Analysis, 5th

Edition, New York: McGraw-Hill Education.

Marsland, S. (2015) Machine Learning: An Algorithmic

Perspective, CRC Press.

Murphy, R., Newell, A., Hargaden, V., Papakostas, N.,

2019. Machine learning technologies for order

flowtime estimation in manufacturing systems,

Procedia CIRP, 81, 701-706.

North, M.J. and Macal, C.M. (2007) Managing Business

Complexity: Discovering Strategic Solutions with

Agent-based Modeling and Simulation, Oxford

University Press.

Onggo, B.S., Mustafee, N., Juan, A.A., Molloy, O., Smart,

A., 2018. Symbiotic Simulation System: Hybrid

systems model meets big data analytics, Proceedings of

the 2018 Winter Simulation Conference, IEEE, 1358-

1369.

Pidd, M. (2004) Computer Simulation in Management

Science, Fifth Edition, John Wiley & Sons Ltd.

Architectures for Combining Discrete-event Simulation and Machine Learning

Priore, P., Ponte, B., Puente, J., & Gómez, A., 2018.

Learning-based scheduling of flexible manufacturing

systems using ensemble methods, Computers &

Industrial Engineering, 126, 282-291.

Robinson, S. (2014) Simulation: The practice of model

development and use, Second Edition, Palgrave

Macmillan.

Sartoretti, G., Kerr, J., Shi, Y., Wagner, G., Kumar, T.K.S.,

Koenig, C., Choset, H., 2019. PRIMAL: Pathfinding

via Reinforcement Learning and Imitation Multi-Agent

Learning, IEEE Robotics and Automation Letters, 4(3),

2378-2385.

Seifert, R.W., Kay, M.G., Wilson, J.R., 1998. Evaluation of

AGV routeing strategies using hierarchical simulation,

International Journal of Production Research, 36(7),

1961-1976.

Smith, J.S., Sturrock, D.T., Kelton, W.D. (2018) Simio and

Simulation: Modeling, Analysis, Applications, 5th

Edition, Simio LLC.

Sutton, R.S. and Barto, A.G. (2018) Reinforcement

Learning: An Introduction, Second Edition, The MIT

Press.

Taylor, S.J.E., Mustafee, N., Turner, S.J., Pan, K., &

Strassburger, S., 2009. Commercial-Off-The-Shelf

Simulation Package Interoperability: Issues and

Futures, Proceedings of the 2009 Winter Simulation

Conference, IEEE, 203-215.

Truong, X.T., Ngo, T.D., 2017. Toward socially aware

robot navigation in dynamic and crowded

environments: A proactive social motion model, IEEE

Transactions on Automation Science and Engineering,

14(4), 1743-1760.

Vieira, H., Sanchez, K., Kienitz, K.H., & Belderrain,

M.C.N., 2011. Improved efficient, nearly orthogonal,

nearly balanced mixed designs. In S. Jain, R.R.

Creasey, J. Himmelspach, K.P. White, & M. Fu (Eds.)

Proceedings of the 2011 Winter Simulation Conference

(3600-3611). IEEE.

Watkins, C.J.C.H. and Dayan, P., 1992. Q-learning,

Machine Learning, 8(3-4), 279-292.

SIMULTECH 2020 - 10th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
