Towards Understanding Man-on-the-Side Attacks (MotS) in SCADA

Networks

Peter Maynard and Kieran McLaughlin

Centre for Secure Information Technology, Queen’s University Belfast, U.K.

Keywords:

HTTP, ICS, IEC 60870-5-104, Man-in-the-Middle, Man-on-the-Side, SCADA, Off-path.

Abstract:

We describe a new class of packet injection attacks called Man-on-the-Side (MotS), previously only seen

where state actors have “compromised” a number of telecommunication companies. MotS injection attacks

have not been widely investigated in scientiﬁc literature, despite having been discussed by news outlets and

security blogs. MotS came to attention after the Edward Snowden revelations, which described large scale

pervasive monitoring of the Internet’s infrastructure. For an advanced adversary attempting to interfere with

IT connected systems, the next logical step is to adapt this class of attack to a smaller scale, such as enterprise

or critical infrastructure networks. MotS is a weaker form of attack compared to a Man-in-the-Middle (MitM).

A MotS attack allows an adversary to read and inject packets, but not modify packets sent by other hosts. This

paper presents practical experiments where we have implemented and performed MotS attacks against two

testbeds: 1) on HTTP connections, by redirecting a victim to a host controlled by an adversary; and 2) on

an Industrial Control network, where we inject falsiﬁed command responses to the victim. In both cases,

the victims accept the injected packets without generating a suspiciously large number of unusual packets on

the network. We then perform an analysis of three leading Network Intrusion Detection Systems (IDSs) to

determine whether the attacks are detected, and discuss mitigation methods.

1 INTRODUCTION

The Snowden revelations have been a driving factor

towards a more secure digital world. One clear exam-

ple of this is that TLS has become widely deployed

on systems which previously did not use encryption.

This paper builds upon leaked information regarding

MotS attacks. MotS has traditionally been consid-

ered only achievable by a global pervasive adversary

(Trammell et al., 2015), such as a state actor, who

is capable of using their global timing advantage to

inject forged packets before a victim receives legiti-

mate packets, which are then correctly discarded by

the target. In contrast, the experiments presented here

investigate a localised implementation of MotS at-

tacks against two protocols, HTTP and IEC 60870-5-

104 (IEC104). IEC104 is widely used within Europe

and Asia for controlling and monitoring critical in-

frastructure e.g. gas, electricity, etc. With state actors

known to be targeting infrastructure such as electric-

ity grids, our motivation is to better understand how

Reproducible experiments can be found at:

https://github.com/PMaynard/mots

such adversaries may adopt MotS attack techniques,

which they are known to have used in the past in dif-

ferent circumstances.

In 2013, a NIST report (Forrester, 2013) advo-

cated the improvement of industrial networks through

the use of zero-trust networks. DeCusatis et.el (De-

Cusatis et al., 2016) discussed how to implement a

zero-trust network, which would mitigate this class of

attacks. DeCusatis implemented a policy engine and

gateway which prevents unauthorised packets from

being accepted by a victim, as well as ensuring that

the attacker does not receive identiﬁable information

when their probe is dropped. However, within in the

Industrial Control System (ICS) domain, it is not pos-

sible to quickly deploy radical changes as seen with

TLS. Information from the National Grid (National

Grid, 2013) shows that this major upgrade of criti-

cal networks is not possible in the time frame laid

out. Due to the long life cycle of ICS equipment

and the criticality of the physical systems they con-

trol, many security recommendations for IT networks

are not suitable for Operational Technology (OT) net-

works. As a consequence OT networks frequently

rely on unencrypted protocols. Threats are typically

Maynard, P. and McLaughlin, K.

Towards Understanding Man-on-the-Side Attacks (MotS) in SCADA Networks.

DOI: 10.5220/0009782302870294

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 287-294

ISBN: 978-989-758-446-6

287

mitigated with the use of Virtual Private Networks

(VPNs), air gapped networks, network segmentation,

ﬁrewalls, and Demilitarised Zones (DMZs).

However, industrial control networks are often tar-

geted by state actors, as was the case with the TRI-

SIS malware (Johnson et al., 2017). This was a

Remote Access Trojan (RAT) that targeted Triconex

Safety Instrumented System (SIS) devices, and trig-

gered a shut down of an industrial site in the Middle

East. Another example is CRASHOVERRIDE (Dra-

gos, 2017), which performed network enumeration

and exploitation of Supervisory Control And Data

Acquisition (SCADA) protocols including IEC104.

This malware has been linked to the Ukrainian power

outages in 2016. Therefore, it is logical to assume

that MotS has, or is likely to be, deployed by similar

adversaries into an industrial network at some point

in time.

Many papers that propose novel network IDSs,

tend verify their effectiveness using the outdated

KDD’99 dataset or common attacks (i.e. MitM,

replay and injection (Maynard et al., 2014; Green

et al., 2017)). We provide a modern technique which

should be considered when validating intrusion detec-

tion methods. We investigate the detection respon-

siveness of the current state of the art network IDSs

(Snort, Zeek, Suricata) when confronted with MotS,

for both HTTP and IEC104. We provide reproducible

experiments and a packet captures of our attacks, so

they may be used to validate other IDSs.

The paper continues with an overview of related

work (§2) and background (§3), which details what

required for a MotS attack, and introduces ICS/S-

CADA networking architecture. Following on to the

experimentation methodology (§4), and experimental

results (§5). Finally, a review of current detection sys-

tems (§6) and conclusion (§7).

2 RELATED WORK

In 2012, Gilad et al. (Gilad and Herzberg, 2012)

proved that it is possible to inject packets into a TCP

stream, by using browser based malware to identify

the IP-ID, then spoof a request. Despite reports from

IETF RFC 6528, which state that TCP segment in-

jection is mitigated by having the majority of data

needed to perform this “not well known” to the at-

tacker. While the IETF suggests VPN or TCP Au-

thentication Option (2010) to prevent injection. At

the same, time the IETF acknowledges the TCP reset

vulnerability is a known issue. As of 2019, Alexander

et al. (Alexander et al., 2019) can identify the IP-port

four-tuple representing an active TCP connection, by

taking advantage of side-channels within the Linux

kernel 4.0 and above. Packet injection and TCP resets

are a widely known issue, with current mitigations

easily bypassed. As indicated in the introduction, the

existing state of the art IDSs for ICS networks are not

validated against these types of attacks.

The Chinese Great Firewall exploits the TCP re-

set vulnerability, and is discussed by Weaver et al.

(Weaver et al., 2009) (2009) who propose mitiga-

tions. Also in 2012, Victor Julien added a detection

rule for overlapping data to the open source network

IDS Suricata. Essentially, detecting TCP injection

and MotS attacks as seen in the detection section. In

2014, Gilad et al. (Gilad and Herzberg, 2014) im-

proved upon their previous TCP injection attacks, so

it does not require the use of web malware. They also

detail the history of TCP injection attacks. While Gi-

lad et al. focus on injecting attacks over the internet,

we choose to focus on exploiting a target on the local

network, assuming that it has been compromised by a

skilled adversary.

Between 2013 and 2014, The Guardian and The

Intercept (Schneier, 2013; Gallagher and Greenwald,

2014) discuss a nation state operation called “QUAN-

TUM Inject”, which uses their wide scope to mon-

itor and inject packets into TCP streams. Follow-

ing this media attention, the security company Fox-

IT performed a deep dive into QUANTUM Inject

(Haagsma, 2015). They developed a PoC and released

patches for a number of open source network IDSs. In

2015, a report from the IETF (Trammell et al., 2015)

discussed a threat model of a passive pervasive at-

tacker, explicitly stating MotS as one example. The

company NetReSec, which performs network secu-

rity training and develops a packet analyser tool, have

written a number of times about MotS between 2015-

16 (Hjelmvik, 2015). They attempted to raise aware-

ness of the attack, and developed additional detection

tools as well as identifying TCP injection attacks from

China.

Marczak et al. (Marczak et al., 2015) likened

the Distributed Denial of Service (DOS) attack from

“China’s Great Cannon” to the QUANTUM system.

In that the techniques used to inject packets are sim-

ilar to the QUANTUM Inject method. Finally, the

closest related work the authors identiﬁed was by

Nakibly et al. (Nakibly et al., 2016), who detail MotS

attacks being used to inject Javascript, HTTP redirec-

tions and malware dropping. They performed a study

to analyse incoming and outgoing connections of four

university institutions, and identiﬁed several differ-

ent threat groups. They proposed a few MotS detec-

tion methods, which use the IP features Time To Live

(TTL) and IP ID, and timing analysis to identify MotS

SECRYPT 2020 - 17th International Conference on Security and Cryptography

288

Client

Attacker

Server

1. Initiate Connection

2. Send forged response (X)

3. Send legitimate response (×)

Figure 1: Sequence Diagram of Man-on-the-Side (MotS)

attack.

in the wild. The authors are unaware of any papers

detailing MotS class of attack on industrial networks,

and are certain there is no academic literature that pro-

vides reproducible experiments and packet captures

that may be used to validate new IDSs.

3 BACKGROUND

MotS, like SYN-ﬂooding and DNS-Spooﬁng attacks,

are known as off-path. This differs from traditional

MitM attacks (Conti et al., 2016) which are consid-

ered on-path. An on-path attacker needs to control

the links between the victim and host, while an off-

path attacker does not. Although MotS is a weaker

class of attack than MitM, it is capable of packet in-

jection, without having to maintain connections as

a proxy. Previous work by the authors (Maynard

et al., 2014) which used Address Resolution Proto-

col (ARP) spooﬁng to maintain an on-the-path attack,

required a large number of ARP packets, as well as

the need to continuously forward packets to the vic-

tim. Depending on the network and host, this may

be easily detectable. It can also be resource intensive.

On the other hand, a MotS attack can be performed

with a minimum of one forged packet. Also, MotS

can not be mitigated by locking down switch ports

using Media Access Control (MAC) Access Control

Lists (ACLs), which can mitigate MitM.

A MotS attack can be successfully performed if

the attacker can: a) observe a victim’s request; b) ad-

equately replicate a response that the victim would ac-

cept; and c) transmit a response to the victim quicker

than legitimate response. If these three requirements

are met, then an adversay can perform this attack.

Fundamentally, this attack exploits the design of TCP

(RFC 793), whereby it is normal for TCP segments to

arrive more than once, and that the ﬁrst segment that

arrives is accepted. The attacker needs to be in a po-

sition to know the four-tuple (Local IP address, Local

Port, Remote IP address, Remote Port) that identiﬁes

the target connection, along with the next sequence

number expected by the target.

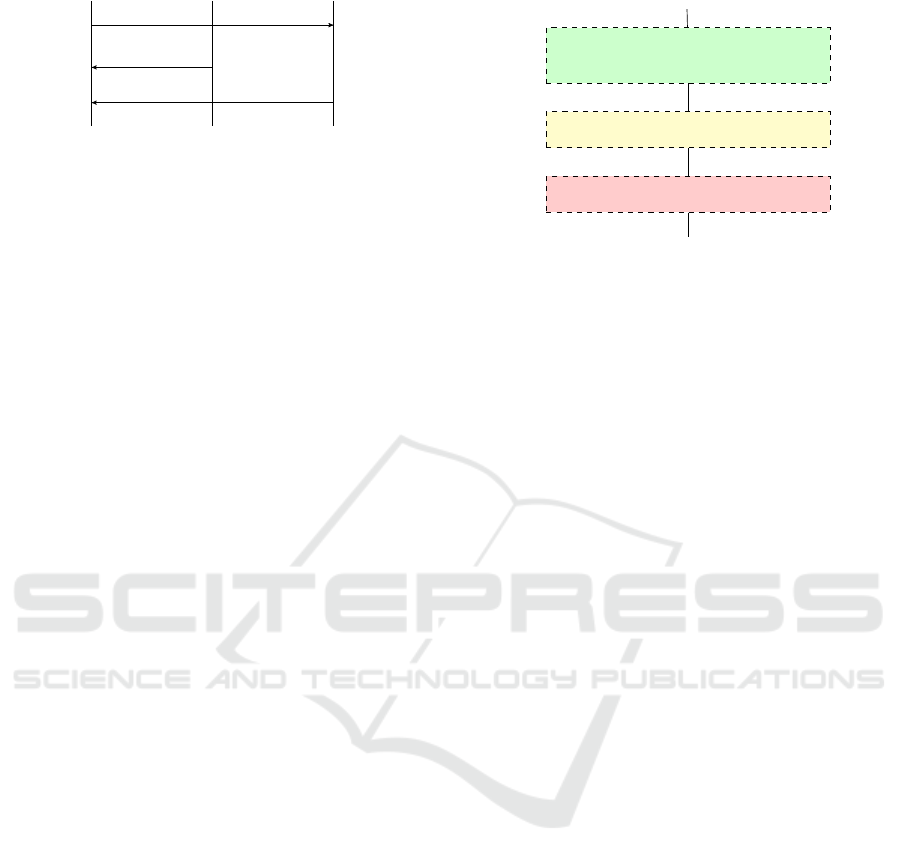

Figure 1 shows the sequence diagram of a MotS

Business

SCADA

Process Control

DMZ

Enterprise

Workstations

Reporting

HMI

Data Historian

PLC

RTU

Physical

Domain

Figure 2: A high level network diagram of an Industrial

Control System (ICS).

attack, consisting of a Client, Server and Attacker.

First, the Client initiates a connection with the server

and a TCP handshake is performed, followed by a re-

quest to the server. The attacker is positioned within

the network so that they can view this request (the

attacker does not need to view the handshake). The

attacker creates and sends a forged response, which

spoofs the four-tuple information, including the TCP

sequence number. The forged packet is accepted by

the client. Subsequently the legitimate response ar-

rives and is dropped by the client, as it has already

acknowledged the forged packet.

3.1 Industrial Control System Networks

The terms Industrial Control System (ICS) and Super-

visory Control And Data Acquisition (SCADA) are

often used interchangeably. However, SCADA may

be considered part of an ICS, which is used to mon-

itor and control physical devices. Figure 2 shows a

high level network diagram of an ICS network, that

highlights the different network segments, which have

limited access between each other.

In the diagram, the SCADA enclave is located in

the middle and provides information to the business

network, as well as monitoring the process control

enclave. A Human Machine Interface (HMI) may be

used to monitor the physical process, while a Data

Historian maintains a record of plant operations. The

process control enclave contains a number of devices

used to govern physical instruments and actuators that

interact with the physical domain. Typical devices

include Programmable Logic Controllers (PLCs) and

Remote Terminal Units (RTUs) which are rugged em-

bedded devices designed for a distinct task. The net-

work may consist of serial links, Ethernet, and IP,

as well as ﬁeld bus protocols; one such protocol is

IEC104 (International Electrotechnical Commission,

Towards Understanding Man-on-the-Side Attacks (MotS) in SCADA Networks

289

2006). If MotS were to be performed on ICS network,

the risks to the system may be:

• Unauthorised Access to Information: Redirect

information to the adversary, further gaining an

insight into the operation of the system.

• Unauthorised Modiﬁcation or theft of Infor-

mation: Bypassing controls an injecting modiﬁed

information.

• Denial of Service or Prevention of Authorised

Access: By injecting packets that cause the device

to trigger a DOS.

• Denial/Claim of Action that Took/Not Took

Place: By preventing legitimate responses from

arriving the adversary can force records into an

incomplete, or ﬁctitious state.

To perform these attacks on an industrial site with-

out causing any adverse effects on the system would

require a lot of planning and resources. The exact

physical device would need to be tested, and running

the same program code as the live system, while also

ensuring the devices are networked similarly. How-

ever, the attack may also be performed blindly with-

out all the information, yet the exact results may be

unknown.

4 METHODOLOGY

When performing these experiments we assume that

a highly skilled adversary has compromised the net-

work and has positioned themselves so they can mon-

itor and inject packets at any point of the network.

This is consistent with previously reported intrusions

of state actors within industrial environments, where

it is viable for an adversary to compromise the net-

work infrastructure, such as switches and routers, and

have this level of provenance. Each experiment is

conﬁgured so that there is a: client, server, and at-

tacker. The attacker is positioned so that they are in

between the client and server, this is ensured by intro-

ducing an artiﬁcial delay of 500ms to the responding

device. This allows us to validate the methods used to

inject the forged packets. In an industrial setting, the

responding device may be in a remote location, using

several communication mediums to respond to the op-

erator, such as radio or public internet, providing an

attacker with multiple opportunities. Once the injec-

tion has been completed, a recorded packet capture

is parsed by the three IDSs, and their results manu-

ally analysed. The experiments will focus more on

the IEC104 protocol over HTTP since our aim is to

prove the possibility of applying this attack on proto-

cols other than HTTP(Haagsma, 2015), and within a

localised network.

5 EXPERIMENTS

We performed four different MotS attacks on the two

protocols, HTTP and IEC104. The HTTP experi-

ments inject a false response then redirect the client.

The IEC104 experiments consider the injection of a

recorded response, and a completely forged response.

5.1 HTTP

HTTP is a stateless protocol and is generally closed

after each request/response is completed, resulting in

the TCP handshake has to be performed for each re-

quest. With MotS, it is possible to target HTTP con-

nections based on IP addresses, as well as a spe-

ciﬁc user by triggering on cookie headers (Gallagher

and Greenwald, 2014) and other identiﬁable data sent

within a HTTP connection. The network layout con-

sists of three hosts (Client, Server, and Attacker) and

a switch. A 500ms artiﬁcial delay has been added to

the server to ensure messages sent by the attacker will

reliably arrive ahead of the legitimate response. When

the client initiates a HTTP GET request, the attacker

generates a forged packet based IP/TCP ﬁelds of the

request. Then, the attacker reverses the direction of

the IP/TCP source and destination addresses/ports,

while the remainder of the IP header is unchanged.

A random IP ID is generated, and the forged packet’s

TCP sequence number is set to the request’s TCP

acknowledgement, and the forged packet’s TCP ac-

knowledgement to the request’s TCP sequence num-

ber. Finally, the forged payload is injected and all

checksums calculated before being transmitted to the

client. The legitimate response from the server arrives

at the client afterwards, and is consequently dropped

by the client.

5.1.1 Experiment 1: Inject Response Page

The forged response contains a simple HTML page

with a heading. Instead of the legitimate page, the

attacker could inject malicious JavaScript, as seen

by (Nakibly et al., 2016). The result of this ex-

change is that the client renders the forged HTTP re-

sponse in the web browser, while the legitimate re-

sponse is dropped without the browser being notiﬁed.

The connection needs to be terminated by sending

the TCP ﬂags FIN ACK, which shuts down the con-

nection. It is worth noting that if the attack uses

PUSH ACK TCP ﬂags, which are the ﬂags set under

normal circumstances, the TCP connection will re-

main open and the two payloads are rendered as one

by the browser. This happens even if the HTTP header

Connection: Close is sent.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

290

5.1.2 Experiment 2: Inject Redirect

This time the forged responses contain a ”HTTP 301

Moved Permanently”, instead of ”HTTP 200 OK”.

This status line requires the header ﬁeld Location,

along with a URI for redirection. Once received, the

browser will automatically open and render the spec-

iﬁed URI. This can be used to redirect the user to an

attacker-controlled site, which has obvious security

implications. The outcome is that the client follows

the 302 redirection URI, and drops the legitimate re-

sponse. Additionally, due to the nature of HTTP, the

server records the Get request into the server logs,

and is not aware that the client did not receive the

response. Consequently, the only way to detect this

happening is to monitor the network layer.

5.2 IEC 60870-5-104

IEC104 (International Electrotechnical Commission,

2006) is a protocol for transporting IEC 60870-5-101

(IEC101) frames over TCP. IEC101 is a plaintext tele-

control protocol designed for serial links. In these

experiments we will create forged IEC104 packets

with IEC101 payloads. The structure of an IEC104

packet, comprises two segments, the Application Ser-

vice Data Unit (ASDU) and Application Protocol

Control Information (APCI). The ASDU contains the

data to be exchanged, represented as Information El-

ements, and data about the number of information

elements are contained within the Data Unit Identi-

ﬁer (DUI). The APCI is sent with all packets and is

used to specify the start/end bits along with the ASDU

length. The protocol manages protection against loss

and duplication of messages using a counter mecha-

nism. Section 5.1 of EN 60870-5-104:2006 (Interna-

tional Electrotechnical Commission, 2006) speciﬁes

that a send sequence number N(S) and a receive se-

quence number N(R) are used based on the method

deﬁned in ITU-T X.25. Both sequence numbers are

incremented by one for each Application Protocol

Data Unit (APDU) and each direction. These are

acknowledged by the receiver, by returning the re-

ceive sequence number N(R) to the sender using the

supervisory format. Once acknowledged, the sender

can remove the correctly transmitted APDUs from its

buffer.

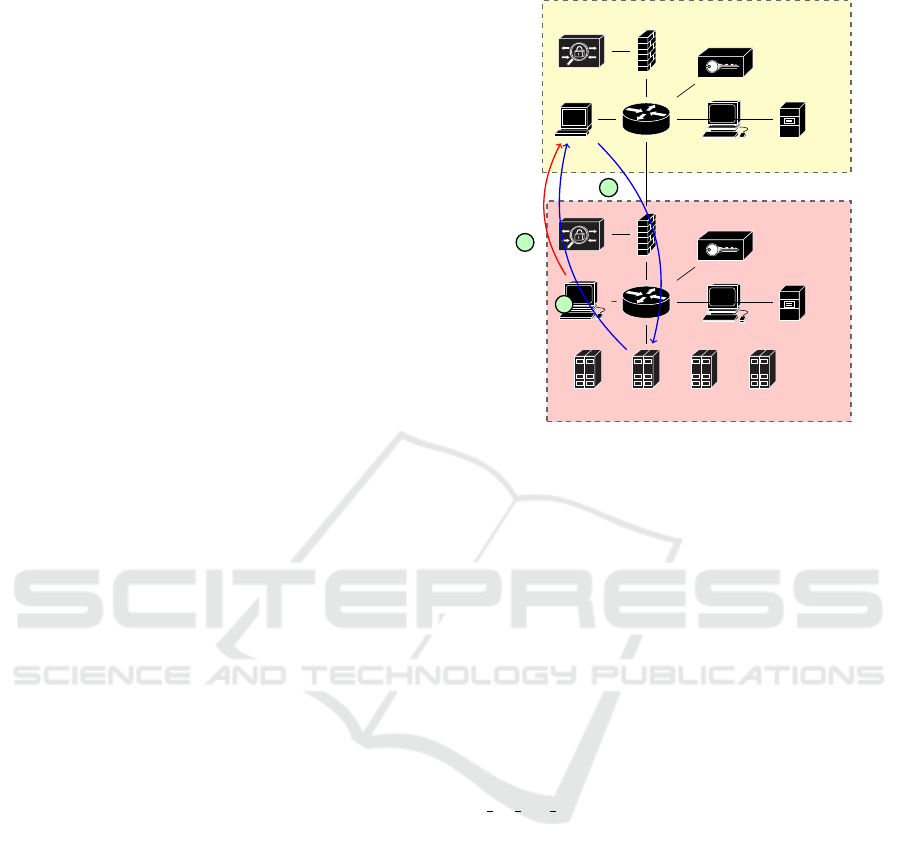

Figure 3 describes the SCADA testbed used to

perform the experiments. The attacker is located on

the same Process Control enclave as the PLC, while

the victim, the HMI is located within the SCADA

enclave. The attacker uses the port mirroring fea-

ture of the Process Control switch to monitor the net-

work. The attacker builds the forged packet from the

SCADA

Process Control

IDS

VPN Server

HMI

Control Station

Data Historian

IDS

Attacker

VPN Server

Engineering Station

Data Historian

PLCPLC

RTU RTU

Figure 3: A generalised network diagram showing two en-

claves: SCADA and Process Control.

initial General Interrogation (GI) request sent by the

HMI to the PLC (Figure 3: Step A), by switching

the MAC and IP source/destination addresses, and

switching the TCP sequence and acknowledgement

numbers. Additionally, the send and receive counters

for IEC104 are calculated to match the expected re-

sponse. The attacker then waits for the PLC to send an

ActCon (Figure 3; Step B), before sending the forged

response to the HMI (Figure 3; Step C). In the case

of IEC104, unlike the previously described HTTP at-

tacks, the TCP ﬂags remain as PUSH ACK, which will

be explained later.

These experiments are based on a GI (GI and

C IC NA 1 will be used interchangeably) of a PLC

initiated from the HMI. In normal operation, the PLC

would return its current status in response to a GI. The

testbed is conﬁgured to generate and return data that

simulates a real world response. This contains single-

point, double-points, and step-position information.

The objective of these experiments is to investigate

how an attacker can forge a fake response to change

the data viewed by a HMI operator.

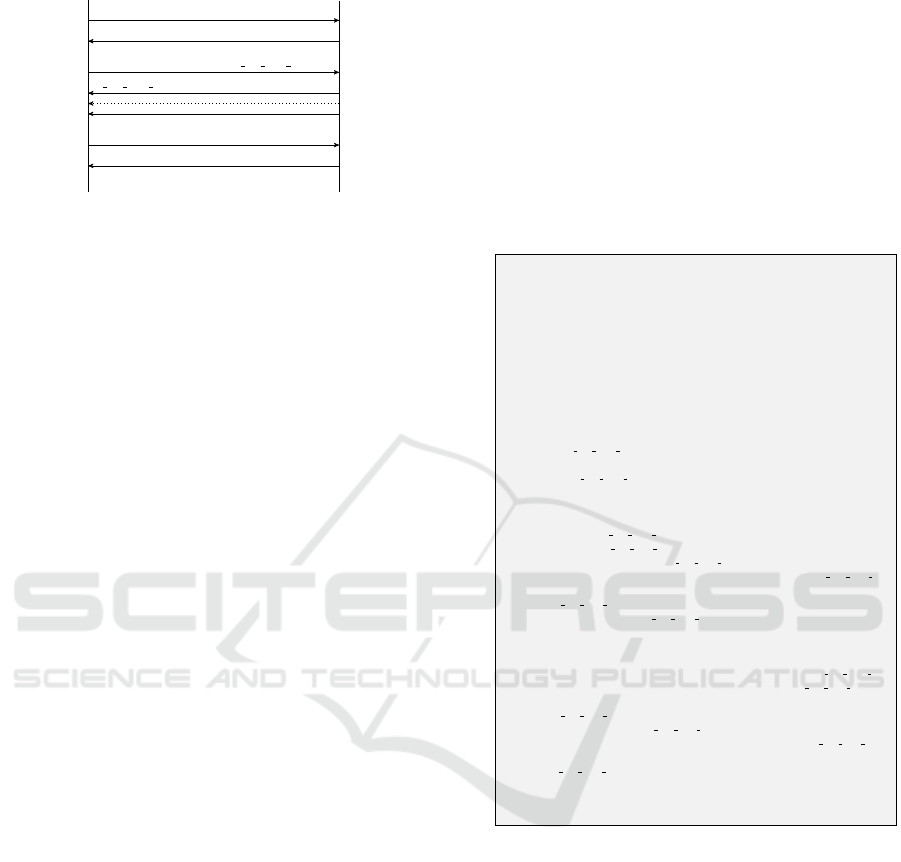

Figure 4 is a sequence diagram detailing the

steps of a GI. After the TCP handshake is suc-

cessful, the sender will initialise the connection for

data transmission using the STARTDT = act com-

mand, if successful the receiving station will re-

spond with STARTDT = con. Next, the sender

performs a GI request, using an ASDU frame

(C_IC_NA_1 = act), which is acknowledged by re-

ceiving end as C_IC_NA_1 = act con, followed by

the interrogation data. The dotted line is where the

Towards Understanding Man-on-the-Side Attacks (MotS) in SCADA Networks

291

HMI PLC

STARTDT Act

STARTDT con

C IC NA 1 Act

C IC NA 1 ActCon

DATA ActCon

Figure 4: Sequence diagram of a Human Machine Interface

(HMI) performing an General Interrogation (GI) command

on a Programmable Logic Controller (PLC). The dotted line

shows the injected response.

forged packets are injected within the sequence. Fi-

nally, the data is conﬁrmed using the Supervisory for-

mat N(S), containing the number of frames received.

5.2.1 Experiment 3: Inject a Replayed Response

This experiment will replay a pre-captured response

from the PLC, matching the same number of AP-

CI/ASDU responses expected from the PLC, so that

an attacker can hide the physical state from the oper-

ator. Effectively, this attack will force the data vis-

ible to the operator to become out of sync with the

physical process, in a similar way that Stuxnet hid

real-time information from operators. Since this is

a replay attack, the injected response will contain

the same number of information elements, except the

values will be reused from an earlier transmission.

Listing 1 shows a packet capture of this experiment.

The ﬁrst packets are the TCP handshake (1-3), fol-

lowed by the STARTDT act and STARTDT con mes-

sages (4-6) to start data transmission on this connec-

tion from the HMI to the PLC. The HMI sends a

GI (7), and at this point, the attacker generates the

forged response. The PLC then acknowledges the

GI (8-9), triggering the attacker to send their forged

response (10). The forged response is accepted by

the HMI (11), after which the legitimate GI response

arrives (12), and is marked in the packet capture

as TCP Spurious Retransmission. The HMI re-

sponds to the PLC with a TCP ACK (13), which is

marked as TCP Dup ACK, since it was already used

by the forged response.

After the replayed packet has been accepted, the

PLC software hangs, then drops because the TCP se-

quence number becomes out of sync due to the in-

jected segment. Although, as was the case in the

HTTP experiments, it is possible to close the con-

nection, the operation of IEC104 normally requires

long lived connections. Deliberately bringing down

this connection with a TCP reset could alert a system

administrator to an issue or intrusion within the net-

work. While the result is that the HMI operator is now

viewing stale data, the connection will be dropped and

a redundant connection used in its place. The IEC104

standard states that several connections may be main-

tained with the remote device, and periodically re-

freshed using the STARTDT command. Allowing the

connection to degrade using the time out mechanism,

overusing the TCP RST method, reduces the likeli-

hood of triggering an alert.

Listing 1: Packet Capture of IEC104 Experiment 3.

1 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 74 39 394 > 240 4 [SYN]

Seq =0 Win =292 00 Len=0

2 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 TCP 74 2404 > 39394 [SYN,

ACK] Seq =0 Ack=1 Win=8192 Len =0

3 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 66 39 394 > 240 4 [ACK]

Seq =1 Ack=1 Win=29 312 Len=0

4 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 104 a p c i 72 <− U ( STARTDT

a c t )

5 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 104 a p c i 72 −> U (STARTDT

co n )

6 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 66 39 394 > 240 4 [ACK]

Seq =7 Ack=7 Win=29 312 Len=0

7 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 104 a sd u 82 <− I ( 0 , 0 ) ASDU

=1 C IC NA 1 Act IOA=0

8 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 104 a s d u 82 −> I ( 0 , 1 ) ASDU

=1 C IC NA 1 ActCon IOA=0

9 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 66 39 394 > 240 4 [ACK]

Seq =23 Ack =23 Win=29312 Len=0

10 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 104 a s d u 692 −> I ( 1 , 1 )

ASDU=1 C IC NA 1 ActCon IOA=0 | −> I ( 2 , 1 )

ASDU=1 M SP NA 1 I n r o g e n IOA [ 6 0 ] = 6 5 5 8 3 , . . . | −>

I ( 3 , 1 ) ASDU=1 M SP NA 1 I n r o g e n IOA

[ 4 4 ] = 1 1 2 0 3 6 6 , . . . | −> I ( 4 , 1 ) ASDU=1 M DP NA 1

I n r o g e n IOA [ 3 0 ] = 5 6 1 1 9 2 , . . . | −> I ( 5 , 1 ) ASDU=1

M ST NA 1 I n r o g e n IOA [ 2 ] = 1 8 7 4 0 1 9 , . . . | −> I

( 6 , 1 ) ASDU=1 C IC NA 1 ActTerm IOA=0

11 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 66 39 394 > 240 4 [ACK]

Seq =23 Ack =649 Win=30464 Len =0

12 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 104 a s d u 692 [ TCP S p u r i o u s

R e t r a n s m i s s i o n ] | −> I ( 1 , 1 ) ASDU=1 C IC NA 1

ActCon IOA=0 | −> I ( 2 , 1 ) ASDU=1 M SP NA 1

I n r o g e n IOA [ 6 0 ] = 6 5 5 8 3 , . . . | −> I ( 3 , 1 ) ASDU=1

M SP NA 1 I n r o g e n IOA [ 4 4 ] = 1 1 2 0 3 6 6 , . . . | −> I

( 4 , 1 ) ASDU=1 M DP NA 1 I n r o g e n IOA

[ 3 0 ] = 5 6 1 1 9 2 , . . . | −> I ( 5 , 1 ) ASDU=1 M ST NA 1

I n r o g e n IOA [ 2 ] = 1 8 7 4 0 1 9 , . . . | −> I ( 6 , 1 ) ASDU=1

C IC NA 1 ActTerm IOA=0

13 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 78 [ TCP Dup ACK 11 # 1]

393 94 > 2 404 [ACK] Seq =23 Ack=649 Win=30464 Len

5.2.2 Experiment 4: Inject Two Step Position

Responses

This experiment will investigate injecting two step

position responses into the connection, rendering the

HMI with an incomplete view of the system. In Ex-

periment 3, an old response was returned containing

the full amount of expected data, however in Exper-

iment 4 a forged response containing only two step

position values, i.e. fewer than expected, will be

returned. The motivation for this experiment is to

determine what would happen when a smaller than

expected response arrives on an active TCP connec-

tion. Note that in the HTTP experiments two payloads

would be rendered as one if the connection was not

terminated. Listing 2 shows a packet capture of this

experiment. The ﬁrst packets are the TCP handshake

SECRYPT 2020 - 17th International Conference on Security and Cryptography

292

and IEC104 start data transfer acknowledgement (1-

6). Next, the GI request and acknowledgement are

seen (7-9), followed by the forged packet (10-11).

Note the payload is 120bits compared to the legiti-

mate payload of 692bits (12). As with the previous

experiment, the HMI conﬁrms the received frames us-

ing the Supervisory format (14), this time with the re-

ceive sequence number of 4, since there were 4 frames

sent: Opening interrogation command “ActCon”; two

step positions; and Closing interrogation command

“ActTerm”. Subsequently, the connection keeps us-

ing the wrong TCP sequence number which eventu-

ally causes it to time out.

Listing 2: Packet Capture of IEC104 Experiment 4.

1 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 74 39 440 > 240 4 [SYN]

Seq =0 Win =292 00 Len=0

2 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 TCP 74 2404 > 39440 [SYN,

ACK] Seq =0 Ack=1 Win=8192 Len =0

3 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 66 39 440 > 240 4 [ACK]

Seq =1 Ack=1 Win=29 312 Len=0

4 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 104 a p c i 72 <− U ( STARTDT

a c t )

5 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 104 a p c i 72 −> U (STARTDT

co n )

6 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 66 39 440 > 240 4 [ACK]

Seq =7 Ack=7 Win=29 312 Len=0

7 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 104 a sd u 82 <− I ( 0 , 0 ) ASDU

=1 C IC NA 1 Act IOA=0

8 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 104 a s d u 82 −> I ( 0 , 1 ) ASDU

=1 C IC NA 1 ActCon IOA=0

9 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 66 39 440 > 240 4 [ACK]

Seq =23 Ack =23 Win=29312 Len=0

10 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 104 a s d u 120 −> I ( 1 , 1 )

ASDU=1 C IC NA 1 ActCon IOA=0 | −> I ( 2 , 1 )

ASDU=1 M ST NA 1 I n r o g e n IOA [ 2 ] = 1 8 7 4 0 1 9 , . . . |

−> I ( 3 , 1 ) ASDU=1 C IC NA 1 Act Term IOA=0

11 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 66 39 440 > 240 4 [ACK]

Seq =23 Ack =77 Win=29312 Len=0

12 1 0 . 5 0 . 5 0 . 9 9 > 1 0 . 5 0 . 5 0 . 1 0 3 TCP 692 [ TCP Out−Of−Or d er ]

2404 > 39 440 [ PSH , ACK] Seq =23 Ack=23 Win

=66560 Len=6

13 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 TCP 78 [ TCP Dup ACK 11 # 1]

394 40 > 2 404 [ACK] Seq =23 Ack=77 Win= 29312 Len =0

14 1 0 . 5 0 . 5 0 . 1 0 3 > 1 0 . 5 0 . 5 0 . 9 9 104 a p c i 72 <− S ( 4 )

The PLC and the web server both had an artiﬁcial de-

lay of 500ms to allow for the injected packets to reach

the victim before the legitimate response. This is due

to the limited scale of the laboratory testbed, and con-

sequent low latency, this enabled the experiments to

be developed without concern for the attacker to beat

the legitimate packets. Nonetheless, in this testbed,

when the artiﬁcial delays were completely removed,

it was found that the forged response would arrive

ahead of the legitimate response approximately 1 in

7 times.

6 DETECTION

Each of the four experiments were analysed ofﬂine

using three of the most recent state of the art network

Intrusion Detection Systems. These are Zeek 2.6.2

(formerly Bro), Snort 2.9.13-1, and Suricata 4.1.4.

Table 1: Network IDS detection results. ( ) Yes ( ) No

( ) Partial.

HTTP IEC104

Experiment 1 2 3 4

Zeek

Snort

Suricata

All of the engines were updated to the latest pub-

lic rule sets as of May 2019, and were conﬁgured

to parse ofﬂine packet capture ﬁles. Table 1 shows

details of the detection results for all three engines.

Successful detection is recorded as either ’Yes’, ’No’,

or ’Partial’. ’Yes’ indicates an exact match on the

correct packet, with the triggered rule returning an

accurate description of the respective attack. ’Par-

tial’ means, for example, a rule triggered at the cor-

rect time but the reason for the alert, or the descrip-

tion provided, was not accurate. ’No’ indicates no

IDS alert was triggered. Zeek could be considered

the least accurate of the three engines in terms of its

alerts. For the HTTP experiments, Zeek alerted with

‘FIN advanced last seq’. This alert is triggered be-

cause of the server accepting the forged packet, which

brings down the connection. For the IEC104 experi-

ments Zeek alerts with ‘window recision’ on the exact

injected packet. However the IDS was not triggering

due to the speciﬁc MotS activity, rather it alerted be-

cause the TCP recv-window shrank by more than the

amount of data being ACKed, as detailed in RFC793

Section 3.7, which is strongly discouraged. There-

fore, although Zeek alerted in all four cases, the rea-

son for each alert would not be obvious to an ana-

lyst monitoring the alerts. Zeek has built in support

for detecting MotS attacks since 2015, however, it is

disabled by default and does not detect the experi-

ments. Snort alerted on the correct injected packet

in the ﬁrst HTTP experiment, with the message ‘IN-

VALID CONTENT-LENGTH OR CHUNK SIZE” us-

ing the ’http inspect’ module. The second HTTP ex-

periment was also correctly detected, however, the

alerts are due to the legitimate segments arriving after

the connection is closed with ‘Data sent on stream not

accepting data’ and ‘Reset outside window’. These

are seen in both experiments 1 and 2. The only event

which Snort alerts for regarding the IEC104 injec-

tions are ‘Consecutive TCP small segments exceed-

ing threshold’, which is due to the server attempting

to renegotiate the connection, and causing a time out.

Therefore this was considered as not speciﬁcally de-

tecting the MotS attack. Suricata had the most accu-

Towards Understanding Man-on-the-Side Attacks (MotS) in SCADA Networks

293

rate detection of the three IDSs. With the HTTP ex-

periments, the ACK packets with the wrong sequence

numbers are detected and, as with Snort, the ﬁrst

HTTP injection is detected with ‘SURICATA HTTP

unable to match response to request’. The most inter-

esting alert is ‘SURICATA STREAM reassembly over-

lap with different data’, which exactly describes the

MotS attack. This is displayed for all experiments,

except experiment 3, which related to injecting a re-

played response. Experiment 3 did not trigger any

alerts from Suricata, because the forged payload was

the same as the legitimate one.

7 CONCLUSION

Further work should be performed for each of the

NIDS to include detection alerts for the MotS class of

attacks. While Suricata can detect this, and notify the

operator with a somewhat descriptive name, it fails

to articulate the issue as a malicious action. Network

IDS for deployment within OT networks must have

support for the industrial protocols, otherwise, detec-

tion of these kinds of attacks and others will go unno-

ticed. As discussed in the introduction, zero-trust net-

works, VPNs (to an extent), and TLS are the best mit-

igations of this class of attack. IEC104 is has a com-

panion standard, IEC 62351, detailing securing end

to end communication, however in internal networks,

these defences are often not deployed. In part due to a

lax security mindset, or the additional complexity and

risk of deployment. While this class of attack is miti-

gated for much of the public internet via TLS, critical

network operators need to be aware of the potential

damage this attack may have on a system. Although

deploying a mitigation approach such as zero-trust

networking is the gold standard, many network opera-

tors are not in a position to do so. Threat actors, such

as nation states have used this method successfully

over several years, and it seems likely this approach

will continue to be exploited in the future. Especially

in the ICS domain, where unauthenticated local trafﬁc

such as IEC104 is still commonplace. As the experi-

ments with Zeek, Snort and Suricata have shown, fur-

ther work is required to provide these network IDS

platforms with the detection rules and mechanisms

capable of accurately detecting MotS being exploited

by an intruder.

REFERENCES

Alexander, G., Espinoza, A. M., and Crandall, J. R. (2019).

Detecting TCP/IP Connections via IPID Hash Colli-

sions. Proceedings on Privacy Enhancing Technolo-

gies, 2019(4).

Conti, M., Dragoni, N., and Lesyk, V. (2016). A Survey of

Man In The Middle Attacks. IEEE Communications

Surveys & Tutorials.

DeCusatis, C., Liengtiraphan, P., Sager, A., and Pinelli, M.

(2016). Implementing Zero Trust Cloud Networks

with Transport Access Control and First Packet Au-

thentication. In 2016 IEEE International Conference

on Smart Cloud (SmartCloud).

Dragos (2017). CRASHOVERRIDE - Analysis of the

Threat to Electric Grid Operations. Technical report,

Dragos, Inc.

Forrester (2013). Developing a Framework to Improve Crit-

ical Infrastructure Cybersecurity. Technical report,

NIST.

Gallagher, R. and Greenwald, G. (2014). How the NSA

Plans to Infect ‘Millions’ of Computers with Malware.

Gilad, Y. and Herzberg, A. (2014). Off-Path TCP Injection

Attacks. ACM Transactions on Information and Sys-

tem Security.

Gilad, Y. and Herzberg, A. (Auguest 2012). Off-Path At-

tacking the Web. In 6th USENIX Workshop on Offen-

sive Technologies.

Green, B., Krotoﬁl, M., and Abbasi, A. (2017). On the

Signiﬁcance of Process Comprehension for Conduct-

ing Targeted ICS Attacks. In Proceedings of the 2017

Workshop on Cyber-Physical Systems Security and

PrivaCy, CPS ’17.

Haagsma, L. (2015). Deep dive into QUANTUM INSERT.

Hjelmvik, E. (2015). Covert Man-on-the-Side Attacks.

International Electrotechnical Commission (2006). EN

60870-5-104:2006. Technical report, British Stan-

dards Institution.

Johnson, B., Caban, D., Krotoﬁl, M., Scali, D., Brubaker,

N., and Glyer, C. (2017). Attackers Deploy New ICS

Attack Framework TRITON and Cause Operational

Disruption to Critical Infrastructure.

Marczak, B., Weaver, N., Dalek, J., Ensaﬁ, R., Fiﬁeld, D.,

McKune, S., Rey, A., Scott-Railton, J., Deibert, R.,

and Paxson, V. (2015). An Analysis of China’s “Great

Cannon”. In 5th USENIX Workshop on Free and Open

Communications on the Internet. USENIX Associa-

tion.

Maynard, P., McLaughlin, K., and Haberler, B. (2014). To-

wards Understanding Man-In-The-Middle Attacks on

IEC 60870-5-104 SCADA Networks. In ICS-CSR.

Nakibly, G., Schcolnik, J., and Rubin, Y. (2016). Website-

Targeted False Content Injection by Network Opera-

tors. In USENIX Security Symposium.

National Grid (2013). Response to NIST: “Developing a

Framework to Improve Critical Infrastructure Cyber-

security. Technical report, National Grid.

Schneier, B. (2013). Attacking Tor: How the NSA targets

users’ online anonymity. The Guardian.

Trammell, B., Huitema, C., Schneier, B., Jennings, C.,

Borkmann, D., Barnes, R., and Hardie, T. (2015).

Conﬁdentiality in the Face of Pervasive Surveillance:

A Threat Model and Problem Statement.

Weaver, N., Sommer, R., and Paxson, V. (2009). Detecting

Forged TCP Reset Packets. In NDSS.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

294
