Microservices vs Serverless: A Performance Comparison on a

Cloud-native Web Application

Chen-Fu Fan, Anshul Jindal

and Michael Gerndt

Chair of Computer Architecture and Parallel Systems, TU Munich, Garching, Germany

Keywords:

Microservices, Serverless, Performance Comparison, Cloud-native Applications, Cloud Computing.

Abstract:

A microservices architecture has gained higher popularity among enterprises due to its agility, scalability,

and resiliency. However, serverless computing has become a new trendy topic when designing cloud-native

applications. Compared to the monolithic and microservices, serverless architecture ofﬂoads management and

server conﬁguration from the user to the cloud provider and let the user focus only on the product development.

Hence, there are debates regarding which deployment strategy to use.

This research provides a performance comparison of a cloud-native web application in terms of scalability,

reliability, cost, and latency when deployed using microservices and serverless deployment strategy. This

research shows that neither the microservices nor serverless deployment strategy ﬁts all the scenarios. The

experimental results demonstrate that each type of deployment strategy has its advantages under different

scenarios. The microservice deployment strategy has a cost advantage for long-lasting services over serverless.

On the other hand, a request accompanied by the large size of the response is more suitably handled by serverless

because of its scaling-agility.

1 INTRODUCTION

With the wide adoption of cloud computing, en-

terprises have migrated or refactored their existing

monolithic-based applications into the microservices

architecture (Di Francesco et al., 2018). Microservices

architecture based applications have higher agility

since it decouples a monolithic-based application into

smaller services and each service can then be deployed

separately either on a virtual machine or in a container

where the resources can be scaled on-demand. This

migration has not only affected the application’s archi-

tecture but also the team’s structure within an organi-

zation (Mazlami et al., 2017).

Besides many advantages, microservices architec-

ture also has some disadvantages in software devel-

opment. For instance, each service communicates

through the network via REST API endpoints, which

can pose some data security concerns during commu-

nication. Also, research shows that the development

team with a strong DevOps culture may indeed get ben-

eﬁt from the microservices architecture, therefore the

effort to establish DevOps culture is another considera-

tion for adopting a microservices architecture (Schnei-

https://orcid.org/0000-0002-7773-5342

der, 2016).

On the other hand, serverless computing has gained

higher popularity and more adoption in different ﬁelds

since the launch of AWS Lambda in 2014 (Handy,

2014). Compared to the monolithic or the microser-

vices architecture, a serverless architecture releases

the effort of server management from the application

developers where they now just have to focus on the

application logic (Castro et al., 2019). In other words,

DevOps are free from operations work and can purely

focus on development. In addition, in serverless com-

puting cost is charged on the number of requests re-

ceived to the functions and the time it takes for the

code to execute (Gancarz, 2017). This pricing model

is much simpler as compared to the traditional instance

pricing model which is based on the number of in-

stances and their diverse types. Therefore, application

owners in this model are also free from the decisions

of choosing instance types and a number of instances.

Both microservices and serverless computing have

their advantages and disadvantages and the decision to

adopt a design pattern depends on the team capability

and project requirements. In this research, we have

analyzed a cloud-native web application refactored

into both microservices and serverless deployment

models from the aspect of scalability, reliability, cost,

204

Fan, C., Jindal, A. and Gerndt, M.

Microservices vs Serverless: A Performance Comparison on a Cloud-native Web Application.

DOI: 10.5220/0009792702040215

In Proceedings of the 10th International Conference on Cloud Computing and Ser vices Science (CLOSER 2020), pages 204-215

ISBN: 978-989-758-424-4

and latency. The experimental results demonstrate

that the microservice deployment strategy has a cost

advantage for long-lasting services over serverless. On

the other hand, a request accompanied by the large

size of the response is more suitably handled by the

serverless because of its scaling-agility.

The main contribution of this paper is the perfor-

mance comparison between microservices and server-

less deployment in terms of scalability, reliability, cost,

and latency. Further, we provide architecture recom-

mendations based on the type of load, scenario, and

the request size.

The rest of this paper is composed as follows. Sec-

tion 2 discusses the background knowledge required

for this paper in brief. Section 3 studies the related

works. Section 4 provides the overall system design.

Section 5 provides the evaluation strategy and exper-

imental conﬁguration details and, also showcase the

results of the conducted analysis. Section 6 summa-

rizes the discussion of the results and lastly, Section 7

concludes the paper.

2 BACKGROUND

2.1 Microservices-based Architecture

Monolithic architecture is one of the most widely used

design patterns for enterprise applications. From a

modularization abstraction perspective, the character-

istics are hardware resource-sharing, and the inter-

nal executable is mutually dependent (Kratzke, 2018).

Developers could efﬁciently conduct end-to-end test-

ing on this type of architecture with automation tools.

On the other hand, the maintenance, bug-ﬁxing, tech-

nology refactoring, and scaling speciﬁc resources are

the drawbacks of this architecture (Kazanavi

cius and

zeika, 2019). In contrast to monolithic architec-

ture, microservices architecture design is a more loose-

coupled style (Bhojwani, 2018). Microservices con-

sists of a suite of modules, and each module is dedi-

cated to a speciﬁc business goal and communicates via

a well-deﬁned interface. The beneﬁts of a microser-

vices architecture are improved fault tolerance, ﬂexi-

bility in using technologies and scalability and speed

up of the application (Novoseltseva, 2017). However,

there are also some disadvantages such as the increase

of development and deployment complexity, imple-

menting an inter-service communication mechanism,

and challenging to conduct end-to-end testing (Bho-

jwani, 2018).

2.1.1 Microservices-based Deployment Strategy

Deploying a monolithic architecture is relatively

straight-forward than other architectures where devel-

opers deploy the whole application on a single physical

or virtual server (Richardson, 2019b). If an application

is required to be deployed on multiple servers, a com-

mon way is to deploy the same application multiple

times on each server and then load balance it using a

load balancer. The principle of microservices architec-

ture is loose-coupling, which requires multiple service

instances for an application (Richardson, 2015). This

can be achieved either by deploying each service on

a separate virtual machine instance or deploying a

service per container or one can even combine multi-

ple services per virtual machine and container. The

containerization deployment beneﬁts from the higher

deployment speed, agility, and lower resources con-

sumption (Richardson, 2019a). This strategy also al-

lows each microservice instance to run in isolation on a

host. This enables the guaranteed quality of service for

each microservice at the cost of idle resources. Con-

tainer orchestration tools like Kubernetes

and AWS

Elastic Container Service

can be used for managing

the containers.

2.2 Serverless-based Architecture

Compared to the monolithic and microservices archi-

tecture, serverless architecture does not require the

management of underlying infrastructure (Amazon,

2018). Although serverless architecture still requires

infrastructure to execute programs, all the tasks, includ-

ing infrastructure management and operation, auto-

scaling, and maintenance, shift to the cloud service

providers. Since there are no reserved instances for

the serverless, the cost is charged on the number of

requests received to the functions and the time it takes

for the code to execute (Gancarz, 2017). In general,

one of the advantages of serverless architecture is the

less total cost of ownership by paying as you run.

2.2.1 Serverless-based Deployment Strategy

Most of the conﬁguration regarding physical servers,

containers, and scalability for the deployment of a

serverless application does not require the developer’s

attention (Amazon, 2018). A serverless platform

accepts the application source code as an input along

with a deployment speciﬁcation to describe the func-

tions, APIs, permissions, conﬁgurations, and events

https://kubernetes.io/docs/

https://aws.amazon.com/ecs/

Microservices vs Serverless: A Performance Comparison on a Cloud-native Web Application

205

that make up a serverless application through an inter-

face which can be a CLI or web interface or using some

frameworks like Serverless

and Architect

. This spec-

iﬁcation is then further used by the framework to build

and deploy the application on the serverless platform.

Almost all cloud service providers provide cloud-based

IDE or plugins to the popular IDEs for the develop-

ment and deployment of the serverless applications.

For instance, AWS provides Serverless Application

Model (AWS SAM), an open-source framework that

is used to build serverless applications on AWS (AWS,

2020b). It also provides a local environment that al-

lows the developers to test and debug their applications

locally before deploying it to the cloud. Each server-

less execution platform also provides function execu-

tion logs which further can be used by the developers

for debugging. In addition, there is user request tracing

tools like AWS X-Ray which enables developers to

trace the requests and debug potential problems (AWS,

2020a; Lin et al., 2018).

3 RELATED WORK

We present here the related work in threefolds, ﬁrstly,

on the performance evaluation of microservices, sec-

ondly on the performance evaluation of serverless and

lastly on the architectural decisions on selecting mi-

croservices or serverless deployment. Casalicchio and

Perciballi (Casalicchio and Perciballi, 2017) analyze

the effect of using relative and absolute metrics to

assess the performance of autoscaling. They have de-

duced that for CPU intensive workloads, the use of

absolute metrics can result in better scaling decisions.

Jindal et al. (Jindal et al., 2019) addressed the per-

formance modeling of microservices by evaluation of

a microservices web application. They identiﬁed a

microservice’s capacity in terms of the number of re-

quests to ﬁnd the appropriate resources needed for the

microservices such that, the system would not violate

the performance (response time, latency) requirements.

Kozhirbayev and Sinnott (Kozhirbayev and Sinnott,

2017) present the performance evaluation of microser-

vice architectures in a cloud environment using dif-

ferent container solutions. They also reported on the

experimental designs and the performance benchmarks

used as part of this performance assessment.

Nowadays serverless computing has become a hot

topic in the research (Lloyd et al., 2018; Eivy, 2017;

Baldini et al., 2017; Jonas et al., 2017). Baldini et

al. (Baldini et al., 2017) presents the general features

https://serverless.com/framework/docs/

https://arc.codes/

of serverless platforms and discuss open research prob-

lems in it. Lynn et al. (Lynn et al., 2017) discuss

the feature analysis of enterprise based serverless plat-

forms, including AWS Lambda, Microsoft Azure Func-

tions, Google Cloud Functions and OpenWhisk. Lee

et al. (Lee et al., 2018) evaluated the performance of

public serverless platforms for CPU, memory and disk-

intensive functions. Similarly, Mohanty et al. (Mo-

hanty et al., 2018) compared the performance of open-

source serverless platforms Kubeless, OpenFaaS, and

OpenWhisk. They evaluated the performance of each

in terms of the response time and success ratio for

function when deployed in a Kubernetes cluster. Pinto

et al. showcased the use of serverless in the ﬁeld of

IoT by dynamically allocating the functions on the IoT

devices (Pinto et al., 2018).

With the rise of serverless computing, microser-

vices architecture is not the only choice when mod-

ernizing a monolithic application. There are debates

about architecting decisions when it comes to choosing

serverless or microservices. Jambunathan et al. (Jam-

bunathan and Yoganathan, 2018) elaborated on the

aspects of architecture decisions on microservices and

serverless. From the service deployment’s perspective,

serverless has infrastructure restrictions that need na-

tive cloud service support and must be hosted by cloud

service providers. In contrast, a microservices archi-

tecture could deploy on either the private data center

or public cloud. However, the beneﬁts of auto-scaling

without considering complex server conﬁguration is

a deployment advantage on serverless than microser-

vices.

However, none of the works speciﬁcally address

the comparison of microservices and serverless deploy-

ment from the aspects of scalability, reliability, cost,

and latency on a cloud-native web application.

4 SYSTEM DESIGN

4.1 Application Overview

The application used as part of this research is an

employee time-sheet management portal where the

time an employee has worked on a project is recorded.

It is developed in Node.js and consists of following 3

main modules:

4.1.1 Favourite Projects

It consists of the projects which are marked favourite

by the user. When a user visits this module, it triggers

a GET request to fetch all the projects and display

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

206

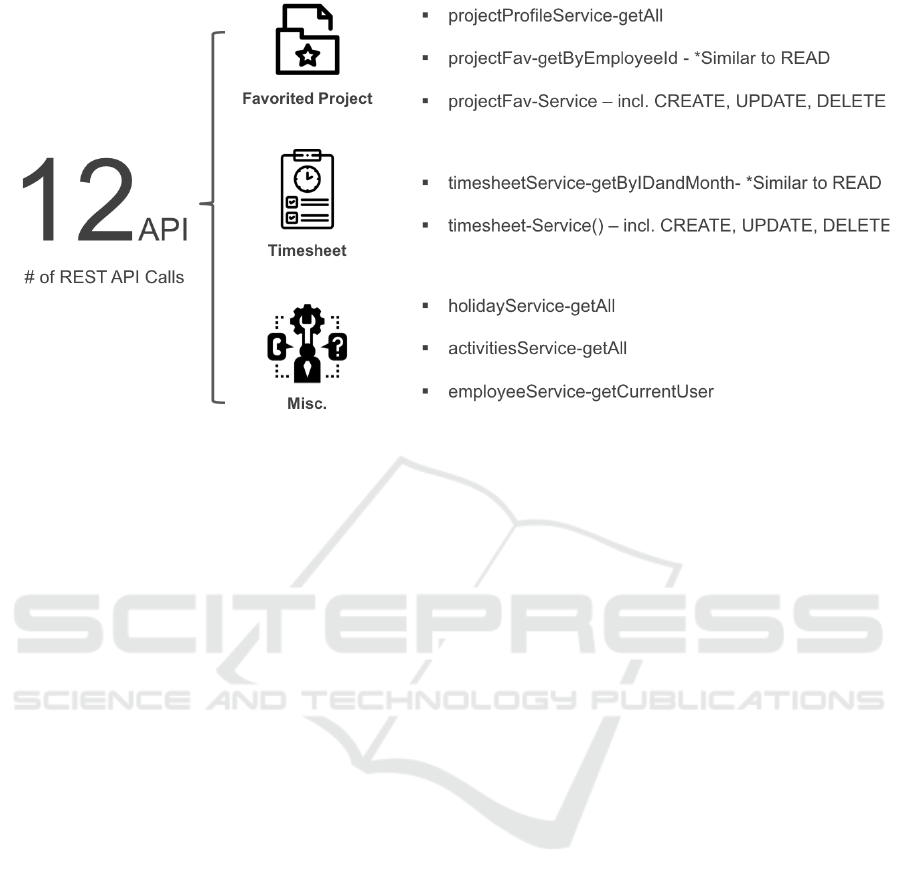

Figure 1: Overview of APIs present in the application.

them in a table view. Then the system invokes an-

other POST request with the user’s ID to get the user’s

favourite projects. Afterward, the system displays all

the projects and the favourites are marked in a differ-

ent color for distinction. A user can conduct CRUD

(Create, Read, Update, and Delete) operations on each

of the project entity for adding, reading, updating and

deleting the favourite projects.

4.1.2 Timesheet

This module is used for recording and viewing the

time the user has spent on a project. When a user visits

this the page, the system invokes a POST request with

the user’s ID to get a list of favorite projects along

with the time the user has spent on each of them. This

information is then displayed in a calendar style’s grid

matrix to present the user’s working hours in each cell.

Users can conduct CRUD(Create, Read, Update, and

Delete) operation on each project entity which is then

executed with the database.

4.1.3 Miscellaneous

Both Favorite Projects and Timesheet modules require

the user’s information. Also, each region’s holiday

information is necessary when displaying a calendar

style’s grid matrix. Meanwhile, a list of activities that

represent what type of role the user has played when

doing projects is also required. All this information is

handled by this module.

To sum up, there are 12 API calls which are in-

voked in the application and studied in this research,

these APIs are shown in Fig. 1.

4.2 Deployment Strategies

The above-discussed application is deployed using

the two strategies: Microservices and Serverless. For

both of these strategies, the front-end user interface

has remained the same, the AWS Relational Database

System with the Aurora cluster database is used as the

main database for storing the data. However, the back-

end server is refactored accordingly for each of the

strategies. The overview of the system when deployed

using each of the strategies is shown in Fig. 2. Below

subsections describe the back-end deployment for each

strategy in more detail.

4.2.1 Microservices

The microservices back-end is deployed using con-

tainerized instances and leverages Amazon Elastic

Container Service(ECS) to orchestrate all of the con-

tainer instances as shown in Fig. 2a. Amazon ECS

is a highly scalable, high-performance container or-

chestration service that supports Docker containers

and allows the users to run and scale containerized

applications on AWS. It is integrated with Amazon

Elastic Container Registry(ECR) where the updated

containerized-images are uploaded and ECS service

automatically pulls the latest images from it. In order

to handle multiple requests, the ECS cluster is inte-

grated with an application load balancer(ALB) that

distributes the trafﬁc to the containers. Fig. 3a shows

a further detailed overview of the deployed back-end

architecture in this strategy. It has 5 containers for 5

main cases (project, timesheet, activities, server, em-

ployee). Table 1 shows the per API call the container

Microservices vs Serverless: A Performance Comparison on a Cloud-native Web Application

207

(a) Overview of system when deployed using microservices strategy using AWS Application Load Balancer and Elastic

Container Services.

(b) Overview of the system when deployed using serverless strategy using AWS API gateway and Lambda functions.

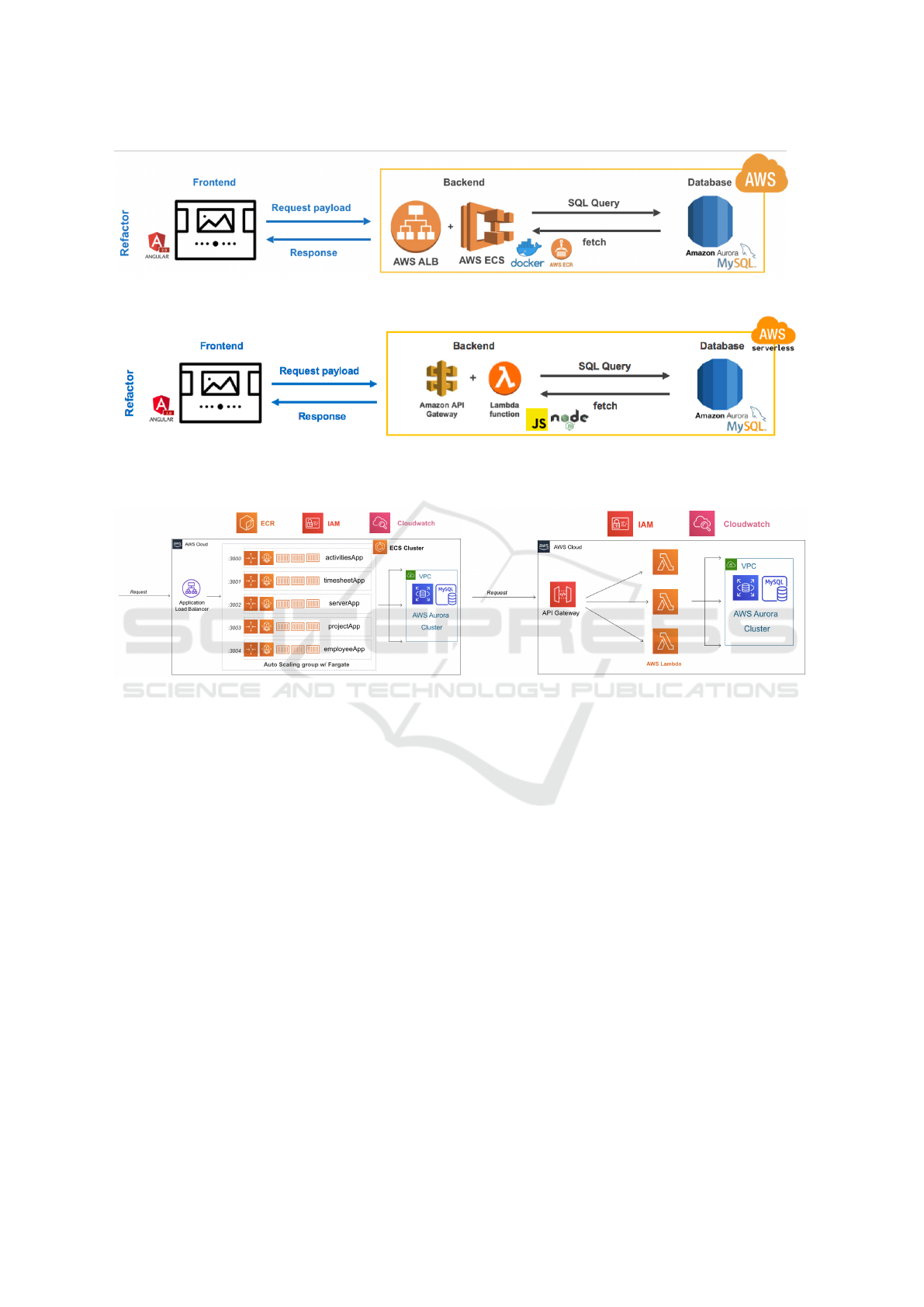

Figure 2: Overview of the system when deployed using different strategies.

(a) Deployed back-end in microservices.

(b) Deployed back-end in serverless.

Figure 3: Detailed overview of the deployed back-end architecture in each of the strategy.

used and its port conﬁguration.

4.2.2 Serverless

The serverless back-end is deployed using AWS

Lambda and AWS API Gateway, as shown in Fig. 2b.

AWS API Gateway serves as an API access point

that directs the incoming requests to the right AWS

Lambda function. AWS Lambda function then exe-

cutes a customized business logic after parsing the re-

quest and fetching the data from the database resources.

As part of this deployment, it is not necessary to assign

speciﬁc ports since a speciﬁc path and resource are

designated. AWS Lambda is then equipped with an

auto-scaling policy for scaling on-demand with the

workload. Fig. 3b shows a further detailed overview

of the deployed back-end architecture in this strategy.

In the current implementation, we have 6 lambda func-

tions and the Table 1 shows the lambda functions with

their API calls.

5 EVALUATION

We have evaluated the performance of both the deploy-

ment strategies. The following subsections elaborate

more detail about the infrastructure settings, evalu-

ation system, and performance metrics used for the

evaluation.

5.1 Infrastructure Setting

For the AWS ECS setting on the microservices strat-

egy, we allocated each container instance 0.25 CPU

core (equal to 256 CPU units) and 512 MB of memory.

For maintaining the desired state of the containers,

the auto-scaling of ECS is also enabled. For each

container’s scale-out policy, the system automatically

adds two more instances into the cluster when the

average CPU utilization goes above 50% for a con-

secutive 1 minute. In contrast, the scale-in policy is

conﬁgured to remove two instances from the clusters

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

208

Table 1: Overview of the API calls, microservices containers, their ports and serverless functions which are part of each module.

Module API Call

Microservices

(Container:port)

Serverless

(Lambda function)

Favorite Projects

projectProﬁleService-getAll project:3003 projectProﬁleService-getAll

projectFavService-Create project:3003 projectFavService

projectFavService-Read project:3003 projectFavService

projectFavService-Update project:3003 projectFavService

projectFavService-Delete project:3003 projectFavService

Timesheet

timesheetService-Create timesheet:3001 timesheetService

timesheetService-Read timesheet:3001 timesheetService

timesheetService-Update timesheet:3001 timesheetService

timesheetService-Delete timesheet:3001 timesheetService

Miscellaneous

activityService-getAll activities:3000 activitiesService-getAll

holidayService-getAll server:3002 holidayService-getAll

employeeService-getCurrentUser employee:3004 employeeService-get

Figure 4: Overall evaluation system design for evaluating each of the strategies using the k6 as the load generator, inﬂuxdb for

storing the data and grafana for real time visualization deployed on the Google Cloud Platform.

once the average CPU utilization is lower than 30%

for a consecutive 1 minute. The cooldown period is

set to 30 seconds for both the scaling policies to pre-

vent over-provisioning. For both scaling scenarios, to

distribute the incoming trafﬁc to a dedicated container

group for achieving load balancing a load balancer is

also used. It automatically registers or deregisters the

newly joined containers into their target group. The

Microservices strategy consists of ﬁve different con-

tainer entities. Each of them is responsible for different

API calls and is designated to dedicated ports.

The serverless strategy is also deployed on AWS

and leverages AWS Lambda and API Gateway. The

business logic of each Lambda function is written in

Javascript and is run with Node.js version 10.10. Each

function is allocated with 512MB memory space. We

have not set a speciﬁc concurrency number for each

Lambda function, however, AWS set a concurrency

quota of 1000 for each user account as a soft limitation

for this service. The AWS API Gateway acts as the

entry point to navigate the incoming request to the

right Lambda function.

In order to minimize the experiment’s performance

deviation, both microservices and serverless are con-

nected to the same database cluster deployed on AWS.

The database used is the AWS Aurora cluster with the

MySQL engine (version. 5.7.12).

5.2 Evaluation System

Our evaluation strategy is implemented via a load test-

ing tool - k6

and Fig. 4 shows the overall evaluation

system design. k6 is a developer-centric open-source

load and performance regression testing tool for test-

ing the performance of the cloud-native backend in-

frastructure, including APIs, microservices, serverless,

containers, and websites. k6 generates different pat-

terns of the user workload to the deployed microser-

vices and serverless system. It is deployed on the

Google Compute Platform and the testing results from

https://k6.io/

Microservices vs Serverless: A Performance Comparison on a Cloud-native Web Application

209

k6 are ingested into the InﬂuxDB

, which is an open-

source time-series database. Furthermore, Grafana

an open-source analytic & monitoring solution, visual-

izes the queried data from the InﬂuxDB and presents

it in real-time in a user-deﬁned dashboard style.

5.3 Performance Testing Metrics

The performance is evaluated by calculating the HTTP-

request-duration (min, mean, median, max, and per-

centile95), the total number of requests k6 has sent, the

number of total requests served successfully and cost.

The cost is referenced from AWS billing estimation

and derived from the pricing model of AWS ECS and

Lambda. In this research, the free-tier quota of each

building block is not taken into consideration.

For both microservices and serverless strategies,

we have evaluated each of them through 12 API calls

across incremental (continuously increasing), random

(random number of requests), and triangle (continu-

ously increasing till half time and then continuously

decreasing for the remaining time) user workload pat-

terns. As a result, there are 72 (12 APIs * 3 load

patterns * 2 deployment strategies) API tests executed

for the evaluation. Each test of an API is executed

for 15 minutes. In addition, there is a 3 minutes cool

down period between each API’s test and between each

workload pattern’s test there is a 30 minutes pause to

make sure that the testing infrastructure achieves a

normal state.

6 EXPERIMENT RESULTS

To compare the performance of microservices and

serverless strategy, we focused on the percentile95

response time of requests for both the deployment

strategies. The x-axis represents the testing duration

from 0 to 15 minutes, and the y-axis is the percentile95

duration of HTTP-request in milliseconds.

6.1 Favorite Projects

The projectProﬁleService-getAll API call which is

used to get all the projects is a relatively static re-

quest which is always invoked when a user visits this

module. From the Fig. 5, The serverless strategy has a

better performance in terms of performance stability

and scaling-agility. For the microservices strategy, we

found that the response time starts to rise with an in-

crease in the workload. However, after the scale-out,

https://docs.inﬂuxdata.com/inﬂuxdb/v1.7/

https://grafana.com/docs/grafana/latest/

the response time has decreased. In the case of the

serverless strategy, there is also high response times at

the beginning of each test due to the cold-start problem

but afterward, it becomes stable. But the serverless

has a lesser duration of high request response time as

compared to microservices.

The projectFav-Read is the consecutive API call

that fetches user’s favorite projects and displays them

in the front-end. It is apparent that the serverless strat-

egy here also provides better performance with respect

to fast responsiveness and performance stability. More-

over, we immediately identify that the microservices

have a regular peaking response time, which often

happens on the dot of a minute. One of the poten-

tial explanations would be its monitoring granularity,

a minute-level monitoring period. So every time it

starts to scale with more container instances, the re-

distribution of trafﬁc results in particular high peaking

response time as shown in Fig. 5

Table 2 shows the summary results for the

Favourite Projects module. It shows that the cold start

problem of serverless resulted in a signiﬁcantly higher

minimum response time than microservices. Neverthe-

less, the serverless strategy still has cost advantages

as compared to microservices. Also, it still provides a

higher average number of requests served per second

(Avg. RPS) than microservices in all the scenarios.

6.2 Timesheet

For the create and update operations in the case of

the Timesheet module, the serverless strategy provides

better performance in terms of responsiveness and per-

formance stability as shown in Fig. 6. In contrast,

the microservices strategy provided an unstable per-

formance on the incremental and triangle workload

scenarios. However, the microservices outperforms

serverless when executing the delete operation. The

serverless strategy as in the previous case suffers from

cold-start during the ﬁrst 2 minutes of the evaluation

period.

Table 3 shows the summary results for the

Timesheet module. It shows that the serverless strategy

provides better response time in create, read, and up-

date operations. But for the delete operation, microser-

vices performs better than serverless. Even though

both strategies have similar performance with respect

to the average number of requests served per second,

it shows that in this case, microservices are more cost-

effective than the serverless. It could be due to the fact

that the minimum cost required for setting up server-

less is more than what is required in the case for setting

up microservices deployment.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

210

Figure 5: Comparison of percentile95 response time in Favorite Projects for both microservices and serverless deployment at

different workload patterns.

Table 2: Summary results for Favorite Projects module showcasing HTTP-request-duration (minimum, mean, median, and

maximum) the average number of requests served successfully and cost for both microservices and serverless deployment at

different workload patterns.

API

Metrics Min Mean Max Avg. RPS Cost

Type M S M S M S M S M S

projectProﬁleService

-getAll

Incremental 21.2 1160.0 2930.0 1410.0 10060.0 5680.0 13.8 26.8 0.0062 0.0054

Random 23.0 1110.0 2990.0 1400.0 11900.0 5390.0 11.0 23.1 0.0093 0.0047

Triangle 23.1 1150.0 4100.0 1430.0 12580.0 5350.0 9.4 24.7 0.0062 0.0050

projectFavService

-Read

Incremental 20.1 26.7 582.1 32.7 41400.0 252.3 27.5 42.1 0.0062 0.0076

Random 20.1 25.9 503.1 29.7 39730.0 248.8 23.6 35.0 0.0093 0.0063

Triangle 20.1 27.2 976.5 33.8 42810.0 267.0 19.6 40.0 0.0093 0.0072

6.3 Miscellaneous

Fig.7 represents activityService-getAll, holidayService-

getAll and employeeService-getCurrentUser API calls

respectively in the Miscellaneous module. All of them

are relatively simple, small and static requests. Here,

the microservices strategy outperforms the serverless

in most of the cases. In addition, microservices de-

ployment strategy provides faster response times than

serverless, this could again be due to the minimum

overhead of the virtualization stack required in server-

less deployment. Serverless strategy was only better in

employeeService-getCurrentUser with the incremental

load pattern.

The summary table 4 also shows that the microser-

vices strategy has somewhat better or equivalent per-

formance as compared to the serverless with respect

to the average number of requests served per second.

However, again microservices strategy is more cost-

effective than serverless and serverless has higher min-

imum response time due to cold start.

7 DISCUSSION

To summarize, we have drawn four points of discus-

sion mentioned below:

1. Serverless Strategy Suffers from the Cold-start

Problem.

Whenever a function is triggered or in-

voked by a user request the AWS lambda func-

tion is deployed in a newly-initiated container and

there is always a certain small period that a re-

quest needs to wait until the container is ready to

serve. This wait is usually taken by the container

to initialize the environment and pull the function

source code. This phenomenon is referred to as the

cold-start problem. There already have been many

researches to decrease the cold start time like using

pre-warmed containers (Th

ommes, 2017), periodic

warming consisting of submitting dummy requests

periodically to induce a cloud service provider to

keep containers warm (

S¸

amdan, 2018) and pause

containers (Mohan et al., 2019). DevOps need to

keep this in consideration when deploying an ap-

Microservices vs Serverless: A Performance Comparison on a Cloud-native Web Application

211

Figure 6: Comparison of percentile95 response time in Timesheet module for both microservices and serverless deployment at

different workload patterns.

Table 3: Summary results for Timesheet module showcasing HTTP-request-duration (minimum, mean, median, and maximum)

the average number of requests served successfully and cost for both microservices and serverless deployment at different

workload patterns.

API

Metrics Min Mean Max Avg. RPS Cost

Type M S M S M S M S M S

timesheetService

-Create

Incremental 27.3 23.7 46.0 28.1 279.1 244.2 42.1 42.1 0.0062 0.0076

Random 27.2 22.6 32.6 25.3 286.8 262.4 35.0 35.0 0.0031 0.0063

Triangle 27.7 23.7 40.5 28.9 496.2 340.8 40.0 40.0 0.0031 0.0072

timesheetService

-Update

Incremental 25.3 23.5 48.0 27.9 300.6 310.3 42.1 42.1 0.0062 0.0076

Random 24.5 22.8 29.9 25.5 249.7 323.4 35.0 35.0 0.0031 0.0063

Triangle 26.3 24.0 36.2 29.0 262.2 300.4 40.0 40.0 0.0062 0.0072

timesheetService

-Delete

Incremental 20.6 23.8 22.5 28.1 246.5 233.6 42.1 42.1 0.0031 0.0076

Random 21.3 22.6 23.1 25.3 254.1 294.5 35.0 35.0 0.0031 0.0063

Triangle 20.5 24.6 22.4 29.2 247.3 481.2 40.0 40.0 0.0031 0.0072

plication and decide based on the use case whether

this deployment strategy is beneﬁcial or not.

2. Microservices Deployment Strategy Suffers

from the Load Balancing and Trafﬁc Re-

distribution Problem.

Despite the cold start prob-

lem in the serverless deployment, it performed

stably after the initial period. In contrast, microser-

vices deployment had a high peak of duration scat-

tered randomly during each test. One potential

explanation is that these peaks coincide with scal-

ing out or scaling in time of the autoscaling which

resulted in the increase in the response time. If

one needs a stable latency over the whole time,

then one could choose deployment using server-

less computing.

3. Microservices Deployment Strategy Outper-

forms When Fetching Small Size and Repeti-

tive Requests.

For the API calls where the re-

quests are with the simple payload and invoked

repetitively having the static or small size response

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

212

Figure 7: Comparison of percentile95 response time in Miscellaneous module for both microservices and serverless deployment

at different workload patterns.

Table 4: Summary results for Miscellaneous module showcasing HTTP-request-duration (minimum, mean, median, and

maximum) the average number of requests served successfully and cost for both microservices and serverless deployment at

different workload patterns.

API

Metrics Min Mean Max Avg. RPS Cost

Type M S M S M S M S M S

activityService

-getAll

Incremental 22.8 36.4 69.0 69.7 1900.0 1790.0 42.1 42.1 0.0031 0.0076

Random 21.2 37.4 26.4 65.4 255.0 1800.0 35.0 35.0 0.0031 0.0063

Triangle 20.6 35.4 28.7 67.4 228.9 2330.0 40.0 39.9 0.0031 0.0072

holidayService

-getAll

Incremental 20.5 24.0 22.6 28.6 252.1 299.4 42.1 42.1 0.0031 0.0076

Random 21.3 24.6 24.0 28.7 367.9 334.7 35.0 35.0 0.0031 0.0063

Triangle 21.4 23.4 23.4 28.2 249.5 3530.0 40.0 40.0 0.0031 0.0072

employeeService

-getCurrentUser

Incremental 20.8 23.8 37.4 28.6 246.7 382.0 42.1 42.1 0.0062 0.0076

Random 20.8 23.0 24.8 27.2 270.4 215.9 35.0 35.0 0.0031 0.0063

Triangle 22.0 23.9 29.2 28.5 2700.0 260.0 40.0 39.9 0.0031 0.0072

then they should leverage a microservices deploy-

ment due to cost advantages and no cold-start prob-

lem. Serverless deployment has some minimum

overhead due to either the virtualization stack or

the different involved components which is more

than what these cases need as a result for such

cases microservices deployment should be pre-

ferred.

4. Serverless Deployment is More Agile in Terms

of Scalability.

As we compare the scalability and

agility of both the deployments, serverless is bet-

ter than microservices. Since the microservices

deployment starts to auto-scale only after the sys-

tem has reached the deﬁned criteria for at least one

minute, there is always a delay of responsiveness to

re-balance the current workload. As a result, there

is an increase in response time with the increasing

workload, then it drops after the new containers

have been launched. In the end, the granularity

of monitoring set in minute-level limits the agility

Microservices vs Serverless: A Performance Comparison on a Cloud-native Web Application

213

of the microservices scalability which is not the

case with the serverless deployment. However,

this disadvantage can be resolved by conﬁguring a

proper caching mechanism to store repetitive con-

tent but the user has to deal with more than what

is required.

8 CONCLUSION

Based on the experimental evaluation for microser-

vices and serverless deployments, it proves that no

single type of deployment could ﬁt all kinds of appli-

cations. For example, a POST request which fetches a

response body of large ﬁxed size may not work well

with a microservices deployment due to the latency

in auto-scaling execution. On the other hand, a mi-

croservices deployment may outperform serverless

deployment in some scenarios, For example, the GET,

POST, and DELETE requests with a simple payload

can result in a lower duration and cost when used with

microservices as compared to using serverless. In addi-

tion, serverless strategy provides immediate scalability

and prompt response when handling random spike traf-

ﬁc, but the microservices architecture still is the best

cost-effective when facing regular trafﬁc patterns.

In the end, this research derived a future research

direction towards optimizing the deployment in terms

of cost, performance, and application domain by build-

ing a hybrid deployment environment consisting of

both the microservices as well the serverless deploy-

ment strategies. A deployment strategy is selected

dynamically based on the workload pattern.

ACKNOWLEDGEMENTS

This work was supported by the funding of the German

Federal Ministry of Education and Research (BMBF)

in the scope of the Software Campus program. The

authors also thank the anonymous reviewers whose

comments helped in improving this paper.

REFERENCES

Amazon (2018). Serverless. https://aws.amazon.com/

serverless/. [Online; Accessed: 4-Feburary-2020].

S¸

amdan, E. (2018). Dealing with cold starts in aws

lambda. https://medium.com/thundra/dealing-with-

cold-starts-in-aws-lambda-a5e3aa8f532. [Online; Ac-

cessed: 14-Feburary-2020].

AWS (2020a). What is aws x-ray? https://docs.aws.amazon.

com/xray/latest/devguide/aws-xray.html. [Online; Ac-

cessed: 4-Feburary-2020].

AWS (2020b). What is the aws serverless application model

(aws sam)? https://docs.aws.amazon.com/serverless-

application-model/latest/developerguide/what-is-

sam.html. [Online; Accessed: 4-Feburary-2020].

Baldini, I., Castro, P. C., Chang, K. S., Cheng, P., Fink, S. J.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R. M., Slominski, A., and Suter, P. (2017). Serverless

computing: Current trends and open problems. CoRR,

abs/1706.03178.

Bhojwani, R. (2018). Design patterns for microservice-

to-microservice communication - dzone microser-

vices. https://dzone.com/articles/design-patterns-for-

microservice-communication.

Casalicchio, E. and Perciballi, V. (2017). Auto-scaling of

containers: The impact of relative and absolute met-

rics. 2017 IEEE 2nd International Workshops on Foun-

dations and Applications of Self* Systems (FAS*W),

pages 207–214.

Castro, P., Ishakian, V., Muthusamy, V., and Slominski, A.

(2019). The rise of serverless computing. Commun.

ACM, 62(12):44–54.

Di Francesco, P., Lago, P., and Malavolta, I. (2018). Migrat-

ing towards microservice architectures: An industrial

survey. In 2018 IEEE International Conference on

Software Architecture (ICSA), pages 29–2909.

Eivy, A. (2017). Be wary of the economics of ”serverless”

cloud computing. IEEE Cloud Computing, 4:6–12.

Gancarz, R. (2017). The economics of serverless computing:

A real-world test. https://techbeacon.com/enterprise-it/

economics-serverless-computing-real-world-test. [On-

line; Accessed: 23-March-2020].

Handy, A. (2014). Amazon introduces lambda, containers

at aws re:invent. https://sdtimes.com/amazon/amazon-

introduces-lambda-containers/. [Online; Accessed: 4-

Feburary-2020].

Jambunathan, B. and Yoganathan, K. (2018). Architecture

decision on using microservices or serverless functions

with containers. In 2018 International Conference

on Current Trends towards Converging Technologies

(ICCTCT), pages 1–7.

Jindal, A., Podolskiy, V., and Gerndt, M. (2019). Perfor-

mance modeling for cloud microservice applications.

In Proceedings of the 2019 ACM/SPEC International

Conference on Performance Engineering, ICPE ’19,

page 25–32, New York, NY, USA. Association for

Computing Machinery.

Jonas, E., Pu, Q., Venkataraman, S., Stoica, I., and Recht, B.

(2017). Occupy the cloud: Distributed computing for

the 99In Proceedings of the 2017 Symposium on Cloud

Computing, SoCC ’17, page 445–451, New York, NY,

USA. Association for Computing Machinery.

Kazanavi

cius, J. and Ma

zeika, D. (2019). Migrating legacy

software to microservices architecture. In 2019 Open

Conference of Electrical, Electronic and Information

Sciences (eStream), pages 1–5.

Kozhirbayev, Z. and Sinnott, R. O. (2017). A performance

comparison of container-based technologies for the

cloud. Future Generation Computer Systems, 68:175 –

182.

Kratzke, N. (2018). A brief history of cloud application

architectures. Applied Sciences, 8.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

214

Lee, H., Satyam, K., and Fox, G. (2018). Evaluation of pro-

duction serverless computing environments. In 2018

IEEE 11th International Conference on Cloud Com-

puting (CLOUD), pages 442–450.

Lin, W.-T., Krintz, C., Wolski, R., Zhang, M., Cai, X., Li,

T., and Xu, W. (2018). Tracking causal order in aws

lambda applications. 2018 IEEE International Confer-

ence on Cloud Engineering (IC2E), pages 50–60.

Lloyd, W., Ramesh, S., Chinthalapati, S., Ly, L., and Pal-

lickara, S. (2018). Serverless computing: An investiga-

tion of factors inﬂuencing microservice performance.

In 2018 IEEE International Conference on Cloud En-

gineering (IC2E), pages 159–169.

Lynn, T., Rosati, P., Lejeune, A., and Emeakaroha, V. (2017).

A preliminary review of enterprise serverless cloud

computing (function-as-a-service) platforms. In 2017

IEEE International Conference on Cloud Computing

Technology and Science (CloudCom), pages 162–169.

Mazlami, G., Cito, J., and Leitner, P. (2017). Extraction

of microservices from monolithic software architec-

tures. In 2017 IEEE International Conference on Web

Services (ICWS), pages 524–531.

Mohan, A., Sane, H., Doshi, K., Edupuganti, S., Nayak, N.,

and Sukhomlinov, V. (2019). Agile cold starts for scal-

able serverless. In Proceedings of the 11th USENIX

Conference on Hot Topics in Cloud Computing, Hot-

Cloud’19, page 21, USA. USENIX Association.

Mohanty, S. K., Premsankar, G., and di Francesco, M.

(2018). An evaluation of open source serverless com-

puting frameworks. In 2018 IEEE International Con-

ference on Cloud Computing Technology and Science

(CloudCom), pages 115–120.

Novoseltseva, E. (2017). Beneﬁts of microservices archi-

tecture implementation. https://dzone.com/articles/

beneﬁts-amp-examples-of-microservices-architectur.

[Online; Accessed: 23-March-2020].

Pinto, D., Dias, J. P., and Sereno Ferreira, H. (2018). Dy-

namic allocation of serverless functions in iot environ-

ments. In 2018 IEEE 16th International Conference on

Embedded and Ubiquitous Computing (EUC), pages

1–8.

Richardson, C. (2015). Introduction to microser-

vices. https://www.nginx.com/blog/introduction-to-

microservices/. [Online; Accessed: 25-January-2020].

Richardson, C. (2019a). Microservices pattern: Microservice

architecture pattern. https://microservices.io/patterns/

microservices.html. [Online; Accessed: 28-January-

2020].

Richardson, C. (2019b). Microservices pattern: Monolithic

architecture pattern. https://microservices.io/patterns/

monolithic.html. [Online; Accessed: 25-January-

2020].

Schneider, T. (2016). Achieving cloud scalability with mi-

croservices and devops in the connected car domain.

In Software Engineering.

ommes, M. (2017). Squeezing the milliseconds:

How to make serverless platforms blazing fast!

https://medium.com/openwhisk/squeezing-the-

milliseconds-how-to-make-serverless-platforms-

blazing-fast-aea0e9951bd0. [Online; Accessed:

14-Feburary-2020].

Microservices vs Serverless: A Performance Comparison on a Cloud-native Web Application

215
