DCBC: A Distributed High-performance Block-Cipher

Mode of Operation

Oussama Trabelsi

1 a

, Lilia Sfaxi

1,2 b

and Riadh Robbana

1,2

Faculty of Science of Tunis, Tunis el Manar University, Tunis, Tunisia

INSAT, University of Carthage, Tunis, Tunisia

Keywords:

Cryptography, Modes of Operation, CBC, Parallel Encryption, Hash-based Encryption.

Abstract:

Since the rise of Big Data, working with large ﬁles became the rule and no longer the exception. Despite

this fact, some data at-rest encryption modes of operation, namely CBC, are being used even though they do

not take into account the heavy cost of running sequential encryption operations over a big volume of data.

This led to some attempts that aim to parallelizing such operations either by only chaining isolated subsets of

the plaintext, or by using hash functions to reﬂect any changes made to the plaintext before running parallel

encryption operations. However, we noticed that such solutions present some security issues of different levels

of severity. In this paper, we propose a Distributed version of CBC, which we refer to as DCBC, that uses an

IV generation layer to ensure some level of chaining between multiple CBC encryption operations that run in

parallel, while keeping CPA security intact and even adding new operations such as appending data without

compromising the encryption mode’s security. We will, also, make a theoretical performance comparison

between DCBC and CBC under different circumstances to study optimal conditions for running our proposed

mode. We show in this comparison that our solution largely outperforms CBC, when it comes to large ﬁles.

1 INTRODUCTION

Data security is becoming a very competitive ﬁeld as

the strategic value of data as a resource is increasing.

However, adding security layers usually adds some

performance cost overhead which gets even more no-

ticeable for systems that handle large volumes of data

with a relatively high velocity. Such systems are usu-

ally qualiﬁed as Big Data systems, for which securing

data in storage while keeping an acceptable perfor-

mance is a highly critical requirement, as data must

be available for processing as soon as possible.

Moreover, Big Data systems have special charac-

teristics and principles. For instance, increasing stor-

age space usage in favor of enhancing performance

and security is acceptable and even encouraged. Also,

larger computational resources may be available ei-

ther locally or in a cluster, so not taking advantage of

such assets would be a waste of resources.

To ensure data security, we resort to implement-

ing encryption mechanisms. However, these mech-

anisms usually use classical modes of operation that

https://orcid.org/0000-0002-0792-8763

https://orcid.org/0000-0002-9786-5961

can’t present a solution for the previously mentioned

requirements while respecting Big Data systems char-

acteristics.

Modes of operation are deﬁned as algorithms used

to extend the use of Block Ciphers from the encryp-

tion of a single block made of a limited number of

bytes, to a plaintext made of a, theoretically, inﬁnite

number of bytes. Each of these modes focuses either

on performance or diffusion. Diffusion refers to hav-

ing multiple bits ﬂipped in the output when one or

many bits in the input are ﬂipped.

The most simplistic implementation of the cur-

rently existing modes is ECB (Pittalia, 2019) which

consists on encrypting each block separately and con-

catenating the results in order to form the ﬁnal cipher

making it highly parallelizable and offering a cipher-

text with no additional overhead in size. However,

this solution presents multiple security issues and is

not recommended in practice except for short mes-

sages where additional overhead in the ciphertext’s

size can be problematic (Stallings, 2010). This makes

ECB unusable in a big data environment.

Chained Block Cipher (CBC) mode was sug-

gested to offer some level of diffusion by chaining the

different blocks of data (Dworkin, 2005). This ended

Trabelsi, O., Sfaxi, L. and Robbana, R.

DCBC: A Distributed High-performance Block-Cipher Mode of Operation.

DOI: 10.5220/0009793300860097

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 86-97

ISBN: 978-989-758-446-6

up offering multiple security features such as Seman-

tic Security (Phan and Pointcheval, 2004), while re-

quiring a sequential execution of the encryption op-

eration as well as an overhead in the ciphertext’s size

because of the need to save an extra block contain-

ing an Initialization Vector (IV) used by this mode to

ensure semantic security. Even though CBC seems

to respect the requirement for securing data in stor-

age by offering the diffusion property as deﬁned in

(Katos, 2005), it doesn’t quite take advantage of the

large computational resources that are usually offered

by big data systems as the encryption process is se-

quential and therefore uses only a single CPU.

Other modes of operation opted for using the un-

derlying Block Cipher as a key generator for a stream

cipher. Unlike block ciphers that encrypt the message

one block at a time, stream ciphers encrypt it bit by bit

until the full message is encrypted. In all these modes

of operation this is ensured thanks to the One Time

Pad (OTP) that relies on the XOR operation to en-

crypt the plaintext using a secret key that is only used

once per message. The most known modes that work

in this manner are: Counter (CTR), Output Feedback

(OFB) and Cipher Feedback (CFB) (Stallings, 2010).

When it comes to these three stream ciphers, they

are not optimal for securing stored data as they are

rarely used in systems where strong cryptographic se-

curity is required (Verdult, 2001). For instance CTR

presents some security limitations such as malleabil-

ity (McGrew, 2002) making it unsuitable for securing

data at rest. Data at-rest encryption refers to encrypt-

ing data that will be persisted on a storage device, as

opposed to data-in motion encryption which refers to

encrypting data for transmission, generally over a net-

work (Shetty and Manjaiah, 2017).

For the previously mentioned reasons, when it

comes to securing data at-rest, multiple security tools

opt for using CBC and therefore suffer from the cost

of running a sequential encryption across all blocks.

For this reason, there have been some attempts to

provide parallelizable implementations derived from

CBC, either by chaining only a subset of blocks at a

time such as with Interleaved Chained Block Cipher

(ICBC) (Dut¸

a et al., 2013), or by using a hash-based

solution to offer a link between the plaintext blocks

instead of CBC’s chaining (Sahi et al., 2018). In both

these cases, some weaknesses, that we will detail in

section 5, were introduced in order to allow for paral-

lel execution. For this reason, we looked for a solu-

tion that can provide a reasonable trade-off between

the chaining level and performance while keeping the

mode’s security intact.

In this paper, we will suggest a hash-based solu-

tion that offers a parallelizable encryption and decryp-

tion process while keeping some level of chaining be-

tween the different blocks of the plaintext. First we

describe the suggested solution along with the encryp-

tion and decryption processes associated to it. Next,

we cover some security aspects of the solution and

how it behaves in cases where appending or editing

data is necessary. Then, we estimate a theoretical cost

of running the proposed mode and compare it to the

cost of running CBC in multiple scenarios. Finally,

we present in more depth other works that are related

to this subject and compare them to the results we

found for our proposed mode and proceed to a con-

clusion and some perspectives.

2 PROPOSED SOLUTION

In this paper, we propose a partially parallelizable en-

cryption mode based on CBC and the use of hash

functions, which we will be referring to as Distributed

Cipher Block Chaining or DCBC. Before we proceed

to describing our proposed solution, we ﬁrst need to

fully understand how Cipher Block Chaining (CBC)

works.

2.1 Distributed Cipher Block Chaining:

DCBC

DCBC will operate on multiple chunks of data in a

parallel manner, while using a chaining layer to al-

low for some level of diffusion between them. Up

until now, we have only discussed the plaintext as the

concatenation of blocks of data. Blocks of data are

a subset of the plaintext for which the size is deter-

mined by the underlying Block Cipher. For instance,

when using the Advanced Encryption Standard (AES)

a block of data would refer to 16 bytes of data, how-

ever with the Data Encryption Standard (DES) a block

refers to 8 bytes of data. When it comes to DCBC, we

will be introducing what we refer to as a Chunk of

data, which is a subset of the plaintext of a size deter-

mined by the user. Each of these chunks will be seper-

ately encrypted using CBC, so it is recommended to

choose a chunk size that is a multiple of the block

size used by the underlying Block Cipher, in order to

avoid unnecessary padding with each chunk’s CBC

encryption. As shown in ﬁgure 1, the full plaintext

message is made of multiple chunks, which in turn

can be considered as a series of blocks for which the

size is predetermined by the Block Cipher.

In the subsequent sections we will be using the

following notations: M

, H

and C

,respectively, de-

note the plaintext and ciphertext and Hash relative to

DCBC: A Distributed High-performance Block-Cipher Mode of Operation

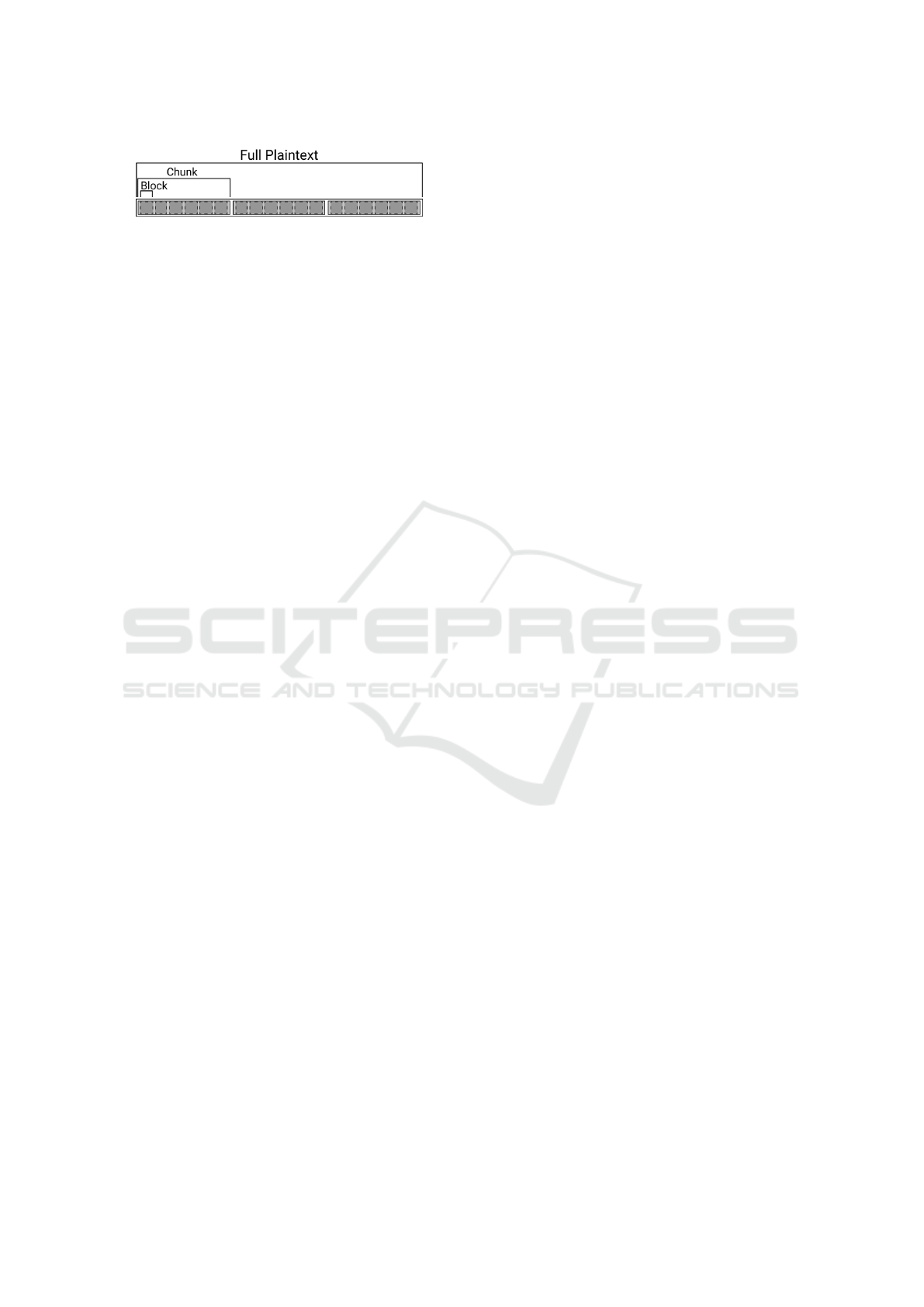

Figure 1: The adapted plaintext subsets.

the chunk of index i. IV

represents the calculated Ini-

tialization Vector used to encrypt M

and IV is the Ini-

tialization Vector supplied by the user to DCBC. The

operations we will be using are: the hash function H,

the CBC encryption and decryption functions E

CBC

and D

CBC

, the IV generation function G and ﬁnally

the encryption using a block cipher for the IV Gener-

ation E

In order for DCBC to be a usable mode of opera-

tion, it must satisfy some requirements that cover both

its security and its performance which we will deﬁne

in the next section.

2.2 Target Criteria

Our work on DCBC, will focus on four axes.

1. Semantic Security under Chosen Plaintext Attack:

in a perfect system, the ciphertext should not re-

veal any information about the plaintext. This

concept has been introduced as Perfect Secrecy by

(Daemen and Rijmen, 1999). Semantic Security

under Chosen-Plaintext Attack: is a looser and

more applicable version of Perfect Secrecy as it

refers to preventing an attacker from being able to

extract any information about the plaintext using

only the ciphertext in a polynomial time (Phan and

Pointcheval, 2004). To achieve this level of secu-

rity, an attacker must be unable to link different

messages to their respective ciphertexts. As CBC

is secure against Chosen Plaintext Attacks (CPA),

as proved by (Bellare et al., 1997), DCBC must

keep that property intact.

2. Diffusion: DCBC should provide some level of

chaining to ensure that a slight difference in the

input will affect all following blocks in the output.

3. Parallelizability: DCBC must be parallelizable

to allow for the full use of available resources

(CPUs, Cores or Machines).

4. Secure Append Operations: DCBC must allow for

appending data securely without having to decrypt

and re-encrypt the full plaintext.

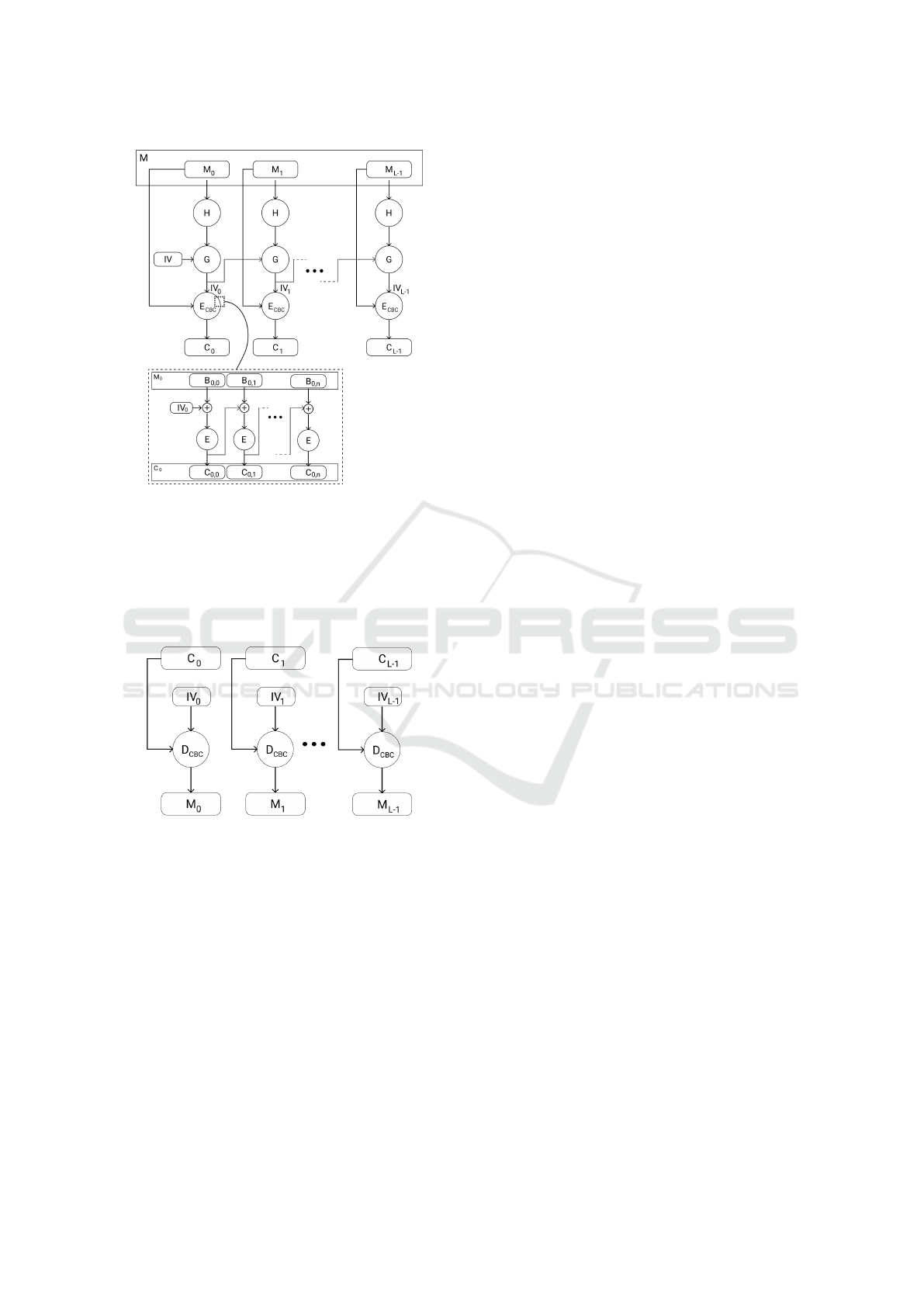

2.3 How Does DCBC Work?

A message M is divided into multiple chunks of

a ﬁxed size. Each chunk can be encrypted using

CBC independently from the encryption of all other

chunks, while using a function H to provide a “sum-

mary” of the corresponding chunk, which will be used

later, to ensure some level of chaining throughout the

whole message. This would allow us to run the en-

cryption of the block n and all following blocks on a

different CPU as soon as H ﬁnishes execution. Also,

H runs on the plaintext and is independent of the en-

cryption operation. So, H is a function that will take

as input a chunk of data which will have its length

be determined by the user and always output a ﬁxed

number of bytes that should be representative of the

whole chunk taken as input. For this we chose to use

hash functions as their properties correspond to these

needs. Once the hashes are calculated, an operation is

needed to ensure the chaining of the different blocks.

We will be referring to it in this article as the IV Gen-

erator, since its output will be used as an IV for the

CBC encryption of the chunk. The properties of this

IV generator and the reasons behind them will be dis-

cussed in section 2.5, but for now all we need to know

is that it takes as input the output of H when ran on the

current chunk, as well as the IV of the previous chunk.

To sum up, the mode we are proposing can be

viewed as the combination of three layers of process-

ing, two of which are the most costly ones but are

fully parallelizable and one is sequential but of very

low cost.

The ﬁrst layer is a hashing operation (H), where

each chunk will be hashed independently from all pre-

vious chunks. The second layer is an IV generation

layer (G), which generates a pseudo-random IV from

the hash of the current layer and the IV generated by

the previous layer, thus guaranteeing that any IV de-

pends on all previous chunks. Moreover, the gener-

ated IV must be pseudo-random to ensure some secu-

rity properties that we will discuss later in this arti-

cle. The third layer is a regular CBC encryption layer

CBC

), in which every chunk is encrypted indepen-

dently from all other chunks’ encryption results, mak-

ing it parallelizable.

2.4 Encryption and Decryption in

DCBC

In this section we will be presenting the encryption

and decryption operations at a chunk level as well as

at a block level.

We denote by encryption at a chunk level, the expres-

sion of the encryption operation as a function using

full chunks of plaintext as opposed to the encryption

at a block level, where the operation is expressed as a

function using single blocks of plaintext.

Figure 2 illustrates how the previously mentioned

operations (E

CBC

, H and G) interact and depend on

SECRYPT 2020 - 17th International Conference on Security and Cryptography

Figure 2: DCBC encryption.

each other for encrypting a message M.

The decryption process, as shown in ﬁgure 3, is

fully parallel, as each chunk’s ciphertext is decrypted

independently from all others, using its corresponding

IV which was generated and stored in the encryption

phase.

Figure 3: DCBC decryption.

At a chunk level, the resulting equations for encryp-

tion and decryption are:

= E

CBC

, IV

) AND M

= D

CBC

, IV

)

At a block level, the cipher corresponding to the

message block B

i, j

, where i is the index of the chunk

the message block is situated in and j is its index in-

side that chunk, is given by the following expressions:

i, j

(

E(B

i, j

⊕C

i, j−1

) if j > 0

E(B

i,0

⊕ IV

) if j = 0

The decryption is also as straight forward:

i, j

(

D(C

i, j

) ⊕C

i, j−1

if j > 0

D(C

i,0

) ⊕ IV

if j = 0

In both these cases IV

is generated as follows:

(

G(H

, IV

i−1

) if i > 0

G(H

, IV ) otherwise

Where G is an IV Generator respecting the properties

we will be detailing in the following section.

2.5 IV Generator

Even though the efﬁciency of this approach depends

heavily on the Block Cipher and the hashing func-

tion used for encryption and hashing, its security re-

lies mainly on the security of the IV generation algo-

rithm which is why we propose three main conditions

that must be met by any function in order for it to be

usable as an IV generator for this mode.

1. The IV of a chunk i must depend on the IV of its

previous chunk i−1, in order to ensure some level

of chaining between the different chunks. The

ﬁrst chunk is the only exception to this rule, for

which an Initialisation Vector (IV) is used.

2. The IV of chunk i must depend on the chunk’s

hash, to make sure the IV is updated for every up-

date on the chunk, and thus avoid having a pre-

dictable/known IV when modifying the contents

of existing chunks.

3. The IV generator must be CPA secure to keep the

CPA security of CBC intact. This will be detailed

further in section 3.1.

For the purposes of this paper, we will be using the

following function G:

G(H

, IV

i−1

) = E

⊕ IV

i−1

)

Each of the components of the proposed IV Genera-

tion function veriﬁes one of the three conditions we

just mentioned:

1. H

: Since each Initialisation Vector IV

depends

on the hash of M

), this would ensure the ex-

istence of a link between the plaintext and the ini-

tialisation vector. One advantage to having this

link is that, when M

is updated, so is IV

2. IV

i−1

: By using IV

i−1

in the expression of IV

, the

latter would depend on all previous Initialisation

Vectors and therefore on all previous plaintext

chunks, since each Initialisation vector depends

on the plaintext chunk associated to it thanks to

the use of H

. This ensures the existence of some

level of chaining between the different chunks.

3. E

: Using a Block Cipher, the Initialisation Vec-

tor generated will be unpredictable, even when H

and IV

i−1

are known to potential attackers, which

DCBC: A Distributed High-performance Block-Cipher Mode of Operation

is very important to the security of DCBC. The

use of this property will be further detailed in sec-

tions 3.2.1 and 3.2.2

Notice that this suggestion is not a universal solution.

It is designed for a particular case where the output of

the hashing operation H is of equal size to the input

of the Block Cipher used for CBC encryption. Sim-

ilarly, we assumed that the Block Cipher used in the

IV generation algorithm has an input of the same size

as the one used in the CBC encryption. If this is not

the case, a slightly more complex IV generation algo-

rithm might be required.

Many of the choices mentioned in this section are

adopted to ensure some security properties for our

proposed solution. In the next section, we deﬁne

these properties and explain how they are ensured by

DCBC.

3 SECURITY PROPERTIES

3.1 CPA Security

CBC’s CPA security was proved by (Bellare et al.,

1997), under the condition that the IV is not pre-

dictable (Stallings, 2010). In its essence, the proposed

mode is formed by multiple CBC encryption opera-

tions using calculated IVs instead of randomly gen-

erated ones. In this section we will demonstrate that

the CPA security of the IV Generator G is a necessary

condition for the CPA security of DCBC. In order to

do this, we will show that if G is not CPA secure, then

DCBC is not CPA secure either. Consider the follow-

ing cryptographic game:

• The Attacker A sends two different messages M

and M

to the Challenger.

• The Challenger C chooses a message b randomly

and return C

= E

DCBC

), where the ﬁrst blocks

of C

are the IVs used for the encryption.

• The Attacker inspects C

and outputs b

∈ 0, 1.

The advantage of A is deﬁned as:

Adv

CPA

(A) = |Pr[b = b

] − Pr[b 6= b

If the IV Generator is not CPA secure, A can use

the blocks containing the IVs, to ﬁgure out which

of the messages M

or M

has been used to gener-

ate them and then conclude which message the ci-

pher represents. This would give A an advantage of

Adv

CPA

(A) = 1 and DCBC would not be CPA secure.

Therefore, the CPA security of the IV Generator is a

necessary condition for the CPA security of DCBC.

3.2 Blockwise Adaptive Chosen

Plaintext Attack Security

Even though CPA security ensures Semantic Secu-

rity, it is limited to messages that are presented as

an atomic unit, meaning that a message is fully re-

ceived, fully encrypted and only then is the full ci-

pher returned to the user or potential attacker. Block-

wise Adaptive Chosen Plaintext Attack (BACPA), as

described by (Joux et al., 2002), removes this con-

straint and handles non atomic messages. This in-

cludes cases where the plaintext message is either sent

one or a few blocks at a time, or is appended to old,

already encrypted data using the existing cipher’s last

block as IV for the newly received blocks’ encryption.

Attacks against BACPA-vulnerable implementa-

tions have already been proved feasible, for instance

they have been used to attack some old implementa-

tions of SSL as described in (Bard, 2006).

BACPA is a threat in two cases:

1. Editing existing data: The plaintext is modiﬁed

but the old IV is preserved for the new encryption.

2. Appending new data: New blocks are encrypted

using CBC’s logic (C

i−1

serves as IV for the en-

cryption of C

) and appended to the existing ci-

pher.

3.2.1 Editing Existing Data

When it comes to modifying existing data, if CBC is

used, it is mandatory that the whole message gets de-

crypted, modiﬁed then re-encrypted with a new IV.

This is due to the fact that if we only edit the con-

cerned blocks then re-encrypt them using their respec-

tive previous cipher blocks as IVs, we would be vul-

nerable to attacks that abuse predictable IVs.

Using our proposed mode, re-encrypting the

whole message is recommended but not mandatory.

Since the IV of a chunk depends on the hash of

the chunk itself, once a chunk is updated, its IV is

also modiﬁed in an unpredictable manner thanks to

the use of a Block Cipher. For this reason, it is possi-

ble to update only the concerned chunk and the ones

following it without having to deal with all previous

chunks, while keeping the mode’s semantic security

intact. However, doing things this way allows attack-

ers to detect the ﬁrst chunk where changes took place.

In case this information is critical to the security of

the encrypted data, it is recommended to re-encrypt

the full plaintext.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

3.2.2 Appending New Data

Chaining the chunks as described in this paper offers

security against Adaptive Chosen Plaintext Attacks at

a chunk level, meaning that it’s possible to append

new chunks to the existing data securely without hav-

ing to interact with any of the old chunks. This is

due to the fact that the IV used in each chunk is not

deducible from any previously calculated values, in-

cluding previous IVs, ciphers, hashes, etc ...

In general, an append operation will go through

the following steps:

If the size of the last chunk is less than the predeﬁned

Chunk Size:

1. Decrypt the ﬁnal chunk. We will consider n to be

its index.

2. Append the new blocks to the plaintext of the ﬁnal

chunk.

3. Encrypt the resulting chunk/chunks using the pro-

posed method and by providing the IV of the

chunk n − 1 to the initial IV Generator.

Otherwise, we get a simple one step process:

1. Encrypt the new chunk/chunks using the proposed

method and by providing the IV of the last chunk

(chunk n) to the initial IV Generator.

Using these steps to append data, the operation is se-

cure and costs at most one extra decryption operation

over a single chunk while retaining the chaining be-

tween old and newly added data.

4 THEORETICAL

PERFORMANCE COST

In this section we will be running a theoretical per-

formance comparison between the respective costs of

using DCBC and CBC to encrypt some plaintext mes-

sage M.

4.1 Assumptions

In this section we make the following assumptions:

• The time threads take to hash different chunks

(h(CS)) is only function of the chunk’s size.

• The time threads take to encrypt different chunks

(e(CS)) is only function of the chunk’s size.

• The time threads take to generate the IV for

chunks of the same size (g) is constant.

• The whole encryption process of a chunk takes

place on the same CPU.

• At the start of the operation all CPUs are free.

4.2 Theoretical Performance

Comparison

In this section, our goal is to compare the theoreti-

cal cost of running DCBC to that of running CBC in

different scenarios.

To do so, we need to deﬁne a function C represent-

ing the cost of computing the encryption of a given

chunk starting from the origin, which we deﬁne as the

point in time when the encryption of the ﬁrst chunk

started. We will denote by i, the index of the chunk

we are interested in, so: i ∈ [0, L].

The expression of C(i) is, ∀i ∈ [0, L[:

Case 1: (N − 1) ×g ≤ e(CS) + h(CS):

C(i) = (div(i,N) + 1) × (h(CS) + e(CS) + g) +

mod(i, N) × g

Case 2: (N − 1) × g > e(CS) + h(CS)

C(i) = h(CS) + (i + 1) × g + e(CS)

The proof behind the equations deﬁning the function

C is provided in the appendix.

In order to compare the function C to the cost of

running plain CBC, we respectively vary the ﬁle size

S, the chunk size CS then the number of CPUs N.

For the ﬁxed variables, we will work with empirically

estimated values which requires us to specify the al-

gorithms used for each step of DCBC’s execution as

well as the deﬁnition of a method that allows for a fair

estimate of the needed values.

In this section, we will use MD5 for H, AES (Dae-

men and Rijmen, 1999) for E and E

. As for G we

will use: G(H

, IV

i−1

) = E

⊕ IV

i−1

When it comes to estimating a value empirically,

we will use the following method:

1. The operation for which we wish to estimate the

cost, is executed 100 times and the duration of

each iteration’s execution is saved.

2. The mean value is calculated over all recorded

values.

3. Outliers are detected using simple conditions and

replaced with the calculated mean value: We con-

sider a value to be an outlier if the distance be-

tween it and the mean value is higher then 3 times

the standard deviation.

4. If any outliers have been found, go to step 2. Oth-

erwise exit and use the calculated mean value as

the cost of that operation.

The results shown in table [1], will be used to calcu-

late the theoretical performance of DCBC in different

scenarios in order to compare it to the performance of

CBC. When it comes to the IV generation, its cost is

a constant value since it is independent of the size of

the plaintext.

DCBC: A Distributed High-performance Block-Cipher Mode of Operation

Table 1: Empiric Cost for AES CBC and MD5.

Size (MB) E (ms) H (ms) S (ms)

128 607.169 196.278

0.004

256 1209.63 386.864

384 1807.156 558.95

512 2410.118 771.739

640 3007.476 930.84

768 3612.55 1117.435

896 4219.523 1301.641

1024 4825.55 1542.107

As we mentioned earlier, in order to estimate the to-

tal cost of running DCBC we will resort to the ex-

pression of C(i) which, at the beginning of the sec-

tion, we deﬁned as the duration it takes to encrypt

the chunk of index i since the start of the encryp-

tion of ﬁrst chunk (chunk 0). This means that the

cost of encrypting the whole plaintext is equal to the

cost of encrypting the last chunk (chunk L − 1). So,

from this point on, we will be using the expression of

C(L −1) as the cost of encrypting the whole plaintext.

Also, as you may notice, the value of g is negligible

compared to that of e(x) + h(x), where x represents

values from the size column in table 1. This means

that for realistic values of N, we will always verify:

(N −1) ×g ≤ e(CS)+h(CS) which in turn means that

we only need to consider the expression of C(i) ac-

cording to Case 1. We conclude that the cost of run-

ning DCBC over the whole plaintext is:

C(L − 1) = (div(L − 1, N) + 1) × (h(CS) + e(CS) +

g) + mod(L − 1, N) × g

Which is equivalent to:

C(L − 1) = (div(L − 1, N) + 1) × (h(CS) + e(CS)) +

(div(L − 1, N) + 1 + mod(L − 1, N)) × g

However, we will need to use the chunk size CS as

a parameter instead of the number of chunks L.

So, for all following sections, instead of using the

number of chunks as a constant L, we will be calcu-

lating it by ceiling the result of dividing the full plain-

text’s size by the size of a single chunk: L = ceil(

)

4.2.1 Scenario 1: Varying the Plaintext Size

For this case, we will be using a function f

(x) to

refer to the cost of encrypting a ﬁle of size x using

DCBC, where x is expressed in MB. The expression

of f

will be:

(x) = (div(ceil(

) − 1, N) + 1) × (e(CS) +

h(CS)) + (div(ceil(

) − 1, N) + 1 +

mod(ceil(

) − 1, N)) × g, ∀x > 0

Our goal is to compare the cost of running CBC (rep-

resented by the function e(x), where x is the size of

the plaintext), and DCBC for various ﬁle sizes while

ﬁxing all other parameters: N = 4 and CS = 128MB.

To do this we start by plotting f

(x) and e(x), for

x ∈ {128, 256, 512, 513, 1024}. First, we use the em-

pirically estimated values taken by e(x) listed in table

1. Then, to get the values taken by f

(x), we use the

value of e(128) we got from the previous step as well

as the approximation of h(128).

Figure 4: Performance comparison for various values of S.

The results shown in Figure 4, present some interest-

ing ﬁndings: when running the encryption on a plain-

text of size 128MB, DCBC shows a slightly worse

performance compared to CBC. This is to be expected

since with 128MB of data and a Chunk Size of 128MB

as well, DCBC will be using a single chunk and will

therefore, not only run in a sequential manner over the

whole plaintext, but also suffer from the added weight

of the extra hashing operation compared to CBC.

We also notice that f

is constant for the interval

[128, 512] and is doubled for x ∈]512, 1024]. This is

due to the fact that, in the example we considered,

we are using N = 4 and CS = 128, therefore, for a

plaintext of size x ≤ 512, we will be running a single

iteration of encryption. However, for any value of x

such that x ∈]512, 1024], two iterations are required,

which explains why the cost doubles.

When running the encryption on a plaintext of

256MB of data or more, we notice that, the larger the

plaintext, the higher the difference between the cost of

running CBC and that of running DCBC, except for

the points where transitions from using n iterations to

n + 1 iterations take place (x ∈]512, 640] in our case),

where this difference in performance gets slightly re-

duced especially for much bigger plaintexts.

In conclusion, DCBC presents a much bigger ad-

vantage in performance as the plaintext gets bigger

in size, but it is not recommended for cases where the

plaintext is of almost equal size to the Chunk Size cho-

sen by the user. This leads us to watch how various

SECRYPT 2020 - 17th International Conference on Security and Cryptography

values for the Chunk Size can affect the performance

of DCBC.

4.2.2 Scenario 2: Varying the Chunk Size

We will be using a function f

to represent the cost of

encrypting a plaintext of a known size S (1024) with

4 CPUs using DCBC with various values for CS:

(x) = (div(ceil(

) − 1, N) + 1) × (e(x) + h(x)) +

(div(ceil(

) − 1, N) + 1 + mod(ceil(

) − 1, N)) × g,

∀x > 0

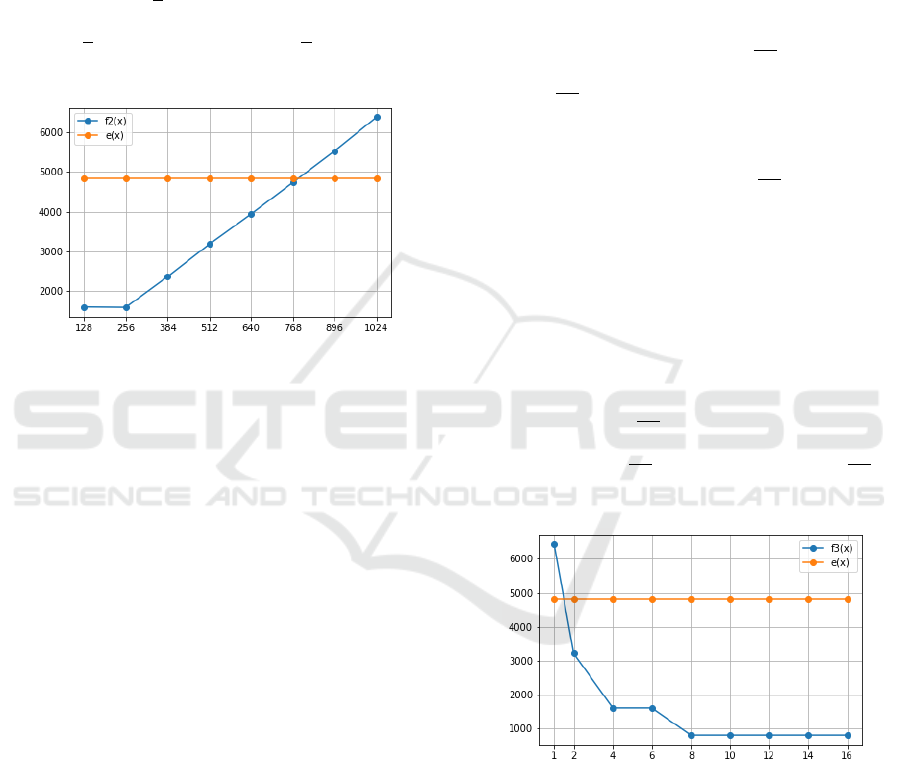

Figure 5: Performance comparison for various values of CS.

Notice that, since CBC does not use chunks, the cost

of encryption using CBC, e(x), is independent of the

Chunk Size and will therefore be represented by a

constant function. As shown in Figure 5, the cost

of using a Chunk Size of 128MB or 256MB is ex-

actly the same. This is explained by the fact that,

even though running the encryption over a chunk of

size 128MB takes half the time required to encrypt

a chunk of 256MB, using a Chunk Size of 128MB

will require two full iterations of execution over all

4 CPUs whereas using a chunk Size of 256MB will

only require one. So even though running DCBC with

a Chunk Size of 128MB will take only half the time

to encrypt a single chunk when compared to using a

Chunk Size of 256MB, it would in return need to run

twice as many times as in the latter case, which would

eventually even out the results.

When CS is set to a value of 512MB, we notice

that the cost of running DCBC doubles.

Intuitively, this is to be expected since S = 1024,

therefore the plaintext will be split into only two

chunks, which means that only 2 of the 4 CPUs will

be used for the encryption as opposed to using all 4

CPUs when CS ≤ 256. More generally, if the Chunk

Size is higher then 256MB, only a subset of 4 avail-

able CPUs will be used. Also, encryption and hashing

over a single chunk will cost more time the higher the

Chunk Size is. These two factors add up to an overall

higher cost when running DCBC with CS ≥ 256.

Finally, we notice that at a certain point, DCBC

presents a worse performance in comparison to CBC,

as the cost of the added hashing over a relatively large

chunk will surpass the beneﬁt of running the encryp-

tion in parallel. In conclusion, the choice of the chunk

size is important to the performance of DCBC, and

even though it seems that, in theory, the smaller the

Chunk Size is, the better the performance gets, this has

to be veriﬁed in practice, as many other factors may

interfere. We also have to keep in mind that we are

working on cases where (div(ceil(

) − 1, N) + 1 +

mod(ceil(

) − 1, N)) × g happens to be of negligi-

ble effect over the results. If this constraint is negated

by the use of a very small Chunk Size compared to

the full plaintext size, the value of

might get big

enough for the previous expression to have an impor-

tant impact on the results, even though g ≈ 0.004.

4.2.3 Scenario 3: Varying the Number of CPUs

We will be using a function f

to represent the cost of

encrypting a plaintext of a known size S = 1024MB

and a ﬁxed Chunk Size CS = 128MB using DCBC

with various values for the Number of CPUs N:

(x) = (div(ceil(

) − 1, x) + 1) × (e(CS) +

h(CS))+(div(ceil(

)−1, x)+1+mod(ceil(

)−

1, x)) × g, ∀x > 0

Figure 6: Performance comparison for various values of N.

Notice that the cost of running CBC encryption (e(x))

is independent of the Number of CPUs used, since

it is a sequential process that, in theory, runs on a

single process. Therefore e presents a constant func-

tion in this case. As Figure 6 shows, when N = 1,

DCBC presents a much worse performance compared

to CBC, as it will be running sequentially with the

added weight of using the hash function H.

For N = 2, since S = 1024 and CS = 128 we will

be encrypting L = 8 chunks of data. Each of the 2

DCBC: A Distributed High-performance Block-Cipher Mode of Operation

CPUs will be responsible for encrypting 4 of these

chunks, which is equivalent to encrypting and hashing

128MB of data 4 times. However, using CBC, the en-

cryption will be sequential over a single CPU for the

full 1024MB of data which results in a relatively high

difference in performance as the overhead of hash-

ing 128MB of data 4 times is less signiﬁcant than the

difference in time between running CBC over a full

1024MB of data and only 128MB of data 4 times.

This result is conﬁrmed by the distance between f

(2)

and e(2), in Figure 6.

For N = 4, the cost is reduced by half compared to

using only 2 CPUs. However, using 6 CPUs instead

of 4 doesn’t affect at all the performance of DCBC,

this is because in both cases we will have to run a

total of 2 iterations.

For N ≥ 8, we notice that the cost of running

DCBC becomes constant. This is due to the fact that

at this point we are only running a single iteration of

encryption which gives the lowest cost possible, so all

extra CPUs are not being used.

Even though these results make perfect sense in

theory, in practice there can be a slightly different be-

haviour.

In a modern system, multiple other processes might

be running alongside the DCBC encryption operation.

This can cause a slightly higher cost than the theo-

retical values calculated above. It can also result in

a slight improvement of performance when using 6

CPUs compared to the actual cost of using 4 CPUs

and further increasing the number of CPUs will help

us approach this theoretical value.

In conclusion, the performance of DCBC de-

pends, not only on the computational resources avail-

able, but also on the chunk size chosen by the user

and the size of the ﬁle they look to encrypt.

5 RELATED WORK

Some attempts have been made to reduce the cost

of encrypting data through parallelism while keeping

some level of chaining between the different blocks.

For instance, the works presented by (Dut¸

a et al.,

2013) and (Desai et al., 2013) use Interleaved Cipher

Block Chaining (ICBC) to parallelize the encryption

process and enhance its performance.

ICBC consists on running N independent CBC oper-

ations with a randomly generated IV for each one.

In each operation, the chaining will occur on

blocks with a step of N blocks. So, the ﬁrst CBC

encryption will run with blocks 0, N, 2N, 3N, ..., the

second one on blocks 1, N+1, 2N+1, 3N+1, ... and

so on. Using ICBC, the more we parallelize the en-

cryption (the bigger N is), the less chained blocks we

get. This means that there is a strict trade-off between

performance and diffusion.

By comparison, our proposed solution presents a

middle ground between performance and diffusion, as

chaining is preserved for the whole plaintext no mat-

ter how parallelized the encryption gets, but in return,

an added cost is present because of the hashing oper-

ation.

Other attempts tried to ensure parallelism and dif-

fusion using hash-based solutions, such as the work

presented by (Sahi et al., 2018), where the full plain-

text is hashed, then the hash (H(P)) is used along with

the IV and the encryption key K to generate a new

key that will be used to encrypt the plaintext block P

= E(P

, IV ⊕ K ⊕ H(P)).

However, this solution presents multiple issues:

Appending Data. Just like in CBC, it is not possible

to append data directly to the ciphertext. Any append

operation would require the full decryption and re-

encryption of the whole plaintext. In comparison, in

the worst case scenario, our proposed solution only

requires the decryption and re-encryption of the last

chunk as well as the encryption of the appended data.

Hashing Cost. Even though the hash operation would

take considerably less time then the encryption, run-

ning the hash function on the plaintext can prove to

be very costly for very large ﬁles. In this aspect, our

solution presents the advantage of parallelizing the

hashing operation as well and not just the encryption.

CPA Security. The presented mode does not offer se-

curity against chosen plaintext attacks, since all mes-

sage blocks P

are encrypted using the same key and

with no IV.

A simple game scenario to show this is as fol-

lows: An attacker sends a message M1 composed of

two identical blocks (M1

= M1

) and a message M2

made of two distinct blocks (M2

6= M2

). In the re-

sulting Cipher returned by the encryption oracle, if

= C

then output 0, else output 1. This results

in an advantage equal to 1 for the adversary, which

means that the attacker can tell which of the two mes-

sages M1 and M2 was encrypted by the oracle, thus,

making the discussed solution vulnerable to CPA.

On the other hand, we claim that our proposed so-

lution is CPA secure thanks to the use of unpredictable

IVs for the different CBC encryption operations run-

ning on the different chunks as explained previously.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

6 CONCLUSION AND FUTURE

WORK

In its essence, DCBC consists on running a chaining

layer on top of multiple CBC encryption operations

that run in parallel. This allows for a conﬁgurable

trade-off between performance and diffusion by ma-

nipulating the number of independent CBC encryp-

tion operations that we run, which is equivalent to

manipulating the Chunk Size, as each chunk will go

through its own CBC encryption.

For its security, DCBC inherits the same proper-

ties as CBC but requires an equally secure IV Gen-

erator to make sure the underlying CBC encryption

operations’ security will not be compromised. In this

article we offered a suggestion for such a function,

but it may be possible to ﬁnd more examples that re-

spect the requirements we speciﬁed for a usable IV

Generator.

When it comes to performance, the calculated the-

oretical values show promising results compared to

using CBC, and the gap in performance seems to get

even more interesting for larger ﬁles. This re-enforces

the initial idea of adopting DCBC especially in Big

Data environments.

Currently, we are looking to validate these theoret-

ical ﬁndings with empiric experiments by implement-

ing DCBC and running it on multiple cores locally

and/or on multiple machines in a distributed system.

Running tests on a working DCBC implementation

would, also, allow us to compare the level of diffu-

sion and its randomness, when using DCBC and CBC

modes.

Later, we will study the effect of running DCBC

on a real Big Data system by implementing its logic

in a resource manager such as YARN (Vavilapalli and

al., 2013).

Finally, we will look into generalizing the idea

used to create DCBC, in order to give a more global

solution that offers this trade-off between parallel ex-

ecution and diffusion using any underlying mode of

operation and not just CBC.

REFERENCES

Bard, G. V. (2006). A challenging but feasible blockwise-

adaptive chosen-plaintext attack on SSL. SECRYPT

2006 - International Conference on Security and

Cryptography, Proceedings, pages 99–109.

Bellare, M., Desai, A., Jokipii, E., and Rogaway, P. (1997).

Concrete security treatment of symmetric encryption.

In Annual Symposium on Foundations of Computer

Science - Proceedings, pages 394–403.

Daemen, J. and Rijmen, V. (1999). AES proposal: Rijndael.

Desai, A., Ankalgi, K., Yamanur, H., and Navalgund, S. S.

(2013). Parallelization of AES algorithm for disk en-

cryption using CBC and ICBC modes. 2013 4th In-

ternational Conference on Computing, Communica-

tions and Networking Technologies, ICCCNT 2013,

(November 2001).

Dut¸

a, C. L., Michiu, G., Stoica, S., and Gheorghe, L.

(2013). Accelerating encryption algorithms using par-

allelism. Proceedings - 19th International Conference

on Control Systems and Computer Science, CSCS

2013, pages 549–554.

Dworkin, M. (2005). Recommendation for Block Cipher

Modes of Operation. National Institute of Standards

and Technology Special Publication 800-38A 2001

ED, X(December):1–23.

Joux, A., Martinet, G., and Valette, F. (2002). Blockwise-

Adaptive Attackers Revisiting the (In)Security of

Some Provably Secure Encryption Modes: CBC,

GEM, IACBC. In Yung, M., editor, Advances in Cryp-

tology — CRYPTO 2002, pages 17–30, Berlin, Heidel-

berg. Springer Berlin Heidelberg.

Katos, V. (2005). A randomness test for block ciphers. Ap-

plied Mathematics and Computation, 162(1):29–35.

McGrew, D. a. (2002). Counter Mode Security : Analysis

and Recommendations. pages 1–8.

Phan, D. H. and Pointcheval, D. (2004). About the

security of ciphers (semantic security and pseudo-

random permutations). Lecture Notes in Computer

Science (including subseries Lecture Notes in Artiﬁ-

cial Intelligence and Lecture Notes in Bioinformatics),

3357:182–197.

Pittalia, P. P. (2019). A Pros and Cons of Block Cipher

Modes for Symmetric Key Algorithms. 1(06):6–9.

Sahi, A., Lai, D., and Li, Y. (2018). An Efﬁcient Hash

Based Parallel Block Cipher Mode of Operation. 2018

3rd International Conference on Computer and Com-

munication Systems, ICCCS 2018, (Iv):212–216.

Shetty, M. M. and Manjaiah, D. H. (2017). Data security in

Hadoop distributed ﬁle system. Proceedings of IEEE

International Conference on Emerging Technological

Trends in Computing, Communications and Electrical

Engineering, ICETT 2016, pages 10–14.

Stallings, W. (2010). NIST block cipher modes of operation

for conﬁdentiality. Cryptologia, 34(2):163–175.

Vavilapalli, V. K. and al. (2013). Apache hadoop YARN:

Yet another resource negotiator. Proceedings of the

4th Annual Symposium on Cloud Computing, SoCC

2013.

Verdult, R. (2001). Introduction to Cryptanalysis: Attack-

ing Stream Ciphers. pages 1–22.

APPENDIX

We aim to calculate a theoretical approximation for

the cost of encrypting some plain text M that will

be divided into L chunks and encrypted using N

CPUs/Cores.

First, we will deﬁne C(i) as a combination of two

different expressions over two disjoint intervals:

DCBC: A Distributed High-performance Block-Cipher Mode of Operation

1. 0 ≤ i < N: We will be referring to it as the ﬁrst

iteration, during which the ﬁrst batch of chunks

will be encrypted.

2. i ≥ N, which represents all following iterations.

Then, we will look to provide a uniﬁed expression for

the cost function over both of these intervals.

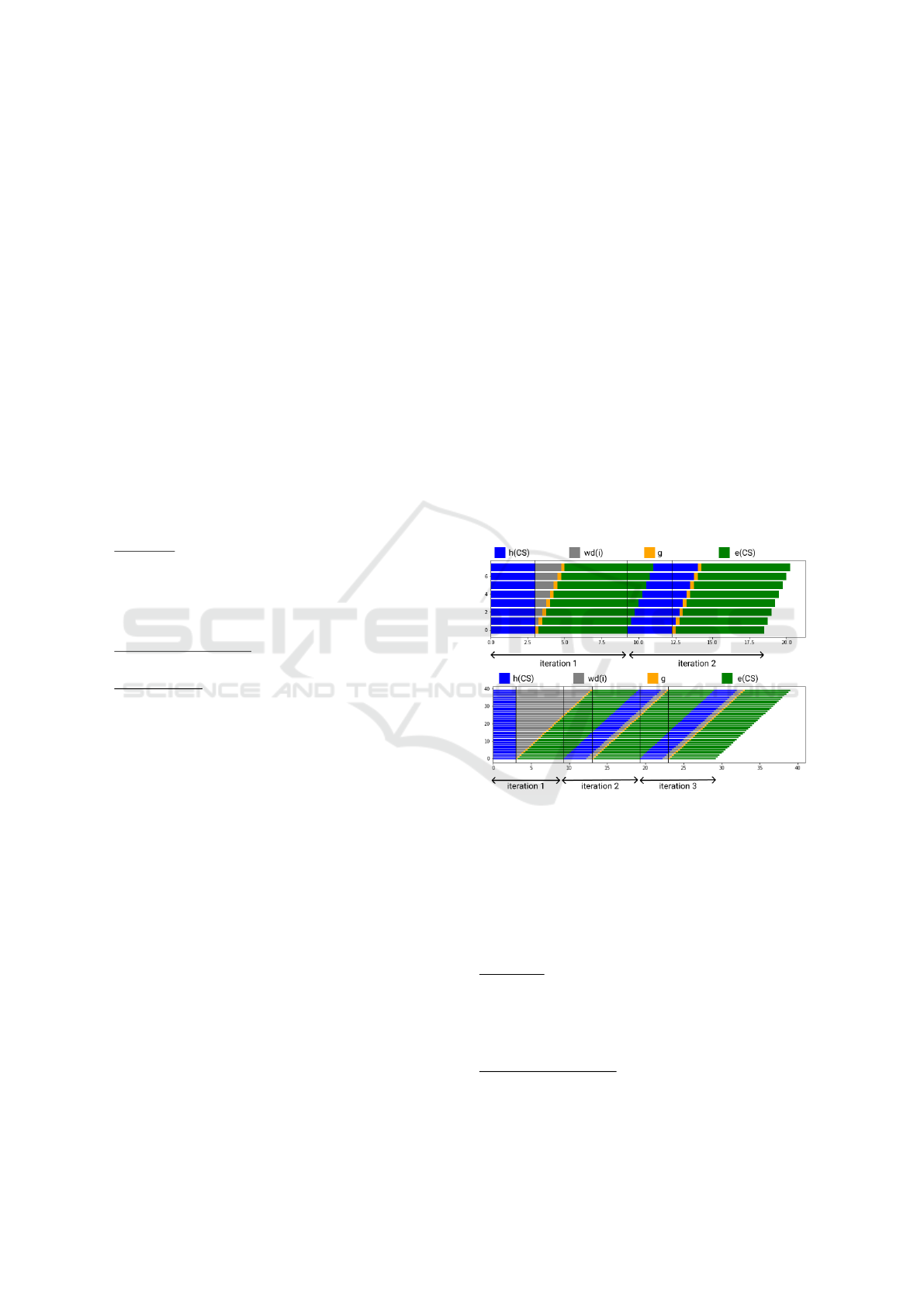

First Iteration: 0 ≤ I < N. During the ﬁrst iteration

of encryption operations, all CPUs are free. So, the

encryption of a chunk i starts as soon as the chunk (i−

1) ﬁnishes the IV Generation step (except, of course,

for the initial chunk). So, we deﬁne C(i) as follows:

C(i) =

(

h(CS) + g + e(CS), if i = 0

C(i − 1) + g, if i ≥ 1

We can proceed by induction to show that the pre-

vious expression is equivalent to:

C(i) = h(CS) + i × g + g + e(CS), ∀i ∈ [0, N[ (1)

Where i × g represents how long it takes for the

previous IV to be calculated using the function G.

Base case(i = 0): By deﬁnition:

C(0) = h(CS) + g + e(CS)

⇐⇒ C(0) = h(CS) + 0 × g + g + e(CS)

So C(0) is correct.

Induction Hypothesis: Suppose that there exists i < N

such that: ∀k ≤ i, C(k) = h(CS) + k × g + g + e(CS)

Induction step: We need to prove that:

C(i + 1) = h(CS) + (i + 1) × g + g + e(CS)

We know that i ≥ 0, so i + 1 ≥ 1 which gives the fol-

lowing expression of C(i + 1):

C(i + 1) = C(i + 1 − 1) + g

= C(i) + g

= h(CS) + i × g + g + e(CS) + g

= h(CS) + (i + 1) × g + g + e(CS)

Therefore, ∀i ∈ [0, N[, equation 1 is correct.

Following Iterations: N ≤ I < L. In general, C(i)

can be expressed as the sum of: the duration it took

for the current chunk to get on the CPU (which is the

same as calculating the cost of encrypting the chunk

i − N), the hashing duration, the encryption duration,

the IV generation duration and, possibly, a waiting

duration where the thread is blocked until the previous

IV is generated.

This translates into the following formula:

C(i) = C(i − N) + h(CS) + wd(i) + g + e(CS) (2)

For all iterations except the ﬁrst one, the wait-

ing duration for chunk i is the difference between

the point in time where the previous IV is calculated,

which is expressed by (C(i −1)− e(CS)), and the one

where the hashing operation for chunk i ﬁnishes exe-

cution, denoted by (C(i − N)+ h(CS)):

(C(i − 1) − e(CS)) − (C(i − N)+ h(CS))

The waiting duration is either a positive value or 0, so

instead we deﬁne the waiting duration wd(i) as:

max(0, [C(i − 1) − e(CS)] − [C(i − N) + h(CS)])

Since the expression of wd(i) depends on the sign

of (C(i − 1) − e(CS)) − (C(i − N) + h(CS)), then so

does the expression of C(i).

When replacing wd(i) by its expression we get:

Case 1: wd(i) = 0

C(i) = C(i − N) + h(CS) + g + e(CS) (3)

Case 2: wd(i) > 0

C(i) = C(i − 1) + g (4)

Figure 7, helps visualize the execution scenario of

DCBC’s threads on each CPU for both cases 1 and

2. * Case 1: wd(i) = 0

Figure 7: DCBC’s execution scenario according to Cases 1

and 2.

Our goal is to prove that equation (3) is equivalent to:

C(i) = (div(i, N)+1)×(h(CS)+e(CS)+g)+mod(i, N)×g

(5)

To prove this, we will proceed by induction:

Base case: i = N

C(N) = C(0) + h(CS) + g + e(CS)

= 2 × (h(CS) + g + e(CS))

So C(N) is correct.

Induction Hypothesis: Suppose that there exists an i

such that ∀k ≤ i:

C(k) = (div(k, N) + 1) × (h(CS) + e(CS) + g) +

mod(k, N) × g

SECRYPT 2020 - 17th International Conference on Security and Cryptography

Induction step: We need to prove that ∀i ≥ N:

C(i + 1) = ((div(i + 1), N) + 1) × (h(CS) + e(CS) +

g) + mod(i + 1, N) × g

According to equation (3):

C(i + 1) = C(i + 1 − N) + h(CS) + g + e(CS)

So, we need to distinguish between two cases:

i + 1 − N < N and i + 1 − N ≥ N.

*If i + 1 − N < N, we can apply equation (1):

C(i + 1) = h(CS) + (i + 1 − N + 1) × g + e(CS) + h(CS)

+ g + e(CS)

= 2 × (h(CS) + g + e(CS)) + (i + 1 − N) × g

However, 0 < i + 1 − N < N

⇐⇒ N < i + 1 < 2N

⇐⇒ div(i + 1, N) = 1

⇒ mod(i + 1, N) = (i + 1) − div(i + 1, N) × N

⇒ mod(i + 1, N) = i + 1 − N

⇒ C(i + 1) = 2 × (h(CS) + e(CS) + g) + (i − N + 1) × g

= (div(i + 1, N) + 1) × (h(CS) + e(CS) + g)

+ mod(i + 1, N) × g

So, equation (5) is correct for i + 1 if i + 1 − N < N.

*If i + 1 − N ≥ N: According to equation (3):

C(i + 1) = C(i + 1 − N) + h(CS) + g + e(CS)

Since N ≥ 1 then, i+1−N ≤ i, therefore the induction

hypothesis is applicable to i + 1 − N, which gives us:

C(i + 1) = (div(i + 1 − N, N) + 1) × (h(CS) + e(CS) + g)

+ mod(i + 1 − N, N) × g + h(CS) + g + e(CS)

= (div(i + 1, N) − 1 + 1) × (h(CS) + e(CS) + g)

+ mod(i + 1, N) × g + (h(CS) + g + e(CS))

= (div(i + 1, N)) × (h(CS) + e(CS) + g)

+ (h(CS) + g + e(CS)) + mod(i + 1, N) × g

= (div(i + 1, N) + 1) × (h(CS) + e(CS) + g)

+ mod(i + 1, N) × g

So, equation (5) is correct for i + 1 if i + 1 − N ≥ N.

By induction, we conclude that, ∀i ≥ N, equation

(5) is correct.

* Case 2: wd(i) > 0

In this Case, we will be considering the expression of

C(i) as given by equation (4).

We notice that in this case C(i) is just an extension

of the expression we calculated for the ﬁrst iteration

over the interval [N, L[. In conclusion, ∀i ∈ [N, L[:

C(i) = h(CS) + (i + 1) × g + e(CS)

General Formula. In this section, we will calculate

an expression for C(i), ∀i ∈ [0, L[. For the ﬁrst case:

wd(i) = 0, we notice that if we apply the expression

of C(i), as deﬁned by equation (5), for i < N we get:

C(i) = (div(i, N) + 1) × (h(CS) + e(CS) + g)

+ mod(i, N) × g

= (0 + 1) × (h(CS) + e(CS) + g) + i × g

= h(CS) + (i + 1) × g + e(CS)

So, for i < N, both equations (5) and (1) are equivalent

and we can use equation (5) as a general expression

for C(i), ∀i ∈ [0, L[, as long as wd(i) = 0.

For the other case, where wd(i) > 0, C(i) has the

same expression for all iterations. So equation (1) will

be the general expression of C(i) under that condition.

In conclusion, we can express C(i) as: ∀i ∈ [0, L[,

if wd(i) = 0: C(i) = (div(i, N) + 1) × (h(CS) +

e(CS) + g) + mod(i, N) × g

otherwise: C(i) = h(CS) + (i + 1) × g + e(CS)

Now that the expression of C(i) is determined, we

need to simplify the conditional expression wd(i) > 0,

to have it use initial parameters only.

If we consider wd(i) > 0, then in this case:

wd(i) = C(i − 1) − e(CS) −C(i − N) − h(CS) (6)

We will be proceeding by induction to prove that:

wd(i) = (N − 1) × g − (e(CS) + h(CS)) (7)

Base case: i = N

wd(N) = C(N − 1) − e(CS) −C(0) − h(CS)

= C(N − 1) −C(0) − (e(CS) + h(CS))

Using the expression of C(i) in equation (1), we get:

wd(N) = (N − 1) × g − (e(CS) + h(CS))

Which means that, wd(N) is correct.

Induction Hypothesis:

∀k ≤ i, wd(k) = (N − 1) × g − (e(CS) + h(CS))

Induction step: We need to prove that:

wd(i + 1) = (N − 1) × g − (e(CS) + h(CS)), i ≥ N

wd(i) > 0, then according to equation (4):

C(i) = C(i − 1) + g

⇒ wd(i + 1) = C(i) − e(CS) −C(i + 1 − N) − h(CS)

= C(i − 1) + g − e(CS) − (C(i − N) + g) − h(CS)

= C(i − 1) − e(CS) −C(i − N) − h(CS)

= wd(i) = (N − 1) × g − (e(CS) + h(CS))

So, equation (7) is correct for i + 1.

By induction, we conclude that if wd(i) > 0, then

equation (7) is correct ∀i ∈ [N, L[.

In conclusion, ∀i ≥ N:

wd(i) > 0 ⇐⇒ (N − 1) × g > e(CS) + h(CS)

∀i ∈ [0, L[, the ﬁnal expression of C(i) is:

Case 1: (N − 1) × g ≤ (e(CS) + h(CS)):

C(i) = (div(i, N) + 1) × (h(CS) + e(CS) + g) +

mod(i, N) × g

Case 2: (N − 1) × g > (e(CS) + h(CS))

C(i) = h(CS) + (i + 1) × g + e(CS)

DCBC: A Distributed High-performance Block-Cipher Mode of Operation
