Feasibility Analysis of SMartyModeling for Modeling UML-based

Software Product Lines

Leandro F. Silva

1 a

, Edson OliveiraJr

1 b

and Avelino F. Zorzo

2 c

Informatics Department, State University of Maringá (UEM), Maringá, Brazil

Pontiﬁcal Catholic University of Rio Grande do Sul, Porto Alegre-RS, Brazil

Keywords:

Experiment, SMartyModeling, Software Product Line, Tool, UML.

Abstract:

Variability modeling in UML-based Software Product Lines (SPL) has been carried out using basically the

UML Proﬁling mechanism for a diverse of theoretical approaches. However, there is no UML-based SPL

life cycle supporting tool, which takes advantages of the UML standard diagrams in a controlled environment

exclusively dedicated to it. Users usually adopt general-purpose UML tools to model variability. Its drawback

is no control over data regarding SPL models, especially on variability. With such control, one might, for

instance, use different visualization techniques to show SPL/variability information, inspecting/testing SPL

models and data, apply metrics, and conﬁgure speciﬁc products. To provide an environment with these char-

acteristics, we developed SMartyModeling. We evaluated its feasibility based on two studies: one qualitative

supported by the Technology Acceptance Model (TAM), and one experiment comparing SMartyModeling

with Astah. The ﬁrst study aided to establish assumptions on how to improve the environment. We then,

stated hypotheses to be tested in a comparative experiment. Thus, we identiﬁed aspects related to the automa-

tion of the SPL concepts, the number of errors and the difﬁculties in modeling SPLs. Hence, we measured

effectiveness and efﬁciency of SMartyModeling over Astah. General results provide preliminary evidence that

SMartyModeling is feasible for further developing.

1 INTRODUCTION

The reuse of requirements, architectures and other ar-

tifacts in a high level of abstraction is efﬁcient in tra-

ditional software development techniques, focused on

the source code and opportunistic reuse. In this con-

text, the Software Product Line (SPL) approach has

been consolidated as a technique for systematic reuse

in many companies around the world (Linden et al.,

2007). SPL development comprises a set of essen-

tial activities, such as, variability management, which

is a key issue for the success of SPLs. Several ap-

proaches to variability management have been pro-

posed in the literature (Chen et al., 2009; Galster et al.,

2014; Raatikainen et al., 2019).

Secondary studies Chen et al. (2009) Galster et al.

(2014) Lisboa et al. (2010), Pereira et al. (2014) and

surveys Bashroush et al. (2017) Berger et al. (2013)

do not present tools with native support to modeling

https://orcid.org/0000-0001-8860-5968

https://orcid.org/0000-0002-4760-1626

https://orcid.org/0000-0002-0790-6759

UML-based SPLs.

Several companies have increasingly required the

support of tools for the SPL approach. Hence, they

have developed their homemade solutions to support

the SPL life cycle. However, the current support tools

are mainly restricted to the problem space based on

feature modeling (Bashroush et al., 2017).

To provide support to the solution space in SPL,

we developed SMartyModeling

, an environment for

SPL modeling, with support to most UML stereotype-

based approaches. The main beneﬁt of SMartyMod-

eling is the reuse of structures, including architec-

tural views, requirements, and descriptions, gathered

from most existing used SPL tools (Bashroush et al.,

2017; Pereira et al., 2014; Berger et al., 2013), even

those with no UML support. SMartyModeling pro-

vides users control over the data and the integration

of new functionalities with existing tools.

To analyze SMartyModeling feasibility and make

decisions on its further development, a qualitative

Available at https://github.com/leandroﬂores/demo_

SMartyModeling_tool

442

Silva, L., OliveiraJr, E. and Zorzo, A.

Feasibility Analysis of SMartyModeling for Modeling UML-based Software Product Lines.

DOI: 10.5220/0009793404420449

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 442-449

ISBN: 978-989-758-423-7

study was performed through a questionnaire an-

swered by 10 experts in SPL from which identiﬁed

strengths and limitations of the tool. Then, we con-

ducted an experiment aimed to compare the SMarty-

Modeling environment with the Astah

tool.

This paper aims to present the results of the initial

qualitative evaluation, which motivated an experiment

comparing efﬁciency and effectiveness of SMarty-

Modeling and the Astah tool by modeling use case di-

agrams. Results on these studies revealed main points

to improve SMartyModeling and lessons learned.

2 THE SMartyModeling

ENVIRONMENT

SMartyModeling provides support for the follow-

ing main functionalities: Variability Model: man-

agement to variability model and composition rules;

Variability Decision: providing support to the man-

agement of variability resolution; Variability Val-

idation: performing consistency checking;Domain

Asset Management: document the processes, clas-

sify assets and manage them through their life cycle;

Guide: including key steps to use the environment;

and Import/Export: including a speciﬁc module for

reading and writing the projects.

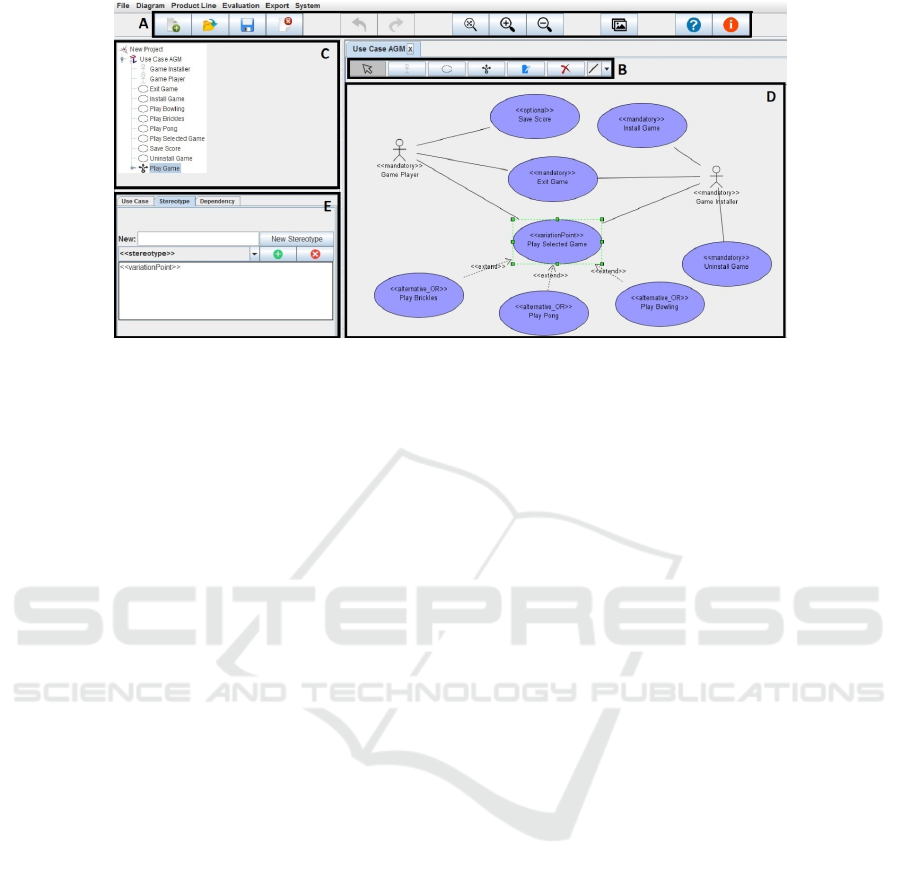

Figure 1 presents the SMartyModeling main in-

terface for use case modeling, with ﬁve fundamen-

tal components: Operations Panel (Component A):

key system operations: new, open, save and close

Project; undo, redo; in and out zoom; print, help and

about; Buttons Panel (Component B): features to

the respective diagram. For the use cases there are:

drag and drop diagram elements; new actor; new use

case; new variability; new include association; new

extend association; and new realization association;

Project Panel (Component C): organization of the

Project as a tree to display: diagrams, variabilities,

products, instances, metrics and traceability; Model-

ing Panel (Component D): draws diagrams; Infor-

mation Panel (Component E): tabs with information

on selected elements.

A practical example using the SMarty approach is

presented below. We consider the use case diagram

deﬁned for Arcade Game Maker (AGM)

, a pedagog-

ical SPL created by the Software Engineering Insti-

tute (SEI)

to support learning and experimentation

of SPL concepts. We used AGM as a reference for

the qualitative study (Section 3) and the experiment

http://astah.net

https://www.sei.cmu.edu/productlines/ppl

https://www.sei.cmu.edu

(Section 4).

Figure 1 presents an adaptation of the AGM

use case diagram modeled, containing the follow-

ing elements: Game Installer: actor responsible

for actions of conﬁguration of the games produced

by AGM; Game Player: actor responsible for play-

ing; Save Score: saves the player’s current score;

Install Game: install the chosen game; Exit Game:

exits the game in progress; Uninstall Game: re-

moves the selected game; Play Selected Game: an

actor selects the game and begins its execution; Play

Bowling: starts the game Bowling; Play Brickles:

starts the game Brickles; and Play Pong: starts the

game Pong.

Considering the Play Selected Game use case

in Figure 1, we note the variationPoint stereotype, in-

dicating that the use case is a variation point, associ-

ated with the play game variability, that has three vari-

ants associated: Play Brickles, Play Pong and Play

Bowling, the three stereotypes with alternative_OR,

indicating that they are inclusive, thus different com-

binations can be selected. The optional stereotype is

associated with one use case: Save Score. The op-

tional stereotype indicates the optional presence. The

other elements are mandatory.

3 QUALITATIVE STUDY

We adopted the Technology Acceptance Model

(TAM) (Davis, 1989) to understand the causal re-

lationship between external variables of user accep-

tance and the actual use of the technology under anal-

ysis. Furthermore, we wanted to understand the be-

havior of these users based on their usefulness and

ease of use perspectives.

Therefore, 10 SPL experts answered a ques-

tionnaire

related to ease of use, utility and future

use. The questionnaire was composed of open and

closed questions. For the closed questions the Lik-

ert scale was used. We adopted the SMarty approach

(OliveiraJr et al., 2010) for variability representation.

All experts have at least 1 year of experience in SPL.

Regarding the Ease of Use, experts agreed: the

modeling interface was intuitive and easy to handle

(5 totally and 5 partially); the environment allows the

modeling according to the concepts deﬁned by the

UML (7 totally and 3 partially); and the environment

allows the modeling according to the concepts of SPL

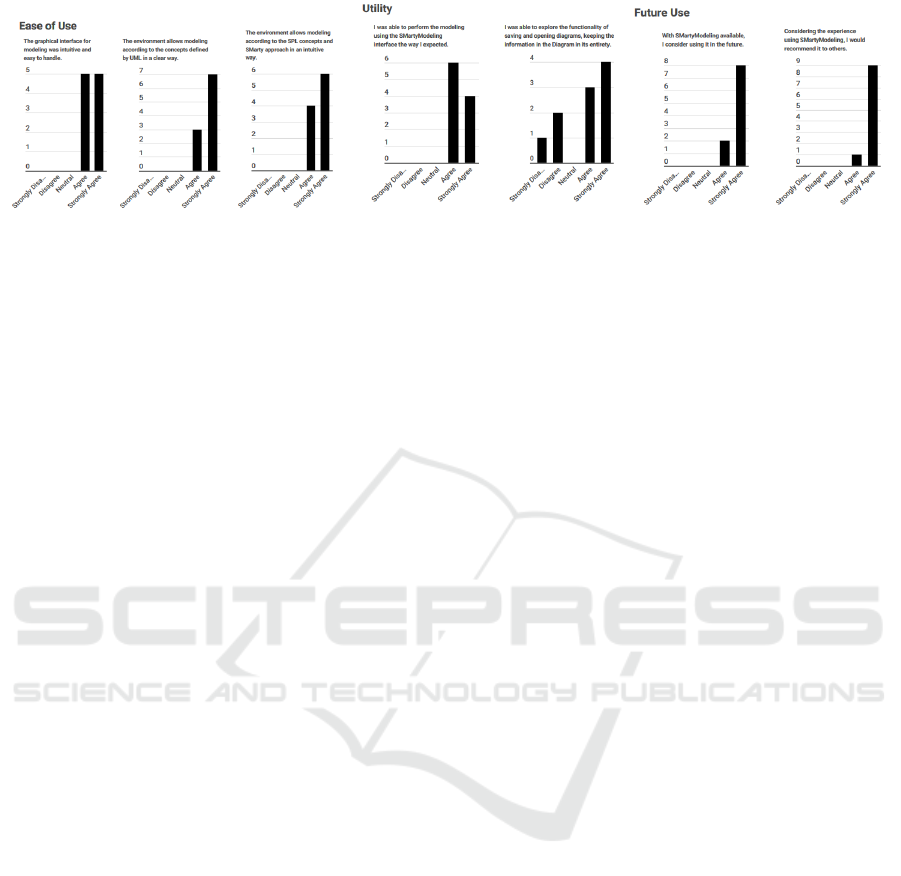

in an intuitive way (6 totally and 4 partially). Figure

2a) presents the responses about Ease of Use.

https://zenodo.org/record/3336227

Feasibility Analysis of SMartyModeling for Modeling UML-based Software Product Lines

443

Figure 1: SMartyModeling interface.

Regarding Utility, we observed certain diver-

gences. Although the experts were able to perform

the modeling using the interface as expected (4 totally

and 6 partially), difﬁculties were encountered in ex-

ploring the features of saving and opening diagrams,

fully maintaining the information of the diagram, with

7 (4 fully and 3 partially) exploring correctly and 3 (2

partially and 1 fully) reporting difﬁculties. Figure 2b)

presents the responses about Utility.

In relation to Future Use, the environment was

considered for future use for all experts (8 totally and

2 partially). All of them would recommend our en-

vironment to other people (9 totally and 1 partially).

Figure 2c) presents the responses about Future Use.

The analysis of the open responses was performed

using Grounded Theory procedures, assigning labels

to sections of text (open coding), and grouped and cat-

egorized (axial coding) according to the expressed an-

swers.

Analyzing the experts quotes on the positive as-

pects, the following points stand out: application of

SPL concepts: “Automates and simpliﬁes the pro-

cess of modeling the stereotypes deﬁned in SMarty”

(Expert #1) and “It was very clear the application of

the SPL and SMarty concepts in the tool, facilitating

the modeling of the diagrams.” (Expert #5); intuitive

interface: “Interface standardization also helps in

learning” (Expert #2), “The graphical part of the en-

vironment is simple and very well developed, which

makes it simple and easy for anyone to use” (Expert

#6) and “Intuitive interface and ease of use. You can

start using the use case and/or class quickly.” (Expert

#9); and ease of use: “Each element of a model is

very well represented.” (Expert #5) and “The terms

of the options are clear, allowing one to immediately

understand what each option does.” (Expert #9).

The analysis also identiﬁed the points to improve:

graphical interface: “I believe the visual interface

can be improved” (Expert #3 :), “It would be nice

to have a bigger space to draw.” (Expert #4) and “I

had to use the scroll bar because the elements were

large on the screen.” (Expert #7); modeling features:

“I had difﬁculties in creating a Variation Point and in

the association of its respective variants” (Expert #1),

“when registering a new use case, it was not possible

to add it as a variant.” (Expert #2) and “The options to

remove and edit classes, interfaces on the side menu

did not work” (Expert #5); and Export/Import Di-

agrams: “I found some difﬁculty saving my work”

(Expert #2), “I had difﬁculty saving the templates.”

(Expert #4) and “I saved the class for the ﬁrst time,

but it did not appear in my ﬁles. When I saved again,

then it appeared.” (Expert #8).

The results of this qualitative study motivated

the conduction of an experiment, with the objective

of comparing SMartyModeling with another regular

UML tool. Hypotheses from the results of this qual-

itative study were raised to plan the experiment. In

general, quantify the difference in modeling using

SMartyModeling against other tools.

The answers raised questions for the experiment.

First, in relation to the intuitive modeling interface.

The goal is to identify how far SMartyModeling is

from currently used tools. To evaluate this aspect, the

total time required to model an SPL is a factor of anal-

ysis. Another goal is to compare SMartyModeling

with another tool in relation to the automation of SPL

concepts. To analyze this aspect, a factor of analysis

is the number of errors made during the modeling.

A previous survey Agner and Lethbridge (2017)

indicates Astah as a modeling tool used considerably

for teaching and practicing, considering their main

beneﬁts: simple to install and learn, besides sup-

porting important notations to teach. As far as we

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

444

(a) Ease of Use (b) Utility (c) Future Use

Figure 2: Responses to closed questions.

know, there is no speciﬁc UML tool for SPL modeling

based on UML, except SMartyModeling. This is the

main reason we did not choose feature-based tools as,

for instance, FAMA, FeatureIDE, and pure::variants.

Therefore, we are interested, at ﬁrst, in the solution

space (modeling), rather than in the problem space

(SPL features, for instance) as such other tools are.

4 THE EXPERIMENT

The proposed experiment is classiﬁed as a quasi-

experiment that relaxes the conditions imposed by

probability distributions and statistical inferences for

the population. All instrumentation and observed val-

ues of this experiment are available at https://zenodo.

org/record/3336227.

4.1 Goal and Research Questions

The goal of this experiment is to compare an SPL

modeling tool, SMartyModeling, and general UML

modeling tool, Astah, with the purpose of character-

izing them for the modeling of SPLs and variability

with respect to effectiveness and efﬁciency from the

point of view of researchers of SPL, in the context

of undergraduate students and masters in Computer

Science in the Software Engineering area. We chose

Astah as it is one of the most used UML general tool

(Agner and Lethbridge, 2017), and to the best of our

knowledge there is no speciﬁc tool to model UMl-

based SPL for the solution space.

According to the Goal-Question-Metric (GQM)

model, two main questions were established for our

study: “RQ1: Which tool is more efﬁcient in

modeling SPL use case diagrams according to the

SMarty approach: SMartyModeling or Astah?”

and “RQ2: Which tool is more effective in mod-

eling SPL use case diagrams according to the

SMarty approach: SMartyModeling or Astah?”.

The term effectiveness has been used to identify

the number of correct and incorrect responses of vari-

ability modeling activities for the ADO method for

domain modeling using UML.

4.2 Planning

This section presents the planning of our experiment.

Context Selection: we adapted the AGM use case

diagram, an SPL proposed for experimental pur-

poses. The participant should model the diagram

of Figure 1 on SMartyModeling and on Astah by

taking into account the SMarty approach. Several

different stereotype-based SPL approaches might be

used, however we have lots of experience in SMarty

(OliveiraJr et al., 2010).

Hypothesis Formulation: we formulated the follow-

ing hypotheses in this study, where “var” should be

replaced with effectiveness or efﬁciency:

• Null Hypothesis (H0

var

): there is no differ-

ence in effectiveness/efﬁciency between Astah

and SMartyModeling for modeling use case dia-

grams. Therefore, H0

var

: Astah = SMartyModel-

ing;

• Alternative Hypothesis (H1

var

): there is a sig-

niﬁcant difference in effectiveness/efﬁciency be-

tween Astah and SMartyModeling for modeling

use case diagrams. Therefore, H1

var

: Astah 6=

SMartyModeling.

Variables and Metrics Selection: we selected the

following variables for this experiment:

• Independent Variables: use case diagram

adapted from AGM as preﬁxed variable and mod-

eling tools as a factor with two treatments: Astah

and SMartyModeling.

• Dependent Variables: Efﬁciency and Effective-

ness are calculated for each tool (Astah, SMarty-

Modeling), deﬁned as follows:

– Effectiveness is the precision of modeling with

one of the tools, which is the ratio between H

and TE, where:

Feasibility Analysis of SMartyModeling for Modeling UML-based Software Product Lines

445

∗ H is the discrete value that represents the rel-

evant number of correct modeled elements;

∗ TE is the discrete value that corresponds to

the total modeled elements.

– Efﬁciency is the ratio between Effectiveness

and TI, where:

∗ TI is the discrete value that corresponds to

time interval (in minutes) required for model-

ing the use case diagram with one of the tools.

Selection of Participants: we deﬁned a non-

probabilistic sampling of participants, more speciﬁ-

cally the sampling for convenience technique. This

type of sampling does not jeopardize the objectives of

this study. Participants selected for the experiment

were graduate and undergraduate students in Com-

puter Science, Information Technology, Software En-

gineering and Information Systems, with experience

in modeling software systems in UML. We con-

sidered experienced the participant who has already

modeled use case diagrams in classroom or industry.

Thirty-one (31) participants attended the experiment.

Choice of Design Type: we chose a 1x2 independent

factorial experimental design type as treatment, and

control has neither interactions nor relationships.

Instrumentation: the following materials com-

pose our instrumentation: Informed Consent Term

(ICT): contains main information on the experiment:

conﬁdentiality, procedures and beneﬁts. Such doc-

ument allowed participants to make their decisions

about their participation in a fair way; Characteri-

zation Questionnaire: in which the participant indi-

cated his/her respective academic degree, area of ex-

pertise, and level of experience with UML and SPL

modeling; Instructional material: contains three

parts, the ﬁrst with the main concepts of SPL, the sec-

ond with the concepts about SMarty approach, and

the third with an example modeling using Astah and

SMartyModeling; and Evaluation Instrument: con-

tains the diagram to be modeled and the open ques-

tions to be evaluated qualitatively. The use case di-

agram is an adaptation of AGM as shown in Figure

1. The adaptation consisted on: two actors, eight

use cases, three extensions (counting as a single el-

ement), seven realizations (counting as a single ele-

ment), an optional variability and an inclusive vari-

ability, achieving a total of 14 elements. The main

concern was not to be a tiresome task and simultane-

ously cover all the elements of the use case diagram,

including the modeling of different types of variabili-

ties.

4.3 Operation

Pilot Project: two pilot projects were applied to eval-

uate the instrumentation. The ﬁrst one was performed

with an expert in SPL, and we identiﬁed adjustments

in the instrumentation according to the results. The

second was carried out with a graduate student from

a different study area, and we deﬁned an estimated

time required for modeling in both tools and to verify

whether the training was satisfactory.

Training: we trained all participants in essential con-

cepts on SPL, variability modeling and the SMarty

approach. All participants are undergraduate stu-

dents, with at least 3 years of disciplines focused on

teaching software engineering. In addition, examples

of SPL were presented in both environments to pre-

pare the participants for the execution of the experi-

ment. The training also explained the main function-

alities of both tools. The training lasted for 30 to 40

minutes.

During training, participants received three doc-

uments: the ICT, the characterization questionnaire,

and the instructional material. Training was per-

formed based on Mobile Media SPL use case dia-

grams. Participants were allowed to ask questions at

any time during the training sessions.

Operation Procedures: the following steps were

taken in this experiment: participant arrived at the lab-

oratory, and was allocated to a random desktop ma-

chine; applicant gave the participant all documents

of instrumentation mentioned in Section 4.2; partic-

ipant read each given document; applicant explained

the given documents; all participants read the instruc-

tions and the applicant answered their questions; par-

ticipants modeled the AGM use case diagram, shown

in Figure 1, in the two environments; participants re-

turned the instruments to the applicant and ﬁnished

their tasks in the experiment. It was up to the partic-

ipant to deﬁne the order of the environment for the

activity.

4.4 Analysis and Interpretation

Normality Testing: with the support of the R lan-

guage

, the Shapiro-Wilk test was applied to data col-

lected on effectiveness and efﬁciency for Astah and

SMartyModeling, corresponding to the following re-

sults:

Astah (N = 31):

Efﬁciency: mean value (µ) 1.33397, standard devia-

tion value of (δ) 0.50837, the efﬁciency for the Astah

was p-value = 0.6313 for the Shapiro-Wilk normality

test. In the Shapiro-Wilk test for a sample size (N) 31

https://www.r-project.org

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

446

with 95% of signiﬁcance level (α = 0.05), p = 0.6313

(0.6313 > 0.05) and calculated value of W = 0.97389

> W = 0.929, the sample is considered normal.

Effectiveness: mean value (µ) 0.79262, standard de-

viation value of (δ) 0.16325, the effectiveness for the

Astah was p-value = 0.005625 for the Shapiro-Wilk

normality test. In the Shapiro-Wilk test for a sample

size (N) 31 with 95% of signiﬁcance level (α = 0.05),

p = 0.005625 (0.005625 < 0.05) and calculated value

of W = 0.89565 < W = 0.929, the sample is consid-

ered non-normal.

SMartyModeling (N = 31):

Efﬁciency: mean value (µ) 0.9162659, standard devi-

ation value of (δ) 0.3381597, the efﬁciency for the

SMartyModeling was p-value = 0.0005274 for the

Shapiro-Wilk normality test. In the Shapiro-Wilk test

for a sample size (N) 31 with 95% of signiﬁcance

level (α = 0.05), p = 0.0005274 (0.0005274 < 0.05)

and calculated value of W = 0.85082 < W = 0.929,

the sample is considered non-normal.

Effectiveness: mean value (µ) 0.8571429, standard

deviation value of (δ) 0.07604152, the effectiveness

for the SMartyModeling was p-value = 0.01851 for

the Shapiro-Wilk normality test. In the Shapiro-Wilk

test for a sample size (N) 31 with 95% of signiﬁcance

level (α = 0.05), p = 0.01851 (0.01851 < 0.05) and

calculated value of W = 0.916 < W = 0.929, the sam-

ple is considered non-normal.

Hypothesis Testing: for the statistical analysis of ef-

ﬁciency and effectiveness, the comparison between

the tools contains at least one non-normal sample,

therefore, a non-parametric test is necessary. We

used Wilcoxon-Mann-Whitney test for samples inde-

pendently.

Thus, applying the Wilcoxon-Mann-Whitney test

to analyze the efﬁciency, we obtained the value of W

= 736 and p-value = 0.0003284, characterizing the re-

jection of the null hypothesis (H0

e f f iciency

Applying the Wilcoxon-Mann-Whitney test to an-

alyze the effectiveness, the value of W = 371.5 and

p-value = 0.1117 was obtained, and we could not re-

ject the null hypothesis (H0

e f f ectiveness

4.5 Discussion of Results and

Improvements

Discussion on Normality and Hypothesis Testing:

Figure 3a) presents the boxplot comparing the distri-

bution of effectiveness values for Astah and SMar-

tyModeling. The difference factor for the effective-

ness calculation was closely related to the number

of correct elements, and although it was not dis-

crepant enough to allow rejection of the null hypoth-

esis, boxplot evidences better values for SMartyMod-

eling, thus suggesting a better support of SMartyMod-

eling with regard to SPL modeling.

Thus, by analyzing the collected data, we verify

that, in relation to the number of hits, SMartyModel-

ing presents better results, emphasizing the objective

of SMartyModeling to be destined to SPL modeling.

However, the time interval for modeling SMartyMod-

eling was higher, being a more signiﬁcant difference

in the number of hits, which resulted in a greater ef-

ﬁciency for Astah. This fact evidences the need for

SMartyModeling to have a more intuitive and func-

tional interface, as presented in the open answers dis-

cussed in Section 4.5.

Discussion on Qualitative Analysis: Grounded The-

ory procedures were used to analyze the open an-

swers. Coding allows assigning labels to text parts

(open coding), and grouping and categorizing (ax-

ial encoding) them according to an expressed idea

(Corbin and Strauss, 2008).

The ﬁrst task for the participants was to: “De-

scribe the differences in modeling using SMarty-

Modeling and Astah considering the concepts of

SPL”. Analyzing participant responses, we identify

the following characteristics: Automation of SPL

concepts: automation for SPL modeling was evident

using SMartyModeling in relation to Astah. In 18

responses, it was mentioned the easiness in deﬁning

variability using SMartyModeling, highlighting the

following comments: Participant #1: “in Astah it is

necessary to manually create variability and stereo-

types, which takes a certain time to create and is

more susceptible to errors, SMartyModeling avoids

this, reducing the occurrence of errors and time to

create.” Participant #3: “In Astah it was necessary

to set each type of stereotype, while SMartyModeling

automates this process.” Participant #10: “Insertion

of variability in Astah is done manually, whereas in

SMartyModeling it is set automatically.” and Partic-

ipant #25: “In Astah, stereotypes are deﬁned manu-

ally, while SMartyModeling automates this process.”;

Intuitive interface: it was noticeable the difference

between interface for modeling using Astah in rela-

tion to SMartyModeling. In 10 answers it was men-

tioned that it was easier to model the diagram using

Astah, highlighting the following comments: Partic-

ipant #4: “However, Astah is more user-friendly and

intuitive.” Participant #9: “When selecting and insert-

ing, for example dependencies, Astah becomes faster

in this case.” Participant #16: “Astah is more ro-

bust, easier to design a diagram regardless of project

size.” Participant #17: “The difference is that Astah

is more intuitive in creation, allowing the relationship

between elements without naming.”

The second task for the participants was: “De-

Feasibility Analysis of SMartyModeling for Modeling UML-based Software Product Lines

447

Astah SMartyModeling

0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

(a) Effectiveness

Astah SMartyModeling

0.5 1.0 1.5 2.0

(b) Efﬁciency

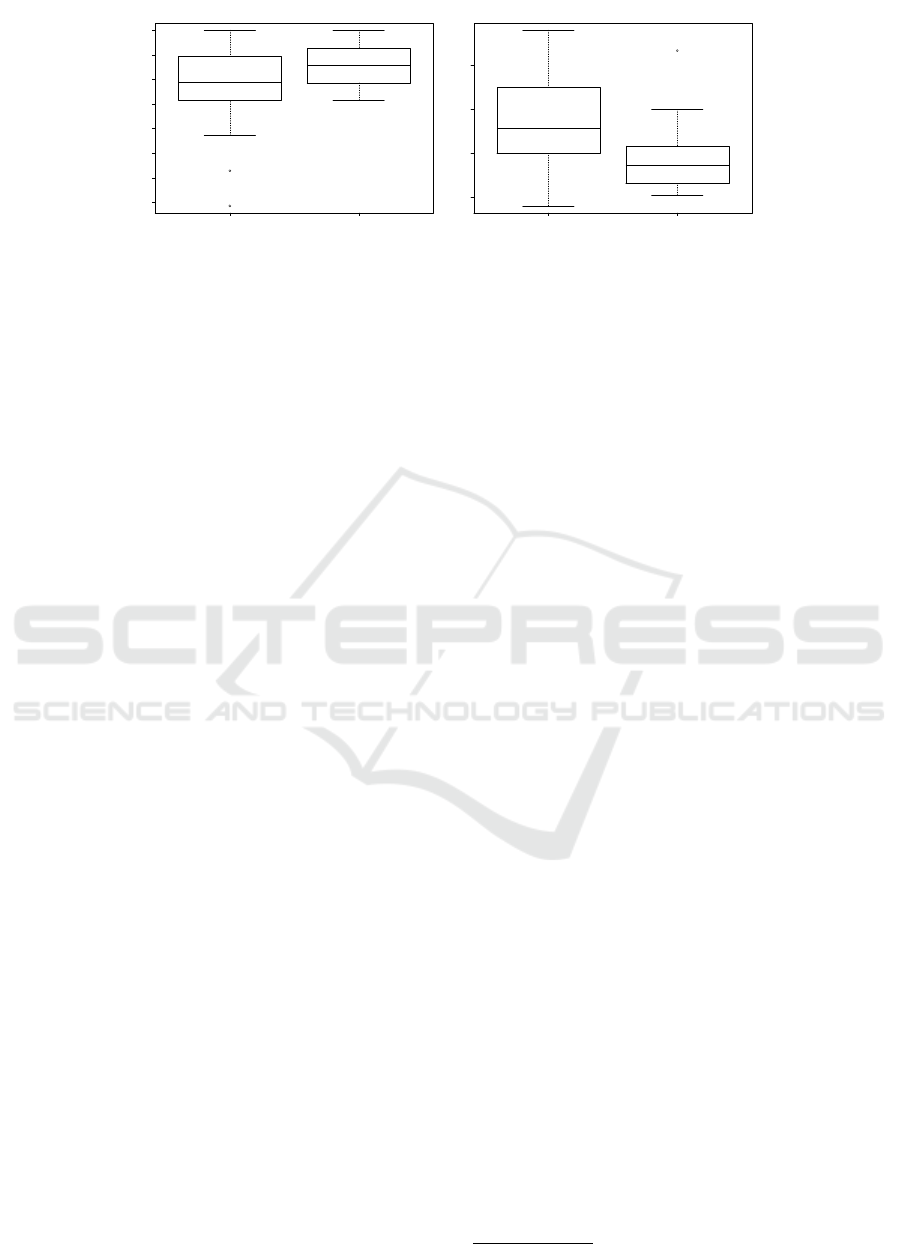

Figure 3: Astah and SMartyModeling: Effectiveness and Efﬁciency.

scribe the general positive and negative points

identiﬁed by you during modeling using SMarty-

Modeling”. Analyzing the answers, we identify the

following positive points: Ease of Use: in 9 responses

the ease of use of SMartyModeling was described,

with the following comments: Participant #2: “it is

easy to learn how to use this tool, even with little

experience in modeling, it was not difﬁcult to use

SMartyModeling.” Participant #5: “ease to create use

cases.” Participant #12: “easy to understand and to

create objects.” and Participant #24: “ease of use to

create a variation point.”; Interface Simplicity: in

7 responses it was mentioned the simplicity of using

SMartyModeling, with the following comments: Par-

ticipant #1: “friendly and lightweight interface.” Par-

ticipant #3: “productivity and speed in developing di-

agrams.” Participant #9: “after learning the software

feature, it becomes practical.” Participant #12: “sim-

ple and clear interface.” and Participant #23: “lower

complexity of understanding, simple and fast genera-

tion of variability.”

In relation to improvement points on SMartyMod-

eling, we identiﬁed: Association between Elements:

in 13 responses the difﬁculty in deﬁning, editing or

removing an association using SMartyModeling, with

the following comments: Participant #3: “I cannot re-

move only the relationship.” Participant #6: “difﬁ-

culty of removing associations.” Participant #8: “no

delete or edit relationships.” Participant #13: “some

actions need more steps to be taken, such as creat-

ing associations or extensions.” and Participant #17:

“does not allow the association dragging the objects.”;

Resizing Modeling Panel: in 10 responses it was evi-

denced the need to resize the modeling panel of SMar-

tyModeling, with the following comments: Partici-

pant #10: “improvements are needed such as window

resizing.” Participant #14: “improvements like screen

resizing and screen positioning.” and Participant #16:

“does not allow screen resizing.”; Usability: in 15

responses some difﬁculties were noted to use during

the modeling in SMartyModeling, with the following

comments: Participant #10: “not very intuitive to use,

requiring interface improvements and shortcuts.” Par-

ticipant #18: “does not allow copying and pasting.”

Participant #21: “back button has undone all the job

done.” Participant #24: “does not allow undoing ac-

tions and similar tasks.” and Participant #31: “difﬁ-

culty to drag elements and to undo actions.”

According to the points raised in the qualitative

analysis in this experiment, we identify assumptions

on the efﬁciency and effectiveness of tools. As-

tah interface is considered more intuitive in rela-

tion to SMartyModeling based on the idea that the

time required for modeling with SMartyModeling

was longer. The points to improve also explain the

longer time required for modeling in SMartyModel-

ing, especially the identiﬁed functionality related to

usability, including shortcuts and element copying.

In relation to the effectiveness of SMartyModel-

ing, the automation of SPL concepts evidenced to be a

factor that reinforces the decrease of modeling errors

in relation to Astah. The fact that in Astah the manual

deﬁnition of stereotypes and variabilities is necessary,

makes it more susceptible to errors during modeling,

compared to the SMartyModeling interface that spec-

iﬁes the ﬁelds for the deﬁnition of variabilities and

automatically includes stereotypes.

A second version of SMartyModeling has been

developed, taking into account the identiﬁed points,

mainly redeﬁning its interface, with the aim of im-

proving ease of use and usability. The main change

was in the modeling panels, which were rewritten us-

ing the JGraph

library. Such improvements are dis-

cussed next.

SMartyModeling used to use UML notes to rep-

resent a variability and tagged-values. For the AGM

use case diagram (Figure 1) we have no usability is-

sues as it is a small diagram. However, for a large

SPL make the diagram illegible. An identiﬁed alter-

native is to allow users to hide/show the variability

https://github.com/jgraph/jgraphx

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

448

notes. Therefore, for the second version, we chose to

hide the UML notes from the modeling panel, how-

ever, maintaining stereotypes related to SPL concepts.

The variability attributes will be presented in the In-

formation Panel (Component E) in Figure 1. This will

not compromise the readability of the entire diagram.

To improve usability of SMartyModeling, we in-

cluded a zoom+ button and a zoom- button in Compo-

nent A. Furthermore, we identiﬁed the need to deﬁne

a single window for modeling, already including the

information, buttons and the ﬁle panels. For the sec-

ond version, we chose to avoid, if possible, the use of

modal windows during modeling. Therefore, the use

of the JGraph library allows the creation of new ele-

ments and associations directly in the modeling panel.

For edits, we have chosen to allow editing of attributes

in an Information Panel.

As SMartyModeling required longer time for

modeling diagrams, we improved it by making select-

ing and dragging/dropping elements more intuitive.

For the second version, we expand the mouse events

for the Modeling Panel. The new events allow the cre-

ation, alteration, removal of the elements directly in

the modeling. They also include resizing, movement

and deﬁnition of points for associations.

For importing and exporting project information,

the classes in the second version were rewritten using

the org.w3c.dom

Package. Project information con-

tinues to be organized in a hierarchical tag ﬁle. How-

ever, the export classes have been rewritten using their

own classes to handle tag documents.

5 CONCLUSION

We analyzed the feasibility of SMartyModeling in

two studies: one qualitative and one experiment.

The qualitative study allowed identifying the

points to be improved, in particular, the limitation of

the interface in manipulating the elements and deﬁn-

ing the associations of SMartyModeling elements.

Then, we performed an experiment to identify

efﬁciency and effectiveness of SMartyModeling and

Astah, and to provide initial evidence on the feasibil-

ity of SMartyModeling and its further development.

Generally analyzing, SMartyModeling helps the

variability modeling for SPL, but some further re-

search and development will help to improve it. New

experiments and replications should be planned and

conducted to reduce threats to analyze the efﬁciency

and effectiveness of SMartyModeling in relation to

https://docs.oracle.com/javase/8/docs/api/org/w3c/

dom

other well-evaluated tools as those in the Agner and

Lethbridge (2017) survey and to generalize the re-

sults. Extending this experiment to more complex

SPLs and support to other UML diagrams should be

performed.

REFERENCES

Agner, L. T. W. and Lethbridge, T. C. (2017). A survey of

tool use in modeling education. In ACM/IEEE MOD-

ELS, pages 303–311, USA. IEEE.

Bashroush, R., Garba, M., Rabiser, R., Groher, I., and Bot-

terweck, G. (2017). Case tool support for variability

management in software product lines. ACM Comput.

Surv., 50(1):14:1–14:45.

Berger, T., Rublack, R., Nair, D., Atlee, J. M., Becker,

M., Czarnecki, K., and W ˛asowski, A. (2013). A sur-

vey of variability modeling in industrial practice. In

VaMoS, VaMoS ’13, pages 7:1–7:8, New York, NY,

USA. ACM.

Chen, L., Ali Babar, M., and Ali, N. (2009). Variability

management in software product lines: A systematic

review. In SPLC, SPLC ’09, pages 81–90, Pittsburgh,

PA, USA. Carnegie Mellon University.

Corbin, J. and Strauss, A. (2008). Basics of Qualitative

Research: Techniques and Procedures for Developing

Grounded Theory. Sage Publications, Thousand Oaks,

Califórnia, USA.

Davis, F. D. (1989). Perceived usefulness, perceived ease of

use, and user acceptance of information technology.

MIS Q., 13(3):319–340.

Galster, M., Weyns, D., Tofan, D., Michalik, B., and Avge-

riou, P. (2014). Variability in software systems - a sys-

tematic literature review. IEEE TOSEM, 40(3):282–

306.

Linden, F. J. v. d., Schmid, K., and Rommes, E. (2007).

Software Product Lines in Action: The Best Indus-

trial Practice in Product Line Engineering. Springer-

Verlag, Berlin, Heidelberg.

Lisboa, L. B., Garcia, V. C., Lucrédio, D., de Almeida,

E. S., de Lemos Meira, S. R., and de Mattos Fortes,

R. P. (2010). A systematic review of domain analysis

tools. Inf. Softw. Technol., 52(1):1–13.

OliveiraJr, E., Gimenes, I. M. S., and Maldonado, J. C.

(2010). Systematic management of variability in uml-

based software product lines. JUCS, 16(17):2374–

2393.

Pereira, J. A., Constantino, K., and Figueiredo, E. (2014).

A systematic literature review of software product

line management tools. In Software Reuse for Dy-

namic Systems in the Cloud and Beyond, pages 73–89,

Cham. Springer International Publishing.

Raatikainen, M., Tiihonen, J., and Männistö, T. (2019).

Software product lines and variability modeling: A

tertiary study. JSS, 149:485 – 510.

Feasibility Analysis of SMartyModeling for Modeling UML-based Software Product Lines

449
