Quality of Service in Cloud Computing Environments with Multitenant

DBMS

Manuel I. Capel

1 a

, Oscar I. Aporta

and Mar

ıa C. Pegalajar-Jim

enez

2 b

Department of Software Engineering, ETSI Inform

atica and Telecomunicaci

on, University of Granada,

Periodista Daniel Saucedo Aranda s/n, 18015 Granada, Spain

Department of Computer Science and AI, ETSI Inform

atica and Telecomunicaci

on, University of Granada

Periodista Daniel Saucedo Aranda s/n, 18015 Granada, Spain

Keywords:

Multitenancy, Multitenant DBMS, Quality of Service, DBMS Located in the Cloud, IaaS, OpenNebula.

Abstract:

This article proposes a new study of Quality of Service (QoS) in Database Management Systems with mul-

titenancy in which it is experimentally veriﬁed that tenants follow interference patterns between them when

they concurrently access the DBMS. The interference degree depends on characteristics of the database used

by each tenant. A testing architecture with virtual machines (VM), managed with OpenNebula, has been de-

signed. In each VM one DBMS is loaded managing many databases, one for each tenant. Five experiments

were designed and numerous measurements performed using benchmarks of reference, such as TPCC, in a

Cloud computing-based system. The results of the experiments are presented here, for which the latency and

performance were measured with respect to different workloads and tenant conﬁgurations. To carry out the

experiments, a multitenant environment model known as shared database/separate schema or shared instance

was deployed, which is widely used at moment and presents the best ratio between resource use, performance

and response.

1 INTRODUCTION

The requirements of today’s society and the new ITC

paradigms that dominate in a general way explain that

software development tends to be increasingly ﬂexi-

ble, dynamic and personalized, accessible off-premise

through the Internet, without the need to be installed

and managed on-premise. Virtualization is one of the

fundamental technologies to make this new approach

possible for the development and provision of soft-

ware services, since it allows a variety of applications,

which function as dedicated software, to be grouped

into a set of shared resources that help to improve

the use of physical resources, to simplify management

and reduce costs for companies.

A tenant is deﬁned according to the context in

which it is inserted, for example, a tenant can be a

user of the application or a particular database in re-

lation to a DBMS.

A multitenant approach can help us consolidate

applications composed of multiple simultaneous ver-

sions into a single functional system, thus avoiding

https://orcid.org/0000-0003-2449-4394

https://orcid.org/0000-0001-9408-6770

the inefﬁciency of having a separate system for each

tenant (Benjamin et al., 2011). DBMS are poten-

tial candidates for implementation in a multitenant

Cloud Computing environment, thus promoting scala-

bility, cost reduction, ease of conﬁguration, availabil-

ity of on-demand services, etc. Currently, multitenant

DBMS have been used to host multiple tenants within

a single system, and thus allowing the efﬁcient shar-

ing of resources at different levels of abstraction and

isolation (Agrawal et al., 2011a).

We propose here a software architecture and a per-

formance evaluation methodology to carry out a Qual-

ity of Service (QoS) study in Database Management

Systems (DBMS) for multitenant environments in the

Cloud.

Cloud service providers have to solve several chal-

lenges, such as availability, performance, scalability

and elasticity, to meet the quality of service required

by customers of multitenancy systems in the Cloud.

A possible solution to achieve this is to automatically

manage the available resources and the workload of

the system to obtain elasticity and improve the use of

these resources (Sousa et al., 2011), but this solution

usually causes throughput gets worse due to the in-

506

Capel, M., Aporta, O. and Pegalajar-Jiménez, M.

Quality of Service in Cloud Computing Environments with Multitenant DBMS.

DOI: 10.5220/0009794605060514

In Proceedings of the 10th International Conference on Cloud Computing and Services Science (CLOSER 2020), pages 506-514

ISBN: 978-989-758-424-4

crease in the response time of tenants’ requests. In

particular, to solve the drawback caused by the high

degree of concurrency among the tenants of a DBMS,

there is a strategy that consists of distributing the loca-

tion of tenants in virtual machines according to their

individual interference pattern. To apply that means

performing the following tasks: (a) analysis of the

tenant’s proﬁle to determine the level of interaction

with other tenants, (b) dynamic assignment of ten-

ants to different virtual machines without degrading

the system response and (c) application of techniques

to efﬁciently migrate tenants which show a lot of in-

terference.

This article, therefore, has focused on conducting

a systematic study to determine interference proﬁle

of each tenant by using metrics such as performance,

latency and response time. The study has to be con-

sidered a preliminary stage in the development of a

method and software tool that allow automatic migra-

tion of tenants and DBMS. The experiments carried

out mix different workload/tenant conﬁgurations and

measure their latency and throughput by assuming

one DBMS per VM, many databases (one database

per tenant) managed by one DBMS and VM, which

are managed using OpenNebula.

The article structure is as follows. First the quality

of service (QoS) model used to comply with the SLA

(client requirements) of a multitenant DBMS system

is presented. In the third section, the software archi-

tecture and the implementation of the execution en-

vironment to conduct the study are discussed. In the

fourth section the design of the testing experiments

carried out is detailed. The ﬁfth section is dedicated

to the measures obtained in the study and discussion

of results. Finally, a section of conlusions and future

work is included.

2 A PROPOSAL FOR OBTAINING

QoS OF A MULTITENANCY

DBMS IN THE CLOUD

In multitenant models where each tenant only needs

a fraction of the resources, the degree of concurrency

of multiple tenants is quite high and makes difﬁcult

to guarantee the quality of service (QoS), which is

usually deﬁned by means of an SLA with the user.

Cloud service providers have to solve several chal-

lenges to meet their required availability to customers

of the service.

Scalability is a static property of the system that

speciﬁes its behavior with respect to a given conﬁgu-

ration, and elasticity is the dynamic property that al-

lows to scale the system when there is a variation in

demand, while the system is in operation (Agrawal

et al., 2011b). Therefore, the property of elasticity

is the most important to achieve quality of service by

Cloud service providers, who try to obtain an estimate

of the workloads expected to be reached, in order to

be able to perform a proactive management of the re-

sources.

We select a multitenancy model that presents the

best relationship between the maximum degree of

resource sharing and the least number of interfer-

ences between tenants that may concur in the DBMS.

The selected multitenant model is that of shared

database/separate schema or shared instance, since

it is the most widely used and present the best re-

lationship between resource utilization, performance

and security (Barker et al., 2012). According to this

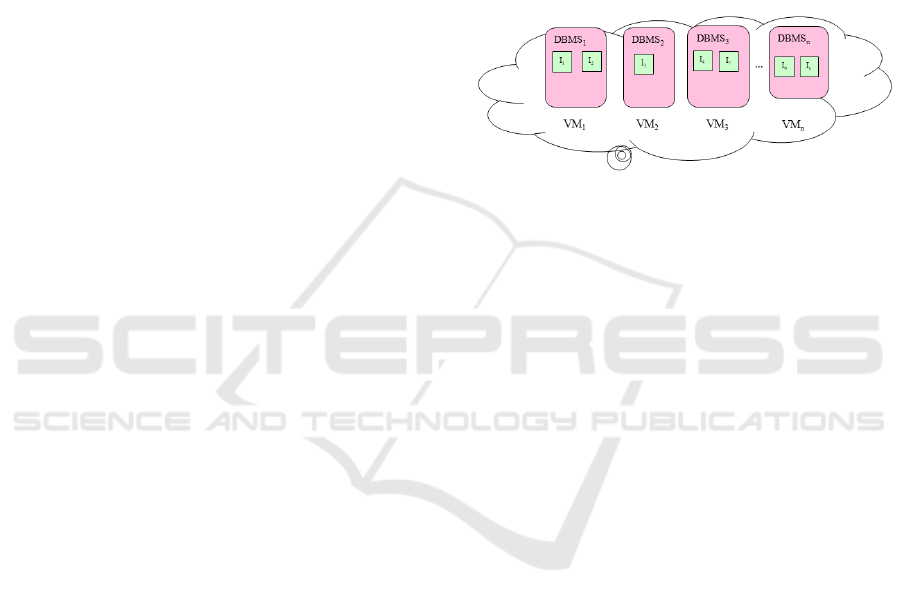

model, each virtual machine has an instance of the

DBMS, and each DBMS contains a variable number

of tenants, depending on the capacity of the virtual

machine resources and the workload. A tenant is rep-

resented by a database in the system. Despite requir-

ing less infrastructure resources, this model increases

the interference between tenants, since there will be a

greater number of tenants in the same DBMS.

2.1 Proposal of DBMS Model with

Multitenancy

Our DBMS model in the Cloud with QoS was built

according to the requirements of elasticity, scalability

and efﬁcient use of shared resources.

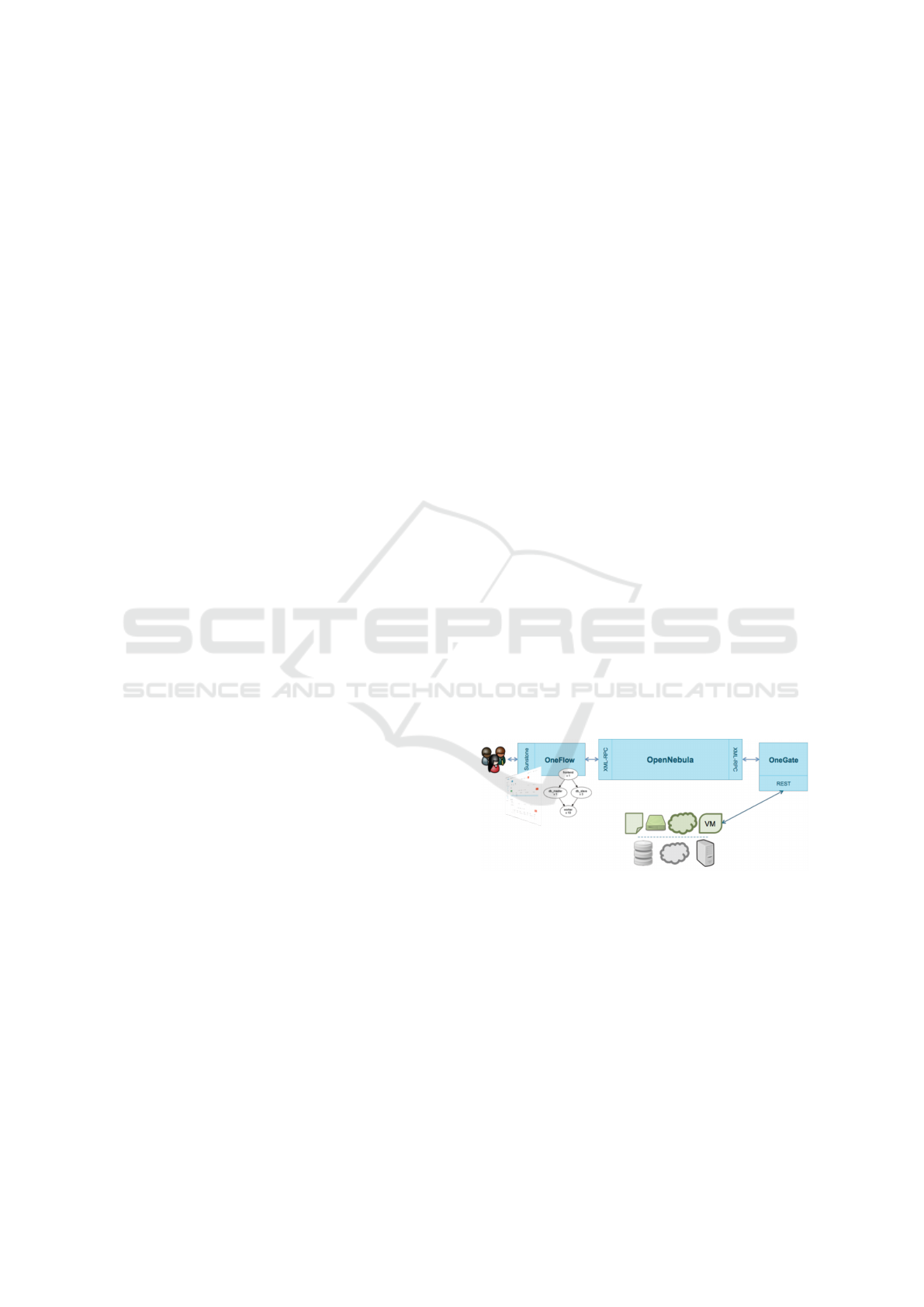

Figure 1: OpenNebula-based Cloud architecture.

To meet the above requirements, the multitenant sys-

tem proposal is structured in the following compo-

nents,

1. Autonomic Manager: Highly scalable monitoring

system that can interpret a computation to col-

lect the relevant parameters, regarding migration

of tenants.

2. Predictive Models: allow to anticipate software

and hardware failures.

3. Managed Resources: Cloud management plat-

form for autonomous services that provides self-

Quality of Service in Cloud Computing Environments with Multitenant DBMS

507

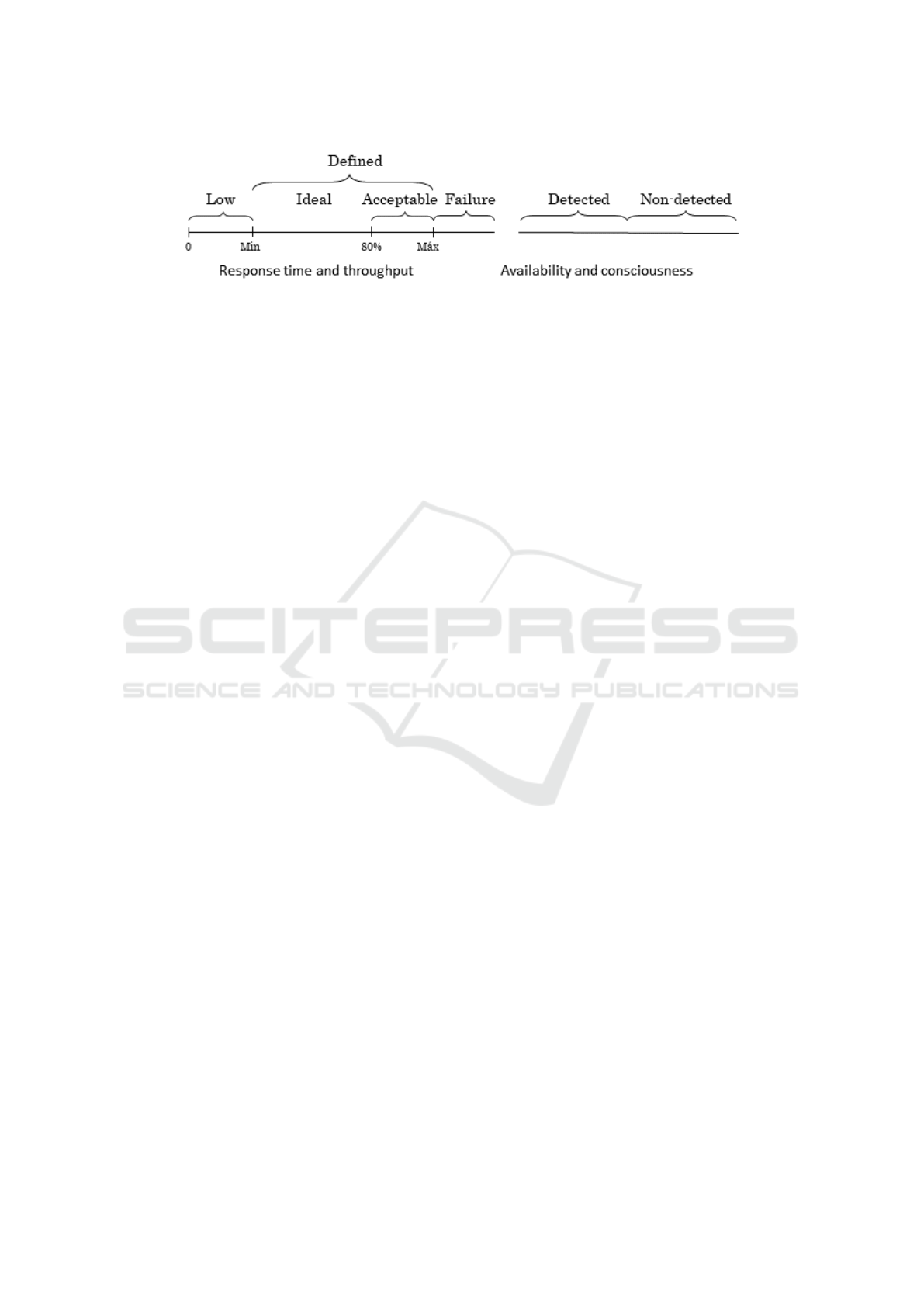

Figure 2: Determination of limits of acceptance for Q-attributes in a DBMS w.r.t. SLA during monitoring of services execu-

tion, from (2011:Sousa).

awareness and self-conﬁguration through sensors

and actuators to take proactive measures and deci-

sions of reconﬁguration (replication, migration).

4. Task Assignment System based on QoS: distributes

the workload based on the current state of avail-

able resources. The allocation system is a load

balancer based on QoS.

We choose OpenNebula middleware (see Fig-

ure 1), which manages physical and virtual resources

(nodes, networks, virtual machines, images, etc.),

to perform the functions of a stand-alone adminis-

trator (“Autonomic Manager”), while OpenNebula’s

OneFlow service is the service administrator (“Man-

aged Resources”) that manages services automati-

cally, including elasticity. Self-awareness and self-

conﬁguration are achieved by extending the OneGate

component provided by OpenNebula.

Users and administrators use OneGate to collect

metrics, detect problems in applications, and trig-

ger elasticity rules in OneFlow. OpenNebula in-

teracts with OneGate, through its XML-RPC inter-

face, to send monitoring metrics to virtual machines.

OneGate is the principal mechanism used to exchange

information between virtual machines and OneFlow.

2.2 Quality Model of the DBMS

According to the Service Level

Agreement

The service level contract (SLA) contains information

related to the functional and non-functional require-

ments that the service provider must guarantee and

the penalties in case of non-compliance. The deﬁni-

tion of an SLA is not a trivial task and should con-

sists of information about stakeholders, the SLA’s pa-

rameters, an algorithm to calculate these and the met-

rics used, service level objective (SLO) and the ac-

tions to be performed in case of violation of the agree-

ment (Schnjakin et al., 2010). That information must

be speciﬁed as characteristics and attributes of qual-

ity in a structured and guided way, by means of a SLA

speciﬁcation language, such as one of the languages:

WSLA, WSOL or SLAng.

According to (Chi et al., 2011), SLA metrics for

database in Cloud Computing should optimize the

system, address relevant aspects for data manage-

ment and contemplate the characteristics of the Cloud

Computing model, such as elasticity, scalability and

multitenancy. For (Schoroeder et al., 2010) it is im-

portant to establish more general criteria to evaluate

QoS, such as the percentile x% within which the re-

sponse time is less than a given value y. In (Sousa

et al., 2011) (Moreira et al., 2013) we ﬁnd SLADB,

an example of a quality model, which includes a def-

inition of SLA, monitoring techniques and penalties.

Each metric has a quality of service level objective

(SLO) associated with it, as indicated below,

• Response Time: percentile x% of response times

less than a certain value and for a period of time t

• Throughput: percentile z% of throughput values

greater than a k value and for a period of time t

• Availability: function detected/non-detected for

indicating the existence of queries rejected over

a period of time

• Consciousness: function detected/non-detected

for indicating whether updated data are accessed

according to the consistency type (strong or weak)

In a QoS model for DBMS based on states, to

comply with the SLA, the acceptable limits of the

above parameters must be deﬁned to perform a cor-

rect monitoring, as shown in Figure 2.

2.3 QoS Metrics for a Multitenant

DBMS

The proposed multitenant DBMS infrastructure

presents a set of objectives included in the SLA,

which have associated metrics that allow measuring

the quality of the service. The System Level Objec-

tive (SLO) contains the predetermined limits for the

parameter to be measured and, for each parameter, a

way of calculating how it is deﬁned, e.g., by com-

puting the mean time. We deﬁne a Function of Ap-

titude (FA) that will help us in the decision process

regarding the distribution of workloads, thus allowing

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

508

us to verify the allocation of a load to a virtual ma-

chine (VM). FA will give us a criterion to determine

whether the instance of the DBMS loaded in the VM

is suitable to receive a new workload or not.

We calculate the FA(i) for each VM(i) that will

reﬂect the percentage of work capacity of each VM (i)

with respect to the rest of the VMs. The function must

be deﬁned according to the capacity of the resource

and the efﬁciency,

FA(i) = a ∗ cp(i) + b ∗cm(i) + c ∗ tr(i) where :

cp(i) = CPU capacity available f or theV M(i)

cm(i) = Available memory capacity o f theV M(i)

tr(i) = Responsetime o f theV M(i)

{a, b, c} aretheweigths

Where each of the three parameters of FA will be mul-

tiplied by a weight depending on the importance of

this factor in the multitenant system.

3 ARCHITECTURE OF THE

SOFTWARE AND

IMPLEMENTATION

We will introduce in this section the OpenNebula

middleware (Fontan et al., 2008), which is the man-

agement platform of Cloud computing selected for

this study. We will show how physical resources are

orchestrated and virtualized. We use OpenNebula in

this study because it makes possible the construction

of any type of cloud computing system: private, pub-

lic or hybrid, which is fundamental for the adminis-

tration of heterogeneous infrastructures of distributed

data centers. It includes features for integration, ad-

ministration, planning, management, scalability, se-

curity and data center accounting. Its core is very ef-

ﬁcient and is fully developed in C ++ with a backend

for highly scalable database management systems, in-

cluding support for MySQL and SQLite.

The software architecture of OpenNebula pro-

vides interfaces that allow interaction with physical

resources as well as virtual resources, such as the fol-

lowing: i) Interfaces for consumers and administra-

tors of Cloud Computing, with several available APIs:

AWS EC2, EBS and OGF OCCI. In hybrid conﬁgu-

rations, it has adapters for Amazon EC2 Cloud ser-

vices and ElasticHosts. ii) Management interfaces

for advanced users and operators of Cloud Comput-

ing, such as the UNIX-based command line interface

(ONE CLI), and its own graphical GUI from Sun-

stone, which serves as a multi-user portal and man-

ager of resources for advanced users. iii) Low level

extensible APIs for Cloud integrators for Java, Ruby,

XMLRPC API. iv) OpenNebula Marketplace is an

online catalog that offers a wide variety of appli-

cations capable of running in OpenNebula environ-

ments.

In our study we chose to use a multitenant model

of shared instance, so that, according to this model, a

correspondence between a database and a tenant in

the system can be deﬁned; each DBMS contains a

variable number of tenants and each virtual machine

maintains a single instance of the DBMS (see Fig-

ure 3).

Figure 3: ‘Shared instance’ multitenant DBMS model used

in the study.

For the evaluation of the model, we used a pri-

vate cloud implemented with the OpenNebula mid-

dleware. This allows us to focus the study’s attention

on analyzing the interference between tenants after

getting rid of external factors (network latency, un-

availability of a public cloud, etc.) that could affect

the results of our measurements. In relation to the

evaluation tool, we opted for MuTeBench, since it is

the ﬁrst speciﬁc tool for this type of systems that cur-

rently exists, at least, until our best knowledge at the

time of publication. MuTeBench allows you to sim-

ulate a complete multitenant environment. To carry

out the measurements, we created 2 virtual machines

(VM-MuTeBench, VM-mySQL) each one running a

Ubuntu 16.04 LTS distro. VM-MuTeBench is de-

ployed in 2 CPUs, 8 GB of RAM, 30 GB of stor-

age, and contains the MuTeBench framework. In its

turn, the VM-mySQL virtual machine is deployed in

2 CPUs, 4 GB of RAM, 30 GB of storage and runs

MySQL 5.7 DBMS, with the InnoDB engine, and 128

MB of buffer memory. The databases provided by

MuTeBench for the realization of the TPCC, YCSB

and Wikipedia benchmarks, were located in the VM-

mySQL virtual machine.

4 DESIGN OF TESTING

EXPERIMENTS

In a multitenant architecture the data layer is essen-

tial and an important issue is how a tenant’s workload

Quality of Service in Cloud Computing Environments with Multitenant DBMS

509

Table 1: Set of benchmarks accepted in OLTP-Bench.

Class Benchmark Application domain

Transactional

AuctionMark Auctions on line

CH-benCHmark OLTP and OLAP mix

SEATS On-line airline ticketing

SmallBank Banking system

TATP Call location application

TPCC Processing order

Voter Talent sample voting

Web oriented

Epinions Social networks

Twitter Social networks

Wikipedia Online encyclopedia

Functional test

ResourceStresser Isolate resources stress-test

YCSB Scalable store of

key-value pairs

JPAB Relational assignment

of objects

SIBench Transactional isolation

Table 2: Databases used in the experiments.

Multiple tenants Size

running the benchmatk (MB)

TPCC 500 MB

YCSB 800 MB

Wikipedia 600 MB

interferes with the rest of tenants sharing a resource.

The evaluation of multiple tenants in the Cloud dif-

fers completely from the methods used in a tradi-

tional evaluation of DBMSs, being necessary to use

speciﬁc benchmarks for these environments that may

have the ability to execute in parallel and changing

workloads of several tenants. Until very recently there

was no standard benchmark designed to conduct the

evaluation of database services with multitenancy in

cloud computing systems. MuTeBench (MuTeBench,

2014) allowed us to make different measurements on

these systems by creating different workload scenar-

ios. Like OLTP-Bench, the execution of a bench-

mark in MuTeBench consists of three phases, cre-

ation of the database, data loading and execution;

the type of execution must be indicated with the ap-

propriate parameter. OLTP-Bench is an open-source

framework for benchmarking, useful for relational

databases, which supports data generation and execu-

tion of workloads. To carry it out, OLTP-Bench uses

14 speciﬁc benchmarks applicable to online trans-

action processing (OLTP) (Difallah et al., 2013), as

Table 1 shows. Transactional benchmarks include

intensive writing transactions and complex relation-

ships. Benchmarks oriented to the Web address char-

acteristics of social networks, with operations based

on many-to-many graphs relationships. These bench-

marks take into account public data available to sim-

ulate a real application. Benchmarks oriented to func-

tional tests are focused on testing individual function-

alities of certain DBMS, such as multitenancy ones.

The objective of this study is to verify through ex-

periments the availability. Therefore, we use bench-

marks to perform this analysis with different charac-

teristics, capable of validating a well differentiated

range of applications belonging to the three types of

benchmarks accepted in OLTP-Bench,

1. TPCC, a transactional benchmark well known in

the speciﬁc literature (TPCC, 2008),

2. Wikipedia, understood as a web-oriented bench-

mark

3. YSCB (Yahoo Cloud Serving Benchmark) as a

functional test.

Next, we design a set of experiments to perform dif-

ferent types of tests, ﬁrst by analyzing the behavior

of tenants in an isolated environment, which assumes

the absence of interference with other tenants. In a

second phase, response times are analyzed by assum-

ing that several tenants could start interfering if the

number of these is progressively increased.

5 MEASUREMENTS AND

RESULTS

The main objective of the tests carried out was to ver-

ify the performance of a multitenant DBMS under

synthetic workloads that simulate operations of differ-

ent applications. In order to do that, the benchmarks

TPCC, YCSB (Cooper et al., 2010) and Wikipedia,

were used throughout the different experiments car-

ried out in the study.

To evaluate a multitenant database system we used

the aforementioned shared instance model. Conse-

quently, we create the databases shown in Table 2.

Each experiment explores a different feature of a mul-

titenant DBMS in the Cloud, such as quality of ser-

vice or elasticity, for this reason we need to vary the

transaction rate.

Firstly, we executed 3 tenants of different sizes

and individually, without competition of resources

among them. For each one, we made four measures

modifying the number of users (in each measure we

doubled the number of the previous one), as Table 3

shows.

5.1 Individual Execution

In this ﬁrst experiment we want to evaluate how some

characteristics inﬂuence the performance of the ten-

ants that run in an instance of the DBMS: size of

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

510

Table 3: QoS temporal properties (ms.) of each tenant during a 30-minute execution of the model.

Throughput

Tenant# 1 user 50 users 100 users 150 users

TPCC

1 (100 MB)

128.5 − 157.05 460.26 − 598.05 515.51 − 553.35 458.32 − 495.40

TPCC

2 (500 MB)

95.5 − 113.56 456.41 − 484.56 426.8 − 452.61 405.78 − 425.37

TPCC

3 (900 MB)

96.06 − 130.91 352.25 − 365.80 333.9 − 343.3 327.05 − 338.47

Latency

TPCC

1 (100 MB)

6.36 − 10.30 83.60 − 108.72 180.61 − 193.94 279.01 − 328.2

TPCC

2 (500 MB)

8.67 − 10.45 97.09 − 109.62 221.0 − 305.9 344.82 − 367.58

TPCC

3 (900 MB)

7.63 − 10.68 134.05 − 142.0 287.71 − 299.2 440.25 − 511.08

99th percentile latency

TPCC

1 (100 MB)

27.20 − 39.96 298.55 − 369.53 558.15 − 636.05 825.65 − 1020.99

TPCC

2 (500 MB)

30.72 − 36.30 352.30 − 381.09 570.14 − 1073.75 822.53 − 887.69

TPCC

3 (900 MB)

34.30 − 36.36 446.38 − 513.97 776.76 − 916.06 1086.47 − 1196.64

Figure 4: Minimum and maximum: (a)throughput measured for 1, 50, 100 and 150 users, (b)average latency measured for 1,

50, 100 and 150 users.

the tenant, number of users executing parallel con-

nections to the DB, number of transactions per sec-

ond that each user executes. We show in Table 3 the

measurements obtained for the Throughput, Average

Latency and Average Latency of the 99th Percentile

response time or tail lantency.

From the data obtained, both the size of the

database (different for each tenant) and the number of

users inﬂuence the performance of the DBMS, when

these values increase, it worsens throughput and in-

creases latency.

This experiment served to observe the behavior of

the DBMS in a simulated environment of a single ten-

ant and serves as a comparison reference for multite-

nancy DBMS assessment.

Table 4: Conﬁguration of tenants in the second experiment.

Tenant#

Users Start Finish Rate

(min.) (min.) (tps)

T PCC

1 (Tenant 1)

25 2 7 1000

T PCC

2 (Tenant 2)

25 4 9 1000

T PCC

3 (Tenant 3)

25 6 11 1000

T PCC

4 (Tenant 4)

25 8 13 1000

T PCC

5 (Tenant 5)

25 10 15 1000

5.2 Constant Load Concurrent

Execution

In the second experiment (see tables 5 and 6), we

used TPCC tenants of 500 MB each, at a rate of 1000

transactions per second and running for 5 min. The

ﬁrst tenant ran after an initial phase of 2 min to reach

7 minutes, and then every 2 minutes a new tenant

was included in the DBMS until including 4 more.

Throughput of tenants gets worse (see Table 5) as new

tenants are incorporated into the DBMS and increases

when a tenant ends, and thus the total number of ten-

ants sharing the DBMS instance decreases. The re-

sults of the total throughput show that MySQL ade-

quately manages tenant concurrency by providing a

good isolation among them. As shown in table 6, the

latency values increase with the inclusion of new ten-

ants in the DBMS and decrease when a tenant ends,

therefore no anomalies in measured latency, which

might lead to interference anomaly, were observed in

the experiments that were carried out. The results of

the average latency of 99th percentile for the 5 tenants

are depicted in Figure 5. These results reﬂect that

MySQL suitably manages the overload that suffers

trying to cope with concurrency of tenants through

Quality of Service in Cloud Computing Environments with Multitenant DBMS

511

Table 5: Throughput of each tenant during the time of the second experiment.

Time (m.)

Tenant# 120 180 240 300 360 420 480 540 600 660 720 780 840 900

Tenant 1 58.265 57.661 118.604 119.005 171.604 121.511 0 0 0 0 0 0 0 0

Tenant 2 0 0 119.216 118.626 171.617 117.315 170.663 129.952 0 0 0 0 0 0

Tenant 3 0 0 0 0 172.51 117.472 171.976 118.744 177.909 177.536 0 0 0 0

Tenant 4 0 0 0 0 0 0 173.469 118.2 177.725 116.629 113.46 113.956 0 0

Tenant 5 0 0 0 0 0 0 0 0 177.907 117.526 113.471 59.116 58.545 34.908

Table 6: 99th percentile latency during the time of the second experiment.

Time (m.)

Tenant# 120 180 240 300 360 420 480 540 600 660 720 780 840 900

Tenant 1 243.749 251.211 388.414 395.643 508.144 280.246 0 0 0 0 0 0 0 0

Tenant 2 0 0 393.486 399.541 513.79 390.997 511.26 322.939 0 0 0 0 0 0

Tenant 3 0 0 0 0 506.217 382.018 499.573 397.456 517.671 305.902 0 0 0 0

Tenant 4 0 0 0 0 0 0 510.845 393.934 503.831 381.745 390.311 251.671 0 0

Tenant 5 0 0 0 0 0 0 510.845 0 505.716 377.593 382.607 247.873 246.484 95.263

Figure 5: (a) System’s average latency ; (b)99th percentile average latency (TPCC

, TPCC

TPCC

preserving a good level of isolation between them.

5.3 Measurement of the QoS

According to the graphs plots shown in Figure 5, the

value of average latency of p99 increases with the in-

clusion of tenants into the DBMS and decreases when

a tenant ends its work and exits. At time equal to 640

s. the average latency reaches its maximum value,

which is when all the maxima are reached in the sys-

tem, i.e., the critical instant when tenants’ concur-

rency is the highest in the DBMS for this sample,

as well connections to MySQL and transactions per

second. Latency evolution reﬂects how the increase

in transactions produces an overload in the DBMS,

and also how MySQL presents a good level of isola-

tion among the different tenants. In our third exper-

iment we used TPCC tenants of 500 MB in size, a

variable transaction rate per second according to the

sequence: 500, 1000, 1500, 2000, 2500, which in-

creased every 2 min. We started by adding 2 tenants

to the DBMS, with an interval of 3 min; and thus

2 new tenants were added until reaching 19 min of

time when stopped incorporating new tenants. With

this experiment we wanted to evaluate how the vari-

ation of workload inﬂuences the quality of service of

the multitenant DBMS. We designed several exper-

iments that represented different scenarios, combin-

ing different types of tenants and varying the work-

load over time. It is also observed that for time win-

Table 7: Throughput variability depending on the workload

of tenants.

(s.)

Tenant# 300 360 420

TPCC 1 115.067 107.233 108.783

TPCC 2 116.667 107.617 106.867

TPCC 3 111.7 107.25 108.45

TPCC 4 112.083 109.3 106.483

TPS 3000 4000 5000

dows where the number of tenants is constant and are

concurrently executed, the throughput only suffers a

small decrease due to the increase in the number of

transactions executed by each tenant. The data in ta-

ble 7 shows that at 300 seconds 3000 tps is executed,

at 360 seconds 4000 tps and at 420 seconds 5000 tps,

a small decrease in throughput occurs when the num-

ber of transactions per second increases and there are

no new tenants incoming.

In Figure 6 we can observe how the througput of

TPCC tenants gets worse when the tenants YCSB2

and YCSB3 increase their workload. Therefore, the

increase in the workload of YCSB tenants interferes

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

512

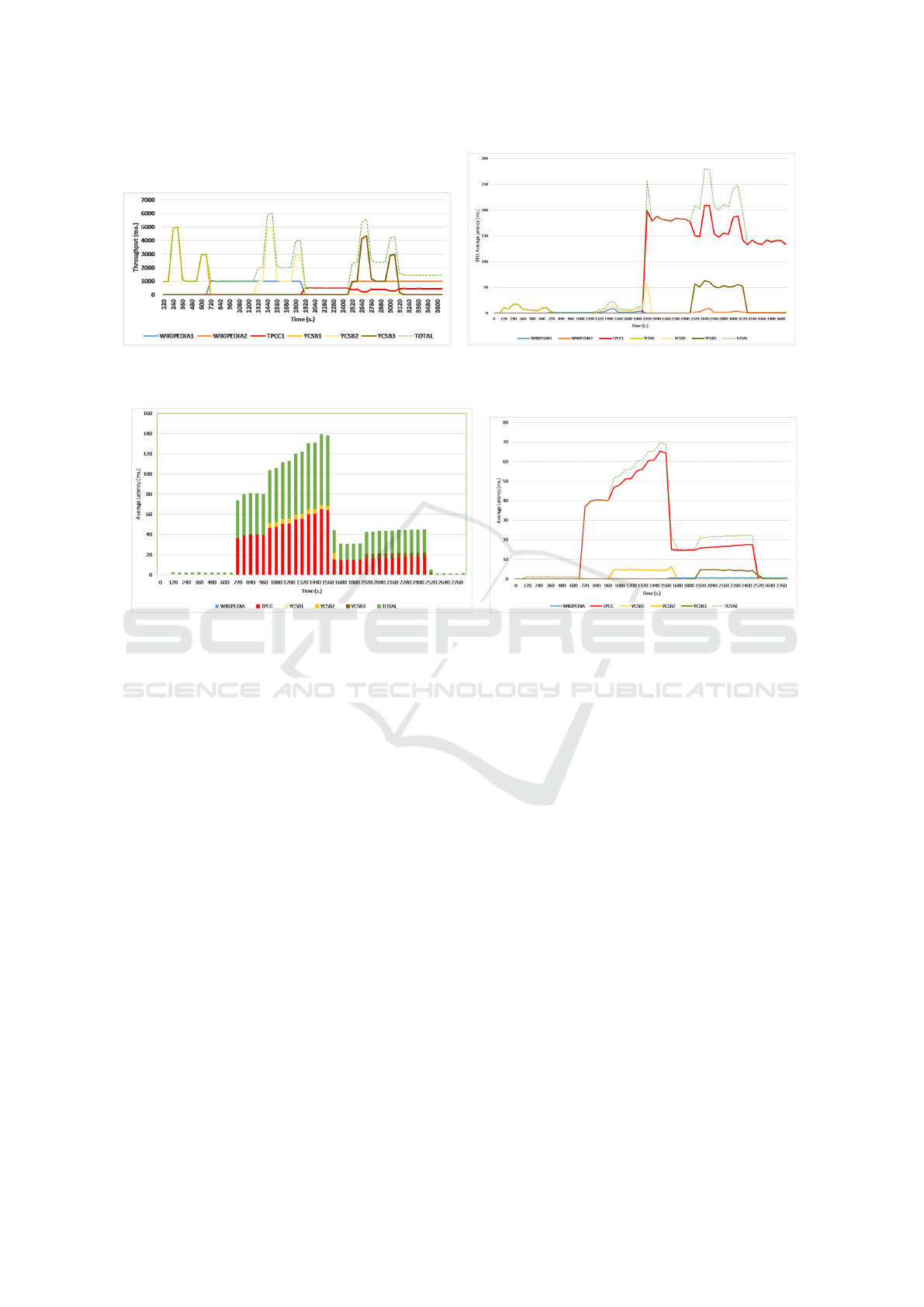

Figure 6: (a)Throughput (tps) (TPCC

, Wikipedia

, YCSB

) (b)99th percentile average latency

(ms.) (TPCC

, Wikipedia

, YCSB

Figure 7: (a)Aggregated average latency (ms.) (TPCC

, Wikipedia

, YCSB

) (b)99th percentile average

latency (ms.) (TPCC

, Wikipedia

, YCSB

with the performance of the TPCC tenant. However, it

is noticed that the Wikipedia-tenant does not present

interference with the rest of the tenants.

As we can observe in Figure 7, in the two latency

plots, we can see that augmenting the workload of the

YCSB tenant produces an increase in the TPCC ten-

ant’s latency (minutes from 17 to 26 and from 32 to

41) due to the interference that occurs between the

two. It must be also pointed out that MySQL works

well even with an increase in the workload, as it can

keep acceptable latency values when the concurrent

execution of the three tenants takes place.

5.4 Elasticity

In this section we will evaluate the elasticity when

the workloads of tenants increase and decrease dur-

ing a certain period of time. We designed several sce-

narios by using different types of tenants and combi-

nations of heterogeneous workloads. Elasticity was

analized, so that we used the same tenants of prior ex-

periments: functional test (YCSB), transactional test

(TPCC) and web-oriented test (Wikipedia). The evo-

lution in the workload of the system varied by increas-

ing and decreasing the workload of the YCSB tenant

while the workloads of TPCC and Wikipedia tenants

kept ﬁxed. Thus, the workload of the YCSB tenant

changed every 5 minutes, according to the sequence:

1000, 5000, 1000, 1000, 3000. For the benchmarks

that we named: TPCC and Wikipedia, the transaction

rate was set to 1000 tps. All the tenants were conﬁg-

ured with 20 users.

The plots in Figure 7 show how MySQL works

well with the elasticity of the workload, given that

the troughput values respond to the evolution of the

workload of the tenants, presenting little interference.

At minute 44 and 55 we see how the growth of the

workload of YCSB3 causes a drop in the through-

put value of TPCC1, which denotes an interference

between both tenants that causes a reduction in the

performance of TPCC1. In Figure 6 we observe that

increasing the work load of YCSB increases its la-

tency, and when it decreases it shows a better result.

After 32 minutes, the TPCC tenant starts executing,

coinciding with the completion of YCSB2, which ex-

plains the alteration of the latency at that point due to

the interference between the two. After 42 minutes,

the YCSB3 tenant begins to run, and the interference

that occurs with TPCC at minutes 44 and 51 is clearly

visible.

Quality of Service in Cloud Computing Environments with Multitenant DBMS

513

6 CONCLUSIONS

The paper presents experimental analyses of DBMSs

running on virtual machines with different bench-

marks (mainly TPCC). The experiments mix different

workload / tenant conﬁgurations and measure their la-

tency and throughput. We have veriﬁed that a multi-

tenant DBMS model of shared instance prevents from

the anomaly of throughput degradation, which usu-

ally occurs due to interference between tenants of a

DBMS (MySQL) located in the same VM.

Getting the tenant’s time proﬁle (workload evo-

lution) allows detecting of changes in DBMS perfor-

mance and overload and, therefore, allows to iden-

tify the level of interference between tenants. Five

experiments were designed and numerous measure-

ments have been performed using benchmarks, such

as TPCC, in a cloud computing based system. The

work done presents the results of the experiments

in which different workloads and tenant conﬁgura-

tions for which their latency and performance were

measured. Patterns of mutual interference between

tenants have been identiﬁed depending on the three

types: YCSB, TPCC and Wikipedia considered in this

study.

Our objective is to obtain individualized tech-

niques for assigning tenants to VMs, relying on the

monitoring of quality features in addition to the ones

studied in this article, which will allow us in the future

to obtain a variation of the tenant’s workload through

proactive models and machine learning. Likewise, it

is important to detect tenant usage patterns that help to

classify tenants with little interference. Several levels

of QoS could be deﬁned for different types of tenants.

REFERENCES

Agrawal, D., Das, S., and El-Abbadi, A. (2011a). Big data

and cloud computing: Current state and future op-

portunities. In In: Proceedings of the 14th Interna-

tional Conference on Extending Database Technology

(EDBT’11). ACM.

Agrawal, D., Das, S., and El-Abbadi, A. (2011b). Database

scalability, elasticity, and autonomy in the cloud. In

In: Database Systems for Advanced Applications -

16th International Conference (DASFAA 2011), v.1,

2:15. ACM.

Barker, S., Yun, C., Hyun, M., Hacigumus, H., and Shenoy,

P. (2012). Cut me some slack:latency-aware live mi-

gration for databases. In In Proceedings of the 15th In-

ternational Conference on Extending Database Tech-

nology (EDBT12), 432:443. ACM.

Benjamin, S., Andreas, B., and Bernhard, M. (2011). Na-

tive support of multi-tenancy in rdbms for software

as a service. In In Proceedings of the 14th Interna-

tional Conference on Extending Database Technology,

EDBT/ICDT ’11, 117:128. ACM.

Chi, Y., Moon, H., Hacimugus, H., and Tatemura, J.

(2011). Sla-tree: A framework for efﬁciently sup-

porting sla-based decisions in cloud computing. In In

Proceedings of the 14th International Conference on

Extending Database Technology (EDBT/ICDT ’11),

129:140. ACM.

Cooper, B., Silberstein, A., Tam, E., Ramakrishnan, R.,

and Sears, R. (2010). Benchmarking cloud serving

systems with ycsb. In In: Proceedings SoCC. DOI:

10.1145/1807128.1807152.

Difallah, D., Pavlo, A., Curino, C., and Cudre-Mauroux, P.

(2013). Oltp-bench: An extensible testbed for bench-

marking relational databases. In In: PVLDB 7 Pro-

ceedings, 277:288. PVLDB.

Fontan, J., Vazquez, T., Gonzalez, L., Montero, R., and

Llorente, I. (2008). Open nebula: the open source

virtual machine manager for cluster computing. In

In: Proceedings of Open Source Grid and Cluster

Software Conference. OSGCSC 2008, San Francisco

(USA).

Moreira, L., Sousa, F., Maia, J., Farias, V., Santos, G., and

Machado, J. (2013). A live migration approach for

multi-tenant rdbms in the cloud. In In: 28th Brazilian

Symposium on Databases (SBBD ’13), 73:78. SBBD.

MuTeBench (2014). Colaborative development platform in

GitHub. GitHub.

Schnjakin, M., Alnemr, R., and Meinel, C. (2010).

Contract-based cloud architecture. In In: Proceed-

ings of the Second International Workshop on Cloud

Data Management, CloudDB ’10, 33:40. ACM. DOI:

10.1145/1871929.1871936.

Schoroeder, B., Harchol-Balter, M., Iyengar, A., and

Nahum, E. (2010). Achieving class-based qos

for transactional workloads. In In: Proceedings

of the 22nd International Conference on Data En-

gineering (ICDE ’06), 153:155. IEEE-CS. DOI:

10.1109/ICDE.2006.11.

Sousa, F., Moreira, L., and Machado, J. (2011). Sladb:

Acordo de n

ıvel de servic¸o para banco de dados

em nuvem. In In: 26th Brazilian Symposium on

Databases (SBBD ’11), 155:162. SBBD.

CLOSER 2020 - 10th International Conference on Cloud Computing and Services Science

514
