Long Term-short Memory Neural Networks and Word2vec for

Self-admitted Technical Debt Detection

Rafael Meneses Santos

, Israel Meneses Santos

, Methanias Colaço Rodrigues Júnior

and Manoel Gomes de Mendonça Neto

Graduate Program in Computer Science, Federal University of Bahia, Salvador, Brazil

Department of Information Systems, Federal University of Sergipe, Itabaiana, Brazil

Keywords: Mining Software Repositories, Self-admitted Technical Debt, Long Short-term Memory, Neural Networks,

Deep Learning, Word Embedding.

Abstract: Context: In software development, new functionalities and bug fixes are required to ensure a better user

experience and to preserve software value for a longer period. Sometimes developers need to implement

quick changes to meet deadlines rather than a better solution that would take longer. These easy choices,

known as Technical Debt, can cause long-term negative impacts because they can bring extra effort to the

team in the future. Technical debts must be managed and detected so that the team can evaluate the best way

to deal with them and avoid more serious problems. One way to detect technical debts is through source

code comments. Developers often insert comments in which they admit that there is a need to improve that

part of the code later. This is known as Self-Admitted Technical Debt (SATD). Objective: Evaluate a Long

short-term memory (LSTM) neural network model combined with Word2vec for word embedding to

identify design and requirement SATDs from comments in source code. Method: We performed a

controlled experiment to evaluate the quality of the model compared with two language models from

literature and LSTM without word embedding in a labelled dataset. Results: The results showed that the

LSTM model with Word2vec have improved in recall and f-measure. The LSTM model without word

embedding achieves greater recall, but perform worse in precision and f-measure. Conclusion: Overall, we

found that the LSTM model and word2vec can outperform other models.

1 INTRODUCTION

On a day-to-day basis, developers must meet

deadlines and ensure that the software is being

developed with quality. The evolution or

maintenance of software is a fundamental step to

guarantee the quality of the product. The software

goes through several modifications that can be

requested by users as improvement or correction of

an error committed during implementation. In some

cases, quick fixes and workarounds must be applied

in order for one or more features to be delivered on

time. When developers opt for these choices, they

can make a trade-off between meeting deadlines and

software quality. These shortcuts tend to have a

negative impact in the long run, so that short-term

gains are obtained. This type of choice is called

technical debt.

The term "technical debt" was defined by Ward

Cunningham. A technical debt is a debt that the

development team takes when it chooses to do

something that is easy to implement to meet a short-

term goal but can have a negative impact in the

future (Cunningham, 1992). When technical debts

are not managed and corrected, they can have

serious long-term consequences, increasing costs

during the maintenance (Seaman and Guo, 2011).

Although there are cases of technical debt occurring

unintentionally, there are situations in which

developers admit that they have produced or found a

technical debt. This type of technical debt is called

self-admitted technical debt (SATD) (Potdar and

Shihab, 2014).

Given the need of better ways to deal with

technical debt, some work have been done on how to

detect and manage technical debt (Guo and Seaman,

2011; Codabux and Williams, 2013; Nord et al,

2012). The studies have proposed ways of detecting

technical debts through manual or automatic

analysis of project artifacts, mainly source code.

Santos, R., Santos, I., Rodrigues Júnior, M. and Neto, M.

Long Term-short Memory Neural Networks and Word2vec for Self-admitted Technical Debt Detection.

DOI: 10.5220/0009796001570165

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 157-165

ISBN: 978-989-758-423-7

 2020 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

157

Some studies extracted metrics from the code to

obtain indications of possible irregularities that may

point to technical debt (Marinescu, 2012). Another

important contribution was the definition of various

types of technical debt. Some of them are: design

debt, requirement debt, defect debt, documentation

debt and test debt (Alves et al, 2014).

Potdar and Shihab (2014) have shown that

technical debt can be found by analyzing comments

in source code. In this case, the technical debts

found in the comments are SATDs because the

developers explicitly indicate that parts of the code

needs changes. Comments may indicate that the

code is not complete, does not meet the

requirements, needs refactoring or even needs to be

completely redone. It has also been found that the

most common types of SATDs are design and

requirement ones (Maldonado and Shihab, 2015).

Detecting technical debts in comments has some

advantages over the source code approach

(Maldonado, Shihab, and Tsantalis, 2017).

Extracting comments is a simple task, which can be

done using even a regular expression. When we use

source code it is often necessary to assemble

complex structures with high computational cost.

Also, in cases of detection from code smells, it is

necessary to set thresholds for the metrics been used,

a problem that is still being researched.

Despite the potential in detecting technical debt

in comments, the manual process is problematic. In

projects with thousands of comments, it becomes

virtually impossible for developers to look into

comments and classify whether that comment refers

to a type of technical debt or not. In this way, an

automatic process for detecting SATDs in comments

is necessary.

Some approaches to automatic detect technical

debt in comments have been proposed recently.

Maldonado, Shihab, and Tsantalis (2017) proposed

an approach that uses natural language processing

(NLP) and a maximum entropy classifier.

Wattanakriengkrai et al (2018) proposed a

combination of N-gram IDF and auto-sklearn

classifier for detection of SATDs. Both studies

obtained good results, and the approach from

Wattanakriengkrai et al. presented an improvement

over the maximum entropy classifier. In both cases,

these work mainly used design and requirement

SATDs for training and testing their models, in

addition they made available their dataset so that

other researchers can evaluate other classifiers.

Currently, deep learning neural networks have

shown impressive results in classification tasks such

as image recognition, speech, and text classification

(Lecun, Bengio, and Hinton, 2015). Long Short-

Term Memory (LSTM) neural networks presented

better results than traditional techniques in text

classification and sentiment analysis (Zhou et al,

2015; Zhou et al, 2016). The ability to capture

temporal and sequential information makes

Recurrent Neural Networks (RNN) and LSTMs

ideal for text classification tasks (Zhou et al, 2015).

For text classification, one of the best ways to

process text data is through word embedding

(Mikolov et al, 2015). Mikolov et al (2015) propose

a method called Word2vec that can transform a great

amount of text in numerical vectors. A neural

network can use these numerical vector as input

instead of other word representation with no

contextual information.

Therefore, based on the results of Maldonado,

Shihab, and Tsantalis, (2017) and Wattanakriengkrai

et al (2018), in this paper we evaluate a LSTM

neural network model and Word2vec to identify

design and requirement SATDs from comments in

source code. First we train a LSTM neural network

with and without Word2vec using the dataset made

available by Maldonado and Shihab (2015). Then

we apply the training model to classify a test set.

The validation process was carried out using 10

projects from the dataset through a leave-one-out

cross-project validation process. Finally, the results

were compared to Maldonado, Shihab, and

Tsantalis, (2017) and Wattanakriengkrai et al

(2018), to evaluate the performance of the LSTM

network.

The results showed that the LSTM model with

Word2vec have improved in recall and f-measure in

design SATD classification. The LSTM model

without word embedding achieve greater recall, but

perform worse in precision and f-measure. In

requirement classification, Wattanakriengkrai et al

(2018) model precision was greater than any LSTM

model, however, the f-measure was similar to that of

the LSTM with Word2vec, from the statistical

significance point of view. This may have occurred

because the database is imbalanced, having more

comments without SATDs and little amount of

training data in the requirement SATDs. Recall may

be more important than precision depending on the

problem being discussed (Hand and Christen, 2018).

Someone may accept a slightly higher rate of false

positives to get more true positives, if the trade-off is

considered interesting.

The rest of this paper is organized as follows. In

Section 2, we discuss works related to LSTM and

detection of SATDs. Section 3 presents the

evaluation methodology, the dataset, and a

introduction to LSTM and word embedding. Then,

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

158

in Section 4, we discussed the planning and

execution of the experiment. The results of the

experiment are presented and discussed in Section 5

as well as the threats to validity. Finally, in Section

6, we present the conclusions of the paper and some

possible extensions that can be researched in future

works.

2 RELATED WORKS

In our work we use an LSTM neural network to

classify SATDs in source code comments. There are

related papers that talk about both LSTM in text

classification tasks and technical debt detection in

source code comments, especially self-admitted

technical debts.

Zhou et al (2015) propose a combination of

LSTM neural networks and Convolutional neural

networks (CNN) to perform text classification and

sentence representation. CNN is able to extract high-

level information from sentences, forming a

sequence of phrases representations, and then feeds

an LSTM to obtain the representation of the

complete sentence. This approach is particularly

suitable for text classification because the model can

learn local and global representation of the features

in the convolutional layer and temporal

representation in the LSTM layer.

The detection of SATDs has been the subject of

some research using mainly natural language

processing. Potdar and Shihab (2014) extracted 62

comment patterns from projects that can indicate

SATDs. They found that technical debt exists in

2.4% to 31% of the files. In most cases, the more

experienced developers tend to introduce comments

in the code that self-admit a technical debt. Finally,

their work presented that only 26.3% to 63.5% of

SATDs are resolved in the project.

Maldonado, Shihab, and Tsantalis (2017)

proposed an approach to detect SATDs using natural

language processing (NLP) and a maximum entropy

classifier. In this work, only design and requirement

SATDs were analyzed because they are the most

common and all the researched projects contains this

type of SATDs. They build a dataset of manually

labelled comments from 10 projects: Ant,

ArgoUML, Columba, EMF, Hibernate, JEdit,

JFreeChart, JMeter, JRuby and SQuirrel SQL. The

results show that the approach presented better

results compared to the model that uses comments

patterns. Words related to sloppy or mediocre code

tend to indicate SATD design, whereas comments

with words about something incomplete show

indications of requirement SATD.

Wattanakriengkrai et al. (2018) also worked with

design and requirement SATD. They proposed a

model that combines N-gram IDF and the auto-

sklearn machine learning library and compared the

results with Maldonado, Shihab, and Tsantalis

(2017). The results show that they outperformed the

previous model, improving the performance over to

20% in the detection of requirement SATD and 64%

in design SATD.

Two studies used mining techniques to classify

SATDs (Huang et al, 2018; Liu et al, 2018). The

first work proposed a model that uses feature

selection to find the best features for training and

uses these features in a model that combines several

classifiers. The second one introduces a plugin for

Eclipse to detect SATDs in Java source code

comments. From this tool, the developer can use the

model integrated to the plugin or another model for

the detection of SATDs. The plugin can find, list,

highlight and manage technical debts within the

project.

Based on the studies of Maldonado, Shihab, and

Tsantalis, (2017) and Wattanakriengkrai et al

(2018), in our work we propose to evaluate an

LSTM model with and without Word2vec and

compare with the results obtained by these

approaches. We think that an LSTM neural network

can achieve better results in this type of

classification task, based on previous work reports

on text classification and LSTM (Huang et al, 2018;

Young et al, 2018).

3 METHODOLOGY

The main objective of this work is to evaluate an

LSTM model with Word2vec for detection of design

and requirement SATDs in source code comments.

The first step of the work is to load and clean a

dataset of SATDs so that they can be properly used

by the LSTM model. After cleaning the dataset, we

trained the Word2vec and the LSTM network. We

classify the test set using the trained model. To

perform this procedure, a controlled experiment was

defined and executed. This experiment is detailed in

Section 4.

Experimentation is a task that requires rigorous

planning with well-defined steps (Wohlin et al,

2012). We have to elaborate planning, execution and

analysis of the data. From this, it is possible to apply

a statistical treatment of the data, with hypothesis

Long Term-short Memory Neural Networks and Word2vec for Self-admitted Technical Debt Detection

159

Table 1: Total number of comments by type of project and technical debt.

Defect Test Documentation Design Requirement No Technical Debt Total

Ant 13 10 0 95 13 3967 4098

ArgoUML 127 44 30 801 411 8039 9452

Columba 13 6 16 126 43 6264 6468

EMF 8 2 0 78 16 4286 4390

Hibernate 52 0 1 355 64 2496 2968

JEdit 43 3 0 196 14 10066 10322

JFreeChart 9 1 0 184 15 4199 4408

JMeter 22 12 3 316 21 7683 8057

JRuby 161 6 2 343 21 4275 4897

Squirel 24 1 2 209 50 6929 7215

Total 472 85 54 2703 757 58204 62275

tests, so that it can be replicated by others and

produce reliable information.

3.1 Self-admitted Technical Debt

Dataset

One of the main contributions of Maldonado and

Shihab (2015) was to build and make available a

dataset of SATDs so that other researchers analyze

and test their models. The dataset was created by

extracting comments from 10 open source software

projects. The selected projects were: Ant,

ArgoUML, Columba, EMF, Hibernate, JEdit,

JFreeChart, JMeter, JRuby and SQuirrel SQL. The

criterion used for this selection was that the projects

should be from different application domains and

had a large amount of comments that can be used for

classification and analysis of technical debt.

After extracting comments from the projects, the

researchers labelled each comment manually with

some type of technical debt. The classification was

made based on the work of Alves et al. (2014), who

presented an ontology of terms that can be applied to

define types of technical debt. The types defined

were: architecture, build, code, defect, design,

documentation, infrastructure, people, process,

requirement, service, test automation and test debt.

Not all types were used during the labelling process

because some of them were not found in code

comments. They found technical debt comments of

the following types: design debt, defect debt,

documentation debt, requirement debt and test debt.

Table 1 shows the number of SATDs by type and

project. This process resulted in the classification of

62275 comments, being 4071 comments of technical

debt of different types and 58204 comments that

indicate no technical deb.

The most common types of SATDs found were

design (2703 comments) and requirement SATDs

(472 comments). The two types have some

distinctions which are explained and exemplified

below.

Self-admitted design debts are characterized by

comments that talk about issues in the way that the

code was implemented. The comments usually

indicate that the code is poorly constructed and that

they need modifications to improve its quality.

Modifications can be made through refactoring

process or even redoing the code from the

beginning. Some examples of comments that contain

design SATDs are:

1. check first that it is not already loaded

otherwise consecutive runs seems to end into an

OutOfMemoryError or it fails when there is a

native library to load several times this is far

from being perfect but should work in most cases

(from Ant project);

2. this is wrongly called with a null handle, as a

workaround we return an empty collection (from

ArgoUML project).

In the first comment, the developer explains

some troublesome code, but that works most of the

time. In addition to explaining the code problem, it

is obvious to the reader that this must be solved to

prevent the program from throwing exceptions. The

second example shows a comment stating that code

has a workaround to solve a problem. Words like

workaround, stupid and needed? are good

candidates to identify comments with SATDs design

(Maldonado and Shihab, 2015).

Self-admitted requirement debts are found in

comments that talk about incomplete code that do

not fully meet some requirement. Some examples

are:

1. TODO: Why aren't we throwing an exception

here? Returning null results in NPE and no

explanation why. (from ArgoUML project);

2. Have we reached the reporting boundary?Need

to allow for a margin of error, otherwise can miss

the slot. Also need to check we've not hit the

window already (from jMeter project)

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

160

In both cases, the developers explain in the

comments that the code needs to be completed and

question specific points that are missing in the code.

3.2 Long Short-term Memory Neural

Network

LSTM was initially proposed by Hochreiter and

Schmidhuber (1997) to solve the problem of long

sequences by a recurring neural network. In the

original approach, updating the weights, which is

done by a variation of the Backpropagation

algorithm, called Backpropagation Through Time,

is affected when the level of recurrence is high,

which makes it impossible for the network to

memorize long sequences.

Its architecture consists of a set of subnets

connected repeatedly, called the memory block,

located in the hidden layer. This block contains

memories cells with auto connections capable of

storing the temporal state of the network, in addition

to special units, called gates, which are responsible

for controlling the flow of information, as shown in

Figure 1. Each block consists of one or more

memory cells connected with three gates: forget (Eq.

1), input (Eq. 2) e output (Eq. 3). Each gate has a

function that allows you to reset, write and read the

operations inside the memory block. Each gate uses

a sigmoid logistic function () to flatten the values

of these vectors between 0 (closed gate) and 1 (open

gate).

The forget gate defines whether previous state

activation will be used in memory. The input gate

defines how much of the new state calculated for the

current input will be used, and finally, the output

gate defines whether the internal state will be

exposed to the rest of the network (external

network). Then a hyperbolic tangent layer creates a

vector of new candidate value 





(Eq. 4) that can be

added in the cell.

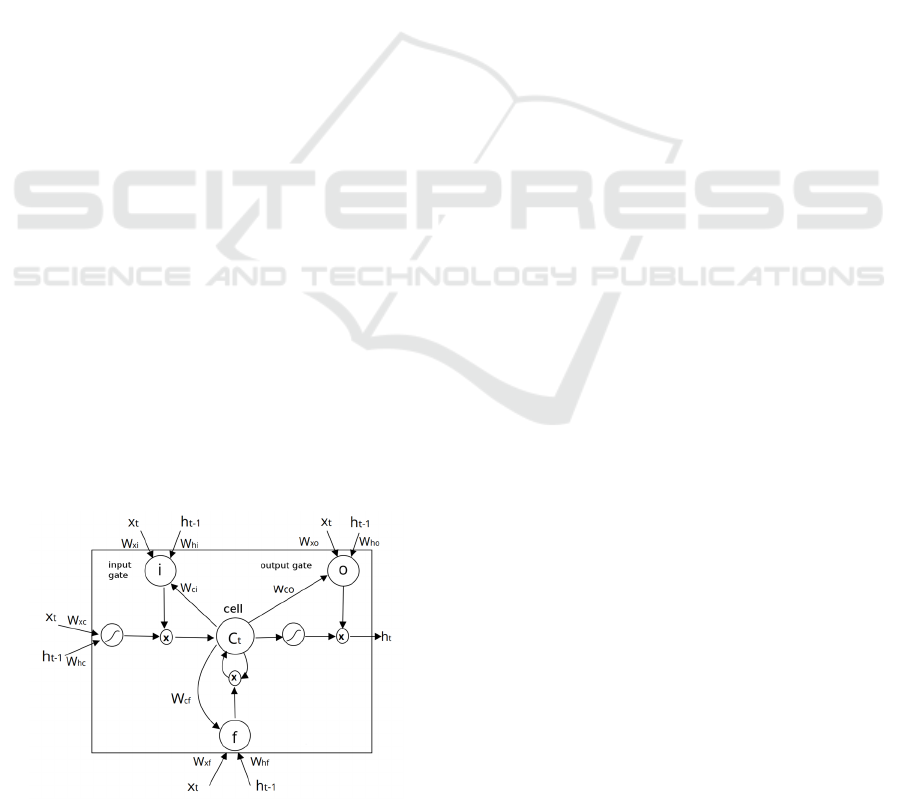

Figure 1: LSTM memory block.





is the internal memory unit, which is a

combination of the previous memory 



multiplied by the forget gate and the candidate

values 





multiplied by the input gate (Eq. 5).

Intuitively, one realizes that memory is a

combination of memory in the previous time with

the new one in the current time.









∗







∗







∗









)













∗







∗







∗









)













∗







∗







∗









)















∗







∗









)











∗







∗





)

Given this memory 



, it is finally possible to

calculate the output of the hidden state 



multiplying the memory activations with the output

gate (Eq. 6).









∗





)

The variables 



, 



, 



, 



, and 



are vectors

representing values in time . 

∗

are matrices of

weight connected to different gates, and 

∗

are the

vectors that correspond to bias.

3.3 Word Embedding

Word Embeddings are methods that transform a

sequence of words into a low-dimensional numerical

representation. In this way, it is possible to model a

language or extract features from it to use as input in

machine learning algorithms and other natural

language processing activities. One of the most

famous methods of word embedding was proposed

by Mikolov et al (2015) and is called Word2vec.

Word2vec is a model based on neural networks

that can process a large amount of text to and store

context information of words. Finally, Word2vec

returns a vector space with information for each

word. For text classification, we can use Word2vec

in the text pre-processing step.

4 EXPERIMENT

We follow a experimental process to evaluate our

LSTM model results based on Wohlin's guidelines

(Wohlin et al, 2012). In this section, we will discuss

planning and execution of the experiment.

Long Term-short Memory Neural Networks and Word2vec for Self-admitted Technical Debt Detection

161

4.1 Goal Objective

The objective of this study is to evaluate, through a

controlled experiment, the efficiency of the LSTM

neural network with Word2vec in design and

requirement SATDs classification in source code

comments. The experiment was done by using a

dataset build by Maldonado and Shihab (2015) to

train the LSTM model and we compare the results to

those from the studies of Maldonado, Shihab, and

Tsantalis, (2017) and Wattanakriengkrai et al,

(2018). Wattanakriengkrai et al. (2018) combined N-

gram IDF and auto-sklearn, and Maldonado, Shihab,

and Tsantalis, (2017) used maximum entropy

classifier.

The objective was formalized using the GQM

model proposed by Basili and Weiss (1984):

Analyze the LSTM neural network with Word2vec,

with the purpose of evaluating it (against results of

algorithms evaluated in previous works), with

respect to recall, precision and f-measure, from the

viewpoint of developers and researchers, in the

context of detecting design and requirement self-

admitted technical debts in open source projects.

4.2 Planning

Context Selection: We selected the dataset

discussed in Section 3.1 for the classification of

SATDs. Just as in previews works, use only design

and requirement SATDs to train the Word2vec

model, and train and test the LSTM model. The

model was validated using a leave one-out cross-

project validation approach to two dataset groups.

We trained the models using 9 of the 10 projects and

tested on the remaining one. This procedure is

repeated 10 times so that each project can be tested

with the trained model.

Hypothesis Formulation: To reach the proposed

goal, we define the following research question: Is

the LSTM neural network with Word2vec better

than previous works in terms of recall, precision, F-

measure?

The following hypothesis was defined for each

proposed metric, 



: the algorithms have the same

metric mean (Eq. 7) and 



: the algorithms have

distinct metric means (Eq. 8). Note that 



is the

hypothesis that we want to refute.





  





)





  





)

Selection of Participants: We divided the dataset

into two groups, the first (60,907 code comments)

having comments with design SATDs and

comments without any SATDs, and the second

(58,961 code comments) with comments with

requirement SATDs and comments without SATDs.

Experiment Project: The experiment project refers

to the following stages: Preparation of the

development environment, it means downloading

and installation of all the items described in

instrumentation. Subsequently, we implement and

trained the model with the dataset. Finally, we run

the experiments and perform statistical tests for the

assessment of the defined hypotheses.

Independent Variables: The LSTM neural

network, Word2vec model and the dataset.

Dependent Variables: Predictions made by the

model, represented by: precision (Eq. 9), recall (Eq.

10) and f-measure (Eq. 11). True positives (TP) are

cases in which the classifier correctly identifies a

SATD comment and true negative (TN) corresponds

to the correct classification of a comment without

SATD. If the model classifies a SATD comment as

without SATD, it is a case of false negative (FN),

and the case of false positive (FP) is when the model

classifies a comment without SATD as a SATD

comment.

 



  



)

 



  



(10

)



 

2    

  

(11

)

Instrumentation: The instrumentation process

started with the environment configuration for the

achievement of the controlled experiment; data

collection planning; and the development and

execution of the assessed algorithms. The used

materials/resources were: Keras (Fraçois et al,

2015), Scikit-learn (Pedregosa et al, 2011), Gensim

(Rehurek and Sojka, 2010), and a computer with

Intel(R) Core(TM) i5-7400 CPU @ 3.00GHz, 16

GB RAM - 64 bits. The preparation of the test

environment was done by downloading and

installing all the mentioned libraries.

4.3 Execution

After all preparation, the experiment was performed.

First, the dataset was loaded and a cleanup process

was performed. Some special characters and

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

162

numbers were eliminated so as not to confuse the

training process and to improve the quality of the

features. Then the data was submitted to the training

model. At the end, leave-one-out cross-project

validation was carried out on the 10 projects.

4.4 Data Validation

We used two statistical tests to validate our results:

Student's t-test and Shapiro-Wilk test. Student's t-

test is used to determine if the difference between

two means is statistically significant. For this, it is

necessary that the distribution of samples is normal.

Normality is tested using Shapiro-Wilk.

5 RESULTS

After performing the training and testing of the

LSTM model, the results of the classification were

obtained through the leave-one-out cross-project

validation process. Table 2 and 3 present the results

achieved for each project and metric in the design

classification SATDs and requirement SATDs

respectively. We use the abbreviations for precision

(Pr), recall (Rc), and f-measure (F1) because of the

little space available in the table. The best result for

each metric is highlighted in bold.

The results show that without pre-processing with

Word2vec, LSTM has higher recall than Auto-

sklearn (AS) and Maximum Entropy (ME), but loses

in precision and f-measure. When pre-processing

with Word2vec is applied, we have a significant

improvement in precision, and consequently in the f-

measure. The model without word embedding

showed a 56% improvement in recall compared to

Auto-sklearn and Maximum Entropy in the design

SATD classification. With the application of

Word2vec, the improvement in recall was

approximately 36% in both cases. Despite having a

lower recall, when we apply a pre-processing

with word embedding, the precision of the

LSTM network increases by approximately 135%.

For

design SATD, the Auto-sklearn classifier from

Table 2: Comparison of the metrics obtained in the design SATD classifications.

LSTM + word2vec LSTM Auto-sklearn Maximum entropy

Pr Rc F1 Pr Rc F1 Pr Rc F1 Pr Rc F1

Ant 0.621 0.608 0.614 0.228 0.821 0.357 0.676 0.301 0.360 0.554 0.484 0.517

ArgoUML 0.940 0.798 0.863 0.443 0.963 0.607 0.784 0.703 0.741 0.788 0.843 0.814

Columba 0.658 0.813 0.728 0.148 0.952 0.256 0.765 0.940 0.842 0.792 0.484 0.601

EMF 0.346 0.613 0.442 0.069 0.910 0.129 0.802 0.501 0.604 0.574 0.397 0.470

Hibernate 0.735 0.912 0.814 0.467 0.873 0.609 0.833 0.450 0.583 0.877 0.645 0.744

JEdit 0.316 0.837 0.459 0.214 0.744 0.333 0.943 0.701 0.810 0.779 0.378 0.509

JFreeChart 0.418 0.733 0.532 0.277 0.885 0.422 0.872 0.250 0.390 0.646 0.397 0.492

JMeter 0.734 0.859 0.791 0.233 0.854 0.367 0.706 0.420 0.530 0.808 0.668 0.731

JRuby 0.845 0.838 0.841 0.362 0.932 0.522 0.856 0.750 0.801 0.798 0.770 0.784

Squirrel 0.545 0.708 0.616 0.192 0.894 0.317 0.903 0.630 0.740 0.544 0.536 0.540

Average 0.616 0.772 0.670 0.263 0.882 0.391 0.814 0.564 0.640 0.716 0.560 0.620

Table 3: Comparison of the metrics obtained in the requirement SATD classifications.

LSTM + word2vec LSTM Auto-sklearn Maximum entropy

Pr Rc F1 Pr Rc F1 Pr Rc F1 Pr Rc F1

Ant 0.230 0.500 0.315 0.013 0.692 0.026 0.650 0.136 0.226 0.154 0.154 0.154

ArgoUML 0.839 0.683 0.753 0.388 0.854 0.533 0.779 0.762 0.771 0.663 0.540 0.595

Columba 0.860 0.755 0.804 0.107 1.000 0.194 0.781 0.935 0.851 0.755 0.860 0.804

EMF 0.375 0.750 0.500 0.015 0.562 0.030 0.826 0.682 0.747 0.800 0.250 0.381

Hibernate 0.765 0.765 0.765 0.165 0.921 0.281 0.809 0.435 0.566 0.610 0.391 0.476

JEdit 0.571 0.666 0.615 0.014 0.785 0.028 0.937 0.715 0.811 0.125 0.071 0.091

JFreeChart 0.800 0.266 0.400 0.064 0.800 0.118 0.846 0.280 0.421 0.220 0.600 0.321

JMeter 0.619 0.565 0.590 0.029 0.952 0.057 0.693 0.418 0.522 0.153 0.524 0.237

JRuby 0.572 0.900 0.700 0.296 0.763 0.427 0.859 0.749 0.800 0.686 0.318 0.435

Squirrel 0.780 0.513 0.619 0.060 0.760 0.112 0.848 0.535 0.656 0.657 0.460 0.541

Average 0.414 0.636 0.606 0.115 0.809 0.180 0.803 0.565 0.637 0.482 0.416 0.403

Long Term-short Memory Neural Networks and Word2vec for Self-admitted Technical Debt Detection

163

Wattanakriengkrai et al. (2018) obtained the best

results in precision.

The good results achieved in the SATD design

classification were not maintained in the SATD

requirement classification. The SATD requirement

dataset has a lower number of positive cases, which

makes it difficult to train the LSTM network. In this

case, the f-measure results were statistically

compatible between the LSTM and Auto-sklearn

models. The Auto-sklearn classifier was superior in

precision, but produced a lower recall than LSTM

models with and without word embedding.

Although the LSTM model has a higher average

recall and f-measure, it was necessary to follow a

statistical validation to verify if the improvement

was significant. The next step was to perform the

Shapiro-Wilk test with the set of metrics. The

Shapiro-Wilk test showed that the distribution of the

metrics is normal. In this way, we applied the

Student's t-test for paired samples to verify if the

difference was statistically significant.

Table 4, 5, and 6 presents the p-values calculated

from the average precision, recall and f-measure

respectively obtained with the classification models

for design and requirement SATDs detection. As can

be seen, the improvements in recall and f-measure in

the design SATD classification and improvement in

recall in requirement SATD have p-values lower

than the significance level of 0.05. This indicates

that only for these cases the improvement was

statistically significant. The reason for this may be

related to the lower amount of requirement SATDs

for training the LSTM network, which shows that

the LSTM network is dependent on a larger dataset

for better results.

Table 4: Results from t-test for average precision.

LSTM +

word2vec vs

Classifiers

Design Requirement

value

Result

value

Result

Maximum

entropy

0.11

Retain





0.11

Retain 



Auto-sklearn

0.03

Refute





0.03

Refute 



Only LSTM

0.00

Refute





0.00

Refute 



Table 5: Results from t-test for average recall.

LSTM +

word2vec vs

Classifiers

Design Requirement

value

Result

value

Result

Maximum

entropy

0.00

Refute





0.05

Refute 



Auto-sklearn

0.01

Refute





0.23

Retain 



Only LSTM

0.01

Refute





0.03

Refute 



Table 6: Results from t-test for average f-measure.

LSTM +

word2vec vs

Classifiers

Design Requirement

value

Result

value

Result

Maximum

entropy

0.01

Refute





0.00

Refute 



Auto-sklearn

0.66

Retain





0.47

Retain 



Only LSTM

0.00

Refute





0.00

Refute 



5.1 Threats to Validity

There are some aspects of an experiment that define

the validity of the results achieved during its

execution. It is ideal that all threats to the validity of

the experiment are known and that measures are

taken to have them reduced or eliminated. The

following are threats found during the planning and

execution of the experiment:

1. Construct validity

a. The implementation of an LSTM neural

network algorithm must meet the

theoretical requirements and any changes

may compromise its results. To ensure that

a correct implementation of the LSTM

neural network was evaluated, we used the

Keras (Fraçois et al, 2015) library that has

thousands of citations in study

publications;

b. A manually annotated dataset may contain

errors caused by human failure, such as

incorrect labelling and labelling bias. This

may compromise classifier performance. In

this case, we compared the LSTM model

with other classifiers that used the same

dataset and followed the same process of

validation of the experiment.

6 CONCLUSION AND FUTURE

WORKS

In this work, we evaluated a neural network LSTM

model with Word2vec in the classification of design

and requirement self-admitted technical debts

through a controlled experiment. The results were

compared with two other natural language

processing approaches: auto-sklearn and maximum

entropy classifiers.

At the end of the experiment, it was possible to

verify that the LSTM model improved the recall and

f-measure in design SATDs classification and recall

in requirement SATD. The average f-measure was

statistically the same as the model with better

precision, in this case the Auto-sklearn classifiers.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

164

Recall may be more important than precision

depending on the problem being discussed (Hand

and Christen, 2018). Someone may accept a slightly

higher rate of false positives to get more true

positives, if the trade-off is considered interesting.

The LSTM model without Word2vec has a better

recall rate but lower precision. Combining

Word2vec and LSTM brings a great advantage to

the overall performance.

In future works, others neural networks and deep

learning architectures can be evaluated in this

context. There are results that show that the

combination of convolutional neural networks and

LSTM achieve good results in the task of text (Zhou

et al, 2015). In addition, more in-depth research

should be done to find ways to reduce the amount of

false negatives produced by the LSTM model in this

dataset. Overall, we found that the LSTM model and

word2vec can outperform other models.

REFERENCES

Cunningham, W. (1992). The WyCash portfolio

management system. ACM SIGPLAN OOPS

Messenger, 4(2), 29-30.

Seaman, C., & Guo, Y. (2011). Measuring and monitoring

technical debt. In Advances in Computers (Vol. 82,

pp. 25-46). Elsevier.

Potdar, A., & Shihab, E. (2014, September). An

exploratory study on self-admitted technical debt. In

2014 IEEE International Conference on Software

Maintenance and Evolution (pp. 91-100). IEEE.

Guo, Y., & Seaman, C. (2011, May). A portfolio approach

to technical debt management. In Proceedings of the

2nd Workshop on Managing Technical Debt (pp. 31-

34).

Codabux, Z., & Williams, B. (2013, May). Managing

technical debt: An industrial case study. In 2013 4th

International Workshop on Managing Technical Debt

(MTD) (pp. 8-15). IEEE.

Nord, R. L., Ozkaya, I., Kruchten, P., & Gonzalez-Rojas,

M. (2012, August). In search of a metric for managing

architectural technical debt. In 2012 Joint Working

IEEE/IFIP Conference on Software Architecture and

European Conference on Software Architecture (pp.

91-100). IEEE.

Marinescu, R. (2012). Assessing technical debt by

identifying design flaws in software systems. IBM

Journal of Research and Development, 56(5), 9-1.

Alves, N. S., Ribeiro, L. F., Caires, V., Mendes, T. S., &

Spínola, R. O. (2014, September). Towards an

ontology of terms on technical debt. In 2014 Sixth

International Workshop on Managing Technical Debt

(pp. 1-7). IEEE.

Maldonado, E. D. S., & Shihab, E. (2015, October).

Detecting and quantifying different types of self-

admitted technical debt. In 2015 IEEE 7th

International Workshop on Managing Technical Debt

(MTD) (pp. 9-15). IEEE.

da Silva Maldonado, E., Shihab, E., & Tsantalis, N.

(2017). Using natural language processing to

automatically detect self-admitted technical debt.

IEEE Transactions on Software Engineering, 43(11),

1044-1062.

Wattanakriengkrai, S., Maipradit, R., Hata, H.,

Choetkiertikul, M., Sunetnanta, T., & Matsumoto, K.

(2018, December). Identifying design and requirement

self-admitted technical debt using n-gram idf. In 2018

9th International Workshop on Empirical Software

Engineering in Practice (IWESEP) (pp. 7-12). IEEE.

LeCun, Y., Bengio, Y., & Hinton, G. (2015). Deep

learning. nature, 521(7553), 436-444.

Zhou, C., Sun, C., Liu, Z., & Lau, F. (2015). A C-LSTM

neural network for text classification. arXiv preprint

arXiv:1511.08630.

Zhou, P., Qi, Z., Zheng, S., Xu, J., Bao, H., & Xu, B.

(2016). Text classification improved by integrating

bidirectional LSTM with two-dimensional max

pooling. arXiv preprint arXiv:1611.06639.

Hand, D., & Christen, P. (2018). A note on using the F-

measure for evaluating record linkage algorithms.

Statistics and Computing, 28(3), 539-547.

Huang, Q., Shihab, E., Xia, X., Lo, D., & Li, S. (2018).

Identifying self-admitted technical debt in open source

projects using text mining. Empirical Software

Engineering, 23(1), 418-451.

Liu, Z., Huang, Q., Xia, X., Shihab, E., Lo, D., & Li, S.

(2018, May). Satd detector: A text-mining-based self-

admitted technical debt detection tool. In Proceedings

of the 40th International Conference on Software

Engineering: Companion Proceeedings (pp. 9-12).

Young, T., Hazarika, D., Poria, S., & Cambria, E. (2018).

Recent trends in deep learning based natural language

processing. ieee Computational intelligenCe magazine,

13(3), 55-75.

Wohlin, C., Runeson, P., Höst, M., Ohlsson, M. C.,

Regnell, B., & Wesslén, A. (2012). Experimentation in

software engineering. Springer Science & Business

Media.

Basili, V. R., & Weiss, D. M. (1984). A methodology for

collecting valid software engineering data. IEEE

Transactions on software engineering, (6), 728-738.

François, C. et al. (2015). Keras, https://keras.io

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Vanderplas, J. (2011). Scikit-

learn: Machine learning in Python. Journal of machine

learning research, 12(Oct), 2825-2830.

Hochreiter, S., & Schmidhuber, J. (1997). Long short-term

memory. Neural computation, 9(8), 1735-1780.

Mikolov, T., Chen, K., Corrado, G. S., & Dean, J. A.

(2015). U.S. Patent No. 9,037,464. Washington, DC:

U.S. Patent and Trademark Office.

Rehurek, R., & Sojka, P. (2010). Software framework for

topic modelling with large corpora. In In Proceedings

of the LREC 2010 Workshop on New Challenges for

NLP Frameworks.

Long Term-short Memory Neural Networks and Word2vec for Self-admitted Technical Debt Detection

165
