Knowledge Acquisition Data Visualization in eLearning Delivery

Atis Kapenieks, Iveta Daugule, Kristaps Kapenieks, Viktors Zagorskis, Janis Kapenieks jun.,

Zanis Timsans and Ieva Vitolina

Distance Education Study Centre, Riga Technical University, Kronvalda Bulvaris 1, LV-1010, Riga, Latvia

Keywords: eLearning, Learning Data, Telecide, User Behavior.

Abstract: The aim of the study is to create the complete landscape model for learner behavior and knowledge acquisition

data, and mapping the real learner performance data on it. This paper reports on a TELECI approach for

learner knowledge acquisition data visualization. We present the new metrics for determination the relevance

of the e-course content and delivery approach to learners. This approach is based on the assumption that

knowledge acquisition of real e-content can be quantified by superposition of the impact of learning “perfect”

content, “too easy” content, and “too complicated” content. The user learning performance data are generated

in the TELECI e-learning environment with additional short, easy-to-use multiple-choice questions before

and after each content subunit. This approach was well accepted by learners. The learner knowledge

acquisition data are visualized on knowledge acquisition surface. This surface is calculated from the set of

artificial data. The experimental data are positioned in curves called “telecides”. The presented telcide of

Basic Business course delivered for 61 students’ group describes the appropriateness of each course unit to

the learning needs of student group. We present also the experimental data on the learning acquisition surface

from individual students. Each point corresponds learning acquisition for one student.

1 INTRODUCTION

The major challenges in eLearning are content

delivery quality, content quality, and the

correspondence of content and delivery to learning

needs and objectives.

The aim of the study is to create the complete

landscape model of learner behavior and knowledge

acquisition data and mapping real learner

performance data on it. These approaches are

necessary to build the TELECI learning prediction

and support algorithms.

In our previous study (Daugule, Kapenieks,

2018) we discovered that to determine the students’

initial motivation, several aspects should be taken

into account. The results of this study demonstrated

that the initial motivation aspects of students are

complex. One aspect is confirmation that the

evaluation given directly by students of their skills

and the time required for their development without

further processing is not applicable to the

development of the course content and the learning

material selection algorithm.

Also, adaptation of the learning content to the

students' needs should not be based solely on the

answers in the questionnaires.

The study (Daugule, Kapenieks, 2018) concluded

that it is primarily necessary to evaluate student-

provided data in the context of student-generated data

in an e-Learning environment rather than information

submitted by students in various questionnaires. Also,

the information about their future intentions from this

aspect is of secondary importance and cannot be

applied directly.

Other research in the field (Tsoni, Samaras,

Paxinou, Panagiotakopoulos, Verykois, 2019) also

highlights the need to collect and analyze student data

to keep track of their progress, emphasizing the need

to create augmented reality environments that deliver

it in real time. The authors of this study note that the

availability of this type of data would reduce negative

aspects such as poor grades and dropouts.

According to Koch, it is possible and necessary to

apply the 80/20 principle in education. This principle

supplies the hypothesis that there are a few important

reasons that explain superior educational

performance, and that a few approaches or methods

will prove to produce exceptional results. In order to

Kapenieks, A., Daugule, I., Kapenieks, K., Zagorskis, V., Kapenieks jun., J., Timsans, Z. and Vitolina, I.

Knowledge Acquisition Data Visualization in eLearning Delivery.

DOI: 10.5220/0009803505070513

In Proceedings of the 12th International Conference on Computer Supported Education (CSEDU 2020) - Volume 2, pages 507-513

ISBN: 978-989-758-417-6

507

do this, it is necessary to distinguish between the

approaches that create the greatest benefits, and then

multiply their incidence (Koch, 1998).

In our opinion, it is crucial that the developed

learning environment should be focused on the most

important issues thus achieving possibly higher

efficiency. One of the key aspects is the quality of the

course and its suitability for the student group or the

individual student. It is important that students use

their study time as efficiently as possible, but it is also

important that the course content is not overly

complex. Too complicated or irrelevant content of the

course may cause loss of motivation, which would

inhibit further learning.

2 COURSE DESIGN FOR

SUFFICIENT USER BEHAVIOR

DATA GENERATION

In light of the problem highlighted in other studies

(Robinson, Cook, 2018), the clicks made in the course

should also be considered in conjunction with other

parameters, to determine the point where the student

has lost focus and, instead of being an active learner,

has become a presence imitator.

Robinson and Cook point out that the metrics that

include only evidence of the student's presence in the

course “speak neither to the quality of the activity nor

to its “stickiness”. Similarly, such indicators are poor

predictors of repeat engagement (student motivation).

Like the disengaged student in a physical classroom,

logging in and out does not prove much beyond the

fact that a student entered and exited the learning

environment” (Robinson, Cook, 2018).

This is also confirmed by research of other

authors. According to Szulanski's hypotheses,

knowledge stickiness positively correlates with

causal uncertainty, lack of motivation on the part of

the knowledge source and recipient, lack of

credibility of the source, lack of knowledge transfer

and receiving capacity, poor organizational context

and arduous relationship between the provider and the

recipient (Szulanski, 2003).

Studies have confirmed that sustained motivation

is essential to the success of a course and that it can

be shaped. Several studies (Gopalan, Abubakar,

Zulkifli, Alwi, Che Mat, 2017) have found that

intrinsic motivation and academic achievement share

significant and positive bonding and such motivation

is able to spread the positivity and ensure long-term

sustainability of the gained knowledge. Although

external evaluation may motivate action, it may not

produce the desired result in the long run. Students

can strive for rewards rather than their knowledge,

and for this reason it is very important that they are

motivated intrinsically (Gopalan, Abubakar, Zulkifli,

Alwi, Che Mat, 2017).

Considering this, we focused on providing this

type of motivation when designing our course

content. In the process of developing it, we took into

account the findings of other researchers that intrinsic

motivation comes from the satisfaction resulting from

the successful completion of a task. It does not

directly affect academic success. However, it strongly

correlates with independent learning and cognitive

strategy use (Levy, Campbell, 2008). The findings of

another study (Dennis, Phinney, Chuateco, 2005)

show that both personal / career motivation and lack

of peer support are important predictors of college

commitment, even when the impact of academic

ability, as indicated by the high school Grade Point

Average, is controlled. The authors of this study

(Dennis, Phinney, Chuateco, 2005) emphasize the

need to create an ecosystem that includes the

necessary support for students and helps them adapt

to the study process in order to positively influence

their learning success.

To create a motivational course design, the

authors examined the student activity data in the

context of a system of short e-content subunits and

multiple-choice questions that are included in the

course content. The goal of this system is to transform

the student from a passive observer into an active

thinker, thus facilitating his / her knowledge

acquisition.

Reducing this circumstance was one of the tasks

of the questions system developed by the authors - to

keep the students’ attention by regularly engaging

them in answering questions in the context of the

subject being learned. The e-course used in the study

was adapted to generate more user behavior data in

each course unit. This was ensured by the placement

of relevant questions at the beginning and end of each

topic. Students were informed that the answers to

these questions would not be considered in the final

assessment, however, answering them is part of the

study process. The students accepted additional

questions as motivating and helpful.

In order to provide the necessary environment for the

study, the blended learning study course that was used

in the previous study was updated (Daugule,

Kapenieks, 2018). The e-course used in the study was

designed in the Sakai e-learning environment. This

study includes research on 61 student activities and

learning outcomes in a Basic Business study course.

Each unit was divided into 3 to 8 subunits. Each

CSEDU 2020 - 12th International Conference on Computer Supported Education

508

subunit was completed with multiple-choice

questions with three answers before and after the

subunit. The first introductory question of each subunit

was mandatory. After answering this question, it was

permitted to open the content and read it. It was

strongly recommended to answer the second and final

question of each subunit (See Figure 1).

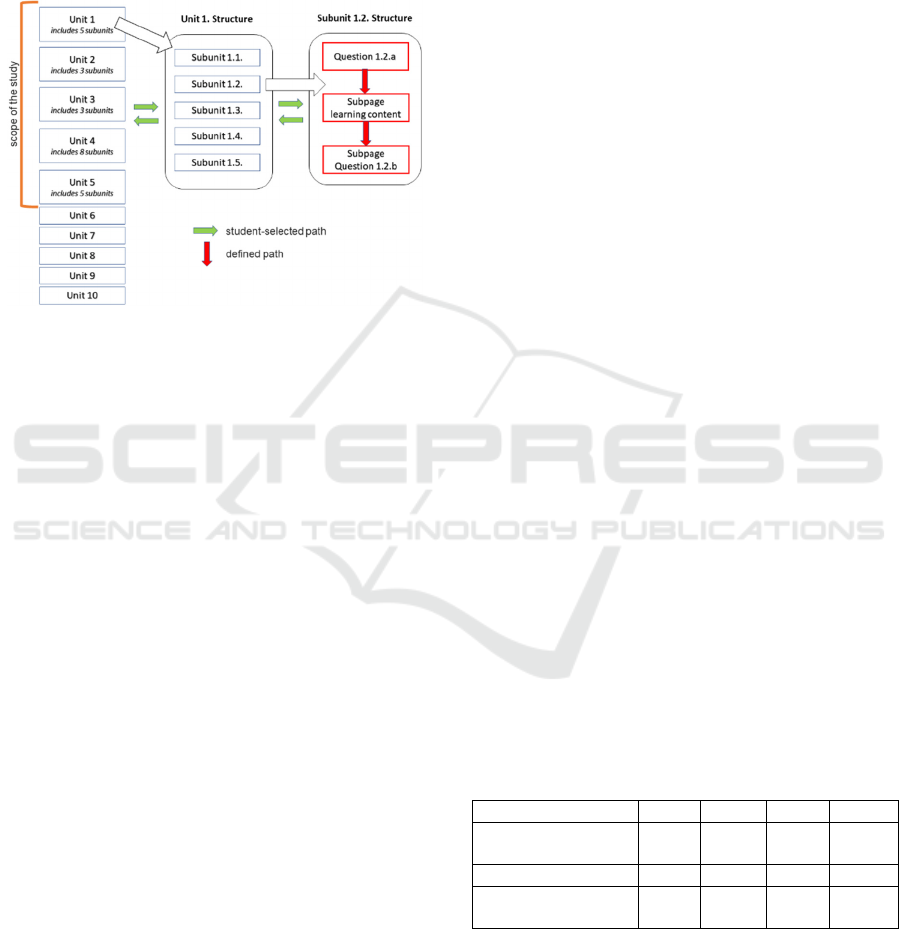

Figure 1: Learning Content Management System with

Multiple-Choice Questions Before and After Each Subunit.

This concept allowed to record, track and

visualize the student activity and student answers to

questions after each subunit.

The used data set consists of data obtained from:

 Student success in answering questions at the

beginning and end of each study subunit.

The students' success in answering subunit

questions in the study materials was recorded. A

correct answer to each of these questions rates the

student with one point, so the total score of these

points was determined by two factors - how well the

student provided the answers (student knowledge)

and how many questions he or she chose to answer

(student activity and engagement).

The success of the students in this or a co-

curricular course is not the only factor that determines

their success.

Thus the authors were able to conclude that

answering questions is both a useful way of reading a

student's actual engagement in the learning process,

and a positive influence on his or her learning

success.

3 LEARNER KNOWLEDGE

ACQUISITION SURFACE

MODELING

The correspondence of course content to

user learning needs is a critical issue in e-learning. If

a course is too complicated, learners lose interest.

They do not benefit from a course if it is too simple.

The custom-made course design allowed us to

obtain data pairs that represented students' initial

knowledge and knowledge progress during the

course. We concluded from user behavior data before

and after subunit learning that four types of results are

possible:

 N-P (negative to positive) result when the user

selects an incorrect answer before learning and

the correct answer after learning;

 P-P (positive to positive) result when the user

selects the correct answer before learning and

the correct answer after learning;

 N-N (negative to negative) result when the user

selects an incorrect answer before learning and

an incorrect answer after learning;

 P-N (positive to negative) result when the user

selects the correct answer before learning and an

incorrect answer after learning.

The data thus obtained enabled us to identify and

properly manage three situations essential for

successful adaptation of the content of the e-course to

the student's abilities:

 Too easy content - risk of missed opportunities.

With customized content the student could learn

more in the given time-frame;

 Too complicated content - risk of overload. The

student may lose confidence in their ability and

motivation to learn;

 Perfectly matching course content - a situation

in which the course content fully meets the

student's needs and allows the student to fully

exploit his or her potential for learning.

We calculated theoretical values of average

relative probability for N-P, P-P, N-N, P-N for three

types of e-content if multiple-choice questions before

and after the course unit have three answers (Table 1).

Table 1: Calculated theoretical values of average relative

probability for N-P, P-P, N-N, P-N for three types of e-

content.

N-P P-P N-N P-N

too complicated

content

0,222 0,111 0,444 0,222

too eas

content 0 1 0 0

ideally matching

content

0,666 0,333 0 0

The calculated data in Table 1 presents extreme

values:

 If the content is too complicated the N-P, P-P,

N-N, P-N data have random probability;

Knowledge Acquisition Data Visualization in eLearning Delivery

509

 If content is too easy – users have all the

knowledge before learning and therefore PP=1,

others are 0;

 If the content matches perfectly – users have no

knowledge before learning (random

distribution), and they have gained knowledge

after learning.

We considered this when further modeling the

learner knowledge acquisition surface, which was

modeled between the following data points (Table 2):

Table 2: Calculated theoretical values of average relative

probability for N-P, P-P, X-N.

N-P P-P X-N

too com

licated content 0,222 0,111 0,666

too eas

content 0 1 0

ideally matching content 0,666 0,333 0

The learner knowledge acquisition surface model

is a complete learning acquisition landscape designed

from the generated set of artificial data (Figure 2).

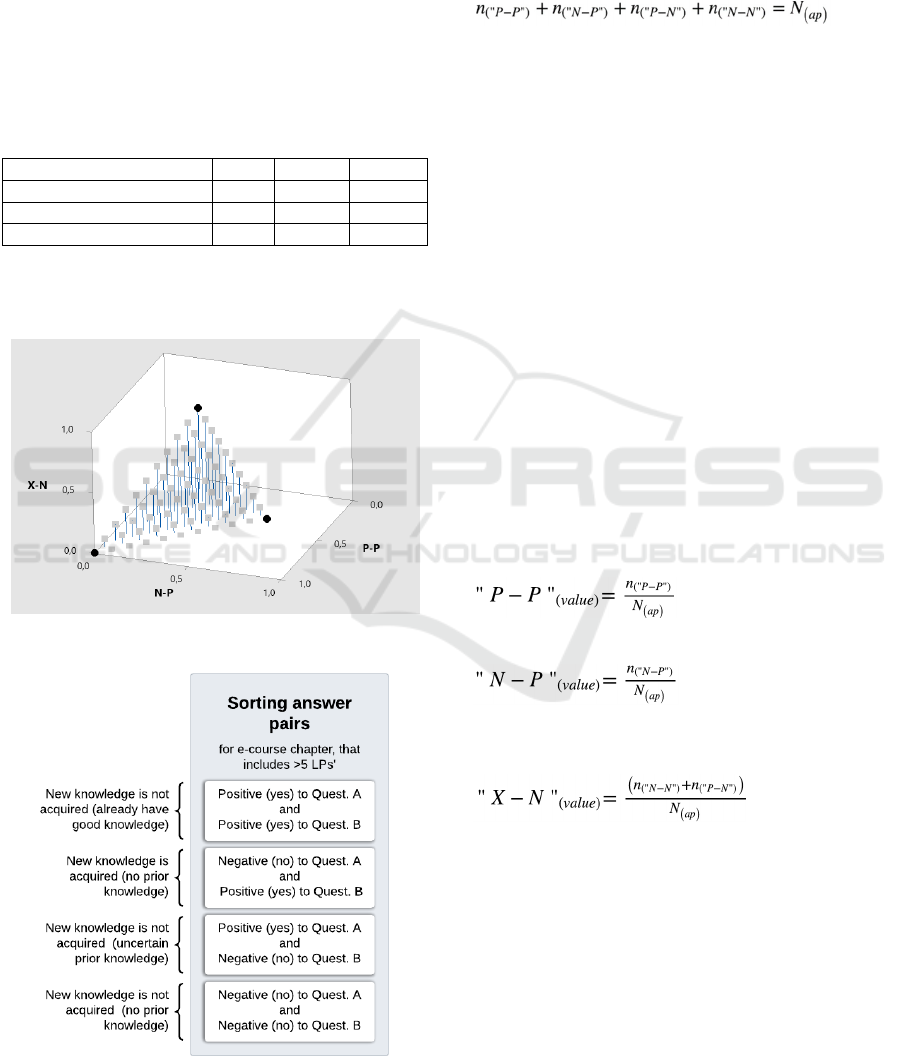

Figure 2: The learner knowledge acquisition surface model.

Figure 3: Sorting Answers Pairs.

After calculating the values, real data points are

placed on the TELECI surface. These data points

serve as a reference for assessing e-course suitability

for the student or students’ group.

Calculation was made

where:

- n

(“P-P”)

is the number of answers for 1-st type

pair of questions (correct answers both for

question A and question B);

- n

(“N-P”)

is the number of answers for 2-nd

type pair of questions (incorrect answer for

question A and incorrect answer to question

B);

- n

(“P-N”)

is the number of answers for 3-rd type

pair of questions (correct answer for

question A and incorrect answer to question

B);

- n

(“N-N”)

is the number of answers for 4-th

type pair of questions (incorrect answer for

question A and incorrect answer to question

B);

- N

(ap)

is the number of total pairs of answers.

These numbers are used to calculate value

numbers on the TELECI surface. The TELECI

surface is modelled in 3 dimensions with P-P values

on the x axis, N-P values on the y axis, and X-N

values on the z axis. The following formula is used to

determine the P-P value:

A similar formula is used to determine the N-P value:

A slightly more sophisticated formula is used to

calculate the X-N value on the z axis:

The reason for this is the authors' assumption that

in 3-rd type answer pair situation, where the answer

to question A was correct and the answer to question

B was incorrect, the correct answer to question A was

accidentally guessed.

All possible real data will be compared with this

artificial model. Placing the real users' data on the

learner knowledge acquisition surface enables

monitoring user performance.

CSEDU 2020 - 12th International Conference on Computer Supported Education

510

4 CONTENT ADEQUACY

ASSESSMENT FOR USER

LEARNING NEEDS

The real user data are used in quantitative

measurement for matching e-content with user

learning needs. We analyzed user data from the

course (results from the pairs of questions) from the

following points of view:

 The relative relevance of each department to

students' needs;

 The overall relevance of the course to the needs

of the individual student.

When evaluating the relative relevance of each

department to students' needs, we gathered the

integrated data of a group consisting of 61 students

who were learning five course units. It is presented in

the following Table 3.

Table 3: Experimental values of N-P, P-P, X-N for a student

group learning five course units.

N-P P-P X-N

Unit 1 0,26 0,60 0,14

Unit 2 0,14 0,75 0,11

Unit 3 0,37 0,48 0,14

Unit 4 0,26 0,55 0,19

Unit 5 0,56 0,35 0,09

The data in Table 3 represents the real user

behavior data values between singular values

presented in Table 2.

In the following Figure 3 we present the

experimental data of Table 3 on the learning

acquisition surface.

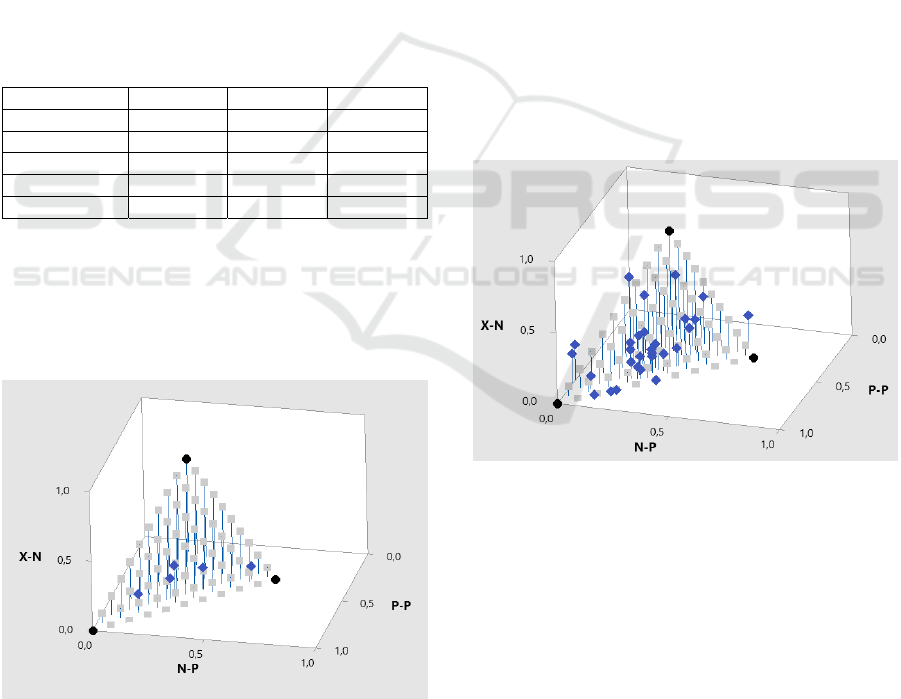

Figure 4: Experimental data of learning acquisition on the

learner knowledge acquisition surface from the Units

perspective.

The experimental data in Figure 3 and their

trajectories are positioned in curves called

“telecides”. The telecide in Figure 3 describes the

appropriateness of each course unit to the learning

needs of our 61 students’ group.

Each dark point corresponds to the learning

acquisition of one of five course units (Unit 1 – Unit

5). The Unit 1, Unit 2 data show that the content is

rather simple. Unit 5 is nearly ideal e-content with a

small trend towards being too complicated. Data

show an increase of learning complexity in line with

an increase of the number of course units for our

students’ group.

When analyzing the collected data, we notice that

some students have not completely completed the

pairs of questions, by answering only the first

question. Therefore, in order to process data related

to the course's individual student needs, we set

minimum requirements for data selection for further

processing. Students who had completed less than 5

pairs of questions were excluded from the sample to

assess individual student achievement.

In the following Figure 4 we present the

experimental data on the learning acquisition surface

from individual students.

Figure 5: Experimental data of learning acquisition on the

learner knowledge acquisition surface from an Individual

Student’s perspective.

Each dark point corresponds learning acquisition

of one of the students. As Figure 4 shows, the course

offered to students has mostly been easy to master,

but for some of them the content has been

challenging.

Knowledge Acquisition Data Visualization in eLearning Delivery

511

5 DISCUSSION

The user behavior data visualization study provided

the full landscape for user behavior activity and user

knowledge acquisition.

The points and their locations on the knowledge

acquisition surface can be used for the algorithm to

design the content management system with

additional motivation and support tools. Telecides

can be drawn for the study course, for each unit of the

study course, for a specific group of students, or for

an individual student. However, obtaining the

necessary data requires restructuring the e-content

appropriately.

Ensuring a sufficient number of measurement

points and the amount of data collected is of equal

importance. At the same time, the user of the method

must bear in mind that the course must remain user-

friendly and easy to understand - data collection must

not interfere with learning.

Regular retrieval and processing of TELECI type

knowledge acquisition data sets the framework for

course refinement in several directions. Based on the

data obtained, it is possible to send relevant support

messages to students and teachers. In this case, the

messages sent to students would contain the

necessary motivational content, while the messages

sent to the lecturers would provide information on

student success and potential output in the learning

process. At the same time, information provided by

the telecide of a e-course unit or by a student can be

used to make further adjustments to the content of the

e-course, making it more complex or simplified,

depending on the data provided by the system.

The data obtained from the course question

system can be used to design the algorithm for

predicting student learning success. The questions

system developed by the authors also assesses the

students' initial knowledge of the course knowledge

area. The experimental data on learning acquisition

are indicative of the appropriateness of learning e-

content to the needs of the student.

The obtained results lead to the conclusion that the

development of the questions system has served as a

motivating factor in attracting students to the course.

Although the effort to answer the questions is not the

only reason for the student's success, it is nevertheless

important enough to be used in further algorithm

development.

During the research it was noticed that the

questions system motivates students to participate in

the course. It relates to another study (Shell, Soh,

Flanigan, Abraham, Peteranetz, 2016) that was

conducted in a computer science student group where

it was concluded that students are attending

introductory computer science courses with the

positive motivational dispositions necessary to

succeed, however, these entering motivations are not

necessarily motivating course achievement. An

exception is highly selective honors students. The

conclusion of the aforementioned study (Shell, Soh,

Flanigan, Abraham, Peteranetz, 2016) is the

suggestion that the focus needs to be on within-course

motivational and instructional strategies, and what

instructors do affects students’ motivation.

6 CONCLUSIONS AND FUTURE

WORK

The learning content in the TELECI approach was

divided into small parts with a multiple-choice test

before the subunit and another test after it. This

approach had more appeal to the students. It ensured

obtaining a sufficient amount of user behavior data.

The e-course structure and data visualization

enabled a quantitative description of the course's -

course unit’s relevance to the user group. The study

demonstrates metrics for visual and numerical

differences, and the appropriateness of each e-course

unit to the needs of the learner group.

The innovative approach opens the new metrics

for better understanding of eLearning course

acceptance and delivery.

ACKNOWLEDGEMENTS

This research has been supported by a grant from the

European Regional Development Fund

(ERFD/ERAF) project “Technology Enhanced

Learning E-ecosystem with Stochastic

Interdependences - TELECI”, Project

No.1.1.1.1./16/A/154.

REFERENCES

Daugule, I., Kapenieks, A. (2018). The Data of the Initial

Motivation – a Valuable Source for the Development of

the Course Content. A Case Study in the Group of

Business Students. International Journal of Engineering

and Technology (UAE). 7. 89-94. 10.14419/ijet.v7i2.

28.12886.

Dennis, J. M., Phinney, J. S., Chuateco L. I. (2005) The

Role of Motivation, Parental Support, and Peer Support

in the Academic Success of Ethinc Minority First-

Generation College Students. Journal of College

CSEDU 2020 - 12th International Conference on Computer Supported Education

512

Student Development, Vol 46 (3) pp.223-236,

doi:10.1353/csd.2005.0023

Gopalan, V., Abubakar, J., Zulkifli, A.N., Alwi, A., Che

Mat, R. (2017). A review of the motivation theories in

learning. AIP Conference Proceedings. 1891. 020043.

10.1063/1.5005376.

Koch, R. (1998) The 80/20 Principle. The Secret of

Achieving More with Less. Nicholas Brealey

Publishing, pp. 6-7; 267-270.

Levy, S., Campbell, H. (2008) Student Motivation:

Premise, Effective Practice and Policy, Australian

Journal of Teachers Education, Vol 33 (5) pp.14-26.,

http://dx.dio.org/10.14221/ajte.2008v33n5.2

Robinson, A., Cook, D., (2018). “Stickiness”: gauging

students’ attention to online learning activities,

Information and Learning Science, Vol. 119 Issue: 7/8,

pp.460-468, https://doi.org/10.1108/ ILS-03-2018-

0014

Shell, D., Soh, L., Flanigan, A., Peteranetz, M. (2016).

Students' Initial Course Motivation and Their

Achievement and Retention in College CS1 Courses.

639-644. 10.1145/2839509.2844606.

Szulanski, G. (2003) Sticky Knowledge: Barriers to

Knowing in the Firm. SAGE Publications, pp.25-30.

Tsoni, R., Samaras, C., Paxinou, E., Panagiotakopoulos, C.

and Verykois, V. From Analytics to Cognition:

Expanding the Reach of Data in Learning. In

Proceedings of the 11

International Conference on

Computer Supported Education (CSEDU 2019) –

Volume 2, pp. 458-465 ISBN: 978-989-758-367-4

Knowledge Acquisition Data Visualization in eLearning Delivery

513
