Securing Device-to-Cloud Interactions in the Internet of Things Relying

on Edge Devices

ıas Grande and Marta Beltr

Department of Computing, Universidad Rey Juan Carlos, Madrid, Spain

Keywords:

Access Control, Delegation of Authorization, Identity Management, Internet of Things, Name-oriented

Networking, Reverse Addressing.

Abstract:

The Internet of Things (IoT) is not a traditional network, and this is the reason why it presents new and unique

challenges such as identiﬁcation, addressing, naming, authentication or authorization of constrained devices.

Edge approaches rely on distributed platforms at the network edge serving as a bridge between the physical

world (things and data sources, often very constrained devices) and the IoT-cloud services (digital services

offered from full-resource servers in the cloud, often not real-time and bandwidth-consuming). The main

contributions of this work are the speciﬁcation of a new event-driven addressing approach for IoT relying

on edge-centric delegation of authorization which appropriately adapts and extends the well-known OAuth

2.0 speciﬁcation for the IoT and a novel approach for naming constrained devices in large scale scenarios that

does not depend on the application domain or on the deployment and implementation details. Furthermore, the

deﬁnition of the Enrolment and Action ﬂows solving the most important challenges arising in the considered

scenario: enrolment at the edge device, name-oriented networking, authentication, and authorization using

access control tokens as a mechanism for transferring access rights from one agent (edge device) to another

(constrained device).

1 INTRODUCTION

The Internet of Things (IoT) is a very challenging

context in which many traditional solutions for ad-

dressing, naming, authentication or authorization are

not suitable due to its inherent scale, heterogeneity,

dynamism, complexity and, in many cases, resource

constraints. The new Edge Computing paradigm in-

troduces new devices (such as controllers, hubs, smart

gateways or micro data centres) at the edge of the

network, near constrained devices and able to com-

municate with both, these devices and resources, ser-

vices or applications offered in the cloud. These edge

devices can be used to decouple the cloud services

from the low-level implementation details of proto-

cols used by constrained devices and to ofﬂoad secu-

rity functions, etc. In summary, edge devices can be

used as logical intermediaries, brokers or proxies be-

tween the physical and the Internet/Web/Cloud layers

of IoT, raising interoperability and security levels.

This work is focused on delegating complexity

to an edge node relying on publish-subscribe mecha-

nisms to solve addressing (reverse addressing), deﬁn-

ing generic naming schemes not dependent on de-

vices’ implementation, allowing name oriented net-

working and delegation of authorization based on fed-

erated mechanisms (token-based).

The rest of this paper is organized as follows. Sec-

tion 2 provides an overview of the related work. Sec-

tion 3 discusses the primary motivations for this work

with some examples and potential use cases. Section

4 describes the considered architecture and presents

the proposed addressing, naming schemes and au-

thentication/authorization ﬂows, all of them based on

an edge-centric approach. Finally, Section 5 summa-

rizes our main conclusions.

2 RELATED WORK

Previous works have proposed different addressing

mechanisms speciﬁcally designed for the IoT. The

ﬁrst group of these works rely on hierarchical ad-

dressing from IoT-cloud services to constrained de-

vices which forces the cloud services to know the un-

derlying deployment of constrained devices and the

network they build (Tanganelli et al., 2018), (Moeini

et al., 2019). The second group of these works pro-

Grande, E. and Beltrán, M.

Securing Device-to-Cloud Interactions in the Internet of Things Relying on Edge Devices.

DOI: 10.5220/0009804705590564

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 559-564

ISBN: 978-989-758-446-6

559

poses the opposite approach: addressing relies on

publish-subscribe mechanisms instead of on one-to-

one synchronous communications (Lan et al., 2014),

(Cheng et al., 2016). This kind of solution can be

much more efﬁcient than the previously discussed due

to the large scale of usual IoT projects. However,

constrained devices need to subscribe to an event bus

without intermediaries, with all the resources con-

sumption and security threats that this implies.

Regarding the deﬁnition of naming schemes spe-

ciﬁc for the IoT, there have also been very interest-

ing researches. One group includes in the name of

the device information relative to actions it supports

or provides. This conditions the naming scheme to

the implementation details of the different constrained

devices enrolled to the system, (Arshad et al., 2018),

(Hail, 2019). The other group tries to propose solu-

tions independent of devices’ properties, functional-

ity or implementation details. Therefore, they are not

tied to any speciﬁc application domain, but, on the

other hand, they cannot take advantage of particular

devices’ characteristics (Yan et al., 2013), (Lee et al.,

2015), showing worse performance ﬁgures.

With name-oriented networking, interactions are

consumer-driven, and consumers request accesses us-

ing only the name of the required resource. In ad-

dition, these interactions are protected using a data-

centric approach: each piece of information (data,

ﬁle, command) is individually protected. Further-

more, interaction requests must be stateful to enable

smart forwarding and management strategies. Some

recent works have proposed lightweight mechanisms

to guarantee all these properties in the IoT given usual

resource constraints (Mahmoud et al., 2019), (Pahl

et al., 2019).

Finally, regarding authentication and authoriza-

tion of IoT devices, the ﬁrst group of analysed pre-

vious works rely on distributed and cooperative ap-

proaches to overcome this challenge, trying to pro-

pose simple, lightweight and efﬁcient mechanisms

that do not consume all available resources IoT sen-

sors and devices. These mechanisms are very often

based on different kinds of cryptographic techniques

and rely on speciﬁc features of devices, communica-

tion protocols and application domains (Cirani and Pi-

cone, 2015), (Sciancalepore et al., 2018).

The second group of works rely on centralized or

federated approaches, trusting in some sophisticated

authorization engine or server (or in a federation of

them) to make richer decisions regarding access con-

trol (ﬁne-grain, based on context or attributes, risk-

based). Many of these works are based on the OAuth

2.0 speciﬁcation (IETF, 2019). It is an authorization

framework that allows third-party applications to ac-

cess resources on behalf of the resource owner, who

has previously consented to it. There are recurrent

challenges addressed by works relying on the OAuth

speciﬁcation for the IoT (Arnaboldi and Tschofenig,

2019), (Lagutin et al., 2019). Mainly, the secure

storage of credentials used for the device authentica-

tion and the management of user consents minimizing

non-automated interactions involving this user. Both

are especially difﬁcult to solve given the limitations

of available resources and the high scalability of IoT

projects.

3 MOTIVATION, USE CASES AND

ARCHITECTURE

There are a plethora of use cases that could beneﬁt

from a new approach overcoming the limitations of

previous works related to the identiﬁcation, address-

ing, naming, authentication and authorization of con-

strained devices from IoT-cloud services. Good ex-

amples can be found in Smart Cities, Industry 4.0,

Smart Agriculture or Healthcare scenarios. All these

use cases have essential aspects in common not ad-

dressed by previous works:

• Addressing based on an asynchronous publish-

subscribe approach may be much more efﬁcient

than usual addressing linked to constrained de-

vices or protocols speciﬁc features. However, re-

source consumption levels with current solutions

are too high due to direct subscription to the event

bus. Furthermore, the security levels achieved

are usually not enough for many of these use

cases, where some of the applications are critical

(healthcare, industry, transportation, etc.).

• Naming solutions proposed in the past do not ab-

stract sufﬁciently IoT-cloud services from imple-

mentation and deployment details (of devices and

protocols). Furthermore, if they do, they do not

usually enable name-oriented networking, a suit-

able approach for the considered context and a de-

sirable feature given its stateful data-centric secu-

rity.

• Standard versions of OAuth, a well-known so-

lution to solve authorization, are not suitable

for constrained devices because they work over

HTTP and TLS. Solutions based on lightweight

application protocols are required instead. More-

over, these solutions should be capable of working

with very constrained devices not capable of stor-

ing their own credentials securely.

• All previous works trying to adapt OAuth to these

scenarios have something in common: they do

SECRYPT 2020 - 17th International Conference on Security and Cryptography

560

Figure 1: Three-Layer architecture considered in this work.

not focus on the enrolment or registration of de-

vices into the authorization solution, credentials

sharing is always performed manually and out-

of-band, or it is an issue not explicitly addressed

for constrained devices without any secure stor-

age capabilities. This approach does not provide

the required levels of scalability in the scenarios

mentioned above.

In general, all IoT scenarios requiring high degrees

of automation of management because they include

large amounts of constrained devices working over

lightweight protocols and not capable of storing their

own credentials securely, could beneﬁt from the solu-

tion proposed in this paper.

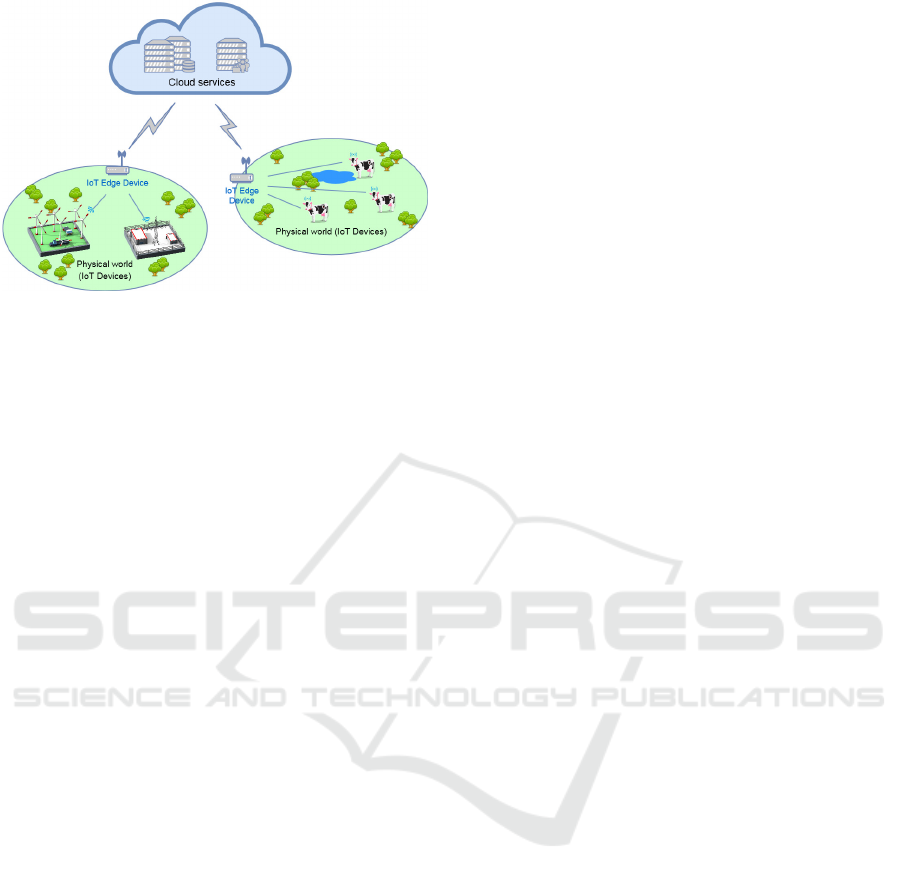

The three different roles, shown in ﬁgure 1,

are considered: IoT-cloud services (running on full-

resource servers; delivering computing and commu-

nication capabilities, data storage, management or vi-

sualization capabilities; and needing to address, name

and authorize things to perform certain speciﬁc tasks),

edge devices (gateways, independent or embedded

controllers, sensing terminals or even edge clusters or

micro data centres) and constrained devices (things

embedded within the physical world with minimal

available resources).

Given this architecture, the edge-centric solution

proposed in next section speciﬁes how constrained

devices can be addressed and named by IoT-cloud ser-

vices through edge devices which support OAuth 2.0.

According to the considered architecture and our

research goals, we ﬁrst need to enrol constrained de-

vices in the proposed addressing and naming schemes

through an edge device. Once a constrained device

has been enrolled in the proposed system, it has a

name and the IoT-cloud service should have a mean to

ﬁnd it by some kind of address. This name (or iden-

tiﬁer) should be unique and agnostic of the authoriza-

tion server so that identity will be related one-to-one

with the provided name, regardless of the edge device

in which the constrained device has enrolled. If this

feature can be guaranteed, it will support authoriza-

tion.

4 EDGE-CENTRIC SECURITY IN

THE IoT

4.1 Enrolment Flow

This ﬂow is related to the constrained device enrol-

ment, enabling an edge device to identify a single de-

vice (or a group of them) that may, at some point, re-

quire interaction with an IoT-cloud service. This ﬂow

should allow constrained devices to negotiate their

own access scopes for these interactions through edge

devices solving their addressing and naming.

First, this ﬂow avoids the need for performing a

strong authentication that would consume all avail-

able (and limited) resources at the constrained device.

In order to identify and to authenticate this device this

work proposes the use of an identity token issued af-

ter the validation of a soft ﬁngerprint built through at-

tributes regarding device’s context, static or dynamic

(Yang et al., 2019). The device ﬁngerprint can be

built relying on its hardware properties, physical or

logical addresses, user agent, geo-location, etc. or on

behavioural features coming from network protocol

analysis (used protocols, headers and payloads sizes,

inter-arrival times, etc.). The identity token works as a

unique and opaque identiﬁer representing the device’s

context stored in the cloud during its enrolment.

Second, avoiding a robust authentication model

allows one edge device, even with limited resources

too, to enrol and to manage a signiﬁcant number of

constrained devices. Third, both soft ﬁngerprint built

through attributes regarding the device’s context and

the identity token generated from that context, allow

network independence because there are not authenti-

cation mechanisms based on the underlying commu-

nication protocol.

Figure 2 shows the proposed Enrolment ﬂow, con-

sisting of the following steps:

1. The constrained device requests to the edge de-

vice for the available scopes it has allowed as an

OAuth 2.0 client. The application protocol must

support this request; it may be a GET or a POST

depending on the speciﬁc edge device implemen-

tation and selected protocol.

2. The edge device retrieves from this request and

context (the aforementioned soft ﬁngerprint) of

the constrained device. If the request was a GET,

Securing Device-to-Cloud Interactions in the Internet of Things Relying on Edge Devices

561

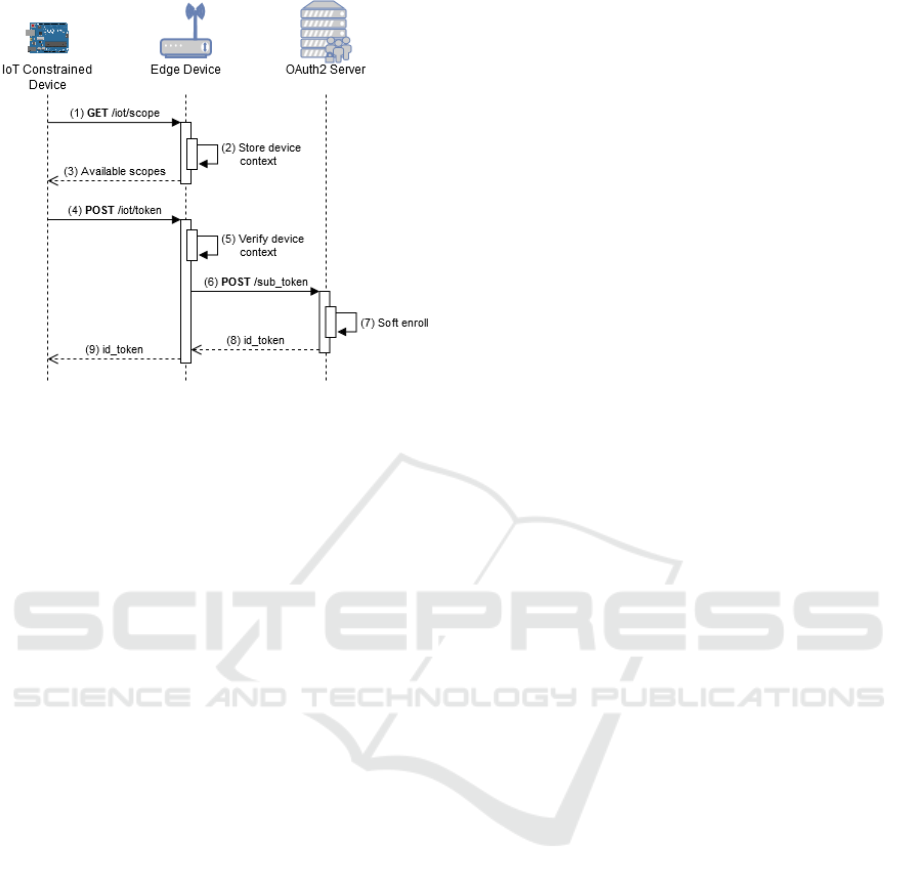

Figure 2: Enrolment Flow.

the context includes the logical address of the con-

strained device and its user agent depending on

the headers included in the protocol implementa-

tion. If the request was a POST, the payload could

also include the device’s physical address, its geo-

location, etc.

3. The edge device replies to the constrained device

with the set of supported scopes.

4. Once the constrained device chooses which scope

among the available best ﬁts its needs, it requests

for an identity token valid only for this speciﬁc

scope.

5. The edge device validates that the requested scope

is supported and veriﬁes if the context of the re-

ceived request matches the previously registered

one.

6. If the scope is supported and the context is veri-

ﬁed successfully, the edge device requests to the

OAuth 2.0 server the delegation of authorization

based on its own access token. At this moment,

the OAuth 2.0 authorization server links the iden-

tity of the speciﬁc constrained device with the ac-

cess token of the edge device for generating a new

identity token which represents the new autho-

rization granted to the constrained device. This

delegation can be made as many times as needed

with all devices which initiate the enrolment ﬂow

through the same edge device. This delegation hi-

erarchy allows to the cloud services the ability to

revoke all identity tokens linked to a concrete ac-

cess token only revoking this access token in the

same way a Public Key Infrastructure works with

the intermediate certiﬁcate authorities and the cer-

tiﬁcates issued by them. In this step, it is assumed

that the access token has been previously negoti-

ated between the edge device and the OAuth 2.0

server securely following the traditional speciﬁca-

tion.

7. The OAuth 2.0 server makes a soft enrolment of

the constrained device based on its context (prop-

agated by the edge device), and it links this con-

text to the access token of the edge device. After

that, the identity token for the constrained device

is generated with a short expiration time (which

varies from one application domain to another but

that should not exceed one hour), and this token is

also linked to the access token of the edge device.

8. The generated identity token is sent back to the

edge device. As in any other capability-based

model (tokens are traditional access control capa-

bilities which provide permissions to access pro-

tected resources), the token must always be trans-

mitted over a secure channel.

9. Finally, the identity token is replied to the con-

strained device (again over a secure channel) and

therefore, the enrolment procedure at this edge de-

vice is concluded.

4.2 Event-driven Addressing and

Action Flow

Once a constrained device is enrolled in an edge de-

vice, it has an identity token, and therefore, it is able

to interact with an IoT-cloud service through this edge

device. Reverse addressing is the method proposed

in this work to enable this interaction. This kind

of addressing is based on event-driven mechanisms

which allow building large-scale distributed applica-

tions within IoT. The routing is based on publish-

subscribe mechanisms instead of on one-to-one syn-

chronous communications. Figure 3 shows the pro-

posed Action ﬂow required to support this reverse ad-

dressing, consisting of the following steps:

1. The constrained device sends a request to the edge

device in which it has enrolled via a GET includ-

ing two different headers: Proxy-Uri and ETag.

The Proxy-Uri header refers to the cloud service

URI where the constrained device needs to per-

form the access with the edge device acting as an

intermediary. The ETag header includes the iden-

tity token of the constrained device obtained dur-

ing the Enrolment ﬂow. These two headers may

be supported by the selected application protocol

or may be deﬁned from scratch.

2. The edge device translates the lightweight re-

quest method to the corresponding HTTP method

SECRYPT 2020 - 17th International Conference on Security and Cryptography

562

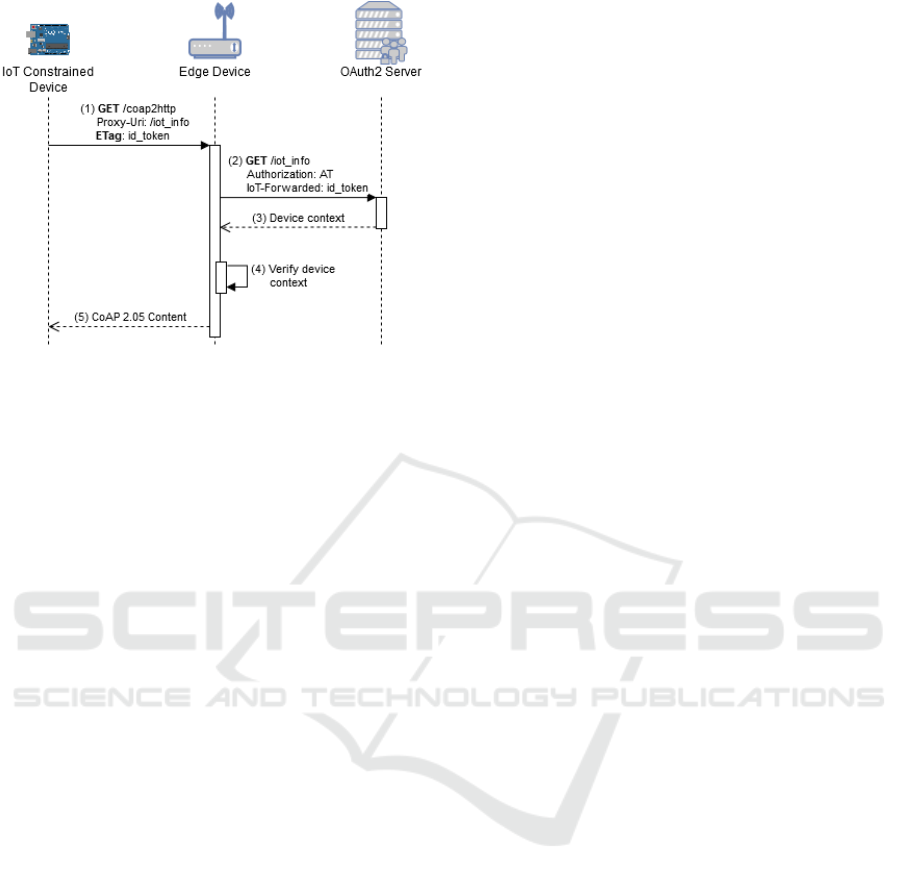

Figure 3: Action Flow.

and sends the request to the URI included in the

Proxy-Uri header of the initial request. In this re-

quest to the OAuth 2.0 server, the identity token

and the access token of the edge device are also re-

quired. In the example shown in ﬁgure 3, the GET

method is translated into an HTTP GET method.

3. The OAuth 2.0 server retrieves the context infor-

mation associated with the identity token, includ-

ing actions or orders needed by the cloud service

to perform the requested interaction, and it sends

back all information to the edge device.

4. The edge device veriﬁes that the context of the

constrained device asking to interact with the

cloud service matches the available context infor-

mation retrieved from the OAuth 2.0 server. If

the context does not match, information retrieved

from the OAuth 2.0 server will not be shared.

5. Finally, the edge device translates the HTTP re-

sponse to the corresponding response in order to

act as an intermediary and to propagate the in-

formation to the constrained device. In this case,

only the actions or orders coming from the cloud

service would be propagated because the con-

strained device does not need information about

its own context.

4.3 Naming

A structured hierarchy of identiﬁers that can be under-

stood across domains, ecosystems, owners, commu-

nities and vendors is required. It would facilitate data

sharing, but it is unlikely that all IoT-cloud services

and edge devices agree on a single common network-

naming scheme. Names can be identiﬁers if they are

unique in some scope, even if constrained devices us-

ing these names move within the network or enrols

in a different edge device. This kind of names can

be used, for example, to verify the integrity or prove-

nance of sensing data, to guarantee non-repudiation

or to perform name-based search or discovery of con-

strained devices.

The use of a naming hierarchy minimizes the

probability of names’ collision while making easy to

check the veracity and uniqueness of a given name

and the mapping of the name to a speciﬁc device

within a broad deployment. It also may improve scal-

ability since new tags or ﬁelds could be added if re-

quired, supporting name aggregation. Finally, a hier-

archical scheme provides excellent compatibility with

the existing Internet naming solutions.

In this work, we propose a naming scheme based

on XRIs (G. Wachob, 2003), because they provide hu-

man and machine-friendly formats which can be ex-

pressed as URIs if needed. Furthermore, they enable

persistence. The name or identiﬁer of a constrained

device can be built using ﬁve tags (one more than it

was proposed in (van Thuan et al., 2014)):

xri:// Domain Tag / Region Tag / Zone Tag / Edge

Tag / ConstrainedDevice Tag.

The ﬁrst tag is the ”Domain” tag. In this work, the

name or identiﬁer of a constrained device is agnostic

of the identity provider or the OAuth server. In this

way, the name is unique, and each constrained device

is named in an interoperable way across the systems.

This tag starts with a ”=” or a ”+” depending on if the

domain is a person, or another kind of IoT business

domain respectively.

The second and third tags are ”Region” and

”Zone” respectively. These tags represent how the

constrained devices are grouped geographically or or-

ganizationally. They are optional tags because the

deployment of the constrained devices could be not

so complex even though that deployment was global.

These tags start with a ”@” because they are geo-

location data or an organizational unit.

The fourth tag is the ”Edge” tag, used to identify

the gateways, independent or embedded controllers,

sensing terminals or even edge clusters or micro data

centres to which the constrained devices are con-

nected. This tag is the ﬁrst in the name hierarchy

linked to the technology and to the physical world,

and it starts with a ”+” because it may be any IoT

agent.

Finally, we have the ”Constrained Device” tag.

This tag represents anything embedded within the

physical world with minimal available resources.

They can be, for example, any kind of constrained de-

vices like sensors or actuators and therefore, this tag

starts with a ”+” in the same way that the previous tag.

Securing Device-to-Cloud Interactions in the Internet of Things Relying on Edge Devices

563

5 CONCLUSION

This paper has proposed an event-driven addressing

and novel XRI-based naming approach for the Inter-

net of Things, relying on a delegation of authorization

mechanism based on OAuth 2.0 that enables the au-

thenticated and authorized interaction of constrained

devices and IoT-cloud services through edge interme-

diaries. The proposed solution has demonstrated in

different projects that it is scalable (allowing auto-

mated enrolment in large scenarios) and interopera-

ble (based on an event-driven polling approach and on

the same concepts that standard OAuth 2.0 implemen-

tations, only extending them). Enough to solve ad-

dressing issues in almost all scenarios with adequate

efﬁciency, fault tolerance and security. Furthermore,

abstracting IoT-cloud services from low-level imple-

mentation details.

ACKNOWLEDGMENT

This research has been partially supported by the

Madrid region (EdgeData, Grant Ref. P2018/TCS-

4499) and by the Ericsson-URJC Chair (”Data Sci-

ence applied to 5G”).

REFERENCES

Arnaboldi, L. and Tschofenig, H. (2019). A formal model

for delegated authorization of IoT devices using ACE-

OAuth. In 4th OAuth Security Workshop 2019 (OSW

2019).

Arshad, S., Shahzaad, B., Azam, M. A., Loo, J., Ahmed,

S. H., and Aslam, S. (2018). Hierarchical and ﬂat-

based hybrid naming scheme in content-centric net-

works of things. IEEE Internet of Things Journal,

5(2):1070–1080.

Cheng, B., Zhu, D., Zhao, S., and Chen, J. (2016).

Situation-aware iot service coordination using the

event-driven soa paradigm. IEEE Transactions on

Network and Service Management, 13(2):349–361.

Cirani, S. and Picone, M. (2015). Effective authorization for

the Web of Things. In 2015 IEEE 2nd World Forum

on Internet of Things (WF-IoT), pages 316–320.

G. Wachob, D. Reed, M. L. D. M. D. M.

(2003). XRI requirements and glossary.

http://xml.coverpages.org/XRI-REQv110.pdf.

Hail, M. A. (2019). IoT-NDN: An IoT architecture via

named data netwoking (ndn). In 2019 IEEE Inter-

national Conference on Industry 4.0, Artiﬁcial In-

telligence, and Communications Technology (IAICT),

pages 74–80.

IETF (2019). OAuth 2.0 device authorization grant.

https://tools.ietf.org/html/draft-ietf-oauth-device-

ﬂow-15.

Lagutin, D., Kortesniemi, Y., Fotiou, N., and Siris, V. A.

(2019). Enabling decentralised identiﬁers and veriﬁ-

able credentials for constrained Internet-of-Things de-

vices using OAuth-based delegation. In Proceedings

of the Workshop on Decentralized IoT Systems and Se-

curity (DISS). Internet Society.

Lan, L., Li, F., Wang, B., Zhang, L., and Shi, R. (2014).

An event-driven service-oriented architecture for the

internet of things. In 2014 Asia-Paciﬁc Services Com-

puting Conference, pages 68–73.

Lee, S., Jeong, J., and Park, J. (2015). DNS name auto-

conﬁguration for IoT home devices. In 2015 IEEE

29th International Conference on Advanced Informa-

tion Networking and Applications Workshops, pages

131–134.

Mahmoud, A., Mahyoub, M., Sheltami, T., and Abu-

Amara, M. (2019). Trafﬁc-aware auto-conﬁguration

protocol for service oriented low-power and lossy net-

works in IoT. Wireless Networks, pages 4231–4246.

Moeini, H., Yen, I., and Bastani, F. (2019). Service speciﬁ-

cation and discovery in iot networks. In 2019 IEEE

International Conference on Web Services (ICWS),

pages 55–59.

Pahl, M., Liebald, S., and L

ubben, C. (2019). VSL: A

data-centric internet of things overlay. In 2019 Inter-

national Conference on Networked Systems (NetSys),

pages 1–3.

Sciancalepore, S., Piro, G., Caldarola, D., Boggia, G., and

Bianchi, G. (2018). On the design of a decentralized

and multiauthority access control scheme in federated

and cloud-assisted cyber-physical systems. IEEE In-

ternet of Things Journal, 5(6):5190–5204.

Tanganelli, G., Vallati, C., and Mingozzi, E. (2018). Edge-

centric distributed discovery and access in the internet

of things. IEEE Internet of Things Journal, 5(1):425–

438.

van Thuan, D., Butkus, P., and van Thanh, D. (2014). A user

centric identity management for internet of things.

In 2014 International Conference on IT Convergence

and Security (ICITCS), pages 1–4.

Yan, Z., Kong, N., Tian, Y., and Park, Y. (2013). A univer-

sal object name resolution scheme for IoT. In 2013

IEEE International Conference on Green Computing

and Communications and IEEE Internet of Things and

IEEE Cyber, Physical and Social Computing, pages

1120–1124.

Yang, K., Li, Q., and Sun, L. (2019). Towards automatic

ﬁngerprinting of IoT devices in the cyberspace. Com-

puter Networks, 148:318–327.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

564
