Scale Drone Mapping on K8S: Auto-scale Drone Imagery Processing on

Kubernetes-orchestrated On-premise Cloud-computing Platform

Hemang Narendra Vithlani

1 a

, Marcel Dogotari

, Olee Hoi Ying Lam

, Moritz Pr

Bethany Melville

, Frank Zimmer

and Rolf Becker

Faculty of Communication and Environment, Rhine-Waal University of Applied Sciences, 47475 Kamp-Lintfort, Germany

Astron Environmental Services, 129 Royal Street, East Perth Western Australia, 6004, Australia

Keywords:

Drone Imagery, Opendronemap, Photogrammetry, Open-source, Kubernetes, Cloud Computing.

Abstract:

Aerial images acquired using drone-based imaging sensors can be processed by photogrammetry toolkits

to create geometrically corrected 2D orthophoto and/or 3D models. This is a crucial step for many of the

ever-evolving civil applications of drones such as precision agriculture and surveying. Nevertheless, limited

computational resources become bottleneck in providing these results quickly. Cloud computing helps in

such scenarios because of its value-added features, namely virtualization, elasticity, high performance and

distributed computing for the web-based image processing. The containerization approach plays a vital role

in cloud computing by providing operational efﬁciency. Container orchestration engine, Kubernetes, not only

provides template-based or GUI-based service deployment but also better monitoring, log querying and auto-

scaling. The present work displays a scalable photogrammetry service, deployed on a Kubernetes-orchestrated

on-premise cluster. This reference implementation on Kubernetes enables the parallel processing of large

datasets in less time than a single computer using the free and open-source toolkit OpenDroneMap.

1 INTRODUCTION

Throughout the last decade, an acceleration in the

demand for computing resources and the availabil-

ity of low-cost, interconnected computers have led

to a valuable increase in the usefulness and func-

tionality of distributed systems (Tanenbaum and van

Steen, 2016). According to Bejjam and Seshashayee

(2018), the data in distributed systems can be easily

analyzed (than on a single machine) and interpreted

in different ways and can also, be obtained from dif-

ferent sources. Many research groups are using drone

technologies with imaging sensors to acquire aerial

data where less time and less (human) efforts are

desired. Open-source toolkits help researchers col-

laborating with small and medium-sized enterprises

(SMEs) cost-effectively solve problems in various en-

vironmental ﬁelds (Vithlani et al., 2019).

Cloud computing is a popular concept for han-

dling web-based data processing, that hands over In-

formation Technology (IT) infrastructure and service

management to the service providers. The client can

utilize the modalities of distributed computing vastly

https://orcid.org/0000-0001-7721-3467

at the desired time. Although, there is no need to

set up and administer the physical infrastructure from

scratch, the users conventionally lean towards a mid-

dle path where the administration of the servers in dis-

tributed computing remains under their control (Gar-

rison and Nova, 2017).

This work aims to achieve auto-scaling for the

resource-hungry task of generating orthophoto us-

ing open-source tools (namely OpenDroneMap) in

a cloud-native environment (namely Kubernetes and

Rancher) was conducted. Kubernetes’ readying au-

tomation, scaling, and management of containerized

application can serve operational-end (Sarajlic et al.,

2018); while the open-source, web processing and re-

branding nature of OpenDroneMap (ODM) can serve

very well to the end-users. Contributions of this paper

include on-premise reference cloud computing archi-

tecture, added-value to the ODM project by Kuber-

netes deployment, auto-scaling workﬂow, and evalu-

ation using a parallel processing algorithm of ODM.

Section 2 captures the related works with its sup-

porting and opposite arguments for this work. Sec-

tion 3 conceptualizes virtualization approaches, con-

tainer orchestration technique, and ODM. Section 4

presents an experimental system and dataset prepara-

318

Vithlani, H., Dogotari, M., Lam, O., Prüm, M., Melville, B., Zimmer, F. and Becker, R.

Scale Drone Mapping on K8S: Auto-scale Drone Imagery Processing on Kubernetes-orchestrated On-premise Cloud-computing Platform.

DOI: 10.5220/0009816003180325

In Proceedings of the 6th International Conference on Geographical Information Systems Theory, Applications and Management (GISTAM 2020), pages 318-325

ISBN: 978-989-758-425-1

tion, workﬂow, and the dataset and parameters used

for the system evaluation. Discussion and visualiza-

tion of the results are presented in section 5. Closing

thoughts and future steps are discussed in section 6.

2 RELATED WORK

Cloud computing is becoming a more convenient

choice for geo-scientists because of its effective and

efﬁcient resource management capabilities, and also

because web-based solutions allow multiple users at

the same time. Lan et al. (2018) investigated the

potential of processing massive remote-sensing im-

agery for land-cover change detection using cloud

computing. They concluded that the computation

time is directly proportional to the size of the dataset.

Kang and Lee (2016) studied the capability of auto-

scaling based on OpenStack, i.e. to scale the cloud-

environment based on the number of users. How-

ever, because OpenStack supports a huge software

stack, Suryateja (2020) suggested that its architec-

ture was not suitable for virtualized set ups. Ac-

cording to Martinez-rubi et al. (2017), parallel pro-

cessing was proven to be necessary to reduce com-

putation time for a photogrammetry process, and that

virtualization was desirable in the situation where re-

source constraints applied. To ensure the proposed set

up can beneﬁt SMEs, open-source solutions are pre-

ferred. Groos et al. (2019) had demonstrated a low-

cost system set up and a promising use-case of high-

resolution imagery processing based on ODM. These

works demonstrated the potential of using open-

source cloud computing platforms for photogramme-

try workﬂows. Yet, to the best of our knowledge, no

research had been done in evaluating the performance

of parallel and on-premise cloud computing using Ku-

bernetes containerization technology in the case of

remote sensing image processing. Therefore, in this

work, not only an open-source photogrammetry pro-

cessing chain had been set up based on the previous

work in an on-premise cluster (Vithlani et al., 2019),

but system evaluation after auto-scaling had also been

performed using various datasets.

3 TOOLS AND TECHNOLOGIES

Cloud computing development has been trending and

lifted since the software advancement: Virtualiza-

tion. Conceptually, the virtualization technique cre-

ates division into physical resources and separates

them from original resources and other virtual envi-

ronments. Virtualization can be implemented through

various approaches. One approach is the hypervisor-

based approach, where a hypervisor is running on

the top of the host operating system (OS) and dis-

tributing the physical hardware resources to every

guest OS. Each physical machine is divided into dif-

ferent virtual machines (VMs) and can be used for

different purposes. This approach is advantageous

due to the above-mentioned reason. Yet the prob-

lem with this hypervisor is that each VM has its own

OS. Container-based virtualization approach came

into the market to overcome the problems with the

performance overhead of hosted hypervisors while

keeping the beneﬁt of simpler deployment of the

same. This technology uses the fundamental concept

of using the kernel features to create an isolated vir-

tual environment for processes, makes it light-weight

and platform-independent (Pathak et al., 2019; Tae-

Hoon Kim and Rajput, 2016).

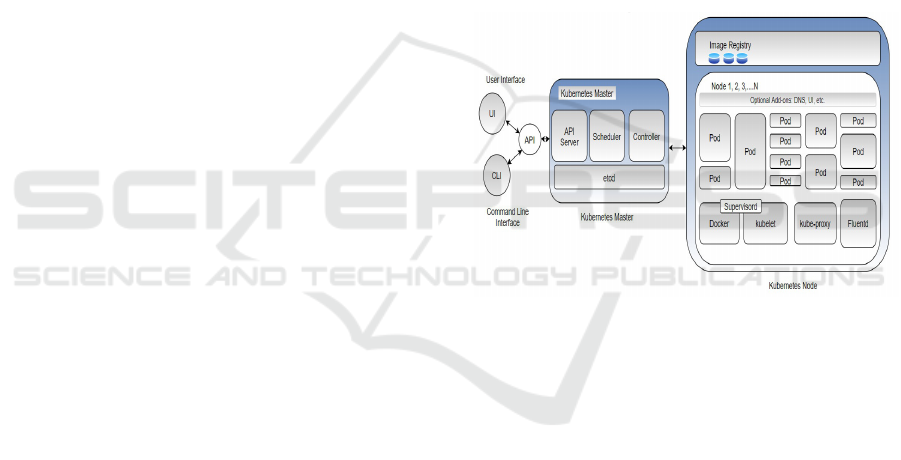

Figure 1: Kubernetes component diagram based on the

work by (MSV, 2016).

Kubernetes is an open-source project that is used for

managing large containerized workloads, as well as

scaling, automatic deployment, and provision as a ser-

vice in various sort of medium like virtual, physical

and cloud infrastructure. Another important advan-

tage of Kubernetes is that it controls and monitors

hardware usage like CPU, storage and RAM. From

the ﬁndings of Shah and Dubaria (2019), features

like popularity, community support, auto-scaling, log-

ging, monitoring, and better GUI are among the ad-

vantages of Kubernetes over the alternative orchestra-

tion platform Docker Swarm. After diligent consider-

ation, Kubernetes was chosen for the task. As illus-

trated in Figure 1, Kubernetes follows a master-slave

architecture. The Kubernetes master is responsible

for scheduling the deployments, allowing or disallow-

ing the application programming interfaces (APIs)

and monitoring the entire cluster. The API server

is used to control or communicate with the cluster

components using REST APIs. Kubernetes slaves

Scale Drone Mapping on K8S: Auto-scale Drone Imagery Processing on Kubernetes-orchestrated On-premise Cloud-computing Platform

319

- the worker nodes - handle the work-force and ex-

pose computation, network or storage. In this work,

Docker

(v18.09.3) has been selected as a container

run-time environment on each node, because of its

strong user-base. A pod, the smallest unit on a node,

consists of one or more containers inside it. It sup-

ports shared storage and network for the containers.

For scaling up or down an application, only the addi-

tion or deletion of the pods is required. Pod, service,

deployment and namespace deﬁnitions are stored in

the master node in etcd storage (an open-source key-

value store). The current status of Kubernetes objects

is exposed to the master node. The Kube-scheduler

schedules new workloads based on resource availabil-

ity. Kubectl is a command-line tool that helps to com-

municate with the API server.

4. Mesh

generation

1. Upload Imagery

GCP

2. SFM

3. MVS

8. Orthophoto

generation

7. DEM

6. Georeferencing

5. Texturing

View

Download

3D Model Map

NDVI,

Orthophoto,

DSM etc..

GCP - Ground Control Point

SFM - Structure From Motion

MVS - Multi-View Stereo

DEM - Digital Elevation Models

NDVI - Normalized Difference

Vegetation Index

DSM - Digital Surface Model

Input: Images and GCP

Output:1. Image database

  2. Camera poses, sparse point cloud, and transform

  3. Dense point cloud

  4. 3D and 2.5D meshes

  5. Textured meshes

  6. Georeferenced point cloud, textured meshes, and crop boundaries

  7. Digital surface models, digital terrain models, and classiﬁed georeferenced point cloud

  8. Orthophoto

Figure 2: ODM processing chain based on the work by

(Toffanin, 2019).

OpenDroneMap (ODM) is an open-source pho-

togrammetry toolkit used for mosaicking, modeling,

analyzing and visualizing aerial imaging data (Open-

DroneMap, 2020). It is used in this work to support

the drone-related business activities of SMEs, while

providing them the freedom to modify and present

the project to different stakeholders and eliminating

the cost for the black-boxed vendor-owned software.

ODM can be utilized from the command line as well

as with a user-friendly web interface. According to

Toffanin (2019), ODM is used across different ﬁelds

for a multitude of applications, such as monitoring

agricultural crop yields, mapping land zones, classi-

fying and tallying trees, improving OpenStreetMap

and stitching aerial images. ODM is developed with a

microservice-based architecture in mind and supports

containerization. It can be seen from Figure 2 that

the collection of aerial imagery with Ground Control

Points (GCPs) (discretionary) is stacked in the ﬁrst

processing steps from the user input. Structure from

https://github.com/docker

motion (SFM) is a photogrammetry approach for gen-

erating the 3D structure from overlapping 2D images

with the help of camera motion. Utilizing point of

view geometry and optics, the position and angle of

the camera can be recouped for each image. Mesh-

ing is the method of joining the results from previ-

ous steps to operate the dataset as a whole. Textur-

ing will assist with adding colors to meshes and cre-

ate texture meshes. Georeferencing is the method of

translating the local coordinate space to global coor-

dinate space. Once georeferenced, boundaries get de-

ﬁned for the orthophotos and digital elevation models

(DEMs) (Toffanin, 2019).

4 EXPERIMENTAL WORKFLOW

The novelty of this experiment consists of on-premise

cloud computing, ODM deployment in Kubernetes to

achieve auto-scaling and its performance evaluation

for faster drone image post-processing.

4.1 System Conﬁguration

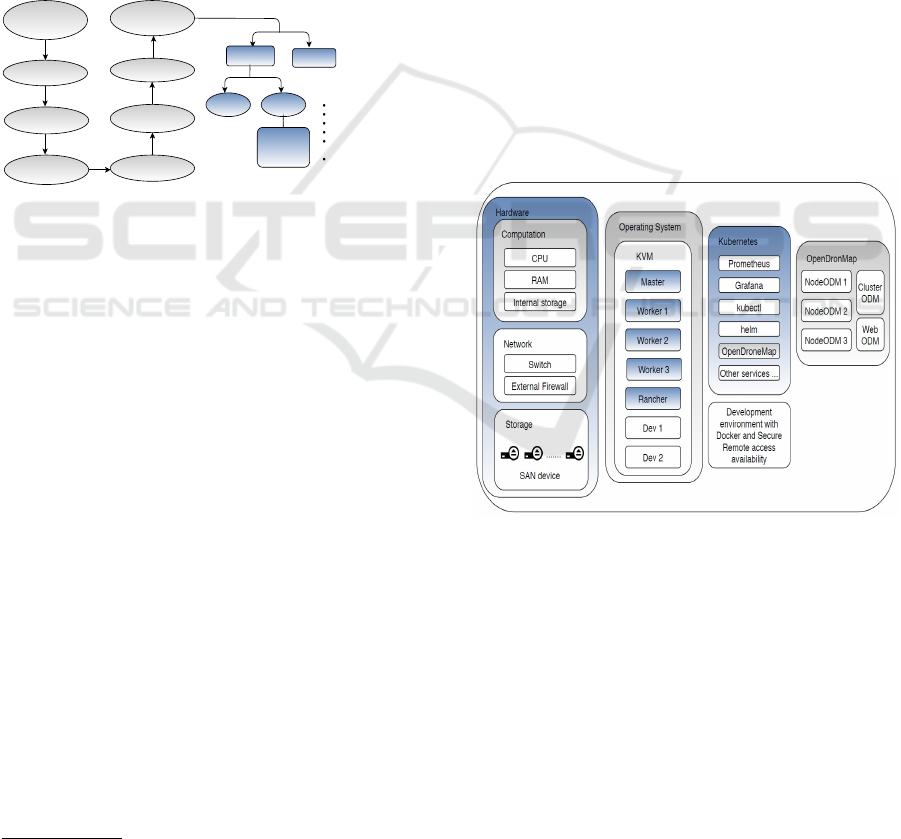

Figure 3: System design overview with software and hard-

ware components.

The system design overview with software and hard-

ware components is shown in Figure 3. For the num-

ber cruncher application of remote-sensing imagery

processing, a bare-metal set up was prepared. It con-

sisted of a computer cluster with high-performance

nodes, a 10 Gbps Cisco manageable switch, and a

Storage Area Network (SAN) device, which were set

up to serve as computation engines, backbone net-

work, and storage, respectively. To add heterogene-

ity in computation, processing nodes were chosen

with three different conﬁgurations (of CPUs, GPUs,

RAM, and SSDs) as shown in Table 1. All the servers

GISTAM 2020 - 6th International Conference on Geographical Information Systems Theory, Applications and Management

320

were provisioned with Ubuntu server OS (18.04.2

LTS GNU/Linux 4.15.0-58-generic x86-64) for easy

Kubernetes deployment.

Table 1: Bare-Metal servers conﬁgurations.

No. of

CPU

cores

No. of

GPUs

RAM

(GB)

Internal

SSD

(TB)

1 10 4 128 2

2 16 - 512 2

3 28 - 512 2

In this paper, auto-scaling were applied on all three

machines, a Kubernetes

(v1.16.3) master, develop-

ment engine, and Rancher GUI

GUI (v2.3.3) engine.

To realize this set up from the available conﬁgura-

tion a layer of virtualization was setup using an open-

source KVM

(Qemu v2.11.1) because of its perfor-

mance beneﬁts and lower provisioning time. Rancher

empowers production-grade Kubernetes with back-

up, security, one-click installations, and a single com-

mand to add new workers or master nodes in the clus-

ter. Previous setup Vithlani et al. (2019) was ex-

panded to handle parallel workload using Kubernetes

in the presented work.

4.2 Process Flow

Parallel processing in ODM had been made avail-

able since version 0.6.0. However, auto-scaling

was only supported since ClusterODM (v1.3.7) when

commercial cloud platforms such as DigitalOcean,

Hetzner, Scaleway or Amazon Web Services were

made available. A new algorithm was introduced to

perform split-merge (Toffanin, 2019) for distributed

computing, after realizing the Horizontal Pod Au-

toscaler (HPA) in Kubernetes ODM deployment to

cost-effectively manage resources. To access multi-

ple processing instances (NodeODM v1.6.0) for dis-

tributed processing over a single network address

(ClusterODM), some obligatory steps were needed to

be performed by the administrator in advance as por-

trayed in Figure 4.

Figure 5 shows how the system was made accessi-

ble to the web-portal WebODM (v1.2.0) for better us-

ability. This user-centric approach is meant to provide

an abstraction layer over the underlying infrastruc-

ture, scaling calculations and resource management.

The parameters used in the proposed implementation

for parallel processing included (Toffanin, 2019):

https://github.com/kubernetes/kubernetes

https://github.com/rancher/rancher

https://github.com/qemu/qemu

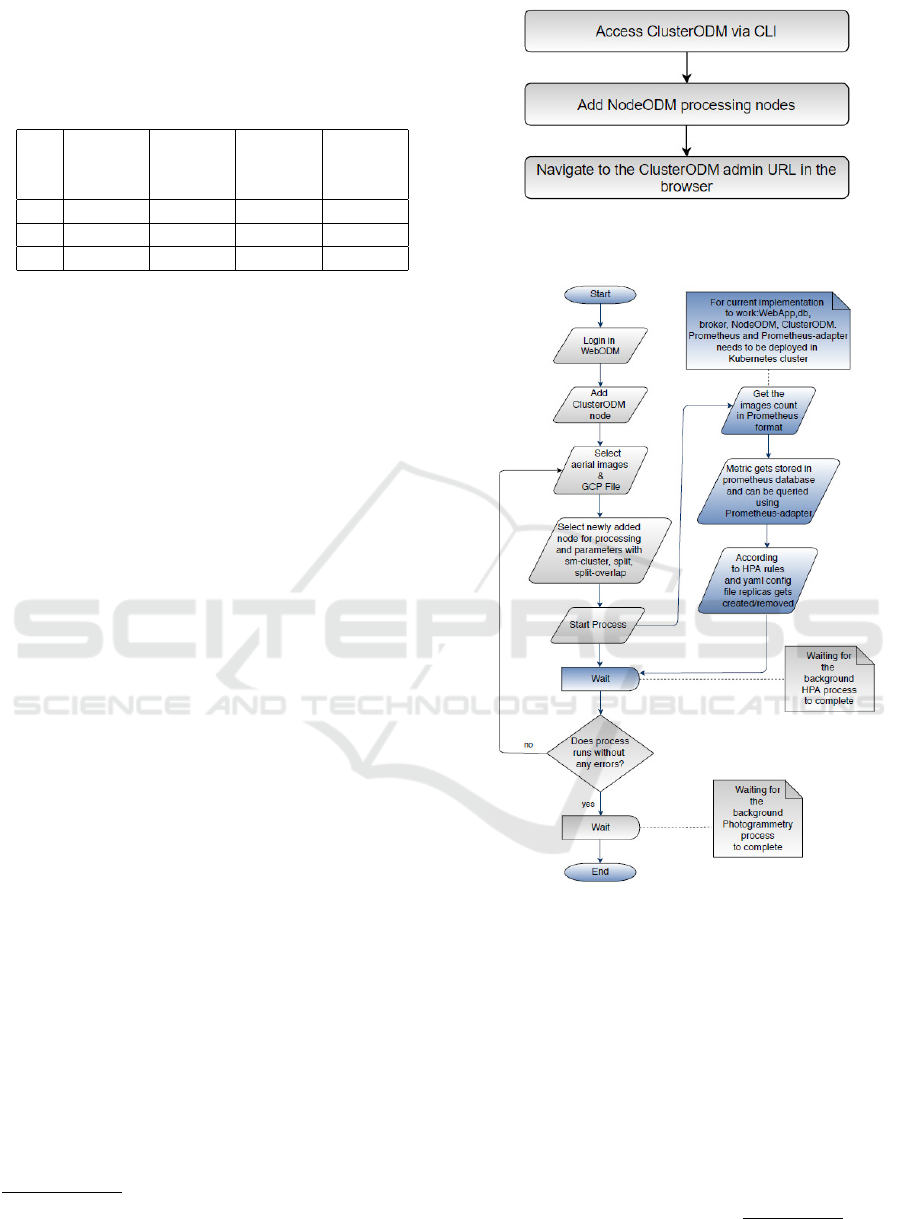

Figure 4: Required steps for realizing auto-scaling and par-

allel processing with the help of ClusterODM.

Figure 5: Experimental workﬂow. Typical steps to be fol-

lowed by a user to realize auto-scaling and parallel process-

ing in WebODM.

• sm-cluster: it states a URL to a ClusterODM in-

stance. At the point when joined with the split

choice, it empowers the conveyed split-merge

pipeline for handling huge datasets in parallel uti-

lizing various processing nodes.

• split: for proper sub-division of the dataset. As

per Equation (1), this choice determines the num-

ber of images that ought to be processed in each

submodel.

number o f submodels =

total images

split value

(1)

Scale Drone Mapping on K8S: Auto-scale Drone Imagery Processing on Kubernetes-orchestrated On-premise Cloud-computing Platform

321

• split-overlap: for the adequate merging of the sub-

models. In arrange to adjust and blend comes

about, each submodel must be reproduced with a

certain sum of overlap (in meters) and redundancy

with other submodels.

Afterwards, the algorithm waited for the auto-scaling

status response, in order to proceed with the pho-

togrammetry step in parallel. The registered node

status (online/ofﬂine) from ClusterODM, served as a

validation point for the system’s recursive wait pe-

riod. This auto-scaling part was handled by Kuber-

netes after getting the required information from the

WebODM.

4.3 Auto-scaling in Kubernetes

In the presented work, the HPA was chosen due to

the dynamic resource utilization and limited resource

availability in SMEs. For HPA in Kubernetes to cal-

culate desired replicas custom metrics current value

needed to be exported. A newly introduced monitor

in the ODM, exports input ﬁles count (custom metric)

in Prometheus

format:

# HELP Cluster_images_in The number of Images

from Cluster input

# TYPE Cluster_images_in gauge

Cluster_images_in{method="IMAGES UPLOADED",

status="OK"} 524

These outcomes were then exported to a predicator

or Prometheus where it can be stored in and queried

from a time-series database setup in Kubernetes. In-

side Kubernetes, auto-scaling was performed based

on the speciﬁcations of the HPA conﬁg ﬁle:

kind: HorizontalPodAutoscaler

...

spec:

maxReplicas: 3

metrics:

- type: Pods

pods:

metric:

name: Cluster_images_in

target:

type: AverageValue

averageValue: "200"

minReplicas: 1

....

This example HPA conﬁg ﬁle is for custom metrics

type “Pod”. There are two different types of custom

metrics namely pod and object. Unlike pod metrics

that determine the replica count based on target value

averaged across pods, object metrics describe a dif-

ferent object in the same namespace. Desired replica

https://github.com/prometheus/prometheus

count can be derived as per Equation (2)

ceil



currentReplicas ×



currentMetric

desiredMetric



(2)

4.4 Evaluation Parameters

In order to evaluate the performance of the designed

approach, so that the results could be a reference for

SMEs working in the drone and environmental re-

search, datasets and system conﬁguration that ful-

ﬁll the 3Vs (volume, variety, and velocity) were se-

lected in this work. Higher and lower number of im-

ages were chosen for the experiment (volume); dif-

ferent datasets consist of RGB, Multispectral openly

available datasets and use-case speciﬁc self-acquired

drone imagery (variety); the speed of the execution

is ensured by the comparison of low and high conﬁg

nodes to distributed execution (velocity).

Processing enormous dataset is usually challeng-

ing with limited resources. This is because, with in-

crement in images count, RAM usage also increases.

In the split-merge algorithm, the dataset gets divided

into sub-parts called submodels. These submodels

can be processed parallelly on the local or remote

machine to overcome memory shortcomings while

achieving the desired output from the mapping pro-

cess (Toffanin, 2019).

Table 2: Dataset Overview.

Dataset Resolution

(DPI)

No. of

Images

Size

(MB)

GCP

Grassland

2019

72 186 2030 Yes

Waterbury 350 248 1921 No

Zoo 350 524 3521 No

Grassland

2018

72 662 5700 No

MicaSense 144 210 517.7 No

Garﬁeld 96 112 276.2 No

Six geo-tagged datasets had been selected for system

evaluation. These included four open-source datasets

that were known as Waterbury (248 RGB images),

Zoo (524 RGB images), MicaSense

(210 multispec-

tral images) and Garﬁeld (112 multispectral images).

As well as two grassland datasets that were acquired

using the consumer-grade DJI Phantom 4 Pro, known

as Grassland 2019 (186 RGB images) and Grassland

2018 (112 RGB images) (Lam et al., 2019). Table 2

shows the qualitative characteristics of each dataset.

https://kubernetes.io/docs

https://community.opendronemap.org/c/datasets/10

GISTAM 2020 - 6th International Conference on Geographical Information Systems Theory, Applications and Management

322

Table 3: Overview of the test machine conﬁgurations.

Machine

Conﬁgura-

tion

Logical

CPUs

RAM

(GB)

Split-

merge

Auto-

scaling

Low 10 ∼ 52 No Yes

High 28 ∼ 250 No Yes

3-worker

nodes

10,

28, 18

∼ 250 Yes Yes

Fine-tuning between resource necessity and process-

ing velocity can be analyzed by executing the algo-

rithm with three different conﬁgurations, which are

laid out in Table 3.

horizontal-pod-autoscaler-downscale-delay: 6s

horizontal-pod-autoscaler-

downscale-stabilization: 15s

horizontal-pod-autoscaler-sync-period: 3s

horizontal-pod-autoscaler-upscale-delay: 5s

prometheus.scrapeInterval: 15s

prometheus.evaluationInterval: 15s

For comparative evaluation of HPA implementations,

“Pod” and “Resource” metrics were evaluated with

Kubernetes metrics default scrape intervals as well as

modiﬁed intervals. Modiﬁed timeouts are listed above

while the response times are mentioned in Table 4.

5 RESULTS AND DISCUSSION

The performance of the proposed auto-scaled split-

and-merge system set up was evaluated using the six

datasets as described in Section 4.4. Exported val-

ues (input ﬁles count) from ODM as explained in

Section 4.3, got successfully parsed and queried via

Prometheus end-point. Time-series based representa-

tion of value change was scraped and visible in Figure

6. This time-series values can be further exploited (in

Kubernetes HPA) to perform auto-scaling. The out-

come of this internal HPA process can be visualized

with respect to current replica count (plus, resource

utilization) in Grafana

(v3.6.3) end-point as shown

in Figure 7.

The execution time of the photogrammetry pro-

cess relies on many external and internal parameters,

such as the data acquisition platform (drone, camera

model, sensors) and environmental conditions. How-

ever, results portrayed here only emphasis on the ef-

fect of computation power to the dataset processing

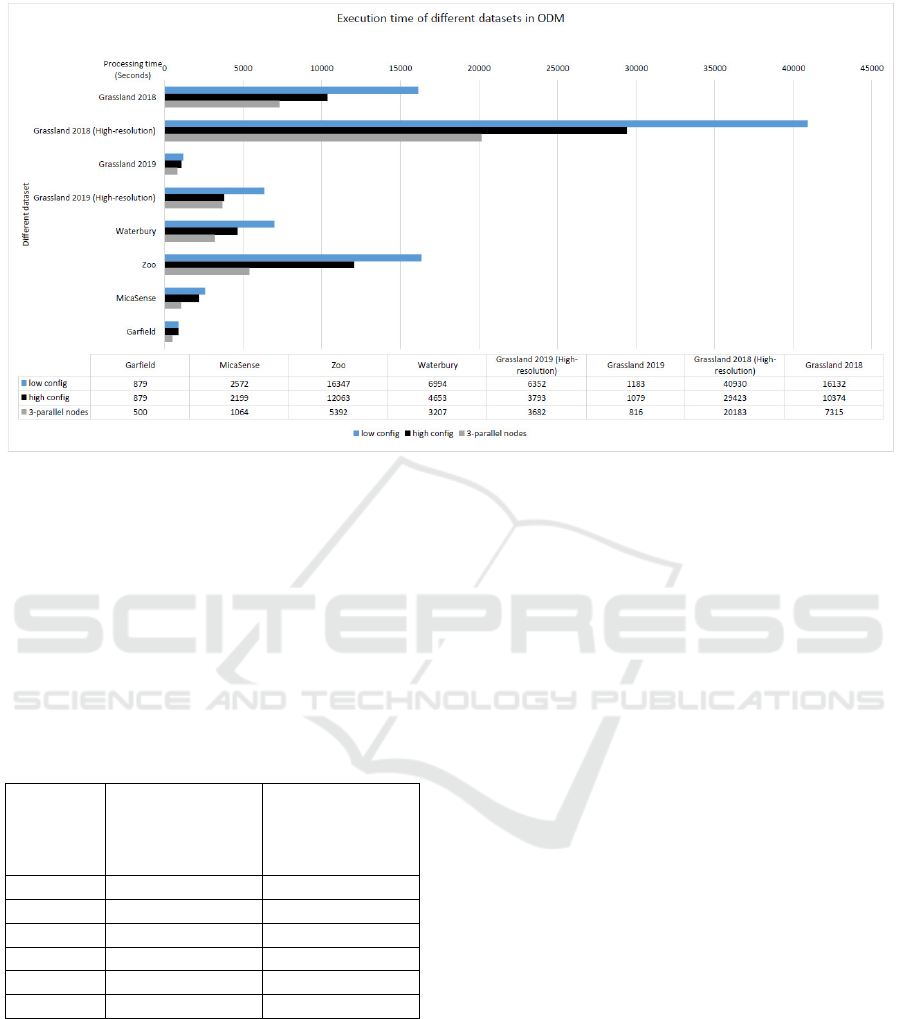

times as demonstrated in Figure 8. From the illustra-

tion, ﬁrst four bar chart results represent the execution

time (in seconds) of the datasets Grassland 2018 and

https://github.com/grafana/grafana

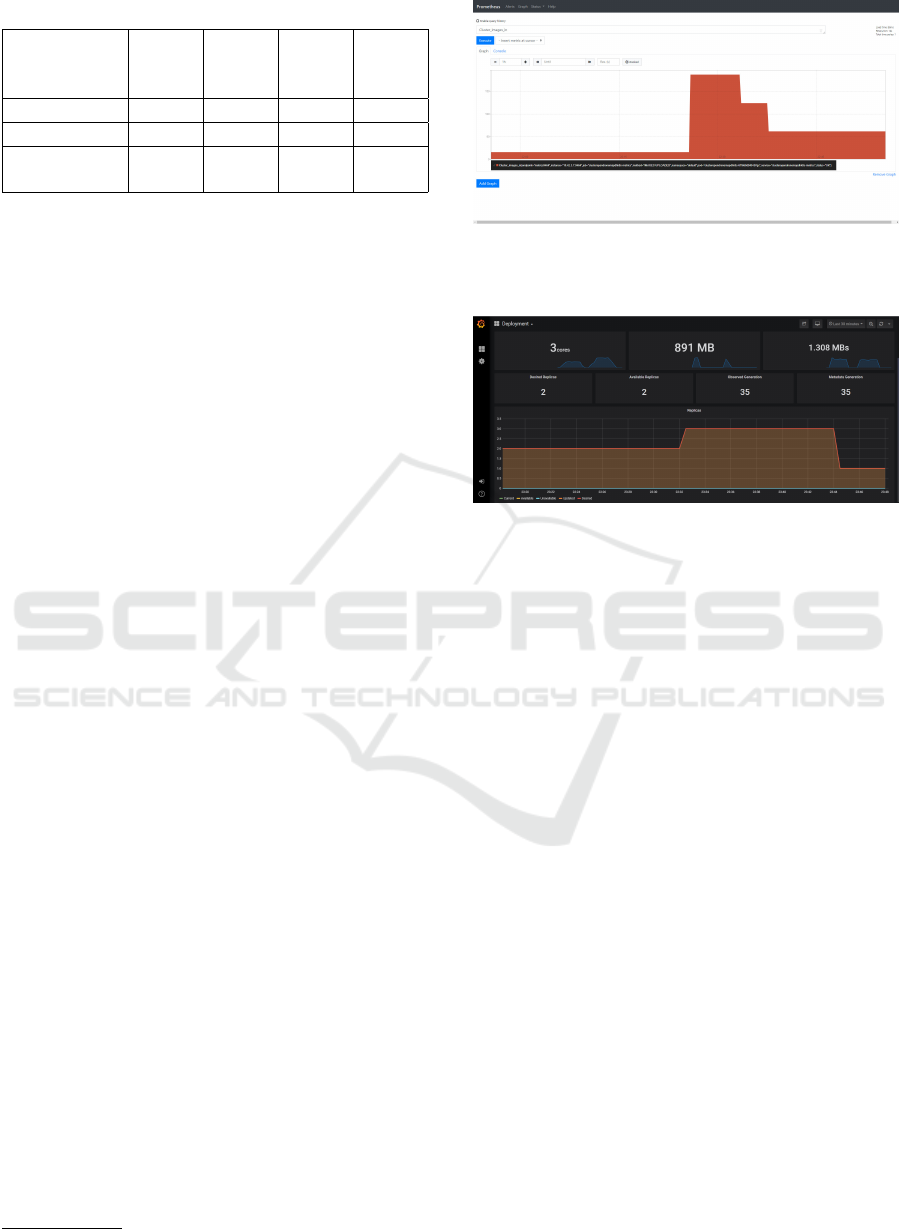

Figure 6: View of Prometheus with time-series graph gen-

erated from different executions with the different number

of input images.

Figure 7: View of Grafana after auto-scaling performed on

OpenDroneMap Kubernetes deployment.

2019 respectively using the default and use-case spe-

ciﬁc parameters with the three conﬁgurations stated

in Table 3. The use-case speciﬁc parameters were

set to generate an orthophoto with the sub-centimeter

resolution of 0.3 cm/pixel from the acquired imagery.

Whereas, the remaining four bar chart results, display

the execution time (in seconds) of the open-source

RGB and multispectral datasets respectively.

Initial results showed that for larger datasets

(Grassland 2018), it took more than 11 hours to gen-

erate a high-resolution orthophoto (use-case speciﬁc)

with the low conﬁguration node; while the execution

time was reduced to nearly 8 hours with the high

conﬁguration node. This is further proven when the

process was run parallel on three workers nodes, the

execution time was almost halved in comparison to

the low conﬁguration node. The results also demon-

strated that modiﬁcation of the parameters such as in-

creasing the orthophoto and DEM resolutions from

the default 5 cm/pixel to 0.3 cm/pixel required more

execution time despite the size of the dataset (Grass-

land 2018 and Grassland 2019). This shows that split-

and-merge or parallel processing can provide faster

photogrammetry products.

Another observation was that running distributed

split-merge on an up-scaled set up (higher compu-

tation power) led to shorter execution time, which

can be seen especially in large datasets. However,

in the case of smaller datasets (Grassland 2019 and

Scale Drone Mapping on K8S: Auto-scale Drone Imagery Processing on Kubernetes-orchestrated On-premise Cloud-computing Platform

323

Figure 8: Computation time (in second) for the system evaluation based on the six datasets, including the use-speciﬁc cases

for Grassland 2018 and 2019.

Garﬁeld), the computation time difference between

single and scaled parallel nodes was not as obvious.

It was also observed that with a small dataset, some-

times the distributed execution took more time than

expected. The reasons behind the delay were the split-

ting and merging steps, as well as the network and I/O

delays.

Table 4: Comparative evaluation of Kubernetes HPA before

and after modiﬁcations in timeout values and custom met-

rics type: object vs. pod.

No. of

replicas

[from-to]

Before modiﬁ-

cations response

time (seconds)

[object type]

After modiﬁca-

tions response

time (seconds)

[pod type]

[2-1] 206 76

[1-2] - 41

[2-3] 102 85

[3-1] 371 54

[1-3] 54 43

[3-2] 399 -

Critical reﬂections: The default timeout values in

HPA and Prometheus led to more auto-scaling delay

as shown in Table 4. Before modifying the delay,

times were noted based on the experiments rather than

the actual logic of Equation (2). As custom metrics

with “object” type fails to calculate replicas count ac-

cording to it. It was also unable in up-scaling from 1

to 2 replica count. However, these failures can be han-

dled up-to a certain extent by specifying pod custom

metric type in HPA because it is consistent with Equa-

tion (2). This custom metric comes with the limita-

tion of not being able to handle downscaling of 3 to 2

replicas count and end up running unnecessary Clus-

terODM instances. Apart from HPA implementation

problems, the ODM algorithm limits itself with JPEG

and TIFF ﬁles as input and no-support for GPUs.

6 CONCLUSION AND OUTLOOK

A novel approach of deploying a photogrammetry

toolkit on a Kubernetes managed on-premise cloud

computing cluster was proposed and evaluated in this

work. Comparison of generating orthophoto with

scaled parallel execution to the singular execution dis-

plays feasibility of drone-acquired imagery mapping

using the Kubernetes HPA method. In all the sce-

narios, the combination of auto-scaling and parallel

execution had proven to be faster than single node

executions. HPA turned out to be a promising Ku-

bernetes feature with respect to the orthophoto gen-

eration time for various datasets. The evaluation re-

sults showed that total orthophoto generation time

can be reduced with parallel processing, while auto-

scaling was achieved by fusing open-source tools in

ODM. This combination allowed the system to run

faster and more resource-efﬁcient and provided a bet-

ter picture to the cloud service providers in prepa-

ration of an agreement with clients. After comple-

tion of the processing, the online “cloud-optimized-

GISTAM 2020 - 6th International Conference on Geographical Information Systems Theory, Applications and Management

324

GeoTIFF” feature of the latest ODM project can be

utilized to calculate the normalized difference vege-

tation index (NDVI) online which is shown in Figure

9. This client-side resource-saving feature is a really

good show-case of a low-cost end-to-end system.

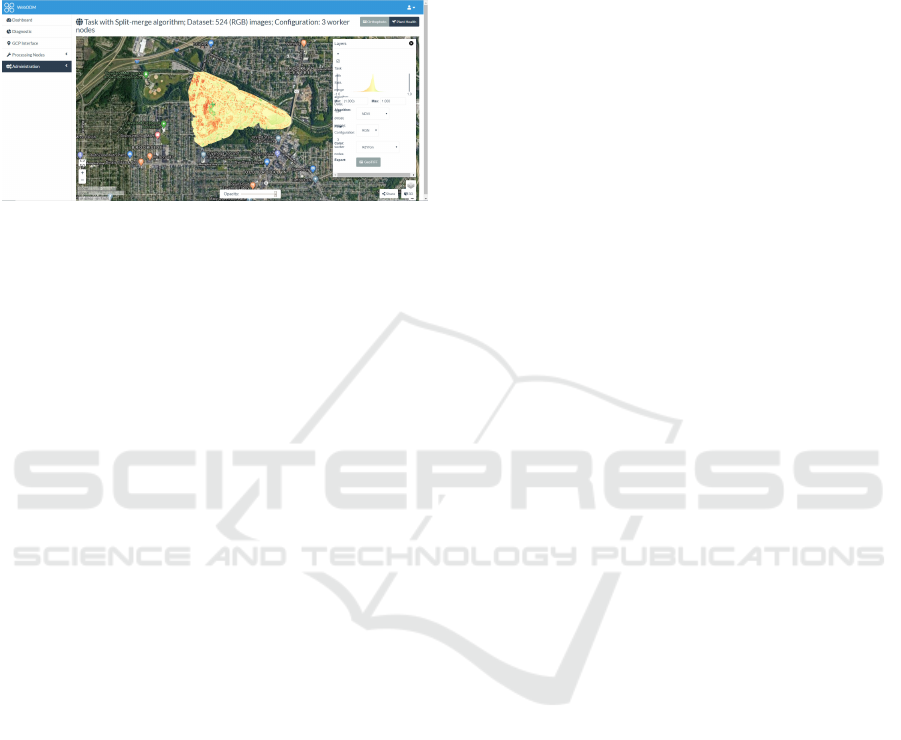

Figure 9: Server-Side NDVI calculation from the processed

dataset using scaled nodes in WebODM portal.

In the future, further evaluation with larger datasets

can be performed to get a better idea about the sys-

tem saturation point. Security and backup, aspects

need to be considered to provide cloud service-level-

agreement with the proposed approach. To conclude,

the proposed scheme and the initial results repre-

sented a show-case in setting up a cloud-based web-

portal for faster and resource-efﬁcient drone imagery

mapping on-premise.

ACKNOWLEDGEMENTS

This work is part of the SPECTORS project

with project number 143081, which is funded by

the cooperation program INTERREG Deutschland-

Nederland. The authors would like to acknowledge

the support of KnowH2O and Wageningen University

& Research in consultation, and the teuto.net Netzdi-

enste GmbH in technical support for the system.

REFERENCES

Bejjam, S. and Seshashayee, M. (2018). Big data concepts

and techniques in data processing. International Jour-

nal of Computer Sciences and Engineering, 6:712–

714.

Garrison, J. and Nova, K. (2017). Cloud Native Infrastruc-

ture: Patterns for Scalable Infrastructure and Appli-

cations in a Dynamic Environment. O’Reilly Media,

Inc., 1st edition.

Groos, A., Bertschinger, T., Kummer, C., Erlwein, S.,

Munz, L., and Philipp, A. (2019). The potential of

low-cost uavs and open-source photogrammetry soft-

ware for high-resolution monitoring of alpine glaciers:

A case study from the kanderﬁrn (swiss alps). Geo-

sciences, 9:356.

Kang, S. and Lee, K. (2016). Auto-scaling of geo-based im-

age processing in an openstack cloud computing envi-

ronment. Remote Sensing, 8:662.

Lam, O. H. Y., Melville, B., Dogotari, M., Pr

um, M., Vith-

lani, H. N., Roers, C., Becker, R., and Zimmer, F.

(2019). Mapping invasive rumex obtusifolius in grass-

land using unmanned aerial vehicle. Multidisciplinary

Digital Publishing Institute Proceedings, 30(1):34.

Lan, H., Zheng, X., and Torrens, P. (2018). Spark sensing:

A cloud computing framework to unfold processing

efﬁciencies for large and multiscale remotely sensed

data, with examples on landsat 8 and modis data. Jour-

nal of Sensors, 2018:1–12.

Martinez-rubi, O., Nex, F., Pierrot-deseilligny, M., and

Rupnik, E. (2017). Improving foss photogrammetric

workﬂows for processing large image datasets. Open

Geospatial Data, Software and Standards, 2.

MSV, J. (2016). Kubernetes: An overview.

https://thenewstack.io/kubernetes-an-overview.

Accessed: 2020-01-18.

OpenDroneMap (2020). Odm, open source project retrieved

from. https://github.com/OpenDroneMap.

Pathak, A., Pandey, M., and Rautaray, S. (2019). Ap-

proaches of enhancing interoperations among high

performance computing and big data analytics via

augmentation. Cluster Computing, pages 1–36.

Sarajlic, S., Chastang, J., Marru, S., Fischer, J., and Lowe,

M. (2018). Scaling jupyterhub using kubernetes on

jetstream cloud: Platform as a service for research and

educational initiatives in the atmospheric sciences. In

Proceedings of the Practice and Experience on Ad-

vanced Research Computing, PEARC ’18. Associa-

tion for Computing Machinery.

Shah, J. and Dubaria, D. (2019). Building modern clouds:

Using docker, kubernetes google cloud platform. In

2019 IEEE 9th Annual Computing and Communica-

tion Workshop and Conference (CCWC), pages 0184–

0189.

Suryateja, P. S. (2020). Experimental analysis of openstack

effect on host resources utilization. In Khanna, A.,

Gupta, D., Bhattacharyya, S., Snasel, V., Platos, J.,

and Hassanien, A. E., editors, International Confer-

ence on Innovative Computing and Communications,

pages 11–19. Springer Singapore.

Tae-Hoon Kim, K. J. and Rajput, V. S. (2016). Adoption

of container-based virtualization in it education. In

2016 ASEE Annual Conference & Exposition. ASEE

Conferences. https://peer.asee.org/26530.

Tanenbaum, A. and van Steen, M. (2016). Chapter 1 of Dis-

tributed Systems - Principles and Paradigms. Maarten

van Steen.

Toffanin, P. (2019). OpenDroneMap: The Missing Guide.

UAV4GEO, ﬁrst edition.

Vithlani, H. N., Marcel, D., Melville, B., Pr

um, M., Lam,

O. H. Y., Becker, R., and Zimmer, F. (2019). Ap-

plicability of remote sensing workﬂow in kubernetes-

managed on-premise cluster environment. Multi-

disciplinary Digital Publishing Institute Proceedings,

30(1):38.

Scale Drone Mapping on K8S: Auto-scale Drone Imagery Processing on Kubernetes-orchestrated On-premise Cloud-computing Platform

325
