Software Similarity Patterns and Clones: A Curse or Blessing?

Stan Jarzabek

Bialystok University of Technology, Faculty of Computer Science, Bialystok, Poland

Keywords: Software Clones, Generic Design, Software Maintainability and Reusability, Software Complexity.

Abstract: Similarities are inherent in software. They show as software clones – similar code fragments, functions,

classes, source files, and bigger program structures spreading through software systems in multiple variant

forms. Often, these recurring program structures represent important concepts from software requirements

or design spaces. Interestingly, despite potential benefits, avoiding many of such redundancies is often

either impossible or would require developers to compromise important design goals. In this paper, I discuss

software similarity phenomenon, its sources, the many roles clones play in programs, the software

productivity benefits that can be gained by avoiding clones, and difficulties to realize these benefits with

conventional programming languages and design techniques. I point to generative techniques as a promising

approach to address software redundancy problems.

1 INTRODUCTION

Much similarity within and across programs creates

potential for program simplification and reuse. The

extent to which similar program structures

deliberately spread through programs indicates that

this potential may not be fully exploited. The main

theme of this paper is software similarity

phenomenon and its manifestation in programs as

software clones, in relation to program

simplification, understanding, changeability and

reuse.

Similarity patterns arise in both problem domain

and program solution spaces. If not tackled,

similarities show as program structures repeated

many times within a program or across programs.

We observe similar program structures of various

types and granularity such as architectural patterns

of components, patterns of collaborating classes,

similar classes, source files, or code fragments.

Recurring program structures are termed as software

clones. Clone detection, analysis and visualization

has been an active area of research in last two

decades, e.g., see survey (Muhammad, et al., 2020).

This study was supported by a grant S/WI/2/2018 from

Bialystok University of Technology and founded from the

resources for research by Ministry of Science and Higher

Education

In a number of studies, my team at the National

University of Singapore (NUS) observed that

extensive cloning sometimes occurred due to the

lack of strong enough generic design mechanisms

that would allow programmers to avoid repetitions

without compromising other engineering goals that

mattered to them. Much redundancy is common in

old, heavily maintained programs. However, we

found much cloning also in newly developed

programs that, in our judgment, were well designed

in view of their design goals and technology used.

As many of these recurring program structures

represented important concepts from software

requirements or design spaces, these observations

seemed to point to some interesting and may be

fundamental issue, worth investigation. In follow up

research, my team developed a clone detection tool

called Clone Miner (Basit and Jarzabek, 2009) that

allowed us to find and study large-granular clones

(Kumar et al., 2016) in addition to similar code

fragments. We also developed an Adaptive Reuse

Technology, ART

for representing groups of cloned

code structures with parameterized, generic,

adaptable, therefore, reusable meta-components. We

applied these tools in projects across a wide range of

application domains and programming platforms,

observing consistently 50%-90% levels of

redundancies. In this paper, I summarize our

Adaptive Reuse Technology, http://art-processor.org

Jarzabek, S.

Software Similarity Patterns and Clones: A Curse or Blessing?.

DOI: 10.5220/0009820000050017

In Proceedings of the 22nd International Conference on Enterprise Information Systems (ICEIS 2020) - Volume 2, pages 5-17

ISBN: 978-989-758-423-7

findings, with references to relevant publications. A

detailed discussion of our earlier projects can be also

found in a monograph (Jarzabek, 2007).

Generic design can help avoid redundancies,

reducing conceptual complexity, as well as the

physical size of programs. STL (Musser and Saini,

1996) is a premier example of engineering benefits

of generic design in the domain of data structures.

However, in many other domains the potential of

similarity patterns for program simplification and

reuse remains often untapped. Software Product

Line SPL approach (Clements and Northrop, 2002)

attempts to address the problem at the architecture-

component level. As it is often the case, “the devil is

hidden in detail”, and we need much finer level

variability management mechanism to tackle

redundancies and fully reap their potential for

program simplification and reuse.

In this paper, I share experiences from my

research on clones. In the remaining sections, I

discuss the multi-faceted nature of software

redundancy, software clone definition, the reasons

why clones occur in programs, their impact on

software development and maintenance, productivity

benefits that can be gained by avoiding clones, and

difficulties to realize these benefits with

conventional programming languages and design

techniques.

2 DEFINING CLONES

Software similarity is a multi-faceted phenomenon

that escapes precise definition. The notion of

similarity changes depending on the context:

Whether or not we consider two code structures as

similar depends on what we want to do with them.

We can characterize clones that are likely to

meet our goals by metrics such as the minimum size

of clones, the percentage of common code among

clones (Kamiya et al., 2002), or the editing distance

(Levenhstein, 1966) among clones, measured in

terms of editing operations required to convert one

text fragment to another.

We introduce clones informally as follows: Two

program structures of considerable size are clones of

each other if they meet a certain user-defined

threshold of similarity measure. The required size

and similarity threshold are subjective, vary with

context, and therefore must be set by a programmer

to meet goals of a specific clone analysis exercise.

Most of the interesting clones are similar but not

identical. Differences among clones result from

changes in their intended behaviour, and from

dependencies on the specific program context in

which clones are embedded (such as different names

of referenced variables, methods called, or platform

dependencies).

Clones may or may not represent program

structures that perform well-defined functions.

Considering their form and size, we distinguish two

types of clones, namely:

 simple clones: similar segments of contiguous

code such as program functions or any code

fragments (Ducasse, 1999)(Kamiya et al., 2002)

 structural clones: patterns of inter-related

components/classes emerging from design and

analysis spaces, or from design solutions

repeatedly applied by programmers (Basit and

Jarzabek, 2005)(Basit and Jarzabek, 2009).

Examples include design patterns (Gamma et

al., 1995), analysis patterns (Fowler, 1997)

enterprise patterns using .NET™, core J2EE™

patterns, and so-called “mental templates”

(Baxter et al., 1998).

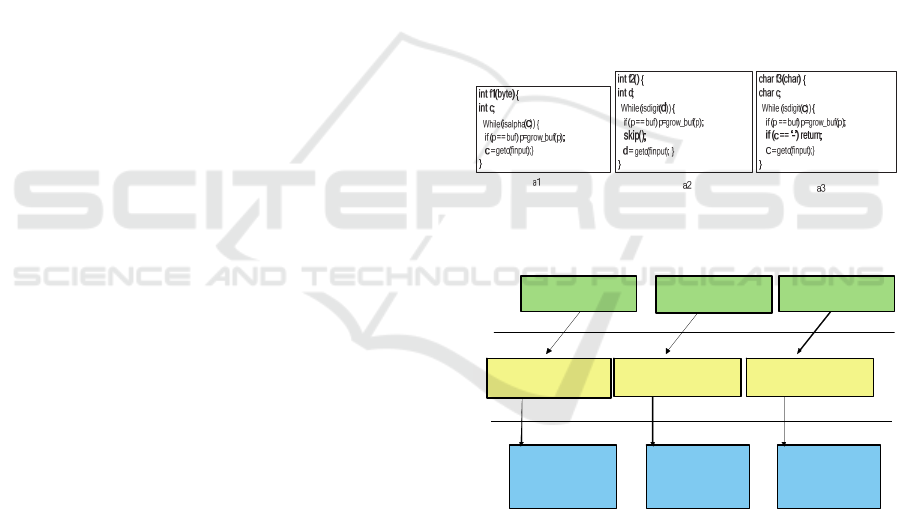

Figure 1: Simple clones.

CreateStaff.BL

val idateSt aff()

Staff.DB

addStaff()

Staff Table

Project.DB

addProject()

Project Table

CreateProject.BL

validateProject()

C rea te St af f

Crea te Pro je ct

CreateStaff .UI

createStaff()

CreateProject.UI

createProject()

Pro duct.D B

addProduct()

Product Table

CreateProduct.BL

validateProduct()

Cr ea te Pro du ct

Cre ateP roduct. UI

creat ePr oduct ()

Level 1

Level 2

Level 3

Figure 2: Structural clones.

Figure 1 and Figure 2 show intuitive examples of

simple and structural clones. Three code fragments

(a1,a2,a3) in Figure 1 differ in code details

highlighted in bold. We can consider them as simple

clones of each other, provided they meet a user-

defined similarity threshold.

Figure 2 shows three structures implementing

features

CreateStaff, CreateProject,

CreateProduct

in a web portal for project

management. Boxes are PHP files implementing

user interface (at the top), business logic (in the

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

middle), and database aspects of respective features.

Each of the files consists of PHP functions.

Functions across files at each level (UI, BL and DB)

are similar to each other forming simple clones such

as shown in Figure 1. As PHP files are densely

covered by clones, we consider files at each level as

similar (abstraction step). As there is a calling

relation among functions in respective PHP files, the

three structures form a collaborative structural clone

class. We conclude that features

CreateStaff,

CreateProject, and CreateProduct

are

similar to each other (abstraction step).

Clone detection techniques (Basit and Jarzabek,

2009)(Baxter et al., 1998)(Ducasse et al.,

1999)(Kamyia et al., 2002) can automate finding

clones in programs, and refactorings (Fowler, 1999)

can help us to free programs from some clones. At

times, clone elimination may be hindered by risks

involved in changing programs (Cordy, 2003), or by

other design goals that conflict with refactorings

(Jarzabek and Li, 2003)(Kim et al., 2004).

3 SOFTWARE SIMILARITY

PHENOMENON

3.1 Reasons for Cloning

Whether clones are good or bad it all depends on the

motivation for cloning, the role clones play in a

program, and the perspective from which we judge

the impact of clones.

Similarities stem from different sources,

depending on the nature of an application domain

and design techniques used. Therefore, the form of

clones, as well as reasons why they are there, vary

across different program situations. Poor design and

ad hoc maintenance are the two often-mentioned

reasons for cloning. Such repetitions can often be

avoided with good design or refactored.

Despite the benefits of non-redundancy, at times,

cloning is done in a good cause. With copy-paste-

modify practice, we can speed up development,

achieving quick productivity gains. Developers also

duplicate code to improve program performance or

reliability. Such repetitions are intentional and

should not be eliminated from a program even if a

suitable refactoring could do the job. In maintenance

of legacy software, changes involved in refactoring

clones may create risks that are unacceptable for

business reasons (Cordy, 2003) – it is safer to

maintain own piece of code rather than a generic

solution shared with other developers who may also

be changing the same functionality. (Kapser and

Godfrey, 2006) discuss a number of situations that

justify cloning. Developers may choose to live with

repetitions, as the lesser of the two evils, for variety

of such reasons.

Modern component platforms (such as JEE™ or

.NET™) encourage architecture-centric, pattern-

driven design that naturally induces much

redundancy to programs. Patterns lead to beneficial

standardization of program solutions and are basic

means to achieve reuse of common service

components. Standardization of program solutions

has many benefits, and creates an interesting case for

our discussion of clones. At times IDEs support

application of major patterns, or programmers use

manual copy-paste-modify to apply yet other

patterns. Representing patterns in generic form and

enhancing their visibility can be beneficial, as it

reveals a simpler view of a program. With generic

pattern representation, we can provide better support

for pattern instantiation and injection of pattern

instances into a software system under construction.

Generic design can help us avoid explosion of look-

alike program structures, pattern instances. The

knowledge of the location of pattern instances and

the exact differences among them is helpful in

understanding, maintenance and reuse.

Yet other repetitions occur because avoiding

them with conventional approaches is either

impossible or would require developers to

compromise other important design goals. Kim

estimates that 34% of clones cannot be refactored

(Kim, 2004). This type of unavoidable repetitions is

of our primary interest in this paper. We pay special

attention to large-granularity program structures

(Kumar et al., 2016), signifying important design

concepts, recurring many times in variant forms,

whose noticing may bring significant engineering

benefits.

Summarizing the above discussion, we classify

clones into the following categories:

1. Desirable. Such clones are useful at runtime

(e.g., for performance or reliability) and cannot

be eliminated from programs. Intentional clones

induced by an implementation technique (e.g.,

by J2EE or .NET architecture and patterns) also

belong to this category.

2. Avoidable. These clones are caused by the

programmer’s carelessness. For example,

similar code fragments introduced by poor

design or ad hoc copy-paste-modify practice

during maintenance often fall into this category.

Software Similarity Patterns and Clones: A Curse or Blessing?

3. Problematic. These are all the clones that are

not desirable but are difficult to avoid using

conventional design techniques, without

compromising important design goals. As the

name suggests, nothing definite can be said

about problematic clones. They are relative to

design techniques and design goals. Despite

their enigmatic nature, we find the concept

useful in discussing cloning problems. Most of

the clones discussed in the Buffer library case

study belong to this category.

Katsuro Inoue, one of the precursors of software

clone research, is an author of CCFinder (Kamiya et

al., 2002), a clone detection tool used by thousands

of software companies in Japan and world-wide for

software quality assessment (Yamanaka et al.,

2012). They consider the extent of cloning as one of

the important indicators to estimate the expected

maintenance cost in outsourcing software

maintenance. The relation between cloning and the

cost of changing programs can be explained as

follows: Even if clones are created with good

intentions, most of the clones increase the risk of

update anomalies, and hinder program

understanding during the maintenance in at least,

two ways: (1) a programmer must maintain more

code than he/she would have to maintain should the

clones be removed, and (2) when one logical source

of change affects many instances of a replicated

program structure scattered throughout a program, to

implement a change, a programmer must find and

update all the instances of the replicated structure.

The situation is further complicated if instances of

an affected program structure must be changed in

slightly different ways, depending on the context.

3.2 How Much Cloning?

In controlled lab experiments and industrial projects,

we typically observed 50%-90% rates of repetitions

in newly developed, well-designed programs. Our

studies covered a range of application domains

(business systems, Web Portals, command and

control, mobile device applications, class libraries),

programming languages (Java, C++, C#, JSP, PHP)

and platforms (J2EE, .NET, Unix, Windows). For

example, the extent of similarities in Java Buffer

library was 68% (Jarzabek and Li, 2003), in parts of

STL (C++) - over 50% (Basit et al., 2005), in Web

Portal (J2EE) – 68% (Yang and Jarzabek, 2006), and

in certain .NET Web Portal modules – up to 90%

(Pettersson and Jarzabek, 2005). A survey of 17

Web Applications revealed 17-60% of code

contained in clones (Rajapakse and Jarzabek, 2005).

We measured the percentage of redundancies by

comparing the subject program against a non-

redundant representation for the subject program

built with ART outlined later in this paper. Not

always does size reduction lead to program

simplification. However, we focused only on

repetitions that created reuse opportunities, induced

extra conceptual complexity into a program, and/or

were counter-productive for maintenance.

Other studies revealed lower, but still substantial

rates of repetitions, 20%-30% (Kim et al., 2004),

and indicated that 49%-64% of clones “were not

easily refactorable due to programming language

limitations”. It is important to note that these other

studies focus only on cloned code fragments, while

our notion of similarity and studies cover large-

granularity program structures, that may involve, for

example, patterns of collaborating components

recurring in variant forms.

4 GENERIC DESIGN

Generic design aims at achieving non-redundancy

by unifying differences among similar program

structures. The importance of generic design in

managing software complexity have been

recognized for long. Macros were one of the early

attempts to parameterize programs and make them

more generic. (Gougen, 1984) popularized ideas of

parameterized programming. Among programming

language constructs, type parameterization (called

generics in Ada, Eiffel, Java and C#, and templates

in C++), higher-order functions, iterators, and

inheritance can help avoid repetitions in certain

situations (Garcia et al., 2003). Design techniques

such as design patterns (Gamma et al., 1995), table-

driven design, and information hiding are supportive

to building generic programs.

There are three engineering benefits of generic

design (and three reasons to avoid unnecessary

repetitions): Firstly, genericity is an important theme

of software reuse where the goal is to recognize

similarities to avoid repetitions across projects,

processes and products. Indeed, many repetitions

merely indicate unexploited reuse opportunities.

Secondly, repetitions hinder program understanding.

Repeated similar program structures cause update

anomalies complicating maintenance. Thirdly, by

revealing design-level similarities, we reduce the

number of distinct conceptual elements a

programmer must deal with. Not only do we reduce

an overall software complexity, but also enhance

conceptual integrity of a program which Brooks

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

calls “the most important consideration in system

design” (Brooks, 1986). Common sense suggests

that developers should be able to express their

design and code without unwanted repetitions,

whenever they wish to do so.

5 REDUNDANCIES IN STL

STL (Musser, 1996) is a classical and powerful

example of what skilful generic design can do for

complexity reduction. STL implements commonly

used algorithms, such as sort or search, for a variety

of container data structures. Without generic

containers and algorithms, the STL’s size and

complexity would be enormous, hindering its

evolution. Such simple-minded solution would

unwisely ignore similarity among containers, and

among algorithms applied to different containers,

which offers endless reuse opportunities. Generic

design with templates and iterators helped STL

designers to avoid these complications, without

compromising efficiency.

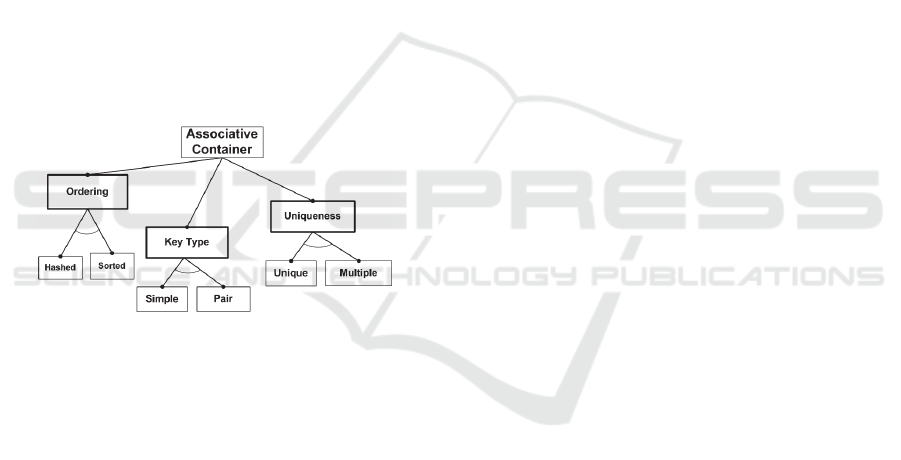

Figure 3: Associative container features (STL).

In STL, generic solutions are mainly facilitated

by templates and iterators. We analysed associative

containers - variable-sized containers that support

efficient retrieval of elements based on keys. Figure

3 shows variant features of associative containers.

There are eight STL templates, one for each of the

eight legal combinations of features.

We focused on the STL regions that showed

high cloning rates. We ran a clone detector to

identify these regions. We found that container

classes displayed a remarkable amount of similarity

and code repetition. Four ‘sorted’ associative

containers and four ‘hashed’ associative containers

could be unified into two generic ART containers,

achieving 57% reduction in the related code. Stack

and queue classes contained 37% of cloned code.

Algorithms set union, set intersection, set difference,

and set symmetric difference (along with their

overloaded versions) formed a clone class with eight

instances. On overall, non-redundant representation

of these parts of STL in ART contained 48% of code

found in the original STL (Basit et al., 2005).

There were many non-type-parametric

differences among associative container templates.

For example, certain otherwise similar methods,

differed in operators or algorithmic details. While it

is possible to treat many types of non-parametric

differences using sophisticated forms of C++

template meta-programming, often the resulting

code becomes “cluttered and messy” (Czarnecki and

Eisenecker, 2000). We did not spot such solutions in

STL, and believe their practical value needs to be

further investigated.

The reader may find full details of the STL case

study in (Basit et al., 2005).

6 REDUNDANCIES IN THE JAVA

BUFFER LIBRARY

A buffer contains data in a linear sequence for

reading and writing. Buffer classes differ in features

such as a memory scheme: Heap or Direct; element

type: byte, char, int, double, float, long, or short;

access mode: writable or read-only; byte ordering: S

– non-native or U – native; B – BigEndian or L –

LittleEndian.

Each legal combination of features yields a

unique buffer class, with much similarity among

classes. As we combine features, buffer classes grow

in number, as observed in (Batory et al., 1993).

Some of the buffer classes are shown in Figure 4. A

class name, such as DirectIntBufferRS, reflects

combination of features implemented into a given

class. Class names are derived from a template:

[MS][T]Buffer[AM][BO], where MS – memory

scheme: Heap or Direct; T – type: int, short, float,

long double, char, or byte; AM – access mode: W –

writable (default) or R - read-only; BO – byte

ordering: S – non-native or U – native; B –

BigEndian or L – LittleEndian. All the classes

whose names do not include ‘R’, by default are ‘W’

– writable. VB – View Buffer is yet another feature

that allows us to interpret byte buffer as Char, Int,

Double, Float, Long, or Short. Combining VB with

other features, yields 24 classes

ByteBufferAs[T]Buffer[R][B|L]. The last parameter

[B|L] means “B or L”.

The experiment covered 74 buffer classes that

contained 6,719 LOC (physical lines of code,

without blanks or comments). We identified seven

groups of similar classes where each group

comprised 7-13 classes:

Software Similarity Patterns and Clones: A Curse or Blessing?

1. [T]Buffer: 7 classes at Level 1 that differ in

buffer element type, T: int, short, float, long

double, char, or byte

2. Heap[T]Buffer: 7 classes at Level 2, that differ in

buffer element type, T

3. Heap[T]BufferR: 7 read-only classes at Level 3

4. Direct[T]Buffer[S|U]: 13 classes at Level 2 for

combinations of buffer element type, T, with byte

orderings: S – non-native or U – native byte

ordering (notice that byte ordering is not relevant

to buffer element type ‘byte’)

5. Direct[T]BufferR[S|U]: 13 read-only classes at

Level 3 for combinations of parameters T, S and

U, as above

6. ByteBufferAs[T]Buffer[B|L]: 12 classes at Level

2 for combinations of buffer element type, T,

with byte orderings: B – Big_Endian or L –

Little_Endian

7. ByteBufferAs[T]BufferR[B|L]: 12 read-only

classes at Level 3 for combinations of parameters

T, B and L, as above.

Classes in each of the above seven groups

differed in details of method signatures, data types,

keywords, operators, and editing changes. We paid

attention only to similarities whose noticing could

simplify class understanding and help in

maintenance. Some of the classes had extra methods

and/or attributes as compared to other classes in the

same group. Many similar classes or methods

occurred due to the inability to unify small

variations in otherwise the same classes or methods.

Generics could unify 15 among 74 classes under

study, reducing the code size by 27%. The solution

with generics was subject to certain restrictions that

we discussed in (Jarzabek and Li, 2006).

So why did Buffer library designers chose to

keep redundancies?

Any solutions to unifying similarities must be

considered in the context of other design goals

developers must meet. Usability, conceptual clarity

and good performance are important design goals for

the Buffer library. To simplify the use of the Buffer

library, the designers decided to reveal to

programmers only the top eight classes (Figure 4).

For conceptual clarity, designers of the Buffer

library decided not to multiply classes beyond what

was absolutely needed. We see almost one-to-one

mapping between legal feature combinations and

buffer classes.

In many situations, designers could introduce a

new abstract class or a suitable design pattern to

avoid repetitions. However, such a solution would

compromise the above design goals, and therefore

was not implemented. Many similar classes or

methods were replicated because of that.

Many similarities in buffer classes sparked from

feature combinations. As buffer features (such as

element type, memory scheme, etc.) could not be

implemented independently of each other in separate

implementation units (e.g., class methods), code

fragments related to specific features appeared with

many variants in different classes, depending on the

context. Whenever such code could not be

parameterized to unify the variant forms, and placed

in some upper-level class for reuse via inheritance,

similar code structures spread through classes.

Method hasArray() shown in Figure 5 illustrates

a simple yet interesting case. This method is

repeated in each of the seven classes at Level 1.

Although method hasArray() recurs in all seven

classes, it cannot be implemented in the parent class

Buffer, as variable hb must be declared with a

different type in each of the seven classes. For

Figure 4: A fragment of the Buffer library.

Buffer

DoubleBufferByteBuffer CharBuffer

IntBuffer

FloatBuffer

LongBuffer

ShortBuffer

MappedByteBuffer

HeapByteBuffer

DirectByteBuff er

HeapCharBuffer

DirectCharBuf f erS

DirectCharBuf f erU

HeapIntBuffer

DirecIntBuf f erS

DirectIntBuf f erU

HeapByteBuffeR

DirectByteBuff erR

HeapCharBufferR

DirectCharBuf f erRS

DirectCharBuf f erRU

HeapIntBuf f erR

DirecIntBuf f erRS

DirectIntBuff erRU

Level 1

Level 2

Level 3

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

example, in class ByteBuffer the type of variable hb

is byte and in class IntBuffer, it is int.

Figure 5: Recurring method hasArray().

One could presume that type parameterization,

JDK 1.5 supports generics, should have a role to

play in unifying parametric differences among

similar classes. However, generics have not been

applied to unify similarity patterns described in our

study. Groups of classes that differ only in data type

are obvious candidates for generics. There are three

such groups comprising 21 classes, namely

[T]Buffer, Heap[T]Buffer and Heap[T]BufferR.

In each of these groups, classes corresponding to

Byte and Char types differ in non-type parameters

and are not generics-friendly. This leaves us with 15

generics-friendly classes whose unification with

three generics eliminates 27% of code. There is,

however, one problem with this solution. In Java,

generic types cannot be primitive types such as int or

char. This is a serious limitation, as one has to create

corresponding wrapper classes just for the purpose

of parameterization. Wrapper classes introduce extra

complexity and hamper performance. Application of

generics to 15 buffer classes is subject to this

limitation.

Figure 6: Method slice().

Repetitions often arise due to the inability to

specify small variations in otherwise identical code

fragments. Many similar classes and methods differ

in parameters representing constants, keywords or

algorithmic elements rather than data types. This

happens when the impact of various features affects

the same class or method. For example, method

slice() (Figure 6) recurs 13 times in all the

Direct[T]Buffer[S|U] classes with small changes

highlighted in bold in. Generics are not meant to

unify this kind of differences in classes.

In summary, generics are rather limited in

unifying similarity patterns that we find in practical

situations, e.g., such as we observed in the Buffer

library. It is interesting to note that repetitions occur

across classes at the same level of inheritance

hierarchy, as well as in classes at different levels of

inheritance hierarchy. Programming languages do

not have a proper mechanism to handle such

variations at an adequate (that is a sufficiently small)

granularity level. Therefore, the impact of a small

variation on a program may not be proportional to

the size of the variation.

Developers of the Buffer library used macros,

scripts and makefiles in order to exploit similarities

and write/maintain buffer classes with less effort

(these macros and scripts can be found in the

Community Source Release for the Buffer library).

While the reasons why Sun developers escaped to

non-OO solution and the solution itself are not

explained or documented, its existence hints at

difficulties to treat similarity patterns with

conventional OO techniques, given the overall

design goals the Buffer library had to meet.

7 TOWARDS

NON-REDUNDANCY

While practitioners are aware of much repetitions in

software, they also know how difficult it is to avoid

them. Problems with implementing effective reuse

strategies (Deelstra et al., 2000) evidence these

difficulties, as well.

It is not clear if and how we could implement

buffer classes without redundancies in any of the

conventional programming languages. A possible

solution calls for flexible parametrization

unconstrained by the rules of a programming

language. It is as if our need to express program

behaviour was in conflict with our need to achieve

non-redundancy. To resolve this conflict, generative

approaches propose to think about programs at two

levels: a meta-level that provides a platform for

program construction, and a level of actual program

that is compiled and executed. Program generation

technologies offer solutions for specific application

domains, with abstract notations to specify required

program behaviour (a meta-level), and a generator

that encodes the semantics of a given application

domain, and generates a program ready for

execution. Quite often much redundancy can be

/* Tells whether or not this buffer is backed by

an accessible byte array. */

public final boolean hasArray() {

return (hb != null) && !isReadOnly; }

/*Creates a new byte buffer containing a shared

subsequence of this buffer's content. */

public ByteBuffer slice() {

int pos = this.position();

int lim = this.limit();

assert (pos <= lim);

int rem = (pos <= lim ? lim - pos : 0);

int off = (pos <<

0);

return new DirectByteBuffer(this, -1, 0, rem,

rem, off); }

Software Similarity Patterns and Clones: A Curse or Blessing?

avoided in abstract program specifications. We

comment further on generation approaches in the

following section, and here we outline a general-

purpose solution to non-redundancy, based on

flexible parameterization at the meta-level, and code

manipulation in pre-processing fashion. We explain

the solution in a way that ART (Adaptive Reuse

Technology) implements these concepts.

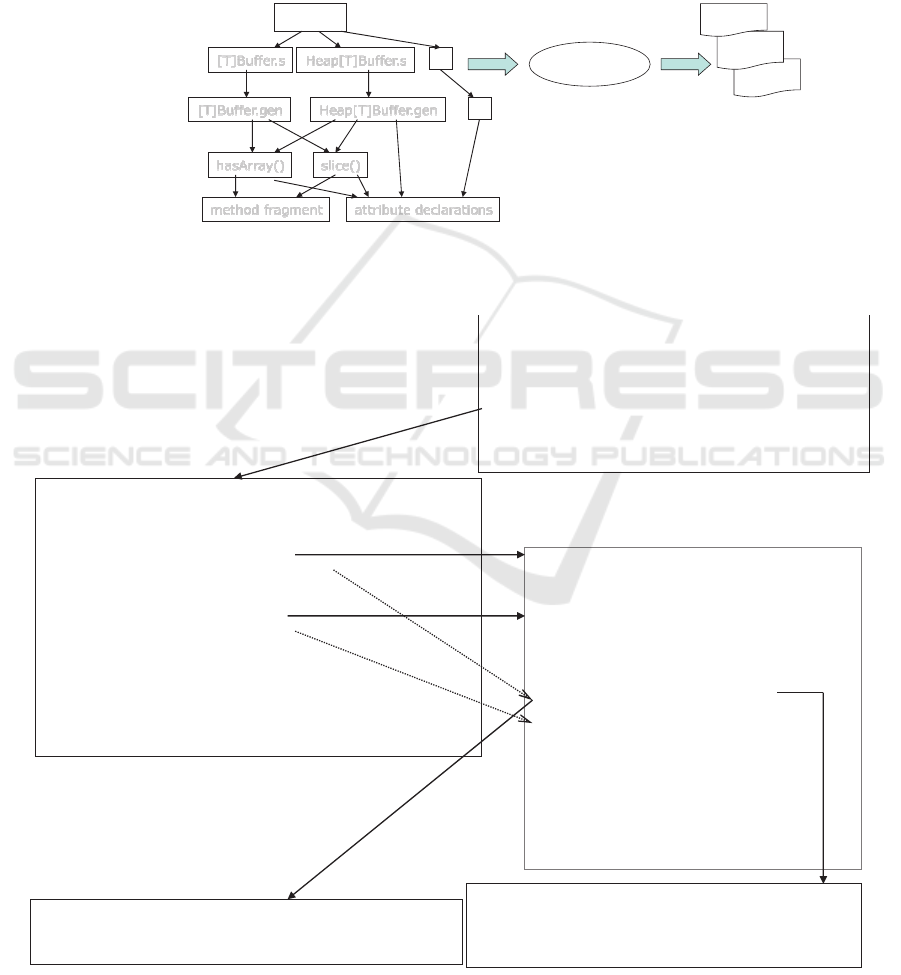

On the left-hand-side of Figure 7, we see a non-

redundant meta-level representation of buffer

classes. Boxes are ART templates that represent

building blocks for Buffer classes. As such, they

contain relevant Java code instrumented

(parameterized) with ART commands. The purpose

of parameterization is to enable reuse of ART

templates in multiple contexts of the situations when

a given functionality is need for building buffer

classes. ART Processor interprets ART commands

embedded in templates and generates buffer classes

on the right-hand-side of Figure 7.

hasArray()

attribute declarations

slice()

Heap[T]Buffer.s[T]Buffer.s

[T]Buffer.gen Heap[T]Buffer.gen

SPC

generic classes

class specifications

generic methods

Buffer specifications

method fragment

generic fragments

ART Processor

IntBuffer

ByteBuffer

CharBuffer

Java buffer classes

…

RT tem

late framework

Figure 7: Non-redundant representation of Buffer classes in ART/Java.

SPC // specifies how to generate all the buffer classes

#set elmtType = Int, Short, Float, Long, Double, Char, Byte

#set type = int, short, float, long double, char, byte

#set elmntSize = 0, 1, 3, 2, 2, 3, 1

#adapt [T]Buffer.s

#adapt Heap[T]Buffer

…

#adapt ByteBufferAs[T]BufferR[B|L]

[T]Buffer.s // specifies how to generate 7 [T]Buffer classes

#while elmtType, type, elmntSize

#select option =elmtType

#option Byte

#adapt [T]Buffer.gen

#insert moreMethods

#adapt methodsForByteBuffer.x

#option Char

#adapt [T]Buffer.gen

#insert toString

Public String toString()

{ return toString( position(), limit()); }

#otherwise

#adapt [T]Buffer.gen

#/select

#/while

[T]Buffer.gen outfile @elmtTypeBuffer.java

// a generic [T]Buffer class

package @packageName;

public abstract class @elmtTypeBuffer extends

Buffer implements Comparable

#adapt commonAttributes.gen

#break moreAttributes

#adapt commonMethods.gen

#break moreMethods

#break toString

public String toString() {

StringBuffer sb = new StringBuffer();

sb.append(getClass().getName());

etc.

return sb.toString(); } }

#break

commonMethods.gen // generic representation of methods

common to [T]Buffer and may be yet other classes, e.g.,

public static @elmtTypeBuffer wrap(@type[] array) {

return wrap(array, 0, array.length); }

methodsForByteBuffer.x // methods specific to ByteBuffer only

public static ByteBuffer allocateDirect(int capacity)

{ return new DirectByteBuffer(capacity); }

Figure 8: Non-redundant representation for seven [T]Buffer classes in Java/ART (partial).

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

An arrow between two templates: X → Y is read

as “X adapts Y”, meaning that X controls adaptation

of Y. We have seven generic class templates, one

for each of the seven groups of similar classes

described in Section 6 (we show only two of them in

Figure 7). Each class template defines common part

of classes in the respective group. The essence of a

generic component (generic class, in our case) is that

it can be adapted to produce its instances (specific

classes in a group, in our case). Smaller granularity

generic building blocks for classes are defined

below, namely class methods and fragments of

method implementation or attribute declaration

sections. Therefore, lower-level templates are

composed, after possible adaptations, to construct

required instances of higher-level generic

components. At the top, we have specification

elements – they tell the ART Processor how to

generate specific buffer classes, from templates.

Top-most SPC, sets up global parameters and

exercises the overall control over the generation

process.

ART Processor interprets the template

framework starting from the SPC, traverses

templates below, adapting visited templates and

emitting buffer class code. By varying

specifications, we can instantiate the same template

framework in different ways, deriving different, but

similar, program components from it.

We now explain the parameterization and

adaptation mechanism, which is the “heart and soul”

of how ART achieves goals of non-redundancy:

ART variables and expressions provide a basic

parameterization mechanism to make templates

generic. #set command assigns a value to a variable.

Typically, names of program elements manipulated

by ART, such as components, source files, classes,

methods, data types, operators or algorithmic

fragments, are represented by ART expressions.

Such expressions are then instantiated by the ART

Processor, according to the context. For example,

names and other parameters of the seven similar

classes [T]Buffer are represented by ART

expressions in the a template [T]Buffer.gen.

ART variables have global scope, so that they

can coordinate chains of all the customizations

related to the same source of variation or change that

spans across multiple templates. During processing

of templates, values of variables propagate from an

template where the value of a variable is set, down

to the lower-level templates. While each template

usually sets default values for its variables, values

assigned to variables in higher-level templates take

precedence over the locally assigned default values.

Thanks to this overriding rule, templates become

generic and adaptable, with potential for reuse in

many contexts.

Other ART commands that help us design

generic and adaptable templates include #select,

#insert into #break and #while. We use #select

command to direct processing into one of the many

pre-defined branches (called options), based on the

value of a variable. With #insert command, we can

modify templates at designated #break points in

arbitrary ways. ART expressions, #select and

#insert into #break are analogous to AOP’s

mechanism for weaving advices at specified join

points (Kiczales et al., 1997). The difference is that

ART allows us to modify templates in arbitrary

ways, at any explicitly designated variation points.

#while command iterates over template(s), with

each iteration generating similar, but also different,

program structures. A #select command in the

#while

loop allows us to generate classes in each of

the seven groups discussed in Section 6.

Figure 8 illustrates how ART mechanisms

realize the scheme outlined in Figure 7.

ART template names, ART commands and

references to ART variables are shown in bold.

References to ART variables parameterize code. For

example, a reference to variable @elmtType is

replaced by the variable’s value during processing.

Figure 6 shows ART template for method slice()

from Direct[T]Buffer[S|U] classes. Values of

variables set in SPC reach all their references in

adapted ART templates. The value of variable

byteOrder is set to an empty string, “S” or “U”, in a

respective #set command placed in one of the ART

templates that #adapt’s ART template slice.gen (not

shown in our pictures).

The #while loop in [T]Buffer.s is controlled by

two multi-value variables, namely elmtType and

elmtSize. The i’th iteration of the loop uses i’th

value of each of the variables. In each iteration of

the loop, the #select command uses the current value

of elmtType to choose a proper #option for

processing.

Attribute outfile of [T]Buffer.gen defines the

name of a file where ART Processor will emit the

code for a given class.

Having set values for ART variables, SPC

initiates generation of classes in each of the seven

groups of similar classes via suitable #adapt

commands. ART template [T]Buffer.gen defines

common elements found in all seven classes in the

group. Five of those classes, namely DoubleBuffer,

IntBuffer, FloatBuffer, IntBuffer, and

LongBuffer differ only in type parameters (as in the

Software Similarity Patterns and Clones: A Curse or Blessing?

sample method wrap() shown in ART template

commonMethods.gen). These differences are

unified by ART variables, and no further

customizations are required to generate these five

classes from ART template [T]Buffer.gen. These

five classes are catered for in #otherwise clause

under #select. However, classes ByteBuffer and

CharBuffer have some extra methods and/or

attribute declarations. In addition, method toString()

has different implementation in CharBuffer than in

the remaining six classes. Customizations specific to

classes ByteBuffer and CharBuffer are listed in the

#adapt commands, under #option s Byte and Char,

respectively.

We refer the reader to (Jarzabek and Li,

2003)(Jarzabek and Li, 2006) for further the details

of this study.

A shorter program without redundancies does

not automatically mean that such a program is easier

to understand and maintain than a longer program

with redundant code. For example, compressed code

is short but impossible to read and understand. To

further support claims of easier maintainability of

the ART solution, we extended the Buffer library

with a new type of buffer element – Complex. Then,

we compared the effort involved in changing each of

the two solutions, Java classes and Java/ART

representation. Many classes must be implemented

to address the Complex element type, but in this

experiment we concentrated only on three of them,

namely ComplexBuffer, HeapComplexBuffer and

HeapComplexBufferR. In Java, class

ComplexBuffer could be implemented based on the

class IntBuffer, with 25 modifications that could be

automated by an editing tool, and 17 modifications

that had to be done manually. On the other hand, in

the ART representation, all the changes had to be

done manually, but only 5 modifications were

required. To implement class HeapComplexBuffer,

we needed 21 “automatic” and 10 manual

modifications in Java, versus 3 manual

modifications in ART. To implement class

HeapComplexBufferR, we needed 16 “automatic”

and 5 manual modifications in Java, versus 5 manual

modifications in ART.

8 CLONES IN WEB PORTALS

8.1 ASP.NET Portal

In the ASP Web Portal (WP) Product Line project,

our industry partner ST Electronics Pte. Ltd.,

Singapore, applied state-of-the-art conventional

methods to maximize reusability of a Team

Collaboration Portal (TCP). Still, a number of

problem areas were observed that could be improved

by applying ART to reduce redundancies. The

benefits of ASP/ART TCP were the following:

 Short time (less than 2 weeks) and small effort (2

persons) to transform the ASP TCP into the first

version of a mixed-strategy ASP/ART Product

Line architecture.

 High productivity in building new portals from

the ASP/ART solution. Based on the ASP/ART

solution, ST Electronics could build new portal

modules by writing as little as 10% of unique

custom code, while the rest of code could be

reused. This code reduction translated into an

estimated eight-fold reduction of effort required

to build new portals.

 Significant reduction of maintenance effort when

enhancing individual portals. The overall

managed code lines for nine portals under the

ASP/ART were 22% less than the original single

portal.

 Wide range of portals differing in a large number

of inter-dependent features supported by the

ASP/ART solution.

The reader may find full details of this project in

(Pettersson and Jarzabek, 2005).

8.2 JEE Portal

In the follow up project, we evaluated J2EE™ as a

platform for Product Line development. Unlike

ASP, J2EE supports inheritance, generics and other

OO features via Java.

Component platforms such as J2EE or .NET

encourage organizing software around standard

architectures. Patterns help programmers solve

routine tasks in pre-defined ways in conformance to

architectures. Application of patterns further

standardizes software at macro and micro levels. Not

surprisingly, we find much similarity in software

developed in that way. Such uniformity of software

structure is beneficial, as similar problems are

always solved in a similar way across a system. It

also facilitates easy reuse of common

services/components provided by a platform.

However, not always are pattern instances clearly

visible in code. Pattern-driven development could be

even more beneficial if we knew the exact location

of pattern instances and how instances are similar

and different one from each other. This would help

in the future maintenance: When the pattern-related

code is to be changed, it would be clear which of the

pattern’s instances should be changed and how.

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

Currently, pattern-driven development is mainly

limited to the middleware areas such as database

communication, coordination between requests,

application model and views (e.g., implied by the

MVC organization) or reuse of common services. In

application domain-specific areas, the benefits of

patterns are less. At times, application of patterns

may even scatter domain-specific functionality

across many components (or classes), which

complicates reuse of domain-specific code, and

magnifies problems of tracing requirements to code.

In J2EE project, we applied ART to enhance the

visibility of patterns and to achieve reuse in

application domain-specific areas. We worked with

a portal developed by ST Electronics, a variant of

TCP. The portal supported collaborative work and

included 14 modules such as Staff, Project and Task.

We studied similarity patterns in presentation and

business logic layers.

Within modules, we found 75% of code

contained in exact clones, and 20% of code

contained in similar clones (leaving only 5% of code

unique). Analysis across modules, revealed design-

level similarities, with 40% of code contained in

structural clones. Both intra- and inter-module

similarities were important for clarity of the design,

however they could not be unified with generic

design solutions expressed by J2EE mechanisms.

In the second part of the experiment, we applied

ART to unify similarity patterns. Unification

reduced the solution size by 61%, and enhanced the

clarity of portal’s conceptual structure as perceived

by developers. In a controlled experiment, we found

that to implement the same enhancement, J2EE/ART

portal representation required 64% less

modifications that the original J2EE portal.

The reader may find full details of this project in

(Yang and Jarzabek, 2006).

9 GENERATORS

Powerful domain-specific solutions can be built by

formalizing the domain knowledge, and using

generation techniques to produce custom programs

in a domain. Advancements in modelling and

generation techniques led to Model-Driven

Engineering (MDE) (Schmidt, 2006), where

multiple, inter-related models are used to express

domain-specific abstractions. Models are used for

analysis, validation (via model checking), and code

generation. Platforms such as Microsoft Visual

Studio™ and Eclipse™ support generation of source

code using domain-specific diagrammatic notations.

By constraining ourselves to a specific

application domain, we can make assumptions about

its semantics. A domain engineer encodes domain-

specific knowledge into a generic, parameterized

program solution. A developer, rather than working

out all the details of the program solution, writes a

concise, declarative problem description in a

Domain-Specific Language (DSL). A generator uses

DSL specifications to instantiate parameters of a

generic solution to produce a custom program.

Problem specifications in DSL are much smaller and

simpler than the instantiated, complete and

executable program solution. While we do not

reduce the overall program complexity, generation-

based solutions shield a programmer from

complexities of the domain-specific code that is now

manipulated by a generator. DSL may take many

different forms, depending on a domain, from a

formal text (e.g., BNF for parser generator), to

visual interface (e.g., GUI) and to models (in Model-

Driven Engineering approaches).

This is in contrast with ART which is an

application domain- and programming language-

independent technique. There is no concept of DSL

in ART. Generators can be built in well-understood

and fairly stable application domains. On the other

hand ART, performs best in domains where frequent

changes occur at both large and small granularity

levels.

Generators must overcome a number of

challenges to have a greater impact on practice. A

common pitfall of generators is that abstract

program specifications in DSL can get easily

disconnected from the generated code. This happens

when the generated code is modified by hand to

accommodate changes not catered for by the DSL.

As any re-generation of code would override such

modifications, future maintenance must be done by

hand and developers can’t benefit from the generator

anymore. Round-trip engineering could overcome

this problem, but is difficult to achieve. This

problem is particularly acute in the situation when

we need to evolve multiple generated programs

differing in certain features, as it is often the case of

a Product Line. Implementing variant features in the

generator will propagate all the variant features to all

the programs, which may not be desirable. On the

other hand, implementing variant features directly

into generated programs that need them,

automatically disconnects those programs from the

generator.

Another problem faced by generators is that a

problem domain served by a generator is often only

a part of an overall programming problem

Software Similarity Patterns and Clones: A Curse or Blessing?

developers need to solve. Strategies for integrating

multiple domain-specific generators and embedding

them into systems implemented using yet other

techniques have yet to be developed. One of the

reason for success of compiler generators is that

compilation on its own is a self-contained domain.

Rich abstractions lead to powerful generators.

Without sufficient abstractions, there is not much we

can automate. We believe not enough of general-

purpose abstractions is the main reason why, despite

much research, we have not achieved success in

domain-independent, generation-based automatic

programming. This also reminds us Brooks’ doubts

about reducing essential program complexity by

means of abstraction (Brooks, 1986).

10 CONCLUSIONS

In the paper, I discussed a multi-faceted

phenomenon of software similarities. Starting with

software clone definition, I analysed common

reasons why clones occur in programs, their impact

on software development and maintenance, and

productivity benefits that can be gained by avoiding

clones. The core of the paper focused on

redundancies that, despite potential benefits, are

difficult to avoid with conventional programming

languages and design techniques. Finally, I

demonstrated a possible solution to avoiding such

redundancies with meta-level generative techniques.

ACKNOWLEDGEMENTS

Author thanks PhD students and research assistants

at the National University of Singapore who

developed clone detection tools, implemented ART

processor, and participated in studies on software

redundancies.

REFERENCES

Basit, A.H., Rajapakse, D. and Jarzabek, S. 2005. Beyond

Templates: a Study of Clones in the STL and Some

General Implications. In Int. Conf. Soft. Eng.,

ICSE’05, St. Louis, USA, May 2005, pp. 451-459

Basit, A.H. and Jarzabek, S. 2005. Detecting Higher-level

Similarity Patterns in Programs. In ESEC-FSE'05,

European Soft. Eng. Conf. and ACM SIGSOFT Symp.

on the Foundations of Soft. Eng., ACM Press,

September 2005, Lisbon, pp. 156-165

Basit, A.H. and Jarzabek, S. 2009. A data mining

approach for detecting higher-level clones. In IEEE

Trans. on Soft. Eng., 35(4): 497-514, 2009

Batory, D., Singhai, V., Sirkin, M. and Thomas, J. 1993.

Scalable software libraries.. In ACM SIGSOFT’93:

Symp. on the Foundations of Software Engineering,

Los Angeles, California, pp. 191-199

Baxter, I., Yahin, A., Moura, L., Sant’Anna, M., and Bier,

L. 1998. Clone detection using abstract syntax trees. In

Proc. Int. Conf. Soft. Maintenance 1998, pp. 368–377

Brooks, F. 1995. The Mythical Man-Month, Addison

Wesley

Brooks, F.P. 1986. No Silver Bullet. 1986. In Proc. IFIP

World Computing Conference, H. K. Kugler, ed.,

Elsevier Science, pp. 1069-1076

Clements, P. and Northrop, L. 2002. Software Product

Lines: Practices and Patterns, Addison-Wesley

Cordy, J. R., 2003. Comprehending Reality: Practical

Challenges to Software Maintenance Automation. In

Proc. 11

IEEE Intl. Workshop on Program

Comprehension, pp. 196-206

Czarnecki, K. and Eisenecker, U., 2000. Generative

Programming: Methods, Tools, and Applications,

Addison-Wesley

Deelstra, S., Sinnema, M. and Bosch, J., 2000.

Experiences in Software Product Families: Problems

and Issues during Product Derivation. Proc. Software

Product Lines Conf., SPLC3, Boston, pp/ 165-182

Ducasse, S., Rieger, M. and Demeyer, S. 1999. A

language independent approach for detecting

duplicated code. In Int. Conf. on Soft. Maintenance,

ICSM’99, Oxford, UK pp. 109-118

Fowler, M. 1997. Analysis Patterns: Reusable Object

Models, Addison-Wesley

Fowler M. 1999. Refactoring - improving the design of

existing code, Addison-Wesley

Gamma, E., Helm, R., Johnson, R. and Vlissides, J. 1995.

Design Patterns – Elements of Reusable Object-

Oriented Software, Addison-Wesley

Garcia, R. et al., 2003. A Comparative Study of Language

Support for Generic Programming. In Proc. 18

ACM

SIGPLAN Conf. on Object-oriented Prog., Systems,

Languages, and Applications, pp. 115-134.

Goguen, J.A. 1984. Parameterized Programming. IEEE

Trans. on Software Engineering, Vol. SE-10, No. 5,

pp. 528-543

Hammad, M. Basit, H., Jarzabek, S. and Koschke, R. A

Mapping Study of Clone Visualization. 2020.

Computer Science Review (accepted in final form)

Jarzabek, S. and Li, S. 2003. Eliminating Redundancies

with a “Composition with Adaptation” Meta-

programming Technique. In Proc. ESEC-FSE'03,

European Software Engineering Conference and ACM

SIGSOFT Symposium on the Foundations of Software

Engineering, Helsinki, pp. 237-246

Jarzabek, S. and Li, S. 2006. Unifying clones with a

generative programming technique: a case study. In

Journal of Software Maintenance and Evolution:

Research and Practice, John Wiley & Sons, Vol. 18,

Issue 4, pp. 267-292

ICEIS 2020 - 22nd International Conference on Enterprise Information Systems

Jarzabek, S. 2007. Effective Software Maintenance and

Evolution: Reused-based Approach, CRC Press Taylor

and Francis

Kamiya, T., Kusumoto, S., and Inoue, K. 2002. CCFinder:

A multi-linguistic token-based code clone detection

system for large scale source code. In IEEE Trans.

Software Engineering, 28(7): pp. 654-670

Kapser, C. and Godfrey M. 2006. “Cloning considered

harmful” considered harmful. In Working Conf. on

Software Reverse Engineering, WCRE, pp. 19-28

http://dx.doi.org/ 10.1007/s10664-008-9076-6

Kiczales, G, Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J-M., Irwin, J. 1997. Aspect-

Oriented Programming. In Europ. Conf. on Object-

Oriented Programming, Finland, Springer-Verlag

LNCS 1241, pp. 220-242

Kim, M., Bergman, L., Lau, T. and Notkin, D. 2004. An

Ethnographic Study of Copy and Paste Programming

Practices in OOPL. In Proc. Int. Symposium on

Empirical Software Engineering , ISESE’04, Redondo

Beach, California, pp. 83-92

Kumar, K. Jarzabek. S. and Dan, D. 2016. Managing Big

Clones to Ease Evolution: Linux Kernel Example.

Federated Conference on Computer Science and

Information Systems, FedCSIS, 36th IEEE Soft. Eng.

Workshop, pp. 1767 – 1776

Levenshtein, V.I. 1966. Binary codes capable of

correcting deletions, insertions, and reversals. In

Cybernetics & Control Theory 10-8, pp. 707-710

Musser, D. and Saini, A., 1996. STL Tutorial and

Reference Guide: C++ Programming with Standard

Template Library, Addison-Wesley

Pettersson, U., and Jarzabek, S. 2005. Industrial

Experience with Building a Web Portal Product Line

using a Lightweight, Reactive Approach. In ESEC-

FSE'05, European Soft. Eng. Conf. and ACM Symp. on

the Foundations of Soft. Eng., Lisbon, pp. 326-335

Rajapakse, D. and Jarzabek, S. 2005. An Investigation of

Cloning in Web Portals. In Int. Conf. on Web Eng,

ICWE’05, Sydney, pp. 252-262

Schmidt, D. 2006. Model-Driven Engineering. In IEEE

Computer, pp. 25-31

Zhang, H. and Jarzabek, S. 2004. A Mechanism for

Handling Variants in Software Product Lines. In

special issue on Software Variability Management,

Science of Computer Programming, Volume 53, Issue

3, pp. 255-436.

Yang, J. and Jarzabek, S. 2005. Applying a Generative

Technique for Enhanced Reuse on J2EE Platform. In

Int. Conf. on Generative Programming and

Component Engineering, GPCE'05, Tallinn, Estonia,

pp. 237-255

Yamanaka, Y., Choi, E., Yoshida, N., Inoue, K. and Sano,

T. 2012. Industrial Application of Clone Change

Management System. Proc. 6

Int. Workshop on

Software Clones, IWSC, pp.67-71.

Software Similarity Patterns and Clones: A Curse or Blessing?
