Integrating Lightweight Compression Capabilities into Apache Arrow

Juliana Hildebrandt

, Dirk Habich

and Wolfgang Lehner

Technische Universit

at Dresden, Database Systems Group, Dresden, Germany

Keywords:

Columnar Data, Data Formats, Apache Arrow, Lightweight Compression, Integration.

Abstract:

With the ongoing shift to a data-driven world in almost all application domains, the management and in

particular the analytics of large amounts of data gain in importance. For that reason, a variety of new big

data systems has been developed in recent years. Aside from that, a revision of the data organization and

formats has been initiated as a foundation for these big data systems. In this context, Apache Arrow is a novel

cross-language development platform for in-memory data with a standardized language-independent columnar

memory format. The data is organized for efﬁcient analytic operations on modern hardware, whereby Apache

Arrow only supports dictionary encoding as a speciﬁc compression approach. However, there exists a large

corpus of lightweight compression algorithms for columnar data which helps to reduce the necessary memory

space as well as to increase the processing performance. Thus, we present a ﬂexible and language-independent

approach integrating lightweight compression algorithms into the Apache Arrow framework in this paper.

With our so-called Arrow

Comp

approach, we preserve the unique properties of Apache Arrow, but enhance the

platform with a large variety of lightweight compression capabilities.

1 INTRODUCTION

With increasingly large amounts of data being col-

lected in numerous application areas ranging from

science to industry, the importance of online analyt-

ical processing (OLAP) workloads increases (Chaud-

huri et al., 2011). The majority of this data can be

modeled as structured relational tables, thereby a ta-

ble is conceptually a two-dimensional structure orga-

nized in rows and columns. On that kind of data,

OLAP queries typically access a small number of

columns, but a high number of rows and are, thus,

most efﬁciently processed using a columnar data stor-

age organization (Boncz et al., 2008; Sridhar, 2017).

This organization is characterized by the fact that each

column of a table is stored separately as a contiguous

sequence of values. In recent years, this storage or-

ganization has been increasingly applied by a variety

of database systems (Abadi et al., 2013; Boncz et al.,

2008; Boncz et al., 2005; Stonebraker et al., 2005)

as well as big data systems (Kornacker et al., 2015;

Sridhar, 2017) with a special focus on OLAP.

Besides the development of such novel systems,

we also observe a fundamental revision of the data or-

https://orcid.org/0000-0001-7198-8552

https://orcid.org/0000-0002-8671-5466

https://orcid.org/0000-0001-8107-2775

ganization and formats as a foundation for these sys-

tems, especially for big data systems (Vohra, 2016a;

Vohra, 2016b). Here, the goal is to organize data

optimally for processing and analysis (Vohra, 2016a;

Vohra, 2016b). A recent and novel approach in this

direction is Apache Arrow

aiming to be a standard-

ized language-independent columnar memory format

for ﬂat and hierarchical data, organized for efﬁcient

analytic operations on modern hardware. The ma-

jor advantage of this speciﬁc memory format is that it

acts as a new high-performance and ﬂexible interface

for various big data platforms such as Spark (Zaharia

et al., 2010), Calcite (Begoli et al., 2018), Impala (Ko-

rnacker et al., 2015), or Pandas (Beazley, 2012). That

means, data sets represented in this Apache Arrow for-

mat can be seamlessly shared between different big

data platforms with a zero-copy approach.

Additionally, Apache Arrow also aims to enable

execution engines to take advantage of the latest

SIMD (Single Instruction Multiple Data) operations,

provided by almost all modern processors, for a

highly vectorized and efﬁcient processing of colum-

nar data (Polychroniou et al., 2015; Polychroniou

and Ross, 2019; Ungeth

um et al., 2020; Zhou and

Ross, 2002). However, the gap between the comput-

ing power of the CPUs and main memory bandwidth

Apache Arrow - https://arrow.apache.org/

Hildebrandt, J., Habich, D. and Lehner, W.

Integrating Lightweight Compression Capabilities into Apache Arrow.

DOI: 10.5220/0009820100550066

In Proceedings of the 9th International Conference on Data Science, Technology and Applications (DATA 2020), pages 55-66

ISBN: 978-989-758-440-4

on modern processors continuously increases, which

is now the main bottleneck for efﬁcient data pro-

cessing (Boncz et al., 2008). From that perspective,

the columnar data organization is one step to tackle

this gap by reducing the memory accesses to the rel-

evant columns. To further increase the processing

performance in particular in combination with a vec-

torized execution, data compression is a second and

necessary step to tackle that gap as already success-

fully shown in the domain of in-memory column store

database or processing systems (Abadi et al., 2006;

Abadi et al., 2013; Damme et al., 2020; Habich et al.,

2019; Hildebrandt et al., 2016). Here, a large corpus

of speciﬁc lightweight data compression algorithms

for columnar data has been developed (Damme et al.,

2019; Hildebrandt et al., 2017; Lemire and Boytsov,

2015) and the application dramatically increased the

performance of analytical queries (Abadi et al., 2006;

Abadi et al., 2013). Unfortunately, Apache Arrow

only supports dictionary compression in that direction

as one speciﬁc lightweight compression algorithm.

Our Contribution and Outline. To overcome

the current limitation of Apache Arrow, we present

Arrow

Comp

as an enhanced approach in this paper.

Arrow

Comp

builds on Apache Arrow and integrates

the available large corpus of lightweight compres-

sion algorithms for columnar data in a ﬂexible and

efﬁcient way. Our Arrow

Comp

approach is language-

independent to preserve this important property of

Apache Arrow. In detail, our main contributions in

this paper are:

1. We give a sufﬁcient introduction into Apache Ar-

row as well as into the domain of lightweight data

compression algorithms as a foundation for our

work in Section 2.

2. Based on this introduction, we explain our de-

veloped Arrow

Comp

approach integrating the large

corpus of lightweight compression algorithms

based on a metamodel concept in Section 3. This

metamodel concept enables us (i) to realize the

language independence and (ii) to facilitate the

simple integration of a large number of different

lightweight compression algorithms without hav-

ing to implement each algorithm on its own.

3. As a proof of concept, we implemented an

Arrow

Comp

in C++ as described in 3. Using this

prototype, we present selective experimental re-

sults in Section 4. As we are going to show,

Arrow

Comp

is able (i) to decrease the memory

footprint and (ii) to increase the performance of a

typical aggregation function compared to the orig-

inal Apache Arrow framework.

Finally, we close the paper with an overview of re-

lated work in Section 5 and a conclusion in Section 6.

orderkey quantity shipmode

2789 47 REG AIR

9378 48 SHIP

24519 17 REG AIR

37733 35 SHIP

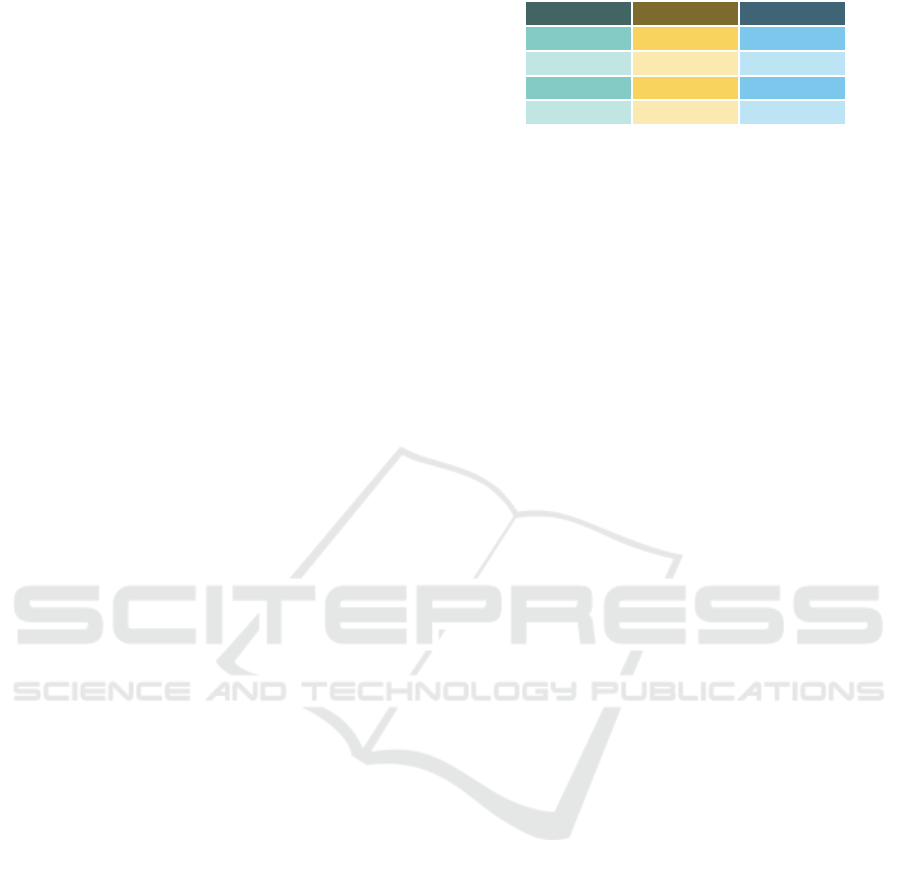

Figure 1: Running example table.

2 PRELIMINARIES

Before we introduce our Arrow

Comp

approach, this

section provides a brief introduction of the underlying

Apache Arrow framework including a short overview

of lightweight compression algorithms. Finally, we

close this section with a clear motivation why the in-

tegration of lightweight compression algorithms into

Apache Arrow makes sense.

2.1 Apache Arrow

Generally, Apache Arrow aims to be a cross-language

development platform for relational in-memory data.

On the one hand, this platform deﬁnes a speciﬁcation

establishing (i) the physical memory layout respec-

tively format of columns in relational data supporting

efﬁcient analytical processing with SIMD operations

on up-to-date hardware, (ii) the serialization and in-

terprocess communication for data exchange between

different systems containing, for example, the struc-

ture of table schemas or static column respectively

ﬁeld characteristics like the availability of a name and

a data-type, and (iii) guidelines for the implementa-

tion scope of engines processing the columnar data.

On the other hand, this platform provides implemen-

tations respectively libraries meeting the speciﬁcation

in different languages like C, C++, Python, Java, etc.

Thus, the cross-language property is achieved through

the explicit separation of speciﬁcation and imple-

mentation. Moreover, data represented using Apache

Arrow can be used in different big data platforms

such as Spark (Zaharia et al., 2010), Calcite (Begoli

et al., 2018), Impala (Kornacker et al., 2015), or Pan-

das (Beazley, 2012) with a zero-copy approach.

In the following, we (i) introduce some essential

vocabulary in terms of relational data used in the spec-

iﬁcation, (ii) explain a subset of the physical memory

layout speciﬁcation, and (iii) describe the C++ library

serving as a foundation for Arrow

Comp

2.1.1 Vocabulary

In principle, the Apache Arrow speciﬁcation distin-

guishes (table) schemas and Apache Arrow (data) ar-

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

Array

DictionaryArray FlatArray

BinaryArray<T>

StringArray

NullArray PrimitiveArray

Boolean

Array

FixedSize

BinaryArray

Decimal128Array

Numeric

Array<T>

ListArray<T> StructArray UnionArray

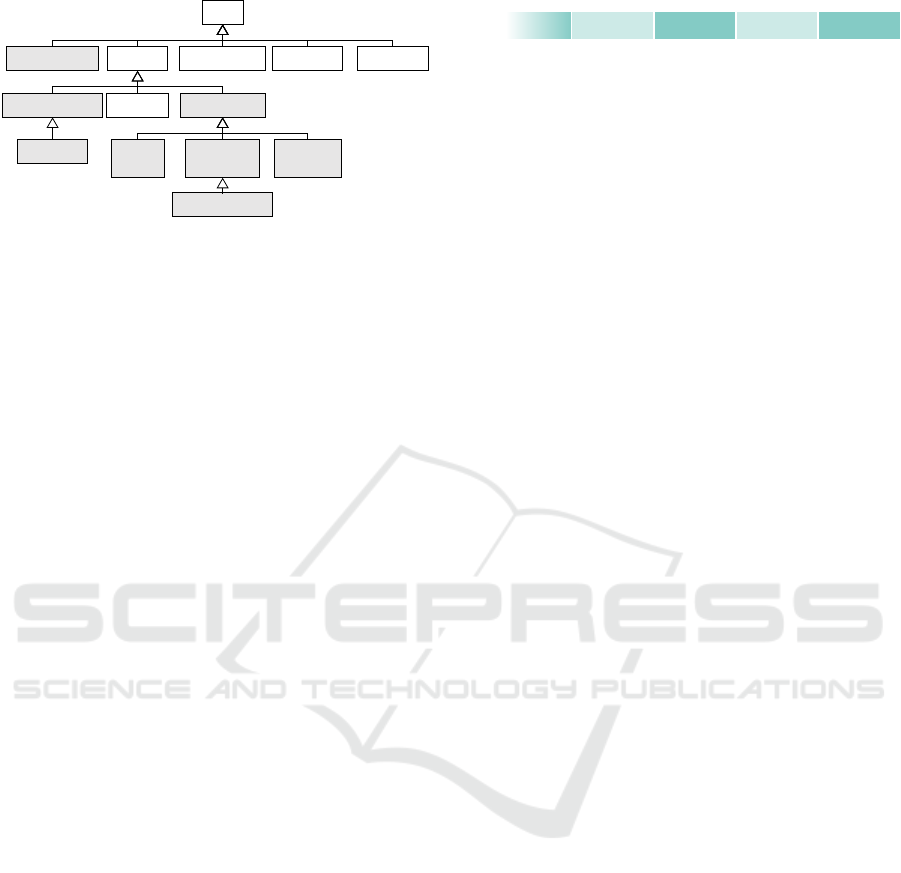

Figure 2: Simpliﬁed inheritance hierarchy of of Apache Ar-

row array types.

rays containing the columnar data respectively pieces

of columnar data. Schemas consist of an optional ta-

ble metadata map and a set of ﬁelds. Fields are static

characteristics of table columns, consisting of a name,

a data type, a boolean value indicating if null values

are allowed, an optional metadata map, and, depen-

dent on the data type, further property declarations.

An example table is shown in Figure 1 which we

use as a running example. The table schema consists

of three ﬁelds orderkey, quantity, and shipmode.

While the ﬁrst two ﬁelds have the data type uint32,

the type of the third ﬁeld is String. Moreover, the

ﬁelds are not nullable because all values are re-

quired.

2.1.2 Physical Memory Layout of Arrays

Figure 2 depicts a slightly simpliﬁed overview of

Apache Arrow array types for storing columnar data.

They can be divided into (i) FlatArrays contain-

ing non-nested data and (ii) arrays containing nested

data types as ListArrays, StructArrays, and

UnionArrays with mixed data types. FlatArrays

can be further divided into NullArrays contain-

ing exclusively null values, PrimitiveArrays with

data of the same physical length for each value

(i.e. int32), and BinaryArrays which are variable-

size types (i.e. String). Moreover, there exists

a DictionaryArray composed of integral columnar

data and a dictionary mapping the original data of

arbitrary type to integer values. Beyond this, user-

deﬁned extension types can be deﬁned for columnar

data, such that for example stored variable binary val-

ues can be interpreted in a deﬁned way. In those cases,

the ﬁeld’s metadata may contain all further necessary

information and parameters for encoding and decod-

ing.

The physical memory layout depends on the col-

umn data type and nullability. Columnar data may

consist of one or several consecutive memory re-

gions called buffers and primitive characteristic val-

ues. Each array has a length. Columns belonging to

278993782451937733not spec.

3-0

7-4

11-815-1263-16

Figure 3: Data buffer with four values padded to 64 bytes.

nullable ﬁelds contain a validity bitmap buffer and a

null count. PrimitiveArrays, BinaryArrays, and

DictionaryArrays (marked in gray in Figure 2) own

a single data buffer. Apache Arrow arrays with vari-

able size layout contain a further offset buffer. Nested

and Union layouts contain one or more data and offset

buffers. The internal data buffer structure of nested

arrays can be traced back to non-nested array data

buffers.

For the efﬁcient analytical processing of a huge

amount of data, it is beneﬁcial to store integral (prim-

itive) columnar data as shown in (Abadi et al., 2006;

Abadi et al., 2013; Binnig et al., 2009; M

uller et al.,

2014). For our running example table, this is easy for

the ﬁelds one and two. The ﬁrst and second column

with uint32 values would have length 4, null count 0,

possibly a validity bitmap buffer, and the data buffer.

The values are stored consecutively in a multiple of

64-bit to efﬁciently support SIMD operations. Thus,

padding might be necessary. Figure 3 shows the data

buffer for the ﬁrst column from Figure 1. Bytes 16 to

63 are padded. For the third column, the Apache Ar-

row dictionary encoding can be applied such that the

value REG AIR is replaced by 0 and the value SHIP is

replaced by 1. As a consequence, we store integral

values in each column and an additional dictionary in

a separate buffer.

2.1.3 C++ Library

The provided C++ library is an implementation of

the Apache Arrow speciﬁcation and consists of a

stack of 10 different layers. The lowest ones are

the physical layer with the pure memory manage-

ment, the one-dimensional layer (1D Layer with ar-

rays and the two-dimensional layer (2D Layer) im-

plementing schemas, ﬁelds, and tables. On top of

those, we have seven further layers, e.g., for I/O and

interprocess communication (IPC). For this paper, the

lower layers are interesting.

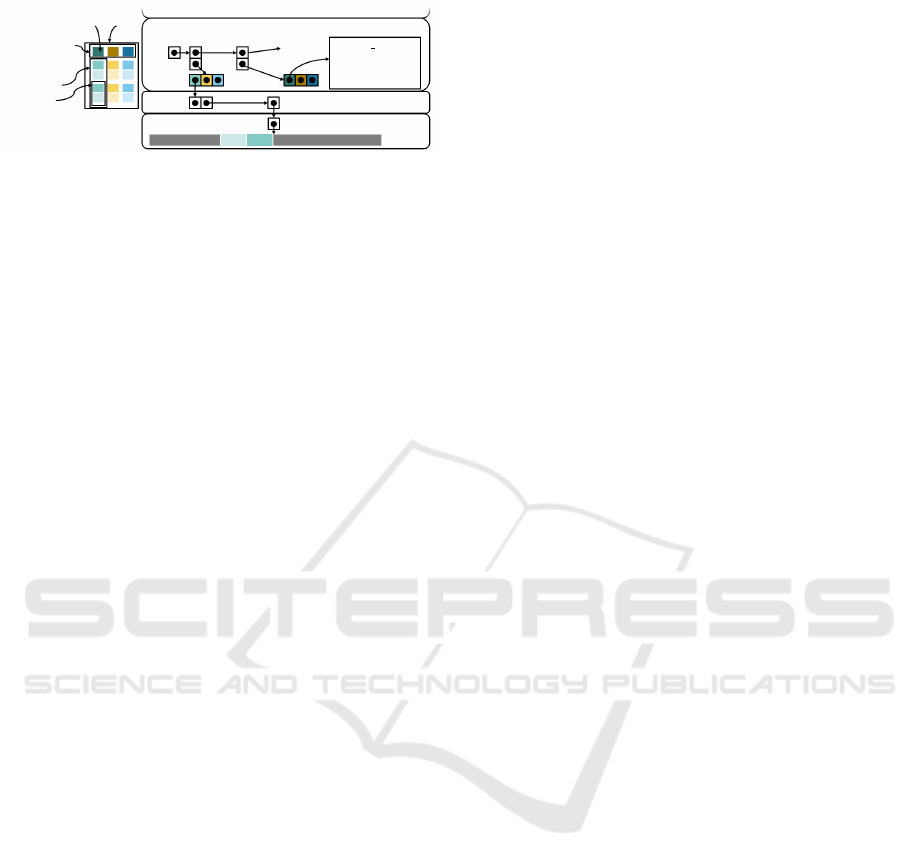

In Figure 4, we see our running example table with

a schema describing the properties of the three ﬁelds

and three corresponding columns. Moreover, the im-

plementation in the lower three layers is highlighted.

In the C++ library, it is possible to assemble one col-

umn from (i) several arrays (chunks) with the same

data type or (ii) by one single array as depicted in

the 1D Layer of Figure 4. For each array (chunk),

a separate buffer within the Physical Layer is al-

located. The C++ library of Apache Arrow imple-

Integrating Lightweight Compression Capabilities into Apache Arrow

Field Table

Schema

Column

Chunk

Memory

Buffer

Array

Chunk

Table

Schema

Metadata

Field

Column

name=l orderkey

type=uint32

nullable=false

metadata=NULL

upper

Layers

2D Layer

1D Layer

Physical

Layer

Figure 4: Illustration of the lower three layers of the Apache

Arrow C++ library for our running example.

ments the class attributes of the lower layer classes

(and nearly everything else) as shared pointers such

that often no copies are necessary for data processing.

2.2 Lightweight Integer Compression

Generally, the basic idea of data compression is to in-

vest more computational cycles to reduce the physical

data size. This computational effort can be amortized

by an increased effective bandwidth of data transfers

to storage mediums. This general concept is suc-

cessfully applied in many areas, among which com-

plex analyses of columnar data are just one example

(Abadi et al., 2006; Habich et al., 2019; Hildebrandt

et al., 2016; Zukowski et al., 2006). In this area, loss-

less compression is generally preferred.

Depending on the storage medium, different

classes of lossless compression can be distinguished.

On the one hand, classical heavyweight algorithms,

such as Huffman (Huffman, 1952), arithmetic coding

(Witten et al., 1987), variants of Lempel-Ziv (Ziv and

Lempel, 1977; Ziv and Lempel, 1978), and Snappy

(Google, 2019) support arbitrary data, but are rather

slow. Thus, they are usually employed to amortize

disk access latencies. On the other hand, lightweight

compression algorithms, which have been developed

especially for columnar data (Abadi et al., 2006;

Hildebrandt et al., 2016; Lemire and Boytsov, 2015),

are much faster while still achieving superb compres-

sion rates (Damme et al., 2017; Damme et al., 2019).

This combination makes them suitable for in-memory

columnar processing (Abadi et al., 2006; Damme

et al., 2020; Habich et al., 2019).

Lightweight compression algorithms usually fo-

cus on integer sequences, which is a natural match for

columnar data, since it is state-of-the-art to represent

all values as integer keys from a dictionary (Binnig

et al., 2009). The unique properties of lightweight

compression algorithms result from their exploitation

of certain data characteristics, such as the data dis-

tribution, sort order, or the number of distinct val-

ues in a column (Damme et al., 2017; Damme et al.,

2019). Owing to that, a large variety of lightweight in-

teger compression algorithms has been proposed and

a recent study showed that there is no single-best one

(Damme et al., 2017; Damme et al., 2019).

Examples of lightweight compression include

variants of run-length encoding (RLE) (Abadi et al.,

2006; Roth and Van Horn, 1993), frame-of-reference

(FOR) (Goldstein et al., 1998; Zukowski et al., 2006),

differential coding (DELTA) (Lemire and Boytsov,

2015; Roth and Van Horn, 1993), dictionary cod-

ing (DICT) (Abadi et al., 2006; Binnig et al., 2009;

Roth and Van Horn, 1993; Zukowski et al., 2006),

and null suppression (NS) (Abadi et al., 2006; Lemire

and Boytsov, 2015; Roth and Van Horn, 1993). To

better understand these basic variants, we will brieﬂy

explain each of them. FOR and DELTA represent

each integer value as the difference to either a cer-

tain given reference value (FOR) or to its predeces-

sor value (DELTA). For decompression purposes, we

have to store the reference values in FOR. DICT re-

places each value by its unique key in a dictionary,

whereby this technique can be used to map values of

any data type to integer values (Binnig et al., 2009).

The dictionary has to be stored for decompression as

well. The objective of these three well-known basic

variants is to represent the original integer data as a

sequence of small integers, which is then suited for

actual compression using the NS technique. NS is the

most studied lightweight compression technique. Its

basic idea is the omission of leading zeros in the bit

representation of small integers. Finally, RLE tackles

uninterrupted sequences of occurrences of the same

value, so-called runs. Each run is represented by its

value and length.

2.3 Lessons Learned

To sum up, Apache Arrow is an interesting platform

as it provides a standardized language-independent

columnar in-memory format, organized for efﬁcient

analytical operations on modern hardware. It already

includes dictionary coding to map arbitrary data types

to integer values. However, Apache Arrow lacks sup-

port for more sophisticated lightweight integer com-

pression algorithms which are suitable (i) to reduce

the memory footprint and (ii) to speedup the colum-

nar data processing. To overcome that shortcoming of

Apache Arrow, we developed an approach to integrate

the large corpus of lightweight into Apache Arrow.

3 Arrow

Comp

FRAMEWORK

In (Damme et al., 2017; Damme et al., 2019), the

authors clarify the large corpus of lightweight inte-

ger compression algorithms and experimentally prove

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

that there is no single-best one but the decision de-

pends on data characteristic and hardware proper-

ties. For this reason, it does not make sense to inte-

grate only some lightweight integer compression into

Apache Arrow, which would only limit the beneﬁts.

To achieve the full potential, the complete corpus of

algorithms has to be integrated. However, this inte-

gration has to be language-independent to preserve

this unique property of Apache Arrow. To satisfy

these challenges, our Arrow

Comp

approach is based on

two basic pillars:

1. We already developed a metamodel to spec-

ify lightweight integer compression algorithms

in a descriptive, language-independent, and non-

technical way (Hildebrandt et al., 2017).

2. We evolved the speciﬁcation of each column

to a self-describing compressed column. That

means, each column includes a description about

the (de)compression as metadata using our meta-

model.

To show the feasibility and to evaluate our approach,

we implemented a prototype of Arrow

Comp

based on

the C++-library of Apache Arrow. In the following,

we describe each pillar and our implementation in

more detail.

3.1 Metamodel for (De)Compression

To specify lightweight integer compression algo-

rithms in a language-independent approach, we al-

ready presented an appropriate metamodel in (Hilde-

brandt et al., 2017). Our metamodel consists of ﬁve

main concepts processing a stream or batch of values

and it deﬁnes a data compression format. Each con-

cept contains mainly functions consuming streams or

batches and generating other streams, batches, or sta-

tistical parameters. The model for each algorithm is

a compression concept. Each compression contains

(1) a tokenizer, a function which determines how

many consecutive values belong to the next batch,

(2) a parameter calculator, a set of functions,

which determine and encode statistical parameters,

(3) an encoder, a tuple of functions calculating the

encoding of a batch or a further compression model,

such that compression models can be nested, and (4)

a combiner that determines the serialization of en-

coded batches and parameters.

Figure 5 depicts a concrete example using a sim-

ple null suppression algorithm SIMD-BP128 (Lemire

and Boytsov, 2015). The basic idea of SIMD-BP128

is to partition a sequence of integer values into batches

of 128 integer values and compress every value in a

batch using a ﬁxed bit width (namely, the effective

bit width of the largest value in the block) (Lemire

1 c o m p r es s io n ( SIMD - B P128 ,

2 to k en iz e r ( i n = > 128) ,

3 p a r a m e t e rc a l c u l at o r ( wid th , in . m ax . b w ) ,

4 co m pr e ss i on (

5 to k en iz e r ( i n = > 1) ,

6 p a r a me t e rc a l c u l at o r () ,

7 en co d e r ( in = > in . bi n ( wi dt h ) ) ,

8 co m b i ne r ( in = > in )

9 )

10 c o mb i n e r (i n = > i n o wi d t h )

11 )

Figure 5: SIMD-BP128 metamodel instance.

and Boytsov, 2015). That means, the compression

is achieved by omission of leading zeros in the bit

representation of each integer value. As shown in

Figure 5, the corresponding metamodel instance of

SIMD-BP128 includes only this non-technical infor-

mation. In detail, the ﬁrst tokenizer (line 2) parti-

tions the incoming sequence of integers denoted as in

into batches with a size of 128 values. The subsequent

parameter calculator (line 3) determines the bit

width of the largest value using a function in.max.bw

and this bit width is stored in a variable width. Then,

a new compression part (line 4) starts with a sec-

ond tokenizer (line 5) partitioning the batches in

new batches of size one, so that the encoder (line

7) can represent each value with the determined bit

width (in.bin(width)). In this case, we do not need

any further parameters and thus, we use an empty

parameter calculator (line 6). Last but not least,

the combiners (lines 8 and 10) specify the concate-

nation of the compressed representation, whereby the

used bit width per batch is included in the compressed

representation (line 10). This information is neces-

sary for a successful decompression.

For Arrow

Comp

, we straightforwardly extended

our metamodel to be able to specify the decompres-

sion algorithm in the same way as well. Since the

speciﬁc parameter values for the compression, such

as the used bit width per batch, are always included

in the compressed data, they only have to be ex-

tracted instead of being calculated using a parameter

calculator. Then, this information is used in the

encoder to decompress the values.

To sum up, with our metamodel approach, we are

able to specify the compression as well as decom-

pression procedure for a large set of lightweight com-

pression algorithms in a descriptive and language-

independent manner. Moreover, our metamodel con-

sists of only ﬁve speciﬁc concepts which are enough

for that lightweight integer compression domain.

Integrating Lightweight Compression Capabilities into Apache Arrow

3.2 Self-describing Column

Since data properties have a signiﬁcant inﬂuence on

the choice of the best-ﬁtting lightweight compres-

sion algorithm (Damme et al., 2017; Damme et al.,

2019), each column has to be considered separately.

However, this also means that we have to specify for

each column with which algorithm it is compressed

and how it has to be decompressed. Moreover, this

speciﬁcation has to be done in an implementation-

independent form so that the same format can be uti-

lized by different systems or libraries. To achieve that,

we decided to include the metamodel instances for

compression and decompression in the corresponding

ﬁeld metadata of the columns in Apache Arrow. We

borrow this approach from the extension types idea

as presented in Section 2.1. Figure 6 illustrates our

approach for the ﬁrst column.

To sum up, our general concept is to store the com-

pressed column together with a description to spec-

ify and generate the compression as well as decom-

pression procedure (compressed data together with

(de)compression algorithms). From our point of view,

this is the most ﬂexible approach to make data in-

terchangeable between different systems. However,

this also means that the systems have to be able

to interpret and to execute the descriptions of the

(de)compression procedures. To achieve that, we pro-

pose that the separation of speciﬁcation and imple-

mentation has to be applied for algorithms as done

with our metamodel approach.

Furthermore, our self-describing column ap-

proach seamlessly interacts with the already available

dictionary encoding of Apache Arrow. Based on that,

can fully utilize the potential of the lightweight inte-

ger compression algorithms for all kinds of data types

by (i) encode the values of each column as a sequence

of integers using dictionary encoding and (ii) apply

lightweight lossless integer compression to each se-

quence of integers resulting in a sequence of com-

pressed column codes.

3.3 Implementation

To prove the feasibility and applicability of our ap-

proach, we implemented an Arrow

Comp

prototype

based on the C++ library of Apache Arrow. For this

prototype, the following challenges arose: (i) integrat-

ing metamodel instances into metadata, (ii) convert-

ing metamodel instances to efﬁcient executable code,

(iii) provision of access to the compressed data. In the

following, we present our solutions for that as sum-

marized in Figure 6.

Array

Chunk

Table

Schema

Metadata

Field

Column

name=l orderkey

type=uint32

nullable=false

metadata=

upper

Layers

2D Layer

1D Layer

Compression Layer

”compression”

{

”comp”:{

”tok”:{...},

”params”:{...},

”comp”:{...},

”comb”:{...}

}

}”

Memory

Buffer

Physical

Layer

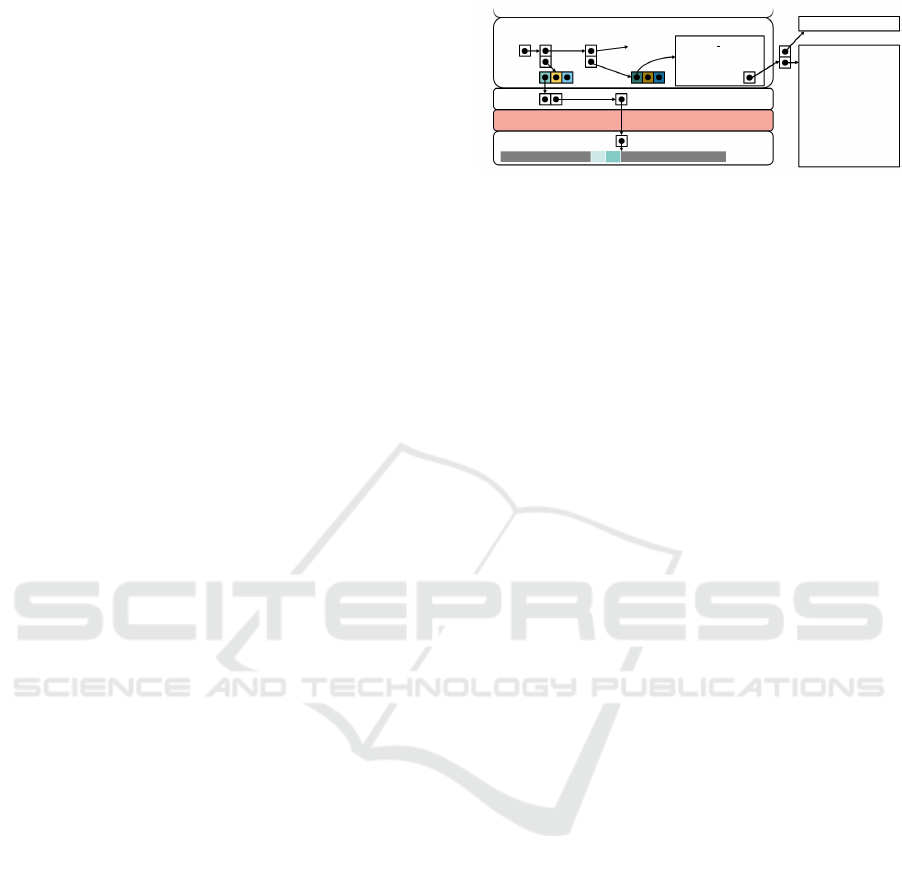

Figure 6: Arrow

Comp

layer structure providing compressed

columnar storage and processing capabilities.

3.3.1 Metadata Integration

To integrate the metamodel instances for compres-

sion and decompression, we decided to include those

descriptions in the corresponding ﬁeld metadata of

the columns. As we already mentioned above, we

borrowed this integration concept from the extension

types idea from Apache Arrow. In our current im-

plementation, we describe the metamodel instances

as JSON objects, because the algorithms are usually

composite tree structures which perfectly match to

JSON.

3.3.2 Converting to Executable Code

To modify and to process columnar data, the meta-

model instances of compression and decompression

have to be converted to executable code. To achieve

that, there are two possible ways: (i) code generation

out of the metamodel or (ii) by provision of an im-

plemented library with the required functionality. In

general, both ways are feasible, but we decided to im-

plement a library as an additional layer between the

Physical Layer and the 1D Layer of Apache Ar-

row as illustrated in Figure 6. The task of this library

is to compress and to decompress columnar data ac-

cording to the descriptions in the corresponding meta-

data of the column in a transparent way. That means,

the 1D Layer does not know that the columnar data is

stored in a compressed way at the Physical Layer.

In general, our library is based on C++ tem-

plate metaprogramming. In more detail, every meta-

model concept such as compression or tokenizer

is realized as a template which can be parameter-

ized and tailored using function inlining. Then, these

templates are orchestrated as speciﬁed in the meta-

model instances The advantage of this approach is

that we can directly derive a library implementation

out of a JSON-represented compression or decom-

pression algorithm using a regular compiler. Since

most lightweight integer compression implementa-

tions have been proposed for vectorization with vector

registers of size 128-bit (Damme et al., 2019; Lemire

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

Algorithm

Advisor

Algorithm

Integration

Functionality

Provision

Dynamic

Data

Processing

Data

Analyzation

Algorithm

Speciﬁcation

Algorithm

Parsing

Model

Analyzation

Code

Generation

Code

Compilation

Load

Library

Extracting

Contents

Function

Execution

Unload

Library

Data

Metrics

columnar

data

JSON

String

Algorithm

Model

JSON

Object

Analyze Tree

Source Code

libgeneration.cpp

Shared Object

libgeneration.so

File Handle

Function

Pointer

columnar

data

compress

decompress

getValue

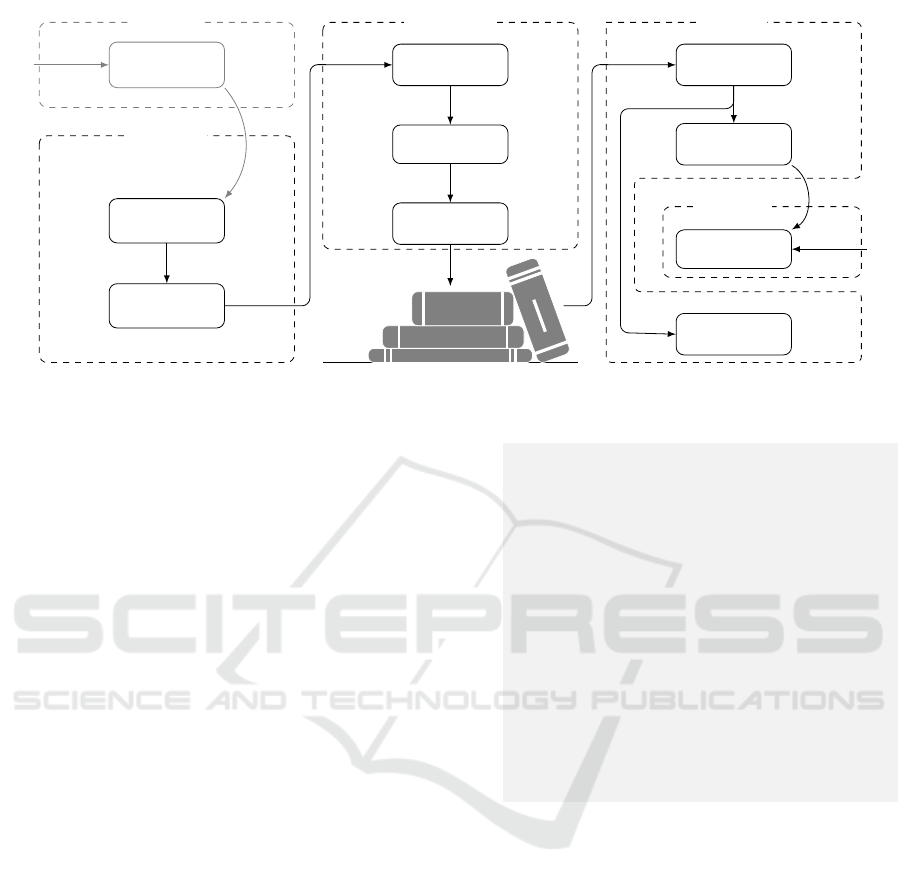

Figure 7: Runtime steps during the life time of a data format object (i) to integrate algorithms, (ii) to provide the algorithmic

functionality, and (iii) to load and to execute the generated code.

and Boytsov, 2015), our templates currently support

this vector register sizes as well.

Moreover, we introduced a new data format class

in Arrow

Comp

. This new data format corresponds to

the model instance. Figure 7 summarizes all steps

during the lifetime of a data format object. When a

data format is instantiated (line 4 in Figure 8), the in-

put JSON Strings specifying the compression and de-

compression algorithms are parsed to JSON objects.

To generate the corresponding executable code, the

metamodel descriptions are analyzed in a next step.

This includes the calculation of positions and lengths

of bit strings, which have to be encoded, the applica-

tion of case distinctions and loop unrollings as well as

the determination of the output granularity like word

granularity or byte granularity. Afterward a couple of

functions is compiled to a ﬁle belonging to the special

data format and a shared library is constructed. This

library is loaded dynamically at run time, such that the

library functions are accessible by a (function) pointer

and can be applied for data processing like compres-

sion, decompression, as well as value access as dis-

cussed as next.

3.3.3 Providing Access

The construction of a compressed array and reading

of a sequence of integer values is shown in Figure 8.

Apache Arrow uses a so-called builder to construct an

Apache Arrow array. The builder organizes the incre-

mental building of different buffers corresponding to

different data types, calculates null counts, etc. To

store compressed data in Arrow

Comp

, the builder for

a compressed array has to know the compressed data

format. This is done by setting the (de)compression

JSON-objects for the data format for a speciﬁc ﬁeld

1 // setting the table schema

2 ve cto r < s h ar ed _p tr < F i eld >> sc he ma =

{ f ie ld ( " o rd er k ey " , uin t3 2 () ) ,... } ;

3 // setting (de)compression infos

4 a ut o myc o m p = a rr o wc om p :: se tF or ma t < UI nt 3 2 T yp e >

( sc hem a - > fi el d (0) , JSO N - S tr in g

Co mp re ss io n , JSON - S tr in g D ec o m p r e s s i on ) ;

5 // building data arrays

6 a ut o bui ld er = ar ro w c o mp : : b u il de r ( m y c om p ) ;

7 // execution of compression code

8 b u i l de r . A p p e n d (2 7 8 9 ) ;

9 b u i l de r . A p p e n d (9 3 7 8 ) ;

10 a rr ow :: S ta tu s st = bu il d e r . F in is h () ;

11 // reading compressed data

12 a ut o v al s ( new a r ro w co mp : :

Co mp r es se d A r ra y < U In t3 2T yp e >( bu i l d er ) ) ;

13 // decompression of a single value

14 a ut o v al = vals -> V al ue ( 1) ; // == 9378

Figure 8: Modifying and reading compressed arrays.

(line 4). Then, the builder gets this information as

input (line 6), whereby the required code for com-

pression and decompression will be initialized. Af-

terward, we can append single values to the column

and these values are transparently compressed using

the speciﬁc compression algorithm (lines 8-10).

To read the values of a compressed column, we

access the values in a regular uncompressed way (line

14). In the background, our introduced Compression

Layer is responsible for the decompression to return

uncompressed values to the application. Important to

note, our Compression Layer does not decompress

the entire column, but only in pieces that ﬁt in the

cache hierarchy. In that way, we can efﬁciently exe-

cute sequential access on the entire column with de-

compressing only small parts. To realize random ac-

cess efﬁciently, we need to determine which part of

Integrating Lightweight Compression Capabilities into Apache Arrow

the compressed column has to be decompressed.

In most cases, the compressed data is organized

in batches. That means, the number of values in one

batch is ﬁx, e.g., 128 values in SIMD-BP128, but the

physical data size varies, because a different bit width

is used for each block. Here, we can exploit chunked

arrays, such that each batch is mapped to exactly one

chunk. A second case is, that the compressed data

is organized in blocks with a constant physical data

size, but the number of values varies. Examples are

word-aligned algorithms with a 2- to 4-bit header that

encodes the number and bit lengths of the bit-packed

values or RLE. Here, an index tree structure can be

applied, such that the block which contains the value

at a given position can be found in a constant time.

Depending on the block size, exploiting chunks or

offsets can be advantageous. However, these data for-

mats are more suitable for sequential than for random

access.

In a third case, the compressed data is not orga-

nized in blocks and all values have the same length.

Here random access is trivial. The fourth and last case

includes variable-length compressed values, which

are not organized in blocks. These data formats are

also more suitable for sequential than for random ac-

cess, but here it would be possible to organize a ﬁxed

number of values in chunks. An orthogonal approach

to access variable-length data is to store the length in-

formation and the data itself separately, such that only

the length information has to be iterated to ﬁnd the

value you are looking for. This can be speciﬁed with

a multi-output combiner in our metamodel.

4 EVALUATION

We conducted our experimental evaluation on a ma-

chine equipped with an Intel i7-6600U at 2.6 GHz

providing the vector extension SSE with a vector reg-

ister size of 128-bit. The capacities of the L1, L2,

and L3-caches are 32KB, 256KB, and 4096KB, re-

spectively. The system has 2 cores, however, we only

investigate the single-thread performance. The size of

the ECC DDR4 main memory is 19GB and all exper-

iments happened entirely in-memory. We compiled

our source code using g++ with the optimization ﬂag

-O3 on a 64-bit Linux operating system.

To show the beneﬁt of our Arrow

Comp

compared

to Apache Arrow, we evaluated (1) the data sizes of

compressed and uncompressed arrays and (2) the run-

times of sum and lookup queries on uncompressed

and compressed arrays. In our evaluation, we limit

our focus on representative lightweight integer com-

pression algorithm variants of SIMD-BP128 (cf. Fig-

ure 5). Moreover, we generated different columns

with different bit widths per column, 3, 10, 16 (resp.

different data ranges per column, (0 : 2

), (0 : 2

), and

(0 : 2

)). In detail, we compare ﬁve different column

implementation types, marked by different colors:

 uncompressed data, stored in one chunk resp. one

single memory region,

 uncompressed data, divided in chunks resp. mem-

ory regions containing 128 data values,

 compressed data, binary packed with a given

number of bits per data value in one single chunk,

 compressed data, statically binary packed with a

given number of bits per data value, chunk-wise,

such that each chunk contains 128 values, and

 compressed data, dynamically binary packed with

a given number of bits per data value, chunk-wise,

such that each chunk contains 8 bit containing the

bit width used in this chunk, and 128 values.

We combined each of the three bit widths data sets

with each of the ﬁve column types, such that for the

experiments a table with 15 columns was used. In

general, the unchunked uncompressed columns serve

as the baseline for the unchunked compressed data

and the chunked uncompressed columns serve base-

line for the chunked (statically and dynamically) com-

pressed columns. Statically compressed columns al-

low only one bit width per column. Dynamically

compressed columns would principally allow differ-

ent bit widths per chunk as proposed by SIMD-BP.

4.1 Data Sizes

The size of compressed data depends on (1) the num-

ber n of uncompressed integers, (2) the bit width b,

and (3) the question, if the used bit width is stored

additionally or not. If n is no multiple of 128, we use

padding bits to complete the whole block. In this case,

we do not store a bit width (/), the size (int Bytes)

is calculated with s

−

128

e·128·b

meta

of algo-

rithm descriptions which is in the of 640 to 680 KB

for the used algorithms. The sizes for unchunked resp.

statically compressed columns with and without the

size of the algorithm descriptions are depicted in Fig-

ure 9(a) for column sizes 0 to 1500 values. The com-

pression factor c (compressed data size/uncompressed

data size) in dependence of the data size is shown in

Figure 9(d). As we can see, with increasing column

sizes, we can dramatically reduce the memory foot-

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

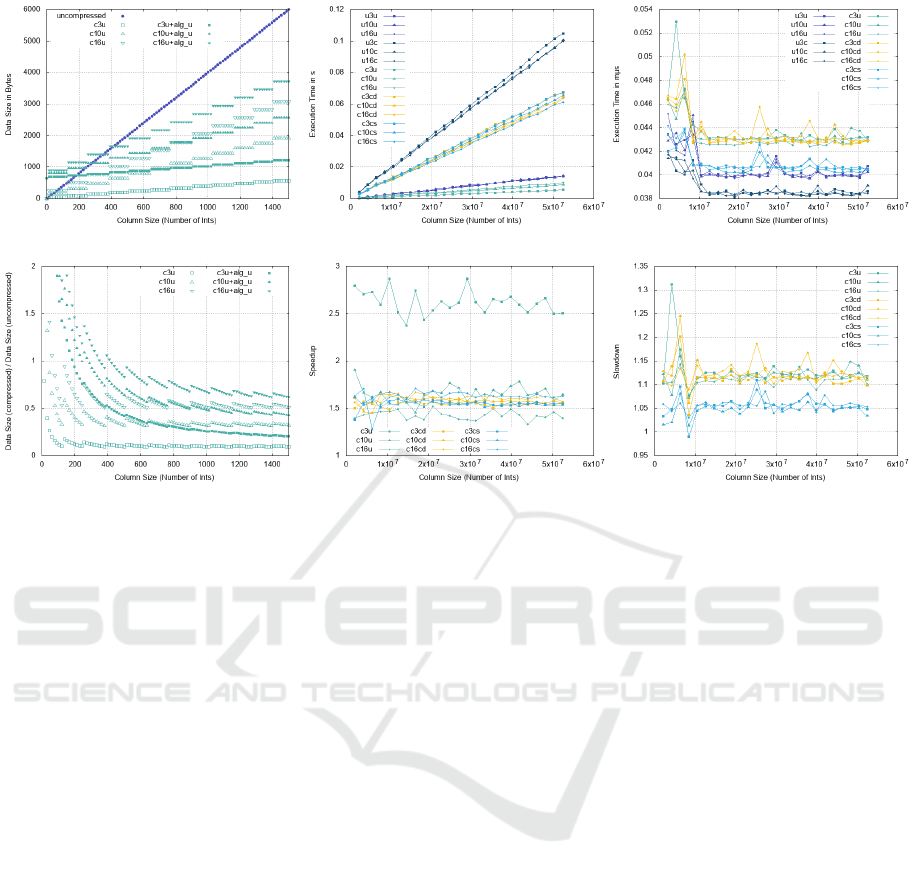

(a) Physical size of unchunked columns (b) Execution times for sum calculations (c) Execution times for lookups

(d) Compression factor for unchunked

columns

(e) Speedup for sum calculations

(f) Slowdown for lookups

Figure 9: Evaluation of data sizes and execution times for sum aggregation and lookup queries.

print for all compressed variants depending on the bit

width.

4.2 Run Times

To compare the runtimes of the sum aggregation (se-

quential access) and the lookup (random access), we

varied the column sizes from 128 ·2

to 25 · 128 · 2

logical integer values. Figure 9(b) shows the exe-

cution times for sum aggregation for uncompressed

and compressed, unchunked and chunked columns.

The execution time increases linearly in all cases.

Execution times over unchunked columns (/) are

faster than those on chunked columns (//). The

comparison of the aggregation over unchunked un-

compressed and compressed data () shows that, de-

pending on the bit width, we can speed up the sum

aggregation up to a factor of 2.5 (see Figure 9(e).

The comparison of the aggregation over chunked un-

compressed and compressed (/) columns shows

that the processing yields a speedup of 1.5 for com-

pressed values. And there is nearly no differ-

ence between statically and dynamically compressed

columns, which means, that it is possible to hold dif-

ferently compressed data in one column without a

lack of performance.

For the lookup (random access), different posi-

tions in a column are given to extract the corre-

sponding value. Similar to the sum aggregation ex-

periment, column sizes are increased. The experi-

ments were done with a warm cache, that is why the

ﬁrst measurements differ from the rest. Figure 9(c)

shows, that the lookup does not depend on the column

size. The fastest access can be measured by process-

ing the uncompressed columns (/). Because, for

compressed columns (//), the physical positions

have to be calculated, which leads to an additional

overhead. Lookups on dynamically compressed col-

umn () are the most expensive queries, because the

bit width of each chunk has to be extracted before the

values can be accessed. Lookups on statically com-

pressed column () are less expensive than on the 1-

chunk column, because the access of the right 128-

value block is faster. An exception is bit width 16

in the unchunked column (), because compiler opti-

mizations lead to a better performance due to less bit-

shifting operations and a minimal calculation amount

to determine the physical position of the value. All in

all, we are around 5% to 13% slower in lookups if we

used compressed columns (see Figure 9(f)).

Nevertheless, OLAP queries usually do a lot of se-

quential access instead of random access. Thus, the

integration of lightweight integer compression into

Apache Arrow is very beneﬁcial to reduce the mem-

ory footprint as well as to speed up the sequential

access. Moreover, our self-describing compressed

columns have a slightly higher memory consumption

compared to only compressed columns, but this over-

Integrating Lightweight Compression Capabilities into Apache Arrow

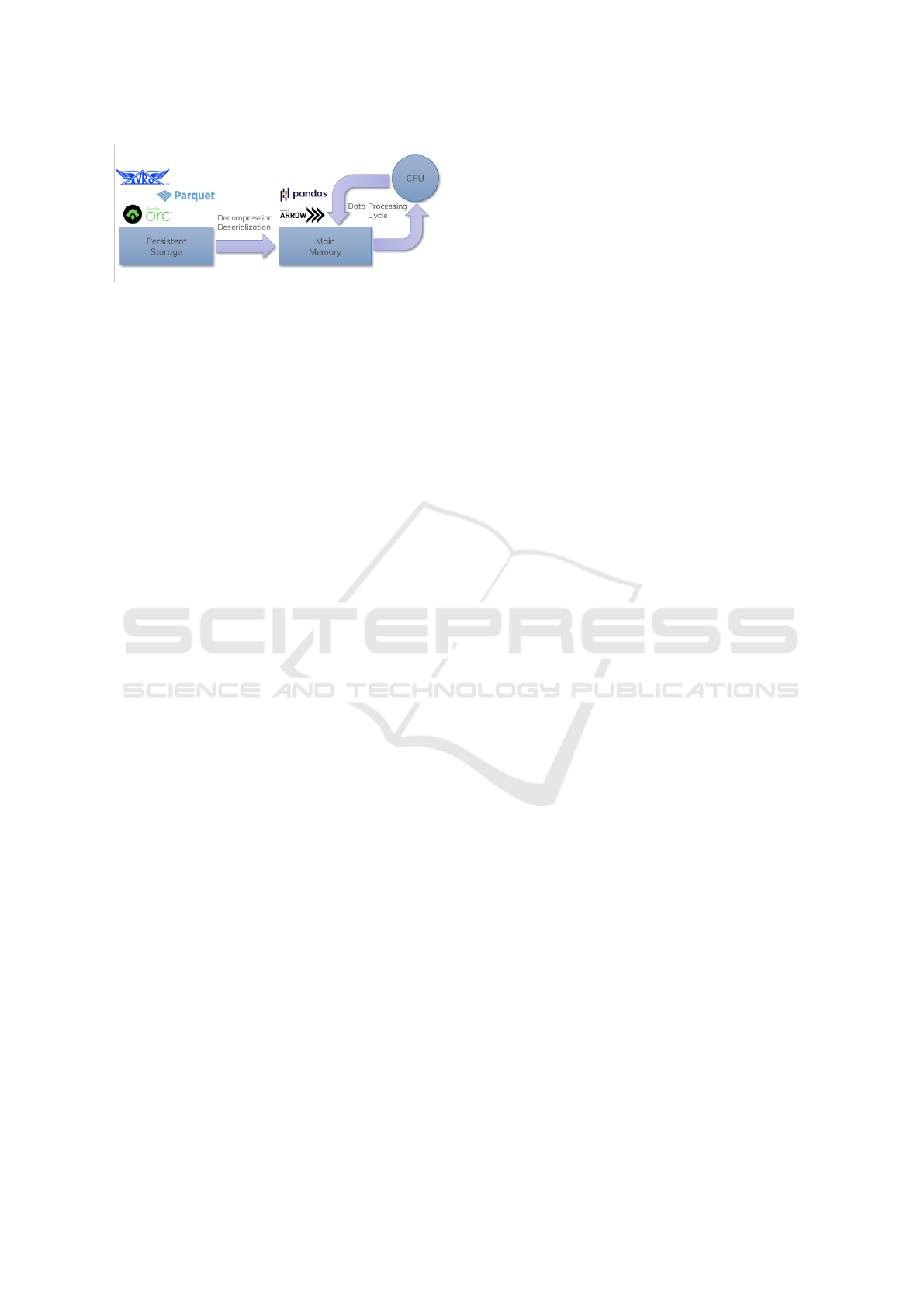

Figure 10: Data formats for disk and main memory storage.

head is negligible. As discussed in Section 3, ran-

dom access can be supported in different ways. Nev-

ertheless, more research in this direction is needed

and compact data structures as presented in (Navarro,

2016) represent an interesting opportunity.

5 RELATED WORK

Related Work in this domain is manifold and our de-

scription is oriented according to the basic data ﬂow

process associated with an analytical application as

shown in Figure 10. In this process, the data to be

analyzed must be read from persistent storage and

loaded into the main memory at ﬁrst. Then, the sec-

ond step is the processing step, where the actual anal-

ysis takes place. Both steps have different require-

ments and bottlenecks, so that different ﬁle formats

exist for the persistent storage as well as the manage-

ment in main memory as presented in Sections 5.1

and 5.2. As already described, Apache Arrow belongs

to the ﬁle formats for the main memory. Additionally,

there exists already some Apache Arrow-centric work

as presented in Section 5.3.

5.1 Storage-oriented Formats

There are several storage-oriented ﬁle formats such as

Apache Parquet (Vohra, 2016b), Apache Avro (Vohra,

2016a), or Apache ORC (Apache, 2020). These

formats are widely used in the Hadoop ecosystem.

While Apache Avro focuses on a row-based data for-

mat, Apache Parquet and Apache ORC are colum-

nar formats like Apache Arrow. Because disk access

is the bottleneck of conventional disk-based systems,

the goal of those data storage architectures is to im-

prove the disk access. This can be done by appropri-

ate heavyweight data compression formats, which are

characterized by there genericity and higher computa-

tional effort. For example, Apache Parquet supports

snappy, gzip, lzo, brotli, lz4, and zstd to compress

columnar data (Vohra, 2016b).

5.2 Processing-oriented Formats

Main memory or processing-oriented formats can be

row-based for OLTP workloads, column-based for

OLAP workloads, like Apache Arrow or Pandas, as

well as hybrids. For example, Pandas is a python

library for data analysis and manipulation. Here,

heavyweight compression (gzip, bz2, zip, and xz) is

used to reduce the amount of data for persistent stor-

age in output formats like CSV, JSON, or TSV. For

in-memory usage, no obvious compression is imple-

mented. While reading the disk-oriented input for-

mat, the user can cast integral columns to datatypes

like int64, int32, int16, or int8 and initiate a kind

of binary packing. Furthermore, columns can be load

with the categorial datatype. Here, DICT is applied.

And there exists a sparse series data type, which sup-

ports a null value suppression.

5.3 Apache Arrow-centric Work

The authors of (Peltenburg et al., 2019) created a

Parquet-to-Arrow converter, which they implemented

in FPGA. In their proposed scenario, the disk-oriented

ﬁles are stored on fast accessible NVMe SSD’s, which

leads to the fact, that not the access to persistent stor-

age but the conversion of ﬁle formats (persistent to

in-memory) is a new bottleneck. The converter gets

Apache Parquet ﬁles as pagewise input and constructs

in-memory data structures in the Apache Arrow for-

mat using their Fletcher framework (Peltenburg et al.,

2019).

With ArrowSAM (Ahmad et al., 2019), Apache

Arrow is used to store SAM data (biological

sequence-aligned to a reference sequence). The au-

thors process genom data and apply several algo-

rithms. To execute a parallel sorting algorithm, they

split the genom data chromosome-wise in batches,

which are added to the so-called Apache Arrow

Plasma Object Store, a shared memory, that can be

accessed by different clients without process bound-

aries.

6 CONCLUSION AND FUTURE

WORK

Besides the development of a novel big data system,

we also see a fundamental revision of the data orga-

nization and formats as a foundation for these sys-

tems. Here the goal is to organize data optimally for

processing and analysis. In this context, Apache Ar-

row is a novel and highly interesting platform by pro-

viding a standardized language-independent colum-

DATA 2020 - 9th International Conference on Data Science, Technology and Applications

nar in-memory format, organized for efﬁcient analyt-

ical operations in modern hardware. It already in-

cludes dictionary coding to map arbitrary data types

to integer values. However, Apache Arrow lacks sup-

port for more sophisticated lightweight integer com-

pression algorithms which are suitable to (i) reduce

the memory footprint and (ii) to speedup the columnar

data processing. Thus, we presented an approach to

integrate the large corpus of lightweight into Apache

Arrow in this paper. We experimentally showed that

this integration leads to a decreased memory footprint

an increased performance of an aggregation function

compared to uncompressed data.

The next step in our ongoing research work is the

integration of more compression algorithms with dif-

ferent properties to generalize and optimize our inte-

gration approach. Another point of ongoing work is

to deduce the decompression abstraction correspond-

ing to compression metamodel. Thus, the genera-

tion of decompression code can be automated with-

out the explicit knowledge of a decompression algo-

rithm. Future work also includes the integration of

some data hardening algorithms respectively error-

detecting codes. This can be done by applying the

metamodel as well. Last but not least, we plan to ex-

haustively evaluate the beneﬁt of our approach with

big data systems using Apache Arrow.

REFERENCES

Abadi, D., Boncz, P. A., Harizopoulos, S., Idreos, S., and

Madden, S. (2013). The design and implementation

of modern column-oriented database systems. Foun-

dations and Trends in Databases, 5(3):197–280.

Abadi, D. J., Madden, S., and Ferreira, M. (2006). Integrat-

ing compression and execution in column-oriented

database systems. In SIGMOD, pages 671–682.

Ahmad, T., Peltenburg, J., Ahmed, N., and Al Ars, Z.

(2019). Arrowsam: In-memory genomics data pro-

cessing through apache arrow framework. bioRxiv,

page 741843.

Apache (2020). Apache avro: the smallest, fastest columnar

storage for hadoop workloads. https://orc.apache.org/.

Accessed: 2020-03-06.

Beazley, D. M. (2012). Data processing with pandas. ;lo-

gin:, 37(6).

Begoli, E., Camacho-Rodr

ıguez, J., Hyde, J., Mior, M. J.,

and Lemire, D. (2018). Apache calcite: A founda-

tional framework for optimized query processing over

heterogeneous data sources. In SIGMOD, pages 221–

230.

Binnig, C., Hildenbrand, S., and F

arber, F. (2009).

Dictionary-based order-preserving string compression

for main memory column stores. In SIGMOD, page

283–296.

Boncz, P. A., Kersten, M. L., and Manegold, S. (2008).

Breaking the memory wall in monetdb. Commun.

ACM, 51(12):77–85.

Boncz, P. A., Zukowski, M., and Nes, N. (2005). Monetd-

b/x100: Hyper-pipelining query execution. In CIDR.

Chaudhuri, S., Dayal, U., and Narasayya, V. R. (2011). An

overview of business intelligence technology. Com-

mun. ACM, 54(8):88–98.

Damme, P., Habich, D., Hildebrandt, J., and Lehner, W.

(2017). Lightweight data compression algorithms: An

experimental survey (experiments and analyses). In

EDBT, pages 72–83.

Damme, P., Ungeth

um, A., Hildebrandt, J., Habich, D.,

and Lehner, W. (2019). From a comprehensive ex-

perimental survey to a cost-based selection strategy

for lightweight integer compression algorithms. ACM

Trans. Database Syst., 44(3):9:1–9:46.

Damme, P., Ungeth

um, A., Pietrzyk, J., Krause, A., Habich,

D., and Lehner, W. (2020). Morphstore: Analytical

query engine with a holistic compression-enabled pro-

cessing model. CoRR, abs/2004.09350.

Goldstein, J., Ramakrishnan, R., and Shaft, U. (1998).

Compressing relations and indexes. In ICDE, pages

370–379.

Google (2019). Snappy - a fast compressor/decompressor.

https://github.com/google/snappy.

Habich, D., Damme, P., Ungeth

um, A., Pietrzyk, J.,

Krause, A., Hildebrandt, J., and Lehner, W. (2019).

Morphstore - in-memory query processing based on

morphing compressed intermediates LIVE. In SIG-

MOD, pages 1917–1920.

Hildebrandt, J., Habich, D., Damme, P., and Lehner, W.

(2016). Compression-aware in-memory query pro-

cessing: Vision, system design and beyond. In

ADMS@VLDB, pages 40–56.

Hildebrandt, J., Habich, D., K

uhn, T., Damme, P., and

Lehner, W. (2017). Metamodeling lightweight data

compression algorithms and its application scenarios.

In ER, pages 128–141.

Huffman, D. A. (1952). A method for the construction of

minimum-redundancy codes. Proceedings of the In-

stitute of Radio Engineers, 40(9):1098–1101.

Kornacker, M., Behm, A., Bittorf, V., Bobrovytsky, T.,

Ching, C., Choi, A., Erickson, J., Grund, M., Hecht,

D., Jacobs, M., Joshi, I., Kuff, L., Kumar, D., Leblang,

A., Li, N., Pandis, I., Robinson, H., Rorke, D., Rus,

S., Russell, J., Tsirogiannis, D., Wanderman-Milne,

S., and Yoder, M. (2015). Impala: A modern, open-

source SQL engine for hadoop. In CIDR.

Lemire, D. and Boytsov, L. (2015). Decoding billions of in-

tegers per second through vectorization. Softw., Pract.

Exper., 45(1):1–29.

uller, I., Ratsch, C., and F

arber, F. (2014). Adaptive

string dictionary compression in in-memory column-

store database systems. In EDBT, pages 283–294.

Navarro, G. (2016). Compact Data Structures - A Practical

Approach. Cambridge University Press.

Peltenburg, J., van Straten, J., Wijtemans, L., van Leeuwen,

L., Al-Ars, Z., and Hofstee, P. (2019). Fletcher: A

Integrating Lightweight Compression Capabilities into Apache Arrow

framework to efﬁciently integrate FPGA accelerators

with apache arrow. In FPL, pages 270–277.

Polychroniou, O., Raghavan, A., and Ross, K. A.

(2015). Rethinking SIMD vectorization for in-

memory databases. In SIGMOD, pages 1493–1508.

Polychroniou, O. and Ross, K. A. (2019). Towards prac-

tical vectorized analytical query engines. In Da-

MoN@SIGMOD, pages 10:1–10:7.

Roth, M. A. and Van Horn, S. J. (1993). Database compres-

sion. SIGMOD Rec., 22(3):31–39.

Sridhar, K. T. (2017). Modern column stores for big data

processing. In Reddy, P. K., Sureka, A., Chakravarthy,

S., and Bhalla, S., editors, BDA, pages 113–125.

Stonebraker, M., Abadi, D. J., Batkin, A., Chen, X., Cher-

niack, M., Ferreira, M., Lau, E., Lin, A., Madden,

S., O’Neil, E. J., O’Neil, P. E., Rasin, A., Tran, N.,

and Zdonik, S. B. (2005). C-store: A column-oriented

DBMS. In VLDB, pages 553–564.

Ungeth

um, A., Pietrzyk, J., Damme, P., Krause, A., Habich,

D., Lehner, W., and Focht, E. (2020). Hardware-

oblivious SIMD parallelism for in-memory column-

stores. In CIDR.

Vohra, D. (2016a). Apache avro. In Practical Hadoop

Ecosystem, pages 303–323. Springer.

Vohra, D. (2016b). Apache parquet. In Practical Hadoop

Ecosystem, pages 325–335. Springer.

Witten, I. H., Neal, R. M., and Cleary, J. G. (1987). Arith-

metic coding for data compression. Commun. ACM,

30(6):520–540.

Zaharia, M., Chowdhury, M., Franklin, M. J., Shenker, S.,

and Stoica, I. (2010). Spark: Cluster computing with

working sets. In Nahum, E. M. and Xu, D., editors,

HotCloud.

Zhou, J. and Ross, K. A. (2002). Implementing database op-

erations using SIMD instructions. In SIGMOD, pages

145–156.

Ziv, J. and Lempel, A. (1977). A universal algorithm for

sequential data compression. IEEE Trans. Inf. Theor.,

23(3):337–343.

Ziv, J. and Lempel, A. (1978). Compression of individual

sequences via variable-rate coding. IEEE Trans. In-

formation Theory, 24(5):530–536.

Zukowski, M., H

eman, S., Nes, N., and Boncz, P. A.

(2006). Super-scalar RAM-CPU cache compression.

In ICDE, page 59.

DATA 2020 - 9th International Conference on Data Science, Technology and Applications
