A Retrospective Study of Taxonomy based Testing using Empirical

Data from a Medical Device Software Company

Hamsini Ketheswarasarma Rajaram

, John Loane

, Silvana Togneri MacMahon

and Fergal Mc Caffery

Regulated Software Research Centre, Dundalk Institute of Technology, Co Louth, Dundalk, Ireland

Keywords: Defect Taxonomy, Defect Classification, Validation, Taxonomy based Testing, Empirical Data, Root Cause

Analysis, Defect Minimisation, Medical Device Software.

Abstract: Software defects in medical devices have caused serious injuries and deaths to patients. Medical devices are

facing an increasing number of the U.S Food and Drug Administration (FDA) recalls due to poor quality

software. Research studies suggest that defect taxonomies are powerful tools to prevent and control defects.

Defect taxonomies have been used to improve software quality in the safety critical, business and

telecommunications domains. Defect taxonomies can be used in testing and are more efficient at finding

defects at the earliest possible stage of software development. This paper discusses taxonomy based testing

in medical device software (MDS) development. SW91 is a new defect taxonomy for health software

developed by the Association for the Advancement of Medical Instrumentation. This paper details a

retrospective study conducted to investigate taxonomy based testing by mapping empirical data from a MDS

company in Ireland to SW91 defects. It explains the process and shows the benefits of taxonomy based testing,

which include defect minimisation and root cause analysis. It provides recommendations which can be

followed when using taxonomy based testing. It also details interviews conducted with the CEO, developers

and the quality assurance engineer from Company A. Finally, it briefly details how taxonomy based testing

will be implemented at a MDS company by applying a framework which was developed from this research.

1 INTRODUCTION

Medical devices increasingly rely on software to

provide additional functionality (L. K. Simone,

2013). Since medical device functionality directly

impacts patient safety, it is important to ensure high

quality software in medical devices. Software quality

is measured by the number of defects found in

software (Ioan Mihnea Iaco & Radu, 2008). In order

to find software defects and to ensure software

quality, software quality assurance processes have

been integrated into software development. Software

quality assurance processes aim to minimise software

defects and show that software meets requirements.

However, organisations face challenges in improving

software quality such as the inability to specify the

software requirements properly, the lack of adequate

software quality assurance processes and the lack of

https://orcid.org/0000-0002-3294-3906

https://orcid.org/0000-0002-9285-5019

https://orcid.org/0000-0003-0179-2436

https://orcid.org/0000-0002-0839-8362

relevant metrics to track software quality (FDA,

2011; P.S.Cosgriff, 1990).

Research studies suggest that a defect taxonomy

is the best way to prevent and control defects

(Chillarege et al., 1992; Felderer & Beer, 2013a,

2013b). Defect taxonomies have been used

successfully in various ways during the testing phase

of software development, such as in system testing,

measuring testing efficiency and classifying defects

(Black, 2008; Felderer & Beer, 2013b; Li, Li, & Sun,

2010; Madachy & Boehm, 2008). This research has

proposed a testing approach called taxonomy based

testing to improve MDS quality (Rajaram(&), Loane,

MacMahon, & Fergal, 2019; Rajaram, Loane,

MacMahon, & Mc Caffery, 2018).

Taxonomy based testing is a defect based testing

technique. In taxonomy based testing, the

requirements will be mapped into potential defects

434

Rajaram, H., Loane, J., MacMahon, S. and Mc Caffery, F.

A Retrospective Study of Taxonomy based Testing using Empirical Data from a Medical Device Software Company.

DOI: 10.5220/0009825404340442

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 434-442

ISBN: 978-989-758-443-5

from a defect taxonomy and the test cases will be

written based on the requirements and the mapped

defects. The test cases will be executed to verify

whether the software complies with the relevant

requirements and does not contain the mapped defects

from the defect taxonomy. Taxonomy based testing

uses the Classification of Defects in Health Software

- SW91 as its defect taxonomy.

SW91, Classification of Defects in Health

Software is a defect classification scheme and a

standard for health software which has been

developed by the Association for the Advancement of

Medical Instrumentation (AAMI) in collaboration

with the U.S FDA (Association for the Advancement

of Medical Instrumentation, 2016). SW91

development work started in 2014 and aims to

provide a common language to classify defects and

improve software quality in health software including

MDS (L. Simone & Rubery, 2014). SW91 was

published on 22 of October 2018 as a standard

(AAMI, 2019).

SW91 includes defects from the planning to the

maintenance phases of a system. It contains multi-

level defects such as parent level and child level.

Every parent level defect includes several child

defects. Each defect has a defect code with a unique

number. This numbering system follows a

hierarchical structure. Every parent level defect is

represented by a number. Every child level defect is

represented by appending a period and a number to

the parent level category. Each defect has annotations

and some of the defects have examples. For example,

Failure to Save/Restore (5.3.2.5.1) is one of the child

level defects from Implementation Defects (5). It has

the following description: “Context was not saved or

restored when it should have been.”

The version of SW91 which was open for public

comment in September 2016, was used in this study.

It is not much different from the final version.

This paper details how a retrospective study was

conducted on data received from a completed project

from a MDS company in Ireland. This study

investigated the applicability and benefits of

taxonomy based testing in the MDS industry.

The next section explains the process followed in

this retrospective study. Section 3 explains the results

obtained from this study. Section 4 outlines the

benefits of this study and recommendations provided

to Company A. Section 5 outlines the interview

results obtained from Company A. Section 6 presents

future work and Section 7 presents the summary and

conclusions.

2 PROCESSES FOLLOWED IN

THE RETROSPECTIVE STUDY

Company A develops MDS applications. This study

uses defects, software design specification (SDS),

user requirements, risks and test protocols from a

completed project at Company A.

For each type of document, potential SW91

defects were searched and mapped. Out of the

documents received from Company A, the SDS and

requirements were used to do the direct mapping into

SW91 defects. Test protocols were linked with

requirements and the SDS. Therefore, SW91 defects

used in the mapping of the SDS and the requirements

were used in the test protocol mapping. The

remainder of this section explains each of the

mappings.

2.1 Mapping A – Defects from

Company A and SW91 Defects

Defects from the Company A contain defect

symptoms such as algorithm not working correctly

and warning alerts not appearing. Repetition in the

defect symptoms was observed and removed. Eight

distinct defect symptoms were identified after

removing the duplicates. These symptoms were due

to some defects in company A’s application. The

defects for each symptom were manually searched

from SW91 and mapped. Eight distinct defect

symptoms were mapped into twenty distinct SW91

defects.

Table 1 details a sample mapping of a defect

symptom and its SW91 defects.

Table 1: Defect symptom and SW91 defects.

Defect symptom SW91 defects

Warning alerts

not appearing

Invalid Path (5.2.1.2.6)

Parameter Type (4.2.2.2)

Wrong Algorithm Selected (4.2.4)

Parameter Structure (4.2.2.3)

Use Before Check (5.3.2.6)

Bad Translation (5.1)

Invalid Path (5.2.1.2.6)

The next section explains how the SDSs were used in

this study.

2.2 Mapping B – SDS and SW91

Defects

The SDS document has very detailed control flow

diagrams for the application. It includes forty control

A Retrospective Study of Taxonomy based Testing using Empirical Data from a Medical Device Software Company

435

flow diagrams. Out of forty, three diagrams were

randomly selected to map into SW91 defects. Not all

of the diagrams were mapped into SW91 defects due

to the similarity in their structure.

The defects for each development stage of the

control flow diagrams were manually searched for in

SW91 and mapped.

Table

2 shows a sample of the mapping conducted

between the development stage from a control flow

diagram and SW91 defects.

Table 2: Corrected calcium SW91 Defects.

Development stages

of control flow diagram

SW91 defects

Input variables to text

field

Use before check (5.3.2.6)

Inappropriate cast or type

conversion (5.3.2.1.4)

Has the user filled the

inputs

Control state (5.2.1.4)

Inappropriate cast or type

conversion (5.3.2.1.4)

This section explained how the SDS was mapped

into SW91 defects. The next section explains how

requirements were mapped into SW91 defects.

2.3 Mapping C - Requirements and

SW91 Defects

The company shared forty-one requirements,

including both functional and non-functional

requirements. Every requirement has associated risks

which have been assigned a priority. Out of forty-one

requirements, thirty-nine were mapped into forty-

three distinct SW91 defects. For every requirement in

this mapping, the potential defects which could occur

in the development of the requirement were manually

searched for in SW91 and they were mapped. Table 3

shows a sample mapping of the requirement into

SW91 defects. Two non-functional requirements

were very general and it was not possible to map them

into any SW91 defects. For example, the application

must be endorsed by users, government bodies and

cancer research bodies is one of the non-functional

requirements and it was not mapped into any SW91

defects.

Table 3: Requirements and SW91 defects SW91.

Requirement SW91 defects

R1. The application

must allow the user

to calculate a

number of medical

formulas

Bad Translation (5.1)

Expression Evaluation (5.2.2.1)

Operator (5.2.2.1.1)

Grouping (5.2.2.1.2)

Scalar Type (5.3.1.1)

Incorrect Timeout (5.2.2.5)

This section explained how requirements were

mapped into SW91 defects. The next section explains

how Company A test protocols were mapped into

SW91 defects. The test protocols are the last type of

document used in this study.

2.4 Test Protocols and SW91 Defects

Each test protocol contains test cases and procedures

to be followed in the testing phase. Test protocols are

associated with their respective SDS and requirement.

For example, if the requirement ID is R1 and the SDS

ID is S1, then the respective test protocol T1 will

include the requirement R1 and SDS S1.Figure 1

details the links between test protocols, requirements

and the SDS.

Figure 1: Test protocols and links.

When starting the mapping of a test protocol, the

following defects for the test protocol are already

there:

 SW91 defects used in the mapping of the control

flow diagram from the SDS, Mapping B.

 SW91 defects used in the mapping of functional

requirements, from Mapping C.

For each of the test protocols, the above mappings

were merged and repeated defects were removed.

This merging and removal of duplicate defects

provided distinct potential defects for each test

protocol.

Figure 2: Company A data and SW91 defects.

ICSOFT 2020 - 15th International Conference on Software Technologies

436

At this stage of the paper, we have seen how the

defect symptoms, control flow diagrams,

requirements with risks and test protocols were used

to do the mappings. Figure 2 shows the mappings and

it summarises all four types of data and their

mappings into SW91 defects.

The next section details the results observed from

this study.

3 RESULTS

First, eight distinct defect symptoms were mapped

into twenty distinct SW91 defects. This mapping is

labelled Mapping A.

Secondly, all development stages of the selected

three control flow diagrams were mapped into

nineteen SW91 defects. This mapping is labelled

Mapping B.

Thirdly, the thirty-nine functional requirements

and their risks were mapped into forty-three distinct

SW91 defects and it is labelled Mapping C.

From the three mappings (A, B and C), the

following three sets of common SW91 defects were

observed:

1. Common SW91 defects from Mapping A and

Mapping B.

2. Common SW91 defects from Mapping A and

Mapping C.

3. Common SW91 defects from Mapping A,

Mapping B and Mapping C.

The remainder of this section explains the above

three results.

3.1 Common SW91 Defects from

Mapping A and Mapping B

Ten distinct SW91 defects were observed from

Mapping A (Defect symptoms and SW91 Defects)

and Mapping B (SDS and SW91 defects). This

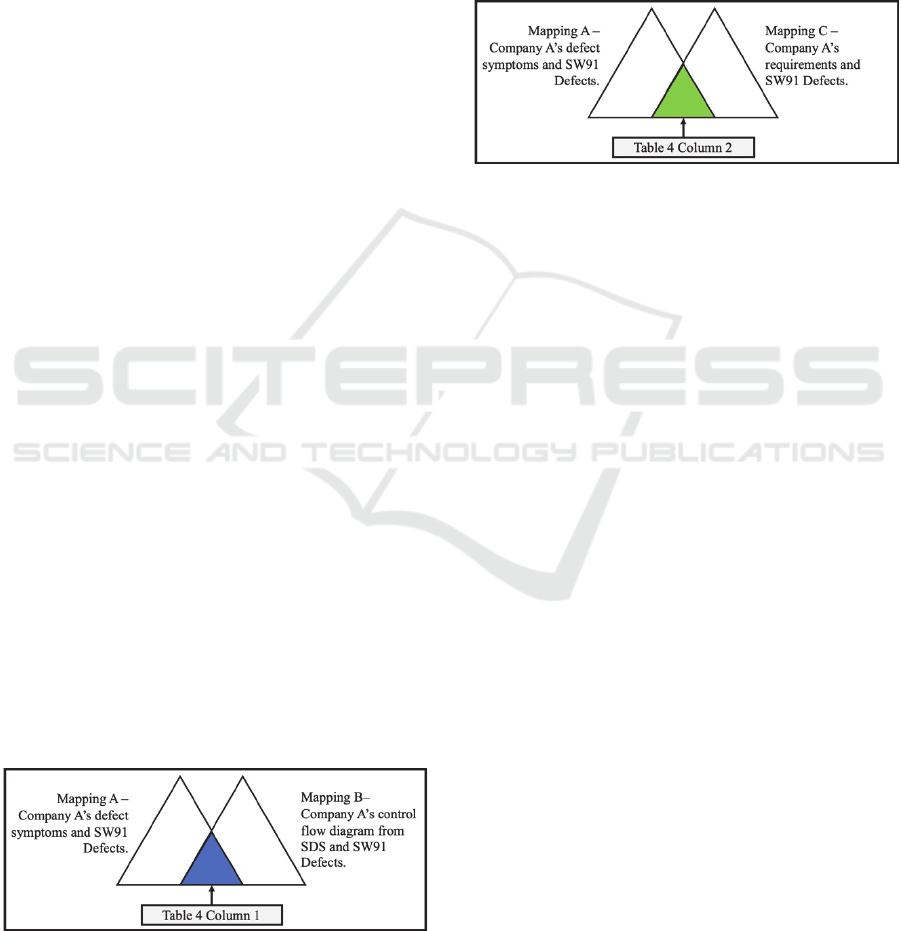

mapping is represented in Figure 3.The coloured

triangle in Figure 3 represents common SW91 defects

which are listed in column 1 of Table 4.

Figure 3: Overlapping SW91 defects from mappings A and

3.2 Common SW91 Defects from

Mapping A and Mapping C

Eleven distinct SW91 defects were observed from

both Mapping A (Defect symptoms and SW91

Defects) and Mapping C (Requirements and SW91

defects). This overlap is detailed in Figure 4. The

coloured triangle from Figure 4 represents common

SW91 defects which are listed in column 2 of Table

Figure 4: Overlapping SW91 defects from mappings A and

These defects can be highlighted during the

requirements gathering phase of the application

development. The requirements gathering phase

failed to consider the defects listed in Table 4, column

2 and they reoccurred at the testing phase.

If Company A has the mappings at the

requirement gathering phase, all the requirements will

have been mapped into their potential SW91 defects

from different phases. The software architect could

consider the defects related to the design phase and it

will help to avoid the mapped defects for each

requirement. Developers could consider the defects

related to the implementation phase and it will help to

avoid the mapped defects for each requirement.

This mapping will help to avoid defects at earlier

phases. The quality assurance engineer can also get

ideas on possible defects for each requirement by

considering the mapped defects and it will help to

generate goal oriented test cases.

3.3 Common SW91 Defects from

Mappings A, B and C

Six distinct SW91 defects were observed from all

three mappings (Mapping A, Mapping B, Mapping

C). These mappings are represented in Figure 5. The

coloured triangle in Figure 5 represents the common

SW91 defects which are listed in column 3 of Table

A Retrospective Study of Taxonomy based Testing using Empirical Data from a Medical Device Software Company

437

Figure 5: Overlapping SW91 defects from mappings A, B

and C.

These defects can be highlighted either at the

requirements gathering phase or the software design

phase of the application development. Both the

requirements gathering and design phases failed to

find the defects listed in Table 4, column 3 and they

reoccurred at the testing phase. If this mapping

existed at Company A, it would provide a common

language for all stakeholders to discuss the potential

defects for each requirement.

Table 4: All Overlapping SW91 defects and Company A

Data.

Mappings A and

Mappings A, B,

and C

Bad Translation

(5.1)

Bad Translation

(5.1)

Bad Translation

(5.1)

Inappropriate

Cast or Type

Conversion

(5.3.2.1.4)

Corrupted

Database

Upgrade (7.8)

Inconsistent

Requirement

(2.3.5)

Inconsistent

Requirement

(2.3.5)

Inconsistent

Requirement

(2.3.5)

Internal

Interfaces (4.2)

Internal

Interfaces (4.2)

Interface

Parameter,

Invocation (4.2.

Operator

(5.2.2.1.1)

Invalid Path

(5.2.1.2.6)

Internal

Interfaces (4.2)

Use Before

Check (5.3.2.6)

Operator

(5.2.2.1.1)

Operator

(5.2.2.1.1)

Wrong

Algorithm

Selected (4.2.4)

Parameter

Structure

(4.2.2.3)

Wrong

Algorithm

Selected (4.2.4)

Parameter Type

(4.2.2.2)

Size (5.3.1.2)

Use Before

Check (5.3.2.6)

Transactions

(3.4.4)

Wrong

Algorithm

Selected (4.2.4)

Use Before

Check (5.3.2.6)

Scalability (3.3)

The next section discusses the benefits of this study

and recommendations provided to Company A from

this study.

4 BENEFITS AND DISCUSSION

This section details the following benefits from this

study:

1. Defect reporting at the testing phase

2. Defect minimization

3. Risk minimization

4. Root cause analysis

4.1 Defect Reporting at the Testing

Phase

Company A reports defect symptoms from their

testing. These defect symptoms must be reported by

a quality assurance engineer at Company A. The

developers need to work to fix the defect symptom.

According to the current format used for defect

reporting, the developers do not know about the

actual defects for reported defect symptoms. When

the developers attempt to fix the reported defect

symptom, it will be hard for them to fix due to the

poorly defined defect symptom. Therefore, warning

alerts not appearing could appear again in the second

round of testing due to some other defect of which the

developers or the quality assurance engineers were

not aware. This situation can be addressed at

Company A by mapping the defect warning alerts not

appearing into the following SW91 defects:

 Invalid Path (5.2.1.2.6)

 Parameter Type (4.2.2.2)

 Wrong Algorithm Selected (4.2.4)

 Parameter Structure (4.2.2.3)

 Use Before Check (5.3.2.6)

 Bad Translation (5.1)

The developer can be informed of the possible

SW91 defects which could cause the defect symptom

warning alerts not to appear. Developers can work to

fix the possible SW91 defects when fixing the

reported defect symptoms. Developers can fix the

reported defect symptom by addressing the mapped

SW91 defects for the failed test. This type of mapping

will minimise the reoccurrence of defect symptoms

by checking all possible mapped SW91 defects. This

type of mapping would reduce the development time

and help to anticipate possible defects. If this

mapping is used at company A, there will be a

common language for quality assurance engineers

and developers to communicate the test failures.

ICSOFT 2020 - 15th International Conference on Software Technologies

438

4.2 Defect Minimisation

Since Company A has very detailed control flow

diagrams, mapping each development stage of the

control flow diagram into SW91 defects could

minimise the occurrence of defects at the

implementation phase. When Company A has the

potential defects for every development stage of the

control flow diagrams and requirements, the software

architect and developers can work to avoid those

mapped defects during the design and

implementation. Quality assurance engineers can

execute test protocols to find those mapped defects.

Again, this will minimise the time to find defects in

the application and will help to prevent the defects at

the earliest possible phase of software development.

4.3 Risk Minimisation

Each requirement has associated risks. Using the

mappings explained in this study, each requirement

has been mapped into its potential SW91 defects. If

each requirement can be implemented with the

minimum number of defects, then it is possible to

minimise the associated risks as well. For example, as

shown in Section 2.3, when the requirement, the

application must allow the user to calculate a number

of medical formulas is being developed, the risk of

this requirement will be mitigated by avoiding the

mapped defects. When Company A minimises the

occurrence of the defects for each requirement, the

associated risk of the requirement also will be

mitigated. This type of mapping at Company A will

help to lower risks associated with requirements.

4.4 Root Cause Analysis

The defect symptoms from Company A appeared

when the quality assurance engineer executed the test

protocols. Those symptoms were due to the defects.

Table 5 displays all potential defects of all the

identified defect symptoms from Mapping A. This list

of defects will help in finding the root causes of the

identified defect symptoms. Table 5 includes root

causes from the requirements gathering phase to the

maintenance phase.

The hierarchical numbering system of SW91

enables the identification of the phase of the defect.

For example, Incompatible Requirement (2.3.4) is

one of the root causes listed in Table 5. It has a defect

code starting with 2, meaning that this defect belongs

to the Requirement Defects (2) from SW91.

When the quality assurance engineer reports the

defect to the developer, the developer can address the

Table 5: Distinct SW91 defects from Mapping A.

Distinct SW91 defects used in

Mapping A

Requirement Completeness (2.2)

Incompatible Requirement (2.3.4)

Inconsistent Requirement (2.3.5)

Scalability (3.3)

Transactions (3.4.4)

Internal Interfaces (4.2)

Interface Parameter, Invocation (4.2. 2)

Component Invocation (4.2.1)

Wrong Algorithm Selected (4.2.4)

Parameter Structure (4.2.2.3)

Parameter Type (4.2.2.2)

Operator (5.2.2.1.1)

Incorrect Save/Restore (5.3.2.5)

Invalid Path (5.2.1.2.6)

Data Definition (5.3.1)

Bad Translation (5.1)

Size (5.3.1.2)

Inappropriate Cast or Type Conversion (5.3.2.1.4)

Use Before Check (5.3.2.6)

Corrupted Database Upgrade (7.8)

root causes related to the implementation phase. In

Table 5, the defects starting with number 5 are related

to the implementation phase. Other root causes not

related to the implementation phase such as

Inconsistent Requirement (2.3.5) or Requirement

Completeness (2.2) can be investigated by other

people involved in the development of the application

such as the business analyst or the software architect.

When Company A records the root causes for a

release, it will enable finding and eliminating

common root causes from future releases. If

Company A used this mapping at the testing phase of

their application, the following benefits could be

observed during and after the testing phase:

1. The quality assurance engineer can report

the identified defect symptoms along with the

potential root causes which are detailed in SW91.

2. The developer can see and fix the actual

root causes of defect symptoms by fixing the SW91

defects used in the mapping.

4. Company A can minimise the occurrence of

the same root causes in future releases.

A detailed report of this study was submitted to

Company A. This report includes recommendations

in order to maximise the benefits of taxonomy based

testing. The recommendations and their benefits are

listed in Table 6.This section discussed the results and

benefits of the taxonomy based testing approach

using data from Company A. This section also listed

the recommendations provided to Company A based

on this study. The next section details interviews

conducted with Company A.

A Retrospective Study of Taxonomy based Testing using Empirical Data from a Medical Device Software Company

439

5 INTERVIEW WITH COMPANY

After submission of the report, it was presented to

employees from Company A. The employees

included the CEO, two developers and a quality

Table 6: Recommendations and benefits.

Recommendation Benefits

Map the

existing

identified defect

symptoms into

SW91 defects.

Minimize the occurrence of the

same defects.

Save test execution time.

Increase test efficiency by

reducing the test cycle.

Find the possible root causes.

Map each

development

stage of the

control flow

diagram into

SW91 defects.

Identify defects at an earlier

phases.

The developer can work to

avoid mapped SW91 defects

when implementing each stage.

Write test cases to cover those

mapped SW91 defects for each

control flow diagram.

Map the

requirements

into SW91

defects.

All the requirements will have

been mapped into SW91

defects.

Write test cases to cover those

mapped defects for each

requirement.

Identify the defects at an earlier

phase of software development.

Brainstorm with the quality

assurance engineers with

possible defects for each

requirement.

The developer can work to

avoid the mapped SW91 defects

when implementing the

requirements.

Map the risks

into SW91

defects.

All the risks will have potential

defects.

Avoid the mapped SW91

defects and minimise the risks

which are associated with those

requirements.

Brainstorm with the quality

assurance engineers with

possible defects for each risk.

Map the test

protocols into

SW91 defects.

Brainstorm with the quality

assurance engineers with

possible defects.

Save test execution time.

assurance engineer. Three separate interviews were

conducted with the CEO, developers and the quality

assurance engineer. The interviews were mainly

focused on getting their opinion on the benefits and

recommendations. Also, the possibilities for

implementing taxonomy based testing at company A

were discussed.

The CEO agreed with the recommendations and

benefits except for the root cause analysis. He said

that root cause analysis was not straightforward

because of defects related to the organisation's

cultural and environmental change such as lack of

communication between employees and lack of

internet access. SW91 contains only software defects

and it is not focused on defects related to

environmental or cultural change.

The developers agreed with the recommendations

and the benefits. They preferred to have the defect

mapping when moving from user requirements to

system requirements. They stated that this mapping

would help to minimise the risks when implementing

a requirement from scratch.

The quality assurance engineer has accepted the

recommendations and the benefits of this study and

he wondered how this approach would work at a

small or medium-sized organisation. He suggested

that a tool to implement taxonomy based testing

would save time and effort. He also said that this

mapping should take place at the risk management

stage to get the maximum benefit from taxonomy

based testing. He would like to see how this mapping

would benefit a project that is in development.

All four interviewees were asked about the

implementation of taxonomy based testing at

Company A and its limitations. They said that it is

useful to implement, but the main limitations are time

and resources with their current project. They agreed

that this kind of mapping would help to save time and

it would also save the project manager’s time.

6 FUTURE RESEARCH

This paper explained a retrospective study conducted

using data from Company A. A framework for

taxonomy based testing was developed for future

implementation and this framework was validated by

experts from the software testing industry. This

framework will enable the implementation of

taxonomy based testing without the researcher’s

involvement in any MDS companies. The next step of

this research will involve implementing this

framework in a MDS company, Company B.

ICSOFT 2020 - 15th International Conference on Software Technologies

440

The necessary data will be requested from the

implementation and the data will be used to evaluate

the benefits of taxonomy based testing. The next

section details the summary and conclusion of this

paper.

7 SUMMARY AND CONCLUSION

Poor quality software in medical devices has caused

serious harm to patients’ health and increased FDA

recalls. Defect taxonomies have been used

successfully in software development to prevent and

control defects. This paper explained what a defect

taxonomy is and how a defect taxonomy can be used

in MDS testing to minimise defects and to improve

software quality. “Defect classification scheme for

health software – SW91” is a standard and defect

taxonomy for health software. This research proposed

a testing technique, taxonomy based testing using

SW91. By using the taxonomy based testing

approach, each requirement can be mapped into its

potential defects. These mappings at the requirements

gathering phase will help to avoid the defects related

to the design phase and implementation phase. It will

improve software quality by eliminating defects at an

earlier phase of software development. Also, this

mapping will help to write goal oriented test cases by

considering the mapped SW91 defects. If we can

write goal oriented test cases based on the mapped

defects against the requirements, then it will save test

execution time.

This paper explained a retrospective study of

taxonomy based testing with data from a MDS

company, Company A. The data includes defect

symptoms, SDS, requirements and test protocols. The

data from Company A was mapped into SW91

defects and benefits were observed. Based on this

study, a detailed report was submitted to Company A.

This report includes the process used in this study,

benefits and recommendations to Company A. This

study explained how taxonomy based testing could be

used to conduct root cause analysis, improve defect

reporting and minimise defects and risks at a MDS

company. This paper also discussed the interview on

this study conducted with employees from company

A and its results. Finally, this paper discussed how

this research will be continued with the taxonomy

based testing framework.

ACKNOWLEDGEMENTS

This work was supported with the financial support

of the Science Foundation Ireland grant 13/RC/2094

and co-funded under the European Regional

Development Fund through the Southern & Eastern

Regional Operational Programme to Lero - the Irish

Software Research Centre (www.lero.ie)

REFERENCES

AAMI. (2019). Consensus Standards. Retrieved February

19, 2019, from http://www.aami.org/newsviews/news

detail.aspx?ItemNumber=7367

Association for the Advancement of Medical

Instrumentation. (2016). Future AAMI SW91, 29-

September-16 Committee Draft for Vote, Classification

of Defects in Health Software. USA. Retrieved from

http://www.aami.org/standards/downloadables/aamire

vf.pdf

Black, R. (2008). Advanced Software Testing - Vol. 1 (2nd

ed., Vol. 1). Santa Barbara: Rocky Nook Inc.

Chillarege, R., Bhandari, I. S., Chaar, J. K., Halliday, M. J.,

Ray, B. K., & Moebus, D. S. (1992). Orthogonal Defect

Classification-A Concept for In-Process

Measurements. IEEE Transactions on Software

Engineering, 18(11), 943–956. https://doi.org/10.1109/

32.177364

FDA. (2011). Understanding Barriers to Medical Device

Quality. FDA Review Document, 45.

Felderer, M., & Beer, A. (2013a). Using defect taxonomies

for requirements validation in industrial projects. In RE.

https://doi.org/10.1109/RE.2013.6636733

Felderer, M., & Beer, A. (2013b). Using defect taxonomies

to improve the maturity of the system test process:

Results from an industrial case study. In SWQD 2013

(Vol. 133, pp. 125–146). https://doi.org/10.1007/978-3-

642-35702-2_9

Ioan Mihnea Iaco, & Radu, C. (2008). Testing: First Step

Towards Software Quality. Journal of Applied

Quantitative Methods, 3(3), 241–253.

Li, N., Li, Z., & Sun, X. (2010). Classification of software

defect detected by black-box testing: An empirical

study. In WCSE 2010 (Vol. 2, pp. 234–240).

https://doi.org/10.1109/WCSE.2010.28

Madachy, R., & Boehm, B. (2008). ODC COQUALMO - A

Software Defect Introduction and Removal Model using

Orthogonal Defect Classification. University of

Southern California Center for Systems and Software

Engineering. Retrieved from http://csse.usc.edu/

TECHRPTS/2008/usc-csse-2008-817/usc-csse-2008-

817.pdf

P.S.Cosgriff. (1990). Quality Assurance of Medical Care.

Journal of Public Health. Retrieved from

http://elibrary.ru/item.asp?id=10628982

Rajaram(&), H. K., Loane, J., MacMahon, S. T., & Fergal,

M. (2019). A Framework for Taxonomy Based Testing

A Retrospective Study of Taxonomy based Testing using Empirical Data from a Medical Device Software Company

441

Using Classification of Defects in Health Software-

SW91. In Systems, Software and Services Process

Improvement (pp. 606–618). Springer Nature

Switzerland AG. Retrieved from https://link.

springer.com/chapter/10.1007/978-3-030-28005-5_47

Rajaram, H. K., Loane, J., MacMahon, S. T., & Mc Caffery,

F. (2018). Taxonomy-based testing and validation of a

new defect classification for health software. Journal of

Software: Evolution and Process, 31(1), 1–13.

https://doi.org/10.1002/smr.1985

Simone, L. K. (2013). Software-related recalls: An analysis

of records. Biomedical Instrumentation and

Technology, 47(6), 514–522. https://doi.org/10.2345/

0899-8205-47.6.514

Simone, L., & Rubery, D. (2014). Lisa Simone and Daniel

Rubery: A Tower of Babel with Medical Device

Software Failures. Retrieved January 24, 2017, from

https://aamiblog.org/2014/10/10/lisa-simone-and-

daniel-rubery-a-tower-of-babel-with-medical-device-

software-failures/

ICSOFT 2020 - 15th International Conference on Software Technologies

442
