Real-time On-board Detection of Components and Faults in an

Autonomous UAV System for Power Line Inspection

Naeem Ayoub

and Peter Schneider-Kamp

Department of Mathematics and Computer Science, University of Southern Denmark, Odense, Denmmark

Keywords:

Power Lines Inspection, Fault Detection, Autonomous Drones Systems, Deep Learning.

Abstract:

The inspection of power line components is periodically conducted by specialized companies to identify pos-

sible faults and assess the state of the critical infrastructure. UAV-systems represent an emerging techno-

logical alternative in this ﬁeld, with the promise of safer, more efﬁcient, and less costly inspections. In the

Drones4Energy project, we work toward a vision-based beyond-visual-line-of-sight (BVLOS) power line in-

spection architecture for automatically and autonomously detecting components and faults in real-time on

board of the UAV. In this paper, we present the ﬁrst step towards the vision system of this architecture. We

train Deep Neural Networks (DNNs) and tune them for reliability under different conditions such as variations

in camera used, lighting, angles, and background. For the purpose of real-time on-board implementation of

the architecture, experimental evaluations and comparisons are performed on different hardware such as Rasp-

berry Pi 4, Nvidia Jetson Nano, Nvidia Jetson TX2, and Nvidia Jetson AGX Xavier. The use of such Single

Board Devices (SBDs) is an integral part of the design of the proposed power line inspection architecture. Our

experimental results demonstrate that the proposed approach can be effective and efﬁcient for fully-automatic

real-time on-board visual power line inspection.

1 INTRODUCTION

Visual inspections of power lines and the various

components of power pylons are essential to en-

sure the uninterrupted functioning of the power grid.

Most companies are using manual inspection methods

involving humans, helicopters or manually-piloted

UAVs. These types of inspection are rather expensive

and slow, with some of them even being outright dan-

gerous. To overcome these issues, research projects

at some companies as well as in the academic world

are focusing on the development of Artiﬁcial Intel-

ligence (AI)-based autonomous power lines inspec-

tion and fault detection methods. In recent years, a

lot of focus has been on inspection architectures that

partially automate the visual inspections by utilizing

drones or climbing robots (Jenssen et al., 2018). The

increase of computational capabilities of SBDs and

the extended capabilities of UAV technologies have

lead many researchers to focus and develop UAVs

based autonomous object detection systems. There

is a stream of research on vision-based applications

for UAVs (Al-Kaff et al., 2018), which provides the

https://orcid.org/0000-0002-7387-4441

https://orcid.org/0000-0003-4000-5570

potential to become a game changer in the inspection

of power lines.

Based on recent advances in drones technology,

in this paper, we address a number of challenges

regarding traditional power line inspection methods

and develop autonomous algorithms by utilizing Deep

Learning (DL) technology. We also create a medium-

sized dataset of different classes based on normal and

faulty components (Figure 1) for training the semi-

supervised classiﬁcation models. During the develop-

ment of the proposed architecture, we identiﬁed that

there can be different factors that inﬂuence the inspec-

tion process: training data, the relatively small size of

components and faults, unidentiﬁed faults, and clut-

tered backgrounds in different lighting conditions.

2 BACKGROUND

In this section, we discuss different power line inspec-

tion method and DL-based object detection methods.

These provide the real-world as well as the academic

background for our proposed solution.

Ayoub, N. and Schneider-Kamp, P.

Real-time On-board Detection of Components and Faults in an Autonomous UAV System for Power Line Inspection.

DOI: 10.5220/0009826700680075

In Proceedings of the 1st International Conference on Deep Learning Theory and Applications (DeLTA 2020), pages 68-75

ISBN: 978-989-758-441-1

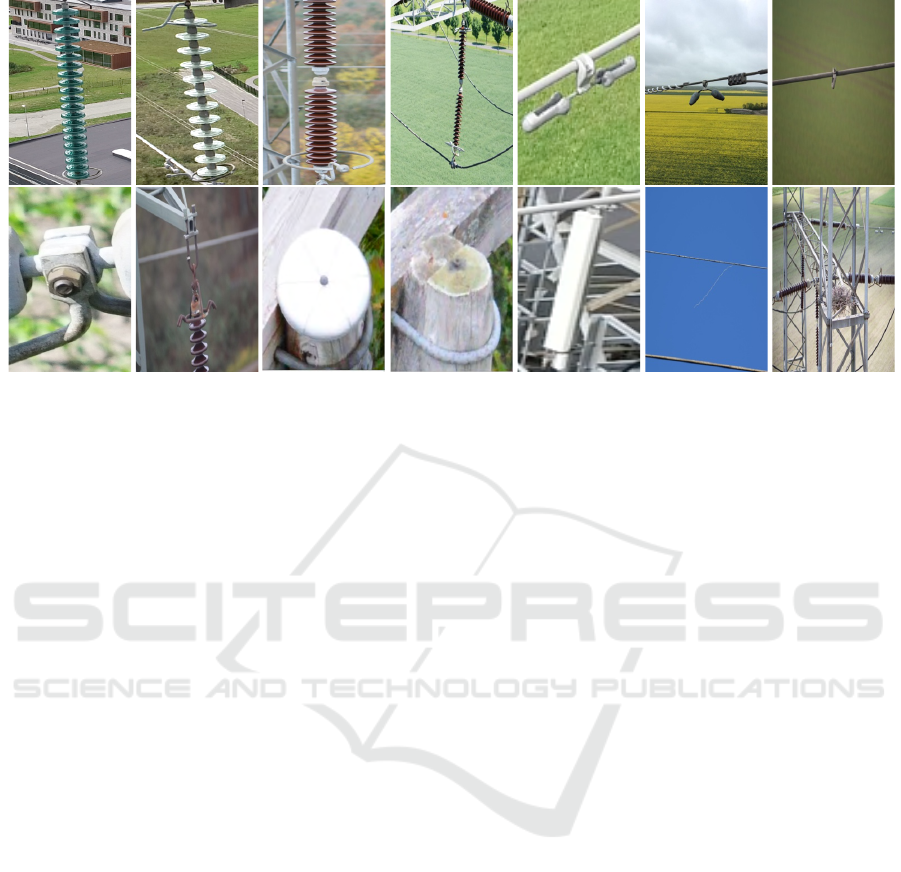

Figure 1: Sample images of normal and related most common faulty components classes used to train the DNNs model

(from top left to the right bottom): Insulator type 1, Insulator type 2, Insulator type 3, damaged insulator, normal Vibration

Dampener (VD), damaged VD, missing VD, normal Nutbolt, rusted Nutbolt, normal Toppads (Jenssen et al., 2018), missing

Toppads (Jenssen et al., 2018), Antena, broken Wire, Bird Nest, respectively.

2.1 Power Line Inspection Methods

Power lines are traditionally inspected at regular inter-

vals by different inspection methods such as human-

centered power lines inspection, semi-automated

power line inspection, and UAV-based power line in-

spection methods (Jenssen et al., 2018).

2.1.1 Human-centered Power Line Inspections

Human-centered power line inspection methods rely

on human involvement in the form of inspectors. In

these methods, the inspection of power lines is con-

ducted by foot patrols or by helicopter-assisted sur-

veys. When using the foot patrol method, a team typ-

ically consists of two or more inspectors travelling

along the power lines by foot and inspect the power

lines with the help of binoculars or infrared cameras.

Where a closer look is required, the power line is

shut down, and one of the inspectors climbs the power

tower and along the power line secured by a rope.

When using the helicopter-assisted inspection

method, a team of inspectors travel by helicopter

along power lines to take pictures of different com-

ponents of pylons. These images are further sent

to inspectors for ofﬂine inspection. The inspectors

then identify the faults such as rusty components,

birds nests, broken wires, faulty and broken insula-

tors, missing toppads, and other misformed or miss-

ing components.

These two inspection methods are human-

centered and are still widely used by inspection com-

panies in spite of a number of disadvantages such as

high cost, extensive time consumption, lack of safety

in harsh terrains, and even impossibility of applica-

tion in less than optimal weather conditions. The ac-

curacy is rather low due to many components being

hard to reach by humans or helicopters. The biggest

disadvantage of helicopter-based inspection in addi-

tion to very high costs is that ﬂying close to power

lines poses a life-threatening security risk as contact

with the cables during survey usually has fatal conse-

quences (Takaya et al., 2019).

2.1.2 Semi-automated Power Line Inspections

Human-centered inspections are performed less fre-

quently because of their high monetary and time

costs. As an alternative to these manual inspections,

semi-automated inspection methods are slowly be-

ing used by a few ﬁrst-moving inspection compa-

nies. These methods provide a moderate boost to

the speed of the inspection process, improve the ac-

curacy, and moderately reduce the inspection costs.

The most common techniques are semi-automated

helicopter-assisted and climbing-robots inspections.

Automated helicopter-assisted inspections differ from

manual helicopter-assisted inspections, because, in

this method, vision-based object detection techniques

are used after the collection of the inspection im-

ages and videos. For example, power mast detec-

tion can be applied for guiding cameras to automat-

ically ﬁlm the conductors, pylons, power compo-

nents, and objects around the pylons and under the

power lines (B

uhringer et al., 2010). Although, this

technique has reduced the dependency on human in-

Real-time On-board Detection of Components and Faults in an Autonomous UAV System for Power Line Inspection

spectors for visual observation and sped up the in-

spection process, inspection costs are still high, and

safety issues remain challenging. To overcome these

challenges, climbing robots inspection techniques has

been adopted by different companies. In this method,

climbing robots carrying many sensors and cameras

travel on power-lines for inspection. Zhou et al.

(Zhou et al., 2016) indicated that climbing robots

can lead to new challenges during inspection such as

damaging the power-wires while traveling, difﬁcul-

ties while crossing obstacles on and around wires, and

comparatively large time costs compared to the auto-

mated helicopter-assisted inspection method.

2.1.3 UAV-based Power Line Inspections

UAV-based power line inspections are the most

promising inspection method. Developing the tech-

nology to be more robust is one of the main challenges

for many researchers and companies. In this method,

UAVs are equipped with multiple cameras and sen-

sors to travel along the power lines to inspect them

and detect faults. This technology has made a some

progress during the last few years because it has over-

come most of the inspection challenges such as the

cost of inspections as well as inspection safety and

speed.

2.2 DL Models for Object Detection

During the last two decades, many researchers have

proposed different ML (Machine Learning)- and DL

(Deep Learning)-based computer vision algorithms

by considering supervised, semi-supervised, and un-

supervised methods. DL-based object detection tech-

niques are very popular these days. These advances in

vision based techniques are encouraging the power in-

dustry to consider replacing the traditional inspection

methods and develop autonomous power lines moni-

toring systems based on the use UAVs. The main rea-

son of building the autonomous inspection systems is

its property of being able to detect a wide range of

components and faults on a single inspection (Zhou

et al., 2019b). Reviews of different data sources for

vision-based inspection and existing vision-based in-

spection systems can be found in (Contreras-Cruz

et al., 2019)

2.3 The Challenges Ahead

In this era of AI (Artiﬁcial Intelligence), as re-

searchers are making much progress in developing au-

tonomous systems, real-time autonomous power line

inspection using UAVs is still a big challenge. Many

researchers are developing Deep Learning (DL)-

based computer vision algorithms to automate the in-

spection process (Agnisarman et al., 2019). Some re-

searchers have applied these vision based method for

power line inspections (Zhou et al., 2019a) (Azevedo

et al., 2019) (Nguyen, 2019). However, the cur-

rent UAV-based power lines inspection techniques are

still facing many unsolved challenges (Jenssen et al.,

2019) (Gao et al., 2019). Alhassan et al. (Alhas-

san et al., 2020) presented a review and pointed at

the challenges during power line inspections. Dur-

ing the initial development phase of our architecture,

we identiﬁed ﬁve main challenges that need to be ad-

dressed for building UAV-based autonomous monitor-

ing systems:

• Data collection and data analysis

• Autonomous vision systems for UAVs to perform

real-time inspection

• Suitable SBDs with sufﬁciently strong GPU to run

vision-based DL models for real-time on-board

inspection

• Communication and mission control systems for

BVLOS UAV systems

• Deep integration of path planning and control sys-

tems in a visual UAV-based inspection system

In this paper, we focus on the ﬁrst three chal-

lenges, which are essential for designing and imple-

menting an autonomous visual real-time on-board in-

spection system. We will discuss the remaining two

challenges in future work. Note, though, that in par-

ticular the ﬁfth point depends on the ability to run DL

models on-board and in real time to achieve a deep in-

tegration, e.g., by reusing component and fault detec-

tion results for adapting the path planning and the fur-

ther collection of images. To address ﬁrst three chal-

lenges, we collected images data for different com-

ponents and faults. Then we trained DL models on

the collected and partially human-labelled images.

Experiments on different hardware during ﬁeld test

phase shows that the proposed architecture can pro-

vide a solid base for building autonomous power lines

inspection systems. Figure 2 shows the ﬂowchart of

our proposed architecture for autonomous power line

inspection.

The remainder of this paper is structured as fol-

lows: Section 3 presents relevant related work on dif-

ferent DL-based classiﬁcation techniques for object

detection. Our proposed autonomous power line in-

spection architecture and experimental results are de-

scribed in Section 4. Finally, we conclude our results

and further work in Section 5.

DeLTA 2020 - 1st International Conference on Deep Learning Theory and Applications

Data collection

Labelling the

different classes for

feature extraction

GPU

Hardware

DNN

Model for network

training

Training

Phase

Detection

Phase

Software

Hardware

Single board CPU

for UAVs

Optimize the frozen

graph with

TensorRT

Freeze the weights

and network into

graph model

Network

configuration

Trained weights

Single board GPU

for UAVs

Figure 2: Proposed architecture for UAVs based on-board inspection and autonomous vision system.

3 RELATED WORK

3.1 DL-based Objects Classiﬁcation and

Detection Models

During last few years, Convolutional Neural Net-

works (CNNs) have been used for different computer

vision techniques such as object detection (Zou et al.,

2019) as well as image classiﬁcation and semantic

segmentation (Li et al., 2016).

The CNN model has been improved in a variety of

ways, and state-of-the-art object detection algorithms

based on CNNs are ﬂourishing. As CNN models are

computationally rather expensive, it is not straight-

forward to use them in real-time image processing,

in particular, in situations where computational re-

sources are limited such as SBDs on board of UAVs.

In this section, we brieﬂy discuss some CNN frame-

works developed for classiﬁcation and detection of

objects relevant to the development paper.

R-CNN: To improve the computational efﬁciency,

Girshik et al. (Girshick et al., 2014) proposed the

R-CNN method for object detection. In this method,

region proposals obtained by selective search meth-

ods, and then features are extracted with a CNN. A

classiﬁer based on support vector machines is used to

classify these features. Finally, patches are optimized

by bounding box regression. Figure 3 shows the ﬂow

chart of an RCNN model (reproduced from (Girshick

et al., 2014).

Input image

Selective search

Region Proposals

Features

Extraction with

CNNs

Features

classification with

SVM

Bounding box

regression for

optimizing patches

Figure 3: Flow chart of R-CNN model.

ResNet: The training of CNNs remained a challeng-

ing in the above mentioned variants of CNNs. To

ease the training of neural networks, He et al. (He

et al., 2016) introduced the Deep Residual Network

(ResNet) model. In this method, connections between

the standard CNN layers allow the gradient signal to

travel back directly from later layers to early layers.

During the learning phase, the connection establish-

ment technique of ResNet layers allow the network

model to successfully train even with 152 layers. Fig-

ure 4 shows the residual learning model (reproduced

from (He et al., 2016)).

𝑥

𝐹#(𝑥) 𝑥

𝐹#

(

𝑥

)

+ 𝑥

ReLU

Weight layer

Identity

ReLU

Figure 4: Residual learning model.

R-FCN: Dai et al. (Dai et al., 2016) introduced a

new method based on Region-based Fully Convolu-

tional Networks (R-FCNs) to address existing issues

in R-CNN-based network architectures. As an alter-

native of applying region-level feature extraction, R-

FCN adopts a FCN (Fully Conovolutional Network)

architecture to share the computations across the im-

age. In this method, position-sensitive score maps

are obtained for classiﬁcation and detection in a sin-

gle evaluation. R-FCN perform 2.5-20 times faster

and achieve higher accuracy than the Faster R-CNN.

Real-time On-board Detection of Components and Faults in an Autonomous UAV System for Power Line Inspection

Figure 5 show the architecture of R-FCN (reproduced

from (Dai et al., 2016)).

pool

Conv

Input image

RPN based

ROIs extraction

Features

maps

Region

interests

Vote

Per-ROI

Figure 5: Region-based Fully Convolutional Network

model.

YOLO: Redmon et al. (Redmon et al., 2016) pro-

posed a real-time object detection algorithm YOLO

(You Only Look Once). This model uniﬁes region

classiﬁcation proposals into a single neural network to

predict the bounding boxes and class probabilities. A

single image is divided into S × S grid cells and detec-

tion is performed into single evaluation. This unique

network structure makes YOLO much faster than the

aforementioned algorithms.

To improve accuracy, the YOLOv2 (Redmon and

Farhadi, 2016) model was proposed, in which fea-

tures such as direct location prediction, a high reso-

lution classiﬁer, ﬁne gradients, and dimension clus-

tering are added to the YOLO network. The authors

introduced batch normalization, direct location pre-

diction and replaced the fully connected layer with

a convolution layer to speed up the training and de-

tection process. In 2018, Redmon et al. introduced

YOLOv3 (Redmon and Farhadi, 2018) to further im-

prove the accuracy of YOLO and added more layers

and features to the network. In this paper, for build-

ing the autonomous vision part of the proposed UAV-

based inspection architecture, we have taken into con-

sideration both speed and accuracy. For these reasons,

we have used the DL model of YOLOv3 (Redmon

and Farhadi, 2018) for training the autonomous vision

system.

4 PROPOSED ARCHITECTURE

FOR REAL-TIME ON-BOARD

VISUAL INSPECTION

Our architecture for the autonomous vision system for

power line inspection is based on the three following

main components:

• Collection and pre-analysis of a dataset.

• Application of DL algorithms for training, testing,

and analysis of the dataset.

• Selection of suitable SBDs for running the infer-

ence in real-time on board of the UAV.

In this section, we will discuss and summarize rel-

evant data and classes of components and faults for

training the autonomous detection algorithms. Then

we will discuss the DL model for autonomous inspec-

tion. We will summarize different SBDs and their

compatibility issues with respect to their application

for UAV-based real-time inspection. We will also

highlight the advantages of using SBDs with GPUs

embedded within UAVs.

4.1 Data Collection and Pre-analysis

Data collection and labeling the components of differ-

ent classes for training the DNN model is challenging

because there are no publicly available datasets. Af-

ter comprehensively reviewing different data sources

and structure of the components, we have built a cus-

tom dataset with the help of an inspection company

that is a collaborator in the Drones4Energy project.

While collecting the image dataset, we have consid-

ered different types of components and faults as sep-

arate classes according to their appearance in differ-

ent background, angles, lighting, and weather condi-

tions. Figure 1 shows different components of power

lines and their related faults reproduced from (Jenssen

et al., 2018). In our dataset, we have concentrated on

ﬁve relevant classes to keep the time consumption for

labelling by human experts at a reasonable level.

4.2 Suitable SBDs for UAV-based

Real-time On-board Inspections

Real-time on-board autonomous monitoring systems

for power lines consist of two main components: DL

algorithms and UAVs with embedded SBDs to run

the DL algorithms. Taking into consideration the re-

quired computational power, we have trained the DL

models using more powerful hardware than available

for the detection process as discussed in the follow-

ing.

Nvidia Tesla V100: Training DL models in rea-

sonable time requires rather powerful GPUs. We

have used an Nvidia Tesla V100 having 32GB RAM

through the CUDA 10 framework. In this GPU, each

streaming multiprocessor is partitioned into four pro-

cessing blocks. Each block consists of two Tensor

Cores, 16 FP32 cores, 8 FP64 cores, 16 INT32 cores

and one Special Function Unit (SFU). This GPU has

a total of 640 Tensor Cores, which jointly can accel-

erate the DL framework up to 125 TFLOPs (Markidis

et al., 2018).

We have used a variety of different SBDs to per-

form inference with the DL model in order to assess

and compare the real-time performance. Figure 6

DeLTA 2020 - 1st International Conference on Deep Learning Theory and Applications

(a) Raspberry Pi 4

(b) Nvidia Jetson Nano

(d) Nvidia Jetson AGX Xavier

(e) UAV with TX2 GPU

Figure 6: Single board hardware for UAVs to run real-time autonomous algorithm. From left to right, (a) Raspberry Pi 4,

(b) Nvidia Jetson Nano, (c) Nvidia Jetson TX2, (d) Nvidia AGX Xavier and (e) UAV with Jetson TX2.

shows the different SBDs, which have been consid-

ered as candidates for being embedded in UAVs.

Raspberry Pi 4: The Raspberry Pi 4 is cheapest op-

tion in terms of price among the SBDs considered.

This board is built with a 64-bit Broadcom Videocore

VI GPU and a quad-core Cortex-A72 (ARM v8) CPU

and has 4 GBs of RAM (see Figure 6(a)).

Nvidia Jetson Nano: The Jetson Nano is a small,

more powerful SBD developed by Nvidia (see Figure

6(b)). It features a Maxwell architecture-based GPU

and a quad-core ARM Cortex-A57 CPU and, as the

Raspberry Pi 4, has 4 GBs of RAM. The GPU comes

with a total of 128 Cuda cores, which can accelerate

the DL framework up to 0.5 TFLOPs.

Nvidia Jetson TX2: The Jetson TX2 is an even more

powerful SBD. Nvidia has equipped it with a more

modern Pascal architecture-based GPU (see Figure

6(c)). The Jetson TX2 has two CPUs: a dual-Core

NVIDIA Denver and a quad-core ARM Cortex-A57,

sharing 8 GBs of RAM. The GPU comes with a to-

tal of 256 Cuda cores, which can accelerate the DL

framework up to 1.3 TFLOPs.

Nvidia AGX Xavier: Nvidia’s ﬂagship SBD, the

AGX Xavier, is one of the most powerful SBDs on the

market (see Figure 6(d)). It has a Volta architecture-

based GPU with a total of 512 cuda cores and 64 Ten-

sor cores. It also has an 8-core NVIDIA Carmel ARM

v8.2 64-bit CPU. The AGX Xavier can reach up to 32

TFLOPs and is speciﬁcally designed for running in-

ference on DL models in real-time environments. The

board can work in a number of different power modes,

which gives the user the possibility to select the num-

ber of working CPU cores and, thereby, to control the

power consumption of the SBD.

4.3 Autonomous DL Algorithm for

Real-time Inspection

For training the autonomous algorithm, we have used

the network model of YOLOv3 (darknet-53) pro-

posed by Redmon et al. (Redmon and Farhadi,

2018). We also train the YOLOv3-tiny (darknet-19)

model for performance comparisons. YOLOv3-tiny

has fewer convolutional layers than YOLOv3, which

improves its suitability for real-time processing but

reduces the accuracy somewhat. Concerning the pa-

rameters, we use the default conﬁgurations of both

YOLOv3 and YOLOv3-tiny. We set the momentum

of the stochastic gradient descent to 0.9 and the learn-

ing rate to 0.001. The weight decay is set to 0.005.

Concerning the scaling of the images for training of

the network, we set the images size to 608, 416 (stan-

dard), and 288. The batch size is set to 64 to im-

prove utilization of the GPU and its memory. During

the training, we ignore the anchors that drop below

the threshold value. As training needs a rather pow-

erful GPU, we have used the Nvidia Tesla V100 GPU

to train the DL models. To run the inference faster

on the SBDs, we accelerate the DL algorithm using

the TensorRT library. TensorRT is a DL library intro-

duced by Nvidia that optimizes the trained weights.

For optimization, the trained weights are frozen, and

then these frozen weights are optimized with Ten-

sorRT. The optimized weights run much faster than

non-optimized weights (compare Tables 1 and 2).

4.4 Experimental Results and

Discussion

For evaluation of the real-time image processing, we

have used different SBDs, which can be embedded as

part of UAVs. Tables 1, 2, and 3 show the experimen-

tal evaluation in terms of frames per second (FPS) us-

ing different hardware for running real-time inference

with the DL algorithms. Table 1 shows the FPS dur-

ing real-time processing with YOLOv3-tiny on dif-

ferent hardware. YOLOv3-tiny runs much faster than

the YOLOv3 model (compare Tables 2 and 3), but it

provides somewhat less accuracy during inspection.

The accuracy drops even more after weight optimiza-

tion. We can clearly see that the processing of the

algorithm with non-optimized weights is too slow for

real-world implementation (see Table 1), even when

only using YOLOv3-tiny. We could not run inference

Real-time On-board Detection of Components and Faults in an Autonomous UAV System for Power Line Inspection

Figure 7: Results of detecting different components of power line pylons.

with the full YOLOv3 model on all SBDs due to too

large memory demands.

Table 1: FPS on different scales of images during real-time

detection (YOLOv3-tiny without weight optimization).

DL model YOLOv3-tiny normal

Input size (288) (416) (608)

SBD

Raspberry Pi 4 3 1 0.2

Nvidia Jetson nano 3.4 1.2 0.5

Nvidia Jetson TX2 20 17 10

Nvidia AGX Xavier 30 21.6 14

Table 2: FPS for YOLOv3-tiny on different scales of images

during real-time detection with optimized weights.

DL model YOLOv3-tiny optimized

Input size (288) (416) (608)

SBD

Nvidia Jetson Nano 22 15 4.5

Nvidia Jetson TX2 25 19 12

Jetson AGX Xavier 50 32 22

Table 3: FPS for YOLOv3 on different scales of images

during real-time detection with optimized weights.

DL model YOLOv3 optimized

Input size (288) (416) (608)

SBD

Nvidia Jetson Nano 5.28 3 1.45

Nvidia Jetson TX2 11.4 6.4 3

Jetson AGX Xavier 24 17 11

After optimizing weights with the TensorRT li-

brary, the performance on the Nvidia Jetson TX2 and

the Jetson AGX Xavier improves signiﬁcantly (see

Tables 2 and 3).

We know that a DL algorithm for an autonomous

vision system should have both properties: accuracy

and real-time suitability. Hence, during as a result

of our experimental evaluation, we choose the full

YOLOv3 model with an Nvidia Jetson AGX Xavier

for the real-world implementation of our vision sys-

tem in the inspection architecture. The Jetson AGX

Xavier can run the YOLOv3 algorithm up to 17 FPS

on images scaled to 416 pixels with a good accuracy.

Such a frame rate is acceptable for real-time process-

ing and allows the drone control software to react

to the results of the detection without undue delay.

The experiments are performed by setting all SBDs

to maximum performance mode (nvpmodel), i.e., all

CPU and GPU cores were enabled at full speed. Fig-

ure 7 shows examples of the detection results for dif-

ferent classes of components of power lines.

5 CONCLUSIONS

In this study, we have proposed and evaluated the

use of autonomous DL algorithms running in real-

time on board of UAVs with the purpose of visual

power line inspection. We have also compared the

results between different SBDs that can be embedded

in UAVs for running inference for powerful DL mod-

els. We have also compared real-time results between

YOLOv3-tiny (darknet-19) and YOLOv3 (darknet-

53) and investigated the real-world impact of weight

optimization using TensorRT.

We have given the theoretical description of differ-

ent algorithms and SBDs, and then practically imple-

mented each algorithm on these SBDs. We realized

that YOLOv3 performs at an acceptable level in terms

of accuracy and real-time processing on the Nvidia

Jetson AGX Xavier, which therefore will constitute

the SBD for the Drones4Energy project.

In the future, we will extend our work by consider-

ing the remaining two challenges of performing mul-

tiple tasks on a single UAV regarding path planning,

communication, and control as well as autonomously

DeLTA 2020 - 1st International Conference on Deep Learning Theory and Applications

sending and further processing the results of compo-

nent and fault detection through a cloud service.

ACKNOWLEDGEMENTS

The presented research was supported by the Inno-

vation Fund Denmark, Grand Solutions, under grant

agreement No. 8057-00038A Drones4Energy project

REFERENCES

Agnisarman, S., Lopes, S., Madathil, K. C., Piratla, K., and

Gramopadhye, A. (2019). A survey of automation-

enabled human-in-the-loop systems for infrastructure

visual inspection. Automation in Construction, 97:52

– 76.

Al-Kaff, A., Mart

ın, D., Garc

ıa, F., de la Escalera, A., and

Armingol, J. M. (2018). Survey of computer vision

algorithms and applications for unmanned aerial vehi-

cles. Expert Systems with Applications, 92:447 – 463.

Alhassan, A. B., Zhang, X., Shen, H., and Xu, H. (2020).

Power transmission line inspection robots: A review,

trends and challenges for future research. Interna-

tional Journal of Electrical Power & Energy Systems,

118:105862.

Azevedo, F., Dias, A., Almeida, J., Oliveira, A., Fer-

reira, A., Santos, T., Martins, A., and Silva, E.

(2019). Lidar-based real-time detection and modeling

of power lines for unmanned aerial vehicles. Sensors,

19(8):1812.

uhringer, M., Berchtold, J., B

uchel, M., Dold, C.,

utikofer, M., Feuerstein, M., Fischer, W., Bermes,

C., and Siegwart, R. (2010). Cable-crawler–robot for

the inspection of high-voltage power lines that can

passively roll over mast tops. Industrial Robot: An

International Journal.

Contreras-Cruz, M. A., Ramirez-Paredes, J. P., Hernandez-

Belmonte, U. H., and Ayala-Ramirez, V. (2019).

Vision-based novelty detection using deep features

and evolved novelty ﬁlters for speciﬁc robotic explo-

ration and inspection tasks. Sensors, 19(13):2965.

Dai, J., Li, Y., He, K., and Sun, J. (2016). R-FCN: object de-

tection via region-based fully convolutional networks.

CoRR, abs/1605.06409.

Gao, Z., Yang, G., Li, E., Shen, T., Wang, Z., Tian, Y.,

Wang, H., and Liang, Z. (2019). Insulator segmenta-

tion for power line inspection based on modiﬁed con-

ditional generative adversarial network. Journal of

Sensors, 2019.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detec-

tion and semantic segmentation. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 580–587.

https://drones4energy.dk/

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In The IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR).

Jenssen, R., Roverso, D., et al. (2018). Automatic au-

tonomous vision-based power line inspection: A re-

view of current status and the potential role of deep

learning. International Journal of Electrical Power &

Energy Systems, 99:107–120.

Jenssen, R., Roverso, D., et al. (2019). Intelligent monitor-

ing and inspection of power line components powered

by uavs and deep learning. IEEE Power and Energy

Technology Systems Journal, 6(1):11–21.

Li, Y., Hao, Z., and Lei, H. (2016). Survey of convolutional

neural network. Journal of Computer Applications,

36(9):2508–2515.

Markidis, S., Der Chien, S. W., Laure, E., Peng, I. B., and

Vetter, J. S. (2018). Nvidia tensor core programmabil-

ity, performance & precision. In 2018 IEEE Interna-

tional Parallel and Distributed Processing Symposium

Workshops (IPDPSW), pages 522–531. IEEE.

Nguyen, V. N. (2019). Advancing deep learning for auto-

matic autonomous vision-based power line inspection.

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time ob-

ject detection. In The IEEE Conference on Computer

Vision and Pattern Recognition (CVPR).

Redmon, J. and Farhadi, A. (2016). Yolo9000: Better,

faster, stronger. arXiv preprint arXiv:1612.08242.

Redmon, J. and Farhadi, A. (2018). Yolov3: An incremental

improvement. CoRR, abs/1804.02767.

Takaya, K., Ohta, H., Kroumov, V., Shibayama, K., and

Nakamura, M. (2019). Development of uav system

for autonomous power line inspection. In 2019 23rd

International Conference on System Theory, Control

and Computing (ICSTCC), pages 762–767. IEEE.

Zhou, G., Yuan, J., Yen, I.-L., and Bastani, F. (2016).

Robust real-time uav based power line detection and

tracking. In 2016 IEEE International Conference on

Image Processing (ICIP), pages 744–748. IEEE.

Zhou, M., Li, K., Wang, J., Li, C., Teng, G., Ma, L., Wu, H.,

Li, W., Zhang, H., Chen, J., et al. (2019a). Automatic

extraction of power lines from uav lidar point clouds

using a novel spatial feature. ISPRS Annals of Pho-

togrammetry, Remote Sensing & Spatial Information

Sciences, 4.

Zhou, X., Fang, B., Qian, J., Xie, G., Deng, B., and Qian,

J. (2019b). Data driven faster r-cnn for transmission

line object detection. In Cyberspace Data and In-

telligence, and Cyber-Living, Syndrome, and Health,

pages 379–389. Springer.

Zou, Z., Shi, Z., Guo, Y., and Ye, J. (2019). Object detection

in 20 years: A survey. CoRR, abs/1905.05055.

Real-time On-board Detection of Components and Faults in an Autonomous UAV System for Power Line Inspection
