A Systematic Literature Mapping of Artiﬁcial Intelligence Planning in

Software Testing

Luis F. de Lima, Leticia M. Peres, Andr

e R. A. Gr

egio and Fabiano Silva

Department of Informatics, Federal University of Paran

a, Av. Cel. Francisco H. dos Santos, 100, Curitiba, PR, Brazil

Keywords:

Software Testing, Artiﬁcial Intelligence Planning, AI Planning, Planning Technique.

Abstract:

Software testing is one of the most expensive software development processes. So, techniques to automate

this process are fundamental to reduce software cost and development time. Artiﬁcial intelligence (AI) plan-

ning technique has been applied to automate part of the software testing process. We present in this paper a

systematic literature mapping (SLM), using Petersen et al. (2015) approach of methods, techniques and tools

regarding AI planning in software testing. Using the mapping, we identify 16 papers containing methods,

techniques, frameworks and tools proposals, besides a survey. We identify testing techniques, testing phases,

artifacts, AI planning techniques, AI planning tools, support tools, and generated plans in these selected pa-

pers. By mapping data analyses we identify a deﬁciency in the use of white-box and error-based testing

techniques, besides the recent use of AI planning in security testing.

1 INTRODUCTION

The main objective of the software testing process is

to run a program in a controlled environment to re-

veal faults (Myers, 1979). This process consumes the

most effort during software development (Pressman,

2016). In this way, it is essential to plan the software

testing, allowing us to estimate how much work, time

and resources will be needed. Besides, the growing

demand for quality systems has motivated the search

for new techniques, methods and testing tools.

Testing activity involves producing and running

the system with test cases, which are indicated by test-

ing criteria. Testing criteria are deﬁned from testing

techniques, such as functional, structural and error-

based (Maldonado et al., 2007), occurring with the

system functionalities knowledge, with the system in-

ternal logic knowledge, and through the most com-

mon system errors, respectively. These testing tech-

niques are usually used in the context of unit, integra-

tion, system and acceptance testing phases (Pressman,

2016).

Several artiﬁcial intelligence (AI) techniques have

been associated with the software testing techniques

and phases. Srivastava and Kim (2009) use genetic

algorithms in software testing. Malz et al. (2012)

present a concept for an automated prioritization of

test cases using software agents and fuzzy logic. Jiang

et al. (2018) apply fuzzy logic in software test metrics

to increase accuracy in software testing. Zhu and Jiao

(2019) apply genetic algorithms to automate testing

data generation.

Another AI technique used in software testing is

AI planning. This technique consists in the automatic

elaboration of a sequence of actions to reach an ob-

jective (Russell and Norvig, 2016). We can associate

the sequential execution of actions of an AI planning

problem with a test case execution, allowing the mod-

eling of software testing that has the goal of ﬁnding

unexpected system behavior.

The present study presents a systematic literature

mapping (SLM) of methods, techniques and tools re-

garding the AI planning technique applied in software

testing. We opted to perform an SLM as a method of

scientiﬁc investigation that brings relevant studies of

a research ﬁeld. We based the SLM search method on

Petersen et al. (2015) approach.

The main goal of this work is to provide a quan-

titative research area overview, identifying the fre-

quency of publications over time, testing techniques,

testing phases, used artifacts, AI planning techniques,

AI planning tools, support tools, and generated arti-

facts. Another goal is to identify a weakness in the

state-of-the-art related to AI planning in software test-

ing.

We organized this paper as follows: Section 2 pro-

vides software testing concepts and AI planning def-

initions. Section 3 presents a systematic literature

mapping methodology. Section 4 presents and dis-

cusses the mapping results. Section 5 presents related

works. Section 6 presents the ﬁnal considerations and

discusses future work.

152

F. de Lima, L., Peres, L., Grégio, A. and Silva, F.

A Systematic Literature Mapping of Artiﬁcial Intelligence Planning in Software Testing.

DOI: 10.5220/0009829501520159

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 152-159

ISBN: 978-989-758-443-5

2 BACKGROUND

2.1 Software Testing

The software development process is divided into

phases. A phase is a period in which activities with

speciﬁc objectives are realized (Wazlawick, 2013).

Software testing is one of the software development

phases, performed with the application of testing cri-

teria that are deﬁned by different testing techniques.

The most common software testing techniques are

black-box testing, white-box testing, and error-based

testing (Maldonado et al., 2007). Black-box testing,

also known as functional testing, permits software

testing looking at its functionalities, disregarding its

implementation. White-box testing, or structural test-

ing, uses the software implementation and its internal

structural knowledge for its testing. Error-based test-

ing uses the most frequent errors in software develop-

ment to perform its veriﬁcation and validation.

Testing activity is usually divided into the fol-

lowing phases: unit testing, integration testing, sys-

tem testing, and acceptance testing. In unit testing,

each unit is a procedure or function in a procedu-

ral programming language or a class in an object-

oriented programming language, and the programmer

tests each unit separately from one another (Wazlaw-

ick, 2013).

Integration testing occurs when the units have al-

ready been tested separately and will be integrated

into a new system version. System testing occurs

with the system totally integrated, to verify possible

errors according to the system speciﬁcation. Integra-

tion testing and system testing are made by the testing

team. Acceptance testing is performed by system end

users, with the purpose of performing system valida-

tion regarding user requirements (Wazlawick, 2013).

2.2 Artiﬁcial Intelligence Planning

Artiﬁcial intelligence (AI) planning is deﬁned as

the automatic elaboration of an action sequence to

achieve the aim of a problem (Russell and Norvig,

2016). A planning problem is described as a quadru-

ple (P, I, G, A) where P is a set of predicates, I is the

initial state of the problem, G is the goal state of the

problem, and A is a set of actions.

Predicates p ∈ P represents a ﬁrst-order logic for-

mula and are used to deﬁne all actions a ∈ A. All

states of the problem are speciﬁed by predicates that

are true in these states. Actions are described in terms

of preconditions and effects (functions pre(a) and

post(a), respectively). If pre(a) of an action a is true

in a state S then a is executed. After the action a ex-

ecution, the transition to another state S

occurs, i.e.,

→ S

. After the transition, post(a) effects are auto-

matically considered valid in state S

Plan possibly solves an AI planning problem. A

plan is a set of n actions whose sequential execution

takes from the initial state to the goal state of the prob-

lem, i.e., I

→ S

...

→ G. Different plans can

be generated according to the AI planning algorithm

used to solve the problem. Plan is an artifact resulting

from an AI planning tool execution.

Planning problems are usually represented by for-

mal languages, e.g., STRIPS (Fikes and Nilsson,

1971), ADL (Pednault, 1989), and PDDL (McDer-

mott et al., 1998). AI planning tools, also known

as planners, use AI planning problems in formal lan-

guages as inputs to generate plans. Some planners are

ABSTRIPS (Sacerdoti, 1974), which uses a STRIPS

input, UCPOP (Penberthy et al., 1992), for ADL in-

puts, and Metric-FF (Hoffmann, 2003), for PDDL in-

puts.

3 METHODOLOGY OF

SYSTEMATIC MAPPING

The main objective of a systematic literature map-

ping (SLM) isto summarize a ﬁeld of interest through

classiﬁcation, concerned with structuring the research

area (Petersen et al., 2008). We chose the Petersen

et al. (2015) approach to conduct our SLM because

these authors performed a SLM in the software en-

gineering area. We composed our SLM methodol-

ogy by ﬁve steps for deﬁnitions of objective, research

questions, search strategy, studies selection and data

extraction, described in the following subsections.

3.1 Step 1: Objective

The ﬁrst step of the SLM is to identify its objective.

This SLM aims to review and analyze the state-of-the-

art of AI planning theories, implementations, meth-

ods, techniques, and tools in software testing.

3.2 Step 2: Research Questions

The following SLM step is to deﬁne the research

questions (RQs). The RQs determine what should be

answered at the end of the mapping. First, we deﬁne

the following main RQ.

• RQ: How AI planning is used in software testing?

In addition, another eight RQs were deﬁned to

reach the SLM objective.

A Systematic Literature Mapping of Artiﬁcial Intelligence Planning in Software Testing

153

• RQ1: What is the proposal of AI planning use in

software testing?

If tool:

– RQ1.1: What is the proposed tool?

– RQ1.2: Is the tool’s code open?

• RQ2: What is the testing phase?

• RQ3: What is the testing technique used?

• RQ4: What is the AI planning technique used?

• RQ5: What is the artifact used by AI planning?

• RQ6: What is the planner used?

• RQ7: What are the support tools used?

• RQ8: What does the generated plan represent?

3.3 Step 3: Search Strategy

The next methodology step is the search strategy deﬁ-

nition. In this step, the search bases are chosen and the

search strings are elaborated. We chose ACM

, IEEE

Xplore

, Scopus

and Springer

databases. The fol-

lowing search string was used to search: “(“Software

Engineering” AND (“Software Test” OR “Software

Testing”) AND (“AI Planning” OR “Artiﬁcial Intelli-

gence Planning”))”. In each database the search string

had some syntactic changes according to the base pat-

tern.

We selected the “computer science” area and

“software engineering” discipline in the databases

that offered these options. Restrictions about type,

location, and year of publication were not applied.

Searches were conducted at the Department of In-

formatics of the Federal University of Paran

a, and

were initialized in the middle of September 2018 and

completed early October 2018, resulting in 149 pa-

pers. Table 1 shows the number of search results

per database. These 149 selected papers were sub-

mitted to study selection. As a complement to these

results, an additional manual search was performed in

November 2019, which is described below.

Table 1: Number of studies per database.

Database Search results

ACM Digital 4

IEEE 136

Scopus 2

SpringerLink 7

Available in: https://dl.acm.org/

Available in: http://ieeexplore.ieee.org

Available in: https://www.scopus.com

Available in: https://link.springer.com

3.4 Step 4: Study Selection

We realized the studies selection step was realized af-

ter the searches in databases. We divide this method-

ology step into two phases. In the ﬁrst phase, the ti-

tles, keywords and abstracts of all selected papers in

the databases searches are read. After that, papers are

selected according to include criteria (IC). The sec-

ond phase exclude papers selected in the ﬁrst phase

according to exclude criteria (EC).

We used one criteria to include papers:

IC1: papers using AI planning in software testing.

And four criteria to exclude papers:

EC1: papers that are not fully available;

EC2: papers that appear in more than[] one

database;

EC3: papers that are not in English; and

EC4: books and grey literature.

Although the search string deﬁned is speciﬁc to

AI planning, we found some false positives. As the

search string presents “test” , “testing” and “plan-

ning”, some works related to “testing planning” were

found in the most varied areas. So, the IC application

was important to studies selection. The IC1 appli-

cation included 15 out of 149 papers selected in the

database search. The ECs application has not elim-

inated any paper. So, we selected 15 papers in this

process.

In addition, we also conducted research in Google

Scholar

search engine in November 2019 perform-

ing manual technique and 1 more paper was included,

increasing the number of included papers to 16. Se-

lected papers publication occurred between 1995 and

2019. Figure 1 shows the number of papers during the

studies selection process.

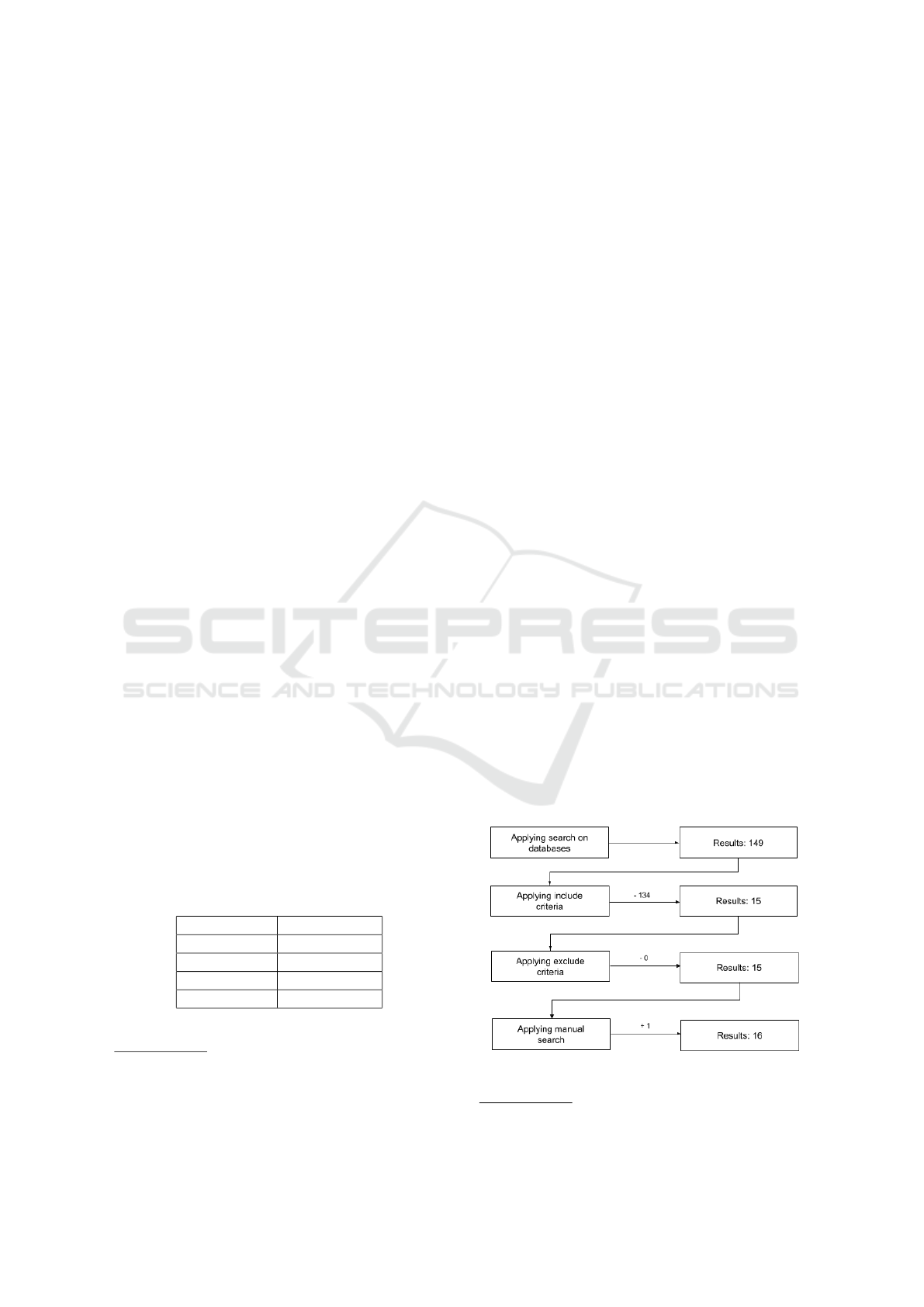

Figure 1: Number of included papers during the study se-

lection step.

Available in: https://scholar.google.com.br/

ICSOFT 2020 - 15th International Conference on Software Technologies

154

3.5 Step 5: Data Extraction

Data extraction is the last step of the SLM methodol-

ogy. The 16 papers selected in Step 4 were submit-

ted to full reading and data extraction. Based on the

RQs deﬁned, a data extraction template was elabo-

rated, allowing posterior data classiﬁcation and anal-

ysis. We associated an identiﬁer (ID) to each pa-

per, and identiﬁed the paper link (URL), paper ti-

tle, paper authors, year of publication, authors depart-

ment, authors country, information about publication

congress/event, an overview of the paper proposal,

and informations refers to the predeﬁned RQs.

4 RESULTS AND DISCUSSION

This section presents and discusses the results ob-

tained with data extraction. Data extraction results

in the 15 papers selected in the SLM are presented

by RQ. Manual searching results and discussions are

presented in Subsection 4.8. Table 2 presents an

overview of all selected papers.

4.1 AI Planning in Software Testing

(RQ1)

In order to answer RQ1 we identiﬁed the follow-

ing proposals of IA planning in software testing.

Frameworks in (Feather and Smith, 2001), (Yen

et al., 2002), (Razavi et al., 2014), and (Bozic and

Wotawa, 2018); tools in (Memon et al., 2001), (Gupta

et al., 2007), and (Li et al., 2009); models in (Mraz

et al., 1995), (Howe et al., 1995), (Howe et al.,

1997), (Scheetz et al., 1999), (von Mayrhauser et al.,

1999); and techniques in (Memon et al., 1999), (von

Mayrhauser et al., 2000), and (Wotawa, 2016).

• Tools and Codes (RQ1.1 and RQ1.2)

Memon et al. (2001) propose Planning Assisted Tester

for grapHical user interface Systems (PATHS), a

graphical user interface test cases generation tool;

Gupta et al. (2007) propose Means-Ends Analysis

Graphplan (MEA-Graphplan), a test data generation

tool that constructs the problem graph from the goal

state to the initial state and then uses the standard

Graphplan algorithm; Li et al. (2009) propose Multi-

ple Fact Files - Interference Progression Planner (MF-

IPP), a test case generation tool that divides the input

ﬁle into smaller ﬁles for gaining performance.

The codes of these three tools identiﬁed were not

made available by the paper’s authors.

4.2 Testing Phases and Techniques

(RQ2 and RQ3)

To answer RQ2 and RQ3 we analyzed the selected pa-

pers to identify phases and testing techniques. None

of the papers makes explicit the testing phase where

their proposals are made. Wotawa (2016) and Bozic

and Wotawa (2018) refer to security testing, so it is

implied that they run in the system testing phase. In

von Mayrhauser et al. (2000) is used as an error-based

testing technique and Razavi et al. (2014) use a struc-

tural testing technique. The other 13 papers use a

functional (black-box) testing technique. So, 81%

of the selected papers use the black-box testing tech-

nique in their proposals.

4.3 AI Planning Techniques (RQ4)

For answering RQ4 we analysed selected papers re-

garding AI planning techniques related to language

and implementation that were used. In (Mraz et al.,

1995), (Howe et al., 1995), (Howe et al., 1997),

(Scheetz et al., 1999), (von Mayrhauser et al., 1999),

and (von Mayrhauser et al., 2000), the ADL language

is used. Hierarchical Task Network (HTN) technique

is used in (Memon et al., 2001). Planning Graph

Analysis technique is used in (Gupta et al., 2007) and

(Li et al., 2009). PDDL language is used in (Razavi

et al., 2014) and (Bozic and Wotawa, 2018). STRIPS

language is used in (Wotawa, 2016). In (Memon et al.,

1999), (Feather and Smith, 2001), and (Yen et al.,

2002) the AI planning techniques used are not speci-

ﬁed.

4.4 Artifacts (RQ5)

Different artifacts were used as a base to model the

planning problem in formal languages as planners in-

put. For RQ5 we identiﬁed the following artifacts in

the selected papers. StorageTek Robot Tape Library

classes in (Mraz et al., 1995), (Howe et al., 1995), and

(Howe et al., 1997); UML state and class diagrams

in (Scheetz et al., 1999) and (von Mayrhauser et al.,

1999); mutant operators in (von Mayrhauser et al.,

2000); interface diagrams in (Feather and Smith,

2001); interface functions in (Memon et al., 1999)

and (Memon et al., 2001); speciﬁcation of system

components in (Yen et al., 2002); ﬁnite state ma-

chine representing the system’s states in (Gupta et al.,

2007); user interface features in (Li et al., 2009); his-

tory of variables shared by competing Java programs

and violation patterns in (Razavi et al., 2014); and

XSS and SQL injection vulnerabilities descriptions in

(Wotawa, 2016) and (Bozic and Wotawa, 2018).

A Systematic Literature Mapping of Artiﬁcial Intelligence Planning in Software Testing

155

Table 2: Selected papers overview.

Paper Overview

Mraz et al. (1995)

Model for test data generation for the StorageTek Robot Tape Library command language.

Howe et al. (1995)

Model for test data generation for the StorageTek Robot Tape Library.

Howe et al. (1997)

Model for test case generation for the StorageTek Robot Tape Library.

Scheetz et al. (1999)

Model for test case generation satisfying the UML-derived test objectives.

von Mayrhauser et al. (1999)

Model for test cases generation for system testing based on high level test objectives.

Memon et al. (1999)

Technique for automatic test cases generation for graphical user interfaces.

von Mayrhauser et al. (2000)

Technique for error recovery tests generation with concepts of mutation testing.

Feather and Smith (2001)

Framework for automatic generation of automated test oracle.

Memon et al. (2001)

Tool for automatic test cases generation for graphical user interfaces.

Yen et al. (2002)

Framework for assisting with the synthesis of code for assembling a system from

existing components as well as automated testing of the system.

Gupta et al. (2007)

Tool for test data generation using the Graphplan algorithm.

Li et al. (2009)

Tool for test case generation able to handle multiple input ﬁles to

avoid the combinatorial explosion.

Razavi et al. (2014)

Framework for predicting concurrent program runs containing data races,

atomicity violations, or null-pointer references.

Wotawa (2016) Technique for detecting vulnerabilities in systems.

Bozic and Wotawa (2018)

Framework for Web vulnerabilities modeling and security testing of Web applications.

Bozic and Wotawa (2019)

Survey describing 19 papers in the ﬁeld of AI planning for software testing.

4.5 Planners (RQ6)

For RQ6 we identiﬁed the following planners. Three

different versions of UCPOP in (Mraz et al., 1995),

(Howe et al., 1995), (Howe et al., 1997), (Scheetz

et al., 1999), (von Mayrhauser et al., 1999), and

(von Mayrhauser et al., 2000); Interference Progres-

sion Planner (IPP) in (Memon et al., 1999); DS-

1 in (Feather and Smith, 2001); Fast Forward (FF)

in (Razavi et al., 2014); and JavaGP in (Bozic and

Wotawa, 2018). Memon et al. (2001), Gupta et al.

(2007), and Li et al. (2009) present their own tools

proposals. Yen et al. (2002) and Wotawa (2016) did

not specify the use of any planning tool.

4.6 Support Tools (RQ7)

For RQ7 we analyzed the selected papers to identify

used support tools. Sleuth is a tool for automated ap-

plication domain testing used by Mraz et al. (1995),

Howe et al. (1995), and Howe et al. (1997) in the same

planner experiments to compare the results obtained.

WordPad graphical interface is used in (Memon et al.,

1999) and (Memon et al., 2001) case studies. JPlan

and IPP planners are used in (Gupta et al., 2007) and

(Li et al., 2009) as the basis for the tools proposed

by these authors. In order to gain performance in test

case generation, Razavi et al. (2014) perform the in-

clusion of a planner in the Penelope testing tool’s in-

ternal structure. Bozic and Wotawa (2018) use the

HttpClient, jsoup and Crawler4j tools in their pentest-

ing framework.

4.7 Plans (RQ8)

To answer RQ8 we analyzed the generated artifacts in

the selected papers. These artifacts are plans result-

ing from planners execution like in (von Mayrhauser

et al., 1999) and (Wotawa, 2016). In other works, each

plan has different meanings according to the proposal

of the paper. For example, in (Mraz et al., 1995),

(Howe et al., 1995), (Howe et al., 1997), (Scheetz

et al., 1999), (Memon et al., 1999), (Memon et al.,

2001), and (Li et al., 2009) the plans represent test

cases. In (von Mayrhauser et al., 2000) the plan rep-

resents an error recovery test case. The remaining pa-

pers did not specify the resulting artifacts.

4.8 Manual Searching Results

In this section we discuss the paper (Bozic and

Wotawa, 2019) that was identiﬁed with a manual

search. These authors summarize without a SLM

methodology 19 papers in the ﬁeld of AI planning for

software testing. The authors classiﬁed these papers

into two groups: one related to functional testing con-

taining 12 papers and other to non-functional testing

(related to non-functional requirements such as per-

formance, usability and security) containing 7 papers.

Among the 15 papers that we found in our SLM

and the 19 papers reported by Bozic and Wotawa there

is an intersection of 4 papers: (Mraz et al., 1995),

(Howe et al., 1997), (Scheetz et al., 1999), and (von

Mayrhauser et al., 2000). The 15 papers listed by

Bozic and Wotawa and not identiﬁed in our mapping

are applied in areas such as network control, network

ICSOFT 2020 - 15th International Conference on Software Technologies

156

systems, network protocols, Web services, Web appli-

cations, and industrial and automotive applications.

The papers listed by Bozic and Wotawa use some

planning techniques that were not found in the pa-

pers of our SLM. For example, Anderson and Fickas

(1989) use the adaptive planning technique, and

Shmaryahu et al. (2018) use the contingent planning

technique.

We identify 4 planners in the papers listed by

Bozic and Wotawa that are not contained in our SLM:

Bifrost, used in (Leitner and Bloem, 2005); Metric-

FF, used in (Boddy et al., 2005), (Wotawa and Bozic,

2014), and (Bozic and Wotawa, 2018); SGplan used

in (Obes et al., 2013); and Lama, used in (Schnelte

and G

uldali, 2010).

5 RELATED WORKS

In this section we present papers using AI planning

techniques in other software development phases such

as requirements engineering and design. The papers

presented in this section were identiﬁed by conduct-

ing another SLM, with a variation of the methodology

described in Section 3.

• AI Planning in Requirements Engineering:

Amalio (2009) proposes a method for formal anal-

ysis of security requirements based on planning

and uses the concept of suspicion to guide the

search for threats and security vulnerabilities in

requirements, using decreasoner planner. Liaskos

et al. (2009) propose a framework to include the

speciﬁcation of optional user requirements and

user preferences, using PPlan planner. Silva and

Silva (2019) propose a method for requirements

analysis based on a chain of algorithms and tools

to allow features anticipated by knowledge engi-

neering.

• AI Planning in Design: Honiden et al. (1994)

propose a method to model the prototyping phases

of systems in real-time as a planning problem, us-

ing Abstrips planner. P

erez and Crespo (2009)

propose a method for computing refactoring se-

quences that can be directed to the system’s struc-

ture problems correction that can negatively affect

software quality factors. Soltani et al. (2011) and

Soltani et al. (2012) propose frameworks to auto-

matically select suitable features that satisfy the

stakeholders’ business concerns, resource limita-

tions, functional and non-functional preferences,

and constraints, using SHOP2 planner. Tunio

et al. (2018) propose a method using PDDL lan-

guage for task assignment in crowdsourcing soft-

ware development.

6 CONCLUSIONS

Testing is a fundamental activity for software qual-

ity assurance. However, it is an activity involving a

lot of time and resource effort during software devel-

opment. Thus, there are constant proposals for new

methods and techniques for its automation.

The objective of this paper was to investigate the

use of AI planning as a technique for software test-

ing automation. For this, we performed a systematic

literature mapping (SLM), proving to be an effective

way to identify, evaluate and interpret available rele-

vant researches to a particular research question.

The main challenge of a SLM is to create a search

string that does not limit the results. To ensure that the

research covers as many works as possible with the

string that we created, we did not include restrictions

for research related to the type, location or period of

publications.

Answering the main research question of the map-

ping, “how is AI planning used in software test-

ing?”, we found 15 papers published in the last three

decades, proposing techniques, models, frameworks

and tools. The remaining research questions of the

SLM were answered by extracting data from the pa-

pers selected in the SLM. Testing techniques, testing

phases, AI planning techniques, used artifacts in the

planning problem deﬁnition, planners, support tools

and the generated plans were identiﬁed.

Through additional manual research we found a

survey listing papers in the ﬁeld of AI planning for

software testing. However, this paper presents the

research survey without a SLM methodology appli-

cation. This survey presents 19 papers, of which 15

differ from those found in the SLM presented in this

work.

The SLM was conducted with a quantitative view,

to identify weaknesses in the state-of-the-art of AI

planning in software testing. With the extracted data

analysis, we noticed many uses of the black-box test-

ing technique. In this way, we identify a deﬁciency in

the use of AI planning technique combined with the

white-box testing and error-based testing. Another

deﬁciency noted is about testing phases. Most of the

selected papers did not specify or imply the testing

phase in which their proposals are made.

The most recent papers found in the SLM showed

a possible tendency of AI planning use in software

security area. We observed this same fact in the sur-

vey found in the manual search. Most of these works

use AI planning in penetration testing for vulnerabil-

ities detection, also called pentesting. Another use is

deﬁning network protocols as AI planning problems

to ensure the security of network systems and Web

A Systematic Literature Mapping of Artiﬁcial Intelligence Planning in Software Testing

157

applications.

In order to obtain a view of AI planning in soft-

ware engineering we conducted another SLM. Re-

lated works presented in this work were identiﬁed

with this second SLM. In this other mapping, we

found 8 papers using AI planning in requirements en-

gineering and design phases. However, we identiﬁed

a greater use of AI planning in the design phase (75

% of papers). With this second SLM results analysis,

we noted a lack of tools proposals using AI planning

to assist these software development phases.

Our objective with this work was to conduct a

study on papers dealing with AI planning and soft-

ware testing. With results analysis we noted a possi-

ble trend of AI planning use in security testing. In par-

ticular, we identiﬁed approaches to pentesting. We in-

tend to take an approach to generate pentesting plans

for Web applications, which will be our future work.

As another future works, we suggest approaches

using white-box and error-based testing techniques

associated with AI planning, and approaches at dif-

ferent testing phases to cover all tests performed

throughout software development.

ACKNOWLEDGEMENTS

We thank the ﬁnancial support of C3SL (Depart-

ment of Informatics/UFPR), PPGINF-CAPES/MEC

and PET/MEC.

REFERENCES

Amalio, N. (2009). Suspicion-Driven Formal Analysis of

Security Requirements. SECURWARE 2009.

Anderson, J. S. and Fickas, S. (1989). A Proposed Perspec-

tive Shift: Viewing Speciﬁcation Design as a Planning

Problem. In ACM SIGSOFT Software Engineering

Notes, number 3, pages 177–184. ACM.

Boddy, M. S., Gohde, J., Haigh, T., and Harp, S. A. (2005).

Course of Action Generation for Cyber Security Us-

ing Classical Planning. In ICAPS, pages 12–21.

Bozic, J. and Wotawa, F. (2018). Planning-based Security

Testing of Web Applications. In Proceedings of the

13th International Workshop on Automation of Soft-

ware Test, pages 20–26. ACM.

Bozic, J. and Wotawa, F. (2019). Software Testing: Accord-

ing to Plan! In 2019 IEEE International Conference

on Software Testing, Veriﬁcation and Validation Work-

shops (ICSTW), pages 23–31. IEEE.

Feather, M. S. and Smith, B. (2001). Automatic Genera-

tion of Test Oracle from Pilot Studies to Application.

Automated Software Engineering, 8(1):31–61.

Fikes, R. E. and Nilsson, N. J. (1971). STRIPS: A New

Approach to the Application of Theorem Proving to

Problem Solving. Artiﬁcial intelligence, 2(3-4):189–

208.

Gupta, M., Fu, J., Bastani, F. B., Khan, L. R., and Yen, I.-

L. (2007). Rapid Goal-oriented Automated Software

Testing Using MEA-graph Planning. Software Qual-

ity Journal, 15(3):241–263.

Hoffmann, J. (2003). The Metric-FF Planning System:

Translating “Ignoring Delete Lists” to Numeric State

Variables. Journal of artiﬁcial intelligence research,

20:291–341.

Honiden, S., Nishimura, K., Uchihira, N., and Itoh, K.

(1994). An Application of Artiﬁcial Intelligence to

Object-oriented Performance Design for Real-time

Systems. IEEE transactions on software engineering,

(11):849–867.

Howe, A. E., von Mayrhauser, A., and Mraz, R. T. (1995).

Test Sequences as Plans: An Experiment in Using an

AI Planner to Generate System Tests. In Knowledge-

Based Software Engineering Conference, 1995. Pro-

ceedings., 10th, pages 184–191. IEEE.

Howe, A. E., Von Mayrhauser, A., and Mraz, R. T. (1997).

Test Case Generation as an AI Planning Problem. In

Knowledge-Based Software Engineering, pages 77–

106. Springer.

Jiang, D., Liang, Z., and Huang, D. (2018). A Software

Test Metric Method Based on Fuzzy Logic. DEStech

Transactions on Computer Science and Engineering,

(iciti).

Leitner, A. and Bloem, R. (2005). Automatic Testing

Through Planning. Technische Universit

at Graz, In-

stitute for Software Technology, Tech. Rep.

Li, L., Wang, D., Shen, X., and Yang, M. (2009). A Method

for Combinatorial Explosion Avoidance of AI Plan-

ner and the Application on Test Case Generation. In

Computational Intelligence and Software Engineer-

ing, 2009. CiSE 2009. International Conference on,

pages 1–4. IEEE.

Liaskos, S., McIlraith, S. A., and Mylopoulos, J. (2009).

Towards Augmenting Requirements Models with

Preferences. In Proceedings of the 2009 IEEE/ACM

International Conference on Automated Software En-

gineering, pages 565–569. IEEE Computer Society.

Maldonado, J. C., Barbosa, E. F., Vincenzi, A. M. R., De-

lamaro, M. E., Souza, S., and Jino, M. (2007). Intro-

duction to Software Testing. S

ao Carlos, page 23.

Malz, C., Jazdi, N., and Gohner, P. (2012). Prioritization of

Test Cases Using Software Agents and Fuzzy Logic.

In 2012 IEEE Fifth International Conference on Soft-

ware Testing, Veriﬁcation and Validation, pages 483–

486. IEEE.

McDermott, D., Ghallab, M., Howe, A., Knoblock, C.,

Ram, A., Veloso, M., Weld, D., and Wilkins, D.

(1998). PDDL- The Planning Domain Deﬁnition Lan-

guage.

Memon, A. M., Pollack, M. E., and Soffa, M. L. (1999). Us-

ing a Goal-driven Approach to Generate Test Cases

for GUIs. In Software Engineering, 1999. Proceed-

ings of the 1999 International Conference on, pages

257–266. IEEE.

ICSOFT 2020 - 15th International Conference on Software Technologies

158

Memon, A. M., Pollack, M. E., and Soffa, M. L. (2001).

Hierarchical GUI Test Case Generation Using Auto-

mated Planning. IEEE transactions on software engi-

neering, 27(2):144–155.

Mraz, R. T., Howe, A. E., von Mayrhauser, A., and Li,

L. (1995). System Testing With an AI Planner.

In Software Reliability Engineering, 1995. Proceed-

ings., Sixth International Symposium on, pages 96–

105. IEEE.

Myers, G. J. (1979). The Art of Software Testing. ISBN:

0-471-04328-1.

Obes, J. L., Sarraute, C., and Richarte, G. (2013). At-

tack Planning in the Real World. arXiv preprint

arXiv:1306.4044.

Pednault, E. P. (1989). ADL: Exploring the Middle Ground

Between STRIPS and the Situation Calculus. Kr,

89:324–332.

Penberthy, J. S., Weld, D. S., et al. (1992). UCPOP: A

Sound, Complete, Partial Order Planner for ADL. Kr,

92:103–114.

erez, J. and Crespo, Y. (2009). Perspectives on Automated

Correction of Bad Smells. In Proceedings of the joint

international and annual ERCIM workshops on Prin-

ciples of software evolution (IWPSE) and software

evolution (Evol) workshops, pages 99–108. ACM.

Petersen, K., Feldt, R., Mujtaba, S., and Mattsson, M.

(2008). Systematic mapping studies in software en-

gineering. In Ease, volume 8, pages 68–77.

Petersen, K., Vakkalanka, S., and Kuzniarz, L. (2015).

Guidelines for Conducting Systematic Mapping Stud-

ies in Software Engineering: An Update. Information

and Software Technology, 64:1–18.

Pressman, R. (2016). Software Engineering: A Practi-

tioner’s Approach, 8th ed. McGraw Hill Brasil.

Razavi, N., Farzan, A., and McIlraith, S. A. (2014). Gen-

erating Effective Tests for Concurrent Programs via

AI Automated Planning Techniques. International

Journal on Software Tools for Technology Transfer,

16(1):49–65.

Russell, S. J. and Norvig, P. (2016). Artiﬁcial Intelligence:

A Modern Approach. Malaysia; Pearson Education

Limited.

Sacerdoti, E. D. (1974). Planning in a Hierarchy of Abstrac-

tion Spaces. Artiﬁcial intelligence, 5(2):115–135.

Scheetz, M., von Mayrhauser, A., and France, R. (1999).

Generating Test Cases from an OO Model with an AI

Planning System. In Software Reliability Engineering,

1999. Proceedings. 10th International Symposium on,

pages 250–259. IEEE.

Schnelte, M. and G

uldali, B. (2010). Test Case Genera-

tion for Visual Contracts Using AI Planning. INFOR-

MATIK 2010. Service Science–Neue Perspektiven f

die Informatik. Band 2.

Shmaryahu, D., Shani, G., Hoffmann, J., and Steinmetz, M.

(2018). Simulated Penetration Testing as Contingent

Planning. In Twenty-Eighth International Conference

on Automated Planning and Scheduling.

Silva, J. M. and Silva, J. R. (2019). A New Hierarchical Ap-

proach to Requirement Analysis of Problems in Auto-

mated Planning. Engineering Applications of Artiﬁ-

cial Intelligence, 81:373–386.

Soltani, S., Asadi, M., Ga

sevi

c, D., Hatala, M., and

Bagheri, E. (2012). Automated Planning for Fea-

ture Model Conﬁguration Based on Functional and

Non-functional Requirements. In Proceedings of the

16th International Software Product Line Conference-

Volume 1, pages 56–65. ACM.

Soltani, S., Asadi, M., Hatala, M., Gasevic, D., and Bagheri,

E. (2011). Automated Planning for Feature Model

Conﬁguration Based on Stakeholders Business Con-

cerns. In Proceedings of the 2011 26th IEEE/ACM

International Conference on Automated Software En-

gineering, pages 536–539. IEEE Computer Society.

Srivastava, P. R. and Kim, T.-h. (2009). Application of

genetic algorithm in software testing. International

Journal of software Engineering and its Applications,

3(4):87–96.

Tunio, M. Z., Luo, H., Wang, C., Zhao, F., Shao, W., and

Pathan, Z. H. (2018). Crowdsourcing Software Devel-

opment: Task Assignment Using PDDL Artiﬁcial In-

telligence Planning. Journal of Information Process-

ing Systems, 14(1).

von Mayrhauser, A., Scheetz, M., and Dahlman, E. (1999).

Generating Goal-Oriented Test Cases. In compsac,

page 110. IEEE.

von Mayrhauser, A., Scheetz, M., Dahlman, E., and Howe,

A. E. (2000). Planner Based Error Recovery Test-

ing. In Software Reliability Engineering, 2000. ISSRE

2000. Proceedings. 11th International Symposium on,

pages 186–195. IEEE.

Wazlawick, R. (2013). Software Engineering: Concepts

and Practices, volume 1. Elsevier Brasil.

Wotawa, F. (2016). On the Automation of Security Testing.

In Software Security and Assurance (ICSSA), 2016 In-

ternational Conference on, pages 11–16. IEEE.

Wotawa, F. and Bozic, J. (2014). Plan It! Automated Secu-

rity Testing Based on Planning. In IFIP International

Conference on Testing Software and Systems, pages

48–62. Springer.

Yen, I.-L., Bastani, F. B., Mohamed, F., Ma, H., and Linn, J.

(2002). Application of AI Planning Techniques to Au-

tomated Code Synthesis and Testing. In Tools with Ar-

tiﬁcial Intelligence, 2002.(ICTAI 2002). Proceedings.

14th IEEE International Conference on, pages 131–

137. IEEE.

Zhu, Z. and Jiao, L. (2019). Improving Search-Based Soft-

ware Testing by Constraint-based Genetic Operators.

In Proceedings of the Genetic and Evolutionary Com-

putation Conference, pages 1435–1442. ACM.

A Systematic Literature Mapping of Artiﬁcial Intelligence Planning in Software Testing

159
