Combination of Algorithms for Object Detection in Videos on Basis of

Background Subtraction and Color Histograms: A Case Study

Theo Gabloffsky

and Ralf Salomon

Institute of Applied Microelectronics, Univeristy of Rostock, Germany

Keywords:

Object Recognition, Object Detection, Background Subtraction, Histogram Comparison, Video Analysis.

Abstract:

This paper presents a combination of algorithms for an object detection and recognition in videos. These

algorithms are based on a background subtraction and an histogram comparison. The algorithm were imple-

mented and used for the detection of curling stones in videos from a dataset. These dataset includes three

different types of videos, which reaches from (1) only the curling stone is on the over (2) an athlete is behind

the stone and (3) an athlete moves in between the ﬁeld of view from the camera. While analysing the videos,

the time was measured which the algorithms needed for their calculations, As the results show, the imple-

mented algorithms are able to recognise position of the curling stone with an detection rate of 100% under

best circumstances and with 71.11% under worst conditions.

1 INTRODUCTION

Curling is an Olympic sports discipline that has re-

ceived recent research interest. The goal of this re-

search is to better understand the interactions of the

curling stone with the ice surface on this it slides. In

that context, the current speed of the curling stone is

of major importance.

The speed of an object is often derived from two

time measurements. With a known distance s and a

time difference ∆t, the current speed calculates to v =

s/∆t.

In many application areas, the time difference ∆t

can be easily determined by two light barriers. Light

barriers are known as robust, precise, and low-cost

measuring tools. Despite their well-known advan-

tages, they do fail for the following reason when be-

ing used in curling: a moving curling stone might be

accompanied by one or two additional athletes, who

heavily sweep the ice in front of the curling stone. As

a consequence, the light barriers might be triggered

not only by the stone but also by the athletes’ legs or

brooms. A main technical problem is that the order of

the stone, the legs, and brooms is not speciﬁed. it is

well possible that a sweeping athlete positions itself

not in front, but aside or behind the stone. Thus, the

trigger events cannot be assigned to the curling stone

without further knowledge.

https://orcid.org/0000-0001-6460-5832

This knowledge could be archived through an

recording of the sceneries and an automatic video

analysis of the position of the curling stone. An im-

portant aspect of that is the correct detection of the po-

sition of the curling stone in the video while having a

possibly low computational cost to give an immediate

feedback to the athletes.

This paper introduces a combination of algorithms

for the detection of objects on the basis of color and

size information. This algorithm is used to detect

curling stones in a dataset of videos. The object de-

tection works in two steps, while both algorithms are

already known in the literature. Though there are no

contributions fusing both algorithms for object detec-

tion and recognition. The algorithm works in two

steps like the following: At ﬁrst, the color informa-

tion of the scenario is reduced by a background sub-

traction. After that, the image is divided into multi-

ple tiles and for each tile, three histograms, for each

color channel in RGB one, are calculated. Those his-

tograms are compared with reference histograms of

the wanted object. The tile, with the biggest simi-

larity to the reference histogram, is considered as the

position of the object. Section (3.1) explains the algo-

rithm in more detail.

For an evaluation of the algorithm a dataset was

created, which includes three different scenarios of a

moving curling stone on the ice: (1) a moving curl-

ing stone alone on the ice (2) a moving curling stone

with an sweeping athlete behind the curling stone and

464

Gabloffsky, T. and Salomon, R.

Combination of Algorithms for Object Detection in Videos on Basis of Background Subtraction and Color Histograms: A Case Study.

DOI: 10.5220/0009832904640470

In Proceedings of the 17th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2020), pages 464-470

ISBN: 978-989-758-442-8

(3) a moving curling stone with an sweeping athlete

between the camera and the stone. Section (3.2) ex-

plains the dataset in more detail.

An implementation of the algorithm was used to

analyze the dataset. The results were compared with

a manual analysis of the videos. In addition, an imple-

mented timing mechanism measured the time the im-

plementation needed for analyzing the frames. Sec-

tion (3.3) gives more details of the used conﬁgurations

and implementations.

The results show an average deviation of

12.91Pixels, which is equal to a real world distance

error of 60.67mm from a camera distance of 7.5m for

videos with the curling stone alone, while maintaining

a high detection rate of 100%. For the other videos,

the detection rate is lower. The implementation took

around 0.7µs for analyzing one segment of a frame of

the video, which can lead to an on-line video analyz-

ing on a state of the art consumer computer system.

Section (4) presents the result of the comparisons and

the time measurements.

As the results show, the algorithm is very good in

detecting the curling stone alone on the ice and even

with an athlete in the background. It has a reduced

performance when a curling athletes blocks the view

partly to the curling stone. Section (5) discusses the

advantages and the limitations of the used algorithm.

2 STATE-OF-THE-ART

There are many strategies for object detection and

recognition in pictures and videos which not only dif-

fer in the precision of the detection but also in compu-

tational costs and the complexity of implementation.

(Huang et al., 2019) mentions a system for the posi-

tion detection of tennis balls in videos, which bases

on a deep neural network. As the authors mention,

the system has a very good performance of detecting

the position while having a very high computational

cost which makes the system not suitable for real time

applications.

Further strategies lie in the detection of structural

informations of the objects with the help of edge de-

tecting algorithms as described in (Belongie et al.,

2002).

Automatic feature extractors like SURF, SIFT, or

ORB, as introduced in (Rublee et al., 2011) show very

good results in detecting rotated objects and as shown

in (Wu et al., 2012), they can also be used for track-

ing objects in videos. As mentioned in (Pieropan

et al., 2016), they show a bad performance tracking

objects surrounded by multiple targets and struggle to

identify objects in complex environments as seen in

(Vaidya and Paunwala, 2017).

The proposed method in this paper searches for

objects on the basis of color informations through

color histograms. Similar approaches are already

mentioned in the literature. For example in (Swain

and Ballard, 1990) and (Mason and Duric, 2001). The

generating and histograms are very low in computa-

tional costs, which is an important aspect for the tar-

get scenario. In addition, most integrated graphic pro-

cessors have implemented routines for generating his-

tograms.

The background subtraction is also well docu-

mented in the literature. (Man Zhu et al., 2012) pro-

poses different methods and algorithm for the back-

ground subtraction in videos and compares them.

3 CONFIGURATION OF THE

PROPOSED METHODS

3.1 Object Detection and Recognition

This section presents the algorithm used for the ob-

ject detection. The algorithm used for the detection

were chosen because of two reasons: At ﬁrst they

have a low computational cost and are known for giv-

ing good results.

The algorithm is composed of two steps:

1. Dividing the foreground from the background

through the calculation of a difference frame.

2. Detecting the object through a comparison of

color information in forms of color histograms

with reference histograms

Dividing Foreground and Background. The fol-

lowing approach was chosen because of its low com-

putational costs. As mentioned in (Man Zhu et al.,

2012), the calculation of a difference frame is suit-

able for simple scenarios, which are expected in the

present application area.

For the division of the foreground from the back-

ground of an image B

Pic

, as shown in the top of ﬁgure

(1), the used approach needs an image B

Background

, as

seen in the middle of ﬁgure (1), which only shows

the background of the scenario. The algorithm works

on every pixel P(x,y) of the new foreground im-

age B

Foreground

by calculating the color distance d

color

from the background image B

Background

to the actual

image B

Pic

like the following:

Combination of Algorithms for Object Detection in Videos on Basis of Background Subtraction and Color Histograms: A Case Study

465

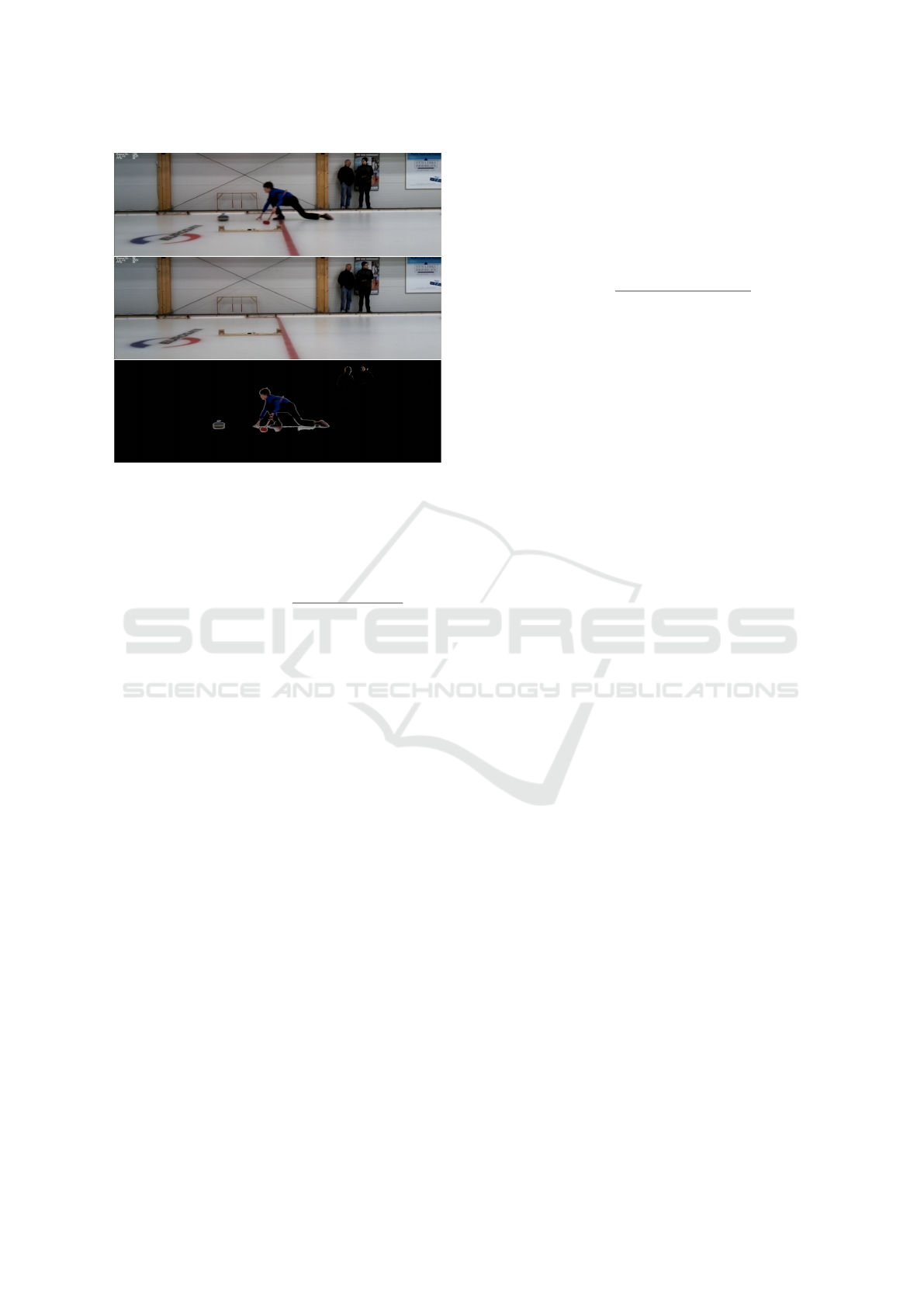

Figure 1: Top: example picture for the background subtrac-

tion; mid: reference-Frame used for the background sub-

traction; bottom: result of the background subtraction.

∆R = P(x

,R)

Pic

−P(x

,R)

Background

∆G = P(x

,G)

Pic

−P(x

,G)

Background

∆B = P(x

,B)

Pic

−P(x

,B)

Background

(

)

color

∆R

+ ∆G

+ ∆B

(1)

Is the calculated color distance d(x

)

color

smaller then a chosen threshold distance t

distance

, the

color values of P

(

)

f oreground

are set to 0. Is the

calculated distance larger, the color information of

P(x

)

pic

are copied to the new pixel:

f oreground

(

)

pic

, if d(x

)

color

≥t

distance

0 otherwise

Recognition of the Object. For recognizing the

searched object, the algorithm compares extracted

color histograms from an image with reference his-

tograms provided to the algorithm.

The starting point for the search is an extracted

part of an image with a speciﬁc size x

, which

only shows the wanted object. From this image

tile, the algorithm extracts three color histograms

H(0..256,R,G,B)

re f

The from the background-subtraction generated

image B

f oreground

is divided into multiple image seg-

ments. Each segment has the size of the provided ref-

erence image x

segment

= x

re f erence

segment

= y

re f erence

The segments are overlapping each other and neigh-

boring segments have a pixel distance of 1.

From each of the segments, the algorithm extracts

three color histograms H(0..256,R, G, B)

segment,xi,yi

These histograms are then compared to the reference

histogram. The following equation provides a mea-

surement for the similarity of two histograms, H

and

, and is according to a comparison in (Qiuxiang

Liao, 2016) the fastest way of calculating the his-

togram distance s(H

), compared to various other

approaches:

s(H

) =

∑

255

i=0

min(H[i]

,H[i]

)

∑

255

i=0

H[i]

(2)

The result of the equation lies between 0, for no

similarity to 1, for identical. The similarity is calcu-

lated between each histogram of an image segment to

the corresponding reference histogram.

Segment,Histogram

= s(H

Segment,R

Re f erence,R

)

+ s(H

Segment,G

Re f erence,G

)

+ s(H

Segment,B

Re f erence,B

)

(3)

The segment with the highest similarity is consid-

ered as the position of the wanted object but only if its

bigger then a threshold value t

histogram

to prevent false

positive detection.

For an image of the size X

pic

and a segment

size of X

seg

the algorithm generates an amount of

z segments:

z = (X

pic

−X

seg

) ∗(Y

pic

−Y

seg

) (4)

3.2 Dataset of Curling Videos

The dataset consists of overall 9 Videos, which show

a curling lane from the side in a distance from 5m.

The top image of ﬁgure (1) shows an example frame

of one of the videos of the dataset.

In all the videos a curling stone can be seen, which

is accelerated by an athlete. At a speciﬁc line (the so

called Hog Line), the athlete releases the stone and it

glides over the curling lane. The dataset consists of

three different types of videos:

1. A curling stone moves alone over the curling lane.

2. A curling stone moves over the curling lane with

an sweeping athlete behind the stone.

3. A curling stone moves over the lane with an

sweeping athlete between camera and stone.

The top image of ﬁgure (1) shows the ﬁrst scenario

of the dataset. the second and third can be seen in

ﬁgure (2). Each of the video has a duration of 45s

and is recorded in a ∗.h264 format with a resolution

of 1640x512Pixels. The framerate of the videos is

25FPS.

The videos were recorded with a Raspberry Pi

Cam V2.1 with a horizontal aperture angle of 62.4

◦

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

466

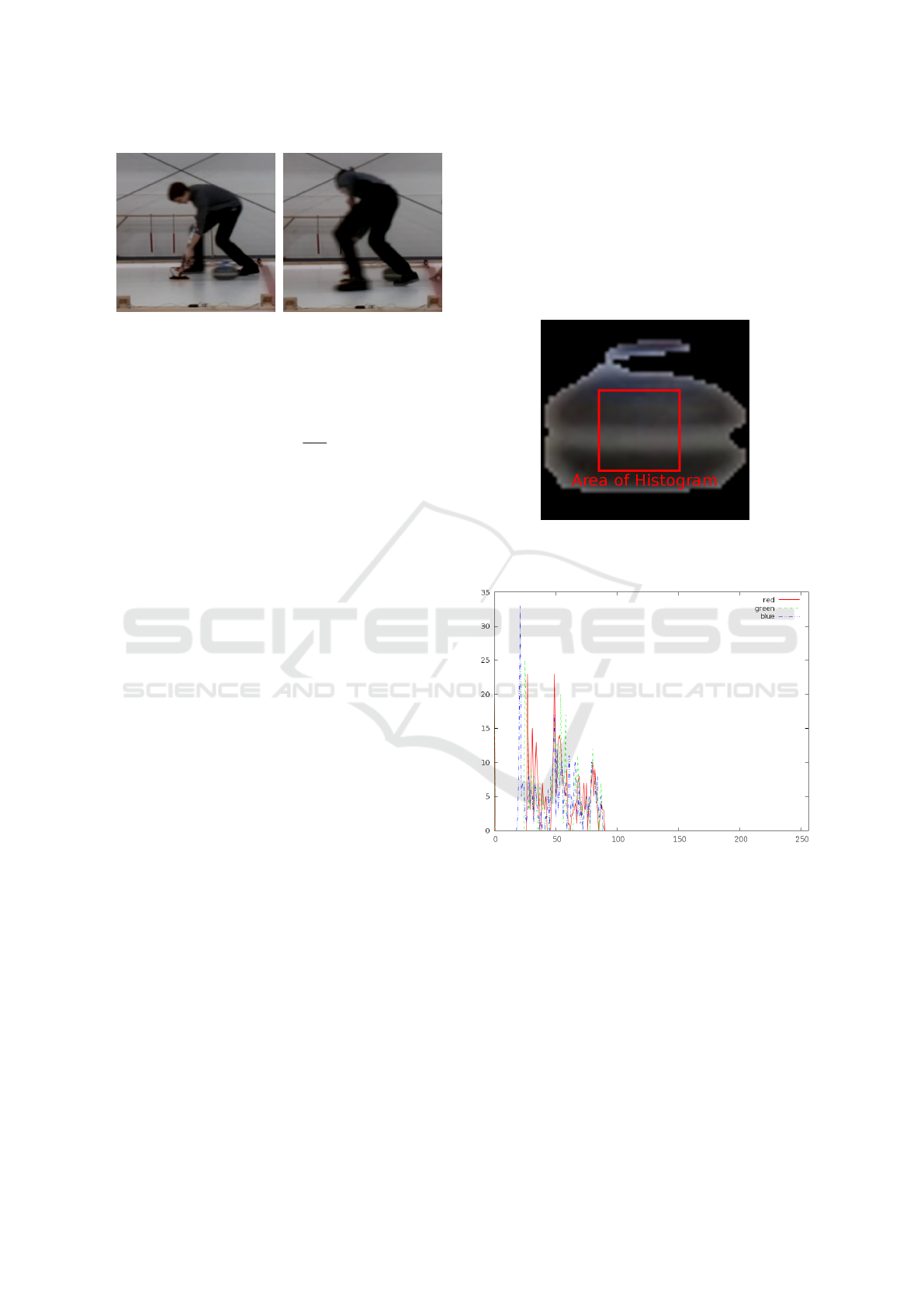

Figure 2: Extracted Image Sections: Top Image shows ath-

lete behind stone; Bottom Image shows athlete in front of

stone.

connected to a Raspberry Pi 3B+. The camera was

positioned in a distance of around 7.5m from running

corridor of the curling stone. This results in a aver-

age distance per pixel of 4.71

pixel

. The illumination

of the scene was artiﬁcial and ﬂicker-free.

3.3 Conﬁguration of Experiments

General Information. For evaluation of the algo-

rithm explained in section (3.1) they were imple-

mented into a program with the programming lan-

guage C. All the videos mentioned in section (3.2)

were analyzed with that implementation. The goal

was to ﬁnd the position of the curling stone in every

frame of the video in which it occurred. As a refer-

ence, all videos were also analysed by hand and then

compared to positions found by the algorithm.

Though the videos of the dataset are in a ∗.h264-

Format, they were converted with the tool f f mpeg

into an RGB888-Format.

The calculations run on a Ryzen 7 3800X Proces-

sor which runs on Debian 9.

Background Subtraction. The reference back-

ground image needed for. the background subtraction

is generated by taking the second frame of each video

as the reference image. The threshold value t

has to

be evaluated by hand through testing different values

and needs an adjustment for different sceneries and

enlightenments. If the value is to low, e.g., a value of

= 30, the background is still visible. If the value is

to high, e.g., a value of t

= 150 the moving objects

are not detected correctly. The threshold value is set

to a value of 75.

Histogram Comparison. The reference histograms

used for the histogram comparison can be seen in

ﬁgure (4). These histograms were generated by the

algorithm out of an extracted image tile of the size

of 20x20Pixel. The tile was extracted from a video

not in the dataset and can be seen in ﬁgure (3). The

minimum value for recognizing the stone is set to

histogram

= 1.5 This value was also the result of a test

with a video, which shows the same scene, but is not

in the dataset. If the value is to low, the histogram

comparison results in more false positive results.

Calculation Time. Through the calculations the time

for the background subtraction and histogram com-

parison was taken by taking timestamps with the help

of the standard C-Library < time.h >. These times-

tamps were taken before and after the execution of

each of the algorithms.

Figure 3: Extracted Frame from a Video which was used for

creating the color histograms. The red area marks the area

of histogram.

Figure 4: Extracted Reference Histograms.

4 RESULTS

Detected Positions. The tables (1),(2) and (3) shows

the following results:

1. # Frames: Amount of frames which contain the

stone, counted manually

2. min: is the closest difference of distance the algo-

rithm matched with the manual detection

3. max: is the maximum difference of distance the

algorithm matched with the manual detection

Combination of Algorithms for Object Detection in Videos on Basis of Background Subtraction and Color Histograms: A Case Study

467

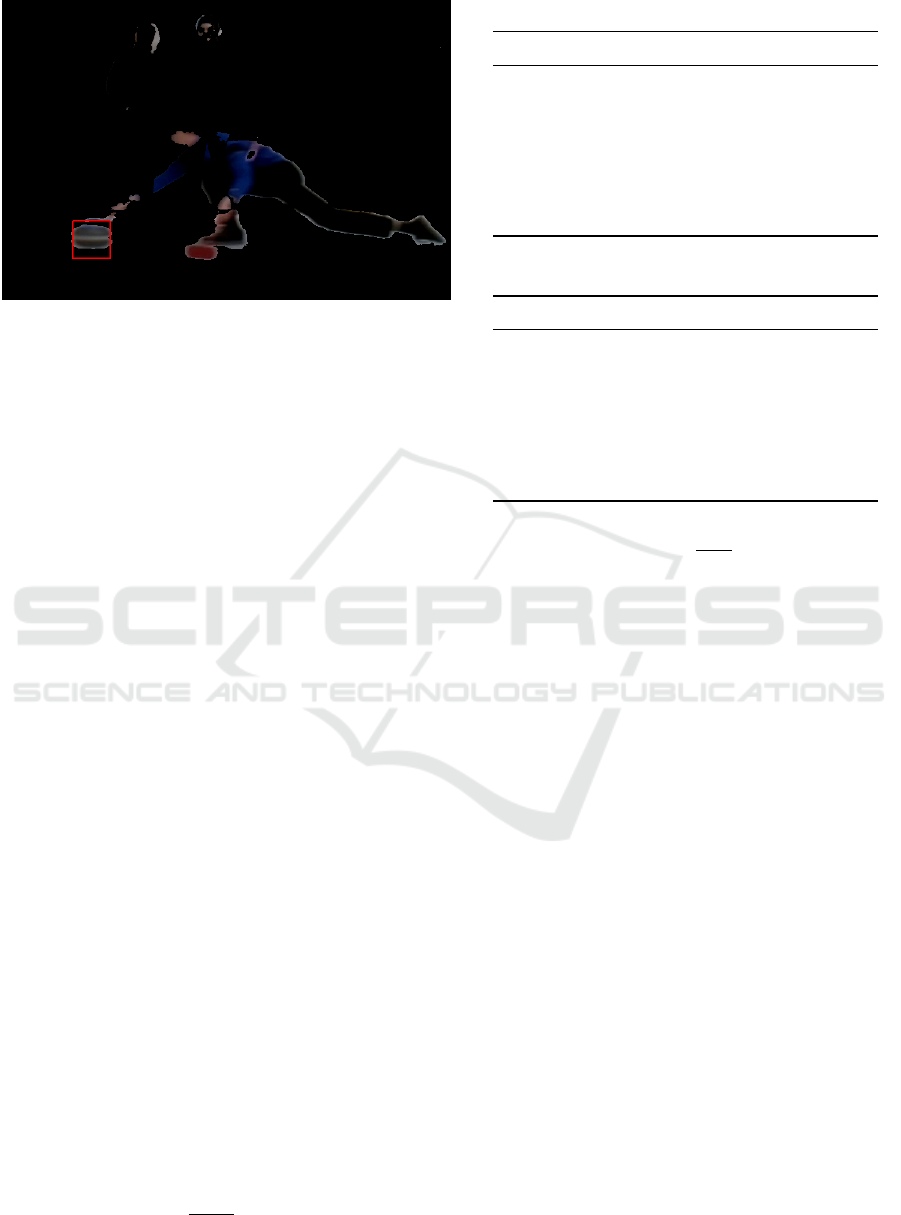

Figure 5: Extracted example of a detected curling stone.

4. mean: is the mean difference of distance the algo-

rithm matched with the manual detection

5. false positive: is the amount of frames in which

the algorithm falsely detected the stone

6. not detected: amount of frames in which the algo-

rithm did not detected the stone which was in the

frame

The results shown in table (1) are from the videos

without an athlete in the videos. The algorithm de-

tected the positions of the curling stone with a mean

deviation of 12.91Pixels over 236Frames in which

the stone occurred in the video. The detection rate

is 100%, but with false positives which reduces the

accuracy to 94.17 %.

If an athlete moves behind the curling stone, the

mean deviation rises to 10.47Pixel and the not de-

tection rate rises to an average of 5.6 frames with an

summary of 288 frames in which the stone occurred.

If an athlete is between the camera and the curl-

ing stone, the mean deviation rises to 18.23Pixel and

the rate of not detected frame rises up to an average

of 26.0 f rames, which means an not detection rate of

28.69%.

Calculation Time. The mean calculation time for

generating the foreground image was 0.0041s. The

Object Detection took 0.5698s for analyzing all seg-

ments.

5 DISCUSSION

Object Recognition and Detection. The results

show that the used algorithm is very good in detecting

the stone alone with a detection rate of 100%. The

mean deviation of the measured distances is 12.91

Pixel, which can be interpreted as a shift in x,y di-

rection of ∆x = ∆y =

√

12.91 = 3.59Pixel. Converted

Table 1: Results with stone alone.

Video Name 11-11 11-12 12-01 mean

# Frames 83 75 78 78.6

min 2.0 1.41 3.16 2.19

max 21.47 22.00 23.25 22.24

mean 12.47 11.85 14.41 12.91

σ 5.98 5.91 5.12 5.67

false positive 4 3 4 3.66

not detected 0 0 0 0

Table 2: Results with athlete behind stone.

Video Name 13-27 13-44 13-48 mean

# Frames 96 93 99 96.0

min 1.0 1.0 1.41 1.13

max 29.27 22.56 29.73 27.18

mean 9.58 10.03 11.51 10.37

σ 5.93 5.26 7.14 6.11

false positive 3 8 6 5.6

not detected 9 8 0 5.6

into the real scenario that pixel distance means a dif-

ference of 12.91pixels ∗4.7

pixels

= 60.67mm. Over a

distance of 7.5m from the camera to the actual stone,

it is quite an acceptable result.

For the second scenario, the mean deviation of

the measured distances stays roughly the same with a

value of 10.37Pixel which is equal to a real world dis-

tance of 48.73mm. In comparison with scenario 1, the

not detection rate rises up to an average of 5.6 Frames

which means an detection rate of 94.17%, which is

quite accurate. The reason for the drop of frames is

the shadow the athlete throws onto the ice. In contrast

to the usual color of the ice, the ice in combination

with the shadow reduces the color distance between

the curling stone and the ice. This leads into black

pixels on the curling stones, because they are detected

as the background.

In the third scenario, the not-detection rate rises

up to a value of 28.89%. This high value comes from

the fact, that the athlete blocks the vision onto the

stone. While the stone was slightly visible for the hu-

man eye when checking the positions manually, it was

not enough for the algorithm to recognise the curl-

ing stone. Possible solutions for solving that problem

could be to use (1) a smaller histogram for a better

detection of small visible parts of the curling stone or

(2) to use multiple histograms for the detection. For

a example two histograms: the ﬁrst is a histogram of

the curling stone, the second is a histogram which in-

volves the curling stone and also the leg of an athlete.

The false positives values for the three scenarios

are roughly equal with values between 3.66 Frame for

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

468

Table 3: Results with athlete in front of stone.

Video Name 13-24 13-29 13-42 mean

# Frames 88 92 92 90.66

min 4.24 1.0 1.0 2.08

max 83.0 95.02 65.19 81.07

mean 17.46 20.196 17.03 18.23

σ 15.32 14.90 10.20 13.49

false positive 9 7 6 7.33

not detected 13 33 32 26.0

the ﬁrst scenario to 7.33 Frames for the third scenario.

These values could have been reduced by choosing a

higher value for the minimum similarity for the his-

tograms. The false positive values reduce the overall

accuracy for the ﬁrst scenario to 95.3 %, second to

88.33 %, and third to 63.26 %.

Computational Costs. The analyzing of an image

with the size of 1640x512Pixel with an histogram

containing 20x20Pixel results in an amount of 797040

images tiles. With a calculation time of 0.5698s

the time for analyzing one segment is 0.7µ. With

a framerate of 25FPS, the algorithm has a time of

1/25FPS = 40ms for calculating all the necessary

segments of the image to achieve the ability of an

online analyzing. This leads to an maximum num-

ber of segments of 55952 segments, which could be

achieved by a Region Of Interests which is limited to

an area of 256x256Pixel, according to equation (4).

When switching from the one core calculation on the

processor, used in the measurements to a multicore

application, and the simpliﬁed assumption, that the

number of segments per calculation time is equal to

the numbers of cores calculating on them, the Re-

gion of Interest could be increased. With all 16 cores

of the used processor, it would be possible to cal-

culate 55952Segments ∗16Cores = 859,232segments

which leads to an area of 946x946pixels. This values

are only theoretical, and only work when timings for

tasks like memory allocation and video converting are

neglected.

6 CONCLUSION

This paper presents a combination of two algorithms

for the detection of objects in videos. The two al-

gorithm are based on a background subtraction and a

histogram analyzing and were tested on an dataset of

videos which show a running curling stone in differ-

ent scenarios. These scenarios are (1) the stone runs

alone on the ice, (2) the stone runs with an sweeping

athlete behind the stone and (3) the stone runs with

an sweeping athlete between camera and stone. The

results of that analysis were compared to an manual

checking of the position of the curling stone in ev-

ery frame of the video. The result of the compari-

son shows a quite good accuracy for the ﬁrst and the

second scenario with an average real world distance

error of 60.67mm from a distance of 7,5m from the

camera. Also the detection rate is excellent in the ﬁrst

scenario, with a detection rate of 100% and 94.17%

for the second scenario. The third scenario is quite

difﬁcult for an object detection, because an athlete is

partly blocking the view onto the curling stone, which

led to a quite high not detection rate of 28.89%.

While maintaining a good accuracy for the detec-

tion rate the computational costs went into the right

direction: The single core implementation of the al-

gorithm were able to search through one frame of the

image, with a resolution of 1640x512 in a time of

0.5698s. Using all cores the computation time would

shrink drastically. In combination with the use of a

Region Of Interest the algorithm could be able to an-

alyze videos on-line.

Future work on this topic will involve a multicore

implementation of the algorithms and the comparison

of computation time saving alternatives for the his-

togram analysis. Further investigation will also target

on reducing the amount of tiles, which the algorithm

has to analyze.

REFERENCES

Belongie, S., Malik, J., and Puzicha, J. (2002). Shape

matching and object recognition using shape contexts.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 24(4):509–522.

Huang, Y., Liao, I., Chen, C.,

Ik, T., and Peng, W. (2019).

Tracknet: A deep learning network for tracking high-

speed and tiny objects in sports applications*. In

2019 16th IEEE International Conference on Ad-

vanced Video and Signal Based Surveillance (AVSS),

pages 1–8.

Man Zhu, Shuifa Sun, Shuheng Han, and Hongying Shen

(2012). Comparison of moving object detection algo-

rithms. In World Automation Congress 2012, pages

35–38.

Mason, M. and Duric, Z. (2001). Using histograms to de-

tect and track objects in color video. In Proceedings

30th Applied Imagery Pattern Recognition Workshop

(AIPR 2001). Analysis and Understanding of Time

Varying Imagery, pages 154–159.

Pieropan, A., Bj

orkman, M., Bergstr

om, N., and Kragic, D.

(2016). Feature descriptors for tracking by detection:

a benchmark. CoRR, abs/1607.06178.

Qiuxiang Liao (2016). Comparison of several color his-

togram based retrieval algorithms. In 2016 IEEE

Advanced Information Management, Communicates,

Combination of Algorithms for Object Detection in Videos on Basis of Background Subtraction and Color Histograms: A Case Study

469

Electronic and Automation Control Conference (IM-

CEC), pages 1670–1673.

Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.

(2011). Orb: an efﬁcient alternative to sift or surf.

pages 2564–2571.

Swain, M. J. and Ballard, D. H. (1990). Indexing via color

histograms. In [1990] Proceedings Third Interna-

tional Conference on Computer Vision, pages 390–

393.

Vaidya, B. and Paunwala, C. (2017). Comparative analy-

sis of motion based and feature based algorithms for

object detection and tracking. In 2017 International

Conference on Soft Computing and its Engineering

Applications (icSoftComp), pages 1–7.

Wu, S., Fan, Y., Zheng, S., and Yang, H. (2012). Object

tracking based on orb and temporal-spacial constraint.

In 2012 IEEE Fifth International Conference on Ad-

vanced Computational Intelligence (ICACI), pages

597–600.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

470
