FALCO: Detecting Superﬂuous JavaScript Injection Attacks using

Website Fingerprints

Chih-Chun Liu

, Hsu-Chun Hsiao

and Tiffany Hyun-Jin Kim

National Taiwan University, Taiwan

HRL Laboratories, LLC, U.S.A.

Keywords:

JavaScript Injection Detection, Website Behavior Fingerprint, Browser-based DDoS.

Abstract:

JavaScript injection attacks enable man-in-the-middle adversaries to not only exploit innocent users to launch

browser-based DDoS but also expose them to unwanted advertisements. Despite ongoing efforts to address

the critical JavaScript injection attacks, prior solutions have several practical limitations, including the lack of

deployment incentives and the difﬁculty to conﬁgure security policies. An interesting observation is that the

injected JavaScript oftentimes changes the website’s behavior, signiﬁcantly increasing the additional requests

to previously unseen domains. Hence, this paper presents the design and implementation of a lightweight sys-

tem called FALCO to detect JavaScript injection with mismatched website behavior ﬁngerprints. We extract

a website’s behavior ﬁngerprint from its dependency on external domains, which yields compact ﬁngerprint

representations with reasonable detection accuracy. Our experiments show that FALCO can detect 96.98% of

JavaScript-based attacks in simulation environments. FALCO requires no cooperation with servers and users

can easily add an extension on their browsers to use our service without privacy concerns.

1 INTRODUCTION

In a JavaScript injection attack, the man-in-the-

middle (MitM) attacker (e.g., an Internet Service

Provider) injects malicious JavaScript in HTTP con-

nections. Such malicious behaviors could lead gen-

uine users to browse unwanted advertisement web-

sites,

1, 2

or launch DDoS attacks to other web-

sites (Marczak et al., 2015). More speciﬁcally,

JavaScript-based attacks utilize untrusted intermedi-

aries between clients and webservers that inject ma-

licious JavaScripts or replace legitimate JavaScripts

with malicious ones. By injecting malicious

JavaScripts, attackers can launch various attacks that

affect clients locally, such as drive-by-downloads,

phishing, malicious web advertising, and stealing user

information.

Prior work on mitigating JavaScript injection at-

tacks have several limitations, including lack of de-

ployment incentives and difﬁculties in conﬁguring

policies. For example, Content Security Policy (CSP)

allows a website to restrict script sources by setting

the script-src directive in HTTP response headers.

https://www.privateinternetaccess.com/blog/2016/

12/comcast-still-uses-mitm-javascript-injection-serve-

unwanted-ads-messages

https://zmhenkel.blogspot.tw/2013/03/isp-

advertisement-injection-cma.html

However, CSP is difﬁcult to correctly conﬁgure (We-

ichselbaum et al., 2016) and can be modiﬁed by

MitM adversaries on HTTP connections. Moreover, a

victim website cannot protect itself from JavaScript-

based DDoS with CSP, as the adversary here exploits

vulnerable websites (which support neither HTTPS

nor CSP) to attack the victim. Cross-Origin Request

Policy (CORP) (Telikicherla et al., 2014) allows the

server to block unwanted cross-origin requests from

the browser, and can be applied to prevent JavaScript-

based DDoS (Agrawall et al., 2017). However, be-

sides the difﬁculties in conﬁguring policies, CORP

has not been adopted in practice. Subresource In-

tegrity (SRI)

allows browsers to verify whether the

transmitted web resources (e.g., JavaScript) are intact.

However, it is not useful when a MitM attack tam-

pers the veriﬁcation information. Stickler (Levy et al.,

2016) guarantees the integrity of the website content

when the website owner uses a trustless CDN, which

stores the website content that was signed by the pub-

lisher. However, Stickler requires the client to contact

an additional trusted server to bootstrap its service.

As prior techniques often require server-client col-

laboration, therefore further elevating the deployment

challenges, Excision (Arshad et al., 2016) presents an

https://developer.mozilla.org/en-US/docs/Web/

Security/Subresource Integrity

180

Liu, C., Hsiao, H. and Kim, T.

FALCO: Detecting Superﬂuous JavaScript Injection Attacks using Website Fingerprints.

DOI: 10.5220/0009835101800191

In Proceedings of the 17th International Joint Conference on e-Business and Telecommunications (ICETE 2020) - SECRYPT, pages 180-191

ISBN: 978-989-758-446-6

in-browser solution to detect malicious JavaScript in-

clusion. However, Excision’s browser instrumenta-

tion increases the browsing time by 12.2%.

To address these limitations, we present

FALCO—a historical behavior-based robust sys-

tem using website ﬁngerprints while protecting

enduser privacy. In particular, this paper attempts

to address attackers that launch additional network

activities, for example, to force users to visit adver-

tisement pages or continuously send out requests to

other websites. We refer to these types of attacks

as superﬂuous JavaScript injection, or superﬂuous

JS injection in short. If malicious scripts launch an

excessive number of HTTP requests to a victim server

or try to inject arbitrary advertisements, additional

HTTP requests to external domains result in different

dependency relationships between the website and

external domains, compared to the condition when

the website is free from such JavaScript attacks.

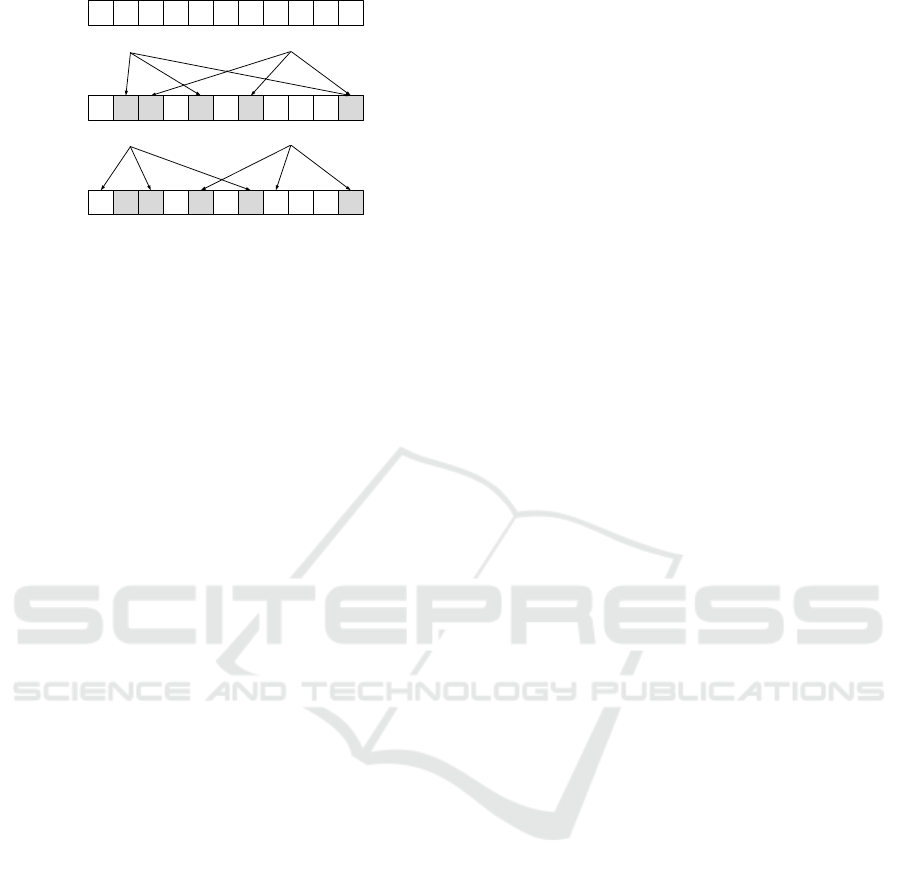

To balance performance and accuracy, we generate

compact ﬁngerprints that encode the appearance of

external domains using Bloom ﬁlters. We detect the

unusual trafﬁc that is triggered by the MitM attacker

in two ways, trading off ﬁngerprint availability and

privacy: (1) A browser refers back to its own previous

visits for the same website, or (2) the browser con-

tacts an external ﬁngerprint server that collects and

manages website ﬁngerprints reported by other nodes

in a privacy-aware manner. Querying an external

ﬁngerprint server for each website visit raises privacy

concern as the external server can learn about the

user’s browsing history. Besides maintaining the

ﬁngerprint database locally, FALCO can address this

privacy concern by letting users download a group

of ﬁngerprints in advance or adapt existing private

information retrieval techniques (Chor et al., 1995) to

acquire the website’s ﬁngerprint without revealing its

browsing history.

We simulated two types of JavaScript-based

DDoS attacks to evaluate the detection effectiveness

of our system. We also computed website ﬁngerprints

of the top 10k websites according to the Majestic top

million sites database

to investigate the robustness of

the proposed ﬁngerprint representations. Our exper-

iments show that FALCO can detect 96.98% of su-

perﬂuous JS injection attacks in simulation environ-

ments.

Contributions. We introduce FALCO, a historical

behavior-based ﬁngerprinting system that detects su-

perﬂuous JavaScript injection attacks. FALCO is ca-

pable of operating without any server-side coopera-

tion, resilient to dynamic factors such as session infor-

mation, and preserves enduser’s privacy. According

https://majestic.com/reports/majestic-million

func on img ood() {

var TARGET = 'vic m-website.com'

var URI = '/index.php?'

var pic = new Image()

var rand = Math. oor(Math.random() * 1000)

pic.src

= 'h p://'+TARGET+URI+rand+'=val'

}

setInterval(img ood, 10)

Figure 1: JavaScript code in Browser-based DDoS.

to our evaluation results, FALCO can detect 96.98%

of superﬂuous JS injection attacks in simulation envi-

ronments.

2 ATTACKER MODEL

We consider a man-in-the-middle (MitM) adversary,

existing between the client and the server, injects a

malicious script or replaces a benign script with a ma-

licious one when the user browses the website. The

MitM adversary (which is an untrusted intermediary)

can leverage this malicious script to perform drive-

by-downloads (Cova et al., 2010), phishing, malicious

web advertising (Li et al., 2012; Thomas et al., 2015),

and stealing user information (Huang et al., 2010).

In our attacker model, the malicious script

launches superﬂuous JavaScript injection to force

users to continuously send out requests to other web-

sites to DDoS (Section 2.1) or visit advertisements

pages (Section 2.2).

2.1 Browser-based DDoS

In contrast to general Distributed Denial of Service

(DDoS), browser-based DDoS attacks leverage inno-

cent browsers as bots to send thousands of HTTP re-

quests to bombard the target server (Pellegrino et al.,

2015). The attackers can easily harvest a large num-

ber of bots by choosing popular non-HTTPS websites

to inject the malicious code. Figure 1 shows an ex-

ample of a malicious script

that continuously trigger

cross-origin requests to a victim server.

Figure 2 illustrates the attack steps of browser-

based DDoS. When a user A visits a website

http://genuine.server.com hosted on G, her

browser sends an HTTP request to G. G returns a

webpage referencing a script hosted on another server

. After getting the response from G, the browser

subsequently sends a request to A

to load the script.

’s response, however, is intercepted by a MitM at-

tacker and replaced with a malicious one (e.g., the

script shown in Figure 1). As a result, A’s browser

https://blog.cloudﬂare.com/an-introduction-to-

javascript-based-ddos

FALCO: Detecting Superﬂuous JavaScript Injection Attacks using Website Fingerprints

181

h p://genuine.server.com

(1) User A connects server G

(2) Server G responds a page including

reference a.js from server A1

User A

User B

Assets server A1

(3) User A requests a.js

(4) A1 responds

normal a.js

(5) A

acker

replaces a.js with

tampered one

Vic m server B

(6)SetInterval(Get B site(), 100);

SetInterval(Get B site(), 100);

User C

SetInterval(Get B site(), 100);

server A2

server A3

server An

(7)A aker can inject mal

script to many servers

Figure 2: Browser-based DDoS.

loads the tampered script and triggers cross-origin

HTTP requests to the victim server B continuously.

Every user browsing http://genuine.server.com

effectively launches a Denial-of-Service (DoS) attack

on the server B. If the attacker injects the malicious

script to multiple websites A

, A

, ··· , A

, thou-

sands of innocent users will execute the code, result-

ing in a browser-based DDoS attack.

Web Browser-based DDoS. In March 2015, a new

type of DDoS attack called the Great Cannon was ob-

served (Marczak et al., 2015) targeting two GitHub

pages. This attack was caused by an in-path system

located at the edge between China’s inner network

and the Internet, and executed a MitM JavaScript in-

jection for the targeted ﬂow. The attack replaced a

Baidu’s analytics script with a malicious one that con-

tinuously issued requests to the two target pages. By

injecting malicious JavaScript to sites loaded by enor-

mous unwitting users, the Great Cannon caused mas-

sive HTTP requests per second to target pages and

easily overwhelmed them.

Mobile Browser-based DDoS. In September 2015,

a customer of Cloudﬂare was hit by browser-based

DDoS attack that leveraged mobile users as DDoS

vectors.

6, 7

When a user was surﬁng the web using

a mobile device, the browser app injected an iframe

that inserted an advertisement in the browser app.

Hence, the user was forced to visit the advertisement,

and the advertisement forwarded the victim to the at-

tack page. When the malicious JavaScript code in

the attack page was executed, it ﬂooded the servers

that belong to the victim. This attack event utilized

mobile devices as the distributed attack vectors and

created distributed ﬂows, causing 275,000 HTTP re-

https://blog.cloudﬂare.com/mobile-ad-networks-as-

ddos-vectors/

https://threatpost.com/javascript-ddos-attack-peaks-

at-275000-requests-per-second/114828/

quests per second during the peak time. Grossmann

and Johansen also presented how attackers injected

malicious advertisements to launch DDoS (Grossman

and Johansen, 2013).

2.2 Advertisements Injection

Several Internet Service Providers (ISPs) were iden-

tiﬁed to inject advertisements into customer-facing

webpages.

8, 9, 10

These ISPs continuously monitor

customer trafﬁc and inject advertisement-incurring

JavaScript on webpages that their customers visit

without their consents. In this case, customers are

compelled to receive unexpected information and

website owners cannot assure that the content seen by

users is unmodiﬁed. Such an attack is not only obtru-

sive, but can cause signiﬁcant problems with normal

Web application functions and network performance.

For example, TELCOM—the biggest telecommuni-

cation company in Indonesia—was found to secretly

inject advertisements to almost every unencrypted

webpage that their customers visited; TELKOM

sniffed trafﬁc between the client browser and the web-

site owner and injected JavaScript to trigger requests

to its advertisement server. Such an injection attack

resulted in two undesirable consequences: customers

faced unwanted advertisements on the webpages, and

such advertisements increased the page loading time,

incurring additional usage fees.

In addition to ISPs, some browser extensions

are found to be linked to ad-networks by execut-

ing JavaScript-based extension.

Users installed a

highly-rated browser extension to download videos

from YouTube. Unfortunately, an additional video

appeared on the user’s webpage and started playing

while loading the page.

3 SYSTEM ARCHITECTURE

FALCO detects superﬂuous JS injection that inﬂates

network activities based on behavior ﬁngerprints,

which capture a website’s dependency to its external

domains.

https://www.privateinternetaccess.com/blog/2016/

12/comcast-still-uses-mitm-javascript-injection-serve-

unwanted-ads-messages

https://zmhenkel.blogspot.tw/2013/03/isp-

advertisement-injection-cma.html

https://medium.com/@grumpyuser/telkom-indonesia-

secretly-injects-advertisements-a3bf10b447ee

https://staging.hanselman.com/blog/can-you-trust-

your-browser-extensions-exploring-an-adinjecting-

chrome-extension

SECRYPT 2020 - 17th International Conference on Security and Cryptography

182

Data collec on

node browser

Website

Fingerprint server

Website

Fingerprints of websites

Create ngerprint with Bloom lter

Browser extension

Requests collec on

from tab A

Cross-origin request

extrac

Request domain

extrac

…

Node

Node Node

…

Figure 3: System architecture of data collection phase.

FALCO consists of three phases: data collection

(Section 3.1), ﬁngerprint management (Section 3.2),

and attack detection (Section 3.3).

Overview. Figure 3 shows an overview of the

FALCO system. In the data collection phase, data

collection nodes collect HTTP requests when load-

ing websites and send the collected data to a ﬁnger-

print server. In the ﬁngerprint management phase, the

ﬁngerprint server extracts, stores, and updates web-

site ﬁngerprints on behalf of clients. Fingerprints are

represented compactly using Bloom ﬁlters or their

variants. In the attack detection phase, the client’s

browser extension downloads ﬁngerprints from the

ﬁngerprint servers, and compares the ﬁngerprints with

the client’s local observation. Once detecting suspi-

cious ﬁngerprint changes, the browser extension will

alert the user.

To ensure privacy, a client can run its local ver-

sion of data collection node and ﬁngerprint server.

The client can also retrieve ﬁngerprints via privacy-

preserving manners, as described in Section 6.1.

3.1 Data Collection

During the data collection phase, we assume that the

data collection nodes and websites are not under at-

tack.

A data collection node collects raw HTTP re-

quests when loading each website of interest, and

strips off privacy-sensitive information. Only the do-

mains and their occurrences are sent to the ﬁngerprint

server, for the following reasons.

Privacy Considerations. Since an HTTP-request

URL can leaks clients’ sensitive information such as

personal accounts, session ID, or cookies, we con-

sider privacy as a fundamental design parameter as

follows: the data collection nodes extract the domains

from HTTP-request URLs before they are delivered to

the ﬁngerprint server. Consequently, the ﬁngerprint

server receives the connection data without any pri-

vate information and uses it to create the ﬁngerprint.

For example, National Taiwan University’s web-

site launches 61 requests, only two of which are cross-

origin requests. These two cross-origin requests con-

tain the user’s location or environment information in

the parameters.

To mitigate this privacy concern,

we focus only on the URL domain of the cross-origin

requests, truncating the request and obtaining the do-

main (e.g., “stats.g.doubleclick.net”) for the ﬁnger-

print.

Fingerprint Robustness. Ideally, a website’s behav-

ior ﬁngerprint should be robust against factors such

as location and time. We conducted small-scale ex-

periments to observe the impact of location and time.

Speciﬁcally, we investigated the HTTP requests for

launching http://www.mit.edu from the US, Japan,

and Taiwan, and Figure 4 summarizes the triggered

time for each request. This ﬁgure can be considered

as an approximate shape for all the ﬁngerprints from

different locations. Even though the time duration for

each HTTP request is not always the same across dif-

ferent locations, we can still infer that the additional

HTTP requests preserve the order.

Figure 4: Fingerprints of mit.edu from USA, Japan, and

Taiwan.

In addition to the location, we speculated that the

website browsing time may affect the ﬁngerprint. In-

deed, we observed that the ﬁngerprints collected at

different times were not always the same, due to net-

work conditions (e.g., speed, server status, processing

speed, etc.) at different times. To conﬁrm this conjec-

ture, we accessed http://www.ntu.edu.tw once every

hour within a day with the same client environment in

Taiwan, and the connection results are shown in Fig-

ure 5.

Based on the small-scale experiments, we decided

to take into account the frequency of requests but not

For instance, one was sent to Google Analytics

(stats.g.doubleclick.net) and contained parameters of screen

resolution, browser language, etc.

FALCO: Detecting Superﬂuous JavaScript Injection Attacks using Website Fingerprints

183

the precise timestamps or sequence of requests for

generating a ﬁngerprint. In addition, to reduce the

variance introduced by location-dependent requests,

we recommend deploying data collection nodes at dif-

ferent locations across the world.

3.2 Fingerprint Management

The ﬁngerprint server is responsible for extracting,

storing, and updating ﬁngerprints. For each website,

the ﬁngerprint server receives a list of accessed do-

mains and their frequencies from the data collection

nodes. The ﬁngerprint server then extracts and en-

codes important information into a Bloom ﬁlter as a

ﬁngerprint. We will explain why using Bloom-ﬁlter-

like data structures shortly. The ﬁngerprint server

stores ﬁngerprints of the popular websites collected

from different locations, updates ﬁngerprints when

necessary, and provides them when users query.

Fingerprint Construction. A straightforward ap-

proach is using the list of accessed domains and their

Figure 5: Fingerprints of ntu.edu.tw.

Client node

Website:

A-site.com

asset.a.com

GET A-site.com

GET a.js

Fingerprints of A-

site.com

A-site.com > asset.a.com : 1

A-site.com > asset.b.com : 5

A-site.com > asset.c.com : 2

asset.b.com

asset.c.com

A-site.com > asset.a.com : 1~3

A-site.com > asset.b.com : 4~6

A-site.com > asset.c.com : 1~3

Figure 6: Obtain ﬁngerprint from requests using Bloom ﬁl-

ter.

frequencies as a website’s ﬁngerprint. When visiting

a website, the client will compare its domain access

patterns to the website’s ﬁngerprint. If the client ob-

serves a new domain that is not on the list, or accesses

a domain more frequently than it was documented in

the ﬁngerprint, the client reports detection of spuri-

ous requests, which indicates a potential superﬂuous

JS injection attack. However, this straightforward ap-

proach is inefﬁcient (in terms of storage cost on the

ﬁngerprint server and the client, as well as the com-

putation cost on the client side) and leaks unnecessary

information to whoever queries the ﬁngerprint server.

To improve efﬁciency and privacy, FALCO uses

a Bloom ﬁlter or a counting Bloom ﬁlter to repre-

sent a website’s ﬁngerprint. At a high level, a Bloom

ﬁlter is a compact data structure that supports efﬁ-

cient membership queries. Thus, given a Bloom ﬁl-

ter that contains the set of accessed domains, one can

easily determine whether a new domain is visited by

querying the Bloom ﬁlter. After a brief introduction

of Bloom ﬁlters, we describe three ﬁngerprint con-

struction methods that utilize Bloom ﬁlters and dis-

cuss their applicability in Section 3.2.1.

Bloom Filters & Counting Bloom Filters. A Bloom

ﬁlter is a data structure that uses a bit array for set

membership queries. This space-efﬁcient structure

offers operations, such as adding elements to the set

and querying if the element exists in the set. Bloom

ﬁlters might claim an element is one of the set when

it does not belong to the set, but never reports an ex-

isting element to be absent from the set.

An empty Bloom ﬁlter is a bit array of n bits, rep-

resenting a set of n elements with initial value 0 as

Figure 7(a) shows. When an element x from the set

S = {x

, x

, ··· , x

} is inserted, the Bloom ﬁlter uses

k independent hash functions to calculate the position

(x), h

(x), · ·· , h

(x) in the array and set these bits

to 1 as shown in Figure 7(b). To determine if y exists

in this set S, we only need to check the k hash func-

tions with y. If any value in h

(y), h

(y), ··· , h

(y) is

0, then y does not belong to the set S (Figure 7(c)), and

SECRYPT 2020 - 17th International Conference on Security and Cryptography

184

0 00000 0 0...0

1 1110 ...0000 1

(a)

(b)

(c)

h (x )

2 1

h (x )

3 1

h (x )

1 1

h (y )

3 1

h (x )

1 2

h (y )

2 1

h (x )

3 2

h (y )

1 1

h (x )

2 2

h (y )

3 2

h (y )

2 3

h (y )

1 1

Figure 7: Bloom ﬁlter operation.

when there are more 1s in the array, the false positive

is higher.

An enhanced version called a counting Bloom ﬁl-

ter uses an array of n counters to replace the n bits

in a Bloom ﬁlter. The counters show the number of

inserted elements of the hash values that are indexed

at each position. To conﬁrm that an element is in the

set, we can check if the values in the hash-indexed

positions of the element are all above zeros.

In summary, Bloom ﬁlters provide a fast mem-

bership queries operation with space-efﬁcient feature.

Although the length of the array and the number of

hash functions could directly affect the false positive

rate, we can reduce it by extending the array of the

Bloom ﬁlter. Because of the beneﬁts of space efﬁ-

ciency and querying speed, we use the Bloom ﬁlter

to create a ﬁngerprint of the cross-origin domains for

each website in our system architecture.

3.2.1 Fingerprint Extraction Methods

We propose three ﬁngerprint construction methods as

shown in Figure 8. They provide different levels of

efﬁciency and accuracy depending on the information

encoded in Bloom ﬁlters.

Method I: Store the Visited Domains in Bloom Fil-

ters. To generate a ﬁngerprint of a website, Method

I inserts the domains of the website’s cross-origin

HTTP requests to the Bloom ﬁlter, without consider-

ing the timestamp and the frequency of each domain.

A superﬂuous JS injection attack is detected if the

client browser observes a new domain that does not

appear in the ﬁngerprint (i.e., the Bloom ﬁlter returns

false). Figure 8 (a) shows an example using Method

Method II - Store the Pairs of Visited Domain and

its Frequency in Bloom Filters. As shown in Figure

8 (b), compared with Method I, Method II addition-

ally considers the frequency of each domain in ﬁnger-

print generation. For each cross-origin HTTP request,

Method II inserts the pair of its domain and frequency

to the Bloom ﬁlter. The frequency is quantized into

coarse-grained ranges to reduce false detection. For

example, if a website launched requests to domain

a.com 1 time, to domain b.com 5 times and to c.com

2 times, Method II with a range of three will insert

three elements: a.com:[1-3], b.com:[4-6], c.com:[1-

3].

To detect whether a visited website is under a su-

perﬂuous JS injection attack, a client browser accu-

mulates and computes the frequency of each cross-

origin domain. The client browser then check whether

every pair of domain:range is in the Bloom ﬁlter.

Method III - Store the Pairs of Visited Domain and

its Frequency in Counting Bloom Filters. Similar

to Method II, Method III also considers the frequency

of each domain in ﬁngerprint generation. Instead of

using a Bloom ﬁlter to encode the pair of domain and

frequency range, Method III uses a counting Bloom

ﬁlter, in which each element is naturally associated

with a count. Method III uses the counter in the count-

ing Bloom ﬁlter to record the frequency of each do-

main.

To detect whether a visited website is under a su-

perﬂuous JS injection attack, a client browser accu-

mulates and computes the frequency of each cross-

origin domain, as in Method II. The client browser

then checks whether the frequency of each domain is

smaller than or equal to what the counting Bloom ﬁl-

ter returns. An attack is detected if any of the domain

has a frequency higher than the return value.

3.2.2 Website Classiﬁcation and Method

Selection

We observe that each ﬁngerprint construction method

presented in Section 3.2.1 is suitable for different

types of websites. To improve detection accuracy,

we propose heuristics for website classiﬁcation and

method selection.

Website Classiﬁcation. We divide websites into four

types according to their dynamics in the visited do-

mains and the number of requests. We assume a ﬁn-

gerprint server can determine the type of a website af-

ter seeing several rounds of data provided by the data

collection nodes. As the classiﬁcation should be rela-

tively stable, popular websites (e.g., the top one mil-

lion) can also be classiﬁed and labelled in advance.

The ﬁrst category consists of websites that load a

ﬁxed number of requests and visit identical domains

every time. These websites often contain no media

or advertisement. An example of such websites is

Wikipedia.

The second category consists of websites that is-

sue requests to different domains over time, such

as websites embedding real-time bidding advertise-

ments. In this case, the JavaScript ﬁrst queries an ad-

vertisement network, and then the advertisement net-

FALCO: Detecting Superﬂuous JavaScript Injection Attacks using Website Fingerprints

185

A-site.com > asset.a.com : 1

A-site.com > asset.b.com : 5

A-site.com > asset.c.com : 2

A-site.com>asset.a.com : [1~3]

A-site.com>asset.b.com : [4~6]

A-site.com>asset.c.com : [1~3]

Req w/o freq using BF Req w/ freq using BF Req w/ freq using CBF

A-site.com > asset.a.com

A-site.com > asset.b.com

A-site.com > asset.c.com

A-site.com > asset.a.com

A-site.com > asset.b.com

A-site.com > asset.c.com

A-site.com > asset.a.com : 1

A-site.com > asset.b.com : 5

A-site.com > asset.c.com : 2

A-site.com > asset.a.com :1

A-site.com > asset.b.com :5

A-site.com > asset.c.com :2

CBF

(n=6,k=1)

(a) (c)(b)

Figure 8: Examples of three ﬁngerprint construction methods.

Unfixed numbers

of req

yes

Random req with

fixed times

req URL

formalization

yes

Number of

requests >100

yes

Method I

(req w/o freq in BF)

Method II

(req w/ freq in BF)

Method III

(req w/ freq in CBF)

Websites

Figure 9: A decision diagram for selecting a ﬁngerprint con-

struction method based on the website type.

work asks the browser to contact different advertis-

ers. The Yahoo website belongs to this type. To re-

duce false positive during detection, for this type of

websites, the data collection nodes should access the

websites for multiple times, ensuring that the web-

site’s ﬁngerprint captures most of the normal web ac-

tivities.

The third category consists of websites that issue

requests to a ﬁxed set of domains but the number of

requests may vary over time. For example, a web-

site embedding autoplay videos (e.g., Disney) will in-

struct the browser to send periodic requests in order to

play the videos. For this type of websites, we select

Method I to collect the ﬁngerprint.

The last category consists of websites that issue

a ﬁxed number of requests, but the destinations of the

requests may change over time. An example is a web-

site that relies on a CDN service: A website publisher

hosts the website assets on CDN servers; when a user

wants to visit the website, he or she will be directed to

one of the CDN servers based on location, load, price,

etc. Similar to the second category, for this type of

websites, the data collection nodes should access the

websites for multiple times. Because the number of

requests stay the same, we use Method II or III to cre-

ate ﬁngerprints.

Selection of Fingerprint Construction Method.

Figure 9 shows the decision diagram for selecting a

ﬁngerprint construction method based on the website

type. We ﬁrst check whether the website falls in the

ﬁrst category. If the website does not have a ﬁxed

number of requests, we use Method I to create the

ﬁngerprint. Then we check if the website belongs to

the second category or not. If yes, the requests will

be formalized before adding to the ﬁngerprint. Addi-

tionally, if the number of requests is more than 100,

we choose Method II for space saving. The rest will

be handled by Method III.

3.3 Attack Detection

Given the website type and its ﬁngerprint of a website,

the FALCO browser extension on the client side can

detect whether the website is under a superﬂuous JS

injection when the user browses the website.

The client-side detection is performed through the

following procedure.

1. Install - The user installs the FALCO browser ex-

tension.

2. Fetch - When the user accesses a website using the

browser, the detector (browser extension) will ﬁrst

fetch the website’s ﬁngerprint from the ﬁngerprint

server. The user can also fetch the ﬁngerprint of

the website in advance.

3. Detect - All the cross-origin requests initiated by

the website will be checked by the detector before

they are sent out.

4. Block - If a superﬂuous request is detected (i.e., it

does not exist in the ﬁngerprint or the number of

requests to the same domain exceeds the record in

the ﬁngerprint), the request will be blocked. The

user can decide whether to add the request to a

blacklist.

SECRYPT 2020 - 17th International Conference on Security and Cryptography

186

4 EVALUATION

To generate a ﬁngerprint of a website, we load the

website for 20 seconds

and collect its cross-origin

requests. We assume that the website is not under

attack during data collection. Data collection nodes

and a ﬁngerprint server are hosted using AWS, and

the data is collected from USA, Japan, and Taiwan.

4.1 Fingerprint Generation

We investigate the robustness of the ﬁngerprint gen-

eration methods presented in Section 3.2.1 across dif-

ferent locations. In the ﬁrst part of the experiment, we

collect 3,000 websites ﬁngerprints from the US using

AWS WorkSpace and set up a client browser in Tai-

wan. In the second part of the experiment, we collect

3,000 websites ﬁngerprints and set up a client browser

in Taiwan to test the ﬁngerprints from the same loca-

tion. The results are shown in Table 1.

Table 1: True positive detection rate using ﬁngerprint.

TP in TP in

different location same location

Req w/o freq in BF 90.58% 96.68%

Req w/ freq in BF 85.28% 87.48%

Req w/ freq in CBF 82.42% 88.24%

A true positive represents a consistent detection

in different locations. The parameters of the Bloom

ﬁlters are n = 500 and k = 3, and the parameters of

the counting Bloom ﬁlters are n = 1000, k = 3. The

results show that more than 82.42% websites have

the same ﬁngerprints in different locations, and more

than 87.48% websites have the same ﬁngerprints in

the same location. The true positive rate increases as

the size of the Bloom ﬁlter increases. As the size of

Bloom ﬁlter increases by four times, the true positive

rate approaches 100%.

According to our classiﬁcation in Section 3.2.2,

we divide the websites into four categories, and create

ﬁngerprints using different methods, as shown in the

procedure of Figure 9.

As shown in Table 2, by performing the classiﬁ-

cation, the true positive rate of the two-location ex-

periment increases to 93.08%, where 6.97%, 42.97%,

and 50.06% of the websites use method I, II, and III,

respectively, to create the ﬁngerprints. Similarly, the

true positive rate of the same-location experiment in-

creases to 98.36%, where 12.5%, 39.4%, and 48.1%

We performed a small-scale measurement of the top

100 websites and observed that 58% of them completed

loading in 10 seconds and 87% in 20 seconds. Thus, we

use 20 seconds as a threshold.

Table 2: True positive detection rate using ﬁngerprint with

websites classiﬁcation.

Different loca-

tions

Same location

Method I (BF w/o times) 6.97% 12.5%

Method II (BF w/ times) 42.97% 39.4%

Method III (CBF w/o times) 50.06% 48.1%

Avg TP 93.08% 98.36%

Table 3: False positive rate under attack.

FP when under attack

Req w/o freq in BF 3.02%

Req w/ freq in BF 0.57%

Req w/ freq in CBF 0.07%

of the websites are assigned to method I, II, and III,

respectively.

4.2 Attack Detection

We simulate two types of attacks and evaluate the de-

tection rate using FALCO.

4.2.1 Attack Simulation I - Ad Injection

We ﬁrst simulate the ad-injection attack introduced in

Section 2.2. When a website is under ad-injection,

it will send out extra cross-origin requests to ad do-

mains. Therefore, in this attack simulation, we in-

sert arbitrary cross-origin HTTP requests into 3,000

request lists from different websites, and detect the

extra trafﬁc by ﬁngerprints. The result of this experi-

ment is shown in Table 3. A false positive means that

the request is not in the ﬁngerprint but is detected.

The false positive for FALCO is less than 3.02%. The

results also conﬁrm that the larger the ﬁngerprint size

is, the more accurate the result is, as we can see that

the size of Bloom ﬁlter and the numbers of hash func-

tions impact the false positive of ﬁngerprints.

4.2.2 Attack Simulation II - Browser-based

DDoS

The second attack we simulated is browser-based

DDoS attack. As shown in Figure 10, we use mitm-

proxy

to MitM attack our browser in the simula-

tion environment. When the client browses website

A-site.com (http://www.ntu.edu.tw) and gets the ex-

ample.js from A-site.com, the mitmproxy replaces the

example.js to mal.js. This mal.js attempts to send a re-

quest to the victim server continuously to perform an

HTTP ﬂooding attack.

Figure 11 shows the collected ﬁngerprints from

multiple countries. The purple dots represent the

https://mitmproxy.org/

FALCO: Detecting Superﬂuous JavaScript Injection Attacks using Website Fingerprints

187

Mitmproxy

(transparent)

client

Website:

A-site.com

Next hop: mitmproxy

Source: client

Des

na on: A-site.com

GET example.js

Next hop: ISP

Source: proxy

Des

na on: A-site.com

GET example.js

Next hop: router

Source: proxy

Des

na on: A-site.com

GET example.js

Next hop: router

Source: ISP

Des

na on: client

example.js

Next hop: proxy

Source: router

Des na on: client

example.js

Next hop: client

Source: proxy

Des na on: client

mal.js

Vic m

GET vic m.com

router

ISP

Figure 10: Attack environment simulation.

Figure 11: Fingerprint of MitM attack simulation.

cross-origin requests, and the blue spots represent the

same-origin requests. The ﬁrst log on top shows the

ﬁngerprint when the browser is under attack, the sec-

ond one is the ﬁngerprint from Taiwan, the third one

is from Japan and the last is from USA. As our re-

sults conﬁrm, FALCO can detect all of the simulated

attacks.

4.3 Performance Evaluation

In this section, we compare the latency between a

browser without the extension and a browser which

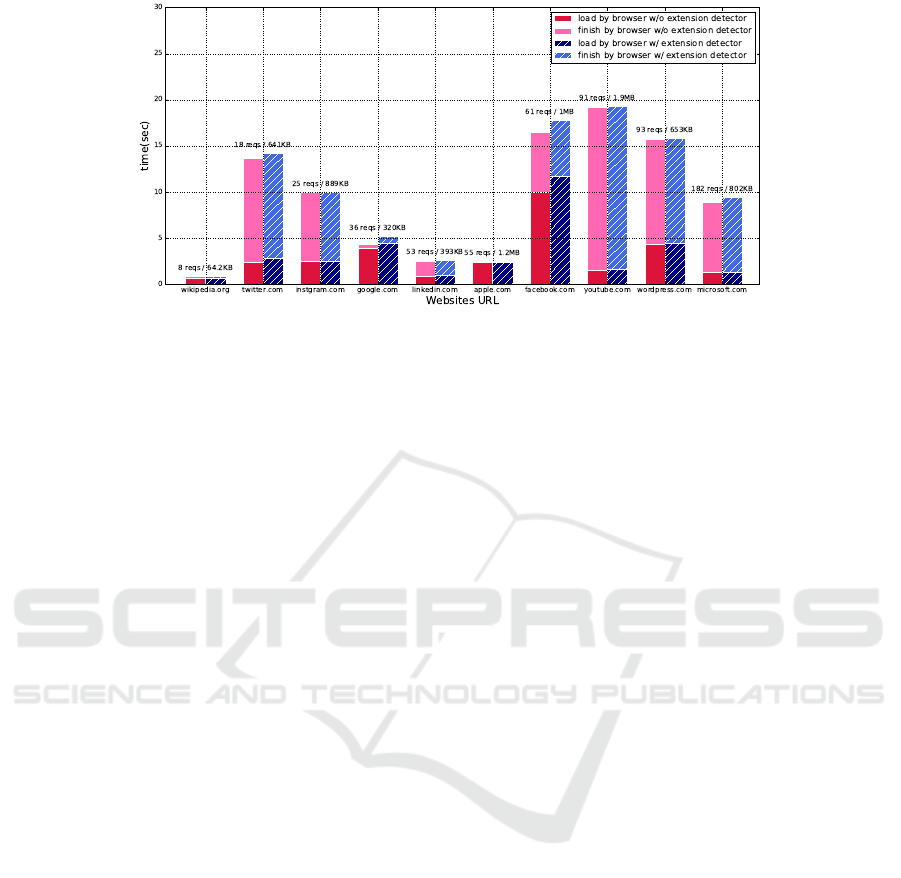

installs the extension we implemented. The compar-

ison results are shown in Figure 12. We tested top

10 websites from majestic.com. Each bar displays the

loading time with dark color, and the ﬁnish loading

time with light color. Pink bars show the latency of

visiting websites using the browser without the exten-

sion, and blue bars show the latency of visiting web-

sites using the browser with the extension. The av-

erage latency of loading one website is 0.29 seconds.

The additional latency introduced by the browser ex-

tension may result from the number of cross-origin

requests, the performance of the web server, or the

client network environments.

5 RELATED WORK

In this section, we describe existing defense tech-

niques and their limitations.

Same-Origin Policy (SOP). The same-origin pol-

icy

is a web security policy enforced by modern

browsers. In principle, the same-origin policy re-

stricts scripts in one page from accessing another

page unless they belong to the same origin. SOP

can prevent scripts from accessing Document Object

Model (DOM), cookies, and local storage data be-

longing to another web origin, but it cannot block

cross-origin requests from HTML tags such as himgi,

hscripti and hiframei, because the requests triggered

by HTML tags inherit the origin of the main page.

Since browsers can still be deluded with sending mali-

cious requests, the same-origin policy cannot prevent

or detect superﬂuous JS injection.

Cross Origin Request Policy (CORP). CORP (Teli-

kicherla et al., 2014; Agrawall et al., 2017) is a

browser security policy against browser based DDoS

attacks. It enables the server to control cross-origin

requests from the browser and block illegal requests

by the server. For example, with CORP response

header, site alice.com can block unauthorized re-

quests from site bob.com. As a browser receives the

response with CORP header, it records the policy in

the browser cache when encountered for the ﬁrst time.

When further requests are triggered, the browser will

enforce the CORP rule on the request. As mentioned

above, executing CORP mechanism involves both the

server and browser. For example, when only the

server-side supports CORP, the browser can still send

illegal cross-origin requests to the server. Moreover,

besides the difﬁculties in conﬁguring policies, CORP

has not been adopted in practice.

Content Integrity. SRI

guarantees the integrity of

resource by checking its hash value. More speciﬁ-

cally, users compute the hash value of a resource and

declare it alone with the resource path. Upon fetching

the resource, a browser can compute the hash and ver-

ify the integrity of resource. Although SRI can ensure

that the JavaScript is not tampered by an attacker, it is

not ﬂexible for either a dynamic webpage or updating

the JavaScript. Furthermore, if attackers act as man-

in-the-middle, it is easy to replace both the hash value

and the resource at the same time.

Stickler (Levy et al., 2016) provides a service that

supports a website publisher to place its static re-

source, such as JavaScript, CSS, images, or other me-

dia ﬁles, around the world via CDN network. By

using CDN, website owners can efﬁciently deliver

https://developer.mozilla.org/en-US/docs/Web/

Security/Same-origin policy

SECRYPT 2020 - 17th International Conference on Security and Cryptography

188

Figure 12: Average latency of browsing websites by ﬁngerprint extension.

their content and reduce bandwidth costs, under the

premise that they trust CDN unconditionally. Stick-

ler provides a system that guarantees that the website

asset would not be tampered by the trustless CDN ser-

vice, by allowing a website publisher to digitally-sign

all their assets on CDN. Users who want to access

the website will ﬁrst fetch the bootloader from web-

site’s server, in which case the bootloader downloads

the signed assets from CDN and veriﬁed them. Ac-

cording to the digital signature and the operation of

the bootloader, Stickler can ensure the integrity of the

website content from CDN.

Client-side Protection. Prior techniques often re-

quire server-client collaboration, therefore further el-

evating the deployment challenges. Excision (Arshad

et al., 2016) presents an in-browser solution to detect

malicious JavaScript inclusion. However, Excision’s

browser instrumentation increases the browsing time

by 12.2%.

Comparison We compare FALCO with existing de-

fense mechanisms introduced in Section 5 with re-

spect to the deployment requirement, policy setting,

detection indicator, and threat model. The results are

summarized in Table 4.

For the deployment requirement, FALCO and Ex-

cision only need to modify the client side and does

not require server collaboration, whereas the others

require participation of both the client and server.

For the policy setting, mechanisms such as CORP

are only effective if the web administrators can cor-

rectly conﬁgure access policies to block unwanted

trafﬁc; FALCO does not require any complex setting.

FALCO is more lightweight than Excision, because

FALCO focuses on superﬂuous JS injection, which

incurs observable inﬂation in network trafﬁc, whereas

Excision aims to detect generic content injection.

6 DISCUSSION

6.1 Privacy Concern

In FALCO, the client-side’s detection relies on the ﬁn-

gerprint provided by the ﬁngerprint server. Therefore,

the ﬁngerprint server must know which websites the

users attempt to browse. We brieﬂy describe possi-

ble approaches to prevent the ﬁngerprint server from

explicitly recording the browsing history. The ﬁrst

approach is prediction; users can regularly download

a group of ﬁngerprints in advance, which they may

visit in the future. The second approach is by increas-

ing the anonymity set; users can download the ﬁnger-

print of the website which they want to browse with

other random ﬁngerprints at the same time. The third

approach is by maintaining a local ﬁngerprint server

with a group of users; the users in the group fetch

the ﬁngerprint through this server, then the central-

ized ﬁngerprint server will know that this group at-

tempts to view some websites but never learns about

the speciﬁc user. The last approach is adapting ex-

isting private information retrieval techniques (Chor

et al., 1995) to acquire the website’s ﬁngerprint with-

out revealing its browsing history.

6.2 Limitations and Challenges

There are several limitations of FALCO. To detect po-

tential abnormal trafﬁc sent from the client browser,

users have to install a browser extension in their

browsers and the extension will generate and com-

pare ﬁngerprints while browsing, which may affect

the browsing performance. Also, we assume that a

website’s ﬁngerprint is computed when the website is

not under attack, which may not always hold in prac-

tice.

FALCO: Detecting Superﬂuous JavaScript Injection Attacks using Website Fingerprints

189

Table 4: Comparison of FALCO with related work.

Deployment Policy Setting Detection Basis Threat Model

FALCO browser only N/A external dependency superﬂuous JS injection

SOP browser & web server N/A requests header cross-origin request

CORP browser & web server CORP rule request header JavaScript-based DDoS

SRI browser & web server N/A hash value of script tampered JavaScript

Stickler browser & web server N/A digital signature malicious CDN

Excision browser only N/A inclusion sequences 3rd-party content inclusions

Some challenges remain as well. First, further in-

vestigation is needed to determine the effect of loca-

tion, browsing time, network environments, browser

versions, etc. Second, as web applications today are

highly personalized, it would be interesting to ex-

plore whether the ﬁngerprints should be personalized

and how to efﬁciently and effectively create person-

alized ﬁngerprints. Third, it is worth investigating

the incentive model of adopting defense mechanisms

against superﬂuous JS injection attacks, as users may

not have enough incentive to install an extension just

for avoiding their browsers from being leveraged to

attack others. Instead, ISPs may have strong motiva-

tion to defend against such attacks, but there are tech-

nical challenges to identify unwanted requests trigger

by each website from the ISPs’ perspectives.

7 CONCLUSION AND FUTURE

WORK

This paper presents a robust detection system called

FALCO against superﬂuous JavaScript injection at-

tacks using website ﬁngerprints without server-side

cooperation. To analyze normal website behavior, we

extracted the ﬁngerprints of the top 10,000 websites,

and our evaluation results conﬁrm that FALCO can

detect 96.68% superﬂuous JS injection attacks in our

simulation environment.

As for the future work, we are studying how to im-

prove FALCO as follows. (1) To expand the deploy-

ment of our system, we have to improve the trans-

parency of our system, such as providing our service

under a third-party certiﬁcation authority to improve

users’ willingness to use FALCO. (2) On the client-

side, a personal ﬁngerprint from the user’s browsing

history is better than a ﬁngerprint from others. We

plan to develop a local ﬁngerprint system in which a

ﬁngerprint can be extracted for each connection from

the user’s browser and detect attacks based on his/her

own local observations. (3) Many dynamic factors

may impact the accuracy of ﬁngerprints such as the

location, browsing time, network environment and the

browser version. Websites continuously send out re-

quests (e.g., website analytic services, websites with

session-replay scripts).

We plan to focus on investi-

gating such dynamic factors to improve the accuracy.

(4) We plan to enhance the website classiﬁcation ap-

proach by websites’ characteristics.

ACKNOWLEDGEMENTS

This research was supported in part by the Ministry

of Science and Technology of Taiwan (MOST 109-

2636-E-002-021).

REFERENCES

Agrawall, A., Chaitanya, K., Agrawal, A. K., and Chop-

pella, V. (2017). Mitigating browser-based ddos at-

tacks using corp. In Proceedings of the 10th Innova-

tions in Software Engineering Conference, pages 137–

146. ACM.

Arshad, S., Kharraz, A., and Robertson, W. (2016). Include

me out: In-browser detection of malicious third-party

content inclusions. In International Conference on Fi-

nancial Cryptography and Data Security, pages 441–

459. Springer.

Chor, B., Goldreich, O., Kushilevitz, E., and Sudan, M.

(1995). Private information retrieval. In Proceedings

of IEEE 36th Annual Foundations of Computer Sci-

ence, pages 41–50.

Cova, M., Kruegel, C., and Vigna, G. (2010). Detection and

analysis of drive-by-download attacks and malicious

javascript code. In Proceedings of the 19th interna-

tional conference on World wide web, pages 281–290.

ACM.

Grossman, J. and Johansen, M. (2013). Million browser

botnet. Black Hat USA.

Huang, L.-S., Weinberg, Z., Evans, C., and Jackson, C.

(2010). Protecting browsers from cross-origin css at-

tacks. In Proceedings of the 17th ACM conference on

Computer and communications security, pages 619–

629. ACM.

Levy, A., Corrigan-Gibbs, H., and Boneh, D. (2016). Stick-

ler: Defending against malicious content distribution

networks in an unmodiﬁed browser. IEEE Security &

Privacy, 14(2):22–28.

https://freedom-to-tinker.com/2017/11/15/no-

boundaries-exﬁltration-of-personal-data-by-session-

replay-scripts/

SECRYPT 2020 - 17th International Conference on Security and Cryptography

190

Li, Z., Zhang, K., Xie, Y., Yu, F., and Wang, X. (2012).

Knowing your enemy: understanding and detecting

malicious web advertising. In Proceedings of the 2012

ACM conference on Computer and communications

security, pages 674–686. ACM.

Marczak, B., Weaver, N., Dalek, J., Ensaﬁ, R., Fiﬁeld, D.,

McKune, S., Rey, A., Scott-Railton, J., Deibert, R.,

and Paxson, V. (2015). China’s great cannon. Citizen

Lab, 10.

Pellegrino, G., Rossow, C., Ryba, F. J., Schmidt, T. C.,

and W

ahlisch, M. (2015). Cashing out the great can-

non? on browser-based ddos attacks and economics.

In WOOT.

Telikicherla, K. C., Choppella, V., and Bezawada, B.

(2014). Corp: a browser policy to mitigate web in-

ﬁltration attacks. In International Conference on In-

formation Systems Security, pages 277–297. Springer.

Thomas, K., Bursztein, E., Grier, C., Ho, G., Jagpal, N.,

Kapravelos, A., McCoy, D., Nappa, A., Paxson, V.,

Pearce, P., et al. (2015). Ad injection at scale: As-

sessing deceptive advertisement modiﬁcations. In Se-

curity and Privacy (SP), 2015 IEEE Symposium on,

pages 151–167. IEEE.

Weichselbaum, L., Spagnuolo, M., Lekies, S., and Janc, A.

(2016). Csp is dead, long live csp! on the insecurity

of whitelists and the future of content security pol-

icy. In Proceedings of the 2016 ACM SIGSAC Con-

ference on Computer and Communications Security,

pages 1376–1387.

FALCO: Detecting Superﬂuous JavaScript Injection Attacks using Website Fingerprints

191
