Verifying the Application of Security Measures in IoT Software Systems

with Model Learning

ebastien Salva and Elliot Blot

LIMOS - UMR CNRS 6158, Clermont Auvergne University, France

Keywords:

Model Learning, Model Checking, Expert System, IoT Software Systems.

Abstract:

Most of today’s software systems log events to record the events that have occurred in the past. Such logs are

particularly useful for auditing security over time. But, the growing sizes and lack of abstraction of the logs

make them difﬁcult to interpret manually. This paper proposes an approach combining model learning and

model checking to help audit the security of IoT software systems. This approach takes as inputs an event

log and generic security measures described with LTL formulas. It generates one formal model for every

component of an IoT system and helps auditors make the security measures concrete in order to check if the

models satisfy them. The LTL formula instantiation is semi-automatically performed by means of an expert

system and inference rules that encode some expert knowledge, which can be applied again to the same kind

of systems with less efforts. We evaluate our approach on 3 IoT systems against 11 security measures provided

by the European ENISA institute.

1 INTRODUCTION

The Internet of Things (IoT) is a broad concept com-

prising a wide ecosystem of interconnected services

and devices, such as sensors, or industrial and health

components, connected to the Internet. As many

kinds of software are involved within the IoT con-

cept, e.g., for data collection, device cooperation, or

real-time analytic, it is not surprising to observe that

IoT systems are vulnerable to a wide range of secu-

rity attacks. After the alarming surge of cyber-attacks

on IoT systems revealed during the few past years,

organisations have started to be aware about the im-

portance of including cyber-security in their IoT solu-

tions. More and more organisations appeal to both

internal and external auditors to check the security

of their IoT-based services and to assess the related

risks. Most of these activities are time-consuming

and sometimes challenging, especially if they are per-

formed from scratch.

Some papers or documents provide guidelines to

establish a security audit process. For instance, the

European ETSI and the U.S. NIST institutes have pro-

posed methods and activities dedicated to undertake

testing and risk assessment activities (NIST, 2018;

ETSI, 2015). Others documents, e.g., the reports

of the European Union Agency for Cybersecurity

(ENISA) (ENISA, 2017), put forward security mea-

sures, good practices, and threats taxonomy. Further-

more, some approaches and tools have been proposed

to automate some steps of an audit process, and par-

ticularly the security testing stage. Some of them

adopt Model-based Testing (MbT) (Ahmad et al.,

2016; Matheu-Garc

ıa et al., 2019), i.e. test cases are

derived from a (formal) model that expresses the be-

haviour of the system. Other passive approaches mon-

itor IoT systems in order to detect the violation of for-

mal properties (Siby et al., 2017). Despite the strong

beneﬁts brought by these approaches, the efforts re-

quired for writing (formal) models usually hamper

their adoptions.

In this paper, we propose a Model-Learning-

Checking solution (shortened MLC) to this problem,

which combines model-learning to generate formal

models of IoT systems and model-checking to evalu-

ate whether security properties hold on these models.

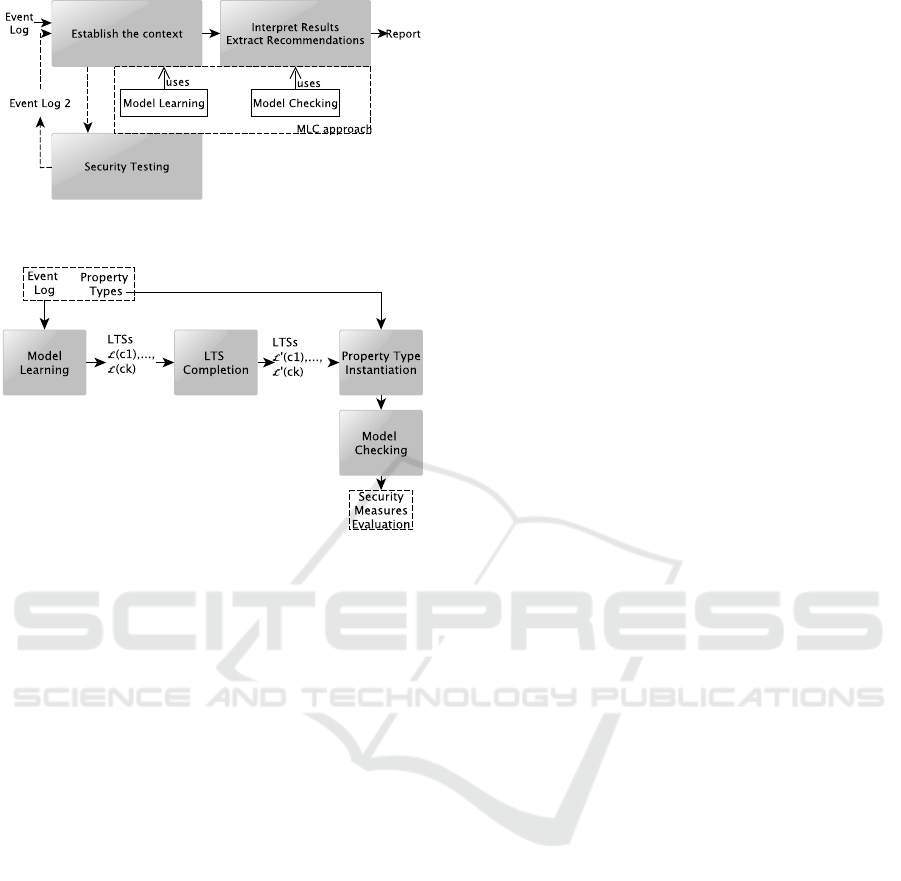

Figure 1(a) illustrates its integration with some secu-

rity audit stages given in the NIST or ETSI security

audit frameworks. The step “Establish the context”,

which is often manually done by interpreting diverse

documents, is partly performed here by means of a

model learning algorithm, which builds, from logs,

behavioural models capturing what happens in the

IoT system. From these models, MbT approaches can

be used to test whether the IoT system is vulnerable.

While testing, more logs may be collected and models

350

Salva, S. and Blot, E.

Verifying the Application of Security Measures in IoT Software Systems with Model Learning.

DOI: 10.5220/0009872103500360

In Proceedings of the 15th Inter national Conference on Software Technologies (ICSOFT 2020), pages 350-360

ISBN: 978-989-758-443-5

(a) Integration of the MLC approach with some classical

audit stages (in grey).

(b) Approach overview.

Figure 1: The MLC approach.

can be re-generated to capture more behaviours. In

the meantime, the models can be analysed to detect

further security issues. Usually, security properties

are expressed with formulas that are evaluated with a

model-checker. These formulas may express different

security aspects, e.g. vulnerabilities. But, as the secu-

rity testing stage may also be used to detect them, we

prefer focusing on formulas expressing whether secu-

rity measures used to protect an IoT system against

threats are correctly implemented. Usually, such for-

mulas need to be adapted for every model so that they

share an alphabet. This activity is known to be difﬁ-

cult and time consuming. To make this activity eas-

ier, our MLC approach helps instantiate formulas by

means of an expert system. In summary, the major

contributions presented in the paper are:

• a Model-Learning-Checking solution to help au-

dit the security of IoT systems. We use the La-

belled Transition System (LTS) to express the be-

haviours of every component of an IoT system.

We express the security measures proposed by

the ENISA institute with LTL formulas composed

of predicates. Our approach veriﬁes whether the

LTSs satisfy these measures and returns coun-

terexamples when issues are detected. The former

may be used to interpret the results and provide

countermeasures;

• a technique to assist auditors in instantiating LTL

formulas with less effort. Intuitively, we make use

of an expert system to help complete LTS transi-

tions by injecting some predicates used to formu-

late the security measures. The expert system au-

tomates the completion, and saves time as the ex-

pert knowledge encoded in its inference rules may

be applied again to the same kind of IoT systems;

• an implementation of our MLC approach for

HTTP devices. We also formulated the ENISA

measures related to communications. These are

used to evaluate our approach on 3 IoT systems.

The paper is organized as follows: Section 2 gives

some preliminaries. Section 3 presents our MLC ap-

proach and its algorithms. The next section sum-

marises the results of experiments used to evaluate

the sensitivity and speciﬁcity of the MLC approach.

We discuss related work in Section 5. Section 6 sum-

marises our contributions and draws some perspec-

tives for future work.

2 BACKGROUND

2.1 The ENISA Security Measures

Several papers propose lists of recommendations to

improve security (Zhang et al., 2015; Khan and Salah,

2018; OWASP, 2003). Among them, the ENISA or-

ganisation issued several documents exposing guide-

lines and security measures to implement secure IoT

software systems with regard to different contexts

(smart plants, hospitals, clouds, etc.). The security

measures come from several other documents writ-

ten by different organisations or institutes, e.g., ISO,

IETF, NIST, ENISA or Microsoft. We have chosen

to focus on the paper related to security baselines

in the context of critical information infrastructures

(ENISA, 2017). This document gathers 57 security

technical measures that should be implemented and

valid on IoT systems along with the threats that are

addressed. The security measures cover a wide range

of security considerations, such as security by design,

data protection, risk analysis, etc.

2.2 The LTS Model and the Linear

Temporal Logic

We consider the LTS to model the behaviours of every

component of an IoT system. This model is deﬁned in

terms of states and transitions labelled by label sets,

which express what happens.

Verifying the Application of Security Measures in IoT Software Systems with Model Learning

351

Deﬁnition 1 (LTS.) A Labelled Transition System

(LTS) is a 4-tuple hQ, q0, L, →i where:

• Q is a ﬁnite set of states; q0 is the initial state;

• L is a ﬁnite set of labels,

• →⊆ Q × (P(L) \ {

0}) × Q is a ﬁnite set of tran-

sitions (where P(L) denotes the powerset of L. A

transition (q, L

, q

) is also denoted q

−→ q

An execution trace is a ﬁnite sequence of sets of la-

bels. ε denotes the empty sequence.

Furthermore, we express security properties with

LTL formulas, which concisely formalise them with

the help of a small number of special logical opera-

tors and temporal operators (Holzmann, 2011). Given

a set of atomic propositions AP and p ∈ AP, LTL for-

mulas are constructed by using the following gram-

mar φ ::= p | (φ) | ¬φ | φ ∨φ | Xφ | φUφ. Additionally,

a LTL formula can be constructed with the following

operators, each of which is deﬁned in terms of the

previous ones: >

de f

= p ∨ ¬p, ⊥

de f

= ¬>, φ

∧ φ

de f

¬(¬φ1 ∨ ¬φ

), Fφ

de f

= >Uφ, Gφ

de f

= ¬F(¬φ).

3 THE MLC APPROACH

We present in this section our Model-Learning-

Checking (MLC) approach, which aims at helping

audit an IoT system, denoted SUA. It takes as in-

puts an event log and generic LTL formulas com-

posed of predicates. Following the terminology used

in (Beschastnikh et al., 2015), we call these formulas

property types. These are generic properties having a

pattern-level form, which have to be instantiated be-

fore being evaluated.

Figure 1(b) illustrates the successive steps of the

MLC approach. It starts by learning models from an

event log. For every component c1 of SUA, it gener-

ates one LTS L(c1) expressing the behaviours of c1

along with one dependency graph Dg(c1) expressing

how c1 interacts with the other components of SUA.

Both help understand the architecture of SUA and its

general functioning.

The two next steps, which use these models, help

auditors verify whether every LTS satisﬁes the prop-

erty types. As these are generic, the LTSs and prop-

erty types do not share the same alphabet. There-

fore, the auditor should re-formulate all the property

types for every LTS. Instead, our approach tries to

ease this task as follows. Given a LTS L (c1), the

step “LTS Completion” extends the LTS semantics; it

analyses the LTS paths and injects new labels on tran-

sitions. These labels correspond to some predicates

of the property types whose variables are assigned to

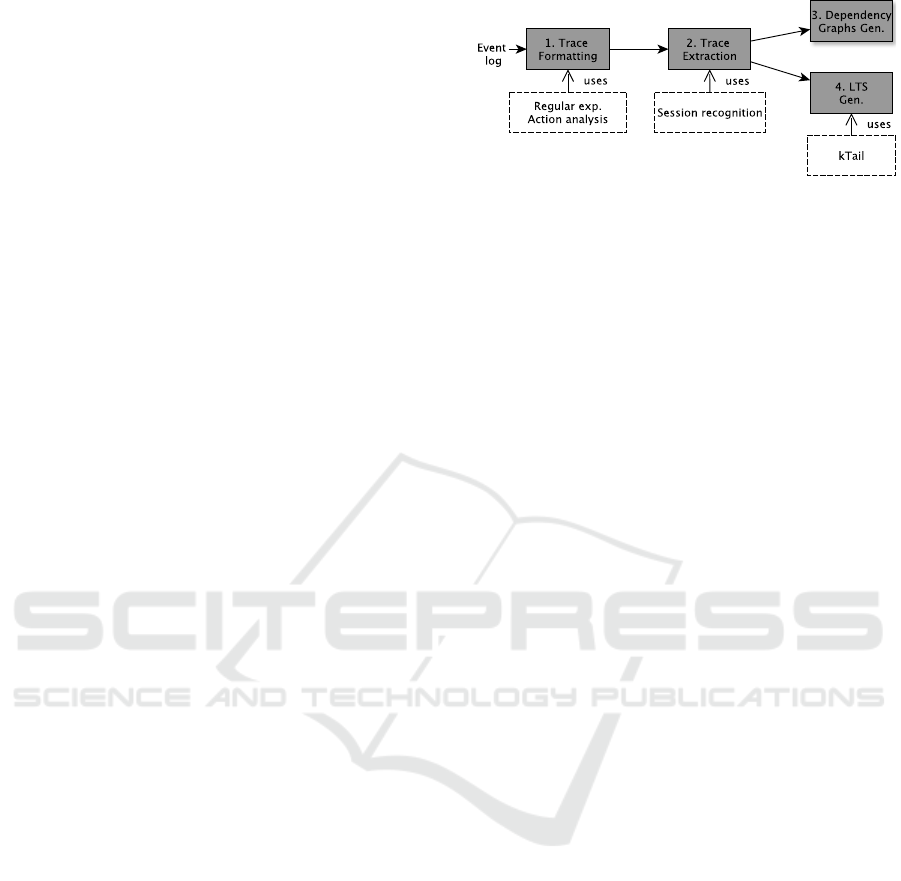

Figure 2: Model learning with the CkTail approach.

concrete values. The step automates the label injec-

tion by using an expert system made up of inference

rules, which encode some expert knowledge about the

kind of system under audit. The step produces a new

LTS L

(c1). The next step “Property type instantia-

tion” covers every new LTS and automatically instan-

tiates the property types by means of the labels added

in the previous step. This step returns a set of LTL

formulas P(L

(c1)) exclusively written with atomic

propositions. We call them property instances. The

ﬁnal step calls a model-checker to check whether the

LTS L

(c1) satisﬁes the LTL formula of P(L

(c1)).

These steps are now detailed in the following and

illustrated with an example.

3.1 Model Generation

We proposed a model learning approach called Com-

municating system kTail, shortened CkTail, to au-

tomatically learn models of communicating systems

from event logs. We summarise in this section the

functioning of CkTail, but we refer to (Salva and Blot,

2020a) for the technical details. The CkTail’s algo-

rithms rely on some assumptions, which are given be-

low:

• A1 Event Log: we consider the components of

SUA as black-boxes. We assume that each device,

server, or gateway is physically secured and that

we only have access to the network and user inter-

faces. Event logs are collected in a synchronous

environment. Furthermore, the messages include

timestamps given by a global clock for ordering

them. We consider having one event log;

• A2 Message Content: components produce mes-

sages that include parameter assignments allow-

ing to identify the source and the destination of

the message. Other parameter assignments may

be used to encode data. Besides, a message is ei-

ther identiﬁed as a request or a response.

• A3 Device Collaboration: components can run

in parallel and communicate with each other. The

components of SUA follow this strict behaviour:

they cannot run multiple instances; requests are

ICSOFT 2020 - 15th International Conference on Software Technologies

352

processed by a component on a ﬁrst-come, ﬁrst

served basis. Besides, every response is associ-

ated to the last request w.r.t. the request-response

exchange pattern.

The assumption A3 helps extract sessions of the sys-

tem in event logs, i.e. a temporary message inter-

change among components forming a behaviour of

the whole system from one of its initial states to one

of its ﬁnal states. Usually, the use of session identi-

ﬁcation strongly facilitates the trace extraction. Un-

fortunately, we have observed that this technique is

seldom used with IoT systems.

Figure 2 illustrates the 4 steps of CkTail. The

event log is ﬁrstly formatted with tools or regular ex-

pressions into a sequence of events of the form a(α)

with a a label and α some parameter assignments.

In reference to A1, A2, an event a(α) indicates the

sources and destinations of the messages with two pa-

rameters f rom and to. The other parameter assign-

ments may capture acknowledgements or sensor data.

P denotes the parameter assignment set. Figure 3 il-

lustrates a simple example of event sequence obtained

after its ﬁrst step. For simplicity, the labels directly

show whether an event encodes either a request or a

response.

The second step “Trace Extraction” segments the

event sequence with an algorithm that tries to recog-

nise sessions by means of the previous assumptions.

In the meantime, this algorithm detects dependen-

cies among the components of SUA. We have de-

ﬁned the notion of component dependency by means

of three expressions formulating when a component

relies on another one. Intuitively, the two ﬁrst expres-

sions illustrate that a component c

depends on an-

other component c

when c

queries c

with a request

or by means of successive nested requests of the form

req1( f rom := c

, to := c)req2( f rom := c, to := c

The last expression deals with data dependency. We

say that c

depends on c

if c

has sent an event

(α

) with some data, if there is a unique chain of

events a

(α

). . . a

(α

) from c

sharing this data and

if a

(α

) is a request whose destination is c

The third step “Dependency graph Generation”

builds one dependency graph Dg(c

) for every compo-

nent c

∈ C of SUA. These show in a simple way how

the components interact together or help identify cen-

tral components that might have a strong negative im-

pact on SUA when they integrate faults or are vulnera-

ble to security attacks. Figure 3 illustrates the models

generated by CkTail from the event sequence. CkTail

detects that SUA is made up of three components and

builds three dependency graphs. For instance, as the

event sequence includes a request from the compo-

nent c1 to c2, CkTail builds a dependency graph for

c1 showing that c1 depends on c2.

The last step “LTS Generation” of CkTail builds

one LTS, denoted L(c

) for every component c

par-

ticipating in the communications of SUA. The LTS

are reduced by calling the kTail algorithm (Biermann

and Feldman, 1972), which merges the (equivalent)

states having the same k-future, i.e. the same event

sequences having the maximum length k. Figure 3

illustrates the 3 LTSs generated from the event se-

quence used in this example. The LTS transitions are

labelled by sets composed of one event of the form

a(α), which is either an input or an output. For in-

stance the event Req3(from:=c2to:=c3, switch:=on)

in the initial event sequence, has been doubled with

an output !Req3 and an input ?Req3. The former is

labelled on the transition q

→ q

of the LTS L(c2)

to express that an output !Req3 is sent by the compo-

nent c2; the latter is labelled on the transition q

→ q

of L(c3) to express that c3 expects to receive the in-

put ?Req3.

3.2 Property Type

A property type formulates a general feature that is in-

dependent of the type of system under audit. A prop-

erty type is a specialised LTL formula that captures

the temporal relationships between predicates. A

predicate is either an expression of one or more vari-

ables deﬁned on some speciﬁc domains, or nullary

predicate, that is, an atomic proposition.

Deﬁnition 2 (Property Type.)

• Pred denotes a set of predicates of the form p

(nullary predicate) or p(x

, . . . , x

) with x

, . . . , x

some variables that belong to the set X;

• The domain of a predicate variable x ∈ X is de-

noted Dom(x);

• A property type Φ is a LTL formula built up from

predicates in Pred. P denotes the set of property

types.

As property types are composed of predicates, they

should be instantiated before being given to a model-

checker. The instantiation of a property type is called

a property instance. It has the same LTL structure as

its property type, but the predicate variables are as-

signed to values to form propositions.

Deﬁnition 3 (Property Instance.) A property in-

stance φ of the property type Φ is a LTL formula

resulting from the instantiation of the predicates of

Φ.

Verifying the Application of Security Measures in IoT Software Systems with Model Learning

353

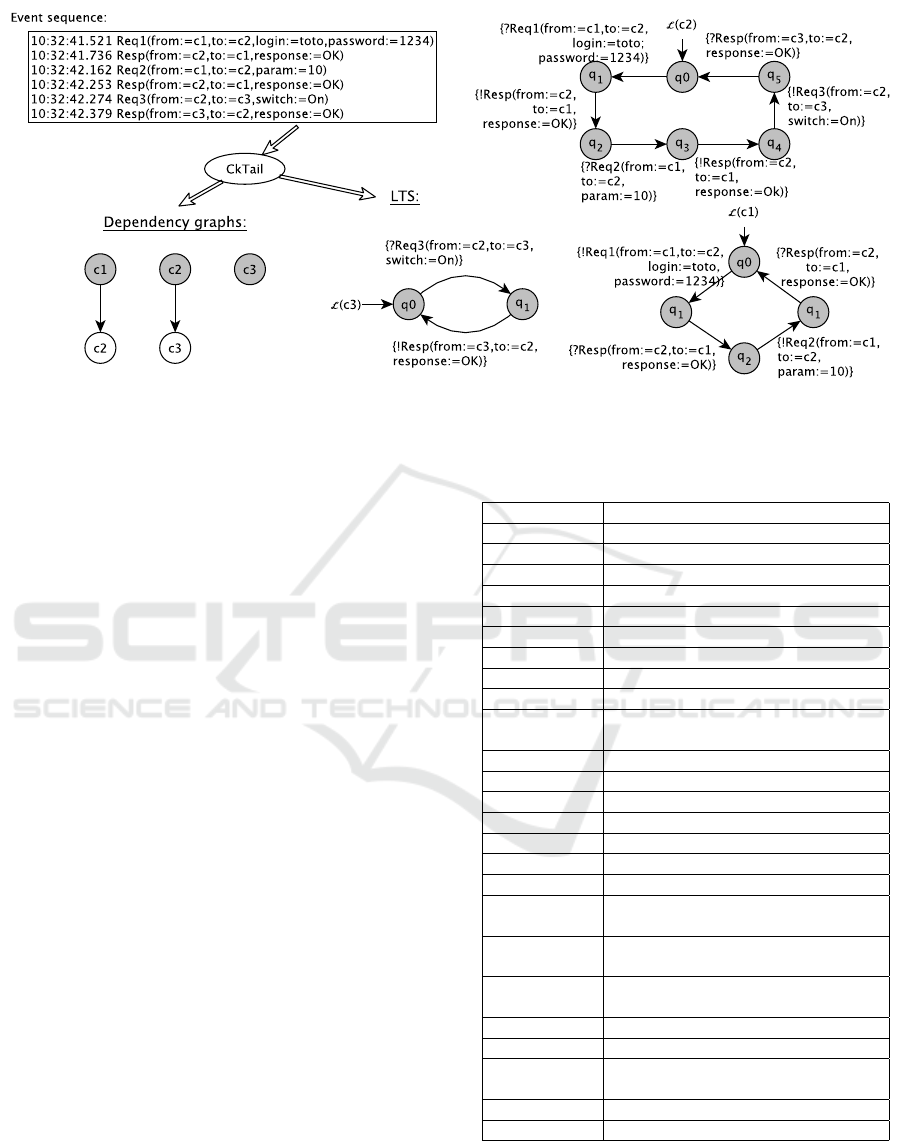

Figure 3: Example of model generation with CkTail.

The function that instantiates a property type to

one property instance, i.e. which associates each vari-

able of the predicates to a value, is called a binding:

Deﬁnition 4 (Property Binding.) Let X

be a ﬁnite

set of variables {x

, . . . , x

} ⊆ X. A binding is a func-

tion b : X

→ Dom(X

), with Dom(X

) = Dom(x

) ×

·· · × Dom(x

We recommend writing property types by ﬁrstly

formulating general security concepts with predi-

cates, and by applying or composing the LTL pat-

terns given in (Dwyer et al., 1999) on those pred-

icates. These patterns help structure LTL formulas

with precise and correct statements that model com-

mon situations, e.g., the absence of events, or cause-

effect relationships.

As the LTSs generated by CkTail express commu-

nications among the components of SUA, we formu-

lated the 11 security measures provided by the ENISA

organisation related to communications, which cover

the following domains: Authentication, Privacy, Se-

cure and Trusted Communications, Access Control,

Secure Interfaces and Network Services, Secure In-

put and Output Handling, Trust and Integrity Manage-

ment. Due to lack of room, these are given in (Salva

and Blot, 2020b). We deﬁned the unary and nullary

predicates given in Table 1. All the unary predicates

have variables that can be assigned to values in C ∪ P

with C the component set of SUA and P the parameter

assignments given in the messages.

For instance, the ENISA measure GP-TM-24 rec-

ommends encrypting authentication credentials. This

measure is formulated as: G((loginAttempt(c) ∧

credential(x)) → encrypted(x)), which intuitively

means that every time a component attempts to log in

Table 1: Predicates deﬁned from the 11 ENISA measures

related to communications.

Predicate Short Description

begin beginning of a new session

end end of a session

f rom(c) message came from c

to(c) message sent to c

Request message is a request

Response message is a response

input message is an input

out put message is an output

getUpdate(x) response including an update ﬁle

cmdSearch-

Update

the component received the order to search for

an update

sensitive(x) data x includes sensitive data

credential(x) data x includes credentials

encrypted(x) data x is encrypted

searchU pdate component request for an update

loginAttempt(c) authentication attempt with c

authenticated(c) successful authentication with c

loginFail(c) failed authentication with c

lockout(c) c is locked due to repetitive authentication fail-

ures

password-

Recovery

component uses a password recovery mecha-

nism

blackListed-

Word

message includes black listed words

validResponse correct response with correct status

errorResponse response containing an error message

Unavailable component that received the request is unavail-

able

XSS(x) data x includes an XSS attack

SQLin jection(x) data x includes an SQL injection attack

to another component c by using credentials x, x must

be encrypted. The measure GP-TM-53, which sug-

gests that error messages must not expose sensitive

information, can be written with G((errorResponse ∨

ICSOFT 2020 - 15th International Conference on Software Technologies

354

¬validResponse) → (¬(blackListedWord). This for-

mula intuitively means that every HTTP response

composed of an error message or having a status

higher than 299 must not include blacklisted words. If

we apply the binding {c → c1, x → login := toto} on

the ﬁrst property type, we obtain the property instance

G((loginAttempt(c1) ∧credential(login := toto)) →

encrypted(login := toto)).

3.3 LTS Completion

As stated previously, our approach aims at checking

whether a LTS L(c1) describing the behaviours of a

component c1 of SUA satisﬁes property types. This

activity is relevant on condition that the LTS alphabet

shares some predicates of the property types. At the

beginning of this step, this requirement is not met as

our property types are generic. This step helps audi-

tors complete LTSs by injecting some predicates of

Pred on LTS transitions. As a LTS encodes concrete

behaviours, this step actually adds instantiated pred-

icates or propositions, i.e. predicates of Pred whose

variables are assigned to concrete values found in the

LTS events. Injecting propositions comes down to

analysing/interpreting LTS transitions or paths and to

add propositions on transitions to extend the LTS se-

mantics. Our approach uses an expert system, made

up of inference rules, to automate the proposition in-

jection and to save time by allowing to reuse the rules

on several IoT systems.

We represent inference rules with this format:

When conditions on facts Then actions on facts (for-

mat taken by the Drools inference engine (”Red-Hat-

Software”, 2020)). The facts, which belong to the

knowledge base of the expert system, are here the

transitions of →

L(c1)

. To ensure that the transition

completion is performed in a ﬁnite time and in a de-

terministic way, the inference rules have to meet these

hypotheses:

• (ﬁnite complexity:) a rule can only be applied a

limited number of times on the same knowledge

base,

• (soundness:) the inference rules are Modus Po-

nens (simple implications that lead to sound facts

if the original facts are true).

We devised 28 inference rules, which are available in

(Salva and Blot, 2020b). These can be categorised has

follows:

• Structural information: two rules are used to add

the propositions “begin” and “end”, which de-

scribe the beginning and end of sessions in LTS

paths;

rule "validResponse"

when

$t : Transition(isReq() == false,

isOk())

then

$t.addLabel("validResponse");

end

rule "authentication"

when

$t1: Transition(isRequest(), contains("

$t2: Transition(isResponse(),isOK(),

sourceState = $t1.targetState)

then

$t1.addLabel("loginAttempt("+

compoSender($t1) + ")");

$t2.addLabel("authenticated("+

compoSender($t1) + ")");

end

Figure 4: Inference rule examples.

• Nature of the events: 9 rules add information

about the nature of the events of L(c1). Given a

transition q

{a(α)}

−−−−→ q

, some rules analyse the pa-

rameter assignments in α and complete the transi-

tion with new propositions expressing that a(α)

is a request or a response, an input or an out-

put, the component which sent a(α), etc. Other

rules analyse α to interpret if the message is an

error response (analysis of the values in α to de-

tect words like “error” or analysis of HTTP status,

etc. ). The ﬁrst rule of Figure 4 adds the proposi-

tion validResponse if the transition is a response

whose HTTP status is between 200 and 299. The

status control is performed by the method isOk();

• Security information: the other rules add infor-

mation related to security on LTS transitions. For

instance, we devised a rule that checks whether

the message content is encrypted. Other rules

analyse the LTS paths to try recognise speciﬁc

patterns (transition sequences containing speciﬁc

words), e.g., authentication attempts, successful

or failed authentications. Intuitively, these rules

try to detect these patterns in the LTS paths. For

instance, the second rule of Figure 4 detects a cor-

rect authentication. It adds the proposition “logi-

nAttempt(c)” on the transition labelled by the cre-

dentials and “authenticated(c)” on the transition

whose event encodes a correct authentication with

the external component c.

Once the expert system has completed the LTS

L(c1), we obtain a new LTS denoted L

(c1). Now,

the auditors have to inspect L

(c1) to assess the cor-

Verifying the Application of Security Measures in IoT Software Systems with Model Learning

355

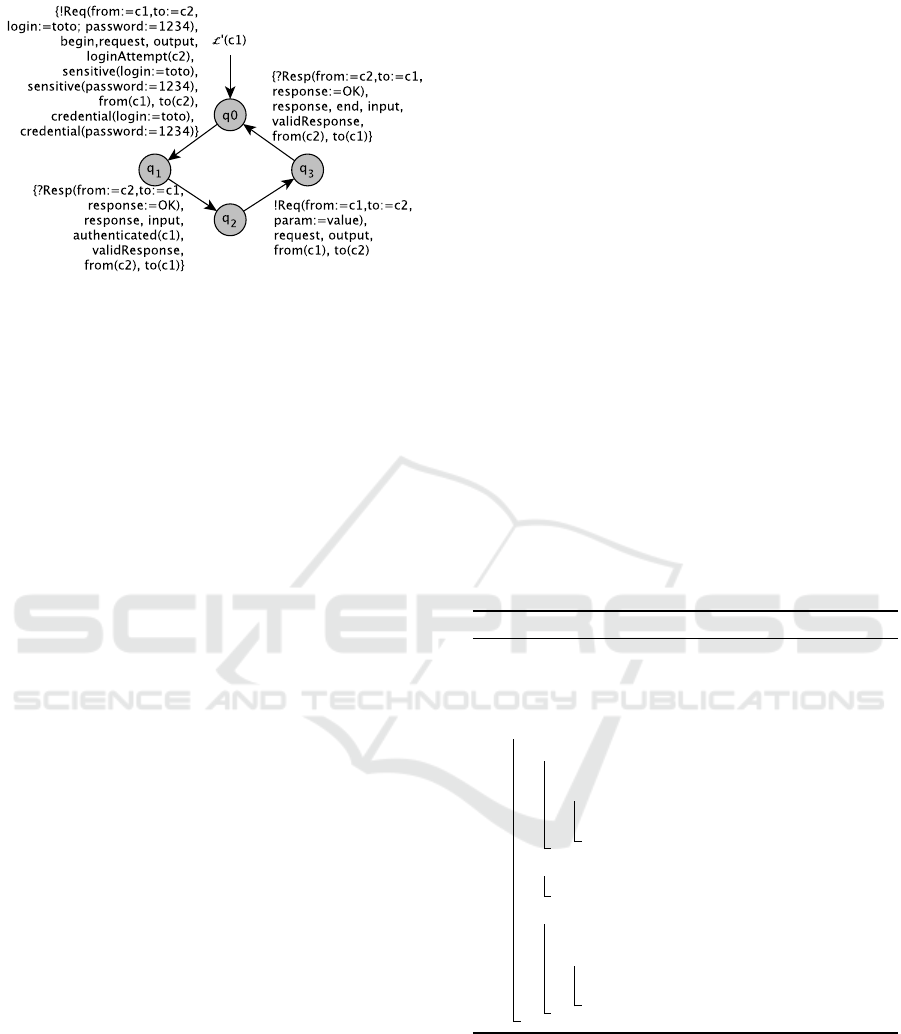

Figure 5: Example of LTS completion. New propositions

(begin, end, credential, sensitive, validResponse, etc.) are

injected on transitions.

rectness of the LTS completion. On the one hand,

some propositions may be missing on account of

missing or incomplete rules. To help detect the miss-

ing propositions, this step returns the predicates of

Pred that are not used for every LTS completion. On

the other hand, some propositions might be wrong on

account of misinterpretations, e.g., an incorrect recog-

nition that messages are encrypted.

Figure 5 illustrates the LTS L

(c1) completed by

this step from the LTS L(c1) of Figure 3. The transi-

tions of L

(c1) are still labelled by the events of the

original LTS, but several new propositions are avail-

able. For instance, the expert system has detected in

the transition q

→ q

that login and password are

sensitive data, used as credentials.

3.4 Property Type Instantiation

Given a LTS L

(c1), this step aims at instantiating

the property types of P to obtain a set of property in-

stances that can be evaluated on the paths of L

(c1).

We denote P(L

(c1)) this set of property instances.

Intuitively, a property type Φ is instantiated with bind-

ings, which assign values to all of its predicate vari-

ables. We compute these bindings from the values of

the instantiated predicates added by the expert system

previously.

This step is implemented by Algorithm 1, which

takes as inputs a LTS L

(c1), the property type set

P and returns P(L

(c1)). The algorithms starts by

building the special domain Dom(deps), which gath-

ers the dependent components of c1. This domain is

computed by covering the dependency graph Dg(c1)

of c1. The special variable deps is used with some

property types encoding the notion of dependency

among components. Then, Algorithm 1 instantiates

every property Φ of P one after another. It cov-

ers each label of the transitions q

−→ q

of L

(c1)

(lines 4-7). If a label P(v

, . . . , v

) corresponds to an

instantiation of a predicate P(x

, . . . , x

) used in Φ,

then the values assigned to the variables x

, . . . , x

are added to the sets Dom(x

), . . . , Dom(x

). The

variables x

, . . . x

are added to a variable set X

which gathers the variables that are assigned to val-

ues. Once all the labels are covered, the algorithm

checks whether all the predicate variables of Φ can be

assigned to values (line 8). If this is false, a warn-

ing explaining that Φ cannot be instantiated is re-

turned. This kind of warning is used to once more

help auditors control that there is no missing instan-

tiated predicate. Otherwise, the algorithm computes

all the possible bindings of D

with D the Cartesian

product D = Dom(x

) × ··· × Dom(x

). And it repet-

itively instantiates Φ for each binding of D

to pro-

duce the property instance φ, which is ﬁnally added to

P(L

(c1)).

Let ’s illustrate this step with the LTS L

(c1) of

Figure 5 and the property type G((loginAttempt(c) ∧

credential(x)) → encrypted(x)) derived from the

ENISA measure GP-TM-24. By covering the labels

of L

(c1), we obtain Dom(c) = {c2} and Dom(x) =

{login := toto, password := 1234}. Two bindings

can be constructed along with two property instances.

Algorithm 1: Property Type Instantiation.

input : LTS L

(c1), property type set P

output: Property instance set P(L

(c1))

1 Compute Dom(deps) from Dg(c1);

2 X

3 foreach Φ ∈ P do

4 foreach l ∈ L with s

−→ s

∈→

(c1)

5 if l = P(v

, . . . , v

) and P(x

, . . . , x

) is a predicate of Φ

then

6 Dom(x

) = Dom(x

) ∪ {v

}(1 ≤ i ≤ k);

7 X

:= X

∪ {x

, . . . , x

};

8 if X

is not equal to the set of predicate variables of Φ then

9 return a warning;

10 else

11 D := Dom(x

) × · ·· × Dom(x

) with X

= {x

, . . . , x

};

12 foreach binding b ∈ D

13 φ := b(Φ);

14 P(L

(c1)) = P(L

(c1)) ∪ {φ};

3.5 Property Instance Veriﬁcation

Given a LTS L

(c1), and a property instance set

P(L

(c1)), the last step calls a model-checker to

check whether L

(c1) satisﬁes the property instances

of P(L

(c1)). If the model-checker ﬁnds a coun-

terexample path that violates a property instance φ,

our approach reports to the user that the related se-

ICSOFT 2020 - 15th International Conference on Software Technologies

356

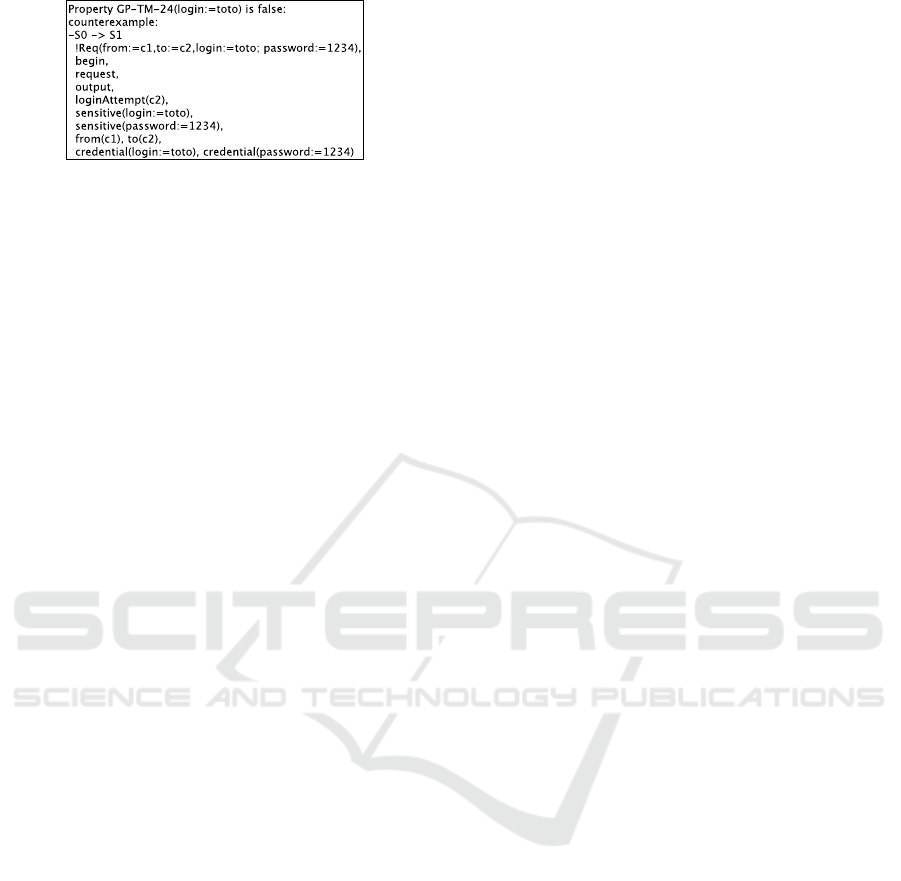

Figure 6: Example of results with the ENISA measure GP-

TM-24. The LTS does not satisfy a property instance related

to GP-TM-24 because the login is not encrypted.

curity measure is not valid. The counterexample is

also returned as it may be analysed to elaborate rec-

ommended actions. A counterexample is particularly

useful when a security measure was incorrectly ap-

plied during the development of the IoT system. The

counterexample should help understand why a com-

ponent c1 does not meet the measure and should help

localise a problem in the LTS L

(c1).

Figure 6 shows a example of result returned by

the model-checker NuSMV (Cimatti et al., 2002) af-

ter having evaluated if the LTS L

(c1) satisﬁes the a

property instance related to the ENISA measure GP-

TM-24. The interpretation of the counter-example

helps deduce that the login should have been en-

crypted. Such counter-examples may be used to de-

velop an audit report, which should include recom-

mendations or treatments to security issues.

4 PRELIMINARY EVALUATION

Our approach is implemented as a tool chain, which

gathers the model learning tool CkTail, and a tool

called SMVmaker, which completes LTSs by means

of an expert system, instantiates property types and

calls the NuSMV model-checker. The tools, examples

of property types and traces are available in (Salva

and Blot, 2020b). With this implementation, we con-

ducted some experiments on three use-cases of IoT

systems in order to evaluate the sensitivity and the

speciﬁcity of our MLC approach, that is its capability

to uncover active security measures that are correctly

implemented in an IoT system, and to identify secu-

rity measures that are not considered or incorrectly

implemented.

Setup: the three use-cases are based on devices, gate-

ways and external cloud servers communicating over

HTTP. We provide below some details about these

systems:

• UC1 is composed of 3 motion sensors that turn on

a light-bulb when they detect movements. They

communicate through a gateway; all of them have

user interfaces, which may be used for conﬁgura-

tion. The main purpose of this use-case is to focus

on classical attacks (code injection, brute force,

availability) and on the related security measures;

• UC2 includes a motion sensor, a switch and a

camera. The motion sensor communicates with

the switch in clear-text, and with the camera with

encrypted messages. The camera also commu-

nicates with external clouds requiring authentica-

tion and encryption. In this use-case, we mainly

focus on vulnerabilities and security measures re-

lated to encryption and authentication;

• UC3 is composed of 3 cameras, which commu-

nicate with external cloud servers. Two cameras

can check for updates and install them. This use-

case aims at focusing on vulnerabilities and secu-

rity measures related to the update mechanisms.

For every use-case, we collected a ﬁrst log that in-

cludes traces of ”normal behaviours” and generated

ﬁrst models with CkTail. We identiﬁed the testable

components, on which we applied a set of penetra-

tion testing tools. During this testing stage, we col-

lected a second larger log. Testing was only possi-

ble on the components of UC1. We manually anal-

ysed the source code of the software (when avail-

able) and the logs to list the ENISA security mea-

sures that have been implemented and those that are

not applied. Then, we generated LTSs along with

dependency graphs. We used the 11 property types

formulating the security measures provided by the

ENISA organisation related to communications. We

called SMVmaker to generate property instances and

NuSMV to check whether these property instances

hold on LTSs.

Results: Table 2 summarises the experiment re-

sults. Col. 2,3 show for every use-case the num-

ber of known components and the number of gener-

ated LTSs. The difference # LTSs - # components

gives the number of unknown external components,

i.e. cloud servers with our use-cases. The remaining

columns give the results obtained for the known com-

ponents only because we can only give the sensitiv-

ity and speciﬁcity of these components by comparing

the results given by our tool chain with our observa-

tions. Col. 6,7 give the number of property types

that have been instantiated and the instance number.

Col.8 shows the number of measures that are not cor-

rectly implemented. The two last columns provide the

sensitivity (rate of satisﬁed property instances that are

correctly evaluated) and the speciﬁcity (rate of unsat-

isﬁed property instances that are correctly evaluated).

With Table 2 (col. 3,4), we can ﬁrstly observe that

the models along with the property instance sets are

large. This conﬁrms that manually analysing the se-

curity of real IoT systems and writing LTL formu-

Verifying the Application of Security Measures in IoT Software Systems with Model Learning

357

Table 2: Experiment results: col. 8,9 give the sensitivity and speciﬁcity of our approach on 3 use-cases.

IoT

syst.

# compo-

nents

# LTSs # states # transi-

tions

# property type

instantiated/to-

tal

# property

instances

# detected

issues

Sensitivity Speciﬁcity

UC1 5 5 1332 1553 38/55 402 17 99.5% 99.1%

UC2 3 8 1416 2174 14/33 31 3 100% 88.9%

UC3 3 11 168 853 15/33 32 4 100% 92.8%

las is difﬁcult. None of these use-cases allows us

to instantiate all the property types. This result was

expected here as the components do not implement

all the security features captured by the predicates of

Pred, e.g., password recovery for UC1, or authenti-

cation for some components of UC2, UC3. We also

observed that a few property types were not instanti-

ated on account of the lack of precision of some rules

of the expert system. For instance, we observed that

the rule dedicated to recognise encrypted messages

does not always return correct results. At the mo-

ment, the rule computes the message entropy to de-

cide if it is encrypted or not. Unfortunately, the en-

tropy is not precise enough, but we didn’t ﬁnd any

better solution in the literature. SMVmaker warns

the user when some predicates of Pred are not used

or when some property types are not instantiated.

As stated in Section 3, he or she still has to check

if this is on account of wrong/missing LTS comple-

tions or of missing security features not implemented

in the components. The overall sensitivity is 99,6%

and the speciﬁcity is 98.7%. These results tend to

show that our MLC approach is effective to help au-

ditors check if security measures are implemented.

The results are especially relevant on UC1, which is

the only system experimented with penetration test-

ing tools. Indeed, the latter indirectly increased the

log ﬁle size, the models and the property instance

number. On these 3 use-cases, we obtain few false

positives or negatives though. After inspection of the

LTSs, we observed that all of them come from under-

approximations (rejection of valid behaviours) in the

models. At the moment, none of the passive model

learning tool generates exact models, they usually are

under- or over-approximated (acceptance of invalid

behaviours). We showed in (Salva and Blot, 2020a)

that CkTail is one the most effective approach for gen-

erating models of communicating systems, but here

under-approximation leads to less than 2% of incor-

rect results anyway.

5 RELATED WORK

5.1 Model Learning

Some model learning approaches, which infer mod-

els of communicating systems, have been proposed

in the literature. In the ﬁeld of active learning, these

papers (Petrenko and Avellaneda, 2019; Groz et al.,

2008) present algorithms that recover models through

active testing. This kind of active technique implies

that the system is testable and can be queried. In

(Groz et al., 2008), the learning of the models is done

in isolation. This constraint is lifted in (Petrenko and

Avellaneda, 2019) by testing a system with unknown

components by means of a SAT solving method. An

active learning approach specialised to IoT protocols

has also been proposed in (Tappler et al., 2017). It re-

quires several implementations to perform a compar-

ison of several models, which allows the detection of

potential bugs. In contrast, our approach is passive,

and learns models from logs. The requirements are

hence quite different than those used in these papers.

As stated previously, we have proposed the model

learning approach CkTail in (Salva and Blot, 2020a).

The ﬁrst step of the MLC approach uses CkTail to

generate models. The two next steps, which cor-

respond to the main contribution of this paper, as-

sist auditors instantiate property types with an ex-

pert system and verify whether the LTSs satisfy prop-

erty instances. We presented a comparison of CkTail

with most of the passive model learning techniques of

communicating systems (Mariani and Pastore, 2008;

Beschastnikh et al., 2014; Salva and Blot, 2019) in

(Salva and Blot, 2020a). In summary, we showed

that CkTail builds more precise models thanks to its

trace segmentation algorithm. Besides, compared to

CSight, CkTail requires less constraints (CSight re-

quires speciﬁc trace sets, which are segmented with

one subset by component, the components have to be

known in advance, etc.). Furthermore, CkTail is the

only approach among these ones that detects compo-

nent dependencies and expresses them with DAGs.

The latter are used in our MLC approach to instan-

tiate LTL formula.

ICSOFT 2020 - 15th International Conference on Software Technologies

358

5.2 IoT Audit

A plethora of surveys or papers have exposed the op-

portunities, challenges, requirements, threats or vul-

nerabilities involved in the IoT security. Among

them, several approaches have been proposed to au-

dit IoT systems. Some papers (Nadir et al., 2019;

Lally and Sgandurra, 2018) propose to audit devices

with check lists or threats models, which have been

devised or extended from the recommendations pro-

posed by the OWASP organisation (OWASP, 2003).

Other works focus on the audit of IoT device by de-

crypting the trafﬁc sent via TLS (Wilson et al., 2017)

so that TLS trafﬁc can be veriﬁed without compro-

mising future trafﬁc. This king of technique could be

used prior our MLC approach to obtain readable logs.

Many approaches rely on models to analyse the

security of IoT systems. In (Ge et al., 2017), secu-

rity models are devised from data collected from an

IoT system. A security analysis is then performed

to ﬁnd potential attack scenarios, evaluate security

metrics and assess the effectiveness of different de-

fense strategies. Other works introduce MbT secu-

rity testing methods. Some of them are said to be ac-

tive, i.e. test cases are generated by hands or from a

given speciﬁcation, and are later used to experiment

IoT systems (Gutirrez-Madro ˜nal et al., 2019; Ahmad

et al., 2016; Tappler et al., 2017; Matheu Garcia

et al., 2019). Others are called passive, i.e. they are

based upon monitoring tools, which security issues by

checking rule satisﬁability in the the long run (Siby

et al., 2017; Chaabouni et al., 2019; Maksymyuk

et al., 2017). The tool IoTSAT (Mohsin et al., 2016)

is a SMT based framework, which helps analyse the

security of IoT systems. IoTSAT models the device-

level interactions as in our approach, but also policy-

level behaviours and network-level dependencies. In

comparison to our MLC approach, the works (Ge

et al., 2017; Matheu Garcia et al., 2019) go further

in the risk assessment by proposing the evaluation of

metrics. IoTSAT also goes further in the modelling of

the IoT system environment. But all of them require

models or formal properties, which need to be man-

ually devised. Most of the active testing technique

could complement our MLC approach to get mode

logs, as illustrated in Figure 1(a).

6 CONCLUSION

We have proposed an approach combining model

learning and model checking to help audit the security

of IoT systems. Security properties are modelled with

generic LTL formulas called property types. This ap-

proach assists auditors in the instantiation of these

property types by means of an expert system made up

of inference rules, which encode some expert knowl-

edge about the kind of system under audit.

As future work, we ﬁrstly plan to evaluate our

MLC approach on further kinds of communicating

systems, e.g., web services. We observed that the use

of an expert system offers a great potential for instan-

tiating property types. However, this beneﬁt strongly

depends on the successful implementation of the ex-

pert system rules. We indeed observed in the expe-

rimentations that few property types were not com-

pletely instantiated on account of the lack of precision

of some rules. This is why the property type instan-

tiation and LTS completion steps are performed in a

semi-automatic manner to allow the detection of po-

tential issues. We will investigate how to alleviate the

need of this manual inspection. A ﬁrst direction is to

complete the approach with a preliminary step allow-

ing to evaluate or test the expert system rules. An-

other direction is to study if restrictions on the prop-

erty formulation could make the rule deﬁnition easier

and make the property instantiation automatic.

REFERENCES

Ahmad, A., Bouquet, F., Fourneret, E., Le Gall, F., and Leg-

eard, B. (2016). Model-based testing as a service for

iot platforms. In Margaria, T. and Steffen, B., editors,

Leveraging Applications of Formal Methods, Veriﬁca-

tion and Validation: Discussion, Dissemination, Ap-

plications, pages 727–742, Cham. Springer Interna-

tional Publishing.

Beschastnikh, I., Brun, Y., Abrahamson, J., Ernst, M. D.,

and Krishnamurthy, A. (2015). Using declarative

speciﬁcation to improve the understanding, exten-

sibility, and comparison of model-inference algo-

rithms. IEEE Transactions on Software Engineering,

41(4):408–428.

Beschastnikh, I., Brun, Y., Ernst, M. D., and Krishna-

murthy, A. (2014). Inferring models of concurrent

systems from logs of their behavior with csight. In

Proceedings of the 36th International Conference on

Software Engineering, ICSE 2014, pages 468–479,

New York, NY, USA. ACM.

Biermann, A. and Feldman, J. (1972). On the synthesis of

ﬁnite-state machines from samples of their behavior.

Computers, IEEE Transactions on, C-21(6):592–597.

Chaabouni, N., Mosbah, M., Zemmari, A., Sauvignac, C.,

and Faruki, P. (2019). Network intrusion detection for

iot security based on learning techniques. IEEE Com-

munications Surveys Tutorials, 21(3):2671–2701.

Cimatti, A., Clarke, E., Giunchiglia, E., Giunchiglia, F., Pis-

tore, M., Roveri, M., Sebastiani, R., and Tacchella, A.

(2002). Nusmv 2: An opensource tool for symbolic

model checking. In Brinksma, E. and Larsen, K. G.,

Verifying the Application of Security Measures in IoT Software Systems with Model Learning

359

editors, Computer Aided Veriﬁcation, pages 359–364,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Dwyer, M. B., Avrunin, G. S., and Corbett, J. C. (1999).

Patterns in property speciﬁcations for ﬁnite-state ver-

iﬁcation. In Proceedings of the 1999 International

Conference on Software Engineering (IEEE Cat.

No.99CB37002), pages 411–420.

ENISA (2017). Baseline security recommendations for

iot in the context of critical information infrastruc-

tures, https://www.enisa.europa.eu/publications/base

line-security-recommendations-for-iot, technical re-

port.

ETSI (2015). Methods for testing & speciﬁcation; risk-

based security assessment and testing methodologies,

https://www.etsi.org/, technical report.

Ge, M., Hong, J. B., Guttmann, W., and Kim, D. S. (2017).

A framework for automating security analysis of the

internet of things. Journal of Network and Computer

Applications, 83:12 – 27.

Groz, R., Li, K., Petrenko, A., and Shahbaz, M. (2008).

Modular system veriﬁcation by inference, testing and

reachability analysis. In Suzuki, K., Higashino, T.,

Ulrich, A., and Hasegawa, T., editors, Testing of Soft-

ware and Communicating Systems, pages 216–233,

Berlin, Heidelberg. Springer Berlin Heidelberg.

Gutirrez-Madro ˜nal, L., La Blunda, L., Wagner, M. F., and

Medina-Bulo, I. (2019). Test event generation for

a fall-detection iot system. IEEE Internet of Things

Journal, 6(4):6642–6651.

Holzmann, G. (2011). The SPIN Model Checker: Primer

and Reference Manual. Addison-Wesley Professional,

1st edition.

Khan, M. A. and Salah, K. (2018). Iot security: Review,

blockchain solutions, and open challenges. Future

Generation Computer Systems, 82:395 – 411.

Lally, G. and Sgandurra, D. (2018). Towards a framework

for testing the security of iot devices consistently. In

Saracino, A. and Mori, P., editors, Emerging Tech-

nologies for Authorization and Authentication, pages

88–102, Cham. Springer International Publishing.

Maksymyuk, T., Dumych, S., Brych, M., Satria, D., and Jo,

M. (2017). An iot based monitoring framework for

software deﬁned 5g mobile networks. In Proceedings

of the 11th International Conference on Ubiquitous

Information Management and Communication, IM-

COM17, New York, NY, USA. Association for Com-

puting Machinery.

Mariani, L. and Pastore, F. (2008). Automated identiﬁcation

of failure causes in system logs. In Software Reliabil-

ity Engineering, 2008. ISSRE 2008. 19th International

Symposium on, pages 117–126.

Matheu Garcia, S. N., Hernndez-Ramos, J., and Skarmeta,

A. (2019). Toward a cybersecurity certiﬁcation frame-

work for the internet of things. IEEE Security & Pri-

vacy, 17:66–76.

Matheu-Garc

ıa, S. N., Ramos, J. L. H., G

omez-Skarmeta,

A. F., and Baldini, G. (2019). Risk-based automated

assessment and testing for the cybersecurity certiﬁca-

tion and labelling of iot devices. Computer Standards

& Interfaces, 62:64–83.

Mohsin, M., Anwar, Z., Husari, G., Al-Shaer, E., and Rah-

man, M. A. (2016). Iotsat: A formal framework for

security analysis of the internet of things (iot). In

2016 IEEE Conference on Communications and Net-

work Security (CNS), pages 180–188.

Nadir, I., Ahmad, Z., Mahmood, H., Shah, G., Shahzad, F.,

Mujahid, M., Khan, H., and Gulzar, U. (2019). An au-

diting framework for vulnerability analysis of iot sys-

tem. pages 39–47.

NIST (2018). Framework for improving critical infrastruc-

ture cybersecurity, version 1.1, https://doi.org/10.6028

OWASP (2003). Owasp testing guide v3.0 project,

http://www.owasp.org/index.php/category:

owasp testing project#owasp testing guide v3.

Petrenko, A. and Avellaneda, F. (2019). Learning commu-

nicating state machines. In Tests and Proofs - 13th

International Conference, TAP 2019, Held as Part of

the Third World Congress on Formal Methods 2019,

Porto, Portugal, October 9-11, 2019, Proceedings,

pages 112–128.

”Red-Hat-Software” (2020). The business rule management

system drools, https://www.drools.org/, march 2020.

Salva, S. and Blot, E. (2019). Reverse engineering be-

havioural models of iot devices. In 31st International

Conference on Software Engineering & Knowledge

Engineering (SEKE), Lisbon, Portugal.

Salva, S. and Blot, E. (2020a). Cktail: Model learning

of communicating systems. In Proceedings of the

15th International Conference on Evaluation of Novel

Approaches to Software Engineering, ENASE 2020,

Prague, CZECH REPUBLIC, May 5-6, 2020.

Salva, S. and Blot, E. (2020b). Verifying the application of

security measures in iot software systems with model

learning, companion site. (Date last accessed march

2020).

Siby, S., Maiti, R. R., and Tippenhauer, N. O. (2017).

Iotscanner: Detecting and classifying privacy threats

in iot neighborhoods. CoRR, abs/1701.05007.

Tappler, M., Aichernig, B. K., and Bloem, R. (2017).

Model-based testing iot communication via active au-

tomata learning. In 2017 IEEE International Confer-

ence on Software Testing, Veriﬁcation and Validation

(ICST), pages 276–287.

Wilson, J., Wahby, R., Corrigan-Gibbs, H., Boneh, D.,

Levis, P., and Winstein, K. (2017). Trust but verify:

Auditing the secure internet of things. pages 464–474.

Zhang, Z.-K., Cho, M. C. Y., and Shieh, S. (2015). Emerg-

ing security threats and countermeasures in iot. In

Proceedings of the 10th ACM Symposium on Informa-

tion, Computer and Communications Security, ASIA

CCS15, pages 1–6, New York, NY, USA. Association

for Computing Machinery.

ICSOFT 2020 - 15th International Conference on Software Technologies

360
